Tangible Interaction for Simple 3D Interaction Tasks:

Comparing Device-In-Hand and Hand-In-Device Scenarios

Mirjam Augstein

, Thomas Neumayr

, Stephan Vrecer

, Werner Kurschl

and Josef Altmann

Communication and Knowledge Media, University of Applied Sciences Upper Austria, Hagenberg, Austria

Research & Development, University of Applied Sciences Upper Austria, Hagenberg, Austria

Human-Centered Computing, University of Applied Sciences Upper Austria, Hagenberg, Austria

Keywords:

Tangible Interaction, Device-in-Hand Interaction, Hand-in-Device Interaction, Interaction Directions.

Abstract:

Although recently, touch-based input with a reduced amount of haptic guidance gained popularity, traditional

tangible input devices like mice or joysticks are still indispensable of everyday human-computer interaction.

Most traditional tangible devices are implemented in so-called device-in-hand settings. There, the user’s hand

grabs the device and the device-hand system is then moved to trigger an input activity. Thus, the user’s

hand posture usually stays relatively stable. Hand-in-device approaches are an alternative form of tangible

interaction settings where the user’s hand moves within a tangible device. Such a setting differs considerably

as i) the user’s hand posture is more ﬂexible, and ii) the device itself is stable while the interacting hand moves.

This paper describes a comparative study on users’ interaction performance with device-in-hand and hand-in-

device settings for simple 3D interaction tasks. Further, it contributes to the body of knowledge on favourable

interaction directions (left or right).

1 INTRODUCTION

Most traditional input devices like mice or joysticks

strongly rely on a haptic experience during the inte-

raction process. Throughout the past years, the advent

of current smart phone and tablet technology brought

about a sharp increase in the usage of touch screen

interfaces that resulted in ever less haptics involved

in the interaction process. Most such devices do not

(any more) provide physical buttons or other tangible

hardware elements (other than the touch screen itself).

A lot of effort was recently taken to re-introduce

a haptic experience for touch screen interfaces (see,

e.g., (Ciesla et al., 2013; Kincaid, 2012; Bau et al.,

2010) for work on tactile touch screens and haptic

guidance for touch screens). Guidance through hap-

tics is especially important when interactive systems

should be well controllable without permanent visual

observation. This is most relevant in automotive or

industrial sectors but also for traditional, physically

split interactive settings (such as a mouse-monitor

combination) where the user’s eyes usually rest on

the screen most of the time and the mouse handling

is controlled via the visual output (e.g., the mouse

cursor’s movement on the screen) only. For every-

day human-computer interaction settings, particularly

those aside from embedded input/visualization sys-

tems like most touch screens that generally allow for a

more direct way of interaction, tangible input devices

are still indispensable.

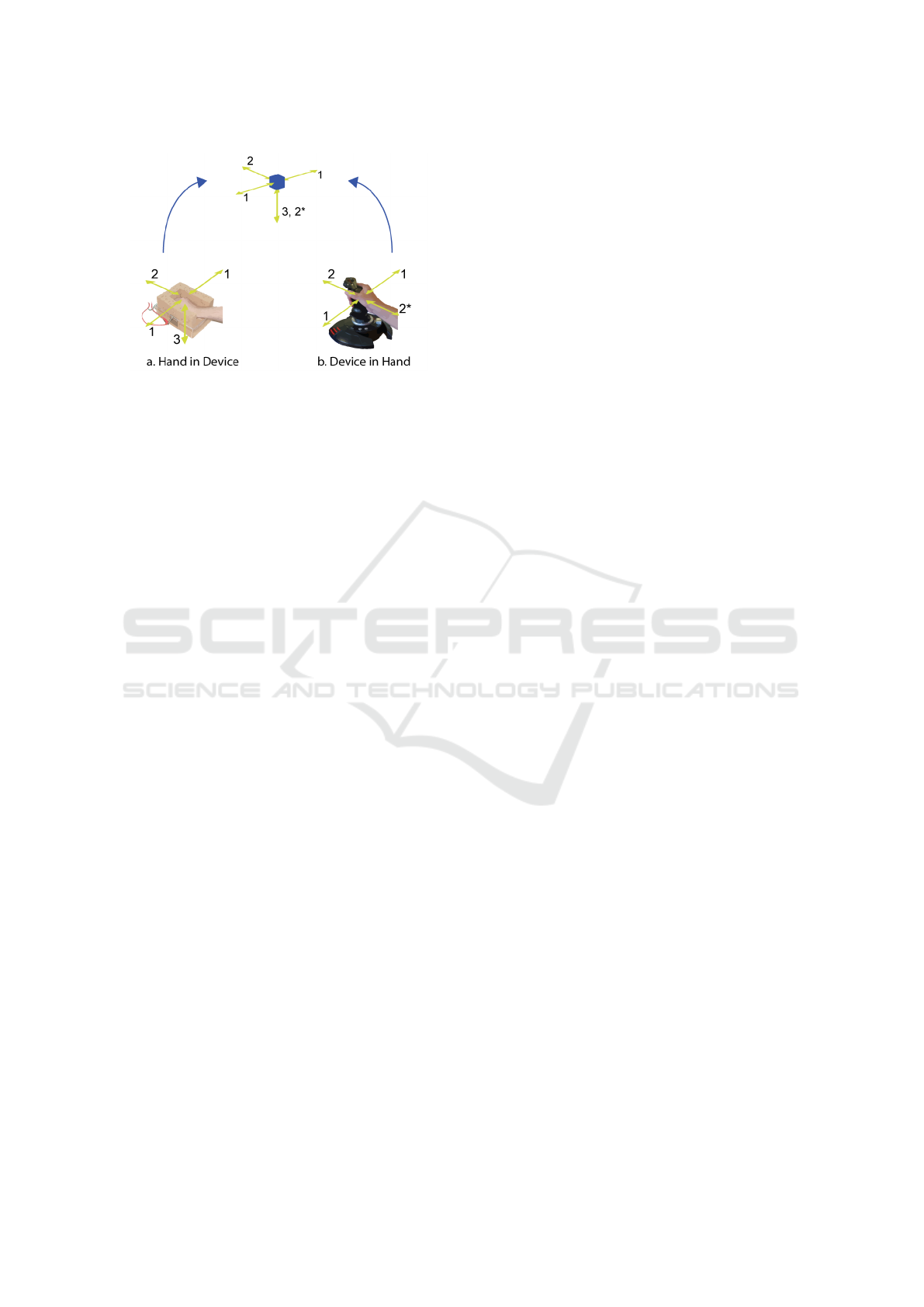

The focus of this paper lies on tangible interaction

for simple 3D interaction tasks. By tangible inte-

raction we understand interaction that relies on a

permanent physical contact between the user’s inte-

racting hand and the input device. This kind of scena-

rio is most common, e.g., in the gaming sector or for

the operation of control panels in the industrial area.

For both, precision and thus also guidance is decisive.

The most popular form of tangible input devices is

the one of a device held in the user’s interacting hand

(e.g., mice or joysticks). In this paper we will refer

to such settings as Device-In-Hand (DIH) scenarios,

whereas in so-called Hand-In-Device (HID) settings,

the user’s interacting hand is moved within the de-

vice (which also deﬁnes physical boundaries) while

the hand posture itself is ﬂexible.

Both types of settings involve advantages. In DIH

settings, we expect the user to be better able to con-

trol the input process as most related devices offer a

high hand-device stability. In HID settings, the user

is provided with a higher ﬂexibility and can choose

the own hand posture according to individual prere-

Augstein, M., Neumayr, T., Vrecer, S., Kurschl, W. and Altmann, J.

Tangible Interaction for Simple 3D Interaction Tasks: Comparing Device-In-Hand and Hand-In-Device Scenarios.

DOI: 10.5220/0006883300230033

In Proceedings of the 2nd International Conference on Computer-Human Interaction Research and Applications (CHIRA 2018), pages 23-33

ISBN: 978-989-758-328-5

quisites. This paper reports a study on users’ inte-

raction performance with representative DIH and HID

input devices. Further, it analyzes differences in per-

formance related to the interaction direction (left or

right, towards or away from the body respectively).

2 RELATED WORK

This section describes related work on DIH and HID

approaches and preferred interaction directions.

2.1 Interaction Approaches

(Shen et al., 2011) distinguish between two forms of

interaction that are possible with hands: i) device-

assisted hand interaction and ii) bare-hand interaction.

In some aspects, this distinction is similar to ours. For

HID and bare-hand interaction the user’s interacting

hand does not grab and hold on to a physical device

and the hand posture is ﬂexible. Regarding device-

assisted and DIH interaction, both involve permanent

physical contact between the user’s hand and a de-

vice. However, the deﬁnitions differ in other aspects,

the most important being that we focus on tangible

HID interaction which involves permanent physical

contact between user and device and thus also haptic

guidance. The latter is an aspect that is usually mis-

sing with touchless input (although there have alre-

ady been endeavours to re-introduce haptic feedback

for touchless settings, see e.g., (Pfeiffer et al., 2014;

Carter et al., 2013)).

In general, lots of work can be found related to

DIH interaction for 3D navigation tasks. In most ca-

ses these approaches use 3D mice. We picked out a

few we consider most relevant within the scope of

this paper and describe them as follows. (Stannus

et al., 2011) compared touchless gestural interaction

to two DIH interaction techniques for navigation tasks

in Google Earth. For DIH interaction they used a 3D

mouse

and a conventional mouse. More recently, a

similar study was conducted by (Tscharn et al., 2016),

who also analyzed users’ performance at 3D naviga-

tion tasks with SpaceNavigator (a DIH input device)

and the Leap motion controller (for bare-hand input).

In both cases the task-based study design, the inte-

raction tasks (of varying complexity) and the metrics

analyzed (e.g., their accuracy closely matches our re-

gularity) are similar to ours.

In addition to the parallels between HID and tou-

chless interaction with the Leap motion controller,

there are many similarities between the DIH device

The concrete model is not named in their paper.

used by our study and the ones of (Stannus et al.,

2011; Tscharn et al., 2016). SpaceNavigator as well

as the joystick we use (a Thrustmaster T.Flight X) are

devices that are held in hand (i.e., grabbed once and

then held on to during the further process). Additio-

nally, the physical appearance of SpaceNavigator re-

minds of a small joystick and both e.g., use push/pull

activities for forwards/backwards movement. They

differ in some other aspects like movement range of

the physical device or number of supported DoF.

A different comparison of DIH to bare-hand in-air

interaction is described by (Dangeti et al., 2016) who

focus on navigation of 3D objects in modeling envi-

ronments. They propose a prototype utilizing Micro-

soft Kinect for gesture recognition and an iPhone or

Playdoh/Lego augmented with an accelerometer as a

tangible solution. While their work is still prelimi-

nary, the scope of interest is similar to ours.

Tangible HID is less popular than tangible DIH

interaction as most common HID approaches use tou-

chless input. Yet, (Sato et al., 2012) discuss novel

application areas for capacitive sensing capabilities,

amongst them a ﬁsh tank ﬁlled with water. Although

the research aims of (Sato et al., 2012) are not directly

related to ours, their approach is highly interesting for

us as their interactive water tank constitutes a HID ap-

proach according to our deﬁnition. There is a perma-

nent physical contact between user and “device” and

resistance provided by the water. Further, the tank

borders physically limit the interaction space.

A related study of (Augstein et al., 2018) compa-

red a tangible HID approach to touchless input (wit-

hout provision of physical borders, thus not a HID set-

ting according to our deﬁnition) and an input techni-

que that can be classiﬁed as somewhere in between

tangible HID and fully touchless input without physi-

cal constraints: it uses physical boundaries in form of

a box and touchless input (however also allowing for

the walls of the box to be touched, interpreting also

the amount of pressure). The study used SpongeBox,

the device that is also used for the study described in

this paper as an example for HID (see Section 3.2), the

Leap motion controller for touchless input and anot-

her device prototype called SquareSense for the third

kind of interaction just explained.

Although the methods for gathering data related

to users’ interaction performance are similar compa-

red to what is described in this paper (see Section 4),

the study of (Augstein et al., 2018) differed drasti-

cally regarding its research questions. It was intended

to compare interaction with three devices involving a

different amount of haptics along several interaction

performance but also User Experience criteria.

CHIRA 2018 - 2nd International Conference on Computer-Human Interaction Research and Applications

2.2 Favorable Hand-Arm Movements

Prior work in the ﬁeld of ergonomics and work place

safety dealt with the question which movements of the

hand-arm system are favorable for humans. (Stras-

ser et al., 1989) and (Strasser and M

uller, 1999) con-

ducted experiments throughout a decade using elec-

tromyography to detect strain for different arm mo-

vements on a horizontal plane and found out that an-

gles (to the body plane) of about 30

◦

were optimal

whereas 150

◦

where most suboptimal, i.e., the areas

towards or closer to the body were preferred.

(McDonald et al., 2012) investigated shoulder

muscle demands in horizontal pulling and pushing

activities and found that there is “a potential incre-

ase in intramuscular pressure (IMP) that occurs in ab-

ducted postures”, which is relevant for the interaction

direction right (if the right hand is used).

Further, according to (Rinck and Becker, 2007),

humans consider a movement of the arm away from

the body an action of avoidance (i.e., unpleasant) and

a movement towards the body an action of approach

(i.e., pleasant). These ﬁndings are also backed by our

results. Especially for complex tasks, the interaction

in the direction left worked signiﬁcantly better than

right for right-handed users.

3 INPUT TECHNIQUES

This section describes the input techniques and de-

vices used for the study reported in this paper. The

3D interaction tasks users had to perform during the

study (see Section 4), the interaction space, user inter-

face and reactivity of the digital object moved in this

space were almost

identical for both settings in order

to allow for comparison. Also, we conﬁgured the two

input devices we used to both function as isometric

input devices (i.e., input devices that connect the hu-

man limb and the device through force (Zhai, 2008)).

The input methods however are fundamentally diffe-

rent regarding the interplay of the user’s hand and the

device. The most important difference can be seen

in stability (DIH) vs. ﬂexibility (HID) regarding the

hand-device system.

During DIH interaction, the user’s hand grabs the

device and holds on to it during interaction. This

can lead to better controllability and the hand-device

posture usually remains unchanged (if an input acti-

vity requires movement, e.g., for a navigation task,

the hand-device system is moved altogether). Du-

ring HID interaction, the device is steady while the

There is one exception we could not avoid due to the

nature of the devices which is explained in Section 4.

user’s hand moves. Thus, the hand-device posture

constantly changes (but without losing physical con-

tact). This can decrease controllability but it allows

for more freedom regarding the hand posture itself,

which is especially beneﬁcial when the hand’s mo-

bility is limited. The participants of our study had no

known motor impairments, however we plan a second

study with people with motor impairments (as discus-

sed later) and expect substantial differences between

the two groups.

3.1 DIH Interaction with a Joystick

A typical example for a DIH setting is interaction

using a joystick. A joystick is usually grabbed once

and then held in the hand during the interaction wit-

hout major changes of hand-device posture. Many

joysticks directly support this stability by their phy-

sical appearance. For instance, the Thrustmaster

T.Flight Stick X USB we used for our study is desig-

ned according to the physiology of the human hand

and provides a wide hand rest which prevents slip-

ping.

Figure 1 shows a pre-test user while getting fa-

miliar with the device. In general, most commerci-

ally available joysticks enable two or three Degrees

of Freedom (DoF). The joystick we used in the study

supports movement along three axes. Two axes are

operable by pressing the stick forward, back, to the

left and to the right while movement along the the z-

axis can be done by stick rotation. For reasons of bet-

ter comparability regarding the input process, we used

a slightly different conﬁguration during the study (re-

lying on movement forwards, back, left and right), as

explained in Section 4. Further, the joystick was con-

ﬁgured to require force application instead of just mo-

vement (thus constituting an isometric device).

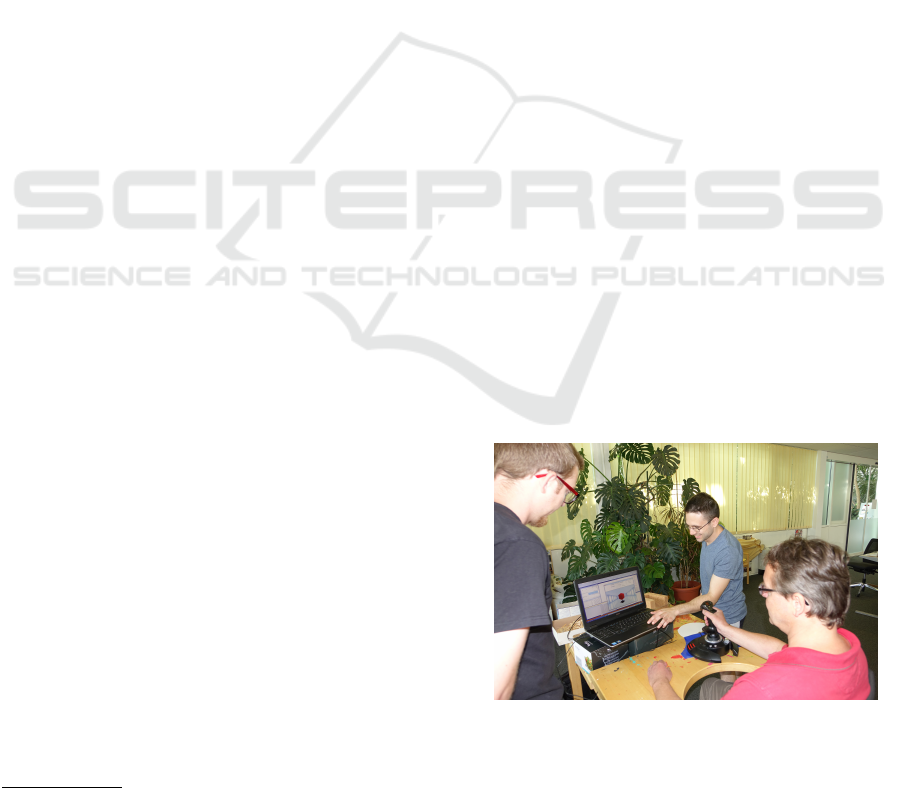

Figure 1: User interacting DIH, using a joystick.

Tangible Interaction for Simple 3D Interaction Tasks: Comparing Device-In-Hand and Hand-In-Device Scenarios

3.2 HID Interaction with SpongeBox

While DIH interaction is widely used, HID input is

less popular, at least for a larger target group and for

tangible settings. As described earlier, there are some

parallels between HID and touchless interaction (e.g.,

ﬂexible hand movement while the device remains sta-

ble) but also differences, the most important being

that tangible HID settings provide permanent physical

contact and borders during the interaction process.

Thus, a user is not able to leave the device’s phy-

sical interaction space (i.e., the space sensitive to user

input). Further, a user receives direct or indirect hap-

tic feedback and guidance (e.g., via the physical resis-

tance of the device that needs to be overcome to trig-

ger an action). While HID settings might cause users

to feel less in control of the process, compared to DIH

interaction, they offer other potentials like e.g., rea-

ching additional target groups due to the hand-device

posture which can be individualized easier (e.g., for

users who have difﬁculties grabbing a device but also

for users who prefer an alternative hand posture for

other reasons).

For our study, we used the SpongeBox device pro-

totype (Augstein et al., 2017a), which has been de-

veloped speciﬁcally for comparative studies on tan-

gible interaction. As mentioned earlier, it has e.g.,

been used for a comparative study on input devices

that provide a different amount of haptics.

SpongeBox is a box with open upper and back

walls while the left, right, front and bottom walls are

covered with sponges. The user interacts by placing

the hand inside the box (see Figure 2) and pressing it

slightly against the sponges. The hand posture is thus

ﬂexible, a user can freely choose to, e.g., make a ﬁst

or keep the hand open.

Technologically, SpongeBox consists of an Ar-

duino Uno and several pressure sensors placed under

the sponges. It supports the interaction directions left,

right, forward, back, down and up, and three DoF (the

directions back and up are restricted to moving back

to the initial position after having moved forward or

down, due to missing upper and back walls, which

was intended, however. A back wall would make it

impossible to place the hand comfortably inside the

box and an upper wall would inhibit occasional visual

control of the interacting hand.

4 TASKS AND METRICS

Our study focuses on simple 3D interaction tasks

and considers three basic metrics indicative of perfor-

mance at these tasks. We rely on tasks and metrics

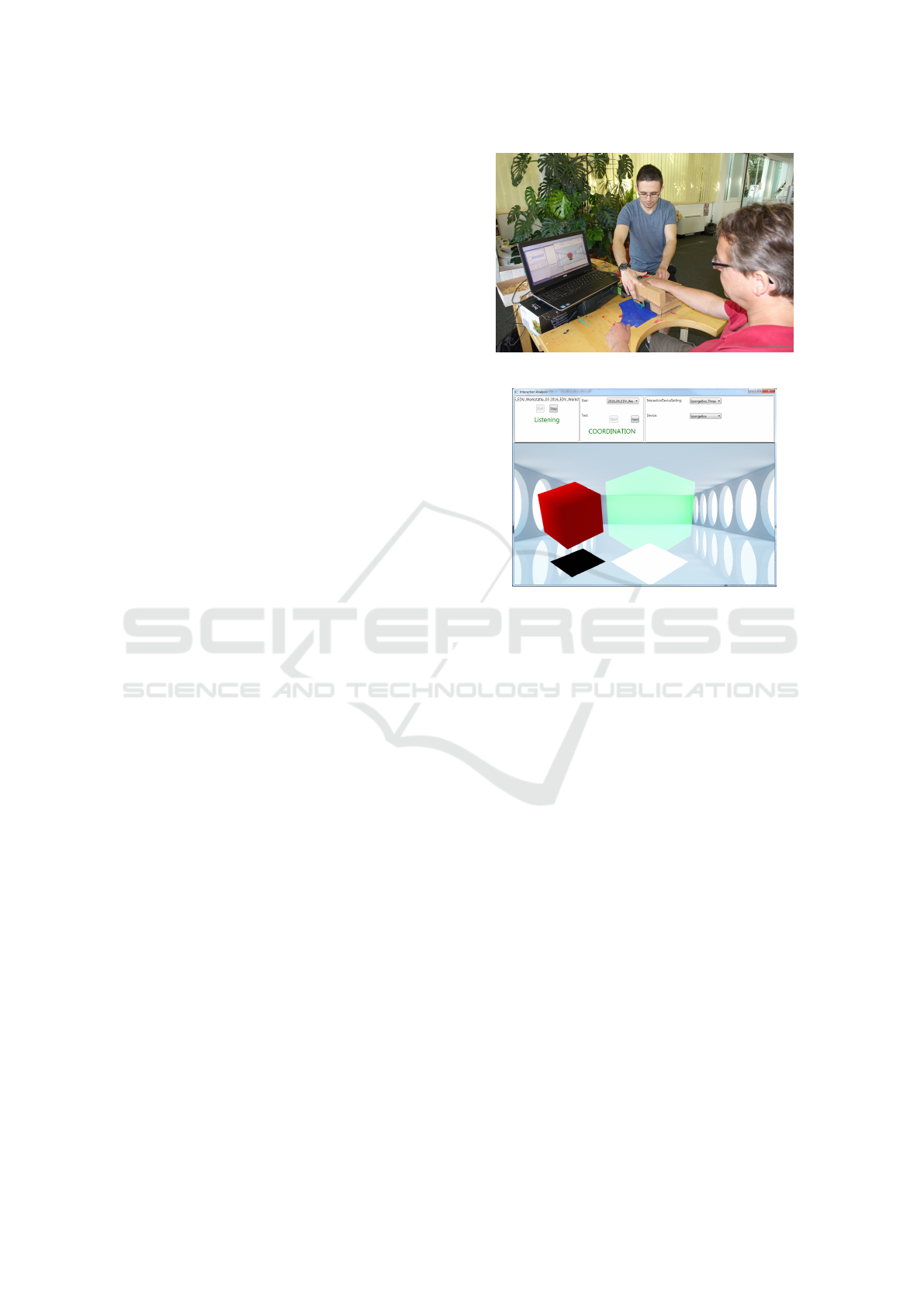

Figure 2: User interacting HID, using SpongeBox.

Figure 3: Visualization users see during the tests (Augstein

et al., 2018) (the red cube is the user’s “cursor” in the in-

teraction space, the green cube is used to indicate target

areas).

that have been tested earlier in a similar-procedure

but different-purpose study on the effect of haptics

on interaction performance and user experience (see

a more detailed general description of the metrics in

(Augstein et al., 2018)).

To be able to compute concrete values for the me-

trics, the participants of our study performed identical

so-called “interaction tests” with both settings. First,

users see a UI with a predeﬁned 3D interaction space

and an interactive digital object acting as their “cur-

sor” visualized as the red cube depicted in Figure 3.

The interactive object can be moved along two dimen-

sions and in several directions, starting from the initial

position in the center of the space.

The setting in our study allows for movement of

the interactive object in the directions left (and back

to the initial position), right (and back to the initial po-

sition), forward (and back to the initial position) and

down (and back up to the initial position). Some tasks

require a user to perform simple, one-directional mo-

vements while others require a user to perform more

complex movements involving several directions and

dimensions.

Figure 4 shows the two input settings HID (a.)

and DIH (b.) and the DoF as relevant for the study.

CHIRA 2018 - 2nd International Conference on Computer-Human Interaction Research and Applications

Figure 4: Input devices and methods and the two to three

DoF used by the interaction tasks during the study.

Further, the ﬁgure shows the effects of input activities

with the two settings on the interactive object (upper

part of the ﬁgure). E.g., the horizontal movement be-

tween left and right is denoted as the ﬁrst DoF in the

ﬁgure and both, moving the hand within the Sponge-

Box device to the left or right, and moving the joystick

to the left or right will result in a position change of

the digital object (moving it to the left or right).

Regarding the second DoF, moving the

hand/joystick forward and back to the start po-

sition will cause the digital object to move forward

in the interaction space and back to the start position.

These movements are well comparable among the

settings and cause identical effects regarding the

change in the digital space.

The down-movement of the interactive digital ob-

ject is however triggered differently with the two set-

tings due to the nature of the devices. The related

results are thus not as well comparable as the rest and

will only be reported for purposes of completeness in

Section 5.4. With the HID setting, the user’s physi-

cal activity (pressing down) results in the matching

reaction in the digital environment (the cube moves

down). With the DIH setting this was not possible as

the z-axis is addressed by rotation of the stick. This is

a common solution with joysticks, however it differs

signiﬁcantly from the input activity that addresses the

z-axis with the HID setting.

In order not to introduce a completely different in-

put activity (rotation) to trigger the down-movement,

we decided to implement it by moving the joystick

backwards (from the default position) and then for-

wards to reach the start position again.

The following sections describe in more detail the

concrete 3D interaction tasks the study participants

were asked to do and the related metrics indicative

of interaction performance.

4.1 Reach

The ﬁrst task requires a user to move the interactive

cube to the personal maximum comfortable position

in the directions left, right, forward and down.

Thus, the related Reach metric describes the maxi-

mum distance to the starting point that can be comfor-

tably reached by a user. The directions are tested se-

parately, each starting from the initial position in the

center of the interaction space. The related metrics

are stored as ReachLeft, ReachRight, ReachForward

and ReachDown. In addition to the individual values

for the relevant directions we compute an aggregated

Reach result which averages over all directions.

The metric was chosen because the mobility as

well as strength of a user’s dominant hand and com-

fort during movement are highly individual. They

could be signiﬁcantly reduced for people with motor

impairments but also differ due to personal preferen-

ces. We however expect the results to be similarly

good for all participants here (all without known im-

pairments).

At the HID setting, users are required to press the

hand against the sponges in all directions to move the

cube in the respective direction. At the DIH setting,

the joystick has to be moved forwards, left, right and

back (for the down movement of the interactive ob-

ject), to the respective personal maximum comforta-

ble position. The joystick we used for the study can

be conﬁgured regarding its physical resistance which

is why we did a thorough pre-test before the actual

user study to ﬁnd a conﬁguration where resistance

is neither perceived as too high (i.e., physically de-

manding) nor as too low (i.e., prone to unintended in-

teraction). Likewise we also calibrated SpongeBox

regarding the amount of physical pressure needed to

trigger an input activity and device reactivity. Thus

for the study, the amount of physical effort demanded

by the tasks was about equal for both settings.

The values for Reach are stored in percent of the

system’s global maximum (the interactive cube can-

not be moved out of the interaction space, if it has

reached the maximum position, the related Reach is

100% and the object stops there). The task is similar

to others used for related studies (e.g., the one des-

cribed in (Tscharn et al., 2016)) comparing different

interaction settings.

4.2 Regularity

The logs of the Reach tasks are used to compute an

additional metric called Regularity. Regularity des-

cribes how straight and direct a user’s path is bet-

ween start and end point. Regularity is again stored

Tangible Interaction for Simple 3D Interaction Tasks: Comparing Device-In-Hand and Hand-In-Device Scenarios

for all interaction directions: RegularityLeft, Regu-

larityRight, RegularityForward, RegularityDown and

Regularity (i.e., an aggregated value averaging over

these directions).

To compute the results, the system analyzes de-

viations from the straight-most path between initial

position and the user’s maximum position in each di-

rection. The metric is again measured in percent; a

straight path would result in a Regularity of 100%.

The path is analyzed at every time stamp between ini-

tial and end position, the deviation from the straight

path is then averaged over all time stamps and sub-

tracted from an initial value of 100%.

4.3 ContinuousRegularity

The ContinuousRegularity task, which shares some

similarities with the “rotation navigation task” of

(Tscharn et al., 2016), requires the user to follow a

green target cube (as depicted in Figure 3) over a path

that reaches all relevant areas of the 3D interaction

space and that includes movement in all directions

described earlier. The path starts at the initial posi-

tion in the center of the interaction space.

ContinuousRegularity measures how straight and

interruption-free a complex path (covering several di-

mensions and directions) is. The computation mat-

ches the one of Regularity algorithmically. However

here, the user is required to perform a continuous mo-

vement that covers all relevant directions whereas Re-

gularity is tested for every direction individually (with

a break between the tests for the individual directi-

ons).

Based on the ContinuousRegularity task, we

compute the following metrics: ContinuousRegula-

rity which is an aggregated result for the related

task, ContinuousRegularityLeftDown, Continuous-

RegularityLeftForward, ContinuousRegularityRight-

Down, ContinuousRegularityRightForward, Continu-

ousRegularityLeft (which aggregates the metrics that

involve the direction left) and ContinuousRegularity-

Right (which aggregates the metrics involving right).

The latter two metrics are stored individually to be

better able to analyze preferred interaction directions

(as also targeted by our hypothesis H5, see Section

5.1). We did not compare the directions forward and

down as these are not fully comparable due to diffe-

ring input activities, as explained earlier and depicted

in Figure 4.

All metrics just described focus on the “quality”

of a user’s interaction related to simple 3D interaction

tasks. To gain additional information we however also

measured an average time needed for each task with

the HID and DIH settings but did not ﬁnd any notable

differences which is why we do not report it in detail

in Section 5.4.

5 USER STUDY

This section describes research questions, methodo-

logy, participants and results of our comparative user

study on HID and DIH settings. As described above,

we conducted a pre-test before the actual study in or-

der to conﬁgure the devices and ensure comparability.

5.1 Research Questions

The user study aimed at analyzing two aspects rela-

ted to i) the users’ interaction performance with DIH

vs. HID interaction settings and ii) the user’s better-

performing interaction direction (left or right). The

ﬁrst aspect contributes to better understanding tangi-

ble interaction and related supporting and inhibiting

factors, the second aspect contributes to better under-

standing users’ non-individual interaction prerequisi-

tes and preferences.

Accordingly, we formulated hypotheses in order

to investigate the aforementioned aspects of our rese-

arch questions. They are listed below, followed by a

discussion of how we arrived at them.

• H1: We expect users’ Reach to be about equal

with DIH and HID interaction.

• H2: We expect users’ Reach to be high (≥ 95%)

for both settings and for all directions.

• H3: We expect users’ Regularity to be better with

the DIH interaction as we believe controllability

to be higher being able to grab the device, holding

on to it.

• H4: We expect users’ ContinuousRegularity to be

better with DIH interaction, again for reasons of

better controllability holding on to the device.

• H5: We expect users to be better able to control

their movement in the direction towards the body

than away from the body (in our study, all partici-

pants were right-handed and used their dominant

hand, thus the direction left is towards the body

while right is away from the body for all users).

Regarding H1 and H2, we believe that for users wit-

hout motor impairments (such as the participants of

our study), the interaction space used for the study

is well coverable. We did include the related metrics

even if we do not expect signiﬁcant insights here as

we plan to do a subsequent analysis with people with

motor impairments and aim at comparing the results.

CHIRA 2018 - 2nd International Conference on Computer-Human Interaction Research and Applications

Regarding H3 and H4 we believe that the sta-

ble hand-device posture and related better control-

lability leads to better regularity performance for

both, single-direction tasks (Regularity) and continu-

ous movement tasks (ContinuousRegularity).

Regarding H5, we found two interesting aspects

in related literature that led to this hypothesis. First,

(Rinck and Becker, 2007), e.g., describe a movement

of an arm away from oneself as an action of “avoi-

dance” (pushing unpleasant objects away) and a mo-

vement towards the body as an action of “appro-

ach” (pulling pleasant objects closer). Second, (Stras-

ser and M

uller, 1999) analyzed favorable movements

of the hand-arm system (physiologically assessed by

electromyographic investigation and subjectively ra-

ted by the participants in addition). They found out

that the participants (who had to handle light weig-

hts) could perform a movement towards the body best

while it was more uncomfortable the further it got

away from the body. These ﬁndings are also conﬁr-

med by (McDonald et al., 2012) who analyzed muscle

demands in horizontal pushing (away from the body)

and pulling (towards the body).

5.2 Procedure and Methodology

The study followed a within-subjects design and took

place in a controlled lab setting. The participants did

all tasks described earlier with both settings. We used

a counterbalanced order in which the settings were

presented to the participants to prevent a bias related

to practicing effects. Further, participants could try

the devices and their handling as long as they wis-

hed so that the actual tests did not start before users

felt ready. Also, all participants received a short in-

troduction by a test supervisor who explained to them

the input devices and techniques. The test supervisor

was present during the full duration of the tests to be

able to help in case of technical problems, to switch

between the tasks and set up the input devices for the

users. The results of the tests were automatically re-

corded and analyzed using the framework described

in (Augstein et al., 2017b).

5.3 Participants

We recruited 24 volunteers aged between 20 and 49

(M=26.75, SD=8.38), 14 female. None of the parti-

cipants had previous experiences with the interaction

tasks or the concrete devices used (although some had

generally used a joystick before). They were recruited

via email as well as direct invitations. All were uni-

versity students or staff and generally had high media

skills related to input techniques and devices.

5.4 Results

This section discusses the results of the study based

on the metrics related to Reach, Regularity, and Con-

tinuousRegularity. The results for the metrics for all

directions are listed in Table 1; Table 2 shows the

aggregated results. To statistically analyze the re-

spective difference between the HID and DIH set-

tings, we conducted a T-Test on related samples (see

Tables 1 and 2). The T-Test assumes data to be nor-

mally distributed which is violated by a small sub-

set of our metrics. Thus we additionally conducted a

Wilcoxon test for two related samples which does not

presume normal distribution. It conﬁrmed the results

of the T-Test in all cases and suggested statistical sig-

niﬁcance for the same comparisons. As the T-Test is

generally more reliable in the identiﬁcation of statis-

tical signiﬁcance, we report the results of the T-Test

here and used the Wilcoxon results for conﬁrmation.

Additionally, we conducted a comparison of

users’ results with the same setting related to the di-

rections left or right. This comparison was mainly

aimed at the conﬁrmation of hypothesis H5. The re-

sults of this direction-related comparison are reported

in Table 3 where we list the outcome of a T-Test. We

again subsequently conducted a Wilcoxon test which

conﬁrmed all occurrences of statistical signiﬁcance.

5.5 Reach

As expected, the results show little variance for all Re-

ach-related metrics and were about equally high (i.e.,

close to 100%) with HID and DIH interaction. As

described earlier, we believe Reach to be of high rele-

vance especially in cases where users’ hand mobility

is limited. The results conﬁrm that there is no general

barrier limiting the user’s personal interaction space

with any of the settings (which would lower the qua-

lity of user’s interaction with the system and negati-

vely affect also the results for other metrics).

5.6 Regularity

For Regularity we found signiﬁcantly different results

in two cases (see Table 1). Users gained signiﬁcantly

better results for RegularityDown with the DIH (i.e.,

joystick) setting. This ﬁnding is of limited reliability

however, as the direction down is not fully compara-

ble for the two settings as described earlier).

Further, users gained signiﬁcantly better results

for RegularityLeft with the HID (i.e., SpongeBox) set-

ting. For the other comparisons (i.e., RegularityFor-

ward and RegularityRight), the differences were not

statistically signiﬁcant.

Tangible Interaction for Simple 3D Interaction Tasks: Comparing Device-In-Hand and Hand-In-Device Scenarios

Table 1: Metrics and the computed values (all in percent) averaged for the 23 participants. The results are compared for the

hand-in-device and device-in-hand settings. Bold values in the sig column denote statistical signiﬁcance on the 0.05 (*) or

0.001 level (**).

Metric Result T-Test

mean stdev t df sig

ReachDown HID 100.0 0.00

1.282 22 .213

ReachDown DIH 98.55 5.42

ReachForward HID 100.0 0.00

. . .

ReachForward DIH 100.0 0.00

ReachLeft HID 100.0 0.00

1.367 22 .186

ReachLeft DIH 97.83 7.63

ReachRight HID 98.19 4.99

-.463 22 .648

ReachRight DIH 98.19 5.21

RegularityDown HID 53.22 43.21

-2.770 22 .011*

RegularityDown DIH 75.32 20.88

RegularityForward HID 82.11 33.65

1.848 22 .078

RegularityForward DIH 68.33 25.90

RegularityLeft HID 93.64 14.83

3.328 22 .003*

RegularityLeft DIH 73.56 24.51

RegularityRight HID 70.93 35.32

-.167 22 .869

RegularityRight DIH 72.30 26.83

ContinuousRegularityLeftForward HID 81.96 7.56

-2.969 22 .007*

ContinuousRegularityLeftForward DIH 87.14 3.21

ContinuousRegularityLeftDown HID 87.23 5.38

-1.105 22 .281

ContinuousRegularityLeftDown DIH 89.00 5.50

ContinuousRegularityRightForward HID 74.72 5.01

-4.955 22 .000**

ContinuousRegularityRightForward DIH 81.05 4.25

ContinuousRegularityRightDown HID 83.05 12.17

-1.635 22 .116

ContinuousRegularityRightDown DIH 87.69 5.63

Table 2: Aggregated metrics and the computed values (all in percent) averaged for the 23 participants. The results are

compared for the hand-in-device and device-in-hand settings. Bold values in the sig column denote statistical signiﬁcance on

the 0.05 level (*).

Metric Result T-Test

mean stdev t df sig

Reach HID 99.55 .26

.914 22 .370

Reach DIH 98.82 .72

Regularity HID 74.97 21.57

.566 22 .577

Regularity DIH 72.38 18.50

ContinuousRegularityLeft HID 84.59 6.33

-2.309 22 .031*

ContinuousRegularityLeft DIH 88.07 3.49

ContinuousRegularityRight HID 78.88 7.36

-3.203 22 .004*

ContinuousRegularityRight DIH 84.37 3.95

ContinuousRegularity HID 81.74 6.66

-2.897 22 .008*

ContinuousRegularity DIH 86.22 3.39

CHIRA 2018 - 2nd International Conference on Computer-Human Interaction Research and Applications

Table 3: Comparison between the interaction directions left and right including all relevant metrics (all values in percent).

The results are listed for the hand-in-device and device-in-hand settings. Bold values in the sig column denote statistical

signiﬁcance on the 0.05 (*) or 0.001 level (**).

Metric Result T-Test

mean stdev t df sig

ReachLeft HID 100.0 .00

1.738 22 .096

ReachRight HID 98.19 5.00

ReachLeft DIH 97.83 7.63

-1.367 22 .186

ReachRight DIH 98.91 5.21

RegularityLeft HID 93.64 14.83

3.101 22 .005*

RegularityRight HID 70.93 35.32

RegularityLeft DIH 73.56 24.51

.200 22 .844

RegularityRight DIH 72.30 26.83

ContinuousRegularityLeftForward HID 81.96 7.56

5.626 22 .000**

ContinuousRegularityRightForward HID 74.72 5.01

ContinuousRegularityLeftForward DIH 87.14 3.21

6.069 22 .000**

ContinuousRegularityRightForward DIH 81.05 4.25

ContinuousRegularityLeftDown HID 87.23 5.38

2.516 22 .02*

ContinuousRegularityRightDown HID 83.05 12.17

ContinuousRegularityLeftDown DIH 89.00 5.50

2.580 22 .017*

ContinuousRegularityRightDown DIH 87.69 5.63

ContinuousRegularityLeft HID 84.59 6.33

8.241 22 .000**

ContinuousRegularityRight HID 78.88 7.36

ContinuousRegularityLeft DIH 88.07 3.49

5.760 22 .000**

ContinuousRegularityRight DIH 84.37 3.95

Regarding the aggregated Regularity metric as re-

ported in Table 2 the differences were not statistically

signiﬁcant which generally was a bit surprising for us

as we had expected users to be better able to control

their movement with the DIH (i.e., joystick) setting.

Regarding the comparison of the interaction directi-

ons left and right, the tests however did reveal signiﬁ-

cantly better results for the direction left with the HID

setting (for the DIH setting the difference was not sig-

niﬁcant), compared to right.

5.7 ContinuousRegularity

Regarding ContinuousRegularity, the results were ge-

nerally more conclusive (see Table 1). We found sig-

niﬁcant differences in the results for the metrics Con-

tinuousRegularityLeftForward and ContinuousRegu-

larityRightForward (for the latter, the differences

were statistically highly signiﬁcant). In both cases the

users performed better with the DIH setting (joystick)

which conﬁrmed our expectations.

The results for ContinuousRegularityLeftDown

and ContinuousRegularityRightDown were not signi-

ﬁcantly different as shown in Table 2 (however, in

this case the comparability is generally limited any-

way due to the strong inﬂuence of the down direction).

Regarding the aggregated results, users gained signi-

ﬁcantly better results with the DIH setting (joystick).

Regarding the interaction directions left and right,

we found statistically different results for all compa-

risons (see Table 3). For ContinuousRegularityLeft-

Forward and ContinuousRegularityRightForward we

found the direction left to be statistically highly signi-

ﬁcantly better than right for both settings. Also for

the comparison of ContinuousRegularityLeftDown

and ContinuousRegularityRightDown left was signi-

ﬁcantly better than right for both settings.

Here, the results are reliable although the direction

down is involved as the device (and thus also input

activity) remained equal within a comparison. The

comparison of the aggregated ContinuousRegularity-

Left and ContinuousRegularityRight results show a

statistically highly signiﬁcant difference for the HID

as well as the DIH settings (with left outperforming

right in all cases).

5.8 Findings Related to the Hypotheses

We summarize the results regarding our hypotheses

as follows. The study conﬁrmed H1 and H2 related

Tangible Interaction for Simple 3D Interaction Tasks: Comparing Device-In-Hand and Hand-In-Device Scenarios

to users’ Reach as the results were not notably diffe-

rent for HID and DIH and about equally high (≥ 95%)

for all interaction directions with both settings. In-

specting the raw data, we found out that for the total

of the users and for all settings and directions, only 8

of 184 (23*2*4) reported values were slightly lower.

H3 had to be rejected as we did not ﬁnd signi-

ﬁcant differences between HID and DIH for Regu-

larity. In fact, we found signiﬁcantly better results

for DIH interaction only for RegularityDown which

is however of limited reliability. Unexpectedly, we

found signiﬁcantly better results with HID interaction

for RegularityLeft, compared to DIH. For the rest of

the comparisons there were no signiﬁcant differences.

We could conﬁrm H4 as all highly reliable results

(i.e., for the comparison of ContinuousRegularityLeft-

Forward and ContinuousRegularityRightForward), as

well as those for the aggregated metrics Continuous-

RegularityLeft, ContinuousRegularityRight and Con-

tinuousRegularity indicated a signiﬁcantly better per-

formance of users with the DIH setting, compared

to the HID setting. The results for ContinuousRegu-

larityLeftDown and ContinuousRegularityRightDown

(which might be biased due to the involvement of the

direction down) were better with the DIH setting as

well for the majority of the users, however the diffe-

rence was not statistically signiﬁcant.

H5 was conﬁrmed as all comparisons except for

the aggregated RegularityLeft metric in the DIH set-

ting, revealed statistically signiﬁcantly or even highly

signiﬁcantly better results for the direction left.

6 DISCUSSION

In this paper we have compared users’ interaction per-

formance with isometric HID and DIH settings for

simple 3D interaction tasks. Besides analyzing diffe-

rences in interaction performance, we aimed at inves-

tigating differences between the interaction directions

left and right for both settings, HID and DIH.

The study revealed that there are no signiﬁcant

differences between HID and DIH settings regarding

users’ Reach. This might lead to the assumption that

the Reach metric is of limited relevance generally

which we however want to argue against.

As shortly mentioned earlier, we believe that in-

formation about users’ Reach is of utmost importance

as a limited Reach can lead to a barrier that might

inhibit users to be able to interact with predeﬁned set-

tings at all. We thus believe that especially when de-

signing accessible UIs (including input devices and

methods), a user’s Reach should be analyzed and used

to individually conﬁgure the UI in case it is conside-

rably reduced for whatever reason. This was conﬁr-

med also by a user test with a small number of people

with motor impairments we conducted earlier (Aug-

stein et al., 2017a). Except for SpongeBox, this test

used different devices and it was purposed to reveal

insights regarding the importance of haptics for the

target group. Thus the results are not comparable to

those presented in this paper but they generally sug-

gest that Reach differs more considerably among pe-

ople with impairments.

Our study further revealed that regarding Regula-

rity, the differences between HID and DIH settings

were less conclusive than expected. For most related

metrics, the differences between the results with the

two settings were either not statistically signiﬁcant or

even signiﬁcantly better with the HID setting (Regula-

rityLeft). From these ﬁndings we derive that for sim-

ple one-directional interaction tasks users’ Regularity

is less dependent on a stable hand-device posture than

expected.

Regarding ContinuousRegularity where users had

to perform a more complex interaction task cove-

ring several interaction dimensions and directions, the

study has shown that a stable hand-device posture

actually had a positive impact on the users’ perfor-

mance. This was conﬁrmed by the statistically signi-

ﬁcantly better results for all reliable and all aggrega-

ted ContinuousRegularity metrics with the DIH set-

ting. We thus conclude that the positive inﬂuence of

a certain hand-device stability is strongly dependent

on the complexity of the interaction task (increasing

with increasing task complexity).

Regarding the comparison of performance in the

interaction directions left and right we derived our

expectations from related research on favorable mo-

vements due to positive and negative associations as

well as physiological prerequisites.

Literature research led to the assumption that for

right-handed users, left is the better-performing inte-

raction direction. The results of our study conﬁrm

this assumption, especially with increasing task com-

plexity. Similarly, we assume that right is the better-

performing direction for left-hand interaction, which

we however could not conﬁrm as all of our partici-

pants were right-handed and used their dominant hand

for interaction.

Our study did not reveal cases where the HID set-

ting seemed to be generally preferable over the DIH

setting. We found little evidence for actual beneﬁt pe-

ople without known impairment might gain from HID

interaction. Thus we believe that most users without

impairments will prefer DIH over HID.

Limitations of our work reported in this paper are

discussed as follows. First, our ﬁndings are restricted

CHIRA 2018 - 2nd International Conference on Computer-Human Interaction Research and Applications

to relatively simple 3D interaction tasks and to isome-

tric input devices. Our results have shown that task

complexity inﬂuences several relevant aspects of in-

teraction performance, thus for even more complex

tasks (especially involving more DoF), they might be

less reliable. We hence recommend analyzing inte-

raction performance anew in case the ﬁndings should

be generalized to more than three DoF.

Further, as explained earlier, the results related to

the interaction direction down are less reliable due to

the limited comparability of the related input activi-

ties. We reported these results for reasons of comple-

teness in spite of this limitation but recommend re-

lying only on those we suggested as conclusive.

Another limitation is that the interaction directi-

ons up and back were restricted to moving back to the

initial position after having moved forwards or down

in our user study.

Future work could include repeating the study

with a different target group. We believe that the HID

setting bears higher potential for people with limited

hand mobility than for users without motor impair-

ments affecting the interacting hand. Further, we be-

lieve that a similar study with devices offering more

DoF will lead to interesting insights and expect it to

conﬁrm the trend regarding task complexity.

REFERENCES

Augstein, M., Neumayr, T., and Burger, T. (2017a). The

Role of Haptics in User Input for People with Mo-

tor and Cognitive Impairments. In Proceedings of the

2017 AAATE Conference, Shefﬁeld, UK.

Augstein, M., Neumayr, T., Kern, D., Kurschl, W., Alt-

mann, J., and Burger, T. (2017b). An Analysis and

Modeling Framework for Personalized Interaction. In

IUI 2017 Companion: Proceedings of the 22nd In-

ternational Conference on Intelligent User Interfaces,

Limassol, Cyprus.

Augstein, M., Neumayr, T., Vrecer, S., Kurschl, W., and

Altmann, J. (2018). The role of haptics in user input

for simple 3d interaction tasks – an analysis of inte-

raction performance and user experience. In Procee-

dings of the 2nd International Conference on Human

Computer Interaction Theory and Applications, Fun-

chal, Madeira, Portugal.

Bau, O., Poupyrev, I., Israr, A., and Harrison, C. (2010).

Teslatouch: electrovibration for touch surfaces. In

Proceedings of the 23nd annual ACM symposium on

User interface software and technology, pages 283–

292. ACM.

Carter, T., Seah, S. A., Long, B., Drinkwater, B., and Subra-

mania, S. (2013). Ultra haptics: Multi-point mid-air

haptic feedback for touch surfacces. In Proceedings

of the 26th Annual ACM Symposium on User Inter-

face Software and Technology, pages 505–514. ACM.

Ciesla, C., Yairi, M., and Saal, N. (2013). User interface

system. US Patent 8,456,438.

Dangeti, S., Chen, Y. V., and Zheng, C. (2016). Compa-

ring bare-hand-in-air gesture and object-in-hand tan-

gible user interaction for navigation of 3d objects in

modeling. In Proceedings of the TEI’16: Tenth In-

ternational Conference on Tangible, Embedded, and

Embodied Interaction, pages 417–421. ACM.

Kincaid, R. (2012). Tactile guides for touch screen con-

trols. In Proceedings of the 26th Annual BCS Inte-

raction Specialist Group Conference on People and

Computers, BCS-HCI ’12, pages 339–344, Swinton,

UK, UK. British Computer Society.

McDonald, A., Picco, B. R., Belbeck, A. L., Chow, A. Y.,

and Dickerson, C. R. (2012). Spatial dependency of

shoulder muscle demands in horizontal pushing and

pulling. Applied ergonomics, 43(6):971–978.

Pfeiffer, M., Schneegass, S., Alt, F., and Rohs, M. (2014).

Let me grab this: A comparison of ems and vibration

for haptic feedback in free-hand interaction. In Pro-

ceedings of the 5th Augmented Human International

Conference. ACM.

Rinck, M. and Becker, E. S. (2007). Approach and avoi-

dance in fear of spiders. Journal of behavior therapy

and experimental psychiatry, 38(2):105–120.

Sato, M., Poupyrev, I., and Harrison, C. (2012). Touch

e: en-

hancing touch interaction on humans, screens, liquids,

and everyday objects. In Proceedings of the SIGCHI

Conference on Human Factors in Computing Systems,

pages 483–492. ACM.

Shen, Y., Ong, S.-K., and Nee, A. Y. (2011). Vision-

based hand interaction in augmented reality environ-

ment. Intl. Journal of Human–Computer Interaction,

27(6):523–544.

Stannus, S., Rolf, D., Lucieer, A., and Chinthammit, W.

(2011). Gestural navigation in google earth. In Pro-

ceedings of the 23rd Australian Computer-Human In-

teraction Conference, pages 269–272. ACM.

Strasser, H., Keller, E., M

uller, K.-W., and Ernst, J. (1989).

Local muscular strain dependent on the direction of

horizontal arm movements. Ergonomics, 32(7):899–

910.

Strasser, H. and M

uller, K.-W. (1999). Favorable mo-

vements of the hand-arm system in the horizontal

plane assessed by electromyographic investigations

and subjective rating. International Journal of Indus-

trial Ergonomics, 23(4):339–347.

Tscharn, R., Schaper, P., Sauerstein, J., Steinke, S., Stiers-

dorfer, S., Scheller, C., and Huynh, H. T. (2016). User

Experience of 3D Map Navigation – Bare-Hand Inte-

raction or Touchable Device? In Mensch und Compu-

ter 2016. GI.

Zhai, S. (2008). Human Performance in Six Degree of Free-

dom Input Control. PhD thesis, University of Toronto.

Tangible Interaction for Simple 3D Interaction Tasks: Comparing Device-In-Hand and Hand-In-Device Scenarios
