An Approach to Use Deep Learning to Automatically Recognize

Team Tactics in Team Ball Games

Friedemann Schwenkreis

Dept. of Business Information Systems, Baden-Wuerttemberg Cooperative State University Stuttgart (DHBW Stuttgart),

Paulinenstr. 50, 70178 Stuttgart, Germany

Keywords: Data Model, Deep Learning, Tactics Recognition, Ball Games, Video Analytics.

Abstract: Deep Learning methods are used successfully in pattern recognition areas like face or voice recognition.

However, the recognition of sequences of images for automatically recognizing tactical movements in team

sports is still an unsolved area. This paper introduces an approach to solve this class of problems by mapping

the sequence problem onto the classical shape recognition problem in case of pictures.

Using team handball as an example, the paper first introduces the underlying data collection approach and a

corresponding data model before introducing the actual mapping onto classical deep learning approaches.

Team handball is just used as an example sport to illustrate the concept, which can be applied to any team ball

game in which coordinated team moves are used.

1 INTRODUCTION

In case of team ball games like football or soccer, two

teams of a certain number of players play against each

other trying to score with a ball. In this paper we

abstract from the details of scoring, i.e. we do not care

whether the ball needs to be put into a goal, or a

basket, or whether it needs to hit the ground in the

opponent’s part of the field.

One of the important features of team ball games

is that they are played on a match field and the

location for each active player can be determined in

terms of two-dimensional coordinates relative to a

specific point of the field (the origin). As an example,

Figure 1 depicts the match field of team handball.

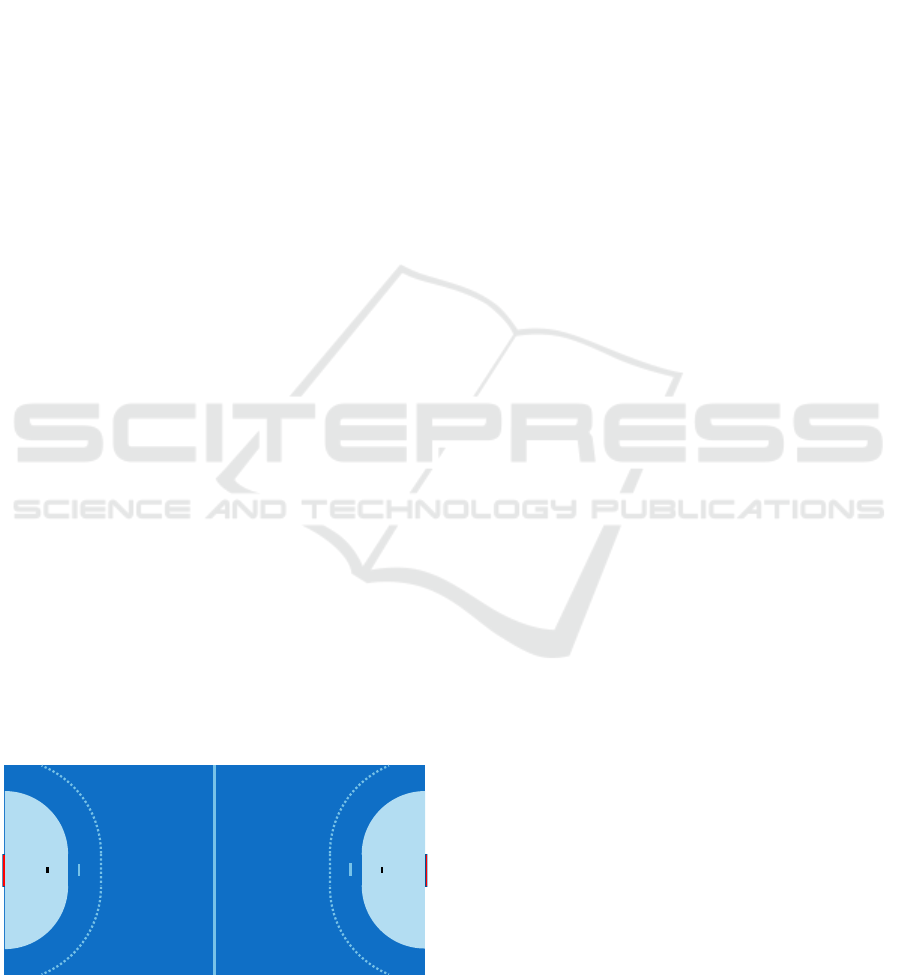

Figure 1: Match field of team handball.

Another important aspect of team ball games is

the coordination of the team players – usually called

team tactics. Sometimes individual and intuitive

decisions of the players dominate the movement of

players. However, the teams get trained in performing

coordinated moves to improve the probability to score

(offense tactics) or to decrease the probability of the

opponent team to score (defense tactics).

It is an important information for coaches if and

when team tactics are likely to be successful. One

approach to help coaches answering this question is

to manually analyze the game history based on video

recordings. However, it is a very time-consuming

process to analyze videos to detect team tactics and

then to decide whether a certain tactical movement

has been successful or not. Furthermore, for most of

the team ball games it is simply impossible for

humans to detect team tactics during the game due to

the speed of the games.

This paper introduces a concept to detect team

tactics based on sensor data during the ongoing game.

Based on the concepts of location and the change

thereof over time, a data representation of a team

move will be introduced. Furthermore, the paper will

show how to train a predictive model such that team

tactics can be detected automatically, and it can be

analysed whether certain team tactics are likely to be

successful or not.

The concept is presented from the point of view

of a data scientist. First, it will be introduced how data

Schwenkreis, F.

An Approach to Use Deep Learning to Automatically Recognize Team Tactics in Team Ball Games.

DOI: 10.5220/0006823901570162

In Proceedings of the 7th International Conference on Data Science, Technology and Applications (DATA 2018), pages 157-162

ISBN: 978-989-758-318-6

157

can be collected in the context of team handball.

Then, it will be shown, how the specific problem of

automated tactics recognition can be mapped onto a

well-known use of deep learning approaches.

However, as being a position paper, specific results

will not be presented, nor there will be a prove that

the approach actually leads to a sufficient recognition

rate. That will be part of subsequent publications.

2 BASICS

Basically, a team is a set of players with individual

IDs (sometimes also called player numbers). Active

players are differentiated from (temporarily) inactive

players who are not allowed to interfere with active

players or the game. The set of active players is

usually called a line-up. When being part of a line-up,

a player has usually an associated position or role in

the line-up. However, this role of a player can change

arbitrarily in some sports (e.g. this is the case for team

handball).

2.1 Location and Moves of an Active

Player

A team move, or a group move consists of the moves

of multiple involved active players. A move of a

single active player can be defined as the change of

his or her position on the field over time. For team

handball we have a given field geometry of 40 x 20

m which we discretize in squares of 25 x 25 cm which

is a sufficient geometrical resolution for human

moves in this case, because it can be excluded that

two players will be in the very same square at the

same time.

Based on this discretization of the field, the

location of an active player can be expressed as a pair

of integer coordinates, identifying the square in which

the player’s centre of gravity is currently located.

Since a move is a change of the location over time,

we need to define a discretization of time as well.

Theoretically, the maximum speed of humans can be

used to calculate the maximum frequency of

locations. Assuming a maximum human speed of 15

m/s and the geometric resolution of 0,25 m, we need

a maximum frequency of 60 Hz to be able to resolve

with the given level of detail. However, this is just the

maximum frequency which will allow to detect every

square that was “involved” in a player’s move. If we

have a lower frequency, for whatever reason, we

might not be able to identify all squares a player has

been in while moving from one square to another. In

that case the lower frequency is depicted on the 60 Hz

frequency resolution by linear interpolation between

the measured locations.

2.2 Approaches to Track Players

The concept described in this paper does not depend

on a specific method to detect and track the location

of players on the field. However, three approaches

have been investigated in the context of a proof of

concept. All three approaches are suited to generate

the data needed for the automated detection of team

tactics.

2.2.1 Indoor-Positioning-based Approaches

Roughly, Indoor Positioning Systems (IPS) are based

on the same concept as Global Positioning Systems

(GPS) (Curran et al., 2011). While in case of GPS a

receiver receives signals from multiple senders and

calculates the differences in time the signals needed

from the different senders to reach the receiver, IPS

systems usually reverse that approach. A single

sender sends a signal to multiple receivers and the

receiver side calculates the time differences. Thus, the

system can derive the position of the sender relative

to the receivers. A current transmission technology

for the signal exchange is ultra-wide band (UWB), as

for instance used by the solutions of Kinexon

(Kinexon, 2017), Catapult Sports (Catapult Sports,

2018), and other system vendors

All of the IPSs have the needed location accuracy

for team handball but they differ significantly in their

measuring rate ranging from 10 Hz (Catapult Sports,

2018) up to 200 Hz (von der Gruen, 2013). All the

systems come with an annual cost of more than

100.000 EUR per year which is usually not affordable

by most sports except for some (like soccer in

Germany or football in the USA). Furthermore, the

active sensors need to be attached to the players and

they still have a size, which does not allow them to be

used in sports where players do not wear protectors

(as for instance team handball). Finally, if the position

of the ball needs to be tracked as well, the ball needs

to be equipped with a sender. Hence, ball vendors

would need to agree on a sender technology standard

for a certain type of balls.

2.2.2 Video-based Approaches

Solely video-based approaches have usually two

advantages: The players do not need to wear any

sensors and they are usually significantly cheaper

than IPS based solutions (PlayGineering Systems,

2018). However, they have problems to keep track of

the identity of players if it comes to “crowds”. To

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

158

reduce the likelihood of losing the identity of a player,

current systems use up to eight cameras in case of

indoor games like team handball, which makes these

systems fairly expensive again. An alternative

approach is to use a separate video system which

permanently detects the identity of players by

analysing the player’s number, when a player enters

certain areas of the field.

2.2.3 Hybrid Video-based Approaches

Combining a simple video-based tracking system

(Monier et al., 2009) with a simple sensor-based

identification (RFID) is a good compromise of cost

and accuracy. The combined system can track the

location of players in an anonymous way until the

players identity is visually detected using the shirt

number or when the player passes a certain RFID

detection zone, which will associate an identity with

the, so far anonymous, player.

In contrast to active UWB communicating

sensors, RFID tags are very small and can be attached

to players without violating the rules. Furthermore,

they do not need any batteries and they are very

cheap, in case of passive RFID tags. Unfortunately,

the antennas needed to detect passive RFIDs are fairly

large. Thus, the only technology that can be used in

the context of team handball are antennas which are

embedded in the floor or floor mats respectively.

3 DATA MODELS

3.1 Data Model for a Whole Game

We can define a data model for the location of players

on a field based on an abstract definition of the data

that is captured by the tracking systems. Given the

introduced discretization from section 2.1, the

location of a player at a given point in time is just a

pair of coordinates. Consequently, the location of a

team at a given point in time is the set of the locations

of all active players with an associated player

identification.

The location status of a whole match at a certain

point in time consists of the locations of the two teams

and the location of the ball, which is a set of 15 triples

(player-id, x-pos, y-pos) in case of team handball and

for instance 23 triples in case of soccer. To add the

time dimension, we add a logical counter to the triples

which indicates how many 1/60 secs have passed

since the start of the game. Thus, the resulting

quadruple (time, player-id, x-pos, y-pos) expresses

the location of a player at a certain point in time and

216.000 quadruples are needed to encode the

positions of a whole game for a single player in team

handball (60 minutes playing time).

…

Figure 2: Player location matrix.

The quadruples can be mapped onto a 2-

dimensional matrix by representing each point in time

as a row with the location data of the active and

inactive players and the ball. Each player

identification (A to G in Figure 2) is mapped onto a

pair of columns, one representing the x-coordinate

and the subsequent one representing the y-coordinate

of the location (see Figure 2). While the time

dimension follows the sequence of locations during

the play time, the player dimension has no fixed sort-

order. However, we introduce some constraints

(given the specifics of team ball games):

 The locations of one player must be contained in

a single column which consists of pairs of values.

 If a player is inactive, then special coordinates

outside the sport specific field range, (0,0) to (160,

80) in case of team handball, are assigned (e.g.

10.000, 10.000).

 The coordinates of the so-called observed team

are mapped onto the first set of columns

representing the whole team size (16 in case of

team handball, including active and inactive

players).

 The subsequent set of columns represent the

coordinates of the opponent team (another 16

columns in case of team handball).

 The last column represents the location of the ball.

As a result, a matrix of 66 x 216.000 (60 x 60 x 60)

position values represents the locations of a whole

team handball match, which we denote as match move

matrix.

3.2 Data Model for a Tactical Move

Tactical moves in team ball games are only

performed by active players. Inactive players are not

involved. Furthermore, we presume that substitutions

are never part of a tactical move. They might happen

before or after but not as part of a tactical move.

Hence, a tactical move can be represented by a matrix

< Time

An Approach to Use Deep Learning to Automatically Recognize Team Tactics in Team Ball Games

159

consisting only of the locations of the active players

on the field and the ball (15 columns in case of team

handball).

The number of needed rows is also limited. Given

the set of all possible tactical moves, the maximum

duration of these tactical moves is the upper limit for

the number of rows needed. The current hypothesis in

case of team handball is an upper limit of 15 seconds.

Thus, the maximum size of a matrix to represent a

tactical move in team handball consists of 30 x 900

position values. We call this a tactical move matrix.

We can depict a subset of the set of rows of the

match move matrix onto a tactical move matrix by

omitting the inactive players. However, we need to

define the criteria that allow us to decide when a

player is treated as being active. The key criterion is

that a player becomes part of the tactical move matrix

if the player is active at the end of the subset. I.e. the

location of a player in the last row in the subset is part

of the range of possible locations of a match field (see

section 3.1).

If we end up with less than the regular number of

players in the tactical move matrix, then we will fill

the empty columns with the location value of inactive

players. This might be the case if one or more players

have been suspended, excluded, or when they have

just left the field (which can be the case in some

sports). It is important to keep in mind that the order

of players in a team is arbitrary with respect to the

match move matrix as well as the tactical move

matrix.

4 USING DEEP LEARNING TO

DETECT TACTICAL MOVES

Deep Learning summarizes several pattern

recognition techniques which are particularly used

when we cannot explicitly find a model to describe

the interrelations between certain things or actions

(Goodfellow et al., 2016).

The approach described in this paper maps the

detection of tactical moves onto a classification

problem of video sequences. The question that we ask

is: “Does a video sequence contain a tactical move or

not and if so, which tactical move is it?”. It differs

significantly from other applications of deep learning

like face detection (for which a lot of papers have

been published), because in case of tactical

movements we do not focus on the similarity of single

images of a whole stream but rather on the change of

images over time. However, our work has a basic

assumption: if we can map the sequence pattern

recognition problem onto the face recognition

approaches, then we can re-use the systems that have

been built in that area at least to some extent.

4.1 Tactical Move Matrices and Images

Images, as they are used for face recognition, are

basically just two-dimensional data structures –

matrices, of colour values. Usually, the cells of the

image-matrix contain three “coordinates” of a three-

dimensional colour space, but there are also variants

with a single value (black and white colour space) or

more values (e.g. CMYB). If we think of tactical

move matrices as images, then tactical move matrices

are like images of a two-dimensional colour space.

There is a significant difference between images

and the tactical move matrix: The tactical move

matrix consists of three sets of columns (observed

team, opponent team, and ball) and the position of a

column has no meaning inside a column set. Thus, the

columns, containing the two-dimensional values, can

be exchanged arbitrarily in a column set. I.e. a matrix

with a tactical move, which represents the move of

player A in its first column and player B in the second

column, both belonging to the same team, is

semantically equivalent to a tactical move matrix that

represents player B in the first column and player A

in the second column (see Figure 3).

…



Figure 3: Tactical move matrix equivalence.

4.2 Generating Training and Test Data

With the introduced data model, the automated

detection of tactical team moves can be mapped onto

a classification problem. There is a limited set of

tactical moves for team ball games which we define

as the classes for our classification approach (in case

of team handball we differentiate approximately 80

tactical moves). It is important to note that the set of

tactical moves might evolve over time whenever new

team tactics are invented and/or discovered.

However, this is a relatively slow evolution. Thus, the

model can be adapted to changes whenever there is

enough data regarding a new team tactic.

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

160

Given that any tactical move matrix can be

assigned to a class that denotes the tactical move

which is “contained” in the tactical move matrix,

training data can be derived from observed games by

splitting the data of observed games into intervals

which completely contain a tactical move (up to a

maximum of 15 seconds in case of team handball).

The splitting is done manually by searching for the

end of a tactical move and then going backwards to

look for the beginning of the tactical move. Then the

tactical move matrix is created from the

corresponding time matching rows that are extracted

from the match move matrix (see section 3.2).

Finally, the extracted tactical move matrix is

classified with the class identifier of the previously

identified tactical move.

In addition to the team move matrices, further

intervals of 15 seconds are extracted from which we

know that they do not contain any team tactical

moves. We generate additional team move matrices

from them as well to have additional test data (see

section 4.4) for the “non-containing” case.

4.3 Training a Deep Learning Model

Since our objective is to use existing approaches of

deep learning for face recognition, we propose to use

a convolutional neural net (Goodfellow et al., 2016),

CNN, to solve the classification problem. A

significant difference to the approach to detect

patterns in sequences of images is the fact that the

associated class of a tactical move matrix is partially

independent from the positions of columns in the

matrix (see section 4.1).

Unless we find a canonical sort order for the

columns of the tactical move matrices, we need to

handle the position independence of columns

explicitly. The need for “permutation invariance” of

the CNN is a very similar problem to the rotation

invariance in case of image recognition (Tivive and

Bouzerdoum, 2006).

There are two ways to address the difference as

long as CNNs do not have a built-in permutation

invariance:

 Training the model with all matrices that are

semantically equivalent to a given classified

tactical move matrix.

 Classifying all semantically equivalent matrices

when applying the model.

Since response time is critical during the later

application of the model, while it is significantly less

critical during training, it has been decided to use the

former approach. Hence, when training a CNN with a

set of tactical move matrices, the set of all

semantically equivalent tactical move matrices is

generated for each tactical move matrix that was

generated for training. The set of the semantically

equivalent tactical move matrices is derived by

generating all permutations of column positions for

each player inside a team. I.e. in case of team

handball, we have 7! = 5.040 permutations for each

team and (7!)

matrices which are semantically

equivalent.

4.4 Testing and Applying the Model

The resulting model after the training phase is tested

using additional pre-classified data containing a

tactical situation, as well as tactical move matrices

which do not contain a tactical move. The

classification result for every tested tactical move

matrix is a single “class association” which is

generated by the final activity function of the CNN.

This predicted class is then compared to the

previously assigned class value. We use a classic

“domain specific confusion matrix” to measure the

quality of our model, which means that we weigh

errors according to their severity in the domain (team

handball in our case).

The application scenario of the model is based on

the constant stream of location information during a

match or even a training session. We are periodically

extracting tactical move matrices from the stream

containing the location records for the maximum

length of a tactical move (the assumed 15 seconds for

team handball). These tactical move matrices are then

sent to the model for classification to detect whether

a team tactical move was performed.

5 CONCLUSION AND OUTLOOK

This paper describes the work of an ongoing project.

Using the example of team handball, we introduced

an approach to automatically detect team tactics using

a deep-learning-based classification model. In

particular, we have defined the necessary data models

and transformations. Given the available sensor

technology for location detection of players, the

described approach can be used to train a

convolutional neural network.

Although the concept has been defined, there are

still a number of open points to be worked on:

 Developing a permutation invariant CNN to avoid

the generation of semantically equivalent matrices

to train a model.

 Finding the appropriate activation function to

generate the predicted class.

An Approach to Use Deep Learning to Automatically Recognize Team Tactics in Team Ball Games

161

 Assessing the severity of different categories of

misclassifications

 Finding the optimal frequency for the extraction

of team move matrices for classification.

Currently, we assume that a classification

frequency of 1 Hz will be sufficient.

With the “online” availability of the player’s location

data, being detected with the necessary accuracy, a

complete new data science view of team ball games

becomes possible. The performance of players can be

described in a completely new way, which takes the

movement of players and their relative position into

account.

Furthermore, the automated detection of team

tactics is the basis for the automated prediction of the

success of team tactics as well as for the definition of

a new class of player performance indicators. The

world of coaches will further change if they can base

their decisions on information regarding whole teams

rather than on player specific values only.

REFERENCES

Catapult Sports. (2018). ClearSky T6. Retrieved from

https://www.catapultsports.com/products/clearsky-t6

Curran, K., Furey, E., Lunney, T., Santos, J., Woods, D., &

McCaughey, A. (2011). An evaluation of indoor

location determination technologies. Journal of

Location Based Services.

Goodfellow, I., Bengio, Y., & Courville, A. (2016). Deep

Learning. MIT Press.

Kinexon. (2017). Real-time Performance Analytics.

Kinexon.

Monier, E., Wilhelm, P., & Rückert, U. (2009). A Computer

Vision Based Tracking System for Indoor Team Sports.

The fourth International Conference on Intelligent

Computing and Information Systems. Cairo.

PlayGineering Systems. (2018). Pioneers in sports`

technologies. Retrieved from http://playgineering.com

Tivive, F., & Bouzerdoum, A. (2006). Rotation Invariant

Face Detection Using Convolutional Neural Networks.

In I. King, J. Wang, L. Chan, & D. Wang, Neural

Information Processing. ICONIP 2006 (S. 260-269).

Springer.

von der Gruen, T. (2013). Retrieved from Funkbasierte

Lokalisierungstechnologien – RedFir & Co – Ortung im

Sport, am Flughafen und in der Logistik:

http://www.angewandte-kartographie.de/download/sy

mposium2013/vortraege/Von_der_Gruen_RedFIR.pdf

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

162
