A Formal Approach for Risk Evaluation and Risk Analysis

in Access Control Policy Management

Pierrette Annie Evina

, Faten Labbene Ayachi

, Faouzi Jaidi

1,2

and Adel Bouhoula

Higher School of Communications of Tunis (Sup'com), University of Carthage, Tunis, Tunisia

ESPRIT School of Engineering, Tunis, Tunisia

1 INTRODUCTION

In information systems (IS) and especially in database

management systems (DBMS), a good knowledge of

the threats impacting the proper functioning of these

systems, is essential in order to ensure protection and

also to ensure the confidentiality and integrity of the

data they contain. Several mechanisms are regularly

put in place to remedy or to minimize the harmful

effects related to the theft or misuse of data by

authorized or unauthorized users. It is in this context

that the access control (AC) and the risks related to its

exploitation are the subject of numerous scientific

papers. But, in this trend, the access control policy is

somehow neglected because, a priori, most

researchers hypothesize its reliability and validity.

Though the access control policy (ACP) is exposed to

many irregularities throughout its evolution. During

its existence there are changes in its expression

compared to rules established during its conception.

In our research, we present a risk management

approach for database access control systems, with

particular emphasis on non-compliance anomalies in

the access control policy. The correlation between the

various anomalies mentioned is also taken into

account in order to optimize the solution we propose.

For this, a correlation management subsystem is

proposed upstream in order to provide input data to a

global and comprehensive risk management system

whose framework is based on the ISO 31000 and ISO

27000 international standards for risk management.

Our system will also integrate a sub-system that

detect all other forms of anomalies related to the

interaction between users and the other access control

system resources.

The correlation management subsystem must

detect and analyze the correlation between anomalies.

It also produces the necessary input for a new risk

management approach that will consider and

overcome the effects induced by the correlation

between anomalies found in the ACP expression

since we believe that handling correlations between

anomalies can reveal sophisticated intrusion

scenarios in DBMS.

Finally, our contribution will include, in addition

to assessment and risk treatment, the identification of

safety barriers to prevent or minimize the hazardous

occurrences. From the analysis of the history of the

non-compliance anomalies detected during the access

control policy evolution, an evaluation and a

quantification of the exposure of that policy to risks

will be carried out.

2 RESEARCH PROBLEM

The continuous technological development of the

Information Systems in general, and that of Access

Control in particular recommends the consideration

of security risks that may lead to the malfunctioning

of these systems. Unlike traditional Access Control

systems whose policies were based on static

decisions, new systems must adapt to the dynamic

environment in which the technology evolves. That

enables a quick and instant decision-making related

to risk of illegitimate access. Some researchers have

studied risks in Access Control by producing various

approaches of risk management. However, these

contributions are mostly focused either on the risks

associated with user actions on the manipulated

objects, or on the risks associated with managing the

users and the permissions assigned to them.

The literature provides very little work to address

the technical problems that may arise from the

implementation of the access policy. Indeed,

corruption of policy is a security aspect that is not

discussed enough because almost all research works

adopted the hypothesis of reliability and validity of

policies. However, the operation of an access control

policy requires its prior conformity with the

specifications defined either at its conception stage or

referring to a validate state. Works in this area

recently resulted in identification of a set of critical

non-compliance anomalies, when the implemented

Evina, P., Ayachi, F., Jaidi, F. and Bouhoula, A.

A Formal Approach for Risk Evaluation and Risk Analysis in Access Control Policy Management.

In Doctoral Consortium (ENASE 2018), pages 17-22

policy was not conform with its original

specifications. Consequently, it becomes appropriate

to implement a reliable system that enables to avoid

the occurrence of the identified risks related to these

anomalies of non-compliance. Eventually, the effects

should be managed when these risks are present.

Data corruption is mostly the consequence of

Unauthorized updates of the access control policy

especially when there are illicit actions of some users

who want to access the database. At the current stage

of our research, we could not find an intrusion

detection system that can detect this type of anomaly.

But, it is possible to trace the action of users on the

database. Thus, suspicious and unauthorized users are

detected using the log files of the database system

(Evina et al., 2017).

A correlation is defined and established between

these different anomalies in order to detect the

induced faults. Thus, a user who fraudulently

accesses a protected data is an usurper who has

certainly benefited from the privileges that have been

attributed to a role that is not reserved for him. (Evina

et al., 2017). One of the objectives in our work is to

make use of subsequent effects derived from the

correlation of anomalies to minimize the risks of

degradation of access control policies. To the best of

our knowledge, access control policy has never been

scrutinized from that point of view.

3 OUTLINE OF OBJECTIVES

The objective of our work is to develop a system

capable of mitigating the negative effects of

anomalies that occur in the access control policies

management cycle, through an assessment and

analysis of the risks linked to the evolution of these

policies. This system integrates a sub-system that

detect all other forms of anomalies related to the

interaction between users and the other access control

system resources (Evina et al., 2017). Our

contribution integrates previous approaches and

allows to go beyond the phase of detection of the

anomalies towards a complete solution of:

(a) Recovery on anomaly

(b) Calculation of the impact of critical

anomalies coupled with the logging mechanisms

underlying the DBMS

approach on anomalies exploration and the discovery

of correlations between those anomalies

(d) Specification of new mitigation approaches

with adequate barriers to reduce the exposure of the

PCA and data to subsequent attempts at corruption.

The above points will ultimately leads to a global

and comprehensive system for detecting and dealing

with anomalies that impede the proper functioning of

access control systems.

4 OUR APPROACH

In this section, we describe the framework of the

proposed risk management overall system which is

presented in figure1 below. Indeed, our Risk

Management System (RMS) which is in accordance

with the process described in the ISO 31000 standard,

comprises two main components, namely (i) a Risk

Assessment Engine (RAE) and (ii) a Risk Treatment

engine (RTE).

According to the ISO 31000 standard, the risk

assessment phase is usually developed in following

steps: Context assessment, Risk Identification, Risk

Analysis and Risk Evaluation

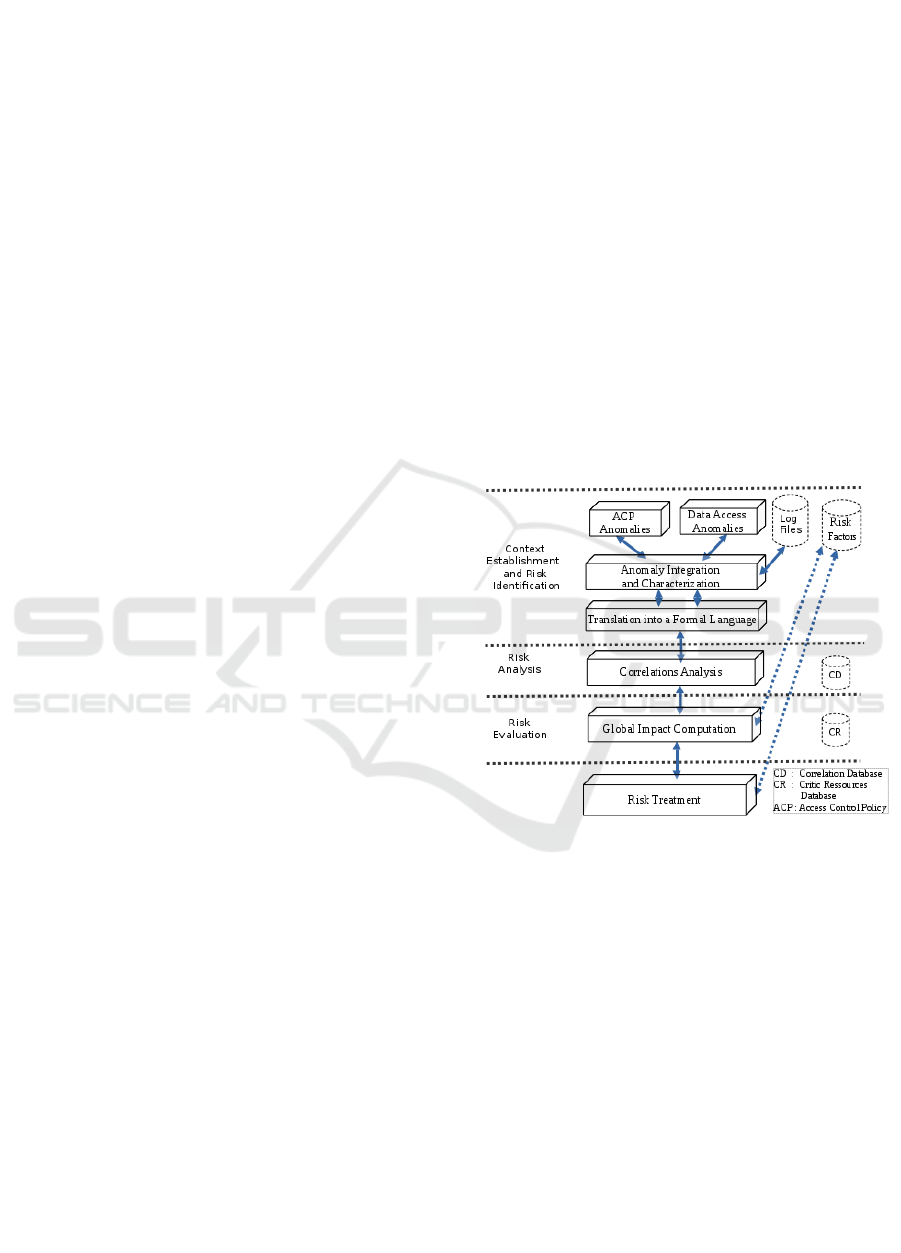

Figure 1: The proposed risk management framework.

The risk contextualization concerns the

identification of the assets in the database system that

should be protected. It is at this stage that the scope

of the risk management is defined as well as the risk

criteria to be used later on in the risk management

process.

The tracking of these users is therefore the first

step in our anomaly identification process, which

allows us to identify unauthorized access as well as

the recurrent targeted data (Evina et al., 2016). The

risk identification concerns the identification of

vulnerabilities that threaten data. It consists in

computing the set of suspicious users and targeted

data. The aim of risk identification is to make a

complete list of risk that will be the object of the

further steps of the risk assessment process.

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering

The risk analysis that will confirm or deny the

corruption of the data and the criticality of the

vulnerability as it explores the authorized access

scenarios based on data from log and audit security

mechanisms activated on the database server. This

enables to detect and establish the intrusive user

Behavior and thus, to reinforce the Intrusion

Detection Systems (IDS)

The risk evaluation is a phase of self-adaptation

that allows our system to correct its estimate of the

risk incurred. It uses the results of the analysis phase

to adjust the risk factors.

The risk treatment consist mainly in avoiding risk,

mitigating it, and removing its source or changing the

likelihood of it occurrence as recommend in (Evina et

al, 2016).

A risk treatment plan is usually put in place and

shows the procedure. That treatment plan precise the

different actions to be taken, the persons responsible

of applying the plan, the resource requirements, the

performance measures and constraints, the reporting

and monitoring requirements and the timing and

schedule.[Evina et al, 2016].

5 METHODOLOGY AND

EXPECTED RESULTS

In our approach of risk management, we focus on

anomalies of non compliance of access control policy

which have been defined in (Jaidi et al., 2016). But

we believed that there exist a correlation between two

or more anomalies and that can lead to subsequent

threats. These threats have to be defined and the

related risk can be evaluated. To accomplish that task,

the methodology shown in figure2 has been defined.

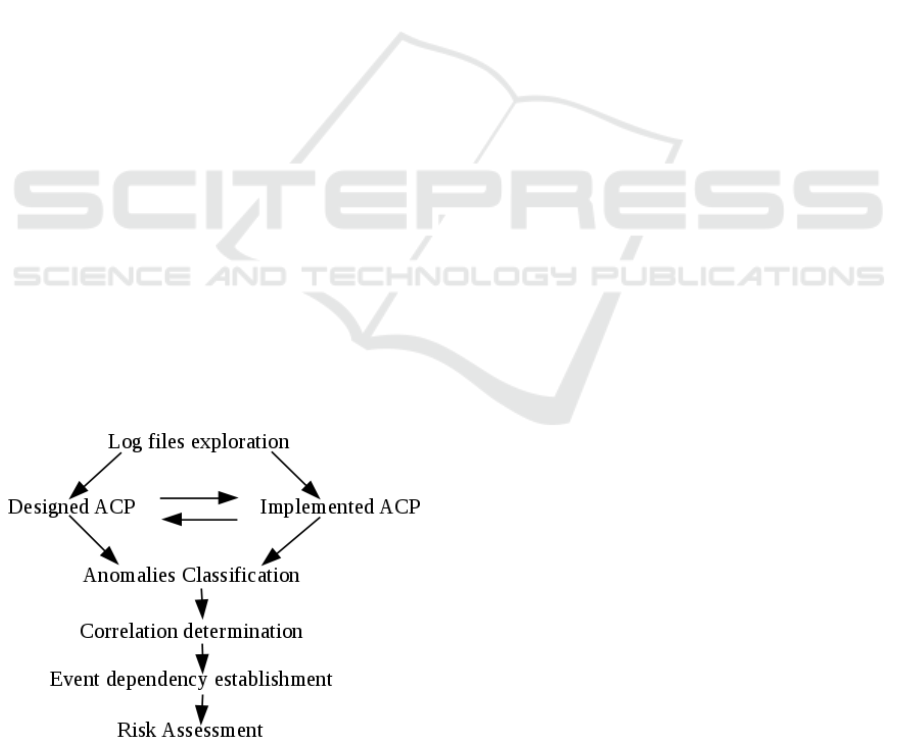

Figure 2: Our research process.

In order to get more information related to our

work plan, the documentary research is performed.

An important number of publications have been

identified and studied in order to precisely identify

our contribution.

We will then formally describe our learning

approach and explore the DBMS's log files in order

to collect information about recurrent attacks, i.e data

that are regularly and improperly exploited, as well as

all the defections occurring in the ACP as far as its

expression is concerned. Also, a comparison is done

between two states of the ACP and lead to the

establishment of a list of the various anomalies of non

conformity and their frequency of occurrence. Then,

a formal description of the correlation definition and

evaluation procedure is produced. This shall be done

with the correlation management module which

supplies a risk management module. That will

furthermore lead to the analysis and the evaluation of

the risk related to the correlated identified threats

associated to the direct effect from the anomalies by

the same threats.

We will adapt the features of our system to work

with a real database, with real schemes and tables

created. It will then be possible to confirm the results,

qualitatively and quantitatively.

The main awaited results as listed in (Evina et al.,

2017) are as follow:

1. Listing anomalies related to unauthorized

update of access control policy.

2. Detecting induced faults through analysis of

correlation between detected anomalies with more

specific results as:

- Definition of the list of the recurrent targeted

and sensitive data.

- Detection and establishment of intrusive user

behavior and thus, reinforcement of the intrusion

detection Systems.

- Production of a global and comprehensive

system for risk management in access control

systems.

6 STAGE OF THE RESEARCH

At the present stage of our research work, the

following task have already been accomplished:

1. The above framework of figure 1 has been

defined and described in a paper titled « Towards

a Reliable Formal Framework for Enhancing Risk

Assessment in Access Control Systems » by

Evina et al. published in the EpiC Series in

Computing, volume 45. In this paper, it is a

question of defining the architecture of our system

A Formal Approach for Risk Evaluation and Risk Analysis in Access Control Policy Management

which fits well with the specifications of the ISO

31000 standard and that we establish in two main

parts namely: the first block in which are

implemented the various mechanisms

contributing to the risk assessment linked to the

evolution of security control policies and the

second block in which security barriers and any

other necessary mechanism are implemented For

security risks.

2. Our corrective and deductive approach has

been explicitly described in the paper titled “Risk

Management in Access Control Policies »

presented in INSERT'17 (International

Conference on Security, Privacy and Trust, 2017).

the paper present our system for the management

of anomalies of non-compliance rising during the

evolution cycle of access control policies without

neglecting the risks related to the direct access of

the users and analyzing the risks related to the

correlation between the various anomalies.

The developpement of anomalies correlation

framework for risk-aware access control

enhancement is under process as well as the proper

evaluation of the correlation and the risk.

7 STATE OF THE ART

The research on risk management in access control

can be classified into two main categories: the access-

based approaches and the policy management based

approaches. For the access based approach authors

calculate the risks associated to access requests. Some

authors integrate into their model, the trust and/or the

context parameters in order to evaluate that risk. The

second category of authors evaluate the risk that is

related to the access control policy. None of the

authors produces a fine grained risk management that

is related to the changes occurring during the

evolution of the access control policy.

7.1 Risk Management in Access

Control

Authors in (Cheng et al., 2007) provide a solution to

overcome the risk related to unauthorized access of

users in an access control system. They use the Bell

et Lapadula's access control model. This one is made

up of security labels on the objects and the clearance

on the subject (Cheng et al., 2007). They evaluate the

trustworthiness of a user and the sensitivity of the

evaluated object. It is a matter of determining the risk

related to unauthorized access of a user on an

object/data. To address this risk, the authors evaluate

user confidence and the object sensitivity. The risk

associated with unauthorized access is thus quantified

in order to dynamically control the actions of the

users on data.

Authors in (Khambhammettu et al., 2012)

proceed as in (Cheng et al., 2007). The difference is

just that while the late decide to allow access only and

only if the trustworthiness is more than the clearance,

in (Khambhammettu et al., 2012) authors treat the

problem of unauthorized access by identifying

different cases : they consider the level of the object

sensitivity score compared to that of the subject

trustworthiness score and vice versa. Then, a decision

is taken in order to deny or to allow the access to the

system.

The risk is evaluated according to the threat

assessment approach used. But the risk caused by

sudden and anticipated threat is not taken into

consideration as the trustworthiness of the subject and

the sensitivity of the objects are established a priori.

As security problems are much more complex in

ubiquitous computing compared with traditional

environment, authors in (Diep et al., 2007) plan to

make the access control management more dynamic

and precise. They evaluate the action of users or

processes on the system and take into account the

context parameters. These parameters are also

considered as input in the risk assessment process.

Authors in (Colantonio et al., 2010) evaluate the

risk occurred when managing users and permissions

through the Role based access control (RBAC) during

the pre-mining phase (Colantonio et al., 2010). They

consider the constant modification due to the users or

permissions creation, modification, or deletion in the

access control system. The creation, modification or

deletion actions are causes of many mistakes and role

misuses. Therefore, they establish a ranking of the

users and permissions based on the degree of

importance of the risk induced for future mitigation.

In (Burnett et al., 2014), the authors provide a

solution to avoid unwanted disclosure of information

by corrupted users. They consider the risk occurred

when a user manage his own data, granting

permission to other users and determine the

trustworthiness of users. They also consider the case

where access is inappropriately denied to some users

by the owner. They exploit and compute the opinion

of a user onto another user to evaluate the loss

function due to unwanted disclosure of information

through an access control system.

Authors in (J. Ma et al., 2010) and (J. Ma et al.,

2012) mainly consider the role delegation issue.

Indeed, for a user to delegate his rights to another one,

there should be among the two users a trusted

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering

relationship. The authors extend the access control

architecture in which they incorporate the trust based

reasoning. In the case of role delegation, and

according to the authors, related risk is computed

based on the levels of confidence of the delegate. The

risk assessment proposed in (J. Ma et al., 2010) and

(J. Ma et al., 2012) highlights the notion of the

importance of objects associated with that of

criticality of actions of users to those objects.

Authors in (Baracaldo et al., 2013) propose an

access control framework to mitigate insider threats

with a risk management process which is adaptive.

The changes in users behavior are osculated in order

to maintain the trust of each at an appreciable level

and above a certain threshold. Below that threshold,

authors think that the privileges of this kind of users

should be removed. For the purpose, they propose an

algorithm that reduces the exposure of the access

control to risk. They also propose a methodology to

help the system administrator in managing inference

threats due to the changes of the users behavior.

7.2 Risk Management in Access

Control Policy

Users queries are risky especially when there is a

misapplication of the rules established in the access

control policy. Thus, (Celikel et al., 2009) deal with

the risk management in the access control policy,

notably the RBAC in distributed databases. The users

queries are the main elements observed and

considered while assessing risk. Thus, in order to

allow an early detection and control of probable

negative consequences in the system, the authors in

(Celikel et al., 2009) handle and define user risks.

Those risks include the bad utilization of users

credentials. As far as the access control policy

evolves, it is exposed to various corruption attempts.

There can be abnormal elements like missed,

renamed, hidden users or hidden roles. After they

slightly evaluate the risk of having such abnormal

elements, the authors plan an assessment module that

defines a response monitor.

Our contribution is to produce a comprehensive

and global system that addresses risk management in

access control policies during its evolution. It is

necessary to identify the anomalies. Specifically, we

study the correlations that may exist between one or

more detected anomalies. This will make it easier to

interpret the corruption risks to which the policy of

access control is subjected.

7.3 Anomalies Correlation for Risk

Enhancement

In AC as well as in ACP, authors do not worry about

the correlation that can exist between the anomalies

detected. To the best of our knowledge, none of these

works evokes the notion of correlation in attacks

analysis. In addition to the in-depth study of the

threats in ACP, we plan to explore the correlation

between these threats.

Many authors already adopted machine learning

techniques for the automation of procedures of

detection of anomalies and intrusions in IS and

precisely in DBMS. So, authors in (Costante et al.,

2013) for example, developed a machine-learning-

based system that automatically acquires knowledge

related to the normal behavior of users during the

database activities. Their system compares the user's

sql queries exchanged with the database server and

also it evaluates the sensitivity of the manipulated

data in order to avoid the data leakage in DBMS. In

(Darwish, 2016) the author proposes to detect

anomalies using the correlation among queries in

DBMS transactions with log-records. We do not use

machine learning for the anomalies detection as

authors in (Grushka-Cohen, 2016) do. There exist

another difference between our work and theirs.

Indeed, they provide a ranking alerts system that

enables to prioritize anomalies according to their

importance. While we consider the correlation

existing between these anomalies in order to adjust

the risk factors through sophisticated scenarios and

prevent ACP expression from degradation.

8 CONCLUSION

The research work we present is about risk

management in access control policies for database

management systems. Rather than the user-data

interaction, we focus on the policy expression and on

the impact due to the non-compliance anomalies

observed on the expression of two different states of

the same policy. The non-compliance anomalies are

generally caused by the irregular updates of the ACP

due to malicious users or vicious database

administrators. The correlation of such anomalies is

valuable. None of the authors encountered in the

literature work on that aspect of the expression of

ACP expression neither they do not take into

consideration the consequences of the correlation that

might exist between two or more such anomalies.

Our contribution aims to produce a risk

management framework that consequently takes into

A Formal Approach for Risk Evaluation and Risk Analysis in Access Control Policy Management

consideration the subsequent effects of the correlated

anomalies, in addition to the direct impact caused by

the same anomalies on the whole database access

control system. For that reason, our system is

designed to be as global and comprehensive as

possible.

At the present stage of our work, we have already

furnished in a recent publication, the description of

the proposed framework for the overall risk

management system for our approach. The paper that

presents in details the correlation management

subsystem is also under process.

In a close future, we intend to concretely and

practically evaluate the correlated risk and the overall

risk with real case studies with real database.

REFERENCES

Sandhu, R., Coynek, E. J., Feinsteink, H. L., and Youmank,

C. E., 1996. Role-Based Access Control Models, IEEE

Computer, vol. 29, no. 2, (pp. 38-47)

International Electrotechnical Commission, International

Standard, ISO/IEC 27000:2014,

International Electrotechnical Commission, International

Standard, ISO/IEC 31010:2009, First Edition, 2009.

Cheng, P.-C., Rohatgi, P., Keser, C., Karger, P.A., Wagner,

G.M., Reninger, A.S., 2007. Fuzzy MLS: An

Experiment on Quantified Risk–Adaptive Access

Control, In Security and Privacy, (pp.222–230).

Bertino, E., Ghinita, G., Kamra, A., 2011. “Access Control

for Databases: Concepts and Systems” Foundations and

Trends in Databases Vol. 3, http://dx.doi.org/10.1561/

1900000014.

Khambhammettu, H., Boulares, B., Adi, A., Logrippo, L.,

2012. “A framework for threat assessment in access

control systems” that appeared in Proceedings of 27th

IFIP TC 11 Information Security and Privacy

Conference. http://dx.doi.org/10.1007/978-3-642-

30436-1_16

Diep, N. N., Hung, L. X., Zhung, Y., Lee, S., Lee, Y. K.,

Lee, H., 2007. “Enforcing Access Control Using Risk

Assessment”, Proceedings of the Fourth European

Conference on Universal Multiservice Networks

(ECUMN'07). http://dx.doi.org/10.1109/ECUMN.

2007.19

Colantonio, A., Di Pietro, R., Ocello, A., Verde, N.V.,

2010. “Evaluating the Risk of Adopting RBAC Roles”,

ara Foresti; Sushil Jajodia. Data and Applications

Security and Privacy XXIV, 6166, Springer.

http://dx.doi.org/10.1016/j.dss.2010.08.022

Burnett, C., Chen, L., Edwards, P., Norman, T. J.,

“TRAAC: Trust and Risk Aware Access Control”,

2014. Twelfth Annual International Conference on

Privacy, Security and Trust (PST). http://dx.doi.org/10.

1109/PST.2014.6890962.

Ma, J., Adi, K., Mejri, M., Logrippo, L., 2010. Risk analysis

in access control systems. In Eighth Annual

International Conference on Privacy Security and Trust

(PST), pp. 160-166

Baracaldo, N., Joshi, J., 2013. “An adaptive risk

management and access control framework to mitigate

insider threats”, Computers & Security. http://dx.doi.

org/10.1016/j.cose.2013.08.001.

Celikel, E., Kantarcioglu, M., Thuraisingham; D., Bertino,

E., 2009. A risk management approach to RBAC”. Risk

and Decision Analysis 1 (2009) 21–33. DOI

10.3233/RDA-2008-0002. IOS Press

Costante, E., Vavilis, S., Etalle, S., Petkovic M., Zannone,

N., 2013. Database Anomalous Activities: Detection

and Quantification, SECRYPT 2013: 603-608.

Grushka-Cohen, H., Sofer, O., Biller, O., Shapira, B.,

Rokach, L., 2016. CyberRank-Knowledge Elicitation

for Risk Assessment of Database Security, 2016 ACM.

DOI: http://dx.doi.org/10.1145/ 2983323.2983896.

Darwish, S. M., 2015. Machine learning approach to detect

intruders in database based on hexplet data structure.

Journal of Electrical Systems and Information

Technology 3 (2016) 261–269 http://dx.doi.org/10.

1016/j.jesit.2015.12.001.

DCENASE 2018 - Doctoral Consortium on Evaluation of Novel Approaches to Software Engineering
