Pedagogical Benefits from an Exercise in Reverse Engineering for an

Aviation Software Systems

Emanuel S. Grant and Pann Ajjimaporn

Department of Computer Science, University of North Dakota, Grand Forks, U.S.A.

Keywords: Software Engineering, Reverse Engineering, Modelling Notation, UML, Activity Diagram, Sa fety-Critical

Systems, Pedagogy, Curriculum.

Abstract: Since the Y2K crisis, reverse engineering has become a major area of work in industrial software application

development, but lacks emphasis in US academia. This issue is exemplified by the high demand for software

systems in new and expanding software application areas, which has resulted in systems being implemented

before the requirements and design phases have been completed. Towards the main tenance of such systems,

it is necessary to conducted reverse engineering for the derivation of software documentation for requirements

and high-level and low-level design. When this scenario exists in the domain of safety-critical system,

particularly in the aviation industry, reverse engineering takes on greater value because such software systems

have to undergo development regulations and certification restrictions. This work reports on the pedagogical

revelations gained from conducting reverse engineering on a software system that was developed and

deployed for use in managing the assignment of commercial aircrafts to airport terminal gates. The software

system incorporated genetic algorithms solutions and was implemented on a high-speed multi-processor

system. The reverse engineering methodology applied was based on the RTCA DO-178C Software

Considerations in Airborne Systems and Equipment Certification specification for onboard avionic software

systems.

1 INTRODUCTION

In the last decades, there have been intense research

activities in software development methodologies

and modelling notations that have produced several

notable ones, namely model-driven, component-

based, and agile methodologies, along with

Coad/Yourdon (Coad, 1991), Shlaer/Mellor (Shlaer,

1988), and Unified Modelling Language (UML)

(Glass, 1997) modelling notations. With each new

methodology and modelling notation the goal has

been an attempt to address the “software crisis” that

was first identified in the late 1950s Booch, 1997).

The software crisis is best defined as the inability of

developers to deliver reliable software systems in a

timely and cost-effective manner. This crisis is

greater today than it has ever been, because of the

increasing complexity and applications of software

systems in many aspects of todays’ business and

personal endeavours.

The early proliferation of software development

methodologies and notations did not resolve the

situation, but exasperated it. Inter-project ventures

were stymied by a project developers’ unfamiliarity

with the methodology and notation of another project.

The problems arising from this over-growth of

methodologies and notations were arrested with the

merger of multiple modelling notations in a single

representation the UML (Shlaer, 1988) and the

methodologies coalescing around the Unified Process

(Kruchten, 2003) methodology. The evolution and

amalgamation of methodologies and notations, over

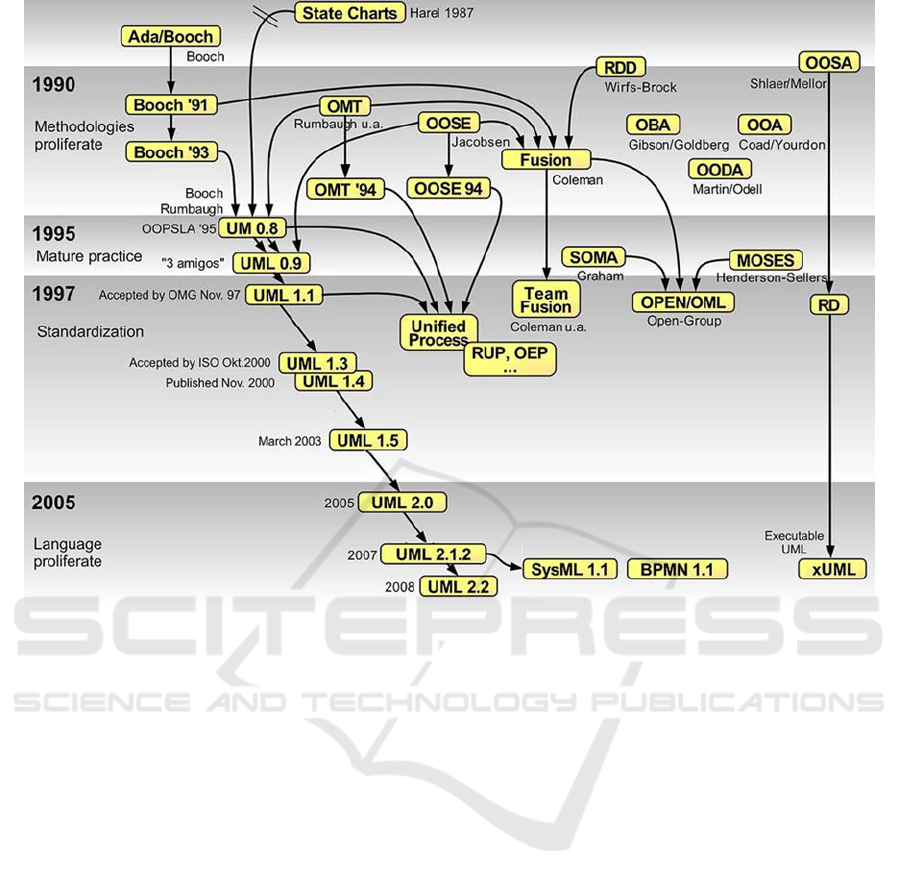

the early 15 years are captured in Fig. 1, which was

produced by Guido Zockoll, Axel Scheithauer &

Marcel Douwe Dekker. It should be noted that as of

this date (first quarter 2018) the UML is at version

2.5, sysML is at version 1.5, BPMN is at version

2.0.2, and xUML is at version 1.1. These modelling

notations have been developed by the Object

Management Group (OMG) and the latest versions

are not necessarily the ISO adapted version of the

modelling notations.

Notwithstanding the availability of a de facto

industry standard software modeling notation in the

UML and accompanying methodologies such as the

Rational

Process, the software crisis is still an ev

Grant, E. and Ajjimaporn, P.

Pedagogical Beneﬁts from an Exercise in Reverse Engineering for an Aviation Software Systems.

DOI: 10.5220/0006807401790188

In Proceedings of the 10th International Conference on Computer Supported Education (CSEDU 2018), pages 179-188

ISBN: 978-989-758-291-2

179

Figure 1: Evolution of object-oriented methods and notations 1980s – mid 2000s.

present phenomena of the software development

industry. In the domain of safety-critical systems, the

need to deliver correct and reliable software systems

is at the highest priority. A daunting feature of safety-

critical systems is the high degree of complexity in

the design and implementation of such systems.

Safety-critical software systems are characterized by

the resulting loss or harm to life, if such systems fail

during operation. Correspondingly, there is the

associated domain of mission-critical software

systems, wherein failure of those systems may result

in significant damage to property and equipment.

Examples of some of these safety-critical software

systems’ failure are the THERAC-25 (Leveson,

1993), the French Arian-5 rocket inaugural launch

(Lions, 1996), and Air France flight 447 (AF447) of

June 1, 2009 (Bureau, 2012). These failures

overshadow the many successful applications of

software systems in safety-critical environments,

because of the high cost in property (Ariane-5

development cost US$7 billion, payload US$500

million), and lives (Air France 447, 216 passengers

and 12 crewmembers).

Standards and methodologies play important roles

in the development of safety-critical systems. Within

the domain of avionic software systems, the RTCA

organization has developed a standard, the DO-178C

- Software Considerations in Airborne Systems and

Equipment Certification (RTCA, 2011) for USA

software development. A corresponding European

EUROCAE ED-12C Software Considerations in

Airborne Systems and Equipment Certification exist

for avionic software development in the European

territories. These documents set out a series of

objectivities, activities, and data items that are

required for the certification of on-board avionic

systems. DO-178C is a revised standard of its

previous version DO-178B, issued in late 2011 to

incorporate new guidance regarding the use of object-

oriented software development and the use of formal

specification techniques in software development.

The sole purpose of DO-178C is “for the production

of software for airborne systems and equipment that

performs its intended function with a level of

confidence in safety that complies with airworthiness

requirements” (RTCA, 2011). In order for a software

system to be use onboard aircrafts in the USA, it has

to be certified by the USA Federal Aviation

Administration (FAA). The aviation software system

must adhere to the DO-178C Specification and its

supplemental specifications.

CSEDU 2018 - 10th International Conference on Computer Supported Education

180

In the USA, any of the software development

methodologies, notations, and standards use in the

industrial arena have come into use with relative

independence of the curricula of tertiary software

engineering programs. This situation results in a

disconnect between the pedagogy of the classroom

and the practices of the workplace. In the

circumstance where there is collaboration on a

software development project between academia and

industrial partners there arise opportunities for

academia to learn some of the concrete practices of

the industry and then evolve the curricula to be more

responsive to the desired skill-set of such program

graduates. This report documents one such

experience in the development of a software system

to manage the assignment of commercial aircrafts to

airport terminal gates with multiple and conflicting

gate-assignment restrictions. The following sections

of the manuscript documents the problem definition,

in terms of the scope, deliverables, methodology, and

pedagogy. The next section documents the

experience of the project, followed by a discussion of

the educational benefits derived from the project. The

final section presents a summary in the form of a

conclusion and a look at future work in this area.

2 BACKGROUND

2.1

Problem Definition

A commercial airline company, as a part of its

operation review, identified a problem in its

information system structure. The company

encountered what was identified as a “single-point of

failure” in the process for dynamic assignment of

aircrafts to airport terminal gates. That single point

of failure in the process was the reliance on a single

specific operator to conduct dynamic assignment of

aircrafts to terminal gates. The process involves the

listing of all aircrafts for assignment and the available

gates. Aircrafts are classified based on certain

attributes, such as size, capacity, manufacturer,

arrival time, departure time, etc. Gates are classified

based on certain attributes, such as, location to

runway, fuel-port, accessibility, availability time, etc.

Other constraints pertain to global considerations,

such as available runway, taxiway path to runway,

established departure timeframes, etc.

The operator would compile the aircraft and gate

lists and generate a standard assignment, based on the

previous assignment cycle. The existing software

system would then identify any assignment conflicts,

which may arise from gate closures, incompatible

aircraft-gate assignment, aircraft late or none arrival,

etc. The operator would then attempt to resolve the

assignment conflicts by reassigning aircrafts based on

prior experience of executing this process. Whenever

that operator is unavailable, the new operator would

conduct the same operation, but the resolution would

again be based on his experience.

The company recognized the failure that may

arise if this system and process were not improved to

be more efficient and effective. Consequently, a team

of researchers from the University of North Dakota

(UND) departments of Aviation and Computer

Science were asked to look at the problem and

develop a plan to mitigate the potentially problematic

system and process. The UND team included

researchers in genetic algorithm design and software

engineering from the Department of Computer

Science; it is the software engineering researchers’

work, which is specifically documented in this report.

Because of the nature of confidentiality and propriety

information of the project, the airline will not be

identified and information presented in the report has

been sanitized.

2.2 The Software Methodology

The software development methodology applied on

this project came out of the academic program taught

in the university and research work on safety-critical

system in general, and more specifically for avionic

software systems. The genesis of the methodology

was on an unmanned aerial system (UAS) for

monitoring the flight operations of unmanned aerial

vehicles (UAVs) in unrestricted airspace. In order to

conduct software development in UAS domain the

RTCA DO-178C specification was use as the

definitive guideline. The work with DO-178C was

two-fold: firstly, the document was transformed from

its textual representation to a graphical

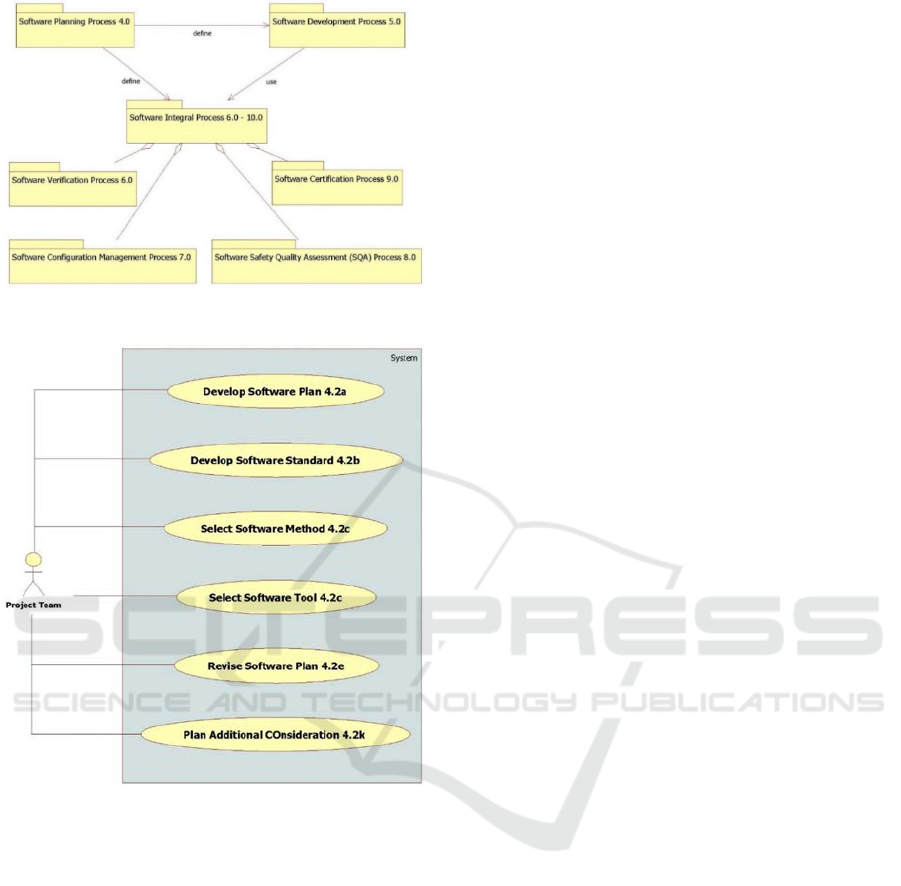

representation, in the UML notation. Figures 2, and

3 illustrate two of the models developed to represent

the DO-178C specification. Figure 2 represents the

DO-178C specification, software development

methodology components as an UML package-level

model. Each package of Figure 2 is decomposed into

a set of UML use case diagrams, class diagrams, and

activity diagrams. Figure 3 represents the DO-178C

Software Planning Process (Section 4 of the DO-

178C specification) as an UML Use Case Diagram,

wherein the user is the project development team.

Figure 3 is one of the models contained in the

Software Planning Process 4.0 of the Figure 2

package-level model.

Pedagogical Beneﬁts from an Exercise in Reverse Engineering for an Aviation Software Systems

181

Figure 2: DO-168C UML Package-Level Representation.

Figure 3: DO-178C Software Planning Process 4.0 UML

Use Case Diagram Representation.

The second area of work with the DO-178C

specification is the definition of a model-driven

software development methodology that incorporates

and is compliant with the DO-178C requirements.

This methodology is illustrated in Figure. 4 in the

form of an UML activity diagram. Figure 4 is an

UML activity diagram representation of the

requirement-level activities contained in the Software

Development Process 5.0 package of Figure 2. The

activities of Figure 4 are mapped to the respective

sections of the DO-178C document, by way of the

DO-178C section number being listed in the activities

of the model. Figure 4 captures the activities as

specified in the DO-178C for the software

requirements analysis and design phases; the software

implementation (coding), testing, and deployment

phases are represented in separate UML activity

diagrams. The work reported on in this manuscript is

limited to the scope of Figure 4. The UML models

specified in Figure. 4 are specific to this instantiation

of the methodology; in other instantiations, other

models may be used to satisfy the requirements of

either the problem domain or the expertise of the

development team.

A first task requirement of DO-178C Software

Planning Process (4.0) is the determination of the

software level of development. DO-178C specifies

five (5) levels of criticality, designated Level-A

through Level-E, with Level-A being the highest and

Level E the lowest. Once the software level has been

determined then DO-178C Software Development

Process (5.0) and Software Integral process (6.0 –

10.0) specify the required set of activities and data

element necessary for certification of the system that

is to be developed. The outputs of these activities are

the Software Plan (4.2a), Software Standard (4.2b),

Software Method (4.2c), and Software Tool (4.2c), as

listed in Figure 3. There may be Additional

Considerations, for the particular application domain.

2.3 The Pedagogy

A version of the Figure 4 methodology is included in

the curriculum of the software engineering

undergraduate course and a graduate-level formal

specification course in the computer science course at

UND. In the undergraduate-level course, students are

taught a number of software development

methodologies, and are required to develop a small

software system by using a minimal version of the

methodology of Figure 4. In a similar manner at the

graduate-level, the students are required to develop a

more complex system than that of the undergraduate-

level. An additional requirement, at the graduate-

level, is that the system is assumed to be at the DO-

178C criticality Level-A, thus necessitating the use of

rigorous system validation and verification (V&V)

techniques as an activity of the used development

methodology. These V&V activities are executed at

the Verify Low Level Design 6.3 and Verify Low

Level Design 6.3, of Figure 4. This formal

specification technique involves the derivation of Z

notation (Potter, 1996) representation of the UML

models that were developed of the system at the

activities of Conduct High Level Design 5.2.2 and

Conduct Low Level Design 5.2.2 of Fig. 4.

CSEDU 2018 - 10th International Conference on Computer Supported Education

182

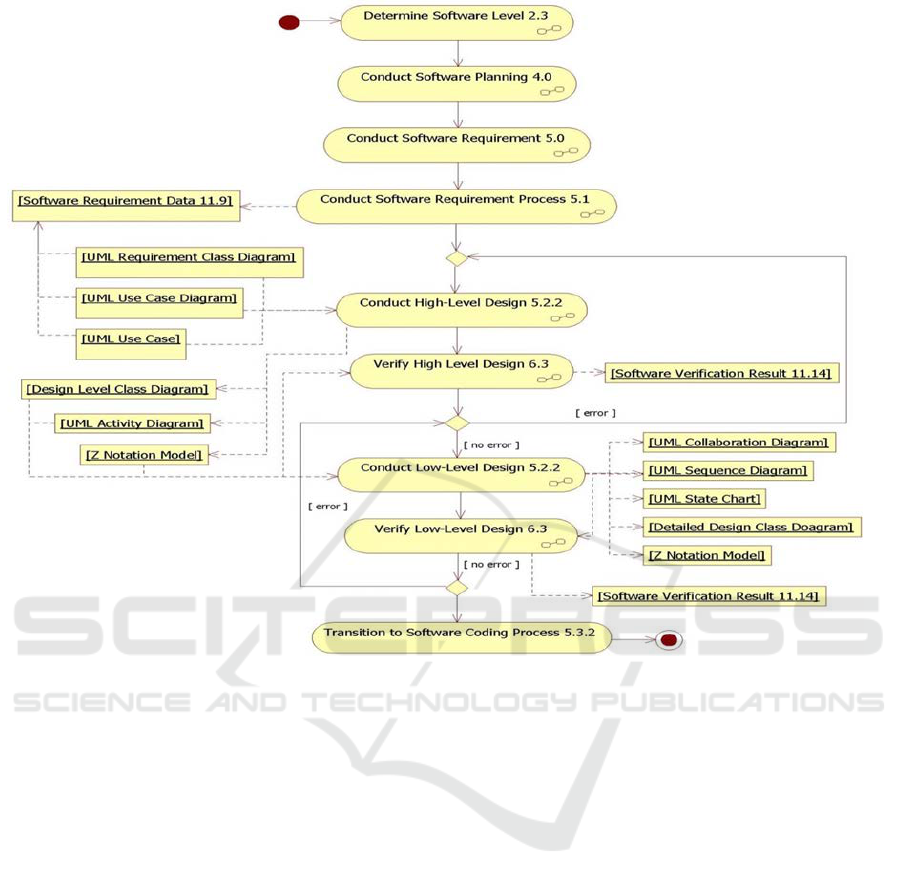

Figure 4: UML Activity Diagram Representation of DO-178C Compliant Model-Driven Methodology.

The software engineering courses are taught once

per year and follow a strict forward engineering

methodology approach. The topic of reverse

engineering is covered toward the end of the teaching

cycle, subject to the availability of lecture time;

teaching time on higher priority topics may be

extended thus reducing time for the lower priority

topics.

A review of the software engineering programs at

ten major universities in the USA, did not encounter

the term “reverse engineering” as ether a topic or

course in any of the listings. Search of the catalogue

of a major USA academic publishing firm for

textbooks on reverse engineering produced a hit list

of four items; similar searches for the terms

“requirement engineering”, “software design” and

“code generation” produces kit lists close to or

exceeding 100 items. These observations imply that

the topic of reverse engineering is not as widely

taught and written about in academia as are the other

phases of the software development life cycle.

3 PROJECT DESCRIPTION

At the start of the project, the Department of

Computer Science researchers formed three teams.

One team focused on developing the genetic

algorithms to implement the aircraft-to-gate

assignment solution. The second team focused on the

design and implementation of the user interface of the

system. The third team focused on the documentation

of the system, by way of modelling and

verification/validation exercises. The teams are

hereinafter referred to as Team I, Team II, and Team

III respectively. The content of this report is a

documentation of the efforts of Team III on project.

Notwithstanding the fact that the teams worked

independent of each other, to a great degree, there was

a high level of integration between the teams, as

Team II worked on the interface to the genetic

algorithms and Team III developed models of both

systems for verification and validation, and system

documentation. A secondary goal of Team III was

the identification and capture of any pedagogical

Pedagogical Beneﬁts from an Exercise in Reverse Engineering for an Aviation Software Systems

183

principles for incorporation into the curricula of

software engineering courses, taught by the

Department of Computer Science.

The teams held joint and separate interviews with

the airline’s stakeholders; namely managers, system

administrators, and operators over the life of the

project, and typically had greater number of meetings

at the start and end of the project. Meetings at the

start of the project were geared towards capturing the

full requirements of the system, while meetings

towards the end of the project were targeted at system

verification and acceptance. At the initial phase of

the project, the teams sought to establish a common

set of system requirements, coming out of their

respective independent and joint meetings with the

stakeholders. Once these requirements were

finalized, the teams progressed at different rates of

work during the early stages of the project. In joint

meetings between the teams, Team III determined

that their initial models of the system were not

synchronized with the work products of the other two

teams, as there were supplemental meetings with

some of the stakeholders and some requirements had

been modified, eliminated, or new ones introduced.

This realization led to Team III reorganizing their

standard approach to the model development

activities.

3.1 Modified Methodology

Research showed that many software development

projects fail because of the inability to deliver the

product in a timely and cost effective manner, i.e. the

software crisis. Paul Dorsey list ten reasons why

systems projects fail (Dorsey, 1998). Among the

Dorsey’s list is the lack of use of an appropriate

software development methodology and focusing the

development efforts on coding. Teams I and II had

initiated what may be best described as an Agile

approach to developing the system’s user interface

and generic algorithm solutions, as they rapidly

produce coded components of the system. The teams

refined the code, after consultation with the

stakeholders, towards having a working system at the

earliest.

Team III ascertained that the initial strategy for

modelling the system would not be successful; hence,

the team modified the development methodology in

use to accommodate the work of the other two teams.

This modification was an iterative reverse

engineering process that is illustrated in Figure 5

The process model of Figure 5 was developed to

incorporate

a reverse-engineering strategy to

complete the forward-engineering activities. This

process model also illustrates the use of formal

specification techniques for validating the reverse and

forward engineering activities. The “Design UML

Models” activity of Figure 5 is reflective of the

Conduct High Level Design 5.2.2” and “Conduct

Low-Level Design 5.2.2” of Figure. 4, and the

“Formal Models” activity of Figure 5 is synonymous

to the “Verify High Level Design 6.3” and “Verify

Low-Level Design 6.3” activities of Figure 4. The

green (solid) arrowed lines represent the forward

engineering path through the process model, while

the red (broken) arrowed lines represent the reverse

engineering path through the model. The forward

engineering process commenced with the “Design

UML Models” activities, while the reverse

engineering process commenced at the “Program

Code” activity.

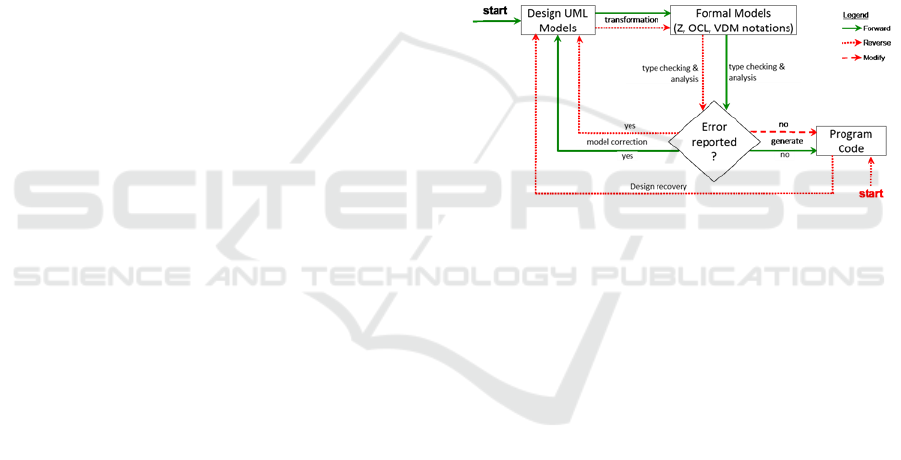

Figure 5: Reverse-Engineering Modified Model-Driven

Methodology.

This modification to the development

methodology then transitioned along the reverse

engineering line “Design recovery” line, from the

“Program Code” to representative “Design (high and

low) UML Models”. The UML models were then

transformed to a formal representation in the Z

notation for analysis during the verification phases of

the Figure 4 methodology. If the models pass the

verification, then work transition along the “generate”

arrowed lines to the production of “Program Code”.

Otherwise, work transition along the “model

correction” arrowed line to the UML models and the

next iteration of the process commence with the

identified errors being corrected in the models.

3.2 Project Implementation

Team I developed an acceptable generic algorithm

solution for the airline-gate assignment problem by

pursuing an Agile based methodology. The team held

monthly meetings with the airline’s stakeholder

managers and operators to present the accomplished

goals and establish a new set of goals for the next

CSEDU 2018 - 10th International Conference on Computer Supported Education

184

scheduled meeting. Visits were alternated between

the airline’s operation facility and UND research labs.

Each iteration resulted in the refinement of achieved

goals, accomplishment of established goals, or the

definition of new goals. While these sprints were

unusually long for a Scrum framework, they proved

adequate for this particular domain, because of the

complexity of the requirements and the development

strategy. Shorter sprints would have produced

incomplete goals at the level of granularity that would

be understandable to the stakeholders. Team I was

successful in completing a genetic algorithm

application system that was acceptable to the

stakeholders. The software system emulated the

actions of resolving aircraft-gate assignments in an

optimal manner that was equal to or better than that

which the experience operator could devise. This

ensured that even in the absence of an operator the

aircraft-gate assignment conflict resolution would be

completed in a timely manner for the airlines

operations.

Team II’s effort to develop a user interface for the

gate-assignment conflict resolution system, was

simplified after it was determined that the existing

user interface had to undergo minor modifications to

accommodate the new system. The modifications

involved adding a menu item for executing the

aircraft-gate assignment conflict-resolution system.

Consequently, the modelling of the user interface

system was not conducted by Team III, as the existing

documentation for the user interface was assessed to

be sufficient for the airlines system administrators.

3.3 Team Iii Efforts

Team III effort was centred on that of reverse

engineering a set of UML models of the genetic

algorithm system for the purpose of verification,

validation, and system documentation. Team III

opted to identify this system as a Level-A DO-178C

system, in order to exercise as many of the model-

driven methodology’s activities, as represented in

Figure 4. The intent was to garner as much

pedagogical benefits as possible for incorporation

into the software engineering curricula of the

department and provide comprehensive system

documentation artefact to the stakeholders.

The main UML model developed by Team III was

a set of activity diagrams that was implemented at the

detailed-level of system modelling. The limitation to

producing just one type of UML model was borne out

of the airline system administrators’ preference for

just the necessary models to facilitate any immediate

small-scale bug fixes, versus models to be used for

system evolution. The nature of the contract between

UND and the airline called for the software system’s

on-going maintenance (evolution) to be further

contracted out to a third party.

A sanitized example of a segment of one of the

UML activity diagrams that was developed is

presented in Figure. 6. Figure 6 does not illustrate any

significantly unusual activity diagram modelling

technique, but with the exception of the listing of

some activities with generic titles, such as “Activity

1”, “Activity 2”, etc.

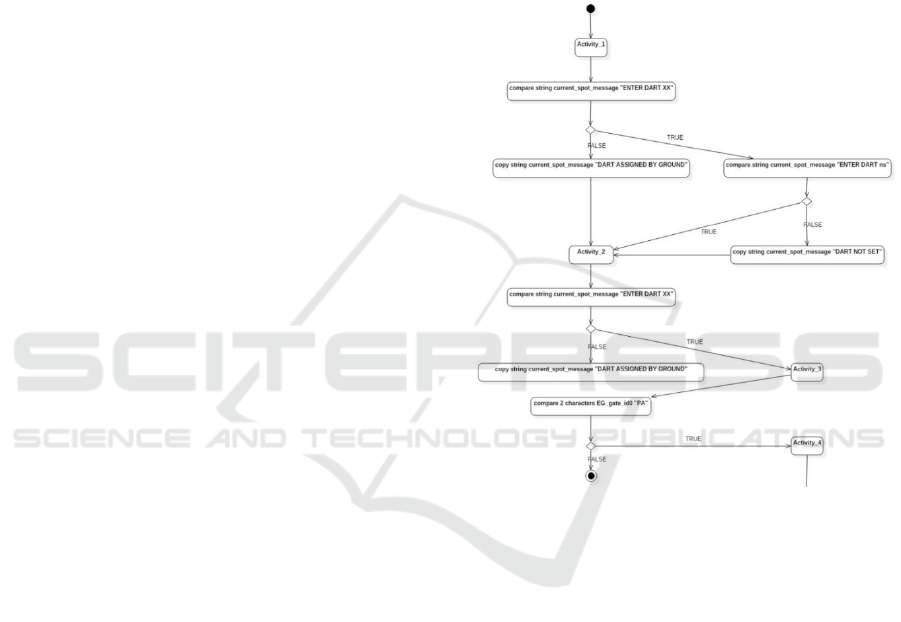

Figure 6: UML Activity Diagram of Aircraft-Gate

Assignment System.

This was done in order to capture very low-level

details of the program code, from which the model

was reversed engineered.

The models were developed in the open-source

tool StarUML and the contents of “Activity-Xs” were

stored in the documentation fields of the models. As

implemented in this activity diagram, “Activity 2” is

the snippet of code presented in Figure 7

Team I did not implement a fully object-oriented

programming paradigm, but partitioned the code-

production exercise into modules based on four

phases of the operation; (1) list aircrafts and terminal

gates, (2) assign aircrafts to gates, (3) generate

conflicts, and (4) resolve conflicts. Team III

completed the reverse engineering of the models with

the assistance of graduate students in the department,

under the supervision of faculty researchers. The

work was completed over one and one half years.

Pedagogical Beneﬁts from an Exercise in Reverse Engineering for an Aviation Software Systems

185

Team III’s work was partitioned into two phases; the

first phase covers the reverse engineering of the UML

activity diagram models, and the second, future,

phase will involve the formal verification of the

models.

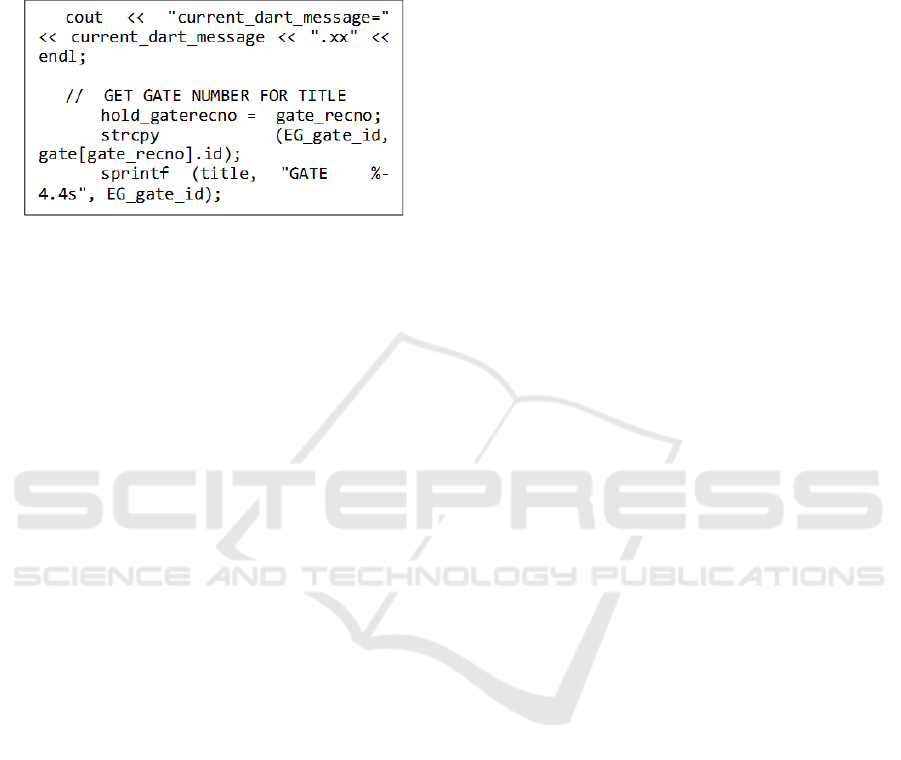

Figure 7: Code Snippet from UML Activity Diagram.

4 RESULT

Software system performance must always be

deterministic in the domain of safety-critical systems.

These software systems encompass numerous highly

complex processing components and have high

demands for reliability and accuracy, in order to

safeguard against failure.

Because of the extensive use of UML in software

development, there is a need to restate the informal

semantics of the models produces. Transforming

UML models into Z equivalent schemas provides

formal analysis to accomplish verification and

validation of software systems Clachar, 2010). With

the ever-growing demand for software systems in

existing, new, and emerging application areas, strict

requirements and design phase activities of software

development methodologies are sometimes not

enforced. Consequently, industrial practices

incorporate reverse engineering as a necessary phase

of software system development. This is done in

order to capture the necessary software system

modelling artefacts for system documentation and

maintenance.

In many USA universities, reverse engineering is

normally taught as an “add-on” to software

development methodologies. The resulting situation

is that graduates leave these software engineering

programs with minimal knowledge about reverse

engineering then find themselves in a work

environment where reverse engineering is of

paramount importance. The experience of the faculty

researchers on the project documented in this report,

and from a prior project on the development of an

UAS airworthiness system for monitoring UAVs

operation in a restricted airspace, is that there needs

to be a change in the pedagogical approach to

teaching reverse engineering.

The student researchers on this project and a prior

project, in which reverse engineering was also

applied, expressed specific and strong opinions on the

need to be taught formal approaches to reverse

engineering. Some of these student researchers had

participated in internship programs at a variety of

industrial organizations and had been exposed to

reverse engineering tasks. There was a unanimous

conclusion that reverse engineering is important to

the software development activities in real-world

project and consequently, they think the process

should be offered in courses on the same level as

forward engineering topics. There was also a

consensus among the student researchers that

working with code at the start of the project was

challenging and this challenge may be alleviated if

they had grounding in techniques to re-construct the

code.

The faculty researchers are now revising the

curricula of two undergraduate-levels and one

graduate-level courses in software engineering, at the

UND Department of Computer Science, to address

this identified disconnect between industrial practice

and the pedagogy. The curricula revision is multi-

faceted, with changes in lecture content, assignments,

and project requirements at both the undergraduate

and graduate levels of teaching. Selection of chapters

and articles from textbooks and journals on reverse

engineering will be listed for reference reading to

both groups of students, with some being selected as

required reading for each of the two groups. It should

be noted that while there is an abundance of textbooks

on forward engineering (requirements engineering,

software design, and software implementation) there

are less known and available textbooks on reverse

engineering, which are suitable for academia.

Assignments and projects will now include specific

work on reverse engineering in a form that is based

on the experience from the aforementioned two

projects. Critical to the new reverse engineering

pedagogy will be an emphasis on Agile software

development methodologies as a class of

methodologies that fosters the incorporation of

reverse engineering techniques.

4.1 The Revised Curriculum

The revised software engineering curriculum will

continue to be project-based, but will now include

activities in reverse engineering. The software

engineering methodology of instruction for the course

CSEDU 2018 - 10th International Conference on Computer Supported Education

186

will be based on the work defined in figures 4 and 5

of this report and the specific pedagogical topics

covered are influenced from the experience on the

aforementioned projects. Specifically, students will

be introduced to the relationship between forward and

reverse engineering, as illustrated in Figure 5.

Reverse engineering topics to be covered in the

revised curriculum include, but are not limited to the

following:

• Use of CASE tools in reverse engineering.

Specifically, open source tools will be used,

example StarUML, so that students can work

on their one computers.

• Reverse engineering techniques for object-

oriented programming versus procedural

programming.

• Techniques to manually reverse engineer

program codes that include: identifying

methods’ names, methods’ inputs and outputs,

and call sequences between methods.

• Techniques to identify programming

constructs, such as: assignments, iterations,

decisions, selections, etc.

• Techniques for transforming programming

code into pseudo-code.

• Techniques for transforming pseudo-code into

graphical models, namely UML models.

The teaching strategy applied in the revised

curriculum will have the students working in teams to

develop a moderately complex system as a forward

engineering exercise. Concurrently, the teams will

work on reverse engineering the code of a well-

known simple textbook system, such as the library

management system (Singh 2010). Both project will

be preceded by lectures on the fundamental principles

of software engineering, and concurrent lectures on

detailed and supplemental software engineering

topics. Pre- and post-surveys to determine the

students’ comprehension of the relationship between

academia and professional software engineering

learning and practices will be conducted. The data

from these surveys will aid in improving the

curriculum.

5 CONCLUSIONS

This report documents the experience gained from a

collaborative project between academia and industry

for developing a mission-critical software system,

albeit, the system was assessed as a safety-critical

application for educational purposes. The project was

conducted by teams of USA academic faculty and

student researchers, in difference spheres of focus.

One team conducted a reverse engineering exercise in

order to develop a set of graphical UML models, from

the program code of the system. These models

formed the main artefacts of documentation and

verification of the software system. This team had an

adjacent project goal of identifying aspects of the

project that would be incorporated in the curricula of

software engineering courses.

The project successfully achieved the established

goal by providing a software system to the

stakeholders that was introduced into production

within the specified timeframe. The adjacent project

goals of identifying pedagogical benefits from the

project were realized, as the hypothesis of a

knowledge gap existence between the curricula of

some USA undergraduate and graduate tertiary

software engineering education and industrial

practices was exemplified and data collected to

address this issue. The outcome is that the curricula

of these aforementioned courses have been revised to

include the teaching of reverse engineering as a first-

class topic of the courses under review. Future work

will seek to evaluate the benefits of this revised

pedagogy to the productivity of the graduates from

the courses. Future alumni surveys will include

specific questions to assess these benefits.

REFERENCES

Coad, P., Yourdon, E., 1991. Object-Oriented Design,

Prentice Hall, Inc. New Jersey, USA.

Shlaer, S., Mellor, S. J., 1988. Object Oriented Systems

Analysis: Modeling the World in Data, 1

ed., Prentice

Hall, New Jersey, USA.

Glass, R. L., 1997. The Software-Research Crisis, IEEE

Software, IEEE Computer Society Press, California,

USA, vol. 11. No. 6, pp, 42-47.

Booch, G., Rumbaugh, J., Jacobson, I., 1997. The Unified

Modeling Language, Rational Software Corporation,

Addison-Wesley, Indiana, USA.

Kruchten, P. 2003 The Rational Unified Process: An

Introduction, 3

ed., Addison-Wesley Object

Technologies Series, Indiana, USA.

Leveson, N. G., Turner, C. S., 1993. An Investigation of the

Therac-25 Accidents, IEEE Computer, IEEE Computer

Society, vol. 26, No. 7, pp 18-41.

Lions, J., 1996 ARIANE 5, Flight 501 Failure, Report by

the Inquiry Board, European Space Agency, Paris,

France.

Bureau d’Enquêtes et d’Analyses, 2012, Final Report on

the Accident on 1st June 2009 to the Airbus A330-203

Registered F-GZCP operated by Air France flight AF

447 Rio de Janeiro – Paris, Bureau d'Enquetes et

d'Analyses France (BEA), Paris, France.

Pedagogical Beneﬁts from an Exercise in Reverse Engineering for an Aviation Software Systems

187

RTCA, 2011. Software Considerations in Airborne Systems

and Equipment Certification. DO-178C, Radio

Technical Commission for Aeronautics (RTCA),

Washington DC, USA.

Potter, B., Sinclair, J., Till, D., 1996. An Introduction to

Formal Specification and Z, 2

ed., Prentice Hall

Europe, Hertfordshire, UK.

Clachar, S., Grant, E. S., 2010. A Case Study in Formalizing

UML Software Models of Safety Critical Systems, The

Annual International Conference on Software

Engineering. Global Science and Technology Forum

(GSTF), Phuket, Thailand.

Dorsey, P., 1998. 10 Reasons Why Systems Projects Fail,

Technical Report, Dulcian, Inc.

Singh, D., 2010, C++ Library Management System

Project - Source Code of Program, CPPforschool C++

Tutorial for School Students, Ghaziabad, India.

CSEDU 2018 - 10th International Conference on Computer Supported Education

188
