Prompting in Pseudonymised Learning Analytics

Implementing Learner Centric Prompts in Legacy Systems with High Privacy

Requirements

Daniel Schön

and Dirk Ifenthaler

1,2

Chair of Economic and Business Education – Learning, Design and Technology,

University of Mannheim, L4,1, Mannheim, Germany

Curtin University, Bentley, Australia

Keywords: Learning Analytics, Prompting, Learner Privacy, Learner Centric.

Abstract: Learning analytics have become a well-considered aspect of modern e-learning environments. One

opportunity of learning analytics is the use of learning process data enabling lecturers to analyse students’

learning progression as well as to identify obstacles and risks. With this analytics knowledge, lecturers may

want to scaffold students’ learning activities to improve the learning progress and overcome obstacles or risks.

Prompts are known to be a possible solution for such scaffolding mechanics. However, implementing prompts

into existing legacy systems in learning environments with high data privacy concerns is quite a challenge.

This research shows how a prompting application has been implemented into an existing university

environment by adding a plugin to the local e-learning platform which injects user centric prompts to specific

objects within their e-learning environment. The prompts are dynamically loaded from a separate learning

analytics application which also collects the students’ learning trails and progress. The system is evaluated in

two courses in the fall semester 2017 with more than 400 students altogether. The system collects up to two

thousand student events per day. An in-depth empirical investigation on how various prompts influence

students’ learning behaviours and outcomes is currently conducted.

1 INTRODUCTION

The field of learning analytics (LA) is generating

growing interest in data and computer science as well

as educational science, hence, becoming an important

aspect of modern e-learning environments (Ifenthaler

and Widanapathirana, 2014). LA are often discussed

and linked with regard to self-regulated learning. One

general assumption is that each learning process

demands a certain degree of self-regulation

(Zimmerman, 2002). How effective a learner can

regulate his or her learning depends on cognitive,

motivational, volitional, and metacognitive

dispositions (Bannert, 2009). Accordingly, self-

regulated learning can be seen as a cyclical process

including three major phases: (1) Starting with a

forethought phase including task analysis, goal

setting, planning, and motivational aspects. (2) The

actual learning occurs in the performance phase, i.e.,

focusing, applying task strategies, self-instruction,

and self-monitoring. (3) The last phase contains self-

reflection, as learners evaluate their outcomes versus

their prior set goals. To close the loop, results from

the third phase will influence future learning activities

(Zimmerman, 2002). Current findings show that self-

regulated learning capabilities, especially revision,

coherence, concentration, and goal setting are related

to students’ expected support of LA systems (Gašević

et. al., 2015). For example, LA facilitate students

through adaptive and personalized recommendations

to better plan their learning towards specific goals

(McLoughlin and Lee, 2010). Other findings show

that many LA systems focus on visualisations and

outline descriptive information, such as time spent

online, the progress towards the completion of a

course, comparisons with other students (Verbert et.

al., 2012). Such LA features help in terms of

monitoring. However, to plan upcoming learning

activities or to adapt current strategies, further

recommendations based on dispositions of students,

previous learning behaviour, self-assessment results,

and learning goals are important (McLoughlin and

Lee, 2010). In sum, students may benefit from LA

Schön, D. and Ifenthaler, D.

Prompting in Pseudonymised Learning Analytics.

DOI: 10.5220/0006780903830389

In Proceedings of the 10th International Conference on Computer Supported Education (CSEDU 2018), pages 383-389

ISBN: 978-989-758-291-2

383

through personalised support of their learning

journey.

One of the features with a high impact potential

on this personalized support are prompts. Prompts are

ad hoc messages, which provide or request

individualized information from the students. They

can be used to offer hints to the current learning

material, to trigger students’ self-reflection on their

learning process or to request student-specific

information. At best, prompts are directly injected

into the students’ learning environment. Prompts are

effective means for supporting self-regulated learning

(Bannert, 2009). They are an essential instructional

method for aiding certain aspects which are needed

for self-regulated learning. Prompts support learners

in activating their metacognitive strategies. These

strategies make self-regulation, self-monitoring and

evaluation possible (Ifenthaler, 2012; Veenman,

1993).

Davis (2003) investigated when (before, during or

after the actual learning process) a prompt should be

presented to the learner in order to achieve the best

learning outcome. Accordingly, prompting depends

on what the prompt is aiming at. If the aim is to

promote the planning of the learning procedures, a

presentation before the learning task is advisable. By

contrast, prompting during the learning process is

appropriate, when the learner is to be induced to

monitor and evaluate learning procedures (Davis,

2003).

However, implementing prompts into existing

legacy systems in learning environments with high

data privacy concerns is quite a challenge. This

research shows how a prompting application has been

implemented into such an existing university

environment by adding a plugin to the local e-

learning platform which injects user centric prompts

to specific objects within students’ e-learning

environment.

In this paper, we describe the concept and

implementation of the LeAP (Learning Analytics

Profile) application including flexible prompting and

present preliminary findings of the data we are able

to generate.

2 CONCEPT AND

IMPLEMENTATION

2.1 General Concept

The main idea of the LeAP application was to provide

a system which can easily be embedded into the

existing legacy environment of the university and is

easy to maintain and to upgrade in future. Therefore,

it had to fit into the world of legacy systems while

simultaneously generate few dependencies to the

other established applications.

We therefore decided to split the solution into as

many different modules as necessary. These modules

communicate with each other via a RESTful API and

can easily be improved or replaced without affecting

the rest of the solution. LeAP can be divided into

three types of components. The main part is the core

module which holds the largest part of the business

logic and deals with the connection to the database. It

consists of several sub-modules which are quite

independent of each other. Each of these modules

provide a separate API to the other components.

The second type of component are the plugins for

the existing legacy applications. At the beginning,

this is mainly the university’s e-learning platform

ILIAS (Integriertes Lern-, Informations- und

Arbeitskooperations-System). As a further

development, the integration into the campus

management system and further applications like

email or the university library are planned. The first

plugin was embedded into the web appearance of the

e-learning platform. It gathers the system-specific

user data and sends them to the LeAP-core

application. In addition, the plugin checks the

availability of prompts for the current user, injects the

prompt into the web page and deals with the prompt’s

response.

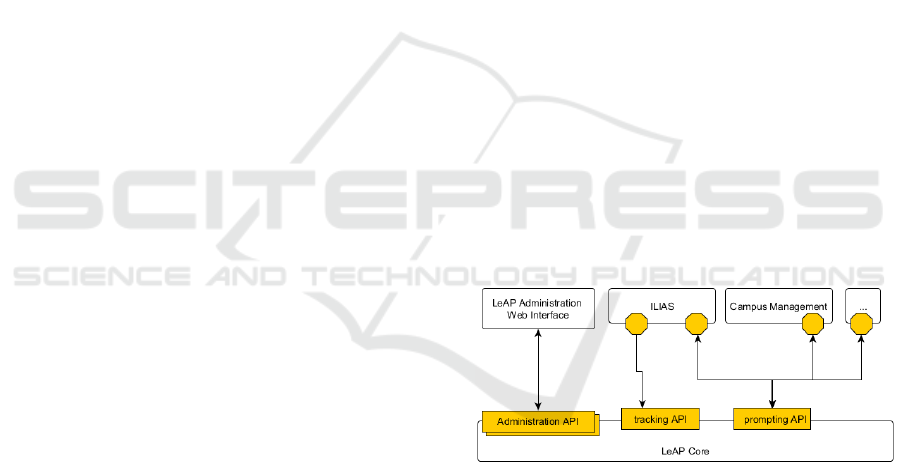

Figure 1: General concept of the LeAP solution.

The third type of component are stand-alone web

applications. At the current stage of the project, this

only includes the administration web interface. It is a

stand-alone web application, written with the

Angular.js library which communicates with the core

application via a separate administration API as

shown in Figure 1.

2.2 Data Privacy Issues

One of our main concerns was the handling of data

privacy issues. As almost every LA feature collects

and processes user data by default, it was inevitable

CSEDU 2018 - 10th International Conference on Computer Supported Education

384

to consider this topic, particularly in regard of the

country’s data privacy act. We decided to work within

the running, productive environment of our university

as soon as possible. Therefore, we were able to collect

real data and were not biased by an experimental

setting. But convincing the university’s IT

department to set up our solution within their running

environment required additional security and privacy

arrangements. Such issues have been documented in

recent publications regarding ethical issues and

dilemmas in LA (Slade and Prinsloo, 2013; Pardo and

Siemens, 2014; Ifenthaler and Schumacher, 2016).

As shown in Figure 2, we decided to use a

pseudonymisation in two steps. Wherever we are in

direct touch with the students’ activities, we use a 32-

bit hash value as an identifier. All tracking events and

prompting requests use this hash value to

communicate with the LeAP core application. The

LeAP core API then takes this hash, enriches it with

a secret phrase (a so-called pepper) and hashes it

again. The doubled hash is then stored within the

core’s database. As a result, we can match new

student generated data to already existing data but are

not able to directly trace back a specific student by a

given date within the database.

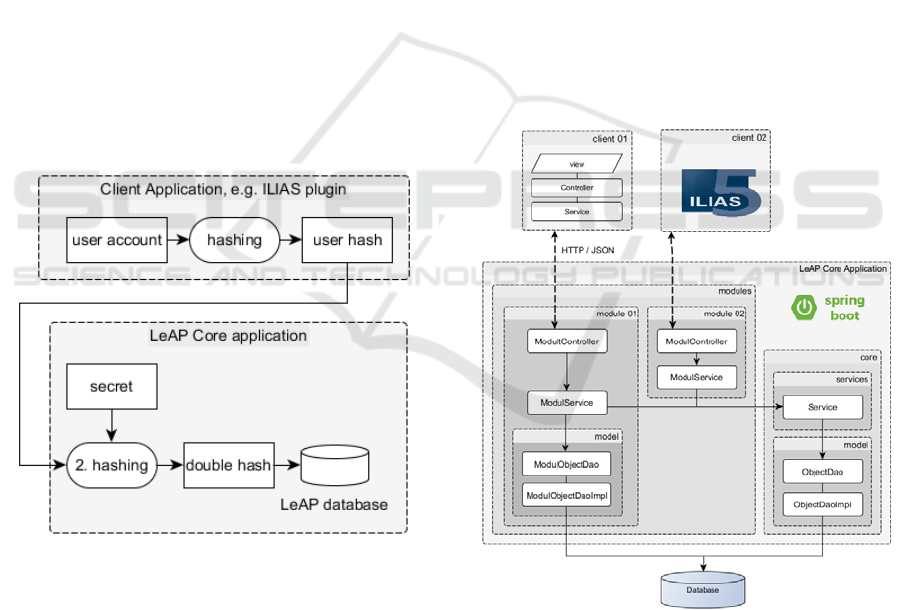

Figure 2: Concept of the encryption of student’s identity.

Another benefit of the cooperation with the

university’s administration is that we do not need to

collect demographic student data, as we can catch

hold of them from the university’s administration

afterwards. We are able to receive this data

pseudonymised in the same way, so it can be matched

with the rest of our collected data.

Upon completion of the current project phase, we

will be able to combine the tracking data, the

prompting feedbacks, the students’ grades, and

demographic data for a full-featured analysis without

need to have access to this personal data during the

data collection phase.

2.3 LeAP Core

The LeAP core component is developed in Java and

deployed as a Spring-Boot application. Spring-Boot

applications are Java systems which use the spring-

web-framework and are deployed with an integrated

web application server. Therefore, they can be started

as a separate process without the need of an extra web

application server like Tomat or Glassfish. In fact, a

Tomcat, Undertow or Jetty web server is embedded

directly into the executable java file when building

the application (Spring Boot Project, 2017).

The structure of the core component is built upon

several disjoint modules as shown in Figure 3. These

modules offer a separate API to one of the other

component types outside of the core. This

independence of the modules ensures an easy

maintenance and improvement of individual modules

without interfering with each other.

Figure 3: Technical structure of the LeAP core architecture.

The application’s core part offers a few

functionalities which can be used by all modules. The

core mainly consists of universally available data

objects and database functionality. Beneath the data

objects are students, courses, resources, and events.

In contrast, prompts are not part of the core and are

organised within a separate module.

Prompting in Pseudonymised Learning Analytics

385

Data stored in the application is categorised into

two types. The first type are resource data like courses

and objects. These are stored with an obvious external

relation to the object within the source system. For

example, reading materials are stored with an external

id, which is similar to the id given to the file within

the e-learning platform.

The second type of data are individual-related.

Beneath these are the students themselves and events

which can be assigned to them. These dates have no

obvious relation to an external object. They are

identified by an individual hash value which is built

upon the student’s university account and additional

secret as described before. This data is not completely

anonymous but it ensures a certain amount of privacy

through this pseudonymity. Thereby, new user

generated data can be connected to a specific hash,

however, the user cannot directly be identified by this

hash. Data like name, gender, or age are not stored

within the LeAP core as they can be gathered from

the university’s administration later on.

For the projects pilot phase, we only use one

instance of the core component which is responsible

for the connection to the database and handles all data

streams which occur in the current learning analytics

environment. But the concept is oriented to duplicate

this core component to spread data load and to

approach a variety of security requirements. We

operate one API at 24/7 which accepts the incoming

tracking events and simultaneously operates an API

for the lecturer’s administration interface which can

easily be taken down for steady improvements.

2.4 Plugin for e-Learning Platform

The student’s first point of contact with the LeAP

system is the learning management system. We

developed a plugin for our local learning management

system ILIAS which coordinates the tracking and

prompting within this system and allows students to

choose their current tracking status.

The plugin is written as an UserInterfaceHook

which adds a new function to the visible layout of

ILIAS. The functionality can be enabled for a specific

course, which allows the students to see a new tab

‘LA-Profile’ for setting their personal tracking status.

These status are ‘active’, ‘inactive’, and

‘anonymous’. While in status ‘inactive’, no data is

tracked. In status ‘active’, the data is allocated to the

described, individual, pseudonymous hash. Whereas

in status ‘anonymous’, the data is tracked, but not

allocated to a personalized id.

As depicted in Figure 5, additional JavaScript

libraries for tracking and prompting, are dynamically

embedded during the rendering phase of the page.

This new code is augmented with tracking and user

information and handles the communication with the

LeAP core application.

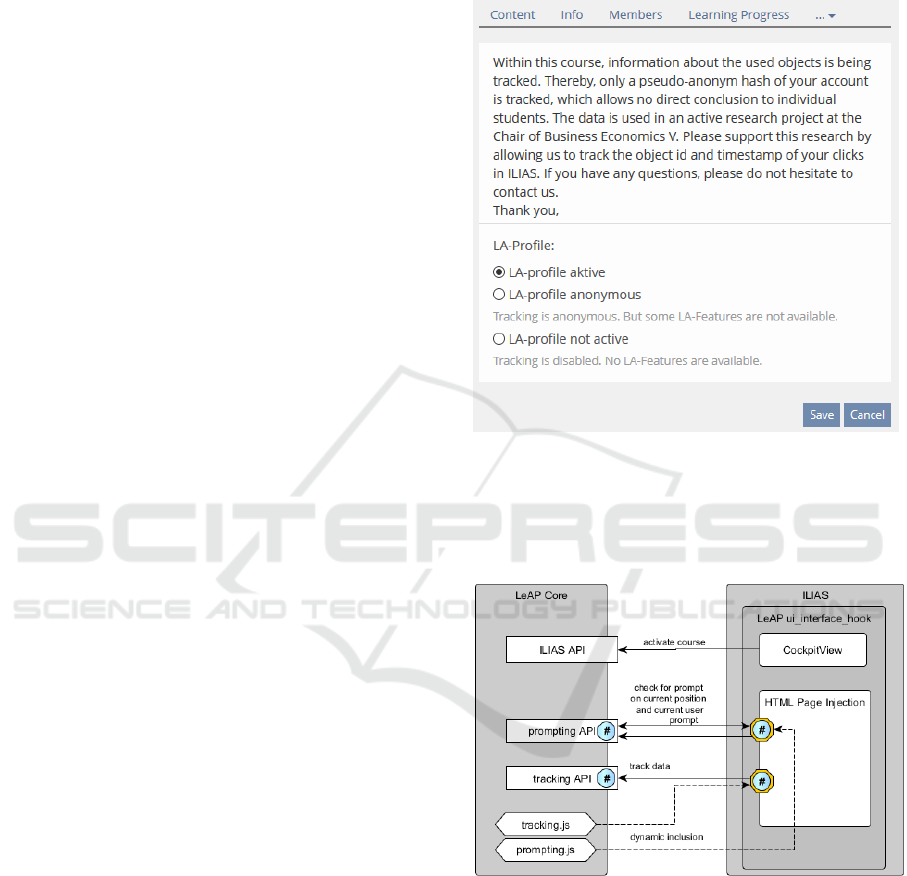

Figure 4: LeAP student privacy features.

Thus, the tracking and prompting features almost

completely run within the user’s web browser and do

not interfere with the ILIAS system.

Figure 5: LeAP plugin figure for injection.

As ILIAS is written in PHP, the plugin is also

written in PHP. The tracking and prompting libraries

are asynchronous JavaScript.

2.5 Prompts

Beside the pseudonymous and anonymous tracking of

the students’ activities, prompting is currently the

second main feature of the LeAP project. Tracking

allows us to identify individuals, which should

CSEDU 2018 - 10th International Conference on Computer Supported Education

386

receive personalised prompts. For example, students

who over- or underuse some of the learning features

or materials. But prompts can also be given to a

complete course. Prompts are always person and

location-related. We can put a prompt for every

student at the start location of the course, or position

a prompt for an individual student to a specific

learning material. The prompt is then fired when the

student hits that location. But whereas the location is

identified by an obvious identifier, persons are only

visible in their hash value representation. No personal

data like the name of the persons are available within

the prompting functionality. Students can only be

chosen by their course membership and activities.

When a prompt is fired it is displayed as a small

message window in an overlay above the active page

as shown in Figure 6. The underlying page is greyed

out and cannot be used as long as the prompt is

visible. The prompt can consist of a static information

message, a question with a text input possibility, a

question with a five-point Likert answer possibility, a

checkbox, or a combination of these. In addition, we

can present a link to a research questionnaire which

dynamically adds the student’s personal hash value.

Thereby, we are able to collect data for accompanying

research without collecting the student’s personal

data or forcing them to reuse a given token. The

various questionnaires are all brought together by the

hash, which remains constant.

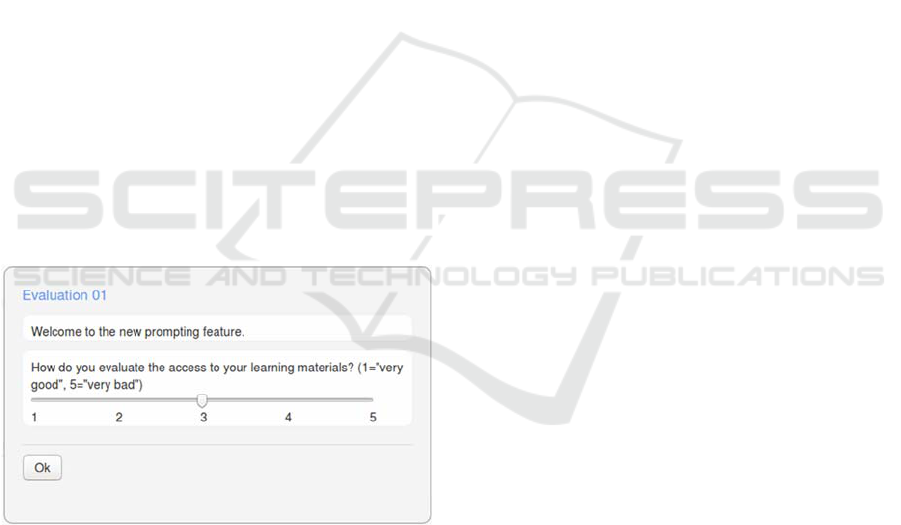

Figure 6: Prompt example of a five-point Likert question.

Beside student and location, prompts can also be

executed at a given time and for a given duration.

Prompts can therefore be active for a few hours or

several weeks. Multiple, different prompts can be

active at the same time for several students.

3 PRELIMINARY RESULTS

3.1 Tracking Data

The system is now running reliably for two months,

since the start of the fall semester. It is activated in

two courses with approximately N = 400 students.

One course is in the field of economic education, the

other in the field of computer sciences. We collected

more than 120,000 events and tracked the usage of

over 200 learning resources. The underlying

technology stack works flawless. The collected data

is reliable and satisfies the requirements for later

analysis.

3.2 Prompts

During the fall semester, we performed nine prompts

in the productive learning environment. Each prompt

lasted for one week. We prompted between 150 and

250 students and received response rates between

11% and 64%. The handling of the prompting tool is

flawless. The pilot lecturers had no difficulties to

create, manage, and submit their prompts. The

prompts have been widely accepted and we received

no information about noticeable difficulties.

Additional survey data is currently analysed which

investigates the students’ perception toward learning

support of the prompts.

3.3 Data Privacy

The default tracking for students’ data at the

beginning of the semester is set to ‘anonymous’. The

students are free to change this to ‘active’ or

‘inactive’ at every point in time. We informed them

several times about the functionality and options.

Indeed, we informed them, that it is an active research

project and would be happy to have as much

participants as possible. But we also guaranteed, that

we are not able to identify the individuals until the

end of the semester and therefore it could not have an

influence on their grading or future studies.

After three weeks, we had 65 active students, 4

inactive students and 348 anonymous students.

4 DISCUSSION

4.1 Data Privacy

As we are seeking to provide a full learner centric

system in the future, our approach starts with the

Prompting in Pseudonymised Learning Analytics

387

learners’ decision to provide their learning progress

data. The solution with using a MD5 hash value of the

students’ university accounts at the front and a

doubled hashed value in the core application ensures

a satisfying amount of privacy for the projects pilot

phase (Slade and Prinsloo, 2013; Pardo and Siemens,

2014). We are able to compute an anonymous,

complete, coherent dataset at the end of the semester,

without the need to store critical, personal data during

the semester.

But as a MD5 hash is not unique, it exists a

minuscule possibility to dilute our dataset. In theory,

two different university accounts could be hashed to

the same value. The current system would not be able

to separate them. Nonetheless, this probability is quite

low. The hashing and merging of the different data

sources is therefore a topic of current research in our

project.

The students appreciate the option to include or

exclude themselves from the data tracking but mostly

ignore this possibility and stay in status ‘anonym’. To

what extend this is based on an active decision or

passive laziness is a topic of further investigation and

is depended on their individual privacy calculus for

disclosing personal data (Ifenthaler and Schumacher,

2016).

4.2 Impact of Prompts on the Learning

Progress

As this part of the project started just at the beginning

of the fall semester 2017, we are not yet able to

provide convincing insights regarding the impact on

the students’ learning progresses. We are currently

performing a research study, whose results will be

available at the end of the semester. Beside the

prompts within the productive learning environment,

we set up a dedicated copy of the university’s learning

platform and used this laboratory system to

investigate the impact of different prompting types on

the students learning progress under laboratory

conditions with various sample groups. The first

insights might be presented at the conference.

5 CONCLUSIONS

We implemented a tracking and prompting solution

into the existing e-learning infrastructure of our

university by injecting the respective functionality

through separate JavaScript libraries into the legacy

systems. By tracking the students via a

pseudonymous hash, we are able to collect students’

data throughout various systems without the necessity

to collect further personal data (Pardo and Siemens,

2014). We are further able to merge this data with

other university known data like demographic data

and grades at the end of the semester into a complete,

anonymous dataset for further investigation.

The solution is used to perform various

educational research studies, focussing on effects of

prompting for self-regulated learning (Bannert,

2009). We are further planning to extend the various

LA features. The next step is the extension of the

students’ direct feedback. The students will get a

more transparent feedback on the amount and type of

data which was collected and how this data can be

allocated to their current learning processes.

Furthermore, we will steadily improve the application

and plan to extend the area of research to more

courses in the following semester.

REFERENCES

Bannert, M., 2009. Promoting self-regulated learning

through prompts. Zeitschrift für Pädagogische

Psychologie, 23, 139–145.

Davis, E., 2003. Prompting middle school science students

for productive reflection: generic and directed prompts.

Journal of the Learning Sciences, 12(1), 91–142.

Gašević, D., Dawson, S. and Siemens, G., 2015. Let’s not

forget: Learning analytics are about learning.

TechTrends, 59(1), 64–71

Ifenthaler, D., 2012. Determining the effectiveness of

prompts for self-regulated learning in problem-solving

scenarios. Journal of Educational Technology &

Society, 15(1), 38-52.

Ifenthaler, D. and Schumacher, C., 2016. Student

perceptions of privacy principles for learning analytics.

Educational Technology Research and Development,

64(5), 923–938.

Ifenthaler, D. and Widanapathirana, C., 2014. Development

and validation of a learning analytics framework: Two

case studies using support vector machines.

Technology, Knowledge and Learning, 19(1–2), 221–

240.

McLoughlin, C. and Lee, M. J. W., 2010. Personalized and

self regulated learning in the Web 2.0 era:

International exemplars of innovative pedagogy using

social software. Australasian Journal of Educational

Technology, 26(1), 28–43.

Pardo, A. and Siemens, G., 2014. Ethical and privacy

principles for learning analytics. British Journal of

Educational Technology, 45(3), 438–450.

Slade, S. and Prinsloo, P., 2013. Learning analytics: Ethical

issues and dilemmas. American Behavioral Scientist,

57(10), 1510–1529.

Spring Boot Project: 2017. https://projects.spring.io/spring-

boot/. Accessed: 2017-10-02.

CSEDU 2018 - 10th International Conference on Computer Supported Education

388

Verbert, K., Manouselis, N., Drachsler, H. and Duval, E.,

2012. Dataset-driven research to support learning and

knowledge analytics. Educational Technology &

Society, 15(3), 133–148.

Veenman, M. V. J., 1993. Intellectual ability and

metacognitive skill: Determinants of discovery learning

in computerized learning environments. University of

Amsterdam, Amsterdam.

Zimmerman, B. J., 2002. Becoming a self-regulated

learner: An overview. Theory into Practice, 41(2), 64-

70.

Prompting in Pseudonymised Learning Analytics

389
