Towards Classiﬁcation of Lightweight Formal Methods

Anna Zamansky

, Maria Spichkova

, Guillermo Rodriguez-Navas

Peter Herrmann

and Jan Olaf Blech

IS Department, University of Haifa, Haifa, Israel

School of Science, RMIT University, Melbourne, Australia

IDT, M

alardalen University, V

aster

as, Sweden

IIK, Norwegian University of Science and Technology, Trondheim, Norway

BHTC GmbH, Lippstadt, Germany

Keywords:

Software Engineering, Lightweight Formal Methods, Veriﬁcation, Validation, Software Quality.

Abstract:

The use of lightweight formal methods (LFM) for the development of industrial applications has become a

major trend. Although the term “lightweight formal methods” has been used for over ten years now, there

seems to be no common agreement on what “lightweight” actually means, and different communities apply

the term in all kinds of ways. In this paper, we explore the recent trends in the use of LFM, and establish our

opinion that cost-effectiveness is the driving force to deploy LFM. Further, we propose a simple framework

that should help to classify different LFM approaches and to estimate which of them are most cost-effective

for a certain software engineering project. We demonstrate our framework using some examples.

1 INTRODUCTION

Lightweight formal methods (LFM) is an increasingly

popular approach to apply formal methods (FM) in a

rapid and cost-effective way. Already in the 90s, Jack-

son and Wing admitted that “by promoting full for-

malization in expressive languages, formalists have

unwittingly guaranteed that the beneﬁts of formal-

ization are thinly spread”, cf. Jackson and Wing

(1996). To overcome this obstacle, they suggested to

use LFM, an approach which emphasizes partiality,

and predicted that this is more likely to be applied in

practice. Jackson (2001) identiﬁed four dimensions of

partiality, i.e., language, modeling, analysis and com-

position, that were later characterized in greater detail

by Barner (2005):

• Partiality in language: The idea is that formal

speciﬁcation languages shall be designed in a way

that the speciﬁcations can be automatically ana-

lyzed by tools (as opposed to earlier formal spec-

iﬁcation approaches such as Z, cf. Spivey (1992),

that often require manual analysis);

• Partiality in modeling: The focus of an FM ap-

plication shall be on those aspects of a system for

which the analysis merits the cost of formalization

(as opposed to formalization for its own sake);

• Partiality in analysis: The expressiveness of a

speciﬁcation language shall be restricted such that

it is decidable and/or tractable which makes the

use of automated analysis tools easier;

• Partiality in composition: This dimension focuses

on the goal to use FMs together with (formal or

semi-formal) description techniques without pro-

viding a precise link between them. Thus, it will

be easier to handle the complexity of the speciﬁ-

cation and analysis process.

An approach alternative to the partialities is intro-

duced by Garavel and Graf (2003) who associate for-

mal methods with design ﬂows. The authors make

a distinction between conventional design ﬂows in

which no FMs are applied, and formal design ﬂows

which incorporate the use of FMs. For the latter,

they further distinguish between fully formal ﬂows in

which FMs are used in all development stages, and

partially-formal ﬂows, in which one applies FMs only

at certain stages of the life cycle. The decision in

which stages FMs should be used, depends on the fol-

lowing aspects:

• Using FMs should address the most critical devel-

opment problems such that the proﬁt is highest;

• FMs shall be only used if they can successfully

compete with conventional methodologies.

Zamansky, A., Spichkova, M., Rodriguez-Navas, G., Herrmann, P. and Blech, J.

Towards Classiﬁcation of Lightweight Formal Methods.

DOI: 10.5220/0006770803050313

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 305-313

ISBN: 978-989-758-300-1

305

As examples for the application of FMs in partially-

formal ﬂows, Garavel and Graf name modeling that

focuses on requirements, while analysis is often done

by rapid veriﬁcation and validation (V&V) using

tools such as syntax and semantic checkers, static and

dynamic analyzers, or model checkers.

Various lightweight or selective approaches to

FM are reviewed by Kuhn and Butler (2002) us-

ing the term cost-effective formal methods. Cost-

effectiveness analysis is a form of economic analy-

sis that compares the relative costs and outcomes (ef-

fects) of different courses of action with each other,

cf. Robinson (1993). This method seems better suited

to software development than the cost-beneﬁt analysis

in which a monetary value is assigned to the measure

of effect. The reason is that typical cost parameters

like time usage or human resources can often hardly

be translated into a monetary equivalent. However,

cost and beneﬁt analysis for projects applying FMs is

known to be extremely challenging, cf. Stidolph and

Whitehead (2003); Bowen and Hinchey (1995).

As there is no proper classiﬁcation of FMs wrt.

lightweightedness, it is highly challenging to decide

based on the available FM literature, which particular

LFM should be used in a certain context.

Contributions: We examine the recent trends of

research carrying the term “lightweight formal meth-

ods”, and provide a framework for the classiﬁcation

of LFM applications. The idea behind our framework

is that we perceive the aspects of partiality Jackson

(2001); Garavel and Graf (2003) only as a symptom of

cost-effectiveness, which seems to be the main driv-

ing force behind deploying LFM instead of FM. In

particular, we carve out a number of aspects that can

be used to characterize the properties of LFM. Based

on that, we present a small framework consisting of

four simple questions that one may ask to understand

the gains and costs of employing a certain LFM in a

software development project.

2 RELATED WORK

We restrict ourselves on publications actively using

the term “lightweight formal methods”. We check

out how this term is used and how the approaches

are mapped to the dimensions of partiality, accord-

ing to the approach proposed by Jackson (2001). We

searched for papers using the phrase “lightweight for-

mal method(s)” in their title using Google Scholar and

found 36 entries. Excluding unpublished papers and

works focusing on education, we came up with 14

relevant papers that are published between 2005 and

2017. They are summarized in Table 1.

The majority of these papers apply formal meth-

ods based on the speciﬁcation language Alloy, cf.

Jackson (2012). Alloy is often called “lightweight”

which is no wonder since it is developed by one of

the original inventors of the term “lightweight for-

mal methods”. Braga et al. (2010) proposed an ap-

proach to facilitate the validation process of concep-

tual models deﬁned in the semi-formal conceptual

modeling language OntoUML by transforming these

models into speciﬁcations in the formal language Al-

loy and using its analyzer to generate instances of the

model and assertion counter-examples. A similar ra-

tionale is provided in Yang et al. (2012), where Alloy

is employed for speciﬁcation-based repair. Shao et al.

(2009) proposed an optimization of scope-bounded

checking of Alloy speciﬁcations. All of the above

works share one thing in common: The only context

in which the word “lightweight” is mentioned is the

reference to Alloy.

In his book introducing Alloy, however, Jackson

writes: “I sometimes call my approach ‘lightweight

formal methods’ because it tries to obtain the bene-

ﬁts of traditional formal methods at lower cost, and

without requiring a big initial investment. Models are

developed incrementally, driven by the modelers per-

ception of which aspects of the software matter most,

and of where the greatest risks lie, and automated

tools are exploited to ﬁnd ﬂaws as early as possible”,

cf. Jackson (2012). According to this deﬁnition, the

use of Alloy may be mapped to the partialities in mod-

eling and analysis according to Jackson (2001).

A deﬁnition of the lightweightedness of Alloy is

provided by Valles-Barajas who sees a central pur-

pose in the exposition of ﬂaws instead of full ver-

iﬁcation: “The lightweight methodology may seem

to go against the grain of the traditional approach

to formal methods. However, a more limited scope

can be very effective at, for example, providing coun-

terexamples which expose design ﬂaws. It does not

promise full veriﬁcation or full system coverage. One

notable lightweight approach is Alloy”, cf. Valles-

Barajas (2009). This refers to partiality in analysis.

Breen (2005) applied ﬁnite state machines

to model commercial embedded system product

lines providing a different meaning to the term

“lightweight formal methods”: “Speciﬁers should be

able to enjoy formal method beneﬁts such as lack of

ambiguity and amenability to automated checks but

without needing to learn arcane mathematical nota-

tions or subtle theoretical concepts”. In contrast to the

previous deﬁnitions, this can be mapped to partiality

in language.

Only Braga et al. (2010) refer also to the original ratio-

nale of Jackson (2012).

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

306

Table 1: Reviewed papers.

n Reference FM

Description

Partiality

1 Braga et al. (2010) Alloy

conceptual model validation

modeling/analysis

2 Shao et al. (2009) Alloy

formal veriﬁcation of partial models of code

modelling/analysis

3 Breen (2005) FSM

requirement speciﬁcation

language

4 Yang et al. (2012) Alloy

speciﬁcation-based test repair

modelling/analysis

5 Valles-Barajas (2009) Alloy

speciﬁcation of static aspects

analysis

6 Horl and Aichernig (2000) VDM

applying test cases to speciﬁcation

analysis

7 Gilliam et al. (2005) SPIN

model checking of system components

modeling

8 Bontemps et al. (2005) LSC

Scenario-based speciﬁcation

analysis

9 Boyatt and Sinclair (2007) Alloy

partial speciﬁcation and analysis

modelling/analysis

10 Valles-Barajas (2012) Alloy

consistency checking for class/object diagrams

analysis

11 Oda et al. (2016) VDM

ﬂexible modeling/coding with rigorous checking

analysis

12 Slaymaker et al. (2010) Alloy

consistency checking of Z models

modelling/analysis

13 Hao et al. (2016) Alloy

Designing normative systems

modeling/analysis

14 Busari and Letier (2017) RADAR

Requirements and architecture decision analysis

modeling/analysis

Bontemps et al. (2005) proposed a method to

model check scenario-based models using live se-

quence charts (LSC), introduced by Damm and Harel

(2001). Under lightweightedness, the authors under-

stand to give up the completeness property of the

model checking procedure. This can be mapped to

partiality in analysis.

Gilliam et al. (2005) proposed a framework for

system veriﬁcation using Promela and the model

checker SPIN, introduced by Holzmann (2004). They

use a compositional approach that allows one to con-

duct proofs for a subset of the overall environment

in a manner that those results can be extrapolated

to the environment at large. In particular, their ap-

proach narrows the focus to components for which se-

curity properties have been identiﬁed and which can

be modeled. This approach can be mapped to partial-

ity in modeling.

The remaining two works described applications

of variations of the Vienna Development Method

(VDM), cf. Bjørner and Jones (1978). Horl and

Aichernig describe an industrial project, in which

VDM++ has been applied to specify a safety critical

voice communication system for air-trafﬁc control.

By “lightweightedness” the authors deﬁne “taking the

advantages of a precise and unambiguous speciﬁca-

tion language to raise the quality of a systems spec-

iﬁcation, without focusing on proofs”, cf. Horl and

Aichernig (2000). Thus, they use a formal method

just to raise quality of the system description but not

to prove correctness. This does not ﬁt to well to the

partialities of Jackson (2001). The best ﬁt seems to be

partiality in analysis since the avoidance of ambiguity

errors seems to be a matter of “tractability”.

Oda et al. (2016) demonstrated an integrated de-

velopment environment supporting formal methods in

the spirit of supporting dynamic programming lan-

guages, using VDM. By “lightweightedness”, the au-

thors refer to the combination of ﬂexible live model-

ing resp. coding with the support of rigorous check-

ing. This can be also mapped to partiality in analysis.

Busari and Letier (2017) presented RADAR, a

modeling language that is a simpliﬁed form of quan-

titative goal models designed to be similar to simple

equations that software architects use for back-of-the-

envelope calculations.

To summarize, Alloy is the most popular LFM in

the reviewed publications (7 out of 14 papers). More-

over, it seems common to use the term “lightweight

formal method” in the context of Alloy without pro-

viding further rationale why this term is used at all.

The most popular dimensions of partiality according

to Jackson (2001) are modeling and analysis.

The dimensions of partiality Jackson (2001);

Barner (2005) are only symptoms in our view, and

it seems essential to consider cost-effectiveness, in

which we see the real driver behind deploying LFM.

As highlighted by Easterbrook et al., “lightweight ap-

plication of formal methods can offer a cost-effective

way of improving the quality of software speciﬁca-

tions”, cf. Easterbrook et al. (1998). Therefore, to

understand how LFMs affect cost-effectiveness, for-

mal methods must be put in the context of the devel-

opment process.

A plethora of methodologies for software develop-

ment have been proposed, and there is a huge amount

of literature discussing them. All these methodolo-

gies aim at developing products reliably and timely,

which differ in several aspects, e.g., design organi-

zation, implementation, quality and revision steps,

cf. Ruparelia (2010). On one side of the spectrum lies

the methodology known as the V-model, proposed

by Forsberg and Mooz (1991). This methodology can

be regarded as an extension of the waterfall model in-

Towards Classiﬁcation of Lightweight Formal Methods

307

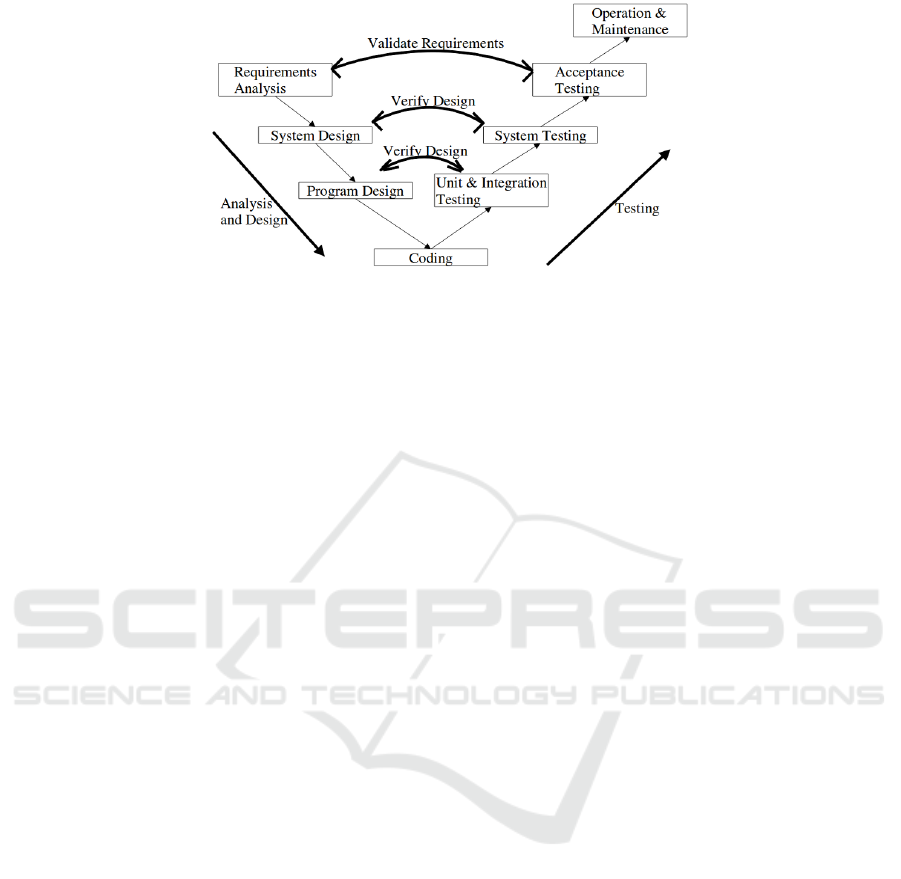

Figure 1: V-model.

troduced by Royce (1970) and provides a divide and

conquer-based development approaches, see Figure 1.

The left leg of the “V” represents the design activities,

whereas the right one stands for the testing activities

which also can be used for more in-depth analysis like

veriﬁcation or validation. While we descent the left

leg of the “V”, components and their requirements are

identiﬁed. Components are then reﬁned, implemented

and tested in parallel, before they get integrated again

when climbing up the right leg of the “V”. The divide

and conquer-based approach is beneﬁcial to outsourc-

ing the activities in order to separate subcontractors.

The requirements for the individual components rep-

resent a kind of contract, which can serve as a basis

for the application of LFMs. This organization of the

work maps very well the rationale of Model-Based

Development (MBD).

The V-model has been criticized for being am-

biguous and, like other approaches based on the wa-

terfall model, not capable of handling changes well.

It assumes that all relevant requirements about the fu-

ture product can be collected before starting the de-

sign and the implementation. This can be unfeasi-

ble for some projects in practice. Testing is supposed

to happen at the component level and on the system

level. A known risk of the V-model is, however, that

system testing activities are often postponed until the

last phase of the project. Yet, that increases the prob-

ability of failing the whole project since design errors

in the early phases might have lead to grave faults.

Solving these problems is usually expensive and leads

to signiﬁcant project delays.

Nevertheless, the V-model can be seen as a good

reference model from a managerial perspective and

is still recommended in many industrial domains.

For instance, it is the suggested methodology in the

ISO 26262 standard for functional safety of elec-

trical/electronic systems in road vehicles, cf. ISO

(2017). The W (or double vee) model, suggested by

Spillner (2000), is an evolution of the V model which

clearly speciﬁes the testing activities that should be

performed in every step, so errors can be detected and

ﬁxed in the step in which they are introduced.

In another approach, the Activity Model intro-

duced by Bræk and Haugen (1993), the different

phases of the software development process (i.e.,

requirement engineering, functional design, imple-

mentation design (considering non-functional prop-

erties), and implementation) varying models are cre-

ated. This allows one to analyze the different mod-

els separately such that design errors are detected and

corrected early. Further, the models can be used as

milestones for the interaction between the software

developer and the remitter who has to accept the mod-

els for a phase, before the next one can be started.

On the other side of the spectrum, there are meth-

ods for Rapid Application Development, with the Ag-

ile methodology being the most extreme exponent,

cf. Collier (2011). Agile development emphasizes

teams and human interaction over processes and doc-

umentation. Some characteristics of the Agile life cy-

cle are a very lean start-off design and analysis phase,

iterative design and development, incremental design

and development, parallelization of design and de-

velopment with frequent synchronization and integra-

tion, and documentation reduced to a minimum. In

fact, the team only documents what is absolutely nec-

essary. This should not be taken as a total lack of

documentation. Some artifacts, like use cases, lists

or diagrams can be exchanged among developers and

testers frequently.

In most of the approaches named, software design

methodologies do neither specify whether FM have

to be applied at all, nor at what points in the engineer-

ing process they should be used. Due to its general-

ity, however, developers of FM often describe their

tools in relation to the V-model. One FM is typi-

cally applicable within a particular phase (e.g. san-

ity checking to analyze the requirement speciﬁcation,

model checking and theorem proving to verify the de-

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

308

sign, code analyzers to verify the implementation).

Some formal methods connect different phases, such

as model-based testing, which uses the speciﬁcation

in order to derive the optimal test set with respect to a

certain property.

A vast amount of FMs exist that can be applied to

the various phases of the software engineering pro-

cess like the speciﬁcation, veriﬁcation and valida-

tion of requirements, functional system design, non-

functional system design, software design, implemen-

tation of code. Other FMs support the various testing

disciplines like unit or integration testing.

It seems that FMs are rarely used in Agile testing.

Probably, the complexity of deploying FM is seen as

unsuitable to its idea of lean development and anal-

ysis. One might wonder whether the application of

LFMs might bring here a change since the concept of

lightweightness seems to be a good ﬁt to the idea of

agility. Yet, up to now very little has been published

about the application of LFMs in Agile development.

3 CLASSIFICATION

FRAMEWORK

A typical application of an FM is the construction of

a formal model specifying important aspects of the

system to be developed (e.g., requirements) combined

with a formal analysis of this model (e.g., by veriﬁca-

tion, validation, type or model checking).

Both, the creation of speciﬁcations and their anal-

ysis require resources, and their extent may highly de-

pend on the stage in the development cycle, the used

techniques, and the characteristics of the project. It

can be very complex to develop a real-life system

such that specifying and analyzing it may consume a

lot of time which is deﬁnitely a cost-factor. More-

over, specifying and analyzing subtle functionality

resp. quality properties (e.g., robustness or realtime)

can be quite complicated. In this case, one often has

to fall back on the skills of experts in the ﬁeld which

can be a signiﬁcant cost-factor as well. Both cost-

factors depend heavily on the kind of modelling and

analysis approaches to be used, and not all techniques

ﬁt to all systems to be developed.

On the other side, we have also to consider the

gains achieved by the usually higher quality, a system

has when it has been engineered using FMs. Since

many design errors are detected in the speciﬁcation

and analysis process, the software should be deploy-

able with signiﬁcantly lower maintenance and com-

pensation costs. Of course, also the gains depend on

the FMs used, in particular, on the rigor of the analy-

ses conducted by them.

Offsetting the costs and gains of using FMs leads

to the following trade-off with respect to deploying

LFMs: Using LFMs with increased partialities ac-

cording to Jackson (2001) will likely reduce the cost-

factors of time and expert use. On the other side, the

gains due to a better quality of the produced software

tends also to be lower. The trade-off is of a qualita-

tive nature which brings us to the problem that qual-

itatively analyzing costs associated with FM applica-

tions in projects is very challenging and understudied,

cf. Stidolph and Whitehead (2003).

Despite these challenges, the managers of a soft-

ware development venture have to decide which FMs

to apply and in which phase of the engineering pro-

cess. We do not claim to provide a complete frame-

work that may guide this decision. In general, soft-

ware is diverse, such that there is highly varying re-

quirements to be fulﬁlled when creating it. This

makes it hard to map the ever growing number of

available FMs successfully to these requirements in

order to offer the most cost-effective solution.

In the following, we mention a number of central

issues that we consider suitable to guide the selection

of FMs based on cost-effectiveness. Based on these

aspects, we thereafter deﬁne four simple questions

that can provide some support for the classiﬁcation

of LFMs and, in consequence, for the decision, which

one to use in a certain situation.

• FMs can be applied at different development

stages, from requirement engineering via the

functional and deployment design phases towards

the implementation, cf. Bræk and Haugen (1993).

Several works highlight the beneﬁts of early ap-

plication of FMs to formalize and validate re-

quirements, e.g., Berry (2002). In this way, er-

rors that are introduced in the early design steps,

can be detected and corrected before they be-

come costly. Furthermore, in early design phases

system descriptions are relatively abstract which

makes both the speciﬁcation and formal analysis

of the systems easier. Other work supports the ap-

plication of formal methods at the end of the life

cycle, i.e., directly on the source code of the soft-

ware, cf. Shao (2010). One argument supporting

this view is that even if many programming lan-

guages lack a formal semantics and any of their

low-level features are implementation-dependent

and underspeciﬁed, the late design artifacts ex-

pressed in these languages are often the most pre-

cise and unambiguous descriptions of a system,

especially when compared to informal artifacts

produced during earlier design steps.

• An application of a FM can focus on different

parts and aspects of the system. For example, the

Towards Classiﬁcation of Lightweight Formal Methods

309

most complex parts of the system, or the most crit-

ical safety or security properties can be formal-

ized. Another reason to treat certain parts of a

system formally, is that some properties like per-

formance issues can hardly be described in an in-

formal or semi-formal way. Beyond that, some-

times the developers have to obey regulations for

licensing the software that determines this ques-

tion, cf. e.g., Lawley (1974).

• There is a wide variety of formal languages that

can be used in a FM application, and we already

stated that the selection can have a signiﬁcant im-

pact on the resources to be used. In particular, the

tool support is often critical. On the one hand,

some tools (e.g., model checkers) work highly au-

tomatically while others (e.g., theorem provers)

are more interactive and need a higher degree of

human intervention. On the other one, many tools

demand a signiﬁcant learning curve such that fa-

miliarity and experience of their users get a major

factor.

• Due to the varying complexity of the software to

be developed and the FMs to be used, we are often

restricted in the decision, whom to schedule cer-

tain tasks. Some FM applications require highly

trained mathematicians or practitioners with hard-

to-acquire expertise, cf. Hall (1990). In contrast,

other techniques are much easier to handle or even

hide formal modeling and analysis to their users,

cf. e.g., Kraemer et al. (2009).

To describe the aspects mentioned above in a more

striking form, we summarize them in the form of four

relatively simple questions that, however, can be help-

ful to decide about the cost-effective use of FM:

WHEN: At which development stage should FMs be

applied?

WHAT: For what parts/aspects of the system should

FMs be applied?

HOW: How rigorous shall the modeling and analysis

be and what languages and tools should one use to

achieve that?

WHO: Which human resources should be deployed?

In our opinion, envisioning these questions for

possible LFM candidates facilitates to foresee the ad-

vantages and disadvantages of them for a certain de-

velopment project and in a particular situation (e.g.,

the availability of experts). This should make it eas-

ier to give relatively fair predictions about the factual

cost-effectiveness of the different methods such that

their beneﬁts can be compared, and meaningful man-

agerial decisions can be taken.

4 CLASSIFICATION EXAMPLES

To investigate the above claim, we apply the proposed

framework on a number of LFMs actively applied

in the FM community, and characterize their cost-

effectiveness by answering the four questions for each

of them.

4.1 Software Speciﬁcation in cTLA

The compositional Temporal Logic of Actions (cTLA)

is a variant of Lamport’s Temporal Logic of Actions

(TLA) introduced by Lamport (2002). It enables us

to describe components and constraints of systems as

separate speciﬁcations in a process-oriented way that

can be composed by deﬁning the joint execution of

actions.

Process composition in cTLA has the character of

superposition, cf. Back and Kurkio-Suonio (1989),

i.e., a property of a single process is also a property

of each system containing it. This makes it possible

to reduce the proof that a system fulﬁlls a property to

the veriﬁcation that an (often very small) subsystem

fulﬁlls this property. These ingredients allow for the

development of speciﬁcation frameworks that con-

tain libraries of cTLA process types that model typ-

ical functions of a certain application domain. More-

over, a framework contains libraries of theorems stat-

ing that, under some side conditions, a cTLA process

or a subsystem of such processes fulﬁll a more coarse-

grained functionality or a property. The theorems

were veriﬁed by the framework developers such that

the user needs only to check that their side conditions

hold and that the processes in the ﬁne-grained sys-

tems are consistently coupled. These checks are usu-

ally simple and can also be automated, cf. Herrmann

et al. (2002). Such frameworks were developed for

the service veriﬁcation of communication protocols,

hazard analysis of chemical plants, and security pol-

icy veriﬁcation of component-structured software, cf.

e.g. Herrmann (2003).

For this approach, we can answer the four ques-

tions in the following way:

WHEN: The approach can be used at the requirement

engineering (RE) and the functional design stage of

the software development cycle.

WHAT: A framework can be used to specify and ana-

lyze functions that are supported by its libraries.

HOW: The approach is formally rigorous since it is

based on TLA and one should use the checking tool

delivered by the approach.

WHO: Humans applying this approach should know

the basics of TLA and cTLA speciﬁcation and veri-

ﬁcation. Thanks to the clear structure and the tools

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

310

available, however, they do need in-depth knowledge

in veriﬁcation based on temporal logic.

In consequence, we can expect the approach to be

very cost-effective as long as there is a framework

available for the particular problem since one gets a

high degree of formal rigor without having to carry

out complex veriﬁcations. For problems, not yet cov-

ered by a framework, however, the approach will have

no advantage over traditional TLA.

4.2 Software Development with

Reactive Blocks

Reactive Blocks is a tool-set that also facilitates the

reuse of functionality but on a much lower level of the

software engineering cycle, cf. Kraemer et al. (2009).

Basically, it is a MBD technique for reactive sys-

tems based on the programming language Java. The

reuse of functionality is supported by special build-

ing blocks, which may contain recurring functionality

that can be reused in several software projects. To

facilitate the reuse further, the interface behavior of

each building block is speciﬁed by an External State

Machine (ESM). The building blocks can be stored

for further use in special libraries of the tool. The

behavior of a building block is speciﬁed using UML

activities: a graph structure that resembles Petri nets

and facilitates the understanding of control and data

ﬂows in a software. The nodes represent relevant soft-

ware elements like building blocks, Java methods, or

timers as well as elements to coordinate ﬂows, e.g.,

forks, merges.

Since the OMG did not provide the activities with

a formal semantics, one was deﬁned by the develop-

ers Kraemer and Herrmann (2010). Based on that, a

model checker could be integrated into the Reactive

Blocks tool-set Kraemer et al. (2009), which allows

the veriﬁcation of various correctness properties, e.g.,

that both, a building block and the environment us-

ing it preserve its ESM. The model checker is com-

pletely transparent to the user of the tool who simply

has to push an Analyze button. Thus, the approach

follows the “Disappearing Formal Methods” concept

proposed by Rushby (2000) according to which the

formal issues of the veriﬁcation process shall be hid-

den to the user of the tool.

The four questions can be answered as follows:

WHEN: The Reactive Blocks tool-set covers the

whole software engineering process except for re-

quirements engineering.

WHAT: It covers the whole system design.

HOW: While the whole system is modeled, the for-

malism is not very rigorous. The syntax facilitates

the understanding of the various control and data

ﬂows of a system which is helpful in complex sys-

tems with several coordinated threads. The built-in

model checker, however, can check only relative ab-

stract properties of the ﬂows, e.g., compliance with

the ESMs or freedom of deadlocks.

WHO: After a short training period, the tool can be

used by everybody who is able to program in Java.

Altogether, we have a formal method that is com-

prehensive and very helpful to engineer systems with

complicated control and data ﬂows. It is cost-effective

thanks to the reuse factor and the easiness to apply the

model checker. On the other side, the gain achieved

by formal analysis is limited. For instance, errors in

the code of the operations cannot be detected by the

model checker such that normal code testing is still

necessary.

4.3 Software Development with AF3

AutoFocus3 (AF3) is a tool for the model-based devel-

opment of distributed, reactive, and embedded soft-

ware systems, cf. Aravantinos et al. (2015). The tool

supports formal veriﬁcation, automatic test-case gen-

eration, simulation of the system by test-cases, and on

the ﬂy consistency checks. The earlier versions of the

tool were successfully applied in a number of scien-

tiﬁc and industrial case studies Feilkas et al. (2009);

Broy et al. (2008); Spichkova et al. (2012); H

olzl et al.

(2010); H

olzl et al. (2010), providing a basis for the

further development of the tool as well as for expand-

ing the coverage of the software development phases.

On the veriﬁcation level, AF3 provides several op-

tions that can also be combined, for example:

• Model-checking support, covering a large subset

of the AF3 language.

• Easy to write veriﬁcation conditions (via patterns

or sequence diagrams).

• Check if the guarantees of neighboring compo-

nents fulﬁll the assumptions of a component.

• Analysis whether an application realizes a sce-

nario speciﬁed by a Message Sequence Chart dia-

gram.

• Lightweighted analyses for possible non-

determinism in state automata.

Recent research work focuses also on an automated

generation of the documentation from the model, to

increase the understandability of the AF3 models, cf.

Vo and Spichkova (2016).

For this approach, we can answer the four ques-

tions as follows:

WHEN: AF3 can be used at all stages of the develop-

ment (RE, design of the logical architecture, the de-

ployment and the scheduling, hardware architecture,

Towards Classiﬁcation of Lightweight Formal Methods

311

etc).

WHAT: AF3 covers the whole system design.

HOW: The approach is not really rigorous. The over-

all goal is to hide the formal aspects of modeling and

veriﬁcation from the developer behind the tool sup-

port, including visual modeling, tables and natural

language speciﬁcation.

WHO: The tool is easy to use, as it allows speciﬁca-

tion using state automata, source code, or tables. No

speciﬁc programming skills are required.

The advantage of this approach is that it covers

all phases of the software development as well as the

high usability of the AF3 tool.

5 CONCLUSIONS

In this paper, we make a step towards creating a “map

of the jungle” of lightweight formal methods, which

will enable researchers and practitioners to compare

between different applications of LFMs and choose

the LFM most appropriate for their particular case

more easily. To this end, we were carrying out a litera-

ture review of recent works on LFM applications, ex-

ploring the way in which the term is used and what it

is supposed to mean. Our review reveals that the most

popular applications of LFMs is using Alloy, and that

usually no rationale behind its lightweightedness is

provided. The dimension of partiality in composition

is not addressed in the papers reviewed. This con-

tradicts with our view that the integration of LFMs

into the development process should be a key issue.

We further formulated a small framework including

four basic questions in order to facilitate the classiﬁ-

cation of various LFM applications. By considering

LFMs in the setting of the development process, the

answers to these questions should provide better ori-

entation towards cost-effectiveness.

ACKNOWLEDGEMENTS

This work has been funded by the Swedish Govern-

mental Agency for Innovation Systems (VINNOVA)

under the VeriSpec project 2013-01299.

REFERENCES

Aravantinos, V., Voss, S., Teuﬂ, S., H

olzl, F., and Sch

atz, B.

(2015). AutoFOCUS 3: Tooling Concepts for Seam-

less, Model-based Development of Embedded Sys-

tems. In ACES-MB.

Back, R. J. R. and Kurkio-Suonio, R. (1989). Decentral-

ization of Process Nets with a Centralized Control. In

Distributed Computing, pages 73–87.

Barner, J. (2005). A Lightweight Formal Method for the

Prediction of Non-functional System Properties. Cite-

seer.

Berry, D. M. (2002). Formal methods: the very idea: Some

thoughts about why they work when they work. Sci-

ence of computer Programming, 42(1):11–27.

Bjørner, D. and Jones, C. B. (1978). The Vienna Develop-

ment Method: The Meta-Language. Springer.

Bontemps, Y., Heymans, P., and Schobbens, P.-Y. (2005).

Lightweight formal methods for scenario-based soft-

ware engineering. In Scenarios: Models, Transforma-

tions and Tools, pages 174–192. Springer.

Bowen, J. P. and Hinchey, M. G. (1995). Seven more myths

of formal methods. IEEE Software, 12(4):34–41.

Boyatt, R. and Sinclair, J. (2007). A lightweight formal

methods perspective on investigating aspects of inter-

active systems,. In FM Interact. Syst, pages 35–50.

Bræk, R. and Haugen, Ø. (1993). Engineering Real Time

Systems: An Object-oriented Methodology using SDL.

Prentice-Hall.

Braga, B. F., Almeida, J. P. A., Guizzardi, G., and Bene-

vides, A. B. (2010). Transforming ontouml into al-

loy: towards conceptual model validation using a

lightweight formal method. Innovations in Systems

and Software Engineering, 6(1):55–63.

Breen, M. (2005). Experience of using a lightweight for-

mal speciﬁcation method for a commercial embed-

ded system product line. Requirements Engineering,

10(2):161–172.

Broy, M., Fox, J., H

olzl, F., Koss, D., Kuhrmann,

M., Meisinger, M., Penzenstadler, B., Rittmann, S.,

Sch

atz, B., Spichkova, M., et al. (2008). Service-

oriented modeling of CoCoME with Focus and Aut-

oFocus. In The Common Component Modeling Ex-

ample, pages 177–206. Springer.

Busari, S. A. and Letier, E. (2017). Radar: A lightweight

tool for requirements and architecture decision analy-

sis. In ICSE 2017, pages 552–562.

Collier, K. W. (2011). Agile Analytics: A Value-Driven Ap-

proach to Business Intelligence and Data Warehous-

ing. Pearson Education.

Damm, W. and Harel, D. (2001). LSCs: Breathing Life into

Message Sequence Charts. FM in Sys. Design, 19:45–

80.

Easterbrook, S., Lutz, R., Covington, R., Kelly, J., Ampo,

Y., and Hamilton, D. (1998). Experiences using

lightweight formal methods for requirements model-

ing. IEEE Trans. on Software Engineering, 24(1):4–

14.

Feilkas, M., Fleischmann, A., H

olzl, F., Pfaller, C., Schei-

demann, K., Spichkova, M., and Trachtenherz, D.

(2009). A top-down methodology for the development

of automotive software. Tech. Rep. TUM-I0902, TU

unchen.

Forsberg, K. and Mooz, H. (1991). The Relationship of Sys-

tem Engineering to the Project Cycle. In 1st Annual

Symposium of National Council on SE, pages 57–65.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

312

Garavel, H. and Graf, S. (2003). Formal methods for safe

and secure computers systems. BSI Study, 875.

Gilliam, D. P., Powell, J. D., and Bishop, M. (2005). Ap-

plication of lightweight formal methods to software

security. In WET ICE, pages 160–165. IEEE.

Hall, A. (1990). Seven myths of formal methods. IEEE

Software, 7(5):11–19.

Hao, J., Kang, E., Sun, J., and Jackson, D. (2016). Design-

ing minimal effective normative systems with the help

of lightweight formal methods. In FSE, pages 50–60.

ACM.

Herrmann, P. (2003). Formal Security Policy Veriﬁca-

tion of Distributed Component-Structured Software.

In FORTE, number LNCS 2767, pages 257–272.

Springer.

Herrmann, P., Krumm, H., Dr

ogehorn, O., and Geissel-

hardt, W. (2002). Framework and Tool Support for

Formal Veriﬁcation of High Speed Transfer Protocol

Designs. Telecommunication Systems, 20:291–310.

olzl, F., Spichkova, M., and Trachtenherz, D. (2010).

AutoFocus Tool Chain. Tech. Rep. TUM-I1021, TU

unchen.

olzl, F., Spichkova, M., and Trachtenherz, D. (2010).

Safety-critical system development methodology.

Tech. Rep. TUM-I1020, TU M

unchen.

Holzmann, G. J. (2004). The SPIN Model Checker: Primer

and Reference Manual. Addison-Wesley.

Horl, J. and Aichernig, B. K. (2000). Validating voice

communication requirements using lightweight for-

mal methods. IEEE Software, 17(3):21–27.

ISO (2017). ISO 26262-1:2011(en) — Road Vehicles —

Functional Safety. Accessed: 2017-01-12.

Jackson, D. (2001). Lightweight formal methods. In FME.

Springer.

Jackson, D. (2012). Software Abstractions: logic, language,

and analysis. MIT press.

Jackson, D. and Wing, J. (1996). Lightweight formal meth-

ods. Computer, 29(4).

Kraemer, F. A. and Herrmann, P. (2010). Reactive Seman-

tics for Distributed UML Activities. In FMOODS and

FORTE, LNCS 6117, pages 17–31. Springer.

Kraemer, F. A., Sl

atten, V., and Herrmann, P. (2009). Tool

Support for the Rapid Composition, Analysis and Im-

plementation of Reactive Services. Journal of Systems

and Software, 82:2068–2080.

Kuhn, R., R. C. and Butler, R. (2002). Cost effective use

of formal methods in veriﬁcation and validation. In

Veriﬁcation and Validation Foundations.

Lamport, L. (2002). Specifying Systems. Addison-Wesley.

Lawley, H. G. (1974). Operability Studies and Hazard Anal-

ysis. Chemical Engineering Progress, 70(4):45–56.

Oda, T., Araki, K., and Larsen, P. G. (2016). Viennatalk

and assertch: building lightweight formal methods en-

vironments on pharo 4. In Smalltalk Technologies.

ACM.

Robinson, R. (1993). Cost-effectiveness Analysis. BMJ,

307:793–795.

Royce, W. (1970). Managing the Development of Large

Software Systems. In IEEE WESCON, pages 1–9.

Ruparelia, N. B. (2010). Software development lifecycle

models. ACM SIGSOFT SE Notes, 35(3):8–13.

Rushby, J. (2000). Disappearing Formal Methods. In HASE,

pages 95–96. ACM.

Shao, D., Khurshid, S., and Perry, D. (2009). An incre-

mental approach to scope-bounded checking using a

lightweight formal method. In FM, pages 757–772.

Springer.

Shao, Z. (2010). Certiﬁed software. Commun. ACM,

53(12):56–66.

Slaymaker, M., Power, D., and Simpson, A. (2010). For-

malising and validating rbac-to-xacml translation us-

ing lightweight formal methods. In Abstract State Ma-

chines, Alloy, B and Z, pages 349–362. Springer.

Spichkova, M., H

olzl, F., and Trachtenherz, D. (2012). Ver-

iﬁed System Development with the AutoFocus Tool

Chain. In WS-FMDS.

Spillner, A. (2000). From V-Model to W-Model - Establish-

ing the Whole Test Process. In Quality Engineering in

Software Technology.

Spivey, M. (1992). The Z Notation: A Reference Manual.

International Series in Computer Science. Prentice-

Hall.

Stidolph, D. C. and Whitehead, J. (2003). Managerial issues

for the consideration and use of formal methods. In

FME, pages 170–186. Springer.

Valles-Barajas, F. (2009). Use of a lightweight formal

method to model the static aspects of state machines.

ISSE, 5(4):255–264.

Valles-Barajas, F. (2012). Using lightweight formal meth-

ods to model class and object diagrams. CSIS,

9(1):411–429.

Vo, P. and Spichkova, M. (2016). Model-based generation

of natural language speciﬁcations. In STAF, pages

221–231. Springer.

Yang, G., Khurshid, S., and Kim, M. (2012). Speciﬁcation-

based test repair using a lightweight formal method.

In FM, pages 455–470. Springer.

Towards Classiﬁcation of Lightweight Formal Methods

313
