Recent Advances towards the Industrial Application of

Model-Driven Engineering for Assurance of Safety-Critical Systems

Jose Luis de la Vara

, Alejandra Ruiz

and Huáscar Espinoza

Departamento de Informática, Universidad Carlos III de Madrid, Leganés, Spain

ICT Division, TECNALIA, Derio, Spain

Keywords: Safety-Critical Systems, Assurance, Certification, Model-Driven Engineering, Model-based Engineering.

Abstract: Safety-critical systems are typically subject to assurance processes as way to ensure that they do not pose

undue risks to people, property, or the environment, usually in compliance with assurance standards. The

planning, execution, and management of assurance processes can be a complex activity in practice because

of issues in the application of the standards, the large amount of information to handle, and the need for

providing convincing justifications of assurance adequacy, among other difficulties. As a solution, many

authors have argued that the use of Model-Driven Engineering principles and techniques can facilitate and

improve assurance of safety-critical systems. This paper presents some of the latest advances that have been

and are being made towards the use of these principles and techniques in industry. Although models have

been used for assurance of safety-critical systems for many years, e.g. to specify safety cases, it has only

been recently when the full potential of Model-Driven Engineering has started to be more widely exploited.

This includes aspects such as the specification of metamodels and domain specific languages for assurance,

the extension and application of UML, and the use of model transformations.

1 INTRODUCTION

Safety-critical systems are those whose failure can

harm people, property, or the environment, e.g. cars,

trains, aircrafts, and medical devices. These systems

are subject to rigorous assurance processes.

Assurance can be defined as “the planned and

systematic actions necessary to provide adequate

confidence and evidence that a product or process

satisfies given requirements” (RTCA, 2011);

dependability requirements in general, safety ones in

particular, and typically in compliance with

assurance standards for certification.

Examples of assurance standards include IEC

61508 (IEC, 2011) for electrical, electronic, and

programmable electronic systems in a wide range of

industries, and more specific standards such as DO-

178C for avionics (RTCA, 2011), the CENELEC

standards for railway (e.g. EN 50128 (CENELEC,

2011)), and ISO 26262 for the automotive sector

(ISO, 2011). Systems (and components) developers

must follow the standards and enact assurance

processes for safety-critical systems, and system

evaluators (e.g. assessors, certification authorities, or

regulators) must confirm the adequacy of the

assurance activities executed by the developers.

Assurance of safety-critical systems is a complex

activity in practice. Standards are usually large

textual documents that contain hundreds of pages

and define thousands of compliance criteria.

Ambiguity and inconsistency are common. System

developers can easily face challenges because of

difficulties in following and applying the standards,

having to manage large amounts of assurance

evidence, and having to provide valid justifications

of system assurance and of the adequacy of the

assurance activities, among other difficulties (de la

Vara, 2016a; Nair, 2015a). These difficulties can

lead to assurance risks (Alexander, et al., 2010),

which are conditions that can make a safety-critical

system developer incapable of (1) developing a

system that complies with assurance standards and

can be deemed safe, (2) adequately collecting and

managing assurance evidence and thus guaranteeing

system safety, or (3) making a third-party (e.g. an

assessor) gain sufficient confidence in system safety.

As a solution to the above issues, several authors

have argued during the last decade that the use of

Model-Driven Engineering (MDE) principles and

632

Vara, J., Ruiz, A. and Espinoza, H.

Recent Advances towards the Industrial Application of Model-Driven Engineering for Assurance of Safety-Critical Systems.

DOI: 10.5220/0006733906320641

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 632-641

ISBN: 978-989-758-283-7

techniques can help practitioners to perform

assurance activities, e.g. (Biggs, et al., 2016; de la

Vara, et al., 2016c; Espinoza, et al., 2011; Falessi, et

al., 2012; Panesar-Walawege, et al., 2013; Ruiz, et

al., 2016; Wu, et al., 2015). Models, in conformance

to metamodels (Bézivin, 2005), can used be e.g. to

create representations of assurance standards and of

how to follow them, to specify a reference of the

assurance evidence to manage and of how to

structure it, and to represent the justification of

system assurance and of assurance adequacy,

including the semi-automatic derivation of this

justification with model transformations.

Many of the possible usages of MDE for

assurance of safety-critical systems have only been

proposed in the literature, but some results are

already starting to be transferred to practice through

collaborative industry-academia projects, software

tools, and international standards. In addition to

providing support to assurance processes, MDE has

also been used as the overall technology to develop

tools to support the processes.

This paper presents recent advances towards the

industrial application of MDE for assurance of

safety-critical systems. This information can be

valuable (1) for practitioners (both system

developers and evaluators) to gain awareness of how

to exploit MDE for improvement of their assurance

processes, (2) for tool vendors to find possible new

features and new ways to develop software support

to assurance processes, and (3) for academia to

obtain an overall picture of recent research results on

MDE-based assurance of safety-critical systems and

to identify research opportunities.

The rest of the paper is organized as follows.

Section 2 presents the main background of the paper,

and Sections 3 to 7 describe specific efforts towards

the industrial application of MDE for safety

assurance. More specifically, Section 3 describes the

OPENCOSS project, Section 4 the OpenCert

platform, Section 5 initiatives and the OMG (Object

Management Group), and Section 6 the AMASS

project. Section 7 reports our main conclusions.

2 BACKGROUND

The background of the paper is divided into two

broad areas: how models have been used for

assurance of safety-critical systems in practice, and

related work, i.e. other publications that have

provided similar or related overviews about

assurance process and practices.

2.1 Use of Models for Assurance of

Safety-Critical Systems in Practice

The use of models, understood as graphical

representations with a specific and constrained

structure, in assurance activities for safety-critical

systems is not an idea proposed during the last

decade, but models have been used since long

before. Practitioners have indeed reported the use of

models to e.g. manage assurance evidence (de la

Vara, 2016a; Nair, 2015a). In this section we focus

on the arguably two main specific usages of models

for safety-critical systems: the specification of safety

cases and the representation of safety analyses.

A safety case can be defined as “a clear,

comprehensive and defensible argument that a

system is acceptably safe to operate in a particular

context” (Kelly, 1999). Safety cases are a

specialization of assurance cases, which can be

defined as “A collection of auditable claims,

arguments, and evidence created to support the

contention that a defined system/service will satisfy

its assurance requirements” (OMG, 2017d). The

notion of and the need for creating and maintaining

safety cases is common in practically all the safety-

critical domains, in spite of being referred to with a

different term, e.g. Software Accomplishment

Summary for avionics software.

Safety cases are usually provided as textual

reports, but they can contain graphical

representations. There exist two main graphical

notations: CAE (Claims, Arguments and Evidence)

(Adelard, 2017) and GSN (Goal Structuring

Notation) (Goal Structuring Notation, 2017). Both

support the modelling of the claims that assure

system safety, the arguments that justify the claims,

and the supporting evidence. GSN provides further

concepts to represent e.g. the context of a claim,

argument modules, and argument patterns. Figure 1

shows an example of a GSN diagram.

Regarding safety analyses, the application of

classical techniques (Ericsson, 2015) is usually

based on tables, but some are based on models. The

most typical one arguably is FTA (Fault Tree

Analysis). It is used to determine the root causes and

probability of occurrence of a specified undesired

event, and allows systems analysts to model the

unique combinations of fault events that can cause

an undesired event to occur (Ericsson, 2015). A fault

tree is a model that logically represents the various

combinations of possible events, both faulty and

normal one, occurring in a system that lead to an

undesired event or state (Ericsson, 2015).

Recent Advances towards the Industrial Application of Model-Driven Engineering for Assurance of Safety-Critical Systems

633

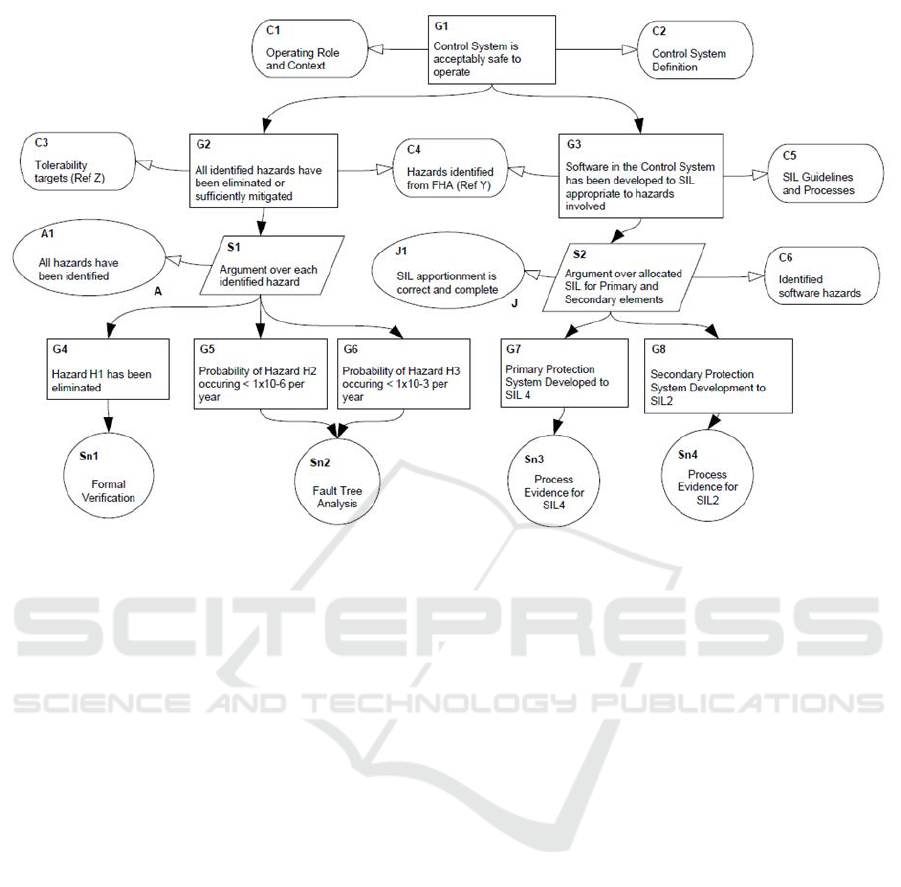

Figure 1: Example of GSN diagram (Goal Structuring Notation, 2017).

Recent techniques for safety analysis are based

on models too, e.g. STAMP (Systems-Theoretic

Accident Model and Processes) (Leveson, 2011).

This technique has three basic underlying constructs:

safety constraints, hierarchical safety control

structures, and process models.

2.2 Related Work

Several publications have provided an overview of

the safety assurance area and have provided insights

into or referred to the application of MDE.

The periodic seminal vision papers about the

future of software engineering research published at

the International Conference on Software

Engineering are part of these publications. In a paper

on challenges and directions for safety-critical

systems, (Knight, 2002) states that “It is essential

that comprehensive approaches to total system

modelling are developed so that properties of entire

systems can be analyzed. Such approaches must […]

provide high fidelity models of critical software

characteristics”. Five years later, (Heimdahl, 2007)

reports that the “reliance on models and automated

tools […] promises to increase productivity and

reduce the very high costs associated with software

development for critical systems”. Nonetheless, he

also acknowledges that “The reliance on tools rather

than people, however, introduces new and poorly

understood sources of problems, such as the level of

trust we can place in the results of our automation”.

Heimdahl also reviews model-based development as

an element of his vision for safety and software-

intensive systems. In the latest related publication of

this paper series, on certifiably safe software-

dependent systems, (Hatcliff, et al., 2014) argue that:

“The potential of domain modelling […] (now) is

much more realizable by leveraging advancements

in ontologies, modeling semantic networks, and

knowledge representation combined with the use of

stylized natural language”, and that “Open source

projects should be pursued that provide […]

modeling environments for building qualifiable

tools”. Hatcliff et al. also review the potential of

model-based system analysis and development.

Regarding other publications, (Panesar-

Walawege, et al., 2011) present their experience,

position, and vision on how to use MDE for safety

evidence characterisation and management, mainly

based on work in the maritime and energy sector.

They worked with companies on the application of

MDE to create common interpretations of standards,

specialise standards to industrial contexts, align

standards to organisational practices, plan

certification, and manage evidence electronically.

In our prior work (de la Vara, et al., 2016c), we

reviewed approaches for model-based management

of safety compliance and divided them into three

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

634

categories: (1) approaches for safety regulation

modelling, to model the content (i.e. text) of

standards in order to perform some analysis for

identification of issues such as conflicts and

inconsistencies, e.g. (Sannier, Baudry, 2014); (2)

approaches for safety standard-specific modelling,

which correspond to those model-based approaches

that focus on some safety standard, e.g. DO-178B

(Zoughbi, et al., 2011) or IEC 61508 (Panesar-

Walawege, et al., 2013), and; (3) approaches for

safety standard-independent modelling, which

explicitly aim to support the specification of safety

compliance needs in a generic way, so that they can

be instantiated for any safety standard or domain,

e.g. for process assurance (Gallina, et al., 2014) and

for evidence traceability (Nair, et al., 2014a).

Finally, insights into the usage of models for

assurance of safety-critical systems can be found in

reviews of the literature (Nair, et al., 2014b) and in

industrial surveys with practitioners (de la Vara, et

al., 2016a; Nair, et al., 2015a), e.g. about the use of

graphical argumentation notations.

3 THE OPENCOSS PROJECT

OPENCOSS (Open Platform for EvolutioNary

Certification of Safety-critical Systems) (Espinoza,

et al., 2011; OPENCOSS project, 2017) was a

European research project on safety assurance and

certification of embedded systems. The OPENCOSS

consortium comprised four academic partners and

13 companies, including safety-critical system

manufacturers, component suppliers, certification

authorities, safety assessors, and tool vendors. The

project was supported by a large advisory board with

representatives from more than 20 organisations.

The project tackled the lack of precision and

large variety of certification requirements, the lack

of composable and system views for certification,

the high and non-measured costs for

(re)certification, and the lack of openness to

innovation and new approaches. As solutions.

OPENCOSS (a) devised a common certification

framework that spans different vertical markets for

railway, avionics, and automotive, and (b) developed

an open-source safety certification infrastructure.

The ultimate goal of the project was to bring

about substantial reductions in recurring safety

certification costs and, at the same time, reduce

assurance risks through the introduction of more

systematic safety assurance practices. The project

dealt with (1) creation of a common certification

conceptual framework, (2) compositional

certification, (3) evolutionary chain of evidence, (4)

transparent certification process, and (5)

compliance-aware development process.

Figure 2 shows the MDE approach for safety

assurance and certification defined in OPENCOSS.

It is based on several related metamodels targeted at

different safety assurance and certification needs.

The set of metamodels corresponds to the common

certification conceptual framework.

• The Reference Assurance Framework

Metamodel supports the specification of the

safety compliance needs that have or might have

to be considered in an assurance project. Safety

compliance needs can be from specific standards,

recommended practices, or company-specific

practices, and typically have to be tailored to

project-specific characteristics. The latter is done

by means of baselines.

• Another source of information for safety

compliance is the data about the product for

which compliance is sought. The metamodels

include the concepts and relationships necessary

for modelling and managing project- and

product-specific information.

o The process executed to create a product

(Process Metamodel).

o The evidence of safety and of compliance

(Evidence Metamodel).

o The arguments that will be used to justify key

safety-related decisions taken during the

project (Argumentation Metamodel).

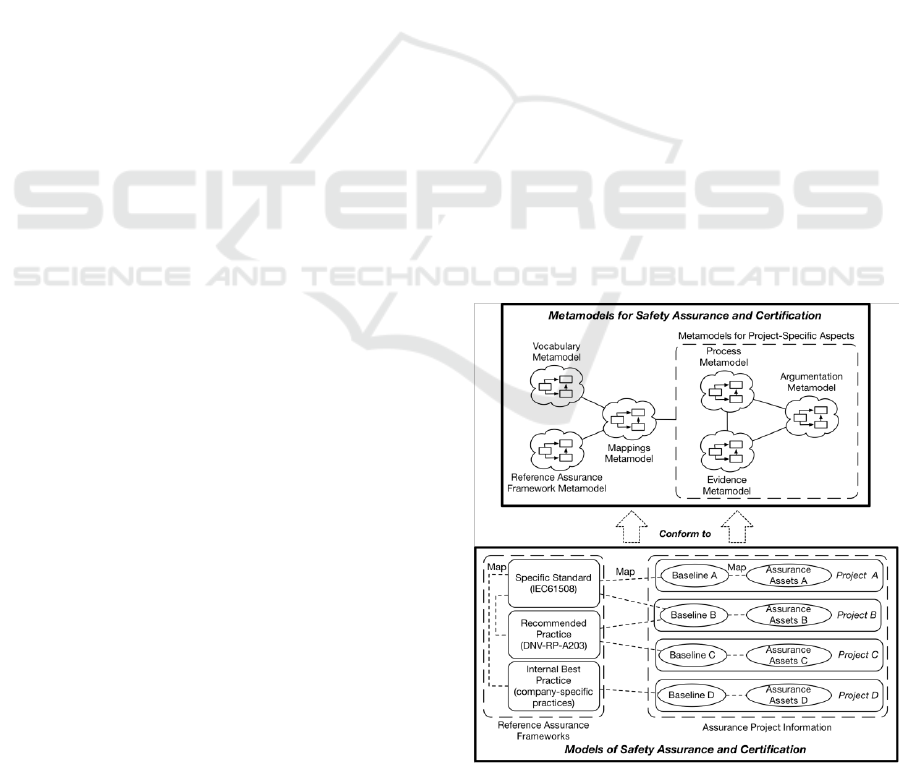

Figure 2: Overall OPENCOSS MDE approach for safety

assurance and certification.

Recent Advances towards the Industrial Application of Model-Driven Engineering for Assurance of Safety-Critical Systems

635

• The Vocabulary Metamodel is a means to define

and record the terms and concepts used to

characterize reusable assurance assets such as

evidence, argumentation, and process data, as

well as terms from standards.

• With the Mappings Metamodel, maps can be

created to specify the degree of equivalence

between vocabulary terms (e.g. from different

domains), the assurance information of a project

(e.g. artefacts) and its baseline for indicating

compliance, and safety standards (i.e. reference

assurance frameworks).

More details about the metamodels and the MDE

approach can be found in (OPENCOSS project,

2015c). The approach provides support to all the

areas dealt with in OPENCOSS. For example, the

MDE approach has enabled the systematic reuse of

assurance information across systems and projects

(Ruiz, et al., 2017), the semi-automatic generation of

arguments (Ruiz, et al., 2015), the modelling of

context-aware process families (Ayora, et al., 2016),

and argument-based assessment of confidence in

evidence (Nair, et al., 2015b).

The approach was applied in three industrial case

studies (OPENCOSS project, 2015a): an ePARK

system for an electric vehicle in the automotive

domain, the reuse of a railway execution platform in

the avionics domain, and the certification of a

signalling system in the railway domain. The

application resulted in the determination of several

improvements over the current practices for safety

assurance and certification (OPENCOSS project,

2015b), including a reduction of recurring costs for

safety certification across systems, a reduction of

recurring costs for safety certification across vertical

markets, and a gain for product innovation and

upgrading. Experiments in which people have used

some parts of the OPENCOSS MDE approach have

also been conducted to validate it (de la Vara, et al.,

2016b; de la Vara, et al., 2017c).

4 OPENCERT

The safety certification infrastructure for MDE-

based safety assurance and certification

implemented in OPENCOSS (Ruiz, et al., 2015) has

been further developed and maintained and has

resulted in the OpenCert platform (OpenCert

platform, 2017; Figure 3). OpenCert is an open-

source integrated and holistic solution for assurance

and certification management of Cyber-Physical

Systems (CPS) spanning the largest safety and

security-critical industrial markets, such as

aerospace, space, railway, manufacturing, energy,

and health. The ultimate aim of the platform is to

lower certification costs in face of rapidly changing

product features and market needs.

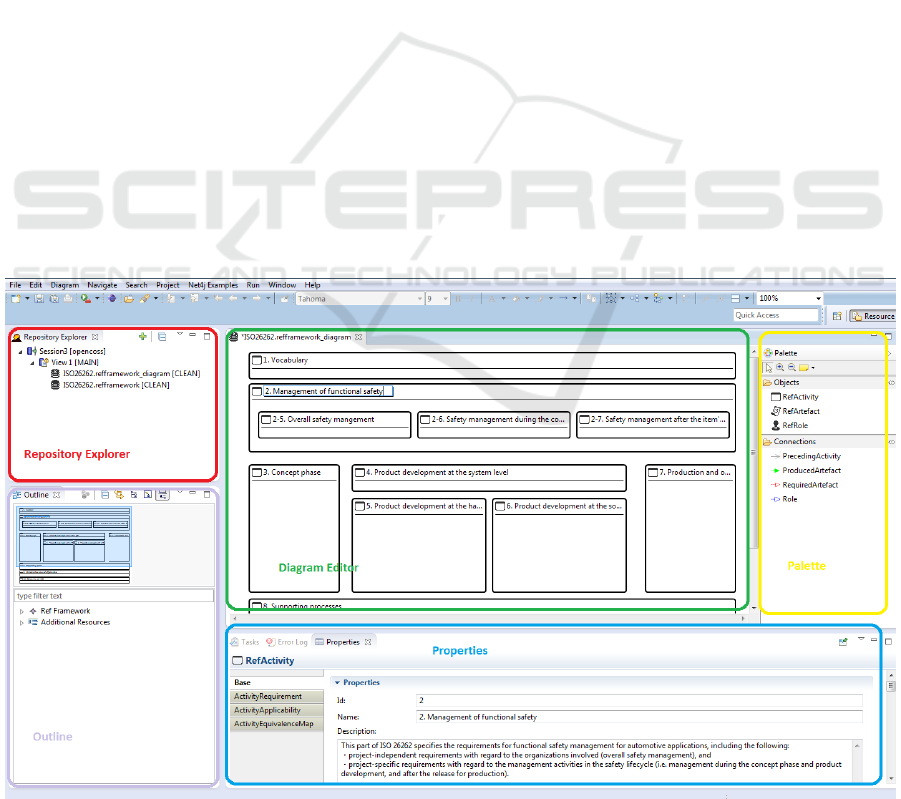

Figure 3: OpenCert screenshot.

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

636

OpenCert is hosted and managed by the Eclipse

Foundation through the PolarSys Working Group

(PolarSys, 2017). This group corresponds to a

collaboration of large end-user companies and open-

source tools providers dedicated to supplying

industrial-grade open-source tools for the

development of embedded systems. All the PolarSys

solutions are based on technology and tools that

have been deployed by large systems engineering

and embedded systems development teams.

The current features of OpenCert include the

management of information from standards and

regulations, the management of assurance projects,

architecture-driven assurance, assurance case

management, and compliance management. For

architecture-driven assurance, OpenCert is linked

with the Papyrus (Papyrus, 2017) and CHESS

(PolarSys CHESS, 2017) Eclipse projects, and with

the EPF project (Eclipse Process Framework Project,

2017) for compliance management.

In addition to supporting model-based CPS

assurance and certification, the development of

OpenCert itself exploits Eclipse-based MDE

technologies such as EEF (Eclipse EEF, 2017),

EuGENia (EuGENia, 2017) and GMF (Graphical

Modeling Framework, 2017) for editor development,

Epsilon (Epsilon, 2017) for model transformation,

and CDO (CDO Model Repository, 2017) for data

storage.

5 OMG INITIATIVES

We have presented above approaches, projects, and

tools for MDE-based assurance of safety-critical

systems that have resulted from arguably reduced-

scope initiatives, such as a consortium of

organizations. However, the recent advances

towards the industrial application of MDE for safety

assurance go beyond these results. There are

international, world-wide organizations and

collaborations working on the topic. OMG (OMG,

2017a) is among the main ones.

OMG is a non-profit organization that develops

open technical specifications and international

standards for application of MDE in different

domains, e.g. UML (OMG, 2017g) and SysML

(OMG, 2017f) for software modelling and systems

modelling, respectively. OMG members correspond

to a consortium with international organizations of

vendors, developers, end users, and researchers. The

set of OMG specifications has also started to address

system assurance aspects, and we review them in

this section. Most of these specifications have been

or are being developed in the scope of System

Assurance Task Force (OMG, 2017e).

SACM (Structured Assurance Case Metamodel)

(OMG, 2017e) supports the representation of

assurance cases in a structured and standard way. Its

main sources have been CAE and GSN, and the

main developers of these notations have contributed

to the standard. SACM consists of a sub-metamodel

for argumentation, one for evidence artefacts, and

another for terminology. The metamodels aim to

allow the interchange of structured arguments

between diverse tools by different vendors. In a

structured argument, the relationships between the

asserted claims, and from the evidence to the claims

are explicitly represented. The latest SACM version

represents a considerable re-work and improvement

to address certain limitations of previous versions

(see e.g. (de la Vara, et al., 2017a)).

DAF (Dependability Assurance Framework For

Safety-Sensitive Consumer Devices) (OMG, 2017b)

provides a system assurance methodology for the

dependability argumentation for consumer devices.

This is achieved by integrating conventional system

assurance approaches, e.g. risk analysis and

assessments, with a new way of approaching unique

characteristics of consumer devices. The

specification supports the objectives of device

integration and includes the dependability case for

argumentation, as well as new dependability

development processes. The focus is to include the

dependability argumentation particularly for

consumer devices. To this end, a link with SACM is

established.

The most recent initiative is a request for

proposals for a standard UML profile for safety and

reliability (OMG, 2017c). The scope and content of

this profile will be similar to some published in the

latest years, e.g. (Biggs, et al., 2016; Wu, et al.,

2015), which are profiles that include concepts from

safety standards so that they are explicitly and

directly included in a system representation, e.g.

created with SysML. This way, the system and the

assurance information can be processed and

analysed together. In addition, the request explicitly

states that “proposals must consider how the safety

information […] can be integrated into a SACM

model as supporting evidence for an assurance case

argument”, and that “Proposals shall discuss how the

profile/model library can be used in conjunction

with SACM, and how the proposed profile/model

library’s argument notation compares with SACM

and GSN”. This way, different OMG’s MDE means

for assurance of safety-critical systems will be

linked together.

Recent Advances towards the Industrial Application of Model-Driven Engineering for Assurance of Safety-Critical Systems

637

There is also some work ongoing for UML-based

operational threat and risk modelling (OMG,

2017h). This initiative aims to provide a conceptual

model that unifies the semantics of and can provide

a bridge across multiple threat and risk schemas and

interfaces. The conceptual model will be informed

by high-level concepts as defined by the cyber

domain and other domains, but it will not be specific

to any particular domain.

Finally, the above specifications are recent and

more work on their development and usage is

expected in the future. This has been argued as

necessary, e.g. for SACM (de la Vara, 2014).

6 THE AMASS PROJECT

The previous three sections have presented projects

and initiatives from which stable, mature results

exist. This section introduces an ongoing effort that

is already providing new MDE-based support for

assurance of safety-critical systems: the AMASS

project (AMASS project, 2017a; Ruiz, et al., 2016).

AMASS (Architecture-driven, Multi-concern and

Seamless Assurance and Certification of Cyber-

Physical Systems) is a very large-scale European

research project. The consortium consists of 29

partners; 21 from industry. The main issues

addressed are the increase in CPS product

complexity, the very high costs and effort for CPS

assurance and certification, the lack of standardised

and harmonised practices, the new assurance and

certification risks, the need for dealing with

architecture-specific aspects and with multiple

dependability concerns, the wider variety of tools

and stakeholders, and the insufficient reuse support.

The project is developing an integrated and

holistic approach and supporting tools for assurance

and certification of CPS by creating and

consolidating the first European-wide certification

platform, ecosystem and community spanning the

largest CPS vertical markets. The approach will be

driven by architectural decisions, including multiple

assurance concerns such as safety, security,

availability, robustness and reliability. The main

goal is to reduce time, cost and risks for assurance

and (re)certification by adopting an evolutionary

compositional certification and reuse approach.

The AMASS approaches focus on the

development and consolidation of an open and

holistic framework that constitutes the evolution of

the approaches from the OPENCOSS project and the

SafeCer project (SafeCer project, 2017) towards an

architecture-driven, multi-concern assurance, reuse-

oriented, and seamlessly interoperable tool platform.

In more specific terms, AMASS has four main

scientific and technical objectives, each addressing

several sub-areas and all using MDE principles and

techniques for the development of solutions for CPS

assurance (Figure 4):

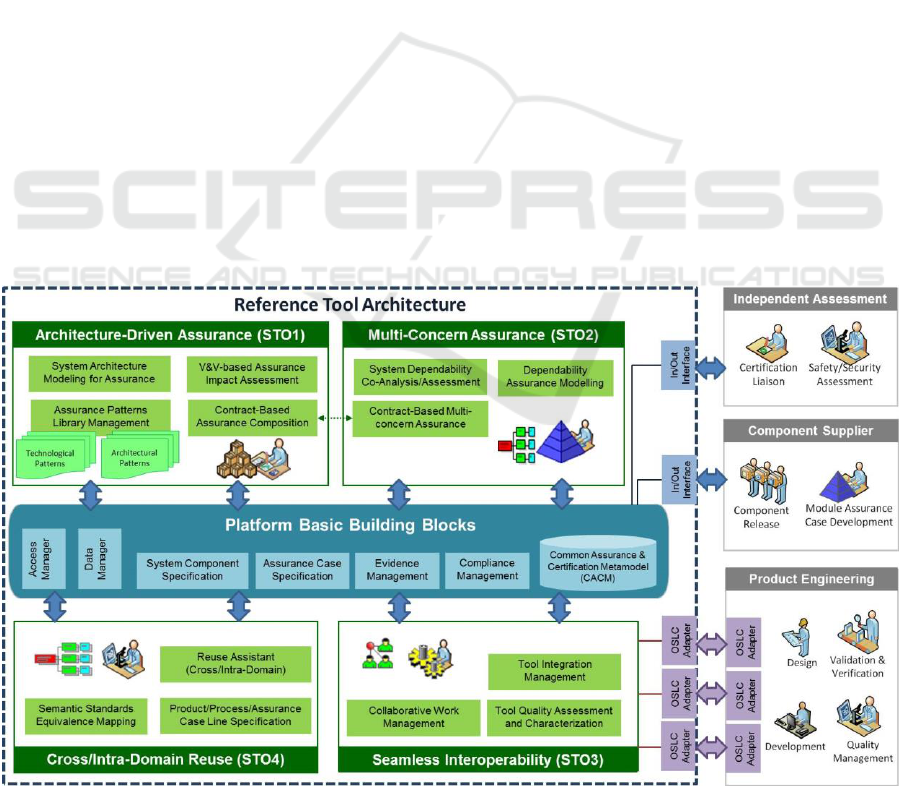

Figure 4: AMASS work areas.

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

638

• Architecture-driven assurance, to adequately link

system architecture specifications and assurance

models. This includes system architecture

modelling for assurance, management of

assurance pattern libraries, assurance impact

assessment based on verification and validation,

and component contract-based assurance

composition.

• Multi-concern assurance, to deal not only with

safety for CPS but also with assurance of further

concerns, most notably security. Other relevant

concerns are reliability and performance, among

others. Multi-concern assurance requires system

dependability co-analysis and co-assessment,

dependability assurance modelling, and contract-

based multi-concern assurance.

• Seamless interoperability, to ensure that

assurance and engineering activities and the joint

effort of the different assurance stakeholders are

properly linked and supported. To this end, the

sub-areas addressed are tool integration,

collaborative work management, and tool quality

characterisation and management.

• Cross- and intra-domain assurance reuse, to

make the reuse of CPS products across systems,

standards, and domains more cost-effective. This

will be possible thanks to new reuse assistance,

semantic equivalence mapping of standards, and

product, process, and assurance case lines.

AMASS technology will be applied in 11

industrial case studies from the automotive, railway,

aerospace, space, and energy domains (AMASS

project, 2016). Initial results from the application of

the first project outcomes are available (AMASS

project, 2017b), e.g. about modelling and co-

assessment of safety and security characteristics and

about modelling of standards. Effort is also being

spent to link the AMASS MDE approaches with

other industrial practices for safety-critical systems

engineering, e.g. the use of ontologies for system

quality analysis (de la Vara, et al., 2017b).

Last but not least, it is planned that the open-

source AMASS results are integrated, maintained,

and further developed in OpenCert.

7 CONCLUSION

Assurance processes must be performed to provide

confidence in the dependability of safety-critical

systems. These processes can however be complex,

and the application of Model-Driven Engineering

(MDE) as supporting technology is advocated by

many researchers and practitioners as a solution.

We have reviewed recent advances that have

been and are being made so that MDE becomes an

industrial practice for the assurance of safety-critical

systems. By using MDE principles and technologies

such as metamodels and model transformation,

complex and challenging assurance activities can be

facilitated and improved, e.g. the specification of

how to comply with a standard, the management of

assurance evidence, the development of assurance

cases, the specification of assurance processes, and

the reuse of assurance information between projects.

These benefits are a result of initiatives such as the

OPENCOSS project, the OpenCert platform, OMG

standards, and the AMASS project.

We argue and envision that MDE will be a

central technology in the future for system assurance

in most organizations developing safety-critical

systems. Many organizations are already using MDE

principles and techniques although they might not be

aware of it, e.g. when using models to represent

assurance information or MDE-based tools such as

OpenCert. This usage will be very likely extended in

the future thanks to more mature MDE approaches

for assurance that result in international standards.

Finally, and based on our knowledge and

experience, the full adoption of MDE for assurance

of safety-critical systems needs to overcome some

barriers. Challenges arising from practical aspects

such as scalability, efficient model storage, and tool

qualification must be tackled, at least for many

open-source solutions. From a research perspective,

the development of MDE solutions that cover a wide

range of domains and of dependability concerns

remains an area where further work is necessary.

ACKNOWLEDGEMENT

The research leading to this paper has received

funding from the AMASS project (H2020-ECSEL

no 692474; Spain’s MINECO ref. PCIN-2015-262).

We also thank all the people that have contributed to

the results presented in the paper and with whom we

have collaborated to develop them.

REFERENCES

Adelard, 2017. Claims, Arguments and Evidence (CAE).

Online, https://www.adelard.com/asce/choosing-

asce/cae.html (Accessed October 31st, 2017)

Alexander, R., Kelly, T., Gorry, B., 2010. Safety Lifecycle

Activities for Autonomous Systems Development. In

5th SEAS DTC Technical Conference.

Recent Advances towards the Industrial Application of Model-Driven Engineering for Assurance of Safety-Critical Systems

639

AMASS project, 2016. Deliverable D1.1 - Case studies

description and business impact. Online,

https://www.amass-

ecsel.eu/sites/amass.drupal.pulsartecnalia.com/files/do

cuments/D1.1_Case-studies-description-and-business-

impact_AMASS_Final.pdf (Accessed October 31st,

2017)

AMASS project, 2017a. Online, https://www.amass-

ecsel.eu/ (Accessed October 31st, 2017)

AMASS project, 2017b. Deliverable D1.4 – AMASS

Demonstrators (a). Online, https://www.amass-

ecsel.eu/sites/amass.drupal.pulsartecnalia.com/files/do

cuments/D1.4_AMASS-demonstrators-

%28a%29_AMASS_Final.pdf (Accessed October

31st, 2017)

Ayora, C., Torres, V., de la Vara, J.L., Pelechano, V.,

2016. Variability Management in Process Families

through Change Patterns. Information and Software

Technology 74: 86-104.

Bézivin, J., 2005. On the unification power of models.

Software and System Modeling 4(2): 171-188.

Biggs, G., Sakamoto, T., Kotoku, T., 2016. A profile and

tool for modelling safety information with design

information in SysML. Software and System Modeling

15(1): 147-178.

CDO Model Repository, 2017. Online,

https://www.eclipse.org/cdo/ (Accessed October 31st,

2017)

CENELEC, 2011. EN 50128 - Railway applications -

Communications, signalling and processing systems -

Software for railway control and protection systems.

de la Vara, J.L., 2014. Current and Necessary Insights into

SACM: An Analysis Based on Past Publications. In

RELAW 2014, 7th International Workshop on

Requirements Engineering and Law. IEEE.

de la Vara, J.L., Borg, M., Wnuk, K., Moonen, L., 2016a.

An Industrial Survey on Safety Evidence Change

Impact Analysis Practice. IEEE Transactions on

Software Engineering 42(12): 1095-1117.

de la Vara, J.L., Marín, B., Giachetti, G., Ayora, C.,

2016b. Do Models Improve the Understanding of

Safety Compliance Needs? Insights from a Pilot

Experiment. In ESEM 2016, 10th ACM/IEEE

International Symposium on Empirical Software

Engineering and Measurement. ACM.

de la Vara, J.L., Ruiz, A., Attwood, K., Espinoza, H.,

Panesar-Walawege, R.K., Lopez, A., del Rio, I., Kelly,

T., 2016c. Model-Based Specification of Safety

Compliance Needs: A Holistic Generic Metamodel.

Information and Software Technology 72: 16-30.

de la Vara, J.L., Génova, G., Álvarez-Rodríguez, J.M.,

Llorens, J., 2017a. An Analysis of Safety Evidence

Management with the Structured Assurance Case

Metamodel. Computer Standards & Interfaces 50: 179-

198.

de la Vara, J.L., Gómez, A., Gallego, E., Génova, G.,

Fraga, A., 2017b. Representation of Safety Standards

with Semantic Technologies Used in Industrial

Environments. In SASSUR 2017, 6th International

Workshop on Next Generation of System Assurance

Approaches for Safety-Critical Systems. Springer.

de la Vara, J.L., Marín, B., Ayora, C., Giachetti, G.,

2017c. An Experimental Evaluation of the

Understanding of Safety Compliance Needs with

Models. In ER 2017, 36th International Conference on

Conceptual Modeling. Springer.

Eclipse EEF, 2017. Online, https://eclipse.org/eef/#/

(Accessed October 31st, 2017)

Eclipse Process Framework Project, 2017. Online,

https://eclipse.org/epf/ (Accessed October 31st, 2017)

Epsilon, 2017. Online, https://www.eclipse.org/epsilon/

(Accessed October 31st, 2017)

Ericson, C. A., 2015. Hazard analysis techniques for

system safety. John Wiley & Sons. 2nd edition.

Espinoza, H., Ruiz, A., Sabetzadeh, M., Panaroni, P.,

2011. Challenges for an Open and Evolutionary

Approach to Safety Assurance and Certification of

Safety-Critical Systems. In WoSoCER 2011, First

International Workshop on Software Certification.

IEEE.

EuGENia, 2017. Online,

https://www.eclipse.org/epsilon/doc/eugenia/

(Accessed October 31st, 2017)

Falessi, D., Sabetzadeh, M., Briand, L., Turella, E., Coq,

T., Panesar-Walawege, R.K., 2012. Planning for

Safety Standards Compliance: A Model-Based Tool-

Supported Approach. IEEE Software 29(3): 64-70.

Gallina, B., Pitchai, J.P., Lundqvist, K., 2014: S-

TunExSPEM: Towards an Extension of SPEM 2.0 to

Model and Exchange Tunable Safety-Oriented

Processes. In Software Engineering Research,

Management and Applications. Springer.

Goal Structuring Notation, 2017. Online,

http://www.goalstructuringnotation.info/ (Accessed

October 31st, 2017)

Graphical Modeling Framework, 2017. Online,

https://www.eclipse.org/modeling/gmp/ (Accessed

October 31st, 2017)

Hatcliff, J., Wassyng, A., Kelly, T., Comar, C., Jones,

P.L., 2014. Certifiably safe software-dependent

systems: challenges and directions. In FOSE 2014,

Future of Software Engineering. ACM.

Heimdahl, M.P.E., 2007. Safety and Software Intensive

Systems: Challenges Old and New. In FOSE 20017,

Workshop on the Future of Software Engineering.

IEEE.

IEC, 2010. IEC 61508 - Functional Safety of

Electrical/Electronic/Programmable Electronic

Safety-related Systems. 2nd edition.

ISO, 2011. ISO 26262 - Road vehicles - Functional safety.

Kelly, T., 1999. Arguing Safety - A Systematic Approach

to Managing Safety Cases. University of York. PhD

thesis.

Knight, J.C., 2002. Safety critical systems: challenges and

directions. In ICSE 2002, 24th International

Conference on Software Engineering. ACM.

Leveson, N., 2011. Engineering a safer world: Systems

thinking applied to safety. MIT press.

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

640

Nair, S., de la Vara, J.L., Sabetzadeh, M., Falessi, D.,

2015a. Evidence Management for Compliance of

Critical Systems with Safety Standards: A Survey on

the State of Practice. Information and Software

Technology 60: 1-15.

Nair, S., Walkinshaw, N., Kelly, T., de la Vara, J.L.,

2015b. An Evidential Reasoning Approach for

Assessing Confidence in Safety Evidence. In ISSRE

2015, 26th IEEE International Symposium on

Software Reliability Engineering. IEEE.

Nair, S., de la Vara, J.L., Melzi, A., Tagliaferri, G., de-la-

Beaujardiere, L., Belmonte, F., 2014a. Safety

Evidence Traceability: Problem Analysis and Model.

In REFSQ 2014, 20th International Working

Conference on Requirements Engineering:

Foundation for Software Quality. Springer.

Nair, S., de la Vara, J.L., Sabetzadeh, M., Briand, L.,

2014b. An Extended Systematic Literature Review on

Provision of Evidence for Safety Certification.

Information and Software Technology 56(7): 689-717.

OMG, 2017a. Online, http://www.omg.org/ (Accessed

October 31st, 2017)

OMG, 2017b. Dependability Assurance Framework For

Safety-Sensitive Consumer Devices (DAF). Online,

http://www.omg.org/spec/DAF/ (Accessed October

31st, 2017)

OMG, 2017c. Safety and Reliability for UML RFP.

Online, http://www.omg.org/cgi-bin/doc.cgi?ad/2017-

3-5 (Accessed October 31st, 2017)

OMG, 2017d. Structured Assurance Case Metamodel

(SACM). Online, http://www.omg.org/spec/SACM/

(Accessed October 31st, 2017)

OMG, 2017e. System Assurance (SysA) Task Force.

Online, http://sysa.omg.org/ (Accessed October 31st,

2017)

OMG, 2017f. System Modeling Language (SysML).

Online, http://www.omgsysml.org/ (Accessed October

31st, 2017)

OMG, 2017g. Unified Modeling Language (UML).

Online, http://www.uml.org/ (Accessed October 31st,

2017)

OMG, 2017h. UML Operational Threat & Risk Model.

Online, http://www.omg.org/cgi-

bin/doc.cgi?sysa/2014-6-17 (Accessed October 31st,

2017)

OpenCert Platform, 2017. Online,

https://www.polarsys.org/opencert/ (Accessed October

31st, 2017)

OPENCOSS project, 2015a. Deliverable D1.4 -

Implementation of use cases on top of OPENCOSS

platform. Online, http://www.opencoss-

project.eu/sites/default/files/D1.4_Implementation_of_

use_cases_on_top_of_OPENCOSS_platform_final.pdf

(Accessed October 31st, 2017)

OPENCOSS project, 2015b. Deliverable D1.5 –

OPENCOSS Benchmarking. Online,

http://www.opencoss-

project.eu/sites/default/files/D1.5_OPENCOSS_Bench

marking__Final.pdf (Accessed October 31st, 2017)

OPENCOSS project, 2015c. Deliverable D4.4 - Common

Certification Language: Conceptual Model. Online,

http://www.opencoss-

project.eu/sites/default/files/D4.4_v1.5_FINAL.pdf

(Accessed October 31st, 2017)

OPENCOSS project, 2017. Online, http://www.opencoss-

project.eu/ (Accessed October 31st, 2017)

Panesar-Walawege, R.K., Sabetzadeh, M., Briand, L.,

2011. Using Model-Driven Engineering for Managing

Safety Evidence: Challenges, Vision and Experience.

In WoSoCER 2011, First International Workshop on

Software Certification. IEEE.

Panesar-Walawege, R.K., Sabetzadeh, M., Briand, L.,

2013. Supporting the verification of compliance to

safety standards via model-driven engineering:

Approach, tool-support and empirical validation.

Information & Software Technology 55(5): 836-864.

Papyrus, 2017. Online, https://eclipse.org/papyrus/

(Accessed October 31st, 2017)

PolarSys, 2017. Online, https://www.polarsys.org/

(Accessed October 31st, 2017)

PolarSys CHESS, 2017. Online,

https://www.polarsys.org/projects/polarsys.chess

(Accessed October 31st, 2017)

RTCA, 2011. DO-178C - Software Considerations in

Airborne Systems and Equipment Certification.

Ruiz, A., Larrucea, X., Espinoza, H., 2015. A Tool Suite

for Assurance Cases and Evidences: Avionics

Experiences. In EuroSPI 2015, 22nd European

Conference on Systems, Software and Services

Process Improvement. Springer.

Ruiz, A., Gallina, B., de la Vara, J.L., Mazzini, S.,

Espinoza, H, 2016. Architecture-driven, Multi-

concern, Seamless, Reuse-Oriented Assurance and

Certification of Cyber-Physical Systems. In SASSUR

2016, 5th International Workshop on Next Generation

of System Assurance Approaches for Safety-Critical

Systems. Springer.

Ruiz, A., Juez, G., Espinoza, H., de la Vara, J.L.,

Larrucea, X., 2017. Reuse of safety certification

artefacts across standards and domains: A systematic

approach. Reliability Engineering and System Safety

158: 153-171.

SafeCer project, 2017. Online, http://www.safecer.eu/

(Accessed October 31st, 2017)

Sannier, N., Baudry, B., 2014. INCREMENT: A Mixed

MDE-IR Approach for Regulatory Requirements

Modeling and Analysis. In REFSQ 2014, 20th

International Working Conference on Requirements

Engineering: Foundation for Software Quality.

Springer.

Wu, J., Yue, T., Ali, S., Zhang, H., 2015. A modeling

methodology to facilitate safety-oriented architecture

design of industrial avionics software. Software -

Practice and Experience 45(7): 893-924.

Zoughbi, G., Briand, L., Labiche, Y., 2011. Modeling

safety and airworthiness (RTCA DO-178B)

information: conceptual model and UML profile.

Software and System Modeling 10(3): 337-367.

Recent Advances towards the Industrial Application of Model-Driven Engineering for Assurance of Safety-Critical Systems

641
