Sensor Network Modeling as a Service

Anca Daniela Ionita, Florin Daniel Anton and Adriana Olteanu

Department of Automatic and Industrial Informatics, University Politehnica of Bucharest, Bucharest, Romania

Keywords: Cloud Services, Model as a Service, Sensor Network Modeling.

Abstract: Cloud Computing opens new possibilities of service provisioning for sensor networks, necessary as they

become more pervasive and distributed. This paper introduces a Model as a Service approach and a modeling

language specifically defined for representing sensor network architecture, based on a four-phased method. It

describes the metamodel and the correspondent environment for graphical modeling, with examples of sensor

network models for road traffic monitoring. The sensor modeling environment was integrated on a private

Cloud platform, within a virtual machine template, to provide sensor network modeling as a service, which is

currently available for our university students. This serves as a foundation for delivering new services based

on the interpretation of the resulted sensor network architecture models.

1 INTRODUCTION

Sensor networks are present in plenty of distributed

applications characteristic to the Internet of Things

(IoT) era (Flammini and Sisinni, 2014), and they have

a great potential to get advantage of the deployment

in Cloud Computing environments for various goals,

like data integration, advanced processing, or global

interoperability. This paper approaches a kind of

Cloud services based on the Model as a Service

(MaaS) concept, whose applicability for sensor

networks may be considerably extended. MaaS is

derived from the Model Web and Everything as a

Service concepts, as shown in (Roman et al., 2009).

Roman et al. give an example of MaaS application for

providing access to oil spill models, with the purpose

to support decisions and increase the preparedness to

this type of hazard. The work outlines important

challenges related to the explicit manifestation of the

model, separate from the rest of the software, as well

as the importance of performing model updates based

on data collected by sensors that might indicate a

change in the environmental conditions. Researchers

discovered a big potential for MaaS in domains like

geosciences (Li et al., 2014) and, generally, whenever

the models engage big volumes of data and must be

executed repeatedly. Thus, MaaS may be considered

a means to get models more accessible and widely

used in executable settings and not just as simple

documentation.

This paper presents a MaaS-enabled environment

for sensor network architecture modeling, offered as

a service in an IBM CloudBurst platform, and used

for educational applications. The graphical modeling

language was specifically conceived for sensor

networks and is accompanied by an editor and by

interpreters developed within the Generic Modeling

Environment (GME) (GME, 2017) and migrated to

MaaS. The language resulted from the definition of a

metamodel and the customization of a concrete

notation. It is useful for representing models of sensor

network architecture, which may subsequently be

interpreted for reconfiguration and visualization of ad

hoc networks, or for generation of standard

descriptions in SensorML. It was elaborated based on

the analysis of several sensor taxonomies and on the

study of multiple sensor networks presented in the

scientific literature.

The remainder of the paper is structured in the

following sections: Section 2 presents the Model as a

Service concept; Section 3 describes our sensor

network modeling environment and the way it was

integrated in a Cloud Computing environment and

offered as a service; Section 4 offers details about the

realization of the sensor network modeling language,

whose editor is delivered as a service. In Conclusion

we discuss other services that may be provided as

MaaS, starting from existing and future software,

capable to automatically interpret sensor network

models defined in this environment.

346

Ionita, A., Anton, F. and Olteanu, A.

Sensor Network Modeling as a Service.

DOI: 10.5220/0006670903460353

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 346-353

ISBN: 978-989-758-295-0

2 MODEL AS A SERVICE

Model as a Service is a form of XaaS (Everything as

a Service). A more detailed classification introduces

the concept of Model and Simulation as a Service

(MSaaS) (Cayirci, 2013), with three types of services:

Modeling as a Service, Model as a Service, and

Simulation as a Service. Another idea resulted from

(Cayirci, 2013) is that it is possible to develop

composite MSaaS, located either on a single

datacenter, or on multiple ones.

A variant of MaaS called Model Web aims at

creating “webs of interacting models”, and an

initiative is proposed within the earth observation

community (Nativiti et al., 2013). For instance,

Model Web applications were introduced for climate

change models (Skøiena et al., 2013), and the solution

was also found suitable to give access to non-

homogeneous models for geo-analysis (Yuea et al.,

2016).

Model Web is considered an implementation style

derived from Systems of Systems (SoS) based on

semantic web. Guided by principles like open access

and publishing new resources in a simple way, the

idea is to support interactions between models and

between modelers. The Model Web is rather a

precursor of MaaS, but it is still confronted with

strong interoperability challenges.

The concept of MaaS is also associated with

quantitative analysis (Yung Rowe, 2014). Due to the

large-scale data resulted from the Internet of Things

and social media, it may be useful to subscribe to

MaaS, and to use the model outputs for decision

support. MaaS is considered an agile approach to

deliver data services in the context of Big Data and of

heterogeneous lakes of data that may be structured,

semi-structured or non-structured (Piscopo, 2014).

An example of geospatial MaaS is ArcGIS Online

(Esri, 2017), which offers services related to

geoinformation models, including mapping and

visualization. Generally, the use of MaaS in

geosciences exonerates users not only from general

software maintenance, but also from setting up

models, which may be a repetitive and very complex

task (Li et al., 2017). It also offers powerful resources

in terms of data storage and computational speed. Li

et at. proposed a framework where a model registry

gives access to a repository of climate, polar and

environmental models, based on a Cloud Computing

platform. They refer to executable models, whose

results can be obtained through a web interface.

3 SENSOR NETWORK

MODELING IN CLOUD

3.1 Modeling Environment

This paper introduces a modeling environment

realized within Generic Modeling Environment and

deployed in Cloud for the restricted use of our

students.

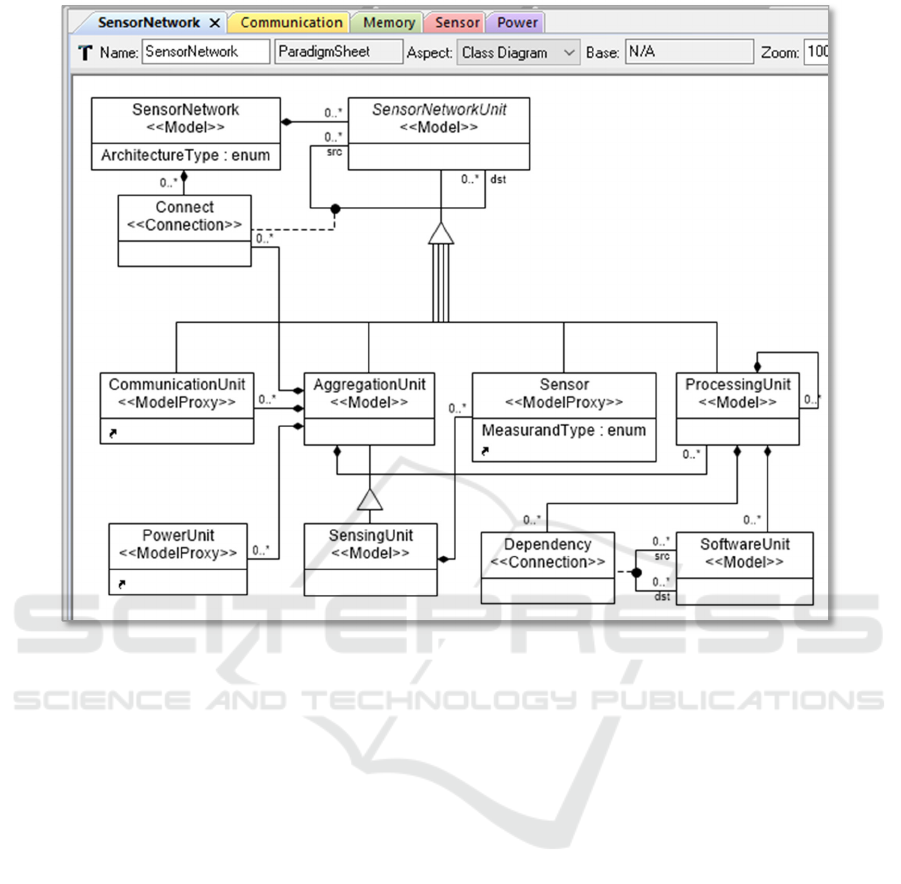

First, GME was used to represent the Sensor

Network language in an abstract way, as a metamodel

(further described in Section 4.3). Then, we

introduced a concrete notation for each modeling

element, and afterwards we used the GME

metamodel interpreter to generate an environment

configured for our language. The resulted modeling

language is graphical, i.e. graph-based, and the model

editor uses specific modeling elements, whose

semantics are defined within the specific application

domain, i.e. sensor networks.

For configuring the model visualization, it is also

possible to add one or more “aspects”, which allow

one to see just a part of the modeling elements, in

order to reduce the model complexity and to show

what is relevant for a particular point of view. For the

Sensor Network language, we defined “aspects” that

show parts of the model concerning Communication,

Power, Memory, and Sensors respectively.

Thus, the modeling environment allows one to

represent sensor network models conforming to the

metamodel created in GME (see Figure 1). The next

paragraph explains the environment, but the model

illustrated in Figure 1, representing the architecture of

a sensor network for road traffic monitoring, is

presented in detail in Section 4.4.

The central pane represents a model drawn with

the elements available on the left side (Part Browser),

corresponding to the classes defined in the

metamodel, but configured with specific notations

(i.e. icons). The environment shows the editable

attributes of a selected model element on the lower

right side (Object Inspector).

With double-click on an element, a new drawing

pane may open, and one can edit a diagram for

showing the structure inside that element. When the

mouse is placed over a modeling element, one can see

the kind of that element (from the metamodel) - in

parentheses - e.g. the kind AggregationUnit for T-

Sink Node Lane 4, in Figure 1.

Sensor Network Modeling as a Service

347

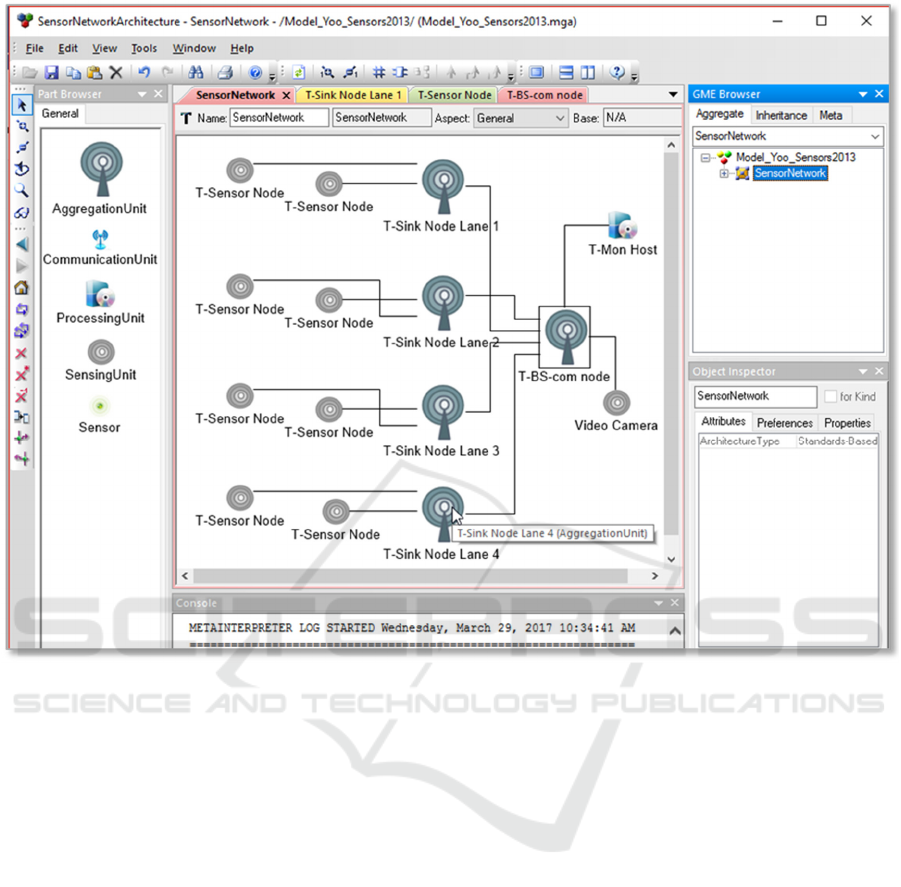

Figure 1: Modeling environment representing a sensor network for road traffic monitoring.

3.2 Modeling Service in Cloud

The previously described modeling environment for

sensor networks was deployed in Cloud, in Virtual

Machines (VM) replicated in respect with the number

of students subscribed to a Model Driven Engineering

course.

3.2.1 Implementation

The implementation used an IaaS (Infrastructure as a

Service) Cloud system based on IBM Service

Delivery Manager (ISDM), which has the same

hardware configuration as the IBM CloudBurst 2.1

medium configuration (Lemos et al., 2012):

 14 Blades HS22 (72 GB RAM)

 28 TB Raw Data Space.

From the point of view of software, ISDM is more

flexible and customizable, being able to integrate

different types of servers (servers with Intel or Amd

CPUs, Power systems, or even Mainframe) (Huche et

al., 2012).

In order to implement the solution, a virtual

machine was created, installed with the required

software and transformed into a template. The

template was then discovered by the TSAM

component (Tivoli Service Automation Manager)

and registered in the Cloud service catalog using the

Self Service Interface offered by the Cloud system.

From this point on, the service implemented by the

virtual machine was available and ready to be

requested and deployed into one or more projects.

The service can be offered using two methods:

 As access to the modelling environment

 As a virtual machine for each service request

in the form of an IaaS service

In this way, the user can benefit of the entire

virtual machine, not only of the modeling

software; after the service request has been

processed and the virtual machine is available,

one can connect using Remote Desktop

Connection, and the username and password

provided by the system

The first method, i.e. the access to the modeling

environment, can be applied in two different ways:

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

348

 For each service request, a virtual machine can

be created, and each user will use his or her

own VM, like in the previous IaaS solution;

however, each VM is customized such that,

each time a connection is made, the explorer

process is killed, and the modeling software is

launched; thus, the user only has access to the

requested software, so one can consider that, by

using an IaaS system, the modeling service is

offered as Software as a Service (SaaS)

 The other option is to deploy a VM for a

predefined number of users. When a user is

requesting a service, the VM is only

reconfigured by TSAM, and a new user is

added to the virtual machine; the VM

configuration can be identical to the first

solution, for offering access only to the

software (killing explorer and starting the

modeling software only) and can be installed

with VNC (Virtual Network Computer), which

offers the possibility to connect to the user

session using a Java-enabled web interface. In

this way, one can connect to the service only

using a web browser.

3.2.2 Service Request & Provisioning

Process

When requesting a service, the user will connect to a

web interface, which is the Cloud Self Service

Interface; the user authenticates with a registered

username and a password and then, selecting the

interface options, he or she can request a service in

the form of a project, including the number of virtual

machines to be created based on a template. The

service request is filled with the following

information: the name of the project, the description,

the period of time when the project will be available,

the name of the virtual machine template used to

deploy the virtual machines included in the project,

the additional software that will be installed, the

number of virtual machines included in the project

and their hardware configuration (number of virtual

CPU cores, the number of tenths of physical CPU

cores, RAM, swap space and HDD capacity).

After the user submits the request, the service

request is sent to the Cloud administrator to be

processed. If the Cloud administrator approves the

service request (SR), the SR is sent from the Self

Service Interface to Tivoli Service Request Manager

(TSRM) using REST API; the requester of the service

is also notified that the request has been approved.

Then, TSRM places the request into a queue and

waits for the scheduled date and time.

When the scheduled date and time arrive, the

provisioning of virtual servers begins; if the

provisioning is successful, then the user who

requested the service is notified by email and receives

information on how to access the VMs (VM hardware

configuration, IP address, username, password).

From this point forward, the VMs can be accessed

and used; if the user wishes to modify the project (for

example the RAM capacity of VMs, or the project

schedule) the request is sent to the administrator to be

approved and then the project is modified. If the

project is canceled or the project end date arrives,

then the virtual machines are powered off and then

erased, and the resources are freed; a copy of the VM

image can be done if the user requested it when the

project was created or canceled. The user is notified

at the end of the project, and also two days before the

end date arrives, so he or she can modify the project

schedule if needed.

3.2.3 Testing the Solution

From the preliminary tests, we noticed that, for a

template having a size of 10 GB and a project with 20

VMs, the process of offering the service takes about

22 minutes. Using the same template into a project

with 100 VMs, the process only requires 63 minutes.

These performances are obtained because the VM

template has a reduced size, and also because the

project provisioning was done without processing

other service requests in parallel. The small

difference between the two tests exists because, in the

first stage of project provisioning, TSAM checks the

status of Cloud resources and has an intensive

interaction with the Cloud hypervisor (VMware) and

the Cloud database (DB2), which takes about 10

minutes, before the VM template cloning starts; the

cloning process takes lesser time because the size of

the template is reduced, but also because the cloning

is done in parallel on eight threads.

4 SENSOR NETWORK

MODELING LANGUAGE

4.1 Background

The service provisioning related to sensors is support-

ed by OGC (Open Geospatial Consortium) with the

Sensor Observation Service (SOS), for registering

sensors and giving access to the data measured by

them through web services (OGC, 2017). SOS does

not support a service for modeling the architecture of

the sensor networks that acquire the data.

Sensor Network Modeling as a Service

349

For sensor modeling there is a standard called -

Sensor Model Language (SensorML) - focused on

data models, position, description of the observed

phenomena, and processes (OpenGIS, 2007). It does

not support the description of a network topology.

In the Model-Driven Engineering (MDE)

community, there have been multiple attempts to

model sensor networks. A comprehensive study on

Wireless Sensor Networks (WSN) was presented in

(Malavolta and Muccini, 2014), where several criteria

were used for comparison: capacity to generate code,

type of modeling language, aspects under considera-

tion (e.g. structure, behavior, mobility, power consum-

ption). Another survey, based on almost two thousand

papers, was presented in (Essaadi et al., 2017).

4.2 Method

Based on the general theoretical background related

to sensor networks, we applied an iterative method for

developing the graphical modeling language.

Phase 1 is the analysis of examples of sensor

networks, for which one identifies the main concepts

(terms) that describe the physical and the

computational architecture.

Phase 2 is focused on the creation of a

metamodel, seen as the abstract syntax of the future

language specific for modeling sensor networks. The

aim is that any concept or relationship related to the

real-world examples selected at Phase 1 can be

represented as an instance of a metamodel class. The

metamodel also considers existing classifications and

taxonomies regarding measurements, sensor

characteristics, or Wireless Communication

Networks (WCN) in general (see Section 4.3).

Phase 3 generates an editor of models conforming

to the metamodel, introducing customized notations,

and adding the abstractions that allow one to visualize

different views and hide the rest of the model details

– if the users need this. As explained in Section 3.1,

in GME they are called “aspects”.

Phase 4 was introduced for the metamodel

validation. It consists of using the editor to represent

models for all the examples analyzed at Phase 1.

4.3 Metamodel

Generally, sensor networks are represented

informally for visualization purposes and formally for

hypertext-based design, which requires programming

skills. The language proposed here aims at

reconciling the two approaches, i.e. obtaining an

intuitive representation that is also compatible with a

precise metamodel, which allows model execution

within a program, and automatic transformation to

other paradigms, for interconnection purposes.

Our concern was the sensor network architecture,

with a focus on structural aspects and less details

about the behavioral ones. Moreover, the purpose was

to elaborate a little language, and to raise the

abstracting level as much as possible, yet to be

capable to model a large variety of real-life sensor

networks. This fits to the existing trend of developing

little Domain-Specific Languages (DSL) (Erwig and

Walkingshaw, 2014), and then compose them

according to the needs of large-scale applications

(Estublier and Ionita, 2005).

The metamodel of the sensor network modeling

language is composed of a core (named Sensor

Network) and four other parts, defined according to

the classification of WCN devices: Communication,

Power, Memory, and Sensors (Cheekiralla and

Engels, 2005). A sensor network may be composed

of sensing, aggregation, communication, and

processing units, and of sensors connected to each

other (see Figure 2).

We define ProcessingUnit as an element that may

contain SoftwareUnit elements, dependent on one

another. A software unit in our language represents

any piece of software, be it a physical or a logical

artifact, e.g. an architectural layer, a software agent, a

service, or even an algorithm.

A SensingUnit is an AggregationUnit that

contains sensors, so it can perform acquisition of data.

An AggregationUnit is used for gathering data

originated from sensing units or from other

aggregation units, and for transmitting them forward,

but it may also perform some data processing. For this

reason, it contains objects of the following kinds:

CommunicationUnit, ProcessingUnit, and

PowerUnit, connected to each other.

A Sensor contains the attribute MeasurandType,

having one of the following values: Acoustic,

Biological, Chemical, Electric, Magnetic,

Mechanical, Optical, Radiation, and Thermal, as in

the classification from (White, 1987).

The type of SensorNetwork is specified through

an enumeration attribute: Standards-Based, Internet-

Connected, Context-Aware, Agent-Based, Service-

Oriented, Secure and Fault-Tolerant, Vehicle-Based,

Habitat-Monitoring, and Multi-Owner, following the

taxonomy proposed in (Fokum et al., 2008).

The sensors characteristics are given in

conformity with the abstract syntax from the Sensor

part of the metamodel, with classes like: Operating

Range, Power Supply, Output, Accuracy, Sensitivity -

according to (Kalantar-zadeh, 2013).

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

350

Figure 2: Part of the metamodel.

The metamodel was specified in the

metamodeling language supported by Generic

Modeling Environment. GME offers a metamodeling

language whose main objects are: Atom (indivisible,

yet characterized by attributes), Model (a composite

of other modeling elements) and Connection (to

represent links between model elements). The

notation adopted in GME is very similarly to the

UML (Unified Modeling Language) class diagrams,

as noticed from Figure 2. As in UML, the triangle is

used for generalization relationships, and the line

ended with a diamond for compositions

4.4 Example of Model

According to the method described in Section 4.2, we

performed multiple iterations for elaborating the

metamodel and testing the use of the modeling editor.

During one of these iterations, we studied a series of

systems where wireless sensor networks were used

for monitoring vehicle traffic. A comprehensive

survey on this topic is presented in (Nellore and

Hancke, 2016). Thus, in Phase 1 from our method,

we studied multiple sensor networks described in the

scientific literature, then in Phase 4 we modeled them

with the specific modeling environment from Section

3.1.

One of these systems is meant to detect vehicles

on a four-lanes road, using a Telematics Sensor

Network (TSN) (Yoo, 2013).

Figure 1, also illustrating the modeling

environment, contains the upper part of the TSN

model, containing the following objects of kind

AggregationUnit:

 four sink nodes, one for each lane, and

 one base station, named T-BS-com node, which

has a video camera and transmits the data to a

ProcessingUnit named T-Mon Host.

The names from this model are the ones given in

(Yoo, 2013). Data are collected from two telematics

sensor nodes per lane, named T-Sensor Node,

instantiated from SensingUnit.

We also added details for some of these elements,

according to the description from Yoo’s article. For

example, the elements inside a sensor node are:

 MSP430 MCU, micro-controller, of kind

ProcessingUnit

 CC2590 RF Amplifier, of kind ProcessingUnit

Sensor Network Modeling as a Service

351

 CC2420 Transceiver, of kind

CommunicationUnit and

 HMC1041Z MR, of kind Sensor, with the

MeasurandType attribute set to Magnetic.

All the objects previously mentioned have the

type Model in the GME language, therefore it is

possible to describe their inner structure. For instance,

the sensor is described with three groups of

characteristics, as specified in (Honeywell, 2017):

Bridge Elements, Set/Reset Strap, and Offset Straps.

The specific modeling environment allows one to

specify values for each characteristic, e.g. for one that

represents an OperatingRange, it is possible to set the

conditions, the minimum, typical and maximum

values, and their units. The values given in our model

are those from the technical specification of the

sensor.

5 CONCLUSIONS

The paper presents a modeling language and a

graphical modeling environment for sensor network

architecture, provided as an educational service on a

private Cloud. The approach can be compared to

WebGME, realizing Domain Specific Modeling

Languages (DSML) in the Cloud (Maróti et al.,

2014). Thus, our service is exclusively dedicated to

modeling, not to metamodeling (as WebGME) and its

users are only supposed to use the sensor network

modeling environment AS-IS, and not to upgrade it,

or configure it themselves. Any modifications at the

metamodel level need, in our process, the creation of

a new template for generating other virtual machines.

The migration of models to the new VMs is clearly

possible, but with the inherent limitations imposed by

GME; for example, if a metamodel class is eliminated

from the metamodel, a model containing an instance

of that class cannot be opened with the new version

of the sensor network editor. The modeling

environment has evolved during our study and it is

still subject to change, according as new examples are

studied and modeled. For example, the language was

applied for modeling volcano monitoring networks,

and it may be considered one of the multiple

modeling paradigms (Ionita and Mocanu, 2015)

required for dealing with the complexity of hazard

management systems in general.

According to the Cayirci’s classification

presented in Section 2, our approach currently fits in

the Modeling as a Service type (Cayirci, 2013),

because it stands in the availability of a sensor

network modeling environment, deployed on a Cloud

platform. The templates we use also have some

similarities to the solution from (Li et al., 2017),

where the models are executed on virtual machines,

based on an image. The MaaS engine presented there

generally corresponds to a model interpreter.

The template containing the modeling

environment may be used for creating virtual

machines according to the needs of various

educational programs in our university, to allow the

remote access to graphical modeling of sensor

network architecture. It also supports the definition

of models that are potentially executable, therefore

the environment is a foundation for providing more

services by adding model interpreters, in the spirit of

the Model as a Service approach.

Future work will focus on adding new services

that provide information about sensor network

complexity, transform the model to standard formats,

integrate the data acquired by sensors, or evaluate the

impact of sensor network evolution.

ACKNOWLEDGEMENTS

This work was funded by University Politehnica of

Bucharest, through the “Excellence Research Grants”

Program, UPB – GEX 2017. Identifier: UPB-

GEX2017, Ctr. No. 44 /2017 (AU 11-17-13).

REFERENCES

Cayirci, E., 2013. Modeling and Simulation as a Cloud

Service: A Survey. In Proceedings of the 2013 Winter

Simulation Conference, R. Pasupathy, S.-H. Kim, A.

Tolk, R. Hill, and M. E. Kuhl, eds, pp. 389-400.

Cheekiralla, S., Engels, D.W., 2005. A functional

taxonomy of wireless sensor network devices. In 2nd

International Conference on Broadband Networks.

BroadNets.

Erwig, M., Walkingshaw, E., 2014. Semantics-Driven DSL

Design. In Computational Linguistics: Concepts,

Methodologies, Tools, and Applications, Volume I, IGI

Global, pp. 251-275.

Essaadi F., Ben Maissa Y., Dahchour M., 2017. MDE-

Based Languages for Wireless Sensor Networks

Modeling: A Systematic Mapping Study. In El-Azouzi

R., Menasche D., Sabir E., De Pellegrini F., Benjillali

M. (eds), Advances in Ubiquitous Networking 2.

Lecture Notes in Electrical Engineering, vol 397.

Springer, Singapore.

Esri, 2017, Esri Managed Cloud Services [online],

Available from: http://www.esri.com/arcgis/services/

managed-cloud [Accessed 14 Oct. 2017].

Estublier, J., Ionita, A.D., 2005. Extending UML for Model

Composition, In Proceedings of Australian Software

Engineering Conference (ASWEC), Publisher IEEE

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

352

Computer Society, March 2005, Brisbane, Australia,

pp. 31-38.

Flammini, A., Sisinni, E., 2014. Wireless Sensor

Networking in the Internet of Things and Cloud

Computing Era, In Procedia Engineering, vol. 87, pp.

672-679.

Fokum, D.T., Frost, V.S., Mani, P., Minden, G.J., Evans,

J.B., Muralidharan S., 2008. A Taxonomy of Sensor

Network Architectures. In Technical Report, ITTC-

FY2009-TR-41420-08, University of Kansas.

GME, 2017. Generic Modeling Environment,

http://w3.isis.vanderbilt.edu/Projects/gme/ [Accessed

14 Oct. 2017].

Honeywell, 2017. One-Axis Magnetic Sensor HMC1041Z

[online]. Available from: https://aerocontent.honey

well.com/aero/common/documents/myaerospacecatalo

g-documents/Missiles-Munitions/HMC1041Z.pdf

[Accessed 14 Oct. 2017].

Huche, T., Koohi, B., Lam, T.V., Reynolds, P., Swehla,

S.M., Wain, J., Vetter, S., 2012. Cloud Computing

Infrastructure on IBM Power Systems: Getting started

with ISDM. IBM Redbooks.

Ionita, A.D., Mocanu, M., 2015. Multiple Modeling

Paradigms Applied for Accidental Pollution

Management. In Environmental Engineering and

Management Journal, Issue 9, Volume 14.

Kalantar-zadeh, K., Sensors, 2013. An Introductory Course,

Springer.

Lemos, A., Moleiro, R., Ottaviano, P., Rada, F., Widomski,

M., Braswell, B., 2012. IBM CloudBurst on System x.

IBM Redbooks.

Li, Z., Yang, Huang, Q., Liu, K., Sun, M., Xia, J., 2017.

Building Model as a Service to support geosciences. In

Computers, Environment and Urban Systems, Volume

61, Part B, Pages 141–152.

Malavolta, I., Muccini, H., 2014. A Study on MDE

Approaches for Engineering Wireless Sensor

Networks, In 2014 40th EUROMICRO Conference on

Software Engineering and Advanced Applications

(SEAA), Italy, pp. 149-157.

Maróti, M., Kecskés, T., Kereskényi, R., Broll, B.,

Völgyesi, P., Jurácz, L., Levendovszky, T., Lédeczi, Á.,

2014. NextGeneration (Meta) Modeling: Web-and

Cloud-Based Collaborative Tool Infrastructure. In

Proceedings of the 8th Multi-Paradigm Modeling

Workshop, Spain, pp. 41–60.

Nativiti, S., Mazzetti, P., Geller, G.N., 2013. Environmental

Model Access and Interoperability: the GEO Model

Web Initiative. In Environmental Modelling &

Software, Volume 39, pp 214–228.

Nellore, K., Hancke, G.P., 2016. A Survey on Urban Traffic

Management System Using Wireless Sensor Networks,

In Sensors, 16 (2) 157.

OGC, 2017. Sensor Observation Service [online],

Available from: http://www.opengeospatial.org/

standards/sos [Accessed 14 Oct. 2017].

OpenGIS, 2007. Open Geospatial Consortium, OpenGIS®

Sensor Model Language (SensorML) Implementation

Specification, M. Botts Ed., Version: 1.0.0.

Piscopo, N., 2014. Agile Big Data and Many-Particle

approach change Marketing and Sales effectiveness

[online], In Cloud Best Practices Network. Available

from: https://cloudbestpractices.wordpress.com/author/

nucciopiscopo/ [Accessed 14 Oct. 2017]

Roman, D., Schade, S., Berre, A. J., Bodsberg, N. R.,

Langlois, J., 2009. Model as a service (MaaS). In

AGILE workshop: Grid technologies for geospatial

applications, Germany.

Skøiena, J.O., Schulza, M., Duboisa, G., Fisherb, I.,

Balmanc, M., Mayc, I., Tuamad, É.Ó., 2013. A Model

Web approach to modelling climate change in biomes

of Important Bird Areas. In Ecological Informatics,

Volume 14, pp 38–43.

Yoo, S., 2013. A Wireless Sensor Network-Based Portable

Vehicle Detector Evaluation System. In Sensors 13(1),

pp. 1160-1182.

Yuea, S., Chena, M., Wena, Y., Lua, G., 2016. Service-

oriented model-encapsulation strategy for sharing and

integrating heterogeneous geo-analysis models in an

open web environment. In ISPRS Journal of

Photogrammetry and Remote Sensing, Volume 114, pp

258–273.

Yung Rowe, B. L., 2014. The Models as a Service era has

arrived [online], Available from: https://cartesianfaith.

com/2014/06/05/the-models-as-a-service-era-has-arriv

ed/ [Accessed 14 Oct. 2017]

White, RM., 1987. A sensor classification scheme. In IEEE

Trans Ultrason Ferroelectr Freq Control. 34(2),

pp124-126.

Sensor Network Modeling as a Service

353
