Key-Server Adaptation to IoT Systems

Jacek Wytrębowicz

Institute of Computer Science, Warsaw University of Technology, ul. Nowowiejska 15/19, Warszawa, Poland

Keywords: Digital Certificate, Key-Server, IoT System.

Abstract: This paper presents an opinion on future evolution of secure communication in IoT systems. Due to

advances in cryptography, in processing power of integrated circuits, and in energy harvesting, the

constraints of today’s IoT devices will weaken and asymmetric encryption could be widely applied. The

number of IoT related certificates would grow; so appropriate certificate servers should appear to support

them. The paper points a direction for further works on such infrastructure, indicating suitable technology to

be applied.

1 INTRODUCTION

The need of securing IoT systems is incontestable.

However, it is not easy to satisfy that necessity,

especially when an IoT system is based on Wireless

Sensor Networks (WSN). The difficulties in

protecting the IoT systems arise due to limited

computational resources, which result from expected

low price of the IoT devices and energy supply

constraints. There are a lot of research and industrial

solutions that try to tackle this problem. A holistic

view on security requirements, and attacks with their

corresponding countermeasures in WSNs is

presented in the article (Wang et al. 2006). The

applicability and limitations of existing Internet

security protocols in the context of IoT are discussed

by (Nguyen et al. 2015). A survey of the main

research challenges and the existing solutions in the

field of IoT security is given by (Sicari et al. 2015).

Those three above-mentioned surveys are just

examples, however they give reach reference lists to

related publications. Moreover, a comprehensive

description of today’s solutions and research

directions for identity management for IoT can be

found in the book (Mahalle and Railkar 2015). There

is also an active document presenting State-of-the-

Art and Challenges for the IoT Security (Garcia-

Morchon and Sethi 2017), which is regularly

updated by IETF from 2011 (last seen update in

September 2017).

In recent 25 years the development of secure

industrial solutions was incentivised by growing

market of smartcards and Automatic Teller

Machines, and by increasing threats in computer

networks. Today we have co-processors designed to

perform computationally intensive cryptographic

operations – called cryptography accelerators. They

are parts of processors (e.g. Intel's AES-NI or

Analog Devices’ ADuCM302x) or separate

integrated circuits (e.g. Microchip’s ATSHA204A,

ATAES132A and ATECC508A). ADuCM302x is

assigned for IoT devices; it supports AES 128/256

and SHA256 cryptographic operations.

ATECC508A is also assigned for IoT devices, and it

supports ECDH (Elliptic Curve Diffie–Hellman) key

agreement computations. Moreover, there are IP

cores for semiconductors for the security and

cryptography, e.g. from IP Cores, Inc. The progress

in integrated circuit design allowed construction of

secure cryptoprocessors (named also embedded

secure elements) that are built in smartcards, ATMs,

SIM cards, TV set-top boxes, and military

applications. A secure cryptoprocessor does not

output sensitive data and minimizes the need to

protect the rest of the device.

Most of research work in IoT security is based

on past experiences and existing standards, trying to

overcome both past and today’s problems. However,

regarding the advances in integrated circuit

technologies and in energy harvesting for IoT, we

could ask the following questions. Would the

constraints to processing power, memory size and

communication volume, be valid in the future?

Would the future technical challenges be different?

Would they rather arise from IoT application needs?

One of such needs, we can anticipate, is certificate

Wytr˛ebowicz, J.

Key-Server Adaptation to IoT Systems.

DOI: 10.5220/0006670201550160

In Proceedings of the 7th International Conference on Sensor Networks (SENSORNETS 2018), pages 155-160

ISBN: 978-989-758-284-4

155

management problem, which would swell with the

increase of IoT deployments. The need of

standardization of mechanisms for device

bootstrapping and key management was already

advocated by (Keoh et al. 2014), who give a good

review of IETF efforts to standardize security

solutions for the IoT ecosystem.

Digital certificates are efficient for authentication

of communicating parties, for integrity checking of

received data, and for exchange of temporal

ciphering keys if confidentiality is needed. The

rising number of IoT devices together with their

short life-cycle make any central or even

hierarchical certificate management inefficient.

Today’s solutions either do not provide any

certificate management functionality or provide a

local or private solution that is not certain for every

Internet user. Hence a certificate management

infrastructure available in the global Internet is to

provide. Let us imagine the requirements for such

infrastructure; further we call it Certificate

Management Infrastructure for IoT (CM4IT).

2 WHO USES DIGITAL

CERTIFICATES IN IoT?

There is no single architecture for an IoT system to

be deployed. However, there are always IoT devices,

and very often gateways separating them from the

outside network. Depending on application of the

system, different parties can be engaged in its

development, maintenance and usage, and of course

different security requirements. Anyway we can

distinguish the parties, and the trust dependencies

between them. Let’s assume that the general IoT

system consists of: numerous devices

(microcontrollers embedded in “things”), gateways

separating devices from the Internet or Intranet,

servers laying in direct proximity to a gateway or

somewhere in the network cloud. There are end-

users accessing (locally or remotely) services of the

servers and an administrator of the given IoT

system. We can distinguish the following engaged

parties: owner of the system, a maintenance

company (usually integrator of the system), software

development companies, and hardware

manufacturers.

The access management for human users is

behind our consideration – there are many well-

known solutions for it. For sure, digital certificates

of public keys belonging to humans can be applied.

Here we are interested in securing communication

between components of an IoT system and in sure

identification of the components. The

communication enables transmission of collected

data and control commands, as well as configuration

parameters, test sequences and software updates.

A human user can wish to check the identity of

the network services he is connected to. The owner

of the IoT system is the trusted party for him. In

many cases the owner is the company employing the

user. Hence identity certificates of the services

should be signed by the company or at least by the

company maintaining the IoT system. The

maintenance company is a trusted party for the

owner; they are bound together with some contracts

with defined responsibilities. If the maintenance

company is not the integrator of the system, then it

has to trust the integrator and have an appropriate

legal agreement with it. Then the identity certificates

of the services should be also signed by the

integrator. It is worth pointing out that the

maintaining company of a given IoT system as well

as the integrator company can change over time. In

that case new signatures should be added to identity

certificates according to the new responsibilities.

The integrator should verify identity of the

components (hardware and software) used to build

the system. By hardware components we mean IoT

devices and gateways. The verification can be done

apart from the system before assembling it or within

the system during its operation, or both. Checking

the components’ identity in run time strengthens

security of the system – it facilitates software

component upgrades, and it protects against

unsolicited substitutions of hardware components.

Hence all critical components should have identity

certificates. The identity of a software component

can be just its cryptographic hash signed by the

issuer’s private key. The best identity of a hardware

component is its public key signed by the

manufacturer, and the corresponding private key

should be protected in a cryptoprocessor built-in the

hardware.

According to the above-mentioned scenario, an

identity certificate of hardware or software

component should be signed by its producer, by the

system integrator and if needed by a maintenance

company. The identity of critical IoT services

available in the network should be signed at least by

the integrator and if possible by owner of the

system.

We can also notice that there is digital equipment

that has to be approved by a certification body, e.g.

some medical devices. An IoT system can fall into

such category. Therefore, the certification body is a

SENSORNETS 2018 - 7th International Conference on Sensor Networks

156

party involved in the system exploitation and could

digitally sign its elements to endorse their legality.

The certificates should be stored in a distributed

manner for resiliency reason, and should be

accessible for the IoT system in order to enable run-

time verification. Any changes in the composition of

the system (e.g. software updates, adding or

replacing IoT devices and services) should be

reflected in the certificate databases.

An identity is certified by its issuer (e.g. device

manufacturer, service administrator). Next, several

certificates can be attached to the identity, which

reflects state or ownership changes of the related

item. That creates cryptographically secure history

of the item. The history records are not supposed to

be numerous, thus not leading to scalability problem.

As it has been shown, there are many parties

involved in issuing and signing an identity, and there

is no common infrastructure for exchanging and

managing certificates for IoT systems.

3 DO TODAY’S TECHNIQUES

SUIT IoT SYSTEMS?

Digital certificates have been used in the Internet for

almost 30 years. Law regulations adopting Public

Key Infrastructure (PKI) for commercial operations

started to appear in the mid of 90-ties in the last

century. PKI is based on X.509 standard of digital

certificates. The Certificate Management Protocol

defined in RFC 4210 is used for exchanging X.509

digital certificates. PKI is based on a certificate

authority which is responsible for identity vetting of

a given entity, keys generation, issuing certificate

and maintenance of certificate revocation list.

Another popular approach to manage digital

certificates is the web-of-trust scheme, which is

based on self-signed certificates and third party

attestations of those certificates. Here, the OpenPGP

standard (RFC 4880) is used for certificate

representation. The certificates are stored on and

distributed by key servers using HKP (HTTP

Keyserver Protocol, however it can work over

HTTPS too) or LDAP/LDAPS. Moreover end users

can exchange OpenPGP certificates by other means,

without a key server intermediary.

A new approach is to apply blockchain

technology, which provides a distributed and

unalterable ledger of information. Public keys and

certificates could be the information registered on

such ledger. The main advantage of that approach is

unalterable full trace of all interactions kept reliably.

Its main disadvantages are: growing size of the

a proof-of-work schema is used to guarantee

correctness of registered records.

All these approaches have their known

advantages and limitations. PKI is widely used to

give some security while accessing web services. All

web browsers have built-in trusted root certificates

and mechanisms for checking X.509 certificates.

Hence it is straightforward to provide the PKI

certificates to web servers providing IoT services.

Even though the resulting trust level is not very

high, it is satisfactory for many users of IoT

services. In order to provide more secure

communication, a custom application for user

devices is often proposed, and additional identity

vetting procedures are applied.

An IoT system integrator composes the system

from software components coming from different

developers. An IoT device (and a gateway too) in

the system should accept only upgrades accepted by

the integrator/maintainer, thus the updating module

pre-installed on the device should check the

integrator signature (and probably also the solicited

time of update). Then the device does not have to

check signatures coming from different developers,

probably even unknown in advance. Integrator needs

a system for update management to process this task

and minimizing risk of failures. The system should

allow to move back an update and allow to log

performing tasks. It also should verify signatures of

the software components. A local certificate server

could be helpful for managing signatures of all

software components installed in the IoT system

over the time. The certificate server and the update

management system should support different

certificate standards used by software developers.

The developers can sign their code using public or

private PKI, or using their own self-generated key

embedded or not in the OpenPGP structure.

IoT services running on network servers should

also be updated as well as the underlying operating

systems. Most operating systems (Windows, Mac

OS X, and most Linux distributions) have built-in

mechanisms for updates using signed code, and a

system administrator just has to control the process

according to defined policy. However, IoT services

running on the servers should be updated in the same

way as software components running on IoT devices

(as described above).

IoT devices and gateways can contain built-in

mechanisms for firmware updates. These

mechanisms should store the manufacturer signature

and check origin and integrity of firmware updates.

Key-Server Adaptation to IoT Systems

157

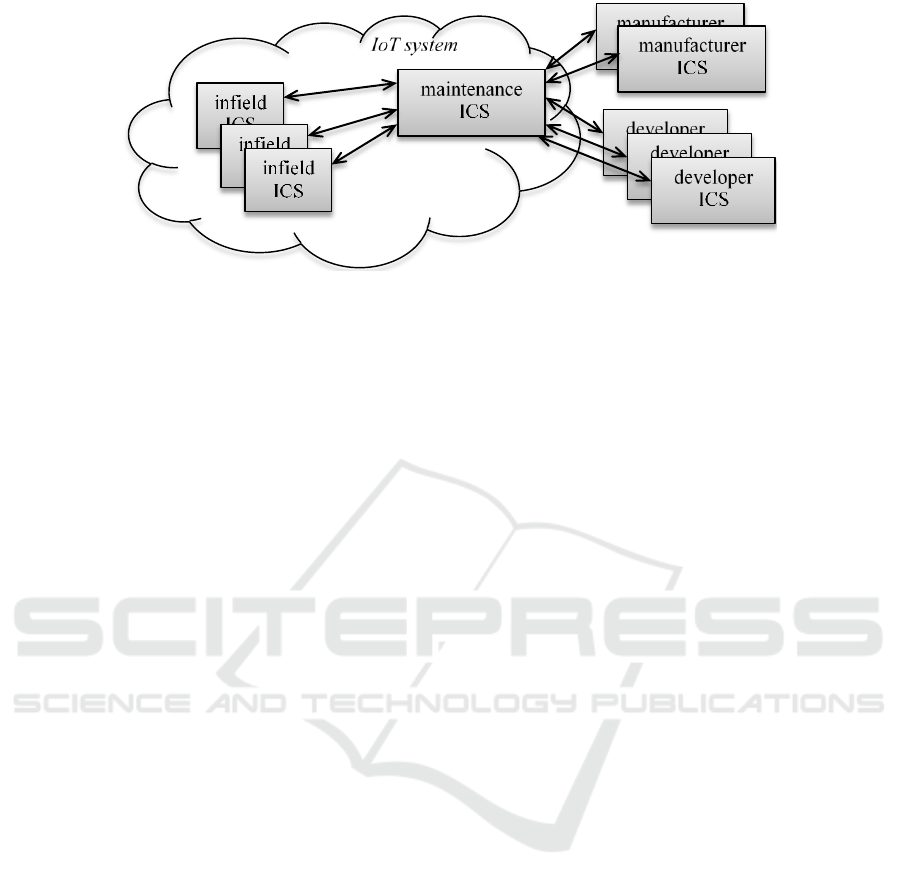

Figure 1: Example structure of identity certificate servers.

Administrator of the system should only control the

process. In that case, similarly to the updates of

operating systems, integrator signatures cannot be

involved.

An IoT integrator/maintainer composes the

system from numerous devices coming from

different manufacturers. A database of installed and

approved devices is required not only for

maintenance purposes, but also to enable secure

communication inside the system disabling any

attempt of intrusion of illegal devices to the system.

Communicating entities should identify each other,

and only those of them whose identity certificates

are successfully checked in the database can

cooperate. It is the integrator/maintainer who

approves the entities. He can sign the approval

digitally on the identity certificate of the entities.

It would be helpful for the integrator to have an

identity certificate server, which synchronizes

selected data with corresponding servers belonging

to IoT device manufactures and software component

developers. As far as we know there is no such

possibility yet.

4 ARCHITECTURE OF CM4IT

The below-described architecture of Certificate

Management Infrastructure for IoT is just

illustrative, it depicts the idea of an infrastructure

supporting cooperation between different parties

involved in construction, deployment and

maintenance of an IoT system. The infrastructure

includes several identity certificate servers (ICS).

Lets call them: infield, maintenance, manufacturer,

and developer ICSes, see Fig. 1.

The infield ICS is installed in the proximity of a

gateway (or several gateways). It can even be

embedded in a gateway. Its aim is to provide run-

time certificates for all communicating entities

belonging to the cloud under control of a given

gateway (or gateways). Access time to the server

from the entities should be minimized, and it should

have high availability enabling reliable

communication. The infield ICS stores signed

identities of all entities in the cloud, and entities

outside the cloud which are allowed to communicate

with the cloud entities. A gateway can serve a star-

topology network of directly connected devices, or a

mesh network – which is much more complex and

difficult to secure. The work on key management

protocol to secure multi-hop communication in

sensor networks (Guermazi et al. 2017)

demonstrates the difficulties and a complex solution

based on symmetric cryptography. If the sensors

would have cryptoprocessors supporting asymmetric

cryptography and the gateway would have an infield

ICS, then neighbour discovery and routing in the

mesh could be simpler and much more secure.

The maintenance ICS is needed for management

of the IoT system, and it is part of the IoT system. It

stores all certificates of entities belonging to the

system, entities that are active, that were active in

the past, and that are planned to be activated. It can

as well store certificates of ICSes allowed to alter its

data.

A manufacturer of IoT devices (or IoT gateways)

supports an ICS with identity certificates of all sold

devices. The ICS is accessible via the Internet from

maintenance ICSes. An IoT integrator/maintainer

can download selected certificates, it can also upload

a signed and time stamped status of a given device,

e.g. “in-use”, “destroyed”, “stolen”. As a result, any

other Internet user can check the device status and

recognise the status issuer, either on the maintenance

or the manufacturer ICS. An identity certificate of a

device or gateway should contain the public key (of

the device) signed by the manufacturer.

Corresponding private key should be stored inside

the secure cryptoprocessor assembled in the device.

SENSORNETS 2018 - 7th International Conference on Sensor Networks

158

A software developer of IoT components

supports an ICS with stores identity certificates of

all sold code and code updates. The certificates do

not contain any public keys, just signed and time

stamped hashes of provided code. The certificate can

have a status signed by the developer, e.g.

“depreciated code”. The status should be time

stamped too.

If a given code, when running, is a

communicating entity in the IoT system, then the

entity has to be authenticated. If the entity runs on a

device having a cryptoprocessor, then the

cryptoprocessor can sign an authentication message

to be sent, and even to cipher messages if needed.

An IoT device or gateway does not have to be

equipped in a cryptoprocessor, when it is placed in a

physically secure environment. In that case the

ciphering keys are generated on the device during

setup time together with the corresponding identity

certificate. Then the certificate is stored in

corresponding infield and maintenance ICSes.

Similarly, IoT services, running somewhere in the

Internet or in an intranet, have keys and certificates

generated during setup time.

Depending on the purpose of the IoT system,

access to the infield and maintenance ICSes can be

opened to any Internet query, or can be protected.

The first case suits those IoT systems that offer data

for public usage directly from IoT devices,

guaranteeing their source. In the second case, the

IoT system is a private one, and is accessible via the

Internet using VPNs or it offers only pre-processed

data via network services.

Many IoT systems are closed solutions for

private usages. However, there are some publicly

accessible IoT devices or services to find in the

Internet. There are concepts, and may be already

deployments, of federated systems (where services

of one owner can access devices belonging to

another one). There are also concepts of mobile

devices that can move from one gateway to another.

The more open is a system the more important is the

identity checking. Moreover, trust information about

IoT devices and services becomes desired. The

ICSes help to quickly find and check identity of

entities in question. Moreover, a relevant party may

sign trust label of a selected device or service adding

that signature to the identity certificate in its ICS. A

certification body that approves legality of medical

devices or services could be such a party. The

certification body can maintain its own ICS to

enable easy access to certified by the body identities

of approved devices/services.

The described ICSes should be able to

communicate with each other, to download required

certificates or to update their status. The ICSes

belong to different parties and can run on various

computer platforms. To facilitate the communication

a common protocol has to be chosen and standard

data structures for certificate representation has to be

applied.

Key servers widely used today could be adapted

to the schema described above. A common

infrastructure for carrying signed identities of

components would be efficient, even if some of

them do not have attached public keys (i.e. code

identities). LDAP/LDAPS could be applied for

message exchange between ISCes. OpenPGP can be

used and may be extended as a data structure

standard for IoT identity certificates. An attempt of

such extension has been already proposed in an

Internet-draft (Atkins 2015). This draft defines a set

of notations that may be used when signing an IoT

device certificate. However the draft does not cover

code identities, neither above-mentioned attributes

of IoT devices or code status.

5 CONCLUSIONS

The techniques for digital certification available

nowadays can be used in IoT systems to improve

security of gathered data and to provide better trust

for the systems. However they do not allow

building such infrastructure of cooperating ICS as

described in the previous chapter. The proposed

infrastructure could help in more efficient certificate

distribution between the parties concerned. It is

expected that IoT system will be very numerous.

Therefore, we could deploy such ISC infrastructures

along with them without scalability problems.

Moreover, the infrastructure provides two important

features: identification of responsible parties thanks

to their certificates, and cryptographically secured

states of IoT components (which can change over

time). The features could strengthen security of IoT

systems, and ease their software design.

We are going to check out the presented above

concept building an experimental network of

cooperating ICSes. The network will serve a set of

sensors attached to a gateway. Stored certificates

will be grouped in domains related to responsibilities

of ICSes’ owners. Access rights for reading and

updating of the domains will be defined in policy

descriptors. Automatic certificate synchronization

could be performed according to the policies.

Moreover, we are going to propose a structure of

Key-Server Adaptation to IoT Systems

159

identity descriptor with signatures attached.

Definition of such structure is not obvious, because

it would be desirable to support existing standards,

which do not favour needed extensions.

Scalability of the presented Certificate

Management Infrastructure for IoT results from the

fact that new ICSes are installed with new IoT

system deployments, and an ICS stores only

certificates related to the deployment, or to the

responsibility of a given enterprise. The certificates

support network services which provide

functionalities for end users, as well as services

intended for administrators of the IoT systems. The

software installed on IoT devices, IoT gateways, and

Internet/Intranet servers can apply the certificates to

secure communication.

An owner or a user of IoT system may prefer to

rely on the system integrator or maintenance

company than on an unknown certification authority

selling certificates with weak validation level.

Vetting of and vouching for identity of IoT devices

and services could be more trustable when more

parties sign identity certificates and the parties are

bound by mutual contacts and contracts.

The aim of this article is to reveal the advantages

of commonly accepted Certificate Management

Infrastructure for IoT. Such systems would help to

build more secure and more trustable IoT solutions.

However, the communicating protocol and data

structures for the system are yet to be worked out

and to be exercised in experimental deployments.

REFERENCES

Atkins, D., 2015. OpenPGP Extensions for Device

Certificates. Available at: https://tools.ietf.org/html/

draft-atkins-openpgp-device-certificates-03.

Garcia-Morchon, O. & Sethi, M., 2017. State-of-the-Art

and Challenges for the Internet of Things Security.

Available at: https://tools.ietf.org/html/draft-irtf-t2trg-

iot-seccons-07.

Guermazi, A. et al., 2017. KMMR: An Efficient and

scalable Key Management Protocol to Secure Multi-

Hop Communications in large scale Wireless Sensor

Networks. KSII Transactions on Internet and

Information Systems, 11(2), pp.901–923. Available at:

http://itiis.org/digital-library/manuscript/1606.

Keoh, S.L., Kumar, S.S. & Tschofenig, H., 2014. Securing

the internet of things: A standardization perspective.

IEEE Internet of Things Journal, 1(3), pp.265–275.

Mahalle, P.N. & Railkar, P.N., 2015. Identity

Management for Internet of Things, River Publishers.

Nguyen, K.T., Laurent, M. & Oualha, N., 2015. Survey on

secure communication protocols for the Internet of

Things. Ad Hoc Networks, (32), pp.17–31.

Sicari, S. et al., 2015. Security, privacy and trust in

Internet of Things: The road ahead. Computer

Networks, 76, pp.146–164. Available at:

http://dx.doi.org/10.1016/j.comnet.2014.11.008.

Wang, Y., Attebury, G. & Ramamurthy, B., 2006. A

Survey of Security Issues In Wireless Sensor

Networks. IEEE Communications Surveys &

Tutorials, 8(2), pp.1–23.

SENSORNETS 2018 - 7th International Conference on Sensor Networks

160
