Cloud Security and Privacy Metamodel
Metamodel for Security and Privacy Knowledge in Cloud Services
Tian Xia
1
, Hironori Washizaki
2
, Takehisa Kato
3
, Haruhiko Kaiya
4
, Shinpei Ogata
5
,
Eduardo B. Fernandez
6
, Hideyuki Kanuka
7
, Masayuki Yoshino
7
, Dan Yamamoto
7
, Takao Okubo
8
,
Nobukazu Yoshioka
9
and Atsuo Hazeyama
10
1
Department of Computer Science and Communications Engineering, Waseda University, Japan
2
Waseda University, Japan
3
Toshiba Digital Solutions Corporation, Japan
4
Kanagawa University, Japan
5
Shinshu University, Japan
6
Florida Atlantic University, U.S.A.
7
Hitachi, Ltd., Japan
8
Institute of Information Security , U.S.A.
9
National Institute of Informatics , Japan
10
Tokyo Gakugei University, Japan
Keywords: Cloud Computing, Metamodel Model, Security Patterns, Privacy Patterns, Software and System Architecture.
Abstract: Security and privacy are important in cloud services. Numerous security and privacy patterns as well as non-
pattern-based knowledge such as practices and principles exist in cloud services. Selecting and combining the
appropriate knowledge is difficult due to numerous options and the nature of the layered cloud stack. Herein
we propose a metamodel called the Cloud Security and Privacy Metamodel (CSPM) to handle security and
privacy in cloud service development and operations. CSPM can classify and support existing cloud security
and privacy patterns and practices in a consistent and uniform manner. Moreover, we propose a security and
privacy aware process to develop cloud system utilizing CSPM. Several case studies verify the effectiveness
and usability of our approach. As a result, we confirmed effectiveness and usability of CSPM, as well as some
possible future work.
1 INTRODUCTION
Service providers control remotely available services
and data, which are often connected with other
services. Consequently, ensuring security and privacy
(S&P) in cloud services is important. However, not
all software engineers are experts on S&P, making it
difficult to mitigate various S&P concerns throughout
the software lifecycle.
A pattern is an abstraction from a concrete form
that recurs in non-arbitrary contexts. Pattern catalogs
(and pattern languages) should enable coherent
integration and presentation of the relevant
background, leitmotifs, and metaphors. Numerous
S&P patterns have been published for cloud
computing and services (D. Riehle, 1996) (K.
Hashizume, 2011) (K. Hashizume, 2013). Moreover,
non-pattern-based knowledge, which comes in the
form of practices and principles, has been well
documented to address S&P issues in cloud services.
The vast number of S&P patterns and documents
describing related knowledge in cloud services makes
selecting (and combining) the appropriate ones
difficult. Although this is a common problem in
security patterns in general, it is more severe in cloud
services due to two reasons. Firstly, cloud services
and their underlying mechanisms are related to
various layers in the layered cloud stacks, and these
services are often integrated over different layers.
Secondly, a variety of devices are connected to cloud
computing systems, which may require distinct
Xia, T., Washizaki, H., Kato, T., Kaiya, H., Ogata, S., Fernandez, E., Kanuka, H., Yoshino, M., Yamamoto, D., Okubo, T., Yoshioka, N. and Hazeyama, A.
Cloud Security and Privacy Metamodel - Metamodel for Security and Privacy Knowledge in Cloud Services.
DOI: 10.5220/0006600403790386
In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 379-386
ISBN: 978-989-758-283-7
Copyright © 2018 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
379

deployment models and diverse services, resulting in
a highly complex system. This intertwined system
leads to many concerns, including S&P.
Metamodels or reference architectures that
capture the essential concepts related to S&P in
layered cloud stacks should address the
aforementioned problem since engineers can describe
S&P-related knowledge as well as design systems and
services consistently over many layers. Although
several metamodels and abstract reference
architectures address cloud security (Kleopatra
Chatziprimou, 2013)(E. B. Fernandez, et al, 2015) (A.
Hazeyama, 2012), none addresses privacy in cloud
services. Since the relation between S&P is complex,
it is preferable to deal with S&P simultaneously. On
the other hand, several metamodels and conceptual
models address both S&P (C. Kalloniatis, E. Kavakli,
and S. Gritzalis,2008), but they are generally defined
in such a way that makes applying them directly to
cloud services challenging.
We previously presented the background and
former version of the metamodel (H. Washizaki, et
al., 2016). In this research, we propose an extended
metamodel called the “Cloud Security and Privacy
Metamodel (CSPM)” to address S&P in cloud
services by integrating and extending existing cloud
security metamodels together with newly added
concepts.

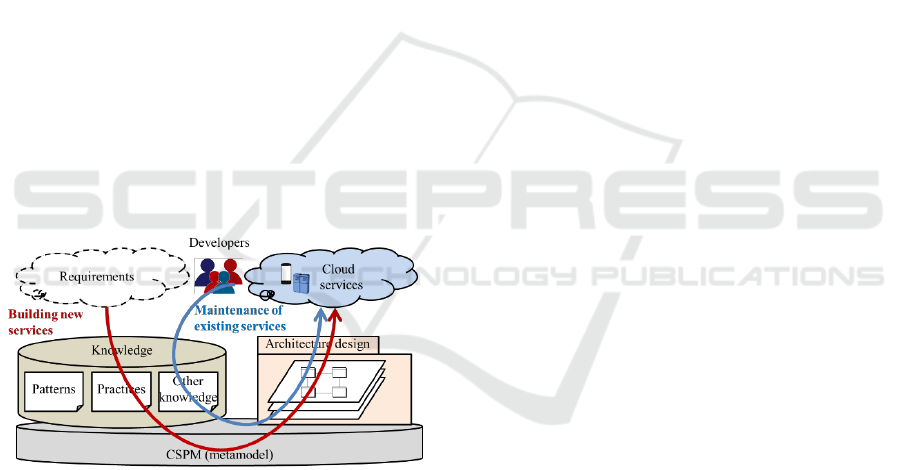

Figure 1: Overview of cloud services and our metamodel.
Figure 1 shows how to use CSPM in cloud service
development and maintenance. CSPM provides the
basis to describe and accumulate S&P-related
knowledge over multiple layers, making it easier to
select and combine the appropriate patterns and
related knowledge to address S&P issues in cloud
services. Moreover, engineers and developers can
refer to CSPM to design high-level architectures of
cloud service systems efficiently and effectively.
As an extension to our previous research, we
conducted several case studies to address some
following questions:
 RQ1. Does CSPM help developers address S&P
problems and the corresponding patterns?
 RQ2. Do the S&P solutions by CSPM
effectively improve the system?
 RQ3. Are CSPM and the process using CSPM
practical in real cloud system development and
maintenance?
RQ1 and 2 focuses on the effectiveness of CSPM
from different view point. RQ3 discuss the usability
of our approach, for both metamodel itself and the
process we proposed.
The remainder of this paper is organized as
follows. First, we propose our metamodel in Section
2. Section 3 describes our case studies and discusses
the results with respect to the RQs. Finally, we
conclude our work and discuss the future direction in
Section 4.
2 CSPM
2.1 Problems to Be Addressed
Consider the scenario where a developer who is new
to cloud development is tasked to build a cloud
application. As he is not an expert, he prefers to have
some documents about security and privacy.
However, searches for such documents lead to several
problems:
 Vast number of S&P patterns and
documents: A pattern is a general reusable
solution to a reoccurring problem. Numerous
S&P patterns as well as existing documents
applicable to cloud development exist. Hence,
selecting the appropriate patterns from a huge
knowledge base is extremely challenging.
Additionally, many S&P patterns are not
specific to cloud services (E.B. Fernandez, et al.,
2010). Utilizing non-S&P specific patterns may
be complicated and burdensome.
 Complex relationships between a cloud
service and its mechanism: A cloud can
typically be divided into three layers:
infrastructure, platform, and software. From the
user’s viewpoint, each service is provided at a
certain layer. However, the data controlled by
the service may be related to any layer (S.
Subashini and V. Kavitha, 2011). For example,
a cloud storage service containing hardware and
cluster controller belongs to infrastructure for
storing data. At the same time, the interface in
the software layer for a user is required. Just this
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
380

situation makes selecting and utilizing patterns
and documents hard.
 No practical metamodel is applicable:
Existing metamodels (C. Kalloniatis, E.
Kavakli, and S. Gritzalis,2008) could be good
references because they contain essential
concepts when dealing with S&P issues.
However, there is not a metamodel can
practically deal with the S&P problem in real
cloud development.
2.2 Requirements and High-Level
Architecture of the Metamodel
According to problems described in Section 1 and
2.1, we identified three requirements for designing a
metamodel:
 R1. The metamodel must consistently deal with
S&P-related knowledge over multiple layers,
including the software application layer, the
platform layer, and the infrastructure layer.
Services corresponding to these layers are SaaS
(Software as a Service), PaaS (Platform as a
Service), and IaaS (Infrastructure as a Service).
Cloud services are often integrated over
different layers. Thus, security of multiple layers
must be carefully considered (A.A. Almutairi, et
al., 2012). This is also important for privacy.
 R2. The metamodel must be mostly consistent
with existing cloud security metamodels and
reference architectures. Engineers and
developers must be able to utilize assets based
on our metamodel and those based on existing
metamodels (and reference architectures).
 R3. The metamodel allows engineers and
developers convenient access to a knowledge
base containing cloud-specific and cloud-
independent knowledge.
Based on these requirements, we designed CSPM
to consist of seven packages.
2.3 Design of the Metamodel

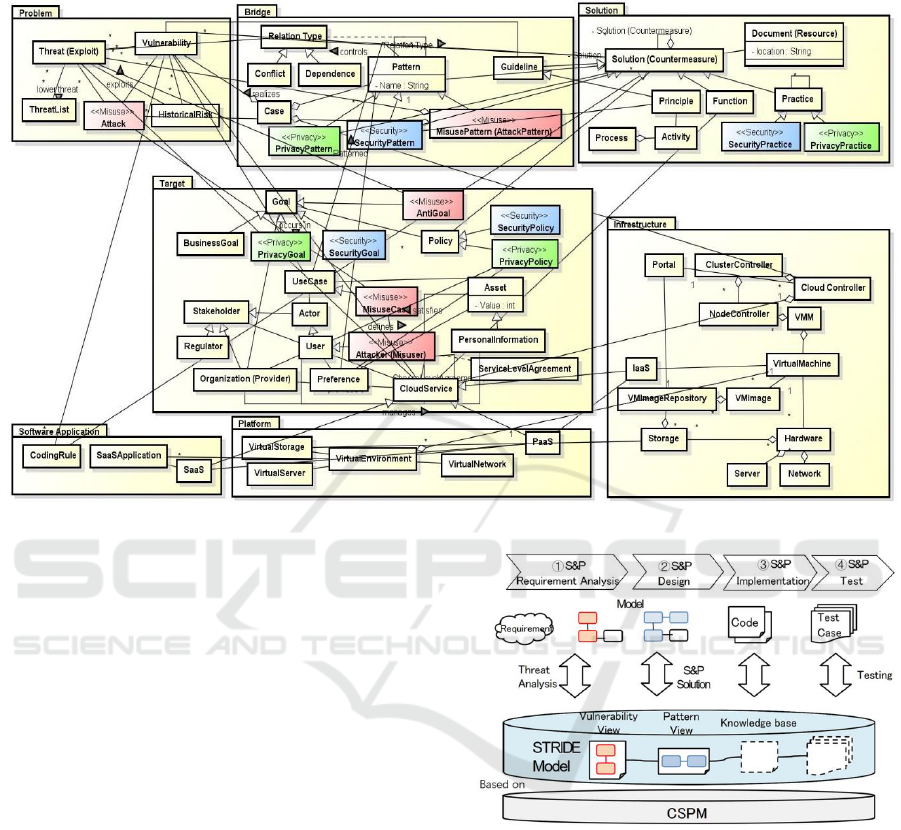

Figure 2 shows the details of CSPM as a UML class
diagram. Table 1 describes the outline and major
concepts of these packages. The metamodel satisfies
the above requirements as follows:
 The problem, bridge, and solution packages
capture concepts common to all layers and
organize their relationships. These packages
are used as foundation for all layers, and
provide consistent handling of S&P-related
knowledge over different layers. This
satisfies R1.
 The aforementioned common packages
incorporate most of the concepts using the
relationships defined in existing metamodels
(E. B. Fernandez, et al., 2015) (A.
Hazeyama, 2012). Hence, the entire
metamodel is mostly consistent with
existing metamodels. This satisfies R2.
 By separating general concepts in the
problem, bridge, and solution packages from
those specific to a certain layer, cloud-
specific knowledge and cloud independent
knowledge are easier to access. This satisfies
R3.
Table 1: Packages in the metamodel.
Package
Outline
Major concepts
Problem
Common
concepts for
problems
Threat,
vulnerability,
attack
Bridge
Concepts on the
relationships
between
problems and
corresponding
solutions
Pattern, case,
guideline
Solution
Common
concepts for
solutions
Solution
(countermeasure),
security function,
practice
Software
Application
Concepts
specific to the
software
application layer
Application,
coding rule
Platform
Concepts
specific to the
platform layer
Virtual
environment,
virtual storage
Infrastructure
Concepts
specific to the
infrastructure
layer
Virtual machine,
hardware
Target
Concepts
specific to the
target
application
Goal, policy, asset,
cloud service
2.4 Usage of CSPM
CSPM declares almost everything for a cloud system.
It has a large scale, which may be difficult to
implement in real developments. The lack of
descriptions for detailed usage is one reason
metamodels seem impractical. Herein we propose a
process for S&P development with CSPM and show
Cloud Security and Privacy Metamodel - Metamodel for Security and Privacy Knowledge in Cloud Services
381

its usage from various viewpoints with an emphasis
on components in the metamodel.
Figure 2: Overview of CSPM.
2.4.1 S&P Development Process
Figure 3 shows the suggested process for S&P
development:
①. S&P Requirement Analysis: The system
requirements should be analyzed first. Based on
these requirements, developers must determine
threats in the current system model using a
threat model such as STRIDE (Microsoft,
2002). As described later, CSPM in
Vulnerability View can also support this step.
②. S&P Design: After analyzing S&P problems in
step 1, developers must identify solutions. As
mentioned at beginning in this paper, S&P
patterns as well as some documents contribute
to this step because they suggest a solution to the
system. Pattern View, which is discussed below,
can assist developers in selecting and using
patterns from the knowledge base.
③. S&P Implementation & Test: After revising the
system, developers can implement their system
and test. If new problems arise, developers can
return to step 1 and repeat this process. In some
cases, which combine several patterns to derive
an original solution, the process itself could be
added to the knowledge base.
Figure 3: Overview of S&P Development Process.
2.4.2 Vulnerability View

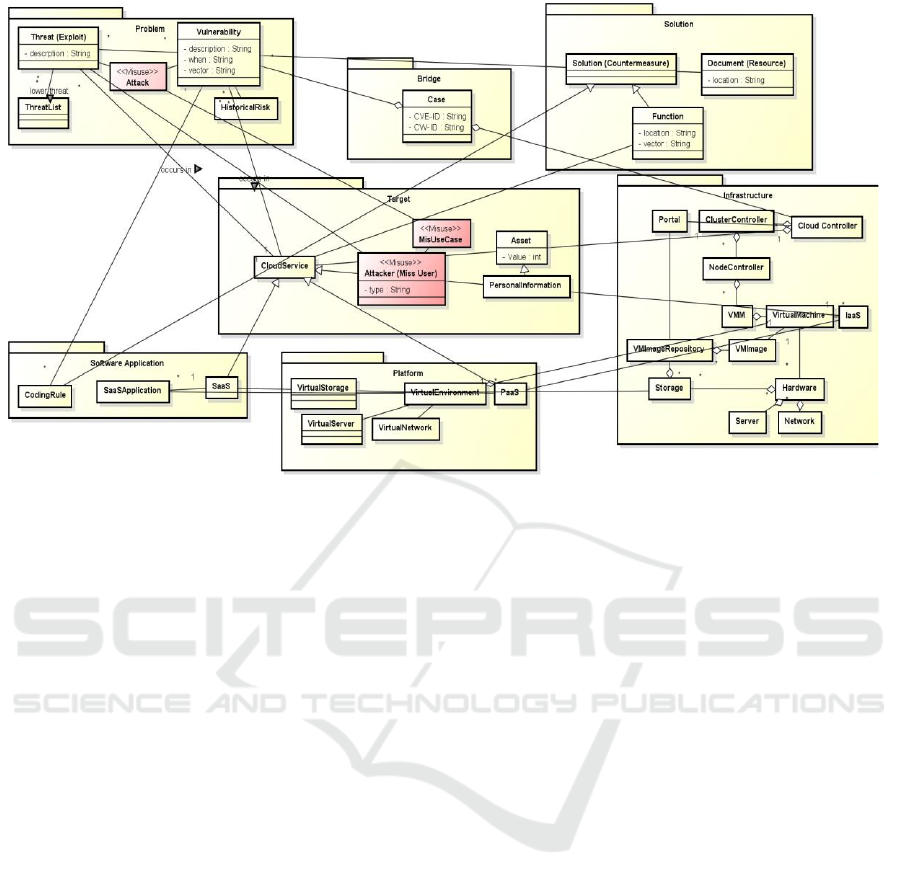

Figure 4 shows an example of the model in
Vulnerability View. This model is simplified from the
metamodel. That is, it is an instance of the metamodel.
This view can be used to model vulnerabilities from
databases such as the Common Vulnerabilities and
Exposures (CVE), which is a well-known database
that provides a dictionary for publicly known
information-security vulnerabilities and exposures.
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
382

Figure 4: Overview of the Vulnerability View model.
2.4.3 Pattern View

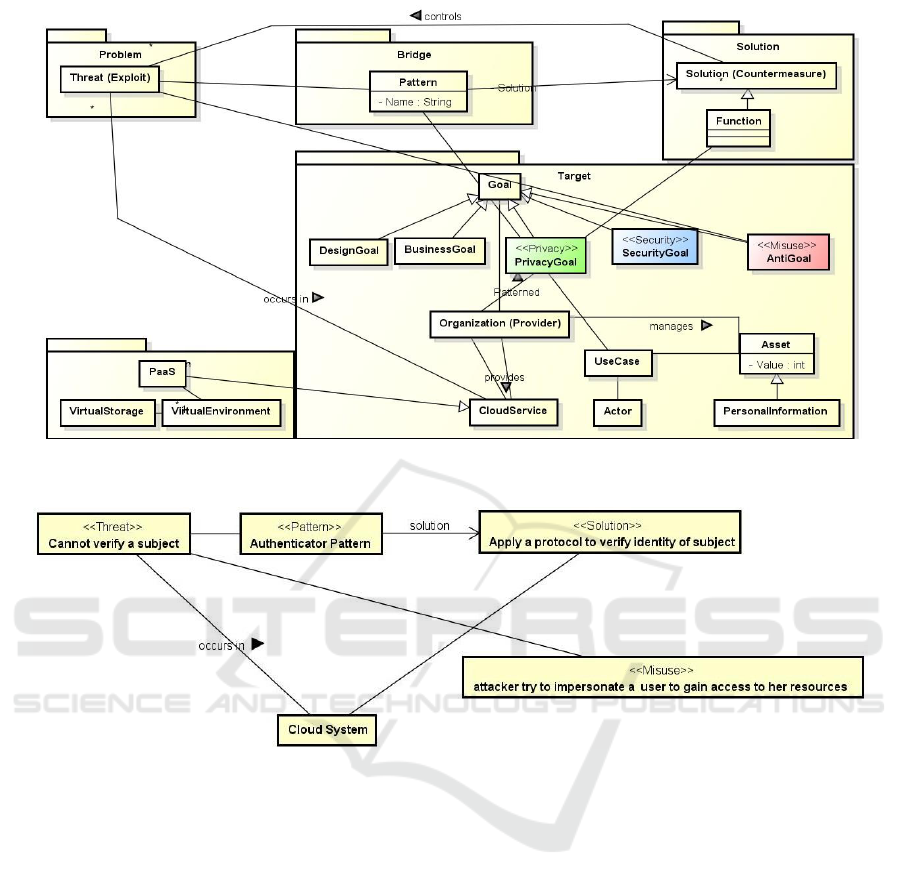

Figure 5 shows an example of a simplified metamodel
in Pattern View. This model mainly focuses on
components related to S&P patterns such as goals,
threats, and solutions. This model makes it easier to
analyze the requirements and threats to the system.
Thus, S&P patterns to improve the system can be
identified. An example is presented as a case study in
Section 3.
We also suggest representing the pattern problem
and solution text using this model. Figure 6 shows an
example where the pattern text explains the problem
and solution well. Modeling of a pattern may also be
meaningful for development, especially for
developers unfamiliar with S&P patterns.
3 EXPERIMENT AND CASE
STUDY
3.1 Contrast Experiment
To confirm the contribution of CSPM and answer to
the RQs, we conducted a contrast experiment.
3.1.1 Experiment Preparation
The experiment had ten participants. All were college
students ranging from fourth year undergraduate to
second year master students. Participants were
divided equally into two groups: experiment group
(EG) and control group (CG).
For both groups, participants were assigned a system
model simplified from a student work, which
contained several security threats. They were initially
asked to read the class diagram as well as use case
explanation to identify the S&P problems existing in
the system. Participants were also expected to solve
the identified problems on the model level. We
prepared some S&P patterns as a reference, but not
all patterns were useful in this system. After they
finished, they completed a questionnaire.
3.1.2 Experiment Results

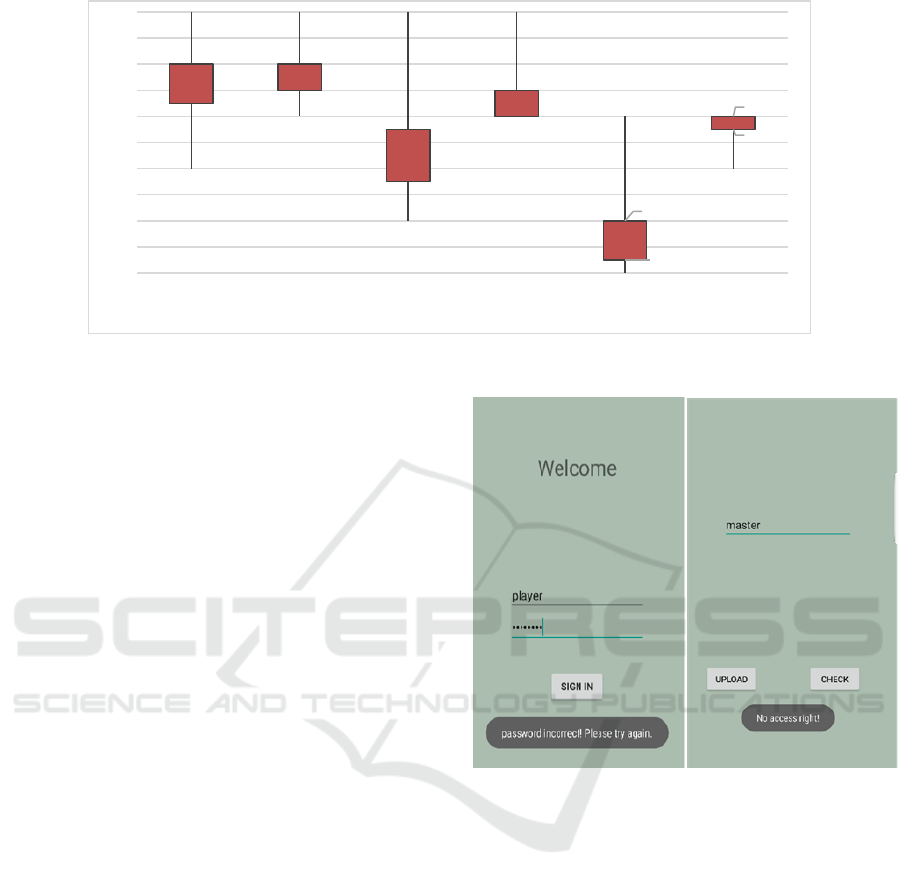

Figure 7 is a box plot represents the experiment data
to show the distribution. We measured three
variables: number of problems found in the system,
number of problems solved by revising the model,
and number of patterns used to solve problem.
According to figure 7, although we failed to
confirm difference in identifying problems, EG was
more proficient at revising. All participants in EG
revised at least three main S&P problems, whereas
the number of revision varied widely in CG. We
attribute this to the usage of S&P patterns in EG.
We hypothesized that EG would complete the
tasks faster than CG. However, the result could not
show the difference between the two groups. One
reason is that EG spent more time reading the
metamodel and guideline.
Cloud Security and Privacy Metamodel - Metamodel for Security and Privacy Knowledge in Cloud Services
383

Figure 5: Overview of the Pattern View model.
Figure 6: Example of the Pattern View structure using the Authenticator Pattern.
The questionnaire asked EG participants about
their opinion of CSPM. Interestingly, all participants
gave similar answers for each question. They
declared that the Pattern View of the metamodel itself
(Figure 5) is easily understood, but not very useful.
However, the explanation and example in the
guideline are very helpful, especially for applying
patterns. Participants also said the Pattern View
structure of the S&P pattern is very helpful, but that
they prefer this diagram along with a detailed
description of the patterns.
3.2 Case Study: “Treasure-Hunting
Game”
We conducted a case study to confirm the
effectiveness of the solutions analyzed by CSPM.
This case study is based on an Android game
application, which uses cloud for data storage. We
expect to confirm the contribution by comparing the
original version of the system with the one improved
by our metamodel.
3.2.1 Preparation
In a normal development, S&P analysis is conducted
prior to designing the model. But in our study, to
confirm the contribution of CSPM, a student work
designed without S&P analysis was used. Amazon
Web Service (AWS), was used in the case study for
implementing cloud function.
3.2.2 Results
S&P requirement is analyzed based on the STRIDE
model. Some threats such as tampering with local
data or listening to transmissions are addressed by
Android API and AWS API. Thus, we mainly
focused on the following two topics:
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
384

Figure 7: Box plot of data in the case study.
 Authentication Problem: This system has a
high risk of identity spoofing due to the lack of
authentication.
Pattern and Solution: Based on the
Authenticator Pattern, an authenticator is added.
The Authenticator Pattern requires a user to sign
up and sign in before accessing to the system.
 Access Right Problem: The function of
checking user data requires for a user’s name. If
the user’s data exist, it appears on the screen.
This function might be designed to allow a user
check a friend’s data. However, everyone can
check each other’s information.
Pattern and Solution: Before accessing cloud
storage data, we added an access right controller
according to the Role-based Access Control Pattern.
Figure 8 shows the S&P problems are revised by
implementing patterns.
3.3 Discussion
 RQ1. Does CSPM help developers address
S&P problems and the corresponding
patterns?
The contrast experiment confirmed that the
experiment group solved more problems in the same
or even less time. Due to the support of our approach,
all the participants in EG were able to select the
appropriate pattern from the knowledge base and use
it to revise the model. We expect the same or even
better behaviors can be expected when dealing with
larger scale of system which has more S&P issues.
The benefits of the Pattern View structure of the
S&P pattern were also noted. It can help developers
not only identify the necessary pattern, but also
improve understanding of the patterns.
Figure 8: Result after implementing patterns.
In addition, as we mentioned at beginning of this
paper, existing research on metamodel was focused
on security issue only. In our study, case study shows
that both security (i.e. authentication) and privacy
(i.e. access right control) issues can be solved by
CSPM.
With regard to the combination of S&P patterns,
we only confirmed some simple combinations due to
the small scale of the target system. Further
experiments on a complex system are necessary.
The contribution of determining problems from
systems has yet to be confirmed because the Pattern
View mainly focuses on dealing with the S&P
pattern, and patterns are typically utilized after
identifying problems. Further experiments such as a
case study should be conducted.
The results confirm that CSPM can support
developers in selecting and using S&P patterns to
4 4
2,75
3,5
1
3
5 5 5 5
3
3
2
3
1
3
0
2
3,25
3,5
1,75
3
0,25
2,75
0
0,5
1
1,5
2
2,5
3
3,5
4
4,5
5
problem
found(CG)
problem
found(EG)
soluted
problem(CG)
soluted
problem(EG)
pattern
used(CG)
pattern
used(EG)
Cloud Security and Privacy Metamodel - Metamodel for Security and Privacy Knowledge in Cloud Services
385

solve S&P problems by the Pattern View. A future
study should verify the contribution on finding
problems in a more complex system and combining
several S&P patterns.
 RQ2. Do the S&P solutions by CSPM
effectively improve the system?
The case study examined the results of Pattern View
of CSPM to revise the model. We implemented an
application based on this model as well as the original
model. We confirmed that the problems found in the
target system exist are resolved in the revised version.
Because this case study focused on a simple system,
some components of the cloud system in CSPM were
not considered in this study. It is possible that
additional issues arise in a more complex system.
The effectiveness of the solution of CSPM for a
simple system is confirmed. Additional case studies
are necessary to evaluate the whole metamodel.
 RQ3. Are CSPM and the process using
CSPM practical in real cloud system
development and maintenance?
Both the contrast experiment and the case study
followed the proposed process. The results indicate
that CSPM is practical. The contrast experiment
confirmed that some detail usages of CSPM proposed
in this paper are applicable to S&P analysis, while the
case study showed an example of cloud system
development with CSPM.
The participants in EG had some negative
comments. They expressed that the metamodel itself
is not useful. They declared that the guideline is much
more helpful than the model itself. A revised
guideline that includes more usages of CSPM should
make our approach more practical.
Thus, CSPM is practical in some usages. In the
future, creating a guideline to describe its usages
should increase the applicability of CSPM.
4 CONCLUSION AND FUTURE
WORK
We proposed a metamodel, CSPM, to address
security and privacy in cloud services as well as a
process to use CSPM in development. Two case
studies were conducted to verify the effectiveness and
usability of CSPM.
In the future, we plan to conduct more complex
case studies such as designing a cloud system
containing several layers based on CSPM and
implementing them to evaluate our approach. We also
plan to utilize the Vulnerability View and the Pattern
View via a semi-automatically applied pattern if a
specific threat is detected. Another future work will
involve developing detailed guidelines for CSPM to
expand its usage, allowing more developers,
especially newcomers, to apply our approach.
ACKNOWLEDGEMENTS
We are grateful to the participants in the contrast
experiment.
REFERENCES
D. Riehle and H. Zullighoven, 1996, “Understanding and
Using Patterns in Software Development,” Theory and
Practice of Object Systems, Vol.2, No.1, pp.3-13.
K. Hashizume, N. Yoshioka and E.B. Fernandez, 2011,
“Misuse Patterns for Cloud Computing,” 2nd Asian
Conference on Pattern Languages of Programs
(AsianPLoP’11).
K. Hashizume, N. Yoshioka and E.B. Fernandez,2013,
“Three Misuse Patterns for Cloud Computing,” in
“Security Engineering for Cloud Computing:
Approaches and Tools,” IGI Global.
E. B. Fernandez, et al, 2015, “Building a security reference
architecture for cloud systems,” Requirements
Engineering Journal
A. Hazeyama, 2012, “Survey on Body of Knowledge
Regarding Software Security”, 13th ACIS International
Conference on Software Engineering, Artificial
Intelligence
Kleopatra Chatziprimou, Kevin Lano, and Steffen Zschaler,
2013, "Towards a Meta-model of the Cloud Computing
Resource Landscape." MODELSWARD.
C. Kalloniatis, E. Kavakli and S. Gritzalis,2008,
“Addressing privacy requirements in system design: the
PriS method,” Requirements Engineering, Vol.13
H. Washizaki, et al., 2016, “A Metamodel for Security and
Privacy Knowledge in Cloud Services,” Proc. 12th
IEEE World Congress on Services (SERVICES 2016)
S. Subashini and V. Kavitha, 2011, “A survey on security
issues in service delivery models of cloud computing,”
Journal of Network and Computer Applications,
Vol.34, No.1, pp.1–11, 2011.
A.A. Almutairi, et al., 2012, “A Distributed Access Control
Architecture for Cloud Computing,” IEEE Software,
Vol. 29, No. 2, pp.36-44
E.B. Fernandez, N. Yoshioka, H. Washizaki, et al., 2010,
“Using security patterns to develop secure systems”, in
“Software Engineering for Secure Systems”, IGI
Global, pp16-31
L.L. Lobato, E.B. Fernandez and S.D. Zorzo, 2009,
“Patterns to support the development of privacy
policies”, International Conference on Availability,
Reliability and Security (ARES’09).
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
386
