Securing the Flow

Data Flow Analysis with Operational Node Structures

Michael Meinig

and Christoph Meinel

Chair of Internet Technologies and Systems,

Hasso-Plattner-Institute (HPI), University of Potsdam, 14482 Potsdam, Germany

Keywords: Risk Management, Security Awareness, Threat Awareness, Threat Modelling, Vulnerability Analysis.

Abstract: After land, sea, air and space, cyberspace has become the fifth domain of warfare. Organizations recognize

the need for protecting confidential, secret - classified – information. Competitors and adversaries turn to

illegal methods to obtain classified information. They try to gain a competitive advantage or close a

technological gap as well as reduce dependencies on others. Classified information involves facts, subject

matters or knowledge needing to be kept secret, regardless of the way in which the information is depicted.

In networks with different security classifications a direct physical connection is not allowed. Consequently

the possibility of coupling different security domains in affected organizations must be checked

comprehensively under security aspects. In this paper we present a new security approach that helps to

identify threats at transitions and security zones on valid data flow paths. It can be used to display security

challenges within organizations using classified information such as governmental or military organizations.

The methodology also incorporates new attributes for data flows in connected systems or processes.

1 INTRODUCTION

Organizations spend money on security solutions to

protect their classified information. They implement

policies derived from regulations and laws to

prevent the loss of confidentiality, availability and

integrity of their information. Still, due to

operational requirements exceptions to policies may

be allowed and authorized (Eckstein, 2015).

An employee who is often away on business trips

will possibly be allowed to use his USB port to

download presentations and at the same time upload

information he has collected on his journeys with his

laptop into the business network. The authorization

of these exceptions is often purely based on the

business demand for the individual user. This poses

the question of how a permission for an exception

does influence the security risk for an organization.

New communication forms like instant

messaging, Voice over IP or blogs and storage

possibilities such as cloud computing are used in

organizations besides to those traditional ones like

email, telephone, USB flash drive or hard drives

(Gordon, 2007). Attacks like spear-fishing and

social engineering are popular attack methods which

worm themselves deliberately into networks

(Trendlabs, 2012). Even the savviest IT

professionals are sometimes not aware of the

difference between a real and fake event (Mah,

2017). How can we consider these new conditions at

an early stage of the development process?

Over the last few years many organizations

across all different sectors have confirmed data

breaches (Cyberedge, 2015). This data loss or

leakage caused through theft or loss by internal

offenders and trusted third parties can be intentional

or unintentional (Infowatch, 2016). The costs

incurred of data breaches amounted in millions for

organizations (Ponemon, 2016). The modelling of

those threats is more cost-saving if applied as early

as possible in development process. The costs for

changes to diagrams are significantly lower than

changes to a system in production (Torr, 2005).

1.1 Problem Statement

There are organizations, i.e. in the NATO or in the

EU or in a nation, which have different operational

node structures and which are dealing with classified

data or having different security classifications

zones.

Meinig, M. and Meinel, C.

Securing the Flow - Data Flow Analysis with Operational Node Structures.

DOI: 10.5220/0006570302410250

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 241-250

ISBN: 978-989-758-282-0

241

The problem under investigation may be

informally stated as follows: given a set of “security

classes” corresponding to classes of information, and

a specification of possible paths by which

information can flow among them, construct a

mechanism which clusters all objects of one security

class into one security classification zone and then

reduces and identifies all connections to only those

connections which flow between these security

classification zones. A direct physical connection

between these security classification zones is not

allowed but due to security breaches the loss of

confidentiality, availability and integrity is

immanent and hence it follows that valid paths are

used to perform illegal and undesirable operations. If

classified information is published unauthorized it

has an impact on many stakeholders because it could

pose a threat, a damage or disadvantage to the

interests of the stakeholder. Given the described

situation, it is important to have certifications and

modelling approaches that identify such issues.

1.2 Organization and Results of This

Paper

The paper starts with background information and a

review of related work in which we discuss how our

solution advances the state-of-the-art. In the next

chapter we define a data flow diagram with a special

security focus. Thereupon we use the security data

flow diagram to conduct an analysis which identifies

operational node structures that are affected most by

the threat of losing confidentiality, availability and

integrity of their classified information while

exchanging data between networks with different

security levels. Finally in the chapter conclusion and

future work we state the conclusions reached by this

research and propose areas for future study.

The important contributions of this paper are

summarized below: A model of data flows and

security is developed. It is used for identifying data

flows between different security classification zones.

An analysis of these data flows and the security

problem itself leads to the conclusion that some

operational nodes connected to those data flows are

endangered more to the loss of confidentiality,

availability and integrity than others which makes it

possible to prioritize them for mitigation efforts. The

model is an enhancement of previous work on the

security problem. It enables to make statements

about the probability that illegal and undesirable

operations have been executed on valid data flow

paths.

2 RELATED WORK

2.1 Information and Data Flow Models

There has been much work on information flow and

information flow models. D.E. Bell and J. LaPadula

introduced a security model for computer systems

which protects the confidentiality of information

using a system of enforced rules. Information of a

higher protection level can neither be read nor

transferred to a lower protection level (Bell, 1976).

Kenneth J. Biba came up with a security model

which addresses the integrity of data, checking read

and write access in a computer system (Biba, 1976).

D.E. Denning studied mechanisms that assure secure

information flow in a computer system (Denning,

1976). She proposed a lattice model for secure

information flow. Its structure evolves from different

security classes and is validated by the semantics of

an information flow. Based on this model, D.E.

Denning and P.J. Denning demonstrated a

certification mechanism for statically verifying the

secure information flow in a program (Denning,

1977). A.C. Myers and B. Liskov introduced a

model for controlling information flow in systems

with mutual distrust and decentralized authority. In

this model it is possible to share information with

distrusted code and furthermore to decide whom the

information is shared to (Myers, 1997). J. Rushby

suggested that secure systems should be designed as

distributed systems in which security is achieved

partly through the physical separation of their

individual components and partly through the

mediation of trusted functions performed within

some of those components (Rushby, 1981). W.S.

Harrison, et al. presented a joint research effort

between academia, industry, and government called

Multiple Independent Levels of Security and Safety

(MILS) in order to develop and implement a high-

assurance, real-time architecture for embedded

systems. The goal of the MILS architecture is to

ensure that all system security policies are non-

bypassable, evaluatable, always invoked, and

tamper-proof (Harrison, 2005).

All these papers and approaches provide a basis

with methods and models for secure systems and

their information flows. Secure information flows

ensure that sensitive information is not leaked to

unauthorized entities during program execution.

(Bell, 1976), (Biba, 1976), (Denning, 1976), (Myers,

1997), (Rushby, 1981), (Harrison, 2005) do not

focus on the problem that the implementation or use

of a secure system may -- due to implementation

errors or various attack vectors, such as social

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

242

engineering -- be not secure at all. Consequently

there are security threats or vulnerabilities which can

be used to carry out illegal and unwished operations

over valid paths across network borders.

2.2 Information and Data Flow

Analysis

Data flow diagrams or similar techniques for

representing the flow within systems, such as

flowcharts have been present in literature since the

seventies (Gane, 1977), (DeMarco, 1978),

(Yourdon, 1989).

Microsoft uses data flow diagrams within the

Microsoft's threat modeling methodology which is

part of the Security Development Lifecycle (SDL).

A. Shostack described a decade of experience of

threat modeling at Microsoft. He notices that DFDs

are very data-centric and the analysis is focused on

“the right thing” (Shostack, 2008). K. Schmidt, et al.

present a security analysis approach that helps to

identify and prioritize security issues in automotive

architecture. This approach uses data flow diagrams

for a structured threat analysis and risk assessment

in a security-oriented development process (Schmidt

et al., 2014). K. Schmidt, et al. use communication

zones where entities are able to communicate

directly with each other, due to a shared

communication layer.

In our presented approach the model of data

flows is connected with security attributes. Instead

of communication zones security classification

zones are utilized. Due to the focused problem and

the existing security restrictions security

classification zones are physically separated and a

direct communication is not possible. Our analysis

of these data flows and the security problem itself

leads to the conclusion that some operational nodes

connected to those data flows are endangered more

to the loss of confidentiality, availability and

integrity than others which makes it possible to

prioritize them for mitigation efforts.

3 DEFINITION DFDsec

Due to the dominance of the Unified Modelling

Language (UML) in software engineering and the

Systems Modelling Language (SysML) in systems

engineering, data flow diagrams are not widely used

in the field. UML specification defines two major

kinds of UML diagram: structure and behavior

diagram. Structure diagrams present the static

structure of the system and its parts on different

abstraction and implementation levels and how they

are related to each other. Structure diagrams are not

using time related concepts, do not show the details

of dynamic behavior. For modelling the behavior of

a system the UML standard uses activity diagrams.

Activity diagrams are neither adequately capable of

representing data flows. Instead they focus on the

transitions between sequencing activities.

A data flow diagram contains processes, data

stores, external entities and data flows. In this

approach we add security classifications as security

attributes to the data flows. Furthermore we use

these security classifications, which are applied by

governments and military, to create zones around the

original data flow diagram elements. This is similar

to the work by Microsoft and Schmidt et al.

discussed before. The boundaries of security

classification zones are necessary because a direct

physical connection is for security reasons not

allowed. Within or between security classification

zones security principles and protective measures

are applied which shall prevent classified

information from the threat of loss of confidentiality,

availability and integrity.

In a military or governmental environment,

people, documents and information can receive two

types of formal security designations: one is the

classification or clearance (unclassified, restricted,

confidential, secret, and top secret are usual) and the

other one is a formal category (such as Nuclear,

NATO, EU, DEU and Crypto). Such a pair we call a

“security level”. We define the security level as

“I(c)”, where I is the formal category and (c) is the

classification or clearance. For Germany an example

would be “I(c) = DEU (RESTRICTED)”. Instead of

using specific security classifications increasing

numerical numbers are used for c which are

elements of integers Z, such as:

• PUBLIC

1

• UNCLASSIFIED

0

• RESTRICTED

1

• CONFIDENTIAL

2

• SECRET

3

• TOP SECRET

4

In a NATO or EU context these classifications

would be altered accordingly. The following four

cases, within for example the sector of government

and enforcement agencies, of information flows in a

security data flow diagram (DFDsec) consider the

possible resulting situations, which are:

• data is sent within the same security

classification zone (i.e. confidential

Securing the Flow - Data Flow Analysis with Operational Node Structures

243

information - technical know-how) -

allowed flow of information

• data is sent from a lower to a higher

security classification zone (i.e. personal

identifiable or health information) -

forbidden backflow of information

• data is sent from a higher to lower security

classification zone (i.e. departure or

destination records) - released backflow of

information

• data is not sent from a higher classification

to a public network (i.e. state secrets) -

forbidden flow of information

A security data flow diagram is defined by

DFDsec = <P

(n)

, E

(n)

, S

(n)

, F

I(z)

, I(z)>

(1)

where:

• Processes P

(n)

from 1..n represent normally

in a standard data flow diagram a task in

the system that processes data or performs

some action based on data. In our model we

link them with entities which are

performing activities by operating on

incoming data and potentially producing

output (e.g. operational nodes generating

confidential information). The reason for

this linkage is simply to identify the

originator of the activity. This is necessary

for a later risk evaluation. Processes are

represented by circular shapes in the

figures.

• External Entities E

(n)

from 1..n are

interactors outside the inspected system

which upon the system depends. They can

be the source or destination of information.

They can be part of another or even a whole

security classification zone. External

Entities E

(n)

cannot be used when functional

requirements are defined because at this

stage the future system is not defined.

Hence it is not possible to define which of

the Processes P

(n)

will be handled within or

outside a system. Rectangular shapes

represent external entities in the figures.

• Data Stores S

(n)

from 1..n are physical or

logical repository for storing or retrieving

data (e.g. users, data bases, file system).

Data Stores S

(n)

cannot be used when

functional requirements are defined because

at this stage the future system is not

defined. Hence it is not yet clear which

physical or logical repository will be used

for the future project. Open-ended,

rectangular shapes represent data stores in

the figures.

• Data Flows F

I(z)

are defined by

I(z)

= <A, FB, RB, 0>

(2)

There are information flows between

processes, external entities, data stores and

security classification zones. According to

the situation in which they are used, they

may either be allowed flows (A), forbidden

backflows (FB), released flows (RB) and

forbidden flows (0), specific attributes

which are added to the data flows. Data

flows are represented by arrows pointing in

the direction of the flow and are

highlighted. Data flows F

I(z)

which flow

within one and the same security

classification zone I(x) are allowed if z ≤ x.

• Security Classification Zones I(z) are the

specific security level which incorporates

processes, data stores, data flows, external

entities belonging to it, where I is a set of

formal categories (e.g. Nuclear, NATO,

EU, DEU and Crypto) and (z) is a set of

classifications or clearances (e.g.

unclassified, restricted, confidential, secret,

and top secret). To distinguish between two

security classification zones we use I(x)

and I(y), x and y ϵ Z. Security classification

zones are represented by circles

surrounding all elements of one security

classification zone in the figures.

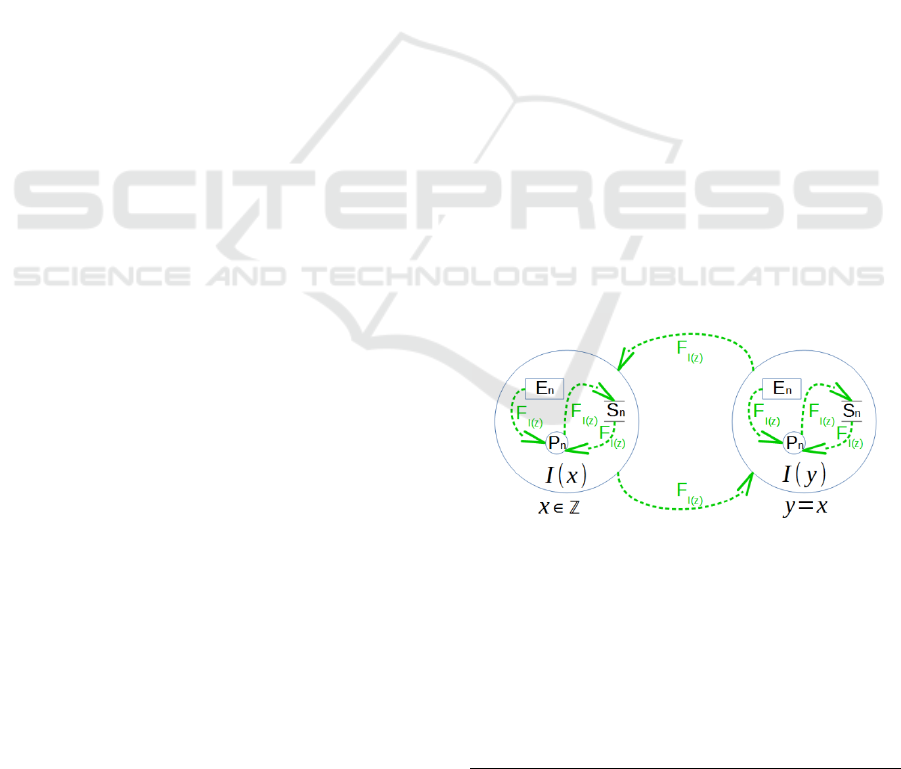

Figure 1: Data Flow “Allowed”.

Figure 1 represents the first situation where data

is sent within the same security classification zone.

An information exchange is possible within an area

of public or unclassified information as well as

where the principle “Need-to-know” is applied

There are no other restrictions within the same

It is applied only within the same security classification

and only when the security classification is higher than

RESTRICTED.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

244

security area. These are allowed data flows. Allowed

data flows F

I(z)

are flows from zone I(x) to zone I(y),

while x ϵ Z, y=x and z = classification.

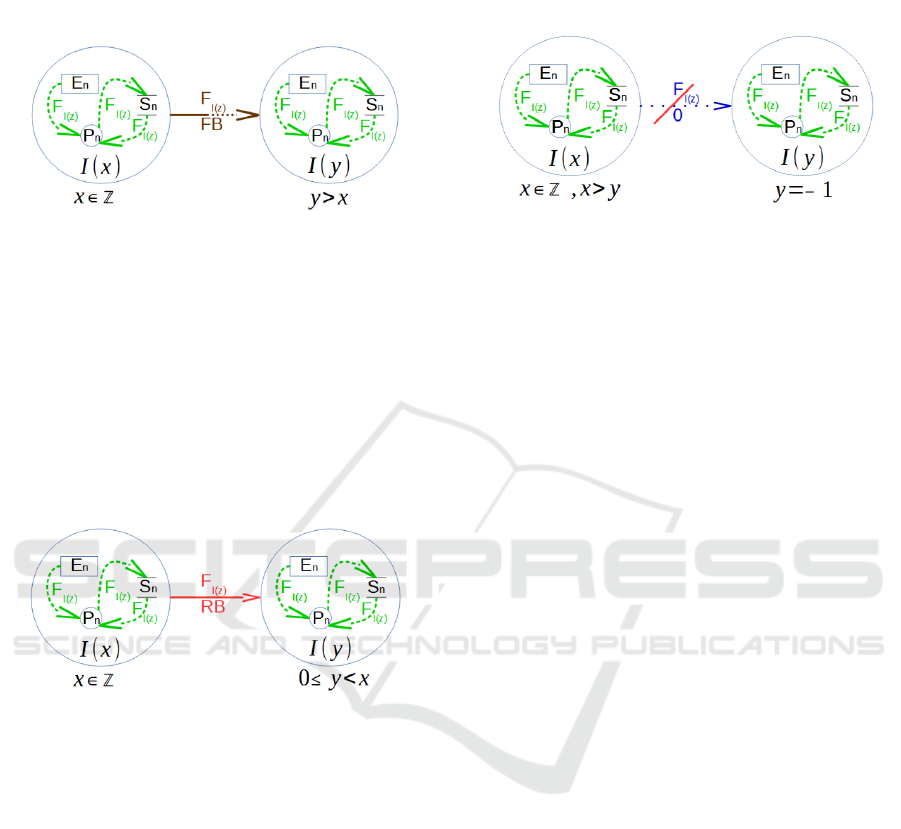

Figure 2: Data flow “Forbidden Backflow (FB)”.

Figure 2 depicts the second situation where data

flows are only allowed in one direction. An

information backflow is forbidden in this case.

Allowed data flows F

I(z)

in one direction are flows

from zone I(x), where x ϵ Z and z = classification

and z ≤ x, to a higher security classification zone

I(y), where y > x. A high security gateway such as a

data diode realizes such a connection (Genua,

2016). They are tagged F

I(z)

Figure 3: Data flow “Released Backflow (RB)”.

Figure 3 illustrates the third situation where data

exchange between different security classifications

is only possible if the information backflow is

released. The data flow runs from a higher security

classification to a lower one but not lower then

UNCLASSIFIED. Allowed data flows F

I(z)

with a

released backflow are flows from zone I(x) to zone

I(y), where x ϵ Z, 0 ≤ y < x and z = classification and

z ≤ y. A high security gateway such as a red-black

gateway which allows precise content monitoring

and controlling data flows between networks with

different security classifications implements such a

connection (Infodas, 2016).

Figure 4 demonstrates the fourth situation of a

data exchange. But in this case the data flow is

forbidden due to legal reasons. It is prohibited to

send classified or unclassified information to a

public network. Forbidden data flows F

I(z)

are flows

from zone I(x) to zone I(y), where x ϵ Z, x > y,

y = − 1 (−1 represents the public network) and z =

classification and z > y.

Figure 4: Data flow is strictly forbidden.

4 ANALYSIS OF A DFDsec

In this section we use the DFDsec to conduct an

analysis which identifies operational node structures

that are affected most by the threat of losing

confidentiality, availability and integrity of their

classified information while exchanging data

between networks with different security levels. In

this analysis we combine the three fundamental aims

of IT security (BSI, 2008): confidentiality,

availability and integrity with the possible security

levels.

There are various reports and surveys about

attack types (i.e. Malware, Web based attacks,

Denial of service, Physical manipulation/ damage/

theft/ loss or Phishing), attack vectors (i.e. Cyber-

criminals, Insiders, Nation States, Corporations,

Hacktivists, Cyber-fighters, Cyber-terrorists Script

kiddies), sectors (i.e. banking and finance,

government and enforcement agencies,

medicine/healthcare) and costs of breaches (Cisco,

2016), (Cyberedge, 2015), (Enisa, 2017), (European

Parliament, 2013), (Gemalto, 2016), (HM

Government, 2015), (Identity Theft Resource

Center, 2015), (Infowatch, 2016), (Ponemon, 2016),

(Trustwave, 2015), (Verizon, 2016), (Verisign,

2016). Concluding from these reports we make

specifications about the risk an operational node is

opposed to in order to obtain an index ranking which

is defined by

IND Rank = <P

(n)

, NoC, EC, IND, Rank, *>

(3)

where:

• P

(n)

is the operational node 1..n

• NoC are the number of connections of a

certain type (outgoing, incoming, or both)

Securing the Flow - Data Flow Analysis with Operational Node Structures

245

• EC is an evaluation criteria: severeness

level, attack potential, alteration

opportunity which is a multiplication factor

• IND is the confidentiality, availability or

integrity index

• Rank = 1..n

• *: EC*NoC = IND

Confidentiality is a characteristic that applies to

information. To protect and preserve the

confidentiality of information means to ensure that it

is not made available or disclosed to unauthorized

entities (ISO, 2013). Therefore we take a look at

outgoing data flows. Availability is a characteristic

that applies to assets. An asset is available if it is

accessible and usable when needed by an authorized

entity (ISO, 2013). Hence it follows that we must

consider incoming data flows. To preserve the

integrity of information means to protect the

accuracy and completeness of information and the

methods that are used to process and manage it

(ISO, 2013).

The higher an information is classified, the

higher it is and needs to be protected (severeness

level) (Rodgers, 2017). Therefore it is easier to

attack the availability (attack potential) or alter

information (alteration opportunity) at a lower

security classification level than at a higher one. On

the other hand a high level information is certainly

more interesting to be tampered, justifying more

efforts to alter and deny access to it (Verizon, 2016).

Hence it follows that high level information could be

more at risk. From a perspective of negative impacts

for the stakeholder the severeness level could like

this (classification ≙ multiplication factor):

• TOP SECRET ≙ 6

• SECRET ≙ 5

• CONFIDENTIAL ≙ 4

• RESTRICTED ≙ 3

• UNCLASSIFIED ≙ 2

• PUBLIC ≙ 1

The lower the classification level and its

protection the higher the potential of a successful

attack to the availability (Infowatch, 2016). All

connections could be tampered but it is more likely

that information coming from lower sources can be

altered more easily due to the fact that the security

requirements rise proportionally to the classification

level (Rodgers, 2017). The attack potential and the

alteration opportunity would be like the following:

• TOP SECRET ≙ 1

• SECRET ≙ 2

• CONFIDENTIAL ≙ 3

• RESTRICTED ≙ 4

• UNCLASSIFIED ≙ 5

• PUBLIC ≙ 6

Table 1: Index Ranking.

Op.

Node

Number of

CXN

(NoC)

EVAL

Criteria

(EC)

Index

(IND)

Rank

Outgoing

Severe-

ness Level

Confi-

dentiali-

ty Index

1..n

Incoming

Attack

Potential

Availa-

bility

Index

1..n

Incoming

and

Outgoing

Alteration

Oppor-

tunity

Integri-

ty Index

1..n

A table such as Table 1 summarizes these three

indexes to identify operational node structures that

are most endangered by the loss of confidentiality,

availability and integrity. The first column of the

table contains the operational nodes P

(n)

which are

the items under analysis. The second column lists

the number of connections (NoC) which leave

and/or enter the operational node. The third column

contains the evaluation criteria (EC) which can be

one out if these three: Severeness Level

(confidentiality), Attack Potential (availability) and

Alteration Opportunity (integrity). The fourth

column is the result of column two and three and

contains the indexes for the three security aims

confidentiality, availability and integrity

(EC*NoC=IND). Finally the fifth column shows the

ranking (Rank) of the operational nodes which are

most endangered.

After identifying a ranking for those three

security aims it is now possible to merge these

rankings of each operational node depending on the

importance of each security aim to obtain a security

importance value (SIV) for each node. The

weighting lies upon the focus of the modeler and has

to be specified by him. If the security aims are

weighted equally the equation would be:

SIV=W

*C+W

*A+W

(4)

where W

= W

33,0

and C = confidentiality

ranking, A = availability ranking, I = integrity

ranking. The lower the SIV the more endangered the

operational node is and possible security measures

should be taken on it first.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

246

5 USE CASE

Organizations with certain operational node

structures which are dealing with classified data in

different security classifications zones define

information exchange requirements in order to

receive functional demands which a future

communication and information system must fulfil.

In this section we analyze a generic example of

an operational node structure which will be

represented as a DFDsec to show the details of

dynamic behavior and to describe the boundaries of

the structure as well as their respecting security

level. The analysis conducted identifies the

operational nodes which are affected most by the

threat of losing confidentiality, availability and

integrity.

In our exemplary generic use case (Figure 5)

there are four elements of the process organization

which are processes (P) in the data flow diagram:

The Ministry (P1), the Headquarter (P2), the

Operations Command (P3) as well as the Team (P4)

and two elements outside of the process

organization: The Internet (P5) and an Attack Vector

(P6).

There are three clusters: DEU

-1

, DEU

and

DEU

. Cluster DEU

-1

consists of all processes (P1) -

Ministry, (P2) - Headquarter, (P3) - Operations

Command, (P4) - Team, (P5) - Internet, (P6) -

Hacker.

Cluster DEU

contains (P1) - Ministry, (P2) -

Headquarter, (P3) - Operations Command, (P4) -

Team. Cluster DEU

includes (P2) - Headquarter,

(P3) - Operations Command, (P4) - Team.

Each process which has data flows with the

classification DEU

-1

which is PUBLIC is situated in

the security classification zone DEU

-1

. Each process

which has data flows with the classification DEU

which is DEU RESTRICTED is situated in the

security classification zone DEU

. Each process

which has data flows with the classification DEU

which is DEU SECRET is situated in the security

classification zone DEU

The Ministry issues strategic directives (F1, F2)

to its subordinate offices (Headquarter, Operations

Command) which are classified as DEU

RESTRICTED and therefore the data flow receive

the additional attribute DEU

. These offices develop

plans and concepts (F3, F4 - classified as DEU

RESTRICTED) which incorporate regulations for

their subordinate units (e.g. Team) or

technical/functional concepts which are guidelines

for other units. These concepts may have to be

approved by the ministry. Sensitive task or reports

(F5, F6, F7) sent during a mission are classified as

DEU SECRET and obtain the additional attribute

DEU

. Reports sent after a conducted mission (F8)

are classified as DEU RESTRICTED in this use case

and therefore the data flow receives DEU

additional security attribute. During their work they

may need information from the public network (F9,

F11, F13, F15). The requested information is

PUBLIC (F10, F12, F14, F16). Data flows receive

the attribute DEU

-1

. The Attack Vector represents

the focused problem in which someone tries to

aspirate classified information and for instance

wants to publish it to the public (F17, F19, F21,

F23). This can be a malicious insider or an intruder

from outside. His data flows are also PUBLIC and

receive the attribute DEU

-1

. If he should receive

information back this information will be at least

UNCLASSIFIED (F18, F20, F22, F24). In our

example it is DEU RESTRICTED. Therefore the

data flow receives the attribute DEU

Each process has incoming or outgoing data

flows with a security classification. (P1) - Ministry

has four incoming and four outgoing data flows.

Five of them have the classification DEU

and three

of them have the classification DEU

-1

. Hence it

follows that (P1) - Ministry was added to the cluster

DEU

and the cluster DEU

-1

. (P2) - Headquarter has

three incoming and four outgoing data flows. These

data flows have three different classifications and

therefore (P2) - Headquarter was added to three

clusters, DEU

-1

, DEU

and DEU

. (P3) - Operations

Command has five incoming and four outgoing data

flows. The data flows have likewise the three

different classifications DEU

-1

, DEU

and DEU

(P3) - Operations Command was added to three

clusters. (P4) - Team has four incoming and four

outgoing data flows with the security classification

DEU

-1

, DEU

and DEU

and were therefore added to

three clusters.

In Figure 5 the number of connections have been

limited to those connections which are between

zones. The information flows within one zone which

are flows from zone I

(x)

to zone I

(y)

, while x ϵ Z, y=x

and z = classification level have been omitted, i.e.

data flows with attribute DEU

(F5, F6, F7).

Securing the Flow - Data Flow Analysis with Operational Node Structures

247

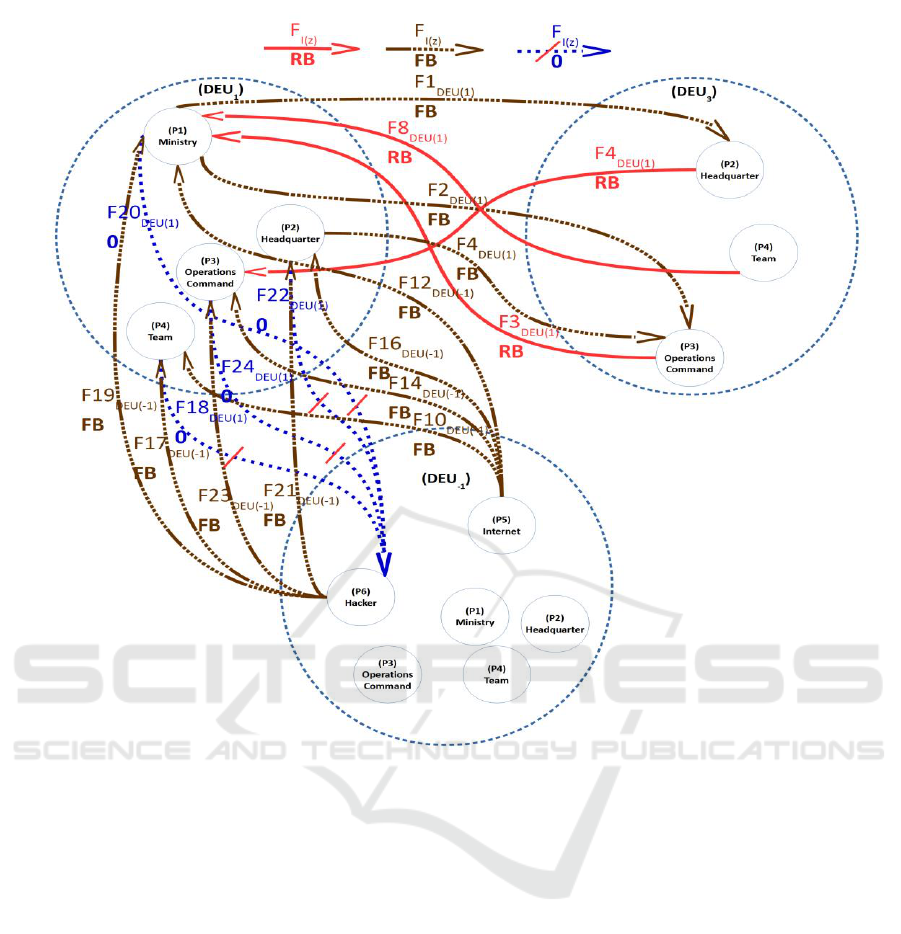

Figure 5: DFDsec.

The information flows between zones need to be

looked at closer due to security regulations and the

described problem that classified information is

threatened from loss of confidentiality, availability

and integrity, especially when exchanged between

networks with different security classifications.

Therefore we highlighted them in different colors

(brown, red, blue with red crossing):

• Data flows F

I(z)

from zone I

(x)

, where x ϵ Z

and z = classification level and z ≤ x, to a

higher security classification zone I

(y)

where y > x are highlighted in brown and

the attribute “FB” = Forbidden Backflow is

added. In our use case these flows are (F1),

(F2), (F4), (F10), (F12), (F14), (F16),

(F17), (F19), (F21) and (F23).

• Data flows F

I(z)

from zone I

(x)

to zone I

(y)

where x ϵ Z, 0 ≤ y < x and z = classification

level and z ≤ y are marked in red and the

attribute “RB” = Released Backflow is

added. In our use case these flows are (F3),

(F4), (F8).

• Data flows F

I(z)

from zone I

(x)

to zone I

(y)

where x ϵ Z, x ≥ y, y = −1 and

z = classification level and z > y are

flagged in blue, crossed out red and the

attribute “0” = No Flow is added.

5.1 Analysis

We can now identify those operational nodes which

are endangered most of losing confidentiality,

availability and integrity. First of all we have a look

at the outgoing data flows of each operational node

in order to determine the threat of losing

confidentiality (see Table 2). (P1) has three outgoing

data flows, all of them going from the cluster DEU

to the other clusters. The severeness level of

disclosing information to an unauthorized entity is

one out of three. It can be either 1 which is DEU

-1

PUBLIC or it can be 3 which stands for DEU

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

248

RESTRICTED or it is 5 which is defined as DEU

SECRET. Due to the fact that (P1) has only

outgoing data flows from cluster DEU

the

severeness level is 3. Therefore the confidentiality

index is the result of three times three which is nine.

(P2) has three outgoing data flows, two of them

leaving cluster DEU

and one of them is leaving

cluster DEU

. The corresponding severeness level is

3 and 5. The confidentiality index calculated from

the equation EC*NoC=IND (see section 4) is the

result of two times three plus one times five which is

eleven. (P3) and (P4) have two outgoing data flows,

one of them leaving cluster DEU

and the other one

is leaving cluster DEU

. The associated severeness

level is 3 and 5. Hence the confidentiality index is

one times three plus one times five which is in both

cases eight. This implies for a confidentiality

ranking that (P2) is threatened most, (P1) is

threatened second most and (P3) and (P4) are

equally endangered of losing confidentiality to an

unauthorized entity.

Table 2: Confidentiality Ranking.

Opera-

tional

Node

#of

outgoing

connec-

tions

(NoC)

Severe

-ness

Level

(EC)

Confiden-

tiality

Index

(IND)

Rank

(0/3/0)

(1/3/5)

0+9+0=9

(0/2/1)

(1/3/5)

0+6+5=11

(0/1/1)

(1/3/5)

0+3+5=8

(0/1/1)

(1/3/5)

0+3+5=8

The same calculation can be done for the availability

and the integrity index. For the availability the

incoming data flows of each operational node and

the attack potential have to be considered in order to

determine the threat of losing availability (see Table

3).

Table 3: Availability Ranking.

Opera

-tional

Node

# of

incoming

connec-

tions

(NoC)

Attack

Poten-

tial

(EC)

Availability

Index

(IND)

Rank

(2/0/2)

(6/4/2)

12+0+4=16

(2/1/0)

(6/4/2)

12+4+0=16

(2/2/1)

(6/4/2)

12+8+2=22

(2/0/0)

(6/4/2)

12+0+0=12

If all data flows of each operational node and the

alteration opportunity are regarded we can

determine the threat of losing integrity

(see Table 4).

Table 4: Integrity Ranking.

Opera-

tional

Node

# of

connec-

tions

(NoC)

Altera-

tion

Oppor-

tunity

(EC)

Integrity

Index

(IND)

Rank

(2/3/2)

(6/4/2)

12+12+4=28

(2/3/1)

(6/4/2)

12+12+2=26

(2/3/2)

(6/4/2)

12+12+4=28

(2/1/1)

(6/4/2)

12+4+2=18

After identifying a ranking for the three security

aims it is now possible to merge these rankings of

each operational node depending on the importance

of each security aim the security importance value

(SIV) of each operational node.

Table 5 shows the SIV ranking. For (P1) and

(P3) the SIV is 1.65, for (P2) the SIV is 1.98, for

(P5) the SIV is 3.63. Hence it follows that (P1) and

(P3) are, under balanced weighting, most

endangered.

Table 5: Security Importance Value (SIV) Ranking.

Opera-

tional

Node

Confi-

dentia-

lity

Ranking

Availa-

bilty

Ran-

king

Integ-

rity

Rank-

ing

SIV

Rank

1.65

1.98

1.65

3.63

We started with an operational node structure

and their interconnection data flows. We specified

possible (valid and invalid) paths by which

information can flow among them. Then we

clustered all objects of one security class into one

security classification zone and thereupon we

reduced and identified all connections to only those

connections which flow between these security

classification zones. Finally we analyzed the

structures with regard to the security aims

confidentiality, availability and integrity and

resulted, under balanced weighting, that certain

operational nodes are endangered most. Therefore

security measures should be taken on these first.

6 CONCLUSION

In this paper we presented a security analysis of an

organizational structure, which was displayed as a

security data flow diagram. This representation

enables the identification of security classification

Securing the Flow - Data Flow Analysis with Operational Node Structures

249

zones, which help to understand allowed and

forbidden information flows within and between

these zones. We call the resulting model a DFDsec.

The model enables a threat analysis on

interconnections, especially between the identified

security zones, in order to determine operational

nodes which are most endangered by the threat of

losing confidentiality, availability or integrity. We

discussed an initial approach for quantifying the

security importance of all nodes, based on the given

DFDsec structure. This helps to rank and prioritize

operational nodes in their importance for necessary

security improvements and mitigation efforts. This

approach can be used already in the early phase of

the development phase which helps reducing costs.

The DFDsec methodology is work in progress.

Future work will focus on the further analysis of

structural properties in the data flow representation.

We also aim for a quantitative analysis approach,

where data flow edges are parametrized with attack

potentials. This would allow an even more precise

identification of vulnerable operational nodes.

Another future topic is the application of the

methodology in a practical context, such as the

German armed forces IT infrastructure.

REFERENCES

Bell, D. E., LaPadula, L. J., 1976. Secure computer

system: Unified Exposition and Multics Interpretation,

Technical Report ESD-TR-75-306, MITRE Corp.

MTR-2997, Bedford, MA.

Biba, K. J., 1976. Integrity considerations for secure

computer systems, Technical Report ESD-TR-76-372,

MITRE Corp. MTR-3153, Bedford, MA.

Cisco, 2016. Cisco 2016 Annual Security Report.

Cyberedge Group, 2015. 2015 Cyberthreat Defense

Report.

DeMarco, 1978. T. Structured Analysis and System

Specification, Yourdon Press, New York, NY.

Denning, D. E., 1976. A lattice model of secure

information flow, Communications of the ACM,

19(5):236-243.

Denning, D. E. and Denning, P. J., 1977. Certification of

programs for secure information flow,

Communications of the ACM, 20(7):504-513.

Eckstein,C., 2015. Preventing data leakage: A risk based

approach for controlled use of the use of

administrative and access privileges, White Paper,

SANS Institute.

ENISA, 2017. ENISA Threat Landscape Report 2016.

European Parliament, Directorate General for Internal

Policies, Police Department A: Economic and

Scientific Policy, 2013. Data and Security Breaches

and Cyber-Security Strategies in the EU and its

International Counterparts.

Federal Office for Information Security (BSI), 2008.

Information Security Management Systems (ISMS),

BSI-Standard 100-1, Version 1.5.

Gane, C. and Sarson, T. 1977. Structured Systems

Analysis and Design, Improved Systems

Technologies, Inc., New York, NY.

Gemalto, 2016. Breach Level Index.

Genua gmbh, 2016. Datendiode vs-diode, Munich,

Germany: www.genua.de, Web-Access 06. April.

Gordon, P. 2007. Data Leakage Threats and Mitigation,

White Paper, SANS Institute.

Harrison, W. S., Hanebutte, N., Oman, P. W. and Alves-

Foss, J., 2005. The MILS Architecture for a Secure

Global Information Grid, The Journal of Defense

Software Engineering, pages 20-24.

HM Government, 2015. 2015 Information Security

Breaches Survey.

Identity Theft Resource Center, 2015. 2015 Data Breach

Stats.

Infodas, 2016. SDoT ® Security Gateway 5.0, Cologne,

Germany: www.infodas.de, Web-Access 06. April.

Infowatch, 2016. Global Data Leakage Report, H1 2016.

International Organization for Standardization, 2013. ISO

27001 Information technology - Security techniques -

Information security management systems Overview

and vocabulary, GE, SUI.

Mah, P. 2017. 7 Social Engineering Scams and How to

Avoid Them, www.cio.com, Web-Access 09. June.

Myers, A. C. and Liskov, B., 1997. A decentralized model

for information flow control, In SOSP 97: Proceedings

of the sixteenth ACM symposium on Operating

systems principles, pages 129142. ACM Press.

Ponemon Institute, 2016. 2016 Cost of Data Breach

Study: Global Analysis.

Rodgers, C. 2017. Data Classification: Why is it

important for Information Security?, SecureState

Blog: www.securestate.com, Web-Access 05. July.

Rushby, J. 1981. Design and Verification of Secure

Systems, ACM Operating Systems Review Vol. 15

No. 5 pages 12-21. ACM Press.

Schmidt, K., Tröger, P., Kroll, H., Bünger, T. et al., 2014.

Adapted Development Process for Security in

Networked Automotive Systems, SAE Int. J. Passeng.

Cars Electron. Electr. Syst. 7(2):516-526,

doi:10.4271/2014-01-0334.

Shostack, A., 2008. Experiences Threat Modeling at

Microsoft, In Workshop on Modeling Security,

Toulouse.

Torr, P. 2005. Demystifying the Threat-Modeling Process,

IEEE Security & Privacy Magazine, vol. 3, no. 5, pp.

66-70.

TrendLabs

APT Research Team, 2012. Spear-Phishing

E-Mail: die beliebteste APT-Angriffstechnik}, Trend

Micro, Hallbergmoos, Germany.

Trustwave, 2015, 2015 Trustwave Global Security Report.

Verisign, 2016. Verisign Distributed Denial of Service

Trends Report, Volume 3, Issue 3.

Verizon, 2016. 2016 Data Breach Investigations Report.

Yourdon, E. 1989. Modern Structured Analysis, Yourdon

Press, Upper Saddle River, NJ.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

250
