Incoming Call Implicit User Authentication

User Authentication via Hand Movement Pattern

Aleksandr Eremin and Konstantin Kogos

Institute of Cyber Intelligence Systems, NRNU MEPhI, Kashirskoe sh., 31, 115409, Moscow, Russian Federation

Keywords: Implicit Authentication, Hand Movement, Incoming Call Authentication, Behavioural Biometrics.

Abstract: This paper focuses on implicit authentication during answering an incoming call based on user’s hand

movement. This approach allows to increase usability of authentication against common PIN or graphical

password. It increases the security level as well. Unlike other researches in this area, our work considers the

problem of answering a question, whether it is the owner of the phone, who is interacting with the device

right now. The paper shows that user’s hand movement provides all necessary information for

authentication and there is no need for user to enter a PIN or graphical password.

1 INTRODUCTION

Smartphones have become indispensable in our

daily lives. These devices have become more than

personal assistants. Users make purchases, store

their photos, contacts, personal accounts – and all of

that with the only device. It leads us to the

conclusion that the data stored on your mobile phone

and services, which are accessed via a mobile phone

gain its value, as it contains sensitive information.

As Consumer Reports says, smartphone thefts rose

from 1.6 to 3.1 million during one year (Tapellini,

2014).

If an attacker seizes user’s phone, he gets almost

full access to all information that is of particular

value for the user: personal communication and

contacts, accounts on different services, including

online banking, data on movements, photos, etc. In

addition, an attacker is able to act on your behalf:

make and answer calls, conduct correspondence in

social networks and e-mail, etc. Therefore it is

becoming an increasingly urgent problem to provide

mobile phone user authentication.

The growing popularity of smartphones, progress

in their performance and abilities opens new

horizons for both attackers and defenders. A lot of

authentication methods were used and are still in a

use providing protection for mobile phones users.

All authentication methods can be divided into

three groups by the authentication factor used during

authentication process (Smith, 2002):

▪ the knowledge factor – something the user

knows;

▪ the ownership factor – something the user has;

▪ the inheritance factor – something the user is.

The knowledge factor in mobile devices is

represented by different passwords, patterns or

combinations of points on a photo or a picture. Such

methods are rather weak as users usually choose

easy-memorized passwords or patterns or associate

them with a shape or a letter they form on a screen

(Løge, 2015).

The ownership factor is related to different

peripheral devices that the owner uses with his

phone. These devices are smart watches, fitness

trackers, Bluetooth headphones, etc. The idea of the

method is rather obvious: if the phone is connected

to the device, there is no reason to worry: the phone

is near the owner. However, such method still

cannot provide full protection of user’s information

on the phone.

Methods based on the inheritance factors are

now gaining more and more popularity due to the

fact that these factors are part of the user which

means it is hard to steal it. Yet this methods still

requires additional user actions: take a photo, spell a

phrase, and place a finger on a fingerprint scanner.

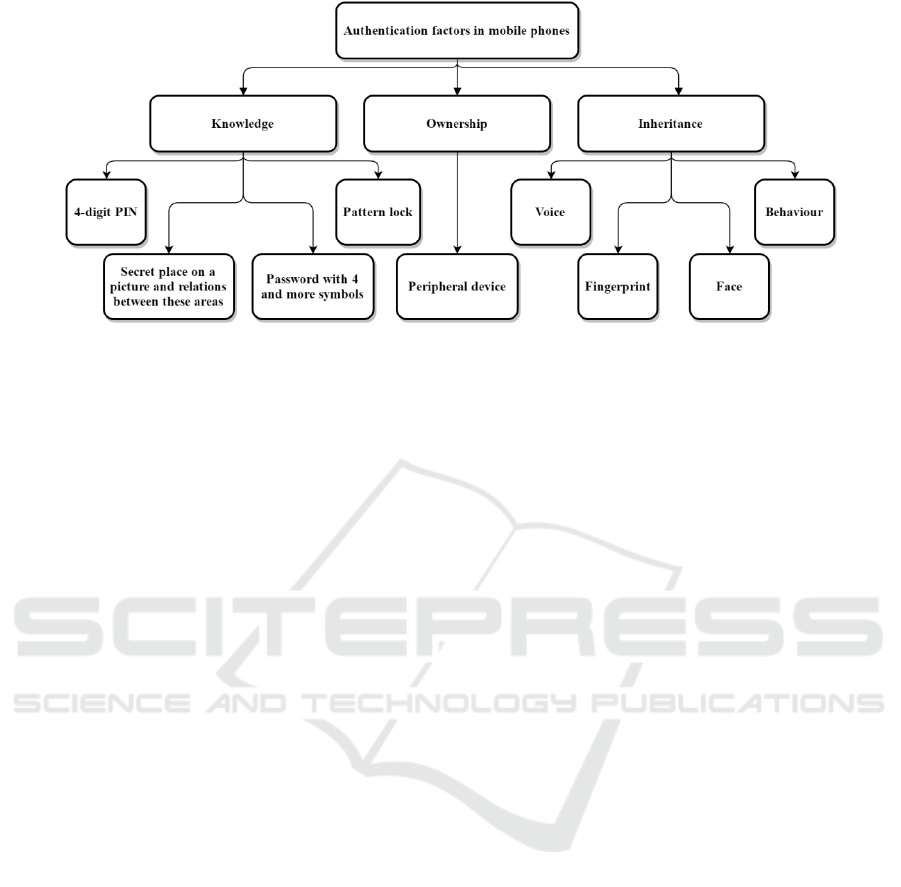

Figure 1 shows how these factors corresponding

with existing methods of mobile phone user

authentication.

Eremin, A. and Kogos, K.

Incoming Call Implicit User Authentication - User Authentication via Hand Movement Pattern.

DOI: 10.5220/0006555200240029

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 24-29

ISBN: 978-989-758-282-0

Figure 1: < in mobile phones.

Behavioural biometrics is of a special interest for

us for several reasons. Unlike aforesaid factors,

behavioural biometrics doesn’t require additional

actions from the user except his natural movements

and actions: gait, keystrokes, and characteristic

movements like picking up a phone. The recent

progress in the methods of machine learning makes

it possible to process bigger amounts of data and as

a consequence make more precise predictions.

Moreover, modern smartphones are equipped with

lots of sensors which can provide all necessary

information for such authentication methods. This

means that there is no need in additional sensors or

other hardware, and all data can be gathered and

processed with the help of one program.

The main purpose of this research is to review

existing methods of user authentication and suggest

a new approach to authentication based on

behavioural biometrics.

The remainder of this paper is organized as

follows. Section 2 contains an overview of existing

approaches to behavioural biometrics and related

work. Section 3 introduces used sensors and the data

obtained from them. Section 4 describes feature

extraction used in this research. Obtained results of

implementation and evaluation are presented in

section 5. Conclusions and further research are

discussed in Section 6.

2 RELATED WORK

In (Shrestha, 2013) user should wave his hand several

times in front of the surface of the phone's screen to

unlock the phone or make a call. Light sensor built

into the front panel of the device determines the

motion parameters by measuring amount of light

falling on it. Next, the collected data is processed by

the system; the system compares it with the stored

template, and, depending on the result of comparison

an outgoing call is performed or not.

In (Yang, 2015) the movement of the hand with

the phone is used to unlock the phone. The subjects

were invited to shake the phone for 10 seconds and

had two modes: a normal mode, the data obtained

consisted of 100 measurements, with an interval of

200 ms. 100 measurements were also obtained in the

fast mode with an interval of 10-20 ms. After that,

the data was processed by the system and a

"template" of the movement for each user was

created. After that it was enough for user to shake

the phone to unlock it. The research demonstrates

that the user had to shake the phone for 3 seconds to

unlock it, which is longer than the time entered the

PIN-code, but users appreciated the comfort, safety

and accessibility of this authentication method.

In (Krishnna, 2015) a way to interact with the phone

was suggested for purposes of the alarm: if, for

example, a woman realizes that she is in danger, it is

enough to shake the phone and the call will be sent

to the appropriate service, indicating the device's

location.

In some cases there is a necessity to authenticate

a user answering an incoming call. This happens in

case a non-legitimate person’s answer causes a

significant owner’s loss. For example, the bank

assistant calls the depositor to check whether a

strange transaction made from his account was

actually made by depositor, not a thief. If a thief

answers such call, he can easily confirm a

transaction leaving the depositor and the bank

without money.

Such a problem of user authentication can be

solved by entering a password, but this solution

requests additional actions from a user. In

Incoming Call Implicit User Authentication - User Authentication via Hand Movement Pattern

(Maghsoudi, 2016) it is shown how hand movement

analysis can be used in user identification. All

necessary data was collected by built-in sensors of

the smartphone. In this case there is no need user

entering anything, all necessary authentication

information is being collected while user’s hand

with a phone is moving towards user’s ear. That’s

why an authentication method without any extra user

actions can be suggested providing authentication of

a person answering an incoming call.

The problem of incoming call authentication was

considered in (Conti, 2011). In this paper, the

researchers proposed to replace the input of the

password with the characteristics of the hand

movement when answering an incoming call. Data,

as in previous works, was obtained from built-in

sensors (accelerometer and orientation sensor). For

user authentication, Dynamic Time Warping

Distance and Dynamic Time Warping Similarity

algorithms were used. The basic idea of this

approach is to obtain the distance between the

coordinates of the vector of characteristics of the

legitimate user and the coordinates of such vectors

of the user in relation to which authentication is

performed. The closer the vector of the current user

to the legal user's vector, the more likely he is a

legitimate user. This approach is notable for its

simplicity. Using the training sample of 10 people’s

50 lifts of the phone, the system missed the attacker

in 4.4% of cases, and the legal user was blocked in

9.3% of cases. These study shows that the

movement of the hand when answering an incoming

call is unique for each person.

In (Buriro, 2017), a user authentication method

based on the "micromovements" of his hand right

after unlocking the smartphone on the Android OS is

presented. To receive data, built-in smartphone

sensors (accelerometer, gyroscope, magnetometer,

gravity sensor and orientation sensor) are used. In

addition, a low-pass filter and a high-pass filter are

applied to the data obtained from the accelerometer.

Thus, 7 data sources are used. The data acquisition

process starts immediately after receiving the

USER_PRESENT event at intervals of 2, 4, 6, 8 and

10 seconds. Then the following features were

calculated:

▪ mean;

▪ mean absolute deviation;

▪ median;

▪ standard error of the mean;

▪ standard deviation;

▪ skewness;

▪ kurtosis.

After this, feature vectors were formed, which

were fed to the input of various algorithms of

machine learning. It is worth noting that in this

paper the task of user identification was considered,

so, the classification problem was solved using the

machine learning algorithm. The authors gained the

following results: in 96% of cases the system

correctly identified the user using the Random

Forest algorithm.

3 DATA ACQUISITION AND

FEATURE SELECTION

The analysis showed that the movement of the hand

when answering an incoming call is unique for each

person and the information about this movement can

be used for user authentication. To perform it, it is

necessary to obtain data from the sensors of the

mobile phone, pre-process it and select features for

learning the algorithm.

3.1 First Look at the Problem

The problem of a mobile phone user authentication

when answering an incoming call has several limits

and speciality:

▪ limited time to perform authentication (having

no answer, the caller will simply "drop" the

call);

▪ limited operational memory of the device;

▪ the method used must be simple and user-

friendly.

Based on these limits, a method of authentication

based on behavioural biometrics was proposed, in

which the user would not need to perform any

additional actions, except for placing the phone to

his ear, as he usually does answering an incoming

call. This action becomes a source of the behavioural

biometrics data of the user.

We would like to focus your attention on the fact

that only standard sensors (gyroscope,

accelerometer, touch screen) are needed, and most of

modern smartphones are equipped with these

sensors.

3.2 Sensors Used and Data Obtained

In order to describe the movement of the phone in

space, it is necessary to obtain data from the sensors

of the phone. An event is generated in the Android

OS when a state of any sensor is changed.

According to the Android documentation, each

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

sensor generates such an event every 200

milliseconds. This frequency is sufficient to obtain

the required amount of data, even about a short

movement, such as raising your hand with the phone

towards your ear.

The following sensors were used:

▪ accelerometer (measures the acceleration in

m/s

, with which the phone moves on all three

axes, including the force of gravity);

▪ gyro (measures the rotation rate of the phone

in rad/s around each of the axes);

▪ magnetometer (measures the ambient

geomagnetic field for all three axes in μT);

▪ orientation sensor (measures the degree of

rotation around each of the three axes);

▪ gravity sensor (measures the force of

attraction applied to the phone on all three

axes).

All sensors generate data about the position of

the phone in three axes: X, Y and Z, which are

located as shown in Figure 2.

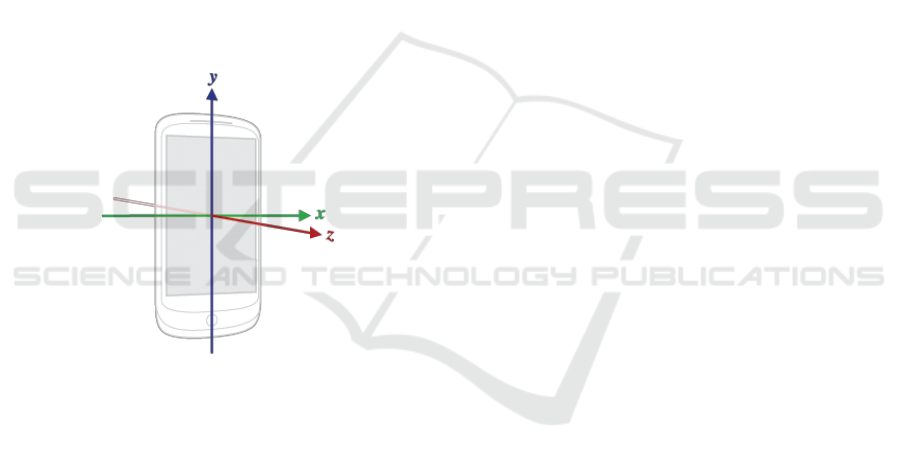

Figure 2: Sensors’ axes.

The received data is saved for further processing

into files, one file for each sensor. These files are

available only to the developed application.

The process of obtaining data is carried out for

two seconds, since this interval is enough to place

the phone to your ear.

4 FEATURE EXTRACTION

In our research, we used features that authors of

(Buriro, 2017) used in their work, because these

features describe the hand movement dynamic

clearly. These features are:

▪ mean;

▪ mean absolute deviation;

▪ median;

▪ standard error of the mean;

▪ standard deviation;

▪ skewness;

▪ kurtosis.

Moreover, we added two more features to gain

more accurate results as it helps to describe the

movement more precisely. These features describe

the exact position of the phone at the exact moments

of the motion (the coordinates obtained from the

sensors mentioned above). These features are:

▪ the coordinates of the device at the beginning

of the movement (when accepting the call):

▪ the coordinates of the device at the end of the

movement (when the device is placed near the

ear).

It will be shown further how the addition of these

features influenced the accuracy.

As the result, feature vector has the following

structure (a concatenation of the features computed

from different axes separately):

 





   



 



   



 







(1)

Square brackets contain the features obtained

from one sensor. The length of the vector is 135 (5

sensors, 3 coordinates, 9 features for every sensor).

5 IMPLEMENTATION, RESULTS

AND ANALYSIS

In this paper, the user authentication task is solved

when answering an incoming call. In contrast to

(Maghsoudi, 2016, Buriro, 2017), in which the data

of several users was used and the classification

problem was solved, the problem in question

belongs to problems of anomaly detection, since

there are no data of other classes except the

"legitimate user" class in the training sample.

Due to the limits of implementing the

authentication method, as the use of a smartphone on

the Android OS, it was decided to use WEKA, data

analysis software (Weka 3) that is written in the Java

programming language.

During the testing, the above described

algorithms of machine learning were compared by

several parameters and a suitable algorithm for the

proposed authentication method was chosen.

To evaluate the performance of algorithms we

use following characteristics:

▪ TPR – true positive rate;

▪ FPR – false positive rate:

▪ FNR – false negative rate;

▪ ACC – accuracy.

Incoming Call Implicit User Authentication - User Authentication via Hand Movement Pattern

It should be noted that in order to improve the

quality of this authentication method, it is necessary

to minimize the number of type II errors with a

satisfactorily low number of type I errors.

5.1 Training Set and Testing Set

A training set was created containing 50 vectors of

features, i.e. 50 hands rising with the phone to the

ear were obtained and processed. This size of

training set seems to be sufficient, as more

movements will negatively affect the usability of

this method. In addition, it will be further shown that

with the increase in amount of objects in the training

set, the quality of the algorithm stops to grow after a

certain amount.

A test set contained 50 legitimate user

movements (not used in the training set) and 50

movements of 10 other people who pretended to be

"intruders".

The appropriate parameters of the algorithms were

chosen experimentally to improve the quality of the

algorithms.

5.2 Implementation

WEKA allows to solve anomaly detection problem

with the help of two algorithms of machine learning,

One-Class SVM and One-Class Classifier. Let us

consider their features in details.

5.2.1 One-Class SVM

One-Class SVM (OC-SVM) is one of the examples

of SVM. The idea is to divide the space of objects

by a hyperplane in such a way that objects of one

class are on the same side of the hyperplane. In the

case of a one-class support vectors machine, the

method tries to separate sample objects from the

origin, while the dimensionality of the space can be

increased in order to distinguish the objects of the

target class from the anomalies. In this case, some of

the objects are defined as anomalous (the proportion

of such objects in the training sample is

characterized by the parameter ν), and then the

problem is reduced to the classification problem.

Most often, when using SVM to solve the problem

of detecting anomalies, the RBF-kernel is used.

5.2.2 One-Class Classifier

A One-Class Classifier (OCC) was proposed in

(Hempstalk, 2008) and implemented in Weka. Its

peculiarity lies in the fact that this classifier is a kind

of "wrapper" for standard classifiers, including a

Naïve Bayes or the method of k-NN. This becomes

possible due to the fact that the artificial data is

generated, this data has a different distribution than

the "normal" data, and so, it becomes some sort of

anomaly. Thus, these artificial data play the role of

the second class, and the problem of detecting

anomalies also reduces to the classification problem.

5.3 Evaluation

There were several algorithms that were tested. Here

in this work we show only algorithms with best

results we obtained while testing them.

While evaluating algorithms we realized, that

having a training set consisting of 25 movements

and greater the accuracy of algorithms stops to grow.

It is rather clearly shown on Figure 3.

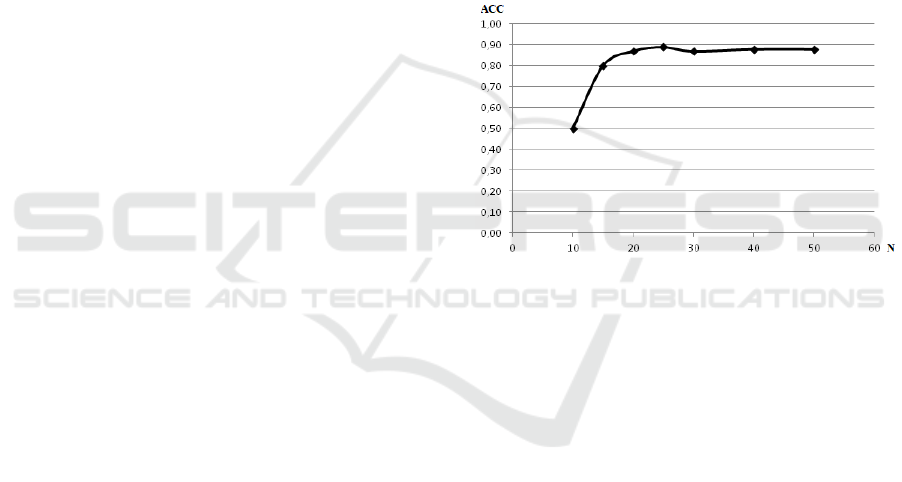

Figure 3: Accuracy dependency of training set size using

One-Class Classifier with Naive Bayes.

That leads us to the assumption that having 25

movements in training set is quite enough to train a

model with satisfactory results. That means that the

user doesn’t have to perform too much movements

to train a model and the usability of the method is

quite good at this point.

During the experiments, an assumption that

addition of “exact position” features improves the

results of the algorithms was tested. Table 1 shows

that the addition of it improves the accuracy in case

of One-Class Classifier with Naïve Bayes (OCC-

NB). In addition, having these extra features, One-

Class Classifier with Random Forest (OCC-RF)

decreased the number of FN with the same amount

of FP that leads to the usability growth having a

stable level of security. Talking about One-Class

SVM (OC-SVM), its FPR decreased while FNR

increased. This means that the security of

authentication provided with this method has grown,

but it led to fall in usability as the user is detected as

an intruder more often.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

Table 1: Evaluation results.

Alg.

Before extra features

addition

After extra features

addition

FNR

FPR

ACC

FNR

FPR

ACC

OCC-

0,34

0,1

0,78

0,2

0,02

0,89

OC-

SVM

0,34

0,18

0,74

0,18

0,35

0,74

OCC-

0,76

0,1

0,73

0,44

0,08

0,74

This far the best results were obtained with One-

Class Classifier using Naïve Bayes. Only 2 percents

of testing movements were recognized as user’s

while it was intruder who performed the movement

(FPR).

6 CONCLUSIONS AND FURTHER

RESEARCH

As a result, it was determined that adding features

that clearly characterize the position of the phone at

a particular time improves the accuracy of the

algorithm. The obtained accuracy allows drawing a

conclusion about the possibility to perform an

incoming call user authentication with the

characteristics of user’s hand movement.

The purpose of further research is to improve the

performance of the chosen algorithm. For this it is

proposed to break the interval of motion into

segments and consider them independently of each

other (Maghsoudi, 2016). In addition to this, we will

consider the possibility of adding new features (extra

points defining the position of the phone during the

movement). At the same time, it is necessary to

reduce the sample size required for training to

increase the usability of the developed method.

Gathering more representative testing set is another

goal to achieve.

ACKNOWLEDGEMENTS

This work was supported by Competitiveness

Growth Program of the Federal Autonomous

Educational Institution of Higher Professional

Education National Research Nuclear University

MEPhI (Moscow Engineering Physics Institute).

REFERENCES

Tapellini, D., 2014. Smart phone thefts rose to 3.1 million

in 2013. URL: http://www.consumerreports.org/cro/

news/2014/04/smart-phone-thefts-rose-to-3-1-million-

last-year/index.htm.

Smith, R. E., 2002. Authentication: From Passwords to

Public Keys, Williams Publishing House. Moscow.

Løge, M. D., 2015. Tell Me Who You Are and I Will Tell

You Your Unlock Pattern, Master of Science in

Computer Science. Norwegian University of Science

and Technology.

Shrestha, B., 2013. Wave-to-Access: Protecting Sensitive

Mobile Device Services via a Hand Waving Gesture.

In Proceedings of the 12th International Conference

on Cryptology and Network Security.

Yang, L., Guo, Y., Ding, X., et al., 2015. Unlocking

smartphone through handwaving biometrics. In IEEE

Transactions on Mobile Computing.

Krishnna, G., Durga, V., Dheepika, B. et al., 2015. Mobile

Waving Pattern: Android Based Unlocking Mobile

Waving Pattern for Emergency Support System. In

International Journal of Innovative Research in

Computer and Communication Engineering.

Maghsoudi, J., Tappert, C., 2016. A Behavioral

Biometrics User Authentication Study Using Motion

Data from Android Smartphones. In Proceedings of

European Intelligence and Security Informatics

Conference.

Conti, M., Zachia-Zlatea, I., Crispo, B., 2011. Mind How

You Answer Me! In Proceedings of the 6th ACM

Symposium on Information, Computer and

Communications Security.

Buriro, A., Crispo, B., Zhauniarovich, Y., 2017. Please

Hold On: Unobtrusive User Authentication using

Smartphone’s built-in Sensors. In Proceedings of

IEEE International Conference on Identity, Security

and Behavior Analysis.

Weka 3: Data Mining Software in Java. URL:

http://www.cs.waikato.ac.nz/ml/weka/.

Hempstalk, K., Frank, E., Ian, H., 2008. One-Class

Classification by Combining Density and Class

Probability Estimation. In Proceedings of the 12th

European Conference on Principles and Practice of

Knowledge Discovery in Databases and 19th

European Conference on Machine Learning.

Incoming Call Implicit User Authentication - User Authentication via Hand Movement Pattern
