Enhancing Student Engagement via Reduction of Frustration with

Programming Assignments using Machine Learning

Mario Garcia Valdez

, Amaury Hernandez Aguila

, Juan-J. Merelo

and Alejandra Mancilla Soto

Dept. of Graduate Studies, Instituto Tecnologico de Tijuana, Mexico

Geneura Team and CITIC, University of Granada, Spain

Keywords:

Affective Computing, Neural Networks, Learning Analytics.

Abstract:

Learning to program is often regarded as a difﬁcult task. When selecting an appropriate programming ex-

ercise, experienced instructors gauge a student

s affective state and skills to then assign an activity with the

appropriate level of difﬁculty. This work is focused on the prediction of the affective states of programmers

with different levels of expertise when learning a new programming language. For this, an interactive web-

based programming platform is proposed. The platform is designed to collect data from the students

ınteraction

for data analysis. Current work is focused on the prediction of affective states using non-obtrusive sensors.

Speciﬁcally, the aim of this research is to evaluate the use of keyboard and mouse dynamics as an appro-

priate sensory input for an affective recognition system. The proposed method uses feature vectors obtained

by mining data generated from both keyboard and mouse dynamics of students as they work in basic Python

programming assignments, which were used to train different classiﬁcation algorithms to classify learners

into ﬁve different affective states: boredom, frustration, distraction, relaxation and engagement. Accuracy

achieved was around 75% with J48 obtaining the best results, proving that data gathered from non-obtrusive

sensors can successfully be used as another input to classiﬁcation models in order to predict an individual

affective states.

1 INTRODUCTION

Introductory programming courses are generally re-

garded as difﬁcult (Robins et al., 2003; Lahtinen

et al., 2005) and there is a common conception that

they often have a high failure rate (Bennedsen and

Caspersen, 2007). Jenkins (Jenkins, 2001) argues that

there are multiple factors involved in this lack of suc-

cess:

• There is a deep relation with the expectations, at-

titudes, and previous experiences of the teaching

staff and students.

• The nature of the subject that involves the learning

of new abstract constructs, syntax and tools.

• Groups are often heterogeneous and thus it is difﬁ-

cult to design courses that are beneﬁcial for every-

one. Many students begin to program when they

are at their ﬁrst year of university which means

they are tackling a totally new topic that does not

respond to their habitual study approaches.

On the other hand, Dijkstra (Dijkstra et al.,

1989) argues that the subject of programming is very

problem-solving intensive, which means that a high

precision is required because even the slightest pertur-

bation can render a program totally worthless. These

difﬁculties often frustrate students. Jenkins (Jenkins,

2001; Jenkins, 2002) notes that many students ex-

pect the course to be difﬁcult and come with the no-

tion that they will have to struggle, others may have

a stereotyped image of a programmer, these beliefs

can negatively affect their initial motivation. Dur-

ing the course, novice programmers experience many

emotions, for instance frustration and confusion when

they cannot ﬁnd a bug in a program, but also joy when

they successfully run a challenging program for the

ﬁrst time. They can also become bored if they found

the exercises too repetitive or too easy. Learning to

program is a difﬁcult task, where emotions play a sig-

niﬁcant role. Research has gone far to understand the

role of emotion in learning, both in the process and

the outcome; for instance, in e-learning (Kort et al.,

2001; Rossin et al., 2009) and in programming (Ro-

drigo et al., 2009; Jenkins, 2001; Bosch et al., 2013;

Khan et al., 2007).

In these works the emotion of ﬂow/engagement is

Garcia Valdez M., Hernandez Aguila A., Merelo J. and Mancilla Soto A.

Enhancing Student Engagement via Reduction of Frustration with Programming Assignments using Machine Learning.

DOI: 10.5220/0006502102970304

In Proceedings of the 9th International Joint Conference on Computational Intelligence (IJCCI 2017), pages 297-304

ISBN: 978-989-758-274-5

regarded as the ideal affective state in which students

tend to be most capable of acquiring meaningful in-

formation through the learning process. Flow is de-

ﬁned by Csikszentmihalyi (Csikszentmihalyi, 1990)

as a mental state in which a person performing an ac-

tivity is fully immersed in a feeling of energized fo-

cus, full involvement, and enjoyment. Engagement is

also a positive affect where students are thought to be

more involved behaviorally, intellectually, and emo-

tionally in their learning tasks (Bangert-Drowns and

Pyke, 2002).

In order to promote engagement, instruction is de-

signed with the objective of assigning learning activ-

ities that result challenging to students, but not much

as to frustrate them. For this, experienced instructors

gauge a student

s affective state and then assign an ac-

tivity with the appropriate level of difﬁculty. How-

ever, recognition of emotions is a difﬁcult task, even

for humans. Instructors often use their social intelli-

gence to recognize students

’ affective states. In class

a good instructor habitually reads the faces of stu-

dents in the classroom to see if they are confused,

bored or engaged; then decides what to do next. In-

teractive Learning Environments (ILEs) can be en-

hanced if they can offer an automatic perception of

emotions. The recognition and simulation of human

affects are becoming important ﬁelds of study, and

many researchers have demonstrated that affect-aware

computers can provide a better performance in assist-

ing humans (Picard et al., 2001). When ILEs embrace

these methodologies and techniques a problem arises.

Sensors must be used to gather data, in order to per-

form the recognition of users

affective states.

In programming courses, students solve program-

ming problems by programming their proposed solu-

tion in a particular language; in order to do this, they

must write the code, some times compile it, and ﬁ-

nally run it to see how it works. While doing this, data

can be collected, all the dynamics of actually writing

the code in the keyboard, errors, corrections, elapsed

time, number of attempts, compiling errors, excep-

tions, among others. Data mining this could bring us a

better understanding of the learning process, and also

a better model to both the selection of the appropriate

content and to evaluate the learner

s competencies. In

this work, a method for the recognition of affective

states through the mining of keystroke and mouse dy-

namics data is proposed. The hypothesis is that stu-

dents can vary the dynamic of keystrokes according

to their affective state when programming. A corre-

lation of the user

s interactions (keyboard and mouse)

with an emotional state, has been established in the

preliminary work by Zimmermann et al. (Zimmer-

mann et al., 2003), but the work experiments where

conducted by asking users to write a predeﬁned mes-

sage, not programming execercises. In order to test

the correlation of keyboard and mouse dynamics and

an affective state when programming, an interactive

web-based programming platform is proposed. The

platform is designed to collect keyboard and mouse

data from the students

ınteraction for data analysis.

The proposed method has three main components: a

JavaScript library to capture keyboard and mouse dy-

namics from a browser-based editor, a pre-processing

step whose output is a feature vector that is sent to the

third component, a classiﬁcation algorithm. An ex-

periment was conducted where students solved a se-

ries of programming exercises using the web based

learning environment. Using only the data from the

student

s keyboard and mouse dynamics six affective

states where recognized for each of the attempts at

solving the exercises. Results obtained from the ex-

periment are promising. The affective states recog-

nized include the most common in novice program-

mers according to the study of Bosch, D’Mello &

Mills (Bixler and D´Mello, 2013): boredom, engage-

ment/ﬂow, confusion and frustration. For this experi-

ment four binary classiﬁers were compared: J-48 de-

cision trees, k-nearest neighbour classiﬁer, feed for-

ward neural network, and a na

ıve Bayes. The out-

put of each classiﬁer determined if the student experi-

enced the affective state during the exercise. In order

to determine what affective states a student was ex-

periencing, an Experience Sampling Method (ESM)

was used by Csikszentmihalyi & Larson (Kubey et al.,

1996). After the students successfully solve a pro-

gramming exercise, they are presented with an ESM

survey that asks what they were feeling during their

solving of the exercise.

The structure of this work is organized as follows:

next Section presents a series of works related to the

proposed method in this paper; Section 3 describes

the proposed method for the recognition of affective

states in a web based learning environment for the

teaching of programming languages; next in Section

4 we explain the experimental evaluation of the pro-

posed method and results. Finally, we draw some con-

clusions about our methodology and experiments.

2 RELATED WORK

Affect recognition is an active ﬁeld of research. Many

methods have been proposed, some require the inter-

vention of the user to ﬁll up questionnaires or forms;

these selections remain static until the user changes

the values. These methods are easy to implement, but

cannot detect dynamic changes. A more dynamic ap-

proach requires the use of sensors to capture affec-

tive states as they change. The context, the environ-

ment and the learning activity determine what kind

of sensors can be used. The most common learning

environment is the classroom, a physical space with

context to facilitate learning. But learning is possi-

ble in a wide variety of settings, such as outside-of-

school locations and outdoor environments these are

sometimes referred as ubiquitous learning environ-

ments, an example of such environments is the work

of Yang (Yang, 2006) in a context-aware environment,

but missing affective information. There are also vir-

tual learning environments such as the one proposed

by Dillenburg (Dillenbourg et al., 2002) where learn-

ers can have avatars, and virtual places where they can

play roles and socialize.

In the general context of learning there have been

some approaches for affect recognition. The work of

Kapoor y Picard (Kapoor and Picard, 2005) uses a

multi modal approach using sensory information from

facial expressions and postural shifts of the learner

combined with information about the learner

s activ-

ity on the computer; the learning activity was solving

a puzzle on a computer. They report using a multi-

modal Gaussian Process approach achieving an accu-

racy of over 86%. Sidney, et al., (Sidney et al., 2005)

enhances the intelligent tutor system AutoTutor with

affective recognition using non-intrusive sensory in-

formation from facial expressions, gross body move-

ments, and conversational cues from logs. The subject

material of that system consisted in lectures of com-

puter literacy.

Elliott, Rickel y Lester (Elliott et al., 1999;

D´Mello et al., 2008) propose the integration of an

affective reasoner with an agent in a virtual envi-

ronment. In this work an agent called Steve re-

sponds emotionally to other agents and interactive

users. The agent simulates his emotions through dif-

ferent multimedia modes including facial expressions

and speech. Affective reasoning agents were used

for training, by putting students in work related sit-

uations. Agents could react to the behavior of stu-

dents, for instance if a student was being careless in

a task and was in a dangerous situation, Steve would

show distress or fear. Also in a virtual environment

the work of McQuiggan, Robison & Lester (McQuig-

gan et al., 2010) extends this line of research by inves-

tigating the affective transitions that occur throughout

narrative-centered learning experiences. The analy-

sis of affective state transitions in this work repli-

cated the ﬁndings by DMello et al. (D´Mello et al.,

2008) and Baker et al. (Rodrigo et al., 2009) where

also engagement/ﬂow dominated self-reported affect.

For outdoor environments Shen, Wang & Shen (Shen

et al., 2009) augment a pervasive e-learning platform

with affective recognition. The results about emo-

tion recognition from physiological signals achieved a

best-case accuracy (86.3%) for four types of learning

emotions.

Bosch, D’Mello & Mills (Bosch et al., 2013) an-

alyzed the relationship between affective states and

performance of novice programmers learning the ba-

sic Python. The results of their study indicated

that the most common emotions students experienced

were engaged (23%), confusion (22%), frustration

(14%), and boredom (12%). It was useful to consider

these results, as it presented evidence of what affec-

tive states need to be targeted in order to obtain less

biased data. Similar to the previous work, Rodrigo

et al., (Rodrigo et al., 2009) observed which affec-

tive states and behaviors relate to student

s achieve-

ment within a basic computer science course. The

authors found that confusion, boredom and engage-

ment in IDE-related (on-task) conversation are associ-

ated with lower achievement. Measuring mood is im-

portant, since it may have an impact on programmer

performance according to Khan, Hierons y Brinkman

(Khan et al., 2007). It may be possible to detect

moods on the basis of information regarding the pro-

grammer

s use of the keyboard and mouse, and to in-

tegrate them into development environments that can

improve programmer performance.

There has been very little research reported on

the effectiveness of the use of keyboard and mouse

dynamics as a sensory channel for affective recog-

nition, and the few have not been focused on pro-

gramming. The preliminary work by Zimmerman et

al. (Zimmermann et al., 2003) describes a method

to correlate users interactions (keyboard and mouse)

with an emotional state, measuring different physio-

logical parameters. The work of Vizer, Zhou & Sears

(Vizer et al., 2009) also uses sensory data based on the

time elapsed between each key press, the task given

to users was to write a free-text and used linguistic

features in order to recognize both physical and emo-

tional stress. The results show a classiﬁcation accu-

racy of 62.5% for physical stress and 75% from emo-

tional stress; authors argue that these results are com-

parable with other approaches in affective computing.

They also stress that their methods must be val-

idated further in other contexts. Moods may have

an impact on programmer

s performance according to

Khan, Hierons y Brinkman (Khan et al., 2007). It

may be possible to detect moods on the basis of in-

formation regarding the programmer

s use of the key-

board and mouse, and to integrate them into develop-

ment environments that can improve programmer per-

formance. They brieﬂy describe a further experiment

that could use keyboard and mouse but only as future

work. There are other studies about the behaviour of

programmers, which are not directly concerned with

affective states but are nevertheless important to their

performance. Eye tracking in computing education is

proposed in the work Busjahn et al., (Busjahn et al.,

2014), and it is also used for assessing learners com-

prehension of C++ and Python programs in Turner et

al., (Turner et al., 2014). Blikstein (Blikstein, 2011)

proposed an automated technique to assess, analyse

and visualize students learning computer program-

ming. Blikstein employs different quantitative tech-

niques to extract students behaviours and categorize

them in terms of programming experience.

Although the use of KD is found in several re-

search works as a biometric measure, its use for iden-

tifying affective states is rare in comparison. Epp,

Lippold & Mandryk (Epp et al., 2011) effectively

used KD in conjunction with decision-tree classiﬁers

for the identiﬁcation of 15 affective states. Although

their work was based on ﬁxed text, their technique

to extract a feature vector was an inspiration for the

proposed method in this work. As for free-text KD,

Bixler y D

Mello (Bixler and D´Mello, 2013) present

a method for the identiﬁcation of boredom and en-

gagement based on several classiﬁcation models. A

similar situation exists in the case of Mouse Dy-

namics (MD), which is used mainly for authentica-

tion; however, Salmeron-Majadas, Santos and Boti-

cario (Salmeron-Majadas et al., 2014) use both MD

and KD to predict four affective states using ﬁve

different classiﬁcation algorithms. Bakhtiyari y Hu-

sain (Bakhtiyari and Husain, 2014) discuss a method

based on fuzzy models for the recognition of emo-

tions through KD, MD and touch-screen interactions.

For a broad review of emotion recognition meth-

ods based on KD and MD, the work by Kolakowska

(Kołakowska, 2013) is recommended.

3 PROPOSED METHOD

The goal of this work is to propose an affective recog-

nition method based on the sensory data provided by

the keyboard and mouse dynamics generated by a

learner as he/she types a programming exercise. A

brief explanation of the whole process is explained

next, details come later. The process starts when the

learner begins to type a program in a browser-based

editor. As she types or moves the mouse the dynam-

ics are recorded. When the learner submits the code to

evaluation, the request includes the sensory data along

with the code and information about the session. In

the server, the code is evaluated in an external vir-

tual machine that provides a sand box to prevent ma-

licious or erroneous code to halt the server. When the

result is ready, it is recorded along with the sensory

data and sent to the preprocessing module. The out-

put is a feature vector, ready for classiﬁcation. A pre-

viously trained classiﬁer is responsible for the clas-

siﬁcation, which outputs the predicted affective state.

The method does not consider other sensory data, but

it could be integrated with other sensory inputs in a

multi-modal approach. Each of the steps is explained

in detail next.

While a student is trying to solve an exer-

cise, a script coded in JavaScript is running in the

background, which captures every keystroke, mouse

movement and mouse button press. Each capture of

these events records a time-stamp in milliseconds (us-

ing the method getTime() of JavaScript

s built-in class

Date) that describes when the event occurred. If the

event is a keystroke, the script captures what key was

speciﬁcally pressed, and what type of event occurred,

it can be either a key- down or a key-up event. If it is

an event related to a mouse button press, the key code

of that button is recorded, as well as the type of event

occurred again key-down or key-up. Finally, if the

event was a mouse movement, the mouse coordinates

inside of the web browser are recorded. The script

monitors the mouse position every 100 milliseconds,

and only if the position has changed, it records the

new position. Each time a learner tries to evaluate a

program, all the data generated is sent to the server

along with the code. When the result of the execu-

tion is returned, all records are cleared and the pro-

cess starts again. There is no problem if the user

leaves for a long period of time, because no event

will be triggered. If a user copies and then pastes

the code from another source, this will be recorded.

There is a limitation, only the browser-editor must be

used; this could be a problem for more advanced pro-

grammers needing specialized editors. On the other

hand a browser-based editor with the corresponding

remote execution, does not require the installation of

interpreters or compilers in learners computer. The

code could even be written in a mobile device or any

web-enabled device. Programming exercises are eval-

uated using unit tests; the results of the evaluation are

shown to users. If all tests the program is considered

to be correct. The source code for the Protoboard web

based learning environment including the KD and

MD functions are open source and available as Github

repositories at https://github.com/amherag/keyboard-

mouse-dynamics; the code for the sandbox is also

available in https://github.com/mariosky/sandbox.

The raw data obtained from the script needs to

be preprocessed to obtain a feature vector. Basically,

this pre-processing consists in measuring the delays

between key- down, key-up or mouse-move events

triggered during an exercise. To calculate the aver-

age and standard deviations of these key presses, the

delays between a key-down and a key-up event of

the left button clicks are used. In addition to these

averages and standard deviations of the delays be-

tween keystrokes and mouse button presses, the av-

erage and standard deviations of the number of total

events contained in a digraph and a trigraph are calcu-

lated. These features are proposed and explained by

Epp, Lippold y Mandryk (Epp et al., 2011). Most of

the times, a digraph should contain four events, while

a trigraph six. However, sometimes an individual can

start a digraph or a trigraph before ending the previous

one. These additional features represent these particu-

lar cases, and could be meaningful for the estimation

of a learner

s affective states. Regarding the mouse

movements, the average and standard deviation of the

duration of each mouse movement, and the averages

and standard deviations of the movements in the axes

X and Y are also calculated. Lastly, a ﬁnal feature is

added to preprocessing of the data. The web tutorial

recorded and included in the feature vector how many

attempts a student required before successfully solv-

ing an exercise. The ﬁnal feature vector consists of 39

features; these are based on the work of Epp, Lippold

& Mandryk (Epp et al., 2011).

Once feature vectors are obtained from an ex-

periment, the generated dataset is normally used as

training data for a classiﬁer. Researchers of affective

recognition have used a wide variety of classiﬁcation

algorithms. As a proof of concept four well known

classiﬁcation algorithms where compared: k-Nearest

Neighbors (k-NN) algorithm, a feed forward neu-

ral network trained with back- propagation, a na

ıve

Bayes classiﬁer and ﬁnally a decision trees algorithm

for rational data (J-48) (Tan et al., 2006). Experiments

and results will be presented next.

4 EXPERIMENT AND RESULTS

The aim of this research is to evaluate the use of key-

board and mouse dynamics as an appropriate sensory

input for an affective recognition system in a learn-

ing environment for programmers, who interactively

write short programs. An experimental approach was

adopted with this aim: Sensory and quantitative data

was collected from learners as they were enrolled in a

basic course of Python programming. This data was

then pre-processed using the method described ear-

lier in Section 3, and together with the quantitative

data obtained from users, classiﬁers were trained and

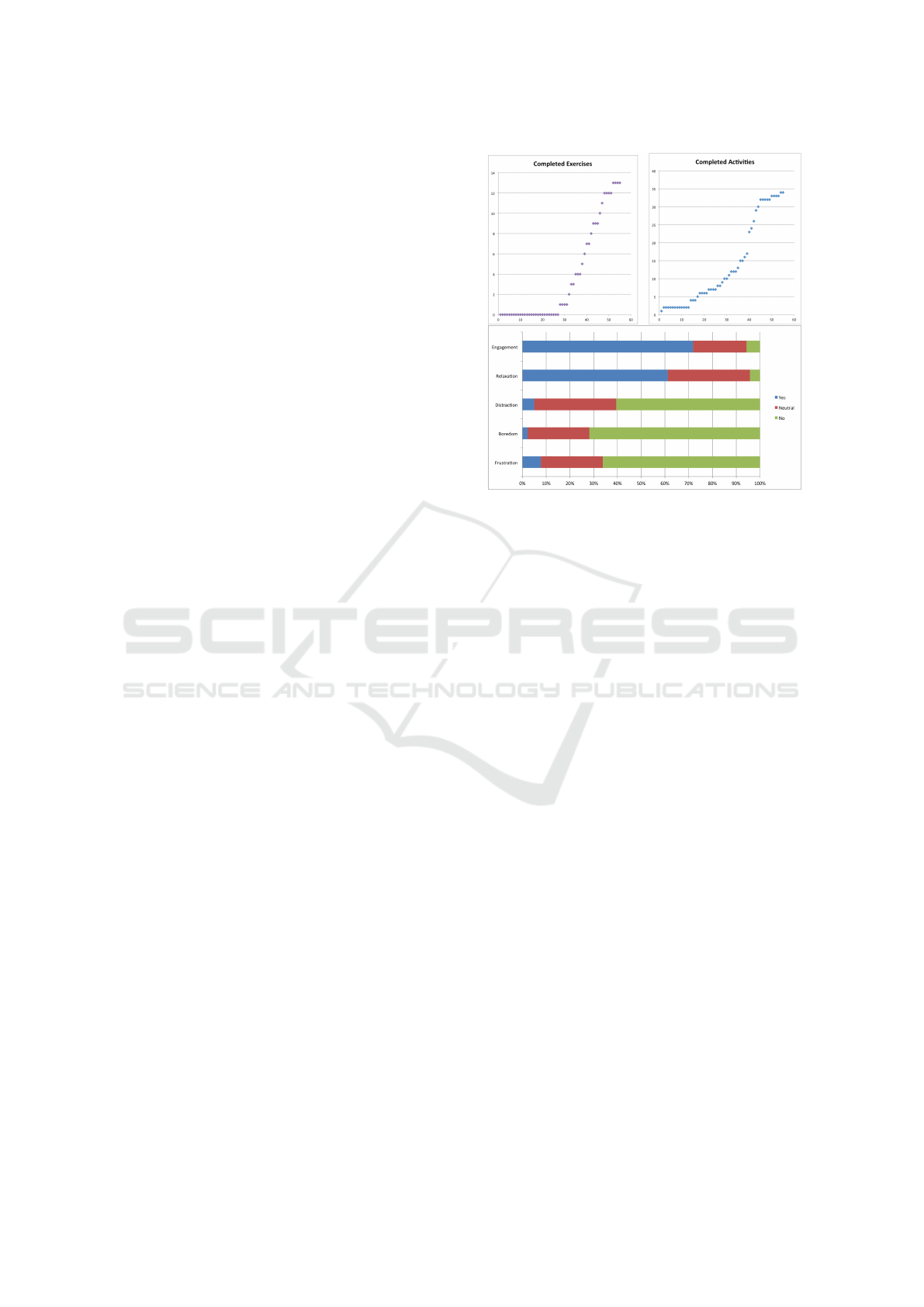

Figure 1: Completed activities and exercises by learner in

ascending order (left) and distribution of emotions reported

(right).

validated. The results were then compared and we

arrived to some conclusions regarding the effective-

ness of the method. The goal given to subjects was to

solve as many exercises as they could in a period of

two weeks. There was neither time limit nor a mini-

mum amount of time required for a participant while

trying to solve the exercises or complete the tutorial.

The participants were able to stop and resume their

interaction with the system at any time.

A tutorial was developed to obtain the nec-

essary data using the proposed platform Pro-

toboard, a web-based environment, whose lat-

est version has been released under an open

source license, and can be found online at

https://github.com/mariosky/protoboard. Users log in

to Protoboard by creating an account or by using their

account credentials from the social network Face-

book. The web tutorial begins with three introductory

videos that explain the fundamentals of programming

in Python, and how to use the editor to execute their

code. What follows after these videos, are 13 pro-

gramming exercises that students need to solve in se-

quential order. Exercises are of incremental difﬁculty.

For this experiment Protoboard was conﬁgured to al-

low unlimited attempts to solve each exercise.

A total of 55 volunteers, with no previous expe-

rience in Python, where recruited as a response to

three announcements in a special interest group of

programming students in a social network, but the

fact that they needed Facebook kept some prospects

from volunteering; a subject reported that he normally

creates temporary email accounts to try new web ser-

vices; however, the use of Facebook gave researchers

access to public information about the subjects. Their

ages were in the range of 18 to 30 years. Although no

experience in software programming was needed, as

the web tutorial

s course is of a very basic level, par-

ticipants had different levels of experience, from 0 (8

persons) to more than 5 (22).

In order to determine what affective states a

student was experiencing, the Experience Sampling

Method (ESM) (Kubey et al., 1996) was used. After

the students successfully solve a programming exer-

cise, they were presented with an ESM survey that

asks what they were feeling during their solving of

the exercise. A very brief description is given about

what to do in this survey, followed by statements the

students need to answer according to how they were

feeling. As an example, the statement I was feeling

frustrated is presented, and a student needs to answer

either Strongly agree, Agree, Neutral, Disagree, and

Strongly Disagree.

After the two weeks of the experiment, only four

learners completed all of the programming exercises

and 22 did not completed any. Out of the total ac-

tivities available (videos, survey and questionnaires)

only two completed all. Figure 1 shows the number

of exercises and activities completed by each learner.

The participants

ınteraction generated a total of

142 feature vectors one for each successfully com-

pleted exercise. The affective states reported by learn-

ers after completing each exercise was grouped in

three classes: Yes, Neutral and No. The class distri-

bution of the emotions reported is shown in Figure

6. This results show that the most common emotions

were ﬂow/engagement (72%) and relaxation (61%)

while few learners reported distraction (5%), frustra-

tion (8%) and boredom (2%). This distribution is

different from what was reported by D

Mello et al.

(Bixler and D´Mello, 2013) and Rodrigo et al. (Ro-

drigo et al., 2009). Although Flow/Engagement was

also the predominant class, the distribution is skewed

to the ﬁrst two. There are some possible reasons for

this; ﬁrst the majority of students had prior experience

in programming, so learning new one is not that prob-

lematic, a second reason could be the freedom users

had to abandon the activities, perhaps frustrated or

bored learners simply quit the tutorial. A high number

of learners (49%) did not completed any exercise and

the once who completed more where also the more

experienced.

As part of the data mining process a canonical ge-

netic algorithm was used for feature selection with the

following parameters: population size 700, 30 gener-

ations with tournament selection, tournament size was

25% of population size. A uniform crossover with 0.5

probability and mutation of 1/39, and a minimum fea-

ture size of 5. In the end, the subset for the frustration

classiﬁer includes 11 features, and the subset for the

boredom classiﬁer consists of 13 features.

The selected classiﬁers where implemented us-

ing Rapid Miner, with the following parameters: For

J48 decision tree algorithm a conﬁdence threshold

for pruning of 0.25, with a minimum of 2 instances

per leaf, and 3 folds for reduced error pruning. The

feed-forward neural network used a back-propagation

learning algorithm with two hidden layer of 20 neu-

rons each, with a learning rate and momentum of 0.6,

and was trained for 200 generations.

Table 1 shows the performance of each of the four

classiﬁers together with the κ coefﬁcients. A 10-Fold

cross validation was used. The accuracies and κ coef-

ﬁcients obtained are close to what is usually obtained

in ﬁxed-text methods, for example, the results pre-

sented in Epp, Lippold y Mandryk (Epp et al., 2011).

In a ﬁxed-text method, subjects are asked to write

speciﬁc texts. The results obtained with this method

are satisfactory, considering that learners were writing

a program, a task comparable with free-text writing,

where there is no restriction on what has to be written.

In the case of the κ coefﬁcients, it is usual to see val-

ues below 0.2 in methods involving free-text. In this

case, some values of κ were close to 0.5, is important

to consider the values of κ in these results because the

class distribution is not uniformly distributed. As it is

observed in many works in affective recognition, de-

cision trees normally produce competitive accuracy.

In this case the J-48 classiﬁer obtained an accuracy

of 80.48%, which is marginally better than the others,

and an accepted κ statistic for the kind of problem.

The artiﬁcial neural network (ANN) gives the highest

accuracy in the classiﬁcation of frustration.

5 CONCLUSION

The aim of this research was to evaluate the use of

keyboard and mouse dynamics as an appropriate sen-

sory input for an affective recognition system. The

context of use is a learning environment for program-

mers, in particular for learning assignments consist-

ing in writing short programs interactively. An exper-

imental approach was adopted with this objective, by

effectively using the method with real subjects using

the environment.

The proposed method in this work obtained satis-

factory results. It is usual for a classiﬁcation method

based on free-text to obtain an accuracy and κ mea-

sure below their counterparts of ﬁxed-text; however,

Table 1: Performance of every classiﬁer with 10-fold cross validation. Accuracy (κ).

Affect Na

ıve Bayes J-48 k-NN ANN

Flow/engaged 79.00% (0.50) 80.48% (0.51) 76.14% (0.43) 78.43% (0.45)

Relaxation 71.10% (0.40) 72.57% (0.45) 69.14% (0.37) 71.24% (0.34)

Distraction 70.33% (0.43) 71.00% (0.43) 74.00% (0.50) 72.52% (0.39)

Frustration 74.71% (0.49) 73.86% (0.45) 72.62% (0.42) 78.00% (0.50)

Boredom 74.71% (0.47) 84.57% (0.59) 83.81% (0.58) 76.19% (0.45)

in this work the results obtained were similar to those

works applied to ﬁxed-text dynamics. A possible ex-

planation of this would be the addition of the mouse

dynamics features and the additional preprocessing

performed on the feature vectors. Out of all methods

tested, a multilayer perceptron trained with backprop-

agation, the one tagged ANN in RapidMiner, gave the

best classiﬁcation results.

While these are promising results further experi-

ments are needed. Other experiments should focus on

novice programmers, but that is left as future work.

ACKNOWLEDGMENT

This work has been supported in part by: de

Ministerio espa

nol de Econom

ıa y Competitivi-

dad under project TIN2014-56494-C4-3-P (UGR-

EPHEMECH) and by CONACYT PEI Project No.

220590.

REFERENCES

Bakhtiyari, K. and Husain, H. (2014). Fuzzy model

on human emotions recognition. arXiv preprint

arXiv:1407.1474.

Bangert-Drowns, R. L. and Pyke, C. (2002). Teacher ratings

of student engagement with educational software: An

exploratory study. Educational Technology Research

and Development, 50(2):23–37.

Bennedsen, J. and Caspersen, M. E. (2007). Failure rates

in introductory programming. ACM SIGCSE Bulletin,

39(2):32–36.

Bixler, R. and D´Mello, S. (2013). Detecting boredom and

engagement during writing with keystroke analysis,

task appraisals, and stable traits. In Proceedings of

the 2013 international conference on Intelligent user

interfaces, pages 225–234. ACM.

Blikstein, P. (2011). Using learning analytics to assess

students’ behavior in open-ended programming tasks.

In Proceedings of the 1st international conference on

learning analytics and knowledge, pages 110–116.

ACM.

Bosch, N., D´Mello, S., and Mills, C. (2013). What emo-

tions do novices experience during their ﬁrst computer

programming learning session? In International Con-

ference on Artiﬁcial Intelligence in Education, pages

11–20. Springer.

Busjahn, T., Schulte, C., Sharif, B., Begel, A., Hansen, M.,

Bednarik, R., Orlov, P., Ihantola, P., Shchekotova, G.,

Antropova, M., et al. (2014). Eye tracking in com-

puting education. In Proceedings of the tenth annual

conference on International computing education re-

search, pages 3–10. ACM.

Csikszentmihalyi, M. (1990). Flow: The psychology of op-

timal performance. NY: Cambridge UniversityPress.

Dijkstra, E. W. et al. (1989). On the cruelty of really teach-

ing computing science. Communications of the ACM,

32(12):1398–1404.

Dillenbourg, P., Schneider, D., and Synteta, P. (2002). Vir-

tual learning environments. In 3rd Hellenic Con-

ference” Information & Communication Technolo-

gies in Education”, pages 3–18. Kastaniotis Editions,

Greece.

D´Mello, S., Jackson, T., Craig, S., Morgan, B., Chipman,

P., White, H., Person, N., Kort, B., el Kaliouby, R., Pi-

card, R., et al. (2008). Autotutor detects and responds

to learners affective and cognitive states. In Workshop

on emotional and cognitive issues at the international

conference on intelligent tutoring systems, pages 306–

308.

Elliott, C., Rickel, J., and Lester, J. (1999). Lifelike

pedagogical agents and affective computing: An ex-

ploratory synthesis. In Artiﬁcial intelligence today,

pages 195–211. Springer.

Epp, C., Lippold, M., and Mandryk, R. L. (2011). Identi-

fying emotional states using keystroke dynamics. In

Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems, pages 715–724. ACM.

Jenkins, T. (2001). The motivation of students of program-

ming. In ACM SIGCSE Bulletin, volume 33, pages

53–56. ACM.

Jenkins, T. (2002). On the difﬁculty of learning to program.

In Proceedings of the 3rd Annual Conference of the

LTSN Centre for Information and Computer Sciences,

volume 4, pages 53–58. Citeseer.

Kapoor, A. and Picard, R. W. (2005). Multimodal affect

recognition in learning environments. In Proceedings

of the 13th annual ACM international conference on

Multimedia, pages 677–682. ACM.

Khan, I. A., Hierons, R. M., and Brinkman, W. P. (2007).

Mood independent programming. In Proceedings

of the 14th European conference on Cognitive er-

gonomics: Invent! Explore!, pages 269–272. ACM.

Kołakowska, A. (2013). A review of emotion recogni-

tion methods based on keystroke dynamics and mouse

movements. In 2013 6th International Conference

on Human System Interactions (HSI), pages 548–555.

IEEE.

Kort, B., Reilly, R., and Picard, R. W. (2001). An affec-

tive model of interplay between emotions and learn-

ing: Reengineering educational pedagogy – building

a learning companion. In icalt, volume 1, pages 43–

47.

Kubey, R., Larson, R., and Csikszentmihalyi, M. (1996).

Experience sampling method applications to commu-

nication research questions. Journal of communica-

tion, 46(2):99–120.

Lahtinen, E., Ala-Mutka, K., and J

arvinen, H.-M. (2005).

A study of the difﬁculties of novice programmers.

In ACM SIGCSE Bulletin, volume 37, pages 14–18.

ACM.

McQuiggan, S. W., Robison, J. L., and Lester, J. C.

(2010). Affective transitions in narrative-centered

learning environments. Educational Technology & So-

ciety, 13(1):40–53.

Picard, R. W., Vyzas, E., and Healey, J. (2001). Toward

machine emotional intelligence: Analysis of affec-

tive physiological state. IEEE transactions on pat-

tern analysis and machine intelligence, 23(10):1175–

1191.

Robins, A., Rountree, J., and Rountree, N. (2003). Learning

and teaching programming: A review and discussion.

Computer science education, 13(2):137–172.

Rodrigo, M. M. T., Baker, R. S., Jadud, M. C., Amarra,

A. C. M., Dy, T., Espejo-Lahoz, M. B. V., Lim, S.

A. L., Pascua, S. A., Sugay, J. O., and Tabanao, E. S.

(2009). Affective and behavioral predictors of novice

programmer achievement. In ACM SIGCSE Bulletin,

volume 41, pages 156–160. ACM.

Rossin, D., Ro, Y. K., Klein, B. D., and Guo, Y. M. (2009).

The effects of ﬂow on learning outcomes in an online

information management course. Journal of Informa-

tion Systems Education, 20(1):87.

Salmeron-Majadas, S., Santos, O. C., and Boticario, J. G.

(2014). Exploring indicators from keyboard and

mouse interactions to predict the user affective state.

In Educational Data Mining 2014.

Shen, L., Wang, M., and Shen, R. (2009). Affective e-

learning: Using” emotional” data to improve learning

in pervasive learning environment. Educational Tech-

nology & Society, 12(2):176–189.

Sidney, K. D., Craig, S. D., Gholson, B., Franklin, S., Pi-

card, R., and Graesser, A. C. (2005). Integrating af-

fect sensors in an intelligent tutoring system. In Affec-

tive Interactions: The Computer in the Affective Loop

Workshop at, pages 7–13.

Tan, P.-N. et al. (2006). Introduction to data mining. Pear-

son Education India.

Turner, R., Falcone, M., Sharif, B., and Lazar, A. (2014).

An eye-tracking study assessing the comprehension

of c++ and python source code. In Proceedings of

the Symposium on Eye Tracking Research and Appli-

cations, pages 231–234. ACM.

Vizer, L. M., Zhou, L., and Sears, A. (2009). Automated

stress detection using keystroke and linguistic fea-

tures: An exploratory study. International Journal of

Human-Computer Studies, 67(10):870–886.

Yang, S. J. (2006). Context aware ubiquitous learning envi-

ronments for peer-to-peer collaborative learning. Ed-

ucational Technology & Society, 9(1):188–201.

Zimmermann, P., Guttormsen, S., Danuser, B., and Gomez,

P. (2003). Affective computing – a rationale for mea-

suring mood with mouse and keyboard. Interna-

tional journal of occupational safety and ergonomics,

9(4):539–551.
