A Method for Traffic Sign Recognition with CNN using GPU

Alexander Shustanov and Pavel Yakimov

Samara National Research University, Moskovskoye shosse 34, Samara, Russia

Keywords: TensorFlow, Convolutional Neural Networks, Traffic Sign Recognition, Image Processing, Computer Vision,

Mobile GPU.

Abstract: In recent years, the deep learning methods for solving classification problem have become extremely popular.

Due to its high recognition rate and fast execution, the convolutional neural networks have enhanced most of

computer vision tasks, both existing and new ones. In this article, we propose an implementation of traffic

signs recognition algorithm using a convolution neural network. Training of the neural network is

implemented using the TensorFlow library and massively parallel architecture for multithreaded

programming CUDA. The entire procedure for traffic sign detection and recognition is executed in real time

on a mobile GPU. The experimental results confirmed high efficiency of the developed computer vision

system.

1 INTRODUCTION

Development of the technical level of modern mobile

processors enabled many vehicle producers to install

computer vision systems into customer cars. These

systems help to significantly improve the safety and

implement an important step on the way to

autonomous driving. Among other tasks solved with

computer vision, the traffic sign recognition (TSR)

problem is one of the most well-known and widely

discussed by lots of researchers. However, the main

problems of such systems are low detection accuracy

and high demand for hardware computational

performance, as well as the inability of some systems

classify the traffic signs from different countries.

Recognition of traffic signs is usually solved in

two steps: localization and subsequent classification.

There are many different localization methods

(Nikonorov et al., 2013), (Ruta et al., 2009),

(Belarossi et al., 2010). In papers (Fursov et al., 2013)

and (Yakimov, 2015), the authors proposed effective

implementations of the image preprocessing and

traffic signs localization algorithms, which performed

in real time. Using a modified Generalized Hough

Transform (GHT) algorithm, the solution allowed to

determine the exact coordinates of a traffic sign in the

acquired image. Thus, in the classification stage, the

simple template matching algorithm was used.

Combined with precise localization stage, this

algorithm showed the final results of 97.3% accuracy

of traffic sign recognition. The dataset from GTSDB

(Stallkamp et al., 2012) was used for training and

testing the developed algorithms. Figure 1 shows the

images for training the traffic signs recognition

algorithm and testing the localization algorithm.

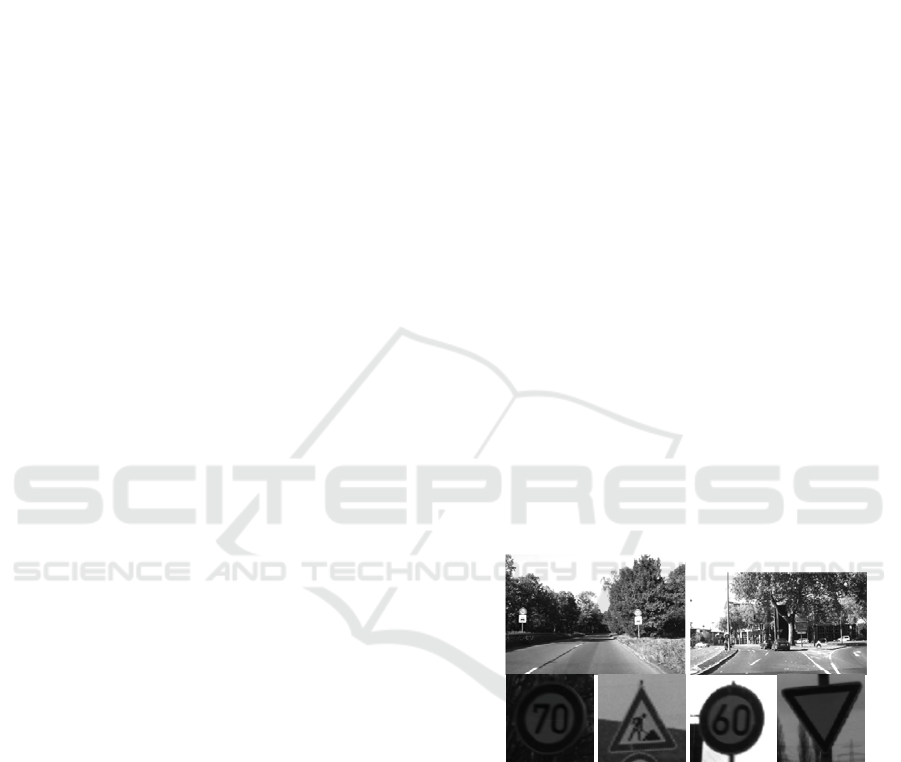

Figure 1: Images from GTSDB (Stallkamp et al., 2012).

While testing the developed technology for

detecting and classifying traffic signs in real

conditions, i.e. using videos from cameras installed

on a windshield, the end-to-end technology showed

significant decrease in the efficiency. Studies have

shown that such a decrease arose because of too

strong variations in the illumination, contrast, and

angle of rotation in images of localized traffic signs.

Thus, a simple classification algorithm like template

matching was not able to achieve high-qaulity

recognition because of a limited set of predefined

templates. To improve the system performance, the

localization algorithm that has shown good results

Shustanov, A. and Yakimov, P.

A Method for Trafﬁc Sign Recognition with CNN using GPU.

DOI: 10.5220/0006436100420047

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 5: SIGMAP, pages 42-47

ISBN: 978-989-758-260-8

can be combined with recognition using the

convolutional neural networks that have received

such a wide application in recent years (Zhu et al.,

2016), (LeCun and Servanet, 2011).

In this paper, we describe a revised end-to-end

technology for detecting and recognizing traffic signs

in real time. The developed system uses the speed

received from the vehicle. This allows you to predict

not only the presence of the object, but also the scale

and its exact coordinates in the neighboring frame.

Thus, the accuracy of detection increases, while the

computational complexity remains the same. The

classification of localized objects is implemented

using convolutional neural networks (CNNs). The use

of the GPU allows real-time processing of the frames

in the video sequence.

2 TRAFFIC SIGN

LOCALIZATION AND

TRACKING

The developed technology for traffic signs

recognition consists of three steps: image

preprocessing, localization and classification.

During image preprocessing, the HSV color space

is used to extract red and blue pixels from an image.

Due to errors in the process of images acquiring and

the presence of small colored objects, some point-like

noise occurs in the images after applying a threshold

filter. To address this point-like noise we apply the

algorithm described in (Fursov et al., 2013). Paper

(Yakimov, 2013) shows the effective implementation

of the algorithm for noise removal implemented using

CUDA. With GPUs, the acceleration reaches 60-80

times as compared with conventional executing on a

CPU. The frame size is 1920x1080 pixels. Using the

CUDA-enabled mobile GPU NVIDIA Jetson TK1

allows to preprocess one videoframe within 7-10 ms,

which satisfies the requirements of video processing

in real time.

Paper (Yakimov, 2015) addresses the algorithms

for detecting and tracking traffic signs. The method

for localization, which is a modification of the

generalized Hough transform, has been developed

considering the constraints on the time for processing

a single frame. The algorithm shows effective results

and functions well with the preprocessed images.

Tracking using the value of the vehicle current speed

has improved the performance of the system, as the

search area in the adjacent frames can be significantly

reduced. In addition, the presence of a sign in the

sequence of adjacent frames in predicted areas

significantly increases the confidence of correct

recognition. Classification, which is the final step,

ensures that the entire procedure has been executed

successfully.

3 TRAFFIC SIGN

CLASSIFICATION

3.1 Convolutional Neural Networks

Classification with artificial neural networks is a very

popular approach to solve pattern recognition

problems. A neural network is a mathematical model

based on connected via each other neural units –

artificial neurons – similarly to biological neural

networks. Typically, neurons are organized in layers,

and the connections are established between neurons

from only adjacent layers. The input low-level feature

vector is put into first layer and, moving from layer to

layer, is transformed to the high-level features vector.

The output layer neurons amount is equal to the

number of classifying classes. Thus, the output vector

is the vector of probabilities showing the possibility

that the input vector belongs to a corresponding class.

An artificial neuron implements the weighted

adder, which output is described as follows:









∑















,

(1)

where 





is the j

neuron in the i

layer, 





stands

for weight of a synapse, which connects the j

neuron

in the i

layer with the k

neuron in the layer i-1.

Widely used in regression, the logistic function is

applied as an activation function. It is worth noting

that the single artificial neuron performs the logistic

regression function.

The training process is to minimize the cost

function with minimization methods based on the

gradient decent also known as backpropagation. In

classification problems, the most commonly used

cost function is the cross entropy:





,





∑



















(2)

Training networks with large number of layers, also

called deep networks, with sigmoid activation is

difficult due to vanishing gradient problem. To

overcome this problem, the ReLU function is used as

an activation function:











0,  0

,else

(3)

Today, classifying with convolutional neural

networks is the state of the art pattern recognition

A Method for Trafﬁc Sign Recognition with CNN using GPU

method in computer vision. Unlike traditional neural

networks, which works with one-dimensional feature

vectors, a convolutional neural network takes a two-

dimensional image and consequentially processes it

with convolutional layers.

Each convolutional layer consists of a set of

trainable filters and computes dot productions

between these filters and layer input to obtain an

activation map. These filters are also known as

kernels and allow detecting the same features in

different locations. For example, Figure 2 shows the

result of applying convolution to an image with 4

kernels.

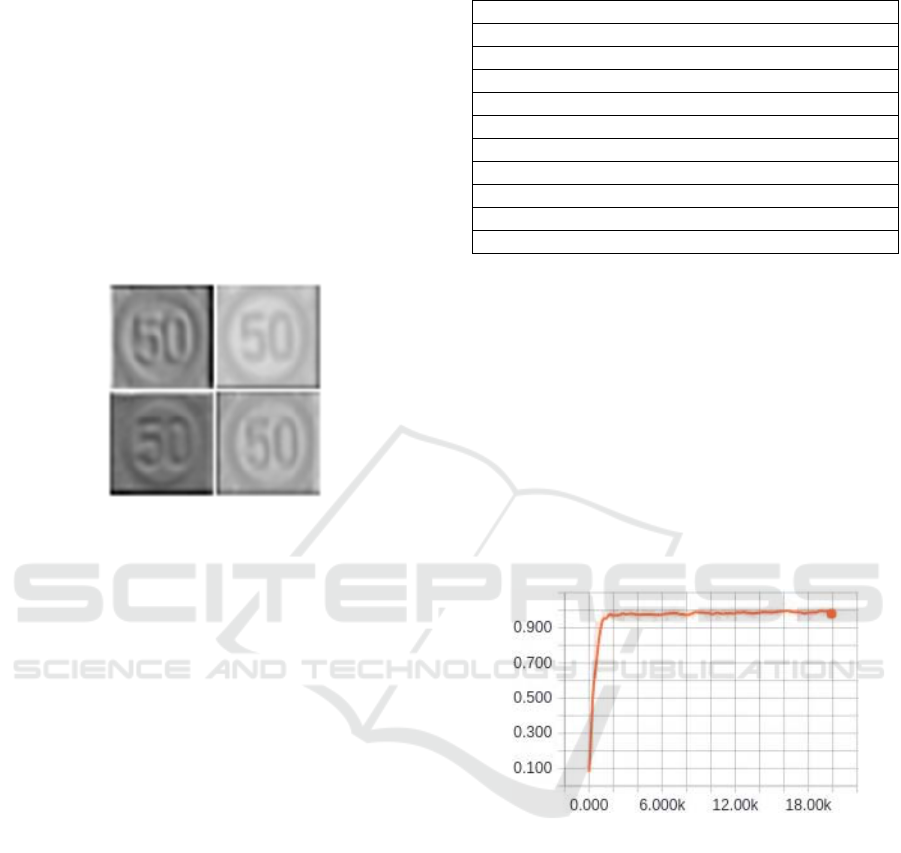

Figure 2: Input image convolution.

3.2 Proposed Implementation

To solve the traffic sign recognition task, we used the

deep learning library TensorFlow (Abadi et al.,

2016). Training and testing were implemented using

the dataset from GTSRB (Houben et al., 2013). The

developed method can classify the 16 most popular

traffic signs types.

Table 1 describes the developed network

architecture. It consists of several convolutional

layers, fully connected layers and one softmax layer.

Some convolutional layers have parameter stride

equal to 2. This parameter determines the stride of the

convolution sliding window, so layers with parameter

stride greater than 1 also combine the pooling

operation. The softmax layer normalizes the previous

layer output so that its output contains probabilities of

belonging to recognizable classes for the original

input image.

TensorFlow contains a set of tools to visualize

models at different abstraction levels down to low-

level mathematical operations. The common name of

these tools is TensorBoard. The presented model can

be divided into two stacked blocks: the convolutional

block and the fully connected block.

Table 1: Neural network architecture.

Layer

Convolutional, stride 2, kernel 7x7x4

Convolutional, stride 2, kernel 5x5x8

Convolutional, stride 2, kernel 3x3x16

Convolutional, stride 2, kernel 3x3x32

Convolutional, stride 1, kernel 2x2x16

Convolutional, stride 1, kernel 2x2x8

Convolutional, stride 1, kernel 2x2x4

Fully connected-64

Fully connected-16

Softmax

To train and evaluate the model, the initial dataset

was divided into the train and test datasets with ratio

80/20 correspondently. At the training stage, the

network processed the batch of 50 images from the

train dataset per one iteration. Every 100 iterations,

the intermediate accuracy was computed with batch

of 50 images from the test dataset. After successful

training, the accuracy was computed using all images

from the test dataset. Figure 3 shows the classification

accuracy growing with increasing the number of

training iterations. The graph shows that, starting with

the 2000

iteration, the network reaches the

classification accuracy above 0.9.

Figure 3: Classification accuracy changing with training

iterations.

4 EXPERIMENTAL RESULTS

As the paper emphasizes on an end-to-end solution to

real-time traffic sign localization and recognition, it

is necessary to evaluate preprocessing, localization

and classification performance. Paper (Yakimov,

2015) shows an effective implementation of

localization with preprocessing algorithms that

executes in 20 ms.

To evaluate the classification execution time, we

used the GPUs Nvidia GeForce GTX 650 and Nvidia

GeForce GT 650M, and CPU Intel Core i7 5500u.

Table 2 shows the results.

SIGMAP 2017 - 14th International Conference on Signal Processing and Multimedia Applications

Table 2: CNN training and classifying execution time.

Hardware Training

Classifying an image

(64x64)

Nvidia GeForce GTX 650 7 min 0.05 ms

Nvidia GeForce GT 650M 12 min 0.14 ms

Intel Core i7 16 min 0.37 ms

To evaluate the localization and recognition

algorithms accuracy, we used the German Traffic

Sign Detection Benchmark (GTSDB) (Stallkamp et

al., 2012) and the German Traffic Sign Recognition

Benchmark (GTSRB) (Houben et al., 2013). They

contain more than 50,000 images with traffic signs

registered in various conditions. To assess the quality

of the sign localization, we counted the number of

images with correctly recognized traffic signs. When

testing the developed algorithms, we used only 9,987

images containing traffic signs of the required shape

and with red contours. The experiments showed

99.94% of correctly localized and detected

prohibitory and danger traffic signs.

Table 3 shows the resulting accuracy and

performance of the detection algorithms from

(Stallkamp et al., 2012), (Yakimov, 2015), (Aghdam

et al. 2016) and the method described in this paper.

The accuracy of all methods shown in the table

was obtained using the dataset GTSDB. The sliding

window method (Mathias et al., 2013) shows the best

result with 100% of accuracy. However, the described

in this paper modified GHT+CNN reaches the best

performance.

One of the most efficient methods for TSR using

GTSDB and GTSRB is the method using ConvNet

for both localizing and classifying traffic signs

(Aghdam et al. 2016). The authors show results

reaching precision equal to 99.89% when detecting a

sign and 99.55% when classifying it. Also, the

method can process 37.72 high-resolution images per

second. The method described in this paper shows

slightly better results in both precision and

performance, but it is difficult to compare FPS as

there is no description of the hardware used for

experiments.

Figure 4 shows images of traffic signs that were

successfully recognized by the proposed in this paper

CNN implementation. The picture shows that the

applied method gives good recognition results even

with traffic signs images, which are not easy to

recognize for a human.

Figure 4 shows images of traffic signs that were

successfully recognized by the proposed in this paper

CNN implementation. The picture shows that the

applied method gives good recognition results even

with traffic signs images, which are not easy to

recognize for a human.

Table 3: Accuracy and performance of TSR methods.

Method Accuracy FPS

Sliding window + SVN 100 % 1

Modified GHT with preprocessing

+ CNN (this paper)

99.94 % 50

ConvNe

99.55 % 38

Modified GHT with preprocessing 97.3 % 43

Modified GHT withou

preprocessing 89.3 % 25

Viola-Jones 90.81 % 15

HOG 70.33 % 20

However, the accuracy doesn’t reach 100 %.

Figure 5 shows the images of traffic signs that were

recognized incorrectly.

As it is seen in Figure 5, the quality of input

images strongly influences on the recognition rate. It

means that such high classification quality will not

always be obtainable when using the developed

algorithms in real world. However, all the mentioned

in Table 3 algorithms will suffer from this input

images quality.

The developed algorithm was also tested on the

video frames obtained in the streets using an Android

device Nvidia Shield Tablet built in to a car. Figure 6

shows the fragments of the original images with

marked road signs on them.

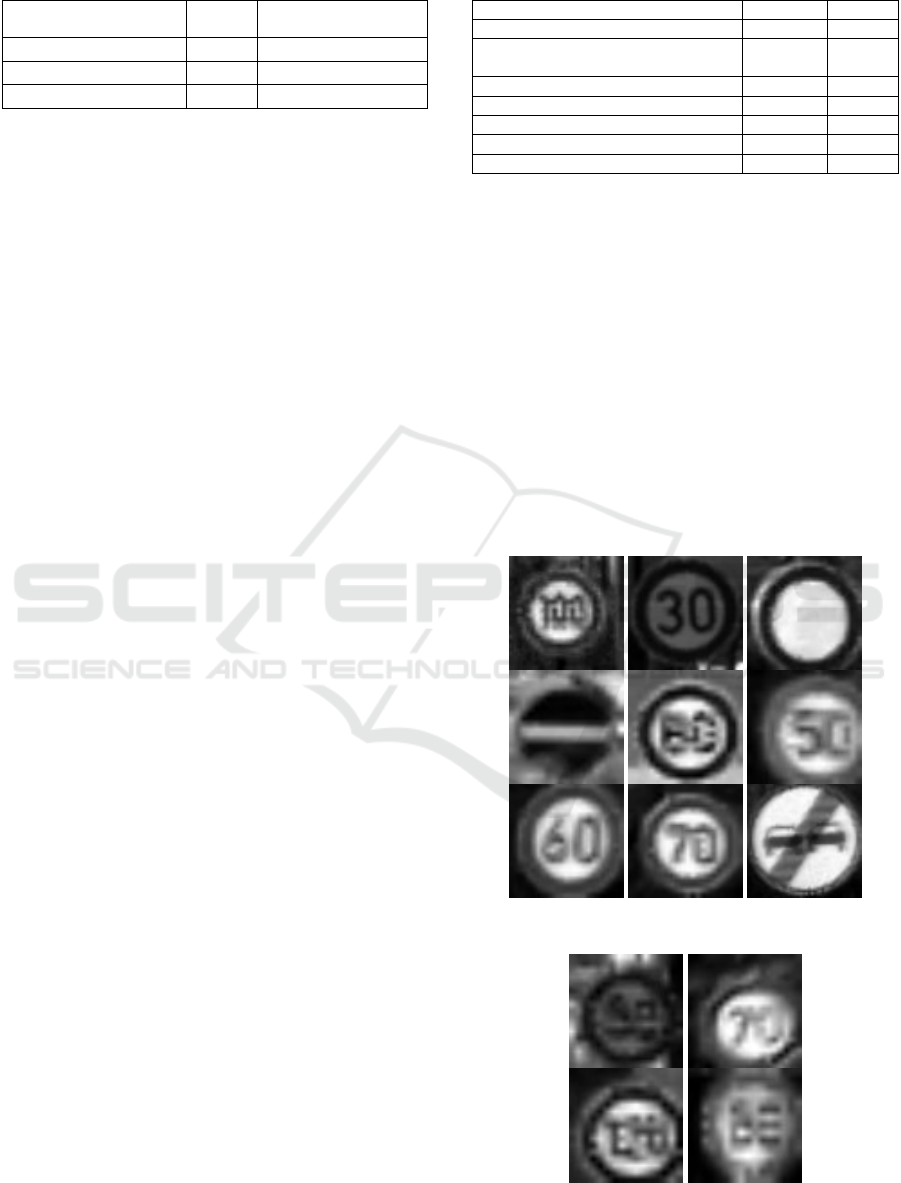

Figure 4: Successful classification.

Figure 5: Unsuccessful classification.

A Method for Trafﬁc Sign Recognition with CNN using GPU

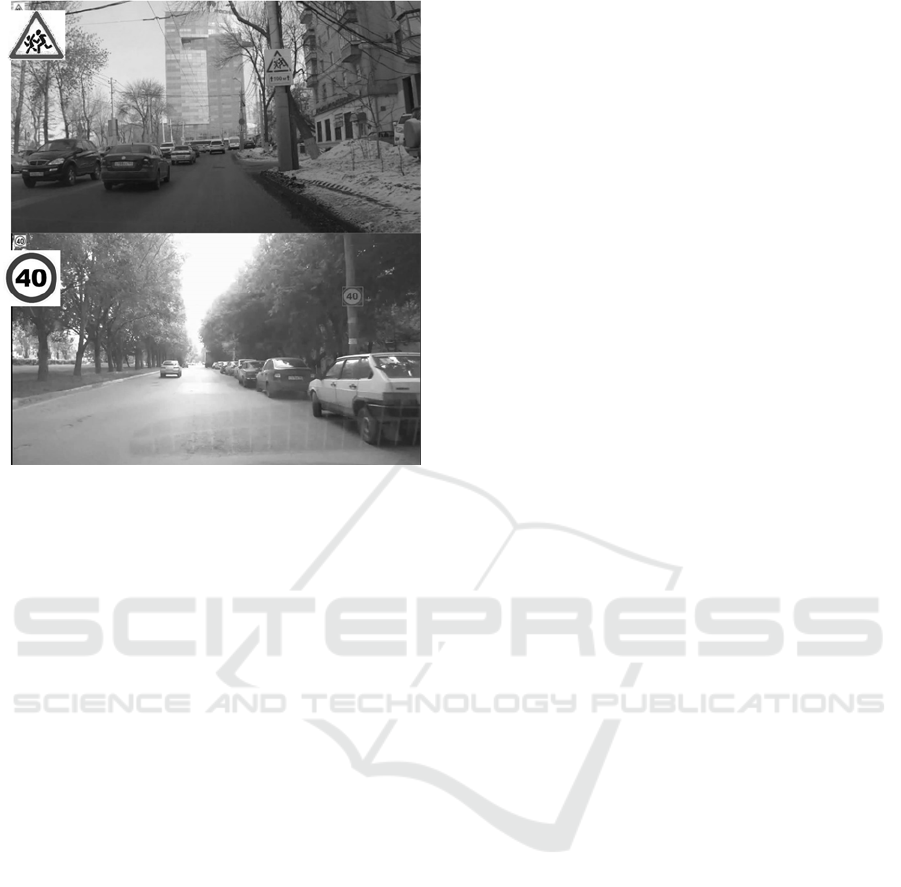

Figure 6: Localized and recognized traffic signs.

5 CONCLUSIONS

This paper considers an implementation of the

classification algorithm for the traffic signs

recognition task. Combined with preprocessing and

localization steps from previous works, the proposed

method for traffic signs classification shows very

good results: 99.94 % of correctly classified images.

The proposed classification solution is

implemented using the TensorFlow framework.

The use of our TSR algorithms allows processing

of video streams in real-time with high resolution, and

therefore at greater distances and with better quality

than similar TSR systems have. FullHD resolution

makes it posiible to detect and recognize a traffic sign

at a distance up to 50 m.

The developed method was implemented on a

device with Nvidia Tegra K1 processor. CUDA was

used to accelerate the performance of the described

methods. In future research, we plan to train the CNN

to consider more traffic sign classes and possible bad

weather conditions. In current, versions we

considered only daylight and good visibility.

ACKNOWLEDGEMENTS

This work was supported by the Russian Foundation

for Basic Research - Project # 16-37-60106

mol_a_dk.

REFERENCES

Shneier, M., 2005. Road sign detection and recognition.

Proc. IEEE Computer Society Int. Conf. on Computer

Vision and Pattern Recognition, pp. 215–222.

Nikonorov, A., Yakimov, P., Petrov, M., 2013. Traffic sign

detection on GPU using color shape regular

expressions. VISIGRAPP IMTA-4, Paper Nr 8.

Belaroussi, R., Foucher, P., Tarel, J. P., Soheilian, B.,

Charbonnier, P., Paparoditis, N., 2010. Road Sign

Detection in Images. A Case Study, 20th International

Conference on Pattern Recognition (ICPR), pp. 484-

488.

Ruta, A., Porikli, F., Li, Y., Watanabe, S., Kage, H., Sumi,

K., 2009. A New Approach for In-Vehicle Camea

Traffic Sign Detection and Recognition. IAPR

Conference on Machine Vision Applications (MVA),

Session 15: Machine Vision for Transportation.

Stallkamp J., Schlipsing M., Salmen J., Igel C., 2012. Man

vs. computer: Benchmarking machine learning

algorithms for traffic sign recognition. Neural

networks, vol. 32, pp. 323-332.

Houben, S., Stallkamp, J., Salmen, J., Schlipsing, M., Igel,

C.: Detection of Traffic Signs in Real-World Images:

The {G}erman {T}raffic {S}ign {D}etection

{B}enchmark. In: Proc. International Joint Conference

on Neural Networks, 2013.

Fursov, V., Bibkov, S., Yakimov, P., 2013. Localization of

objects contours with different scales in images using

Hough transform [in Russian]. Computer optics, vol.

37(4), pp. 502-508.

Yakimov, P., 2015. Tracking traffic signs in video

sequences based on a vehicle velocity [in Russian].

Computer optics, vol. 39(5), pp. 795-800.

Zhu, Z., Liang, D., Zhang, S., Huang, X., Li, B., Hu, S.,

2016. Traffic-Sign Detection and Classification in the

Wild. Proceedings of CVPR, pp. 2110-2118.

LeCun, Y., Sermanet, P., 2011. Traffic Sign Recognition

with Multi-Scale Convolutional Networks.

Proceedings of International Joint Conference on

Neural Networks (IJCNN'11).

Yakimov, P., 2013. Preprocessing of digital images in

systems of location and recognition of road signs [in

Russian]. Computer optics, vol. 37 (3), pp. 401-405.

M. Abadi, A. Agarwal, P. Barham, E. Brevdo, Z. Chen, C.

Citro, G. S. Corrado, A. Davis, J. Dean, M. Devin, S.

Ghemawat, I. J. Goodfellow, A. Harp, G. Irving, M.

Isard, Y. Jia, R. Jozefowicz, L. Kaiser, ´ M. Kudlur, J.

Levenberg, D. Mane, R. Monga, S. Moore, D. G.

Murray, C. Olah, M. Schuster, J. Shlens, B. Steiner, I.

Sutskever, K. Talwar, P. A. Tucker, V. Vanhoucke, V.

Vasudevan, F. B. Viegas, O. Vinyals, P. Warden, M.

Watten- ´ berg, M. Wicke, Y. Yu, and X. Zheng.

TensorFlow: Large-scale machine learning on

heterogeneous distributed systems. arXiv preprint,

1603.04467, 2016. arxiv.org/abs/1603.04467.

Software available from tensorflow.org.

Mathias, M., Timofte, R., Benenson, R., Gool, L., 2013.

Traffic sign recognition - how far are we from the

SIGMAP 2017 - 14th International Conference on Signal Processing and Multimedia Applications

solution? Proceedings of IEEE International Joint

Conference on Neural Networks.pp. 1-8.

Aghdam, H., Heravi, E., Puig, D., 2016, A practical

approach for detection and classification of traffic signs

using Convolutional Neural Networks, Robotics and

Autonomous Systems, Vol. 84, pp. 97-112.

A Method for Trafﬁc Sign Recognition with CNN using GPU
