A Review of PROFIBUS Protocol Vulnerabilities

Considerations for Implementing Authentication and Authorization Controls

Venesa Watson

1,2

, Xinxin Lou

1,3

and Yuan Gao

1,4

AREVA GmbH, Erlangen, Germany

Faculty of Science and Engineering, University of Siegen, Siegen, Germany

Department of Computer Networks and Distributed Systems, Bielefeld University, Bielefeld, Germany

Department of Computer Science, Otto-von-Guericke University, Magdeburg, Germany

Keywords: PROFIBUS, Industrial Networks, Security, OPC UA, Defense-In-Depth.

Abstract: PROFIBUS is a standard for fieldbus communication, used in industrial networks to support real-time

command and control. Similar to network protocols developed then, availability is the security objective

prioritized in the PROFIBUS design. Confidentiality and integrity were of lesser importance, as industrial

protocols were not intended for public access. However, the publicized weaknesses in industrial technologies,

including the inclusion of publicly available technology and protocols in industrial networks, presents major

risks to industrial networks. This paper investigates the security risks of and provides suggested security

solutions for PROFIBUS. The objective is to review the PROFIBUS protocol, to establish the purposefulness

of the design and its suitability for the applications where it forms a core part of the infrastructure. The security

risks of this protocol are then assessed from successful and possible attacks, based on the vulnerabilities.

Proposed security solutions are reviewed and additional recommendations made concerning the use of OPC

UA, accompanied by an analysis of the cost of these solutions to the efficiency and safety of the PROFIBUS.

The findings of this paper indicate that a defense-in-depth approach is more feasible security solution, with

strong security controls being implemented at networks interconnecting with the PROFIBUS networks.

1 INTRODUCTION

Industrial networks, like those in nuclear power

plants, are isolated from public networks, such as the

Internet. These networks primarily use specialized

protocols that were not initially developed with

security features as a part of their design, as they were

not intended for public availability. In fact, industrial

networks comprised of trusted devices with little or

no connection with the public space. As such, cyber-

security was not seen as integral, but rather as a

compensating control. Today, whilst these

specialized protocols remain in use mostly in

industrial networks, information about their

vulnerabilities is now publicly available.

Furthermore, given that these networks are

increasingly targeted by persistent and sophisticated

attacks, the lack of security for these protocols

represents a major risk to industrial networks (Knapp

and Langill, 2015). This paper will focus on just one

industrial protocol, namely PROFIBUS.

PROFIBUS is an international open standard

defined by IEC 61158/IEC 61784-1, for fieldbus

communication in automation technology.

PROFIBUS has three specifications: PROFIBUS

Fieldbus Message Specification (FMS), for data

communication between PCs and Programmable

Logic Controllers (PLCs); PROFIBUS Fieldbus

Decentralized Peripherals (DP), connects distributed

field devices to a centralized controller, for example;

and PROFIBUS Process Automation (PA),

developed with technology that transports both power

and data over the same cable at a reduced level that

decreases the probability of explosions, in hazard-

prone areas (Acromag Incorporate, 2002, and

Siemens, 2010). Per ISO 7498, PROFIBUS is

oriented to the OSI model (Table 1) (Applied Tech

Systems, 2016). At the physical layer, RS485 is a

shielded twisted pair (STP) copper cable, with special

advantage for communication over long distances and

for use in noisy environments. Fiber-Optic cable

offers similar advantages, but is recommended for

areas with high EMI. Manchester Bus Powered

444

Watson, V., Lou, X. and Gao, Y.

A Review of PROFIBUS Protocol Vulnerabilities - Considerations for Implementing Authentication and Authorization Controls.

DOI: 10.5220/0006426504440449

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 444-449

ISBN: 978-989-758-259-2

(MBP) technology is made especially for use in

hazardous areas. Layer 2 is referred to as the Fieldbus

Data Link (FDL) layer. Here, the medium access

control (MAC) mechanism is defined for fieldbus,

and the master-slave and token-passing principles are

combined for communication between stations

(masters and slaves). Token-passing coordinates the

communication among the masters. The token is

passed in ascending order according to the station

address, and the master in possession of the token is

authorized to transmit to any other station. The

stations communicate using telegrams, which can

have a maximum size of 249 bytes (Figure 1) (Felser,

2013). At the application layer, three messaging

protocols are defined for PROFIBUS DP: DP-V0 for

cyclic exchange of data and diagnosis; DP-V1 for

acyclic data exchange and alarm handling; and DP-

V2 for isochronous mode and data exchange

broadcast (slave to slave communication) (Siemens,

2010).

The PROFIBUS protocol stack and the format of

the telegrams demonstrate the lack of confidentiality

and integrity checks on this protocol. There are no

controls for authentication or authorization defined at

any layer of its OSI model, and the telegrams are

transmitted in clear-text. These features provide a

possible attack path in industrial networks, where

PROFIBUS is used.

This paper is structured in the following way:

Section 2 briefly looks at the features of PROFIBUS

that make it suitable for use in the industrial setting,

and at possible exploits. Section 3 discusses proposed

security controls to address the PROFIBUS

vulnerabilities, and highlights considerations for the

feasibility of implementing these solutions. The

conclusion provides an overview of the PROFIBUS

security vulnerabilities and possible security controls,

and ideas for further research.

Table 1: The OSI Model for the PROFIBUS Protocol

(Applied Tech Systems, 2016).

User Program Application profiles

Application DP-V0; DP-V1; DP-V2

Presentation

NOT USED

Session

Transport

Network

Data link Master-Slave; Token-Passing

Physical RS485; Fiber-Optic; MBP

OSI Model PROFIBUS OSI Model

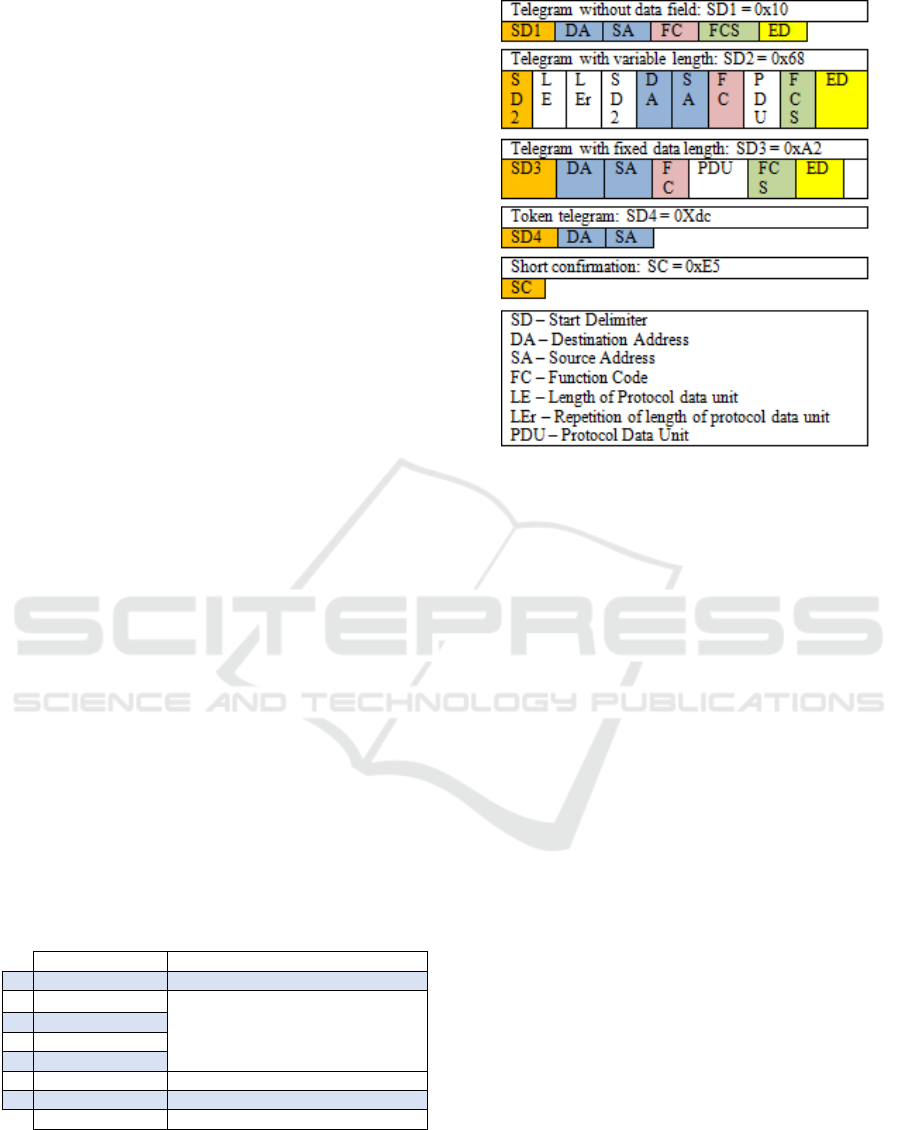

Figure 1: PROFIBUS Telegram Formats (Felser, 2013).

2 PROFIBUS FEATURES AND

VULNERABILITIES

PROFIBUS stands out from other fieldbus systems

because it offers an extraordinary breadth of

applications (Profibus International 2013).

PROFIBUS can be used for fast and cost-effective

production in a wide area of applications – such as

factory automation, process automation and building

automation. As an open standard, PROFIBUS is

compatible with a wide range of components from

different manufacturers. This protocol boasts further

advantageous features, which include network

components suitable for hazardous industrial

environments; high security of investment, as

existing networks can be extended without any

adverse impacts; and high levels of operational

reliability and plant availability, due to different

diagnostics options. And whilst it is mainly used at

the field level of an industrial network architecture,

PROFIBUS can also be used at the control level.

PROFIBUS flexible, durable and safety-oriented,

which contributes to its success and wide use.

However, the security holes in PROFIBUS are of

concern. Lack of authorization and authentication

control suggests that a rogue device can be connected

to and communicate on PROFIBUS, gaining access

to the clear-text telegrams.

In an attack tree analysis of an industrial network

segment that has a PROFIBUS backbone, a

connected controller is considered as a prime target,

A Review of PROFIBUS Protocol Vulnerabilities - Considerations for Implementing Authentication and Authorization Controls

445

as it is a device that can issue commands to disrupt

the functioning of the plant. Typical attack goals

include: gain access to the controller (master),

disable, write data to and/compromise master. With

access to the master, an attacker can also gain access

to slaves, to achieve goals as above, in addition to

reading data from the slave or programming the slave

(Bryes et al., 2004). Access to a controller allows an

attacker to monitor the network communication, map

the network topology and spoof and/or capture,

interpret and use the commands observed. Once an

attacker achieves network access, sniffing the

network is a relatively easier task, especially where

there is no confidentiality control in place. Such a

network attack is possible through PROFIBUS, as it

lacks authentication and authorization controls to

verify connected masters, to validate the

communication and to restrict communication to

legitimate components. The infamous Stuxnet worm

is an example of an attack that exploited these

vulnerabilities. Stuxnet is a sophisticated malware

that was injected into the SCADA system at a

uranium enrichment facility in Iran. This worm

compromised PLCs, and whilst operating as a logic

bomb, monitored the clear-text communication on a

PROFIBUS DP network, waiting for specific data

before executing its payload (Knapp and Langill,

2015, and Abouzakhar, 2013). With authentication

and authorization controls in place on the PROFIBUS

network, it is possible to assume that this attack

would not have been successful or as successful.

3 CONSIDERATIONS FOR

PROFIBUS SECURTIY

Authorization and authentication controls are used to

ensure that rights and privileges for access,

modification and creation are given to the approved

individual or system, to maintain confidentiality and

integrity. Cryptography is the most appropriate

solution, and possibly the only real solution for

authenticating network devices and for verifying

communication integrity. However, cryptographic

controls come at a cost to efficiency. Integrity

verification, encryption and decryption all require

additional processing time. This additional time is

unfavourable in industrial networks, where system

reaction time is critical due to the heavy reliance on

the information transmitted between masters and

slaves. This information is used to monitor and

control the environment, which is important to

maintaining safety - the protection of life and the

environment from harm and danger. As such, security

controls for integrity and confidentiality should not

affect availability, that is, the reaction time or real-

time responsiveness of the system.

The PROFIBUS MAC mechanism is based on the

Timed Token (TT) protocol, which specifies the

amount of time given to a master or slave to transmit

data. This impacts the bus cycle time (time taken for

the exchange of data between master and slaves or

between slaves, which influences the reaction time of

the connected components by between 2 to 20 percent

(Felser, 2013, Profibus International, 2009, and Tovar

and Vasques, 1999). Typically, the favourable

maximum PROFIBUS bus cycle time is less than

10ms, at the field level of an industrial network. Other

factors that contribute to system reaction time

include: transmission time, protocol processing time,

and access and queuing delays (Profibus

International, 2009, and Tovar and Vasques, 1999).

Emphasis is placed on the real-time requirement at

the field level. Hence, the processing time of a

cryptographic solution is an important factor in

determining the most suitable option for

implementation here. Additional cryptographic

concerns include the need for additional computing

resources, the complexity the control introduces, and

maintaining system reliability.

In securing PROFIBUS, two options are

presented: using existing secure protocols,

particularly those for Ethernet technology, or

integrating authentication controls on PROFIBUS

itself.

3.1 Secure PROFIBUS with Ethernet

Technology

In Treytl et al., (2004), the authors propose the use of

IPSec to support confidentiality and integrity on the

PROFIBUS network. However, their work

considered IP-based fieldbus technology, which has

the advantage of deploying existing, compatible

encryption protocols. An example of this is

PROFINET, which is a category of industrial

Ethernet that integrates the PROFIBUS technology

with Ethernet technology (Siemens, 2017a). IPSec

has two security mechanisms: Authentication Header

(AH) and Encapsulating Security Payload (ESP),

which support authentication, confidentiality (ESP

only) and integrity. IPsec also has two data transfer

modes: transport mode, where only the payload of the

packet is encrypted; and tunnel mode, where the

entire packet is encrypted. These features highlight

the flexibility and suitability of IPSec in fulfilling the

necessary security needs of PROFIBUS. AH and ESP

SECRYPT 2017 - 14th International Conference on Security and Cryptography

446

can be used on their own or can be combined. AH

provides integrity of the immutable elements of the IP

header, but whilst ESP also provides authenticity, this

is does not include the outer IP header, hence why a

combination would be desirable. However, in

addition to the overhead in encrypting and decrypting

network packets, using a combination of AH and ESP

would exponentially increase the required SAs. In

that, let n be the number of fieldbus nodes, n squared

represents the number of SAs required (Treytl et al.,

2004). It is suggested that this exponential resource

requirements could be alleviated by having masters

provide SA functions for all connected slaves.

The proposals given in Treytl et al., (2004) and

Udayakumar and Ananthi (2015) suggest the use of a

symmetric key algorithm to reduce the processing

time and complexity. DES was identified as the

selected algorithm, which has a key size of 56-bits.

However, DES is known to be weak due to this short

key size, and can be broken in less than a week.

3.2 Secure Fieldbus Architecture

The Open Connectivity Unified Architecture (OPC

UA) is a platform-independent standard that provides

interoperability for devices from different

manufacturers, allowing them to communicate by

sending Messages between OPC UA clients and

Servers. In part 2 of this multipart standard, a security

model is defined, which aims to secure the

communication facilitated by OPC UA, to assure the

identity of Clients and Servers and to resists attacks

(IEC, 2016a). According to its scope, OPC UA is

applicable to manufacturing software used in

industrial applications, such as Control Systems,

Enterprise Resource Planning, Manufacturing

Execution Systems and Field Devices.

OPC UA security concerns itself with the

following factors: the authentication of users, the

verifiability of claims of functionality, the

authentication of Clients and Servers, and the

integrity and confidentiality of their communications

(IEC, 2016a and 2016b). In a typical industrial

network, OPC UA servers and clients are placed in

the control zone, which is just above the field level,

where the PROFIBUS predominantly features

(Knapp and Langill, 2015). However, OPC UA

merely provides support for the implementation of

controls, and can be integrated at the other network

levels (IEC, 2016b). IEC (2015) outlines four security

policies defined for OPC UA:

• None – a suite of algorithms that does not provide

any security settings, for configurations with the

lowest security needs;

• Basic128Rsa15 – a suite of algorithms that uses

RSA15 as the Key-Wrap-algorithm and 128-bit

for encryption algorithms, for configurations with

the lowest security needs;

• Basic256 – a suite of algorithms that are for 256-

bit encryption algorithms, for configurations with

medium to high security needs; and

• Basic256Sha256– a suite of algorithms that are

for 256-bit encryption algorithms, for

configurations with high security needs.

The features of OPC UA that make it robust against

attacks that target communication data, are described

in part 5 (IEC, 2016a). Such attacks include message

flooding, eavesdropping, message spoofing, session

hijacking, rogue server and compromising user

credentials. By protecting against these and other

attacks, the OPC UA security mechanisms work to

secure application authentication, user authentication,

authorization, confidentiality, integrity, auditability

and availability. Furthermore, OPC UA provides the

additional resources and support for the use of

cryptographic controls, such as a key management

server and key exchange services, removing the

burden from the industrial network components. On

the surface, these features make OPC UA suitable for

securing PROFIBUS. However, the cryptographic

controls, as indicated by the above security policies,

are considered as resource- intensive. In fact, Post et

al., (2009) expresses concern about the

communication delay inflicted by encryption. This is

supported by the formula for estimating PROFIBUS

DP and PA bus cycle times (Figure 2) (Profibus

International, 2009). This formula indicates that the

bus cycle time increases with increasing transmission

rate and slaves. To maintain a bus cycle time of less

than 10ms, the transmission rate must remain at

1.5Mbits/s, whilst also observing the number of

slaves connected (Profibus International, 2009).

Therefore, the additional bits from the encryption key

size and cipher, as well as plans to expand the

network, must be considered when selecting an OPC

UA security policy, particularly for the field level.

For example, consider a network segment with a

PROFIBUS backbone that has its maximum slaves

connected, that is, 32 slaves. Using the formula in

figure 2, (with L

O = LI = 5 bytes and Tr = 1.5Mbits/s),

the bus cycle time is 9.1 ms. Adding to the telegram

overhead, the cipher bits and key size bits of a suitable

algorithm for the following OPC UA security

policies: Basic128Rsa15 (AES 128-bit cipher and

128-bit key length) and Basic256Sha256 (AES 128-

bit cipher and 256 bit key length), the respective bus

cycle times are 14.6ms and 17.3ms. For DES (64-bit

A Review of PROFIBUS Protocol Vulnerabilities - Considerations for Implementing Authentication and Authorization Controls

447

cipher and 56 bit key), the bus cycle time is 11.7ms.

These values indicate that these security policies at

the field level may not be favourable, as it concerns

the effect on system reaction time. To support these

controls whilst maintaining the required bus cycle

time, the formula suggests that Basic128Rsa15 can

facilitate up to 22 slaves (10ms), up to 18 slaves with

Basic256Sha256 (9.7ms), and 27 slaves with DES.

However, DES is too weak to be considered for

implementation. Discounting the number of

connected slaves, these controls are likely to have

negligible disadvantages at higher network levels,

such as at the control level and operations

management level, where bus cycle times are far

greater than 10ms.

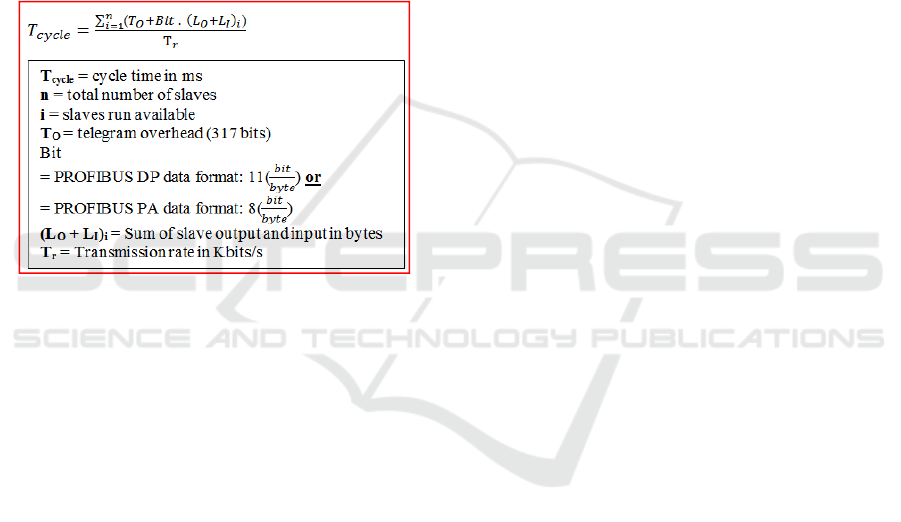

Figure 2: Formula for estimating PROFIBUS Dp and PA

bus cycle times (Profibus International, 2009).

IEC (2016a and 2015) acknowledges that the

system designers have final decision on the security

controls and the network level for implementation. As

such, following a defense-in-depth approach,

stronger controls can be implemented at the non-time-

critical levels of the industrial network, whilst using

secure, but lighter controls at the field level. This

proposition is also supported because physical

security at the field level is and will become

increasingly stringent. In addition, Post et al., (2009)

postulates that confidentiality is not necessary at the

field level, given that the events at this level are time

critical. Therefore, implementing stronger, more

resource-intensive authentication and authorization

controls above the field level, through OPC UA, is

recommended. The goal of this strategy would then

be to provide a layer of defense above the field level,

to supplement the stringent physical security controls

and reduce the probability of an attack at the field

level. In time however, OPC UA may provide

additional support for time-critical services, as there

are plans for extensions in the area of Time-Sensitive

Networks (TSN) for this standard (Zvie, 2017).

Assuming that cryptography will also be included in

the specifications to support time-critical networks,

consideration should be given to the optimization of

encryption, to reduce the overhead.

4 CONCLUSIONS

Developing and deploying a secure PROFIBUS is

possible, but requires thorough consideration and

testing, to maintain system availability, and by

extension, functional safety. Implementing

cryptographic controls to address the confidentiality

and integrity gaps in PROFIBUS, particularly at the

field level, suggests unfavourable consequences for

system reaction time. Nevertheless, OPC UA presents

an option for a defense-in-depth approach to secure

the PROFIBUS network by implementing strong

security at the network levels above the field level.

Other research suggests that authorization and

authentication controls be implemented at the field

level network, which is not as feasible, due to

processing overhead and additional resource

requirements. These security controls are best

implemented above the field level, where the

identified drawbacks are negligible. By leveraging

authentication and authorization controls, of differing

strengths, at the higher level, this approach should

supplement the physical security measures

implemented at the field level.

Furthermore, the development of a thorough

attack tree analysis for PROFIBUS is required to

assist in determining all possible attack goals and

their attack paths, and in measuring the risks, impact

and probability, so that appropriate measures are

implemented to thwart these attacks. Additionally,

test cases are necessary to simulate and observe

cryptography in action on a PROFIBUS network, to

determine the suitability and the ease of

implementation of the chosen cryptographic

algorithms. Further suggestions for future research,

include a study to determine if and where controls

(particularly, data encryption) for preserving

confidentiality are necessary when other controls are

in place to guarantee authentication and integrity, for

time-sensitive networks; and for methods for

accelerating or optimizing cryptographic processes.

Also to be considered is that specification and

enforcement of detailed activity-related security

controls, like limited range modifications of set-

points in automation equipment by predefined end-

users, could be the next security defense-in-depth

level on secure application level network

communication.

SECRYPT 2017 - 14th International Conference on Security and Cryptography

448

ACKNOWLEDGEMENTS

Some of the addressed cybersecurity related topics

are being elaborated as part of AREVA GmbH’s

participation in the “SMARTEST” R&D (2015-

2018) with German University partners, partially

funded by German Ministry BMWi.

REFERENCES

Abouzakhar, N., 2013, ‘Critical Infrastructure

Cybersecurity: A Review of Recent Threats and

Violations’, in R. Kuusisto and E. Kurkinen (eds.),

Proceedings of the 12th European Conference on

Information Warfare and Security, Jyväskylä, Finland,

July 11-12, 2013. Academic Conferences and

Publishing International Limited, UK, 1-10.

Acromag Incorporated, 2002, Introduction to Profibus DP,

viewed 26 January 2017, from

http://www.diit.unict.it/users/scava/dispense/II/Profibu

s.pdf.

Applied Tech Systems, 2016, PROFIBUS Technology,

viewed on 26 January 2017, from: http://www.ats-

global.com/Profibus-technology_230_nlnl.

Bryes, E., Franz, M. & Miller, D., 2004, ‘The Use of Attack

Trees in Assessing Vulnerabilities in SCADA

Systems’, International Infrastructure Security

Survivability Workshop (IISW), viewed on 13

December 2016, from https://www.researchgate.net/

publication/228952316_The_use_of_attack_trees_in_a

ssessing_vulnerabilities_in_SCADA_systems.

Felser, M., 2013, PROFIBUS Manual: A collection of

Information Explaining PROFIBUS Networks, 1.2.3

edn, Profibus.felser.ch, viewed 26 January 2017, from

http://Profibus.felser.ch/en/

International Electrotechnical Commission (IEC), 2015.

IEC TR 62541-7 Ed. 2.0. International Standard OPC

Unified Architecture – Part 7: Profiles. Switzerland:

IEC.

International Electrotechnical Commission (IEC), 2016a.

IEC TR 62541-1 Ed. 2.0. Technical Report OPC

Unified Architecture – Part 1: Overview and concepts.

Switzerland: IEC.

International Electrotechnical Commission (IEC), 2016b.

IEC TR 62541-2 Ed. 2.0. Technical Report OPC

Unified Architecture – Part 2: Security Model.

Switzerland: IEC.

Knapp, E.D. & Langill, J.T., 2015, Industrial Network

Security Securing Critical Infrastructure Networks for

Smart Grid, SCADA, and Other Industrial Control

Systems, 2nd edn., Syngress (Elsevier), Massachusetts,

USA.

Post, O., Seppälä, J. & Koivisto, H., 2009, ‘The

Performance of OPC-UA Security Model at Field

Device Level’, in J. Ferrier, J. Filipe and J. Cetto (eds.),

Proceedings of the 6th International Conference on

Informatics in Control, Automation and Robotic,

Intelligent Control Systems and Optimization, Milan,

Italy, July 2-5, 2009. Scitepress, Portugal, 337-341.

Profibus International, 2009, PROFIBUS Installation

Guideline for Planning Version 1.0, viewed May 16,

2017, from http://www.profibus.com/uploads/media/

PROFIBUS_Planning_8012_V10_Aug09.pdf.

Profibus International, 2013, PROFIBUS and Integrated

Safety architectures in Ex areas, viewed January 26,

2017, from http://www.Profibus.com/newsroom/

detail-view/article/Profibus-in-ex-area/

Siemens, 2010, Network solutions for PROFIBUS

according to IEC 61158/61784, viewed January 26,

2017, from https://www.industry.siemens.nl/automati

on/nl/nl/industriele-communicatie/Profibus/Document

s/Network_solutions_for_PROFIBUS_en.pdf.

Siemens, 2017a, From PROFIBUS to PROFINET, viewed

January 26, 2017, from http://w3.siemens.com/mcms/

automation/en/industrial-communications/profinet/Pro

fibus/pages/Profibus.aspx.

Tovar, E. & Vasques, F., 1999, ‘Real-time Fieldbus

Communications Using Profibus Networks’

IEEE

transactions on Industrial Electronics. 46 (6), 1241-

1251.

Treytl, A., Sauter, T., & Schwaiger, C., 2004, ‘Security

Measures for Industrial Fieldbus Systems – State of the

Art Solutions for IP-based Approaches’, in T. Sauter

(ed.), Proceedings of the IEEE International Workshop

on Factory Communication Systems, Vienna, Austria,

September 22-24, 2004, IEEE Press, USA, 201-209.

Udayakumar, S. & Ananthi, S., 2015, ‘Fieldbus Protocol for

Secured Wireless Sensor Network Communication in

Process Automation’, International Journal of

Emerging Trends in Electrical and Electronics

(IJETEE) 11(5), 92-96, viewed on January 26, 2017,

from www.ijetee.org/Docs/Volume%2011/Issue%205/

14.pdf.

Zvie, 2017, ‘Industrie 4.0 Plug-and-Produce for Adaptable

Factories: Example Use Case Definition, Models, and

Implementation’, unpublished.

A Review of PROFIBUS Protocol Vulnerabilities - Considerations for Implementing Authentication and Authorization Controls

449
