Software Engineering and Genomics:

The Two Sides of the Same Coin?

José Fabián Reyes Román

1,2

, Ana León Palacio

and Óscar Pastor López

Research Center on Software Production Methods (PROS), Universitat Politècnica de València, Valencia, Spain

Department of Engineering Sciences, Universidad Central del Este (UCE), San Pedro de Macorís, Dominican Republic

Keywords: Precision Medicine, Conceptual Modeling, Software Engineering, Genomics, CMHG.

Abstract: Programs are historically the basic notion in Software Engineering (SE) that represent the final artefact to be

executed in a machine. These programs have been created by humans, using a silicon-based code, whose

final components use a binary code represented by 0s and 1s. If we look at life as a program with a DNA-

based genetic code and a final representation that uses four essential units (A, C, G and T), one challenging

question emerges. Can we establish a correspondence between life -from a genomic perspective- and

programs -from a Software Engineering perspective-? This paper assumes a positive answer to this question

and goes further into this mapping by proposing how conceptual models (CM) are not only required to

understand life but to manage the huge amount of data generated in the genomic domain day after day. The

main contributions focus on i) showing how to design such a Conceptual Model of the Human Genome

(CMHG), analysing how it evolves as knowledge accumulates on the domain, and ii) how these ideas can be

applied in an advanced, genome-based, precision medicine, under the assumption that this medicine will

only reach our health systems if these sound SE practices are properly applied in the genomic domain.

1 INTRODUCTION

Understanding life as we know it on our planet can

probably be considered the biggest challenge of our

century. However, can Software Engineering (SE)

help us to achieve this? Answering this question

becomes a relevant issue that affects how modern

Precision Medicine (PM) can reach our society,

changing and improving medicine, as we historically

know it. As in our previous work, we try to answer

this question in this paper by looking at life from an

SE perspective. Our position is easy to explain:

humans build programs executed by a silicon-based

binary code. These programs are the written

representation of conceptual models (CM) (Olivé,

2007) that abstractly represent a relevant part of the

real work we are interested in. The upper part of

Figure 1 depicts this process, following a pure SE

perspective.

It is interesting that a similar metaphor can be

applied to achieve the desired clear understanding of

life. In this case, programs are living beings whose

genetic code includes the instructions that explain

life, as we perceive it. Instead of having the SE

materialization of a binary executable code, in this

case we have what we could call a quaternary

executable code, based on four letters (A, C, G, T)

that represent the four nucleotides that form the

basic components of this “carbon-based”

executable. (See the lower part of Figure 1).

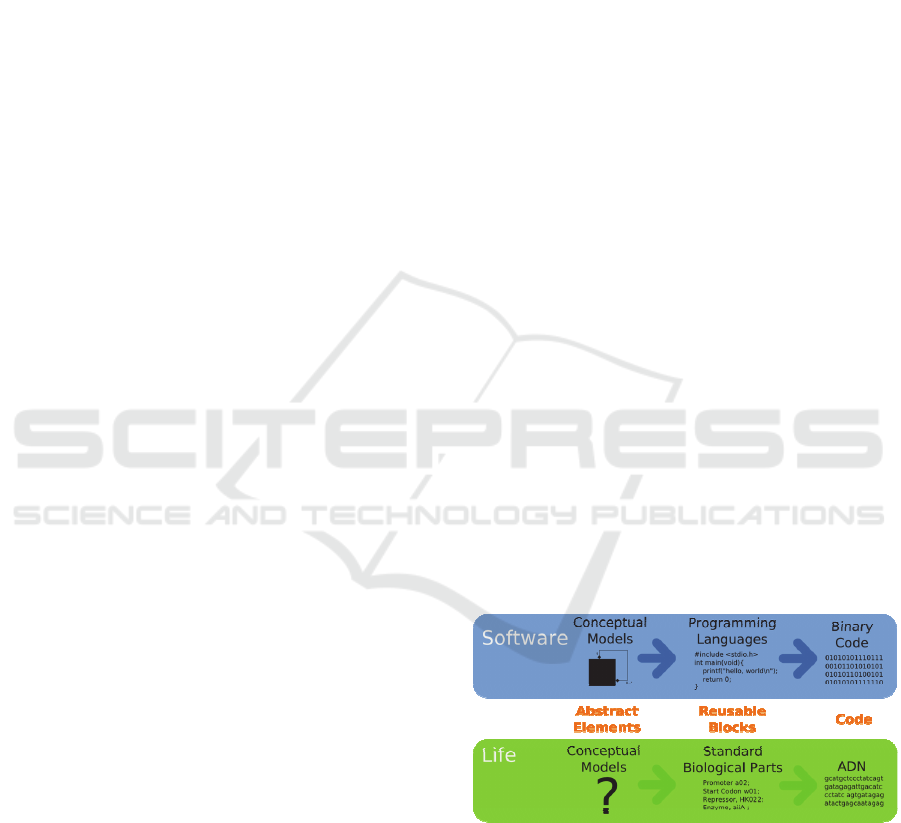

Figure 1: From conceptual modes to code: a SE-

perspective and a life understanding perspective.

If we want to develop this idea, one immediate

question that arises is: What is then the language of

life that would allow us to understand and manage

life as we understand and manage SE-based

programs? We are perfectly aware of the magnitude

of the challenge that arises from this question. But at

the same time, we are aware that the race to face this

Román, J., Palacio, A. and López, Ó.

Software Engineering and Genomics: The Two Sides of the Same Coin?.

DOI: 10.5220/0006368203010307

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 301-307

ISBN: 978-989-758-250-9

301

challenge has not only started but is proceeding at

full speed.

Although DNA is the basis of all life as we know

it on Earth, we focus here on the human genome,

where rapid progress is being made especially in the

context of PM. It is in this context that we want to

focus our work, and where we want to report the

experience accumulated in the last years in how

essential it is to have a Conceptual Model of the

Human Genome (CMHG) for structuring the huge

amount of data and knowledge that day after day is

generated in the genomic domain.

What we want to indicate with the selected title

of this paper is that we can draw a parallel between

SE and genomics, by considering live beings a

particular kind of programs whose (genomic) code is

started to be known, but whose CM are still to be

discovered. In our work, we are not simply applying

one SE technique (conceptual modeling) to a

complex domain (human genomics). We go much

further: what we want to show is how genomics and

SE can share a same picture (as Figure 1 represents),

and particularly, how genomics can benefit from SE

by applying conceptual modeling to determine those

relevant data that life represents in order to manage

those data accordingly, with especial emphasis in the

health domain.

Following this argument, the general

characteristics of PM are introduced in Section 2.

Next, how a CMHG is introduced as the basis of any

IS intended to manage genome data. The final

section contains our conclusions and future work.

2 BACKGROUND: PRECISION

MEDICINE (PM)

The social context of our work is PM, an emerging

approach for disease treatment and prevention

intended to change what we could refer to as

“historical medicine practices”. It takes into

account the variability in genes, environment, and

lifestyle of each person to provide individualized

treatments and disease prevention (Aguilar, 2015).

PM is a way of treating the patient which allows

doctors to identify an illness and select treatments

that are more likely to help patients according to a

genetic concept of the disease suffered by a given

patient (also called “Personalized Medicine”)

(Instituto Nacional del Cáncer, 2015).

As shown in Figure 2, this approach is based on

detailed knowledge of the genomic domain, and on

the information derived from the large amount of

data generated in recent years, which is in constant

growth as research is providing more and more

information every day.

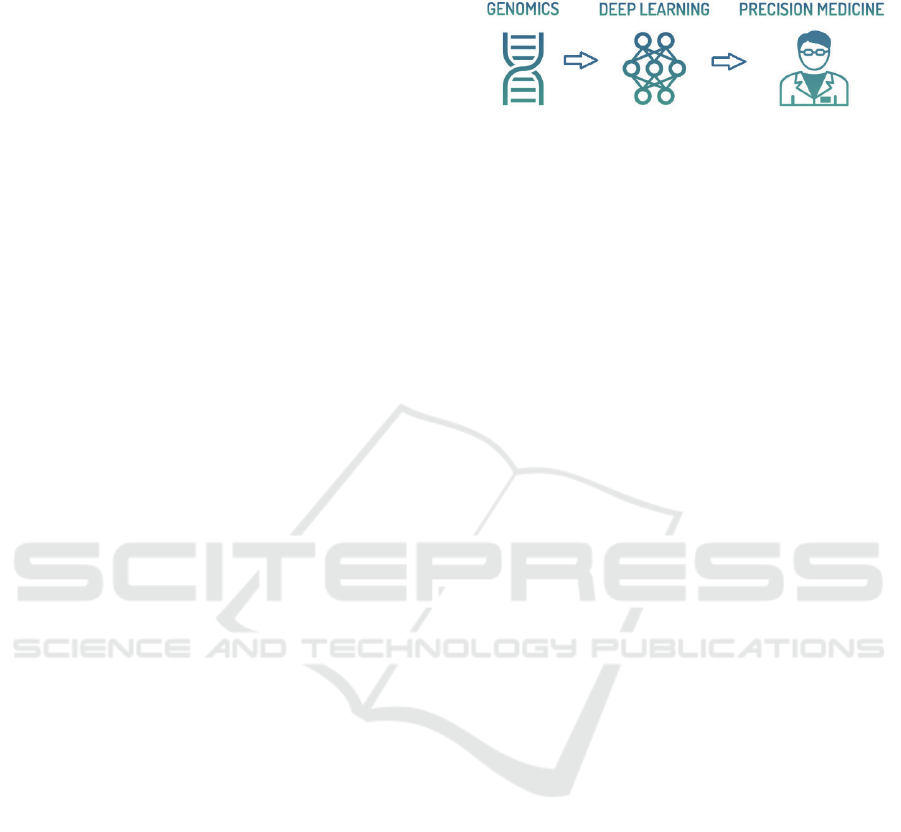

Figure 2: From Genomics to Precision Medicine.

In practical terms, Fowler et. al. describes the

advances in genomics that will provide information

about diseases, explaining which people are most

likely to suffer this diseases, and how to apply a

more successful treatment for each individual

(Jiménez, 2014). For example, although there are

many causes of lung cancer, only people who have a

mutation in the gene “EGFR” respond to treatment

with tyrosine kinase inhibitors (Paez et al., 2004).

Even when the cause of a disease is known, different

genetic variants can affect treatment efficacy by

altering the way in which drugs are metabolized or

by increasing the likelihood of adverse events

(Aronson & Rehm, 2015). Another advantage of PM

is that it can combine epidemiology, clinical,

genomics and personal preferences in a bold

revolution to prevent and treat disease.

Research on PM can help to improve survival

rates in diseases like cancer, or could find new

treatment options for rare diseases for which a

specific treatment is not available. Prevention also

has an important impact not only on avoiding the

development of disease, but also on reducing

medical costs. To achieve these goals (prevention,

treatment, knowledge) the different technologies

from different areas must be combined. After the

introduction of NGS-technologies, DNA

sequenciation has become cheaper and accessible to

many research centers. Consequently, the amount of

information has grown considerably and Big Data

technologies, Information Systems (IS) and

Conceptual Modeling play a key role in managing it.

Having a well-structured knowledge

representation based on high-quality genomic

information is crucial to ensuring the success of PM.

When we face a problem where a lot of data are

accumulated, and the information is to be inferred by

discovering those valid patterns that have a precise

meaning, conceptual modeling becomes the essential

approach to structure and manage fruitfully all this

data. Nevertheless, proper inferences cannot be

drawn from low-quality data. Errors in the

knowledge base will lead to invalid conclusions, so

Conceptual Modeling and Data Quality Assessment

(DQA) must evolve together (León et al., 2016). As

we said before, if we want to understand the

complete and diverse set of information related to

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

302

the human genome and interpret it correctly, the first

requirement is a precise CM able to identify and

represent precisely all the relevant information in

this particular domain. It is surprising to realize how

far conceptual modeling is in what we could call

conventional Bioinformatics practice. When we look

at genome data platforms, we usually find low-level,

solution space-oriented answers where the

conceptual data perspective is mostly ignored. This

creates strong interoperability problems that are

especially serious in a domain with a huge amount

of diverse data sources. This is why our main

contribution in this context is to propose a simple,

holistic conceptual view of genome data through the

CMHG that we introduce next.

3 CONCEPTUAL MODEL OF

THE HUMAN GENOME

It is widely accepted that applying CM facilitates the

understanding of complex domains (e.g., genomics).

In our case, we used this approach to define a model

representing the characteristics and behavior of the

human genome (Ram & Wei, 2004).

One of the essential benefits of CM is that it

accurately represents the relevant concepts of the

analyzed domain. After performing an initial

analysis of the problem domain, the next step is to

design a domain representation in the form of a

CMHG. Our CMHG evolved with the new

discoveries made in the field of genomics (Reyes,

2016) in order to improve the processing of data to

ensure effective PM.

We can thus see how CM gives positive support

to the knowledge on which PM is based. In a case

study, we used this approach to define the structure

of the human genome. It is important to highlight

that such a model has to evolve over the years due to

the changes and developments that continually occur

in this domain. Indeed, the advantage of CM for

representing this domain is that it eases the

integration of new knowledge into the model.

Representing conceptually genome data is a

complex task that requires a strong exercise of data

abstraction to select the relevant data that must be

included in the target CM. A set of meeting with

geneticists allowed us to develop a first version of

such a CM, that shown soon to be very dynamic in

terms of the selected representation for the basic

genomic concepts. This is why we find significant to

discuss the basics of that CM evolution that was the

consequence of acquiring a more in-depth

knowledge of the domain.

Below we describe the evolution of our initial

version of the CMHG v1 up to the current version

(CMHG v2), with the purpose of showing how

significant such a CM-based discussion is in order to

reach a precise understanding of the domain.

3.1 An Initial Conceptual Model for

the Human Genome: CMHG v1

In this first representation, important decisions are

taken to adequately represent the concepts that are

basic to understanding the domain. The first

important decision is how to structure the

representation of the analyzed domain. Considering

the complexity of the information contained in the

human genome, we decided to divide CM

representation into three main parts, each one related

to a specific domain view:

 The Gene-Mutation view: is focused on the

gene structure, together with its possible,

relevant variations and the determination of

the data sources.

 The Genome view: is focused on how we go

from the whole genome to its relevant

component (chromosomes) and the type of

DNA segments they are made of.

 The Transcription view: is centered on the

actors that participate in the essential

processes of transcription and translation, in

order to identify the components that guide the

process of going from the DNA-based

genotype to the protein synthesis, which is

related to the phenotype (external gene

manifestation).

Our first version of the CMHG is a combination

of these three views. For more information, see the

full view and description in (Reyes et al., 2016).

3.2 From v1 to v2: CMHG v2

Once our CMHG v1 was considered finished, we

started to think about its ability to deal with the real

data that are managed in the domain. While doing

this, we identified some questions to address:

 We were not sure about the suitability of

mixing a Genome view related to the storage

of individual genomes –the so-called Genome

view in v1-, with a more theoretical, structural

Genomic view related to the Genome

configuration and characterization as a whole

–the so-called Gene-Mutation and

Transcription view-.

 Concerning the core concept of gene, it is not

always feasible to describe DNA structure in

terms of genes as molecular basic notions. We

concluded that the safest structural description

Software Engineering and Genomics: The Two Sides of the Same Coin?

303

should be based on chromosome elements as

the basic building DNA element.

 Incorporating more detailed relevant

information in the CMHG is a need, especially

when basic concepts are involved in the

discussion. For instance, the concept of SNPs.

 We detected the need for extending the v1

with more significant genome-related

information. To go from genotype-to-

phenotype in a complete -sound way-, we

needed the specification of the pathway

description perspective.

The development of these four ideas led us to the

introduction of a new CM that we explain in detail

below (called CMHG v2) (Pastor et. al., 2016).

3.2.1 Removing Individual Genomes Data

Bank

Reviewing the knowledge represented in our v1, our

first idea was that the generic genome template –

which is the precise human genome structure and

how to characterize it- and the genome data bank

perspective –how to store individual genomes that

are going to be analysed- was mixed. The gene-

mutation and transcription views on the one hand,

and the genome view on the other appear together in

the CM, and these two concerns should be separated.

We concluded that this is not the best way of

representing the domain knowledge, as the generic

properties of the genome and the individual samples

should be clearly distinguished. In this way, to

develop a software platform to generate a genome

clinical report would be much easier, by separating

the individual sample of a patient from the genome

template taken as the reference to find (i.e.,

significant variations in terms of disease

implications). The v2 thus omits the so-called

Genome view, focusing on a more precise

description of a generic genome template intended to

collect all the relevant genome information. We

decided to organize it into five main parts (views):

 Structural: basic elements of the DNA

sequence.

 Transcription: components involved in going

from DNA to the diversity of RNAs.

 Variation: describes the changes in the

sequence of reference.

 Pathways: intended to enrich the CM with

information about metabolic pathways to join

genome components that participate in

pathways with phenotype expressions.

 Bibliography references: to assess the source

of any information in order to pinpoint the

data source.

3.2.1 The Chromosome Elements As

Conceptual Modeling Units

The use of chromosome elements as basic DNA

building elements had a direct influence on the way

in which variations and their DNA origin were

represented in the CM. In v1, the notion of allele

was represented as an explicit derived notion –

through the class Allelic Variant-. Additionally, all

the variations were related to genic segments, as it

was not possible to register variations whose source

were in other –non genic- genome parts. To

overcome this problem, our conceptual proposal for

the next version (v2) was to directly relate a

variation with a specific DNA chromosome position,

as this solution better represents the real genome

structure. The benefit of not having the variation

directly related to an Allelic Variant is twofold:

 Firstly, it allows the variation to be defined

with more precision and less dependence, as it

is associated with a unique genome sequence

just where the variation occurs. The variation

is not dependent on the Allelic Variant or on

the corresponding many-to-many association,

as occurred in v1. This relationship was

indeed something of a problem. For instance,

how do we determine that different variations

of a common allele are not incompatible?

 Secondly, the Allelic Variant concept is no

longer needed explicitly. As we have no

individual genomes in the model, the absence

of individual genomes eliminates the need for

managing Allelic Variants. As our knowledge

of the genomic domain increased, we

wondered if reference Allelic Variants do

really exist. This would mean that there is a

catalogue of well-determined variants whose

structure and behaviour should be perfectly

known. The introduction of this knowledge

into the model could be accomplished at any

time. But while a precise answer to this

question does not exist, we conclude that

omitting the Allelic Variant class provides a

clearer description, conceptually speaking.

In any case, it is possible to generate allele

instances using the appropriate combinations of

variations, because it can be seen as derived

information obtained by applying a set of selected

variations to the source sequence of reference. To

have instances of an Allelic Variant class involves

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

304

characterizing the specific set of variations that

“create” the considered allele. We argue that this v2

representation is more precise because the separation

of these conceptual concerns is made explicit, the

CM is in a –semantically-speaking- clearer state, and

it enables incorporating new knowledge, as

satisfactory answers to the open questions are

provided by the progress in the genome

understanding process. Considering that a set of

variations are identified as a semantic whole, an

allele would be the result of applying this specific

set of variations to the sequence of reference that

makes up a chromosome element as a DNA chain of

nucleotides. The representation of this allelic

knowledge is left out until the next version (CM).

3.2.3 Modeling SNPs

In the initial version, a highly relevant genome

concept such as the SNP (Single Nucleotide

Polymorphism) was not explicitly represented in our

conceptual definition. The specialization of different

variations accomplished in v2 is more precise and

distinguishes between two categories: the frequency

of the variation, and its known, precise or imprecise

description. Beyond this conceptual simplification, it

is important to take into account how SNPs are

stored in current, widely-used data sources (as

dbSNP (Bhagwat, 2001)). Looking at these current

representations, we performed a reverse conceptual

engineering exercise to include a set of classes in the

CMHG that represents this knowledge. We

discovered that an SNP is seen in this domain as a

potential set of variations in which one nucleotide

may appear changed by another. This change is

open, meaning that the notion of variation in this

case is that one position in the sequence of reference

may have different values according to the

population studied, and with a given frequency. This

is what we have included in v2, through the

specialization hierarchy introduced for SNPs. This

change leaded to a new discussion. Any precise

variation is modelled as an individual variation,

where the sequence of reference “suffers” a change.

However, the way in which SNPs are treated is

somewhat different: an SNP defines which

nucleotide is altered. It appears in the source

reference sequence (through the attribute “allele”

for the homozygous case, “allele1” and “allele2”

for the heterozygous case).

This representation preserves the way in which

SNP data appears in real genomic settings. But the

view of SNPs as a set of individual variations

suggests that a better representation would be to

model SNP as an aggregation of precise (indel)

variations. This change will better represent

conceptually what an SNP is, but the change has to

be carefully analysed because the data management

of current SNP data repositories should be properly

adapted to the new data representation.

3.2.4 Introduction of Pathways-related

Knowledge

One of the important innovations in v2 is the

extension of the CM with the integration of the

Pathways. Within the most important biological

pathways, we find three main types: (1) Metabolic:

these make possible the chemical reactions that

occur in the organism (i.e., the process of converting

food into energy). (2) Genetic regulation: these are

responsible for the regulation of genes (are

responsible for the generation of proteins, which are

required for each of the tasks of our body). (3)

Transmission of signals: these pathways enable the

signal to pass from outside to inside the cell and

vice-versa.

The pathways play a key role in advanced

genomic studies, and that is why their inclusion in

this version of the CM is necessary. In this version 2

includes the first of the three types of biological

pathways, “metabolic pathways”. These are a series

of chemical reactions leading an initial substrate to

one or more final products. The final product of a

metabolic pathway can be used in three different

forms: (1) to be used immediately, (2) to initiate a

new metabolic pathway, and (3) to be stored in the

cell. The metabolic pathway is represented in the

CM as a combination of events, represented by the

relationship between the concepts of "Pathway" and

"Event", which can be of two types. The first type is

a single atomic process, or in other words, a process

of the simplest type and not reliable enough to

decompose into smaller ones (represented in the CM

by the "Process" class). The second type is a

complex process consisting of a sequence of other

processes of complex or single type, represented in

the CM as "Pathways". The association between

Pathways and events represents the composition of a

pathway (provides information about other previous

events that form part of this metabolic pathway). To

know the order of the composition of the events in a

metabolic pathway, a reflexive relation is defined on

the "Event" class. The chemical substances that take

part in a process are represented in the CM by the

"Entity" class, which is related to the "Process" class

by the "Takes_part" class. This can happen in

different forms: (a) being the main chemical, (b) as a

Software Engineering and Genomics: The Two Sides of the Same Coin?

305

result of the process and (c) being a regulator of the

process two types (activator or inhibitor),

represented in the CM by the “Input”, “Output” and

"Regulator" classes respectively. Through our

CMHG we incorporate genomic data currently used

(e.g., dbSNP, Ensembl, etc.), achieving a conceptual

representation that meets the needs of the

bioinformatics domain. As we said earlier, this

evolution aims to improve the conceptual definition

of the human genome, and thus leave a conceptual

framework for further improvements.

4 CONCLUSIONS AND FUTURE

WORK

PM is going to change the way we have historically

understood medicine. The new practical context

associated with it requires a sound working

environment, and the correct application of the

adequate SE practices. We face this problem in this

work focusing on the need to design a holistic CM

intended to capture structurally all the relevant

domain information, together with the conceptual

complexity associated with the continuously

changing context of Precision Medicine.

We assume that conceptual modeling techniques

are the basic strategy to design and develop the

required sound and efficient Genomic Information

Systems (GeIS). Most of this work is devoted to

reporting how complicated keeping “alive” such a

CM is, especially due to the rapidly evolving

knowledge. The conceptual representation of basic

notions has been discussed, emphasizing that the

CM applied to this type of environment facilitates

the generation of systems that support decision-

making processes in the Bioinformatics domain. The

domain knowledge must always be prepared to

incorporate any required extension in order to meet

new needs. This is why the CM is not only useful

but also necessary. The initial version (v1) focused

on modeling "Genotyping" then sought to create a

semantic and content description. However, we had

to discuss multiple decisions before moving on to

our next CMHG v2. Version 2 is characterized by

the change in its central axis based on "genes" and

takes as its axis the concept of "Chromosome (and

chromosome elements)". This change was made to

simplify the schema and provide a more flexible

approach to extend it according to the domain

evolution. This new version gives us greater

precision, and allows us to manipulate data in a

more direct way. All these decisions have a direct

implication on how data are managed and

consequently on how data quality is to be assessed.

Future research work will focus to three main goals:

(1) the evolution of the CM by adding new genomic

concepts into the CM (i.e., haplotypes). (2) The

implementation of a complete ETL process, using

our CM. The ETL should be able to identify relevant

data for a particular phenotype, and to load them

conveniently in the DB that represents the

conceptual model. (3) develop a proper, unified

framework specifically for GeIS. The aim of this

framework is to complement the conceptual model

with a DQA procedure in order to ensure the quality

of the information represented and loaded by the

ETL. The achievement of these three goals will

provide the required support to the knowledge on

which PM is based.

ACKNOWLEDGEMENTS

This work has been supported by the MESCyT of the

Dominican Rep. and also has the support of

Generalitat Valenciana through project IDEO

(PROMETEOII/2014/039), the MICINN through

project DataME (ref: TIN2016-80811-P) and the

Research and Development Aid Program (PAID-01-

16) of the UPV under the FPI grant 2137.

REFERENCES

Aguilar, A. (2015). Medicina personalizada, medicina de

precisión, ¿cuán lejos estamos de la perfección?.

Carcinos 5 (2): 32-33.

Aronson, S., and Rehm, H. (2015). Building the

foundation for genomics in precision medicine. Nature

526 (7573): 336–342.

Jiménez, N. (2014). Una medicina nueva, más inteligente

y menos invasiva. FARMAESPAÑA INDUSTRIAL

pages 72-73.

León, A., Reyes R., J. F., Burriel, V., and Valverde, F.

(2016). Data Quality problems when integrating

genomic information. 3rd. QMMQ Workshop 2016

(Gifu, Japan), pages 173-182.

Instituto Nacional del Cáncer (2015). Medicina de

precisión en el tratamiento del cáncer. from

https://www.cancer.gov/espanol/cancer/tratamiento/tip

os/medicina-de-precision.

Olivé, A. (2007). Conceptual modeling of information

systems, Springer-Verlag. Berlin Heidelberg.

Paez, J.G., Jänne, P.A., Lee, J.C., Tracy, S., Greulich, H.,

Gabriel, S., Herman, P., Kaye, F.J., Lindeman, N.,

Boggon, T.J., and Naoki, K. (2004). EGFR mutations

in lung cancer: correlation with clinical response to

gefitinib therapy. Science 304(5676): 1497–1500

Pastor, O., Reyes J. F., and Valverde, F. (2016).

Conceptual Schema of the Human Genome (CSHG).

Tech. Rep. from http://hdl.handle.net/10251/67297.

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

306

Ram, S., and Wei, W. (2004). Modeling the semantics of

3D protein structures. ER2004, pages 696-708.

Reyes R., J. F., Pastor, O., Casamayor, J. C., and

Valverde, F. (2016). Applying Conceptual Modeling

to Better Understand the Human Genome. ER2016

(Gifu, Japan), pages 404-412.

Bhagwat, M. (2010). Searching NCBI's dbSNP database.

Current Protocols in Bioinformatics, pages 1-19.

Software Engineering and Genomics: The Two Sides of the Same Coin?

307
