Experimental Evaluation of Automatic Tests Cases in Data Analytics

Applications Loading Procedures

Igor Peterson Oliveira Santos

, Juli Kelle Góis Costa

, Methanias Colaço Júnior

1,2

and André Vinícius R. P. Nascimento

Postgraduate Program in Computer Science – PROCC, Federal University of Sergipe- UFS, São Cristóvão-SE, Brazil

Competitive Intelligence Research and Practice Group – NUPIC, Information Systems Departament – DSI,

Federal University of Sergipe - UFS, Itabaiana-SE, Brazil

Keywords: Business Intelligence, Data Warehouse, Software Testing, Data Quality, Experimental Software

Engineering, DbUnit.

Abstract: Business Intelligence (BI) relies on Data Warehouse (DW), a historical data repository designed to support

the decision making process. Despite the potential benefits of a DW, data quality issues prevent users from

realizing the benefits of a BI environment and Data Analytics. Problems related to data quality can arise in

any stage of the ETL (Extract, Transform and Load) process, especially in the loading phase. This Paper

presents an approach to automate the selection and execution of previously identified test cases for loading

procedures in BI environments based on DW. To verify and validate the approach, a unit tests framework

was developed. The overall goal is achieve efficiency improvement. The specific aim is reduce test effort

and, consequently, promote test activities in data warehousing process. A controlled experiment evaluation

in the industry carried out to investigate the adequacy of the proposed method against a generic framework

for DW procedures development. Constructed specifically for database application tests, DbUnit was the

generic framework chosen for the experiment by convenience of the programmers. The experiment's results

show that our approach clearly reduces test effort when compared with execution of test cases using a

generic framework.

1 INTRODUCTION

Information represents a crucial factor for

companies in improving processes and decision-

making. To assist the strategic areas of the

organizations business intelligence (BI)

environments presented as sets of technologies that

support the analysis of data and key performance

indicators (Colaço, 2004).

A central component of BI systems is a Data

Warehouse (DW), a central repository of historical

data. The idea behind this approach is to select,

integrate and organize data from the operational

systems and external sources, so they can be

accessed more efficiently and represent a single

view of enterprise data (Colaço, 2004; Kimball,

2008; Inmon, 2005).

Despite the potential benefits of a DW, data

quality issues prevent users from realizing the

benefits of a business intelligence environment.

Problems related to data quality can arise in any

stage of the ETL (Extract, Transform and Load)

process, especially in the loading phase. The main

causes that contribute to poor data quality in data

warehousing identified in (Ranjit and Kawaljeet,

2010).

The lack of availability of automated unit testing

facility in ETL tools is also appointed as cause for

the poor data quality (Ranjit and Kawaljeet,

2010).The low adoption of testing activities in DW

environment is credited to the differences between

the architecture of this environment and

architectures of the generic software systems. These

differences mean that the testing techniques used by

the latter need to be adjusted for a DW environment

(Deshpande, 2013; Elgamal et al., 2013).

Tests of ETL procedures considered the most

critical and complex test phase in DW environment

because it directly affects data quality (Golfarelli

and Rizzi, 2009). ETL procedures, more precisely

the loading routines, exhibit the same behavior as

database applications. They operate on initial

database state and generate a final consistent

304

Santos, I., Costa, J., Júnior, M. and Nascimento, A.

Experimental Evaluation of Automatic Tests Cases in Data Analytics Applications Loading Procedures.

DOI: 10.5220/0006337503040311

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 1, pages 304-311

ISBN: 978-989-758-247-9

database state. So, a black-box approach, which

combines the unit and application behavior of

loading procedures, is proposed. In this approach,

the concern is with the application interface, and not

with the internal behavior and program structure

(Myers, 2012; Pressman, 2011; Sommerville, 2011).

This approach to ETL routines, in some

environments, may be the only option, since the use

of ETL tools in DW environment produces codes or

packages whose internal structure is not known.

Previous studies was presented an

experimentation with the proposal of using a unit

testing framework (FTUnit) for loading routines in a

BI environment based on Data Warehouse (Santos et

al, 2016). The motivation for adopting this approach

meets the problems pointed out in (Singh and Singh,

2010), as the main causes for the poor quality of data

in a DW environment. Through a set of metadata

that defines the characteristics of the routines, the

framework selects test cases to applied, generates

the initial states of the database, executes the

routines, performs test cases, analyzes the final state

of the database and generates a report with the errors

encountered during the execution of each test case.

With good results, the use of the framework presents

important contributions to increasing the

productivity and quality in software engineering for

loading routines of DWs.

This paper aims to show the results of an

experiment to verify the best performance using the

test framework (FTUnit) against a generic database

application test framework (DbUnit, 2016). The

performance results of FTUnit already presented in

(Santos et al, 2016) shows the framework can

accelerate and improve the quality of ETL process

tests based on SQL. Now to compare with this study,

the same use case was used for run the test cases at

DbUnit in BI environment, once this framework had

been constructed specifically for database

application tests.

Thus, considering an industrial environment, this

work aims address the following research question:

“in a load context for DW, test cases perform better

using the test framework compared with a generic

framework?” To answer, our experimental

evaluation analyzed a real context. The results

showed numbers that indicate effort reduction using

the Testing framework.

The remainder of this paper is structured as

follows. Section 2 presents the test framework and

DbUnit. Section 3 describes the experiment

definition and planning. Section 4 presents the

operation of the experiment. Section 5 reports the

results of the experiment. In Section 6, related works

are presented. Finally, section 7 contains the

conclusion and future works.

2 TESTING FRAMEWORK AND

DBUNIT

2.1 Testing Framework

Unit testing framework (FTUnit) is used to perform

unit tests in loading procedures of a DW

environment. It has been developed in C#. It is

available for download at

<http://ftunit.wordpress.com/>. This tool resembles

a framework for performing procedures on test cases

in T-SQL (Transact-SQL) language. Therefore, it

can be expanded to other SQL languages.

This framework will be used to perform tests

under the black-box approach. The code and the

internal structure of the routines will not be

examined. The test cases previously implemented,

will be selected according to the characteristics of

the routine being tested. Each routine, in order to be

covered by the framework, must have a set of

metadata registered. This set of metadata was

defined from the schema presented in (Costa et al,

2015).

This paper will not detail the process of

implementing the framework for reasons of lack of

space.

2.2 DbUnit

DbUnit is a JUnit extension targeted at database-

driven projects that puts the database into a known

state between test runs. This can avoid the myriad of

problems that occurs when one test case corrupts the

database and causes subsequent tests to fail or

exacerbate the damage (DbUnit, 2016).

Created to implement database operations tests in

Java, DbUnit can work with large datasets when

used in streaming mode and verify data matches an

expected set of values. Using a XML based

mechanism for loading test data, DbUnit can export

existing test data into the XML format for

subsequent use in automated tests. This method

compares data, between database tables, flat files

and queries (DbUnit, 2016).

This paper will not detail the process of

implementing the test cases at DbUnit for reasons of

lack of space.

Experimental Evaluation of Automatic Tests Cases in Data Analytics Applications Loading Procedures

305

3 EXPERIMENT DEFINITION

AND PLANNING

Our work is presented here as an experimental

process. It follows the guidelines by Wohlin et al.

(2000). In this section, we start introducing the

experiment definition and planning. The following

sections, will direct to the experiment execution and

data analysis.

3.1 Goal definition

Our main goal is to evaluate the best performance

using the test framework against a generic database

application test framework in a Data Warehouse

environment.

The experiment will target developers of ETL

processes for BI environments with at least 2 years

of experience in the market and one year of

experience in ETL programming. The goal was

formalized using the GQM model proposed by

Basili and Weiss (Basili, 1984):

 Analyze the use of a DW unit testing

framework

 With the purpose of evaluate (against a

generic database application test framework)

 With respect to the efficiency of the process

of executing test cases

 From the point of view of developers and

decision support managers

 In the context of programmers in a BI

company.

3.2 Planning

3.2.1 Hypothesis Formulation

The research question for the experiment that needs

to be answered is this: “in a load context for DW,

test cases perform better using the test framework

compared with a generic framework?”

To evaluate this question, it will be used a

measure: Average time for Testing Framework and

Generic Framework. Having the purpose and

measures defined, it will be considered the

hypothesis:

0time

: the execution of test cases for the testing

framework and the generic framework has the same

efficiency. (μ

GenericFrameworkTime

= μ

TstingFrameworkTime

1time

: the execution of test cases for the testing

framework is more efficient than running on generic

framework. (μ

GenericFrameworkTime

> μ

TstingFrameworkTime

Figure 1: Dependent and Independent variables of the

experiment.

Formally, the hypothesis we are trying to reject

is H

0time

. To ascertain which of the hypotheses is

rejected, will be considered the dependent and

independent variables that are in Figure 1.

3.2.2 Independent Variables

Next, the independent variables of the experiment

are described.

Description of Test Cases Used in the

Experiment: The loading routines for the DW

environment are quite discussed in (Colaço, 2004;

Kimball, 2002; Kimball, 2004; Kimball, 2008).

Alternative approaches to the loading of dimensions

can be found in (Santos, 2011). Algorithms for

loading routines for the various types of dimensions

can be found in (Santos et al, 2012). Test Cases

categories for ETL routines are pointed in (Elgamal

et al., 2013; Cooper and Arbuckle, 2002). This

material, together with the extensive experience of

the authors in DW projects in the public and private

sectors, provided the basis for the elaboration of

categories and test cases to be considered by the

framework. The following categories are

contemplated by the framework: a) Unit tests and

relationship; b) Number of records between source

and destination; c) Transformations between source

and destination; d) Processing of incorrect or

rejected data; e) Null values processing; f) Behavior

Type 1 and Type 2 for dimensions attributes; g)

Hybrid approaches for the treatment of historical

dimensions.

Description of the Use Case Used in the

Experiment: the characteristics of the use case

chosen for the validation study were based on

practical situations reported by the selected

programmers.

For the use case of the experiment, the goal was

to generate procedure to perform loads of Staging

Area, from employee table to the employee

dimension. At this time, the dimension has an

historical storage, Type 2 for some attributes. The

other attributes are Type 1.

Table 1 shows the characteristics of the

employee dimension in DW environment. For the

Type 2 treatment in dimensions, new attributes are

used for the historical storage. They are the start

date, which represents the date on which the record

was recorded; the end date which is the date when

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

306

the record is no longer current; and finally, the

attribute that identifies whether it is or not a current

record. These are respectively shown in Table 1,

with the names of: dt_initial; dt_end and fl_current.

Tests in the ETL Process: The ETL tests used in

this work, have two types of treatments for

performing the experiment: 1) Generic Framework:

test cases execution using DbUnit for loading data

based on use case already presented earlier in a DW

environment; 2) Testing Framework: execution of

tests based on test case, in the SQL code for the

same use case, using the proposed tool of this work,

FTUnit.

Table 1: Features of the dimension dbo.dim_employee and

its attributes regarding the historical storage.

Dimension Name: dbo.dim_employee

Treatment

historical Type:

Type 1 and 2

Attribute

Historical

Type

Attribute

Paper

id_employee Surrogate Key

cod_registration Primary Key

name 1

cpf 1

title 2

job 2

salary 2

sector 2

department 2

dt_initial Initial Date

dt_end End Date

fl_current Current Flag

DbUnit was select to this experiment first to

have a framework proposal that is closest to the

Testing Framework. Second, for convenience the

experiment's programmers are already familiar with

JUnit, so would be easier and efficient its use.

3.2.3 Dependent Variables

It were used a measure as a dependent variable:

Average time, for testing framework and generic

framework, measured using a stopwatch,

considering the average time spent on testing in the

procedures.

3.2.4 Participants Selection

The selection process of the participants will be

done for convenience, making the type of sampling

per share in which will be preserved the same

characteristics of interest present in the population as

a whole. The contributor to be chosen will be

Qualycred (www.qualycred.com), a company that

provides consulting in BI solutions for industry. This

company will provide for the execution of the

experiment, eight programmers with four years of

experience in other areas and one year of experience

working specifically with ETL for DW, in SGBD

SQL SERVER.

3.2.5 Experiment Project

The experiment was projected in a paired context, in

which a group will evaluate both approaches:

Testing Framework and Generic Framework

execution. For understanding the execution of the

test to be done, ten test cases and one use case (seen

in Independent Variables section) were elaborated,

which will be presented in a well detailed way to the

programmers.

The experiment will be separated into two

groups of participants. Will be drawn 5

programmers to start the tests to the rules presented

in the Employee Use Case, with the execution of

Testing Framework and, shortly after, the execution

of Generic Framework. The other participants in

parallel, will make the tests made to rules presented

in same use case, with the implementation of the

Generic Framework and, shortly after, with the

execution of the Testing Framework. Thus, the

randomness will be enhanced, not prioritizing the

manual or automated learning.

3.2.6 Instrumentation

The instrumentation process initially proceeded with

the environment setup for the experiment and

planning the data collect. It was conducted in a

computer lab at Federal University of Sergipe - UFS.

The Participants of the experiment had the same

working conditions. The computers were adjusted to

possess same settings. Listed below are the

technology, the installed tools and artifacts used.

SQL Server 2008. It served as a basis for the

storage of the identified metadata, and consequently,

has been used to store the metadata of FTUnit,

described in section 2.

Unit Testing Framework in Sql Code (FTUnit).

The FTUnit was described section 2 of this paper.

The version to be used in the experiment, due to the

participants, runs Unit Testing Cases for charging

procedures in SQL code, T-SQL language (Transact-

SQL), involving behaviors of Types 1 and 2 for the

treatment of historical dimensions.

DbUnit. Using XML files to run test cases in

DbUnit, this framework has been prepared to run

tests case in ETL procedures to load data to

dimensions involving behaviors of Type 1 and 2. At

solution the programmers developed methods that

could perform test cases for the Employee Use Case,

Experimental Evaluation of Automatic Tests Cases in Data Analytics Applications Loading Procedures

307

by means of an XML file with characteristics of

employee auxiliary table. To compare the results

after loading the data, it was compared with other

XML file containing the expected characteristics of

the employee dimension, thus confirm whether or

not if the data were properly loaded for the

dimension.

Environment Created and Produced Artifacts.

Some of the tables that make up the DW

environment used in the experiments were the

following: a) auxiliary employee table; b) dimension

of employee with attributes Types 1 and 2. These are

described below.

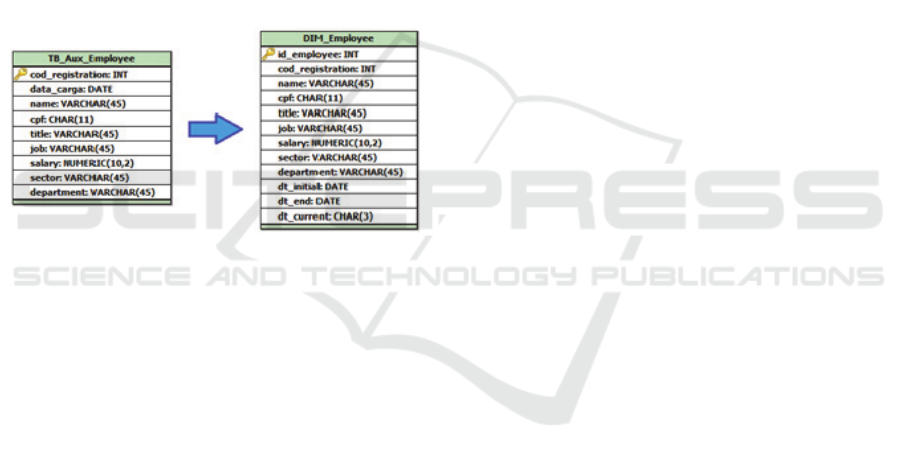

Figure 2 contains the representation of a load

data from TB_Aux_Employee (auxiliary table of

employees) to the DIM_Employee (dimension of

employees) that represents a dimension of Types 1

and 2. To this dimension, the attributes that match

the Type 1 are name and CPF. The attributes of

Type 2 are title, job, salary, sector and department.

Figure 2: Charge for a dimension of employees with

behaviors of Types 1 and 2.

4 EXPERIMENT OPERATION

4.1 The preparation

The following are listed the preparation steps for the

execution of the experiment.

1) DW environment Creation: in this phase was

defined and created the DW environment with the

dimensional schemes and staging area. These

artifacts served as the basis for the entire

experiment.

2) Definition of Test Cases for loading routines:

were defined test cases to be followed by the

developers of the experiment. These test cases

were applied to a loading routine previously

created.

3) Review of basic concepts of loading routines

for the programmers: a review of the loading

routines, for DW environments with the selected

developers, was performed.

4) Training in Testing Framework (FTUnit): a

training with the programmers was realized to

become familiar with the tool.

5) Training in Generic Framework (DbUnit): a

training with developers was conducted for tool

learning in the context of charges for DW

environments.

In short, all computers were prepared with the

same settings, so programmers were on the same

working conditions. Moreover, it was presented to

each programmer, a printed document containing a

detailed description of Use Case and test cases that

would be used by them, in case of any doubts.

4.2 Execution

At the end of the previous steps, the experiment was

initiated, it occurred according to the plan described

in section 3.

The evaluation of Testing Framework at the end

of the experiment, made by the professionals, was

positive, since they have commented that the use of

this tool have contributed to the reduction of time in

the test procedures.

1) Data Collection

Average time for Testing Framework and Generic

Framework.

It was calculated the time spent by each

developer for Testing Framework and Generic

Framework tests, of all test cases for the Employee

Use Case, taking into account the time for testing

and all necessary settings in FTUnit. Under

supervision, each programmer reported the

completion and was recorded the time on a timer,

used for this purpose. The result of these collected

data will be presented in section 5 of this paper.

4.3 Data Validation

In order to perform the experiment, one factor was

considered, Test of the ETL Process, and two

treatments, execution of tests case using the FTUnit

tool and DbUnit tool. Facing this context, the

average of testing time was computed.

As an aid to analysis, interpretation and

validation, we used two types of statistical tests,

Shapiro-Wilk Test and the T Test. Shapiro-Wilk test

was used to verify normality of the samples. The T

test was used to compare the average of the two

paired samples (Wohlin et al., 2000). All statistical

tests were performed using the SPSS tool (SPSS,

1968).

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

308

5 RESULTS

5.1 Analysis and Data Interpretation

To answer the question of research, the following

dependent variable was analyzed: average time spent

on testing in the procedures.

5.1.1 Time Spent in Testing Process

Table 2 displays the results related to the testing

time by each participant for the Employee Use Case.

The results show that the average time of the

developers for Testing Framework was 23.13

minutes, and 166.38 minutes for the Generic one.

These results suggest that the Testing

Framework execution have, on average, shorter

testing time, as compared with the same test

procedure performed in Generic Framework by

programmers with experience in the area. Thus,

from this preliminary analysis of the data, it is

assumed that the answer to the Research Question

would be "yes". The execution of test cases using the

FTunit can increase the productivity of developers

during the testing process in a DW compared with

DbUnit, since this tool obtained a difference of

approximately 143.25 minutes. However, is not

possible to make such a claim without sufficiently

conclusive statistical evidence.

Thus, first, we established an apriority

significance level of 0.05. The Shapiro-Wilk test

ensured that the sample was normally distributed. As

seen in Table 3, we found p-values of 0.672 and

0.523 for the use of testing framework and generic

framework, respectively. As the p-value is the

lowest possible significance with which it is possible

to reject the null hypothesis, and they are larger than

0.05, we cannot reject the hypothesis that the data is

normally distributed.

Finally, as the samples are dependent, the

hypothesis test applied in this context was the T-

Test, characterized as parametric for paired samples,

which only requires normality of the samples. In

Table 4, we obtained the p-value of 0.000. This

means the p-value found is less than 0.0001, so we

have more than 99% certainty for the valued context.

Thus, it was confirmed the evidence of a difference

between the averages of 143.25. As the significance

test is lower than 0.05, it is possible to reject the null

hypothesis. Consequently, we cannot reject the

alternative hypothesis that the execution of test cases

for the testing framework is more efficient than

running on generic framework.

Table 2: Average Time (in minutes) to Execute The Tests

of the use cases.

Employee Use Case

Testing

Framework

(minutes)

Generic

Framework

(minutes)

Programmer 1

23 141

Programmer 2

27 154

Programmer 3

19 82

Programmer 4

20 161

Programmer 5

28 209

Programmer 6

21 182

Programmer 7

22 186

Programmer 8

25 216

Table 3: Shapiro-Wilk Test. (SOURCE: SPSS TOOL –

IBM (SPSS, 1968)).

Statistic df Sig.

FTUnit

,946 8 ,672

DbUnit

,931 8 ,523

Table 4: T-Test Versus Time of the Tests. (Source: SPSS

Tool – IBM (SPSS, 1968)).

Paired Differences

Sig(2-tailed)

Mean

Std.

Deviation

Std. Error

Mean

95%

Confidence

Interval of

the

Difference

Lower

Upper

Par 1

DbUnit-

FTUnit

143,25

41,053

14,514

108,929

177,571

869

,00

5.2 Threats to Validity

In spite of having achieved statistical significance in

the study, the following threats to the validity must

be considered.

Threats to internal validity: the limited availability

of programmers to make new use cases can be

considered a threat to validity for having

implemented a simple use case. In addition, although

participants have been trained to use both

frameworks, they do not use it daily. This lack of

constant contact with it may have affected the

results, which could be even better, pro-tool.

Frameworks training were conducted at the

beginning of the experiment, considering a

phenomenon studied by psychology called Demand

Characterization - which considers that an

Experimental Evaluation of Automatic Tests Cases in Data Analytics Applications Loading Procedures

309

experimental artifact may have an interpretation of

the purpose of the experiment by the participants.

This can lead to change of unconscious behavior, to

adapt to this interpretation (Orne, 1962). According

to this concept, this training could be harmed the

progress of the experiment, but to mitigate this

factor, can be said that had been used at least two

different approaches: The More the Merrier and

Unobtrusive Manipulations and Measures (Orne,

1962). Respectively, the first, to avoid bias with a

single experimenter, the experiment had another

researcher to conduct the experiment and an

instructor for the tool, not involved with the

research. The second guided us not to say which

factors and metrics would be assessed, so that the

participants had no clues about the research

hypothesis.

Threats to external validity: The low number of

participants can be a threat, since it can negatively

influence the results of the experiment.

Threats to the construction validity: The

Specifications for the use case and test cases may

not have been very clear to the understanding of

some programmers. This threat was mitigated with

the prior reading and analysis of the understanding,

made by four ETL developers.

6 RELATED WORK

Through literature reviews, with systematic

approaches, were not found strongly related work

for automated unit tests in ETL tools. Consequently,

the absence of ETL tools with these characteristics

may contribute to a lower integrity and a lower

quality of data, essential in large banks of decision

support data.

Some moderately related works also seek

solutions for the automatic execution of Test Cases

in DW environments. In (Elgamal; Elbastawissy;

Galol-edeen, 2013) it is presented a directed models

approach for automatic generation and execution of

test cases based in formal models of systems. The

formal model adopted is based on the UML

language. The approach also depends on creating an

extension of UML language that can capture the

transformations used in a Data Warehousing

process.

Once the Testing Framework generates test cases

based on characteristics of the loads procedures

being implemented, it can be extended and used to

test load routines created for any ETL tools. So far

was not found in literature any similar approach, so

we could make a comparison.

It is possible find in (Krawatzeck et al., 2015) an

evaluation of unit testing tools suitable for data

warehouse testing. The following open source tools

were select based on tools that could perform test

cases in a BI environment: AnyDbTest, BI.Quality,

DbFit, DbUnit, NDbUnit, SQLUnit, TSQLUnit, and

utPLSQL. The more similar tool to the proposed

work is the DBUnit framework (DbUnit, 2016).

However, this one represents a generic framework

for database applications and has no particularity

regarding to loading routines for a Data Warehouse

environment.

7 CONCLUSIONS

Identifying and attempting to solve data quality

problems in a Data Warehouse environment is one

of the major obstacles faced by large enterprises in

the use of Decision Support Systems. Among the

many factors that contribute to poor data quality are

manual data-loading routines. After delimiting some

research questions, the hypothesis was raised that

the tests made with Testing Framework support can

contribute to quality improvement through the

impact on variables such as productivity and coding

errors.

To accept or reject the hypotheses presented, we

presented the proposal of using a Unit Testing

Framework and a Generic Framework for loading

routines in a BI environment based on Data

Warehouse. The experimentation’s results show the

use of FTUnit was more efficient than the use of

DbUnit. The motivation for adopting this approach

meets the problems pointed in (Elgamal et al., 2013;

Golfarelli and Rizzi, 2009; Myers et al., 2012) is the

need to adopt different strategies, considering the

differences between traditional environments and

DW environments, which can contribute to the

adoption of testing processes.

In this context, this work presents important

contributions to increasing the productivity and

quality in software engineering for loading routines

of DWs, and encourages experimentation in an

industrial environment. The Testing Framework

encapsulates a method to accelerate and improve the

quality of ETL process tests based on SQL. It is

noteworthy that the safe and efficient execution of

procedures in SQL directly in the database is an

option considered by much of the industry, requiring

tools to support tests in this type of approach in

software engineering.

Although this study did not show satisfactory

results in the experiment for the use of DbUnit, a

new approach has been set to perform test cases in

DW environment. Therefore, it becomes something

new in the area, since were not found any work

containing the applicable implementing testing

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

310

procedures in a BI environment for a generic

framework as DbUnit.

The proposed framework (FTUnit) presents test

cases previously defined which cover the main

categories of tests applied to loading routines.

Through a set of metadata that defines the

characteristics of the routines, the framework selects

test cases to be applied, generates the initial states of

the database, executes the routines, performs test

cases, analyzes the final state of the database and

generates a report with the errors encountered during

the execution of each test case.

By virtue of what we have seen above and the

framework innovation, the presentation of this

experiment will support the adoption of the same or

the creation of a similar approach for companies that

use this type of strategy. Other contributions

obtained were: a) Approach to implementing

software testing in BI environments based on DWs;

b) Test cases defined for data loading routines in BI

environments; c) Testing Framework to meet the

execution of unit tests in a BI environment; d) Use

of DBUnit for running unit tests in BI environments

based on DW; e) Experiments show the benefits of

automated testing in BI environments.

As future work, it aims to extend the approach to

various SQL languages, as the experiments carried

out so far have been only for the T-SQL.

REFERENCES

Basili, V. and Weiss, D. (1984), A Methodology for

Collecting Valid Software Engineering Data, In: IEEE

Transactions On Software Engineering, v.10 (3): 728-

738, November.

Colaço Jr. (2004), Projetando sistemas de apoio à decisão

baseados em Data Warehouse, 1st ed., Rio de Janeiro:

Axcel Books.

Cooper, R. and Arbuckle, S. (2002), How to thoroughly

test a Data Warehouse, Proceedings of STAREAST,

Orlando.

Costa, J. K. G., Santos, I. P. O., Nascimento, A. V. R. P.,

Colaço Jr, M (2015), Experimentação na Indústria

para Aumento da Efetividade da Construção de

Procedimentos ETL em um Ambiente de Business

Intelligence. SBSI 2015, May 26–29, Goiânia, Goiás,

Brazil.

DbUnit, (2016), http://DbUnit.sourceforge.net/

Deshpande, K. (2013), Model Based Testing of Data

Warehouse, IJCSI International Journal of Computer

Science Issues, Vol. 10, Issue 2, No 3.

Elgamal, N., Elbastawissy, A. and Galol-edeen, G. (2013),

Data Warehouse Testing, EDBT/ICDT ’13, Genoa,

Italy.

Golfarelli, M. and Rizzi, S. A. (2009), Comprehensive

Approach to Data Warehouse Testing, ACM 12th

International Workshop on Data Warehousing and

OLAP (DOLAP ’09), Hong Kong, China.

Inmon, W. H. (2005), Building the Data Warehouse. 4th

ed., Indianapolis, Indiana: Wiley Publishing Inc.

Kimball, R. (2004), The Data Warehouse ETL Toolkit. 1st

ed., Wiley India (P) Ltd.

Kimball, R. and Ross, M. (2002), The Data Warehouse

toolkit: The complete Guide to Dimensional Modeling,

2nd ed., John Wiley and Sons, Inc.

Kimball, R., Ross, R. M. and Thomthwaite, W. (2008),

The Data Warehouse lifecycle toolkit, 2nd. ed.,

Indianapolis, Indiana: Wiley Publishing Inc.

Krawatzeck, R.; Tetzner, A. and Dinter, B. (2015), An

Evaluation Of Open Source Unit Testing Tools

Suitable For Data Warehouse Testing, The 19th

Pacific Asia Conference on Information Systems

(PACIS).

Myers, G. J., Badgett, T. and Sandler, C. (2012), The Art

Of Software Testing, 3rd ed., New Jersey: Wiley.

Orne, M. T. (1962), Sobre a psicologia social da

experiência psicológica: Com referência particular

para exigir características e suas implicações.

Pressman, R. S. (2011), Engenharia de software: Uma

abordagem profissional, 7th ed., São Paulo: AMGH

Editora Ltda.

Ranjit S. and Kawaljeet, S. (2010), A Descriptive

Classification of Causes of Data Quality Problems in

Data Warehousing, 7 v. IJCSI International Journal Of

Computer Science Issues.

Santos, I. P. O., Costa, J. K. G., Nascimento, A. V. R. P.,

Colaço Jr, M., (2012), Desevolvimento e Avaliação de

uma Ferramenta de Geração Automática de Código

para Ambientes de Apoio à Decisão. In: XII WTICG,

XII ERBASE (2012).

Santos, I. P. O., Nascimento, A. V. R. P., Costa, J. K. G.,

Colaço Jr., M., Pereira, W. P. (2016), Experimentation

in the Industry for Automation of Unit Testing in a

Business Intelligence Environment. SEKE the 28

International Conference on Software Engineering and

Knowledge Engineering. California, USA.

Santos, V. and Belo, O. (2011), No Need to Type Slowly

Changing Dimensions, IADIS International

Conference Information Systems.

Singh, R. and Singh, K. (2010), A Descriptive

Classification of Causes of Data Quality Problems in

Data Warehouse. IJCSI International Journal of

Computer Science Issues, Vol. 7, Issue 3, No 2.

Sommerville, I. (2011), Engenharia de Software. 9th ed.,

São Paulo: Pearson.

SPSS, IBM Software, (1968), Statistical Package for the

Social Sciences, http://goo.gl/eXfcT3.

Wohlin, C., et al. (2000), Experimentation in Software

Engineering: An introduction. USA: Kluwer

Academic Publishers.

Experimental Evaluation of Automatic Tests Cases in Data Analytics Applications Loading Procedures

311
