A Fuzzy Scheduling Mechanism for a Self-Adaptive Web Services

Architecture

Anderson Francisco Talon

1,2

and Edmundo Roberto Mauro Madeira

Institute of Computing, University of Campinas (UNICAMP), Av. Albert Einstein 1251, Campinas, SP, Brazil

Information Systems, Faculty FGP (FGP), Rua Prof. Massud José Nachef 2855, Pederneiras, SP, Brazil

Keywords: Fuzzy Monitoring, Self-Adaptive Monitoring, pro-Active Monitoring, Web-Service Monitoring, e-Contract

Violation.

Abstract: The rise of web services have become increasingly more visible. Monitoring these services ensures Quality

of Service and it is the basis for verifying and potentially predicting e-contract violations. This paper

proposes a fuzzy scheduling mechanism that attempts to predict a possible e-contract violation based on

historical data of the provider’s services. Consequently, there is a self-configuration on the architecture that

changes service priority, making the provider processes the high priority services before low priority

services. This prediction can also helps the self-optimization of the architecture. A decrease of e-contract

violations can be observed. Though it is not always possible to predict a failure, the architecture is capable

of self-healing by using recovery actions. Comparing the fuzzy scheduling with others known in the

literature, an improvement of 31.52% in the e-contracts accomplishment is observed, and a decrease of

35.59% in average response time was achieved. Furthermore, by using the fuzzy scheduling, the overload of

the provider was better balanced, varying at most 8.43%, while the variation in other scheduling

mechanisms reached 41.15%. The results show that the fuzzy scheduling mechanism is promising.

1 INTRODUCTION

Service-Oriented Computing (SOC) can help the

integration of heterogeneous platforms and the

construction of complex applications by combining

simple services. However, these integrations and

compositions can create some functional problems,

such as: (i) services can change in the provider; (ii)

services can stop working in the provider; and/or,

(iii) services can run completely different than

expected, due to a functional programming error.

Furthermore, maintaining non-functional

properties, such as response time, availability,

reliability, and security can become a difficult

problem to solve.

Because of those problems, it is essential to

monitor the web service compositions. For the

consumers, it is important to know if the provider is

respecting the established electronic contract (e-

contract). For the providers, it is important to know

if they are satisfying functional and non-functional

features as required by their consumers.

The main contribution of this paper is to propose

a fuzzy scheduling mechanism to predict if the

provider may cause an e-contract violation. Based

on this early prediction, some actions can be taken,

such as: (i) the consumer can select another provider

which would be able to attend its needs; (ii) the

provider can increase its processing capability to be

able to accomplish all e-contracts; and/or, (iii) both

parts can renegotiate the e-contract changing QoS

(Quality of Service) values.

This research is based on a previous architecture

(Fantinato et al., 2010). The researchers presented a

monitor that examines service executions to verify if

QoS levels are satisfied. The main difference

between our proposed architecture is the monitor,

which predicts e-contract violations before they

actually happen. Three modules were added to the

architecture: analyzer, optimizer, and recovery.

The analyzer module uses a fuzzy system to

predict e-contracts violations. All analyses to predict

e-contract violation are made in parallel with the

service execution. The optimizer module changes the

service priority based on the analysis results. A

priority queue is adapted according to the analysis

results. If an e-contract violation happened, the

Talon, A. and Madeira, E.

A Fuzzy Scheduling Mechanism for a Self-Adaptive Web Services Architecture.

DOI: 10.5220/0006321705290536

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 1, pages 529-536

ISBN: 978-989-758-247-9

529

recovery module will try to fix it. Only the analyzer

module uses an artificial intelligence technique.

The proposed mechanism improves e-contract

accomplishment. A fuzzy system was used to

change the service priority, processing higher-level

services first. With this priority queue, the service

average response time was decreased and the service

availability was increased.

When analysing the results, an improvement can

be observed in the system’s performance.

Comparing the fuzzy scheduling mechanism with

the queue, random, shorter duedate, shorter response

time, and shorter processing time scheduling

mechanisms, there was an increase in the e-contract

accomplishment and a decrease in the average

response time.

2 FUNDAMENTALS

The use of web service technology can decrease the

implementation time of new services, because of the

reusability and integration of the system in distinct

platforms.

A contract is an agreement between two or more

parties to establish mutual relationships in business

or legal obligations. The e-contracts are used to

describe agreements between organizations of

electronic business on the internet. They may

include QoS attributes agreed between the parties

involved.

The service monitoring has the task of following

process/service execution and taking actions when

certain requirements of QoS are not being met

(Papazoglou et al., 2008).

Autonomic Computing is an approach to design

self-managing computing systems that have a

minimal human interference. The self-managing

system can be divided into four properties: self-

configuration, self-optimization, self-healing, and

self-protection. Self-Adaptive Systems have

contained some elements of these properties for

some time. The terms autonomic computing, self-

managing systems, and self-adaptive systems can be

used synonymously (Huebscher and McCann, 2008).

A fuzzy system has mechanisms based on fuzzy

sets and/or fuzzy logic for the treatment of

imprecision. This imprecision can be expressed by

variables whose values are represented by fuzzy

sets. These codification of these variables allows the

generalization of information associated with

imprecision (Yager and Filev, 1994).

3 PROPOSED ARCHITECTURE

AND MECHANISM

The proposed architecture is based on the work of

(Fantinato et al., 2010) for business process

execution. A business process is a composition of

web services. In their work, they presented a

monitor that follows up services execution to verify

if the QoS levels are met. The main difference from

the original architecture and the one presented in this

paper is the addition of the analyzer, optimizer, and

recovery modules, developed for monitoring

purposes, which have the ability to predict e-contract

violations before they happen.

The proposed architecture and fuzzy scheduling

mechanism were presented in (Talon and Madeira,

2015b). In the current paper, comparisons between

the fuzzy scheduling mechanism and other

traditional scheduling mechanisms are shown. The

other scheduling mechanisms are: (i) Queue: first

incoming request will be the first to be answered

(FIFO – first in, first out); (ii) Random: a random

number is assigned to each request and the provider

answers the requests according to the order; (iii)

Shorter Duedate: the request that has the closest

time to a violation will be answered first by the

provider; (iv) Shorter Response Time: the provider

answers the services with the shortest response time

first; and, (v) Shorter Processing Time: the

provider answers the services with the shortest

processing time first.

The architecture is composed of four entities

(provider, consumer, monitor, and negotiator) and

involves five phases for business process execution

(negotiation, monitoring, optimization, recovery,

and renegotiation). Each entity is composed of

repository(ies) and module(s). The Service-Oriented

Computing (SOC) is responsible for the

communication between services that are stored on a

Service Repository (SR).

The negotiator entity is responsible for the

phases of (re)negotiation. It is composed of a

negotiator module and an e-Contract Repository

(ECR). The negotiation phase is responsible for the

creation of the e-contract and its QoS parameters.

The renegotiation phase is responsible for the

modification of the e-contract and its QoS

parameters. Both phases, (re)negotiation, will not

be treated in this paper. For the purpose of this

paper, it is assumed that e-contracts exist and all

entities have them. The e-contracts are stored on the

ECR.

The proposed architecture with its entities and

modules can be observed in Figure 1.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

530

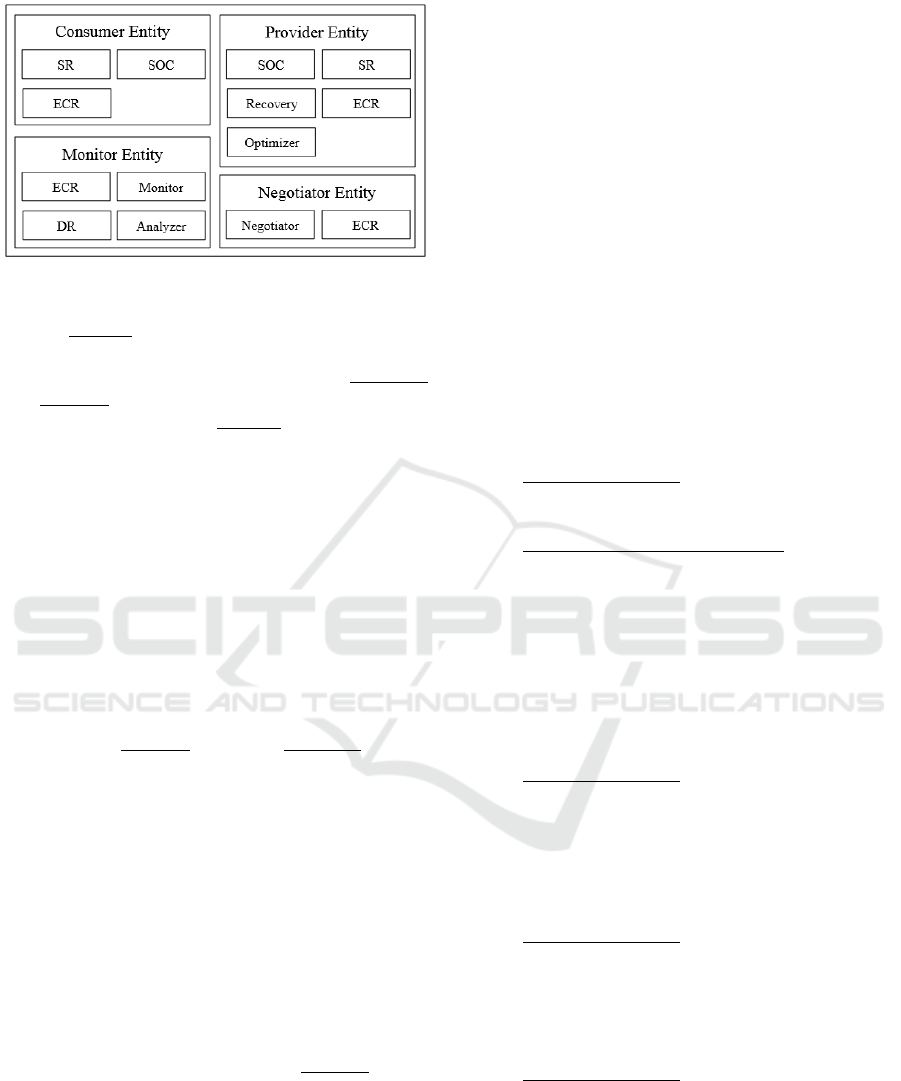

Figure 1: Proposed Architecture.

The monitor in the proposed architecture can be

classified as soft-intrusive and asynchronous. It is

soft-intrusive because a little change in consumer

and provider are necessary. Both of them need to

add a new message to the monitor into their code. It

is asynchronous because all analyses to predict e-

contract violation are made in parallel with the

service execution. The architecture monitors two

features: response time and availability. In this

paper, the monitor is considered light-weight (where

the monitor handles only one web service feature),

but the architecture also supports heavy-weight

monitoring (where only one monitor handles

different features of the web service). The two

monitors work together, where the first one controls

the response time and the second one the

availability, both for the same e-contract QoS.

The monitor module intercepts all messages

between the provider and the consumer. These

messages, and their response time and process time,

are stored into the Data Repository (DR).

The analyzer module uses the data from the DR

to estimate the possibility of an e-contract violation,

which is determined by a fuzzy system. The fuzzy

system is used because it is a technique that treats

imprecision, and in this case, it is not possible to

guarantee when there will be an e-contract violation.

The optimizer module uses information

regarding the analysis in order to change the service

priority. The main idea about the priority queue is: if

a service is more probable to violate the e-contract,

it should have a higher priority over other services.

The service should run before by the provider.

The analyzer and optimizer modules have the

task of trying to accomplish e-contracts. However, a

contract break can still happen. Faced a contract

break, the recovery module tries to fix it by

increasing the service priority. The priorities of the

recovery module are greater than the priorities of the

optimizer module. In other words, if there was a

contract break, this service would run before others.

3.1 Priority Queue

The priority queue was set with ten priority levels.

Services can receive a value ranging between 0 and

9. The provider should run services with higher

priority before services with lower priority.

The priority levels are divided into four groups.

The first group represents no possibility of violation.

The second one represents the possibility of

violation, where these levels are determined by a

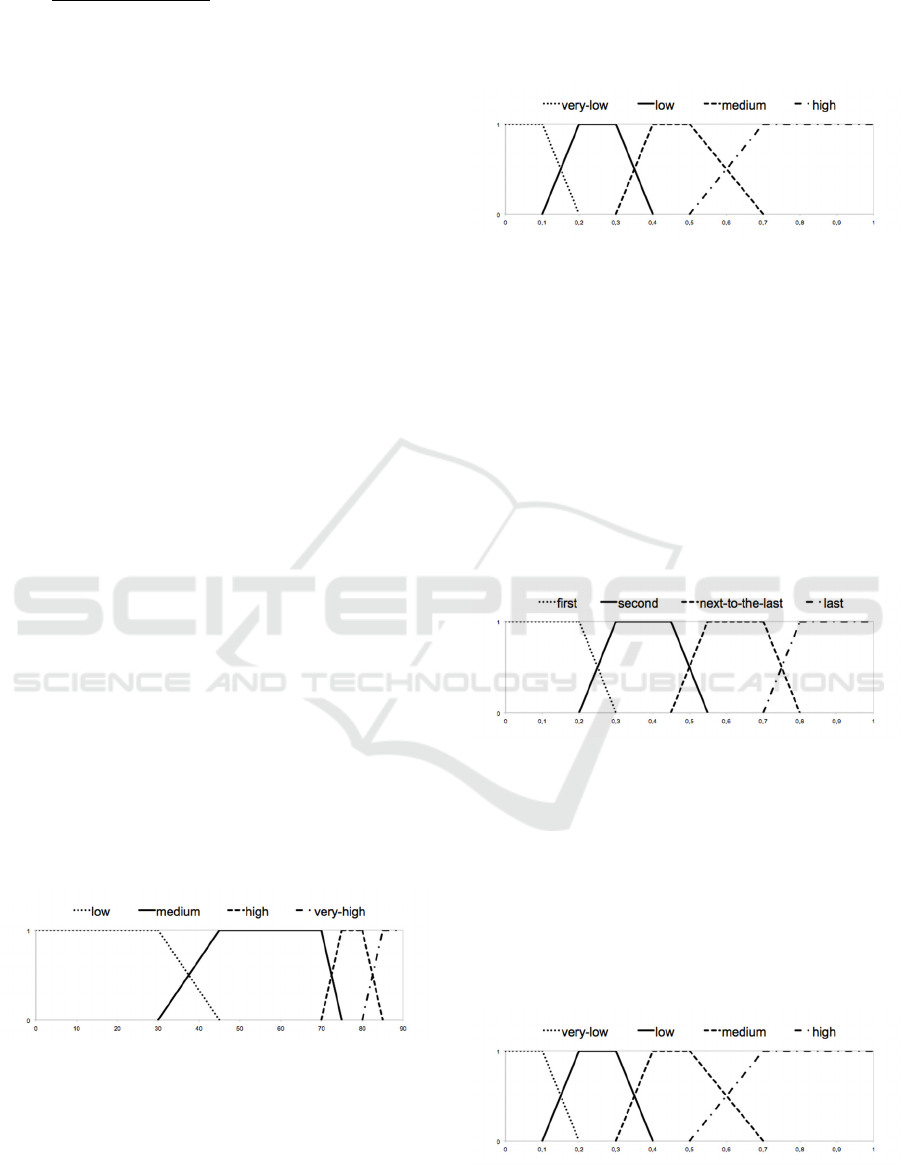

fuzzy system. The architecture uses 5 fuzzy levels

because of the combination between the linguistic

terms of the fuzzy sets. The third group corresponds

to an e-contract violation, according to the response

time. Lastly, the fourth group represents an e-

contract violation, according to the availability. The

availability feature has higher priority than the

response time feature because it will not respond at

the agreed time if the service is unavailable.

More details are given as it follows:

 Level 0 / Group 1: All services start at this

level. Their execution will not result in

contract violation.

 Level 1, 2, 3, 4, and 5 / Group 2: Execution of

services at this level may result in contract

violation. The analyzer module determines the

possibility of violation from the historical data

and sends this information to the optimizer

module. Level 1 represents very-low

possibility of violation; Level 2, low

possibility; Level 3, medium possibility; Level

4, high possibility; and, Level 5, very-high

possibility of violation.

 Level 6 / Group 3: Execution of services at

this level violated the required response time

on the consumer side only. In this case, the

provider processes the request in time, but the

response does not arrive at the consumer in

time. The monitor detects it and informs the

recovery module.

 Level 7 / Group 3: Execution of services at

this level violated the required response time

on the provider side (and on the consumer side

as well). In this case, the provider is not

processing the request in time. The monitor

detects it and informs the recovery module.

 Level 8 / Group 4: Execution of services at

this level represents a small availability

violation, which means violations up to a set

acceptable rate of violation. For example, if

the availability is set to 95%, the rate of

violation is 5%. Therefore, a small availability

violation is greater than or equal to 90%, and

smaller than 95%.

A Fuzzy Scheduling Mechanism for a Self-Adaptive Web Services Architecture

531

 Level 9 / Group 4: Execution of services at

this level represents a big availability

violation, which means violations are greater

than an acceptable rate of violation. For

example, if the availability is set to 95%, the

rate of violation is 5%. Therefore, a big

availability violation is smaller than 90%.

3.2 Fuzzy System Definitions

The architecture and the fuzzy scheduling

mechanism use a fuzzy system to determine the

priority of each service. By using two monitors (one

controlling the response time and other the

availability), the possibility of e-contract violation

could differ between themselves. This means that

the service can have different priority levels. To fix

the conflict, the optimizer module uses the higher

priority level as the service priority level.

Four linguistic variables are used to generate the

system’s fuzzy rules: inclination, maximum, order,

and minimum. The description of the variables is as

follows. Inclination variable: if the delay in

responding to a service is increasing, the service

should start earlier. Maximum variable: if the time to

respond to a service is close to the maximum value

of the e-contract response time, the service should

start earlier. Order variable: a service with a faster

processing time should run before services with a

slower processing time. Minimum variable: if a

service is close to the minimum e-contract

availability value, this service should start earlier.

The inclination variable is determined by the

inclination of a straight line. This line is calculated

by an interpolation of historical data. On a growing

line, the inclination of first-degree equations is

between 0 (zero) and 90 (ninety) degrees. The

linguistic terms and the fuzzy sets are represented in

Figure 2.

Figure 2: Inclination Variable.

The relation between the current response times

and the maximum response time set on the e-

contract determines the maximum variable. The

current response times are determined by historical

data. The maximum variable quantifies how much

time is required for the current response times to

reach the maximum response time. This variable has

a domain between 0 (zero) and 1 (one). The

linguistic terms and the fuzzy sets are represented in

Figure 3.

Figure 3: Maximum Variable.

The order variable is determined by the

processing time. If a service has a faster processing

time, it should run before services with slower

processing time. The processing time is obtained

from the historical data. This variable has a domain

between 0 (zero) and 1 (one), where zero represents

the fastest service processing time and one the

slowest. By running the service with the shortest

processing time first, the architecture decreases the

global average waiting time for all services. The

linguistic terms and the fuzzy sets are represented in

Figure 4.

Figure 4: Order Variable.

The relation between the current and the

minimum availabilities of the e-contract determines

the minimum variable. The current availability is

determined by historical data. The minimum variable

determines how much the current availability needs

to decrease in order to reach the minimum

availability. This variable has a domain between 0

(zero) and 1 (one). The linguistic terms and the

fuzzy sets are represented in Figure 5.

Figure 5: Minimum Variable.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

532

The foundation of fuzzy system is composed of

twenty-four rules. The rules were created from the

combination between linguistic variables and fuzzy

sets. The very-high and the very-low sets have high

priority because of the large possibility of violation.

The rules were determined empirically. The rules

are:

IF inclination IS very-high THEN priority IS 5

IF maximum IS very-low THEN priority IS 5

IF minimum IS very-low THEN priority IS 5

IF order IS first AND minimum IS low THEN priority IS 5

IF order IS first AND minimum IS medium THEN priority IS 4

IF order IS first AND minimum IS high THEN priority IS 3

IF inclination IS high AND maximum IS low THEN priority IS 5

IF inclination IS high AND

maximum IS medium THEN priority IS 4

IF inclination IS high AND maximum IS high THEN priority IS 2

IF order IS second AND minimum IS low THEN priority IS 4

IF order IS second AND minimum IS medium THEN priority IS 3

IF order IS second AND minimum IS high THEN priority IS 2

IF inclination IS medium AND maximum IS low THEN priority IS 4

IF inclination IS medium AND maximum IS medium

THEN priority IS 2

IF inclination IS medium AND maximum IS high THEN priority IS 1

IF order IS next-to-the-last AND minimum IS low THEN priority IS 3

IF order IS next-to-the-last AND minimum IS medium THEN priority IS 2

IF order IS next-to-the-last AND minimum IS high THEN priority IS 1

IF inclination IS low AND maximum IS low THEN priority IS 2

IF inclination IS low AND maximum IS medium THEN priority IS 1

inclination IS low AND maximum IS high THEN priority IS 0

IF order IS last AND minimum IS low THEN priority IS 2

IF order IS last AND minimum IS medium THEN priority IS 1

IF order IS last AND minimum IS high THEN priority IS 0

The inference method determines the priority of

each service, with the use of all the rules. Priority is

determined by the rule that has the maximum

relevance rate.

The proposed architecture and mechanism are

completely flexible. They allow the use of other

linguistic terms. The fuzzy sets can be defined by

other functions, and their limits can be different. The

rule base and the number of rules may be different

as well. The fuzzy system definitions presented in

this paper, chosen empirically, were used for the test

scenario. The initial assessment was necessary to

determine if the fuzzy theory was appropriate in

solve the problem of improving e-contract

accomplishment.

4 RESULTS

Initially, the test scenario is presented. Subsequently,

some previous results are showed. Then, the new

results of the comparison between the fuzzy

scheduling mechanism against others are presented.

4.1 Scenario

To validate the proposed architecture and

mechanism, a real scenario was created with two

providers (PA, and PB), each one offers with two

services (SA, and SB), and eight consumers (CA,

CB, CC, CD, CE, CF, CG, and CH). Tests were

performed in a Local Area Network (LAN) with

average latency of 6ms. The LAN is a real network

with real traffic.

To simulate a web service composition,

consumers could use one service from the provider,

both services from the same provider, or services

from different providers. The entire management of

the compositions was done by twelve e-contracts

(ECA, ECB, ECC, ECD, ECE, ECF, ECG, ECH,

ECI, ECJ, ECK, and ECL). The scenario with the

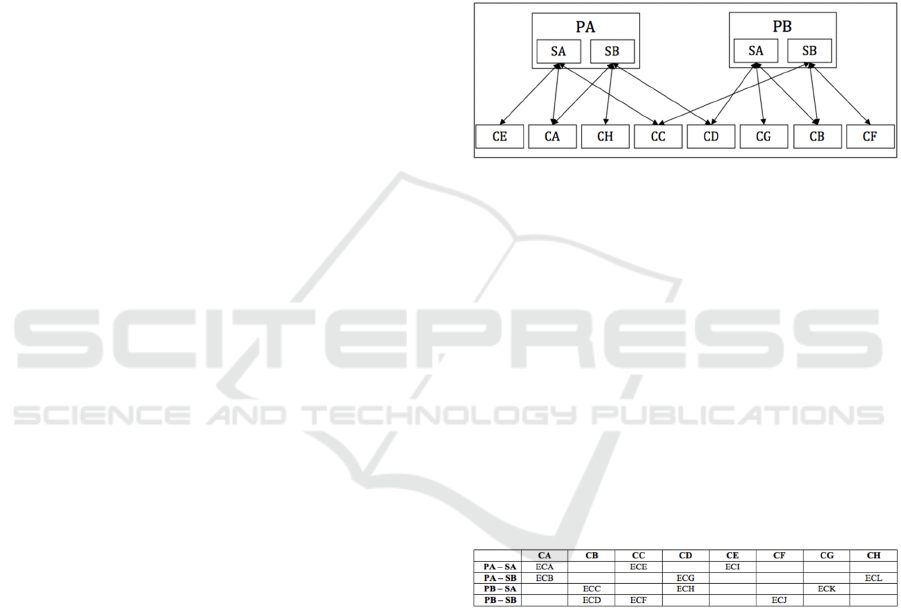

services composition can be observed in Figure 6.

Figure 6: Test Environment.

The consumers, providers, and services involved

in the twelve e-contracts used in the test

environment can be seen in Table 1. Each e-contract

has QoS values for the maximum acceptable value

of response time and the minimum acceptable value

of availability for each service. Two monitors (MA,

and MB) are responsible for the QoS. MA is

responsible for the non-functional feature response

time and MB is responsible for the non-functional

feature availability. For all e-contracts, the

maximum agreed response time was 1.25 seconds,

and the minimum agreed availability was 95%.

Table 1: e-Contracts.

The e-contracts were chosen to simulate requests

to one provider only, two services from one

provider, and two services from different providers,

in order to simulate different situations.

The information stored in the e-contract was:

agreed service, the consumer using the service, the

provider offering the service, the monitor that

monitors the QoS, the non-functional feature of the

QoS, and the maximum/minimum value of the non-

functional feature monitored.

For the tests, different machines were used. The

machines were physically separated and no

virtualization was used. Two hosts (Host A, and

Host B) were used for the tests. Providers and

A Fuzzy Scheduling Mechanism for a Self-Adaptive Web Services Architecture

533

Monitors were in Host A and Consumers were in

Host B.

The results presented in this paper used Poisson

distribution to determine when consumers would

make the requests, without external interference.

The distribution was parameterized with an average

of 7 (seven) requests per minute for all e-contracts,

during 30-40 minutes.

4.2 Previous Results

The intelligent architecture/mechanism using fuzzy

system aims to prevent a possible e-contract

violation by increasing the e-contract

accomplishment. This proposal was proved to be

very promising in previous works.

When monitoring only the response time, there

was an increase of 8.95% in e-contracts

accomplishment and a decrease of 31.32% in

average response time (Talon et al., 2014). When

monitoring only the availability, there was an

increase of 18.98% in e-contracts accomplishment.

Moreover, in the architecture with two light-weight

monitors, there was an increase of 40.41% in e-

contracts accomplishment and a decrease of 42.64%

in average response time (Talon and Madeira,

2015a). A comparison between light-weight and

heavy-weight monitoring was done too. A better

performance with the heavy-weight monitoring was

observed (Talon and Madeira, 2015b).

4.3 Comparing Scheduling

Mechanisms

Various scheduling mechanisms were used to

compare the performance of the proposed fuzzy

mechanism. The fuzzy scheduling mechanism was

compared with queue, random, shorter duedate,

shorter response time, and shorter processing time

scheduling mechanisms. Details about the

mechanisms are described in section 3.

These results can be seen in Tables 2, 3, 4, 5, and

6. In all tables, the first line shows the results of the

e-contracts accomplishment according to the

availability. The second line shows the results of the

e-contracts accomplishment according to the

consumer's side response time. The third line shows

the results of the e-contracts accomplishment

according to the provider’s side response time. The

penultimate line shows the average response time

according to consumer's side. The last line shows the

average response time according to provider's side.

Table 2 shows the comparison between the fuzzy

scheduling and the traditional queue scheduling

(first in first out).

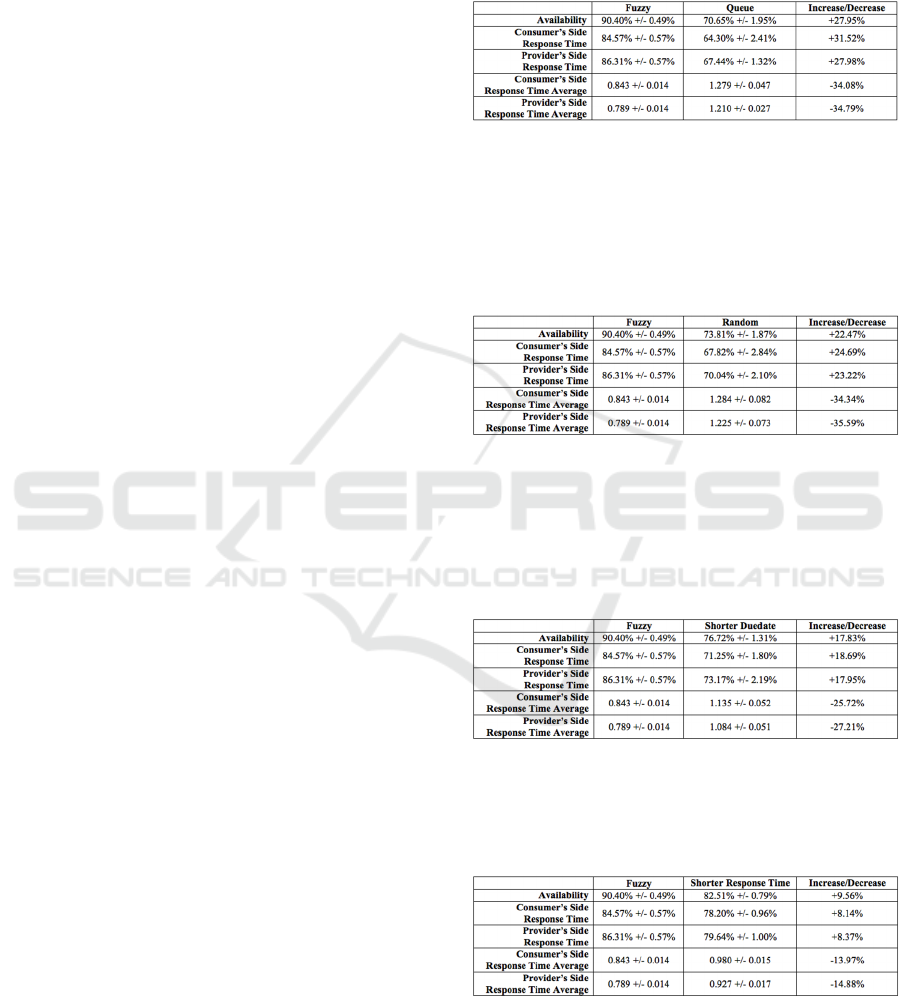

Table 2: Fuzzy and Queue comparison.

Table 3 exhibits the comparison between the

fuzzy scheduling and a random scheduling. For each

request a random number is assigned and the

provider responds according to the order of the

numbers.

Table 3: Fuzzy and Random comparison.

Table 4 shows the comparison between the fuzzy

scheduling and the shorter duedate to reach the limit

in the e-contract, meaning that the request with the

closest time to violation will be responded first by

the provider.

Table 4: Fuzzy and Shorter Duedate comparison.

Table 5 represents the comparison between the

fuzzy scheduling and the shorter response time

scheduling.

Table 5: Fuzzy and Shorter Response Time comparison.

Table 6 shows the comparison between the fuzzy

scheduling and the shorter processing time

scheduling.

In all the comparisons, the fuzzy system is better

than others scheduling. Though, the results of the

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

534

shorter duedate, shorter response time, and shorter

process time schedules were close to the results of

the fuzzy scheduling. This outcome was expected

because the fuzzy system uses the same reasoning as

their fuzzy variables.

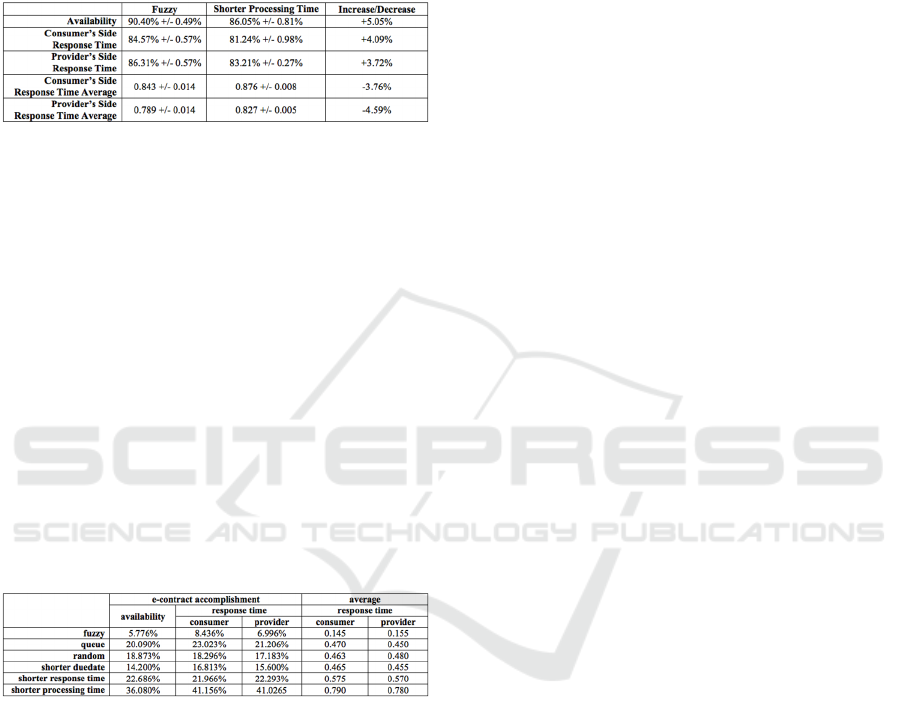

Table 6: Fuzzy and Shorter Processing Time comparison.

Even though the results are close, especially

between the fuzzy scheduling and the shorter

processing time scheduling, the proposed approach

displayed better load balancing in the providers.

When using fuzzy scheduling, all e-contracts were

treated similarly, with little variation amongst them.

With others scheduling, some e-contracts were

accomplished at 100% of the time, while other e-

contracts had high rates of violation. Table 7 shows

the variation between the highest and lowest values.

The columns related to “e-contract accomplishment”

represent the number of contracts that were

accomplished compared to the total number of

executed contracts (accomplished contracts plus

violated contracts) and the columns related to

“average response time” represent the response time

in seconds.

Table 7: Variation – Best and Worst Results.

Table 7 shows that the highest variation of e-

contract accomplishment using fuzzy scheduling

was 8.43%. The scheduling with the lowest variation

of e-contract accomplishment was the shorter

duedate with 14.2%, which represents an increase of

68.44% in the variation. The highest variation of

average response time using fuzzy scheduling was

0.155 seconds. The scheduling with the lowest

average variation of response time was the queue

with 0.45 seconds, which a consequent increase of

190.32% in the variation.

5 RELATED WORKS

Related works that deal with one or more topics

relevant to our research are presented in this section.

With respect to monitoring, it is possible to list a

few works. A soft-intrusive monitoring can be found

in (Michlmayr et al., 2009), while an asynchronous

monitoring can be found in (Wetzstein et al., 2009).

The monitor proposed in this paper has three distinct

aspects combined: soft-intrusive, asynchronous, and

light-weight/heavy-weight monitoring. The current

monitor can handle both the light-weight and the

heavy-weight monitoring. One difference between

the researches with asynchronous monitoring and

ours is that others discovered a failure after process

execution while ours attempted to predict it during

process execution (in parallel).

Some authors use one or more autonomic

properties in their work. The self-configuration

property can be found in (Mannava and Ramesh,

2012), the self-optimization property can be found in

(Gounaris et al., 2008), and the self-healing property

can be found in (Angarita et al., 2016). In (Alférez et

al., 2014) a self-adaptive system is presented. The

architecture proposed in this paper has three

autonomic properties combined: self-configuration,

self-optimization, and self-healing.

Other authors have used fuzzy theory in web

service environments: (Shafiq et al., 2014) and

(Chouiref et al., 2016). However, none use fuzzy

theory to optimize the e-contracts accomplishments

in web services. The vast majority of works are

related to the discovery or selection of services.

The work of (Pernici and Siadat, 2011) is similar

to ours in terms of environment phases (formation,

execution, monitoring, and adaptation) and fuzzy

base rules. However, their architecture defines

actions to replace or negotiate services and ours

defines actions to improve current services.

6 CONCLUSIONS

The main goal of this work was to propose a fuzzy

scheduling mechanism to predict possible e-contract

violations based on services historical data. With the

prediction, this work tries to increase e-contract

accomplishment (consequently decrease e-contract

violation) using the fuzzy theory.

The proposed architecture can be classified as

self-adaptive because it shows three self-*

properties: (i) Self-Configuration Property: Based on

a fuzzy system, the analyzer module changes

A Fuzzy Scheduling Mechanism for a Self-Adaptive Web Services Architecture

535

services priority. The provider processes services

with high e-contract violation possibility first; (ii)

Self-Optimization Property: The optimizer module

uses all analysis made from historical data to take

pro-active actions in order to decrease the average

response time of services and to increase the average

services availability; and, (iii) Self-Healing

Property: As soon as the monitor detects an e-

contract violation, the recovery module is

responsible for fixing the violation.

Comparing the fuzzy scheduling mechanism

with other scheduling mechanisms, an improvement

of 31.52% is observed in the e-contracts

accomplishment and a decrease of 35.59% in

average response time. Furthermore, using the fuzzy

scheduling mechanism, the overload of the provider

was better balanced varying at most 8.43%, while

for the other scheduling mechanisms the variation

reached 41.15%. In all comparisons, when the fuzzy

system determines the order of the services, the

results are better than other scheduling mechanisms.

In further work, experiments will be run with

more services in each providers, to test the impact of

the fuzzy system. Tests will also be performed to

compare the proposed approach with other methods

(statistical regression, machine learning, neural

networks, etc.). In addition, the use of genetic

algorithms to optimize the mechanism will be

investigated.

ACKNOWLEDGEMENTS

We would like to thank FAPESP and CNPq for the

financial support.

REFERENCES

Alférez, G. H., Pelechano, V., Mazo, R., Salinesi, C.,

Diaz, D., 2014. Dynamic adaptation of service

compositions with variability models. Journal of

Systems and Software. Volume 91, Pages 24-47, ISSN

0164-1212, May.

Angarita, R., Rukoz, M., Cardinale, Y., 2016. Modeling

dynamic recovery strategy for composite web services

execution. World Wide Web 19, 1 (January 2016), 89-

109.

Chouiref, Z., Belkhir, A., Benouaret, K., Hadjali, A.,

2016. A fuzzy framework for efficient user-centric

Web service selection. Appl. Soft Comput. 41, C (April

2016), 51-65.

Fantinato, M., Gimenes, I. M. S., Toledo, M. B. F., 2010.

Product Line in the Business Process Management

Domain. In: Kyo C. Kang, Vijayan Sugumaran,

Sooyong Park. (Org.), Applied Software Product Line

Engineering, 1st ed. Boca Raton, FL: Auerbach

Publications, pp. 497-530.

Gounaris, A., Yfoulis, C., Sakellariou, R., Dikaiakos, M.

D., 2008. A control theoretical approach to self-

optimizing block transfer in Web service grids. ACM

Trans. Auton. Adapt. Syst. 3, 2, Article 6 (May 2008),

30 pages.

Huebscher, M. C., McCann, J. A., 2008. A survey of

autonomic computing—degrees, models, and

applications. ACM Comput. Surv. 40, 3, Article 7

(August 2008), 28 pages.

Mannava, V., Ramesh, T., 2012. Multimodal pattern-

oriented software architecture for self-configuration

and self-healing in autonomic computing systems. In

Proceedings of the Second International Conference

on Computational Science, Engineering and

Information Technology (CCSEIT '12). ACM, New

York, NY, USA, 382-389.

Michlmayr, A., Rosenberg, F., Leitner, P., Dustdar, S.,

2009. Comprehensive QoS monitoring of Web

services and event-based SLA violation detection. In

Proceedings of the 4th International Workshop on

Middleware for Service Oriented Computing

(MWSOC '09). ACM, New York, NY, USA, 1-6.

Papazoglou, M. P., Traverso, P., Dustdar, S., Leymann, F.,

2008. Service-Oriented Computing: A Research

Roadmap. International Journal of Cooperative

Information Systems, Vol 17 No. 2, 233-255.

Pernici, B., Siadat, S. H., 2011. Selection of Service

Adaptation Strategies Based on Fuzzy Logic. In

Proceedings of the 2011 IEEE World Congress on

Services (SERVICES '11). IEEE Computer Society,

Washington, DC, USA, 99-106.

Shafiq, O., Alhajj, R., Rokne, J., 2014. Log based business

process engineering using fuzzy web service

discovery. Knowledge-Based Systems. Volume 60,

Pages 1-9, ISSN 0950-7051, April.

Talon, A. F., Madeira, E. R. M., Toledo, M. B. F., 2014.

Self-Adaptive Fuzzy Architecture to Predict and

Decrease e-Contract Violations. Intelligent Systems

(BRACIS), 2014 Brazilian Conference on, Sao Paulo,

pp. 294-299.

Talon, A. F., Madeira, E. R. M., 2015a. Improvement of

E-Contracts Accomplishments by Self-Adaptive

Fuzzy Architecture. Services Computing (SCC), 2015

IEEE International Conference on, New York, NY, pp.

507-514.

Talon, A. F., Madeira, E. R. M., 2015b. Comparison

between Light-Weight and Heavy-Weight Monitoring

in a Web Services Fuzzy Architecture. In Procedia

Computer Science, Vol. 64, pp. 862-869.

Wetzstein, B., Leitner, P., Rosenberg, F., Brandic, I.,

Dustdar, S., Leymann, F., 2009. Monitoring and

Analyzing Influential Factors of Business Process

Performance. In Proceedings of the 2009 IEEE

International Enterprise Distributed Object

Computing Conference (edoc 2009) (EDOC '09).

IEEE Computer Society, Washington, DC, USA, 141-

150, 2009.

Yager, R. R., Filev, D. P., 1994. “Essentials of Fuzzy

Modeling and Control”. Wiley-Interscience, New

York, NY, USA.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

536
