Pre-trip Training System for Seniors and People with Disabilities

using Annotated Panoramic Video

Hao Dong and Aura Ganz

Electrical and Computer Engineering, University of Massachusetts, 151 Holdsworth Way, 01003, Amherst MA, U.S.A.

Keywords: Pre-trip Training, Panoramic Video, Transportation.

Abstract: This paper presents a scalable and user-friendly pre-trip training system for seniors and people with

disabilities using panoramic videos. The proposed system allows travel trainers to annotate the videos

according to the user disability and requirements. Such annotations will be displayed to the users during the

training process. After training with the system, seniors and people with disabilities will be more likely to

choose fixed route services while traveling in complex subway systems and indoor transportation hubs.

Therefore, the use of the proposed platform will result in significant savings of paratransit services.

1 INTRODUCTION

According to the US Census Bureau (Census.gov

2016) 56.7 million people (19% of the US

population) – had a disability in 2010. Moreover, by

2040 Americans aged 65 or older increase from

14.5% to 21.7% of the population (Aoa.acl.gov

2016). Subway stations and transportation hubs

include complex multi-story underground buildings

with crowded and noisy environments, which can

overwhelm seniors and people with disabilities.

Urban residents including the disabled and mobility-

impaired elderly are offered paratransit services as

required by 1990 Americans with Disabilities Act

mandate.

According to a recent report (Kaufman et al.,

2016), paratransit demand is growing nationwide

and costs continually increase (now $5.2 billion

nationwide). In New York City, paratransit serves

144,000 subscribers at $456 million per year; in the

Chicago region, 50,000 subscribers are served at

$137 million per year; in Boston, 80,000 at $75

million per year.

One effort to reduce the paratransit cost is to

provide more accessibility in fixed route public

transportation systems. Considering the users’

disabilities and the complexity of these indoor

transportation environments, travel trainers are

assigned to prepare them to travel independently.

However, since the training budgets are limited,

many seniors and people with disabilities will not be

exposed to such valuable training.

This paper attempts to reduce the cost of

paratransit services and enhance the confidence of

seniors and people with disabilities to use fixed

route transportation. We introduce a virtual pre-trip

training system that enables them to get familiar

with the structure and features of the subway station

or transportation hub. Such familiarity will instil

confidence in these users and make their travel

experience safer and more efficient. Therefore, they

will be inclined to use fixed route services more

frequently instead of the high cost paratransit

services. Moreover, we provide tools for travel

trainers that can integrate their expertize in the

proposed system enabling users to train at their own

pace, at their chosen time and from their own home.

Different from traditional training, which

requires both of trainers and trainees to be present in

the target building (e.g. subway station), the virtual

training system uses panoramic videos to represent

the target environment. In such a virtual

environment, trainers can annotate the video with

the necessary information tailored to the user’s

disability or requirements. The annotations will be

shown to the users when they are relevant to the

training context.

The system includes the following parts:

 Video Recording: In order to generate

panoramic videos, 4 GoPro cameras are used

to capture the environment in four main

directions, i.e. front, back, left and right. The

150

Dong, H. and Ganz, A.

Pre-trip Training System for Seniors and People with Disabilities using Annotated Panoramic Video.

DOI: 10.5220/0006312201500156

In Proceedings of the 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2017), pages 150-156

ISBN: 978-989-758-251-6

personnel will capture the video in the pre-

planned paths in the target building. Using

these videos we generate a geo-referenced

panoramic video.

 Annotations: The trainer will annotate the

videos to meet different requirements for

people with different disabilities. These

annotations can include any travel information

that can benefit the user, such as landmarks,

facility information, or even notes.

 Virtual Training: Seniors and people with

disabilities can use this system in three

different modes: 1) take a virtual tour of the

paths selected by their trainers, 2) visit a

specific landmark, or 3) explore the building

by themselves.

The paper is organized as follows. In the next

section we introduce related work and in Section 3

we present the system architecture. Section 4

presents a case study of how this system will be used

and Section 5 concludes the paper.

2 RELATED WORK

Constructivism (Duffy and Jonassen 2013) is a

philosophical viewpoint that students can construct

their knowledge and understanding in a contextual

and visually rich environment by interacting with the

training information. Many researchers and game

developers start to design games or simulators for

different training purpose other than pure

entertainment. This type of games is called “serious

games”, which are described as the next wave of

technology-mediated learning. A well-known

example is Microsoft Flight Simulator, a

comprehensive simulation of civil aviation

(Microsoft.com 2016). There are also a number of

projects focusing on special training for people with

disabilities, such as training for mobility and

navigation skills for visually impaired children

(Allain 2015) (Simões 2014) (Magnusson 2011)

(Cavaco 2015), and cognitive training and screening

for Alzheimer patients (Bouchard 2012) (Boletsis

2016) (Imbeault 2011) (Manera 2015).

It is well known that the quality of the game

environment can determine user’s satisfaction. For

instance, the system presented in (Sánchez 2010),

Audio-based Environment Simulator (AbES), only

constructs a 2D tile-based environment, as the game

aims to provide projected sound to visually impaired

and blind users based on 2D spatial relationships.

XVR, which is an Emergency Training Platform,

builds very vivid 3D models and environments to

recover from stress in disaster field (Xvrsim.com

2016). The construction of the 2D environment built

in AbES is easy to construct since it includes less

details of the target building. However, modelling

the environment used in XVR will be very time-

consuming.

In this paper we propose a training system that

uses geo-referenced panoramic videos that represent

the virtual environment. Using panoramic videos has

several advantages compared with 2D or 3D

modelling environments presented above. First, the

virtual environment represented by the panoramic

video can provide a similar experience as walking

through the real environment, including obstacles,

furniture, decorations, and even noise and crowd.

Second, the virtual environment preparation

obtained by recording videos in the target building is

a simpler process than generating a 3D environment.

The video recording in the target building requires

lower level skills than modelling a 3D building

structure from a blueprint.

There are a few systems that use videos to

generate tourist information guides. The system

described in (Mildner 2013) uses multiple video

sequences to generate a virtual video tour of an

outdoor environment. In (Zhang 2010) the authors

present a novel system for registering videos.

Instead of using video sequences, given start and end

points, the system in (Peng 2010) can automatically

connect to Google Maps to query Street View

pictures in the planned route, and generate a smooth

scenic video. In (Zhao 2015) the authors propose to

use video captured by a dashboard camera to

construct a city virtual tour. The viewing and

interaction in an emerging type of interactive TV

explored in (Zoric 2013) are showing the benefits of

interacting with panoramic content. Streaming a

panoramic video on mobile devices is also attempted

in (Barkhuus 2014). To the best of the authors’

knowledge there are no published systems that

consider pre-trip planning systems in indoor

environments for seniors and people with

disabilities.

3 SYSTEM ARCHITECTURE

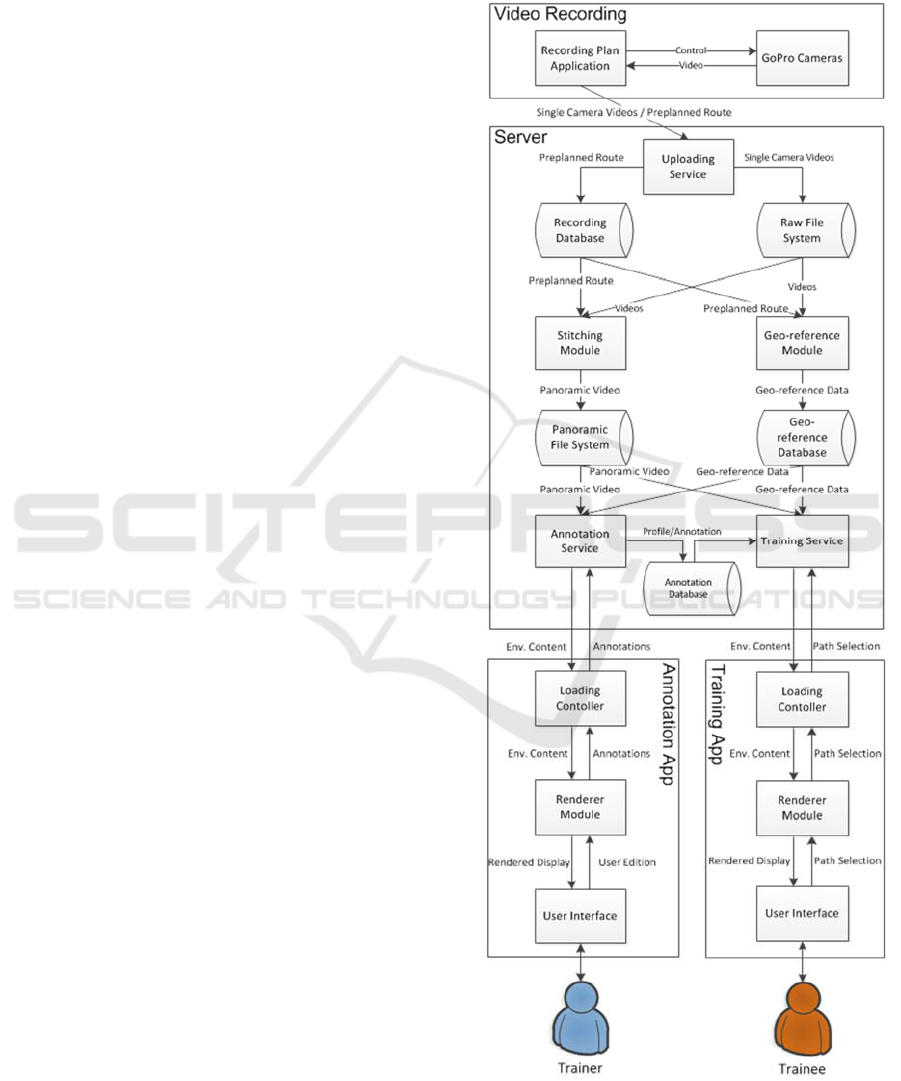

The system architecture, which is shown in Figure 1,

includes four components: the video recording

process, the server, the annotation application, and

the training application.

Both training and annotation applications are

developed using Unity3D, which is 3D game

Pre-trip Training System for Seniors and People with Disabilities using Annotated Panoramic Video

151

development engine. The annotation application is a

desktop application designed for trainers to add and

edit annotations in the panoramic video. The trainers

will view the panoramic video in a 3D renderer

display, and then edit any necessary trainee

information through the user interface. All

annotations will be uploaded to the server and saved

in the annotation database. The training application

enables the trainees to view the panoramic video in a

3D renderer display with overlaid annotation. Users

can view a selected video directly, or video

sequences by selecting the source and destination of

a path.

We provide a brief description of each

component below.

3.1 Video Recording Process

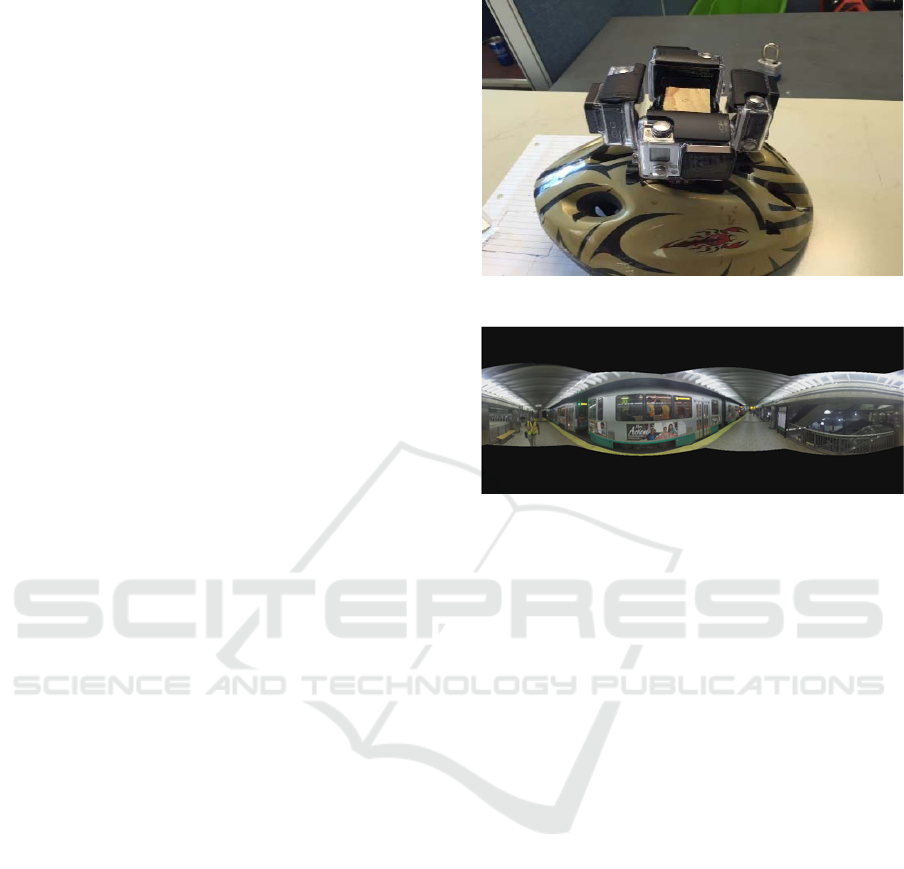

To record the target environment, the video

recording process uses a helmet-mounted rig (Figure

2) with 4 GoPro cameras. All videos will be

uploaded to the server. Similar to GIS representation

of maps (Data.geocomm.com, 2016), we generate a

graph of our indoor environment using its Blueprint.

All the links in this graph will be recorded in both

directions.

The GoPro camera rig we use for video

recording evenly positions 4 cameras to cover the

recording of all four directions on the horizon plane.

The panoramic video generated using this layout is

displayed in Figure 3. The black areas on the top and

bottom parts indicate blank top view and bottom

view, which are not informative in indoor

environments.

In order to show this video correctly, we apply it

as texture on a spherical shape, which is centred at

the user’s camera. Simply panning the camera along

with user’s operations can simulate turn movements.

By playing the video, the user can watch any

direction along the path.

3.2 Server

The server functionality includes:

 Video Reception and Storage: the server

stores the videos captured by the video

recording process in a video file system.

 Generate a Panoramic Video with 360-

Degree Panning View: To obtain the

panoramic video we synchronize and stitched

up together the videos based on common

features detected in overlapped areas captured

by adjacent cameras. The panoramic videos

are stored in another video file system.

 Content Loading Services: One service

selects and transmits content for annotation;

the other service displays pre-trip training

annotated video.

Figure 1: System Architecture.

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

152

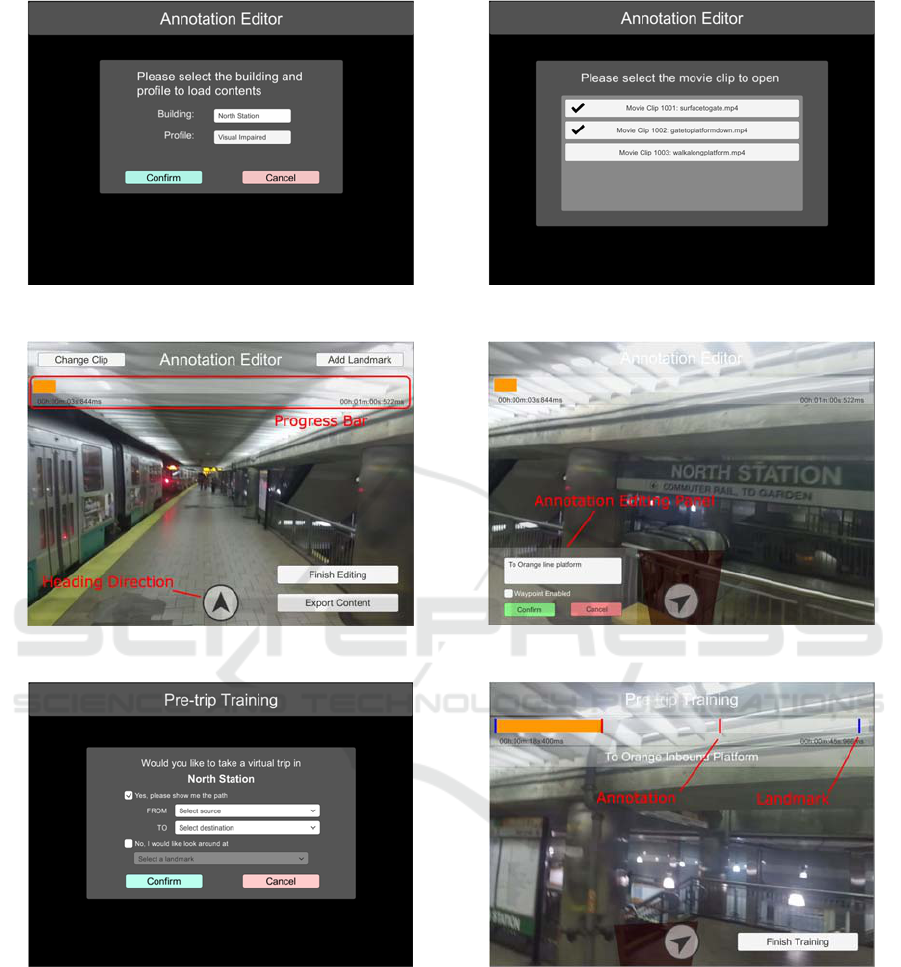

3.3 Annotation Application

Two types of annotations can be added into the

videos. One indicates landmarks in distance, which

requires the trainer to edit the red beam that points to

them. The other annotation type includes landmarks,

which indicate a location or area in the current

position. For example, in a subway station the

trainers can annotate a fare gate. For visually

impaired, the audio annotation can be “The fare gate

with a beeping sound is located in front of you”. For

cognitive impaired, the text and/or audio annotation

can be “ The fare gate is located under the green

light in front of you”.

These annotations will also be used for

destination selection and wayfinding algorithm.

When the annotation process is completed, the

trainer can click on the “export content” button to

synchronize with the server.

The trainer will determine paths (each path is

defined by two waypoints) and/or specific

landmarks that the user needs to explore using the

training application. For example, the trainer will

generate tasks pertinent to emergency evacuation.

Such tasks may include multiple sources leading to

an accessible exit as well as designate specific exits

as landmarks to further explore.

3.4 Training Application

The training application is designed to represent the

virtual environment including the trainer’s

annotations. Users can start a training session from a

specific landmark of interest or the start point of a

selected path, and control their movements using the

keyboard to “proceed”, “look left”, and “look right”.

Annotations will be shown when the user’s position

is within a certain distance from the landmark.

4 CASE STUDY

In this case study we introduce the system

deployment and usage in a subway section of North

Station, Boston, MA. We introduce the following

steps: video recording, annotation application, and

training application.

4.1 Video Recording

Using the Blueprints, we first plan the recording

paths that cover the most utilized paths between

different locations of interest, such as entrances,

ticket machines, ticket gates, and platforms. We

record the videos by following these paths wearing

the camera rig described in the previous section and

manually record key waypoints in each path like

start locations, end locations, and turning locations.

After the recording is finished, the video sequences

and waypoints of the associated paths will be

uploaded to the server for stitching and geo-

referencing.

4.2 Annotation Design

We assume that the trainer will prepare the

application for seniors. The trainer will first select

the building and profile using the interface shown in

Figure 4a. Then the annotation application will load

North Station Subway Station from the server and

show all available video clips in a list (shown in

Figure 4b). The trainer will choose and play a video

from the list (shown in Figure 4c) and select

important landmarks, e.g. the escalator connecting to

the platform of another subway line. Through the

annotation interface shown in Figure 4d the trainer

adds relevant information to each landmark. The red

beam shown at bottom center indicates the direction

of this landmark relative to the position of the

current frame.

Figure 2: Camera Helmet with 4 GoPro Cameras.

Figure 3: Example Frame of Panoramic Video.

Pre-trip Training System for Seniors and People with Disabilities using Annotated Panoramic Video

153

Figure 4a: Screenshot of building and profile selection. Figure 4b: Screenshot of Video Material Selection.

Figure 4c: Screenshot of panoramic video rendering. Figure 4d: Screenshot of annotation editing.

Figure 5a: Screenshot of path and landmark selection. Figure 5b: Screenshot of training view.

4.3 Training Application

Following the tasks assigned by the trainer, the

trainee explores North Station using the training

application (Figure 5). After selecting the building

name and his/her profile (Figure 4a), the trainee can

either select a path (mention source and destination)

or select a landmark (Figure 5a) to start the training

session. When the trainee gets close to a landmark, a

red “beam” will be overlaid and pointing to it

(Figure 5b) and a description of this landmark will

be shown on top.

5 CONCLUSIONS AND FUTURE

WORK

The authors introduced a pre-trip training platform

for seniors and people with disabilities, which use

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

154

panoramic video to represent the physical

environment. The travel trainers can create

annotations of important travel information for

training purpose. This platform can increase the

likelihood that seniors and people with disabilities

will use fixed route services instead of paratransit

services, significantly reducing the paratransit cost.

Our next steps are to start trials with seniors and

people with disabilities and understand in depth how

to optimize this platform in order to provide

maximum benefits to these users.

REFERENCES

Allain, K., Dado, B., Van Gelderen, M., Hokke, O.,

Oliveira, M., Bidarra, R., Gaubitch, N.D., Hendriks,

R.C. and Kybartas, B., 2015, March. An audio game

for training navigation skills of blind children.

In Sonic Interactions for Virtual Environments (SIVE),

2015 IEEE 2nd VR Workshop on (pp. 1-4). IEEE.

Aoa.acl.gov. 2016. Aging Statistic. [online] Available at:

https://aoa.acl.gov/Aging_Statistics/Index.aspx.

[Accessed 23 Feb. 2017]

Barkhuus, L., Engstrom, A., and Zoric, G., 2014.

Watching the footwork: Second screen interaction at a

dance and music performance. In Proceedings of the

32Nd Annual ACM Conference on Human Factors in

Computing Systems (pp. 1305-1314), ACM.

Boletsis, C., & McCallum, S. 2016. Smartkuber: A

Serious Game for Cognitive Health Screening of

Elderly Players. Games for health journal.

Bouchard, B., Imbeault, F., Bouzouane, A., & Menelas, B.

A. J. 2012, September. Developing serious games

specifically adapted to people suffering from

Alzheimer. In International Conference on Serious

Games Development and Applications (pp. 243-254).

Springer Berlin Heidelberg.

Cavaco, S., Simões, D., & Silva, T. 2015, November.

Spatialized audio in a vision rehabilitation game for

training orientation and mobility skills. In Proceedings

of the 18th International Conference on Digital Audio

Effects (DAFx-15), NTNU.

Census.gov. 2016. Nearly 1 in 5 People Have a Disability

in the U.S. [online] Available at:

https://www.census.gov/newsroom/releases/archives/

miscellaneous/cb12-134.html. [Accessed 25 Nov.

2016].

Data.geocomm.com. (2016). Free GIS Data - GIS Data

Depot. [online] Available at: http://data.geo

comm.com/helpdesk/formats.html [Accessed 27 Nov.

2016].

Duffy, T.M. and Jonassen, D.H. eds.,

2013. Constructivism and the technology of

instruction: A conversation. Routledge.

Goodwill, J.A. and Carapella, H., 2008. Creative ways to

manage paratransit costs. Center for Urban

Transportation Research University of South Florida.

Imbeault, F., Bouchard, B., & Bouzouane, A. 2011,

November. Serious games in cognitive training for

Alzheimer's patients. In Serious Games and

Applications for Health (SeGAH), 2011 IEEE 1st

International Conference on(pp. 1-8). IEEE.

Kaufman, S.M., Smith, A., O’Connell, J., Marulli, D.,

2016. Intelligent Paratransit. NYU Rudin Center for

Transportation. [online] Available at:

http://wagner.nyu.edu/rudincenter/wp-

content/uploads/2016/09/INTELLIGENT_PARATRA

NSIT.pdf. [Accessed 23 Feb. 2017].

Magnusson, C., Waern, A., Gröhn, K.R., Bjernryd, Å.,

Bernhardsson, H., Jakobsson, A., Salo, J., Wallon, M.

and Hedvall, P.O., 2011, August. Navigating the world

and learning to like it: mobility training through a

pervasive game. In Proceedings of the 13th

International Conference on Human Computer

Interaction with Mobile Devices and Services (pp.

285-294). ACM.

Manera, V., Petit, P. D., Derreumaux, A., Orvieto, I.,

Romagnoli, M., Lyttle, G., ... & Robert, P. H. 2015.

‘Kitchen and cooking,’a serious game for mild

cognitive impairment and Alzheimer’s disease: a pilot

study. Frontiers in aging neuroscience, 7, 24.

Microsoft.com. (2016). Product Information. [online].

Available:

https://www.microsoft.com/Products/Games/FSInsider

/product/Pages/. [Accessed: 30- Nov- 2016].

Mildner, P., Claus, F., Kopf, S., & Effelsberg, W. 2013,

February. Navigating videos by location.

In Proceedings of the 5th Workshop on Mobile

Video (pp. 43-48). ACM.

Peng, C., Chen, B. Y., & Tsai, C. H. 2010, December.

Integrated google maps and smooth street view videos

for route planning. In Computer Symposium (ICS),

2010 International (pp. 319-324). IEEE.

Rita.dot.gov. 2016. Data Analysis. [online] Available at:

http://www.rita.dot.gov/bts/sites/rita.dot.gov.bts/files/p

ublications/freedom_to_travel/html/data_analysis.html

[Accessed 25 Nov. 2016].

Sánchez, J., Sáenz, M., Pascual-Leone, A. and Merabet,

L., 2010, April. Enhancing navigation skills through

audio gaming. In CHI'10 Extended Abstracts on

Human Factors in Computing Systems (pp. 3991-

3996). ACM.

Simões, D. and Cavaco, S., 2014, November. An

orientation game with 3D spatialized audio for

visually impaired children. In Proceedings of the 11th

Conference on Advances in Computer Entertainment

Technology (p. 37). ACM.

Web.mta.info. 2016. Subways. [online] Available at:

http://web.mta.info/nyct/facts/ffsubway.htm [Accessed

25 Nov. 2016].

Xvrsim.com. (2016). Virtual Reality training software for

safety and security. [online]. Available:

http://www.xvrsim.com/. [Accessed: 30- Nov- 2016].

Zhang, B., Li, Q., Chao, H., Chen, B., Ofek, E., & Xu, Y.

Q. 2010, November. Annotating and navigating tourist

videos. In Proceedings of the 18th SIGSPATIAL

International Conference on Advances in Geographic

Pre-trip Training System for Seniors and People with Disabilities using Annotated Panoramic Video

155

Information Systems (pp. 260-269). ACM.

Zhao, G., Zhang, M., Li, T., Chen, S. C., & Rishe, N.

2015, August. City recorder: Virtual city tour using

geo-referenced videos. In Information Reuse and

Integration (IRI), 2015 IEEE International Conference

on (pp. 281-286). IEEE.

Zoric, G., Barkhuus, L., Engstrom, A., and Onnevall, E.,

2013. Panoramic video: Design challenges and

implications for content interaction. In Proceedings of

the 11th European Conference on Interactive TV and

Video (pp. 153-162), ACM.

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

156
