Comparative Analysis of Web Platform Assessment Tools

Solange Paz

and Jorge Bernardino

1,2

Polytechnic of Coimbra, ISEC, Rua Pedro Nunes, Quinta da Nora, 3030-190 Coimbra, Portugal

Centre of Informatics and Systems of University of Coimbra, Pinhal de Marrocos, 3030-290 Coimbra, Portugal

Keywords: Web Assessment Tools, Load Testing, Performance Tests.

Abstract: Search engines are used daily anywhere in the world. Although they regularly use updated indexes to run

quickly and efficiently, they sometimes fail to keep the user on their page for a long time. As such, it is

important that their response time is the lowest possible Therefore, it is essential to understand what load is

supported by each search engine by conducting load testing. These tests have the objective of optimizing the

performance of the application being tested, thus verifying the maximum amount of data that is processed.

In this paper we conduct a comparative analysis of the four most popular web platform assessment tools,

Apache JMeter, Apache Flood, The Grinder and Gatling, and elect the best. In the experimental evaluation

the search engines used are: Google, Bing, Ask and Aol Search.

1 INTRODUCTION

People around the world access search engines

frequently to obtain links relating to the information

they are looking for. The speed in returning a

response to the user is very important, because

although there are almost imperceptible differences

in response time, users are aware of these faults and

are dissatisfied. In the event of a high response time

from a search engine, users tend to abandon their

search. On the other hand, a faster search engine

creates a better usability experience for the user. For

this reason, it is important that the response time of a

search engine is the lowest possible. To understand

the maximum load supported by a search engine it is

necessary to conduct performance tests, which focus

exclusively on efficiency and reliability. Thus, the

performance test evaluates the behaviour of an

application when it is submitted to a workload, that

is, when it has several users interacting

simultaneously with the application. The results of

these tests reveal application sites where resources

are being wasted or used inefficiently.

The development process of software includes a

variety of activities where the probability of

occurring errors is enormous. Therefore, software

testing is critical to ensure the quality of product

functionality, and as a final revision of its

specification, design and code.

When performing tests during software

development value is added to the product, as a test

conducted correctly uncovers bugs that must be

corrected before release to improve quality and

reliability of a system.

Despite the great importance of these tests,

sometimes they aren’t executed as testing is a costly

activity within development.

Depending on what system is being developed

testing can be responsible for more than 50% of the

costs (Pressman, 2006).

Load tests are normally performed to identify the

behaviour of a system subjected to a specific

expected load, which can be a number of

simultaneous expected users, the number of

transactions per hour or a number of transactions

made on system currently in test. These type of tests

are ideal to verify if the application, server or data

base being tested remains stable during its usual

workload. Load tests help to identify the maximum

capacity of an application as well as any

impediments that can interfere with its operation in

terms of capacity.

There are a variety of testing tools in the market

with different features and functionalities. The main

purpose of all these tools is to simulate users

accessing a particular application and later record

the response time of the same, providing in most

cases several formats of visualization of the response

time. In this work we compare four of the most

popular tools (Tikhanski, 2015): Apache JMeter;

Apache Flood; The Grinder and Gatling. The tools

are compared in terms of functionality, usability and

performance. This comparison helps the selection of

116

Paz, S. and Bernardino, J.

Comparative Analysis of Web Platform Assessment Tools.

DOI: 10.5220/0006308101160125

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 116-125

ISBN: 978-989-758-246-2

the best tool and it promotes the use of software

testing tools.

Nowadays the content of a website is important

as well as the speed at which it responds. Companies

focus on improving the capability of a website’s

response to avoid losing users. To conduct a realistic

evaluation of the tools, four search engines are tested

in terms of performance: Google; Bing; Ask and Aol

Search.

This paper is structured as follows. Section 2

presents a literature revision and section 3 describes

the various types of performance testing. Section 4

describes the four testing tools, section 5 the

qualitative and quantitative analysis of these tools.

Section 6 presents the performance tests performed

on each search engine. Lastly, section 7 states the

conclusion of this work and proposes some future

work.

2 RELATED WORK

Web applications are ubiquitous and need to deal

with a large number of users. Due to their exposure

to end users, especially customers, web applications

have to be fast and reliable, as well as up-to-date.

However, delays during the usage of the Internet are

common and have been the focus of interest in

different studies (Barford and Crovella, 1999),

(Curran and Duffy, 2005).

Load testing is thus an important practice for

making sure a web site meets those demands and for

optimizing its different components (Banga and

Druschel, 1999).

The goal of a load test is to uncover functional

and performance problems under load. Functional

problems are often bugs which do not surface during

the functional testing process. Deadlocks and

memory management bugs are examples of

functional problems under load. Performance

problems often refer to performance issues like high

response time or low throughput under load.

The first conference about testing software was

organized in 1972, at Chapel Hill, where the

presented works at the conference defended that

performing tests is not the same as programming

(Sharma and Angmo, 2014).

Existing load testing research focuses on the

automatic generation of load test suites (Avritzer and

Larson, 1993), (Avritzer and Weyuker, 1994),

(Avritzer and Weyuker, 1995), (Bayan and

Cangussu, 2006), (Garousi et al., 2006), (Zhang and

Cheung 2002).

There is limited work, which proposes the

systematic analysis of the results of a load test to

uncover potential problems. Unfortunately, looking

for problems in a load test is a timeconsuming and

difficult task. The work Jiang et al., (2008) flags

possible functional problems by mining the

execution logs of a load test to uncover dominant

execution patterns and to automatically flag

functional deviations from this pattern within a test.

In Jiang (2010) the authors introduce an

approach that automatically flags possible

performance problems in a load test. They cannot

derive the dominant performance behavior from just

one load test, since the load is not constant. A

typical workload usually consists of periods

simulating peak usage and periods simulating off-

hours usage. The same workload is usually applied

across load tests, so that the results of prior load tests

are used as an informal baseline and compared

against the current run. If the current run has

scenarios which follow a different response time

distribution than the baseline, this run is probably

troublesome and worth investigating.

Wang and Du (2012) introduced a new

integrated automation structure by Selenium and

Jmeter. This structure shares the test data and steps,

which is usefull for switching in severall kinds of

tests for web applications. With the use of this

software structure one can improve extensibility and

reuse of the tests, as well as the product quality. The

document describes how to design the tests

automation based in web details.

Wang et al., (2010) proposed a usage and load

model to simulate user behaviors and help generate a

realistic load to the web application load test,

respectively. They implemented a tool know as “

Load Testing Automation Framework” for web

apllications load test. The tool is based in the two

models mentioned above.

There are not many scientific articles dedicated

to the comparison of evaluation tools of web

platforms. However, Sharma et al., (2007) used four

testing tools: Apache JMeter, HP LoadRunner,

WebLOAD and The Grinder, with the objective of

comparing these tools and identify which one is the

most efficient. In the comparison were used

parameters such as cost, the unlimited load generator

and the ease of use. After comparing the tools, the

selected one was jMeter, since it’s free, has a huge

ability to simulate load and its interface is easy to

use.

Hussain et al., (2013) describes three open

source tools (jMeter, soapUI e storm) and compares

them in terms of functionalities, usability,

performance and software requirements. Concludes

Comparative Analysis of Web Platform Assessment Tools

117

in his study that jMeter is the tool that takes longer

to respond to the tests, compared to the other two tools.

Khan (2013) compares the Apache jMeter and

HP LoadRunner tools in terms of performance and

concludes that the best one is Apache jMeter.

Selecting this tool as the best derived from the ease

of installation and ease of learning how to use.

Unlike previous papers, besides a comparison

between four web platforms evaluation tools:

Apache jMeter, Apache Flood, The Grinder and

Gatling, in our work it is also performed an

evaluation of four search engines: Google, Bing,

Ask and Aol search relatively to its performance.

3 PERFORMANCE TESTING

TYPES

Performance tests are important to analyze and

monitor the performance of web applications. The

performance test is accomplished to verify the

response time of an application, thus determining its

scalability and reliability taking into account a load.

This is also used to identify the critical bottleneck of

a system, or gather other information as the

hardware needed for the operation of the application.

Before going to market, the software system

must be tested against speed, stability and scalability

under a variety of load conditions. If the system is to

be sold without performance testing, it can cause

problems as the system slows down when it is

accessed by multiple users simultaneously, which

affects the expected sales goal directly.

There are several performance tests used to

measure the performance of a system when it is

subjected to a certain workload. Table 1 describes

the types of performance tests.

Table 1: Performance testing types.

TYPE DESCRIPTION

Load

testing

Load testing refers to placing a load on the

system and analyze its performance.

Stress

testing

Stress testing refers to a large number of

inputs and big system queries.

Volume

testing

Refers to testing with a certain amount of

load.

Endurance

testing

Refers to placing a load on a system over a

certain time period and check its

performance.

Spike

testing

Refers to the use of a sudden increase of load

and analyze if the system behavior degrades

or cope with the load changes

Scalability

testing

Refers to the system capacity working under

the expected load.

According to the information in Table 1,

performance tests are divided in six types: Load

testing; Stress testing; Volume testing; Endurance

testing; Spike testing e Scalability testing. All these

kind of test aim at evaluating the performance of a

certain system to test. For that end, loads are applied

in the system in different ways.

4 EVALUATED TOOLS

There are several tools available on the market,

some of them free, while others are paid. From all

the existing tools, four were selected which are

considered most popular and for it ability to measure

web applications performance and its proficiency

after a load test. In this article we will evaluate the

following tools:

1. Apache JMeter (http://jmeter.apache.org/)

2. Apache Flood

(https://httpd.apache.org/test/flood/)

3. The Grinder (http://grinder.sourceforge.net/)

4. Gatling (http://gatling.io/)

To understand which tool satisfies our needs,

additional detailed information is required about

each tool. To synthesize that information, a

comparative study was carried out between the four

tools. For the accomplishment of this study was

necessary to evaluate the provided functionalities by

the tools, its documentation and existing usage

examples. It was also necessary to install each tool

to ensure knowledge of its operation details.

Throughout the next sections, four testing tools will

be presented: Apache jMeter, Apache Flood, The

Grinder and Gatling.

4.1 Apache jMeter

Apache jMeter (Apache jMeter, n.d.) was designed

to load test functional behavior, that is, to correctly

simulate users and measure the applications

performance that will be tested. It can be used to test

performance both in static resources as in dynamic

resources (files, databases, server), to simulate a

heavy server/group load, testing its resistance, or

analyzing the overall performance under different

kinds of load.

This tool simulates software usage by virtual

users and simulates the same users accessing the

web system simultaneously, generating data to

delimit how many users manages to withstand

before being cast away by its users. That is, Apache

jMeter then tests whether the expected number of

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

118

users will be met within the timeframe described in

the software requirements. Like this, the search for

bugs is simplified and its possible to determine the

performance cost.

For the fulfillment of tests, Apache jMeter

provides several kinds of requests and assertions,

which authenticate the result of said requests,

besides that it also possess logic controllers, such as

cycles, and additional controllers to be used in the

construction of test plans. In Figure 1 it is possible

to visualize the home page of a testing plan in

Apache jMeter, where only the name of the test is

being given. Thread controls (virtual users) are also

made available by this tool, designated as thread

group, where it’s possible to set the number of

threads, the amount of times each thread is executed

and the timeframe between each execution, all this

assists in conducting stress tests. In the end, several

listeners exist (tree, tables, graphs and log file), that

based in the request results or in the assertions, that

can be used to generate graphs or tables.

Apache jMeter initially works with the user

sending a request to the destination server. Apache

jMeter then receives the useful information from the

destination server and provides the user with the

results in different formats, such as graphs and

tables.

The main features of Apache jMeter are:

 Can be run on any operating system, since it is

an application developed in JAVA;

 Supports HTTP, SMTP, POP3, LDAP, JDBC,

FTP, JMS, SOAP and TCP protocols;

 Has multiple built-in and external listeners to

view and analyze performance test results;

 Integration with major configurations and

continuous integration systems is possible.

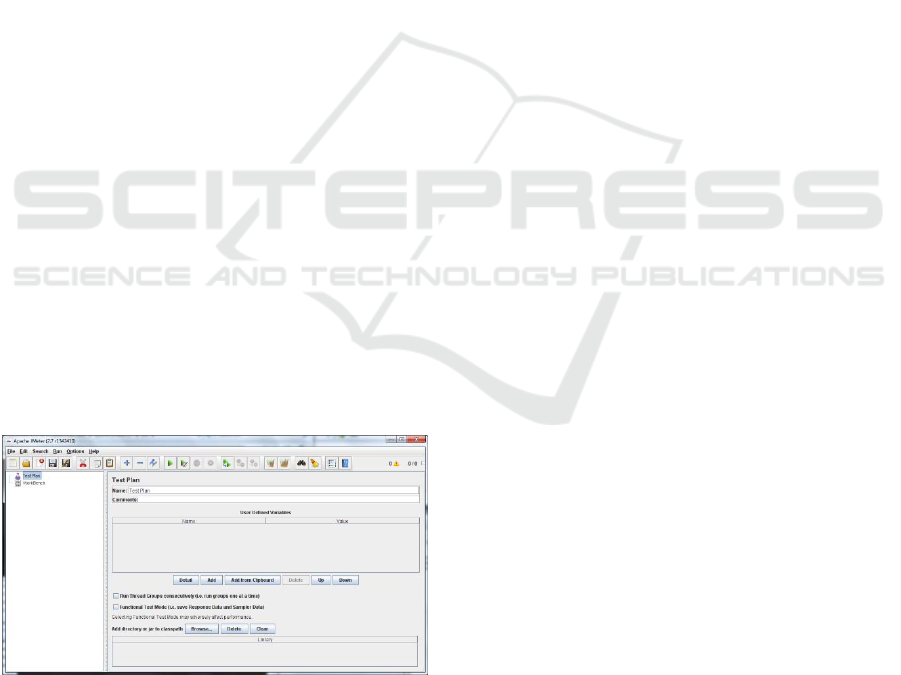

Figure 1: Test plan in Apache jMeter.

In summary, Apache jMeter is a tool that behaves

completely in performing tests, since it supports

static and dynamic resources, as well as several

protocols from HTTP to TCP. It can even be used by

any machine since it can run on any operating

system. The fact of supporting distributed testing

facilitates the simulation of a larger load, since each

test runs on different machines.

4.2 Apache Flood

Apache Flood (Apache Flood, n.d.) can be used to

collect performance metrics that are important for a

given website, such as the time to submit an order or

the time to receive a complete response.

It has a modular architecture where you can

easily add new resources, designing frameworks

through a support library and defining actions and

behaviors for them. It is capable of generating large

amounts of web traffic and of working well with

dynamic content, being possible to simulate

multiple, different and complex users, since a user

can make a request to a more complete web page.

In Figure 2, test example in Apache Flood is

shown.

All tests are called with a standard interface and

at the end transaction reports are collected with

statistics of each HTTP transaction about the latency

time, response time, idle time, and TCP Handshake

time.

With Apache Flood it is possible to run several

tests in parallel and two options are provided for this

execution: Threaded and Forked. These two methods

can be used simultaneously, allowing to maximize

the performance of each test. In threaded execution,

the process is instructed to perform several user-

space threads, each of which will execute a chain of

complex events. When a Forked run is performed,

the process is instructed to make multiple copies of

itself using the fork() command.

Flood makes it possible to perform distributed

tests through access to several remote machines. It’s

possible to invoke a remote instance with both RSH

and SSH.

The main features of Flood are:

 Works with a global standard in security

technology (SSL);

 Has an XML-based configuration;

 Simulator of users and multiple users

simultaneously;

 Simulator of several different users, that is, each

with different arrival times.

Overall, Apache Flood is a little complex tool,

since its configuration is only based on XML and

works only with SSL. Besides that, it has little

documentation, which makes it difficult to use.

Comparative Analysis of Web Platform Assessment Tools

119

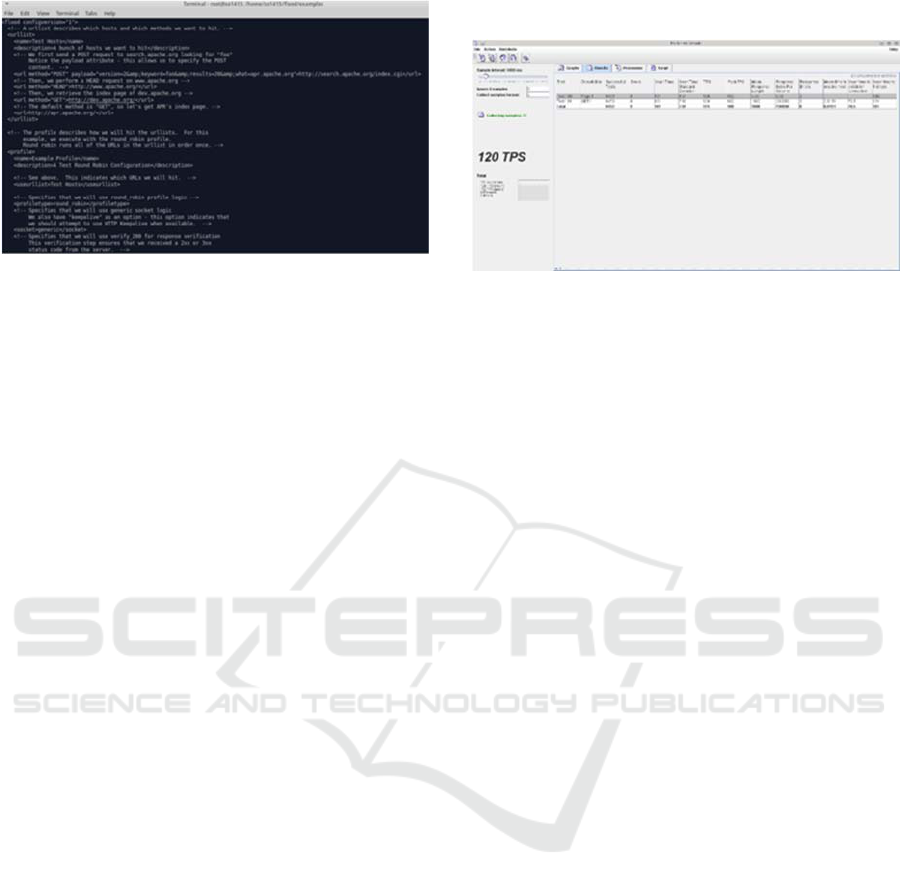

Figure 2: Test Plan at Apache Flood.

4.3 The Grinder

The Grinder (The Grinder, a Java Load Testing

Framework, n.d.) is a load testing platform,

developed in JAVA, that makes it easy to run a

distributed test. That is, it is possible to

simultaneously use several machines to perform

parallel tests, controlling all execution from a main

machine, where we can generate various analyzes of

the generated data, with tables and graphs. Each load

to be monitored and controlled is visualized through

a graphic console, as shown in Figure 3. It allows to

see how the application behaves under a heavy load,

subsequently determining all weaknesses of the

application in order to optimize them. The Grinder

comes with a plugin for HTTP testing services as

well as a tool that allows HTTP scripts to be

automatically recorded.

The Grinder consists of agents, which initiate the

number of load processes equal to the number

configured by the user; by workers, who execute the

load test scripts; by a console that is the graphical

interface used to control the agents and to display

the statistics collected by the workers and by

TCPProxy that interposes between the browser and

the destination server and can be used to create

scripts by registering the activity of the browser,

which can later be executed by work processes.

The Grinder's main features are:

 Uses a TCP proxy to record network activity in

the test script;

 It is possible to perform distributed tests that

adapt with the increase of the number of users;

 Using Python or Closure with any Java API

allows creation or modification of better test

scripts;

 Post-processing with full access to the results of

the correlation and content verification tests;

 Supports multiple protocols: SOAP, XML-RPC,

IIOP, RMI / IIOP, RMI / JRMP, JMS, POP3,

SMTP, FTP and LDAP.

Figure 3: Test Plan at The Grinder.

Briefly, The Grinder is a tool that supports several

protocols, from SOAP to LDAP. This allows the

exchange of structured information on a

decentralized and distributed platform to be carried

out in several ways, some faster and more efficient

than others. Besides, it’s highlighted in its reports

that allow an easy analysis of the test results, since

they can be presented from tables to graphs.

4.4 Gatling

Gatling (Gatling Project, Stress Tool, n.d.) was

designed to be used with load testing, analyzing and

measuring the performance of a variety of services,

focusing on web applications, defending ease of use,

maintenance and high performance. Gatling is

written in Scala that comes with an interesting

premise of always treating our performance tests as

production code, meaning we can write code directly

in the application. It is a very useful tool when we

want to simulate a large number of users, since they

do not all arrive at the same time and Gatling has an

option (ramp) to implement this behavior, where the

ramp value indicates the duration during which the

users are started linearly, that is, they are always

started for a fixed number of seconds. It also allows

to simulate various types of users and even all these

users using the application simultaneously. A test

plane in Gatling is shown in Figure 4.

Basically the Gatling structure can be defined in

four different parts: configuration of the HTTP

protocol, where it is possible to define the base url to

be tested; definition of headers, which makes it

possible to add a bit of load through them to the

server; definition of the scenario, which constitutes

the core of the test, where a set of actions is

performed to simulate a user interaction with the

application and simulation definition, where the load

that will be executed over a period of time is

defined.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

120

Gatling provides a diverse form of representation

of results, as shown in Figure 3.

The main characteristics of Gatling are:

 Easy integration with Jenkins through the

jenkins-plugin and can also be integrated with

other continuous integration tools. This allows

constant feedback from performance tests;

 Allows to easily run the tests through Maven to

Gradle with the help of maven-plugin and

gradle-plugin;

 Full HTTP protocol support and can also be used

for JDBC and JMS load tests;

 Has multiple input sources for data-driven

testing.

Figure 4: Gatling Test Plan.

In short, Gatling stands out for the elegant reports it

provides, as well as for the documentation it has

about the operation of the application. It also has a

very intuitive interface. The fact that its structure has

the possibility of being defined in four different

parts, parts, allows the addition of charge even in

headers.

5 COMPARISON OF WEB

TESTING TOOLS

In this section we present a comparison of the four

Web Platform test tools, and then a discussion of the

results is presented. This comparison is useful for

users to choose the testing tool best suited to their

needs. The comparison of the tools is divided into

two analyzes: qualitative and quantitative.

5.1.1 Qualitative Analysis

In order to perform the qualitative analysis, only the

most relevant characteristics were considered and,

after the use of each of the tools, each one of its

characteristics was described. Table 2 shows the

qualitative analysis of the four tools.

Table 2: Qualitative Analysis.

Characteristics

Tools

Apache

jMeter

Apache

Flood

The

Grinder

Gatling

Open Source Yes Yes Yes Yes

Report view

mode

CSV,

XML,

Embed.

Tables,

Graphic,

Plugins

XML Console HTML

Test language XML XML

Jython,

Clojure

Scala

Test Recorder HTTP HTTP TCP HTTP

Distributed

Testing

Supports

multiple

machines

to be

controlled

by a single

instance to

run

Uses rsh /

ssh for

simple

distributed

processing

Facilit.

ates

exec. of

distrib.

load tests

betwen

multiple

servers

Supports

distributed

testing

In this analysis the Apache jMeter tool stands out as

being the best one, since it has more visualization

modes than the other tools. Regarding distributed

testing this tool is also better, since it allows the use

of multiple machines to be controlled by a single

instance for execution.

5.1.2 Quantitative Analysis

In order to perform the quantitative analysis, only

the most relevant characteristics were considered:

ease of use, graphics complexity, interface, quality

of documentation presented, easily editing scripts,

and ease of interpretation of reports. After each tool

use, each one of its characteristics was evaluated on

a scale from zero (very bad) to ten (very good). Then

the individual scores of each feature of the

respective tools were added, resulting in their final

score.

In Table 3 the quantitative analysis of the four

tools is performed.

Table 3: Quantitative analysis.

Characteristics

Tools

Apache

jMeter

Apache

Flood

The

Grinder

Gatling

Ease of Use 10 4 6 5

Graphics Complexity 8 0 7 6

Interface 9 2 8 7

Quality of

documentation

presented

10 2 8 6

Easily editing scripts 10 3 7 6

Ease of interpretation

of reports

8 5 4 3

Final score 55 16 40 35

Comparative Analysis of Web Platform Assessment Tools

121

The final scores obtained by the Apache jMeter

tools; Apache Flood; The Grinder and Gatling were

respectively: 55; 16; 40 and 35 points.

The jMeter tool was considered to have a better

ease of use, since it has an intuitive interface and a

lot of documentation about its use. In turn, Flood

was the tool with a lower ease of use, since it does

not have an interface, nor does it have

documentation about its operation. Regarding the

ease of editing scripts, the jMeter tool is the

"winner", since it is not necessary to write direct

code to perform editing. The more complex graphs

of jMeter lead to the production of more detailed

reports with a high ease of interpretation.

The tool with the lowest score was Flood, since it

had a negative score in practically all analyzed

characteristics. With regard to the best score, this

was attributed to the jMeter tool, since it stood out

positively in all the characteristics, never obtaining a

score inferior to 8.

5.2 Discussion of the Results

After enumeration and analysis of the four test

platforms, it was necessary to choose one that would

allow easy learning, be simple to handle, be able to

simulate several users on the website, send requests

to the server, support distributed testing and generate

reports in CSV. That is, it was necessary to select a

tool that pleases the user in all its aspects, from its

use, to the results visualization. So, the selected tool

was Apache jMeter, although this one stands out

positively in relation to the mentioned characteristics

and to have a good documentation in its own website

that originates a good learning of use is evidenced

by the examples that it has in the most diverse tasks

that allow you to create test scripts in a simplified

way.

The fact that jMeter supports distributed testing,

with multiple machines simultaneously being

controlled by a single running instance allows test

scripts with a small number of users to run on

multiple machines. Thus it is possible to simulate a

greater number of users in the same time interval,

thus avoiding long execution times for the various

tests performed.

6 PERFORMANCE TEST IN

SEARCH ENGINES

The speed of a website is as important today as its

content, because unconsciously no one likes to wait,

so every millisecond matters a lot in response time.

Smartphones, tablets and other portable devices

are creating more and more web traffic

simultaneously, since countless people download

videos, news or use social networks. Therefore,

there is a huge competition not through the content

that each website has, but because of its

responsiveness. Certainly the most visited is the one

that will respond faster.

Google engineers have revealed that users are

starting to get frustrated with a website after waiting

only 400 milliseconds (Lohr, 2012), this almost

imperceptible delay causes users to look for other

websites.

The top five search engines (Ratcliff, 2016) were

selected: Google; Bing; Yahoo; Ask and Aol Search.

Of these five, Yahoo was excluded, and the others

were compared in terms of performance to the

remaining search engines by using the jMeter tool.

Yahoo was removed from the comparison, since

whenever users were simulated to access it, an error

was returned with code 999 (unable to process

request at this time). This error occurs when there is

a large number of requests originating from the

computer that is being used to perform the tests. So,

to protect its servers, Yahoo generates error code

999, denying access to your page (Information about

Yahoo Error 999, n.d.).

The test case consisted of a simple search of the

word "Apache jMeter" in each of the search engines,

with a gradual increase in the number of users.

All users were simulated coming to the search

engines every 5 seconds, since they always have

countless people accessing their web pages. Only 10

users were initially simulated to understand how

each search engine behaved with a minimum load.

This number has been increasing to an average load

with 100 users and to a high load with 1000 users.

Since 1000 users already experienced errors in

simulating users, this number was no longer

increased. Each test case was repeated ten times and

the elapsed mean was performed (it encompasses the

time from the time the request was formulated, until

its response was obtained), message size in bytes

(encompasses the size of customer requests for

Server and server responses to the client) and

latency (it only includes the time from when the

request was formulated until the first part of the

response was obtained).

The results obtained are presented in Tables 4, 5

and 6.

According to the results presented in Table 4, the

search engine that takes less time to obtain the

response since the request was made is Google. So it

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

122

responds quickly to its users, avoiding waiting

queues, because with 10 and 100 users the elapsed

values are less than 450 seconds. When the load is

increased to 1000 users, it also increases the elapsed

value. In this case it is possible that some users wait

longer than others to obtain the response to their

request, since the standard deviation is high. A good

alternative to Google in terms of performance will

be Aol Search, which also has reduced elapsed

values.

In contrast, the search engine that responds more

slowly to its users by providing higher elapsed

values is Bing. This one with 100 and 1000 users

can have elapsed values that represent twice the

value present in the other search engines.

Table 4: Mean and standard deviation of elapsed tests

performed.

Search Engine

Elapsed

time (ms)

Standard

deviation

Users

Google 395,6 57,82

Bing 575,31 45,65

Ask 802,24 69,84

Aol Search 441,26 33,21

100 Users

Google 442,85 157,33

Bing 2201,03 1717,82

Ask 1171,27 382,89

Aol Search 730,96 813,85

1000 Users

Google 11524,73 5337,18

Bing 43353,53 13158,68

Ask 20225,05 26497,37

Aol Search 19775,78 8888,54

According to the results presented in Table 5, in

general the size of the client requests to the server

and the responses from the server to the client

(message size) varies little, since the simulated

request is always the same, with the difference in

load.

Google again stands out again positively,

because the size of the message is small. In turn, the

search engine with the highest message size is Bing,

which is more than twice the size of Google's

message.

Table 5: Mean and standard deviation of the message size

of the tests performed.

Search Engine

Size of

message

(Bytes)

Standard

deviation

10 Users

Google 40685,62 220,84

Bing 91819,52 832,22

Ask 71389,76 20,85

Aol Search 48416,99 0,17

100 Users

Google 40656,06 149,22

Bing 91932,32 776,07

Ask 71411,43 612,72

Aol Search 48417,00 0,11

1000 Users

Google 40622,86 744,98

Bing 91495,05 5768,17

Ask 35803,72 28905,95

Aol Search 48417 0,39

Table 6: Mean and latency standard deviation of the tests

performed.

Search engine

Latency

(ms)

Standard

deviation

10 Users

Google 140,12 11,40

Bing 201,08 33,19

Ask 615,73 61,31

Aol Search 292,38 27,67

100 Users

Google 169,32 97,69

Bing 925,59 894,12

Ask 718,68 173,68

Aol Search 386,99 507,69

1000 Users

Google 5276,27 3932

Bing 8888,11 6788,92

Ask 5793,60 4308,98

Aol Search 5574,89 4690,05

According to the results presented in Table 6,

Google is the search engine that can formulate the

request and obtain the first part of its latency

response in a shorter time interval. This value

changes greatly when the load is increased to 1000

users as the system becomes overloaded. However,

it may happen that some users get a faster system

Comparative Analysis of Web Platform Assessment Tools

123

response than others, since the standard deviation is

high. An alternative to Google based on the latency

value is again Aol Search which also provides small

amounts.

The search engine that takes the longest time to

get the first part of the response, since the order was

formulated is Bing.

Overall, the search engine that best meets the

user's performance needs and keeps them longer on

our page, since it has fewer response times is

Google. An alternative to Google will then be Aol

Search which also has low response times. In turn,

the search engine that will have more users to

abandon our page, because it takes longer to respond

will be Bing.

7 CONCLUSIONS AND FUTURE

WORK

The test activity is fundamental to guarantee the

quality of the products developed. Among the

various types of test exist the load tests stand out,

since they are reaching more and more importance,

since the web systems are increasingly used. These

tests are still little used and, since the associated

costs for their execution are high, the use of tools

that automate the creation and execution of tests is

essential. In addition, measuring response times and

simulating multiple users accessing an application

simultaneously is unfeasible and often impossible to

perform without a tool that automates the testing

process.

In this paper, four test tools were presented:

Apache jMeter, Apache Flood, The Grinder and

Gatling. For this, a quantitative analysis and a

qualitative analysis were carried out, comparing the

main characteristics common to all the tools. This

comparison concludes that the best tool for

evaluation of web platforms is Apache jMeter, since

it stands out positively in most of its characteristics,

in addition to allowing the use of distributed tests,

with multiple machines simultaneously to be

executed by a single instance running. The fact that

Apache jMeter supports distributed testing, provides

the simulation of more users in the same time

interval.

As search engines are accessed countless times

during the day by various users around the world, it

is important that they can respond quickly to all

users. Thus, it is important to perform performance

tests on the search engines, and then act on their

optimization.

In the experimental evaluation load tests were

performed on four search engines and Google stood

out positively with either a low load (10 users),

average (100 users) or high (1000 users), since it

responds quickly to its users. In contrast, Bing was

the search engine that stood out negatively, since it

is the one that takes more time to present the

answers to the users. With high response times users

tend to abandon their page.

As future work we propose the creation of

distributed tests, that is, in several machines. This

way, we can simulate more users accessing the same

search engines already tested and get more real

results.

REFERENCES

A. Avritzer and E. R. Weyuker, "The automatic generation

of load test suites and the assessment of the resulting

software," in IEEE Transactions on Software

Engineering, vol. 21, no. 9, pp. 705-716, Sep 1995.

doi: 10.1109/32.464549.

Alberto Avritzer and Brian Larson. 1993. Load testing

software using deterministic state testing. In

Proceedings of the 1993 ACM SIGSOFT international

symposium on Software testing and analysis (ISSTA

'93), Thomas Ostrand and Elaine Weyuker (Eds.).

ACM, New York, NY, USA, 82-88.

DOI=http://dx.doi.org/10.1145/154183.154244.

Alberto Avritzer and Elaine J. Weyuker. 1994. Generating

test suites for software load testing. In Proceedings of

the 1994 ACM SIGSOFT international symposium on

Software testing and analysis (ISSTA '94), Thomas

Ostrand (Ed.). ACM, New York, NY, USA, 44-57.

DOI=http://dx.doi.org/10.1145/186258.186507.

Apache Flood, https://httpd.apache.org/test/flood/. [11

November 2016].

Apache JMeter, http://jmeter.apache.org. [11 November

2016].

Fei Wang and Wencaai Du, “A Test Automaton

Framework Based on WEB” proc. IEEE 11th

International Conference on Computer and

Information (ACIS 12),IEEE Press, 2012.

Gatling Project, Stress Tool, http://gatling.io. [11

November 2016].

Gaurav Banga and Peter Druschel. 1999. Measuring the

capacity of a Web server under realistic loads. World

Wide Web 2, 1-2 (January 1999), 69-83.

DOI=http://dx.doi.org/10.1023/A:1019292504731.

Information about Yahoo Error 999, http://www.

scrapebox.com/yahoo-999-error. [11 November 2016].

Jian Zhang and S. C. Cheung. 2002. Automated test case

generation for the stress testing of multimedia

systems. Software - Practice & Experience Journal, 32,

15 (December 2002), 1411-1435. DOI=http://

dx.doi.org/10.1002/spe.487.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

124

K. Curran and C. Duffy. Understanding and Reducing

Web Delays. International Journal of Network

Management, 15(2):89–102, 2005.

Lohr, 2012,” For Impatient Web Users, an Eye Blink Is

Just Too Long to Wait” http://www.nytimes.com/

2012/03/01/technology/impatient-web-users-flee-

slow-loading-sites.html?_r=2.

M. S. Bayan and J. W. Cangussu, "Automatic Stress and

Load Testing for Embedded Systems," 30th Annual

International Computer Software and Applications

Conference (COMPSAC'06), Chicago, IL, 2006, pp.

229-233. doi: 10.1109/COMPSAC.2006.119.

Monika Sharma and Rigzin Angmo, “Web Based

Automation Testing and Tools”, International Journal

of Computer Science and Information Technologies,

2014.

Monika Sharma, Vaishnavi S. Iyer, Sugandhi

Subramanian and Abhinandhan Shetty, “A

Comparative Study on Load Testing Tools” proc.

International Journal of Innovative Research in

Computer and Communication Engineering (2007).

Paul Barford and Mark Crovella. 1999. Measuring Web

performance in the wide area. SIGMETRICS

Performance Evaluation Review 27, 2 (September

1999), 37-48. DOI=http://dx.doi.org/10.1145/

332944.332953.

R. Pressman. Engenharia de Software. McGraw-Hill, 6th

edition, 2006.

Ratcliff, 2016, https://searchenginewatch.com/

2016/08/08/what-are-the-top-10-most-popular-search-

engines/. [11 November 2016].

Rizwan Khan, “Comparative Study of Performance

Testing Tools: Apache JMeter and HP LoadRunner”

(2013).

Shariq Hussain, Zhaoshun Wang, Ibrahima Kalil Toure

and Abdoulaye Diop, 2013, “Web Service Testing

Tools: A Comparative Study”.

The Grinder, a Java Load Testing Framework”,

http://grinder.sourceforge.net/. [11 November 2016].

Tikhanski, 2015, “Open Source Load Testing Tools:

Which One Should You Use?” https://

www.blazemeter.com/blog/open-source-load-testing-

tools-which-one-should-you-use.

Vahid Garousi, Lionel C. Briand, and Yvan Labiche.

2006. Traffic-aware stress testing of distributed

systems based on UML models. In Proceedings of the

28th international conference on Software engineering

(ICSE '06). ACM, New York, NY, USA, 391-400.

DOI=http://dx.doi.org/10.1145/1134285.1134340.

Xingen Wang, Bo Zhou and Wei Li, “Model based load

testing of Web Applications”, Proceedings of IEEE

International Symposium on Parallel and Distributed

Processing with Applications (ISPA 10), IEEE Press,

2010.

Z. M. Jiang, A. E. Hassan, G. Hamann and P. Flora,

"Automatic identification of load testing problems," In

Proceedings of the 24th IEEE International

Conference on Software Maintenance (ICSM),

Beijing, 2008, pp. 307-316. doi: 10.1109/

ICSM.2008.4658079.

Zhen Ming Jiang. 2010. Automated analysis of load

testing results. In Proceedings of the 19th international

symposium on Software testing and analysis (ISSTA

'10). ACM, New York, NY, USA, 143-146.

DOI=http://dx.doi.org/10.1145/1831708.1831726.

Comparative Analysis of Web Platform Assessment Tools

125
