Cost-aware Application Development and Management using

CLOUD-METRIC

Alieu Jallow, Andreas Hellander and Salman Toor

Department of Information Technology, Division of Scientiﬁc Computing, Uppsala University, SE-75105, Uppsala, Sweden

Keywords:

Cloud Infrastructures, Metering, Cost Estimation, Recommendations.

Abstract:

Traditional application development tends to focus on two key objectives: the best possible performance and

a scalable system architecture. This application development logic works well on private resources but with

the growing use of public IaaS it is essential to ﬁnd a balance between the cost and the performance of an

application. Here we propose CLOUD-METRIC: a lightweight framework for cost-aware development of

applications to be deployed in public clouds. The key functionality of CLOUD-METRIC is to allow users

to develop applications on private IaaS (a dedicated cluster or an in-house cloud) while estimating the cost

of running them on public IaaS. We have demonstrated the strengths of CLOUD-METRIC using two chal-

lenging use-cases orchestrated on SNIC Science Cloud, a community OpenStack cloud in Sweden, providing

recommendation for a deployment strategy and associated cost estimates in Amazon EC2 and Google Com-

pute Platform. In addition to cost estimation, the framework can also be used for basic application monitoring

and as a real-time programming support tool to ﬁnd bottlenecks in the distributed architecture.

1 INTRODUCTION

Consuming computational and storage resources as

Infrastructure-as-a-Service (IaaS) is one of the fastest

growing trends both in industry and academia. The

major reasons for the adoption of this model is

to reduce upfront investment cost, rapid time-to-

market and availability of large capacity of produc-

tion quality resources. IaaS providers such as Ama-

zon, Google and Azure are offering service-level-

agreements (SLAs) that are favorable for various busi-

ness models. However, in order to realize the bene-

ﬁts and in particular to reduce the cost, it is essential

that applications also adopt adequate design patterns

to become scalable, resilient and vendor-agnostic.

Application architecture is still lagging behind

the advances in modern distributed computing infras-

tructures. A particular challenge is that applications

are traditionally designed with dedicated resources in

mind. This is one of the reasons why users often

fail to see beneﬁts from adopting the cloud comput-

ing resource delivery model. This article highlights

some key challenges in adoption of the cloud model

and proposes a light-weight framework that will help

to address those challenges and aid in the process of

cloud application development. In particular:

1. [C-1.] Porting legacy applications to cloud infras-

tructure as virtual appliances is often trivial but to

provide a cost effective execution environment is

highly challenging.

2. [C-2.] Even if the application is cloud-native,

elastic and fault-tolerant it is often not clear how

to plan the execution environment in order to min-

imize the execution cost.

3. [C-3.] There is disconnect between application

development and cost estimation for the deployed

solution. In the scientiﬁc community, this is a ma-

jor bottleneck for cloud adoption.

4. [C-4.] Without having brokering platforms that

can showcase the provided services and a re-

alistic cost comparison between different cloud

providers the risk of getting vendor lock-in will

always be high.

Apart from the above mentioned technical chal-

lenges another factor is the complex and varying

billing models for the wide variety of cloud resources.

For example, AWS offers 11 different high-level cat-

egories (T2, M4, X1 and C3 etc) and when consid-

ering versions of those, there are in total 45 different

options to select one single computational resource

(AWS, 2016). However the cost estimation capa-

bilities are limited as they do not provide the users

the ability to relate the estimated cost to application-

Jallow, A., Hellander, A. and Toor, S.

Cost-aware Application Development and Management using CLOUD-METRIC.

DOI: 10.5220/0006307505150522

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 487-494

ISBN: 978-989-758-243-1

487

speciﬁc characteristics that may affect the actual cost

of running an application. For large-scale distributed

applications, and in particular for scientiﬁc applica-

tions, this issue is more prominent.

With these challenges in mind, we present

CLOUD-METRIC: A lightweight framework that

adds cost-awareness to the application development

life cycle. Our aim is to provide a framework that

helps in the design of cloud native applications by

making cost considerations an integrated part of the

development life cycle rather than an operational af-

terthought. Importantly, CLOUD-METRIC provides

these cost-estimates both based on the provisioned re-

sources and on an analysis of the actual utilization of

the deployed resources.

The rest of the article is organized as follows: sec-

tion 2 present related work. The functionality of the

framework together with features are presented in-

detail in section 3. Section 4 describes the framework

architecture. An evaluation of the framework is pro-

vided in section 5 where the utility of the framework

is highlighted based on two challenging use cases.

Section 6 illustrates the framework performance and

section 7 presents concluding remarks.

2 RELATED WORK

Several efforts have been made to address the chal-

lenges of metering and cost estimation in cloud envi-

ronments. Liew at al. in (Liew and Su, 2012) used

a queuing model to predict the cloud computing re-

sources used by a targeted application and based on

that it estimates the deployment cost. The cost is es-

timated considering the applications’ resource costs

and services costs. The performance requirements

of the application is predicted using deﬁned policies.

In contrast, CLOUD-METRIC relies on performance

monitoring data for an application running in private

resources.

A related solution to our work is proposed by Hui-

hong He et al. in (He et al., 2012) in which they pro-

pose an approach to estimate the cost of running an

application on AWS during the design phase. They

model the application execution service with an UML

activity diagram. The UML activity is extracted au-

tomatically with a proposed extraction algorithm. In

addition, they propose a cost model to estimate the

operational cost and the performance need of an al-

gorithm during the design phase in order to produce a

suitable deployment.

Recently Cloudorado (Clo, 2016) deployed a web

application that provides cost comparisons for cloud

servers across different cloud service providers in-

cluding Google Cloud, AWS, Microsoft Azure and

Cloudware. They provide an interface that allows

users to specify server capacity requirements and

the application provides matching servers on several

cloud providers together with cost estimates. While

helpful to users to compare cost for virtual private

servers, it does not provide dynamic pricing based on

users’ application resource utilization.

Microsoft, being one of the major cloud services

providers, have developed a tool that helps IT man-

agers to quickly assess the running cost of an existing

on-premise workload on the Azure cloud environment

(Mic, 2016). The tool performs a scan on the exist-

ing on-premise workload and recommends matching

instances on Azure. It also provides a monthly cost

of the matching instances on the Azure environment.

However, the tool is limited to Microsoft and VMware

technologies such as Hyper-V, SCVMM, vCenter and

ESXi. In our proposed framework, we perform an in-

stance matching routine similar to Azures’ matching

routine but we match instances provided by different

providers such at AWS and GCP.

None of above mentioned works address all the

challenges we have highlighted in section 1. The

framework presented in (Liew and Su, 2012) can ad-

dresses C-1, whereas the UML-based framework (He

et al., 2012) provides a limited solution to C-2 and C-

3. Cloudorado is a commercial project, offering ad-

vanced features and covers a range of IaaS providers.

It addresses most of the highlighted challenges but the

requirement of providing manual information seems

unrealistic for applications with dynamic workloads.

The Azure tool (Mic, 2016) addresses most of the

challenges except C-4, since the solution is designed

exclusively for the Azure platform, leaving the risk

for vendor lock-in and a sub-optimal cost for running

the applications.

3 CLOUD-METRIC

CLOUD-METRIC is a light-weight framework with

the capabilities of metering computational and stor-

age resources, cost estimation for clusters, both

micro-(node based) and macro-(application-based,

including all resources) level views of the execution

platform, as well as recommendations for optimized

resource type based on actual usage data.

CLOUD-METRIC currently provides cost-

estimates for Amazon Web Services (AWS) and

Google Cloud Platform (GCP) but it can easily be

extended to different cloud service providers. The

software and deployment guide is available via a

Github repository (CLO, 2016). In order to enhance

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

488

the ﬂexibility and ease of framework deployment,

CLOUD-METRIC components are packaged using

Docker containers (Merkel, 2014). The thesis report

(Jallow, 2016) explains the complete technical

details.

The cost estimation model is one of the core com-

ponents of the framework. The model is subdivided

into static and dynamic estimations. A static estimate

is a one-to-one mapping: it provides the cost of ac-

quiring resources on IaaS that are as similar as possi-

ble to the allocated local execution environment, in-

cluding the number of CPUs, memory and disk size.

Dynamic estimation on the other hand performs this

matching based on the actual utilization level of the

private resources. In the latter case, the framework

uses utilization information together with the static

parameters to recommend a potentially lower execu-

tion cost. For example, while the static estimation

based on allocated resources might suggest an xLarge

ﬂavor of an instance, the actual usage pattern might

show that the instance is under-utilized and the same

performance could be attained by using a Large in-

stance type, leading to a lower cost. Subsection 3.3

explains the process in detail. Here it is important

to note that CLOUD-METRIC cannot be viewed as a

comprehensive monitoring system as the focus is only

on the parameters that have direct inﬂuence on the ex-

ecution cost.

3.1 Cost Estimation

The cost estimation module is the principal com-

ponent of the framework. It estimates the cost of

running an application on AWS and GCP platform.

The cost estimation consist of two algorithms: The

matching algorithm which maps the static informa-

tion of nodes to the closest matching instances on

AWS EC2 and GCP CE, and the cost estimator al-

gorithm which implements the following formulas to

calculate a monthly cost estimate for AWS and GCP

respectively:

Cost

AW S−monthly

= Cost

hourly

∗ T

uptime

Storage

size

∗ Storage

unitcost

Cost

GCP−monthly

= Cost

hourly

∗ T

uptime

∗ Discount

+Storage

unitcost

+ OS

unitcost

∗ T

uptime

Cost

∗−monthly

is instance monthly cost,Cost

hourly

hourly unit cost, T

uptime

is uptime in hours per month,

Storage

size

is the disk size, and Storage

unit

cost is unit

cost of disk type per GB per month. In AWS, the cost

includes the operating system cost as well.

Discount

is the Sustained Usage Discount (cur-

rently amounts to 0.70 for maximum monthly us-

age), OS

unitcost

is premium Operating System (OS)

unit cost. In GCP, OS cost is not included in the

machine type hourly unit cost. Thus it is separately

added in the GCP cost estimate.

For high availability and economic reasons almost

every IaaS provider offers services in different re-

gions. CLOUD-METRIC uses the default settings US

region for the GCP and US-East-1 region for AWS re-

sources. However the cost of running applications on

other regions are also available. The framework com-

putes only monthly estimates which conforms to the

On-Demand (Pay-as-you-go) subscriptions on AWS

and GCP. We used the Regular VM class

for monthly

estimation on GCP CE instances and On-Demand in-

stances on AWS EC2.

Cost estimates on Individual Nodes and on

Clusters: CLOUD-METRIC estimates the cost of in-

dividual nodes in the cluster as well as the overall

cluster cost. The overall cluster cost estimation is the

sum of the individual instances’ cost together with

any offered discounts by the service providers. Our

estimation component calculate cost for all regions on

both AWS and GCP. The framework presents all this

information in a user-friendly web interface. Figure

1 illustrates the various estimated costs of running the

master node of the Hadoop cluster in different regions

on the AWS platform.

Figure 1: Master node on AWS regions.

AWS and GCP On-Demand Cost Estimates:

we have used the closest possible matching in-

stances from AWS and GCP. The comparison uses

c3.xlarge from AWS and N1-HighCPU-4 from GCP

over several percentage of usage in a month.

The results of the cost estimation showed a large

difference between the monthly cost. Google cloud

offers automatic discount on the hourly charges of vir-

tual machines for every additional minute of machine

usage on top of the initial 25% usage in a month. This

discount scheme is called Sustained Usage Discount

(SUD) on GCP. AWS, on the other hand, charges a

GCP provides two virtual machines (VM classes: Reg-

ular and Preemptible). Regular VM runs until terminated

by user whereas Preemptible are short living VMs.

Cost-aware Application Development and Management using CLOUD-METRIC

489

ﬁxed hourly cost for each virtual machine for every

hour of usage in a month. The framework incorpo-

rated these on-demand subscription discounts in its

cost computation algorithm. Users can in the WebUI

see how the hourly unit cost of instances changes over

a monthly period of utilization.

3.2 Resource Monitoring and Metering

The monitoring aspect of the framework provides the

ability to visualize the performance of each node in

the cluster and the overall cluster. The parameters we

monitor in each node are the ones that have direct ef-

fect on the cost. The monitoring data is used in the

implementation of the recommendations, discussed in

subsection 3.3.

Single Node Monitoring: For each node in the

test environment based on Hadoop cluster, there is a

resource monitoring process that sends resource us-

age data to the database in regular intervals.

Cluster Monitoring: The framework provides

the functionality to visualize the overall performance

of an entire cluster. In this case, the stored data of the

individual nodes (mentioned in Single Node monitor-

ing) are grouped and presented as an overall usage of

resources. The monitoring charts display the aggre-

gated percentage usage of the cluster.

The metering activity in the framework is carried

out by the resource miner component. This compo-

nent should run as a deamon on every single compute

node in the application execution environment. The

resource miner component acquires both static and

dynamic information. Static information includes the

hostname, operating system, number of CPUs, mem-

ory size, and disk size. For dynamic information,

the resource miner component uses a Python module

called psutil, a cross-platform library for retrieving

system information such a CPU, network and mem-

ory usage.

3.3 Instance Recommendation

Apart from one-to-one mapping where the aim is to

ﬁnd the closest possible instances, the framework can

also recommend instances with reduced cost with-

out compromising on the overall application perfor-

mance.

The algorithm for recommendations ﬁrst query for

average utilization of individual nodes and construct

a hypothetical instance from the data retrieved. This

constructed instance is then matched with similar in-

stances on AWS and GCP as outlined in subsection

3.2. The details of the recommendation shown in Al-

gorithm 1.

Algorithm 1: Recommendation algorithm.

Data: Resource Utilization Data, Pricing Data, Instances Types on

AWS and GCP, Cluster

Output: Recommended Instances, EstimatedMonthlyCost of

Recommended Instances

1 foreach Node in Cluster do

2 get CPUSize, MemorySize, DiskSize, OS,

AverageCPUUtilized and AverageMemoryUtlized

3 estimate CPUCount and Memory

4 ExpVal = log

(CPUCount);

5 if ExpVal is not an integer then

6 OptimizedCPU = 2

dExpVale

;

7 OptimizedMem = Memory

8 end

9 end

10 foreach OptimizedCPU, OptimizedMemory do

11 get MatchingInstances on AWS and GCP

12 end

13 foreach MatchingInstances do

14 Compute cost of instance in AWS and GCP

15 end

4 ARCHITECTURE

The architecture of the framework adopts a modular

approach which leads to ﬂexible deployment options.

Each component of the system is independent and

communicate with other components using well de-

ﬁned interfaces. The deployment model varies from a

single-node setup for a small-scale application meter-

ing to multi-node deployment where multiple appli-

cations can use the framework simultaneously.

The framework is designed to be portable and ef-

ﬁcient. The architecture consist of two main compo-

nents: foreign and native components. The architec-

ture employs a push-based model for external node

registration. This process is carried out by the foreign

components resource miner and resource monitor as

shown in ﬁgure 2.

Figure 2: CLOUD-METRIC framework architecture.

Foreign Components are regarded as external be-

cause they are designed to execute on each node of

the application execution environment. The compo-

nents are lightweight python modules, carefully de-

signed not to add signiﬁcant load on the execution en-

vironment. The resource miner performs the metering

activity and sends the static information of the appli-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

490

cation setup to the framework. The resource monitor

is responsible for the resource monitoring activity. It

reports resource usage data in regular intervals, con-

ﬁgurable according to the requirements.

Native Components of the framework consists of

a database, the backend implementation, and the fron-

tend web-interface written with Flask (ﬂa, 2016). All

native components are implemented using Python,

and external dependencies are limited to Flask, Mon-

goDB and Pymongo

. We chose to use a NoSQL so-

lution to ensure scalability for potentially very large

deployments. MongoDB is a lightweight document

store, does not require a strict database schema, works

well for horizontal scaling and is available as a pro-

duction quality software.

The database consist of three collections, the ﬁrst

stores clusters’ information, the second stores the me-

tered data and the third stores the resource usage data.

By default the monitored data collection is capped

to store a maximum of 2 day of monitored data for

20 nodes in an environment. This can be modiﬁed

depending on the application’s requirements. The

database design supports multiple application devel-

opment environments. This allows experts to com-

pare different strategies with different versions of

their applications. Another key module in the sys-

tem is the IaaS provided price lists. The pricing data

of both GCP and AWS is extracted from (gcp, 2016)

and (aws, 2016) respectively. The framework uses a

JSON format for the pricing data list. GCP pricing list

is available for developers in JSON format. However,

AWS pricing list is not readily available. It is ﬁrst ex-

tracted as CSV format and than converted to JSON. In

order to validate the framework’s estimates, we have

also developed a testing module called CM-estimator.

Results in section 5 will show the accuracy of our es-

timates in comparison with the GCP Price Calculator

(PC) and AWS Simple Monthly Calculator (SMC).

5 FRAMEWORK EVALUATION

5.1 Cost Estimation

The viability of CLOUD-METRIC framework de-

pends on the accuracy of the cost estimates. CM-

Estimator is the component responsible for cost es-

timation in the framework. It currently supports AWS

and GCP IaaS and exposes well-deﬁned interfaces

to add support for other IaaS providers. Figure 3

presents the accuracy of the provided cost estimates

Pymongo is a Python distribution containing tools for

working with MongoDB

by comparing the cost calculated by CM-Estimator

with the IaaS providers’ native calculators.

Figure 3: Cost comparison between CM-Estimator, AWS-

SMC and GCP-PC Calculators.

Here it is important to note that AWS and GCP

uses different pricing strategies. GCP has a Sustained

Usage Discount (SUD) both for the compute and stor-

age whereas AWS offers ﬂat rates with ﬁxed hourly

price. Cloud-METRIC incorporates all these details

to provide the closest possible estimations for a vari-

ety of resources.

5.2 Use cases

To evaluate the strengths of CLOUD-METRIC, we

have presented two use cases based on the horizon-

tally scalable execution environments. The use cases

cover both execution platform for an already estab-

lished application (use case-1) and the support of

CLOUD-METRIC framework in the process of ap-

plication development.

For both presented use-cases we have used

SNIC Science Cloud (SSC) (ssc, 2016), an Open-

Stack based community cloud solution for Swedish

academia. SSC is a national-scale cloud with the fo-

cus on providing IaaS.

Use case-1: A small Hadoop cluster. For this

use case we setup a small Hadoop cluster with default

settings. Once CLOUD-METRIC components (For-

eign Components) are deployed on the machines in

the cluster, it ﬁrst performs a static one-to-one map-

ping of the resources to the public IaaS, i.e. it ﬁnds the

closest matching resource ﬂavors available on AWS

and GCP. In this case, each node of the local Hadoop

cluster matched the c4.2xlarge instance on AWS

EC2 and N1-HighCPU-8 on GCP CE. Table1 (ﬁrst

part) presents the cost estimation of the static one-to-

one mapping. This gives the user of the private IaaS

information on what the cost would be to move the

setup to public IaaS. The calculated cost for GCP in-

cludes the offered discounts.

Further we consider two execution scenarios to

highlight the framework’s strength to recommend cost

effective execution environments. In the ﬁrst scenario

the resources are under-utilized whereas in the sec-

ond scenario, resources are occupied with a very high

workload. In the ﬁrst scenario, after monitoring the

Cost-aware Application Development and Management using CLOUD-METRIC

491

local environment for a certain duration, based on the

actual usage the CLOUD-METRIC framework rec-

ommended c3.xlarge and N1-HighCPU-4 for each

node on AWS and GCP respectively. By matching re-

sources in the public IaaS based on the observed ac-

tual usage the framework helps reducing the cost over

a naive static mapping without compromising the per-

formance of the application. In this case, the recom-

mended resource ﬂavors are almost half of the price

compare to the resource ﬂavors recommended based

on the static initial mapping. Table 1 (second part)

presents the individual and the total execution cost of

running the Hadoop cluster. With this test we would

only like to compare the cost of an IaaS before and

after adding the resource utilization metrics. The cal-

culated price of 629.22$ for AWS resources is based

on ﬂat pricing model whereas GCP calculated cost of

324.18$ is based on Sustained Usage Discount pric-

ing model. In case of GCP the prices ﬂuctuate de-

pending on the resource usage but for AWS the prices

are ﬁxed.

Table 1: Price variation for Hadoop cluster based on the

workload. Cost presents the monthly charges on AWS and

GCP in US Dollars. The reduced and increased costs are

based on both static and dynamic information.

AWS Cost $ GCP Cost $

One-to-One mapping (Static information)

C4.2XLARGE 314.61 N1-HighCPU-8 162.09

Total Estimate 629.22 324.18

Reduced cost with under utilized resources

C3.XLARGE 161.62 N1-HIGHCPU-4 84.20

Total Estimate 323.24 168.41

Increased cost with full resource utilization

C4.2XLARGE 314.61 N1-HIGHCPU-8 162.09

Total Estimate 629.22 324.18

In the second scenario we created an exten-

sive workload on the local execution environment.

Since the resources now become completely occu-

pied, CLOUD-METRIC updated the recommenda-

tions. Table 1 (third part) illustrates the increase in

the cost (compare to the second scenario) as the re-

sources are fully utilized. Here, we would expect the

framework to recommend the same deployment strat-

egy as for the static mapping (when it assumes 100%

resource utilization) since the aim is not to compro-

mise on the performance of the application. This be-

havior is conﬁrmed in the table.

While use case-1 highlighted the utility of

CLOUD-METRIC in planning the migration of an al-

ready established application to public resources, the

second use case shows how the service can be used to

support development of interactive parallel comput-

ing applications.

Use case-2: Guiding interactive parallel com-

puting with IPython Parallel MOLNs (mol, 2016)

is an orchestration software that creates dynamically

scalable clusters conﬁgured to run parallel computa-

tional experiments with the systems biology simula-

tion software PyURDME (pyu, 2016). MOLNs can

conﬁgure and provision virtual clusters in OpenStack

IaaS or Amazon EC2.

To enable a better understanding of the perfor-

mance trade-offs in different parts of commonly ex-

ecuted parallel computations, to potentially suggest

improvement of the implementation and to highlight

cost-considerations we enabled the MOLNs orches-

tration tools with CLOUD-METRIC. We considered

two computationally interesting and different scenar-

ios for a MOLNs cluster comprising of 6 nodes and

a total of 94 vCPUs deployed in AWS: (a) We con-

ducted a Monte Carlo experiment where the PyUR-

DME application is invoked to generate simulation

output in the form of spatio-temporal data. A large

number of independent realizations are generated

(10

) and written to a SSHFS ﬁle system on the vir-

tual cluster. In the next phase, (b) we read all this data

in parallel and compute a summary statistic. In both

cases, we use CLOUD-METRIC to study the aggre-

gated resource usage of the entire cluster and the cost

aspect of our computations.

Figure 4: Static cost for MOLNs cluster in Amazon EC2.

Fig. 4 shows the projected cost of the cluster for

one month of sustained allocation in AWS. As can be

seen, the cost is $3725. For a typical research group

this is substantial and it highlights the importance of

adopting a dynamic resource usage model when mov-

ing scientiﬁc applications to the cloud. Since in this

case the entire computation completed in about 2 min-

utes, by automating the provisioning and tear down

of the cluster MOLNs succeeds in helping scientists

leverages the pay-as-you go model of public IaaS.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

492

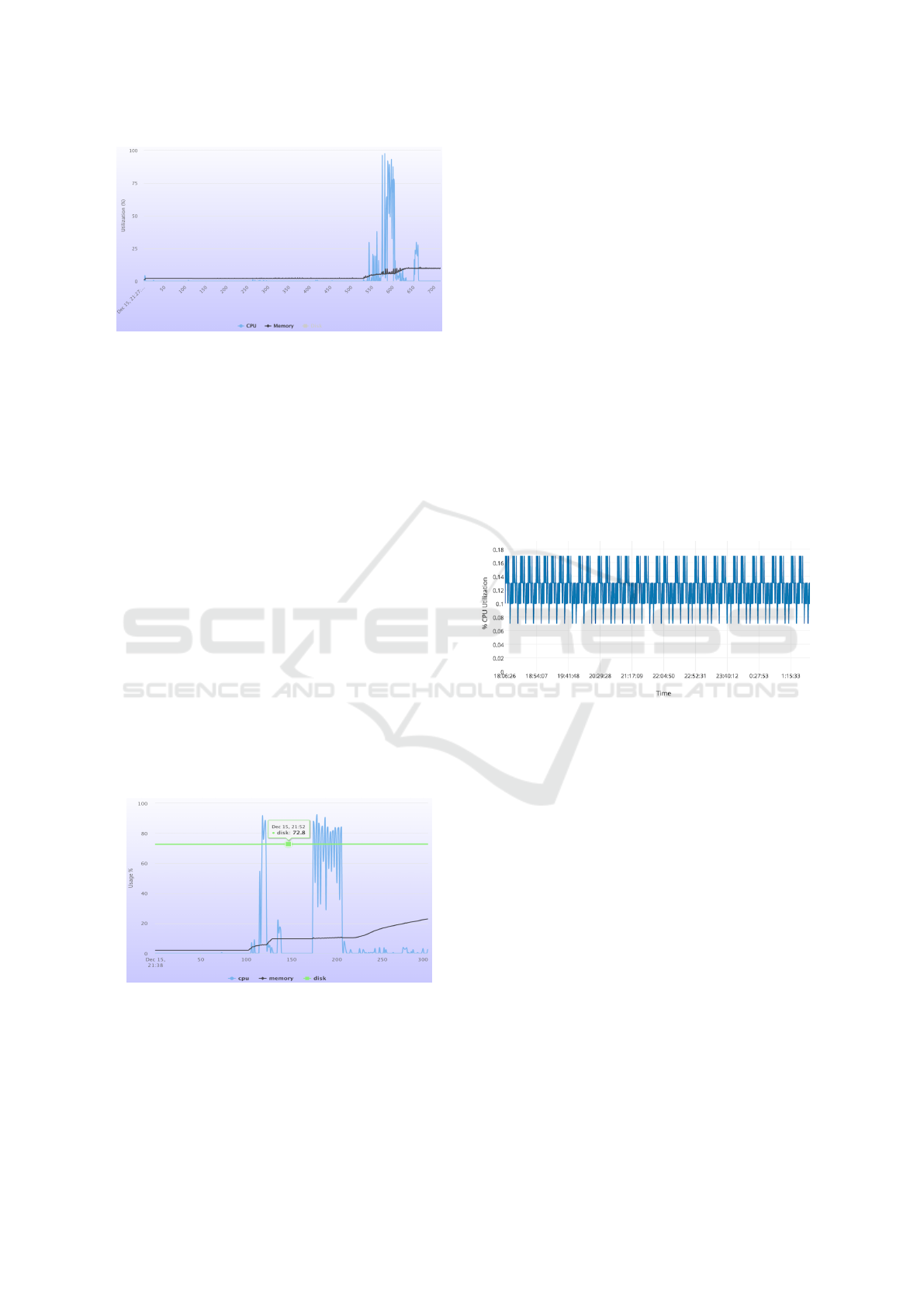

Figure 5: Aggregated CPU and memory usage over the en-

tire cluster during a computational experiment.

However, CLOUD-METRIC lets us draw some

more conclusions about our setup. Fig 5 shows the

total aggregated CPU and RAM usage over the en-

tire cluster during the computational phase (ﬁrst peak)

and the data processing phase (second, smaller peak).

As can be seen, although MOLNs manages to make

use of a large fraction of the cluster resources for

phase (a) it is not optimal and the CPU utilization

ﬂuctuates quite heavily, suggesting idle phases. The

reason for this could be attributed to e.g. bottle-

necks in writing result to disk or delays in the start

of new task by the broker. More detailed applica-

tion level investigations would be needed to determine

the root cause, but CLOUD-METRIC would imme-

diately provide a view on whether any code changes

would improve the utilization level. We also see that

in the second phase (b) we do not come close to lever-

aging the total compute capacity of the cluster. This

suggests that we should consider either reﬁning the

code to use fewer workers during this phase (allow-

ing them to do other work) or seek to improve the

data read performance.

Figure 6: Resource usage for one of the six worker nodes in

the MOLNs cluster.

Finally, zooming in one the detailed usage of an

individual worker node in Fig. 6 reveals some inter-

esting information. Here we executed a second pass

of phase (a) for an even larger number of simulations

(5 × 10

). This increases the chunk size (amount of

work given to each worker). As can be seen, it does

not improve the ﬂuctuations in CPU utilization even

on a single node, so this makes it more plausible that

it is caused by delays in staging results to storage.

6 PERFORMANCE EVALUATION

In this section the focus is on the resource usage and

the overhead imposed on the analyzed environment

by CLOUD-METRIC itself. For the results presented

in this section, we have used application settings de-

scribed in use case-1 in subsection 5.2.

Foreign Components: resource miner and re-

sources monitor are the components running on each

node in the application’s execution environment. The

frequency of the reports sent by the resources mon-

itor can be tuned depending on the application’s re-

quirements but to illustrate a realistic scenario the pre-

sented results are based on regular reporting with 60

seconds interval. The cumulative overheads created

Figure 7: Resources miner and monitor usage on Hadoop

cluster master node.

by these components are presented in ﬁgure 7. The

results shows the percentage usage of less than 0.5%

over a period of 8 hours. The memory usage was con-

sistently under 2MB. The usage pattern afﬁrms that

these components are lightweight and the required

tasks can be achieved with minimal resource usage.

Native Components: The native framework con-

sist of a database component, web front-end, cost esti-

mation and recommendation components. The prefer-

able deployment model is to run the native compo-

nents of the CLOD-METRIC on a dedicated node. In

our use cases, it is deployed on a separate VM in the

same OpenStack tenant as the analyzed application

environment. We have evaluated the CPU, memory,

network and disk utilization on the node hosting the

framework. For database we have used MongoDB

with standard settings. MongoDB has already been

well tested for different deployments models (Nyati

et al., 2013),(Parker et al., 2013).

Figures 8 and 9 present CPU and network con-

sumption of the framework for a ﬁxed window of 8

Cost-aware Application Development and Management using CLOUD-METRIC

493

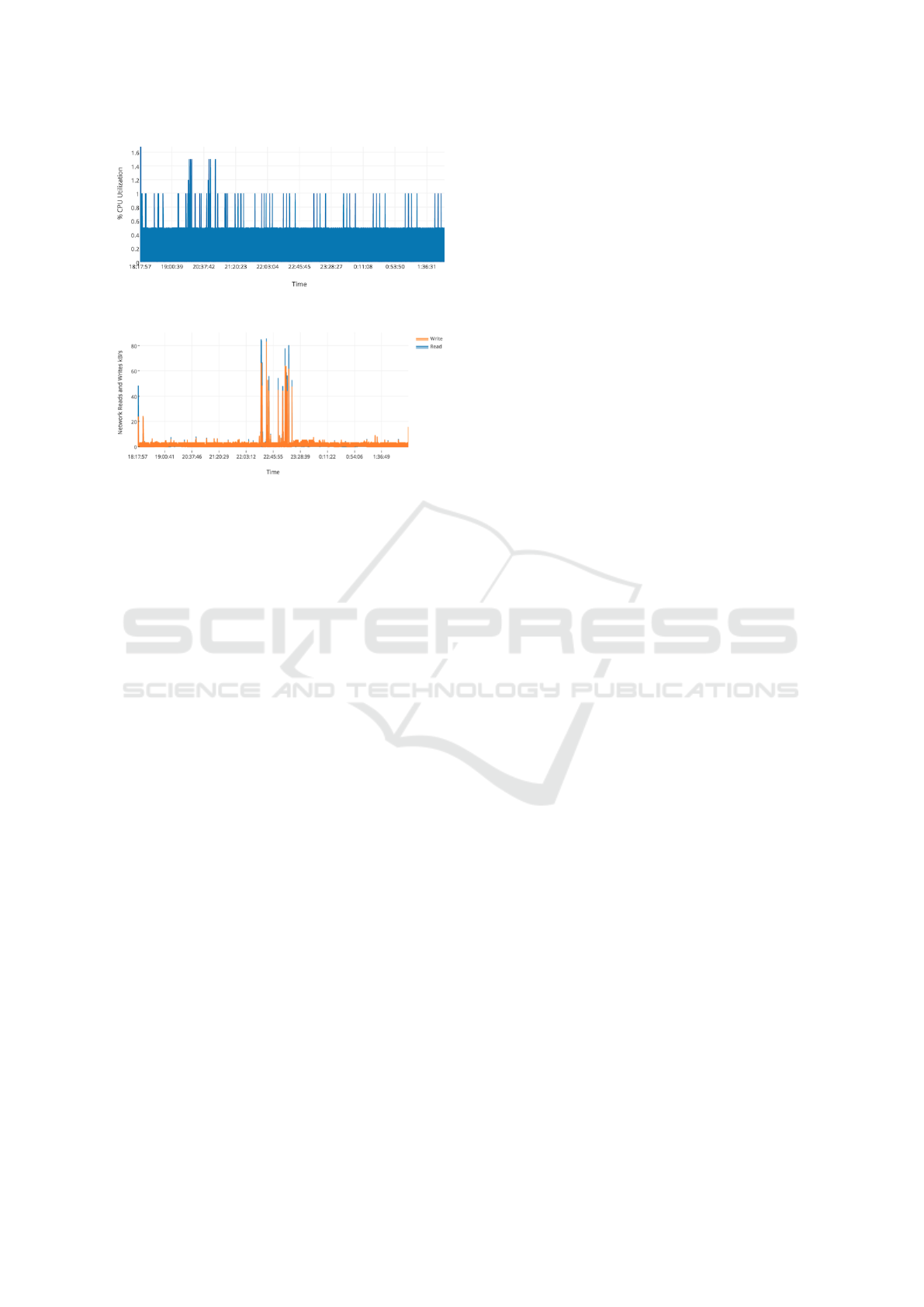

Figure 8: CPU utilization.

Figure 9: Network consumption while monitoring Hadoop

cluster.

hours. Throughout the experiment the CPU utiliza-

tion was less than 2% and the active memory utilized

by the Python processes was under 300 KB/s. For

these measurements we have monitored the Hadoop

cluster discussed in use case-1. The low usage of

resources show that the framework is stable and ex-

pected to manage and meter multiple execution envi-

ronments simultaneously.

7 CONCLUSION

With CLOUD-METRIC we have presented a frame-

work that eases the transition of applications from a

dedicated or private virtual execution environment to

public cloud infrastructures. CLOUD-METRIC is a

lightweight and easy-to-use framework that can man-

age multiple execution environments simultaneously.

We have also demonstrated how framework can sup-

port the development phase of complex applications.

ACKNOWLEDGMENT

This work was supported by the Swedish strategic re-

search programme eSSENCE(ess, 2016) and G

oran

Gustafsson Foundation(ggf, 2016). The development

and testing of CLOUD-METRIC were performed on

resources provided by the Swedish National Infras-

tructure for Computing (SNIC) (sni, 2016) at Upp-

sala Multidisciplinary Center for Advanced Compu-

tational Science (UPPMAX) (upp, 2016).

REFERENCES

(2016). Aws instance type. https://aws.amazon.com/

ec2/instance-types/.

(2016). Aws price calculator. http://a0.awsstatic.

com/pricing/1/ec2/.

(2016). Cloudorado. https://www.cloudorado.com/.

(2016). essence: The e-science collaboration. http://

essenceofescience.se/.

(2016). Flask. http://flask.pocoo.org/.

(2016). Github repository for cloud-metric. https://

github.com/ajallow07/Cloud-Metric.

(2016). Google price calculator. https://cloud.google.

com/products/calculator/.

(2016). Goran gustafssons stiftelser. http://

gustafssonsstiftelser.se/.

(2016). Microsoft azure cost calculator. https://azure.

microsoft.com/en-us/pricing/calculator/.

(2016). Molns. https://github.com/MOLNs/molns.

(2016). pyurdme. www.pyurdme.org.

(2016). Snic science cloud. https://cloud.snic.se.

(2016). Swedish national infrastructure for computing

(snic). http://www.snic.vr.se/.

(2016). Uppsala multidisciplinary center for advanced com-

putational science. http://www.uppmax.uu.se/.

He, H., Ma, Z., Li, X., Chen, H., and Shao, W. (2012). An

approach to estimating cost of running cloud applica-

tions based on aws. In 2012 19th Asia-Paciﬁc Soft-

ware Engineering Conference, volume 1, pages 571–

576.

Jallow, A. (2016). Cloud-metric: A cost effective applica-

tion development framework for cloud infrastructures.

Master’s thesis, Uppsala University, Department of

Information Technology.

Liew, S. H. and Su, Y. Y. (2012). Cloudguide: Helping users

estimate cloud deployment cost and performance for

legacy web applications. In 4th IEEE International

Conference on Cloud Computing Technology and Sci-

ence Proceedings, pages 90–98.

Merkel, D. (2014). Docker: Lightweight linux containers

for consistent development and deployment. Linux J.,

2014(239).

Nyati, S. S., Pawar, S., and Ingle, R. (2013). Performance

evaluation of unstructured nosql data over distributed

framework. In Advances in Computing, Communica-

tions and Informatics (ICACCI), 2013 International

Conference on, pages 1623–1627.

Parker, Z., Poe, S., and Vrbsky, S. V. (2013). Comparing

nosql mongodb to an sql db. In Proceedings of the

51st ACM Southeast Conference, ACMSE ’13, pages

5:1–5:6, New York, NY, USA. ACM.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

494
