InterSCity: A Scalable Microservice-based Open Source Platform for

Smart Cities

Arthur de M. Del Esposte

, Fabio Kon

, Fabio M. Costa

and Nelson Lago

Department of Computer Science, University of S

ao Paulo, R. do Mat

ao, 1010 - Cidade Universit

aria, 05508-090, S

Paulo, S

ao Paulo, Brazil

Institute of Informatics, Federal University of Goi

as, Alameda Palmeiras, Quadra D, C

ampus Samambaia, 74690-900,

Goi

ania, Goi

as, Brazil

Keywords:

Smart Cities, Software Platform, Microservices, Scalability, Open Source Software.

Abstract:

Smart City technologies emerge as a potential solution to tackle common problems in large urban centers

by using city resources efﬁciently and providing quality services for citizens. Despite the various advances

in middleware technologies to support future smart cities, there are no universally accepted platforms yet.

Most of the existing solutions do not provide the required ﬂexibility to be shared across cities. Moreover,

the extensive use and development of non-open-source software leads to interoperability issues and limits

the collaboration among R&D groups. In this paper, we explore the use of a microservices architecture to

address key practical challenges in smart city platforms. We present InterSCity, a microservice-based open

source smart city platform that aims at supporting collaborative, novel smart city research, development, and

deployment initiatives. We discuss how the microservice approach enables a ﬂexible, extensible, and loosely

coupled architecture and present experimental results demonstrating the scalability of the proposed platform.

1 INTRODUCTION

The rapid growth of cities around the world has cre-

ated large, densely populated urban centers charac-

terized by complex interconnected structural, social

and economic organizations. This urbanization phe-

nomenon imposes several challenges for sustainable

development and quality of life in cities that tra-

ditional management approaches cannot overcome.

Thus, smart cities emerge as a new paradigm aimed

at addressing these problems by using city resources

efﬁciently and providing quality services for its cit-

izens. As a consequence, several efforts have been

devoted to the study and development of smart city

solutions to address the major problems faced by the

cities of today such as trafﬁc jams, air pollution, and

energy efﬁciency.

Smart cities are characterized by the adoption of

Information and Communication Technologies (ICT)

as an integral part of the city’s infrastructure to sup-

port multiple solutions for urban challenges (Neirotti

∗

This research is part of the INCT of the Future Internet

for Smart Cities funded by CNPq, proc. 465446/2014-0,

CAPES, proc. 88887.136422/2017-00, and FAPESP, proc.

2014/50937-1.

et al., 2014). The Internet of Things (IoT), Big Data,

and Cloud Computing are key enabling technologies

of smart cities that offer a wide range of opportuni-

ties and challenges, both in the academy and industry.

To fully exploit the potential of these enablers, future

smart cities will demand a uniﬁed ICT infrastructure

to properly share their resources rather than relying

on non-integrated solutions, or market islands (Vil-

lanueva et al., 2013). The most common approach

still adopted in existing initiatives is to develop ad-

hoc applications for speciﬁc domains, such as health

care and urban mobility, which leads to low resource

sharing and the proliferation of non-interoperable ser-

vices.

Many authors advocate that integrated middle-

ware platforms can provide the required infrastructure

to support the construction of sophisticated, cross-

domain smart city applications (Villanueva et al.,

2013; Hern

andez-Mu

noz et al., 2011; Fazio et al.,

2012). Such platforms must include facilities for ap-

plication development, for enabling interoperability

between the different systems of a city, for managing

large amounts of data, and for dealing with a hetero-

geneous number of distributed devices and services at

city scale, to cite only a few requirements (Santana

Esposte, A., Kon, F., Costa, F. and Lago, N.

InterSCity: A Scalable Microservice-based Open Source Platform for Smart Cities .

DOI: 10.5220/0006306200350046

In Proceedings of the 6th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2017), pages 35-46

ISBN: 978-989-758-241-7

et al., 2016).

Despite the various advances in middleware tech-

nologies, protocols, and standards, many aspects re-

lated to the design, development, deployment, and

management of smart city platforms still challenge

the research community. Consequently, there are no

universally accepted platforms yet, and existing so-

lutions do not provide the required ﬂexibility to be

shared across cities (PCAST, 2016). In the following,

we highlight three key factors that contribute to the

lack of practical and reusable solutions in the ﬁeld.

First, in addition to traditional functional capabili-

ties, smart city platforms must meet a number of non-

functional requirements to enable their use in differ-

ent environments and applications. Security and pri-

vacy policies may change according to the laws and

regulations of the city, impacting design decisions re-

garding storage and availability of the data in the plat-

form. Different contexts may expose a great diversity

of requirements, which may dynamically evolve over

time. Thus, smart city platforms must provide a ﬂex-

ible architecture to adopt new technologies and sup-

port new functional and non-functional requirements

to suit the diversity of the multiple and constantly

evolving city environments where they are deployed.

Similarly, a smart city platform must scale up to han-

dle the increasingly large number of users, devices,

and services as well as their associated data, which

will grow with the evolution of urban environments.

In particular, these platforms must offer different scal-

ability strategies by design to meet the diverse scala-

bility demands. Therefore, the dynamism and con-

tinuous evolution of urban environments require the

use of new approaches to develop ﬂexible, evolvable,

maintainable, and scalable architectures for smart city

platforms (Krylovskiy et al., 2015).

The second point is related to the lack of prac-

tical and scientiﬁc validation to evaluate the differ-

ent aspects of smart city solutions, such as social and

economic impact, internal and external quality, per-

formance, scalability, and feasibility, to cite a few.

In (Sanchez et al., 2011), the authors observed that

although many IoT projects present concrete solu-

tions, validation of the developed technologies and

architectural models are limited to proofs-of-concept,

not allowing conclusive results. Therefore, we still

need more comprehensive studies with experiments

and tests that allow the comparison of different smart

city technologies. For this purpose, signiﬁcant effort

should be devoted to (1) deploying existing solutions

in real production scenarios, (2) developing meth-

ods and tools for more sophisticated simulation-based

evaluations, and (3) developing well-deﬁned bench-

mark strategies for cross-platform evaluation.

Lastly, the extensive use and development of non-

open-source software in the core of smart city plat-

forms jeopardize their widespread adoption as it leads

to interoperability difﬁculties and limits the collabora-

tion among R&D groups, often forcing them to “rein-

vent the wheel”. The use of open technologies is cru-

cial to the sustainability and development of future

smart cities, since they prevent vendor lock-in, enable

collaborative development, market opportunities, and

sharing of solutions.

To address the above-mentioned challenges, we

propose InterSCity, an open source microservices-

based platform for smart cities. Its objective is to pro-

vide a high-quality, modular, highly scalable middle-

ware infrastructure to support smart city solutions that

can be reused across cities and R&D groups, as well

as governments and companies.

Microservice architectures emerged from the soft-

ware industry’s best practices in building large-scale

distributed applications composed of small, intercon-

nected components (microservices), supporting scal-

ability, evolvability, maintainability, and modularity.

InterSCity leverages the microservice approach to im-

plement the fundamental modules described by the

reference architecture proposed in (Santana et al.,

2016), conceived from the analysis of 23 smart city

projects. This reference architecture describes the

building blocks needed to meet the main functional

and non-functional requirements to guide the devel-

opment of next-generation platforms for smart cities.

Thus, the platform provides high-level services to

manage heterogeneous IoT resources, data storage

and processing, and context-aware resource discov-

ery. In this paper, we discuss the design and imple-

mentation details of the InterSCity platform to ad-

dress the design challenges in smart city systems.

This paper brings two key contributions to smart

cities platforms research: (I) the InterSCity platform

as an open-source project to enable novel smart city

research, development, and deployment initiatives;

(II) an analysis of the impact of its microservice ar-

chitecture to address key research challenges related

to scalability and evolvability in smart city platforms

based on experimental results and our early experi-

ence. Section 2 presents a discussion of related work.

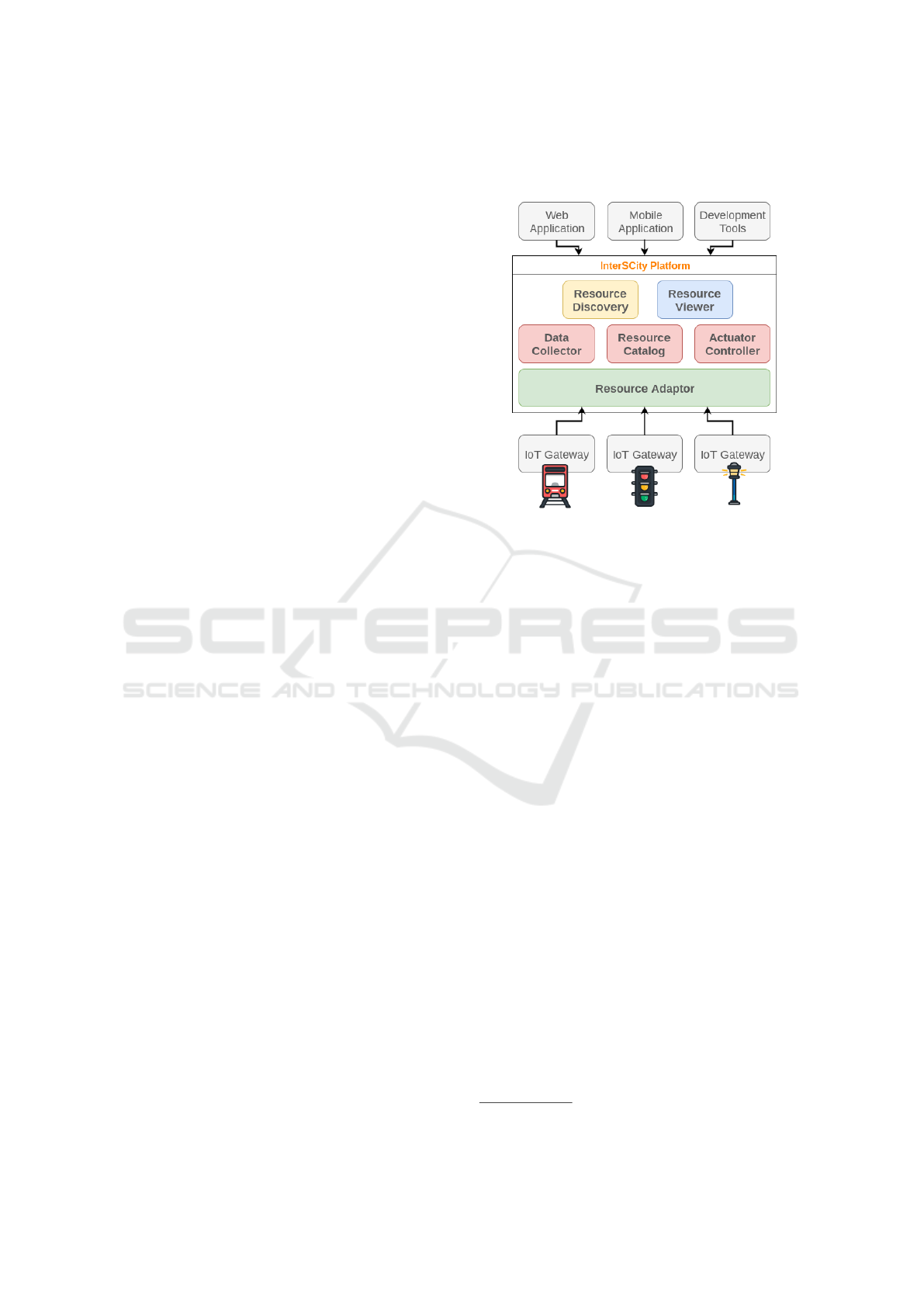

Section 3 describes in detail the InterSCity microser-

vice architecture, design principles, and an example

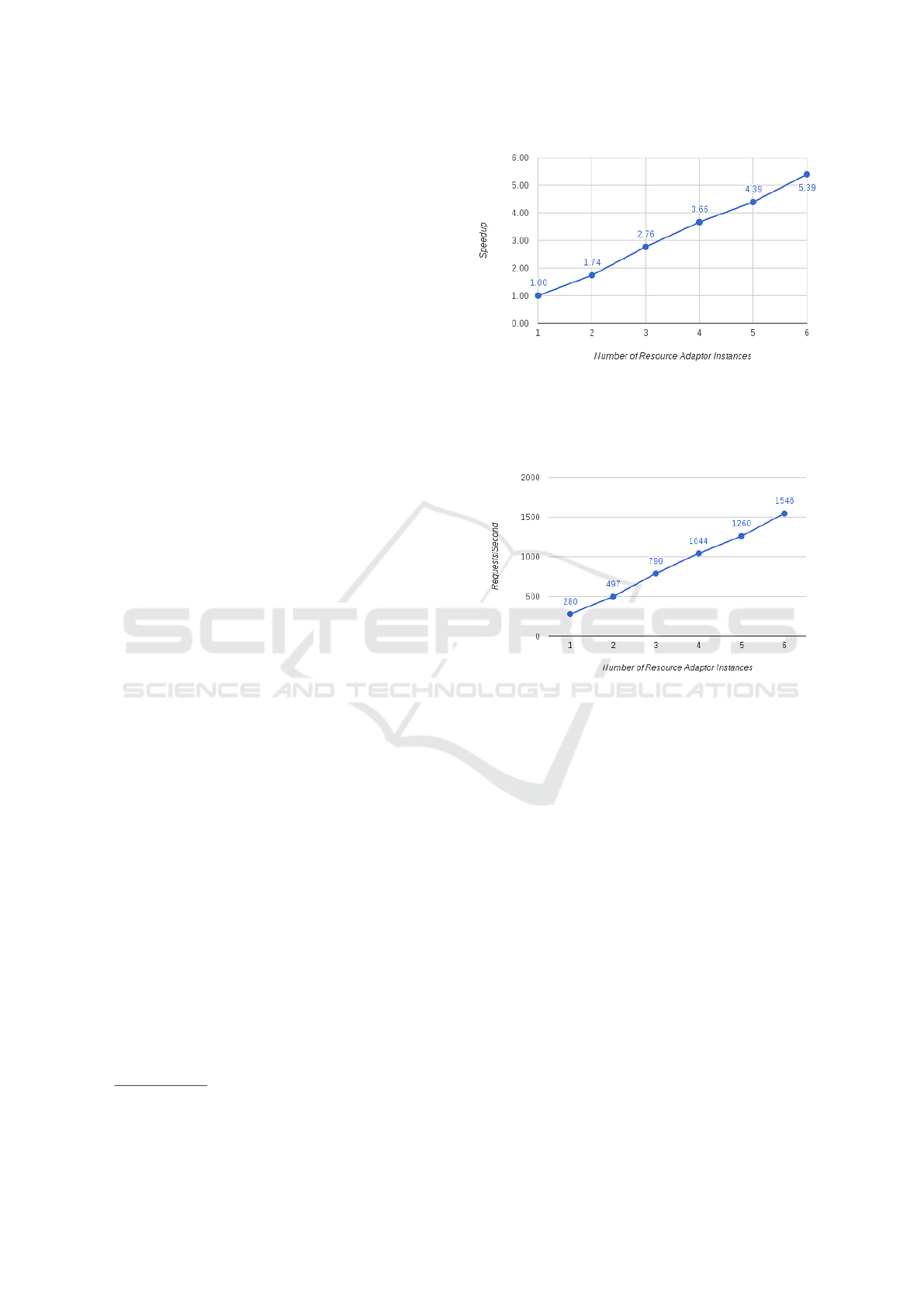

application. Section 4 presents a scalability evalua-

tion of the platform within a scenario of data stream-

ing from sensors spread across a city. Lastly, we

present the concluding remarks and future work in

Section 5.

SMARTGREENS 2017 - 6th International Conference on Smart Cities and Green ICT Systems

2 RELATED WORK

Several efforts have been devoted to the study and

development of platforms that address the key chal-

lenges of smart cities. In particular, projects that aim

at addressing the practical problems related to the de-

velopment, deployment, and maintenance of smart

city services and applications are the most relevant in

the context of this work.

Perhaps the most notable project that targets the

realistic deployment and validation of smart city so-

lutions is SmartSantander, which provides a smart

city testbed with research facilities composed of more

than 20,000 IoT devices deployed in urban envi-

ronments (Sanchez et al., 2014). The SmartSan-

tander testbed aims at supporting experimentation

with smart city services in a realistic setting at a large

scale. Despite the relevance of this project to enable

experiments in real scenarios, it is not clear whether

it meets important requirements that would allow its

applicability in other contexts (e.g., in cities with dif-

ferent characteristics), such as adaptability, ﬂexibility,

and extensibility. We advocate that an open source

smart city platform based on a scalable microservices

architecture is an effective way to achieve such re-

quirements.

A number of middleware platforms were devel-

oped in recent years to address multiple requirements

towards the construction of cross-domain smart city

solutions, as opposed to traditional approaches based

on vertical silos. The Civitas middleware (Villanueva

et al., 2013) fulﬁlls the main functional requirements

by proposing a set of essential standards and tools to

enable smart city ecosystems. The Gambas (Apoli-

narski et al., 2014) project offers tools to facilitate the

development and deployment of smart city applica-

tions, including a runtime environment and an SDK.

However, it is not clear whether these platforms ad-

dress some of the key non-functional requirements,

such as scalability, extensibility and evolvability.

OpenIoT

is one of the most relevant projects han-

dling the main requirements of smart city platforms.

It is an open source layered middleware platform that

aims at enabling semantic interoperability across IoT

applications, including smart cities (Soldatos et al.,

2015). The platform provides visual tools to facili-

tate the administration and implementation of appli-

cations directly on top of it. Although OpenIoT pro-

vides several facilities to support IoT applications, it

is not clear how its architecture deals with important

aspects related to scalability, adaptability, and exten-

sibility.

Krylovskiy et al. (Krylovskiy et al., 2015) present

https://github.com/OpenIotOrg/openiot

the DIMMER project, a microservice-based IoT plat-

form to support applications that aim at improving

energy efﬁciency and management in cities. This is

the only previous work we have found that explores

the use of a microservices architecture to build smart

city platforms. The authors described their early ex-

perience in adopting microservices, covering their im-

pact on organizational and design aspects. However,

their work leaves several open questions that demand

further experimental and empirical studies to obtain

more conclusive results on the adoption of microser-

vices in the design of smart city platforms, such as

on issues related to scalability and perfomance. Our

work has a broader scope, as the InterSCity platform

is designed to support smart city applications from

multiple domains and is fully developed as an open

source project, as opposed to the DIMMER platform.

3 THE INTERSCITY PLATFORM

InterSCity is a project aiming at developing multi-

disciplinary, high-quality scientiﬁc and technological

research to address the key challenges related to the

software infrastructure of smart cities (Batista et al.,

2016). One of the main goals of InterSCity is to de-

velop reusable open source technologies and methods

to support future Smart Cities. In this context, the In-

terSCity platform is a concrete result from the initial

research efforts in the project.

The InterSCity platform has been developed in-

crementally as an open source microservices-based

platform to enable collaborative research, develop-

ment, and experiments in smart cities. The platform

was designed from the outset following the refer-

ence architecture for smart city platforms proposed

in (Santana et al., 2016). This reference architecture

aims at guiding the development of next-generation

smart city platforms by describing and organizing the

major building-blocks that are required to meet a wide

range of functional and non-functional requirements

elicited from the analysis of a large number of existing

smart city projects. By implementing key building-

blocks of this architecture, the InterSCity Platform

covers the major features required to support inte-

grated smart city applications in different domains,

such as public transportation, public safety, and envi-

ronmental monitoring. Currently, the InterSCity Plat-

form provides a set of high-level cloud-based services

to manage heterogeneous IoT resources, data storage

and processing, and context-aware resource discov-

ery.

We follow agile software development methods

aligned with practices of open-source project com-

InterSCity: A Scalable Microservice-based Open Source Platform for Smart Cities

munities to provide a high-quality platform that can

be shared and collaboratively developed among cities,

research groups and development communities. The

source code is available online

3.1 Design Principles

Smart cities emerge from advances in tools and tech-

niques developed both in the industry and academia,

such as the Internet of Things, Big Data, and Cloud

Computing. However, the integration of these tools

and technologies is not straightforward, as these ar-

eas evolve rapidly and their combination raises com-

plex issues. This brings new challenges, approaches,

and dynamics that result in the constant emergence

of novel technologies, standards, and services. Smart

city applications further enhance the dynamism of the

involved technologies, since they encompass com-

plex environments composed of several intercon-

nected subsystems which are constantly evolving and

presenting new challenges. Such dynamism impacts

several design decisions in smart city platform archi-

tectures.

To provide a high-quality, practical smart city

platform to support future smart city projects, we

must address two key design issues that jeopardize the

wide adoption of existing solutions in different smart

city initiatives: scalability and evolvability

Scalability - A platform must scale well in mul-

tiple dimensions to properly support a smart city.

Among others, smart city platforms must handle: (I)

a large number of devices that compose the city IoT

infrastructure; (II) millions of users and components

that use the platform services; (III) a very large vol-

ume of city-related data that must be stored and pro-

cessed; (IV) a potentiality large set of new services

that can interact with the platform to offer comple-

mentary capabilities. The scalability requirements

may vary depending on the context and should be ad-

dressed since the beginning of any smart city project.

Evolvability - Urban environments are very dy-

namic and tend to change constantly in terms of or-

ganization, regulations, problems, opportunities, and

challenges. Therefore, smart city platforms must be

adaptable to meet changing requirements in a cost-

effective way. Evolvability is the system’s capability

to evolve over time by supporting rapid modiﬁcation

and enhancement with low cost and small architec-

tural impact, and is a fundamental element for the

success and economic value of long-lived software

(Breivold et al., 2012)

Our strategy to address scalability and evolvability

issues and to provide the required services to support

https://gitlab.com/smart-city-software-platform

smart cities is to adopt a microservices architecture

for the platform. The microservices model emerged

from the software industry efforts to build large-scale

distributed systems reﬁning SOA guidelines through

the adoption of DevOps and Agile principles, tools,

and techniques. Although there are efforts to under-

stand the impact of this architecture on other research

areas (Le et al., 2015; Gopu et al., 2016), very few

works explore the potential of microservices in the

context of smart cities.

Here we present the design principles adopted

in the InterSCity Platform which are aligned with

microservices patterns, which are critical for the

wide adoption of the platform in different smart city

projects.

• Modularity via Services. Modularity is a key

concept used in software architecture to divide

systems into smaller functional units. Microser-

vice architectures achieve modularity through

single-purpose, small services that communicate

through lightweight mechanisms to achieve a

common goal.

• Distributed Models and Data. In monolithic

architectures and even in traditional service-

oriented systems, it is fairly common to create a

uniﬁed domain model and a centralized storage

backend. With microservices, each service has its

own database and models, which may evolve in-

dependently of external services. Decentralized

data management and the possibility to use dif-

ferent technologies that best ﬁt each context are

relevant advantages. On the other hand, increased

operational complexity is the main drawback.

• Decentralized Evolution. Microservices must

be autonomous, providing well-deﬁned bound-

aries and communication APIs so that they can

evolve and be maintained independently. More-

over, this principle ensures that each service may

implement its functionalities using the most ap-

propriate technology, provoking positive technol-

ogy heterogeneity. Similarly, each microservice

may scale independently using different strate-

gies, since scalability requirements vary across

services. Finally, this design principle should re-

ﬂect on the conﬁguration and deployment proce-

dures, which may be performed independently as

well.

• Reuse of Open Source Projects. Reusing soft-

ware components is a fundamental practice of

software engineering to achieve productivity, cost

effectiveness and software reliability. We always

give preference to the use of existing robust open-

source tools, libraries, and frameworks instead of

SMARTGREENS 2017 - 6th International Conference on Smart Cities and Green ICT Systems

implementing components from scratch, since the

quality of popular open-source packages is admit-

tedly good as already empirically observed (Taibi,

2013). Moreover, we adopt a rigorous technol-

ogy selection criteria and only incorporate open

source components that have an active developer

community, stable release support, and appropri-

ate documentation to guide usage, development,

and deployment.

• Adoption of Open Standards. As important as

the reuse of open-source projects is the adop-

tion of open, well-accepted standards that are de-

signed to provide interoperability at different lev-

els. This prevents technology and vendor lock-in.

The use of open Internet and web standards is es-

sential to enable the true Internet of Things, being

widely used in related projects found in the lit-

erature (Fazio et al., 2012; Amaral et al., 2015;

Hern

andez-Mu

noz et al., 2011).

• Asynchronous versus Synchronous. Although

most services provide RESTful APIs, they must

implement asynchronous messaging as much

as possible to avoid blocking in synchronous

request-reply interactions. Asynchronicity should

be achieved by using notiﬁcations, the pub-

lish/subscribe design pattern, and event-based

communication strategies to support low latency

and scalability. Besides, the platform must rely on

a lightweight message bus with the single purpose

of providing a reliable messaging service rather

than traditional SOA approaches that use sophis-

ticated, heavy middleware such as an Enterprise

Service Bus (ESB).

• Stateless Services. This design principle supports

scalability by advocating that services should be

stateless to enable any service instance to re-

spond to any request, facilitating load distribution

and elasticity. Thus, the design of microservices

should separate state data, such as context and ses-

sion data, to be managed by an external compo-

nent whenever possible.

3.2 Platform Architecture

The InterSCity microservices architecture is shown

in Figure 1, addressing important aspects of IoT and

Data management, providing high-level RESTful ser-

vices to support the development of smart city appli-

cations, services and tools for different purposes. The

underlying IoT Gateways can register new devices to

the platform and send sensor data through a REST

API. InterSCity abstracts the complexity involved in

the communication between smart city applications

and IoT devices, as well as the complexity of city-

scale data management.

Figure 1: The InterSCity Platform Architecture.

InterSCity provides well-deﬁned boundaries to

communicate with both IoT devices and smart city ap-

plications. Currently, the platform is composed of six

different microservices that provide features for the

integration of IoT devices (Resource Adaptor), data

and resource management (Resource Catalog, Data

Collector and Actuator Controller), resource discovery

through context data (Resource Discovery) and visu-

alization (Resource Viewer). Although all microser-

vices expose REST APIs for synchronous messaging

over HTTP, most of the communication for the com-

position of services is done through asynchronous

calls, relying on the lightweight message bus Rab-

bitMQ

for asynchronous messaging through the Ad-

vanced Message Queuing Protocol (AMQP).

Interactions between the platform and its clients

involve the manipulation of city resources. A city re-

source is a logical concept that encapsulates a physi-

cal entity that makes up the city, such as cars, buses,

trafﬁc lights, and lampposts. Resources comprise at-

tributes (e.g., location and description) and functional

capabilities to provide data and receive commands,

which are respectively supported by sensors and ac-

tuators coupled to the resource. This approach facili-

tates the interaction of client applications with a real

city environment, since it grants an abstraction com-

posed of city concepts rather than the cyber-physical

particulars, that comprise the underlying IoT layers

of Smart City ecosystems. As a consequence, for in-

stance, two buses registered in the platform are ac-

cessed through the same standardized API regard-

www.rabbitmq.com

InterSCity: A Scalable Microservice-based Open Source Platform for Smart Cities

less of their devices and communication technologies.

Likewise, two physical sensor or actuator devices

with similar purposes are encapsulated as a common

capability, abstracting all the speciﬁc details related to

data representation and deployment of these devices.

The InterSCity architecture supports a decentral-

ized management of city resources dividing func-

tional responsibilities and data persistence across the

microservices. The Resource Adaptor microservice

works as a stateless proxy that allows external ser-

vices, such as IoT gateways, to register and update re-

sources on the platform, post sensed data from those

resources, and subscribe to events that indicate actua-

tor commands. All city resources are registered in the

Resource Catalog microservice which is responsible

for providing universally unique identiﬁers (UUIDs)

(Leach et al., 2005) and for asynchronously notifying

the event of resource creation to other microservices.

The Data Collector microservice stores sensor data

collected by city resources. Sensor data consist of

context information or an event linked to a resource

capability which is observed at a particular time. Data

Collector provides an API to allow access to both cur-

rent and historical context data of city resources using

a rich set o ﬁlters that can be accessed in search end-

points. The Actuator Controller microservice, in turn,

provides standardized services to intermediate all ac-

tuation requests to city resources with actuator capa-

bilities. Moreover, Actuator Controller records the his-

tory of actuation requests so that they can be accessed

in the future, e.g., for auditing purposes.

Both the Resource Discovery and the Resource

Viewer microservices provide more sophisticated ser-

vices by orchestrating Data Collector and Resource

Catalog. Resource Viewer is a web visualization mi-

croservice for presenting city resources information

graphically based on Resource Catalog and Data Col-

lector back-end services. The purpose of Resource

Viewer is to present general and administrative visu-

alizations of city resources, including location, real

time context data, and representative charts of histor-

ical data. The Resource Discovery microservice pro-

vides a context-aware search API that may be used

by client applications to discover available city re-

sources. This API provides ﬁlters that can be com-

bined to discover resources. For instance, ﬁlters can

combine information such as location data, interval

rules for current context data, and other types of meta-

data.

Scalability is a key non-functional requirement

for smart city platforms. InterSCity was primarily

designed to support smart city projects with a large

amount of users, data, and services. Its microservices

architecture supports scalability at the functional de-

composition level in both application and database

tiers by splitting the processing responsibilities across

several services, dividing the amount of data into de-

centralized databases, and isolating services through

ﬁne-grained interfaces. However, each microservice

will be required to scale at different paces depending

on both the speciﬁcities of the urban and technologi-

cal context and the continuously increasing demands.

Although the loosely coupled architecture allows mi-

croservices to scale out independently, different de-

sign strategies must be applied to overcome their own

traits in order to achieve horizontal scalability. Ta-

ble 1 summarizes the scalability strategies currently

supported by InterSCity microservices, denoted by X

and points out new strategies that will be supported in

the near future, denoted by NF.

A deployment of the InterSCity platform may

have several instances of each of its microservices

behind Load Balancers to handle higher loads trans-

parently for customers. Services that receive asyn-

chronous messaging, such as Data Collector, Actua-

tor Controller, and Resource Adaptor, are designed to

support the addition of more background workers to

handle highly intensive demands for event-based jobs.

Data Collector also uses database caching supported

by Redis

to provide low-latency readings of the lat-

est data collected by city resources. Resource Dis-

covery caches static resource meta-data provided by

the Resource Catalog, since they do not change very

often. Initially, we adopted PostgreSQL

in all mi-

croservices as it is widely adopted in the software in-

dustry and it supports georeferenced queries, which

are important in the smart city domain. However, we

intend to move towards plurality of database systems

in a near future to better ﬁt the scope of each microser-

vice and to properly support horizontal scalability so

that the database layer does not become a bottleneck.

The loosely coupled message-oriented communi-

cation approach favors the continuous development of

the platform, enabling the extension of existing fea-

tures through service composition and the addition

of new microservices to meet the constantly evolving

smart city requirements. Moreover, decoupled com-

munication interfaces allow us to maintain microser-

vices in separate code repositories enabling: decen-

tralized version and dependency management, inde-

pendent, faster tests, safe refactoring, evolution of ex-

isting features, and the adoption of the most appropri-

ate technologies in each context. The lower boundary

provided by Resource Adaptor enables InterSCity to

continuously integrate heterogeneous IoT technolo-

gies without affecting other services. It can also be

www.redis.io

www.postgresql.org

SMARTGREENS 2017 - 6th International Conference on Smart Cities and Green ICT Systems

Table 1: Scalability strategies supported by InterSCity microservices.

Microservice HTTP Load Balancer Background Workers Caching Database Sharding

Resource Adaptor X X

Resource Catalog X NF

Data Collector X X X NF

Actuator Controller X X

Resource Discovery X X

Resource Viewer X NF

used to integrate the existing legacy ICT infrastruc-

ture of cities, such as open data initiatives. It is worth

noting that InterSCity’ upper API isolates client ap-

plications from the modiﬁcation or addition of new

technologies in the smart city infrastructure.

InterSCity microservices architecture requires

DevOps methods to support both an agile develop-

ment life cycle and consistent, automated, indepen-

dent deployments. Thus, we encapsulated microser-

vices into individual Docker

lightweight containers

which can be deployed and maintained independently.

Continuous integration tools play an important role

in the automated execution of both individual and in-

tegration tests, and to ensure that container images

are built correctly along the development of microser-

vices. To perform automated, consistent, remote de-

ployments, we adopted the Ansible

automation en-

gine, which provides a set of conﬁguration manage-

ment tools and scripts, facilitating the deployment of

the InterSCity platform and associated applications.

3.3 Application Life-cycle

To demonstrate the aforementioned approaches, here

we illustrate how applications can be built over the In-

terSCity services to interact with city resources. For

this purpose, we exemplify the use case of the Smart

Parking App, an experimental smart city application

developed on top of the platform by University of S

Paulo students during a graduate course and whose

source code is available in the platform distribution.

The Smart Parking application aims to help the difﬁ-

cult task of ﬁnding available parking spots in a large

city, by offering a map with geolocated real-time in-

formation of parking spaces. The system is based on

both static and sensor data of individual parking spots

equipped with embedded sensors to notify the pres-

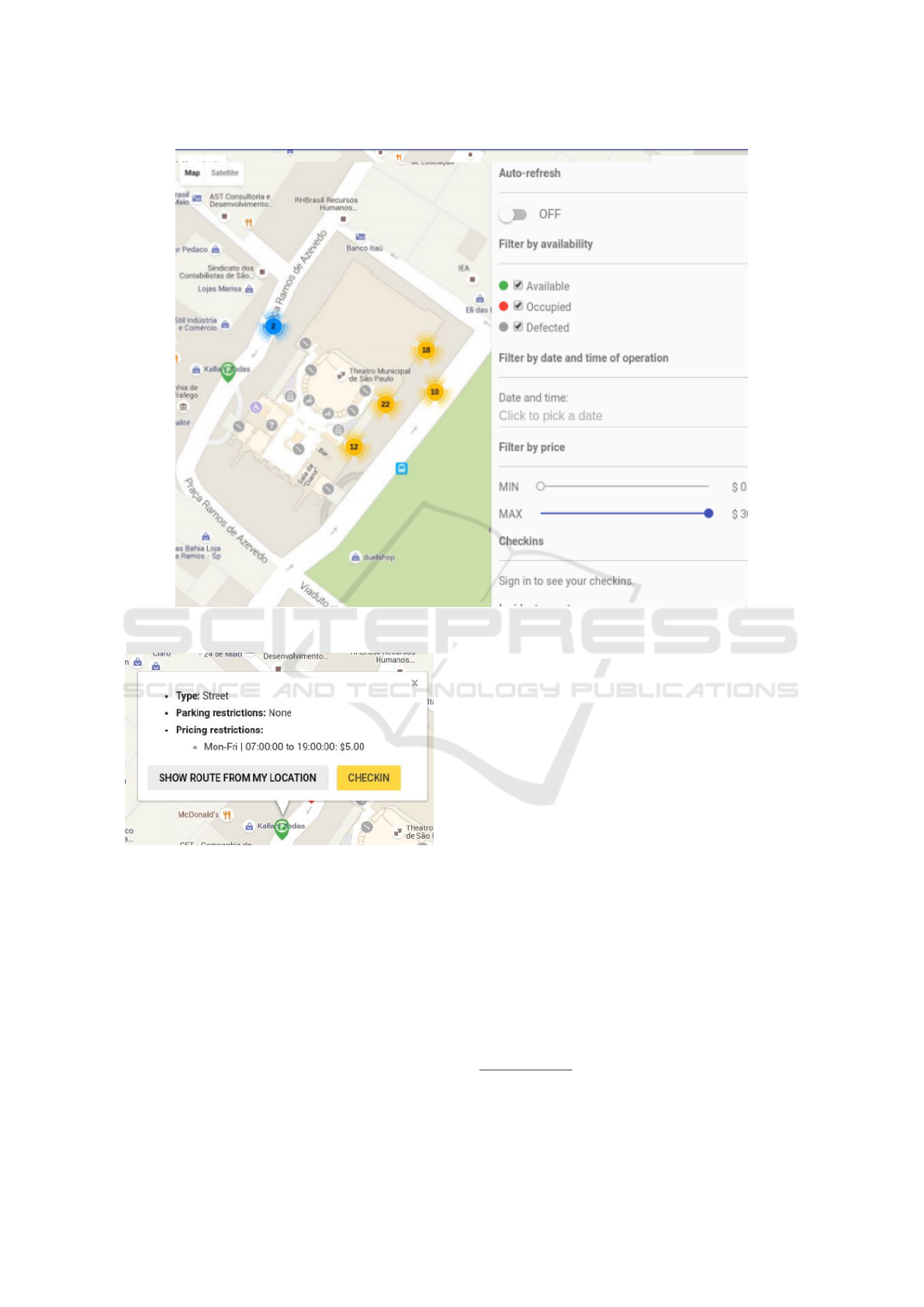

ence of a parked car. As can be seen in Figure 2, the

Smart Parking App allows drivers to discover close

parking spaces by offering visualization ﬁlters related

to their availability, prices, and operating hours. One

can check the details of a parking spot and view the

www.docker.com

www.ansible.com

route from the user’s current location, as shown in

Figure 3. The hardware part of this example was sim-

ulated via a speciﬁc software component that mim-

icked the behavior of physical sensors.

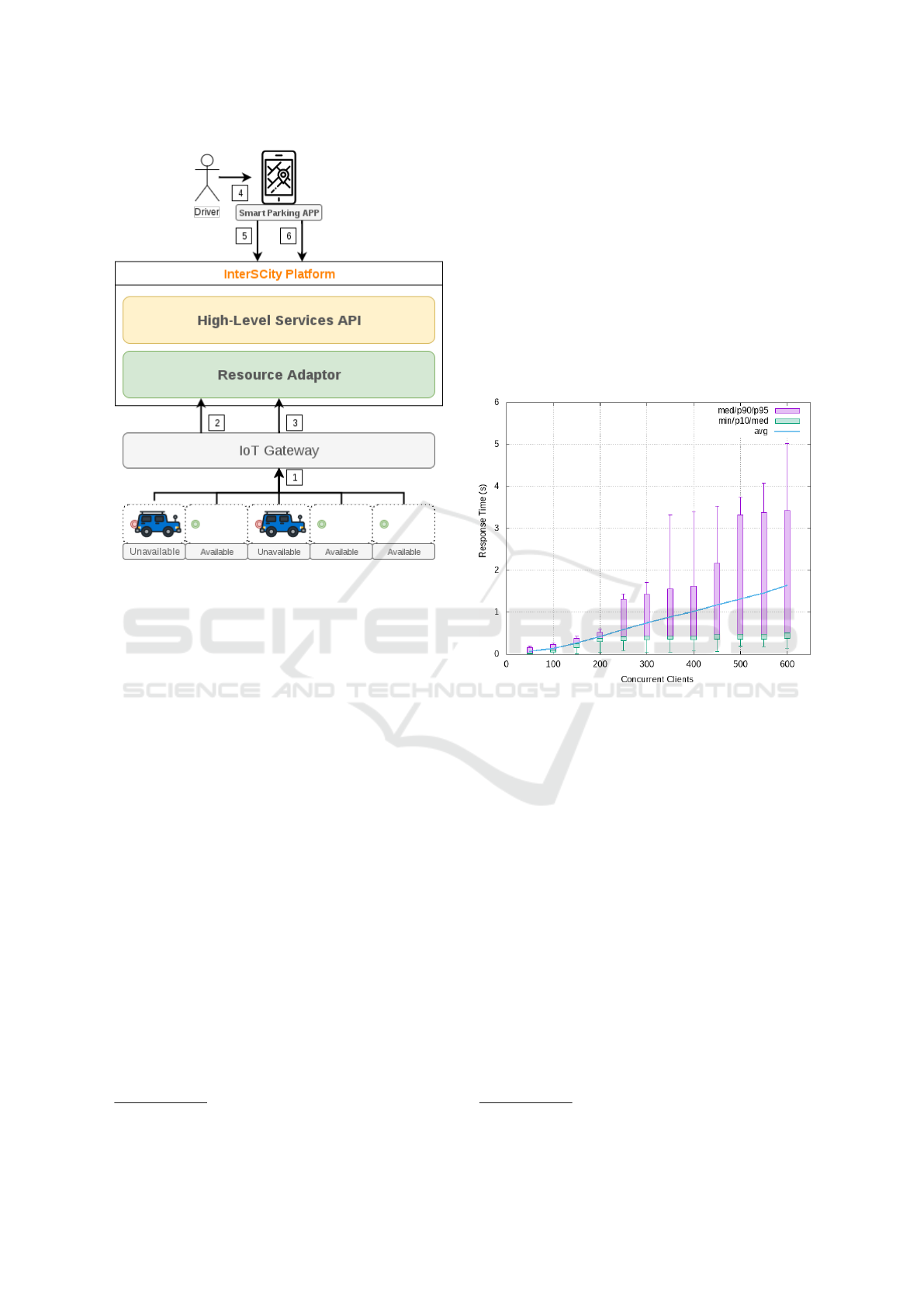

Figure 4 illustrates a message ﬂow that resulted

from the use of the Smart Parking application sup-

ported by the InterSCity platform hosted in a cloud in-

frastructure. This example considers a smart parking

infrastructure supported by cyber-physical systems to

detect the presence of cars in parking spaces based on

technologies that are commonly used in smart parking

solutions, such as Wireless Sensor Networks (WSN),

Light Dependable Resistor (LDR) sensors, Infra-Red

(IR) sensors, and magnetic sensors (Bachani et al.,

2016). These sensors send data continuously to a

remote IoT Gateway via wireless protocols, such as

ZigBee or Bluetooth, as illustrated in Step 1. The

responsibilities of the IoT Gateway are two-fold: (I)

registering each connected parking spot as a city re-

source with the “availability” sensor capability (Step

2) and (II) notifying the platform when a parking

space becomes available or unavailable (Step 3). For

these purposes, the IoT Gateway must track resource

UUIDs provided by InterSCity to be able to send con-

text data through the Resource Adaptor API upon

state change events. We highlight that the concepts

of city resource and capability abstract the implemen-

tation details of the underlying WSN infrastructure.

To use The Smart Parking application, one must

deﬁne a target location or automatically use his/her

current GPS data in addition to setting custom param-

eters to ﬁlter parking spaces according to the desired

characteristics (Step 4). As an example, the applica-

tion may query the platform for all the parking space

resources that match the selected parameters within a

500 meters radius of the target location through the

Resource Discovery API (Step 5). As a result, the

Smart Parking application renders the current state of

the returned parking resources on the map, as shown

in Figure 2. Users can set the update time interval to

get the current state of the returned resources as well

as to modify the parameters, which will result in new

requests such as the one performed in Step 5.

Additional requests may be performed to get de-

tailed information about a speciﬁc parking spot from

InterSCity: A Scalable Microservice-based Open Source Platform for Smart Cities

Figure 2: Screenshot of the Smart Parking application.

Figure 3: Parking spot details in the Smart Parking applica-

tion.

the Resource Catalog API, such as presented in Fig-

ure 3, or even to obtain its availability history through

the Data Collector microservice (Step 6).

4 PERFORMANCE AND

SCALABILITY ANALYSIS

To evaluate the proposed platform, we conducted two

preliminary experiments. First, we evaluated how the

performance of the InterSCity platform degrades with

the increase in the number of concurrent IoT gate-

ways (clients) sending sensor data continuously over

a long period of time. The main objective of this ex-

periment was to evaluate the individual behavior and

consumption of hardware resources of each microser-

vice so that we could identify potential bottlenecks.

The second experiment aimed at assessing the scal-

ability of the platform by applying supported scala-

bility strategies to the bottlenecks we identiﬁed. To

conduct the experiments, we ran a production-like in-

stance of the InterSCity platform in the Digital Ocean

cloud. Both InterSCity microservices and external

services, such as PostgreSQL, RabbitMQ, and Redis,

were deployed within Docker containers. However,

each service instance was hosted on its own virtual

machine for isolation purposes, guaranteeing a ﬁxed

amount of machine resources per service. In the ex-

periments, we consider a common smart city scenario

where distributed sensors continuously collect obser-

vations from the city and send the sensed data to IoT

gateways. The source code of the scripts used in the

experiment are available in the repository for repro-

ducibility

www.digitalocean.com

https://github.com/LSS-USP/smart-city-platform-

experiments

SMARTGREENS 2017 - 6th International Conference on Smart Cities and Green ICT Systems

Figure 4: Smart Parking application life cycle.

4.1 Degradation Analysis

For the ﬁrst experiment, we used a total of four single-

core GNU/Linux Debian 8.6 machines with 512MB

RAM having 2.0GHz of clock speed in the same pri-

vate network hosting one single instance of the Re-

source Adaptor, Resource Catalog, Data Collector,

and RabbitMQ services, without any replication. We

performed the degradation analysis by benchmark-

ing the platform against 11 different workloads sup-

ported by the Funkload

load testing tool. Workloads

were characterized by the number of concurrent em-

ulated IoT Gateways that continuously send sensor

data from city resources to the platform. Each client

(the IoT Gateways) runs a loop sending synchronous

requests to the platform throughout the experiment as

fast as it can. We ran each of the load tests for four

minutes, with a 30-second interval between them, col-

lecting both response time and throughput metrics,

while keeping the same capacity and conﬁguration of

the platform during all workload tests. We repeated

each run of the experiment 20 times.

Figure 5 shows the performance degradation of

the platform as the number of concurrent IoT Gate-

ways increases. The best average response time oc-

curs for a workload of 50 concurrent clients, which

was less than 60 milliseconds.

funkload.nuxeo.org

The average response time remained below 1 sec-

ond with a workload of up to 350 parallel clients.

However, the tests with 250 or more clients in parallel

start to have requests with latency above 1 second; for

this particular application, this is not a problem, but

this is an interesting indication of the limitations of

the platform in case of applications with more strin-

gent real-time requirements. It is important to note

that the number of failed requests (returned with an

error code or with a timeout) varied from 0.01% for

350 concurrent clients to 0.16% for 600 concurrent

clients. With up to 250 concurrent IoT Gateways,

100% of the requests were successful.

Figure 5: Response time degradation.

In addition to evaluating the degradation in the

overall performance, we also monitored the use of

hardware resources on each machine to identify po-

tential bottlenecks. For this purpose, we used the

Linux-based Collectl

tool, as it can be used to mon-

itor a broad set of subsystems such as CPU, disk,

memory, processes, and network. Among the four

machines used to deploy the platform in the experi-

ment, the one that hosted the Resource Adaptor mi-

croservice presented the highest load in CPU and

memory usage, both close to 100% during the entire

duration of the experiment, being identiﬁed as the ﬁrst

bottleneck in the tested scenario. The Data Collector

host machine also maintained a high level of CPU us-

age, as well as an intensive use of I/O operations to

store the sensed data. The other two machines did not

characterize bottlenecks.

collectl.sourceforge.net

InterSCity: A Scalable Microservice-based Open Source Platform for Smart Cities

4.2 Scalability Analysis

The objective of the second experiment was to evalu-

ate the scalability of the InterSCity platform, as well

as to demonstrate the ﬂexibility of our architecture

to address scalability issues. The same smart city

scenario was considered, with concurrent IoT gate-

ways continuously sending sensor data from city re-

sources to the platform. For this experiment we kept

a ﬁxed workload with 500 concurrent clients to evalu-

ate the platform’s speedup and scale-up metrics. The

speedup metric measures how the performance im-

proves with the addition of new resources to the sys-

tem, while the scale-up metric measures the through-

put gain.

The loosely coupled microservices architecture al-

lows us to increase only the resources of the identi-

ﬁed bottleneck microservices. We benchmarked the

platform with the ﬁxed workload during six 4-minute

cycles applying a round-robin load balancing strat-

egy by adding a replica of the Resource Adaptor mi-

croservice for each new cycle. The ﬁrst cycle used

exactly the same deployment setup of the ﬁrst experi-

ment described before. Both the Load Balancer (NG-

INX

) and the new Resource Adaptor instances were

deployed on Docker containers hosted by separate

single core, GNU/Linux Debian 8.6, 512MB RAM,

2.6GHz machines. These tests were performed using

the Apache Benchmark

Linux tool.

As a result of the scaling strategy, the average re-

sponse time decreased from 1725 milliseconds (with

1 instance) to 320 milliseconds (with 6 instances).

Figure 6 shows the performance improvement mea-

sured in the experiment. We can observe a signiﬁ-

cant performance gain when scaling horizontally only

one of the microservices that make up the platform;

the speedup is very close to optimal. Since all mes-

sages received by Resource Adaptors are published

through the RabbitMQ message service, the use of

CPU by this service increases considerably, indicating

another possibility for improving the speedup even a

little more. RabbitMQ offers horizontal scalability

natively and we plan to enhance the platform making

use of this feature, further improving its scalability.

As can be seen in Figure 7, the mean through-

put of the platform increased substantially by hori-

zontally scaling the Resource Adaptor in the tested

scenario. With 6 instances, the platform answered an

average of 1546 requests per second, 5.5 times more

than when using the conﬁguration with a single Re-

source Adaptor. Similarly to the speedup metric, the

scale-up value increases almost at the same rate at

https://www.nginx.com/

httpd.apache.org/docs/2.4/programs/ab.html

Figure 6: Speedup - performance improvement varying the

number of Resource Adaptors.

which new instances are added, which is an excellent

result.

Figure 7: Throughput improvement varying the number of

Resource Adaptors.

5 CONCLUSION AND FUTURE

WORK

Smart city platforms play a key role in the devel-

opment of future smart cities as they support cross-

domain solutions, interoperability among multiple

city systems, and resource and data sharing. How-

ever, due to various technical, practical, and method-

ological challenges, the community still lacks robust

solutions that can be shared across smart city initia-

tives, as well as production environments to support

scientiﬁc validation of existing proposals. This pa-

per presents two key contributions: (I) advances in

the state-of-art by exploring the impact of a microser-

vices architecture in the design, development and de-

ployment of scalable smart city platforms; and (II) a

novel microservice-based open source smart city plat-

form that provides facilities to build next-generation

scalable smart city solutions and to integrate hetero-

geneous IoT systems.

SMARTGREENS 2017 - 6th International Conference on Smart Cities and Green ICT Systems

Our early experience with the development of In-

terSCity shows that microservices can be properly

used to build smart city solutions that provide ﬁner-

grained, single purpose building blocks that can be

more easily and independently evolved compared to

traditional SOA approaches. However, it also intro-

duces new challenges due to an increase in the overall

complexity. We highlight that the use of industry stan-

dards, such as DevOps techniques and open source

tools, automated tests, and design patterns, is essential

for the successful implementation of our project. In

the near future, we intend to investigate more deeply

the impact of applying microservices design princi-

ples to achieve a loosely coupled, evolvable architec-

ture, demonstrating that InterSCity can be adapted for

different smart city environments, can easily integrate

new services, and can be modiﬁed to meet the con-

stantly evolving city requirements.

Experimental results point towards the applicabil-

ity of our approach in the context of smart cities, since

the platform can support different scalability demands

while keeping acceptable performance. These results

also show that microservices can be deployed and

scaled independently. Further comprehensive exper-

iments should be performed to evaluate all the ser-

vices provided by the platform. More speciﬁcally,

we intend to conduct experiments to evaluate the per-

formance and scalability of the InterSCity platform

within more realistic scenarios of smart cities, with

devices, data, and users at a larger city scale.

Our ongoing work includes several features still

needed to meet the constantly evolving requirements

of urban environments. This includes more sophisti-

cated Big Data processing and analytics (Al Nuaimi

et al., 2015) as well as improved data visualization.

The adopted open source model encourages the

community to take advantage of our contribution, as

well as to contribute to the InterSCity platform evolu-

tion. We expect to enable future smart city initiatives

and research from other groups on new approaches to

build open, high-quality, practical solutions that can

be extended, reused, collaboratively evolved, and de-

ployed in real smart city environments.

ACKNOWLEDGEMENTS

We acknowledge the student members of the Smart

Parking App group who develop the application on

top of the InterSCity platform: D

ebora Setton, Hans

Harley, Jefferson Silva, Nury Arosquipa, and Thiago

Petrone.

We also acknowledge the following developers for

their contributions to the InterSCity platform source

code: Alander Marques, Ariel Palmeira, Arthur Del

Esposte, Athos Ribeiro, Cadu Elmadjian, Caio Sal-

gado, Caroline Satye, Danilo Caetano, D

ebora Setton,

Fernando Freire, Henrique Potter, Igor Lima, Jo

Brito, Leonardo Pereira, Lucas Kanashiro, Macartur

Sousa, Marisol Solis, Rodolfo Scotolo, Rodrigo Faria,

Rodrigo Siqueira, Rogerio Cardoso, Thiago Petrone,

and Wilson Kazuo.

REFERENCES

Al Nuaimi, E., Al Neyadi, H., Mohamed, N., and Al-

Jaroodi, J. (2015). Applications of big data to smart

cities. Journal of Internet Services and Applications,

6(1).

Amaral, L. A., Tiburski, R. T., de Matos, E., and Hessel, F.

(2015). Cooperative middleware platform as a service

for internet of things applications. In Proceedings of

the 30th Annual ACM Symposium on Applied Comput-

ing, SAC ’15, pages 488–493, New York, NY, USA.

ACM.

Apolinarski, W., Iqbal, U., and Parreira, J. X. (2014). The

gambas middleware and sdk for smart city applica-

tions. In 2014 IEEE International Conference on

Pervasive Computing and Communication Workshops

(PERCOM WORKSHOPS), pages 117–122.

Bachani, M., Qureshi, U. M., and Shaikh, F. K. (2016). Per-

formance analysis of proximity and light sensors for

smart parking. Procedia Computer Science, 83:385

– 392. The 7th International Conference on Ambient

Systems, Networks and Technologies (ANT 2016) /

The 6th International Conference on Sustainable En-

ergy Information Technology (SEIT-2016) / Afﬁliated

Workshops.

Batista, D. M., Goldman, A., Hirata Jr., R., Kon, F., Costa,

F. M., and Endler, M. (2016). Interscity: Addressing

future internet research challenges for smart cities. In

7th International Conference on the Network of the

Future. IEEE.

Breivold, H. P., Crnkovic, I., and Larsson, M. (2012).

A systematic review of software architecture evolu-

tion research. Information and Software Technology,

54(1):16 – 40.

Fazio, M., Paone, M., Puliaﬁto, A., and Villari, M. (2012).

Heterogeneous sensors become homogeneous things

in smart cities. In Innovative Mobile and Internet Ser-

vices in Ubiquitous Computing (IMIS), 2012 Sixth In-

ternational Conference on, pages 775–780.

Gopu, A., Hayashi, S., Young, M. D., Kotulla, R., Henschel,

R., and Harbeck, D. (2016). Trident: scalable com-

pute archives: workﬂows, visualization, and analysis.

volume 9913, pages 99131H–99131H–12.

Hern

andez-Mu

noz, J. M., Vercher, J. B., Mu

noz, L.,

Galache, J. A., Presser, M., G

omez, L. A. H., and Pet-

tersson, J. (2011). The future internet. chapter Smart

Cities at the Forefront of the Future Internet, pages

447–462. Springer-Verlag, Berlin, Heidelberg.

InterSCity: A Scalable Microservice-based Open Source Platform for Smart Cities

Krylovskiy, A., Jahn, M., and Patti, E. (2015). Designing

a smart city internet of things platform with microser-

vice architecture. In Future Internet of Things and

Cloud (FiCloud), 2015 3rd International Conference

on, pages 25–30.

Le, V. D., Neff, M. M., Stewart, R. V., Kelley, R.,

Fritzinger, E., Dascalu, S. M., and Harris, F. C. (2015).

Microservice-based architecture for the nrdc. In 2015

IEEE 13th International Conference on Industrial In-

formatics (INDIN), pages 1659–1664.

Leach, P. J., Mealling, M., and Salz, R. (2005).

A universally unique identiﬁer (uuid) urn names-

pace. RFC 4122, RFC Editor. http://www.rfc-

editor.org/rfc/rfc4122.txt.

Neirotti, P., Marco, A. D., Cagliano, A. C., Mangano, G.,

and Scorrano, F. (2014). Current trends in smart city

initiatives: Some stylised facts. Cities, 38:25–36.

PCAST (2016). Technology and the future of cities, report

to the president. Technical report, Executive Ofﬁce of

the President, United States.

Sanchez, L., Galache, J. A., Gutierrez, V., Hernandez, J. M.,

Bernat, J., Gluhak, A., and Garcia, T. (2011). Smart-

santander: The meeting point between future internet

research and experimentation and the smart cities. In

2011 Future Network Mobile Summit, pages 1–8.

Sanchez, L., Mu

noz, L., Galache, J. A., Sotres, P., San-

tana, J. R., Gutierrez, V., Ramdhany, R., Gluhak, A.,

Krco, S., Theodoridis, E., and Pﬁsterer, D. (2014).

Smartsantander: Iot experimentation over a smart city

testbed. Computer Networks, 61:217 – 238. Special

issue on Future Internet Testbeds – Part I.

Santana, E. F. Z., Chaves, A. P., Gerosa, M. A., Kon, F., and

Milojicic, D. S. (2016). Software platforms for smart

cities: Concepts, requirements, challenges, and a uni-

ﬁed reference architecture. CoRR, abs/1609.08089.

Soldatos, J., Kefalakis, N., Hauswirth, M., Serrano, M.,

Calbimonte, J.-P., Riahi, M., Aberer, K., Jayaraman,

P. P., Zaslavsky, A.,

Zarko, I. P., Skorin-Kapov, L., and

Herzog, R. (2015). OpenIoT: Open Source Internet-

of-Things in the Cloud, pages 13–25. Springer Inter-

national Publishing, Cham.

Taibi, F. (2013). Reusability of open-source program code:

A conceptual model and empirical investigation. SIG-

SOFT Softw. Eng. Notes, 38(4):1–5.

Villanueva, F. J., Santoﬁmia, M. J., Barba, J., and L

opes,

J. C. (2013). Civitas: The smart city middleware, from

sensors to big data. In Innovative Mobile and Internet

Services in Ubiquitous Computing (IMIS), pages 445–

450.

SMARTGREENS 2017 - 6th International Conference on Smart Cities and Green ICT Systems
