Performance Testing of an Internet of Things Platform

John Esquiagola, Laisa Costa, Pablo Calcina, Geovane Fedrecheski and Marcelo Zuffo

Integrated Systems Laboratory, Sao Paulo University, Sao Paulo, Brazil

Keywords:

Internet of Things, Testing, Performance.

Abstract:

The Internet of Things (IoT) is a network of physical objects, or things, with embedded electronics, soft-

ware, sensors, and connectivity. The connection of all these things leverages value generation, by offering

new services and strategic information. In order to make the Internet of Things possible, the integration of

many technologies is necessary, such as machine-to-machine and cyber-physical systems. The process of test-

ing IoT applications introduces new challenges because it does not only includes typical test strategies and

methodologies. Testing an IoT system depends on its the speciﬁc conﬁguration, and it also needs to consider

the hardware platform and the network environment. Currently, industry and academy efforts are focusing

on usability and connectivity tests, such as: simulating the environment where the device is to be used, and

ensuring information is exchanged in a secure manner. In this paper, we use the current version of our IoT

platform to perform stress testing of our IoT platform under different conditions. Our test methodology for IoT

applications is also presented. Three different hardware platforms have been used for performing the stress

testing of our platform.

1 INTRODUCTION

In future IoT networks, the increasing number of de-

vices and services will be reﬂected in a diversity and

heterogeneity of hardware, software platforms, net-

work protocols, and service providers. The realiza-

tion of the IoT paradigm implies many challenges that

need to be addressed, including availability, reliabil-

ity, mobility, performance, scalability, interoperabil-

ity, security, management, and trust (Al-Fuqaha et al.,

2015).

Recent advances in networking technology, such

as the IP protocol used in embedded devices has

changed the Internet landscape. One of the advan-

tages of the IP technology within embedded devices

is the possibility of using a web services architec-

tures, where ”things” are wrapped into web services.

This concept is reﬂected in the Web of Things (WoT)

(W3C-Group, 2016) initiative. Web services can be

used on top of IP stack in order to reduce the com-

plexity of applications and to improve the software

re-usability (Colitti et al., 2011).

Lately, there has been an increasing number of

IoT middleware proposals. (Mineraud et al., 2015)

present a survey of several efforts from academy and

industry; a gap analysis is done too, focusing in the

weakness of current solutions, and aiming to improve

the development of future IoT platforms.

Testing IoT systems have complications not

present in traditional system deployments, such as en-

terprise web services, due to the heterogeneous and

massively distributed nature of its components (Reetz

et al., 2013). In order to guarantee the correct func-

tioning of such complex systems, functional tests

and performance evaluation must be done before de-

ploying an IoT system in a production environment.

In such a conﬁguration, the real interaction with

the physical world needs to be observed, differently

from common software testing methods (Reetz et al.,

2013). The heterogeneous nature of IoT components

demands strong testing capabilities to ensure service

performance meets the user requirements as well as

service level agreements between service providers

and consumers. Cognizant et al (Cognizant, 2016)

deﬁned the following types of testing that needs to be

performed within an IoT ecosystem:

• Functional testing, which validates the correct

functionality of the IoT application.

• Connectivity testing, it is responsible for testing

the wireless signal in order to determine what hap-

pens in case of weak connection, or when there

are many devices trying to communicate.

• Performance testing, validates the communication

Esquiagola, J., Costa, L., Calcina, P., Fedrecheski, G. and Zuffo, M.

Performance Testing of an Inter net of Things Platform.

DOI: 10.5220/0006304503090314

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 309-314

ISBN: 978-989-758-245-5

309

and computation capabilities. Stress testing can

be used in order to ﬁnd how many simultaneous

connections can be supported by a speciﬁc device.

• Security testing, focus in privacy, authorization

and authentication features.

• Compatibility testing, veriﬁes the correct func-

tionality under different protocols and conﬁgura-

tions.

• Exploratory testing, also called user experience

tests.

There are some industrial reports about IoT testing

procedures (Cognizant, 2016)(Bloem, 2016)(RCR-

Wireless, 2016), however, little academic work has

been found about testing IoT systems, and most of

them concentrate in performance evaluation(Lunardi

et al., 2015)(Thangavel et al., 2014)(Vandikas and

Tsiatsis, 2014), IoT resource emulation, and IoT

testbeds deployments (Sanchez et al., 2014)(Adjih

et al., 2016).

In this paper, we use the current stage of our IoT

platform implementation based on SwarmOS con-

cept(Costa, 2015) in order to present our test method-

ology that was followed to cover most of the ﬁelds

in the IoT testing area. Finally we show some test-

ing results of our platform after deploying within sin-

gle board computing devices. Response time and the

network throughput were measured during the tests

and some conclusions were obtained according to the

computing capabilities of the devices.

The remainder of this paper is organized as fol-

lows: Section II presents the related work in the IoT

ﬁeld. Section III highlights the test methodology in-

cluding the architecture overview of our IoT applica-

tion. The stress testing results and analysis are pre-

sented in Section IV. Section V concludes the paper

with ﬁnal considerations and future work.

2 RELATED WORK

In IoT systems, functional and performance tests must

be done before deploying the system in a production

environment. In contrast with typical test methods,

the deployment of an IoT system need to guarantee a

successful interaction with the physical environment

(Reetz et al., 2013). The heterogeneity of the com-

ponents of an IoT system implies the development of

new test methods and architectures in order to ensure

the performance of the system and to meet user re-

quirements.

COBASEN(Lunardi et al., 2015) is a framework

that allows scalable search and transparent usage

of computational devices in IoT environments; this

framework proposes a search engine which allows the

use context information to discover, select and use

of device according to user and application require-

ments. Framework validation was done by imple-

menting a platform and executing functional perfor-

mance tests. A Java application prototype was devel-

oped in order to stimulate the search engine by captur-

ing user needs through a query. Requirements of the

test were: (1) query processing time and (2) indexing

time duration.

Thangavel et al. (Thangavel et al., 2014) present

the design and implementation of a common middle-

ware that supports MQTT and CoAP. Performance

evaluation was done experimentally by using the mid-

dleware under different network conditions. End-to-

end delay and bandwidth consumption were the met-

rics that were studied for both protocols. Tests are

focused in the transportation of the sensor data at the

gateway node to the back-end server or broker. Band-

width usage was deﬁned as a the total data transferred

per message. Delay was deﬁned as a difference be-

tween the time when a data ﬁle was received and the

time when the ﬁle was published. A small program

was implemented to generate the sensor data in or-

der to emulate the reception from sensor nodes. Be-

sides that, open source implementation of MQTT and

CoAP were used and integrated to the middleware.

Authors conclude that performance of different pro-

tocols are dependent on different network conditions,

and it can be exploited to improve the network perfor-

mance by deciding what protocol to use according to

the current network conditions.

IoT-Framework is a computational middleware

thas was implemented by using open source compo-

nents (Vandikas and Tsiatsis, 2014). This proposal

uses the RabbitMQ publish-suscribe, elasticSearch

database, WebMachine REST Api, R statistical soft-

ware among others. Authors performed the evaluation

of the system by using two set of tests, ﬁrst one creates

a total number of 10

HTTP POST requests that simu-

lates a different number of users (producers). Second

tests were done by using a simple Java client to gen-

erate a varying number of consumers in order to see

the impact in the system.

Nowadays, IoT testbeds are available in order to

evaluate IoT applications in real environments with

real-world conditions. That testbeds are already de-

ployed in several sites in Europe and has been used

to perform IoT testing and collect results such as con-

sumption or packet ratio. For example, IoT-Lab (Ad-

jih et al., 2016), SmartSantander (Sanchez et al.,

2014) and Web of Things TestBed (WoTT) (Belli

et al., 2015). Most of academic research about IoT

testing are focused on functional tests. There are a

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

310

few academic reports covering speciﬁc IoT testing

ﬁelds like connectivity, compatibility and exploratory.

3 IoT TEST METHODOLOGY

3.1 IoT Platform

In this section, we describe our IoT platform, based on

the Swarm vision(Rabaey, 2011). The swarm concept

expands the IoT vision to a more organic networks

where the peers communication, characteristics and

topologies can be adapted dynamically. The imple-

mentation of the platform follows a framework called

SwarmOS(Costa, 2015) which explores the dynamic

cooperation and peer-to-peer communication of de-

vices. The architecture of the system is illustrated in

Figure 2. A central element in the proposed archi-

tecture is the IoT Broker, which acts as a facilitator

for the communication and interaction among the het-

erogeneous devices in the Swarm/IoT. The following

modules are deﬁned in current version of our broker:

• Registry, a central directory for the services in the

device,

• Discovery, a service that lets the broker communi-

cate with other brokers to search a requested ser-

vice;

• Contracting, a service that helps in match the pa-

rameter for service consumption among requester

and provider services;

• Authorization, a service that manages the access

to services;

• Semantic mediation, a service which performs an

automatic equivalence between concepts in dif-

ferent service description domains, in order to

achieve interoperability;

• Monitoring and optimizing, a service based on

a continuous monitoring of the network, creates

a quantitative model that suggests optimization

plans;

• Binding, a service that performs an syntactic

adaptation of the communication among services,

• Policy management, a service that manages the

access policies of the authorization module.

The IoT architecture was designed to following

the REST principles, so it exposes device function-

alities through light web services by HTTP or CoAP

protocol. Broker behaves as a facilitator to atend re-

quests from any service in the network. It has a local

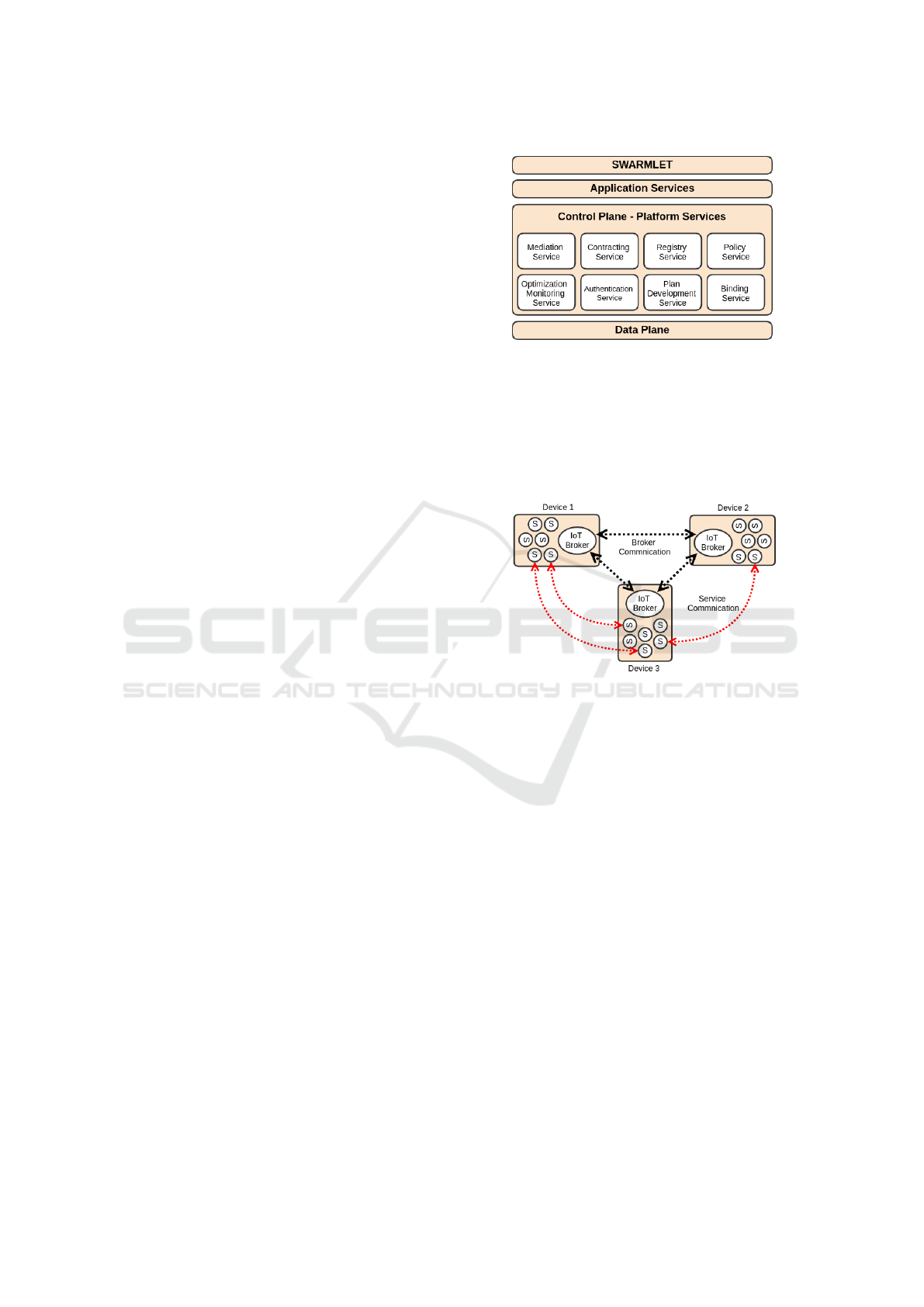

Figure 2: IoT Broker Architecture.

database where stores the descriptions of the local ser-

vices which it can offer to other brokers or services.

Broker functionalities can be exposed through three

entries: registry and locate and status. Other capabil-

ities presented in the proposed architecture are under

active development.

Figure 3: Device communication.

In Figure 3 we depict the deployment of a simple

device conﬁguration in order to better visualize the

communication using the proposed IoT Broker. Ser-

vices can be deployed in the same device and broker

provides the interface to communicate with services

deployed in other devices. A device hosts several ser-

vices along with one broker. When a service is exe-

cuted, it ﬁrst registers in its local IoT Broker, which

can be found for other brokers in the network. Next,

when a device needs to use the functionalities of other

device, it looks for a service in the network, by using

the broker locate service.

3.2 Test Methodology

Testing the IoT involves the validation process of

various aspects related to network connectivity,

such as bandwidth, dropped connections, etc. The

challenges of IoT testing are beyond software im-

plementation and hardware devices because IoT

adds new complexity parameters to the classic

test models (Al-Fuqaha et al., 2015). In our spe-

ciﬁc IoT platform we have deﬁned several kinds

Performance Testing of an Internet of Things Platform

311

Figure 1: Modular Test Architecture.

of testing phases in order to validate the whole

functionality of the system. Then, there are some

important layers that are part of an IoT system and

needs to be test. The following layers and corre-

sponding test phases were deﬁned for our IoT system:

Software Interaction Layer:

• Unitary tests

• Integration tests

• System tests

• Acceptance tests

Hardware Interaction Layer (Device comm and

Network):

• Performance & Conectivity tests

• Security tests

• Interoperability tests

User Interaction Layer:

• Usability tests

• Conformance tests

• Reliability tests

• Scalability tests

4 PERFORMANCE TESTING

RESULTS

The implementation of our prototype is based on the

Java programming language, version 8. Jetty web

server is used to host the RESTful services in the IoT

network. For the implementation of the tests in the

different layers deﬁned in the previous section we

have used different tools and frameworks.

Software Interaction Layer: Java code was de-

veloped for the unitary and integration tests. JUnit

Framework integrated with Maven and Eclipse tools

were used. For the system tests, a functional test

architecture was written in Python language and

allows us to emulate the broker module and the

services. This model serves to achieve all functional

tests before deploying the system in speciﬁc hardware

devices. Functional tests include status, locate and

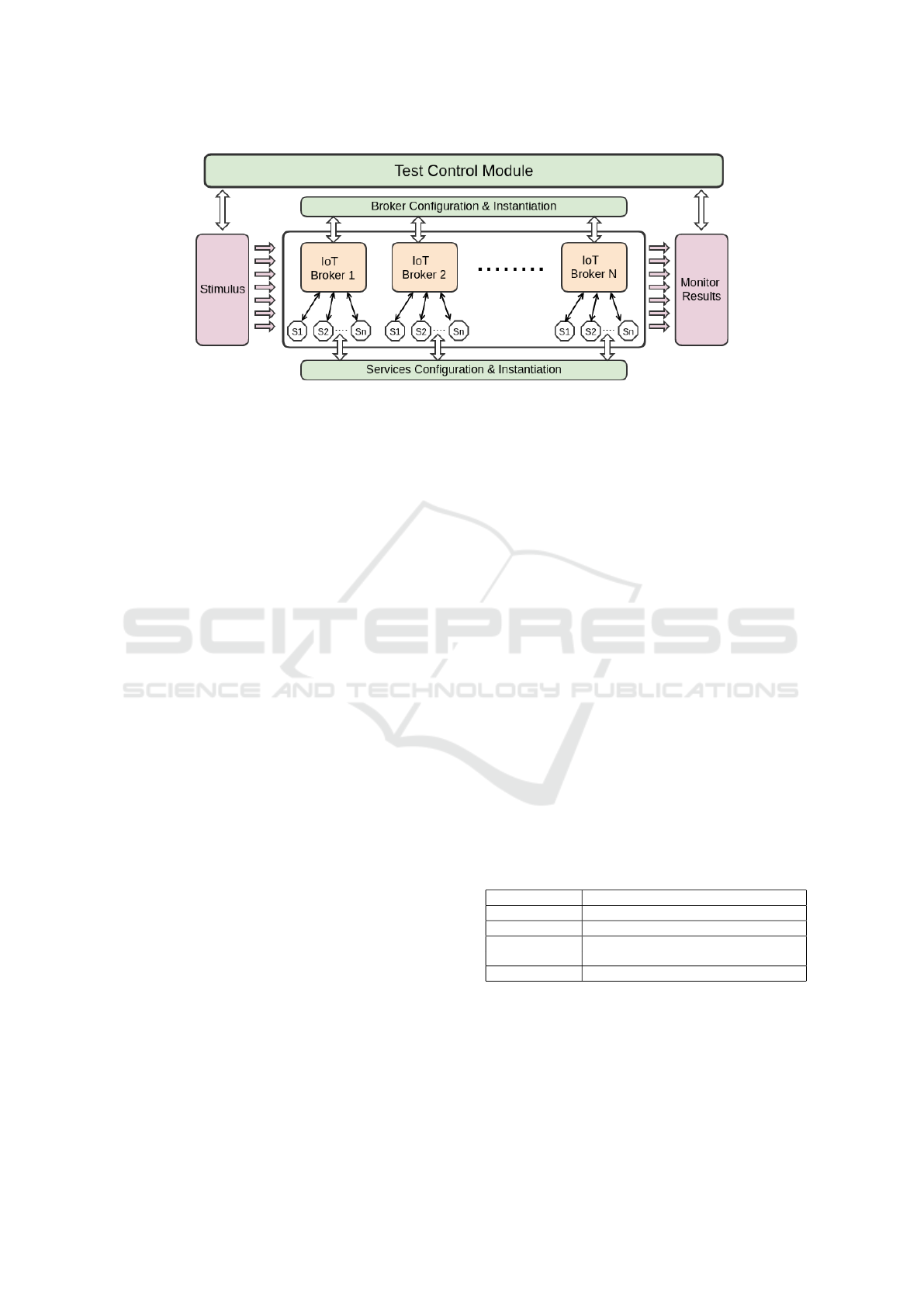

registry tests under different conditions. Figure 1

shows our modular test architecture that has been

utilized to verify the functionality of our application.

Hardware Interaction Layer (Device comm and

Network): In order to implement these layer tests,

we have deﬁned some speciﬁc test cases for the

connectivity tests. Table1 shows bandwith test case

where criteria of test is to change the bandwidth

value emulating a typical connectivity problem.

Table2 present the case when the device is suddenly

switched-off. Table3 focuses in the droppped con-

nections among devices. Every test case were tested

by using the modular test architecture presented

previously.

Table 1: Bandwitdh tests.

Purpose Test Bandwidth during register process

Pre-condition Broker and Service running

Criteria Change the bandwidth

Test Procedure Service registering in Broker

Increase/decrease bandwidth

Expected Delay in the register process. Timeout.

In order to achieve performance test of our plat-

form, we have successfully deployed our implemen-

tation on three different hardware platforms that are

presented in Table 1. To test our application in a real

environment and under stress conditions, we use a

load generation tool called Tsung, which can be con-

ﬁgured to determine the number of request per second

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

312

Figure 4: Results for 100, 200 and 300 requests/sec in Intel Edison device.

Table 2: Connectivity tests - Switched-off.

Purpose Broker switched-off suddenly

Pre-condition Broker and Service running

Criteria Switch-off broker

Test Procedure Service registering in Broker

Switch-off the broker suddenly

Expected Broker maintain the registered services

Table 3: Connectivity tests - Dropped Connection.

Purpose Brokers has connection dropped

Pre-condition Broker and Service running

Criteria Force dropped connection

Test Procedure Start broker & services

Perform registry or locate

Drop connection

Expected Broker maintain the registered services

No services found

as well as the overall test duration. Our conﬁguration

was deﬁned as a sequence of values from [10-100]

requests/sec and [100-1000] requests/sec. We have

used a desktop core i5 computer to run the client side

of Tsung, and started the IoT application on the server

side.

Tsung generates a high load of HTTP requests in

the client side towards server side. Tsung tool gener-

ates an HTML reports for each simulation and there is

a Perl script that is used in order to generate the per-

formance graphics from the log ﬁle. So for example

in the case of Intel Edison device we simulate for 10,

20, 30, 40, 50, 100, 200, 300, 400, and 500 requests

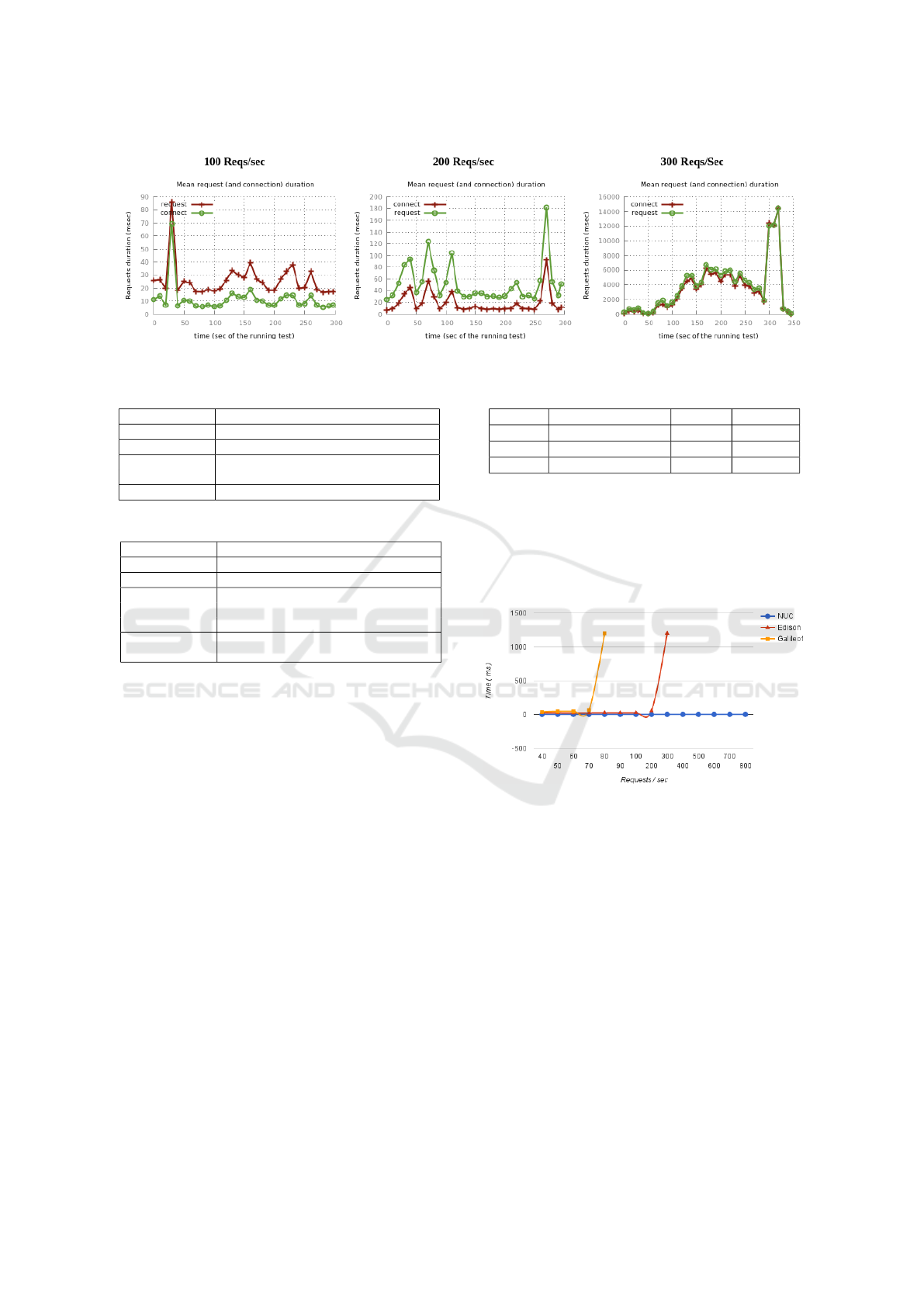

per second. Figure 4 only presents the response time

results for 100, 200 and 300 requests per second. We

choose these speciﬁc simulations because at 300 re-

quests/sec the response time of our application starts

to increase in the order of seconds that is not suitable

for a simple HTTP request. Besides that we focus on

the performance of Intel Edison because it is the only

device that was using wiﬁ interface which is impor-

tant for our research.

After analyzing the reports generated by the

Tsung tool, we can determine the maximum number

of HTTP requests per second that can be supported

Table 4: Hardware platforms.

Type Frequency RAM Interface

NUC Core i5 @1.3GHZ 4GB Ethernet

Edison Atom @500MHZ 1GB Wiﬁ

Galileo 400MHz 256MB Ethernet

by each device. We present this result in the Figure 5,

the worst device was Galileo1 board, it works ﬁne un-

til 70 requests per second, after that the response time

increases exponentially. For Edison board, this num-

ber is 200 request per second. And for Intel NUC, the

number is more than 1500 requests per second.

Figure 5: Requests per second vs Response Time.

For the case of interoperability tests, we have per-

formed tests about HTTP and CoAP communication

through a proxy in order to guarantee the compatibil-

ity between these both protocols.

User Interaction Layer: this kind of tests is cur-

rently in development.

5 CONCLUSION AND FUTURE

WORK

This work presents the initial testing results of our IoT

application. We have deﬁned three different layers for

testing: software, hardware and user. Software layer

tests were done by using standard software frame-

works like JUnit. In the case of hardware layer, we

Performance Testing of an Internet of Things Platform

313

have deployed our system on three different hardware

platforms. We have used the Tsung tool to perform

the tests by using several conﬁgurations of requests

per second. Initial results show the maximum number

of requests per second that can be supported for each

hardware device. Best performance device was the

Intel NUC, followed by Intel Edison and the weakest

device was Intel Galileo. According with the results,

we can determine some connectivity problems when

constrained devices are used for the speciﬁc Java im-

plementation. Then it is important to deﬁne our hard-

ware requirements before start developing IoT appli-

cations.

For our future research, we plan to continue the

stress testing but under different conditions, for ex-

ample increasing and decreasing the power of the wiﬁ

signal of the devices. Security tests will need to be

implemented because currently we are implementing

the authentication modules of our platform.

REFERENCES

Adjih, C., Baccelli, E., Fleury, E., Harter, G., Mitton,

N., Noel, T., Pissard-Gibollet, R., Saint-Marcel, F.,

Schreiner, G., Vandaele, J., and Watteyne, T. (2016).

FIT IoT-LAB: A large scale open experimental IoT

testbed. In IEEE World Forum on Internet of Things,

WF-IoT 2015 - Proceedings, pages 459–464.

Al-Fuqaha, A., Guizani, M., Mohammadi, M., Aledhari,

M., and Ayyash, M. (2015). Internet of Things: A

Survey on Enabling Technologies, Protocols, and Ap-

plications. IEEE Communications Surveys and Tuto-

rials, 17(4):2347–2376.

Belli, L., Cirani, S., Davoli, L., Gorrieri, A., Mancin, M.,

and Picone, M. (2015). Design and Deployment Ori-

ented Testbed. IEEE Computer, 48(9):32–40.

Bloem, J. (2016). IoTMap - Testing in an IoT environment.

Sogeti Publisher.

Cognizant (2016). The internet of things: Qa unleashed.

https://www.cognizant.com/InsightsWhitepapers/the-

internet-of-things-qa-unleashed-codex1233.pdf. Last

accessed: November 2016.

Colitti, W., Steenhaut, K., and De Caro, N. (2011). Integrat-

ing wireless sensor networks with the web. Extend-

ing the Internet to Low Power and Lossy Networks

(IP+SN 2011).

Costa, L. (2015). Swarm os control plane: An architec-

ture proposal for heterogeneous and organic networks.

2015 IEEE International Conference on Consumer

Electronics (ICCE), pages 245–246.

Lunardi, W. T., de Matos, E., Tiburski, R., Amaral, L. A.,

Marczak, S., and Hessel, F. (2015). Context-based

search engine for industrial iot: Discovery, search, se-

lection, and usage of devices. In 2015 IEEE 20th Con-

ference on Emerging Technologies Factory Automa-

tion (ETFA), pages 1–8.

Mineraud, J., Mazhelis, O., Su, X., and Tarkoma, S. (2015).

A gap analysis of internet-of-things platforms. CoRR,

abs/1502.01181.

Rabaey, J. M. (2011). The swarm at the edge of the cloud-a

new perspective on wireless. In VLSI Circuits (VL-

SIC), 2011 Symposium on, pages 6–8. IEEE.

RCR-Wireless (2016). Testing the internet of things: Mak-

ing the iot work.

Reetz, E. S., Kuemper, D., Moessner, K., and Toenjes, R.

(2013). How to test iot-based services before de-

ploying them into real world. In Wireless Conference

(EW), Proceedings of the 2013 19th European, pages

1–6.

Sanchez, L., Mu??oz, L., Galache, J. A., Sotres, P., San-

tana, J. R., Gutierrez, V., Ramdhany, R., Gluhak, A.,

Krco, S., Theodoridis, E., and Pﬁsterer, D. (2014).

SmartSantander: IoT experimentation over a smart

city testbed. Computer Networks, 61:217–238.

Thangavel, D., Ma, X., Valera, A., Tan, H. X., and Tan,

C. K. Y. (2014). Performance evaluation of mqtt and

coap via a common middleware. In Intelligent Sen-

sors, Sensor Networks and Information Processing

(ISSNIP), 2014 IEEE Ninth International Conference

on, pages 1–6.

Vandikas, K. and Tsiatsis, V. (2014). Performance eval-

uation of an iot platform. Proceedings - 2014 8th

International Conference on Next Generation Mobile

Applications, Services and Technologies, NGMAST

2014, pages 141–146.

W3C-Group (2016). Direct to device connectivity in the

internet of things. https://www.w3.org/WoT/. Last

checked: January 2016.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

314
