Enhancing JSON to RDF Data Conversion with Entity Type

Recognition

Fellipe Freire, Crishane Freire and Damires Souza

Academic Unit of Informatics, Federal Institute of Education, Science and Technology of Paraiba, João Pessoa, Brazil

Keywords: RDF Data Conversion, Entity Type Recognition, Semi-Structured Data, JSON Documents, Semantics

Usage.

Abstract: Nowadays, many Web data sources and APIs make their data available on the Web in semi-structured

formats such as JSON. However, JSON data cannot be directly used in the Web of data, where principles

such as URIs and semantically named links are essential. Thus it is necessary to convert JSON data into

RDF data. To this end, we have to consider semantics in order to provide data reference according to

domain vocabularies. To help matters, we present an approach which identifies JSON metadata, aligns them

with domain vocabulary terms and converts data into RDF. In addition, along with the data conversion

process, we provide the identification of the semantically most appropriate entity types to the JSON objects.

We present the definitions underlying our approach and results obtained with the evaluation.

1 INTRODUCTION

The Web has evolved into an interactive information

network, allowing users and applications to share

data on a massive scale. To help matters, the Linked

Data principles define a set of practices for

publishing structured data on the Web aiming to

provide an interoperable Web of Data (Heath and

Bizer, 2011). These principles are based on

technologies such as HTTP, URI and RDF (Heath

and Bizer, 2011). By using the RDF model, data or

resources are published on the Web in the form of

triples (composed by a subject, a predicate and an

object), where each resource is individually

identified by means of URIs. To achieve this, it is

essential to provide the conversion of data available

in different formats (e.g., XML, JSON) to RDF data.

Publishing structured data on the Web faces

some challenges related mainly to the large number

of data sources, their autonomous nature, and the

heterogeneity of their data (Alexe et al., 2013;

Fanizzi et al., 2012). It is usually hard to convert

data without considering the knowledge domain

(e.g., “Healthy”, “Music”, “Books”) in which the

data exist. Delimitating a specific knowledge

domain at conversion time may help coping with the

amount of heterogeneous data (Fanizzi et al., 2012;

Silva et al., 2013). With respect to this, one of the

principles of this work is using semantics provided

by the knowledge domain of the data to enhance

their conversion to RDF data. To this end, we use

recommended open vocabularies which are

composed by a set of terms, i.e., classes and

properties useful to describe specific types of things

(LOV Documentation, 2016).

Regarding data already on the web, the

deployment of applications and services generating

semi-structured data has increased every day. For

instance, most of the information published on the

Web as semi-structured data are particularly in

JSON or XML formats. These are indeed flexible

formats, where missing values or extra fields are

allowed, enabling easier data exchange between

sources (Klettke et al., 2015). This means that in

semi-structured data, elements of the same “type”

might have different number of properties.

Particularly, nowadays, it is usual to deal with

JSON data on the web. For instance, data acquired

from social networks are commonly obtained in such

format. JSON stands for JavaScript Object Notation.

It is considered as a lightweight data-interchange

format (JSON, 2016). In a JSON document, the

instances are called objects. Objects are an

unordered enumeration of properties, consisting of

name (key) and value pairs (JSON, 2016). In this

work, JSON object keys are considered as structural

metadata, i.e., high-level information about the

Freire, F., Freire, C. and Souza, D.

Enhancing JSON to RDF Data Conversion with Entity Type Recognition.

DOI: 10.5220/0006302900970106

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 97-106

ISBN: 978-989-758-246-2

schema and internal structure of a dataset. JSON

data are defined as semi-structured ones, and are

mainly characterized by a lack of a fixed schema.

Since a large amount of data published on the

Web is structured as JSON format, which thus

cannot be directly used in the Web of data, it is

necessary to convert them into RDF data. According

to their nature, JSON documents are constructed in a

flexible way and may have a metadata schema

minimally defined if we consider their key-value

pairs. Nevertheless, the entity types (or classes)

associated with the existing instances (objects) are

not commonly identified. This can be defined as an

entity type recognition problem, i.e., the process of

recognizing entities and their types (Sleeman and

Finin, 2015). Thus, for the generation of RDF data,

it is rather important to identify the metadata present

in a JSON document (properties) and, particularly,

to recognize semantically adequate entity types

associated to their instances. In this scenario, this

work presents a proposal for JSON data conversion

to RDF, including in this task, the identification of

the most appropriate entity types for the instances

(objects). Also, it includes the usage of open

vocabularies in order to reference the data with

suitable domain terms. The goal is to generate richer

RDF documents and to facilitate query formulation

and consequently more accurate results.

Our contributions are summarized as follows:

(i) We present a domain-based approach to

convert JSON documents into RDF data by using

open domain vocabularies;

(ii) We propose an entity type recognition

approach along with the data conversion process;

(iii) We present a conversion tool that

implements the proposed approach; and

(v) We describe some experiments regarding the

effectiveness of the data conversion and entity type

recognition processes.

The remainder of this paper is organized as

follows: Section 2 introduces a motivating example

with some background concepts; Section 3 proposes

our approach; Section 4 presents the developed tool;

Section 5 describes some accomplished experiments

to evaluate our proposal; Related works are

discussed in Section 6. Finally, Section 7 draws our

conclusions and points out some future work.

2 MOTIVATING EXAMPLE AND

SOME CONCEPTS

Suppose a web application which presents data

regarding software projects. Together with the data

visualization option, it provides a web service where

data can be acquired in JSON format. For instance,

consider a software project description as showed in

Figure 1.

In Figure 1, we have a set of keys (properties)

with their respective values, which describes a given

project. Nevertheless, in the presented JSON

document, the described object does not have its

entity type explicitly defined, i.e., it is not stated that

such instance description refers to a “software

project”. Such information is usually optional.

{

"homepage":"www.arboviz.com.br",

"repository":"github.com/arboviz",

"title":"arboViz",

"developer":"Marcio Alves",

"tester":"Carina Monte",

"helper":"Jonas Brim",

"group":"SIDE Group",

"programmingLanguage":"Java",

"status":"Doing"

}

Figure 1: JSON dataset example.

The “Resource Description Framework" or RDF

(RDF Documentation, 2016) is a data model that

was proposed by the World Wide Web Consortium

(W3C) as a standard for publishing datasets on the

Web. Its schema-free model makes RDF an

interesting mechanism for describing objects or

resources in such a way that diverse data publishers

can add information about the same object/instance

(resource), or create named links between different

or similar ones (Heath and Bizer, 2011).

The RDF syntax is based on triples in the form of

subject-predicate-object expressions. An RDF graph

is a set of such triples with nodes being subjects or

objects, and labelled edges being predicates. In

addition, an RDF dataset is a set of RDF graphs

(RDF Documentation, 2016).

According to the JSON data provided in Figure

1, a possible correspondent RDF distribution could

be as the one depicted in Figure 2. In this case, the

data converted to RDF has been serialized in Turtle

syntax.

In this example, we have used the doap

vocabulary in order to semantically refer the data

(DOAP, 2016). As an illustration, we have also

pointed out a possible named link with the

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

DBPEDIA concept “Project” (DBPEDIA, 2016). On

the other hand, an RDF triple indicating the entity

type of that object is indeed missing. This is the

problem we address in this paper. We are interested

in discovering the entity types and attributes that can

be used to generate richer RDF data along with the

data conversion itself. This example will be used

throughout the paper to illustrate our approach and

experiments.

@prefix rdf:

<http://www.w3.org/1999/02/22-rdf-syntax-

ns#>.

@prefix rdfs:

<http://www.w3.org/2000/01/rdf-schema#>.

@prefix xsd:

<http://www.w3.org/2001/XMLSchema#>.

@prefix doap:

<http://usefulinc.com/ns/doap#>.

@prefix dbp:

<http://dbpedia.org/ontology/>

<http://www.ifpb.edu.br/side/projects/pro

ject10#id>

doap:homepage

"www.arboviz.com.br";

doap:repository

"github.com/arboviz";

doap:title "arboViz",

doap:developer "Marcio Alves",

doap:tester "Carina Monte",

doap:helper "Jonas Brim",

doap:group "SIDE Group",

doap:programmingLanguage "Java",

doap:status "Doing"

dbp:primaryTopicOf

http://dbpedia.org/ontology/Project.

Figure 2: Example Data in RDF/Turtle.

3 OUR APPROACH

In this section, we introduce the SenseRDF approach

which has been extended in this current work. Then

we present some definitions underlying our work

along with the proposed extension.

3.1 The SenseRDF Principles

This work extends the RDF data conversion

approach introduced in Silva et al., (2013). Named

as the SenseRDF approach, it allowed the

conversion of existing datasets in XML format into

RDF data.

In the SenseRDF approach, the data conversion

effort is incrementally accomplished if the datasets

to be converted belong to the same knowledge

domain (e.g., “Bibliographic Data”, “Music”). To

this end, it is essential to have assistance of a

Domain Expert (DE). The DE is a person that has an

understanding of the content to be converted and the

knowledge domain underlying the data. The DE is

responsible for identifying the knowledge domain

(hereafter called as domain) at hand. Then s/he

verifies the datasets to be converted and also points

out the recommended vocabularies to be used. Thus,

at conversion time, all datasets and vocabularies

must belong to the same domain. For instance,

suppose that the defined domain regards

Bibliographic data, i.e., data (e.g., publications,

conferences, journals) compiled upon some common

principle, as subject, or place of publication. In this

case, the DE may indicate the SWPO reference

ontology (SWPO, 2016) as a recommended

vocabulary to be used at datasets conversion time.

To allow the data conversion, the SenseRDF

generates correspondences between the converting

dataset metadata and the domain terms, which

belong to the chosen vocabularies. The resulting

alignment is persisted and will be reused for each

other new dataset conversion that belongs to the

same domain. When converting other document

which belongs to the same knowledge domain, if

there is no correspondence between a given

metadata and a vocabulary term, the SenseRDF

proceeds with another correspondence identification.

As a result, it adds this new correspondence to the

existing domain alignment. Still considering the

bibliographic data domain, examples of

correspondences between metadata and domain

terms are:

creator ≡ dc:creator and

publication ≡ swpo:publication

where

creator and publication are metadata from an

input dataset; and

the prefixes dc and swpo are related to the

DC vocabulary (DC, 2016) and to the SWPO

ontology, respectively.

In this work, the SenseRDF approach has been

extended in order to allow the conversion of JSON

data into RDF. Furthermore, it is now able to

identify entity types along with the data conversion

process itself both to XML and JSON data formats.

These features are presented in the next sections.

3.2 Definitions

We provide some definitions regarding the concepts

underlying our approach. They refer to semi-

Enhancing JSON to RDF Data Conversion with Entity Type Recognition

structured to RDF data conversion topics that we

take into account.

Let D be a data domain (ex: “Music”,

“Education”) which is identified by a Domain

Expert (DE). According to D, source datasets are

converted to RDF ones. These datasets and their

instances are defined as follows.

Definition 1 (Source Dataset and Instance).

Let DS={ds

,…,ds

} be a set of source semi-

structured datasets which belong to D. Each ds

composed by a set of instances (or objects)

I={Ids

,…,Ids

}. Each instance Ids

is defined by a

set of properties (keys) as Ids

= {p

, p

, …, p

Definition 2 (Target RDF Dataset). Let dsr

an RDF dataset which represents a source

description ds

after a semantic-based data

conversion process. dsr

is composed by RDF triples

and instances Idsr

in such a way that Idsr

 dsr

A target RDF dataset dsr

is composed by

concepts and properties, which are semantically

formalized by means of domain vocabularies.

A Domain Vocabulary dv is a domain ontology

or an open vocabulary which contains terms (classes

and properties) belonging to a particular data domain

D. A dv should be a reliable domain reference

available on the web. Since we can have some

associated vocabularies (one or more) to a given D,

we are able to establish the set of domain

vocabularies we will use to provide semantics to the

data conversion process. The set of domain

vocabularies to be used is defined as follows.

Definition 3 (Set of Domain Vocabularies). We

state a Set of Domain Vocabularies SDV as

SDV={dv

, dv

,..., dv

} which have been chosen as

reliable domain vocabularies to be used as

background knowledge in a data conversion process.

In the light of the motivating example (Section

2), ds

is a JSON dataset which will be converted to

an RDF one. In this example dataset, there is one

instance Ids

composed by some properties, as

follows.

Ids

= {homepage, repository, title,

developer, tester, helper, group,

programmingLanguage, status}

In this example, the DE considers D as

“Software Projects”. S/he chooses two domain

vocabularies to be used to assist the data conversion

process, namely

SDV={doap, bibo}. Domain

Vocabularies may be found, for instance, in the

Linked Open Vocabularies (LOV) repository (LOV

Documentation, 2016).

doap is an RDF vocabulary

to describe software projects, and, in particular, open

source projects (DOAP, 2016). The Bibliographic

Ontology Specification (BIBO) provides concepts

and properties for describing documents on the

Semantic Web (BIBO, 2016).

The goal of our approach is twofold: (i) to

convert semi-structured data to RDF and (ii)

meanwhile to establish the most appropriate entity

type(s) for each instance Ids

. Since we do not know

the meaning of {p

, p

, ... p

} for each Ids

, we

firstly map them to SDV terms (properties). As a

result, we find out a set of correspondences between

, p

, ... p

} and the vocabularies’ properties.

Definition 4 (Property Correspondence). A

property correspondence is defined as a triple p

, v

n, where p

and v

are matching properties (with p

 ds

and v

 dv

) and n expresses the level of

confidence underlying such correspondence.

In this work, we only consider equivalence

relationship holding between p

and v

. Also, we

define a threshold to indicate when a matching may

be considered as an equivalence one. Thus, n must

be higher than a given threshold to assess

equivalence.

The output of a matching process between ds

and dv

is called an alignment A

. It contains a set of

equivalence correspondences indicating which

properties of the two datasets (ds

and dv

)

correspond to each other.

Properties belong to Entity Types (ET) in

domain vocabularies. With this in mind we need to

identify the properties which belong to entity types

that are candidates to be the most appropriate one to

a given Ids

Definition 5 (SDV Types). Given a SDV, we

state that SDV Types SDVT ={ET

, ET

, …ET

} is

the set of entity types (or classes) which compose

the vocabularies belonging to a particular SDV.

Each element SDVT

has associated properties {v

, ..., v

}. Thus, SDVT

={v

, v

, ..., v

In our example, according to the chosen SDV,

we may identify SDVT as the union of doap and

bibo entity types. For the sake of space, we show an

excerpt from SDVT={doap ET U bibo ET}, as

follows.

SDVT = {doap:Project,

doap:Repository, doap:Version,

foaf:Person, foaf:Organization,

bibo:Collection, bibo:Document,

bibo:Event, foaf:Agent,

bibo:Thesisdegree}

For instance, some of these entity types and their

associated properties are shown in the following:

doap:Project.properties = {homepage,

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

100

old-homepage, release,mailing-list,

category, repository, download-

page,download-mirror, wiki,bug-

database, screenshots,maintainer,

developer,documenter, translator,

tester,helper, programming-language,

os, implements, service-

endpoint,language,vendor,platform,

audience,blog}

doap:Repository.properties = {anon-

root, browse, module, location}

doap:Version.properties = {revision,

file-release, os, platform}

bibo:Document.properties = {citedBy,

distributor,listOfContributors,

owner,producer, status, edition,

identifier,locator,numberOfPages,

shortTitle,shortDescription}

bibo:Event.properties = {organizer}

Therefore, for each instance Ids

 ds

, we wish

to associate a set of candidate ET which belongs to

SDVT.

Definition 6 (Candidate Entity Types). Given

an Idsi

 ds

, a SDVT and an A

, we set the

candidate entity types CET= {<ET

, o

>, <ET

, o

..., <ET

, o

>} as the ones which have corresponding

properties in A

. Each CET

has a value o

which

indicates the number of property occurrences for a

given ET

With the current example in mind, we present

between ds

and SDV as follows.

(ds

x sdv) =

{homepage ≡ doap.homepage

repository ≡ doap.repository

developer ≡ doap.developer

tester ≡ doap.tester

helper ≡ doap.helper

programmingLanguage ≡

doap.programming-language

title ≡ bibo.shorttitle

status ≡ bibo.status

}

There is no direct correspondence to the source

property

group. It would be included in an own

vocabulary, which is created when no defined

vocabulary may be used (this will be explained in

Section 4).

Although the correspondence title ≡

bibo.shorttitle

has n <> 1, it is also included

because n > threshold (which is defined as 0.8).

Therefore, according to A

, we would have the

following CET.

CET = {<bibo.Document, 2>,

<doap.Project, 7>}

Our algorithm then ranks the top m ETs for each

instance Ids

according to the number of existing

properties o

. It thus indicates the top one as a

suggestion of the most semantically appropriate

entity type for Ids

Definition 7 (Most Semantically Appropriate

ET). Given CET, we state the most semantically

appropriate entity type MET for Ids

as the one(s)

which have the max number of property occurrences

in CET.

Thus, each RDF target instance Idsr

 dsr

labelled with an ET belonging to SDVT. If there is

more than one ET with the same max number of

property occurrences, all of them will be added as

ETs of Idsr

In our current example, for Ids

11,

the identified

and suggested MET is doap:Project. Thereby,

metadata (properties) for the target RDF Idsr

along

with the definition of the entity type (predicate

rdf:type) will be derived as follows.

Idsr

= {rdf:type doap:Project,

doap:homepage, doap:repository,

bibo:shorttitle, doap:developer,

doap:tester, doap:helper, own:group,

doap:programmingLanguage,

bibo:status}

Where

Project represents the ET of Idsr

;

own represents an own ontology created to

supply missing terms;

doap and bibo are prefixes for the doap and

bibo vocabularies, respectively.

3.3 The MET Identification Algorithm

A high-level algorithm regarding the identification

of candidate entity types and the definition of the

most appropriate one is shown in Algorithm_MET.

Algorithm_MET shows how to identify the

candidate entity types for a given JSON object. It

also provides a suggestion of the most semantically

appropriate one. To this end, at first, the set of

properties which belongs to a JSON instance

Ids

is read and saved as an OWL file (line 1). Then the

vocabulary terms from SDV are selected (line 2) and

mapped to an OWL file as well (line 3), thus

enabling the use of the AlignmentAPI (David et al.

2011). The reason is due to the fact that this API is

able to read OWL data. After mapping the input

properties and vocabulary terms to OWL, the

Enhancing JSON to RDF Data Conversion with Entity Type Recognition

101

algorithm generates a candidate alignment (line 4)

and, for each identified correspondence (line 5), it

verifies its confidence measure n (line 6). The

correspondences with n above the defined threshold

are saved in the domain alignment A

(line 7).

Then, for each property p belonging to the

domain alignment A

(line 8), a SPARQL query is

performed in order to acquire to which class that

term is associated with (line 11). The idea is

querying on each property and verifying which

classes are then returned. Those returned classes

become candidate entity types for the converting

JSON object. Thus, classes with associated

properties (from the JSON object) become candidate

entity types (CETs).

‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐

Algorithm_MET: IdentifyMET()

Input:

Ids

: Set of JSON instance properties

SDV: set of domain vocabularies

Output:

MET: entity type for Ids

Begin

1: owlp = generateProperty(Ids

);

2: vocTerms = selectVocTerms(SDV);

3: owlv = generateVocTerms(vocTerms);

4: A

pvc

= AlignmentAPI(owlp, owlv);

5: For Each Corresp ϵ A

pvc

6: if (Corresp.n>Threshold)then

7: Add Corresp to A

;

8: end if;

9: End For Each;

10:For each property p ∈ A

11: CET

= Execute

(SELECT ?entitytype

WHERE {"+p+" rdfs:domain

?entitytype .});

12: End For each;

13: For each c ∈ CET do

14: CET

= Add(CountPOcurrences(c,

));

15: End For each;

16: RankedCET = RankCET(o

);

17: MET = Top(RankedCET);

18: Return (MET);

EndIdentifyMET;

‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐

The algorithm counts the number of property

occurrences o

for each CET

according to a given

property present in A

(line 14). Such measure is

used to provide a rank of the top ETs in concordance

with o

(line 16).

After ranking ETs, the algorithm determines the

entity type that has the highest number of property

occurrences o

(line 17). Finally, the most

semantically appropriate entity type (MET) for a

JSON instance (object) is returned (line 18).

is also used to provide how the target RDF

dataset is generated, i.e., how the properties are

semantically referred by the corresponding domain

vocabulary terms.

For example, suppose that a JSON instance

Ids

has the properties “name”, “first_name”,

“age”, and “developer”. As SDV, consider

SDV={foaf, doap}. At the end of the alignment

) generation, there are correspondences between

Ids

properties and the terms “name”, “firstName”

and “age” of the FOAF vocabulary; the term

“developer” is matched with doap:developer. From

that, queries are executed to identify to which

classes these four terms are associated with. In this

example, the doap:Project and foaf:Person classes

are returned as candidate ETs. Given this scenario,

according to the number of obtained occurrences for

each class w.r.t. the properties, the most appropriate

entity type (MET) for the properties “name”,

“firstName”, “age” and “developer” is foaf:Person.

4 IMPLEMENTATION

We have implemented the approach within a tool

developed in Java which is an extension of the

SenseRDF one. In the current version, the tool is

able to convert PDF (only its metadata), XML and

JSON data to the RDF model. In this work we show

the conversion process along with the identification

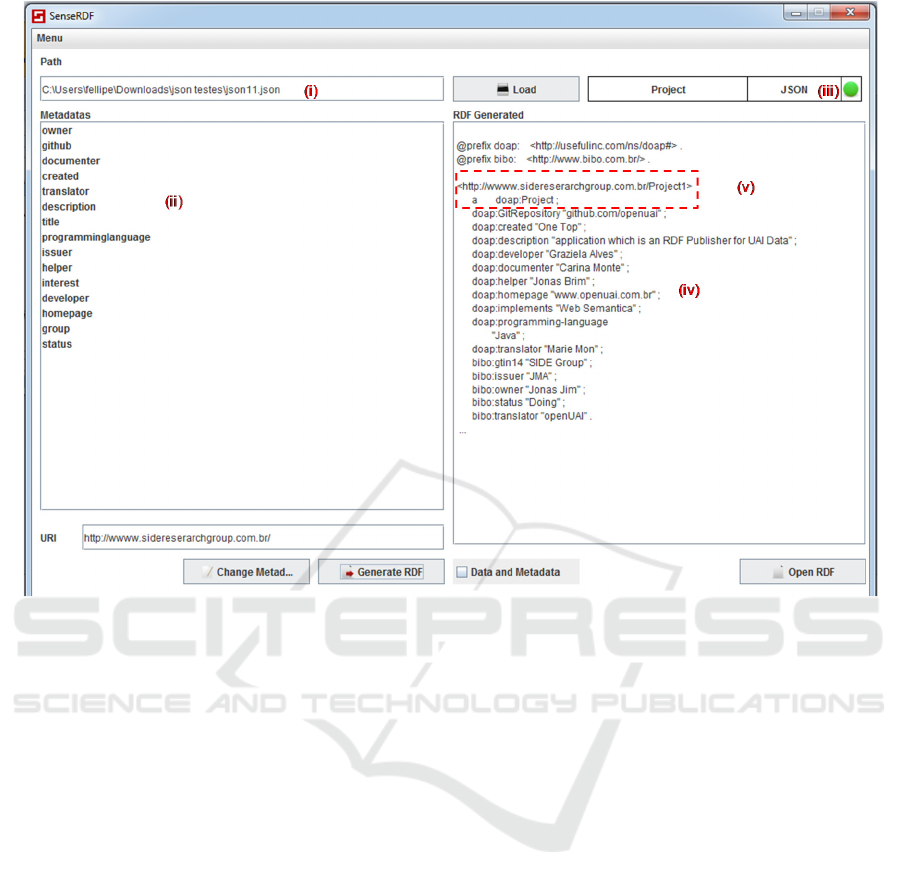

of the entity type for a given JSON object. Figure 3

shows a screenshot of the tool’s main window that is

split into four parts: (i) data file identification; (ii)

area with the file’s metadata or its content; (iii) the

dataset type at hand (PDF, XML or JSON), and (iv)

the generated RDF dataset.

In Figure 3, we present an example regarding a

JSON dataset conversion. This dataset belongs to the

“Software Projects” domain. Two domain

vocabularies have been defined by the DE, namely:

doap and bibo.

As mentioned in Section 3, the tool works with a

domain alignment, where correspondences are set

between the JSON object properties and the domain

vocabulary terms. This alignment is produced by a

linguistic matcher (David et al., 2011). Each

correspondence is defined with a confidence

measure (between 0 and 1). Accomplishing tests, we

have defined a threshold of 0.8 to identify

correspondences to be set as equivalences.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

102

Figure 3: Main Interface.

The idea is to use correspondences set in the

alignment to identify domain terms and refer the

data at RDF generation time. Nevertheless, if it was

not possible to identify a corresponding term in the

chosen vocabularies, the tool incrementally “learns”

the new terms, produces a specific ontology with

them and defines the complementing

correspondences.

The tool allows the generation of the RDF

dataset in XML or turtle syntaxes. Considering the

data shown in Figure 3 (part ii), it identifies the

referring terms for the resources, thus producing the

resulting RDF dataset shown in Figure 3 (part iv).

Furthermore, it identifies the MET and includes such

information in the form of an RDF triple in the

target dataset (Figure 3 – part v).

5 EXPERIMENTS

We have conducted some experiments to verify the

effectiveness of our approach. The goal was

twofold: (i) to assess the ability to identify the most

appropriate entity type for a given JSON object and

(ii) to measure the data completeness w.r.t. the RDF

data conversion process. The former aims to identify

the degree of precision, recall and f-measure

regarding the statement of the MET for a given

JSON Object. The latter intends to measure the

degree of RDF triples that represent JSON object

properties which are present on the generated RDF

dataset. In both goals, we intend to verify in which

degree the choice of the used vocabularies imply in

the data conversion process itself as well as in the

MET definition. To this end, we have performed

both experiments considering and not considering

adequate domain vocabularies provided by the DE

and comparing the obtained results. In this particular

evaluation, we have used ten datasets regarding

“Software Projects” and also “Books” domain. As

recommended vocabularies, we have used the

DOAP, BIBO and CBO Ontologies (CBO, 2016). As

a not suitable vocabulary, in order to provide tests,

we have used the FOAF one.

Regarding the first goal, we consider precision

measure as the ratio of correctly found entity types

(true positives) over the total number of returned

entity types (true positives and false positives)

(Rijsbergen, 1979). This is supposed to measure the

correctness of MET statement provided by our

approach. On the other hand, recall measures the

Enhancing JSON to RDF Data Conversion with Entity Type Recognition

103

ratio of correctly found entity types (true positives)

over the total number of expected entity types (true

positives and true negatives) (Rijsbergen, 1979). To

achieve the expected number of entity types, we

have produced gold standards regarding the MET

identification for the ten source datasets. These gold

standards have been manually produced by domain

users of our group. Also, we have used the

traditional F-measure as the harmonic mean of

precision and recall (Rijsbergen, 1979). The used

formulas are shown in the following:

Where

#CorrectET is the number of correct suggested

ETs produced by our approach;

#ExpectedETs is the total number of all possible

ETs that could be produced by considering the

defined gold standards; and

#ReturnedETs is the total number of all retrieved

ETs produced by the approach (i.e., correct or

incorrect ones).

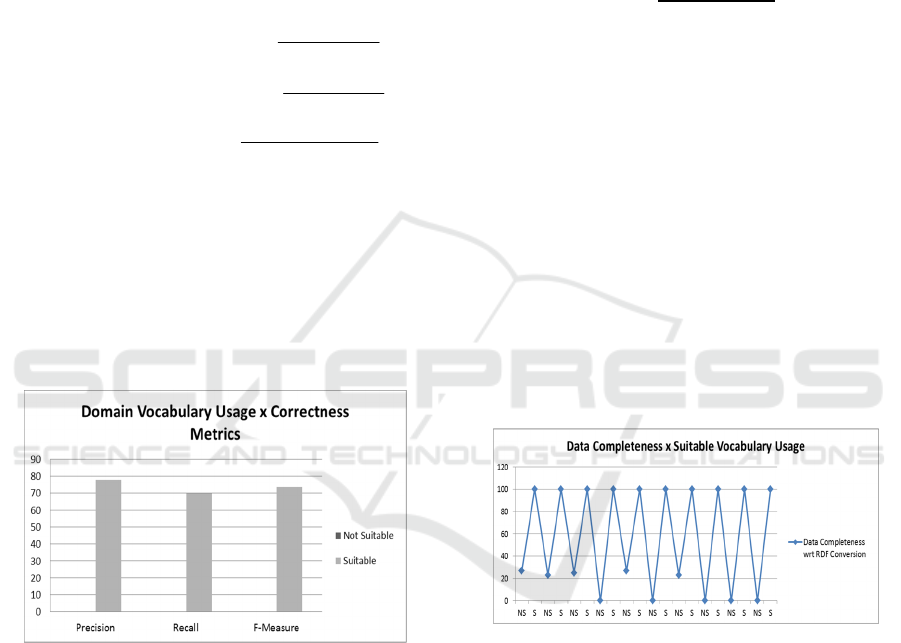

Figure 4: Measures w.r.t. the Correctly Suggested METs.

The experimental results regarding precision,

recall and f-measure for ten datasets of both data

domains are shown in Figure 4. In order to evaluate

them, we have applied two experimental variables:

(i) MET statement without suitable domain

vocabularies and (ii) MET statement with suitable

domain vocabularies. Regarding the first variable,

the precision and recall measures were equal to zero.

This means that it was not possible to identify the

METs if an inappropriate domain vocabulary is used

to provide the needed underlying semantics. On the

other hand, by considering suitable domain

vocabularies, we achieve a precision value of almost

78% (Formula 2), a recall of 70% (Formula 1) and f-

measure of almost 74% (Formula 3) (Figure 4).

With respect to the second experiment goal, we

have measured the data completeness when

obtaining an RDF dataset from a source JSON

document. Particularly, this experiment is concerned

with evaluating each Idsr

 dsr

with respect to

Ids

 ds

. In order to measure the data

completeness, we use the following formula.









#

#Propdsi

4

Where #Propdsrm is the number of properties

obtained in the generated RDF dataset dsr

that

represents original properties;

#Propdsi refers to the number of original

properties in DSi.

A summary of the results regarding the data

completeness along with the data conversion process

for ten datasets is shown in Figure 5. In Figure 5, NS

means a Not Suitable domain vocabulary, i.e., it

does not contain appropriate terms for that dataset

domain; and S means a Suitable domain vocabulary,

which has been carefully chosen for that dataset

domain. Thereby, we are able to observe that the

usage of a suitable domain vocabulary makes all the

difference. If it is well chosen by the DE, the results

are complete w.r.t. the original dataset.

Figure 5: Data Completeness w.r.t. the data conversion

process.

In conclusion, we verify that our approach for

RDF dataset conversion along with the identification

of the MET of a JSON object is promising. However

it is dependent on the semantics provided by the

chosen domain vocabularies.

6 RELATED WORK

Sleeman et al. (2015) address the problem of

identifying coreferences in heterogeneous semantic

graphs where the underlying ontologies may not be

informative or even known. For such cases, they use

sExpectedET#

CorrectET#

s)ExpectedETrectET,Recall(Cor 

(1)

sReturnedET#

CorrectET#

)sReturnedETCorrectET,Precision( 

(2)

Precision) (Recall

)Pr*(Re

*2Measure-F





ecisioncall

(3)

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

104

supervised machine learning to map entity attributes

via dictionaries to predict instance entity types.

´Particularly, this method uses a way to map

attributes from different domains to a common set

regarding people, location and organization types.

They show how to reduce work when using entity

type information as a pre-filter for instance matching

evaluation.

Bernardo et al. (2012) propose an approach to

integrate data from hundreds of spreadsheets

available on the Web. For that, they make a semantic

mapping from data instances of spreadsheets to

RDF/OWL datasets. They use a process that

identifies the spreadsheet domain and associates the

data instances to their respective class according to a

domain vocabulary.

Taheriyan et al. (2014) use a supervised machine

learning technique based on Conditional Random

Fields with features extracted from the attribute

names as part of a process to construct semantic

models. The goal is to map the attributes to the

concepts of a domain ontology and generate a set of

candidate semantic types for each source attribute,

each one with a confidence value. Next, an

algorithm selects the top k semantic types for each

attribute as an input to the next step of the process.

Tonon et al. (2013) propose a method to find the

most relevant entity type given an entity (instance)

and its context. This method is based on collecting

statistics and on the graph structure interconnecting

instances and types. This approach is useful for

searching entity types in the light of search engines.

Comparing these works with ours, in our work

we are interested in identifying the entity types to

give more semantics to RDF generated datasets.

Also, we use a semantic matcher to identify the

vocabulary terms which are associated with the

structural metadata from the converting dataset.

Differently from the presented related works, the

entity type is defined as the one which has the max

number of property occurrences. This is recognized

according to the semantics provided by domain

vocabularies which have been chosen by a DE.

Although there is such dependency, our work may

be used in any data domain.

7 CONCLUSIONS

We presented a data domain-driven approach to

converting semi-structured datasets, particularly in

JSON formats, to RDF. By using the semantics

underlying the domain of the data, it makes the

conversion process less demanding. It attempts to

automate as much of the conversion process by

maintaining a domain alignment composed by

correspondences between the converting metadata

(properties) and the domain terms, and reusing it in

each new conversion process. Also, in order to

enrich the target generated RDF dataset, the object’s

entity types are identified and included in the code.

Accomplished experiments show that our

approach is promising. By using the domain

vocabularies, it is able to produce complete RDF

datasets w.r.t. the original source data. Furthermore,

it identifies in almost 77% the most appropriate

entity type for a given object.

As future work, we intended to extend the

approach and tool to deal with CSV files.

Furthermore, we intend to use the MET recognition

process to assist a coreference resolution task when

integrating some datasets at conversion time.

REFERENCES

Alexe, B., Burdick, D. Hernandez, M., Koutrika, G.,

Krishnamurthy, R., Popa, L., Stanoi, I., and Wisnesky,

R., 2013. High-Level Rules for Integration and

Analysis of Data: New Challenges. In Search of

Elegance in the Theory and Practice of Computation:

Essays Dedicated to Peter Buneman. Springer Berlin

Heidelberg. Pp 36-55.

Bernardo, I. R., Mota, M. S., Santanchè, A., 2012.

Extraindo e Integrando Semanticamente Dados de

Múltiplas Planilhas Eletrônicas a Partir do

Reconhecimento de Sua Natureza. In Proceedings of

Brazilian Symposium on Databases (SBBD 2012):

256-263

BIBO, 2016. Available at

http://lov.okfn.org/dataset/lov/vocabs/bibo. Last

access on December, 2016.

CBO, 2016. Available at http://comicmeta.org/cbo/. Last

access on December, 2016.

David, J., Euzenat, J., Scharffe, F., and Trojahn dos

Santos, C., 2011. The alignment api 4.0. In Semantic

web journal 2 (1): 3–10, 2011.

DBPEDIA, 2016. Available on http://wiki.dbpedia.org/.

Last access on December, 2016.

DC, 2016. Available at

http://dublincore.org/documents/2008/01/14/dcmi-

type-vocabulary/. Last access on December, 2016.

DOAP, 2016. Available on

http://lov.okfn.org/dataset/lov/vocabs/doap. Last

access on December, 2016.

Fanizzi, N., dAmato, C., and Esposito, F. 2012. Mining

linked open data through semi-supervised learning

methods based on self-training. In Proceedings of the

IEEE Sixth International Conference on Semantic

Computing (ICSC), 2012. IEEE, Palermo, Italy, pp.

277–284, 2012.

Enhancing JSON to RDF Data Conversion with Entity Type Recognition

105

Heath, T. and Bizer, C. 2011. Linked data: Evolving the

web into a global data space. In Synthesis lectures on

the semantic web: theory and technology. (1): 1–136,

2011.

JSON Documentation. Available at http://json.org/. Last

access on December, 2016.

Klettke, M., Störl, U., Scherzinger ,S., 2015. In: OTH

Regensburg - BTW, 2015

LOV Documentation, 2016. Available on

https://lov.okfn.org/dataset/lov/. Last access on

December, 2016.

RDF Documentation, 2016. Available on

www.w3.org/RDF/. Last access on December, 2016.

Rijsbergen, C. J. 1979. Information Retrieval, 2nd Ed.

Stoneham, MA: Butterworths, 1979.

Silva, A.; Chaves, L. C.; Souza, D. 2013. A Domain-based

Approach to Publish Data on the Web. In Proceedings

of the 15th International Conference on Information

Integration and Web-based Applications & Services

(iiWAS2013) 2-6 December, 2013, Vienna, Austria.

Sleeman, J., Finin, T., & Joshi, A., 2015. Entity type

recognition for heterogeneous semantic graphs. In: AI

Magazine, 36(1), 75-87.

SWPO, 2016. Available at

http://lov.okfn.org/dataset/lov/vocabs/swpo. Last

access on December, 2016.

Taheriyan, M., Knoblock, C. A., Szekely, P., & Ambite, J.

L., 2014. A scalable approach to learn semantic

models of structured sources. In Semantic Computing

(ICSC), 2014 IEEE International Conference on (pp.

183-190). IEEE.

Tonon, A., Catasta, M., Demartini, G., Cudré-Mauroux,

P., & Aberer, K., 2013. Trank: Ranking entity types

using the web of data. In International Semantic Web

Conference (pp. 640-656). Springer Berlin

Heidelberg.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

106
