Integration of Vehicle Detection and Distance Estimation using Stereo

Vision for Real-Time AEB System

Byeonghak Lim, Taekang Woo and Hakil Kim

Department of Information and Communication Engineering, Inha University, Incheon, Korea

Keywords: Stixel, Vehicle Detection, Distance Estimation, Surface Normal Vector, Stereo Vision, Convolutional

Neural Network, Autonomous Emergency Braking System.

Abstract: We propose an integrated system for vehicle detection and distance estimation for real-time autonomous

emergency braking (AEB) systems using stereo vision. The two main modules, object detection and

distance estimation, share a disparity extraction algorithm in order to satisfy real-time processing

requirements. The object detection module consists of an object candidate region generator and a classifier.

The object candidate region generator uses stixels extracted from image disparity. A surface normal vector

is computed for validation of the candidate regions, which reduces false alarms in the object detection

results. In order to classify the proposed stixel regions into foreground and background regions, we use a

convolutional neural network (CNN)-based classifier. The distance to an object is estimated from the

relationship between the image disparity and camera parameters. After distance estimation, a height

constraint is applied with respect to the distance using geometric information. The detection accuracy and

distance error rate of the proposed method are evaluated using the KITTI datasets, and the results

demonstrate promising performance.

1 INTRODUCTION

Recently, driving safety has become more important

and interest in intelligent vehicle systems has

increased. For this reason, the technology for the

Advanced Driving Assistant System (ADAS) and

autonomous cars has undergone continual develop-

ment. In particular, the demand for Autonomous

Emergency Braking (AEB) systems is increasing as

the Euro NCAP has mandated their installation from

model year 2018 onwards.

Many studies on AEB systems have suggested

technologies using various sensors to find obstacles

and measure the distance to them. Radar and

LiDAR-based approaches achieve good performance

with high quality point clouds. However, these

systems cost thousands of dollars and require

periodic maintenance at least every three years. It is

also difficult for these approaches to distinguish

different types of obstacles. Therefore, studies in

recent years have focused on image sensors using

camera-based technologies. The advantage of a

camera-based approach is that it can obtain detailed

obstacle information so that the proper decision can

be made with respect to the type of obstacle.

Although development of monocular camera-based

ADAS has been attempted, the distance error rate is

too high to be commercialized. A stereo camera is

more commonly used in order to take advantage of

the detailed information available through the

disparity between the two images.

It is difficult to process whole images in real-

time because image processing is a pixel-wise

computation. Thus, the processing time increases

exponentially as the complexity of the algorithm and

input image size increase. We propose a new

integrated object detection and distance estimation

method based on the stereo camera for real-time

AEB systems. The main novelties of our proposed

method are as follows:

▪ We introduce real-time integration for AEB

systems by using algorithmically generated, low

complexity regions of interest (ROIs).

▪ We apply a surface normal vector (SNV)

validation process to minimize errors in the

candidate regions caused by low quality stereo

matching.

Lim, B., Woo, T. and Kim, H.

Integration of Vehicle Detection and Distance Estimation using Stereo Vision for Real-Time AEB System.

DOI: 10.5220/0006296702110216

In Proceedings of the 3rd International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2017), pages 211-216

ISBN: 978-989-758-242-4

211

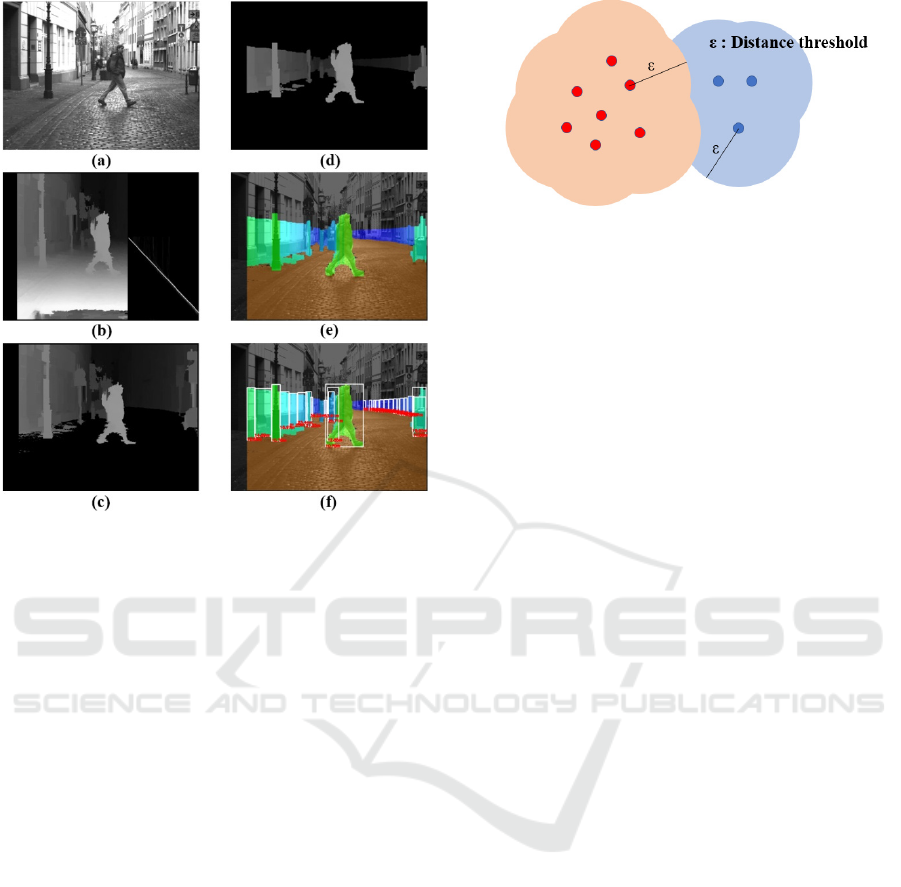

Figure 1: Hypothesis ROI generation flow chart (a) Input

image (b) Disparity and V-disparity (c) Removing Ground

(d) Height Constraint (e) Stixel Extraction (f) Stixel

Segmentation.

▪ We use a convolutional neural network (CNN)

with efficiently reduced input data for

classification.

Many vehicle detection algorithms based on

stereo vision have been developed in recent years.

Vehicle detection using sparse density stereo

matching with image features (Cabani et al., 2005)

and geometry (Chang et al., 2005) was mainly used

in the mid-2000s. Some studies used additional

motion information like optical flow (Franke et al.,

2005) to find differences between the object and the

background. In the late-2000s, mid-level

representation methods (Elfes, 1989, 2013; Badino

et al. 2009; Qin, 2013) appeared and became widely

used. The main approach in these methods was to

design algorithms to cluster pixels into a hypothesis

segments (Barrois et al., 2013; Barth et al., 2009;

Broggi et al., 2010). To overcome the technical

limits of processing only image pixel values, motion

from object tracking has been used and yielded great

progress since 2010 (Danescu et al., 2011; Erbs et al.,

2011).

As the parallel processing capability of hardware

has improved, CNN-based visual processing

algorithms have showed outstanding performance in

many visual recognition and detection challenges

(Everingham et al., 2012; Russakovsky et al., 2015).

Figure 2: Stixel clustering.

For this reason, CNN detection algorithm

development has exploded (Ren et al., 2015). A

single shot object detection approach has also

appeared, and revealed the possibility that CNN can

be used in real-time systems (Redmon et al., 2015;

Liu et al., 2015).

2 INTEGRATED MODULE FOR

AUTONOMOUS EMERGENCY

BRAKING SYSTEM

The detection and distance estimation modules share

a disparity map extraction algorithm, which accounts

for half of the entire processing time for the real-

time integrated system. Each module uses this

disparity map as needed. The stereo matching

method used for generating the disparity map is a

local matching with low computational cost. The

details of the stereo matching algorithm will not be

covered in this paper because the algorithm can be

replaced as necessary.

The vehicle detection algorithm consists of two

sequential parts. One is the hypothesis ROI

generator based on stixels, and the other is a

classifier based on CNN. In region-based CNN

detection algorithms, blob detection is commonly

used as a region proposal method (Van de Sande et

al., 2013; Matas et al., 2004). However, this usually

requires a lot of time because there are hundreds of

different blobs in an image, and various scales of

blobs should be considered. Therefore, we replaced

this algorithm with our ROI generator, which only

requires a few milliseconds when using a disparity

map, to enable our integrated system to run in real-

time.

2.1 Stixel Hypothesis ROI Generation

The main concept behind our hypothesis ROI

generation is to use a low cost stereo matching

algorithm, though the resulting disparity map quality

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

212

Figure 3: Example of hypothesis ROI generation flow.

is poor. In order to remedy the disparity map errors

caused by low quality stereo matching, we use

surface normal vectors (SNV) to validate the object

candidate regions. Figure 1 shows a flow chart for

the stixel ROI generating algorithm.

The stixel is one of the mid-level representation

methods, which uses an occupancy grid and digital

elevation map (Elfes, 1989, 2013; Qin, 2013). We

borrow the basic concept of the stixel by using the

distance and height information of objects.

Ground estimation is important for extracting a

high quality stixel. Because the stixel is

perpendicular to the ground, the ground information

has great influence on the stixel estimation result.

Here, we assume the ground is flat to simplify the

situation. V-disparity is a graph of the frequency of

disparity values along the v-axis. This is used to

estimate the ground. The dominant line which

represents the ground is estimated using RANSAC,

which is an efficient model estimator. After finding

the ground, we can remove it from the disparity

image and constrain the height. A stixel is obtained

by drawing a line from top to bottom such that the

disparity pixel value is greater than 0. The stixels are

then clustered to generate the object bounding box

ROIs. We adopt the clustering method (Ester et al.,

1996) to cluster stixels into ROIs. This method first

select a seed which is the closest and the leftmost.

After that, the stixels within the radius threshold are

clustered into one object candidate as shown in

Figure 2. We assumed that a car size could not over

2.5 meters.

2.2 Surface Normal Vector Validation

In section 2.1, we introduced the algorithm for ROI

generation. The ROIs obtained through local

matching are not always reliable because of the

disparity error. For example, wet ground and a field

Figure 4: Example of surface normal vector.

that reflects light are incorrectly recognized as

objects as shown in Figure 3. The SNV is applied to

solve this problem. The SNV can be calculated using

the formula below with 3 points, A, B and C, which

lie on the plane of the image as shown in Figure 4.

=



















(1)

For this method, the selection of A, B and C

affects performance. Thus, we heuristically select

pixels with the distance interval, double of the

disparity resolution, using the best result from the

experiment to determine value change. We

determine the dominant normal vector by using the

adaptive mean shift. While the original mean shift

searches for the mean value with a fixed kernel

range, the adaptive mean shift uses a dynamic kernel

range. Finally, errors are removed by examining the

direction of the dominant normal vector in the ROI.

2.3 CNN Vehicle Classification

In order to separate the candidate regions into the

foreground and background, we adopt the CNN as a

classifier. Our base CNN network is constructed

using only basic 3x3 convolutional filters (Simonyan

et al., 2014), which are optimized on the NVIDIA

embedded board using their SDK. All fully

connected layers in the final section of the network

are replaced with convolutional layers to reduce

processing time (Lin et al., 2013).

Integration of Vehicle Detection and Distance Estimation using Stereo Vision for Real-Time AEB System

213

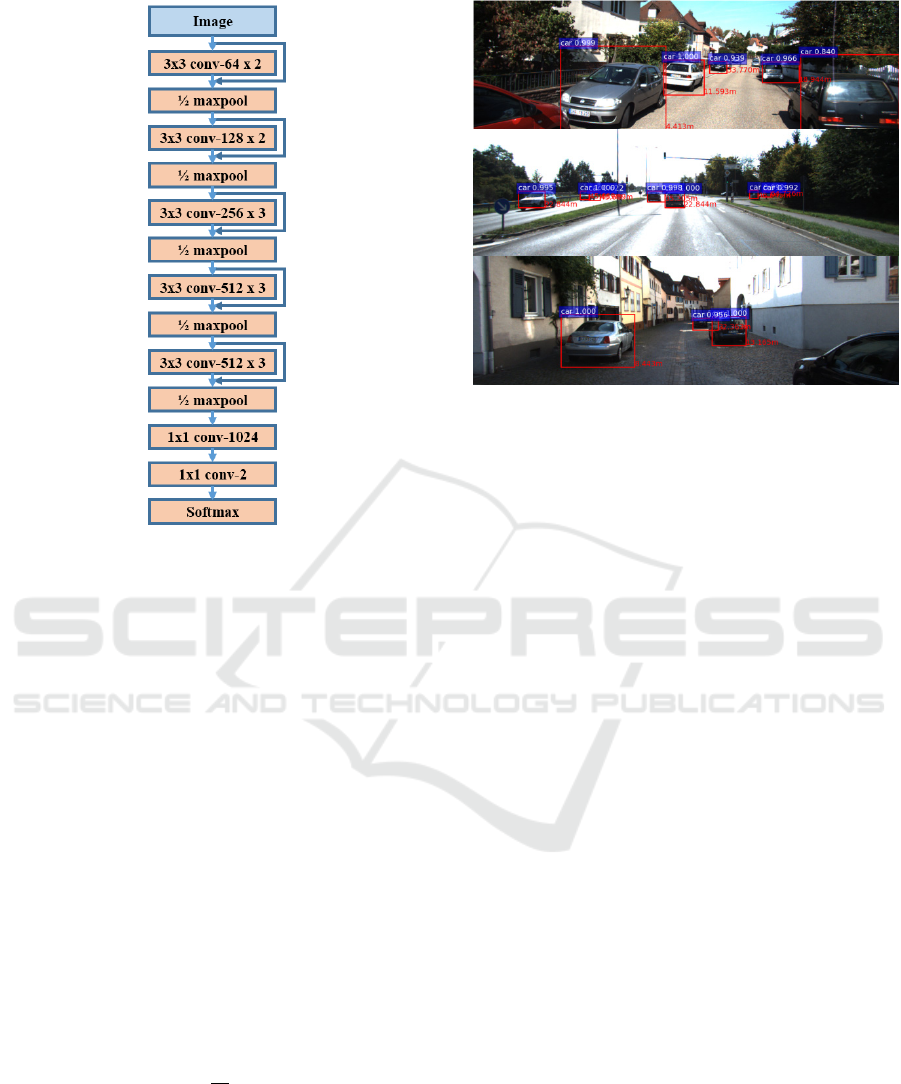

Figure 5: Classifier network model.

We save approximately one-third of the total

processing time by removing the fully connected

layers. For additional performance enhancements in

the detection rate, we applied the residual

connection introduced in (He et al., 2015). Most

CNN detection algorithms use an entire image as an

input to the convolutional layers for computational

sharing. However, in real-world driving environment

images, objects rarely take up a huge portion of the

image. Therefore, we only use the object regions as

inputs. The input image should be resized to 32x32

pixels to form the mini-batches for parallel

processing. Figure 5 illustrates the network model

used for our method.

2.4 Distance Estimation

The distance to objects is estimated from the

disparity information in the ROI. It is determined by

the following formula:

=

(2)

where Z is the distance, f is the focal length, B is the

distance between the two lenses of the stereo camera,

and d is the representative disparity. The

representative disparity is selected as the maximum

value in the disparity value histogram, which is the

shortest distance from the object to the camera.

Figure 6: Result images.

We apply the height constraint again using the

more precise distance to reject objects that are too

tall to be considered.

3 EXPERIMENTAL RESULTS

The detection accuracy and distance error rate were

evaluated using the KITTI dataset benchmark

(Geiger et al., 2012). In order to use the distance

information in the KITTI annotations, we divided

the image set into 3712 images for the training sets

and 3769 images of the validation sets. We followed

the dividing policy used in the paper by (Chen et al,

2015), which considers the correlation between

sequential images. For the CNN training data, we

use the ground truth, the stixel candidate regions,

and random cropped images. We decided that the

threshold for positive sets would be an overlap ratio

with the ground truth above 0.5, and the negative

sets would be any with an overlap ratio below 0.5.

To prove that the performance of our module is

reasonable, we conducted a comparative experiment

on detection rate with SSD (Liu et al., 2015) which

is the representative real-time CNN detection

algorithm. Table 1 displays the average precision

rate for ‘Car’ detection. The precision results for the

stixel with SNV validation is 2.18% higher than that

without SNV validation. In order to analyze the

effect of our separate modules on the precision rate,

we also evaluated detection precision on the ground

truth regions. This result demonstrated the capability

of the CNN classifier and we determined that the

stixel clustering must be improved to achieve better

detection results.

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

214

Table 1: Average Precision Results on Car Class.

Method AP(%)

Stixel + CNN 60.76

Stixel(SNV) + CNN 62.94

Ground Truth + CNN 91.14

SSD 65.20

The distance error rate was evaluated on objects

over 5 m away, and the accuracy was 92.51%.

Because we limit the length of the epipolar line to

search the corresponding points, distances less than

5 m are not reliable.

Table 2: Distance estimation error rate.

Constraint Error rate(%)

> 5 m 7.49

> 0 m 8.33

Processing time was also evaluated across

several platforms to validate the real-time system.

We checked the average processing time over five

iterations. The result on PC is 25 fps, and on the

NVIDIA TX1 board is 11 fps, as shown in Table 3.

Table 3: Processing Time.

Platform Processing Time (ms)

(Titan X/i5 4670)

ROI generator 23

Classifier 16

NVIDIA TX1

ROI generator 51

Classifier 39

4 CONCLUSIONS

We introduced an integration of vehicle detection

and a distance estimation algorithm for real-time

AEB systems. Our main innovation is to share

disparity map generation, which is the most time-

consuming algorithm, for both object detection and

distance estimation. To reduce the processing time,

we use local matching, which is fast, but not very

reliable. We alleviate this problem with SNV. The

processing time satisfies real-time requirements on

PC, and almost reaches real-time on an embedded

board, the TX1. The detection performance is

reasonable when compared to the results of other

real-time detection modules.

Through the experimental results, we observed

that the proposed classifier does not fully utilize its

classification capabilities and determined that there

is room for improvement in this aspect. Future work

will include development of an improved stixel

clustering method to enable the CNN classifier

model to be fully utilized. Additionally, the CNN

classifier model can be re-designed to achieve better

performance. Our CNN model has very basic

convolutional layers, which could be replaced with a

state-of-the-art model (Szegedy et al., 2016). We

assumed the ground is flat and is estimated from a

straight line in the v-disparity. However, in the real

world, the ground is not always flat. Therefore, the

estimated line in the v-disparity should be curved to

more accurately find the ground.

ACKNOWLEDGEMENTS

This work was supported by the Industrial

Technology Innovation Program, “10052982,

Development of multi-angle front camera system for

intersection AEB,” funded by the Ministry of Trade,

Industry, & Energy (MI, Korea).

REFERENCES

I. Cabani, G. Toulminet and A. Bensrhair. (2005). Color-

based Detection of Vehicle Lights. Proceedings of the

IEEE Intelligent Vehicles Symposium.

P. Chang, D. Hirvonen, T. Camus, B. Southall. (2005).

Stereo-based Object Detection, Classification, and

Quantitative Evaluation with Automotive

Applications. Workshops in the IEEE conference on

Computer Vision and Pattern Recognition.

U. Franke, C. Rabe, H. Badino, S. Gehrig. (2005). 6D-

Vision: Fusion of Stereo and Motion for Robust

Environment Perception. Joint Pattern Recognition

Symposium.

A. Elfes. (1989). Using Occupancy Grids for Mobile

Robot Perception and Navigation. Computer.

H. Badino, U. Franke, D. Pfeiffer. (2009). The Stixel

World-A Compact Medium Level Representation of

the 3D-World. Joint Pattern Recognition Symposium.

A. Elfes. (2013). Occupancy Grids: A Stochastic Spatial

Representation for Active Robot Perception. arXiv

preprint arXiv:1304.1098.

R. Qin, J. Gong, H. Li, X. Huang. (2013). A Coarse

Elevation Map-based Registration Method for Super-

Resolution of Three-Line Scanner Images.

Photogrammetric Engineering & Remote Sensing.

B. Barrois, C. Wohler. (2013). 3D Pose Estimation of

Vehicles using Stereo Camera. Transportation

Technologies for Sustainability.

A. Barth, U. Franke. (2009). Estimating the Driving State

of Oncoming Vehicles from a Moving Platform using

Stereo Vision. IEEE Transactions on Intelligent

Transportation Systems.

A. Broggi, A. Cappalunga, C. Caraffi, S. Cattani, S.

Ghidoni, P. Grisleri, P. Porta, M. Posterli, P. Zani.

(2010). TerraMax Vision at Urban Challenge. IEEE

Transactions on Intelligent Transportation Systems.

Integration of Vehicle Detection and Distance Estimation using Stereo Vision for Real-Time AEB System

215

R. Danescu, F. Oniga, S. Nedevschi. (2011). Modeling

and Tracking the Driving Environment with a Particle-

based Grid. IEEE Transactions on Intelligent

Transportation Systems.

F. Erbs, A. Barth, U. Franke. (2011). Moving Vehicle

Detection by Optimal Segmentation of the Dynamic

Stixel World. IEEE Intelligent Vehicles Symposium.

M. Everingham, L. Van Gool, C. K. I. Williams, J. Winn,

A. Zisserman. (2012). The Pascal Visual Object

Classes (VOC) Challenge. International journal of

Computer Vision.

O. Russakovsky, J. Deng, H. Su, J. Krause, S. Satheesh, S.

Ma, Z. Huang, A. Karpathy, A. Khosla, M. Bernstein,

A. C. Berg, L. Fei-Fei. (2015). ImageNet Large Scale

Visual Recognition Challenge. International journal

of Computer Vision.

S. Ren, K. He, R. Girshick, J. Sun. (2015). Faster R-CNN:

Towards Real-Time Object Detection with Region

Proposal Networks. arXiv preprint arXiv:1506.01497.

J. Redmon, S. Divvala, R. Girshick, A. Farhadi. (2015).

You Only Look Once: Unified, Real-time Object

Detection. arXiv preprint arXiv:1506.02640.

W. Liu, D. Anguelov, D. Erhan, C. Szegedy, S. Reed.

(2015). SSD: Single Shot Multibox Detector. arXiv

preprint arXiv:1512.02325.

J. R. Uijlings, K. Van de Sande, T. Gevers, A. W.

Smeulders. (2013). Selective Search for Object

Recognition. International journal of Computer

Vision.

J. Matas, O. Chum, M. Urban, T. Pajdla. (2004). Robust

Wide-Baseline Stereo from Maximally Stable

Extremal Regions. Image and Vision Computing.

M. Ester, H. Kriegel, J. Sander, X. Xu. (1996). A Density-

based Algorithm for Discovering Clusters in Large

Spatial Databases with Noise. Proceedings of the

AAAI conference on Knowledge Discovery and Data

Mining.

K. Simonyan, A. Zisserman. (2014). Very Deep

Convolutional Networks for Large-Scale Image

Recognition. arXiv preprint arXiv:1409.1556.

M. Lin, Q. Chen, S. Yan. (2013). Network in Network.

arXiv preprint arXiv:1312.4400.

K. He, X. Zhang, S. Ren, J. Sun. (2015). Deep Residual

Learning for Image Recognition. arXiv preprint

arXiv:1512.03385.

A. Geiger, P. Lenz, R. Urtasun. (2012). Are We Ready for

Autonomous Driving? The KITTI vision benchmark

suite. IEEE conference on Computer Vision and

Pattern Recognition.

X. Chen, K. Kundu, Y. Zhu, A. G. Berneshawi, H. Ma, S.

Fidler, R. Urtasun (2015). 3D Object Proposals for

Accurate Object Class Detection. Advances in Neural

Information Processing Systems.

C. Szegedy, S. Ioffe, V. Vanhoucke (2016). Inception-v4,

Inception-ResNet and the Impact of Residual

Connections on Learning. arXiv preprint

arXiv:1602.07261.

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

216
