Predicting Outcome of Ischemic Stroke Patients using Bootstrap

Aggregating with M5 Model Trees

Ahmedul Kabir

, Carolina Ruiz

, Sergio A. Alvarez

and Majaz Moonis

Dept. of Computer Science, Worcester Polytechnic Institute, 100 Institute Road, Worcester, MA 01609, U.S.A.

Dept. of Computer Science, Boston College, Chestnut Hill, MA 02467, U.S.A.

Dept. of Neurology, Univ. Massachusetts Medical School, Worcester, MA 01655, U.S.A.

Keywords: Ischemic Stroke, mRS Score, M5 Model Tree, Bootstrap Aggregating, Predicting Stroke Outcome.

Abstract: The objective of our study is to predict the clinical outcome of ischemic stroke patients after 90 days of

stroke using the modified Rankin Scale (mRS) score. After experimentation with various regression

techniques, we discovered that using M5 model trees to predict the score and then using bootstrap

aggregating as a meta-learning technique produces the best prediction results. The same regression when

followed by classification also performs better than regular multi-class classification. In this paper, we

present the methodology used, and compare the results with other standard predictive techniques. We also

analyze the results to provide insights on the factors that affect stroke outcomes.

1 INTRODUCTION

Stroke is defined as the rapid loss of brain function

caused by disturbances in the blood supply to the

brain. It is one of the leading causes of death

worldwide (Raffeld et al., 2016). Stroke can be

broadly classified into two types: Ischemic, which

occurs due to lack of blood flow; and hemorrhagic,

which is caused by internal bleeding. In this study

we deal with data from patients with ischemic stroke

which is the more common of the two types,

accounting for around 87% of all strokes

(Mozaffarian et al., 2016). The data are collected

retrospectively from the University of Massachusetts

Medical School, Worcester, Massachusetts, USA

and comprise demographic information, medical

history and treatment records of 439 patients.

The objective of this study is to predict the

outcome of a stroke patient in terms of the modified

Rankin Scale (mRS) score, an integer value between

0 and 6 measuring the degree of disability or

dependence in daily activities of people who have

suffered a stroke (Rankin, 1957). There are two

approaches one may use to solve this problem. One

is to treat the target as a numeric attribute and apply

some form of regression. The other approach would

be to think of the several different mRS scores as

different categories, in which case the problem

becomes that of multi-class classification. We have

addressed the prediction task from both perspectives.

1.1 Scope of this Paper

In this paper, we aim to predict the mRS score of a

patient after 90 days of an ischemic stroke based on

the data we have about the patient at the time of

discharge. Knowledge gained from this prediction

task may help medical practitioners manage stroke

more effectively and allocate resources more

efficiently. The predictive (or independent) attribu-

tes in our study consist of demographic information,

medical history and treatment records. The target

attribute is mRS-90, the mRS score at 90 days

following stroke onset (described in Table 1). We

treat the target as a numeric attribute first and apply

different regression techniques for prediction. Our

studies show that M5 model trees used in tandem

with bootstrap aggregating (bagging) significantly

outperforms other common regression methods such

as linear regression. We then treat the target as a

multiclass categorical attribute and apply several

classification techniques. Classification using the

aforementioned regression technique followed by

translation of the target to a discrete value performs

better than well-known classification methods such

as logistic regression and C4.5 decision trees.

178

Kabir A., Ruiz C., Alvarez S. and Moonis M.

Predicting Outcome of Ischemic Stroke Patients using Bootstrap Aggregating with M5 Model Trees.

DOI: 10.5220/0006282001780187

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 178-187

ISBN: 978-989-758-213-4

1.2 Modified Rankin Scale

The modified Rankin Scale (mRS) measure is the

most widely used clinical outcome measure for

stroke. It was first introduced by Dr. John Rankin

(Rankin, 1957) and later modified to its current form

by a group of researchers during the late 1980s (Van

Swieten et al., 1988). The mRS score is an integer

between 0 and 6 signifying the various degrees of

impairment caused by stroke, with 0 being the least

amount of impairment and 6 being death. Table 1

presents a summary description of the different mRS

scores. The mRS score can be calculated at various

stages of stroke. In this study, the mRS scores are

recorded in three different stages. The first, mRS

before admission, presents the degree of disability

the patient had before the onset of stroke. The next is

mRS at discharge, which gives the mRS score at the

time the patient is discharged from the hospital after

initial treatment of stroke. The last one is mRS at 90

days after stroke (mRS-90), the score this study

attempts to predict.

Table 1: Different mRS scores and their description

(Banks and Marotta, 2007).

Score Description

0 No symptoms

1 No significant disability

2 Slight disability

3 Moderate disability: requires assistance

4 Moderately severe disability

5 Severe disability: patient bedridden

6 Death

1.3 Related Work

The mRS-90 score has been used as a measure of

stroke outcome in numerous studies. Most of these

studies focus on a particular treatment or condition,

the efficacy of which is examined by how it affects

the mRS-90 score. In most cases, the mRS-90 score

has been dichotomized to convert the task of

prediction to that of binary classification. The

classification task is performed usually by

multivariate logistic regression which allows the

authors to comment on the influence of one or more

variables on stroke outcome based on the odds ratios

computed from the logistic regression model. For

example, (Moonis et al., 2005) reported that using

statins for treatment of ischemic stroke improved

stroke outcome since the statins obtained an odds

ratio of 1.57 in a logistic regression model predicting

mRS-90 ≤ 2. This means that the patients who are

administered statins have 1.57 times the probability

of attaining mRS-90 ≤ 2 than those who are not

treated with statins. (Marini et al., 2005) studied the

effects of atrial fibrillation in stroke outcome. In

(Yong and Kaste, 2008), hyperglycemia is

associated with poor outcome, while in (Nogueira et

al., 2009) successful revascularization is associated

with good outcome. (Henninger et al., 2012)

reported that leukoaraiosis is a factor in poor 90-day

outcome of stroke. These are only a handful of the

studies using mRS-90 prediction as a means of

discovering effects of factors in stroke outcome. All

of the above studies dichotomized the mRS score to

two levels – one consisting of mRS-90 ≤ 2 and the

other of mRS > 2.

In contrast, there have not been many studies that

focused solely on predicting the stroke outcome and

employing machine learning models to assist in the

prediction task. (Gialanella et al., 2013) aimed to

predict stroke outcome using linear regression, but

used the functional independence measure (FIM)

which is a scale that measures stroke recovery in

terms of activities of daily living (Keith et al., 1987).

A similar effort was made by (Brown et al., 2015),

again focusing on FIM. Neither of these papers

considered regression techniques other than linear

regression. To the best of our knowledge, there is no

study that has methodically explored regression

analysis methods to predict the mRS-90 score as a

measure of stroke outcome.

1.4 Plan of the Paper

In Section 2 of this paper, we present the

methodology of our research. That section deals

with the steps that are taken to prepare and

preprocess the data, and also describes in full details

our prediction techniques. Section 3 presents a

comparison of different prediction methods, and

analyzes the results to gain more insights about the

models discovered. Section 4 concludes with a

summary of findings and directions for future work.

2 METHODOLOGY

2.1 Data Collection and Preparation

Our study is conducted on retrospective data

obtained from medical records of 439 ischemic

stroke patients admitted at the University of

Massachusetts Medical School, Worcester, MA,

Predicting Outcome of Ischemic Stroke Patients using Bootstrap Aggregating with M5 Model Trees

179

USA between 2012 and 2015. Information relevant

for stroke outcome prediction is extracted into a

dataset. Patients who died within 90 days of stroke,

therefore having a mRS score of 6, are excluded

from this analysis. The reason for this exclusion is

that patient death can occur for a combination of

several reasons apart from stroke, such as advanced

age or other comorbid conditions. Therefore, for

stroke outcome prediction, we decide to work only

with the patients who survived the stroke after 90

days. Prominent works on this area such as the

Copenhagen Stroke Study (Nakayama et al., 1994)

have also excluded dead patients in some of their

models.

The process of selecting relevant predictive

attributes is a combination of domain expertise and

empirical knowledge of machine learning procedu-

res. In the first step, one of the authors of this paper,

a clinical neurologist and expert on stroke, has

helped select a large set of attributes for extraction

from the patients’ medical records. We then inspect

each attribute to see whether they are conducive for

machine learning. Attributes with a large amount of

missing values, or with almost all instances having

the same value are removed. In the end, the chosen

set of attributes include demographic information

(such as age and gender), medical history (such as

diabetes and hypertension), habits history (such as

smoking and drinking), subtype of stroke (such as

large vessel and cardioembolic) (Adams et al.,

1993), prescribed medication (such as anticoagu-

lants), and mRS scores at different stages (before

admission, at discharge and at 90 days). A measure

of stroke severity determined by the National

Institutes of Health Stroke Scale (NIHSS) score

(Brott et al., 1989) is also included. Table 2 presents

summary statistics of all the attributes of the stroke

dataset used in this study.

For the multivalued attribute stroke subtype, five

binary attributes for the five possible values are

created, with each attribute value specifying whether

(1) or not (0) the patient has that particular subtype

of stroke. This is done since there is no ordinal

relationship among the different stroke types; so

giving them numeric scores would make the model

incorrect.

2.2 Regression

In statistics and machine learning, regression is the

process of analyzing how a numeric dependent

variable changes with regards to changes in one or

more independent variables. In this study the

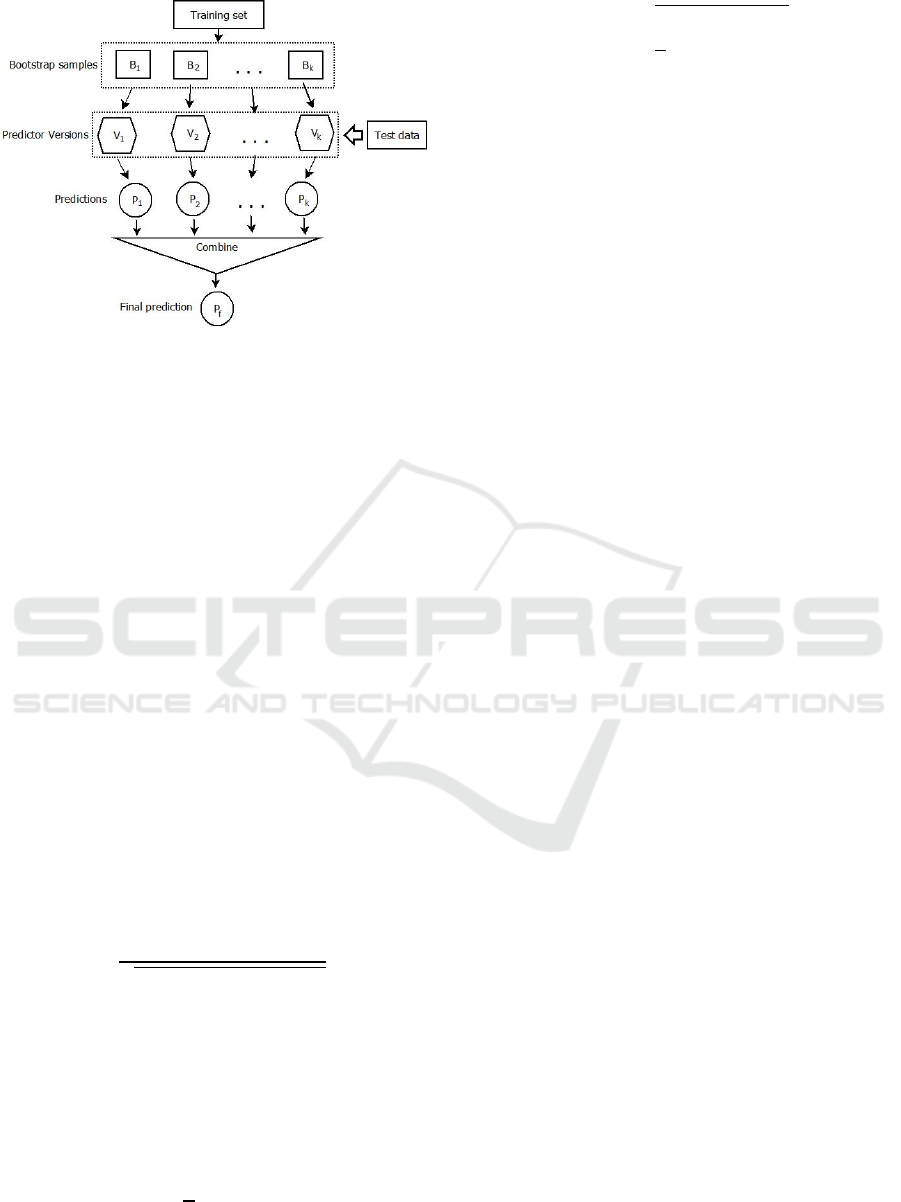

regression task is performed by a meta-learning

technique called bootstrap aggregating where the

base learner is a model tree generated using the M5

algorithm. The machine learning tool Weka (Hall et

al., 2009) is used for the experiments.

Table 2: Summary statistics of the attributes of the stroke

dataset. The total number of patients is 439. For

continuous attributes, the mean and standard deviation are

shown in a Mean ± Std. Dev. format. For categorical

attributes the percentages of different values are given. For

binary attributes, only the percentages of TRUE values are

shown. For mRS scores at different stages, we summarize

the overall mean and standard deviation along with the

distribution of individual scores.

Attribute Distribution of values

Stroke subtype

Small vessel: 12.3%,

Large vessel: 23.7%,

Cardioembolic: 31.4%

Cryptogenic: 23.7%,

Others: 8.9%

Gender

Male: 57.4%,

Female: 42.6%

Age

67.2 ± 14.6

Range: 19 - 97

NIHSS score at admission

7.2 ± 7.1

Range: 0 - 32

Hypertension 74.7%

Hyperlipidemia 58.8%

Diabetes 29.8%

Smoking 29.4%

Alcohol problem

14.6%

Previous history of stroke 19.4%

Atrial Fibrilation 27.7%

Carotid Artery Disease 21.0%

Congestive Heart Failure 8.7%

Peripheral Artery Disease

6.4%

Hemorrhagic conversion 11.2%

tPA 20.5%

Statins 47.4%

Antihypertensives 62.9%

Antidiabetics

20.5%

Antiplatelets 45.3%

Anticoagulants 10.3%

Perfusion 8.7%

Neurointervention 18.7%

mRS before admission

0.41 ± 0.86

0: 74.0%, 1: 15.0%

2: 5.9%, 3: 2.1%

4: 1.4%, 5: 0.5%

mRS at discharge

1.60 ± 1.63

0: 35.3%, 1: 13.7%

2: 15.3%, 3: 9.8%

4: 11.6%, 5: 5.0%

mRS at 90 days

1.28 ± 1.46

0: 46.9%, 1: 17.5%

2: 14.4%, 3: 11.6%

4: 6.2%, 5: 3.4%

HEALTHINF 2017 - 10th International Conference on Health Informatics

180

2.2.1 M5 Model Trees

A decision tree is a tree where each node represents

a choice among a number of alternatives, and each

leaf represents a decision that can be reached by

following a series of choices starting from the root

of the tree. Specifically in terms of machine

learning, each node of a decision tree specifies a test

of some attribute in the dataset while branches

emanating from the node correspond to possible

values or outputs of the test in the node (Tan et al.,

2005). In the more common case, decision trees

perform classification where the leaf represents one

of the classes the instance is to be categorized to.

But a decision tree can be used to perform regression

too, in which case the leaf outputs a numeric value

of the target attribute instead of a class (Breiman et

al., 1984). This type of tree is called a regression

tree. A model tree is a special form of regression

tree where the decision in each leaf is a not a value,

but is itself a multivariate linear model. The numeric

value predicted by the tree for a given test data

instance is obtained by evaluating the linear equation

in the leaf of the branch where the data instance

belongs. (Quinlan, 1992) describes an algorithm,

called M5, that is used to construct such a tree. Some

improvements to the algorithm were made by (Wang

and Witten, 1996).

The construction of the model tree is a two-stage

process. In the first stage, a decision tree induction

algorithm is used which employs a splitting criterion

that minimizes the intra-subset variability in the

values down from the root through the branch to the

node. The variability is measured by the standard

deviation of the target values that reach that node.

Taking the standard deviation of the values as a

measure of error, M5 examines all attributes and

possible split points to choose one that maximizes

the expected reduction in error. The splitting process

stops when the instances reaching a leaf have low

variability or when few instances remain (Etemad-

Shahidi and Mahjoobi, 2009). In the second stage,

the tree is pruned starting from the leaves upward.

A linear regression model is computed for every

interior node, including only the attributes tested in

the sub-tree rooted at that node. As the final model

for this node, M5 selects either this linear model or

the model subtree built in the first stage, depending

on which has the lower estimated error. If the linear

model is chosen, pruning takes place and the subtree

at this node is converted to a leaf containing this

linear model (Quinlan, 1992).

M5 model tree essentially builds a piecewise

linear model. The problem space is divided into

several subspaces based on the branching decisions

of the tree, and separate linear models to fit the data

points in each subspace are generated. Figure 1

illustrates this concept.

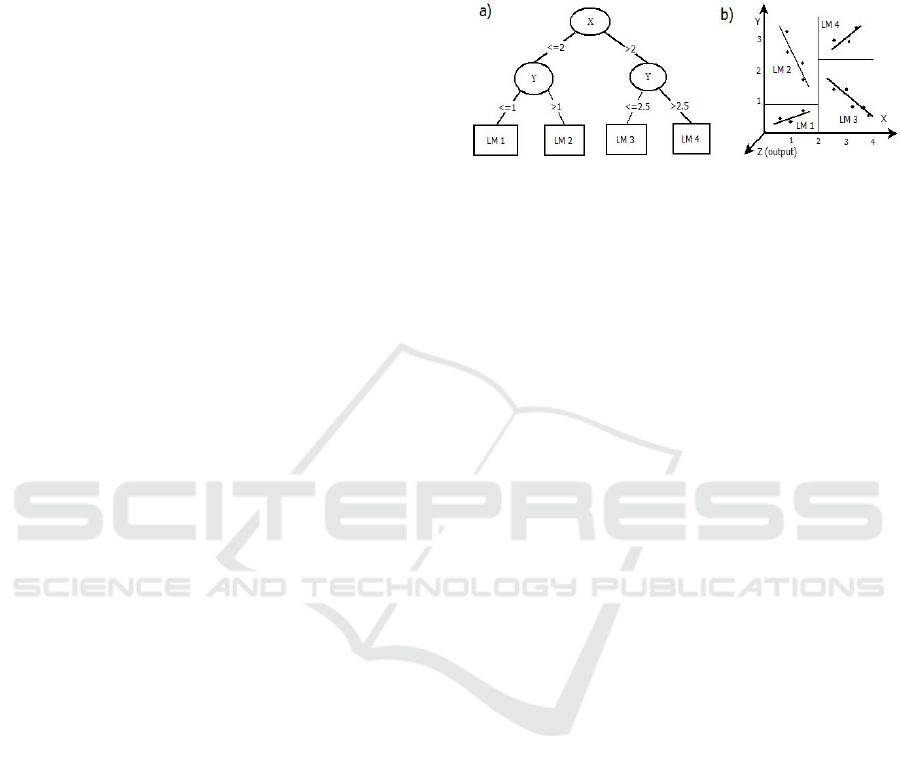

Figure 1: a) An example model tree built with the M5

algorithm with input attributes X and Y. Linear models

1 to LM

4 are built in the leaves. b) The corresponding

problem space showing separate subspaces defined by the

tree and how each linear model fits points in the subspace.

2.2.2 Bootstrap Aggregating

Bootstrap aggregating, commonly known as

“bagging”, is a meta-learning technique where

multiple versions of a predictor are generated and

later used to get an aggregated predictor. Each

version of the predictor is learned from a bootstrap,

which is a sample with replacements of the data

instances drawn according to a uniform probability

distribution. For the task of predicting a numerical

outcome, the aggregation averages over the predictor

versions (Breiman, 1996). Bagging improves

generalization error by reducing the variance of the

individual predictive models. If a base predictor is

unstable - if it is not robust to fluctuations - the

bagging process helps to stabilize it (Tan et al.,

2005).

In the most common case, the size of each

bootstrap B

is n, the same as that of the entire

dataset. In this case, on average B

contains

approximately 63% of the original training data

since each sample has a probability of 1 – (1 – 1/n)

of being picked,

which converges to about 0.63 for

sufficiently large n (Aslam et al., 2007). This is, of

course, because of the fact that sampling is done

with replacement, resulting in duplicate instances in

each bootstrap. Once k bootstraps B

1, …,

are

created, one predictor is trained on each of the

bootstraps, thus producing k predictors. In the

prediction step, a given test data instance is fed to

the k predictors and the final prediction is the

average of the values output by the k predictors.

Figure 2 summarizes the bagging process. For the

bagging models reported in this study, the value of k

is 10.

Predicting Outcome of Ischemic Stroke Patients using Bootstrap Aggregating with M5 Model Trees

181

Figure 2: Summary of the process of bagging. From the

training set, k bootstraps are created. Each bootstrap B

…, B

is used to build predictor versions V

, …, V

which

make separate predictions P

, …, P

. The final prediction

is a combination (average for regression, majority

voting for classification) of all the predictions.

2.2.3 Evaluation Criteria

To evaluate the performance of the regression

models, we examine the degree of similarity

between the actual values of the target attribute, and

the predicted values returned by the models. To

assess how well the models will generalize to an

independent dataset, 10-fold cross validation is used

(Kohavi, 1995). The degree of similarity between

the actual and predicted values is checked via three

criteria: the Pearson correlation coefficient, mean

absolute error and root mean squared error.

The Pearson correlation coefficient, R, is a

measure of the linear dependence between X =

,…,X

} and Z = {Z

,…,Z

}. It gives a value

between -1 and +1 where -1 stands for total negative

correlation, 0 for no correlation and +1 for total

positive correlation. It can be defined as follows

(Rodgers and Nicewander, 1988):

=

∑





−









−





∑





−







∑





−





(1)

where 



and 

are means of  and  respectively.

Mean absolute error (MAE) and root mean

squared error (RMSE) are both widely used in

prediction tasks to measure the amount of deviation

of the predicted values from the actual values. The

two are defined in the following way:

=









−









(2)

=







|





−





|







(3)

Where n is the number of predictions, 



, …, 



are

the actual and 



, …,



 are the predicted values

respectively (Moore, 2007).

2.3 Classification

The different levels of mRS scores can be viewed as

different categories and hence predicting the mRS

score can be viewed as a multi-class classification

problem. We consider three classifiers in this study.

Two of them are widely used classification

algorithms: logistic regression (McCullagh, 1980)

and C4.5 decision tree (Quinlan, 1993). The choice

of logistic regression is motivated by the fact that it

is the standard classification method used in clinical

trial studies. As for decision tree, it gives a good

diagrammatic representation of the prediction

process as well as proving to be empirically

successful in classification tasks.

The other classification method in this study is

actually one that uses the results of the regression

method involving bagging and model trees. Once a

numeric prediction is obtained from the regression

method, we round it to the nearest integer and assign

the instance to the class corresponding to that

integer. We denote this approach here as

classification via regression.

The evaluation criterion for the classification

algorithms used in this study is accuracy – the

percentage of cases where the actual and the

predicted classes are the same. For the prediction of

mRS-90 score, however, we may consider a

predicted score which is close enough to the actual

score to be fairly accurate as well. We therefore

define “near-accuracy” to be the percentage of cases

where the prediction is either fully correct or is

incorrect by a margin of just one score, and use it as

an additional evaluation metric.

3 RESULTS

3.1 Regression Models to Predict

mRS-90

Supervised regression is performed on the stroke

data to predict the patient outcome after 90 days of

stroke onset. The target attribute is mRS-90, the

mRS score after 90 days, and the predictive

HEALTHINF 2017 - 10th International Conference on Health Informatics

182

attributes are all the other attributes described in

Table 2. We construct an M5 model tree and

compare its results with linear regression, the most

commonly used method for regression analysis. We

then apply bootstrap aggregating (bagging) using

M5 model trees and separately linear regression

models as respective base predictors. For

comparison purposes, we construct also the simple

regression model whose prediction is always the

average of the values of the dependent variable in

the training set.

Parameter optimization is done for both model

tree and bagging. For M5 model trees, we

experiment with the minimum number of instances

to allow in a leaf. It is found that having a minimum

of 10 instances in the leaf produces the best

performing tree. Increasing this number creates

shorter trees that underfit the data while reducing

this number creates larger trees that are prone to

overfitting. For bagging, we experiment with

different number of iterations for bootstrapping

(number of bags) and different bootstrap sizes. Our

conclusion is that 10 iterations with each bootstrap

containing the same number of instances as the

training set produces the best results.

Table 3 compares the results of these five

methods in terms of correlation coefficient (R),

mean absolute error (MAE) and root mean squared

error (RMSE). We can observe from the table that

bagging used in tandem with M5 model trees

performs much better than all the other techniques.

An interesting observation is that M5 model tree

(without bagging) shows an impressive improve-

ment over linear regression in terms of mean

absolute error, but performs only slightly better in

terms of root mean squared error. Large errors have

a relatively greater influence when the errors are

squared. So as the variance associated with the

Table 3: Comparison of different regression methods on

stroke data in terms of R, MAE and RMSE. For R, higher

values indicate better model fit, whereas for the MAE and

RMSE metrics lower values are better.

Method R MAE RMSE

Average Prediction -0.136 1.235 1.461

Linear regression 0.779 0.654 0.916

M5 model tree 0.785 0.577 0.905

Bagging with Linear

Regression

0.783 0.649 0.908

Bagging with M5 model

trees

0.822 0.537 0.832

frequency distribution of the error magnitude

increases, the difference between MAE and RMSE

also increases (Willmott and Matsuura, 2005). It

therefore makes sense that a variance-reducing

procedure like bagging should reduce RMSE when

applied to model trees, as observed in Table 3. Note

also that bagging does not have the same kind of

effect in improving the performance of linear

regression.

To see if the improvement is statistically

significant, we perform paired t-tests in terms of

correlation coefficient on each pair of the four

methods considered. The difference between means

for each pair are examined at a p-value of 0.05. The

results of the tests are presented in Table 4, showing

that the bagging method with M5 model trees

performs significantly better than the other four

methods on the stroke dataset.

Table 4: Results of statistical significance analysis on

correlation coefficient with p-value of 0.05. Each cell

represents the result of the paired t-test between a pair of

algorithms. If the algorithm in the row is significantly

better than the one in the column, a ‘>>’ is shown. If it is

significantly worse, a ‘<<’ is shown. A ‘<->’ indicates that

there is no statistically significant difference.

Avg

Pred

Lin

Reg

tree

Bagging

Lin

Reg

Bagging

trees

Avg Pred

- << << << <<

Lin Reg

>> - <-> <-> <<

M5 tree

>> <-> - <-> <<

Bagging

Lin

Reg

>> <-> <-> - <<

Bagging

trees

>> >> >> >> -

3.1.1 Observations from the M5 Model Tree

We investigate the model returned by the M5 model

tree algorithm to find insights about stroke outcome.

Figure 3 shows the model tree where each leaf is a

linear equation. The equations appear below. The

sign and magnitude of coefficients of each predictive

attribute in the equations give an indication of how

the output attribute responds to changes in the given

input attribute. The continuous variables age and

NIHSS at admission are scaled to the range between

0 and 1, so that the magnitudes of all attributes are

within the [0,1] range.

Predicting Outcome of Ischemic Stroke Patients using Bootstrap Aggregating with M5 Model Trees

183

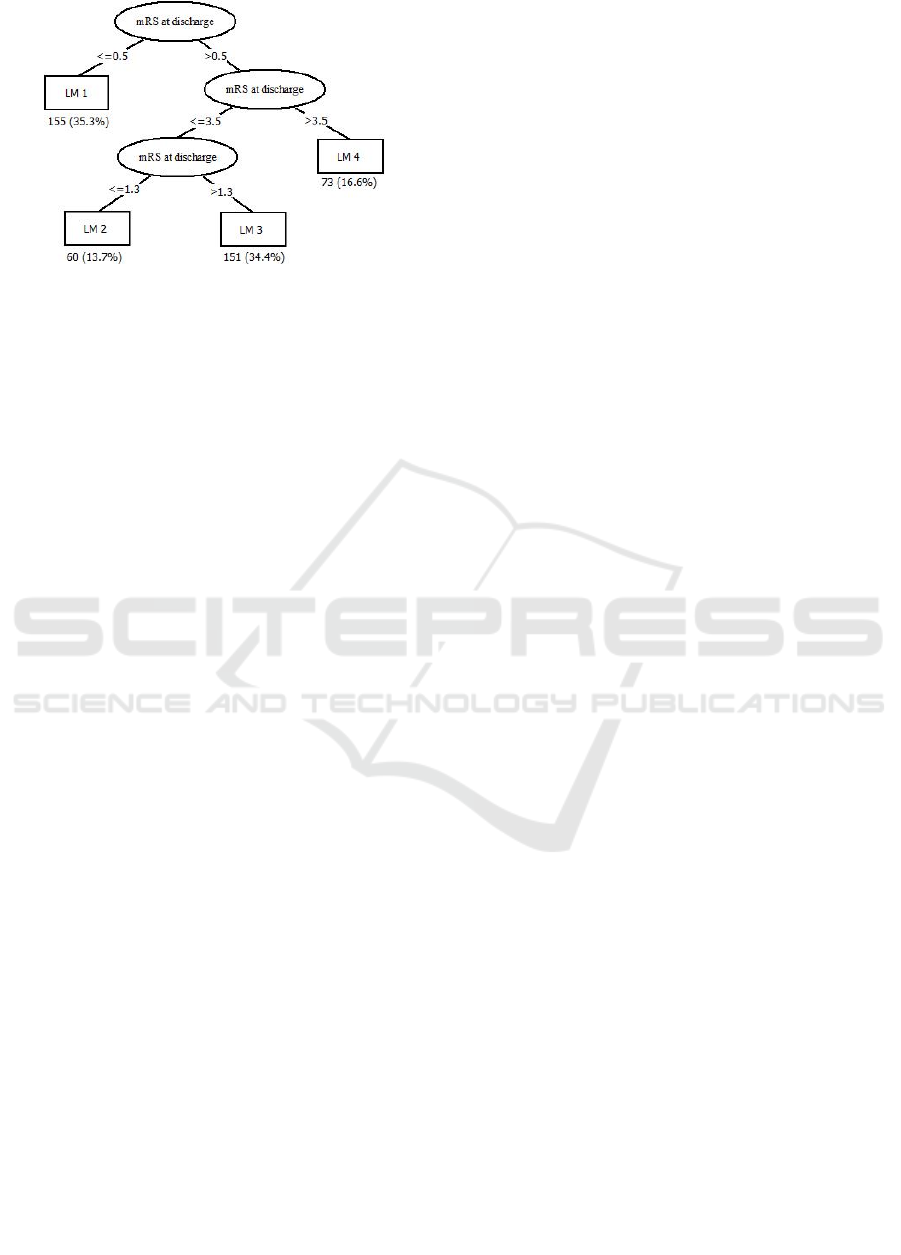

Figure 3: The M5 model tree built on the stroke dataset

with minimum 10 instances in each leaf. Each leaf is a

linear model predicting the target attribute mRS-90. The

numbers under the leaves indicate how many instances are

covered under that particular linear model.

LM 1 (here the value of mRS at discharge is 0)

mRS 90 days =

- 0.1309 * Subtype - Large Vessel

- 0.1472 * Subtype - Small Vessel

- 0.1552 * Subtype - Cardio

- 0.0532 * Subtype - Crypto

- 0.1454 * Subtype - other

+ 0.064 * NIHSS at admission

+ 0.0189 * MRS before admission

+ 0.0996 * Age

+ 0.0155 * Diabetes

- 0.0472 * Antiplatelets

+ 0.0534 * mRS at discharge

+ 0.1285

LM 2 (here the value of mRS at discharge is 1)

mRS 90 days =

0.0446 * Subtype - Large vessel

- 0.0837 * Subtype - Small vessel

- 0.4857 * Subtype - Cardio

- 0.6028 * Subtype - Crypto

- 0.0827 * Subtype - other

+ 0.3298 * NIHSS at admission

+ 0.084 * MRS before admission

+ 0.4344 * Age

+ 0.0959 * Diabetes

- 0.0137 * Tobacco

+ 0.2618 * Antihypertensives

- 0.0057 * Antiplatelets

+ 0.1265 * mRS at discharge

+ 0.3596

LM 3 (here the value of mRS at discharge is 2 or 3)

mRS 90 days =

0.3911 * Subtype - Large vessel

- 0.0837 * Subtype - Small vessel

- 0.0882 * Subtype - Cardio

- 0.0832 * Subtype - Crypto

- 0.807 * Subtype - other

+ 1.5475 * NIHSS at admission

+ 0.3333 * MRS before admission

+ 1.5486 * Age

+ 0.4281 * Diabetes

- 0.0137 * Tobacco

- 0.0057 * Antiplatelets

+ 0.0951 * mRS at discharge

- 0.3414

LM 4 (here the value of mRS at discharge is 4 or 5)

mRS 90 days =

- 0.0119 * Subtype - Large vessel

- 0.0837 * Subtype - Small vessel

- 0.0882 * Subtype - Cardio

- 0.0832 * Subtype - Crypto

- 0.0827 * Subtype - other

+ 0.1919 * NIHSS at admission

+ 0.0438 * MRS before admission

+ 0.2979 * Age

+ 0.0567 * Diabetes

- 0.0351 * Tobacco

- 0.0057 * Antiplatelets

- 0.4463 * Neurointervention

+ 1.4419 * mRS discharge

- 3.0914

From the model tree of Figure 3, it is clear that mRS

at discharge plays the major role in deciding the

mRS score at 90 days. The tree simply first decides

what the mRS discharge score is, and then builds

linear models to predict mRS-90 for the patients

with that score. By following the decision branches

of the tree, we can see that the linear models LM 1

and LM 2 corresponds to mRS discharge scores of 0

and 1 respectively. Similarly LM 3 is associated

with mRS discharge scores of 2 and 3, and LM 4

with scores of 4 and 5.

Looking at LM 1, we find that the y-intercept is a

very small value and there is no other attribute that

has a large coefficient that could change the

prediction substantially. This means that the

prediction for almost all patients reaching this point

of the tree will be close to 0. At LM 2, since the

mRS discharge score is 1 with a coefficient of

0.1265 and the y-intercept is 0.3596, the baseline

prediction for this leaf (if all other conditions are not

present) is 0.4861. Older age, higher NIHSS at

admission and presence of antihypertensives

contribute towards increasing the mRS-90 score. On

the other hand, cardioembolic and cryptogenic

strokes contribute significantly towards lowering the

mRS-90 score. At LM 3, if the mRS discharge score

is 2, then the baseline prediction is 2*0.0951 –

0.3414 = - 0.1512. If the mRS discharge = 3, it is

3*0.0951 – 0.3414 = - 0.0561. However, there are

some attributes in this model that may have a major

impact on the final prediction, notably age, NIHSS

at admission, diabetes, large vessel stroke subtype

and mRS before admission. Higher values for some

or all of the above attributes will result in increased

HEALTHINF 2017 - 10th International Conference on Health Informatics

184

mRS-90 score. For LM 4, the baseline prediction is

either 2.6762 (for mRS discharge = 4) or 4.1181 (for

mRS discharge = 5). If a patient reaches this leaf, the

output is likely to be quite high, since only

neurointervention has a major effect of lowering the

mRS-90 score.

3.2 Classification Models to Predict

mRS-90

We now consider the mRS-90 attribute as discrete

(i.e., consisting of individual classes 0, 1, …, 5)

instead of a continuous numeric attribute, and

construct classification models to predict this

discrete attribute. We explore two main approaches

to constructing classification models: One is to apply

traditional multi-class classification techniques;

another one is to use regression followed by

classification (i.e., classification via regression). For

this experiment we choose two well-known and

empirically successful classification algorithms,

namely logistic regression and C4.5 decision tree.

For classification via regression we use the bagging

with M5 model tree method discussed in section 3.1,

and convert the predicted mRS-90 numeric value to

a discrete class by rounding this value to the nearest

integer between 0 and 5.

As a first evaluation metric, we use classification

accuracy (the percentage of correct predictions). But

since there are six different classes with subtle

variations between two adjacent mRS scores, we

also consider the case when the classifier makes an

error, but by only one mRS score. We define the

metric “near-accuracy” to refer to the percentage of

cases in which the classifier either makes an

accurate prediction or makes a wrong prediction

which is either one more or one less than the correct

mRS score.

Table 5 shows a comparison of the performance

of classification via regression with those of multi-

class classification using Logistic regression and

C4.5 decision trees. For comparison purposes, we

include also that majority class classifier which

classifies any test instance with the mRS-90 value

that appears most frequently in the training set.

For C4.5 decision trees, the result of the best

model after experimentation with pruning is shown.

The classification via regression method performs

better in terms of both accuracy and near-accuracy.

Table 6 shows the confusion matrix obtained by this

method. Paired t-tests are performed on the

classification accuracy for the three algorithms. The

results, given in Table 7, show that classification via

regression performs significantly better than logistic

regression, but not significantly better than the C4.5

decision tree at a level of p = 0.05.

Table 5: Comparison of logistic regression, C4.5 and

classification via regression (bagging with M5 model

trees) on the stroke dataset in terms of accuracy and near-

accuracy.

Method Accuracy

Near-

accuracy

Majority class 46.9% 64.4%

Logistic Regression 54.2% 83.6%

C4.5 (with pruning) 56.7% 86.8%

Classification via regression 59.7% 90.0%

Table 6: Confusion matrix for the method of supervised

classification via regression using bagging with M5 model

trees. The rows show the actual mRS scores while the

columns show the ones predicted by the model. The

diagonals (in bold) are the correct predictions. The cells

adjacent to the diagonals (in bold and italic) are near-

correct predictions missing the actual score by 1.

Actual

Predicted

0 1 2 3 4 5

159

11 0 0 0

8 0 0

2 2

1 0

3 0 8

4 0 3 5

5 0 3 1 2

Table 7: Results of statistical significance analysis on

classification accuracy with p-value of 0.05. Each cell

represents the result of the paired t-test between a pair of

algorithms. If the algorithm in the row is significantly

better than the one in the column, a ‘>>’ is shown. If it is

significantly worse, a ‘<<’ is shown. A ‘<->’ indicates that

there is no statistically significant difference.

Majority

class

Logistic

Regression

C4.5

tree

Classif via

regression

Majority

class

- << << <<

Logistic

Regression

>> - <-> <<

C4.5 tree

>> <-> - <->

Classif via

regression

>> >> <-> -

Predicting Outcome of Ischemic Stroke Patients using Bootstrap Aggregating with M5 Model Trees

185

4 CONCLUSIONS

This paper has presented the results of predicting the

90-day outcome of stroke patients based on the data

consisting of demographics, medical history and

treatment records of ischemic stroke patients. The

problem of prediction is treated first as the

regression task of predicting the numeric score

according to the modified Rankin Scale which

measures the degree of disability in patients who

have suffered a stroke. A meta-learning approach of

bootstrap aggregating (bagging) using M5 model

trees as the base learner proved to be a very effective

regression technique in this case, significantly

outperforming other more commonly used

regression methods. The same method, after

translation of the target output from numeric to

nominal, performs better as a multi-class

classification scheme than other commonly used

classifiers.

The high performance of the M5 model tree can

be attributed to the fact that the mRS score at 90

days is highly dependent on one of the attributes -

the mRS score at discharge from the hospital.

Therefore, a model predicting mRS-90 would do

well by dividing the input space into a number of

subspaces defined around the value of mRS at

discharge, building a separate specialized model for

each of the subspaces. A model tree does exactly

that. Examination of the M5 model tree that is

constructed on the stroke dataset reveals that the tree

simply directs the prediction task towards different

ranges of values for the mRS score at discharge. A

multivariate linear regression model is then built for

each of the leaves, which are more specialized for

predicting the outcome of those particular patients.

The superior performance of bagging in enhancing

the prediction results can be explained by the

variance in error of the base M5 model trees. By

examining the model tree prediction errors for the

stroke dataset considered, it is found that the

variability of errors is much higher for model trees

than for other regression methods such as logistic

regression. Since bagging is empirically known to

reduce the instability and error variance of its base

learners, it shows good performance for this

particular dataset.

Further examination of the models reveals

interesting insights into how different factors affect

stroke outcome. It is found, rather unsurprisingly,

that patients who have a low mRS score (≤ 1) at

discharge tend to maintain a low mRS score at 90

days as well. However, patients who have some

minor disability (mRS = 1) at discharge tend to have

poorer outcome if they have older age, more severe

initial stroke and hypertension, while patients

suffering from cardioembolic or cryptogenic types

of stroke actually make a better recovery. The

patients who have slight or moderate disability at the

time of discharge (mRS 2 or 3) may end up in a

wide spectrum of outcomes at 90 days based on

several factors; older age, more severe initial stroke,

presence of diabetes, preexisting disability before

stroke and large vessel thrombosis are associated

with poorer outcome. For patients who have fairly

severe disability at the time of discharge (mRS 4 or

5), only neurointervention performed during the

hospital stay has the effect of improving the

recovery rate after discharge and within 90 days of

stroke.

One limitation of the study is the exclusion of the

patients who died within 90 days of stroke. As

mentioned before, this is in line with other work in

the literature (e.g., the Copenhagen Stroke Study

(Nakayama et al., 1994)), but it would be interesting

in future work to extend our approach to include

these patients. We are also limited by a large amount

of missing values in attributes that are not included

in this study but which may have been instrumental

in stroke outcome prediction. In the future we would

like to address these shortcomings to develop better

models for prediction. Another future goal is to

improve the process of classification via regression

by discovering better ways to translate the numeric

predictions to discrete classes.

ACKNOWLEDGEMENTS

The authors would like to thank Theresa Inzerillo

and Preston Mueller of Worcester Polytechnic

Institute for stimulating discussions around the

analysis of stroke data.

REFERENCES

Adams, H. P., Bendixen, B. H., Kappelle, L. J., Biller, J.,

Love, B. B., Gordon, D. L. & Marsh, E. E. 1993.

Classification of subtype of acute ischemic stroke.

Definitions for use in a multicenter clinical trial.

TOAST. Trial of Org 10172 in Acute Stroke

Treatment. Stroke, 24, 35-41.

Aslam, J. A., Popa, R. A. & Rivest, R. L. 2007. On

Estimating the Size and Confidence of a Statistical

Audit. USENIX/ACCURATE Electronic Voting

Technology Workshop, 7, 8.

Banks, J. L. & Marotta, C. A. 2007. Outcomes validity

and reliability of the modified Rankin scale:

HEALTHINF 2017 - 10th International Conference on Health Informatics

186

Implications for stroke clinical trials a literature

review and synthesis. Stroke, 38, 1091-1096.

Breiman, L. 1996. Bagging predictors. Machine learning,

24, 123-140.

Breiman, L., Friedman, J., Stone, C. J. & Olshen, R. A.

1984. Classification and regression trees, CRC press.

Brott, T., Adams, H., Olinger, C. P., Marler, J. R., Barsan,

W. G., Biller, J., Spilker, J., Holleran, R., Eberle, R. &

Hertzberg, V. 1989. Measurements of acute cerebral

infarction: a clinical examination scale. Stroke, 20,

864-870.

Brown, A. W., Therneau, T. M., Schultz, B. A., Niewczyk,

P. M. & Granger, C. V. 2015. Measure of functional

independence dominates discharge outcome prediction

after inpatient rehabilitation for stroke. Stroke, 46,

1038-1044.

Etemad-Shahidi, A. & Mahjoobi, J. 2009. Comparison

between M5′ model tree and neural networks for

prediction of significant wave height in Lake Superior.

Ocean Engineering, 36, 1175-1181.

Gialanella, B., Santoro, R. & Ferlucci, C. 2013. Predicting

outcome after stroke: the role of basic activities of

daily living predicting outcome after stroke. European

journal of physical and rehabilitation medicine, 49,

629-637.

Hall, M., Frank, E., Holmes, G., Pfahringer, B.,

Reutemann, P. & Witten, I. H. 2009. The WEKA data

mining software: an update. ACM SIGKDD

explorations newsletter, 11, 10-18.

Henninger, N., Lin, E., Baker, S. P., Wakhloo, A. K.,

Takhtani, D. & Moonis, M. 2012. Leukoaraiosis

predicts poor 90-day outcome after acute large

cerebral artery occlusion. Cerebrovascular Diseases,

33, 525-531.

Keith, R., Granger, C., Hamilton, B. & Sherwin, F. 1987.

The functional independence measure. Adv Clin

Rehabil, 1, 6-18.

Kohavi, R. 1995. A study of cross-validation and

bootstrap for accuracy estimation and model selection.

IJCAI.

Marini, C., De Santis, F., Sacco, S., Russo, T., Olivieri, L.,

Totaro, R. & Carolei, A. 2005. Contribution of atrial

fibrillation to incidence and outcome of ischemic

stroke results from a population-based study. Stroke,

36, 1115-1119.

McCullagh, P. 1980. Regression models for ordinal data.

Journal of the royal statistical society. Series B

(Methodological), 109-142.

Moonis, M., Kane, K., Schwiderski, U., Sandage, B. W. &

Fisher, M. 2005. HMG-CoA reductase inhibitors

improve acute ischemic stroke outcome. Stroke, 36,

1298-1300.

Moore, D. S. 2007. The basic practice of statistics, New

York, WH Freeman

Mozaffarian, D., Benjamin, E. J., Go, A. S., Arnett, D. K.,

Blaha, M. J., Cushman, M., Das, S. R., de Ferranti, S.,

Després, J.-P. & Fullerton, H. J. 2016. Heart Disease

and Stroke Statistics-2016 Update: A Report From the

American Heart Association. Circulation, 133, 447.

Nakayama, H., Jørgensen, H., Raaschou, H. & Olsen, T.

1994. The influence of age on stroke outcome. The

Copenhagen Stroke Study. Stroke, 25, 808-813.

Nogueira, R. G., Liebeskind, D. S., Sung, G., Duckwiler,

G., Smith, W. S. & Multi MERCI Writing Committee

2009. Predictors of good clinical outcomes, mortality,

and successful revascularization in patients with acute

ischemic stroke undergoing thrombectomy pooled

analysis of the Mechanical Embolus Removal in

Cerebral Ischemia (MERCI) and Multi MERCI Trials.

Stroke, 40, 3777-3783.

Quinlan, J. R. 1992. Learning with continuous classes. 5th

Australian joint conference on artificial intelligence.

Singapore.

Quinlan, J. R. 1993. C4. 5 Programs for Machine

Learning, San Francisco, Morgan Kauffmann.

Raffeld, M. R., Debette, S. & Woo, D. 2016. International

Stroke Genetics Consortium Update. Stroke, 47, 1144-

1145.

Rankin, J. 1957. Cerebral vascular accidents in patients

over the age of 60. II. Prognosis. Scottish medical

journal, 2, 200.

Rodgers, J. L. & Nicewander, W. A. 1988. Thirteen ways

to look at the correlation coefficient. The American

Statistician, 42, 59-66.

Tan, P.-N., Steinbach, M. & Kumar, V. 2005. Introduction

to data mining, Boston, Addison-Wesley.

Van Swieten, J., Koudstaal, P., Visser, M., Schouten, H. &

Van Gijn, J. 1988. Interobserver agreement for the

assessment of handicap in stroke patients. Stroke, 19,

604-607.

Wang, Y. & Witten, I. H. 1996. Induction of model trees

for predicting continuous classes. European

Conference on Machine Learning. University of

Economics, Prague.

Willmott, C. J. & Matsuura, K. 2005. Advantages of the

mean absolute error (MAE) over the root mean square

error (RMSE) in assessing average model

performance. Climate research, 30, 79-82.

Yong, M. & Kaste, M. 2008. Dynamic of hyperglycemia

as a predictor of stroke outcome in the ECASS-II trial.

Stroke, 39, 2749-2755.

Predicting Outcome of Ischemic Stroke Patients using Bootstrap Aggregating with M5 Model Trees

187
