Selection and Assessment of Activity Trackers for Enthusiastic

Seniors

Viktoria Willner, Harald Rieser, Verena Venek and Cornelia Schneider

Mobile and Web-base Information Systems, Salzburg Research Forschungsgesellschaft m.b.H.,

Jakob-Haringer-Straße 5/3, 5020 Salzburg, Austria

Keywords: Activity Tracker, Seniors, Requirements, Usability, System Integration.

Abstract: A large percentage of older people do not achieve the recommended levels of health related activities. The

planned CARIMO system addresses this problem and offers services and applications which motivate older

users to do exercises and thus, improve their health. As additional incentive, an activity tracker is planned to

be integrated in the CARIMO system. The paper describes the three-step process we defined to select a

suitable device. First, available activity trackers were analysed according to a predefined criteria catalogue.

Best ranked trackers were evaluated with a respect to usability and technical requirements. The Samsung

Gear Fit2 offered a high range of functionality and was best ranked according to the usability evaluation.

So, we finally decided to integrate the Samsung Gear Fit2 in the CARIMO system.

1 INTRODUCTION

In Europe, the demographic change and ageing is

going to lead to a growing number of older people

(Muenz, 2007). At the one hand this is a positive

development of older people but on the other hand

social care providers will have to face resource

challenges. Therefore, maintaining older people as

long as possible as healthy as possible is a main aim

in the research field of Active and Ambient Assisted

Living. One important aspect for healthy ageing is

physical activity (WHO, 2003). According to the

WHO (2003), physical activity improves balance,

strength, coordination, flexibility, endurance, mental

health, motor control and cognitive function. These

improvements further reduce falls, decrease

mortality and age-related morbidity, increase social

inclusion, self-confidence and self-sufficiency. It is

recommended that adults aged 65 years and above

should at least perform 150 minutes of moderate-

intensity aerobic physical activity throughout the

week or at least 75 minutes of vigorous-intensity

aerobic activity (WHO, 2010). A large percentage of

the older population fails to achieve the

recommended levels of activity (Vankipuram, 2012).

According to Rasche (2015) even 70 % of older

adults are inadequately active. The lack of

information about individual capabilities and

limitations as well as the lack of motivations due to

the absence of a support structure are reasons for this

high percentage number (Vankipuram, 2012;

Rasche, 2015).

The CareInMovement project addresses these

challenges. It aims at offering services and

applications particularly for people aged 65 years

and above motivating them to do more exercises and

thus, improve their general health. Within the

project, the CARIMO system is being developed

which combines technologies and personal support.

It provides personalized exercise programs, activity

monitoring and motivational incentives. For

monitoring purposes, an activity tracker should be

used. Activity trackers like smartwatches and fitness

bands are well suited for monitoring success of

workouts, weekly routines or even the users’ daily

step counts. Although, tracker technology is a

relatively new development, evidence supporting

their potential health benefits has already become

apparent (Angulo, 2016). The range of currently

available fitness trackers is wide. But for CARIMO

it is important to decide for one activity tracker

which will be integrated into the system. Otherwise

the system usage would be incomparable within the

users and the effects not clear.

There are many ways of wearing the trackers.

For example, the devices can be clipped onto

clothing or worn as bracelets. Recorded data of the

Willner, V., Rieser, H., Venek, V. and Schneider, C.

Selection and Assessment of Activity Trackers for Enthusiastic Seniors.

DOI: 10.5220/0006256400250035

In Proceedings of the 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2017), pages 25-35

ISBN: 978-989-758-251-6

user’s physical activity can be automatically

uploaded to a computer or a mobile device (Collier,

2014; Butler, 2016). The functionality of available

devices differs and ranges from simple pedometers

to smart watches which include several sensors and

applications. Most devices monitor the periods of

the user’s activity, inactivity, light, and deep sleep

and feedback the recorded information (Nelson,

2015). Several trackers additionally include heart

rate sensors (HR) displaying the exercising intensity

to the user (Butler, 2016). Further, these data enables

developers to provide adjusted fitness programs. An

additional feature is the GPS functionality which

allows position tracking. Such devices are able to

provide information about distance, pace and

average speed (Butler, 2016). Activity trackers are

mostly designed for younger users and it has not yet

been investigated if they are also suitable for older

adults (Rasche, 2015).

This paper presents how an appropriate activity

tracker for older adults can be selected. The structure

of this paper is as follows. In the beginning the

problem is raised and the CARIMO system is

introduced. In chapter 2, the specific requirements

are described. In chapter 3 the device selection

process is introduced in detail. Chapter 4 presents

the results of the device selection. In chapter 5, the

results are discussed. Finally, in chapter 6

conclusion and outlook are given.

2 DEMANDS ON ACTIVITY

TRACKERS FOR OLDER

USERS

Currently, there are many fitness trackers on the

market offering multiple features. The devices allow

their users access to recorded data mostly in real

time. Information is shown directly on a display or

more detailed on a smartphone or web-based

application. The functions are similar, but the

applications, calculation algorithms and user

interfaces differ (Kaewkannate, 2016). The specifics

are even more interesting when integrating the

devices into other systems. In order to obtain the

greatest benefits of the specific devices, developers

have to be sure that they consider the operation

purpose and the target group they want to address.

Further, developers need to understand any

limitations the wearable might have (Butler, 2016).

According to Ledger (2014), there are several well-

known criteria that are essential for adoption and

utilization of wearables. First, the value proposition

of the device has to be clear for the user. Since most

of the wearables are worn visible, aesthetics are

critical. Nelson (2015) emphasized that wearables

fulfill an aesthetic function and are not as a few

years ago only used for utilitarian purposes. The

initial impression and usability of a product are

essential. Thus, the user experience should be

intuitive from the beginning. The user interfaces

should be kept simple and informative. Readability

is a very important aspect (Nelson, 2015). Mercer

(2016) approved that aesthetic and simplicity are

criteria which are important not only for young users

but also for older people. A common reason for

liking or disliking a device is the design as well as

the ease of use. The overall wearing comfort is

additionally critical for adoption. Besides the general

understanding of wearing, the comfort of wearing

the device during common activities e.g. working,

sleeping, doing sports, has to be considered (Ledger,

2014). The size should not exceed 50 x 50 x 20 mm

and it should not be heavier than 100 g (Schneider,

2014). Most trackers are considered to be worn the

whole day; therefore they need to be robust. Devices

which require less behavior change of the users are

more likely to be used for longer periods. Therefore,

it is beneficial if charging or synchronizing is

required less and it is not needed to take off the

device while showering. In 2014, Schneider

recommended a minimum battery life of 12 hours

for older users with cognitive impairments. The

ideal battery life was mentioned as more than 18

hours. It is recommended that the device is

waterproof or at least water splash proof. For

integration purposes, it is important that the data can

be accessed by other services (Ledger, 2014).

3 DEVICE SELECTION

PROCESS

The device selection process which was established

to select an appropriate activity tracker for the

CARIMO system consists of three steps which are

conducted consecutively. First, devices available to

the Austrian consumer market as of July 1, 2016

were identified and analyzed according to a set of

criteria. Therefore well-established producers or

distributors of electronics and organizations

operating in the fitness or medical sector were

investigated. Additionally, current test reports were

used to get an overview about available fitness

trackers (www.pcwelt.de, www.chip.de,

www.testberichte.de). Devices which seemed to

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

meet the criteria were analyzed in detail and

registered including detailed specification. Within

the second step, best ranked devices were bought for

extensive usability tests. Next, technical

characteristics of these trackers were tested under

real world conditions. Based on the usability and

technical test a decision was made.

3.1 Criteria Catalogue

For rating available activity trackers, a criteria

catalogue has been developed based on consolidated

demands which are described in chapter 2. As

mentioned before, a clear value of the devices is

important. Therefore, we are interested in the

functionalities the devices offer. For CARIMO,

which aims at motivating people to move, the device

must have step counter functionality. In addition,

heart rate and GPS are optional features. These

features could enhance the motivation of the people

to use the device. In order to provide suitable fitness

exercises and to measure effects of the technology,

the mentioned features could be beneficial for the

developers. The device has to have a display to show

information. Integrating a watch as well as calorie

indication are optional features which could

additionally motivate the users. Aesthetic and

comfort are rather subjective measures, which are

separately evaluated in the usability test. Anyway, it

is noted in the criteria list if a device was available

in different colors, if the wristband is changeable,

which material is used initially, and size and weight

of the device. The must-have requirement according

to comfort is the adjustment of the device to

different wrist sizes, because in the target group

there is a wide range of users. Hence, it is important

that people are not excluded by size limitations of

the device. According to ‘less behavior change’, we

defined that the battery life has to last at least five

days (without using HR or GPS). The device has to

operate alone, i.e. a permanent contact with a paired

smartphone or tablet is not necessary, and it has to

be waterproof or at least splash proof. For the

system it is required that recorded data is accessible

(application programming interface) and that data

are transmitted either via Bluetooth or ANT.

Technically, provision of activity recognition would

be beneficial. The detailed implementation will be

checked within the technical evaluation.

Affordability and availability on the market are

important project related requirements. For

CareInMovement, the price of each device should

not exceed € 200. The simplicity of the user

interface as well as the robustness are not considered

as part of the criteria catalogue, but evaluated within

the usability test.

3.2 Usability Test

The usability test aims at comparing the devices

according to simplicity, comfort and aesthetic. Since

those three parameters are rather subjective

measures, all devices were tested from people who

represent the CARIMO target group. The usability

test consisted of two parts. First, the initial

experience was evaluated by four tasks the testers

had to perform. The required time to perform each

task was recorded. The tasks are indicators for the

simplicity of the devices. For the first task asked the

users had to charge the device. The second task was

to put the device on their wrist or to clip it onto their

clothes. Next, they had to turn the device on and

finally, they had to find the information about

Table 1: usability questionnaire.

Questions Answers

Q1: How would you assess

earing the device in

general?

I did not notice the device

at all, I hardly ever

noticed the device, it was

ok, it was rather irritating,

it was very irritating

Q2: How did the band feel

on the skin?

very comfortable, rather

comfortable, rather

uncomfortable, very

uncomfortable

Q3: How would you

describe the size of the

device?

suitable, too big, too small

Q4: How would you

describe the weight of the

device?

suitable, too heavy, too

light

Q5: How would you

describe the size of the

display?

suitable, too big, too

small’

Q6: How would you

describe the readability of

he displayed information

on the screen?

very well, well, it was ok,

rather badly, very badly

Q7: How would you

describe the usability of the

device?

very easy, ok, too

complicated

Q8: How often did you

otice the vibrations or

sounds of the device when

it informed you about

otifications?

always, mostly,

sometimes, mostly not,

never

Q9: Do you think that the

device can be lost easily?

yes, no

Selection and Assessment of Activity Trackers for Enthusiastic Seniors

walked steps. After performing the tasks, the testers

wore each device for at least five hours and then

filled out a questionnaire. The questionnaire

consisted of nine questions (see table 1) aiming at

evaluating the subjective impressions about comfort

and aesthetic as well as usability.

Within the usability test, every participant tested

every available device. For the evaluation, the

results of the testers were combined. Arithmetical

means of recorded task times and mean values of the

questions are illustrated using spider charts.

3.2.1 Participants

Persons representing the CARIMO target group

were asked to test the devices with respect to

usability issues. Two women and two men aged

between 55 and 77 volunteered. Three persons had

minor visual impairments and wear glasses. One

man and one woman are already smartphone-users;

the others use feature phones. All participants had

not yet possessed or used any fitness tracker before

the test was conducted.

3.3 Technical Test

The technical test mainly focused on proving the

product specifications, as well as data access and

data privacy issues. As CARIMO intends to

motivate users by informing about their fitness, the

system has to collect activity and vital data from the

users to monitor the behavior, and to measure the

impact and optionally modify and improve their

custom fitness plans. Though, privacy issues come

into play. There are basically four methods to access

data from a fitness tracker:

 The tracker has on-device APIs to access the

data, and allows synchronization with custom

services.

 The tracker provides an interface using Bluetooth

or ANT+ to access the data directly from the

device.

 The tracker synchronizes the data with a mobile

application, and this application provides an

interface for data access.

 The tracker synchronizes the data with a mobile

application, this mobile application stores the

data on a server, and the server provides an

interface to access the data.

User data have to be stored and analyzed in the

CARIMO system. Due to privacy issues, data

captured by the devices and sent to third party

services are a problem, since once the data is stored

on third party servers, control of this data might be

lost.

Within the technical test, data was recorded and

it was proven how to access these data. Considering

the criteria ‘less behavior change’, the battery life

was tested in two different settings. First, the

residual charge of fully charged devices after leaving

them for five days in the standby mode was

recorded. The second battery test tested the battery

behavior during normal usage. The devices were

worn by testers and they used the fitness trackers as

such. Accuracy of recorded steps and heart rate were

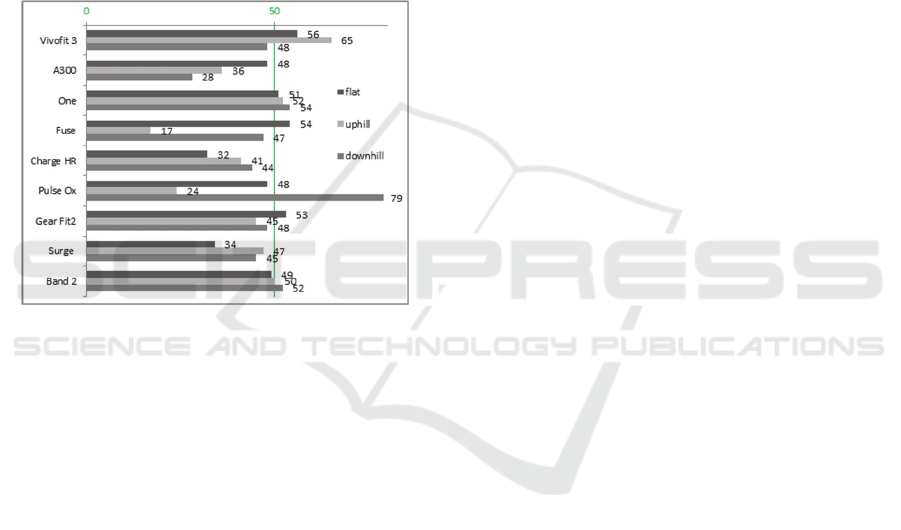

additionally assessed. Step accuracy was evaluated

by comparing a standardized distance of 50 steps

with the recorded data. The step accuracy was tested

in a flat area, during uphill and downhill walking,

respectively. To assess the accuracy and compare

the monitored heart rate of the device, the values of

a blood pressure monitor were used. In order to

avoid bias by specifics of the test person, step and

heart rate accuracy of all devices were tested by the

same person. According to usability, the mirroring

effects of the display were observed inside of

buildings and outside (daylight). Furthermore, the

adjustment of display brightness and availability of

notifications were assessed. The data

synchronization was important for the integration of

the device in the CARIMO system. Therefore, a

technician tested the integration of the device in

practice due to possibility and simplicity. If

available, the technician tested the functionality of

the activity recognition of the device.

4 RESULTS

In the following, the results of the device selection

are described in detail.

4.1 Market Survey

To assess commercially available wearable activity

trackers, all devices available to the Austrian

consumer market with 1st of July, 2016, were

identified between July and August 2016. Finally, 33

devices (see figure 1) which met the criteria

described in Section 3.1 were analyzed in detail. We

identified and reviewed six devices by Fitbit, five

devices by Garmin, two devices by each Withings,

Mio, and Huawei, and one device by each Polar, LG,

Runtastic, ihealthlabs, newgen medicals, Nike,

Samsung, Asus, Epson, Jawbone, Xiaomi, Pebble,

Tomtom, Suunto, Adidas, and Microsoft. The

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

following figure shows the devices analyzed

according to must-have criteria (see 3.1) and ordered

by functionality (‘pedometer’, ‘pedometer + heart

rate’, ‘pedometer + heart rate + GPS’).

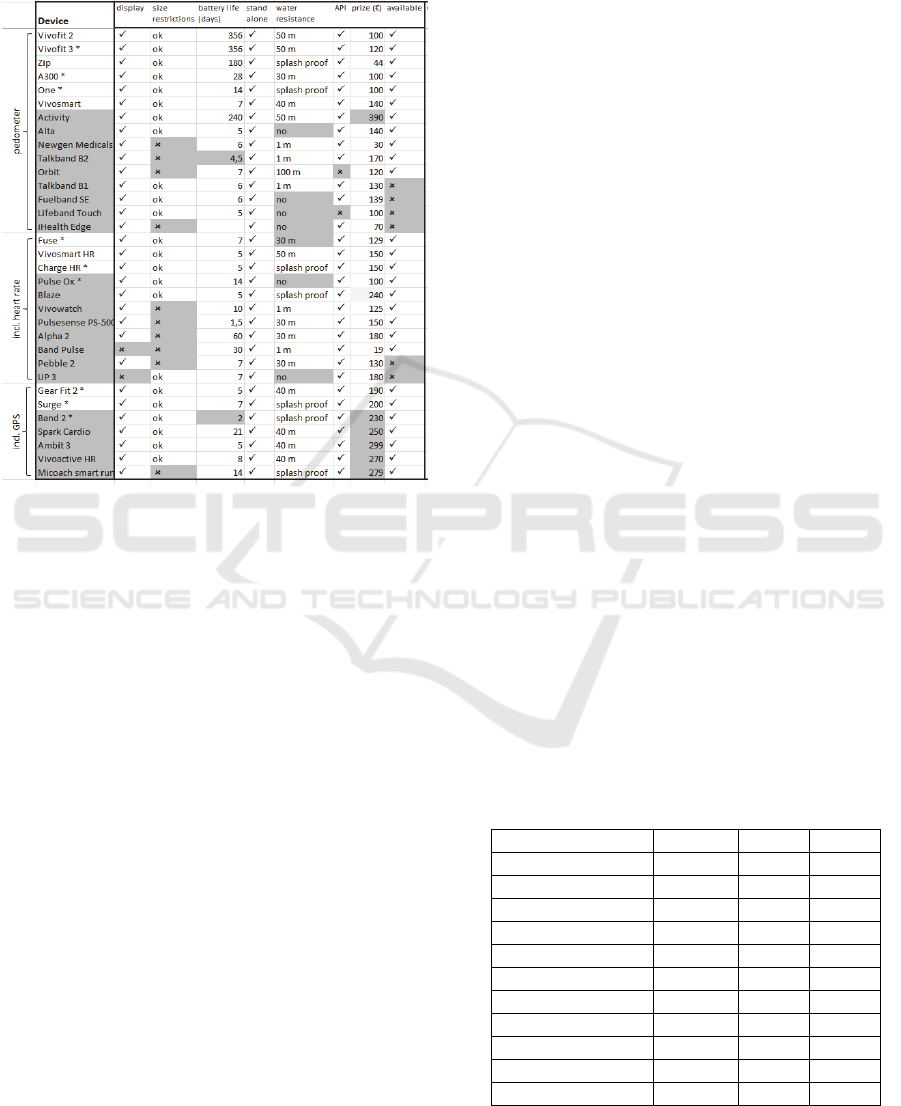

Figure 1: Available activity tracker devices assessed

between July and August, 2016.

Devices which did not conform to the must-have

criteria are marked by grey. Size restrictions, water

resistance and availability were the most common

criteria for exclusion within basic activity trackers

and devices including heart rate sensors. Price and

battery life restrictions are more critical at devices

with high functional range. After the market survey

we decided to buy nine activity trackers; three basic

activity trackers, three trackers with heart rate sensor

(HR) and three trackers with HR and GPS (marked

with *). One of the three selected basic activity

trackers was the Garmin Vivofit 3. The device

totally met the must-have criteria and compared to

its precursor it offers activity recognition. The

battery of the device has not to be charged (is a

round cell battery) and should last one year. That

would be sufficient for CARIMO’s eight months test

phase. Additionally, the Polar A300 met the must-

have criteria and its battery is chargeable. The third

pedometer we decided to extensively test was the

Fitbit One. It met the must-have criteria and in

contrast to the other pedometers it can be clipped on

clothing. For activity trackers with heart rate sensor,

Mio Fuse, Fitbit Charge HR and Withings Pulse Ox

were selected. The Mio Fuse was chosen because it

met the must-have criteria and additionally offers

ANT. The Fitbit Charge HR was selected because it

met the must-have criteria and it provides activity

recognition. Although the Withings Pulse Ox was

worse ranked than the Vivosmart HR and is not

waterproof, the device convinced by its longer

battery life, inexpensive price and the possibility to

wear it either on the wrist or clipped onto clothes.

The three selected activity trackers with heart rate

sensor and GPS functionality were Samsung Gear

Fit 2, Fitbit Surge and Microsoft Band 2. Gear Fit 2

and Surge alone met the must-have criteria. The

Band 2 convinced by its cheaper price compared to

the other opportunities.

4.2 Usability Evaluation

Each participant tested the nine devices which were

selected based on the market survey (see 4.1)

without reading any user manual in advance. The

average time spans the testers needed to charge

every device ranged from 13 seconds (Pulse Ox) to

61 seconds (Fuse). The average time spans to place

the devices ranged from 19.6 seconds (Surge) to

60.5 seconds (Vivofit 3). The practical test showed

that most devices turned on automatically when they

were charged, so task 3 could be skipped. To find

the information about the step count participants

needed 2.9 seconds on average using One and 91

seconds using the Surge.

Following, the results of the usability evaluation

for each device are described in detail. From the

questionnaire, the eighth question Q8 was not

considered because within the five hours of testing

notifications did not occur. The following table

shows the weighted means of recorded task times

and mean values of the questions for the basic

trackers. The outcomes of this are the UI points.

Table 2: usability evaluation basic trackers.

Vivofit 3 A300 One

Charging (task 1) 0.33 0.16

Placing (task 2) 0 0.5 0.66

Finding steps (task 4) 0.5 0 1

Comfort (Q1) 0.958 0.75 1

Feeling (Q2) 1 0.915

Size (Q3) 1 0.75 0.5

Weight (Q4) 1 1 0.75

Display (Q5) 0.75 0.75 1

Readability (Q6) 0.75 0.625 0.937

Usability (Q7) 1 0 1

UI Points 6.958 5.62 7.007

Selection and Assessment of Activity Trackers for Enthusiastic Seniors

The Garmin Vivofit 3 is not chargeable; hence,

task 1 could not be performed. The placing of the

device took 60.59 seconds on average. It took 17.65

seconds to find the step count information. Three

testers reported that they did not notice the device

while wearing at all; one person said that she hardly

ever noticed the device. All testers said that the

Vivofit 3 felt very comfortable on the skin. Weight

and size were rated suitable from all participants.

Three testers had the feeling that the display was

suitable as well, one person thought that the display

is too small. All testers thought that the readability is

good. All said that the Vivofit 3 was very easy to

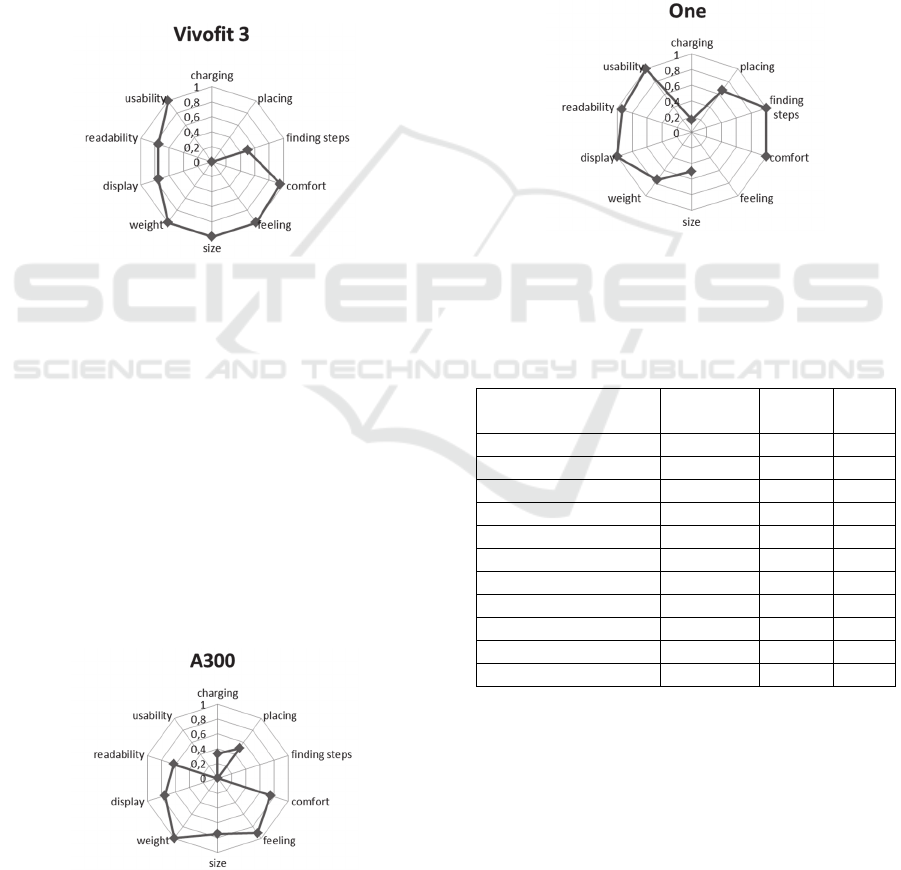

use. Figure 2 illustrates the evaluation of the

Vivofit3.

Figure 2: Evaluation Garmin Vivofit3.

The average time to charge the Polar A300 was

43.16 seconds and 31.98 seconds to place it on the

wrist. The testers needed 48.93 seconds on average

to find the step information. All testers said that they

hardly noticed the device while wearing it. Three

persons reported that the A300 was very comfortable

to wear; one person said it was rather comfortable.

This person thought that the device was too big; the

others rated the size as suitable. The weight was

suitable for all testers. The display was suitable for

three persons; one person meant that it is too small.

Three testers rated the display readability as good

and one person as rather bad. All testers said that the

usage of the A300 was too complicated.

Figure 3: Evaluation Polar A300.

The average time to charge the Fitbit One was

59.9 seconds. All testers intuitively placed the

fitness clip on their (trousers) waistband. It took

22.26 seconds on average. The step information was

found averagely after 2.9 seconds. All testers

reported that they did not notice the device on their

waistband at all. The feeling on the skin could not be

evaluated. Two testers rated the device as too small;

one even said it is too light, the other one stated that

the weight is ok. The other two participants reported

that size and weight were suitable. All said that the

display size was suitable and three persons thought

that the readability is very good; one reported that it

is good. All testers rated the usage as very easy.

Figure 4: Evaluation Fitbit One.

Table 3 shows the usability evaluation of the

activity trackers which include heart rate sensors.

Table 3: usability evaluation activity trackers with HR.

Fuse Charge

Pulse

Charging (task 1) 0 0.83 0.83

Placing (task 2) 0.33 0.66 0.66

Finding steps (task 4) 0.16 0.83 0.66

Comfort (Q1) 0.375 0.562 0.625

Feeling (Q2) 0.577 0.66 0.83

Size (Q3) 0.25 0.5 0.25

Weight (Q4) 1 1 1

Display (Q5) 1 0.25 1

Readability (Q6) 0.375 0.937 0.187

Usability (Q7) 0.25 1 0.875

UI Points 4.317 7.229 6.917

The average time people need to charge the Mio

Fuse was 61.08 seconds. It took them 43.14 seconds

to place the wrist band and 26.18 seconds to find the

step count information. After five hours of wearing

the device, two persons said that wearing the device

was ok and two persons reported that it was rather

irritating. Three persons said that the device felt

rather comfortable and one said that it felt rather

uncomfortable on the skin. Three persons rated the

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

Fuse as too big; one thought the size was suitable.

The weight and size of the display were suitable for

each tester. Three participants stated that the

readability was rather bad; one person rated it as

good. This person reported that the Fuse was very

easy to use; the others decided that it was too

complicated. Figure 5 illustrates the evaluation of

the Fuse.

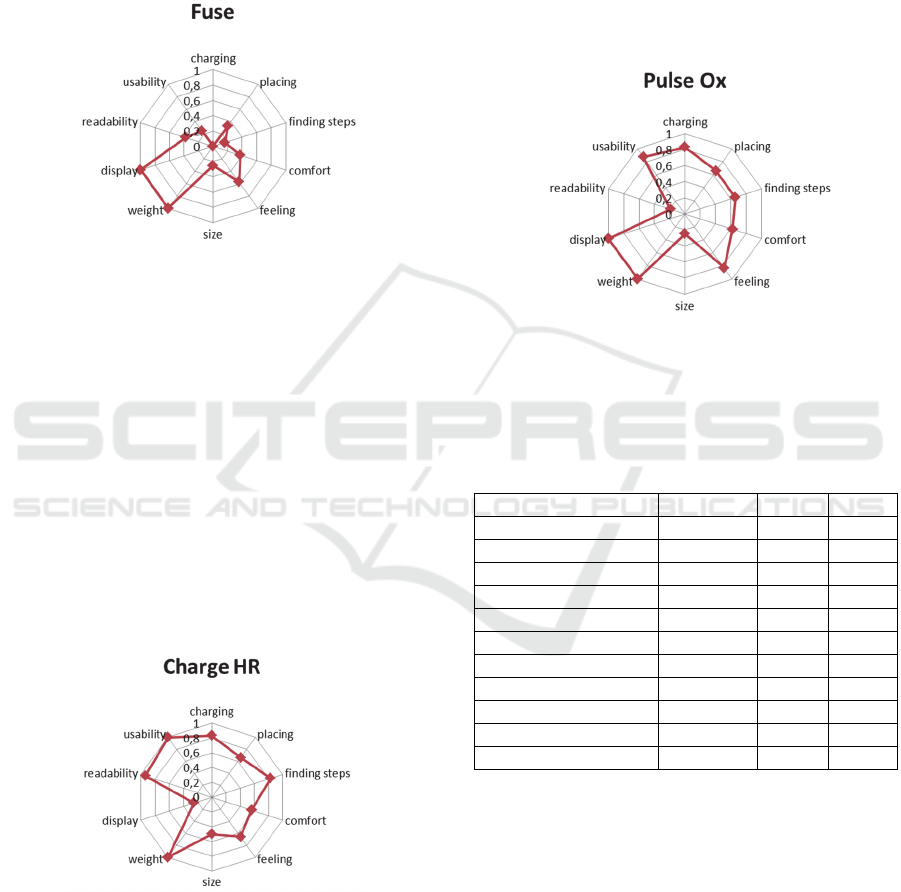

Figure 5: Evaluation Mio Fuse.

The testers needed 13.82 seconds on average to

charge the Fitbit Charge HR. It took them 22.31

seconds to place the activity tracker and 7.62

seconds to find the step information. Three persons

said it was ok to wear the tracker; one person

reported that he hardly (ever) noticed the device. All

testers stated that the wristband felt rather

comfortable on the skin. Two persons said that the

device was too big; the others said it was suitable.

The weight was suitable for each tester. Three

participants rated the display as too small; one

decided it was suitable. Three participants confirmed

that the readability was very good; one said it was

good. The usage was rated to be very easy by all

testers.

Figure 6: Evaluation Fitbit Charge HR.

The average time people need to charge the

Withings Pulse Ox was 13.04 seconds. They needed

20.71 averagely to place the device on their wrist

and 14.83 seconds to find the step count

information. Two persons said they hardly (ever)

noticed the device while wearing it; two persons said

it was ok to wear it. The device felt very comfortable

for two testers and rather comfortable for the other

two testers. One person rated the size as suitable; the

others decided that the Pulse Ox was too big. The

weight and the size of the display were suitable for

each participant. Three persons stated that the

readability of the information on the display was

rather bad; one person said it was very bad. Three

participants confirmed that the usage was very easy

and one participant decided it was ok.

Figure 7: Evaluation Withings Pulse Ox.

Table 4 shows the usability evaluation of the

activity trackers which include heart rate sensors and

GPS functionality.

Table 4: evaluation activity trackers with HR and GPS.

Gear Fit2 Surge Band2

Charging (task 1) 0.83 0.83 0.66

Placing (task 2) 0.66 0.83 0.66

Finding steps (task 4) 0.66 0 0.83

Comfort (Q1) 0.875 0.562 0.375

Feeling (Q2) 0.943 0.747 0.332

Size (Q3) 1 0 0.5

Weight (Q4) 1 0.75 0.5

Display (Q5) 1 1 1

Readability (Q6) 1 0.687 0.75

Usability (Q7) 1 0.125 0.25

UI Points 8.968 5.531 5.857

The average time to charge the Samsung Gear

Fit2 was 17.79 seconds. The users needed 20.38

seconds to place the wristband adequately. Within

11.92 seconds on average the testers found the

information about the step count. Two persons said

that they did not notice the device at all while

wearing it and two persons said they hardly (ever)

noticed the device. Three testers stated that the Gear

Fit2 felt very comfortable on the skin; one said it felt

rather comfortable. All testers decided that the size

and the weight of the device, as well as the size of

the display, were suitable. The participants agreed

Selection and Assessment of Activity Trackers for Enthusiastic Seniors

that the readability was very good and the usage was

very easy. Figure 8 illustrates the evaluation of the

Gear Fit2.

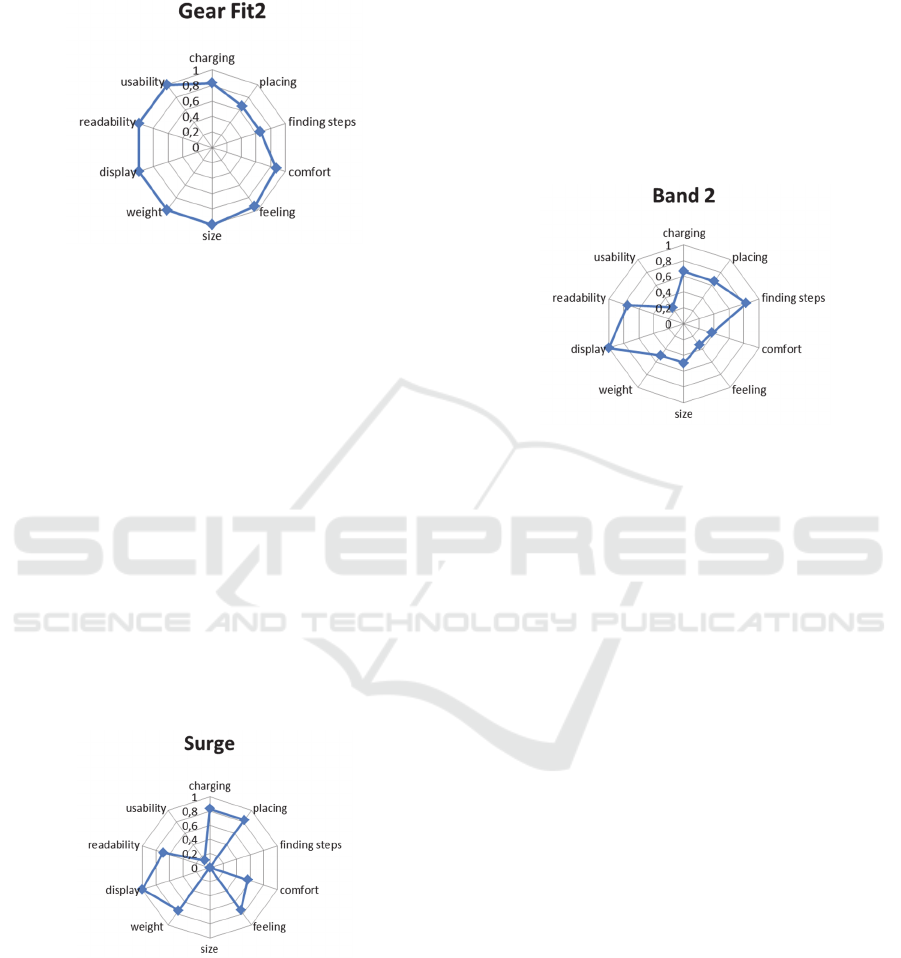

Figure 8: Evaluation Samsung Gear Fit2.

The average time to charge the Fitbit Surge was

18.13 seconds and it took 19.62 seconds to place the

wristband. One person needed 91 seconds to find the

step count; the other testers did not find this

information at all. After five hours of wearing, two

testers said they hardly (ever) noticed the device,

one tester reported that it was ok to wear the device

and one person said it was rather irritating. Two

persons stated that the device felt very comfortable

on the skin, one rated it as rather comfortable and

one person said it felt rather uncomfortable. All

testers agreed that the Surge was too big. One tester

reported that it was also too heavy; the others rated

the weight as suitable. The size of the display was

suitable for everyone. One tester confirmed that the

readability was very good; one said it was good and

the other two testers thought it was ok. Three

participants decided that the usage was too

complicated and one participant said it was ok.

Figure 9: Evaluation Fitbit Surge.

The average time to charge the Microsoft Band 2

was 26.12 seconds. It took 20.39 seconds to place

the activity tracker on the wrist and 9.24 seconds to

find the information about the step count. Three

persons reported that it was rather irritating to wear

the device, one person mentioned that he hardly

(ever) noticed the device while wearing it. He also

said that it felt very comfortable on the skin. Two

stated that the Band 2 felt very irritating on the skin

and one person said it felt rather irritating. Two

persons decided that the size and the weight were

suitable and two persons rated the device as too big

and too heavy. All agreed that the size of the display

was suitable. One person decided that the readability

was very good; two persons rated it as good and one

person thought that it was ok. Two testers confirmed

that the usage was ok and two testers rated that the

usage of the device as too complicated.

Figure 10: Evaluation Microsoft Band2.

Concerning the last question of the questionnaire

(Q9), all testers agreed that solely the Fitbit One can

easily be lost.

4.3 Technical Evaluation

Each of the tested devices provides a proprietary

infrastructure for data exchange and data access.

While there are standards for health data exchange

and access (for example, ISO/IEEE 11073 Personal

Health Data), those standards are not adopted for

fitness and health trackers.

Data from the Fitbit devices are available via

web API through the Fitbit developer API.

Microsoft allows access to fitness data through the

Microsoft Health APIs. Garmin, Withings and Polar

provide access through the Garmin wellness API,

the Withings API and the Polar Link APIs,

respectively.

Only three devices provide an API on the mobile

device: the Mio Fuse through Google Fit APIs and

the Samsung Gear Fit 2 through the Samsung Health

APIs. The Garmin Vivoactive HR is a special case,

since Garmin provides an SDK for Android and IOS

to communicate to the wearable, but most of the

logic of an application has to be provided for the

wearable itself using the Connect-IQ APIs.

The battery test verified the manufacturer

information which was collected within the market

survey. After five days operating in the standby

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

mode the battery advice of the Fitbit One, Mio Fuse

and Withings Pules Ox showed 100 %, the Fitbit

Charge HR showed 50 %, the Polar A300 showed

30 %, and the Samsung Gear Fit2 and the Fitbit

Surge showed 5 %. The Microsoft Band 2

automatically turned off on the second day. After

five days of usage the battery advice of the One

showed 100 %, the Pulse Ox showed 75 %, the

A300 showed 50 %, , the Fuse showed 20 % and the

Charge HR and the Surge showed 5 %. The battery

of the Band 2 and Gear Fit2 did not accomplish five

days usage.

Figure 11 shows the recorded steps of the

activity trackers at a flat, uphill and downhill 50-

steps distance.

Figure 11: Step accuracy evaluation.

According to this figure, the Microsoft Band2,

Fitbit One and Gear Fit2 were most precise. Mio

Fuse and Withings Pulse Ox differed most between

uphill and downhill distances and were rather

precise at the flat distance. The Vivofit3 was more

precise at the flat and downhill distance than at the

uphill one. The A300 estimated well at the flat

distance and worse uphill and downhill. Fitbit

Charge HR and Surge were more precise at the

uphill and downhill distances than at the flat one.

The pulse evaluation resulted in similar

accuracies of all evaluated activity tackers (Fuse,

Charge HR, Pulse Ox, Gear Fit2, Surge, Band2).

The distinction between values acquired by the

blood pressure monitor and the fitness trackers was

between one and three heart beats. Excluding the

Pulse Ox, all evaluated activity trackers measured

the pulse directly on the wrist. The Pulse Ox had to

be detached from its band. The pulse was measured

on the fingertip.

Except One and Fuse, all trackers offered

activity recognition. They distinguished between

walking and running. The A300 additionally

classifies five intensity levels. The Band2 included

determination of cycling. Vivofit3, Charge HR and

Surge distinguished cycling and swimming, and the

Vivofit3 additionally cross training. The Gear Fit2

detects additionally cycling, rowing machine and

cross training.

None of the devices’ display mirrored inside

buildings. The display of the Band2 mirrored

outside, the others did not. Brightness adjustment

was available only for Gear Fit2 and Band2. All

devices offered visual notifications. Most of them

also provided vibration notifications (A300, Fuse,

Charge HR, Pulse Ox, Gear Fit2, Band2). A300,

Fuse and Gear Fit2 additionally made sounds.

5 DISCUSSION

The Samsung Gear Fit2 was rated best at the

usability test (8.968). Due to the charging plate,

charging of the device was very easy. The wearing

comfort, the feeling on the skin and the size of the

device were rated very well. To place the tracker on

the wrist is partially difficult. Due to this result, we

have to emphasize the placing task at the initial

system training. Finding the step count was not that

easy as well. As the device enables own

implementations, it is on us to focus on simplicity

and implement plausible user interaction.

Technically the tracker offered different activity

recognition possibilities, brightness adjustment and

any kind of notifications. The Gear Fit2 was one of

the three most precise devices according to step

accuracy. An API was provided on the device itself.

The battery life was the only drawback. During

normal usage it lasted three days. The battery life

evaluation of devices with comparable

functionalities (Surge and Band2) was similar. The

Band2 automatically turned off after two days of

usage. The Surge showed 5 % battery duration after

five days. The usability was evaluated worse for

both devices. Overall, the Band2 had 5.857 points in

the usability evaluation. Mainly comfort and

usability were rated badly. We think that the wearing

comfort suffered because of the additional sensor on

the closing part of the band. The device most

precisely recorded walked steps within all slopes.

The Surge received 5.531 usability points. The

testers mainly criticized the size and the usability of

the device. The middle section of the wrist band was

rather big (32 x 55 x10 mm) and rigid. So it was

difficult to put on a jacket or pullover. Three testers

did not find the step information at all. We

concluded that the mixture of physical buttons and

Selection and Assessment of Activity Trackers for Enthusiastic Seniors

the touch display were irritating for the test users. If

the battery life would be the decisive factor, we

would have chosen the Charge HR. The device was

ranked secondly according to the usability test

(7.229 points). The small display was criticized

mostly. Low points in comfort and size could be

argued with one size of the wristband (L) which was

tested by all users. The Charge HR underestimated

steps within all slopes. This could be a drawback for

CARIMO because this might not be motivating for

the users. The tracker did not provide GPS.

Although, the One had got 7.007 usability points, we

would not use this tracker for CARIMO, because,

we such as our testers, think the device is easy to

loose. Charging was not easy because one had to put

it out of its tight silicone cover. The battery life did

fine in all tests. However, the device only provided

basic functionality without HR, GPS and activity

recognition. In comparison to the other trackers, the

device was worn at the waist; hence the step

accuracy was very good. The spider chart of the

Vivofit3 looked quite similar to the chart of the Gear

Fit2. Since charging could not be evaluated, the

device just got 6.958 usability points. The

manufacturer information promised 356 days of

battery life. This could be beneficial for CARIMO

because the users could wear the device

continuously. The only drawback within the

usability evaluation was the placing of the device.

Thus, we decided against the Vivofit3 for CARIMO

because the Gear Fit2 was rated better and provided

more functionality. The three last ranked trackers

were Pulse Ox, A300 and Fuse. The Pulse Ox got

6.92 usability points; size, comfort and readability

were criticized most. The battery life of the device

was very good, although it provided also HR.

However, pulse could not be measured directly on

the wrist. It was measured on the fingertip. This

required taking the device off each time the users

wanted to measure the pulse. Another drawback of

the device was the step accuracy. Thus, the Pulse Ox

was rated not practicable for CARIMO. The A300

was rated with 5.62 usability points. The initial

experience and usability were rated poorly. We saw

that it was very difficult for the tester to figure out

how to charge the device. In addition, the watch had

to be disassembled out of the silicon wrist band each

time to charge the device. This is particularly

challenging for older users. The Fuse got 4.317

usability points and the technical evaluation showed

poor results. All usability points except weight and

display were rated poorly. It was difficult for the

testers to find the steps. We observed that the

handling with the display itself was challenging. The

battery life was very well. The step accuracy was

unprecise at the downhill distance.

After acquiring the test results, we decided to

integrate the Samsung Gear Fit2 in CARIMO. It

offers a high range of functionality including HR

and GPS. So, we are not limited in implementing

any planned CARIMO feature and it was rated best

at the usability evaluation.

6 CONCLUSIONS

The variety of fitness trackers on the market is huge;

however, it is challenging to select a proper one for a

system like CARIMO. Based on the manufacturer

information an explicit decision could not be made.

Hence, we established a three step process to do so.

First, we defined must-have and optional criteria

based on literature research and project specific

requirements. We did a market research to preselect

trackers which basically met the criteria. The

selected trackers could be classified in basic activity

trackers, trackers with additional heart rate sensor

(HR), and trackers with HR and GPS functionality.

Based on the defined criteria, we further chose three

devices of each group to test them extensively.

Each tracker was tested by four testers who

represented the CARIMO target group according to

usability, comfort and aesthetics issues. The first

impression was evaluated by performing four initial

tasks. The average time it took to conduct each task

shed light on the simplicity of the usage. After

wearing the devices for at least five hours, the

participants answered questions about comfort,

aesthetics and the overall usability. The average

values of the tasks and questions were measured. For

visualization the significant results were illustrated

using spider charts. The highest possible score of the

questionnaire resulted in 11.0. Additionally,

technical characteristics were proven. The focus

relied on battery life, accuracy of recorded data, data

management and data accessibility.

The extensive tests allowed us to decide which

activity tracker was suitable for the CARIMO

system. Having the manufacturer information only,

we could just decide by functionality. However,

taking usability issues into account is important,

particularly, considering selecting devices for older

users. This cannot be assessed without testing the

trackers by users representing the target group.

Additionally, the technical characteristics given by

the manufacturers have to be proven. These tests are

helpful to gain further insights, e.g. about data

accuracy, and can be used to test the manufacturer

specifications e.g. related to battery life.

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

The on-going development of the CARIMO

system will integrate the selected activity tracker;

the Gear Fit2. The entire system will be tested and

evaluated in a long term quasi experimental

controlled field trial over eight months including 120

elderly users in Austria and Italy.

REFERENCES

Angulo, G., Brogan, D., Martini, A., Wang, J., Clevenger,

L. A., 2016. Health Features of Activity Trackers:

Motivation, Goal Achievement, and Usability. In:

Proceedings of Student-Faculty Research Day, CSIS,

Pace University.

Butler, M. S., Luebbers, P., E, 2016. Health and Fitness

Wearables. Wearable Technology and Mobile

Innovations for Next-Generation Education: p. 58.

Collier, R., 2014. Rapid growth forecast for digital health

sector. In: Canadian Medical Association Journal, 186

(4), E143-E144.

Kaewkannate, K., Kim, S., 2016. A comparison of

wearable fitness devices. In: BMC public health, 16

(1), 1.

Ledger, D., McCaffrey, D., 2014. Inside wearables: How

the science of human behavior change offers the secret

to long-term engagement. Endeavour Partners,

200(93), 1.

Mercer, K., Giangregorio, L., Schneider, E., Chilana, P.,

Li, M., Grindrod, K., 2016. Acceptance of

commercially available wearable activity trackers

among adults aged over 50 and with chronic illness: a

mixed-methods evaluation. In: JMIR mHealth and

uHealth, 4(1).

Muenz, R., 2007. Aging and demographic change in

European societies: main trends and alternative policy

options. World Bank SP Discussion Paper No, 703.

Nelson, E. C., Verhagen, T., Noordzij, M. L., 2016. Health

empowerment through activity trackers: An empirical

smart wristband study. In: Computers in Human

Behavior, 62, p. 364-374.

Rasche, P., Schäfer, K., Wille, M., Theis, S., Schlick, C.,

Mertens, A., 2015. Self monitoring–an age-related

comparison. In: Proceedings of the Human Factors

and Ergonomics Society Europe Chapter 2015 Annual

Conference.

Schneider, C., Henneberger, S., 2014. Electronic Spatial

Assistance for People with Dementia: Choosing the

Right Device. In: Technologies, 2(2), p. 96-114.

Vankipuram, M., McMahon, S., Fleury, J., 2012.

ReadySteady: app for accelerometer-based activity

monitoring and wellness-motivation feedback system

for older adults. In: AMIA Annual Symposium

Proceedings, Vol. 2012, American Medical

Informatics Association, p. 931.

World Health Organization. (2010). Global

recommendations on physical activity for health.

World Health Organization. (2003). Health and

development through physical activity and sport.

Selection and Assessment of Activity Trackers for Enthusiastic Seniors
