Data Warehouse MFRJ Query Execution Model for MapReduce

Aleksey Burdakov, Uriy Grigorev, Victoria Proletarskaya and Artem Ustimov

Bauman Moscow State Technical University, 2

Baumanska 5/1, Moscow, Russia

Keywords: MapReduce, Data Warehouse, MFRJ Access Method, Analytical Model, Adequacy.

Abstract: The growing number of MapReduce applications makes the Data Warehouse access time estimating an

important task. The problem is that processing of large data requires significant time that may exceed the

required thresholds. Fixing these problems discovered at the system operations stage is very costly. That is

why it is beneficial to estimate the data processing time for peak loads at the design stage, i.e. before the

MapReduce tasks implementation. This allows making timely design decisions. In this case mathematical

models serve as an unreplaceable analytical instrument. This paper provides an overview of the n-dimensional

MapReduce-based Data Warehouse Multi-Fragment-Replication Join (MFRJ) access method. It analyzes

MapReduce workflow, and develops an analytical model that estimates Data Warehouse query execution

average time. The modeling results allow a system designer to provide recommendations on the technical

parameters of the query execution environment, Data Warehouse and the query itself. This is important in

cases where there are restrictions imposed on the query execution time. The experiment preparation and

execution in a cloud environment for model adequacy analysis are evaluated and described.

1 INTRODUCTION

Data Warehouses are commonly used for Big Data

processing (Kaur, 2016) and are especially popular in

Business Intelligence applications (Duda, 2012).

They support a multi-dimensional model (Inmon,

2005; Golfarelli and Rizzi, 2009). A Data Warehouse

with dimensions has the form of a multi-dimensional

cube. Every point in this cube corresponds to one or

multiple values (facts). Sparse data cubes are allowed.

Data Warehouse implementation principles

varied over time. There were three approaches at the

beginning: MOLAP, ROLAP, HOLAP (Inmon,

2005; Golfarelli and Rizzi, 2009; Duda, 2012).

MOLAP (Multidimensional OnLine Analytical

Processing) data is stored in the form of special

ordered multidimensional arrays (hypercubes and

polycubes). ROLAP (Relational OLAP) uses a

relational database to store dimension and fact tables.

HOLAP (Hybrid OLAP) combines the two above

mentioned approaches. The following products

implement these approaches: Oracle Hyperion

Essbase (MOLAP), MS SQLServer 2000 Analysis

Services (MOLAP, ROLAP or HOLAP), et.al.

However, with the growth of the processed data

volumes the Data Warehouse implementation cost

has also radically increased (Hejmalíček, 2015).

Regularly the platform for large Data Warehouse

implementation is RDBMS (Relational DataBase

Management System). In order to significantly

increase the volume of processed data an additional

powerful server(s) has to be added (which is costly)

as well as purchasing an additional license for

installation of a new RDBMS entity. Moreover,

additional costly software has to be installed to

support distributed environment and optimize Data

Warehouse processes. One of the most expensive

Data Warehouse parts is its external memory. The

disks are organized into a RAID to ensure fault

tolerance leading to expensive planning and support.

The Data Warehouse strategy has changed with

the emergence of NoSQL databases (Duda, 2012).

This can be attributed to the fact that NoSQL are open

source systems with great scalability (up to a few

thousand nodes) and reliability (due to multiple

replication of database records) as well as low node

cost (Redmond and Wilson, 2012; Sadalage and

Fowler, 2012). Already existing platforms were used

initially. They read actual data with ETL from a

NoSQL database into a MOLAP cube and process it

there, e.g. Jaspersoft and Pentaho (Duda, 2012).

However, here the volume of processed data was

limited by the single MOLAP server.

206

Burdakov, A., Grigorev, U., Proletarskaya, V. and Ustimov, A.

Data Warehouse MFRJ Query Execution Model for MapReduce.

DOI: 10.5220/0006238502060215

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 206-215

ISBN: 978-989-758-245-5

MapReduce (MR) (Jeffrey and Sanjay, 2004;

Duda, 2012; Hejmalíček, 2015) became the next step

of Data Warehouse evolution. There are many

technologies based on MR that allow implementation

of a Data Warehouse (Li, et.al, 2014). Hive is an

example of major Facebook platform components. It

is intended for implementation of a Data Warehouse

in Hadoop (Huai, et al., 2014). Here a SQL query is

translated into a series of MR tasks. Some

experiments show that Hive is significantly slower

than other methods (Duda, 2012; Zhou and Wang,

2013). In order to solve the low performance problem

of a Data Warehouse in MR systems some methods

were developed that allow access to Data Warehouse

directly in MR (i.e. without additional components).

Four such methods (MFRJ, MRIJ, MRIJ on RCFile,

MRIJ with big dimension tables) are described in

(Zhou and Wang, 2013). They are based on the

dimension table caching in the RAM of each node.

Along with the MR Hadoop a MapReduce-like

system Spark and others are used; however, their

discussion is outside of this paper’s scope.

This paper discusses Multi-Fragment-Replication

Join (MFRJ) method (Zhou and Wang, 2013), which

unlike other methods allows access to n-dimensional

Data Warehouse for only one MR task and avoids

extra transfers of the fact table external keys (section

3). It is also simple in implementation. Effectiveness

of this method in comparison with other methods is

shown in (Zhou and Wang, 2013).

The motivation of this work is the need for Data

Warehouse access time forecasts, due to the intense

growth in number of MR applications. Examples of

such applications are provided below:

o Internet-application log processing for large

internet shops and social networks (Duda,

2012) for service demand analysis.

o Large data volume processing for data

collected by credit organizations for market

behavior forecasts.

o Statistics calculation for large weather

forecast processing.

The problem is that large volume data processing

is time-consuming which may become unacceptable.

Discovery of this problem at the operational stage

leads to costly resolution. First of all, there are many

processing tasks. Secondly, if the tasks are complex

then tuning does not help. In this case algorithms

have to be changed and Map and Reduce functions

recoded. This means redoing the already done work

wasting time and resources. Thus the processing time

estimation for peak load during the design stage, i.e.

before MR tasks implementation, is beneficial.

The importance of modeling can be demonstrated

on the following example. Two RDBMSes (column

and row-based) and MR Hadoop were compared in

an experiment in (Pavlo, et.al, 2009). The conclusion

was that Hadoop loses in the test tasks.

Detailed analysis in (Burdakov, et.al, 2014)

showed that experiments with RDBMS were

executed with the node number below 100, with low

data selectivity in queries, with the lack of sorting,

and record exchange of fragmented tables between

the nodes. Modeling was performed with calibrated

models and different input parameters (Burdakov,

et.al, 2014). The results showed that Hadoop over-

performing RDBMS with high selectivity and sorting

starting from 300 nodes (6 TB of stored data).

Obviously, implementation of a test stand and live

experiments on a large number of nodes is much more

expensive than development of an adequate

mathematical model and its application.

This paper discusses an MFRJ access method to a

Data Warehouse (section 3), analyzes MR workflow

(section 4), develops an analytical model for Data

Warehouse query execution time evaluation (section

5), and calibrates the model and evaluates its

adequacy based on experiments (section 6).

2 RELATED WORK

The developed analytical model for query execution

time evaluation is a cost model (Simhadri, 2013).

Below we provide an overview of the existing

models and point out their disadvantages.

Burdakov, et.al (2014) and Palla (2009) model

only two tables join in MR. Palla (2009) evaluates

input/output cost, but disregards the processing part.

However, as the measurements indicate (e.g. see

Section 6), the process load cannot be disregarded.

The processing time is considered in (Burdakov, et.al,

2014), however the Shuffle algorithm is simplified.

Afrati and Ullman (2010) propose the following

access method to n-dimensional Data Warehouses.

The Map phase in each node reads dimension and fact

table records (n+1 tables). The Map function

calculates hash-values h(b

) for b

attributes that

participate in a join. Each Reduce task is associated

with n values {h(b

)}. Each record is sent to multiple

Reduce tasks according to the calculated hash-values.

The Reduce task joins received records. Transferred

records number minimization task is solved based on

a constant number of Reduce tasks. This method has

the following disadvantages:

Data Warehouse MFRJ Query Execution Model for MapReduce

207

1) It assumes record transfer of the joined tables

between the nodes which may consume

significant time.

2) In certain cases the optimization task does not

have an acceptable solution.

An example for query execution time in a Hadoop

Data Warehouse provided in (Afrati and Ullman,

2010) has 2052 sec duration (two dimensions, one

fact table, four nodes, 100 Reduce tasks and

approximately one million records in each table).

An n-dimensional Data Warehouse query

execution optimization method is provided in (Wu,

et.al, 2011). An optimal plan is defined for a received

query. Each option’s cost is evaluated taking into

account record duplication as in (Afrati and Ullman,

2010). This method has the following disadvantages:

1) Histograms are built for table columns before

the optimization;

2) Record duplication throughout nodes is

required;

3) The weights for the cost model have to be

defined manually;

4) The fact that the processes in resources at the

Shuffle phase are executed in parallel;

5) Disregards the split number, Java Virtual

Machine (JVM) containers number per node,

and that the Reduce-side sort merge can have

a few execution rounds.

Zhou & Wang (2013) provide simplified estima-

tion formulas for RAM and data volumes read from a

disk and transferred through a network. However,

these formulas do not account for MapReduce

process functioning specifics (see section 4).

Afrati, et.al, (2012) evaluate the following two

MR characteristics for different tasks: average

number of records generated by Map tasks for each

input (replication rate); the list upper border for

values linked with a key (reducer size). The Reduce

task load is evaluated based on these characteristics.

The theoretical works (Karloff, et.al, 2010;

Koutris and Suciu, 2011) build abstract MR models.

The estimates are given at the asymptotic record form

level (O(n), Ω (n), etc.), that cannot be used for

concrete calculations. The work (Tao, et.al, 2013)

defines conditions when MR algorithms (sorting,

etc.) satisfy the following minimal algorithm

conditions: Minimum Footprint, Bounded Net-traffic,

Constant Round, and Optimal Computation.

The model developed in this paper has the

following advantages:

1) It models MFRJ algorithm behavior where it

is not required to duplicate Data Warehouse

table records.

2) It is not required to manually assign weights

for cost estimate.

3) The model calculates average volume-

temporal characteristics of query execution

in n-dimensional Data Warehouses

(considering disk, processor and network).

4) It is detailed, accounts for specifics of Map,

Shuffle and Reduce phases, and can be tuned

for a large number of parameters influencing

the temporal characteristics (section 5).

5) It has a parameters calibration procedure.

3 MFRJ DATA WAREHOUSE

ACCESS METHOD IN

MAPREDUCE ENVIRONMENT

The query execution algorithm in n-dimensional Data

Warehouses with the use of the MFRJ method (Zhou

and Wang, 2013) is discussed below.

SELECT D

, D

, …, D

F.m

, … F.m

FROM D

JOIN F ON (D

= F.fk

)

JOIN D

ON (D

= F.fk

)…

JOIN D

ON (D

= F.fk

) (1)

WHERE CD1 AND CF1,

where D

, …., D

are dimension tables, F is a fact

table, CD1 and CF1 are some additional conditions,

applied to dimensions and facts.

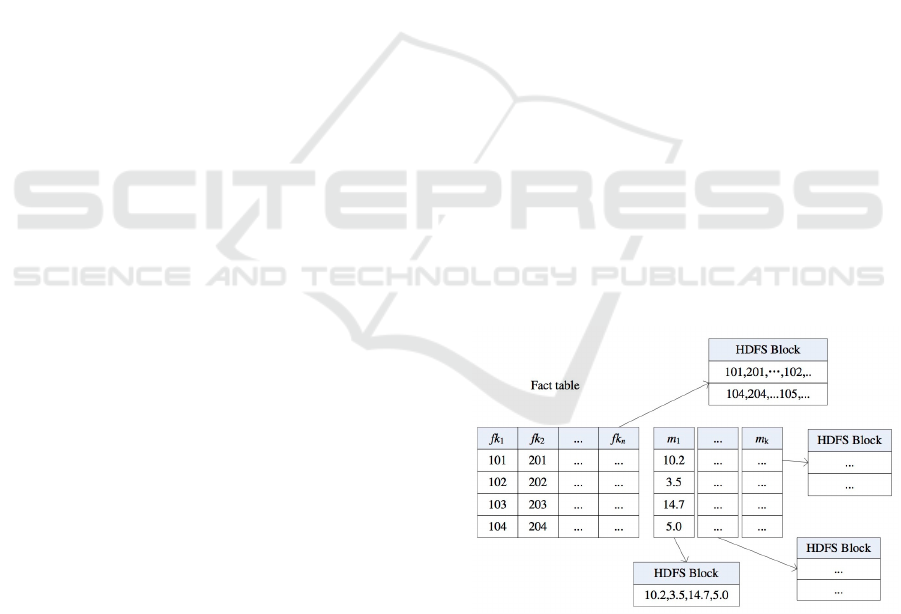

Figure 1: Fact table decomposition into 1+k tables (Zhou

and Wang, 2013).

The dimension tables are duplicated on all

Hadoop system nodes. They are stored in rows. The

fact table is divided into 1+k tables (see Figure 1): the

1st row includes columns of external dimension keys

(fk

), every fact column (m

) comprises a separate

table (tables 2,…,к+1). All table blocks 1…k+1 are

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

208

arbitrarily and automatically spread throughout the

nodes by Hadoop (Hadoop attempts to make it even).

The data access is executed in the following

manner for the query type (1):

Map (in each node):

1) Records are read from dimension tables that

participate in a query. The CD1 condition is checked

for each record. Hash-indices are built in RAM for

records satisfying the condition.

2) Dimension external keys of fact tables

(Table 1) that are stored in (fk

) nodes are read; each

row (position) and external key is checked for

existence of the key in the corresponding hash-index;

upon successful comparison the following record is

put into the output stream:

<position1,(vd

,…,vd

)> (2)

where «position1» is a row number in external key

table (the enumeration is continuous for table 1 rows);

(vd

,…,vd

) is a list of attribute values of dimension

tables that are given in (1) following SELECT (they

are selected from dimensions hash-indices).

3) The i-th fact column values are read (table i+1)

that are stored in a node; for each fact value the CF1

query condition is checked and its value is put into the

output stream:

<position 2i, vm

>, (3)

where «position 2i» is the row number in i+1 table

(continuous enumeration for all i+1 table rows), vm

is the i-th fact value.

The «position 1» and «position 2i» key values

correspond to one fact table, however by conditions

the 1…k+1 table blocks are arbitrarily spread by

nodes.

4) The item 3 is further repeated for other fact

columns which blocks are stored in the node

(i=1,…,k).

Reduce:

If the element number of the value area of the

record received by Reduce function (after grouping

by position) equals to n+k (n is the number of

dimensions, k is the number of facts) and it satisfies

the query condition (relationships between columns

are checked), then the record is put into the output

stream as the resulting table row:

<position, (vd

,…,vd

,vm

,…,vm

)> (4)

The MFRJ method was implemented in Hadoop

environment.

4 MAPREDUCE SYSTEM

FUNCTIONING PROCESS

Map Phase (see Figure 2). L entities of Map function

are simultaneously run on each of N

nodes (label 2;

the labels on the Figure 2 are underlined). The Map

entities are executed simultaneously and read MR

records (objects) from the MR file system in

<key,value> pairs (label 1).

Each Map entity processes records of one

input file. The size of the processes partition does not

exceed the size of one split (by default its size is equal

to the block size V

= 128 MB). Upon completion

of the Map entity another entity is started that

processes the next split file, and so on (if Map number

per node is higher than L). Overall



V/V

Map

entities will be executed on one node for each input

file, where V

is the input file volume on that node.

The received records are converted into new

<key1,value1> records and are stored into a RAM

buffer (label 3). A Q

-sized RAM buffer is allocated

to each Map entity. Once the buffer is saturated, a

new thread is started in the background. It splits the

buffer into fragments and sorts each fragment by key

(in-memory sort). The number of fragments in the

buffer equals s number of partitions (Reduce task

entities) set in a Job. A record belongs to i-th buffer

fragment (i.e. to i-th partition) if h(attribute)=i where

h is a hash-function. After that each sorted buffer

fragment is output to the disk as part of a file (spill to

disk) (label 4). So, the total number of sorted

fragments that will be stored on a disk during the

execution of one Map node entity will be equal to r

multiplied by s, where r is the number of stored files

determined by the following formula:

r= Q/( Q

·P

/16)=Q/Q

, (5)

where Q is the total number of output records

generated by one Map function entity (i.e. per one

split), Q

is the RAM buffer size (100 MB by default),

is the buffer fill threshold (0.8), P

is a part of the

buffer allocated for metadata (0.05), 16 is the

metadata record size in bytes (Palla, 2009).

Note: Fragments (j-1)s+1,…, js are parts of j-th

file, j=1…r (see Figure 2, label 4). So r physical files

are stored on a disk, each of which has s logical files

(fragments).

Data Warehouse MFRJ Query Execution Model for MapReduce

209

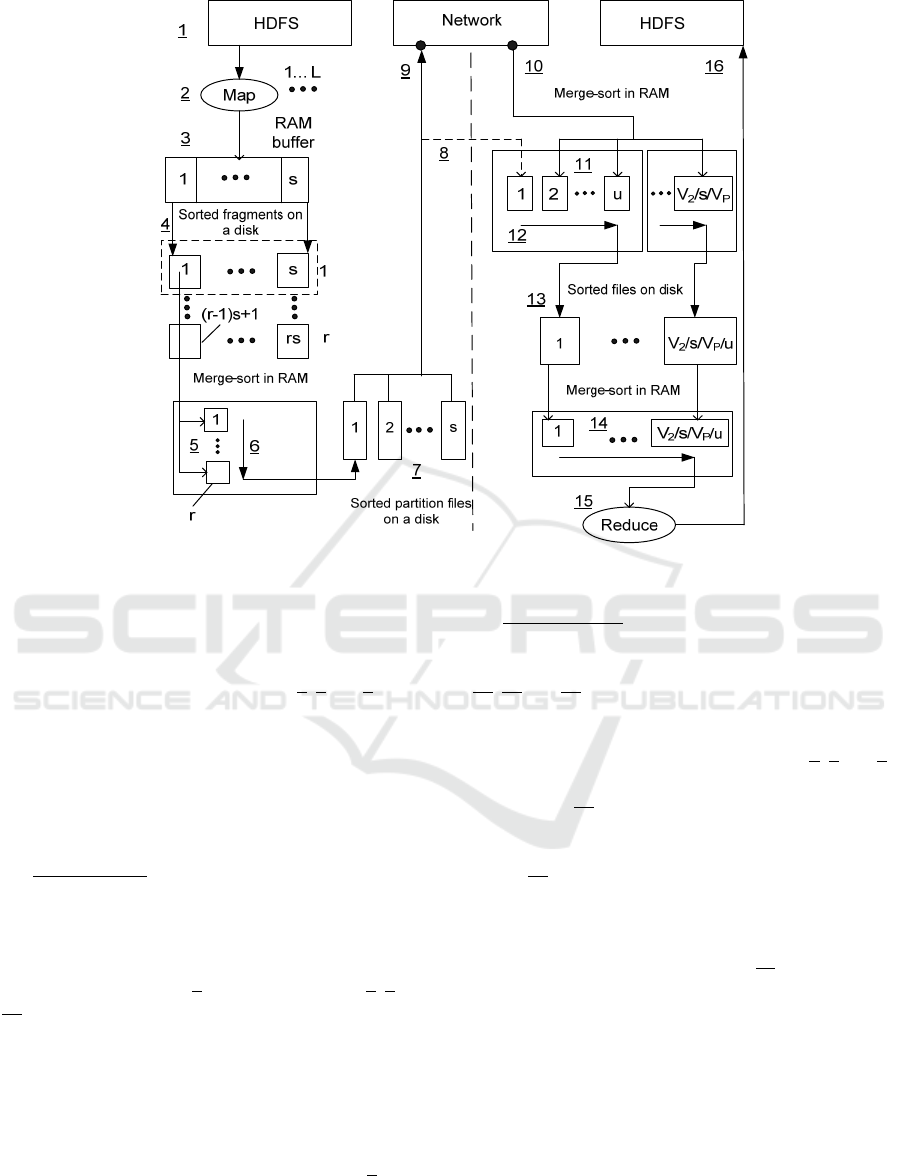

Figure 2: MapReduce operation execution sequence.

Once the Map function has processed all input records

of its split, a special procedure is started on the node.

It reads i-th partition fragments and outputs them into

one sorted file (merge on disk, labels 5, 6 and 7). This

file is sorted by the key «key1». The procedure

described above is executed consequently for all

partitions (i=1,…,s) of Map entity.

The activities described above are executed in

parallel for all Map entities simultaneously executed

on the node. The sorting is necessary for group

operation execution at the Reduce phase.

Shuffle Phase. The master nodes are informed on

Map entity execution completion. Simultaneously

with Map R entities of Reduce task are started on each

of N

nodes. Each j-th Reduce task queries the master

node, determines the completed Maps and reads j-th

partition files (see label 7) into its area (labels 8, 9 and

10). So, the different nodes’ files with one partition

number j will be transferred into a node where the j-

th Reduce task is executed (j=1,…,s). If the file size

is below 0.7·0.25·V

, then it is stored in a Reduce

and Map JVM heap. By default its size is 200 MB. If

the size of a filled heap exceeds the V

=0.7·0.66·V

threshold, then the files stored in the heap are merged

into one file stored on a disk (similar to label 6).

The above description tells us that Map and

Shuffle intersect. Li, et.al (2011) and analysis of logs

generated by Hadoop query execution confirm that.

Reduce Phase. If the number of saved files

exceeds the 2(u-1) threshold, then «u» files are

merged into one file and it is stored on a disk (labels

11, 12 and 13). By default u=100, V

is the input data

volume of all Reduce tasks. This case is possible if a

significant data volume is processed by a cluster with

a small number of nodes (similar to labels 5, 6 and 7).

The stored files are read and sorted/merged in

RAM (label 14), so that one sorted flow of records is

formed. The system groups the records of the stream

by the values of the key that was used for sorting

(label 15). Record groups are sent to the Reduce

function input without its intermediate disk storage.

The Reduce function then processes each group

and puts the result into the output stream. This data is

stored in the MR file system (label 16).

5 DATA WAREHOUSE

AVERAGE ACCESS TIME

ESTIMATE FOR MFRJ

METHOD

The Figure 3 depicts the analytical model structure for

Data Warehouse query execution time calculation

(MapReduce task) for the MFRJ method.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

210

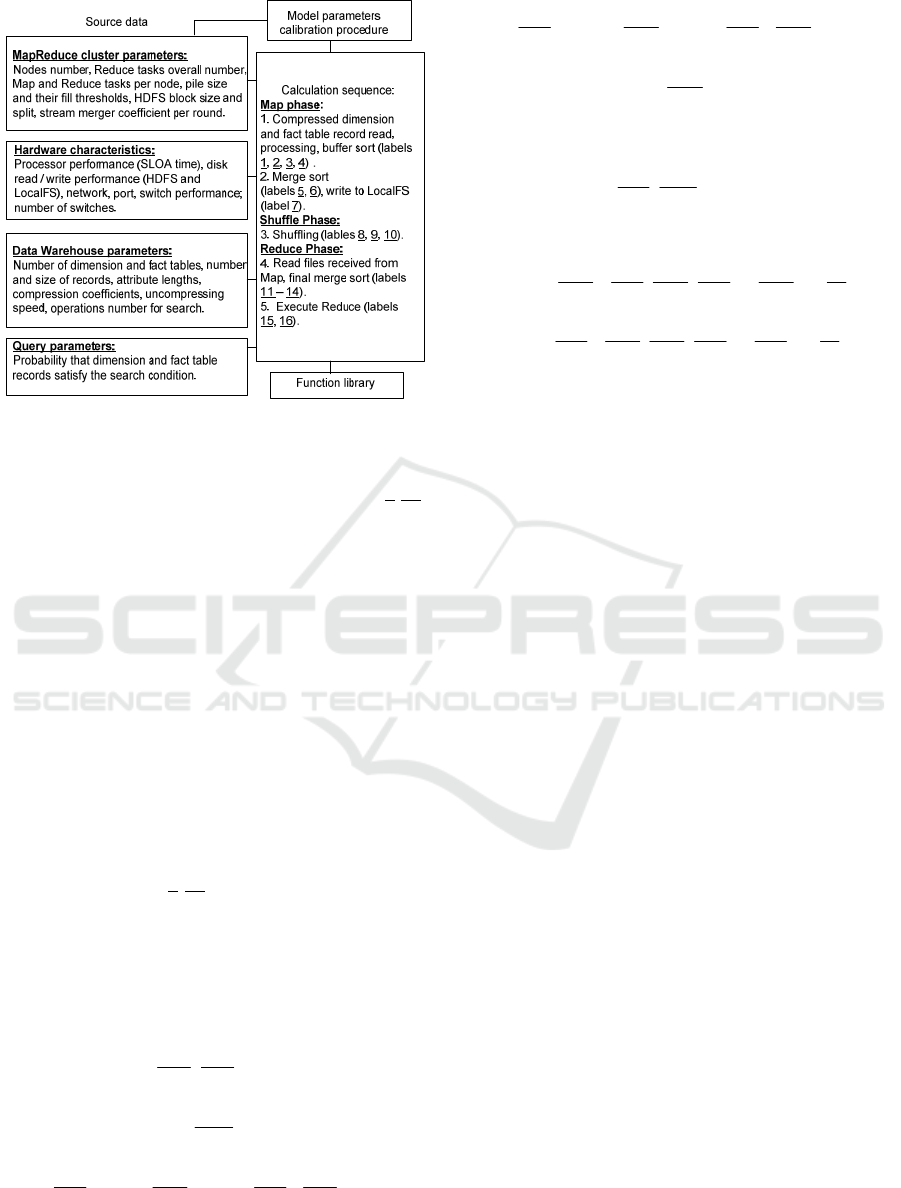

Figure 3: Analytical model structure.

The model is developed based on the MR

workflow description (Section 4). The labels (1-16)

on Figure 3 correspond to the labels on Figure 2. The

model calculates time-volume characteristics for each

phase (Map, Shuffle, Reduce) and the whole task.

The models shall be calibrated based on task

execution time measurements since it is impossible to

directly measure some input parameters of the model.

For example the model takes into account the

processor portion of the MapReduce task execution

time. One short logical operation execution time of an

algorithm (SLOA) is set as a parameter (Burdakov,

et.al, 2014), which is challenging to measure. Model

calibration allows evaluation of that parameter.

The model is rather complex as it accounts for

MapReduce parallel processing specifics. Due to the

space restrictions we provide only one formula

fragment. Below there is a fragment that calculates

Shuffle time (labels 8-10 on Figure 2). The resource

processes at the Shuffle phase are executed in

parallel, so the time is defined by the slowest re-

source, and hence the max function is used. Formula

(6 a-g) define the resource temporal characteristics:

max)G,(VT

{ (6)

dRM

⋅

, (a)

V ⋅

, (b)

N1R

)

(VK

1)(K

⋅⋅⋅−

, (c)

N2R

)

(VN

K)(N

⋅⋅⋅−

, (d)

V ⋅

, (e)



)/VV(/s)log(Gk6.5τ

2FP22

⋅⋅⋅

, (f)

dWR

⋅

}, (g)

where

)

(

−=⋅−=

, (7)

)

(

−=⋅−=

, (8)

)/s/V/(VVV

S122F

. (9)

The equations (6)-(9) use the following notations:

N is the total number of nodes; N

is the number of

nodes that execute the Map tasks (N

number cannot

be higher the total split number divided by L); N

the number of nodes that execute Reduce tasks;

K=min(K

,N), K

is the maximum number of nodes

linked to each switch; V

is the number of files

generated by all Maps of all nodes; G

is the number

of records generated by all Maps of all nodes;

=0.7·0.66·V

is the buffer copy threshold for the

Reduce task (Palla, 2009) (V

is the JVM Reduce

heap size); V

is the volume of all input files

processed by Map entities of all nodes; V

is one split

size (by default it is equivalent to block size); s is the

total number of Reduce tasks (MR task parameter); τ

is one SLOA execution time; μ

, μ

(bps) is the disk throughput (read), switch port

(output), switching matrix of a switch, linking ring,

switch port (input) and disk (write).

Let us discuss the Formula (6) in greater

details:

(a) The data read time from a disk (or Map buffers)

for data generated by all Map entities of one node.

(b) Transfer time from one node to the input port of a

switch; it is considered that part of data remains in

the node (see Formula (7)): on this node Reduce

tasks are running with N

/N probability and they

process 1/N

part of Map data of this node.

ning on the node with N

/N probability; Reduce

tasks are running with N

/N probability; so each

node from (N

/N)K nodes sends to each node

from (N

/N)(K-1) nodes V

data fraction.

(d) Data transfer time through the connecting ring (for

N>K); similar to (c): each node from (N

/N)·N

Data Warehouse MFRJ Query Execution Model for MapReduce

211

nodes sends to each node from (N

/N)·(N-K)

nodes a V

fraction of data.

(e) Data receipt time by all Reduce entities of one

node from input switch port; it is considered that

part of data was left on this node after Map task

execution (see Formula (8)).

(f) File (partition) union time from the heap of one

Reduce entity into files that are stored on a disk

(Reduce entities are executed N

·R times in

parallel; s= k·N

·R is their total number, where R

is the number of entities that are executed in

parallel on the node) - for V

/s; the sorting is

done by the merge-sort method; the logarithm

function is derived not from the number of records

(the usual way), but from the number of partitions

) read by Reduce entity and stored in the

heap of this task; it is considered that each output

partition generated by a Map entity is already

sorted; V

is the size of such partition (see

Formula (9)); V

is the split number, so (9) is

the volume of output data (one partition),

corresponds to one split (i.e. per one Map entity)

and one Reduce entity.

(g) File storage time for further in-disk sorting for

files sorted by Reduce entities of a node.

6 MODEL ADEQUACY

EVALUATION

The goal for the experiments is to test the adequacy

of the developed multidimensional Data Warehouse

access process model in a Hadoop environment with

the MFRJ method.

6.1 Experiment Stand Description

There are a number of companies that provide cloud

computing resources. We used virtual nodes (servers)

provided by DigitalOcean (DO) (Digital Ocean,

2016) in our experiments. The number of nodes in a

cluster varied from 4 to 10 (1 master node and the rest

were slave nodes with stored data). Each node had

the following characteristics: one dual-core processor

at 1.8 GHz, 4 GB RAM, 20 GGB SSD.

We used Ubuntu Server 14.04 OS preset by the

cloud service provider. MapReduce 2 Hadoop

(White, 2015) was set-up for the experiment. The

block size and Hadoop split was set to 128 MB.

MFRJ Data Warehouse access method was

implemented in Hadoop (see Section 3).

6.2 Experiment Preparation and

Execution

A Data Warehouse with star schema was created in

the Hadoop environment. It had three dimension

tables: Date (36 records), Town (200 records) and

Goods (8500 records). The number of records in the

fact table Sales Volume varied from 10M to 30M.

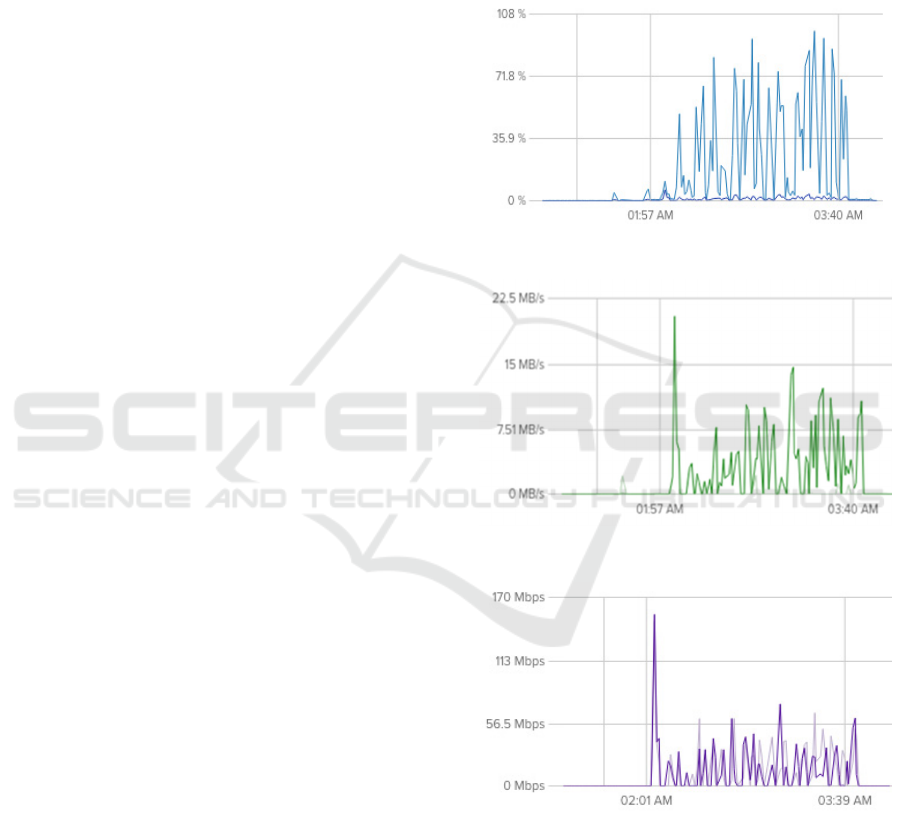

Figure 4: Node CPU load.

Figure 5: Node SSD performance.

Figure 6: Network performance measured in a node.

The Data Warehouse query is presented in

Formula (1). There n=3, m

. The selectivity of

CD1 was at 67% for the Date table, 90% for Town

table and 80% for Goods. There was no condition

applied to the facts table.

The queries were executed for the following

parameters: the number of slave nodes (N) was 3, 6

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

212

and 9, the number of fact table records (Q

) was 10M,

20M and 30M, the Reduce tasks number was 2 and 4.

There were 3(N)·3(Q

)·2(s)=18 experiment query (1)

runs on the Data Warehouse. Each query was re-

peated three times and average time was taken. The

measured and modeling time were compared.

The experiments were run on different days for a

different number of nodes. In most cases we observed

high processor load, low disk and network

performance. The Figures 4-6 depict the correspond-

ing characteristics for one node during the execution

of an experiment series for the number of slave nodes

N=6. The number of peaks (equals 18) on each Figure

corresponds to the number of queries in a series for

N=6: 1(N)·3(Q

)·2(s)·3(repeat)=18. The processor

core load reached 90%. The shared disk throughput

reached 15MB per second (except a single peak),

while the network throughput reached 60 Mbps.

6.3 Model Calibration and Adequacy

Evaluation

A part of the source data for modeling (N

, N

, et. al)

was selected from logs generated by Hadoop during

the query execution. For other parameters that cannot

be measured directly we performed a calibration

procedure based on the experiment results. The

following resource performance was evaluated with

the calibration: HDFS (read and write μ

, μ

LocalFS (read and write μ

, μ

); switch ports (input

and output μ

, μ

), switch (μ

) and processor

(SLOA time τ). Based on the results of peak

performance measurements we defined the bounda-

ries for these parameters and executed its estimation

with the least squares method (Abdi, 2007). The

Figure 7 provides the estimation algorithm.

An arbitrary selection of the starting point in the outer

loop avoids reaching the local minimum moving

along the gradient.

The following three calibration models were

analyzed:

Option 1. The calibration procedure used the

average time for execution of 6 queries executed on

clusters with 3, 6 and 9 slave nodes. The modeling

accuracy was evaluated for all 18=3(N)·3(Q

)·2(s)

queries. The Figure 8 provides the modeling error

distribution diagram. Here

expmodexp

T/T100 T−⋅=Δ

is the relative modeling

error for query execution time by percentage. The

sector on the Figure depicts the fraction of the queries

number (out of 18) which modeling error fits the Δ

half-closed interval. The percentage is shown under

this half-interval. The fraction of queries with

LOOP i= 1…200

Select an arbitrary point inside

calibrated parameter boundaries

LOOP j= 1…200

Move inside the area of calibrated

parameters by gradient (numerical

differentiation is used)

/* The exit from the inner LOOP is performed in the

following 3 cases: 1) if the current sum of error squares

of the average experimental and modeling results for the

query execution time



−=

mod

exp

)T(T

higher than the previous sum (the local minimum is

found); 2) the local calibrated parameter crossed the

measurement boundaries; 3) the j iteration number

exceeds the limit */

END OF LOOP by j

Store the current optimal values for

calibrated parameters

Figure 7: Model parameters calibration algorithm.

modeling error higher than 20% equals to

17+28=45% (this is 18·0.45=8 queries out of 18).

Option 2. The calibration procedure used the

average execution time of four queries executed on

clusters with 6 and 9 slave nodes. The modeling

accuracy was evaluated based on the corresponding

12=2(N)·3(Q

)·2(s) queries (i.e. experiments on a

cluster with three slave nodes were excluded). The

Figure 9 provides modeling error distribution

diagram. The fraction of queries with the modeling

error higher than 20% equals to 8% (it is 12·0.08=1

query out of 12).

Option 3. The calibration procedure used the

average time for execution of three queries executed

on the cluster with 9 slave nodes. The modeling

accuracy was evaluated based on the corresponding

6=1(N)·3(Q

)·2(s) queries (i.e. experiments on

clusters with 3 and 6 slave nodes were excluded). The

Figure 10 provides the modeling error distribution

diagram. In this case there are no queries with

modeling error higher than 20%.

Figure 8: Modeling error distribution (calibration

Option 1).

Data Warehouse MFRJ Query Execution Model for MapReduce

213

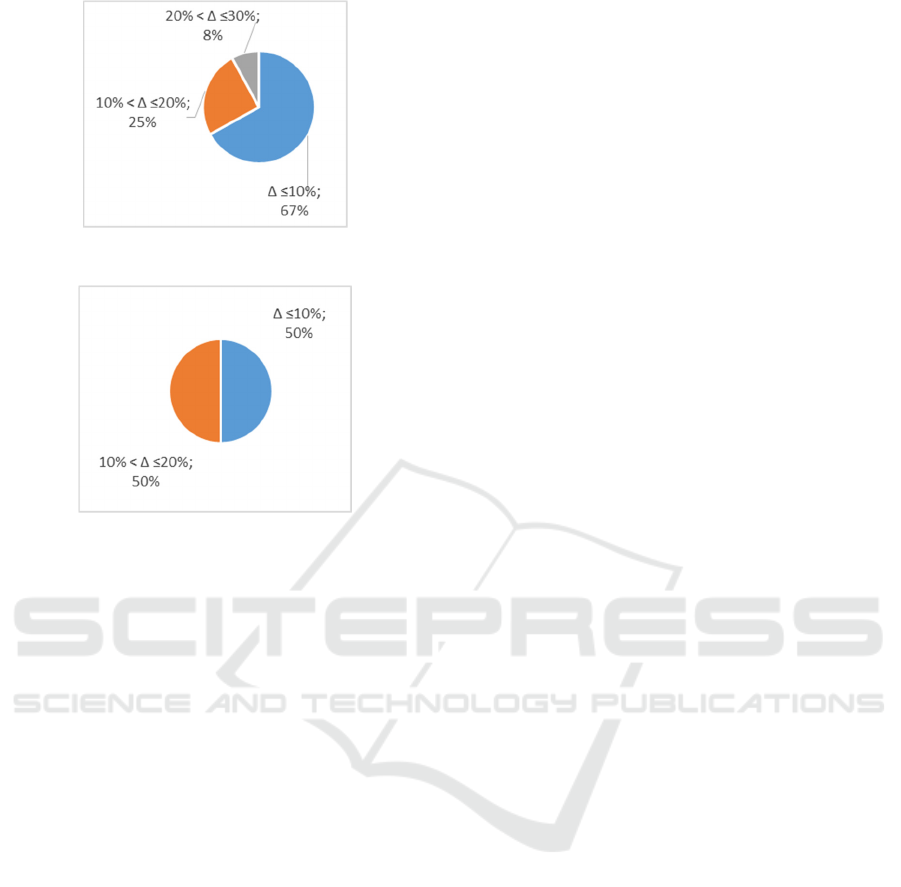

Figure 9: Modeling error distribution (calibration Option 2).

Figure 10: Modeling error distribution (calibration Option

3).

Based on the calibration options 1-3 analysis we

can conclude that the accuracy of the developed

model shows significant growth with the increase in

number of slave nodes in a cluster.

7 CONCLUSION

Based on the performed research we developed an

analytical model that estimates the n-dimensional

Data Warehouse query execution average time for

MapReduce environments with the MFRJ method.

The experiment and modeling results show

that the modeling accuracy grows with the increase in

number of salve nodes. In particular, the error above

20% for 3, 6 and 9 nodes was shown in 8 out of 18

queries. The 9-node runs showed an error rate below

20% for all 6 queries. The demonstrated modeling

accuracy is adequate for the information system

design estimation.

This model checks whether the Data

Warehouse access time is acceptable. This is

especially important for business intelligence systems

with limited response time. The analytical model

application helps a designer to make the right decision

at the right time before the coding is started and well

in advance of the system operation.

The proposed approach can be used for

development of mathematical models for other Data

Warehouse access methods (Zhou & Wang, 2013).

We continue our work on a method for Data

Warehouse with an arbitrary schema (not limited by

the star schema). This method will be based on

cascade application of the Bloom filter and allow

implementing complex SQL queries in the Spark

environment, that cannot be implemented in Hive or

Spark SQL. SELECT operator with a “not equal”

condition applied to a correlated query result is an

example of such complex SQL queries. We work on

a cost model for this method. It will take into account

transformations and operations formed by the query

execution Directed Acyclic Graph and Spark

implementation specifics. A plan can be complex and

represented by an acyclic graph. It works as a

conveyer simultaneously pushing RDD partitions

(table fragments that are stored at the cluster stations)

between the nodes of the graph.

REFERENCES

Abdi, H. (2007) The method of least squares. In N. Salkind,

editor, Encyclopedia of Measurement and Statistics.

CA, USA: Thousand Oaks.

Afrati, F. N. , Sarma, A. D., Salihoglu, S. and Ullman, J. D.

(2012) Upper and lower bounds on the cost of a map-

reduce computation. CoRR, abs/1206.4377,

Proceedings of the VLDB Endowment, Volume 6

Issue 4, February 2013, Pages 277-288, ACM New

York, NY, USA.

Afrati, F.N. and Ullman, J.D. (2010) Optimizing joins in a

map-reduce environment. In Proceedings of the 13th

International Conference on Extending Database

Technology, ACM New York, NY, USA.

Burdakov, A.V., Grigorev, U.A., Ploutenko, A.D. (2014)

Comparison of table join execution time for parallel

DBMS and MapReduce, Software Engineering / 811:

Parallel and Distributed Computing and Networks /

816: Artificial Intelligence and Applications

Proceedings (March 18 – 18, 2014, Innsbruck, Austria),

ACTA Press, 2014.

Digital Ocean (2016), Available: www.digitalocean.com,

[21 February 2017].

Duda, J. (2012) Business intelligence and NoSQL

databases. Information Systems in Management

(2012), Vol. 1 (1), pp. 25-37.

Golfarelli, M. and Rizzi, S. (2009) Data Warehouse

Design: Modern Principles and Methodologies.

McGraw-Hill, Inc. New York, NY, USA. P. 458.

Hejmalíček, B. A. (2015) Hadoop as an Extension of the

Enterprise Data Warehouse. Masaryk university,

Faculty of informatics, Brno, Czech Republic.

Huai, Y., Chauhan, A., Gates, A. et al. (2014) Major

Technical Advancements in Apache Hive, SIGMOD '14

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

214

Proceedings of the 2014 ACM SIGMOD International

Conference on Management of Data, pages 1235-1246,

ACM, New York, NY, USA.

Inmon, W. H. (2005) Building the Data Warehouse, Fourth

Edition. Wiley Publishing, Inc. P. 576, Indianapolis, IN,

USA.

Jeffrey Dean, Sanjay Ghemawat (2004). MapReduce:

Simplified Data Processing on Large Clusters. Sixth

Symposium on Operating System Design and

Implementation (OSDI’04), San Francisco, CA, USA.

Karloff, H., Suri, S. and Vassilvitskii S. (2010) A model of

computation for MapReduce. In Proceedings of the

Twenty-First Annual ACM-SIAM Symposium on

Discrete Algorithms, SODA ’10, pages 938–948,

Philadelphia, PA, USA, 2010. Society for Industrial and

Applied Mathematics.

Kaur, A. (2016) Big Data: A Review of Challenges, Tools

and Techniques. International Journal of Scientific

Research in Science, Engineering and Technology

(IJSRSET), Volume 2, Issue 2, pp. 1090-1093,

TechnoScience Academy.

Koutris, P. and Suciu, D. (2011) Parallel evaluation of

conjunctive queries. In Proceedings of the 30th ACM

SIGACT-SIGMOD-SIGART Symposium on

Principles of Database Systems. ACM, New York, NY,

USA, 223–234.

Li, B., Mazur, E., Diao, Y., McGregor, A. and Shenoy, P.J.

(2011) A platform for scalable one-pass analytics using

MapReduce. In: Proceedings of the ACM SIGMOD

International Conference on Management of Data

(SIGMOD), pp. 985–996, ACM, New York, NY, USA.

Li, F., Ooi, B. C., Özsu, M. T., Wu, S. (2014) Distributed

data management using MapReduce. Journal ACM

Computing Surveys (CSUR), Volume 46, Issue 3,

January 2014, Article No. 31, ACM, New York, NY,

USA.

Palla, K. (2009) A comparative analysis of join algorithms

using the Hadoop Map/Reduce framework. Master’s

Thesis, University of Edinburgh, Edinburgh, UK.

Available:www.inf.ed.ac.uk/publications/thesis/online/

IM090720.pdf, [21 February 2017].

Pavlo, A., Paulson, E., Rasin, A., Abadi, D.J., DeWitt, D.J.,

Madden, S.R. and Stonebraker, M.A. (2009) A

comparison of approaches to large-scale data analysis.

In Proceedings of the 35th SIGMOD International

Conference on Management of Data. ACM Press, New

York, 165–178.

Redmond, E. and Wilson, J.R. (2012) Seven Databases in

Seven Weeks: A Guide to Modern Databases and the

NoSQL Movement. Pragmatic Bookshelf, Pragmatic

Programmers, USA.

Sadalage, P. and Fowler, M. (2012) NoSQL Distilled: A

Brief Guide to the Emerging World of Polyglot

Persistence. Addison Wesley Professional,

Crawfordsville, IN, USA.

Simhadri, H. V. (2013) Program-Centric Cost Models for

Locality and Parallelism. PhD thesis, Carnegie Mellon

University (CMU). Pittsburgh, PA, USA. Available:

www.cs.cmu.edu/~hsimhadr/thesis.pdf, [21 February

2017].

Tao, Y., Lin, W., and Xiao, X. (2013) Minimal mapreduce

algorithms. In Proceedings of the 2013 ACM SIGMOD

International Conference on Management of Data,

SIGMOD ’13, pages 529–540, New York, NY, USA.

ACM.

White, T. (2015) Hadoop: The Definitive Guide, 4th

Edition. O'Reilly Media, Sebastopol, CA, USA.

Wu, S., LI, F., Mehrotra, S. and Ooi, B.C. (2011) Query

optimization for massively parallel data processing. In

Proc. 2nd ACM Symposium on Cloud Computing.

12:1–12:13. ACM, New York, NY, USA.

Zhou, G. Z. and Wang, G. Y. (2013) Cache Conscious Star-

Join in MapReduce Environments. Cloud-I '13

Proceedings of the International Workshop on Cloud

Intelligence, Riva del Garda, Trento, Italy — August

26-26, 2013, ACM New York, NY, USA.

Data Warehouse MFRJ Query Execution Model for MapReduce

215
