Development of Culture-specific Gaze Behaviours of Virtual Agents

Tomoko Koda

1,2

, Taku Hirano

and Takuto Ishioh

Faculty of Information Science and Technology, Osaka Institute of Technology, Osaka, Japan

Graduate School of Information Science and Technology, Osaka Institute of Technology, Osaka, Japan

Keywords: Intelligent Virtual Agents, Human-agent Interaction, Gaze, Non-verbal Behaviour, Cross-Culture, Perception,

Evaluation.

Abstract: Gaze plays an important role in human-human communication. Adequate gaze control of a virtual agent is

also essential for successful and believable human-agent interaction. Researchers in intelligent virtual agents

have developed gaze control models by taking account of gaze duration, frequency and timing of gaze

aversion. However, none of them have considered cultural differences in gaze behaviours. We aim to

investigate cultural differences in gaze behaviours and their perception, by developing virtual agents with

Japanese gaze behaviours, western gaze behaviours, their hybrid gaze behaviours, and full gaze behaviours,

and compare their effects on the impressions of the agents and interactions. This position paper proposes our

research agenda, describes the implemented gaze models, and our experimental design.

1 INTRODUCTION

Intelligent virtual agents (IVAs) that interact face-to-

face with humans are beginning to spread to general

users across cultures, and IVA research is being

actively pursued. IVAs require both verbal and

nonverbal communication abilities to achieve natural

interaction with humans. Among those non-verbal

behaviours, gaze plays an important role in our social

interactions such as controlling the flow of a

conversation, indicating interest and intentions, and

improving listener's attention and comprehension

(Argyle and Cook, 1976; Bayliss et al., 2006).

As in humans, virtual agent's gaze behaviour is

also important to provide natural interaction. Previous

research on modelling gaze behaviour of virtual

agents were conducted to make appropriate turn

management (Pelachaud and Bilvi, 2003), to figure

out where to look at (Lee et al., 2007), to make idle

gaze movements (Cafaro et al., 2009), to express

social dominance by gaze (Bee, 2010), to compare

sensitivity to amount of gaze according to evaluators'

shyness level (Koda et al., 2016), and what the

adequate amount of gaze is to facilitate interaction

(Ishii et al., 2006; Ishii et al., 2008), all of which

report modelling realistic human gaze behaviour to an

agent resulted in more natural and smooth interaction.

However, none of the above IVA research has

addressed and implemented cultural difference in

gaze behaviours, while researchers in psychology

report cultural difference in gaze behaviours and their

perception. We believe there is a strong need to

develop enculturated agents by making them exhibit

culture-specific non-verbal behaviours such as gaze.

In terms of culture-specific gaze behaviours, there

are findings from observation and video analysis of

human-human and human-agent interactions that

show cultural differences. Mayo indicated gaze

patterns differ according to the culture of the

conversant by analysing gaze behaviours in video

recordings of human-human conversations (Mayo

and La France, 1978). Elzinga reported that Japanese

had “more frequent and shorter lasting other directed

gazes” than Australian participants. He also found

that English-speaking participants looked at the other

person to signal turns, while Japanese did not

(Elzinga, 1978). Argyle found that Swedes gaze at

their conversation partner more than English (50% vs.

38% of the time) (Argyle and Cook, 1976).

In terms of perception of gaze behaviours, there

are studies that indicates cultural preferences of gaze

amount that one receives. According to Cook,

favourableness of impression would be a linear

function of amount of gaze a person receives, and the

50% of gaze amount gave the most favourable

impression toward the human gazer in the experiment

conducted in UK (Cook and Smith, 1975). Fukayama

et al., changed the amount of gaze from a virtual agent

Koda T., Hirano T. and Ishioh T.

Development of Culture-speciﬁc Gaze Behaviours of Virtual Agents.

DOI: 10.5220/0006229402910295

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 291-295

ISBN: 978-989-758-219-6

291

by 25%, 50%, 75% and 100% and compared the

agent's impressions by Japanese evaluators. The

results showed 50% amount of gaze was perceived as

most friendly, followed by 75%, then 25% of gaze

amount, but friendly impression plummeted in full

gaze (100%) condition (Fukayama et al., 2002).

If there are cultural differences in performing gaze

behaviours, there should be cultural differences in

perceiving gaze behaviours of other cultures. We aim

to investigate cultural differences in gaze behaviours

and their perception by developing virtual agents with

Japanese gaze behaviours, western gaze behaviours,

their hybrid gaze behaviours, and full gaze

behaviours, and compare their effects on the

impressions of the agents and interactions in this

study. This position paper proposes our research

agenda, describes the implemented gaze models, and

our experimental design.

2 GAZE MODELS

We implemented "western gaze behaviours (WG

hereafter)", "Japanese gaze behaviours (JG

hereafter)", "hybrid gaze behaviours (HG hereafter)",

and "full gaze behaviours (FG hereafter)" to our

virtual agent in order to compare the impression of

different cultural gaze behaviours.

WG is implemented in accordance with the gaze

model proposed by Cassell et al., (1999). Their model

shows western (mostly American) people's gaze

patterns by analysing video recordings of human dyad

conversations. The model shows probability of

"looking away" at the beginning (44%) and the end

(84%) of an utterance. Fig. 1 shows the state

transition diagram of WG at the beginning of an

utterance, and Fig. 2 shows the WG at the end of an

utterance implemented in our WG model. Our WG

also includes a gaze pattern at the end of a question,

where the agent "gazes at" the user (human

participant). The agent "looks away" from the user for

0.5 second 44% of the time at the beginning of an

utterance, then shifts toward a "gaze-at" state. The

agent keeps its gaze toward the user during the

utterance. The agent "looks away" from the user for 2

seconds 84% of the time at the end of the utterance.

The "looks away" timing at the end of the utterance is

calculated by estimating the duration of the

synthesized speech. The agent keeps its "gaze-at"

state toward the user while listening.

JG is implanted in accordance with the gaze

model proposed by Ishii et al., (2006; 2008). Their

model shows Japanese gaze patterns by analysing

video recordings of threesome human conversations.

We implemented JG by modifying their gaze model

for dyad conversations by eliminating the state

transitions to the third person. Fig.3 shows the state

transition diagram of JG. The agent "gazes at" the

user at the beginning of an utterance, keeps the gaze

for 1.1 to 3.1 seconds, and then shifts its gaze to

"vague gaze" (described in section 3) for 3.2-7.9

seconds. The agent shifts its gaze pattern to "gaze-at"

state 67% of the time or to "averted gaze" for 2.0

seconds 33% of the time after the "vague gaze". The

"gaze aversion" is continued 13% of the time or

shifted to" gaze-at" state 87% of the time at the end

of the gaze aversion. The agent follows the gaze

transitions during its utterance and while it is listening.

HG is implemented by combining JG and WG. As

gaze behaviours and patterns are culture dependent

(Mayo and La France, 1978), we implemented HG as

a culture-independent model, neither western nor

Japanese. Fig. 4 shows the state transition diagram at

the beginning and during an utterance. The agent

follows the transition of WG at the beginning of an

utterance, then follows JG during the utterance. The

agent follows the state transition diagram of WG

while listening.

In addition to WG, JG, and HG, we implemented

FG, a full gaze model to the agent as a control gaze

condition.

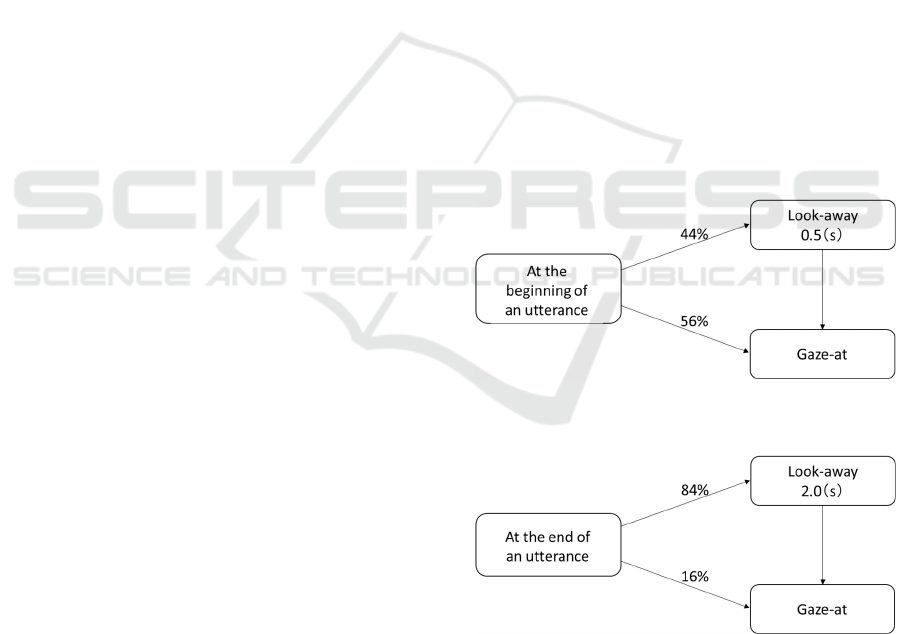

Figure 1: State Transition Diagram of the Western Gaze

Behaviour at the Beginning of an Utterance.

Figure 2: State Transition Diagram of the Western Gaze

Behaviour at the End of an Utterance.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

292

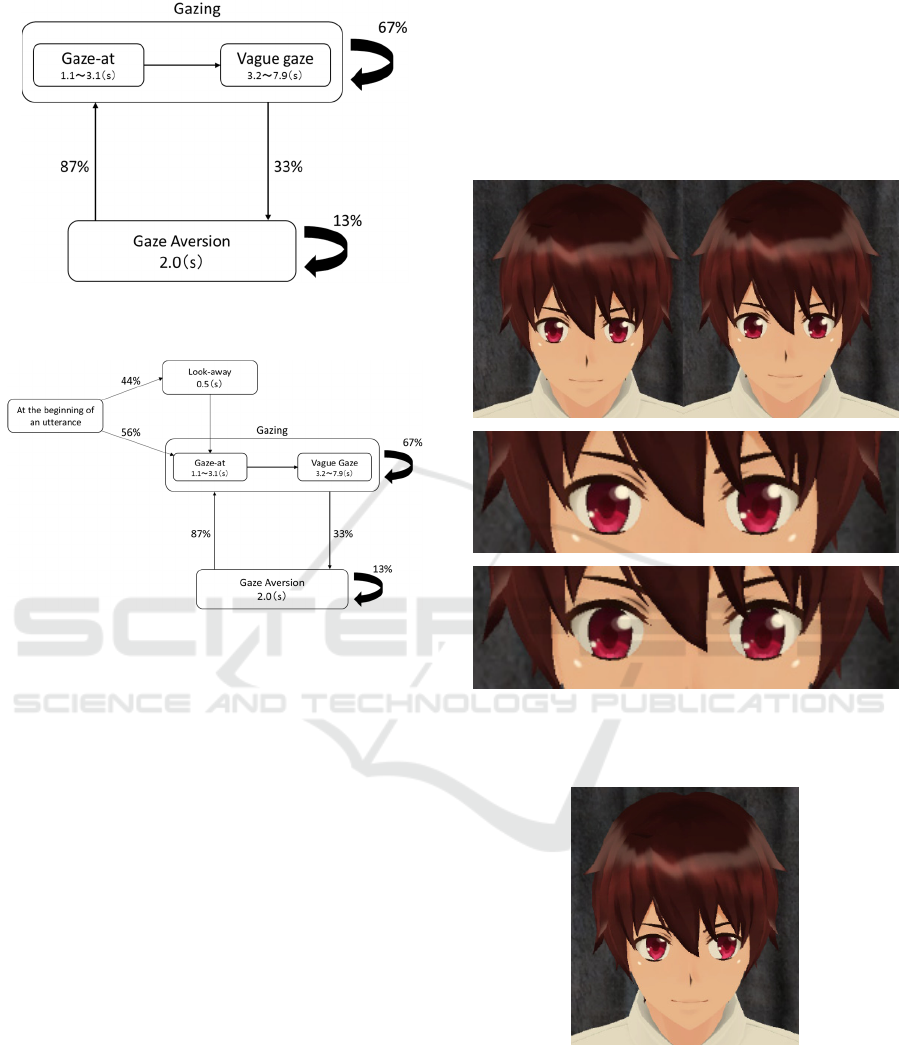

Figure 3: State Transition Diagram of the Japanese Gaze

Behaviour

Figure 4: State Transition Diagram of the Hybrid Gaze

Model

3 VIRTUAL AGENT AND GAZE

ANIMATIONS

The agent's appearance and gaze animations are

developed by Unity 5.2.1fl (https://unity3d.com/) and

Taichi Character Pack asset

(https://www.assetstore.unity3d.com/jp/#!/content/1

5667). The agent's voice was synthesized with AITalk

(http://www.ai-j.jp/english/). The gaze behaviours

implemented to the agent are the four types described

in section 2, namely, "gaze-at", "vague gaze", "look-

away", and "gaze-aversion".

"Gaze-at" is a state where the agent keeps gazing

at a user (shown in Fig. 5 top left and middle). "Vague

gaze" is described by (Ishii, 2006, Ishii, 2008) "in

order to express less-face-threatening eye-gaze in

virtual space avatars", which is implemented as the

agent looks at five degrees lower than the user’s eye

position (shown in Fig. 5 top right and bottom).

"Look-away" is implemented as an animation that

the agent discontinues its gaze for 0.5 seconds and

looks up, as in Gambi's agent (Gambi, 2015) which is

implemented in accordance with the Cassell's western

game model (Cassell et al., 1999). The agent looks up

(in "look-away" state for 0.5 second) before an

utterance (shown in Fig. 6). "Gaze aversion" is

implemented in two directions, to the right and the

left, and each aversion lasts for 2 seconds as in (Ishii,

2008). Validation check for each gaze animation were

conducted by 8 university students.

Figure 5: Agent's Gaze-at State (top left and middle) Vague

Gaze State: 5 degrees lower than gaze-at (top right and

bottom).

Figure 6: Agent's Look-away state.

Development of Culture-speciﬁc Gaze Behaviours of Virtual Agents

293

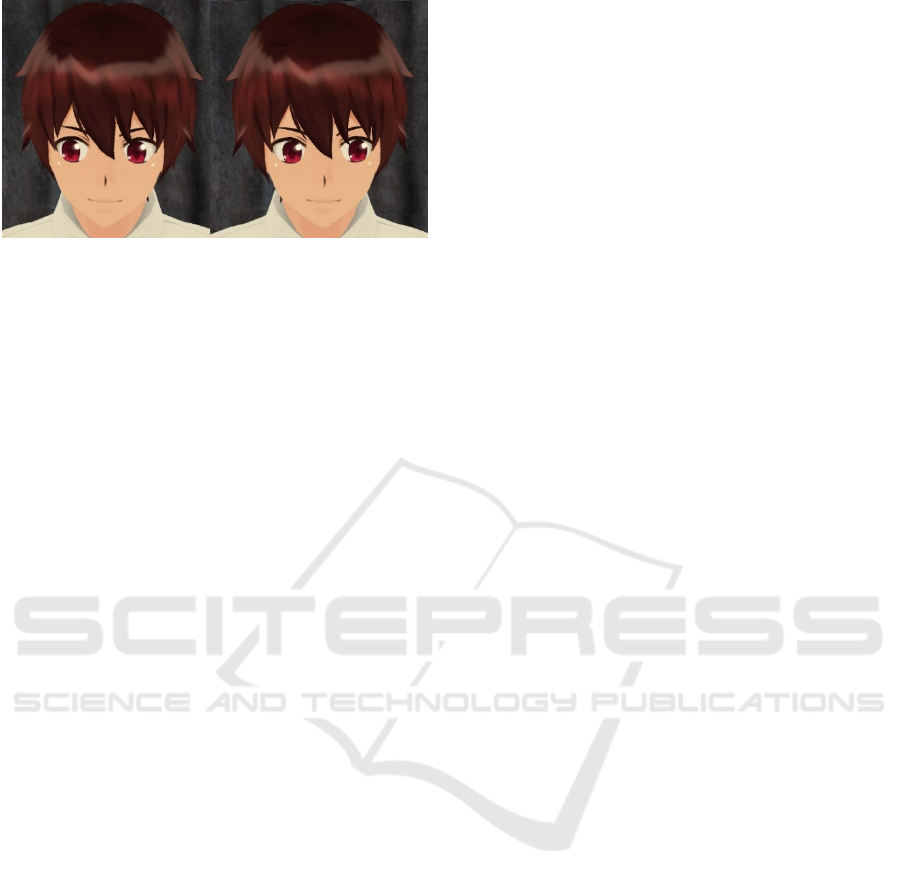

Figure 7: Agent's Gaze Aversion States (to left and right, in

either direction).

4 PROPOSED EXPERIMENT

4.1 Hypothesis

As described in Section 1, researchers in psychology

report cultural differences in gaze behaviours and

their perceptions. These facts and findings lead our

assumption that gaze patterns perceived as friendly

and comfortable are culture-dependent.

Our hypothesis is "If the culture of the gaze model

implemented to the agent is the same as the

participant's culture, the agent of the same cultural

gaze model is perceived as most friendly and

comfortable than other agents."

4.2 Experimental Procedure

The experiment is conducted as a Wizard of Oz

experiment. Participants are asked to have

conversations with a conversational virtual agent in

four conversation sessions. The true purpose of the

experiment is not explained to the participants during

the experiment.

The agent's gaze model and conversational topic

are randomly assigned in each of the four

conversation session in order to minimize the effect

of conversational content. The topics include US

Election, Senior Driving, Pokemon GO, and POP

icons. The agent brings the above issue and asks

opinions to the participants. The agent's reply is

controlled by a Wizard. The participants are asked to

answer a questionnaire in terms of the agent's

likeability, perceived friendliness, comfortableness of

the conversation, perceived stress of the conversation,

and familiarity of the agent's behaviour after each

session.

The experimental conditions are "gaze model (4

models)" and "participant's culture". We will start

with Japanese participants in our first experiment,

then to participants from western cultures. We will

gather participants by asking our research

communities in Japan, US and Europe, and ask their

nationality, their country of origin, and the country

they have stayed longest during the last 5 years to

gather their demographics.

5 CONCLUSIONS

We aim to investigate cultural differences in gaze

behaviours and their perception, by developing

virtual agents with Japanese gaze behaviours, western

gaze behaviours, their hybrid gaze behaviours, and

full gaze behaviours, and compare their effects on the

impressions of the agents and interactions. We

hypothesize "If the culture of the gaze model

implemented to the agent is the same as the

participant's culture, the agent is perceived as most

friendly and comfortable than other agents".

We believe the contribution of the research is to

make us pay more attention to / to be more aware of

cultural differences of gaze behaviours, which we

usually control unconsciously. One of the

applications of this research outcome would be a

cultural training for adequate gaze behaviours of

different cultures in order to facilitate mutual

understandings and decrease possibility of

misunderstandings by misinterpreting other cultures'

gaze behaviours.

ACKNOWLEDGEMENTS

This research is supported by JSPS KAKENHI

JP26330236.

REFERENCES

Argyle, M., Cook, M. 1976. Gaze and mutual gaze.

Cambridge University Press Cambridge.

Bayliss, A., Paul. M., Cannon, P, and Tipper, S. 2006. Gaze

cuing and affective judgments of objects: I like what

you look at. Psychonomic bulletin & review 13(6), pp.

l06l-1066.

Bee, N., Pollock, C., André, E., Walker, M. 2010. Bossy or

Wimpy: Expressing Social Dominance by Combining

Gaze and Linguistic Behaviors. Procs. of Intelligent

Virtual Agents (IVA2010), Springer, pp 265-271.

Cafaro, A., Gaito, R., and Vilhjrilmsson, H. 2009.

Animating idle gaze in public places. Procs. of

Intelligent Virtual Agents (IVA2009), Springer, pp. 250-

256.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

294

Cassell, J., Obed E. T., and Prevost, S. 1999. Turn taking

versus discourse structure. Machine conversations.

Springer US, pp.143-153.

Cook, M. and Smith, M.C. 1975. The Role of Gaze in

Impression Formation, Br. J. Clinical Psychology,

Vol.14, pp.19-25.

Elzinga, R.H. 1978. Temporal Organization of

Conversation, Sociolinguistics Newsletter, 9, 2

(Summer), pp.29-31.

Fukayama, A. et al. 2002. Messages embedded in gaze of

interface agents - impression management with agent's

gaze. Proc. of the SIGCHI (CHI '02). ACM, New York,

pp.41-48.

Gambi, C., Staudte, M., and Torsten, J. 2015. The role of

prosody and gaze in turn-end anticipation. Procs. of the

Annual Conference of the Cognitive Science Society.

Ishii, R, et al. 2006. Avatar’s gaze control to facilitate

conversational turn-taking in virtual-space multi-user

voice chat system. Proc. of Intelligent Virtual Agents

(IVA'06), Jonathan Gratch et al. (Eds.). Springer-

Verlag, Berlin, pp.458-458.

Ishii, R, et al. 2008. Avatar's Gaze Control to Facilitate

Conversation in Virtual-Space Multi-User Voice Chat

System, Journal of Human Interface Society, 10 (1), pp.

87-94, 2008. (in Japanese).

Koda, T., Ogura, M, and Matsui, Y. 2016. Shyness Level

and Sensitivity to Gaze from Agents? Are Shy People

Sensitive to Agent's Gaze? Proc. of Intelligent Virtual

Agents (IVA 2016), 2016 (in press).

Lee, J., Marsella, S., Traum, D., Gratch, J., and Lance, B.

2007. The rickel gaze model: A window on the mind of

a virtual human. Proc. of Intelligent Virtual Agents

(IVA 2007), Springer, pp. 296-303.

Mayo, C., and La France, M. 1978. Gaze Direction in Inter-

racial Dyadic Communication. Meeting of Eastan

Psychological Association. in Harper, R.G. et al.

Pelachaud, C., and Bilvi, M. 2003. Modelling gaze behavior

for conversational agents. Proc. of Intelligent Virtual

Agents (IVA 2003), Springer, pp. 93-100.

Development of Culture-speciﬁc Gaze Behaviours of Virtual Agents

295
