An Approach to Pruning Metamodels like UML

Zhiyi Ma

Software Institute, School of Electronics Engineering and Computer Science, Peking University, Beijing, China

Key Laboratory of High Confidence Software Technologies, Peking University, Ministry of Education, Beijing, China

Keywords: Metamodel, Pruning Algorithm.

Abstract: There are a large number of modeling languages based on metamodels, and many of the languages are large

and complex. In many cases, only part of a metamodel is needed. Hence, it is necessary to automatically

extract needed part from a metamodel. By deeply analyzing the characteristics such as special relations

between packages and step-by-step strictly defining mechanism of modeling concepts, this paper presents

an approach to pruning metamodels like UML as needed. The approach can effectively prune metamodels,

control the size of pruned metamodels, and make pruned metamodels comply with its initial metamodels.

1 INTRODUCTION

With the increase of the scale and complexity of

software, models become important artifacts in

software development nowadays. Such models

usually are built in modeling languages.

A metamodel is a model of models (OMG,

2013), i.e. a model that specifies the language for

building models. In this paper, metamodels are the

ones like UML. That is, a metamodel describes the

abstract syntax and the static semantic meaning of a

modeling language with meta-class diagrams and

object constraint languages, respectively (OMG,

2011b; OMG, 2011c; Flatscher, 2002). The abstract

syntax defines a set of modeling concepts, their

attributes, relationships between them, and the rules

for combining these concepts to build partial or

complete models; the static semantic meaning

typically specifies queries or invariant conditions

that must hold when applying a metamodel, e.g.

UML OCL expressions.

The core of many modeling languages is a

metamodel, with a detailed explanation (text

description in most cases) of the semantics of each

modeling concept, and such languages are called

metamodel-based modeling languages. The

organizations such as International Organization for

Standardization (ISO) and Object Management

Group (OMG) have released a large number of

metamodel-based modeling languages, e.g. OMG

has released more than 200 such specifications, and

many of such specifications have more than one

version, e.g. there are 14 versions of UMLs. With

the development of society, new metamodels will

come forth. In addition, many of the metamodels are

built upon existing metamodels using additional

techniques such as profiling and package merge, and

tend to become bigger and bigger (Frédéric et al.,

2013).

Many metamodel-based modeling languages are

large in size and complex in structure. For example,

the number of the pages of the core part of UML

2.4.1(OMG, 2011a; OMG, 2011b) is more than

1000, its meta-classes are more than 400, and a

meta-class may have many properties. Besides, there

are complex dependency relationships between the

meta-classes. The Common Warehouse Metamodel

(CWM) 1.1 is 600 pages long even without its Core

package. SysML is a profile of UML and nearly 300

pages long without the part of UML specification.

The size and complexity of such metamodels

make it is extremely difficult for language builders

and tool developers etc. to fully identify the

dependencies among concepts and to determine

whether the metamodels capture all required

dependencies (Frédéric, 2013; Robert, 2007).

Moreover, in many cases application modelers only

need to understand and apply parts of metamodels,

not whole.

It is difficult for users, such as application

modelers, transformation rule developers, and

modeling tool developers, to directly study and

apply the metamodels of large and complex

modeling languages. The novices usually first study

Ma Z.

An Approach to Pruning Metamodels like UML.

DOI: 10.5220/0006144004090417

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 409-417

ISBN: 978-989-758-210-3

409

the basic part of the metamodels, and then others.

That is, to learn a language, one should follow the

principle of making gradual and orderly progress.

With the evolvement of modeling languages

(such as UML), it is a trend that one defines

metamodels with more and more multiple

inheritance and deeper and deeper inheritance

hierarchy (Brian, 2005). The trend increases the

difficulty for users to learn and apply the modeling

languages (Dori, 2002). For technical experts, they

also often need to extract information on given

elements of the languages. For example, which

elements are used to define given elements, and

which elements are defined by given elements.

Therefore, it is necessary to extract needed parts

from the metamodels of the modeling languages.

Software models are usually built in general-

purpose modeling languages (such as UML), but

such modeling languages cannot satisfy modeling

requirements of many fields. Therefore, the

modeling languages need to be extended. For

example, OMG has released many UML profiles.

Moreover, the modeling languages will constantly

evolve, with the development of business fields and

software development technologies. The evolution

means to change (i.e. add, delete, and modify)

constructs of the modeling languages. Therefore, it

is necessary to fix the range of influence of an

expansion and a change by calculating the elements

whose definitions are related to the extension and

change (Jiang, 2004). If the work is made manually,

it is tedious and error prone (Rober et al., 2007). The

work can be finished by extracting needed parts

from metamodels.

Model transformation, which transforms source

models into target models, is an important way to

develop applications. Two kinds of models are

usually built by using metamodels. Actually, only

parts of such metamodels are usually used. For

example, in object-oriented development,

transforming persistent classes and relations between

them into tables described in CWM only uses part of

UML’s Classes package and part of CWM’s Record

package. This means transformation rule developers

only need to study and apply needed parts. This

shows that extracting needed parts from metamodels

avails not only modeling but also model

transformation.

As mentioned above, modeling languages and

transformation languages will constantly evolve. For

maintaining existing models, it is usually necessary

to find which modeling elements used to build given

models are affected by the changed elements of the

languages and then to modify the models according

to the modeling elements. The first work can be

completed by extracting needed parts from

metamodels according to evolved elements. Similar

work is for maintaining transformations.

The quality of metamodels is very important

since one uses them to build models. Indeed, there

are defects in many metamodels (Brian, 2005; Ma et

al., 2013). An approach to assure the quality of

metamodels is using divide and conquer strategy, i.e.

extracting needed part around each of the subjects of

the metamodels and inspecting it.

The above analysis shows that, for large and

complex modeling languages, in many cases it is

necessary to extract needed parts from their

metamodels, namely pruning metamodels here.

It is extremely difficult to manually prune such

metamodels. A solution is automatically pruning

metamodels with tools, which may be built based on

the modeling tools that have encoded metamodels,

for example, Rational Rose and Eclipse UML 2. The

tools for pruning metamodels must support a

calculation that can decide which elements are

necessary.

The existing approaches for pruning class models

are not applicable to prune metamodels because

metamodels have their own characteristics (see

Section 2). There is some work on pruning a

metamodel, but such work even has nothing to do

with the architecture and some of the important

characteristics of a metamodel. Therefore, it is

necessary to present a new approach to

automatically pruning metamodels.

By deeply analyzing the characteristics of

metamodels such as the special relations between

packages and the step-by-step strictly defining

mechanism of modeling concepts, this paper

presents an approach to pruning metamodels.

The structure of the paper is as follows. Taking

the case of UML 2.4.1, Section 2 presents an

approach to pruning metamodels; Section 3

discusses the approach; Section 4 analyzes related

work. Finally, conclusions are drawn.

2 CALCULATION METHOD

In metamodels, meta-classes are defined in

packages, and some of them are defined step-by-step

in different packages. For example, meta-class

Classifier first appears in

Infrastructure::Core::Abstraction::Classifier, and

then is further defined in

Infrastructure::Core::Constructs via an import

relation. Therefore, we need to input the specified

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

410

meta-classes and the packages at which the meta-

classes locate when pruning metamodels. They form

a starting point set for pruning a metamodel.

Packages are usually applied to control the

complexity of large metamodels, and thus the size of

a class diagram in a package is not large and it is

unnecessary to limit the relation path length between

meta-classes in a package. However, the dependent

path length between packages is considerable (for

example, the maximum dependent path length

between packages in UML2.4.1 is 7), and thus the

length may be limited to get a smaller size

metamodel. For example, one usually learns a

concept from the near to the distant around it. For a

given meta-class, if the path length from the package

including it to the related packages is not specified,

the default value is the maximum dependent path

length from the package which it locates at to the

related packages, here we mark the default value is

@; if the length is 0, this means that the metamodel

in the package at which the given meta-class locates

is only calculated.

In some cases, it is necessary for users to specify

which packages, meta-classes, and properties of the

meta-classes are undesired. For example, business

process modeling does not need the State Machines

package and Components package of UML, and

sometime not modeling elements such as

ActionInputPin and OutputPin in UML::Activities

package.

The desired limit on dependent path length

between packages, and the undesired packages,

meta-classes, and properties of the meta-classes are

the optional parameters for pruning metamodels.

A metamodel is pruned according to a starting

point set and optional parameters, see Figure 1.

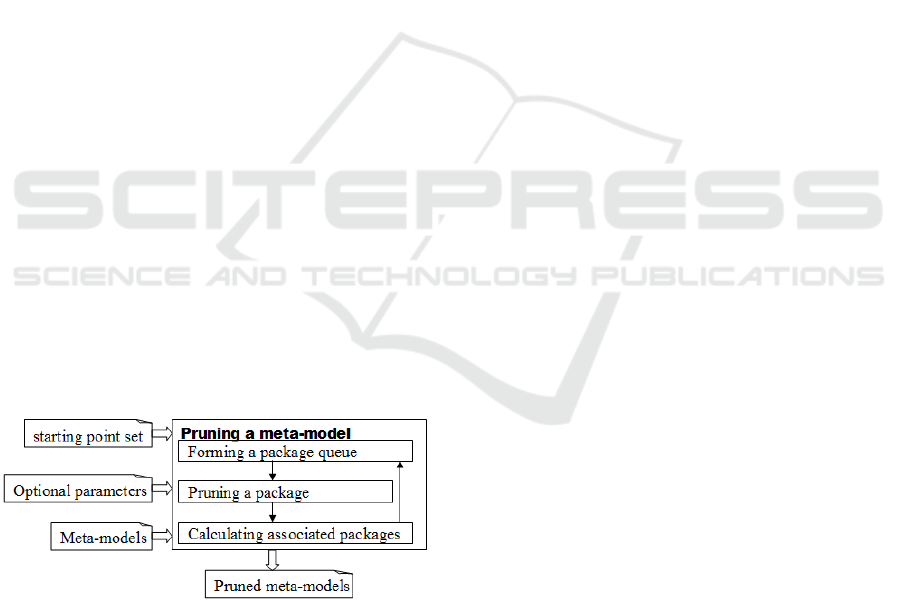

Figure 1: Overview of the pruning method.

The following are the steps of pruning a

metamodel. First, packages at which specified meta-

classes locate are processed in an arbitrary order to

form a package queue, since our calculation method

is independent of the order of calculating packages.

Then each package in the queue is pruned, and the

packages that relate to each package in the queue are

added into the queue and recursively calculated. In

the calculation, it is necessary to record the visited

packages, relations between the packages, and the

pruned class diagrams in these packages. Finally, the

recorded elements are the output of pruning the

metamodel.

Pruning an innermost package, which only

includes class diagrams, means extracting the meta-

classes associated with specified meta-classes. The

paper calls the pruning algorithm as the pruning

single package algorithm.

The following discusses how to calculate the

associated packages. Some meta-classes in a

package may depend on meta-classes in other

packages, that is, the package may import and merge

other packages. These meta-classes are grouped

according to each package which they depend on,

respectively, and the meta-classes in each group are

taken as input to calculate the related package,

respectively. The calculating results may still depend

on the meta-classes in other packages, thus the

calculation above is continued until the packages

that do not depend on other packages or whose

dependent path length is more than the specified

value.

For a processed package, if it is calculated again,

the results of two calculations need to be merged.

For example, taking package Kernel in UML

Superstructure as input for pruning the metamodel,

PrimitiveTypes package is calculated twice

according to the dependency relations and the two

calculating results are usually different, thus it is

necessary to merge the two results.

For the given meta-classes and packages as

pruning inputs, we can calculate the elements that

define them and the elements which they define,

since metamodels describe how to define

metaclasses with other ones. We refer the first

calculation as backward pruning and the second as

forward pruning.

We first discuss backward pruning, then explain

how to do forward pruning based on the backward

pruning method.

2.1 Pruning Single Package Algorithm

A package may include more than one class

diagram. The paper merges the class diagrams in a

package into one for the sake of the convenient

calculation since many object-oriented modeling

tools can merge class diagrams.

To backward prune a package, we need to

consider the following cases:

(a) For each specified meta-class from input, its

An Approach to Pruning Metamodels like UML

411

parent meta-classes are recorded first, and then

the parent meta-classes of its parent meta-classes

are recorded, …, in this way, until the classes

without any parent meta-class.

(b) For each recorded meta-class, the meta-classes

with which it directly associates first are

recorded, and then the unvisited meta-classes

with which each of these meta-classes directly

associates are recorded, …, in this way, until the

meta-classes without any associated meta-class.

have submetaclasses, because it inherits the

meta-association relations of their parent meta-

classes, its submetaclasses first are recorded, and

then the submetaclasses of each of the

submetaclasses are recorded, …, in this way,

until the meta-classes without any

submetaclasses.

The three cases need to be considered together in

following algorithms, not just sequentially.

To deal with the cases in the pruning single

package algorithm, we need three definitions and

one function.

Definition 1. A class diagram G is a 2-tuple G:=

(V, E) where V is a set of meta-classes, and E is a

set of relations between meta-classes. The relations

are divided into meta-inheritance, meta-association,

and meta-combination.

Definition 2. A package P is a 5-tuple P:=<G,

Creq, NCreq, NPreq, OCLExps> where Creq is a set

of the specified meta-classes, NCreq is a set of the

specified undesired meta-classes, NPreq is a set of

the specified undesired properties of all meta-

classes, and OCLExps is a set of constraint

expressions by written in OCL (OMG, 2003). The

default value of Creq is all meta-classes in P, and the

default values of NCreq, NPreq, and OCLExps all

are null.

Definition 3. If a meta-class x is a submetaclass

of a meta-class y, or x can navigate to y via a meta-

association or meta-combination, y is an adjacent

point of x. In the latter case, if y has a submetaclass

z, z is an adjacent point of x.

Function 1. OCLRelatingMetaclasses

(OCLExps,v), for a given class diagram, returns all

meta-classes except meta-class v in the OCL

expressions that include v.

The following is algorithm for pruning a single

package P.

Algorithm 1: CalcPackage(P).

1 Initialization

FOR EACH v∈P.G.V DO visited[v]:=false;

ClassSet:=Ø;

2 Calculate related meta-classes in OCL

expressions of P

FOR EACH v∈P.Creq DO

ClassSet←ClassSet ∪ OCLRelatingMeta-

classes (P.OCLExps, v);

P.Creq ←P.Creq ∪ClassSet;

3 Delete the specified undesired meta-classes

P.Creq ←P.Creq–P.Ncreq;

4 Recursively prune the metamodel in P, taking

each needed meta-class as a starting point

FOR EACH v∈P.Creq DO

IF visited[v]=false THEN CALL Traversal

(P, v)

In a meta-class diagram, there are usually meta-

associations and meta-combinations, that may be

unidirectional or bidirectional. For a bidirectional

relation, if it has been traversed and marked in a

direction, Traversal (P, v) does not traverse it from

another direction since it has been marked.

Algorithm 2: Traversal(P, v).

1 Delete the specified undesired properties of

meta-classes v

v.Attributes←v.Attributes – P.Npreq;

2 Mark v , i.e. v is visited.

Mark(v);

3 Get the first adjacent point of v in P

w:=FIRSTTADJ(P.G, v);

4 Recursively calculate all related meta-classes,

taking v as a starting point

WHILE w≠0 DO

4.1 If w is not visited and is not an undesired

meta-class, record the relation between v and w, and

then calculate all related meta-classes taking w as a

starting point.

IF visited[w] = false AND NOT w∈P.NCreq

THEN Mark (<v, w>); Traversal (P, w);

4.2 get next adjacent point

w:=NEXTADJ(P.G, w);

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

412

2.2 Pruning Whole Metamodel

Algorithm

We already know that there are 3 kinds of relations

between packages. Include means that a package is

included in another package, and the meaning

reflects in the package path names.

Though import and merge are different relations

between packages, they all means that the defining

meta-classes in a package needs to use meta-classes

in another package, thus the paper deals with two

relations as dependency relation for pruning

metamodels. For a package depended on by a set of

meta-classes, these meta-classes are the input of

pruning it. Such packages are added into a package

queue to wait for calculation.

Since the definition of a meta-class in a package

may depend on the meta-classes in other packages, it

is necessary to calculate these packages if they are

not undesired packages and their path lengths are not

more than given maximum dependent path length.

To deal with the above cases in the pruning

whole metamodel algorithm, we need one definition

and six functions.

Definition 4. A metamodel MM is 2-tuple

MM:=<V, E> where V is a set of packages, E is a

set of dependency relations between packages. The

relations are divided into include, import, and

merge.

Function 2. PathLength(p) returns the maximum

length of dependent paths from package p being

calculated to a set of specified starting point

packages, which are input for pruning.

Function 3. CalcImportingPackages(p) returns all

package names that are used in the package p.

Function 4. CalcImportingElements(p, pi) returns

a set that consists of all meta-classes whose package

prefix name is pi in package p.

Function 5. CalcMergingPackages(p) returns the

names of the packages that are direct and transitively

merged by p and have the same name meta-classes

with p.

Function 6. CalcMergingElements(pi) returns a

set that consists of all meta-classes whose names are

in package pi.

Function 7. Add(Pqueue, (pi, CalcElements(p,

pi)) adds a package with a set that consists of needed

meta-classes into a package queue Pqueue.

The following are the parameters of the pruning

algorithm for entire metamodels. MM is a source

metamodel. A package queue Pqueue is formed with

the packages which the specified meta-classes locate

at. NPackage is a set that is formed with the

specified undesired packages. MaxLength is the

specified maximum dependent path length between

packages.

Algorithm 3: PruningMetamodel(MM, Pqueue,

NPackage, MaxLength).

1 Initialize a metamodel

MMt←MM

2 Delete undesired packages

MMt←Delete(MMt, NPackage)

3 Calculate each package in Pqueue

FOR EACH p in Pqueue do

IF PathLength(p) ≦MaxLength THEN

3.1 Call the pruning single package algorithm

and mark the pruned package

CALL CalcPackage (p); Mark(p);

3.2 If PathLength(p) ≠ MaxLength, calculate

the dependent packages of P and the related

meta-classes belonging to each of these

packages. These packages are added into

Pqueue, and the relations between the

packages are marked.

IF PathLength(p) ≠MaxLength

3.2.1 For importing packages

PDep←CalcImportingPackages(p);

FOR EACH pi in PDep DO

pi.Creq=alcImportingElements(p, pi);

Add(Pqueue, pi); Mark(<p, pi>);

3.2.2 For merging packages

PDep←CalcMergingPackages(p);

FOR EACH pi in PDep DO

pi.Creq=CalcMergingElements(p, pi);

Add(Pqueue, pi); Mark(<p, pi>);

4 Delete not marked elements

4.1 Delete not marked packages and the

relations between them

FOR EACH p∈MMt.V DO

IF Unmarked(p) THEN Delete(MMt, p);

FOR EACH e∈MMt.E DO

IF Unmarked(e) THEN Delete(MMt, e);

4.2 Delete not marked meta-classes and the

relations between them

FOR EACH P ∈MMt.V DO

FOR EACH v∈P.G.V DO

IF Unmarked(v) THEN Delete(P.G, v);

FOR EACH e∈P.G.E DO

IF Unmarked(e) THEN Delete(P.G, e);

An Approach to Pruning Metamodels like UML

413

The algorithms above are applied to backward

pruning, i.e. to find which elements are used to

define given elements. The following discusses

forward pruning, i.e. to find which elements are

defined by given elements.

To forward prune a package, we need to consider

the following cases:

(a) For each specified meta-class from input, its

submetaclasses first are recorded, and then the

submetaclasses of each of its submetaclasses are

recorded, …, in this way, until the meta-classes

without any submetaclass.

(b) For each recorded meta-class, the meta-classes

with which it directly associates first are

recorded, and then the meta-classes with which

each of these meta-classes directly associates are

recorded, …, in this way, until the meta-classes

without any associated meta-class.

Comparing with the backward pruning, we need to

redefine adjacent point in the definition 3, and

change the definitions of functions 3, 4, and 5.

Except for these, forward pruning algorithms are the

same as backward pruning algorithms. That is, we

can use backward pruning algorithms to implement

forward pruning with these redefined concept and

functions.

Definition 3’. If a meta-class x is a parent meta-

class of a metaclass y, or x can navigate to y via a

meta-association or meta-combination, y is an

adjacent point of x.

Function 3’. CalcImportingPackages(p) returns

the names of all packages that depend on package p.

Function 4’. CalcImportedElements(p, pi) returns

a set that consists of all meta-classes whose package

prefix name is p in package pi.

Function 5’. CalcMergingPackages(p) returns the

names of all packages that direct and transitively

merge package p and have the same name meta-

classes with p.

3 DISCUSSION

First, it should be pointed out that the approach can

be used to prune the other metamodels developed by

using MOF, though the paper takes the case of UML

in many places.

There are several application areas where the

approach can make its useful contributions:

a) Gaining needed part of a metamodel for study

Using backward pruning, users such as modelers and

transformation rule builders can get and study

needed part of a metamodel.

b) Evolving and extending modeling languages

Even if one attribute of a meta-class (as an extension

point) in a large metamodel is changed, it is usually

difficult to manually fix its influence scope. Fixing

the influence scope of the extension points with our

forward pruning algorithms is the work of very

significance for evolving and extending modeling

languages.

c) Gaining needed part of a metamodel for model

transformation

It is easy to get needed part with our backward

pruning algorithms. The resulted part includes not

only package diagrams and meta-class diagrams

extracted from the metamodel but also the code file

extracted from the metamodel. The reason is that a

metamodel built with a metamodeling tool is stored

in code files that describe the elements of

metamodels and the relations between the elements,

not just diagrams

(OMG,2011c), and such tool

supports a bidirectional mapping between the

diagrams and the code files.

d) Fixing the range of influence of a change of a

metamodel and inspecting models

Taking modeling elements (i.e. concrete

metaclasses) used to build the existing models and

transformation rules and the old and new versions of

a metamodel as input of our backward algorithms,

respectively, users can fix the range of the influence

of the change of the metamodel by comparing the

differences between two pruning results, and further

inspect the influence on the models according to the

modeling elements in the range.

e) Finding and handling defects

Using the divide-and-conquer strategy, we can

extract part of a metamodel around a subject with

the approach, and then find and handle defects, even

measure the quality of the part.

The following discussions focus on other aspects

of the approach.

a) Feasibility

Modularity, layering, partitioning, extensibility, and

reuse are five design principles of metamodels

(

OMG,2011b). Such principles ensure that the built

metamodels are well structured and their

components such metaclasses and packages all have

independence. This provides a foundation for

pruning metamodels with good effects.

b) Flexibility

The approach not only can bidirectionally (i.e.

forward and backward) prune metamodels, and but

also has a good scalability for controlling size of

pruned metamodels. To do this, users can specify the

desired and undesired packages, meta-classes,

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

414

properties of the meta-classes, and a dependent path

length between packages.

c) Precision and Recall

Since a metamodel describes the abstract syntax of a

modeling language with meta-class diagrams and

package diagrams, the key to

accurately and completely extract needed part of the

metamodel is parsing the relations between the

elements of the metamodels, i.e. which elements are

used to define given elements, and which elements

are defined by given elements.

For a package, the algorithms 1 and 2 traverse

metaclasses inside it according to the relations

between them, i.e. generalizations and associations

(including combinations), and if and only if the

metaclasses between which there are such relations

are extracted. This assures that needed metaclasses

all can be extracted and extracted metaclasses all are

right. It should be pointed out that when the

algorithms extract metaclasses with OCL

expressions, there may be superfluous metaclasses

because OCL expressions are not deeply parsed in

semantics.

Similarly, for the overall package structure of a

metamodel, the algorithm 3 traverses packages

according to the relations between them, i.e.

inclusions, imports, and merges, and if and only if

the packages between which there is such relations

are extracted. This assures that needed packages all

can be extracted and extracted packages all are right.

d) Tool Support

The algorithms used in the approach can be

implemented in object-oriented modeling tools built-

in metamodels without too much difficulty. The

modeling tools can build package models and class

models with package diagrams and class diagrams,

respectively, and can save the models as XML files

or the others. The built-in metamodels are also

described in XML files or the others in the object-

oriented modeling tools, and thus it is not difficult

for the tools to show the built-in metamodels as

package diagrams and meta-class diagrams.

Therefore, it is feasible to integrate the module that

implements the approach with the tools.

e) Compliance

According to explicit relations (such associations

and inheritances) and implicit relations analyzed

from OCL expressions, the approach only traverses

and extracts elements from a metamodel for forming

a new metamodel, and does not modify and add

metamodel elements, and thus the new metamodel

holds only necessary and sufficient metamodel

elements according to the given pruning parameters.

This means that all instances (models) of the pruned

metamodel are also instances of the initial input

metamodel, that is, the extracted metamodel still

complies with the original one.

f) Limitation and Future Research

When handling OCL expressions in the approach, if

a needed meta-class appears in an OCL expression,

the other meta-classes in the expression all are

related to the meta-class. In fact, some of the meta-

classes are unrelated, and related meta-classes can

be classified as direct correlative meta-classes and

conditional correlative ones. If an OCL expression

includes conditional statements, distinguishing

different alternative segments of a metamodel (e.g.

labeling or coloring) is better treatment. The above

work can be finished by aid of an OCL parser.

As for the input of the pruning metamodel

algorithms, what the paper gives are a metamodel,

specified packages, and options, etc. We plan to

consider the necessity to take meta-relations as the

input of the pruning algorithms.

Our algorithms only can prune the metamodels

like UML, and we also plan to study other kinds of

metamodels to provide a general pruning approach.

g) Threats to Validity

Because we measure UML 2.4.1 in terms of counts

for metamodel elements and relations between the

elements, there is no threat to the measurements.

The metamodels like UML all are defined in

MOF or extended based on UML, CWM, SysML,

and SPEM etc. that also are defined in MOF, and

thus the principle of building these metamodels is

the same as UML’s. Therefore, UML 2.4.1 is a

representative of metamodels like UML in the paper

and our algorithms have universality for pruning

metamodels like UML.

A possible threat is lack of a formal proof of the

correctness of the algorithms since the proof is a

supplemental proof.

4 RELATED WORK

Sagar Sen et al., present a metamodel pruning

algorithm (2009). They omit that package is an

important mechanism for organizing the elements of

a lager metamodel into groups, and think that the

multiplicity * of UML is optional, and thus delete all

meta-associations with *. In fact, multiplicity is a

specification of the range of allowable cardinalities

which an entity (including a relation) may assume

(OMG, 2011a), and thus multiplicity * has specific

semantics for defining metamodel elements. Their

algorithm only considers the meta-classes appearing

An Approach to Pruning Metamodels like UML

415

in OCL expressions, and not the meta-classes related

to these meta-classes just because the related meta-

classes do not appear in the OCL expressions. Arnor

Solberg et al. point out the importance of pruning

metamodels from the aspects of model-driven

development and aspect-oriented modeling (2009),

but do not further give solutions. Jung Ho Bae et al.,

propose an algorithm for pruning small metamodels

for seven types of UML diagrams (2008), and their

algorithm does not consider packages and OCL

expressions in UML metamodel and optional

parameters.

For the comprehension and maintenance of

metamodels, Strüber et al., present a tool that

supports the decomposition of a meta-model into

clusters of metamodel elements (Daniel et al., 2013).

They apply clustering algorithms to obtain segments

of metamodels, and our algorithm is for extracting

the needed submetamodels that are complete in

syntax and semantics according to the definition

relations between metaclasses.

The static slicing technologies of class models

are similar to ours. Jaiprakash et al. present an

algorithm for static slicing of UML architecture

models (2009), and their slicing criterion only

consists of one class and one message. Huzefa Kagdi

et al., propose an idea to enrich slicing criterion

(2005), and only defines several concepts for

context-free slicing of single UML class model.

Fangjun et al propose a slicing algorithm for class

diagrams (2004), and their algorithm is designed for

dependence analysis for class diagrams by simply

finding all relevant classes for a given class. Arnaud

et al. present a language to build model slicers

(2011), which can extract model slices from domain-

specific models, and the built slicers can take

dependent path length, optional classes, and optional

properties as input, but do not take into account

OCL expressions and packages, and thus their work

is unsuited to prune metamodels.

5 CONCLUSIONS

The metamodels are important information sources

with their own characteristics, and one only needs

parts of the large and complex metamodels in many

cases. According to the characteristics, the paper

presents an approach to automatically bi-

directionally extract needed part from a metamodel

like UML by parsing network structure of packages

and calculating metaclass models. Moreover, a

pruned metamodel complies with its initial

metamodel, and its size is agilely controlled with

input options. The approach can service to a variety

of applications that need to prune metamodels.

ACKNOWLEDGEMENTS

The work supported by the National Natural Science

Foundation of China (No. 61672046).

REFERENCES

Arnaud Blouin et al. (2011) ‘Modeling Model Slicers’,

MoDELS, LNCS 6981, 62-76.

Arnor Solberg, Robert France, and Raghu Reddy. (2005)

‘Navigating the MetaMuddle’. In: Proceedings of the

4th Workshop in Software Engineering and

Application, Jamaica, 2005, 315-321.

Brian Henderson-Sellers. (2005) ‘UML– the Good, the

Bad or the Ugly? Perspectives from a panel of

experts’, Software System Model, 2005(4), 4–13.

Daniel Strüber,Matthias Selter, and Gabriele Taentzer.

(2013) ‘A Tool support for clustering large meta-

models’. Proceeding. In: Proceedings of the Workshop

on scalability in model driven engineering, NY, USA

,2013. ACM New York, 1-4.

Dori Dov. (2002) ‘Why significant UML change is

unlikely’, Communications of the ACM, 45(11), 82–

85.

Fangjun W. and Tong Y. (2004) ‘Dependence analysis for

UML class diagrams’, Journal of Electronics, 2004,

21(3), 249–254.

Flatscher RG. (2002) ‘Metamodeling in EIA/CDIF –

Meta-metamodel and Metamodels’ ACM Trans.

Modeling and Computer Simulation, 12(4), 322–342.

Frédéric Fondement, Pierre-Alain Muller, Laurent Thiry,

Brice Wittmann, and Germain Forestier. (2013) ‘Big

Metamodels Are Evil’. Model-Driven Engineering

Languages and Systems, Lecture Notes in Computer

Science, Volume 8107, 2013,138-153.

Huzefa Kagdi, Jonathan I. Maletic, Andrew Sutton. (2005)

‘Context-Free Slicing of UML Class Models’. In:

Proceedings of the IEEE International Conference on

Software Maintenance. Washington, 2005,635 – 638.

Jaiprakash T. Lallchandani and R.Mall. (2009) ‘Static

Slicing of UML Architectural Models’, Journal of

Object Technology, Vol. 8(1), 159-188.

Jiang Yangbing, Weizhong Shao, Lu Zhang, Zhiyi Ma,

Haohai Ma. (2004) ‘On the Classification of UML’s

Meta Model Extension Mechanism’, Lecture Notes in

Computer Science,3273, 54-68.

Jung Ho Bae, Heung Seok Chae. (2008). ‘UMLSlicer: A

Tool for Modularizing the UML Metamodel using

Slicing’. In: Proceedings of the IEEE 8th

International Conference on Computer and

Information Technology, Sydney, 2008,772–777.

Ma Zhiyi, Xiao He, Chao Liu. (2013) ‘Assessing the

quality of metamodels’, Frontiers of Computer

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

416

Science,Volume 7(4), 558-570.

OMG. (2003) UML 2.0 OCL Specification. OMG ptc/03-

10-14.

OMG.(2011a) Unified Modeling Language Superstructure

Version 2.4.1. OMG formal/2011-08-06.

OMG. (2011b) Unified Modeling Language Infrastructure

Version 2.4.1. OMG formal/2011-08-05.

OMG. (2011c) Meta Object Facility (MOF) 2.0

Query/View/Transformation Specification. OMG

formal/2011-01-01.

OMG. (2013) Meta Object Facility (MOF) 2.4.1. OMG

formal/2013-06-01.

Robert France and Bernhard Rumpe. (2007) ‘Model-

driven Development of Complex Software: A

Research Roadmap’. In: Proceedings of the 2007

Future of Software Engineering, France.IEEE,37–54.

Sagar Sen, Naouel Moha, Benoit Baudry, and Jean-Marc

jezequel. (2009) ‘Metamodel Pruning’, MoDELS,

LNCS 5795, 32-46.

An Approach to Pruning Metamodels like UML

417
