LiquidML: A Web Modeling Language Supporting Fast Metamodel

Evolution

Esteban Robles Luna

1

, Julián A. García-García

3

, Gustavo Rossi

1, 2

, José Matías Rivero

1, 2,

Francisco Domínguez Mayo

3

and María José Escalona

3

1

LIFIA, Facultad de Informática, UNLP, La Plata, Argentina

2

Conicet, Caba, Argentina

3

Web Engineering and Early Testing Group, University of Seville, Seville, Spain

Keywords: Evolution, Model-based Development, Self-reflective, Web Development.

Abstract: Model Driven development approaches are being adopted by the software industry due to a core set of

benefits such as raising the level of abstraction and reducing coding errors. However, their underlying

modelling languages tend to be quite rigid, making their evolution hard, specifically when the

corresponding metamodel do not support primitives and/or functionalities required in specific business

domains. In this work, we present an approach for fast evolution of the modelling language that is “self

reflective”, allowing modellers to abstract new language concepts from the primitives. The main advantage

of our approach is that it provides zero application downtime and automatic tool evolution. As a

consequence, applications created with our approach are able to adapt quicker to the business needs than

those based on traditional Web modelling languages. We compare our approach with existing modelling

languages in a case study providing a proof of its ability to adapt faster than to new business needs.

1 INTRODUCTION

During the last couple of years a myriad of

Technologies and Languages (T&L) have been

developed to simplify and speed up the process of

Web application development and maintenance.

These T&L range from development frameworks

such as GWT (GWT, 2016), JQuery (JQuery, 2016)

to non-relational databases such as MongoDB

including tools that help you monitor the running

application (to keep the application running 24x7)

such as New relic (New Relic, 2016). Most of these

T&Ls have been developed in the industry and are

based on coding activities while only a few domain

specific languages (DSL) for Web application

development (Ceri et al, 2000; Escalona et al, 2008;

García-García et al, 2014) have been developed in

the Academia and have real world application

(Escalona et al, 2013). These Web DSLs are

generally based on MDE (Model-Driven

Engineering) (Schmidt, 2006) or MDD (Model-

Driven Development) (Pastor et al, 2008) and thus

require a model to code transformation in order to

obtain a running application.

In addition to these T&L, the industry has shifted

from traditional cascade development approaches to

agile practices. Through constant communication

between stakeholders and software reusability and

adaptability to change, these practices have reduced

software development costs. The necessity for quick

changes has surged due to the huge number of

applications that makes harder to acquire and

withhold users active in the Web site. As a

consequence, the ability to make small but effective

changes in a matter of 1 to 3 days became

increasingly important and affects the decision of

which T&Ls to be used. A clear example of this

issue is the introduction of A/B testing techniques to

help with the analysis of which design version of a

new feature will be implemented in full. To achieve

it, each version of the feature is partially

implemented and presented in a production

environment while usage data is recorded.

Afterwards, a usage analysis report is generated,

making the choice of which design suits better (e.g.

makes the users more active or improves user

retention) a simpler decision. Then the design must

be implemented in full within the next couple of

days.

318

Luna, E., García-García, J., Rossi, G., Rivero, J., Mayo, F. and Escalona, M.

LiquidML: A Web Modeling Language Supporting Fast Metamodel Evolution.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 318-326

ISBN: 978-989-758-186-1

Copyright

c

In this context, a common problem that these

DSL share is their inability to evolve fast as the

underlying business requirements change, e.g.

introducing new modelling primitives for

accelerating the implementation of a project with

tight deadlines when fine-grain business-related

requirements arise. In those cases, where the current

metamodel does not support the desired

functionality, a set of activities needs to be

performed in the development environment to adapt

to it, including: Extend the metamodel with new

concepts; Extend the transformation engine to derive

the desired code; Perform a full round of tests of the

new functionality; Adapt the tooling to add the new

elements in the user interface; Deploy the new

version into modelers’ machines.

Depending on the metamodel change, these

activities can take an amount of time that a project

might not tolerate. A workaround to this problem

can be achieved if the modeling environment

supports hooks where modelers can introduce pieces

of programming code that are taken into account

during code derivation (Ceri et al, 2000). However,

if that workaround needs to be applied to multiple

model elements, it can be time consuming and error

prone – implying also a violation of model’s

abstraction, which is one of the primary advantages

of using a Model-Driven process.

Our approach overcomes this problem by

allowing modelers to “abstract” concepts from

existing models following a modeling by example

approach. That is, when an aspect of the application

can be captured in a reusable concept, the

implementation environment allows modelers to

select the elements from the models and abstract a

new concept that gets automatically integrated in the

language. Additionally, the approach takes care of

the whole development lifecycle by including the

new concept in the derived application and thus

minifying the hassle of evolving the metamodel.

In this paper we present the runtime environment

and the implementation of our model-based

approach that minifies the difficulties of metamodel

evolution. The theoretical foundation of our proposal

is described in (Robles et al, 2014) and it is named

LiquidML. LiquidML allows building applications

that can be modeled using the message-passing

paradigm (Hohpe et al, 2003). We present the

approach using a simple Web application where a

weather component needs to be introduced into the

language primitives.

Rest of the paper is structured as follows: in

Section 2 we present the LiquidML environment,

describing its primitives and its ability to abstract

new concepts. We provide details about how these

aspects are translated into a production environment

by presenting the LiquidML’s runtime environment

in Section 3. We introduce part of the

implementation in Section 4. Finally in Section 5 we

describe some related work and in Section 6 we

present some conclusions and future work.

2 LiquidML

In the following subsections we introduce the

LiquidML modeling environment.

2.1 Overview

LiquidML (Robles et al, 2014) is a modeling

language that allows modelers to create applications

based on the message passing paradigm (Hohpe et

al, 2003). There are many different subtypes of

applications that can be built using LiquidML

including Web and Integration applications. This

work focuses on the Web aspects of LiquidML and

as a consequence we will emphasize the relationship

between LiquidML, other modeling languages such

as WebML and NDT (Escalona et al, 2008; García-

García et al, 2014) and the actual Web Application.

Applications models built with “conventional”

approaches (e.g. WebML) are transformed into code

that is run inside a Web container such as Apache

Tomcat or a PHP server. The basic primitives in

these languages abstract high level entities such as

Web page, domain objects and usual behaviors such

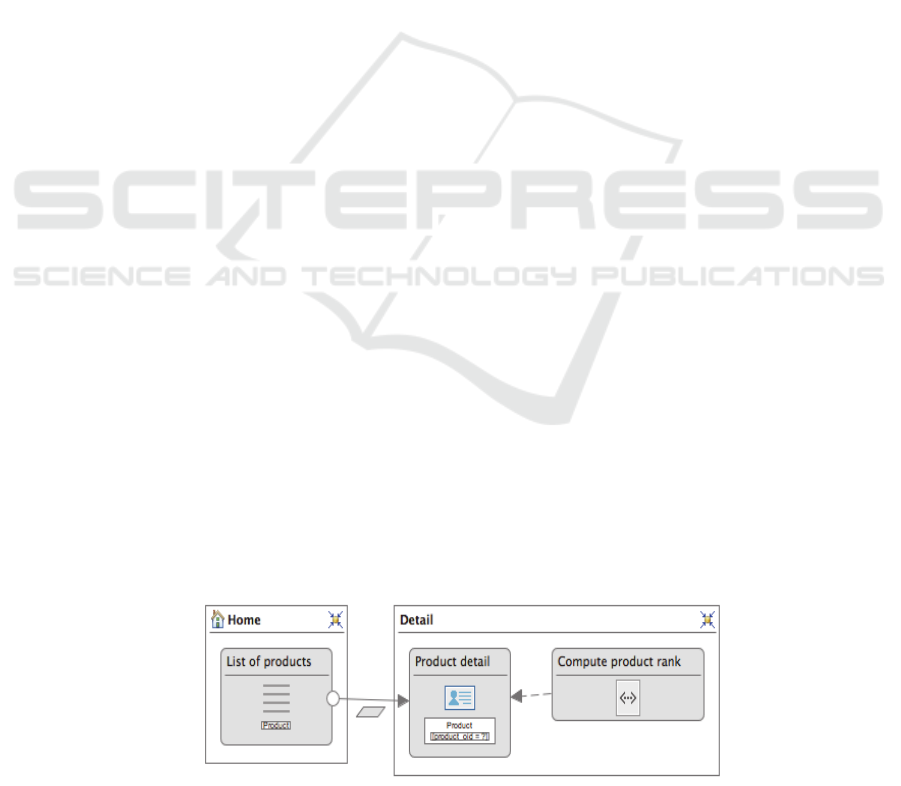

Figure 1: WebRatio model for an E-Commerce application.

LiquidML: A Web Modeling Language Supporting Fast Metamodel Evolution

319

as navigation. As an example, consider the WebML

model of Fig. 1 that describes a simplified E-

Commerce application that has 2 pages: the “Home”

and the “Detail”. The boxes inside the pages are

instances of model elements that allow listing the

Products and allows to see the actual details of a

specific one. In addition, the other box allows

computing a ranking for the product to be displayed,

e.g. “Ranked #2 in Computers”.

As will be shown in the following subsections,

LiquidML has a finer grained metamodel that

focuses on the basic concepts of model passing

languages such as message, message source,

processor and router (Hohpe et al, 2003). Thus from

a level of abstraction point of view, LiquidML

seems to be closer to the level of abstraction of code

that to the elements in WebML. Also, the focus of

LiquidML is completely behavioral, whereas

WebML is structural; for instance, the arrows

between the elements do not imply a sequence of

evaluation but connections such as hyperlinks.

From a development process perspective,

LiquidML models can be either derived semi-

automatically from high-level models such as

WebML and NDT or they can be created manually

using a LiquidML editor (Robles et al, 2014). When

manipulated, some higher-level concepts can be

abstracted as modelers discover them and thus the

development metamodel gets enriched interactively

within the process (Sect. 2.4). Similar to what

happens in the lifecycle when using “traditional”

model-driven approaches, a Build/Snapshot is

created and then it gets deployed into a server that is

capable of running/interpreting the Web

Application.

2.2 Basic Concepts

Our main motivation to develop LiquidML has been

the lack of behavioral expressiveness in existing

Web modeling languages. As a consequence,

transforming the behavioral aspects of a Web

application (e.g. in WebML) becomes cumbersome

and usually extra notations need to be added to

(graphically) represent a new expected behavior.

Additionally, the high level (and mostly structural)

nature of these languages completely hides the way

in which lower level Web requests are processed

(e.g. in which sequence) by just ignoring them, thus

hindering important spots for introducing

performance improvements, for instance, to obtain

better application scalability. LiquidML provides a

way of representing the behavioral aspects for

applications that can be modeled using the message

passing paradigm such as Web Applications and

thus enables to refine such important and low-level

aspects.

A LiquidML model is a composition of Flows;

each Flow describes a sequence of steps that need to

be applied to the current Web request (called a

Message in LiquidML) to obtain a proper response.

A Message has a payload (body) and a list of

properties while each step is visually identified by

an icon and constitutes an Element of the Flow.

Communication between Elements occurs by means

of message interchanges. The way in which

messages are moved from one Element to another is

defined by the Connections between them. We have

categorized the Elements using the categories found

in (Hohpe et al, 2003) and every element has a

different icon that represents it:

Message Source

A message source is responsible for creating

instances of messages based on different conditions.

There can be many different types of message

sources, for instance one of the HTTP message

source listens for incoming requests and generating

Messages from them. Another example is the Queue

message source that listens to a Data queue and

creates a new message when the queue is filled.

Some other message sources include:

 Cron message source: Creates a message

every time a Cron expression to true.

 FTP message source: Creates a message for

each file that is read from a remote FTP

server.

 File message source: Creates a message for

each file that is read from the local file

system.

Processor

A processor may transform, execute or just read

information from a message by changing or reading

the message’s payload and properties. There is a

wide variety of processors though the most common

one is the ScriptingProcessor that allows modeller to

write scripting code for custom complex logic. Some

other common processors are:

 Log processor: it reads information from the

message and generates log information based

on its configuration.

 Select SQL processor: it uses a Select SQL

statement to fetch information from a

database and sets the list of rows recovered

into the message payload.

 Change SQL processor: it executes an

Insert/Update/Delete statement in a database

and stores the number of affected rows in a

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

320

property configured by the modeller.

 Dust processor: it converts the message

payload using a dust template into processed

HTML that can be rendered in a Web

browser.

 JSON transformer: it transforms the message

payload into a JSON object.

 XML transformer: it transforms the message

payload into a XML document using an

XSLT definition.

 Mapping transformer: it transforms the

message payload into a Map/Dictionary using

the configured keys and expressions.

Router

It moves the message between Elements depending

on its type and conditions. For instance, a

ChoiceRouter routes the message to a specific

Element of its list based on a Boolean condition.

 Choice router: Behaves in the same way as a

“switch” statement in a procedural

programming language. It evaluates the

conditions of each of the choice connections

in sequence and the first one that evaluates to

true is the one that gets activated: the element

that the connection reaches is the next one to

be evaluated.

 All router: it creates a copy of the current

message sending it to all the “all

connections” evaluating them in parallel and

collecting the results.

 Wiretap router: it creates a copy of the

message and sends it in async way to the wire

tap connection. It is an implementation of the

EIP (Enterprise Integration Patterns).

 Chain router: The chain router evaluates each

of the chain connections in sequence. After

evaluating the 1st chain connection, the result

is passed to the 2nd connection and so on

until all the chain connections are exhausted.

Connections

It describes a relationship between 2 elements. The

most common connection is the “Next in chain”

which specifies that after the “source” element

processes the message, then the “target” element

will be the next to process the message. The

complete list of connections is:

 Next in chain: It describes a sequence

between a source element and a target

element. The source element can have only 1

next in chain connection while the target

element may have multiple.

 Choice connection: Choice connections have

a configurable condition and the source

element can only be a choice router though

the target element can be any kind of

element. The choice router may have multiple

choice connections.

 All connection: Similar to choice

connections, all connections only apply to

source all routers though the target element

can be of any kind. The all router may have

multiple all connections.

 Wiretap connection: It only applies to wiretap

routers and a wiretap router can only have 1

wire tap connection that is connected to any

kind of element.

 Chain connection: Similar to choice

connections, chain connections only apply to

source chain routers though the target

element can be of any kind. The chain router

may have multiple chain connections.

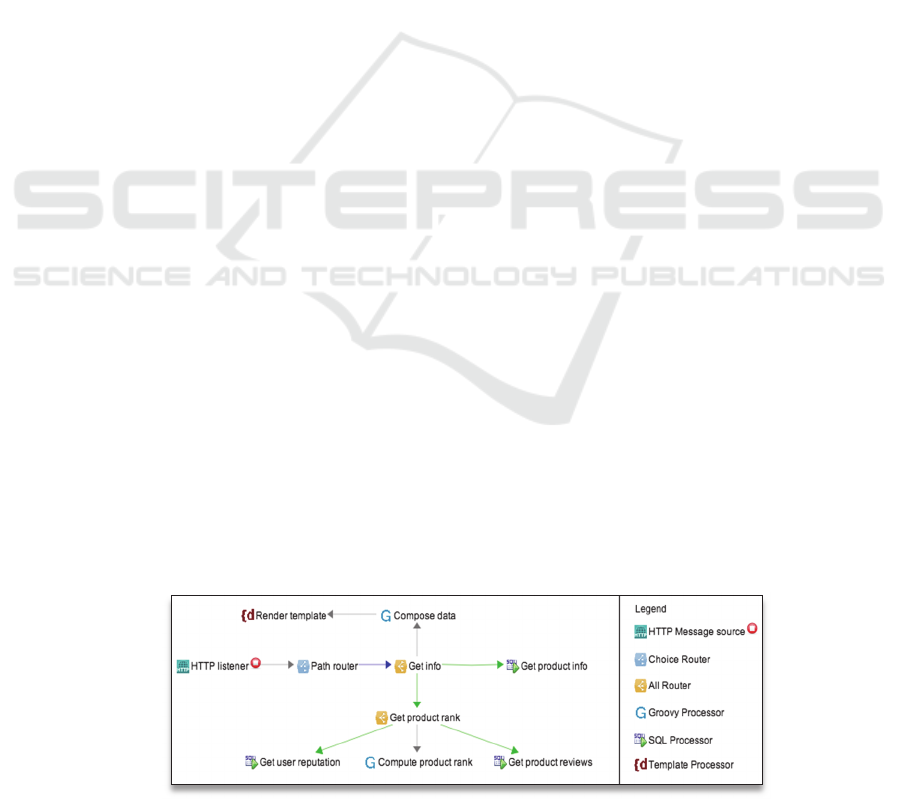

To exemplify the concepts, we present a Flow

for the product’s detail page of an E-commerce web

application (Fig. 2). The Element with no incoming

arrow represents the Message source listener that

will receive incoming requests – in this case, it will

receive HTTP request and will transform them into

Messages. The Element connected to the Message

source named “Route path” is a ChoiceRouter,

which behaves like a choice/switch statement and it

will route the message to the “Get info” processor if

the request comes to a URL starting with

“/product/*”. The “Get info” is another router that

gets information in parallel from multiple sources. It

Figure 2: Product details flow.

LiquidML: A Web Modeling Language Supporting Fast Metamodel Evolution

321

obtains the product info from the DB: (“Get product

info”) and triggers the computation of the product’s

rank, which involves two database queries (“Get

user reputation” and “Get product reviews”) and a

Processor that computes the rank from this

information (“Compute product rank”). Finally, the

information gets composed (“Compose data”) and

used for rendering a Web page in the “Render

template” processor.

In the following subsection we present the actual

metaclasses, templates and the Abstraction class in

LiquidML. The components in the models described

in Fig. 2 show how a traditional Web page can be

splitted in atomic steps, which allows to model and

optimize fine-grain aspects of the application. The

cost of having such low-level modelling language

(in comparison to classic model-based Web

development approaches) is compensated with the

possibility of easily grouping its components in

more abstract elements at modelling time.

2.3 Abstracting Concepts from

Examples

When developing applications with models,

sometimes a desire business feature requires having

a flexible general model that is not always available.

For instance, in the E-commerce application, we

may want to present and change the behavior of the

application based on the weather conditions where

the user is located.

This functionality was not natively included in

LiquidML’s language and as a consequence a

workaround is needed to implement it. Therefore the

modelers are able to come with a solution that

integrates a sequence of processors to perform the

external API calls to, for instance, the OpenWeather

API (Open weather map, 2006). Basically, by

making an IP to City mapping and then looking up

for that city in the API we are able to get the

information needed for our recommendation

systems.

This solution works fine for one specific flow;

however, the E-Commerce application is composed

by a set of Applications where each may contain

multiple flows. In several of these flows we may

have to use Weather information and applying this

workaround everywhere is clearly not a feasible

solution.

Following the same approach that code based

environments provide, in LiquidML we have the

ability to encapsulate and abstract a new concept

from a subgraph. So, modelers are able to select the

elements to be abstracted, click the “Abstract”

button and the environment automatically

reconfigures the Flow with the new abstracted

element. The environment then creates an instance

of the Abstraction metaclass as shown in the next

section

2.4 Models and Templates

LiquidML allows abstracting new metamodel

concepts from LiquidML application models. For

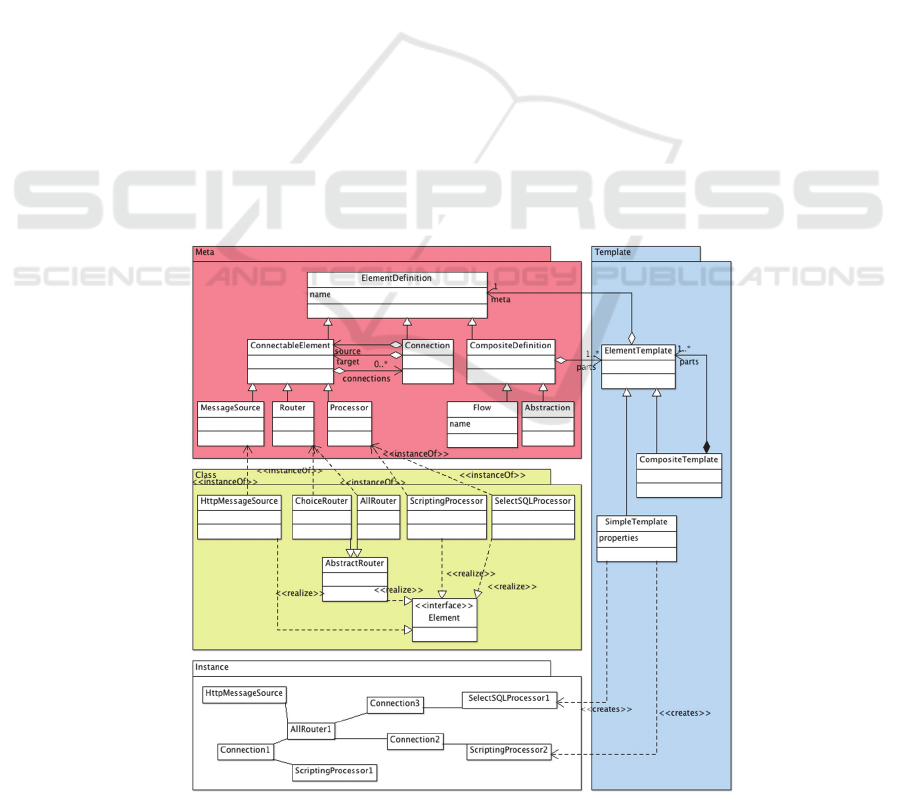

achieving this, our approach uses a set of template

classes that configure the parts of the abstraction

(Fig. 3). A special metaclass is required in the

metamodel to capture the new abstracted concepts;

we call this class Abstraction. A new instance of the

Abstraction class is created when a concept is

captured (Section 2.3). The instance of the

Abstraction class knows how to instantiate its

internal pieces since it reference the list of templates

to configure each of them (Fig. 3).

The primitives of the language are instantiated

by looking into the metamodel implementation and

its configuration. To achieve the instantiation, we

use a set of template classes that may have a one to

one correspondence with the meta classes, however

the instances of the template classes are one per

model instance while the meta classes are one per

concept. Templates are either Simple or Composite;

simple templates have a list of properties to

configure the instance and composite elements know

how they are composed.

2.5 Evolution Process

Once the Abstraction instance is created a set of

activities is performed automatically to evolve the

development environment and the application under

development.

The 1st step is to block the user interaction with

the flow under development and checks that the

elements selected formed a single connected

subgraph with a root element (an element that does

not have an incoming arrow). This is because the

semantics of message passing require an initial

element to delegate the behavior.

Once the validation is performed, the abstraction

and templates instances are created. The abstraction

is set a default icon and the modeler can input a

name for the abstraction.

The 3rd step is to remove the elements from the

flow under development, creating a template that

refers to the new abstraction and hooking up the

incoming/outcoming arrows to the abstraction

created.

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

322

3 RUNTIME ENVIRONMENT

As aforementioned, flows define the behavioral part

of the Web application. On the contrary to all

MDWE approaches, we decided to interpret rather

than to derive the code of a Web application. Strong

cons and pros of both approaches can be found in

(Mellor et al, 2002) and in many informal

discussions (The Enterprise Architect, 2016;

Executable models, 2016; Webratio, 2016);

however, we do not expect to find a definite answer

to this matter but rather present the advantages we

found for Web application development in our

model based approach. It is true that at a first sight,

code-generation seems to be the right option,

however interpretation gives us an opportunity to

easily modify the behavior in a dynamic way.

As our behavioral models (Flows) are rather

simple, the interpreter algorithm is quite simple too.

We present a simplified version of the algorithm

using a Java-based pseudocode in the next lines: the

interpreter works when messages are received (event

driven (Hohpe et al, 2003)) on Message sources (e.g.

an HTTP message source) (line 1). It finds the next

element (currentElement) that will handle the

message (line 3 and 6) and evaluates it using the

message content (line 4). An evaluation returns a

Message instance that could be the same as the

previous one or a new one depending on the Element

intent (data transformation, routing, etc.) and it is

passed to the next Element until we run out of

Elements (line 3).

1. OnMessageReceived(MessageSource msgSource,

2. Message message): {

3. Element currentElement =

interpreter.getNextInChain(msgSource);

4. while (currentElement != null) {

5. interpreter.evaluate(currentElement,

message);

6. currentElement =

interpreter.getNextInChain(currentElement);}}

A special case is handled by the interpreter (line

5) when currentElement is an Abstraction. In that

case, we follow the same approach as any other

programming language behaves by using a stack as

Abstraction is basically composed of more primitive

elements that may include other processors or

Abstractions. So processing an Abstraction is

processing its internal subflow starting from the

initial element.

Interpretation happens while engineers are

building the application and when the application is

run in every other deployment environment (QA,

Staging, Production). Once the models satisfy the

requirements, the deployment process to a specific

Figure 3: LiquidML models, templates and instances.

LiquidML: A Web Modeling Language Supporting Fast Metamodel Evolution

323

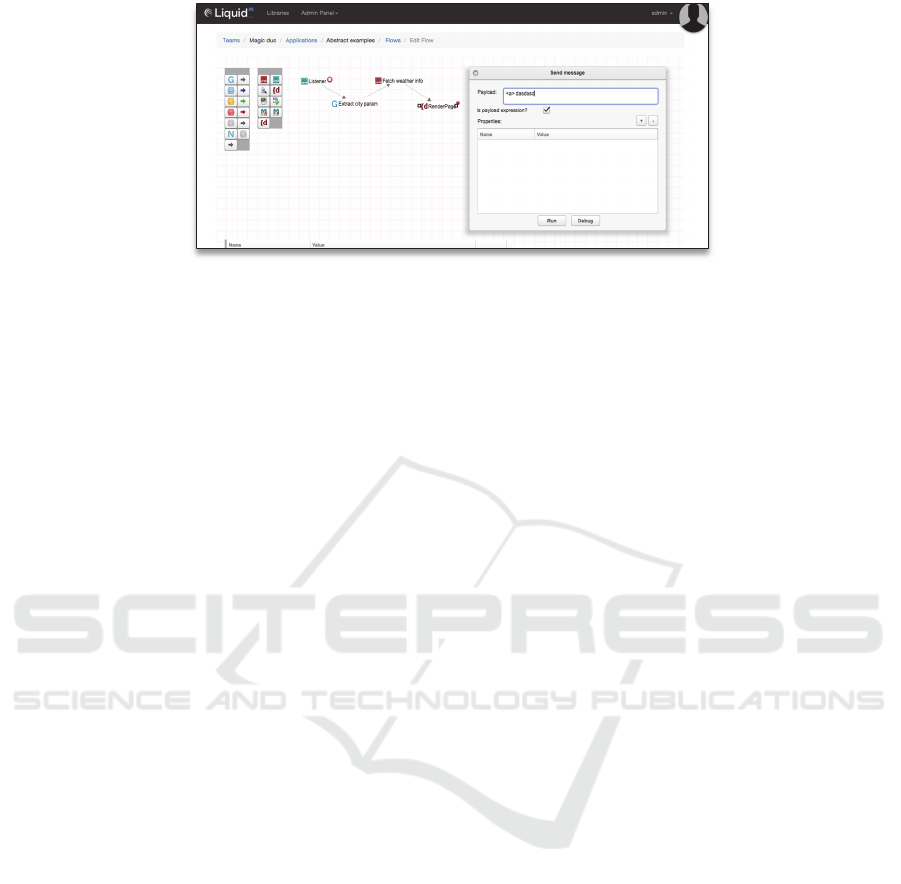

Figure 4: Sending messages to specific model elements.

environment occurs. The deployment is an automatic

process where a copy of the models is moved to the

servers where they can start receiving messages. As

aforementioned, unforeseen problems may appear in

a production environment; thus in the following

subsection, we present two tools to help diagnosing

problems while our models are running.

4 IMPLEMENTATION

The aforementioned concepts have been

implemented in an environment that allows

modellers to create applications based on the

message-passing paradigm. The environment is

completely Web based and to the best of our

knowledge, the first one to additionally implement

the Modelling as a Service paradigm (Toffetti 2012).

One clear advantage of our implementation is

that allows modellers to debug the application under

development at the model level. In Fig 4 we show

how modelers are allowed to send messages to

specific model elements.

The LiquidML environment is composed of 2

main applications that can be instantiated multiple

times and run in a cluster: an editor and servers. The

editor is instantiated in multiple machines running

behind a load balancer in Amazon EC2 though it can

be installed in any local servers. A brief description

of each application is the following: LiquidML

editor, which allows defining the applications,

modelling Flows and deploying them to LiquidML

servers and It also, allows modelers to abstract new

concepts from existing models; and LiquidML

server, which is responsible for holding the

application definitions, the LiquidML interpreter

(Robles et al, 2014) and notifying the editor about

how applications are running. In addition, it

regularly checks if it has any pending deployments

and if so, it fetches the Application and

automatically deploys it.

Both the editor and the server have been built

using open source technologies of the J2EE stack.

We have used Spring and Hibernate for basic service

and ORM mapping, Spring MVC and Twitter

bootstrap for UI and Jersey for the LiquidML API.

As part of this development, we have built the

CupDraw framework for building Web diagram

editors, which is publicly available. For the technical

readers, we invite them to visit the LiquidML site

http://www.liquidml.com and check the project’s

source code and the demonstration videos;

especially the one demonstrating the “abstraction”

feature. A complete version of the Editor without

pruning any of the menus and toolbars can be seen

in the LiquidML site.

5 RELATED WORK

In (Blair et al, 2009) the idea of holding models at

runtime to perform runtime changes is presented.

The approach focuses in the representation of the

actual requirements as models while the application

is running. The applications built under the

models@runtime paradigm are from a different

domain and seems to have less sophisticated

business requirements than a Web application. On

the other hand, LiquidML uses models@runtime to

have a live representation of how the application is

constituted and as a consequence it can be

manipulated to be able to abstract new concepts.

Approaches oriented to allow evolving

metamodels and co-evolve its models have been

studied recently (Cicchetti et al, 2008, Hoisl et al,

2014). They are similar to LiquidML in the need of

adding some extra primitives that are not supported

by the language. However, in LiquidML anything

that could be written with a Scripting processor (>

95% of the cases) can be done with no downtime

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

324

and the tool is evolved automatically within the

abstraction process.

The main problem solved by our approach comes

from applying model driven techniques to industry

applications that require time constraints. As a

consequence and due to the rigid features of

traditional metamodeling approaches (like Eclipse

Modeling Framework (EMF, 2016)), we have to

discard it as a solution for making an easy to evolve

environment.

6 CONCLUSIONS

In this paper, we have presented the LiquidML, a

Web modelling language that supports the fast

evolution of its metamodel and supporting tools. By

capturing the abstraction concept, which references

the templates to configure its parts, we are able to

build concepts from existing model solutions

following a modelling by example approach which

mimics with the approach use to build frameworks

from existing pieces of code. The environment is

fully functional, and is the first one to implement the

modelling as a service approach, so it is fully

reproducible and available for researchers, engineers

and modellers to experiment.

The LiquidML language is formally defined and

we do not expect to see much changes in that

regards, however the implementation environment

still needs some improvement regarding its usability

such as allowing modellers to change icons, input

and output parameters (implicit right now),

documentation and the release process of new

abstractions to the community. From a conceptual

point of view, models do not provide a way of being

tested, so we plan to formalize a testing framework

that will allow modellers to test flows and provide

tools such as flow coverage which will give

confidence to modellers when releasing a new

version of the application. Finally, we plan to

include a “concepts” market where people can

consume concepts that a different modeller team are

using and thus creating a community around

LiquidML.

ACKNOWLEDGEMENTS

This research has been supported by MeGUS project

(TIN2013-46928-C3-3-R) of the Ministerio de

Ciencia e Innovación (Ministry of Science and

Innovation, Spain, TIN2013-46928-C3-3-R).

REFERENCES

Blair G., Bencomo N., France R. B., "Models@ run.time,"

Computer, vol. 42, no. 10, pp. 22-27, October, 2009.

Ceri S, Fraternali P, Bongio A. Web Modeling Language

(WebML): a modeling language for designing Web

sites. Comput. Networks, vol.33, pp.137–157, 2000.

Cicchetti A., Di Ruscio D., Eramo R., and Pierantonio A.

Automating Co-evolution in Model-Driven

Engineering. In Proceedings of the 2008 12th

International IEEE Enterprise Distributed Object

Computing Conference. IEEE Computer Society,

Washington, DC, USA, 222-231.

EMF. Website: http://www.eclipse.org/modeling/emf.

Last access: 2016.

Escalona M.J. and Aragon G., “NDT. A Model-Driven

Approach for Web Requirements,” IEEE Trans. Softw.

Eng., vol. 34, no. 3, pp. 377–390, May 2008.

Escalona MJ, Garcia-Garcia JA, Mas F, Oliva M, Valle C.

Applying model-driven paradigm: CALIPSOneo

experience. Conference on Advanced Information

Systems Engineering 2013, vol.1017, pp. 25-32. 2013.

Executable models vs code-generation vs model

interpretation. Website: modeling-languages.com/

executable-models-vs-code-generation-vs-model- inter

pretation-2/. Last access: 2016.

García-García J.A., MJ Escalona, F Domínguez-Mayo, A.

Salido. “NDT-Suite: A metodological tool solution in

the Model-Driven Engineering Paradigm”. DOI:

10.4236/jsea.2014.74022. 2014.

GWT. Development toolkit. Website: www.gwtproject.

org. Last access: 2016.

Hohpe G. and Woolf B., Enterprise Integration Patterns:

Designing, Building, and Deploying Messaging

Solutions. Addison-Wesley Professional, 2003, p. 736.

Hoisl B., Hidaka S., Hu Z., Towards Co-Evolution in

Model-driven Development via Bidirectional Higher-

Order Transformation. 2nd International Conference

on Model-Driven Engineering and Software

Development (MODELSWARD) 2014.

Mellor SJ, Balcer M. Executable UML: A Foundation for

Model-Driven Architectures. Addison-Wesley

Longman Publishing, Inc., Boston, MA, USA. 2002.

New Relic. Website: www.newrelic.com. Last access

2016.

Open weather map. Website: openweathermap.org. Last

access: 2016.

Pastor O, España S, Panach JI, Aquino, N. Model-driven

development. Informatik-Spektrum, 31(5), 394-407.

2008.

The Enterprise Architect. Website: http://www.

theenterprisearchitect.eu/archive/ 2010/ 06/ 28/ model-

driven-development-code- generation- or- model- inter

pretation. Last access: 2016.

Toffetti G. Web engineering for cloud computing (web

engineering forecast: cloudy with a chance of

opportunities). In Proceedings of the 12th

international conference on Current Trends in Web

Engineering. Springer-Verlag, Berlin, Heidelberg, 5-

19 2012.

LiquidML: A Web Modeling Language Supporting Fast Metamodel Evolution

325

Robles E, Rivero JM, Urbieta M, Cabot J. Improving the

scalability of Web applications with runtime

transformations” in Proceedings of the 14th

International Conference in Web Engineering. 2014.

Wimmer M, Schauerhuber A, Kargl H. On the Integration

of Web Modeling Languages: Preliminary Results and

Future Challenges. Proceedings of the 3rd

International Workshop on Model-Driven Web

Engineering, 2007.

Webratio. Website: blog.webratio.com. Last access: 2016.

JQuery. Website: https://jquery.com/. Last access: 2016.

Schmidt DC. Model-Driven Engineering. IEEE Computer,

Computer Society, vol. 39, no. 2, pp. 25-31, 2006.

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

326
