KVFS: An HDFS Library over NoSQL Databases

Emmanouil Pavlidakis

, Stelios Mavridis

, Giorgos Saloustros and Angelos Bilas

Foundation for Research and Technology – Hellas (FORTH), Institute of Computer Science (ICS),

100 N. Plastira Av., Vassilika Vouton, Heraklion, GR-70013, Greece

Keywords:

Distributed File Systems, NoSQL Data Stores, Key-value Stores, HBase, HDFS.

Abstract:

Recently, NoSQL stores, such as HBase, have gained acceptance and popularity due to their ability to scale-out

and perform queries over large amounts of data. NoSQL stores typically arrange data in tables of (key,value)

pairs and support few simple operations: get, insert, delete, and scan. Despite its simplicity, this API has

proven to be extremely powerful. Nowadays most data analytics frameworks utilize distributed ﬁle systems

(DFS) for storing and accessing data. HDFS has emerged as the most popular choice due to its scalability.

In this paper we explore how popular NoSQL stores, such as HBase, can provide an HDFS scale-out ﬁle

system abstraction. We show how we can design an HDFS compliant ﬁlesystem on top a key-value store. We

implement our design as a user-space library (KVFS) providing an HDFS ﬁlesystem over an HBase key-value

store. KVFS is designed to run Hadoop style analytics such as MapReduce, Hive, Pig and Mahout over NoSQL

stores without the use of HDFS. We perform a preliminary evaluation of KVFS against a native HDFS setup

using DFSIO with varying number of threads. Our results show that the approach of providing a ﬁlesystem

API over a key-value store is a promising direction: Read and write throughput of KVFS and HDFS, for big

and small datasets, is identical. Both HDFS and KVFS throughput is limited by the network for small datasets

and from the device I/O for bigger datasets.

1 INTRODUCTION

Over the last few years data has been growing at an

unprecedented pace. The need to process this data

has led to new types of data processing frameworks,

such as the Hadoop (White, 2012) and Spark (Zaharia

et al., 2010). In these data processing frameworks

data storage and access plays a central role. To access

data, these systems employ a distributed ﬁlesystem,

usually HDFS, to allow scaling out to large numbers

of data nodes and storage devices while supporting a

shared name space.

Although HDFS stores and serves data, it is de-

signed to serve read-mostly workloads that issue large

I/O requests. Therefore, applications that require data

lookups, use a NoSQL store over HDFS, to sort and

access data items. Figure 1 shows the typical layering

of a NoSQL store over HDFS in analytics stacks.

With recent advances in analytic frameworks,

there has been a lot of effort in designing efﬁcient

Also with Department of Computer Science, VU Univer-

sity Amsterdam, Netherlands.

Also with the Department of Computer Science, Univer-

sity of Crete, Greece.

key-value and NoSQL stores. NoSQL stores typically

offer a table-based abstraction over data and support a

few simple operations: get, put, scan and delete over

a namespace of keys used to index data. Key-value

stores, offer similar operations, without however, the

table-based abstraction.

Our observation is that the get/put API offered by

NoSQL and key-value stores can be used to offer gen-

eral access to storage. In particular, with the emer-

gence of efﬁcient key-value stores, there is potential

to use the key-value store as the lowest layer in the

data access path and to provide ﬁle-system abstrac-

tion over the key-value store.

There are two advantages to such an approach.

First, for cases where a key-value store runs directly

on top of the storage devices (Kinetic, 2016) with-

out the need for a local or distributed ﬁlesystem, there

is opportunity to reduce overheads during analytics

processing. With increasing data volumes, process-

ing overheads are an important concern for modern

infrastructures. Second, there is potential to offer dif-

ferent storage abstractions such as ﬁle, object-based,

or record-based storage over the same pool of stor-

age. The key-value store can function essentially as

a general purpose mechanism for metadata manage-

360

Pavlidakis, E., Mavridis, S., Saloustros, G. and Bilas, A.

KVFS: An HDFS Library over NoSQL Databases.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 360-367

ISBN: 978-989-758-182-3

 2016 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

ment for all of these abstractions and layers.

In this paper we explore this direction by design-

ing an HDFS abstraction, KVFS, over a NoSQL store.

We implement KVFS as a client-side, user-space li-

brary that fully replaces the HDFS client and run un-

modiﬁed programs that require HDFS, such as Map-

Reduce. Although KVFS is able to run over any

NoSQL store, in our work and initial experiments, we

choose HBase because it is widely deployed.

We ﬁrst discuss the design and implementation of

the operations supported by KVFS and how these are

mapped to the underlying NoSQL abstraction. We

then perform some preliminary experiments with DF-

SIO in a small setup to examine the basic overheads

of our approach and to contrast KVFS with a native

HDFS deployment.

Both KVFS and HDFS achieve almost the same

read and write throughput, about 900 MBytes/s, for

small ﬁles. For large datasets KVFS has about 20%

lower throughputs for reads and about 11% higher

throughput for writes, compared to HDFS. Essen-

tially, both systems should be able to achieve the same

throughput, given that they operate with large I/O op-

erations.

The rest of this paper is organized as follows. Sec-

tion 2 presents background for HBase and HDFS.

Section 3 discusses our design and implementation of

KVFS. Section 4 displays our preliminary evaluation.

Section 5 presents related work. Finally, Section 6

concludes the paper.

2 BACKGROUND

2.1 HDFS

Hadoop Distributed File System (HDFS) (Borthakur,

2008) is a scale-out distributed ﬁlesystem, inspired by

Google File System (Ghemawat et al., 2003). HDFS

offers simpler semantics than traditional ﬁlesystems

in two ways: HDFS supports only large blocks, there-

fore all ﬁle metadata ﬁt in memory and it supports

only append-to-ﬁle operations by a single writer re-

ducing the need for synchronization. In addition, its

scale-out properties and robustness makes it a good

ﬁt for map-reduce style workloads, offered by frame-

works such as Spark and Map-Reduce.

HDFS uses centralized metadata service named

Namenode. Namenode is responsible for keeping the

catalogue of the ﬁlesystem consisting of ﬁles and di-

rectories. Files are split in ﬁxed-size blocks (typically

64-MBytes). Blocks are replicated, usually between

2-6 replicas per block, and are distributed to datan-

ode. The large block size used by HDFS implies that

ﬁle metadata ﬁt in memory and that updates to meta-

data are infrequent. Metadata are synchronously writ-

ten to persistent storage and are cached in memory. If

Namenode crashes a secondary Namenode takes over

by reading the persistent metadata.

2.2 HBase

HBase (George, 2015) is a prominent NoSQL store,

inspired from Google Big Table (Chang et al., 2008).

It offers a CRUD (Create, Read, Update, Delete) API

and supports range queries over large amounts of data

in a scale-out manner.

HBase supports a lightweight schema for semi-

structured data. It consists of a set of associative ar-

rays, named tables. Taqbles comprise of:

• Row: Each table comprises of a set of rows. Each

row is identiﬁed through a unique row key.

• Column family: The data in a row are grouped by

column family. Column families also impact the

physical arrangement of data stored in HBase.

• Column qualiﬁer: Data within a column family is

addressed via its column qualiﬁer. Column quali-

ﬁers are added dynamically in a row and different

rows can have different sets of column qualiﬁers.

The basic quantum of information in HBase is a cell

addressed by row key, column family and column

qualiﬁer. Each cell is associated with a timestamp.

In this way HBase is able to keep different versions

of HBase cells.

Figure 1 shows the overall architecture of HBase.

HBase consists of a master node named HMaster, re-

sponsible for keeping the catalogue of the database

and also managing Region servers. Region servers

are responsible for horizontal partitions of each table

called regions. Each region contains a row-key range

of a table. Clients initially contact HMaster, which

directs them to the appropriate Region server(s) cur-

rently hosting the targeted region(s). HBase uses the

Apache Zookeeper (Hunt et al., 2010) coordination

service for maintaining various conﬁguration proper-

ties of the system.

HBase uses a log structured storage organization

with the LSM-trees (O’Neil et al., 1996) indexing

scheme at its core, a good ﬁt for the HDFS append-

only ﬁle system (Shvachko et al., 2010) it operates on.

Records inserted in an LSM-Tree are ﬁrst pushed into

a memory buffer; when that buffer exceeds a certain

size, it is sorted and ﬂushed to a disk segment in a

log fashion, named HFile. Read or range queries ex-

amine the memory buffer and then the set of HFiles

of the region. For improving indexing performance,

the number of HFiles for a region can be reduced

KVFS: An HDFS Library over NoSQL Databases

361

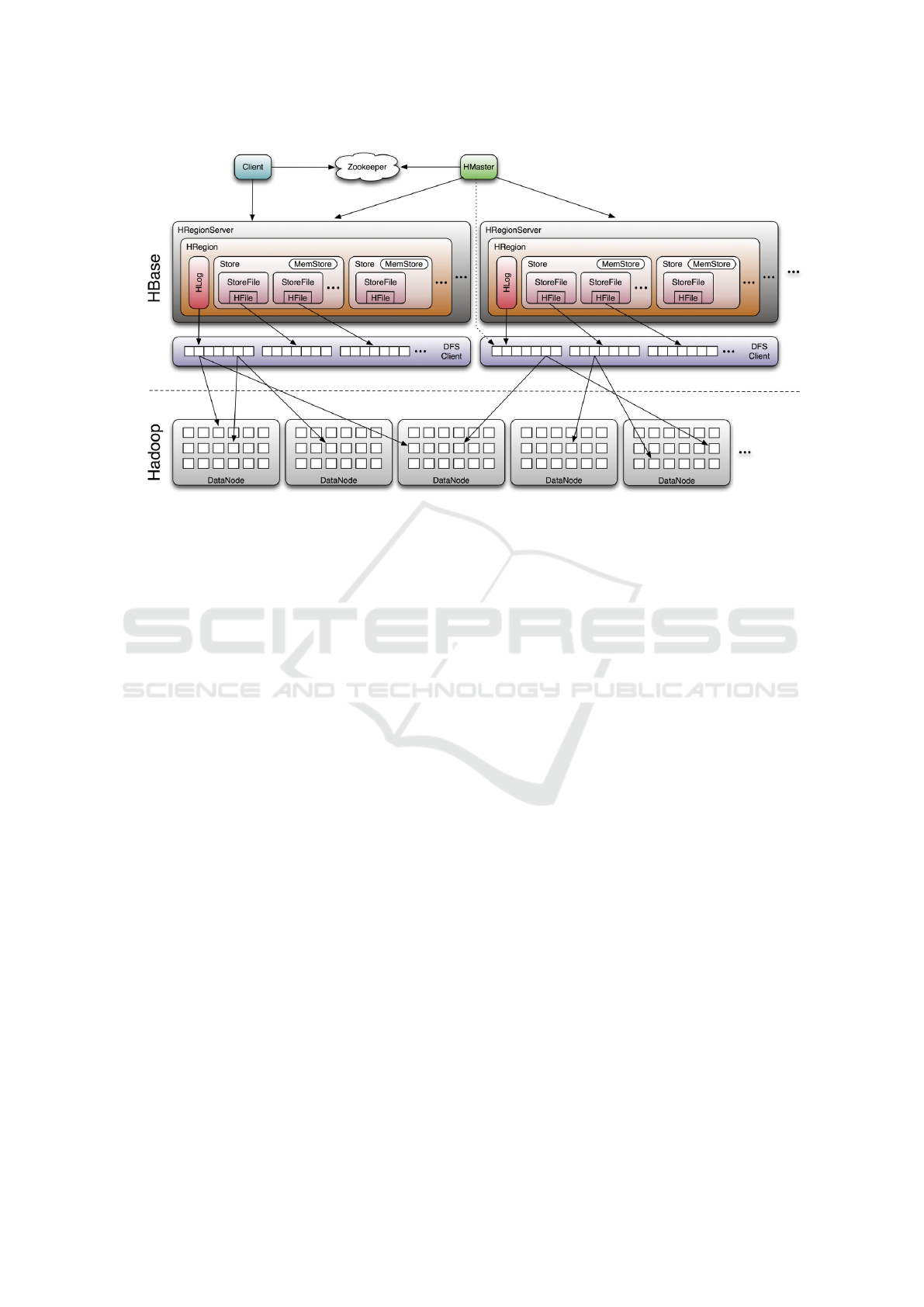

Figure 1: HBase over HDFS architecture (George, 2015).

by periodic merging of HFiles into fewer and larger

HFiles through a process called compaction (similar

to a merge sort). As the data set grows, HBase scales

by splitting regions dynamically and eventually mov-

ing regions between region servers through move op-

erations. For durability, HBase keeps a write-ahead-

log (WAL) in each region server. A WAL is an HDFS

ﬁle to which all mutations are appended.

3 SYSTEM DESIGN AND

IMPLEMENTATION

We modify the existing Hadoop stack as seen in 2(a).

We replace HDFS with a shared block device and

place KVFS above HBase. This results in the stack

shown in 2(b). KVFS exposes to applications a hierar-

chical namespace consisting of ﬁles and folders which

are stored persistently. File operations supported in

KVFS are the same as in HDFS; append only writes

and byte range reads in random offset within a ﬁle. In

the rest of this section ﬁrst we explain how the hier-

archical namespace of KVFS is mapped and stored in

HBase. Subsequently we provide information about

the basic ﬁle operations.

HBase runs on a global ﬁle namespace provided

by a distributed ﬁlesystem, typically HDFS. Essen-

tially, HDFS provides the ability to HBase to access

any ﬁle from any node, it offers data replication, and

space management (via the ﬁlesystem allocator and

the ﬁle abstraction).

Running HBase on top of a shared block device

requires small modiﬁcations: Each HTable in HBase

is decomposed in regions. Each region can be allo-

cated on a portion of the shared block device, such

as the ones provides by a virtual storage area network

(vSAN). Similar to HDFS ﬁles, such portions of the

address space are visible to all nodes for load balanc-

ing and fail-over purposes. The information about

which region maps to which address portion and

which server is responsible for a particular address

space is stored as metadata in Apache ZooKeeper,

similar to the original HBase.

Additionally, shared block devices can and usu-

ally are replicated for reliability purposes. This pro-

vides the same level of protection as HDFS, with ad-

ditional options to use different form of replication

or encoding. Finally, shared block devices offered

by modern storage systems are typically thin provi-

sioned, which allows them to grow on demand, based

on available space, similar to individual ﬁles. There-

fore, regions that map to device portions can grow

independently, without the need to statically reserve

space upfront.

KVFS maps ﬁles and directories into HBase’s row-

column schema. We generate row keys for ﬁles

and directories by hashing the absolute ﬁle path (e.g.

hash(”/folder/ﬁle”)). This eliminates any chance of

collision for ﬁles with the same names residing in dif-

ferent folders (e.g. ”/test1/ﬁle” and ”/test2/ﬁle”). As

shown in Table 1, every HTable row contains all meta-

data of a single ﬁle or directory. Every row contains

Column Qualiﬁers (CQ), where every CQ contains

metadata relevant to a speciﬁc ﬁle or folder. All rows

in an HTable contain CQs that are typical ﬁle meta-

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

362

Table 1: Mapping of ﬁles and directories to HBase in KVFS.

Rowkey

Column Family name

Type Permissions

Block

size

Length Timestamp Seed

hash

(”Dir1”)

hash

(”Dir1/foo2”)

hash

(”Dir1/foo2#0”)

hash

(”Dir1/foo2#1”)

hash(Dir1) D Read - Write

NOT

Exist

NOT

Exist

NOT

Exist

hash(Dir1/foo2) F Read - Write

NOT

Exist

NOT

Exist

Exist Exist

(a) HBase over HDFS. (b) KVFS over HBase

Figure 2: Hadoop architectures.

data such as permissions,ﬁle block size, and ﬁle size.

We also have a seed and timestamp CQ, both of which

are used for our namespace manipulation operations,

explained later in this section.

We create a new ﬁle/folder by initially calculating

the new ﬁle row key. Using the key we create a new

row and initialize it with the metadata provided by

the user and set the timestamp with the current time.

We also set the seed CQ with the result of the hashed

concatenation of (ﬁlename,timestamp). On successful

creation of the new row, we update the parent folder.

We add a new empty CQ using the hash of the new ﬁle

as the qualiﬁer key. This bottom-up order of names-

pace mutations ensures namespace consistency in the

presence of failures. Delete operations work in re-

verse order, ﬁrst removing the child CQ and then re-

moving the child row. For both operations, the worst

case scenario is having a ’zombie’ row which could

be later garbage collected by the system. Finally us-

ing CQs for the ﬁles metadata ensures good locality.

Locating a ﬁle or folder is accomplished by re-

cursively traversing the respective rows of each folder

hierarchy (e.g. for ”/ﬁle/test”, ”/ﬁle” then ”/ﬁle/test”).

Although we could simply access directly the ﬁle in

question we traverse the path ensuring consistent view

of the namespace. Clients send in parallel a window

of size N requests which can hit different servers.

Continuing, clients traverse the full path in a top-

down approach. If a failure is detected we correct this

by checking the existence of the row of the next level

and updating the parent node.

Another major concern for ﬁlesystems besides

namespace management is data allocation and place-

ment. In KVFS, ﬁles are mapped into conﬁgurable

size blocks, typically of size 64MB. Blocks are repre-

sented as rows dedicated to storing ﬁle contents able

Figure 3: Splitting ﬁles to blocks and segments for write

operations.

to grow up to block size. During ﬁle growth with

append operations, client keep track of the ﬁle size.

Since ﬁle data are split into ﬁxed size blocks clients

can calculate the next block row key in the follow-

ing way. The key is calculated by hashing the seed

value of the ﬁles and the block offset (e.g. for the

ﬁrst block of ”/ﬁle”,hash(”/ﬁle#0”)). After allocat-

ing the block we update the ﬁle by updating the ﬁle

size, ensuring correctness in the presence of a failure.

Since block row keys are calculated in a determinis-

tic way we don’t need to keep explicitly the blocks

into ﬁle metadata reducing its size. Seed is used for

being able to track ﬁle blocks after ﬁle rename opera-

tions. When a ﬁle is renamed, we create a new entry

in the namespace discarding the old one. If however

we were based solely on ﬁle name to produce deter-

ministic the row keys this would impose rename of the

block keys. With the use of seed, we create a unique

id on ﬁle creation which can be used even after re-

name operations to locate the blocks of the ﬁle.

Similar to the dir/ﬁle lookup, we could locate a

given block directly. In order to ensure consistency

with failures, we must ﬁrst check the ﬁle size to en-

sure the requested block resides inside the ﬁle size.

We then get the requested block from HBase. If we

successfully ﬁnd the requested block although the ﬁle

size did not ’contain’ it then a failure occurred. We

recover by adding the missing CQ and updating the

ﬁle size CQ.

HDFS supports variable sized reads at random

offsets which results in a random read operation at

a block. HDFS datanodes, serve this request efﬁ-

ciently, by using the metadata of the local ﬁlesystem.

In particular, blocks which are mapped in local ﬁles

by HDFS Datanode use directly the local FS ability

to read from a random offset in that ﬁle. However,

HBase API, where KVFS is built upon does not pro-

vide this capability in its API. As we presented above,

KVFS: An HDFS Library over NoSQL Databases

363

each block in KVFS maps to row where its value is of

size typically 64MB. This is good ﬁt for 64MB reads

but imposes signiﬁcant overhead for small reads. For

example, in order for a client to read 64KB from a

block, this would impose the region server to send

to the client 64MB to pick the corresponding 64KB.

To this end we enrich our blocks with CQs metadata

named segments, as shown in Figure 3. Each block

row consists of a set of segments. Each segment ad-

dress a conﬁgurable size data typically 64KB. With

this addition, small reads are served by requesting

from the block row only the appropriate segments and

then by adding to the request the corresponding seg-

ments. The drawback from this approach is that we

amplify the metadata but we should optimize this in a

later version.

KVFS supports single writer append only writes

as original HDFS. For exclusive write access to a ﬁle

HDFS uses Namenode as the central lock manager.

Namenode grants a lease to the client which ensures

exclusive write access. Since Namenode is absent

in KVFS we redesign the distributed locking mech-

anism with the use of Zookeeper (Hunt et al., 2010).

Zookeeper is a scalable and fault tolerant coordination

service which is already part of the HBase stack. It ex-

poses a ﬁlesystem like API for implementing a variety

of distributed synchronization protocols. It achieve

this by using callbacks to clients. In our design, each

time a client wants to be granted write access to a

ﬁle, it tries to create a Zookeeper node (znode) using

hash(ﬁlename) as the znode id. If the znode exists, it

means that some other client is already writing to the

ﬁle. If this is the case, client will request for a call-

back when the znode is deleted. In the opposite case,

the client will start appending to the ﬁle and at the end

it will remove the znode.

MapReduce and other applications tend to pro-

duce small write appends (Kambatla and Chen, 2014).

For this reason, we use a write buffer to merge multi-

ple small writes into a 64-KByte segment. We batch

multiple segments and send them to the region server

for network efﬁciency. In the current version of the

prototype, we have tuned the size of the write buffer

and the batching factor over the network, thus we are

able to overlap computation with network communi-

cation.

4 PRELIMINARY EVALUATION

4.1 Experimental Setup

Even though KVFS is in an early prototype stage,

it is able to run unmodiﬁed map-reduce workloads.

DFSIO is a read/write benchmark for HDFS. DF-

SIO measures an HDFS cluster total read and write

throughput, simulating IO patterns found in MapRe-

duce workloads. We conduct two experiments, one

for reads and one for writes. Both experiments are

performed for datasets of 8-GBytes and 96-GBytes

respectively with default block size of DFSIO set

to 32-MByte. Dataset of 8-GBytes ﬁts in memory

whereas the 96-GBytes dataset is IO intensive as it no

longer ﬁt in the buffer cache. In the ﬁrst case we satu-

rate the network and in the second we saturate the de-

vice. Moreover the number of mappers, are from 1 till

8 for both datasets. The dataset is split equally across

mappers. The number of concurrent tasks is deﬁned

for both read and write operations and equals to the

number of mappers. The sever uses 4 Intel X25-E

SSDs (48-GBytes) in RAID-0 using md Linux driver.

Table 2 presents the conﬁguration of the servers we

use.

Table 2: Hardware conﬁguration of evaluation setup.

CPU Xeon(R) CPU E5520

Memory 48-GBytes

NIC 10GBit Myricom NIC

Hard Disk WD Blue 160-GBytes

OS CentOS 6.3

HBase version 0.98

HDFS version 2.7.1

4.2 Results

Figures 4 and 5, show our results for writes/reads

with datasets of 8-GBytes and 96-GBytes respec-

tively. DFSIO reports throughput per mapper. We

plot the aggregate throughput of all mappers.

Writes: Write throughput of KVFS and HDFS for

both 8-GBytes and 96-GBytes datasets is almost

equal. Figure 4(a) shows that for the 8-GBytes

dataset, KVFS achieves 908-MBytes/s and HDFS

achieves 938-MBytes/s maximum write throughput.

For 96-GBytes dataset, KVFS achieves maximum

throughput 460-MBytes/s and HDFS 410-MBytes/s.

In more detail, Figures 4(a) and 5(a) show that the

write throughput of HDFS and KVFS is almost equal,

when the number of mappers is 8. For the dataset

of 8-GBytes, when the number of mappers ranges

from 1 to 4, KVFS’s write throughput is 25.4% higher

than HDFS’s. For the dataset of 96-GBytes, when the

number of mappers is 1 KVFS’s write throughput is

2.5 times the throughput of HDFS. Whereas, as we

increase the number of mappers write throughput of

both HDFS and KVFS becomes almost identical.

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

364

Reads: We note that KVFS’s throughput exceeds

HDFS’s throughput when the number of mappers

is small. From Figure 4(b) we observe that when

the number of mappers range from 1 to 4, KVFS’s

read throughput is almost 2 times the throughput of

HDFS. This improvement is due to KVFSs use of

asynchronous I/O using zeromq(Hintjens, 2013) for

data requests. As the number of mappers increases,

HDFS’s and KVFS’s throughput become almost equal

as the beneﬁts of asynchronous I/O diminish. The

maximum throughput achieved by KVFS, for the 8-

GBytes dataset, is 1170-MBytes/s and for HDFS is

1200-MBytes/s. For the 96-GBytes datasets the max-

imum throughput for KVFS is 390-MBytes/s, whereas

for HDFS is 490-MBytes/s with 4 mappers respec-

tively. These difference in performance between are

due to the fact that HDFS has a more efﬁcient cache

policy. In future versions we are planning to improve

the caching policy and we believe that, after tuning,

KVFS could outperform the native HDFS setup.

Our results for both read and write comply with

the throughput of the SSDs for the big dataset (96-

GBytes) and with the network speed for the small the

dataset (8-GBytes). In both cases we almost achieve

the maximum throughput.

5 RELATED WORK

Similar to our approach, the Cassandra File System

(CFS) runs on top of Cassandra (Lakshman and Ma-

lik, 2010). CFS aims to offer a ﬁle abstraction over

the Cassandra key-value store as an alternative to

HDFS. Cassandra does not require HDFS but runs

over a local ﬁlesystem. Therefore in a Cassandra in-

stallation there is no global ﬁle-based abstraction over

the data. Our motivation differs, in that we are inter-

ested to explore the use of key-value stores as the low-

est layer in the storage stack. Although we are cur-

rently using HBase, our goal is to eventually replace

HBase with a key-value store that runs directly on top

of the storage devices, without the use of a local or

a distributed ﬁlesystem. This motivation is similar to

the Kinetic approach (Kinetic, 2016), which however,

aims at providing a key-value API at the device level

and then build the rest of the storage stack on top of

this abstraction.

The last few years there has been a lot of work

on both DFSs (Depardon et al., 2013; Thanh et al.,

2008) and NoSQL stores (Abramova et al., 2014;

Klein et al., 2015) from different originating points of

view. Next, we brieﬂy discuss related work in DFSs

and NoSQL stores.

DFSs have been an active area over many years

due to their importance for scalable data access. Tra-

ditionally, DFSs have strived to scale with the number

of nodes and storage devices, and to eliminate syn-

chronization, network, and device overheads, with-

out compromising the richness of semantics (ideally

offering a POSIX compliant abstraction). Several

DFSs are available and in use today, including Lus-

tre, BeeGFS, OrangeFS, GPFS, GlusterFS, and sev-

eral other commercial and proprietary systems. Pro-

viding a scalable ﬁle abstraction while maintaining

traditional semantics and generality has proven to be

a difﬁcult problem. As an alternative, object stores,

such as Ceph (Weil et al., 2006), draw a different bal-

ance between semantics and scalability.

With recent advances in data processing, the addi-

tional interesting and important realization has been

that in several domains it sufﬁces to offer simpler

APIs and to design systems for restricted operating

points. For instance, HDFS uses very large blocks

(e.g. 64 MBytes) which simpliﬁes dramatically meta-

data management. In addition, it does not allow up-

dates, which simpliﬁes synchronization and recovery.

Finally, it does not achieve parallelism for a single

ﬁle, since each large chunk is stored in a single node,

simplifying data distribution and recovery. Given

these design decisions, HDFS and similar DFSs are

efﬁcient for read-mostly, sequential workloads, with

large requests.

NoSQL stores have been used to ﬁll in the need

for ﬁne-grain lookups and the ability to scan data in

a sorted manner. NoSQL stores can be categorized in

four groups: key-value DBs (Level DB, Rocks DB,

Silo), document DBs (Mongo DB), column family

stores (HBase, Cassandra), and graph DBs (Neo4j,

Sparksee).

Such, data-oriented (rather than device-oriented)

approaches to storage and access bare a lot of merit

because they draw yet a different balance between se-

mantics and scalability. Until to date these approaches

have become popular in data processing frameworks,

however, they have little application in more general

purpose storage.

We foresee, that as our understanding of key-value

stores and their requirements and efﬁciency improves,

they will play an important role in the general-purpose

storage stack, beyond data processing frameworks.

6 CONCLUSIONS

In this paper we explore how to provide an HDFS ab-

straction over NoSQL stores. We map the ﬁle abstrac-

tion of HDFS to a table-based schema provided by

KVFS: An HDFS Library over NoSQL Databases

365

200

400

600

800

1000

1200

1400

Throughput (MBytes/sec)

Number of mappers

KVFS

HDFS

(a) Write

200

400

600

800

1000

1200

1400

Throughput (

MBytes/sec

)

Number of mappers

KVFS

HDFS

(b) Read

Figure 4: Write and read throughput for 8-GBytes dataset with increasing number of mappers.

200

400

600

800

1000

1200

1400

Throughput (MBytes/sec)

Number of mappers

KVFS

HDFS

(a) Write

200

400

600

800

1.000

1.200

1.400

Throughput (MBytes/sec)

Number of mappers

KVFS

HDFS

(b) Read

Figure 5: Write and read throughput for 96-GBytes dataset with increasing number of mappers.

NoSQL stores. Our approach combines the versatility

of the key-value API with the simpler (compared to

traditional DFS) semantics of HDFS. We implement

a prototype, KVFS, which runs on top of HBase, a

popular and widely deployed NoSQL store, supports

the full HDFS API and is able to run unmodiﬁed data

analytics applications, such MapReduce tasks. KVFS

runs as a library that replaces entirely the HDFS client

library.

We perform preliminary experiments to contrast

the performance of our approach to a native HDFS

deployment. We ﬁnd that KVFS’s maximum through-

put of reads is 390-MBytes/s and 1100-MBytes/s, for

big and small datasets, respectively. These through-

puts are slightly smaller than the ones achieved by

HDFS. For writes KVFS’s maximum throughput is

460-MBytes/s and 910-Mbytes/s, for big and small

datasets, respectively. KVFS’s write throughput for

small datasets is very close to HDFS’s throughput,

whereas for big datasets it exceeds it.

Overall, our approach shows that the key-value

abstraction is a powerful construct and can be used

as the lowest layer in the storage stack as a basis for

building all other storage abstractions (blocks, ﬁles,

objects, key-value pairs). We believe that this direc-

tion is worth further exploration and that it can lead

to more efﬁcient, scale-out data storage and access in

modern data centers and infrastructures.

REFERENCES

Abramova, V., Bernardino, J., and Furtado, P. (2014). Ex-

perimental evaluation of nosql databases. In Inter-

national Journal of Database Management Systems,

pages 01–16.

Borthakur, D. (2008). Hdfs architecture guide. HADOOP

APACHE PROJECT http://hadoop. apache.

org/common/docs/current/hdfs design. pdf.

Chang, F., Dean, J., Ghemawat, S., Hsieh, W. C., Wallach,

D. A., Burrows, M., Chandra, T., Fikes, A., and Gru-

ber, R. E. (2008). Bigtable: A distributed storage sys-

tem for structured data. ACM Transactions on Com-

puter Systems (TOCS), 26(2):4.

Depardon, B., Mahec, G., and Seguin, C. (2013). Analy-

sis of six distributed ﬁle systems. In HAL Technical

Report.

George, L. (2015). HBase: The Deﬁnition Guide. O’Reilly

Media.

Ghemawat, S., Gobioff, H., and Leung, S.-T. (2003). The

google ﬁle system. ACM SIGOPS Operating Systems

Review - SOSP ’03, 37(5):29–43.

Hintjens, P. (2013). ZeroMQ: Messaging for Many Appli-

cations. ” O’Reilly Media, Inc.”.

Hunt, P., Konar, M., Junqueira, F. P., and Reed, B. (2010).

Zookeeper: Wait-free coordination for internet-scale

systems. In Proceedings of the 2010 USENIX Con-

ference on USENIX Annual Technical Conference,

USENIXATC’10, pages 11–11, Berkeley, CA, USA.

USENIX Association.

Kambatla, K. and Chen, Y. (2014). The truth about mapre-

duce performance on ssds. In Proc. USENIX LISA.

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

366

Kinetic (2016). Open storage kinetic project. http://www.

openkinetic.org/. Accessed: January 2016.

Klein, J., Gorton, I., Ernst, N., Donohoe, P., Pham, K., and

Matser, C. (2015). Performance evaluation of nosql

databases: A case study. In Proceedings of the 1st

Workshop on Performance Analysis of Big Data Sys-

tems, PABS ’15, pages 5–10, New York, NY, USA.

ACM.

Lakshman, A. and Malik, P. (2010). Cassandra: A de-

centralized structured storage system. SIGOPS Oper.

Syst. Rev., 44(2):35–40.

O’Neil, P., Cheng, E., Gawlick, D., and O’Neil, E. (1996).

The log-structured merge-tree (lsm-tree). Acta Inf.,

33(4):351–385.

Shvachko, K., Kuang, H., Radia, S., and Chansler, R.

(2010). The hadoop distributed ﬁle system. In

Mass Storage Systems and Technologies (MSST),

2010 IEEE 26th Symposium on, pages 1–10.

Thanh, T., Mohan, S., Choi, E., Kim, S., and Kim, P.

(2008). A taxonomy and survey on distributed ﬁle

systems. In Networked Computing and Advanced In-

formation Management, 2008. NCM’08. Fourth Inter-

national Conference on, volume 1, pages 144–149.

Weil, S. A., Brandt, S. A., Miller, E. L., Long, D. D. E.,

and Maltzahn, C. (2006). Ceph: A scalable, high-

performance distributed ﬁle system. In Proceedings

of the 7th USENIX Symposium on Operating Systems

Design and Implementation - Volume 7, OSDI ’06,

pages 22–22, Berkeley, CA, USA. USENIX Associ-

ation.

White, T. (2012). Hadoop: The deﬁnitive guide. ” O’Reilly

Media, Inc.”.

Zaharia, M., Chowdhury, M., Franklin, M. J., Shenker, S.,

and Stoica, I. (2010). Spark: Cluster computing with

working sets. HotCloud, 10:10–10.

KVFS: An HDFS Library over NoSQL Databases

367
