Two Novel Techniques for Space Compaction on Biological

Sequences

George Volis, Christos Makris and Andreas Kanavos

Department of Computer Engineering and Informatics, 26504 Rio, University of Patras, Patras, Greece

Keywords: Searching and Browsing, Web Information Filtering and Retrieval, Text Mining, Indexing Structures,

Inverted Files, Index Compression-Gram Indexing, Sequence Analysis and Assembly.

Abstract: The number and size of genomic databases have grown rapidly the last years. Consequently, the number of

Internet-accessible databases has been rapidly growing .Therefore there is a need for satisfactory methods for

managing this growing information. A lot of effort has been put to this direction. Contributing to this effort

this paper presents two algorithms which can eliminate the amount of space for storing genomic information.

Our first algorithm is based on the classic n-grams/2L technique for indexing a DNA sequence and it can

convert the Inverted Index of this classic algorithm to a more compressed format. Researchers have revealed

the existence of repeated and palindrome patterns in DNA of living organisms. The main motivation of this

technique is based on this remark and proposes an alternative data structure for handling these sequences. Our

experimental results show that our algorithm can achieve a more efficient index than the n-grams/2L algorithm

and can be adapted by any algorithm that is based to n-grams/2L The second algorithm is based on the n-

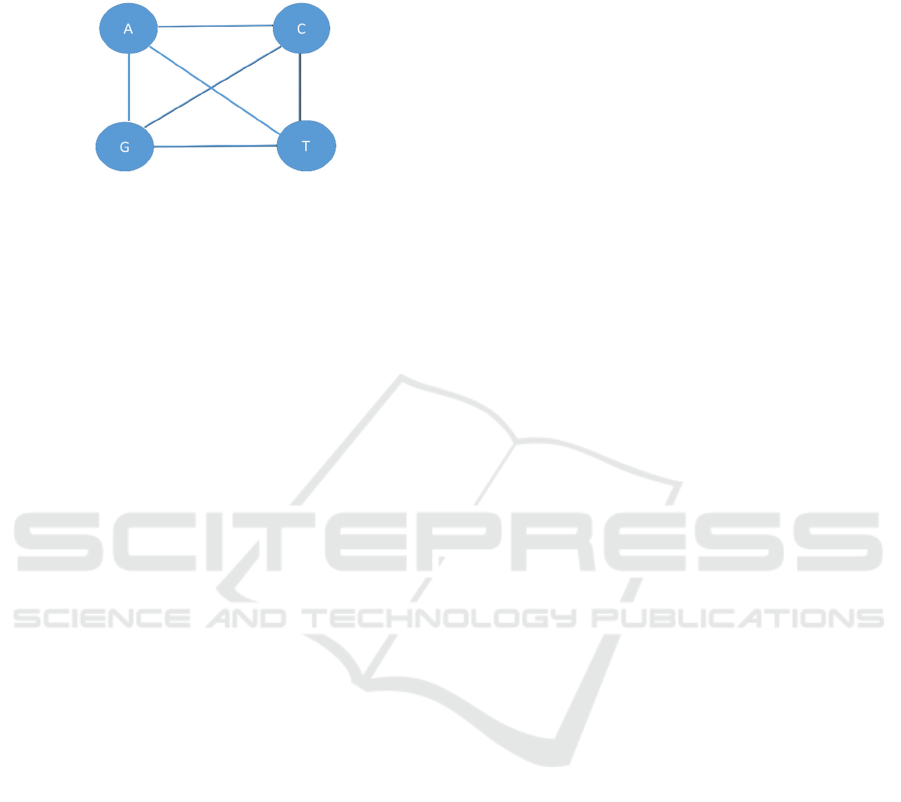

grams technique. Perceiving the four symbols of DNA alphabet as vertex of a square scheme imprint a DNA

sequence as a relation between vertices, sides and diagonals of a square. The experimental results shows that

this second idea succeed even more successfully compression of our index structure.

1 INTRODUCTION

The large volume of biological sequences demands

effective data structures and techniques for storing this

growing information. In addition, the DNA structure

analysis has shown that these sequences are not

random. This is somewhat expected if we consider that

DNA structure reflects the organizational structure of

living organisms so it must contain some logical

organization in its structure. One of the first things that

DNA sequencing disclosed was the occurrence of

repeated patterns in its body. It is well known

nowadays that the existence of repetitive sequences or

palindromes in a DNA sequence is one of the main

characteristics of DNA structure. We also know that

repeated DNA sequences are liable for biological

diversification (Grechko 2011) and that palindromic

sequences are associated with sites of DNA breakage

during gene conversion (Krawinke et al. 1986).

From that point a lot of techniques for the

identification of repeated or palindrome subsequences

came to the fore and lots of them proposed efficient

methods for handling sequences exploiting these

properties of the DNA structure. (Ziv and Lempel

1977), (Smith and Waterman 1981), (Welch 1984),

(Grumbach and Tahi 1994), (Rivals et al. 1995), (Kurtz

and Schleiermacher 1999), (Sun et al. 2004),

(Bernstein and Zobel 2004), (Christodoulakis et al.

2006), (Alatabbi et al.2012), (Diamanti et al. 2014).

The majority of them relies on the extraction of

repeated sequences. The detection of palindromes for

better performance in terms of space or time has

employed less research and that’s why palindrome

techniques lacked in literature in contrast to the

repeated sequence methods (Welch 1984), (Grumbach

and Tahi 1994), (Rivals et al. 1995).

The problem of a pattern detection into a DNA

sequence, a well-known problem of information

retrieval theory, is what we are going to solve. Our

main purpose is to achieve a better space performance.

Thus we propose two different techniques. The novelty

of our first approach relies on the combination of the

idea of palindromic sequences with n-grams to create

an alternative inverted index for our DNA sequence.

The second idea is a completely new technique which

is completely new technique which is based on

perceiving a DNA sequence as a geometric problem. It

is combined with the n-grams technique too.

Volis, G., Makris, C. and Kanavos, A.

Two Novel Techniques for Space Compaction on Biological Sequences.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 105-112

ISBN: 978-989-758-186-1

105

In information retrieval theory the n-grams

technique seems very appealing for constructing the

index of a sequence (Navarro and Baeza-Yates 1998),

(Kim et al. 2005), (Mayfield and McNamee 2003).

This is due to the two major advantages of this

technique: a) its neutral language and b) its error

tolerance. Due to the first advantage we can disregard

the characteristics of the language and therefore we can

apply it at any language (Asian, Korean, and languages

where complicated knowledge is required) (Ogawa

and Iwasaki 1995), (Lee and Ahn 1996). The second

advantage allows us to retrieve information with some

errors (Kim et al. 2007).

The rest of the paper is organized as follows. In

section 2, the related work as well as the contribution

is presented. In section 3, we present the first

technique for Space compaction due to palindrome

extraction. Subsequently, in section 4, we present our

second technique and we analyze the square scheme

algorithm. The section 5 presents a reference to our

experimental results and the final section 6 concludes

the paper.

2 RELATED WORK AND

CONTRIBUTION

Finding the exact occurrences of a pattern in a

sequence of characters is one of the most fundamental

issues in information retrieval theory. Many types of

data structures and algorithms have been proposed

over the past years for effective solutions to this

problem. However it is still a challenging problem

when handling a big amount of data.

The n–grams technique (Navarro and Baeza-Yates

1998) in response to that problem is one of the well-

known and most used techniques over the past years.

We give the definition for n-grams below.

Definition n-grams: Given a sequence of tokens S

= (S₁, S₂……S

ɴ + (n-1)) over the token alphabet A,

where N and n are positive integers, an n-gram of the

sequence S is any n-long subsequence of consecutive

tokens. The i

-gram of S is the sequence (Sᵢ……Sᵢ +

(n-1)).

However, the n-grams structure for indexing a

sequence has some drawbacks too. The size of index

gets large and the performance of queries gets bad

too. That is a result of the 1-sliding method that n-

grams technique uses for extracting terms. It

increases the number of the extracted terms causing a

drastic increment of the size of the index. That also

affects the performance of queries since the number

of postings accessed during query performance

increases. For the reasons listed above a new data

structure was proposed. That was a two-level scheme

index that reduced the size and improved the query

performance (Kim et al. 2005).

The improved n-gram/2L algorithm that was

proposed for the reduction of index exponential

explosion is a two-level structure consisting from the

back-end and the front-end index. On the first level, the

algorithm extracts substrings of fixed length m from the

DNA sequence and stores them along with their offsets

to the back-end index. It subsequently applies the classic

n-grams technique for the set of extracted subsequences

and builds the front-end index.

Finding repeated sequences has been a basic step

for improving an information system performance

and reducing the amount of the requiring space. The

work of (Bernstein and Zobel 2004) proposed a

technique for computing repeated n-grams for large

text sequences. They proposed the SPEX multi pass

algorithm for finding co-occurring text. The LZ77

and LZ78 (Ziv and Lempel 1977) algorithms achieve

compression by replacing repeated pattern

occurrences in a sequence using references to a single

copy of that pattern, existing earlier in the

uncompressed data stream. Moreover, in (Diamanti et

al 2014) we can observe that taking advantage of the

repeatability of our subsequences in the back-end

index of the n-grams/2L scheme can produce a

smaller inverted index.

As we mentioned earlier, the repetitiousness of a

pattern can be revealed in terms of palindrome

existence. A palindrome of a pattern is the sequence

which arises if we traverse the pattern with reverse

order. For example, the AATTC pattern’s palindrome

is the CTTAA pattern.

The palindromes' extraction as a base for an

effective performance on genomics algorithms has

been investigated in (Grumbach and Tahi 1994) and

(Rivals et al. 1995). Both techniques are based on the

work of (Welch 1984) and achieves space

compression by searching for the longest exact and

Figure 1: Union of two palindrome grams.

AG m1,m3,m7,m8

GA m1,m3,m6,m8

AG m1,m3,m7,m8,m1,m3,m6,m8

AG m1,m3,m6,m7,m8

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

106

reverse repetitions.

We should notice here that even if there is not an

appearance of repeated patterns palindromes as a

result of some structure mechanism of DNA, the fact

that the DNA alphabet is too small (only 4 characters)

leads us to the outcome that it is quite possible to find

palindromes or repeating patterns in a DNA data

stream.

Our first technique is concerned only to find

palindrome relations and take advantage of their

properties in order to achieve a better space

performance. We will also show that our idea could

be adapted from any algorithm that relies on the two

level scheme data structure for n-grams.

Bibliography lacks from references similar to our

second technique thus we will be the first to present

this approach for handling DNA sequences.

3 FIRST PROPOSED

TECHNIQUE (PALINDROME

ALGORITHM)

This novel two level scheme is based on the two-level

n-grams scheme of the work of (Kim et al. 2005). We

will separate the process in two steps. The first step

introduces the construction of our two-level index and

the second step applies our algorithm on the front-end

index.

STEP1

1: The initial DNA sequence produces the

subsequences of fixed m-length.

2: An inverted Index called back-end for the sub

sequences with the pointers of their initial index to the

DNA sequence for every subsequence.

3: All the n-grams in each substring are produced.

4: The inverted index called front-end index is

being created for all the grams of the subsequences

with the pointers to the subsequences that include the

n-grams.

STEP 2

At this step we apply our palindrome method to

the front-end index in order to attain a smaller index

for our DNA sequence.

The algorithm computes the palindrome relation

between the grams of our front-end index. At first we

check every gram of our index and scan our list to see

if it contains its palindrome. When we find a

palindrome of a gram we concatenate the two posting

lists, the list of the gram and the list of its palindrome.

What we need to remark at this point is that

searching for a palindrome of a pattern is exactly the

same as looking for the same pattern in the sequence.

The only difference is that when looking for an exact

match we scan the sequence from left to right until we

find the pattern, while in the second occasion when

we look for the palindrome we need to scan the

sequence from right to left until we find an exact

match for our given pattern.

Remark: It is not necessary to keep two separate

lists for two grams that are palindromes. We can

delete all the terms of a gram posting list and merge

it with the list of its palindrome gram. Figure 1 depicts

the adjustment of this idea on two palindrome grams.

Obviously we don’t have to keep the same indexes

for a gram so we can eliminate these same positions

from our posting lists as shown to figure 1. We can

already notice that our front-end index transformed

into a more compressed format based on the idea

above. Also, we can see that we are talking about a

lossless algorithm since no information gets lost

during this alteration. All the information that was

included in the list of the GA gram can be found in

the AG gram list now.

It is clear that since we have got a merged list for

two palindromes, our algorithm needs a refining step

for ensuring the validity of our results. Thus, every

time we search for a pattern in a sequence we ensure

that we check the right gram of a list and not its

palindrome.

The previous method can be directly adapted by

the two-level scheme structure and offer to the front-

end index a more compacted format. This is very

important if we consider that the front-end index is

responsible for the drastic increment of the size of the

two-level scheme data structure.

In conclusion, we observe that after this

transformation our new index occupies less space. It

is clear that if we had a bigger subsequence we could

possibly find more palindromes that could lead to an

even more compressed format of our table.

4 SECOND TECHNIQUE

(SQUARE SCHEME

REPRESENTATION)

The novelty of this idea relies on a different approach

of the way we encounter a DNA sequence. Instead of

considering a DNA sequence as a random sequence,

which consists of symbols of a given DNA alphabet,

we consider it as a depiction of the relation of a

square’s sides, diagonal and vertices.

In that way genomic problems could acquire

geometrical concept. The assignment of DNA

characters to square vertexes is obviously a one-to-

Two Novel Techniques for Space Compaction on Biological Sequences

107

one correspondence, which indicates that there is no

loss of information after the substitution. The above

mentioned idea is illustrated on Figure 2

Figure 2: DNA bases as square vertices.

Hence, a DNA sequence can be transformed into

a vertex traversing depiction of a square. Assuming

that every two consecutive symbols in DNA sequence

are not identical we can transform the vertex

traversing into a sides and diagonals traversing

problem.

Following the above approach in the sequence S

=ACGT we may observe the depiction of two parallel

sides of the square which are the {AC} and the {GT}

sides. This is the way that the concept of the idea

works.

4.1 Square Scheme

At this stage we use a definition from mathematics

field in order to proceed with our technique. The

concept of the absolute value is introduced. For

example for a two character string S=GA, we call

absolute value of S, and we symbolize, it as |S| or

|GA|, the sequence that arise if the first character is

lexicographically smaller than the second character.

So |GA| =AG.

We will convert our DNA sequence to a new one

based on the square scheme and the absolute value

concept. We scan our sequence, extracting all the

consecutive 2 –character strings that do not overlap

each other. Every extracted string is converted to its

absolute value. For example we are indifferent about

the succession of characters in every extracted string.

Either it is AG or GA, we will consider it as AG.

Based on the above remarks we will take this

analysis on a further step. First of all we segment our

DNA sequence in corpuses of four DNA characters that

do not overlap each other. Every corpus can be divided

in two pairs of 2-character strings that do not overlap

each other and (if every two symbols are not identical)

can be transformed into a depiction of square sides and

diagonals, provided that in every pair of strings the

characters are not identical. (We will confront the case

of identical characters later).

Considering that every corpus of four DNA

symbols depicts a relation of square diagonals and

sides we can divide every DNA sequence to certain

categories based on these relations. Thus if we find

all the possible associations between square sides and

diagonals we can correspond every four DNA

characters string to a certain association of this square

scheme.

We now check all the relations that occur between

two square elements:

1) Parallel Sides: The four DNA symbols encode

two sides that are parallel. That occurs at the

following four cases:

Α) ΑC – GT B) GT - AC

C) AG – CT D) CT - AG

As we mentioned before we transpose the two 2-

character strings that compose the 4 symbol string

that we examine, into their absolute values.

2) Vertical Sides: We have vertical sides on the

following cases:

Α) AC – AG Ε) GT - CT

Β) AG – AC F) CT - GT

C) AG – GT G) CT - AT

D) GT – AG H) AT - CT

So we have finally 8 different categories.

3) A Side with a Diagonal: Each side can be

paired with the two diagonals so we have eight

categories related to this case:

A) AC – AT E) CT - AT

B) AC – CG F) CT - CG

C) AG – AT G) GT - AT

D) AG – CG H) GT - CG

If we consider the reverse relations, where the first

pair forms a diagonal and the second pair forms a side

of the square, we have finally sixteen categories.

4) Diagonal with Diagonal: This occurs on the

following four cases.

Α) AT – CG C) AT - AT

Β) CG – AT D) CG| - CG

5) Repeated Sides: This occurs on the following

four cases:

Α) AC - AC C) GT - GT

B) AG – AG D) CT - CT

Figure 3 illustrates the process of the proposed

technique.

All the above categories are related to the case in

which, the 4-character DNA corpus is divided in two

character string pairs, while the characters are not

identical. From a geometrical aspect, all the above

cases, can be expressed as a traversal on a square.

In the case that a repeated character appears in an

extracted 2-character string, indicates that we don’t

observe any movement in the square scheme thus no

side or diagonal is forming. In this case we assume

that we are indifferent on which is the repeated

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

108

Figure 3: At S1 sequence we have substituted the 2 –

character consecutive strings that consist the S1 with their

absolute values. At S2 we segment our new sequence in

corpuses of four characters in order to encode them with

their geometrical correlation. At S3 we can see our new

sequence after the encoding.

character (vertex) appearing in each 2-character

string. For instance, in case we trace GG string (same

for CC or TT), we have to classify the string on the

same category that we would in case we had traced

the AA vertex. At a later stage, we will clarify, which

character appears in each 2-character string pair that

divides every 4-character DNA corpus. Thus we will

group together the following two categories on the

above case analysis

6) Two Repeated Vertexes: No movement at all.

(Repeated characters at both 2-character pair strings):

Since every repeated vertex is encountered as AA we

have only one case reflecting to this category.

A) AA - AA

7) One Repeated Vertex: The repeated vertex

can be paired with the two diagonals plus the four

vertices which means that we have totally six possible

relations in this case.

A) AA – AC D) AA - GT

B) AA – AG E) AA - AT

C) AA – CG F) AA - CG

Considering the reverse relations where the first

pair forms a diagonal or a side and the second pair

forms the repeated vertex (AA) we finally get twelve

cases.

4.2 Converting the Sequence to a New

One based to Square Scheme

Category

At the next step we are going to encode our pattern to

our new alphabet in order to apply the n-grams

technique. Following the same approach we can

convert our initial pattern of size P to a new one of

size P/4.

After we have encoded our pattern, due to the

square scheme, we can apply the well-known n-grams

technique to extract its occurrences in the

DNA

sequence. But our process won’t stop there. There are

more to be done in order to extract all the appearances

of our initial pattern. Let’s give a simple example to

clarify this:

Assuming we have the pattern P =AGCTATGA

which will be segmented to the following strings:

AGCT - ATGA

1st 2nd

The pattern P will be encoded as P΄= {Parallel

sides A} {Side with diagonal B}. The problem here

is that we only search for encoded strings of the initial

pattern that have been encoded with this specific

order. But what happens if the AG has not been

encoded as the first two characters of a 4-character

string but it has been encoded as the last two

characters of another 4-character string? For example,

the pattern M =AGAGCTATGACT which with the

above technique will be segmented to the following

three strings:

S=ACTGATGCACACAGAC

S1=ACGTATCGACACAGAC

S2=ACGT ATCG ACAC AGAC

S3= {Parallel sides A}{Diagonal with diagonal

A}{Repeated side A}{Vertical sides B}

Two Novel Techniques for Space Compaction on Biological Sequences

109

AGAG - CTAT - GACT

st 2nd 3rd

The previous pattern will be encoded as M΄=

{repeated side B} {side with a diagonal D} {Parallel

side C}. So even if the pattern AGCTATGA is still

there, we cannot find it because we will be looking

for a different sequence of symbols after the encoding

(P΄ # M΄). This remark leads us to the conclusion that

in order to trace a pattern of DNA sequence after the

encoding we have to look not only for one pattern .In

particular we have to look for four patterns. Every

pattern will start the encoding at each one of the four

starting positions of the pattern.

The remaining symbols that cannot form a 4-

character string cannot be encoded. Therefore we

check for the encoded corpus of the sequence first and

if we have a match we subsequently check if the

remaining DNA symbols are identical. We can see for

the example above that P3 pattern can now detect the

existence of our initial pattern in the M sequence.

Thus, instead of searching for a pattern of size P

in a sequence with N size we are looking for four

patterns of size P/4 each one into a sequence of total

size N/4.

4.4 Refining Results

After the occurrences of these patterns have been

traced we proceed with the final step of our method.

At this step the final results for the occurrences of our

pattern are derived. The occurrences which are

extracted until now are just a sign of possible

existence of our pattern in the current positions. That

is due to the simplifications we made on the first steps

of our algorithm. Specifically, this is due to the

following two factors.

1) We have estimated the absolute values of

every 2-character string which have been extracted

from our initial DNA sequence. For instance there is

Figure 4: Refining List for the Subsequence S.

no distinction if the AG or the GA string appears.

2) We have represented every repeated vertex

(character) by a single representation (the AA string).

For instance there is no distinction if it is the CC or

the GG string.

Hence, we need to refine the prospective results to

produce our final answers. To do this we maintain for

our initial DNA sequence (of size N) a list that is

called Refining List. We examine every pair of two

character string that compose each 4-character string

that have been extracted provided that these two

character strings do not overlap each other. If the first

character of each pair is lexicographically smaller

than the second we register “0” in our Refining List.

On the opposite occasion we register “1”. Obviously

the size of our Refining List will be N/2. For the

repeated characters of a two character string we made

the following convention for our Refining List:

• If we find AA we entry 0.

• If we find CC we entry 1.

• If we find GG we entry 2.

• If we find TT we entry 3.

Figure 4 exhibits the construction of our Refining

List for a given sequence.

This is all that is needed in order to detect the exact

DNA symbol at every position of our transformed

sequence. Assuming that in a certain position in our

DNA sequence, the pattern ACGT is traced.

According to the square scheme algorithm analysis

we ascertain that this pattern corresponds to the

“parallel sides A” category, supposing that this

category has been encoded with the symbol U.

Moreover, we trace in our Refining List the numbers

0 and 1 at the corresponding position. This implies

that we have the string ACTG in the current position

on the DNA sequence. With the above process we can

clarify which DNA symbol lies behind the encoded

string.

Figure 5: Percentage space compaction of palindrome

algorithm in comparison to n-grams/2L algorithm for

varying size of n.

After we have extracted the prospective sequences

that match our pattern, this technique is applied on

our pattern extraction step. At each one of our

equivalent patterns we also create a Refining List.

When there is a match at a current position we cross

examine the Refining List of our pattern with the

corpus of our DNA sequence Refining List that

S=ACGGTAGCAT

Refining List = 02110

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

110

corresponds to the appearance of the pattern in the

sequence. If we have a match, then our pattern

definitely appears in our initial DNA sequence at this

current position. Otherwise there is no appearance of

this pattern at this position.

5 EXPERIMENTS

In our experiments we use random synthetic

sequences of 100000 DNA symbols in order to

examine the performance of our constructions and the

space compaction that they achieve. The computer

system, where the experiments were performed, was

an Intel Core i3-M380 2.53 GHz CPU with a 4GB

RAM. We used initials to describe the metrics of our

problem.

In particular we symbolize with m the length of

our subsequences and with n the length of grams. The

presentation of the results of each algorithm are

depicted in relation with the percentage of the space

compaction they achieve compared to the n-gram/2L

algorithm. In the first algorithm we estimated the

space efficiency of the front-end index (because the

method offers space efficiency only on the front-end)

while in the second algorithm we compared the whole

two-level index of the two techniques.

5.1 Palindrome Algorithm Results

As is depicted in figure 5 this method behaves better

and offers better space efficiency for the case of 2-

grams. This is a bit of expected if we consider that the

algorithm achieves compaction in case it detects

palindrome grams within the same subsequence.

There are more possibilities to find a palindrome of a

2-gram than palindromes of larger grams within a

subsequence. Since this technique exploits the

reciprocity of the DNA structure it is reasonable to

Figure 6: Percentage space compaction of palindrome

algorithm for palindromic DNA sequence in comparison to

n-grams/2L algorithm for varying size of n.

achieve even better efficiency on sequences which

show large volume of palindromes on their body. This

can be depicted in figure 6 where a higher space

compaction can be observed. In both figures we can

patently see that our method is more efficient for

substrings of length from 8 to 12.The reason for this

efficiency is that our palindrome algorithm takes

advantage of the substrings of length from 8 to 12

which seems to show larger volume of palindromes

on their body.

5.2 Square Scheme Algorithm Results

As far as the second technique is concerned, we can

observe that we are led to very compact inverted file

sizes (Figure 7). It is also very important to notice that

this method cannot be affected from the nature of

DNA structure (repetitions, palindromes).It is clear

from the algorithm analysis that this technique can

guarantee this high efficiency for every biological

sequence. Since this method uses the one level

scheme it doesn’t affected by the length of our

subsequences. That’s why we observe a slight

reduction of the efficiency for larger values of m. This

is due to a possible space compaction that appears to

the two level n-gram/2L technique in contrast to the

one –level n-gram for higher values of m.(Due to the

work of (Diamanti et al. 2014)this can happen

because there is a large number of repeated substring

on our back-end index).

6 GENERAL CONCLUSION

We presented two novel techniques that can lead us

to new compact inverted index file sizes. Especially

the palindrome algorithm can be perceived as a

“black box” and thus can be adapted by any algorithm

that uses the n-gram/2L technique in order to provide

Figure 7: Percentage space compaction of square scheme

algorithm in comparison to n-grams/2L algorithm for

varying size of n.

Two Novel Techniques for Space Compaction on Biological Sequences

111

a more compressed index. The second technique can

obviously offer higher efficiency especially when

handling a big amount of data. Moreover this new

approach for handling DNA sequences as a

geometrical problem could possibly lead in future to

new and efficient ideas about DNA algorithms.

REFERENCES

Alatabbi, A., Crochemore, M., Iliopoulos, C. S., and

Okanlawon, T. A. (2012). Overlapping repetitions in

weighted sequence. In International Information

Technology Conference (CUBE), pp. 435-440.

Bernstein, Y., & Zobel, J. (2004, January). A scalable

system for identifying co-derivative documents.

In String Processing and Information Retrieval (pp. 55-

67). Springer Berlin Heidelberg.

Christodoulakis, M., Iliopoulos, C. S., Mouchard,

L.,Perdikuri, K., Tsakalidis, A. K., and Tsichlas,

K.(2006). Computation of repetitions and regularities

of biologically weighted sequences. In Journal of

Computational Biology (JCB), Volume 13, pp. 1214-

1231.

Diamanti, K., Kanavos, A., Makris, C., & Tokis, T.(2014)

Handling Weighted Sequences Employing Inverted

Files and Suffix Trees,

Grechko, V. V. (2011). Repeated DNA sequences as an

engine of biological diversification. Molecular

Biology, 45(5), 704-727.

Grumbach, S. and Tahi, F., A new challenge for

compression algorithms: genetic sequences, J.

Information Processing and Management, 30(6):875-

866, 1994.

Kim, M.-S., Whang, K.-Y., and Lee, J.-G. (2007).

ngram/2l-approximation: a two-level n-gram inverted

index structure for approximate string matching. In

Computer Systems: Science and Engineering, Volume

22, Number 6.

Kim, M.-S., Whang, K.-Y., Lee, J.-G., and Lee, M.-J.

(2005). n-gram/2l: A space and time efficient twolevel.

n-gram inverted index structure. In International.

Conference on Very Large Databases (VLDB),

pp. 325-336.

Krawinkel, U., Zoebelein, G., & Bothwell, A. L. M. (1986).

Palindromic sequences are associated with sites of

DNA breakage during gene conversion.Nucleic acids

research, 14(9), 3871-3882.

Kurtz, S., & Schleiermacher, C. (1999). REPuter: fast

computation of maximal repeats in complete genomes.

Bioinformatics, 15(5), 426-427.

Lee, J. H. and Ahn, J. S. (1996). Using n-grams for korean.

text retrieval. In ACM SIGIR, pp. 216-224.

Mayfield, J. and McNamee, P. (2003). Single n-gram

stemming.In ACM SIGIR, pp. 415-416.

Millar, E., Shen, D., Liu, J., & Nicholas, C. (2006).

Performance and scalability of a large-scale n-gram

based information retrieval system. Journal of digital

information, 1(5).

Navarro, G., & Baeza-Yates, R. (1998). A practical q-gram

index for text retrieval allowing errors. CLEI Electronic

Journal, 1(2), 1.

Ogawa, Y. and Iwasaki, M. (1995). A new characterbased

indexing organization using frequency data for

japanese documents. In ACM SIGIR, pp. 121-129.

Rivals, E., Delahaye, J.-P., Dauchet, M., and Delgrange, O.,

A Guaranteed Compression Scheme for ´ Repetitive

DNA Sequences, LIFL Lille I University, technical

report IT-285, 1995.

Smith, T. F., & Waterman, M. S. (1981). Identification of

common molecular subsequences. Journal of

molecular biology

, 147(1), 195-197.

Sun, Z., Yang, J., and Deogun, J. S. (2004). Misae: A new

approach for regulatory motif extraction. In

Computational Systems Bioinformatics Conference

(CSB), pp.173-181.

Welch, T. A. (1984). A technique for high-performance

data compression computer, 6(17), 8-19..

Ziv, J., & Lempel, A. (1977). A universal algorithm for

sequential data compression. IEEE Transactions on

information theory, 23(3), 337-343.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

112
