Lightweight Realization of UML Ports for Safety-Critical Real-Time

Embedded Software

Alper Tolga Kocataş

, Mustafa Can

and Ali Hikmet Doğru

Avionics Software Design Department, Aselsan Inc., Ankara, Turkey

Department of Computer Engineering, Middle East Technical University, Ankara, Turkey

Keywords: UML, Model, Port, Object-Oriented, Realization, Transformation, Safety-Critical, Embedded, Real-Time.

Abstract: UML ports are widely used in the modeling of real-time software due to their advantages in flexibility and

expressiveness. When realizing UML ports in object oriented languages, using objects for each port is one

option. However, this approach causes runtime overhead and renders significant amount of additional

generated code. To meet the performance constraints and decrease the costs of code reviews required in

development of safety-critical real-time embedded software, more efficient approaches are required. In this

article, we propose an approach, which introduces relatively less runtime overhead and results in more

compact source code. A structural model defined with UML ports is transformed into a model that uses

associations instead of objects to efficiently implement the UML port semantics with less lines of code.

Achieved improvements and validation of the proposed approach is demonstrated by a case study; the

design of an existing avionics software.

1 INTRODUCTION

Defining interactions of classes using association

relations which expose the entire public interface of

the classes to their clients makes it hard to observe

the data flow in the model. Since ports function as

an opening in the encapsulation of classes through

which messages are sent either into or out of the

class (Bjerkander and Kobryn, 2003), a model

designed using ports is easier to understand, more

flexible, easier to maintain and more suitable for

communication of design decisions. In UML, a port

is a point defined by a classifier for conducting

interactions between the internals of the classifier

and its environment. The contract based interaction

provided by ports allows the classifiers to be defined

independently from other classifiers (Selic, 2003).

On the other hand, software for safety-critical

real-time embedded systems is becoming more and

more complex (McDermid and Kelly, 2006). These

systems typically require certification and runtime

overhead of any design decision should be justified

because of limited resources. Additionally, the size

of the source code should be compact for easier code

reviews. For instance, DO-178C (RTCA, 2011)

defines several requirements for certification of

airborne systems. In DO-178C, if a development

tool (i.e. a code generator) is not “qualified”, its

outputs must be manually reviewed for correctness.

Since development tool qualification is the most

rigorous type of tool qualification in the scope of

DO-178C, often, instead of qualifying the tools,

their outputs are preferred to be manually reviewed.

As a result, source code, which is more compact and

less complex, is preferred because the effort needed

for code reviews is expected to be lower.

Ports and connectors do not have direct

correspondents in object oriented programming

languages (Mraidha et al., 2013) and yet, UML does

not put constraints on how ports are realized (France

et al., 2006). The UML standard mentions ports as

interaction points which provide “unique references”

(OMG, 2015). According to this definition,

realization of ports using objects seems adequate.

However, this approach causes certain amount of

runtime overhead for the final executable (Douglass,

2007). Ideally, ports should have zero overhead for

transmitting messages for complex real-time systems

(Selic, 1998). Another problem with this approach

is, source code grows significantly because of the

added objects and classes to realize the ports.

In this article, we propose a more efficient

approach for mapping ports to object oriented

languages. The proposed approach enables

258

Kocata¸s, A., Can, M. and Do

gru, A.

Lightweight Realization of UML Ports for Safety-Critical Real-Time Embedded Software.

DOI: 10.5220/0005689602580265

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 258-265

ISBN: 978-989-758-168-7

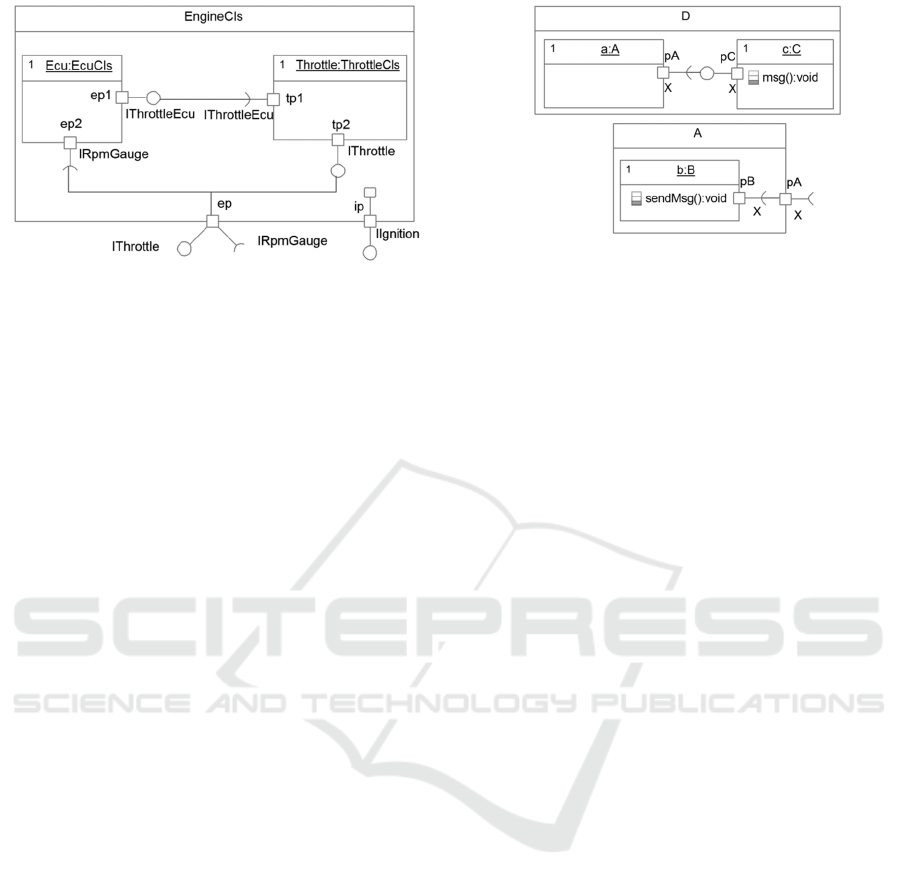

Figure 1: UML composite structures and port notation.

generation of relatively compact source code and

introduces relatively less runtime overhead. A

source model having been defined using ports and

connectors is transformed into a target model. Code

is then generated from the target model. The target

model includes association relations and

initialization operations, which implement the ports

and connectors in the source model. The presented

approach is evaluated using the design model for an

avionics software.

2 UML PORTS OVERVIEW

Abstract syntax and concrete syntax for composite

structures and ports is given in the "Composite

Structures" section of UML 2.4.1 superstructure

definition (OMG, 2015). Figure 1 presents an

example composite structure diagram using ports. In

the figure, there is a connector which connects the

ports ep1 and tp1. The connector semantically

indicates that a message sent from the tp1 port of the

Throttle object should be sent to the Ecu object via

its ep1 port. When sending the message, source class

(Throttle) specifies the port name, operation name

and operation arguments. An example expression is

presented in Statement 1 using C++:

GetPort(tp1).msg();

(1)

GetPort

is used to obtain a reference to the

destination of the message, and it should be

translated to an appropriate statement by the used

port realization approach. In this article, connectors

are categorized as cross connectors and relay

connectors for better communication of ideas. Cross

connectors connect ports of the two objects (i.e. the

connector between ports ep1 and tp1 in Figure 1),

while relay connectors connect a port of an internal

part with a port of the owner class (i.e. the connector

between ports tp2 and ep in Figure 1).

Figure 2: Example source model.

3 APPROACHES FOR

REALIZATION OF PORTS

In order to demonstrate different realization

approaches for ports, the model depicted in Figure 2

is used. In the model, a message is transferred from

object b to c via the path, which is formed by ports

pB, pA and pC. In addition to the example model

transformations presented in the article, UML model

for Figure 1 and the source code generated using all

of the presented approaches are presented in a public

repository

. The C++ language is chosen as the

target language, but the approaches are also

applicable to other object oriented languages.

3.1 Heavyweight Approach

Specific realization of ports as presented in this

section is implemented by one of the existing

modeling tools (IBM, 2015). According to this

approach, each port is transformed to a class and its

corresponding object. Furthermore, in order to

differentiate messages from both directions,

provided and required parts of port contracts are

realized using in and out objects, which are instances

of additionally generated classes. Using this

approach, the example model provided in Figure 2 is

transformed into the model shown in Figure 3. PA,

PB, and PC are the classes generated for ports.

Classes Out and In are generated for outbound and

inbound direction of ports. After the transformation,

the constructor for class C includes:

pC.getIn().setItsX(this);

(2)

Statement (2) is required to connect port pC of

class C to object c. Furthermore, the constructor of

class A is generated as:

https://github.com/alperkocatas/UmlPortStudy

Lightweight Realization of UML Ports for Safety-Critical Real-Time Embedded Software

259

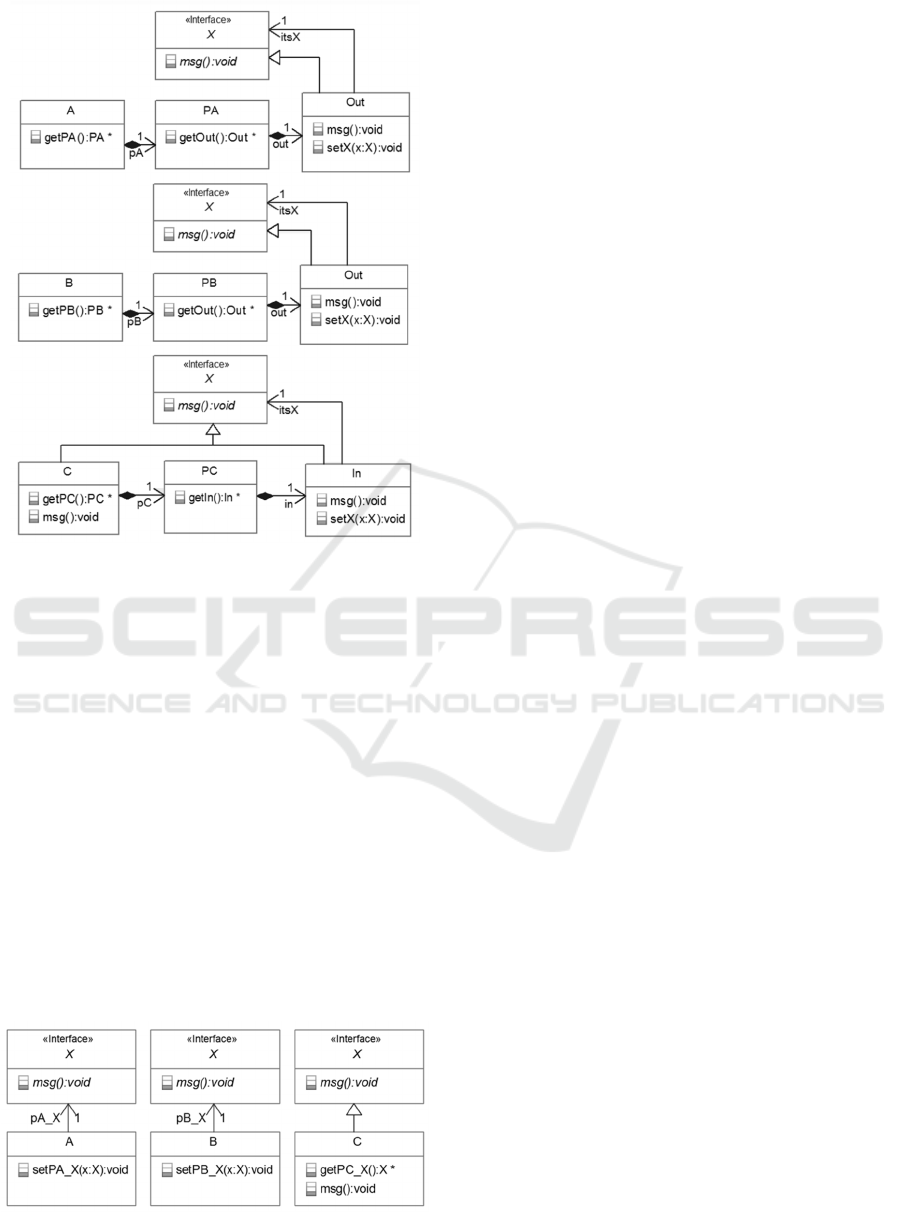

Figure 3: Realization of ports with heavyweight approach.

b.getPB().getOut().

setX(getPA().getOut());

(3)

The method setX is a trivial accessor function for

the generated associations itsX. Statement (3) is

required to connect the relay port pA of class A to

the port pB of object b. Finally, constructor for class

D is generated as:

a.getPA().getOut().

setX(c.getPC().getIn());

(4)

Statement (4) initializes the itsX association of

out object of port pA with the reference of the in

object of object c, so that messages sent from port

pA will be handled by the in object of port pC of

object c.

GetPort(PortName)

in Statement (1) is

translated as

getPortName()->getOut()

, which

returns a reference to the out object of the port. This

reference is used to send messages from the port.

Figure 4: Lightweight realization of ports.

3.2 Lightweight Approach

In the lightweight realization, no objects are

generated for ports. Instead, only associations with

required interfaces and the operations to initialize

them are generated. Relay connectors are

particularly transformed into smart getter and setter

methods. The smart getters and setters are used to

connect the ports which are at the ends of a chain of

relay connectors. At runtime, after the initialization

code generated for cross connectors runs, each

object enters a state in which, the final destinations

of the messages that will be sent from its ports are

determined. As a result, when sending messages,

relay port chains spanning multiple ports are

resolved in one step. Using this approach, the

example model in Figure 2 is transformed to the

model, shown in Figure 4. In the transformed model,

associations pA_X and pB_X are used by objects a

and b to send messages through their ports pA and

pB. Since none of its ports requires interfaces, class

C does not have such association. Constructor of

class D is generated as:

a.setPA_X(c.getPC_X());

(5)

Statement (5) is generated for the cross

connector in the source model. It initializes the pA_X

association of object a with the value obtained from

the getPC_X() operation of object c. Since pC is a

behavioral port, generated operation getPC_X()

returns this pointer of object c. The body of

operation setPA_X(X& val), which is a smart setter,

is generated as:

pA_X = val;

(6)

b.setPB_X(val);

(7)

Port pA is a relay port, which forwards messages

from pB to pC. Statement (6) first sets the pA_X

association of object a to val, so that object a can

also send messages using the port pA. Statement (7)

then forwards the parameter val to object b, which

will set association pB_X of object b to val. Since

the value of val is passed as the this pointer of object

c, Statements (6) and (7) effectively connect the port

pB of object b with object c. As a result, after the

expression in Statement (5) is executed, destination

of messages going out from port pB, which is the

object c, is determined. In the lightweight approach,

the expression

GetPort(PortName)

in Statement

(1) is translated as

PortName_InterfaceName

which is the name of the association created for the

port and required interface pair. To resolve the

interface which is appended to the port name, an

interface, which implements the operation being

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

260

called is searched in the required interfaces of the

port. This search is performed at the time of port

realization.

3.3 Disconnected Ports and Interfaces

If the source model contains disconnected ports,

problems may occur at runtime. The following two

cases correspond to disconnected ports: First, if a

port is not connected to any other port via a

connector, the port is considered as disconnected.

Second, when there is a connector which connects

two ports, if the ports at both ends of the connector

do not have matching contracts, ports are considered

as partially disconnected. In this paper, the second

case is denoted with the term disconnected

interfaces. When operations declared by the

unmatched interfaces are called, messages cannot be

forwarded because there is no provided interface at

the opposite side of the connector. Figure 5 depicts

an example for disconnected interfaces. The port pA

requires interfaces X and Y, while the port pB

provides interfaces Y and Z. Even if the ports are

connected with a connector, since the port pB does

not provide interface X in its contract, object a

cannot send messages declared by interface X to

object b.

In the lightweight approach, if the source model

has disconnected ports or disconnected interfaces,

messages which are being sent from the generated

associations may cause null pointer exceptions. One

of the following strategies can be employed for

handling disconnected ports and interfaces:

1 - The lightweight approach can be used and

disconnected ports and interfaces can be allowed in

the model. Then, if there is a call from disconnected

ports or interfaces, software may crash at runtime

because of a null pointer exception. Alternatively,

the model can be checked before realization of ports

to ensure that no messages will be sent using

disconnected ports or interfaces during execution.

2 - The lightweight approach can be used but,

disconnected ports and interfaces are not allowed in

the source model. The model can be checked before

the realization of ports to ensure that there are no

disconnected ports or interfaces.

3 - The lightweight approach can be modified so

that all of the messages sent through disconnected

ports and interfaces are handled at runtime, by

ignoring the message or by throwing an exception.

When the first option is used without model

checking, there is a possibility of software crashing

at runtime due to a null pointer exception. However,

if statement coverage for all of the operation calls

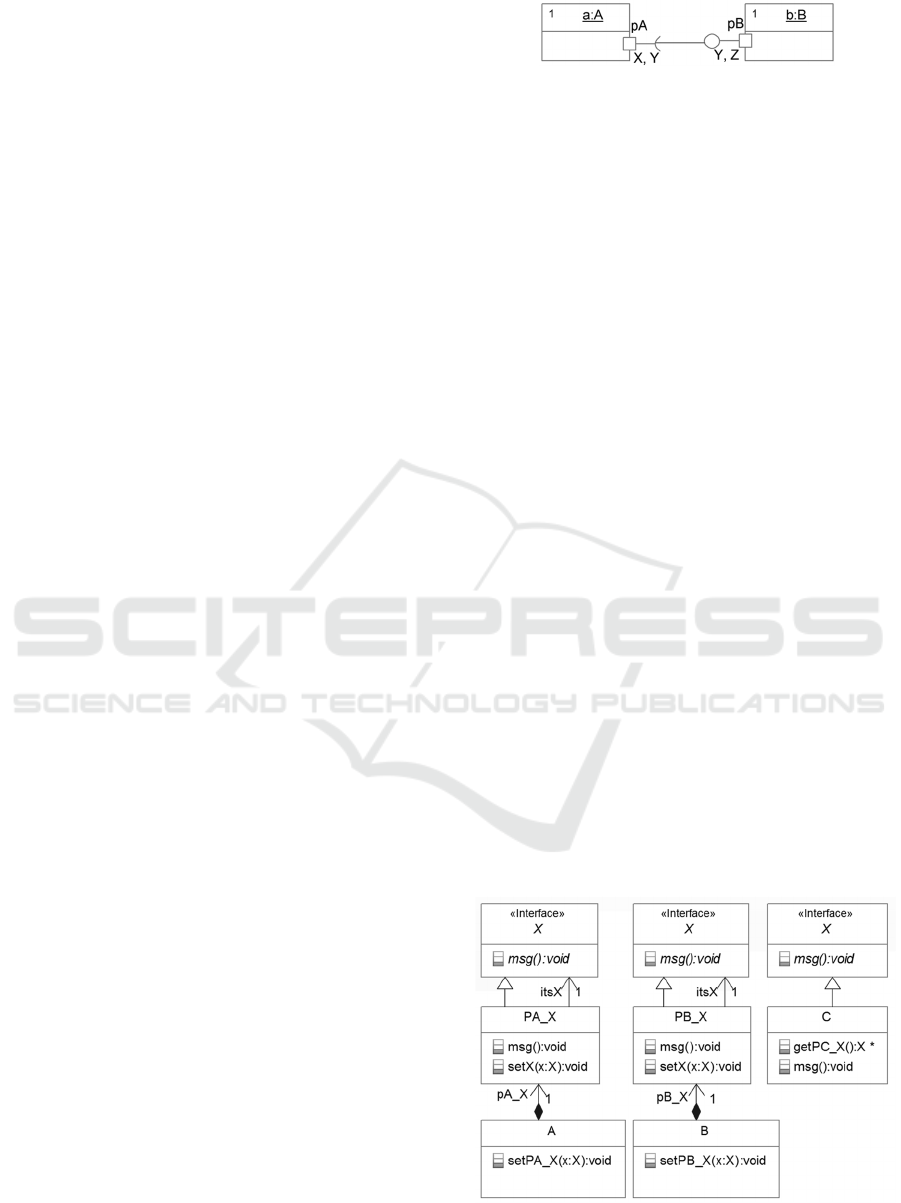

Figure 5: An example for disconnected ports/interfaces.

from ports is achieved while testing, it can be

guaranteed that no such crash will occur. For

example, DO-178C (RTCA, 2011) requires full

statement coverage by test cases, beyond a certain

safety-criticality level. Therefore, effort required for

achieving full statement coverage is already

included in the development costs. Alternatively,

instead of achieving the statement coverage, the

model checking mentioned in the first option can be

attempted to be incorporated. However, such model

checking is not trivial, since predicting the dynamic

runtime behavior of software may not be feasible.

The second option is possible to implement.

However, it can be argued that disconnected ports

and interfaces are part of the flexibility offered by

ports. For example, in Figure 5, although object a

cannot send messages declared by interface X, it can

be allowed to send messages declared by interface Y.

Thus, if the operations declared by the interface X

are not crucial for the expected behavior of object a,

the model in Figure 5, which will is invalid

according to the second option, can be assumed as a

valid one.

The third option can retain the flexibility of

ports, while providing graceful runtime error

handling. Indeed, this option is supported by the

presented heavyweight approach. When a separate

object is employed for each port, they can check

whether the destination of a message is null at

runtime. As a result, one of the three options can be

used. Because it allows more flexibility during

modeling, the third option was selected for

implementation. Next section presents how to apply

Figure 6: Lightweight realization of ports with checks for

disconnected ports.

Lightweight Realization of UML Ports for Safety-Critical Real-Time Embedded Software

261

the third option to extend the lightweight approach.

3.4 Extending the Lightweight

Approach for Disconnected Ports

In this approach, a port with a required interface is

implemented using a separate object, which can

check if its generated association is null at runtime.

Ports having only provided interfaces in their

contracts are still implemented as they would be in

the lightweight approach, without any objects.

Generation of smart getters and setters for the relay

connectors is also the same as in the lightweight

approach. Using the approach, example model

presented in Figure 2 is transformed to the model

shown in Figure 6. Associations pA_X and pB_X in

the lightweight approach are generated as objects.

The objects have associations with interface X,

called itsX. The port connection initialization

statements generated in the constructors are identical

with the previous approach. However, now the msg()

operation, which is implemented in the classes PA_X

and PA_B objects checks if the itsX association is

null at runtime. In this extended version of the

lightweight approach, the expression

GetPort

(PortName)

in Statement (1) is translated as

getPortName_InterfaceName()->getOut().

4 EVALUATION

4.1 Performance Analysis

One of the important performance drawbacks of

ports originate from messages which are redirected

through multiple ports along the path of the

messages. The lightweight approach ensures that at

runtime, the objects hold a reference to the final

destinations of the messages. In this approach,

messages are directed to their final destinations in

one step. In the heavyweight approach, messages

cannot reach their destinations in one step, but they

are redirected multiple times between ports along the

path of the message. When the extension for

disconnected port checking is added to the

lightweight approach, performance is still expected

to be better than the heavyweight approach because

only one level of redirection is added.

Avoiding unnecessary message redirections also

may yield faster performance due to the decrease in

the number of instruction pipeline operations.

Furthermore, the computation required for the

creation of objects during initialization is another

potential drawback for the heavyweight approach.

The lightweight approach and its extension are

expected to perform better since the number of

created objects is zero or at least, fewer.

4.2 Code Size Analysis

Lightweight approach is expected to deliver the most

compact code among the presented approaches

because, no objects and classes are generated for

ports. When the checks for disconnected ports and

interfaces are added, the code size should not grow

as much as it would in the heavyweight approach.

This is because objects are only generated for the

outbound directions of ports. In the heavyweight

approach, resulting code size is considerably larger,

due to the implementation of the operations declared

by the provided and required interfaces in every

class created for ports. Smaller code size is also

expected to improve cache utilization, thus

improving the runtime performance.

4.3 Case Study Design

In order to compare the results from both

approaches, a previously released version of an

avionics software was used. The software was

developed by a team of around fifty software

engineers within a five year schedule, and is still in

progress. The software coordinates more than thirty

avionics devices and provides the pilot with crucial

flight information. IBM Rhapsody (IBM, 2015) is

being used as the development tool. DO-178C

(RTCA, 2011) is complied. Because the code

generator of IBM Rhapsody is not a “qualified”

development tool in the scope of DO-178C,

generated code is reviewed manually.

Software components in the case study run on an

ARINC 653 (Aeronautical Radio Inc., 2003)

compliant real-time operating system. Software

processes run in time and space isolated partitions.

Partitions are scheduled in a fixed, cyclic basis.

Partitions perform their initialization tasks and then

start executing a periodic running task. When the

allocated execution duration finishes for the

scheduled partition, the scheduler switches to the

next partition in the schedule.

For comparison purposes, code was generated

using different approaches. Several metrics were

collected during code generation and runtime.

AVGRT metric indicates the average time in

milliseconds, required for a partition to finish its

periodic execution. The LSLOC metric indicates the

logical source lines of code measured using the

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

262

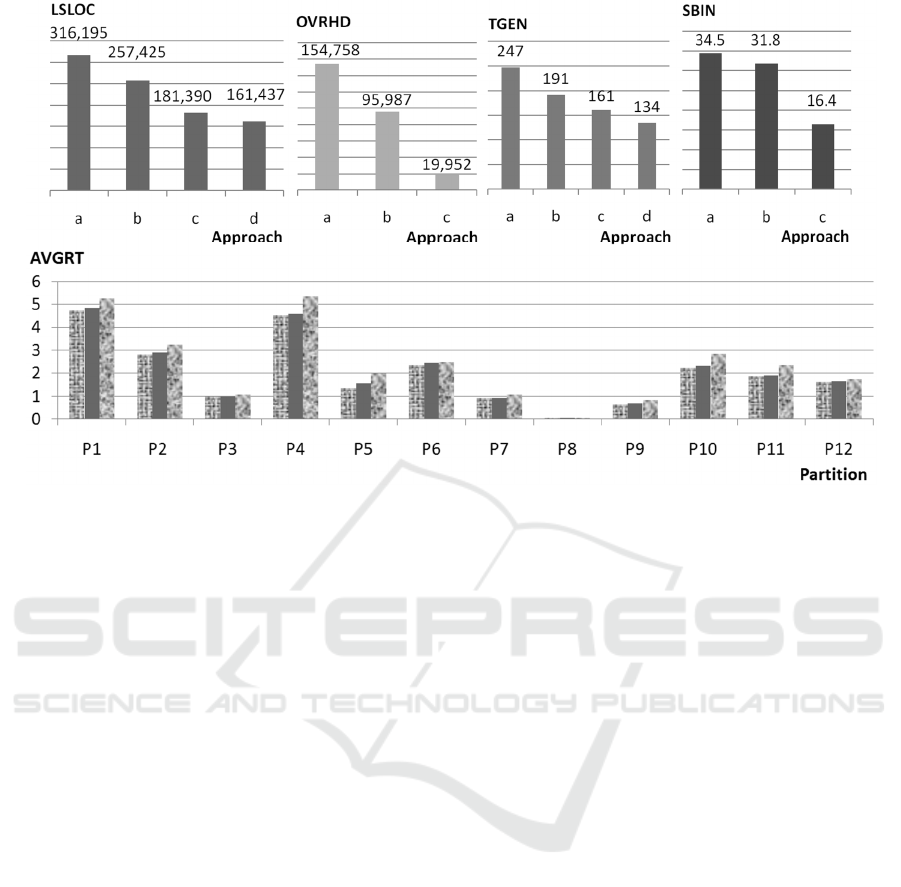

Figure 7: LSLOC, OVRHD, TGEN, SBIN and AVGRT metrics - Approaches: (a) Heavyweight approach, (b) Lightweight

approach with checks for disconnected ports, (c) Lightweight approach, (d) None (ports are not realized). AVGTR metric -

Left bar: Lightweight approach., Middle bar: Lightweight approach with checks., Right bar: Heavyweight approach.

Unified Code Count tool (Nguyen et al., 2007).

LSLOC is not affected by style and formatting

decisions. OVRHD metric is defined as the

difference between LSLOC measurements for the

source code with and without port realization. Thus,

the OVRHD metric indicates how much LSLOC

increase is induced by port realization. The TGEN

metric indicates the time in seconds, required to

realize the ports in the source model, plus the time

required to generate source code from the target

model. SBIN metric indicates the size of the final

executable binaries in megabytes.

4.4 Results and Discussion

Figure 7 shows charts which correspond to the

measurements for given metrics according to

different approaches. Using the lightweight

approach, LSLOC was dramatically reduced from

316,195 to 181,390. The 42% decrease in the size of

source code may provide significant cost saving

during code reviews. Likewise, OVRHD metric is

the lowest for the lightweight approach. When the

checking for disconnected ports is incorporated,

OVRHD is still significantly less than the OVRHD

measured for the heavyweight approach.

According to the TGEN measurements, the

fastest functional code generation was available with

the lightweight approach, which is followed by the

lightweight approach with checks. SBIN metric

measurements showed that resulting binaries were

most compact with the lightweight approach.

After generation and compilation of source code,

binaries were executed. Generated code ran

successfully. Verification of the build was

demonstrated by running a subset of the test cases

used in the formal software release. With the

lightweight approach, no null pointer exceptions due

to disconnected ports were observed at runtime. This

was not surprising since the previous release of this

software was already tested and full statement

coverage was achieved for statements used to send

messages from ports.

During collection of the AVGRT metrics,

identical set of functions were activated in order to

generate identical load on the system. According to

the results, up to 32% improvement was observed

for the AVGRT metrics. When the runtime

improvements for each partition were averaged,

15.7% over-all performance improvement was

observed over the heavyweight approach by the

lightweight approach. A similar calculation revealed

an average of 10.9% performance improvement by

the lightweight approach with disconnected port

checking over the heavyweight approach. The

variation of improvement percentages for each

partition is due to the different levels of port usage

and composite structure hierarchies. The results

Lightweight Realization of UML Ports for Safety-Critical Real-Time Embedded Software

263

showed that using the lightweight approach and its

extension not only yields more compact code, but

also yields faster execution when compared to the

heavyweight approach.

5 RELATED WORK

The concept of ports is also available in other

modeling languages. UML-RT (Selic, 1998) and

MARTE (OMG, 2011) are two of the UML

extensions for modeling safety-critical embedded

real-time software. In UML-RT, a protocol defines

which kind of messages can be received and sent

from a port. In UML, the provided and required

properties of ports capture the information captured

by the protocol concept. On the other hand, MARTE

categorizes ports as client/server ports and flow

ports. Client/server ports are a syntactic sugar over

UML ports, enabling a more convenient way to

define the port contracts. The flow ports are used to

model the data flow between structured components.

Flow properties and flow specifications are used to

define the messages which can flow through the

ports. If flow specifications and properties are

mapped to interfaces, flow ports can be realized

using the approaches presented in this article, or else

they may need different realization approaches.

Based on the purpose of port representation and

realization, such alternative languages do not offer

additional advantages. Consequently, we have

exploited UML 2.0 due to its wider usage and our

access on vast project material.

UML ports and composite structures are

mentioned in previous studies, which use ports to

model embedded systems. The ports are mapped to

target languages such as SystemC (Andersson,

2008), (Xi et al., 2005), VHDL (Vidal et al., 2009)

and Simulink (Brisolara et al., 2008). In these

studies, one-to-one mapping between UML ports

and the target languages could be performed since

the target languages provided constructs, which

correspond to UML ports.

For mapping ports into object oriented

programming languages, there are studies which

suggest mapping ports using objects (Willersrud,

2006). The heavyweight approach, which is

presented in this paper, is employed by IBM

Rhapsody (IBM, 2015). To cope with the

performance degradation, IBM Rhapsody offers an

optimization, which is performed at runtime to find

the final destinations of ports (Douglass, 2007). The

optimization runs during the initialization of

software and uses algorithms to traverse the relay

connector chains to find the ultimate targets of the

messages. However, the additional computation

during initialization and the use of special data

structures make the code even more complex and

harder to review.

Possibility of a lightweight realization of ports

was mentioned previously (Bock, 2004). It was

argued that ports need not to be realized as objects,

but they can also be realized in a lightweight

fashion, with no port objects created at runtime.

However, the study did not present a specific

method for the mentioned lightweight realization of

ports. Another approach for realization of ports

(Mraidha et al., 2013) is very similar to the

lightweight approach presented in this paper.

However, the approach creates the getter methods

using only the name of the ports, without utilizing

the interface names. This naming scheme cannot

cope with cases where a source port requires more

than one interface in its contract and it is connected

to more than one destination ports, each destination

port providing one of the different interfaces

required by the source port. Moreover, the validity

of the approach was not demonstrated by a case

study or other means.

6 CONCLUSIONS

This article proposed a lightweight approach for

mapping UML ports to object oriented programming

language constructs. The article first presented a

widely used method for realization of UML ports,

which is prone to performance and code size

problems. Afterwards, the lightweight approach,

which enables the use of ports without sacrificing

runtime performance and source code size, was

presented. Additionally, the problems which may be

caused by disconnected ports are discussed and an

extension to the lightweight approach, which can be

used for handling disconnected ports in the source

model was presented.

Presented approaches were compared using

metrics collected from a real-life case study. Metrics

used for comparison are logical source lines of code,

average runtime performance, model transformation

duration and binary size. The case study showed that

the proposed lightweight approach results in more

efficient and more compact code. Additionally, the

time required for realization of ports and the size of

executable binaries produced after compilation were

also lower with the proposed approach. Better

performance may yield more headroom for meeting

hard real-time requirements, while smaller and less

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

264

complex code may enable relatively easier and

accurate code reviews, potentially improving safety.

REFERENCES

OMG, 2015.Unified Modeling Language, Superstructure,

Version 2.4.1, http://www.omg.org/spec/UML/2.4.1/,

last accessed on Sep 16th, 2015.

J. Vidal, F.,Lamotte, G.,Gogniat, P. Soulard, Diguet, J. P.,

2009. A co-design approach for embedded system

modeling and code generation with UML and

MARTE, Design, Automation & Test in Europe

Conference & Exhibition.

Andersson, P. 2008. UML and SystemC – A Comparison

and Mapping Rules for Automatic Code Generation.

In:Villar, E. Ed. Embedded Systems Specification and

Design Languages. Springer Netherlands.

Xi, C., Hua, L., J., Zucheng, Z., YaoHui, S.

2005.Modeling SystemC design in UML and

automatic code generation, Proceedings of the 2005

Asia and South Pacific Design Automation

Conference, pp 932-935.

McDermid, J., Kelly, T. 2006. Software in Safety Critical

Systems: Achievement and Prediction, Journal of The

British Nuclear Energy Society, Vol. 02, pp. 140-146.

France, R., B., Ghosh, S., Dinh-Trong, T., Solberg, A.

2006. Model-driven development using UML 2.0:

promises and pitfalls, Computer, Vol. 39, pp 59-66.

Mraidha, C., Radermacher, A., Gerard, S. 2013. Model-

Based Deployment and Code Generation. In: Hugues,

J., Canals, A., Dohet, A., Kordon., F. ed. Embedded

Systems: Analysis and Modeling with SysML, UML

and AADL, Wiley, 2013.

Willersrud, A. 2006.User-defined Code generation from

UML 2.0. (M.Sc. Thesis). Permanent link:

http://urn.nb.no/URN:NBN:no-12371.

IBM. 2015. Rational Rhapsody Developer, 8.1.1,

http://www-03.ibm.com/software/products/en/ratirhap,

last accessed on May 8

, 2015.

Douglass, B., P. 2007. Systems Architecture, In: Real

Time UML Workshop for Embedded Systems, ISBN:

978-0-7506-7906-0. Newnes, 2007, pp:90-92.

Selic, B. 1998.Using UML for Modeling Complex Real-

Time Systems, Proceedings of the ACM SIGPLAN

Workshop on Languages, Compilers, and Tools for

Embedded Systems. Springer-Verlag, 1998.pp. 250--

260.

Bock, C. 2004.UML 2 Composition Model. Journal of

Object Technology, Vol. 3, No. 10.

Bjerkander, M., Kobryn, C. 2003. Architecting Systems

with UML 2.0, Software, IEEE Volume:20 , Issue: 4,

pp. 57 - 61.

RTCA, 2011.DO-178C Software Considerations in

Airborne Systems and Equipment Certification.

Selic, B. 2003.Architectural Patterns for Real-Time

Systems, In: Lavagno, L., Martin, G., Selic., B. ed.

UML For Real. Kluwer Academic Publishers,

Norwell, MA, 2003, USA 171-188.

Aeronautical Radio Inc. 2003.653-1 Avionics Application

Software Standard Interface.

Nguyen, V., Deeds-Rubin, S. Tan, T., Boehm, B. 2007.A

SLOC Counting Standard, COCOMO II Forum.

Brisolara, L., B., Oliveira, M., F., S., Redin, R., Lamb, L.,

C., Wagner, F. 2008. Using UML as Front-end for

Heterogeneous Software Code Generation Strategies,

Design, Automation and Test in Europe, pp.504,509.

OMG, 2011.UML Profile For MARTE: Modeling And

Analysis Of Real-Time Embedded Systems, Version

1.1 http://www.omg.org/spec/MARTE/1.1/, last

accessed on Sep 16th, 2015.

Lightweight Realization of UML Ports for Safety-Critical Real-Time Embedded Software

265
