Natural Language Processing System Applied in Public Health for

Assessment of an Automatic Analysis of Patterns Generator

Anabel Fraga, Juan Llorens, Valeria Rodríguez and Valentin Moreno

Computer Science Department, Carlos III of Madrid University, Av. Universidad 30, Leganés, Madrid, Spain

Keywords: Indexing, Ontologies, Knowledge, Patterns, Reuse, Retrieval, Public Health, Oncology, Genetics.

Abstract: Nowadays, there are many scientific articles referring to any topic like medicine, technology, economics,

finance, and so on. These articles are better known as papers, they represent the evaluation and

interpretation of different arguments, showing results of scientific interest. At the end, most of these are

published in magazines, books, journals, etc. Due to the fact that these papers are created with a higher

frequency it is feasible to analyse how people write in the same domain. At the level of structure and with

the help of graphs some of the results that can be found are: groups of words that are used (to determine if

they come from a specific vocabulary), most common grammatical categories, most repeated words in a

domain, patterns found, and frequency of patterns found. This research has been created to fulfil these

needs. A domain of public health has been selected and it is composed of 800 papers about different topics

referring to genetics such as mutations, genetic deafness, DNA, trinucleotide, suppressor genes, among

others; and an ontology of public health has been used to provide the basis of the study.

1 INTRODUCTION

There are many scientific articles referring to any

topic like medicine, technology, economics, and

finance, among others. Christopher Manning states

in his book that: “People write and say lots of

different things, but the way people say things -

even in drunken casual conversation - has some

structure and regularity.”(Manning, 1999)

The important aspect in here is to ask ourselves:

how do people write? Nowadays, researchers

conduct investigations using natural language

processing tools, generating indexing and semantic

patterns that help to understand the structure and

relation of how writers communicate through their

papers.

This project will use a natural language

processing system which will analyze a corpus of

papers acquired by Ramon and Cajal Hospital from

Madrid. The documents will be processed by the

system and will generate simple and composed

patterns. These patterns will give us different results

which we can analyze and conclude the common

aspects the documents have even though they are

created by different authors but are related to the

same topic. (Alonso et al., 2005) The study uses as

center of the study an ontology created in a national

founded project for Oncology and it has been

extended with general terms of public health.

The reminder of this paper is as follows: a state

of the art of the main topics to deal with in the paper,

section 3 includes the summary of the information

processing; section 4 summarizes the results, and

finally conclusions.

2 STATE OF THE ART

A. Information Reuse

Reuse in software engineering is present throughout

the project life cycle, from the conceptual level to

the definition and coding requirements. This concept

is feasible to improve the quality and optimization of

the project development, but it has difficulties in

standardization of components and combination of

features. Also, the software engineering discipline is

constantly changing and updating, which quickly

turns obsolete the reusable components (Llorens,

1996).

At the stage of system requirements reuse is

implemented in templates to manage knowledge in a

higher level of abstraction, providing advantages

Fraga, A., Llorens, J., Rodríguez, V. and Moreno, V..

Natural Language Processing System Applied in Public Health for Assessment of an Automatic Analysis of Patterns Generator.

In Proceedings of the 6th International Workshop on Software Knowledge (SKY 2015), pages 31-38

ISBN: 978-989-758-162-5

over lower levels and improving the quality of the

project development. The patterns are fundamental

reuse components that identify common

characteristics between elements of a domain and

can be incorporated into models or defined

structures that can represent the knowledge in a

better way.

B. Natural Language Processing

The need for implementing Natural Language

Processing techniques arises in the field of the

human-machine interaction through many cases such

as text mining, information extraction, language

recognition, language translation, and text

generation, fields that requires a lexical, syntactic

and semantic analysis to be recognized by a

computer (Cowie et al., 2000). The natural language

processing consists of several stages which take into

account the different techniques of analysis and

classification supported by the current computer

systems (Dale, 2000).

1) Tokenization: The tokenization corresponds to a

previous step on the analysis of the natural

language processing, and its objective is to

demarcate words by their sequences of characters

grouped by their dependencies, using separators

such as spaces and punctuation (Moreno, 2009).

Tokens are items that are standardized to

improve their analysis and to simplify

ambiguities in vocabulary and verbal tenses.

2) Lexical Analysis: Lexical analysis aims to obtain

standard tags for each word or token through a

study that identifies the turning of vocabulary,

such as gender, number and verbal irregularities

of the candidate words. An efficient way to

perform this analysis is by using a finite

automaton that takes a repository of terms,

relationships and equivalences between terms to

make a conversion of a token to a standard

format (Hopcroft et al., 1979). There are several

additional approaches that use decision trees and

unification of the databases for the lexical

analysis but this not covered for this project

implementation (Trivino et al., 2000).

3) Syntactic Analysis: The goal of syntactic

analysis is to explain the syntactic relations of

texts to help a subsequent semantic interpretation

(Martí et al., 2002), and thus using the

relationships between terms in a proper context

for an adequate normalization and

standardization of terms. To incorporate lexical

and syntactic analysis, in this project were used

deductive techniques of standardization of terms

that convert texts from a context defined by

sentences through a special function or finite

automata.

4) Grammatical Tagging: Tagging is the process of

assigning grammatical categories to terms of a

text or corpus. Tags are defined into a dictionary

of standard terms linked to grammatical

categories (nouns, verbs, adverb, etc.), so it is

important to normalize the terms before the

tagging to avoid the use of non-standard terms.

The most common issues of this process are

about systems' poor performance (based on large

corpus size), the identification of unknown terms

for the dictionary, and ambiguities of words

(same syntax but different meaning) (Weischedel

et al., 2006). Grammatical tagging is a key factor

in the identification and generation of semantic

index patterns, in where the patterns consist of

categories not the terms themselves. The

accuracy of this technique through the texts

depends on the completeness and richness of the

dictionary of grammatical tags.

5) Semantic and Pragmatic Analysis: Semantic

analysis aims to interpret the meaning of

expressions, after on the results of the lexical and

syntactic analysis. This analysis not only

considers the semantics of the analyzed term, but

also considers the semantics of the contiguous

terms within the same context. Automatic

generation of index patterns at this stage and for

this project does not consider the pragmatic

analysis.

C. RSHP Model

RSHP is a model of information representation

based on relationships that handles all types of

artifacts (models, texts, codes, databases, etc.) using

a same scheme. This model is used to store and link

generated pattern lists to subsequently analyze them

using specialized tools for knowledge representation

(Llorens et al., 2004). Within the Knowledge Reuse

Group at the University Carlos III of Madrid RSHP

model is used for projects relevant to natural

language processing. (Gomez-Perez et al., 2004);

(Thomason, 2012); (Amsler, 1981);(Suarez et al.,

2013) The information model is presented in Figure

1. An analysis of sentences and basic patterns are

shown in Figure 2.

SKY 2015 - 6th International Workshop on Software Knowledge

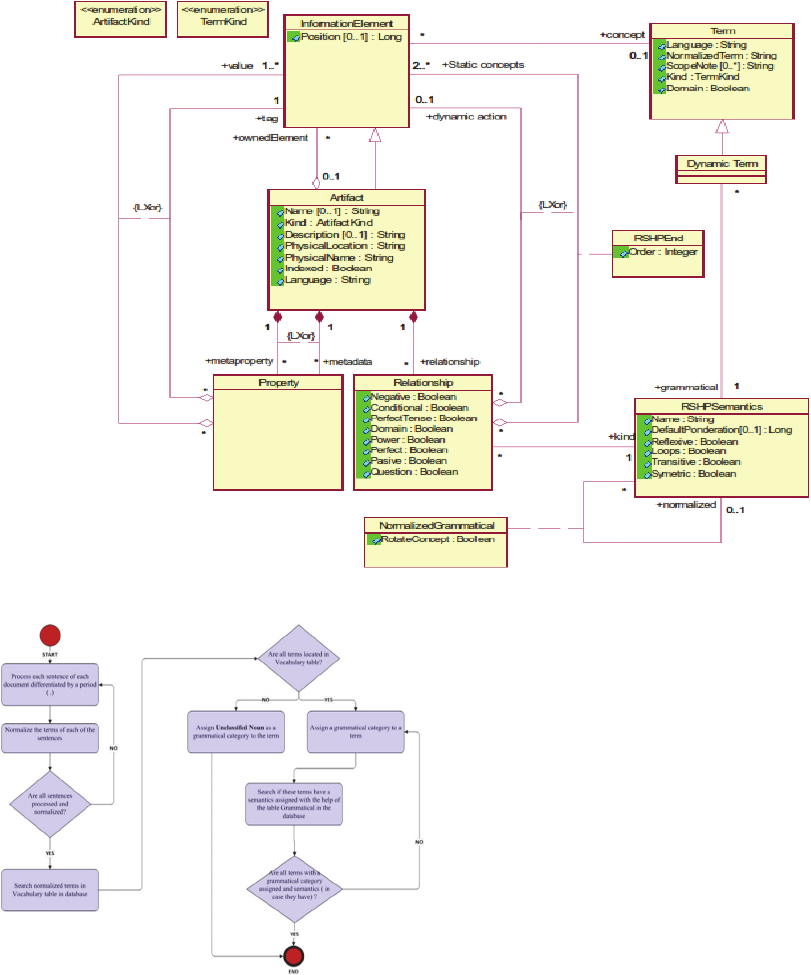

Figure 1: RSHP information representation model. (Alonso et al., 2005).

Figure 2: Analysis of sentences and basic patterns.

3 INFORMATION PROCESS

FOLLOWED

Several steps have been done to start analyzing the

set of documents (known as Corpus). These are

mentioned below:

1. Choose the documents to analyze out of the eight

hundred. These have been picked randomly.

2. Due to the fact that the system for analyzing text

and discovery patterns (Suarez et al., 2013) only

analyzes text documents, these papers had to be

converted since they were given in a PDF

format. The conversion of these documents has

been manual. Headers, footers, page numbers,

references have been removed because the tool

analyzes sentences of each document and the

ones that have been avoided are not relevant at

the time of the analysis.

3. After the documents have been inserted in the

tool, you proceed to create basic patterns and

patterns with all the fifty text documents. The

minimum of frequency can be changed.

4. Different scenarios will be used in order to

analyze the different results and have a final

conclusion. These scenarios will be described

below.

The scenarios selected for the study are as follows:

Scenario I: Use all grammatical categories with a

minimum frequency of 1 and without a difference in

semantics

This scenario has the following characteristics:

1. The basic patterns for the text documents in the

pattern analysis system (Figure 3) were

generated in this scenario.

Natural Language Processing System Applied in Public Health for Assessment of an Automatic Analysis of Patterns Generator

2. Generate all patterns for these documents using

all grammatical categories located in Create

patterns tab in pattern analysis system.

3. Minimum of frequency (Figure 4) to create a

pattern

4. is 1.

Scenario II: Use all grammatical categories with a

minimum frequency of 1 and differ patterns by its

semantics

This scenario has the following characteristics:

1. Since basic patterns were already created in

scenario one, it is not necessary to create them

again because basic patterns analyze each of the

documents and with the result of these is how

patterns can be created. In this case the steps

shown in Scenario I (step 2 and 3) are the same.

Scenario III: Use all grammatical categories with a

minimum of frequency of 5 and differ patterns by its

semantics

This scenario has the following characteristics

1. In this case the steps shown in Scenario I (step 2

and 3) are the same, but applied to a frequency of

Scenario IV: Use all grammatical categories with a

minimum frequency of 10 and differ patterns by its

semantics

This scenario has the following characteristics

1. In this case the steps shown in Scenario I (step 2

and 3) are the same, but applied to a frequency of

10.

Scenario V: Use all grammatical categories with a

minimum frequency of 20 and differ patterns by its

semantics

This scenario has the following characteristics

1. In this case the steps shown in Scenario I (step 2

and 3) are the same, but applied to a frequency of

20.

Figure 3: Frequency of patterns.

Table 1: Patterns created in all scenarios.

Number of patterns created

S 1 S 2 S 3 S 4 S 5

9188 9818 2145 1171 650

The frequency pattern creation is showed in

Figure 5. The objective of this paper is to discuss the

results comparing the scenarios, but in an extended

version a detailed presentation of each scenario

might be of interest to the audience.

4 RESULTS

Basic Patterns: After the basic patterns were created,

all the sentences from the text documents were

analyzed and to each of the words (known in the

database as token text) a termtag or syntactic tag was

assigned with the help of the tables Rules Families

and Vocabulary in the Requirements Classification

database.

You may find the most repeated words in the

domain of documents in the Basic patterns table.

The most repeated words in grammatical categories

such as nouns, verbs and nouns coming from the

ontology we used.

Figure 4: Created patterns in all scenarios.

Patterns: The name of patterns is different depending

on the requirements you use when you generate

them. In this case there are 5 scenarios which have

different results because each of them had different

characteristics. When the minimum frequency to

create patterns is higher the patterns will be less.

SKY 2015 - 6th International Workshop on Software Knowledge

Scenario 1 and 2 have the same minimum of

frequency (1) but the difference is that scenario 2

has the differentiation of patterns by its semantics

activated; the result of differentiating is that more

patterns are created due to the fact that there are

patterns with distinct identifiers. There has been the

decision to use this option for the rest of scenarios

(scenarios 3, 4, 5), this way we can analyze the

maximum number of patterns created and also the

semantics to each of them can be easier to

understand.

Patterns Created with Same Termtags: Among all

the scenarios there has been one pattern in common.

This is composed of two same termtags on the left

and right side. This pattern has the same identifier

and name for all scenarios it is pattern P1.

Table 2: Patterns with same termtag.

Pattern Name Term Tag Left Term Tag Right

P1 Unclassified noun Unclassified noun

Unclassified nouns are the most common

termtags in all the text documents used. Some words

that are unclassified nouns are abbreviations, some

words in another language, slang language,

uncommon symbols, and scientific terms.

Patterns Created with Two Different Termtags:

There are patterns which have a different termtags

on the left and right side of a pattern. After

comparing the results of the five scenarios it has

been observed that the termtags with higher

frequency are common between all scenarios for

each side.

An example of a pattern generated presented as a

binary tree is shown in Figure 5.

Table 3: Most common termtags.

Most common termtags in all scenarios

Left Side Right Side

Unclassified noun Unclassified noun

Adverb Adverb

Noun(ontology oncology) Noun (ontology oncology)

Noun Noun

Verb Verb

Adverb Adverb

Preposition Preposition

For all scenarios the 20 patterns with higher

frequency as termtags on each side have been shown

in graphs. Also, it has been shown how these

patterns are composed.

The composition of these patterns is common

between all scenarios. The termtags for these

patterns are unclassified nouns, noun, prepositions,

verbs, nouns (oncology ontology), adverbs,

adjectives. These termtags are the ones that also are

the most common in all fifty text documents.

Figure 5: Binary tree representation.

Semantic Patterns: Some of the created patterns in

all scenarios have semantics assigned on the left or

right side, one side, or some patterns do not have.

In scenario one, there are patterns with different

semantics but they have the same identifier and

name, this is because the option to differentiate them

by semantics was inactive. The rest of patterns for

the other scenarios are not repeated and they are

unique. Observing the results, the semantics for

patterns in different scenarios is similar.

The change is noticeable in the pattern name and

ids. In this case, they are different because in every

scenario the number of patterns was different due to

the minimum of frequency used. While the

minimum of frequency is higher, the number of

created patterns is less.

 The higher minimum of frequency used for this

project has been 20.

 With the help of BoilerPlates the creation of

patterns has been successful. Processing fifty

documents at a time for basic patterns was not

issue for the tool.

 11% of the term names found in the fifty

documents were from the ontology added.

 Writers about genetic deafness use a similar

vocabulary and appropriate terms

 Studying patterns will facilitate the search of

documents in search engines or databases.

 It can also assist the writing for any user that is

not a researcher or scientist. With the help of

patterns documents can be written.

Natural Language Processing System Applied in Public Health for Assessment of an Automatic Analysis of Patterns Generator

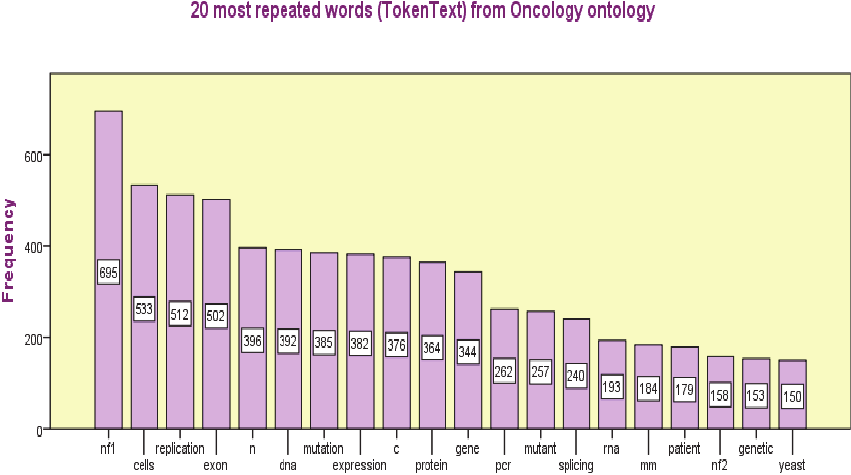

Figure 6: Most repeated words.

5 CONCLUSION

Using a domain of documents related to genetic

engineering and making different scenarios to create

patterns it has been possible to conclude the

following:

1. While the minimum of frequency is higher, the

number of created patterns is less.

2. The higher minimum of frequency used for this

project has been 20.

3. With the help of BoilerPlates the creation of

patterns has been successful. Processing fifty

documents at a time for basic patterns was not

issue for the tool.

4. 11% of the term names found in the fifty

documents were from the ontology added.

5. Writers about genetic deafness use a similar

vocabulary and appropriate terms

6. Studying patterns will facilitate the search of

documents in search engines or databases.

• It can also assist the writing for any user that

is not a researcher or scientist. With the help

of patterns documents can be written.

After ending all scenarios and analyzing results, we

suggest some recommendations for this study:

• Expand the existing vocabulary table in the

database. More ontologies can be included,

symbols, slang languages, words in different

language, among others.

• Differentiate patterns by its semantics to

maximize the creation and different

compositions of them.

• Using different minimum of frequencies at the

moment of creating patterns will help to compare

and analyze results

• Expand the existing vocabulary table in the

database. More ontologies can be included,

symbols, slang languages, words in different

language, among others.

• Differentiate patterns by its semantics to

maximize the creation and different

compositions of them.

• Using different minimum of frequencies at the

moment of creating patterns will help to compare

and analyze results

• Expand the existing vocabulary table in the

database. More ontologies can be included,

symbols, slang languages, words in different

language, among others. Differentiate patterns by

its semantics to maximize the creation and

different compositions of them.



SKY 2015 - 6th International Workshop on Software Knowledge

Figure 7: Most repeated words.

ACKNOWLEDGEMENTS

After ending all scenarios and analyzing results, we

can conclude that authors writing papers about a

same topic (in this case, genetic engineering) have

similarity in how they write. They use a similar

vocabulary and appropriate terms which makes the

reading easier. Some additional enterprises need

observation and intelligence.

Authors thank AGO2 project, founded by the

Ministry of Education of Spain for aiding the author

in the research and production of this paper.

The research leading to these results has received

funding from the European Union’s seventh

framework program (FP7/2007-2013) for crystal –

critical system engineering acceleration joint

undertaking under grant agreement n° 332830 and

from specific national programs and / or funding

authorities.

REFERENCES

Abney, Steven. Part-of-Speech Tagging and Partial

Parsing, S. young and G. Bloothooft (eds.) Corpus-

Based Methods in Language and Speech Processing.

An ELSNET book. Bluwey Academic Publishers,

Dordrecht. 1997.

Alonso, Laura. Herramientas Libres para Procesamiento

del Lenguaje Natural. Facultad de Matemática,

Astronomía y Física. UNC, Córdoba, Argentina. 5tas

Jornadas Regionales de Software Libre. 20 de

noviembre de 2005. Available in:

http://www.cs.famaf.unc.edu.ar/~laura/freeNLP

Amsler, R. A. A taxonomy for English nouns and verbs.

Proceedings of the 19th annual Meeting of the

Association for Computational Linguistic. Stanford,

California, 1981. Pp. 133-138.

Carreras, Xavier. Márquez, Luis. Phrase recognition by

filtering and ranking with perceptrons. En

Proceedings of the 4th RANLP Conference, Borovets,

Bulgaria, September 2003.

Cowie, Jim. Wilks, Yorick. Information Extraction. En

DALE, R. (ed). Handbook of Natural Language

Processing. New York: Marcel Dekker, 2000. Pp.241-

260.

Dale, R. Symbolic Approaches to Natural Language

Processing. En DALE, R (ed). Handbook of Natural

Language Processing. New York: Marcel Dekker,

2000.

Gómez-Pérez, Asunción. Fernando-López, Mariano.

Corcho, Oscar. Ontological Engineering. London:

Springer, 2004.

Hopcroft, J. E. Ullman, J. D. Introduction to automata

theory, languages and computations. Addison-Wesley,

Reading, MA, United States. 1979.

Llorens, J., Morato, J., Genova, G. RSHP: An Information

Representation Model Based on Relationships. In

Ernesto Damiani, Lakhmi C. Jain, Mauro Madravio

(Eds.), Soft Computing in Software Engineering

(Studies in Fuzziness and Soft Computing Series, Vol.

159), Springer 2004, pp. 221-253.

Llorens, Juan. Definición de una Metodología y una

Estructura de Repositorio orientadas a la

Natural Language Processing System Applied in Public Health for Assessment of an Automatic Analysis of Patterns Generator

Reutilización: el Tesauro de Software. Universidad

Carlos III. 1996.

Manning Christopher, "Foundations of Statistic Natural

Language Processing", Cambridge University,

England, 1999, 81

Martí, M. A. Llisterri, J. Tratamiento del lenguaje natural.

Barcelona: Universitat de Barcelona, 2002. p. 207.

Moreno, Valentín. Representación del conocimiento de

proyectos de software mediante técnicas

automatizadas. Anteproyecto de Tesis Doctoral.

Universidad Carlos III de Madrid. Marzo 2009.

Poesio, M. Semantic Analysis. En DALE, R. (ed).

Handbook of Natural Language Processing. New

York: Marcel Dekker, 2000.

Rehberg, C. P. Automatic Pattern Generation in Natural

Language Processing. United States Patent. US

8,180,629 B2. May 15, 2012. January, 2010.

Riley, M. D. Some applications of tree-based modeling to

speech and language indexing. Proceedings of the

DARPA Speech and Natural Language Workshop.

California: Morgan Kaufmann, 1989. Pp. 339-352.

Suarez, P., Moreno, V., Fraga, A., Llorens, J. Automatic

Generation of Semantic Patterns using Techniques of

Natural Language Processing. SKY 2013: 34-44

Thomason, Richmond H. What is Semantics? Version 2.

March 27, 2012. Available in:

http://web.eecs.umich.edu/~rthomaso/documents/gene

ral/what-is-semantics.html

Triviño, J. L. Morales Bueno, R. A Spanish POS tagger

with variable memory. In Proceedings of the Sixth

International Workshop on Parsing Technologies

(IWPT-2000). ACL/SIGPARSE, Trento, Italia, 2000.

pp. 254-265.

Weischedel, R. Metter, M. Schwartz, R. Ramshaw, L.

Palmucci, J. Coping with ambiguity and unknown

through probabilistic models. Computational

Linguistics, vol. 19, pp. 359-382.

SKY 2015 - 6th International Workshop on Software Knowledge
