Domain-Specific Relation Extraction

Using Distant Supervision Machine Learning

Abduladem Aljamel, Taha Osman and Giovanni Acampora

School of Science and Technology, Nottingham Trent University, NG11 8NS, Nottingham, U.K.

Keywords: Information Extraction, Relation Extraction, Knowledge-Base, Supervised Machine Learning, Natural

Language Processing, Semantic Web.

Abstract: The increasing accessibility and availability of online data provides a valuable knowledge source for

information analysis and decision-making processes. In this paper we argue that extracting information from

this data is better guided by domain knowledge of the targeted use-case and investigate the integration of a

knowledge-driven approach with Machine Learning techniques in order to improve the quality of the Relation

Extraction process. Targeting the financial domain, we use Semantic Web Technologies to build the domain

Knowledgebase, which is in turn exploited to collect distant supervision training data from semantic linked

datasets such as DBPedia and Freebase. We conducted a serious of experiments that utilise the number of

Machine Learning algorithms to report on the favourable implementations/configuration for successful

Information Extraction for our targeted domain.

1 INTRODUCTION AND

MOTIVATION

In the current digital era, an increasing amount of data

is being made available online. This data can be

analysed to benefit the operation of a specific domain

service such as advising financial investors about a

potential business risk or informing the music

industry about an emerging consumer trend. The

majority of that data is unstructured and constructed

in natural human languages and therefore requires

further processing in order to be understandable by

machines and intelligently explored.

The process of extracting useful knowledge from

unstructured data sources is called Information

Extraction. It can be considered as a pipeline process

that starts with recognising the named entities in the

text, then identifying identity relation between named

entities by means of co-reference resolution, and

finally extracting the relation between the named

entities (Cunningham 2005, Farmakiotou, et al.

2000).

A study by Cunningham (2005) shows that the

complexity of the information to be extracted

influences the accuracy of the Information Extraction

techniques. The information complexity can vary

from simple items such as people names, to complex

items such as events that involve multiple

participants. The authors in Cunningham (2005)

conclude that the more complex the data to be

extracted, the more specific must be the domain of

data.

It is possible to argue therefore that specified

knowledge services that require Information

Extraction techniques to be able to search and extract

specific knowledge directly from unstructured text

should be guided by the domain knowledge that

details what type of knowledge is to be obtained and

for which exploration scenario. This scenario should

make the Information Extraction techniques mediate

between the domain text type and the requirements of

various types of users.

In this paper, we adopt a knowledge-driven approach

to Information Extraction that is based on

comprehensive analysis of the key concepts and

relations of the targeted domain in order to build a

knowledgebase that informs Information Extraction

processing. The knowledgebase will assist the

Natural Language Processing activities as well as

guide rule-based and Machine Learning techniques to

infer new and interesting facts from the sourced

domain data.

We argue that Semantic Web Technologies are best

placed to build such knowledgebase as they are

capable of organising and modelling the information

into a highly structured knowledge in order to assist

machines to understand information published on the

Aljamel, A., Osman, T. and Acampora, G..

Domain-Speciﬁc Relation Extraction - Using Distant Supervision Machine Learning.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 92-103

ISBN: 978-989-758-158-8

Web. They describe and combine the corresponding

relation between the concepts’ instances from

different sources and infer more information about

these concepts in different contexts.

The research reported in this paper focuses on the

Relation Extraction phase of Information Extraction

and investigates the integration of a knowledge-

driven approach with Machine Learning techniques

in order to improve the quality of extracted relations

from online unstructured data.

We targeted the financial domain as a use-case for

implementing and evaluating our Information

Extraction contribution. In recent years, analysis of

published financial information has become

increasingly popular to optimise business processes,

inform financial trading, and reveal hidden

correlations that predict relevant economic indicators

(Radzimski, et al. 2012, Costantino, et al. 1997). For

these financial analysis, extracting relation between

domain entities is critical for the identification and

correlations of the domain’s key events.

The main contributions of the this work include

adopting a Semantic Web based approach for

constructing the Information Extraction

knowledgebase, implementing and evaluating

different ML classifiers for Relation Extraction, and

presenting a comprehensive methodology for

integrating domain knowledge with Machine

Learning techniques in the Information Extraction

process, which was supported by experimental

analysis that presented valuable insights into a

favourable configuration for training data

compilation and learning algorithms setup.

The rest of this paper is organised as follows. The

next section surveys the current Relation Extraction

approaches and related works. The third section

details the implementation of our distant supervision

Relation Extraction method. Section four analyses the

results of the conducted experiments. Lastly, our

conclusions and plans for further works are presented

in section five.

2 RELATED WORKS

There are two main approaches in Relation

Extraction, rule-based and supervised Machine

Learning based. The main idea of rule-based

approaches is transforming the linguistic features

space into lexical and syntactic patterns to be applied

on natural language texts in order to extract relations.

However, the relations extractors in these approaches

depend on the similarity of the texts and a closed set

of relations. Also, the patterns are manually crafted

and a small variations in these patterns, can prevent

finding appropriate relations. These patterns also are

not straightforwardly applied on other domains

(Garcia and Gamallo 2011, Konstantinova 2014).

According to Konstantinova (2014), rule-based

approaches could provide an acceptable results if the

main aim is to quickly extract relations in a well

linguistic defined domains. An example for this kind

of approaches is a work of Akbik and Broß (2009).

Their procedure uses linguistic patterns that are

defined by them over the dependency grammar of

sentences.

Supervised Machine Learning (ML) based

approaches have been used for Information

Extraction with considerable results. They could be

adopted to solve problems with unstructured data; for

instance, recognising named entity, classifying text

and extracting relations. In general, supervised

Machine Learning is about making predictions on

problem solving based on information about the same

problem; nonetheless, it does not require linguistics

skills to be applied. An example of this kind of

approaches is a study conducted by Hong (2005). He

presented a Relation Extraction approach by using

supervised Support Vector Machine algorithm. The

classifier model created by using Automatic Content

Extraction (ACE) training dataset.

The key elements of supervised Machine Learning

algorithms are features vector and training datasets.

The quality of these elements impacts the accuracy of

algorithms’ results (Daelemans and Hoste 2002,

Farkas 2009, Lehmann and Völker , Jiang, et al.

2012). However, we believe that these elements could

be improved if they are informed by domain

knowledge.

Compilation of labelled training datasets for

supervised Machine Learning classification in

general and relation classification in specific is a

time-consuming and cumbersome task to undertake

manually; moreover, the resultant dataset is often not

sufficient to solve a classification problem. Instead,

there is another approach that employs existing

datasets as source of supervision; it is called distant

supervision or distant learning (Konstantinova 2014).

Distant Supervision Machine Learning approach has

emerged for training relation classification without

using manually labelled data, which reduces human

efforts for relation extraction (Min, et al. 2013). This

approach automatically collects training examples by

labelling the relations mentioned in the distant

supervision sources according to the assumption that

if any two entities appear in one sentence and they

have a mentioned relation in at least one semantic

dataset, these entities could express that relation.

Domain-Speciﬁc Relation Extraction - Using Distant Supervision Machine Learning

Figure 1: Overview of the main tasks of our Relation Extraction methodology by using distant supervision ML approach and

informed by domain knowledge.

The research work published by Mintz, et al. (2009)

adopts a distant supervision approach that utilises a

Freebase dataset as a distant supervision source. The

Freebase’s data representation was converted into

binary relations. They collected 116 million instances

of 7300 relations between 9 million entities. The

experiments were conducted to explore each pair of

entities that appears in any Freebase ground fact.

Then, finding all sentences containing those entities

in the unlabelled unstructured data and extracting the

linguistic features to learn a relation classifier. The

source of unstructured data is a dump of the full text

of all Wikipedia articles. It consists of around 1.8

million articles. The ML classifier used in this

research is a multi-classification logistic classifier

optimised using Limited-memory Broyden–Fletcher–

Goldfarb–Shanno (L-BFGS) with Gaussian

regularisation. L-BFGS is an optimization algorithm

uses limited amount of computer memory for

parameter estimation in ML (Andrew and Gao 2007).

According to Mintz, et al. (2009), the algorithm

combines the advantages of supervised ML and

unsupervised ML. Also, they analyse feature

performance, which shows that syntactic parse

features are particularly beneficial for relation

classification. Their overall results showed that the

distant supervision approach has the capability of

extracting a high precision (67.6%) for a considerable

number of relations (10000 instances of 102

relations).

Although relation classification by using distant

supervision approach has been considerably studied,

we believe that the aspect of integrating the

knowledge-based approach in relation classification

has been not extensively investigated. This work

makes the following contribution to the body of the

work on distant supervision relation extraction:

• We adopt Semantic Web based approach for

constructing the Information Extraction

Knowledgebase and utilise two semantic datasets

as distant supervision sources, DBPedia and

Freebase.

• We implement and evaluate three different ML

classifiers for Relation Extraction, Support Vector

Machine (SVM), Perceptron Algorithm Uneven

Margin (PAUM) and K-Nearest Neighbour

(KNN), in order to select the best ML model

performance.

• We present a comprehensive methodology for

integrating domain knowledge with ML

techniques in the Information Extraction process.

3 RELATION EXTRACTION

METHODOLOGY

The research effort reported in this paper claims that

domain knowledge can significantly contribute to the

activities of Information Extraction from

unstructured data, and in this section we present a

comprehensive, semantic-driven methodology for

utilising that knowledge to improve the Machine

Learning techniques employed in Relation

Extraction.

Figure 1 illustrates the main tasks of the relation

extraction methodology, which are summarised

below and detailed in the following subsections.

1- Analysing the domain and construction of the

knowledge map.

2- Retrieving unstructured data and content

detection.

3- Applying Natural Language Pre-Processing

tasks for:

a. Recognising the named entities.

b. Extracting the relation instances.

4- Adding ML features vector to relation

instances.

Linked

Open Data

Sources

Retrieving

Unstructured Data

& Content Detected

Recognising NE,

Relation Instances &

Adding ML Features

Extracting

Relations

between NEs

Collecting ML

Training

Datasets

RSS

Feeds

Gazettee

Lists

Ground

Facts

Semantic

edgebase

Building ML

Relation

Classifiers

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

5- Collecting the training datasets from structured

datasets.

6- Building ML relation classification models.

7- Extracting Relations from the unstructured data

by using the classification models.

3.1 Domain Analysis and Constructing

the Knowledge Map/Ontology

In this research we analysed the use case domain and

designing the knowledge map by using knowledge-

driven approach. In this process we gathered

knowledge in terms of what concepts to exist in a

particular domain and understandable by the domain

experts. Then, we translated the knowledge map into

an ontology by using Semantic Web Technologies.

The knowledge map assisted in analysis of our use

case domain, which was key in encoding the

identified entities and their interactions in a formal

ontology language. When we built the ontology, we

consider the reuse of publically available ontologies,

particularly that in the finance domain. There are

efforts to build a comprehensive taxonomies for

finance domain such as a finance ontology from

Fadyart (fadyart.com 2014).

For the purpose of implementation and evaluation of

Relation Extraction methodology, in this paper we

focused on the domain key concepts of organisations,

people, and locations. The relations between the

concepts are represented by the following facts:

• Person is a key person in Organisation.

• Person is a founder of Organisation.

• Organisation is an employer of Person.

• Person has location Location.

• Person has a birthplace Location.

• Person has a death place Location.

• Location is a location of Organisation.

• Person has a nationality Location.

3.2 Retrieving Unstructured Data and

Content Detection

The unstructured data source is the online financial

news articles. They are retrieved by using the Rich

Site Summary (RSS) feeds. RSS is an XML file that

links to news or other information sources in the web

(Ruiz-Martínez, Valencia-García and García-

Sánchez 2012). The number of documents that have

been retrieved from online financial news sources is

7193 documents including the BBC, Reuters and

Yahoo Finance RSS Feeds.

In addition to the actual news contents, the online

news web pages consist of navigational elements,

templates, and advertisements. These boilerplate

texts are not related to the news contents and they may

reduce the information extraction quality. As a result,

they should be detected and removed properly

(Kohlschütter, Fankhauser and Nejdl 2010). To

achieve this task, this work employs an open source

Java API library, boilerpipe from Google code

(boilerpipe 2014). It provides algorithms to detect and

remove the undesirable text around the main textual

content of a web page. After retrieving and cleansing

the online news, we store these news documents in

GATE’s xml format. GATE is a Natural Processing

Language (NLP) tool from Cunningham, Maynard

and Bontcheva (2011).

3.3 Natural Language Processing

Tasks

The fundamental NLP tasks were implemented using

the GATE tool. GATE is an infrastructure for

developing and deploying software components that

process human language texts. The aim of the NLP

tasks is to produce a number of linguistic features

from documents. Each document is first processed

using the open source ANNIE (Nearly-New

Information Extraction) system and Stanford parser,

which are part of the GATE NLP tool. The NLP tasks

include tokenising, sentence splitter, gazetteer lists

tagging, part of speech tagging, morphological

analyser, co-references resolution and dependency

path tree tagging. The results of these tasks will be

used for recognising the named entities and the input

features vector to the ML relation classifier.

Table 1: The number of targeted named entities.

Annotation Sets Type Entities

Organization 79545

Person 85792

Location 95134

3.3.1 Named Entity Recognition

The Named Entities are recognised by utilising

ANNIE’s rule-based entity recognition system,

ANNIE which uses Java Annotation Patterns Engine

(JAPE) rules to recognise regular expressions in

annotations on documents. The ANNIE rules can be

modified and extended to facilitate recognising more

entities. We did extend ANNIE’s JAPE rules to

recognise more named entities; for instance, stock

indices and stock ticker symbols. Table 1 shows the

number of the extracted named entities, Person,

Organization and Location.

Domain-Speciﬁc Relation Extraction - Using Distant Supervision Machine Learning

3.3.2 Extracting Relation Instances

The baseline of relation extraction in this work is the

sentence. Every entity pair for a targeted relation that

appears in a sentence in unstructured data are

identified and annotated as a relation instance. These

pairs should be chosen to represent the relations in the

domain ontology. This has been achieved by using

JAPE rules and GATE Embedded Java Libraries. The

number of sentences and relation instances of the

targeted relations in this work are shown in Table 2.

Table 2: The sentences and relation instances number

(RI=Relation Instances, Per=Person, Org=Organization

and Loc=Location).

Annotation Type Number

Sentences 316504

RI of Per-Org pairs 32304

RI of Per-Loc pairs 38425

RI of Loc-Org pairs 28891

3.4 Adding Ml Features Vector to

Relation Instances

ML classification tasks require assigning features

vector to a finite set of classes. Features represent any

distinctive aspects, qualities or characteristics of

classes. They may be symbolic such as Part Of

Speech of an entity, or numeric such as the number of

words between two entities. The quality of features

vector is one of the key factors of any classification

technique performance (Han, Kamber and Pei 2011).

Table 3: Machine Learning Features Vector list.

Features

Category

Description

Lexical

features

POS of words between entity pairs.

General POS of words between entity

pairs.

POS of three words before the first entity.

POS of three words after the second entity.

Syntactic

Features

The words’ strings of collapsed typed

dependency path between entity pairs.

The kinds of collapsed typed dependency

path between entity pairs.

The whole collapsed typed dependency

path of the entity pairs’ sentences.

Direct collapsed typed dependency path

between entity pairs.

Named Entity

Features

The size of the first entity.

The size of the second entity.

The order of the entities.

The distance between the two entities.

Token string of the first entity.

Token string of the second entity.

Khan and Baig (2015) argue that the sufficient

domain knowledge could assist in selecting the

features vector as input to the classification

algorithms. We expanded on the feature set suggested

by Mintz, et al. (2009) to provide a more

comprehensive set of syntactic features; for instance,

the typed dependency path between words contains

information which could be used to reflect the

relation environment in the sentence. Each feature

attempts to describe the characteristics of the relation

between two entities in a sentence. They could be

categorised into three types, lexical features, syntactic

features and named entity features (see Table 3).

These features are extracted by using JAPE rules and

GATE Embedded and added to every relation

instances in the unstructured data.

Below is a JAPE code example:

Phase: instances

Input: Sentence

Options: control = all

Rule: pair

({Sentence}):s

-->

{ [In this part, GATE Embedded JAVA

libraries can be coded to extract and

annotate information from the annotation

patterns in the upper part] }

3.5 Collecting Training Datasets from

Online Structured Datasets

The distant supervision approach in this work,

employs existing semantic datasets, DBPedia and

Freebase, as a distant supervision sources for ML

relation classification. DBpedia contains more than

4.5 million entities and more than 3 billion RDF triple

for a diversity of language. Freebase dataset contains

approximately 47.5 million topic and 2.9 billion facts

in English language.

The training datasets were built by retrieving the

relations between any two entities in a single sentence

in the unstructured document and mentioned in

Freebase or DBPedia as ground facts. These relations

are assumed to be a class instance or true positive in

the training datasets. The mentioned relations in the

semantic datasets were extracted by using JENA’s

SPARQL engine, which facilitates the retrieval of the

relations on RDF semantic format (Harris, Seaborne

and Prud’hommeaux 2013). To illustrate this task, we

use the following sentence example from the

unstructured data corpus which is used in this work:

“Yesterday Twitter's boss Dick Costolo

said he was "ashamed" at how the site

had dealt with abusive online trolls.”

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

The sentence contains the following relation instance:

“Twitter's boss Dick Costolo”

The relation instance contains two entities, Person

entity “Dick Costolo” and Organization entity

“Twitter”.

These two entities’ names are used to query the

semantic datasets to find if they have any mentioned

relation. The SPARQL query for this example and its

result are shown below.

PREFIX rdfs:

<http://www.w3.org/2000/01/rdf-schema#>

SELECT DISTINCT (str(?lbl) AS ?result)

WHERE {

{ ?entity1 ?rel ?entity2 .

?entity1 rdfs:label "Dick

Costolo"@en .

?entity2 rdfs:label

"Twitter"@en

}

UNION

{ ?entity2 ?rel ?entity1 .

?entity1 rdfs:label

"Twitter"@en .

?entity2 rdfs:label "Dick

Costolo"@en

}

?rel rdfs:label ?lbl

FILTER ( lang(?lbl) = "en" )

}

-------------

| result |

=============

|"employer" |

-------------

This result means that the relation mentioned in the

semantic dataset in the form of RDF triple is as

follows:

“Twitter employer Dick Costolo”

This relation is mapped into a relation in domain’s

ontology as:

“Twitter employerOf Dick Costolo”

Then, the relation is assumed as a class instance or

True Positive in the Organization-Location training

dataset.

Table 4 shows the three training datasets that were

collected by using distant supervision approach

adopted by this work. The first training dataset

represents relations between Person and Organization

entities with three relation classes. The second

training dataset represents relations between Person

and Location entities with four relation classes. The

third and last training dataset represents relations

between Location and Organization entities with one

relation class. In addition to the number of the

documents in each training dataset, Table 4 also

presents the total number of all mentioned relations

for all classes in the training datasets, the total number

of mentioned relations for each class, and the total

number of relation instances including those that are

not mentioned in DPBedia and Freebase and present

in the documents of the training datasets.

Table 4: The summary of the collected training datasets

(RI=all Relation Instances, MR= Mentioned Relations,

Doc=Documents, Per=Person, Org=Organization and

Loc=Location).

Entity Pairs Doc RI MR Relation Types

Per-Org 192 4213 204

founderOf

keyPersonIn 107

employerOf 59

Per-Loc 671 11152 896

hasPlace

221

birthplace 233

hasNationality 415

deathPlace 27

Loc-Org 581 6217 299 locatedIn 299

3.6 Building Machine Learning

Classification Models

In this section, we detail the ML algorithms that were

trained by using the training datasets and features

vector in order to build the models for relation

classification. These models will be evaluated to

establish the suitable ML algorithm for relation

extraction. The next section describes in details the

ML classifiers adopted in this work.

The three supervised ML classifiers applied for

relations classification by using distant supervision

are, Support Vector Machine (SVM), Perceptron

Algorithm Uneven Margin (PAUM) and K-Nearest

Neighbour (KNN). The works of Panchenko, et al.

(2012), Hmeidi, Hawashin and El-Qawasmeh (2008),

Li, Bontcheva and Cunningham (2009), Li, et al.

(2005), and Witten and Frank (2005) reveal that

SVM, PAUM and KNN are used in Information

Extraction tasks with adequate results.

SVM is a supervised ML algorithm that has an

advanced performance for a diversity of classification

tasks including Information Extraction specifically in

small training datasets. One of the striking features of

SVM is that it has a robust justification for avoiding

over fitting (Cunningham, Maynard and Bontcheva

2011, Wang, et al. 2006). SVM is an optimal

classifier, which means that it learns a classification

Domain-Speciﬁc Relation Extraction - Using Distant Supervision Machine Learning

hyperplane in the features space with the maximal

margin to all training instances (Li, Bontcheva and

Cunningham 2009). This work uses the GATE

implementation, which is based on Java version of the

SVM package LibSVM with exception that the

GATE implements the uneven margins SVM

algorithm that described in the work of Li, Bontcheva

and Cunningham (2009). The most important

parameters of this implementation are SVM cost (C,

the Cost associated with allowing training errors, soft

margin) and the uneven margins (τ or tau, setting the

value of uneven margins parameter of the SVM) (Li,

Bontcheva and Cunningham 2009, Li and Shawe-

Taylor 2003). There are several kernel functions

types can be used in SVM algorithm such as linear,

polynomial, radial and sigmoid. Li, Bontcheva and

Cunningham (2009) mentioned in their research that

linear kernel is much more computationally efficient

than other complicated kernel functions and tends to

obtain similar performance; therefore, in this research

we used linear kernel. Also, the values of C and tau

parameters which are used in this research are 1 and

0.8 respectively.

PAUM is a simple and effective learning algorithm

especially for large training datasets. It has been

successfully used for document classification and

information extraction. For a binary classification

problem, it checks each instances in the training

dataset by predicting their labels. If the prediction is

correct, the instance is passed; otherwise, it is used to

correct the model. The algorithm stops when the

model classifies all training instances correctly. The

utilised GATE implementation of the PAUM

algorithm proposes two margin parameters, positive

and negative. These two margin parameters allow the

PAUM to handle imbalanced datasets better. Also,

GATE implementation proposes the modification of

the bias term parameter (optB). The values of

negative and positive margins and optB parameters

which are used in this work are 1, 50 and 0.3

respectively (Li, et al. 2005, Cunningham, Maynard

and Bontcheva 2011).

KNN is a simple and often its accuracy is enhanced

when the number of features is small. It is an instance-

based classification, which means that each new

instance is compared with K nearest neighbour

instances by using a distance metric. The class that

has the majority of instances of the closest K

neighbours is assigned to the new instance. KNN

algorithm shows superior results in classifying

documents. However, it is a lazy learning algorithm

because it depends only on statistics. KNN

implementation used in this work has only one

parameter, K, which can be tuned heuristically in

order to find the best algorithm’s performance. The

implementation of this algorithm is provided by

GATE, which is based on the open source ML

package WEKA (Hmeidi, Hawashin and El-

Qawasmeh 2008, Witten and Frank 2005). The value

of K which is used in this work is 1.

The algorithms above can implement both binary and

multi-class classifiers; however, the implementation

of multi-classification ML algorithms is more

complicated than binary classification. As a result,

when using an effective binary classifier, the scheme

of converting the multi-classification to multiple

binary classifications by using a simple “one-vs-

others” or “one-vs-another” methods is preferred over

other complex methods such as complex error-

correcting coding method. The “one-vs-others”

method converts N class classification model (N>2)

into N binary classification models. In every binary

classification model, the positive instances are

belonging to a specific class and the negative

instances are belonging to all other classes. In

contrast, “one-vs-another” method converts N class

classification model (N>2) into N(N−1)/2 binary

classification models of class pairs. In every binary

classification model, the positive instances are

belonging to one class in the pair and negative

instances are belonging to the other class in the same

pair (Li, Bontcheva and Cunningham 2009).

Therefore, this paper only considers the “one-vs-

others” method in transforming multi-classifier into

multiple binary classifier because it requires less

number of models.

The section above presented our methodology for

implementing knowledge-driven Relation Extraction

that include constructing the knowledge map, Named

Entity Recognition, relation instances tagging,

collecting training datasets, retrieving features set and

collecting dataset. In following section we are going

to evaluate the Machine Learning algorithms with the

features vector and training datasets.

4 RESULTS EVALUATION AND

DISCUSSION

The ML relation classification model has been

created by using the training datasets that were

collected by adopting the distant supervision

approach with the features vector. The models should

be evaluated before applying them to extract relations

from unstructured data. We evaluate the ML models

to get the optimum results by configuring training

datasets.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

There are two commonly used evaluation methods for

ML algorithms, K-fold cross-validation and holdout

test. In K-fold cross-validation, the corpus is split into

K equal size partitions of documents. The evaluation

run is repeated K times, folds. Each partition is used

as test dataset and all the remaining partitions as a

training dataset for all K folds. The overall Recall,

Precision and F1-measure result of this method is the

average of the all folds results. In contrast, in holdout

test, a number of documents in corpus are randomly

selected according to a specified ratio. These

documents are assumed as testing dataset and all

other documents as training dataset (Cunningham,

Maynard and Bontcheva 2011). In this work, the

experiments have been conducted on the training

datasets by using cross validation K-Fold with K=10.

This method guarantee that all documents will

participate in the training and testing datasets.

According to Witten, Frank and Hall (2005), there is

more than one method to compute the evaluation of

ML algorithms performance. These methods depend

on the target domain. For instance, the marketing

domain uses lift chart by plotting True Positive rate

versus training subset size, the communication

domain uses Receiver Operator Characteristic (ROC)

curve by plotting True Positive rate versus False

Positive rate and the Information Retrieval domain

uses Recall versus Precision curve. This research

computes the evaluation results of ML models in

relation classification by drawing the relation

between recall and precision in terms of threshold

probability classification confidence values.

A series of experiments have been conducted in this

research in order to improve the accuracy of ML

models and choose between ML algorithms, SVM,

PAUM and KNN.

4.1 Machine Learning Accuracy

Experiments

The first set of experiments attempts to alleviate the

classes imbalance in terms of True Positive and True

Negative numbers and to speed up ML processing by

reducing or removing the relation instances in the

documents that are not mentioned in the distant

supervision sources. Some of these instances are not

tagged as True Positive solely because they are not

populated onto Freebase or DBPedia datasets. Table

4 shows the total number of the relation instances and

total number of mentioned relation instances in each

training dataset.

The ML algorithms in this research transforms multi-

classification into multiple binary-classification

technique using “one-vs-others” method. This

method assumes the instances of one relation class as

True Positive and the instances of the other relation

classes as True Negative in each binary classification

for each relation class. The results of this method are

the predictions of the highest confidence scored

instances. In this experiments’ set we measure the

impact of reducing the number of not mentioned

relation instances on models accuracy by reducing

them gradually and calculating Precision, Recall and

F1-measure every time until reaching better ML

model accuracy.

Table 5 compares between the F1-measure values of

SVM, PAUM and KNN models when using the

training datasets with different numbers of relation

instances. The Person-Organisation pair contains four

classes, the Person-Location pair contains three

classes and Location-Organization pair contains one

class. Figures 2, 3 and 4 presents Precision-Recall

charts to compare between SVM models performance

when reducing the number of not mentioned relation

instances in the training datasets. These figures show

there is a clear trend of an increase in precision and

recall of ML models in the lowest values of the

number of the not mentioned relation instances.

Table 5: It shows the impact of reducing the number of Not

Mentioned Relation Instances (NMRI) in ML models

accuracy. (Per=Person, Org=Organisation, and

Loc=Location).

Pair Per-Org Per-Loc Loc-Org

NMRI 0 51 0 224 12 74

SVM

0.80

0.78

0.71

0.66

0.90

0.83

PAUM

0.77

0.75

0.68

0.64

0.90

0.83

KNN

0.77

0.72

0.65

0.60

0.89

0.81

Figure 2: SVM model accuracy in terms of number of not

mentioned relation instances in Person Organization pair

training dataset. (NMRI=Not Mentioned Relation

Instances).

Domain-Speciﬁc Relation Extraction - Using Distant Supervision Machine Learning

Table 5 and Figures 2, 3 and 4, indicate that the best

precision, recall and F1-measure of ML models is

achieved when removing or reducing the number of

relation instances that are not mentioned as a ground

fact in DBPedia or Freebase from the training

datasets, which can be explained by the fact that these

instances are considered to be an additional class

instances that disrupt the balance between True

Positives and True Negatives in the training datasets.

The work of Mintz, et. al (2009) indicates that these

negative instances have a minor effect on the

performance of the classifier. However, they used a

pure multi-classification classifier; in contrast to our

implementation that converts multi-classification into

multiple binary classification.

Figure 3: SVM model accuracy in terms of number of not

mentioned relation instances in Person Organization pair

training dataset. (NMRI=Not Mentioned Relation

Instances).

Table 6: The summary of the predicted relations

(PR=Predicted Relation, Per=Person, Org=Organization,

and Loc=Location).

Entity Pairs Relation Types PR

Per-Org

founderOf

229

keyPersonIn 4718

employerOf 3062

Per-Loc

hasPlace

10274

birthplace 6294

hasNationality 11822

deathPlace 53

Loc-Org locatedIn 5004

4.2 Selecting Optimum Machine

Learning Classifier

The second set of experiments aims to identify the

ML classifier amongst SVM, PAUM and KNN. The

results of these experiments are illustrated in Table 5

and Figures 5, 6 and 7. The results indicate that SVM

is better than the PAUM and KNN algorithms in

terms of F1-measure also in terms of precision-recall

relation. These results agree with the findings of other

studies; for example, in a study of Li, et al. (2005)

found that SVM may perform better than PAUM in

small training datasets and they have a close

performance in large training datasets. Also, the work

of Hmeidi, Hawashin and El-Qawasmeh (2008)

reveal that SVM has better F1-measure results than

KNN.

Our analysis assert that SVM relation classifier

exhibit more accurate results, which we attribute to

two reasons. Firstly, the training datasets of this work

are relatively small because of the characteristics of

the financial and economic domain that it is not

common in DBPedia and Freebase comparing to

other public domains such as music and movies

domains. Secondly, it has a superior performance in

small training datasets. Therefore, this research has

adopted SVM algorithm to create the relation

classification model.

Figure 4: SVM model accuracy in terms of number of not

mentioned relation instances in Location Organization pair

training dataset. (NMRI=Not Mentioned Relation

Instances).

Figure 5: Comparison between SVM, PAUM and KNN

models in Person Organization pair training dataset.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

100

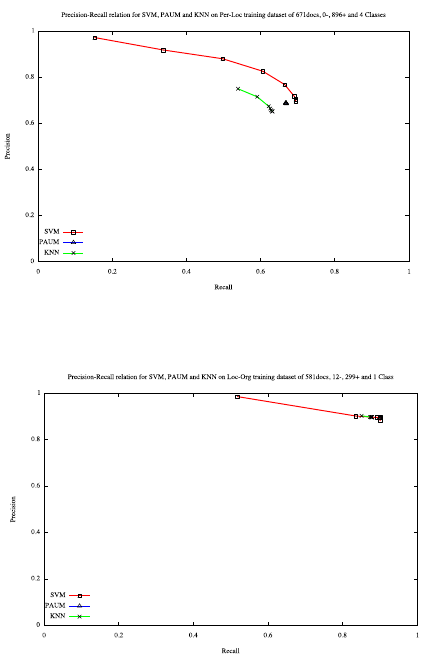

Figure 6: Comparison between SVM, PAUM and KNN

models in Person Location pair training dataset.

Figure 7: Comparison between SVM, PAUM and KNN

models in Location Organization pair training dataset.

4.3 Relation Classification

The relation classification model was created using

SVM algorithm. This model takes the unlabelled

relation instances in the unstructured documents with

the features vector as an input. Then, it returns a

relation names for those relation instances with a

confidence score based on the probability of the

correctness of entity pairs relation. The confidence

score could be used to rank the relations to be used to

generate a list of the most confident relations (Mintz,

et al. 2009). Table 6 shows the number of predicted

relations between the targeted named entities.

It can be seen from the results of this work that

Freebase and DBPedia provide a sufficient ground

facts for the Organization, Location and Person

concepts interrelations. Nonetheless, there are other

relations between other entity pairs that require more

investigation; such as, stock markets and

organizations entities interrelations. While the focus

of this research is on the financial and economic

domain use case, the structured knowledge sources

have a rich set of ground facts for a variety of domains

such as, sports, entertainment, politics and others,

which confirms that our approach is reusable and

applicable for a variety of domains.

5 CONCLUSIONS AND

FURTHER WORK

Online data can be exploited to inform data analytics

and decision support systems for a variety of

applications such as those belonging to the financial

services domain. For this class of applications,

extracting relations between key domain concepts is

critical for the identification and correlation of the

domain’s key events.

In this paper, we argue that extracting information for

a specific domain should be guided by the domain

knowledge that describes what type of knowledge is

to be obtained and for which exploitation scenario,

and subsequently present a comprehensive

methodology for integrating domain knowledge with

machine learning techniques in order to improve the

information extraction process. We model the

domain’s key concepts and its interaction with the

beneficiary users using Semantic Web technologies,

which provides for organising information database

into a highly structured knowledgebase and also

allows reasoning on the sourced data to infer new

interesting facts. Moreover, the semantic

knowledgebase allows us to seamlessly source data

from Linked Datasets such as Freebase and DBpedia

that also use Semantic technology to store domain-

relevant ground facts.

We address the difficulties of training datasets

provision for supervised machine learning

classification by adopting a distant supervision

machine learning. Our approach automatically

collects training examples by labelling the relations

mentioned in distant supervision sources hosted in

semantic linked datasets.

A series of experiments have been conducted in this

research in order to select the algorithm that promoted

better relation extraction accuracy, and concluded

that SVM outperforms PAUM and KNN algorithms

in terms of F1-measure and the precision-recall

relation. Another important finding of our

experimental work is that the relation extraction

accuracy is improved when reducing the number of

relation instances that are not mentioned as a ground

fact in DBPedia or Freebase, which can be explained

by the fact that these instances are considered to be an

additional class instances that disrupt the balance

between True Positives and True Negatives in the

training datasets.

Domain-Speciﬁc Relation Extraction - Using Distant Supervision Machine Learning

101

The distant supervision training datasets sources

(DBPedia and Freebase) have a rich set of ground

facts for diverse domains such as, sports,

entertainment, politics and others, which confirms

that our approach is reusable and applicable for a

variety of domains.

Our plans for further work include investigating the

use of evolutionary algorithms for feature selection

and implementing semantic rules that infer implicit

facts from the knowledgebase to support financial

decision making.

REFERENCES

Akbik, A., and Broß, J., 2009. Wanderlust: Extracting

semantic relations from natural language text using

dependency grammar patterns. In: WWW Workshop.

Andrew, G., and Gao, J., 2007. Scalable training of L 1-

regularized log-linear models. In: Proceedings of the

24th international conference on Machine learning,

ACM, pp. 33-40.

boilerpipe, 2014. boilerpipe [online]. Google. Available at:

https://code.google.com/p/boilerpipe [Accessed 5/20

2014].

Costantino, M., Morgan, R.G., Collingham, R.J. and

Carigliano, R., 1997. Natural language processing and

information extraction: Qualitative analysis of financial

news articles. In: Computational Intelligence for

Financial Engineering (CIFEr), 1997., Proceedings of

the IEEE/IAFE 1997, IEEE, pp. 116-122.

Cunningham, H., 2005. Information extraction, automatic.

Encyclopedia of Language and Linguistics, 665-677.

Cunningham, H., Maynard, D. and Bontcheva, K., 2011.

Text processing with gate. Gateway Press CA.

Daelemans, W., and Hoste, V., 2002. Evaluation of

machine learning methods for natural language

processing tasks. In: 3rd International conference on

Language Resources and Evaluation (LREC 2002),

European Language Resources Association (ELRA).

fadyart.com, 2014. Finance Ontology[online]. fadyart.com.

Available at: http://fadyart.com [Accessed 4/30 2014].

Farkas, R., 2009. Machine learning techniques for applied

information extraction.

Farmakiotou, D., Karkaletsis, V., Koutsias, J., Sigletos, G.,

Spyropoulos, C.D. and Stamatopoulos, P., 2000. Rule-

based named entity recognition for Greek financial

texts. In: Proceedings of the Workshop on

Computational lexicography and Multimedia

Dictionaries (COMLEX 2000), Citeseer, pp. 75-78.

Garcia, M., and Gamallo, P., 2011. A Weakly-Supervised

Rule-Based Approach for Relation Extraction. In: XIV

Conference of the Spanish Association for Artificial

Intelligence (CAEPIA 2011), pp. 07-2011.

Han, J., Kamber, M. and Pei, J., 2011. Data mining:

concepts and techniques: concepts and techniques.

Elsevier.

Harris, S., Seaborne, A. and Prud’hommeaux, E., 2013.

SPARQL 1.1 query language. W3C Recommendation,

21.

Hmeidi, I., Hawashin, B. and El-Qawasmeh, E., 2008.

Performance of KNN and SVM classifiers on full word

Arabic articles. Advanced Engineering Informatics, 22

(1), 106-111.

Hong, G., 2005. Relation extraction using support vector

machine. In: Relation extraction using support vector

machine. Natural Language Processing–IJCNLP 2005.

Springer, 2005, pp. 366-377.

Jiang, X., Huang, Y., Nickel, M. and Tresp, V., 2012.

Combining information extraction, deductive reasoning

and machine learning for relation prediction. In:

Combining information extraction, deductive reasoning

and machine learning for relation prediction. The

Semantic Web: Research and Applications. Springer,

2012, pp. 164-178.

Khan, A., and Baig, A.R., 2015. Multi-Objective Feature

Subset Selection using Non-dominated Sorting Genetic

Algorithm. Journal of Applied Research and

Technology, 13 (1), 145-159.

Kohlschütter, C., Fankhauser, P. and Nejdl, W., 2010.

Boilerplate detection using shallow text features. In:

Proceedings of the third ACM international conference

on Web search and data mining, ACM, pp. 441-450.

Konstantinova, N., 2014. Review of Relation Extraction

Methods: What Is New Out There? In: Review of

Relation Extraction Methods: What Is New Out There?

Analysis of Images, Social Networks and Texts.

Springer, 2014, pp. 15-28.

Lehmann, J., and Völker, J., Perspectives on Ontology

Learning.

Li, Y., Bontcheva, K. and Cunningham, H., 2009. Adapting

SVM for data sparseness and imbalance: a case study in

information extraction. Natural Language Engineering,

15 (02), 241-271.

Li, Y., Miao, C., Bontcheva, K. and Cunningham, H., 2005.

Perceptron Learning for Chinese Word Segmentation.

In: Proceedings of Fourth SIGHAN Workshop on

Chinese Language Processing (Sighan-05), pp. 154-

157.

Li, Y., and Shawe-Taylor, J., 2003. The SVM with uneven

margins and Chinese document categorization. In:

Proceedings of The 17th Pacific Asia Conference on

Language, Information and Computation (PACLIC17),

pp. 216-227.

Min, B., Grishman, R., Wan, L., Wang, C. and Gondek, D.,

2013. Distant Supervision for Relation Extraction with

an Incomplete Knowledge Base. In: HLT-NAACL, pp.

777-782.

Mintz, M., Bills, S., Snow, R. and Jurafsky, D., 2009.

Distant supervision for relation extraction without

labeled data. In: Proceedings of the Joint Conference of

the 47th Annual Meeting of the ACL and the 4th

International Joint Conference on Natural Language

Processing of the AFNLP: Volume 2-Volume 2,

Association for Computational Linguistics, pp. 1003-

1011.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

102

Panchenko, A., Adeykin, S., Romanov, P. and Romanov,

A., 2012. Extraction of semantic relations between

concepts with knn algorithms on wikipedia. In:

Concept Discovery in Unstructured Data Workshop

(CDUD) of International Conference On Formal

Concept Analysis, Belgium, Citeseer, pp. 78-88.

Radzimski, M., Sánchez-Cervantes, J.L., Rodríguez-

González, A., Gómez-Berbís, J.M. and García-Crespo,

Á, 2012. FLORA–Publishing Unstructured Financial

Information in the Linked Open Data Cloud. In:

International Workshop on Finance and Economics on

the Semantic Web (FEOSW 2012), pp. 27-28.

Ruiz-Martínez, J.M., Valencia-García, R. and García-

Sánchez, F., 2012. Semantic-Based Sentiment analysis

in financial news. In: Proceedings of the 1st

International Workshop on Finance and Economics on

the Semantic Web, pp. 38-51.

Wang, T., Li, Y., Bontcheva, K., Cunningham, H. and

Wang, J., 2006. Automatic extraction of hierarchical

relations from text. Springer.

Witten, I.H., and Frank, E., 2005. Data Mining: Practical

machine learning tools and techniques. Morgan

Kaufmann.

Domain-Speciﬁc Relation Extraction - Using Distant Supervision Machine Learning

103
