Usability Evaluation Methods for Spatial Information Visualisation
Case Study: Evaluation of Tourist Maps
Pavel Sedlák, Jitka Komárková,
Miloslav Hub, Stanislav Struška and Miroslav Pásler
Institute of System Engineering and Informatics, Faculty of Economics and Administration, University of Pardubice,
Studentska 95, 532 10, Pardubice, Czech Republic
Keywords: Usability, Usability Testing, Evaluation of Maps, Maps.
Abstract: Many decisions are influenced by location. Geoinformation technologies together with digital data are today
very often used to support spatially-oriented decisions. Another reliable way of spatial information
presentation is represented by analogue maps. This contribution describes utilization of software
engineering methods in cartography to evaluate and improve quality of maps. Authors have long experience
with utilization of usability evaluation of Web based geographic information systems. They propose
utilization of suitable methods to evaluate usability of analogue maps. Usability of analogue tourist maps of
attractive areas of the Czech Republic was evaluated by means of proposed methods. Maps published by the
most famous publishers in the Czech Republics, i. e. maps published by Kartografie Praha, a. s., SHOCart,
spol. s r. o., Klub českých turistů o. s. and Geodézie On Line were evaluated. Usability User Testing and
Heuristic Evaluation were used as methods for usability evaluation. The main results of case studies are
briefly described in the paper. Results of one case study are processed by multi-criteria decision making
methods. Benefits and weaknesses of used methods derived from author experience are stated in the end.
1 INTRODUCTION
Spatial information is very important for all human
beings because thinks happen somewhere and
objects are located somewhere. In the past, various
analogue ways for storing spatial data were
invented. Bones, stones and paper can be given as
examples of used media. Nowadays, computer-based
systems, like geographic information systems (GIS),
are often used. But papers maps are still used too.
Usability of Web-based GIS applications and
interactive maps on Internet has been recognized as
a very important issue. Many articles describing case
studies, usability evaluation procedures and usability
problems can be found, e.g. on Web of Science. On
the other side, it is difficult to find similar studies for
paper maps. It is stated by Nivala et al. (2007) that
there is still not enough attention paid to the
usability of analogue maps, although they are
irreplaceable in some situations, e.g. in crisis
management or in situations when electricity and
information systems are not available.
Authors carried out several case studies focused
on usability evaluation of tourist analogue (i.e.
paper) maps during several past years (Flamik et al.,
2013, Hub et al., 2012, Sedlak et al., 2010). They
introduced an idea of utilization of usability and
software engineering methods into maps production
and their quality evaluation. Used methods are
briefly described at first. Then, overview of results is
provided. It is followed by comparison of used
methods and obtained experience.
2 USABILITY OF ANALOGUE
MAPS
Analogue maps are an important information
resource which enables visualization of various
places and plays an important role in the
cartographic area because maps are still not
replaceable in some situations (Čapek and
Komárková, 2009). Unfortunately all maps do not
have the same quality, some maps are better and
some worse from the quality point of view. For
example, some maps contain a large amount of
unnecessary information; some maps use a different
scale, coordinate system or different symbolism. But
users of these maps want to choose the right map
that completely satisfies their needs.
419
Sedlák P., Komárková J., Hub M., Struška S. and Pásler M..
Usability Evaluation Methods for Spatial Information Visualisation - Case Study: Evaluation of Tourist Maps.
DOI: 10.5220/0005557904190425
In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 419-425
ISBN: 978-989-758-114-4
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
Quality of a product includes several various
characteristics; usability is one of them. It is related
to every product that has a user interface. Map can
be though as a user interface by itself. Usability of a
user interface is in accordance with ISO (1991) a set
of attributes. Current usability definition selects
certain usability attributes and is stated by (Bevan
and Kirakowski, 1999, ISO, 1991, Law and
Hvannberg, 2002) as: ‘The effectiveness, efficiency
and satisfaction with which specified users can
achieve specified goals in a particular environment’.
Next current definition of usability can be found in
Ivory (2001): ‘Usability is the extent to which users
can use a computer system to achieve specified
goals effectively and efficiently while promoting
feelings of satisfaction in a given context of use’.
Usability engineering is a branch of software
engineering. It provides structured methods for
achieving usability in user interface design during
whole product lifecycle. The usability evaluation
methods are divided as follows (Scholtz, 2004):
User-centered evaluations (usability testing
methods)
Expert-based evaluations (inspection methods)
Model-based evaluations.
In the field of usability engineering there are
many different methods available, such as Cognitive
Walkthrough, Feature Inspection, Thinking Aloud
Protocol, Field Observation/Ethnography, Coaching
Method, Co-Discovery Learning, Retrospective
Testing, Individual Interview, Performance
Measurement (all Nielsen, 1994), Heuristic
Evaluation (Nielsen 2007), Eye-Tracking, Question-
Asking Protocol, Questionnaires (Hom, 2003),
Remote Testing, Focus Groups, Logging Actual Use
(all Usability Evaluation, 2013), and User Testing
(Usability.gov, 2007).
As it was mentioned before, Nivala (2007) stated
that there was almost no attention paid to usability of
analogue maps. This study carried out in Finland
used semi-structured interviews with companies that
produce maps, map applications and GIS. They
realized that several companies included
representatives of users into the late development
stages, several companies did not include them at
all. Carto-graphic evaluation was carried out for
paper maps only. Usability testing was rarely
included at all, mostly for various GIS applications.
Lately, several studies have been carried out using
eye-tracking to evaluate usability of both analogue
maps and graphical outputs from GIS (Brychtová et
al, 2012a, Brychtová et al, 2012b, Popelka and
Voženílek, 2012).
3 CASE STUDIES
When selecting appropriate usability testing and
evaluation method for case studies, the knowledge
gained from Budinská (2009) was used by the
authors. In addition, a questionnaire survey where
usability engineering experts were asked about
important criteria for appropriate method selection
was carried out. The following criteria are proposed
by the authors to be taken into account when
choosing usability testing and evaluation method for
analogue maps:
Development stage. There are usability
evaluation methods available for each stage of
system development life cycle. Only those
methods that apply to evaluation of the final map
products are suitable.
Place of testing. Some methods allow remote
testing which needs specialized software. Some
methods require observation of a user in his/her
real environment. These special requirements can
increase costs and bring several complications.
Methods which require testing in a simple testing
room or which do not require any special places
are more suitable.
Type of output data. This issue is deeply
connected to the aim of each usability evaluation
and testing study. Quantitative (e.g. usability
problems identification to improve the
application) and/or qualitative (e.g. comparison
of applications to support choice of the best one)
data can be obtained from experimental
measurements. Methods providing both
quantitative and qualitative data are more
suitable.
Number of participants. It is important to involve
at least one participant – a representative of
users. It allows to test and verify an ability of
real users to interact with evaluated maps. This
step requires a clear description of potential users
and correct choice of their representatives. On
the other side, a high number of involved
participants can increase costs.
Number of experts on usability testing. It is
important to involve at least one usability expert
too to assure a quality of usability evaluation and
testing process. On the other side, a high number
of involved participants can increase costs.
Some of usability testing and evaluation methods
provide only qualitative or quantitative outputs,
some methods require special equipment, the
presence of large number of experiments, etc. Case
studies were primarily focused on quantitative data
ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications
420
and both experts and representatives of users should
be involved. Based on the literature research we
chose the methods of Usability User Testing and
Heuristic Evaluation that meet the criteria
formulated above. Both are experimental methods
run in a laboratory environment.
3.1 Case Study – Heuristic Evaluation
According to Scholtz (2004), Heuristic Evaluation
belongs to expert-based evaluations, i.e. inspection
methods. Recognized usability principles are
represented by a set of heuristics. Evaluators inspect
whether an evaluated product meets particular
heuristics or not.
Within the study Flamik et al. (2013) three
analogue tourist maps were evaluated and 5
evaluators took part. A set of 109 heuristics was
proposed in the beginning. Heuristics covered the
following issues: a) technical implementation; b)
content of a map – its completeness and
visualisation; c) up-to-dateness of the content; d)
readability and aesthetics of a map; e) geometric
precision and conformity with the reality; f) help and
additional and descriptive informations. Next, a
form for evaluators was created to allow them to
write their evaluations, i.e. if each particular
heuristics was met or not.
After evaluation, all evaluators assessed severity
of each heuristics (range from 0 to 4, where 4 means
the severest usability problem). Normalized weights
were calculated for all heuristics. Then, weighted
scores were calculated for all evaluated products.
Evaluation resulted into identification almost 20
serious usability problems. Problems with
readability and complicated orientation in maps
were identified. Besides, not correct title of a map (it
did not contain date) and not enough proper location
of the date of thematic content were identified as
usability problems too although they did not
significantly obstruct users to get expected answers.
Table 1: Results of Heuristic evaluation (Flamik et al.,
2013).
Product A
KP
Product B
KCT
Product C
SC
Evaluator 1
0.11350 0.13607 0.16806
Evaluator 2
0.16541 0.18109 0.19648
Evaluator 3
0.11103 0.15231 0.21203
Evaluator 4
0.08414 0.10472 0.18018
Evaluator 5
0.14630 0.18274 0.12436
Average value
0.12408 0.15139 0.17622
3.2 Case Study – Usability User
Testing 1
Usability User Testing belongs to user-centered
evaluations (Scholtz, 2004). It is based on
observation of representatives of users while using
an evaluated product to complete given tasks.
Within case study Sedlak et al. (2010) three
analogue tourist maps were tested and 6 participants
were involved. All the participants were required to
evaluate all the maps. The order of evaluation was
different to prevent participants from learning how
to use evaluated map products.
A simple testing room was used. It was equipped
by a web camera, camera, computer and software
CamStudio 2.0 was installed in the computer. The
proposed testing scenario contained set of particular
tasks, e.g. identification of an object in the map,
measurement of a distance, identification of
coordinates, etc. All participants were required to
fulfil the given tasks, i.e. to loudly state the answers.
Simultaneously, there was a set of criteria proposed
to measure participants’ efficiency and
effectiveness, e.g. time necessary to prepare map,
time to provide answer, precision of answer. As the
last step, participants filled a short questionnaire to
provide some information about their background
and skills concerning maps.
Testing was followed by collected data
processing. Loudly stated usability problems were
compared with the measured efficiency and
effectiveness data to confirm an existence of the
usability problem.
Again, more complicated orientation in a map
caused by incorrectly placed map elements and
readability of a map were the most often identified
usability.
3.3 Case Study – Usability User
Testing 2
The second Usability User Testing study includes
again three tourist maps. All maps cover the same
are of interest (Luzicke Mountains); the same
coordinate system (WGS 84) is used; their producers
are: Geodezie On Line, Kartografie Praha and
SHOCart. All maps are folded.
Both performance data and subjective evaluation
of maps by participants are collected. This case
study proposes utilization of multi-criteria
evaluation method to more objectively evaluate final
quality of maps. It means that various criteria are
considered to choose the best option from the given
set of potential options. The options are three
UsabilityEvaluationMethodsforSpatialInformationVisualisation-CaseStudy:EvaluationofTouristMaps
421
analogue maps and the goal of multi-criteria
evaluation is to determine the best map. Values of
particular criteria are measured as performance and
subjective data using Usability User Testing.
The overall result is based on the weighted sum
of the criteria. The most important issue is to
determine weights of particular criteria. It is
necessary to notice that different groups of assessors
could prefer different criteria and different weights
and therefore there can be a conflict of opinions. A
number of methods based on simple subjective
information acquisition from users to finally
construct estimation of the weights exist. All of
these methods are based on the principle that the
sum of the weights over all criteria is one.
To set weights of criteria, participants fulfilled
the questionnaire after testing. Rating method
(unconstrained) is preferred to point allocation
method because it is easier for participants. The
rating scale 1 – 10 was used in this case.
The following criteria are proposed to be used
for maps evaluation (see Table for their final
weights; min = minimizing criterion):
C1: Time of unfolding map and its preparation, min
C2: Time of identification of basic map elements,
min
C3: Successful finishing of given tasks, max
C4: Deviation of measured value from the correct
value, min
C5: Time necessary for solving given task, min
C6: Time necessary for estimation of required
information/value, min
C7: Questionnaire – cartographic evaluation, min
C8: Questionnaire – usability evaluation, min
Table 2: Criteria and their weights (Struska, 2014).
Kind
of data
Weight
of group
Crite-
rion
Weight
of criterion
Final
weight
Perfor-
mance
0,568
C1 0.038
0.022
C2 0.109
0.062
C3 0.214
0.122
C4 0.200
0.114
C5 0.241
0.137
C6 0.198
0.112
Subjec-
tive
0,432
C7 0.427
0.243
C8 0.573
0.326
Each participant evaluates all maps; different
order of maps is used. At first partial benefit is
calculated for each map and each participant using
previously calculated weights (see Figure 1).

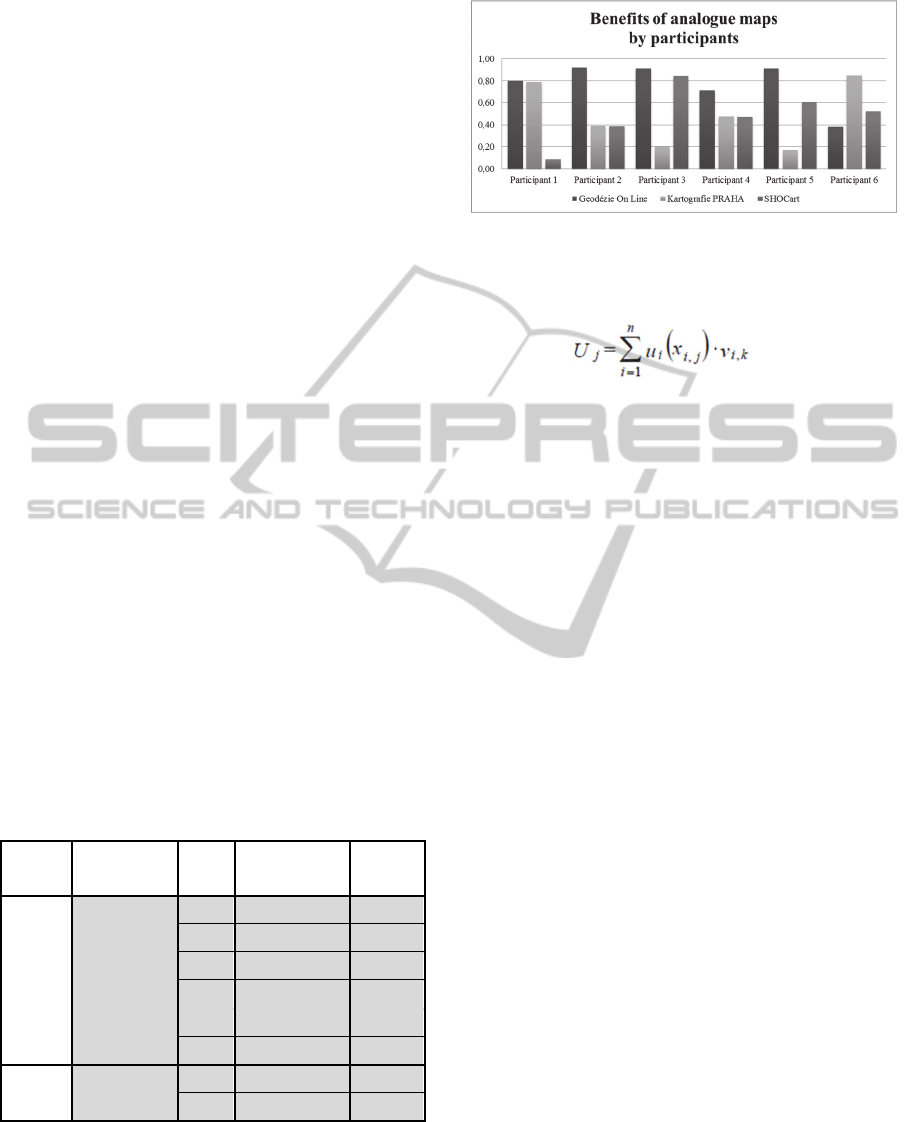

Figure 1: Partial benefits (Struska, 2014).
The equation (1) is used to calculate the benefit
(Ramík, 1999):
(1)
The final benefit is calculated by means of
calculation of average of partial values. The final
results follow (Struska, 2014):
1. Geodézie On Line – 0,775
2. SHOCart – 0,487
3. Kartografie PRAHA – 0,480
Size of fonts and not enough contrasting colours
were identified as the most important usability
problems of the winning map. Legend, scale bar and
colours were problems of the other maps.
4 DISCUSSION OF RESULTS
The following text is based on authors’ experience
obtained during the previously carried out
experiments – usability testing and evaluation of
analogue maps (Flamik et al., 2013, Hub et al., 2012,
Sedlak et al., 2010) and Web-based GIS
(Komarkova et al., 2007a, Komarkova et al., 2007b,
Komarkova et al., 2010a, Komarkova et al., 2010b).
All the experiments were primarily focused on
qualitative results (identification of usability
problems). In some cases, quantitative data were
collected and evaluated too.
4.1 Heuristic Evaluation
Heuristic Evaluation involves experts in usability. A
combination of both experts in usability and
cartography is the most suitable option to ensure
correct proposal of a set of heuristics although it can
increase costs.
In the beginning, it is very important to identify
potential users of an evaluated map and describe
them – create their profile (e.g. by means of
ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications
422
developing so called ‘personas’). Profiles should
describe users themselves (e.g. age, education, skill),
and their environment (e.g. planning at home, using
a map in terrain, car navigation or walking
navigation, etc.). In the case of Web-based GIS and
other Internet or mobile applications, technical
equipment must be described too. Conceptual
models of potential tasks solved by users by means
of an evaluated map must be correctly prepared in
the very beginning too. This information later helps
to propose a suitable set of heuristics so it
correctness is very important.
Experts have to get familiar with the evaluated
map, its potential users and their ways of utilization
of the map at first to be able to propose an
appropriate set of heuristics.
A set of heuristics must be proposed and verified
by experts for each particular evaluation according
to the expected results, evaluated product and its
potential users. This step is time consuming.
Although the set of heuristics is proposed by an
expert (experts), there is a risk that some heuristics
can foist usability problems on evaluators.
One evaluator is able to identify approximately
1/3 of problems. It is suitable to involve more
evaluators although it increased costs as far as
evaluators should be experienced.
Identification of many “cosmetic” usability
problems is typical for this method (in comparison
with usability User Testing). The next step is to set
level of importance of usability problems to decide
which problems should be focused at first. Again,
involving of experts is required. Multi-criteria
decision-making methods are suitable for this step.
Method itself does not require any specific
testing laboratory and software.
It is not so expensive method in comparison to
the Usability User Testing.
4.2 Usability User Testing
Contrary to Heuristic Evaluation, Usability User
Testing method involves representatives of users of
an evaluated product into the process of usability
evaluation and testing.
Due to the participation of representatives of
users, this method is focused on users’ cognitive
processes and their working memory content during
utilization of an evaluated map. On the other side,
obtained results are subjective points of view of
involved participants.
This method requires well defined users’ profile
too. There is no difference in this point between
Heuristics Evaluation and User Testing.
Set of experimental tasks (scenarios for testing)
must be well proposed so it covers possible ways of
utilization of the evaluated product in a reality as
close as it is possible. It requires deep understanding
of potential users and their behaviour. This part is
time consuming.
Choice of representatives of users is another
demanding step. A representative sample should be
chosen based on previously defined users’ profiles.
This step highly depends on an availability of
representatives of users.
This method requires a dedicated testing room
but it is easy and reasonably cheap to prepare the
simplest versions of it. More sophisticated testing
rooms can include semi-transparent window and a
complex camera system so participating persons are
not disturbed by evaluators. In this case, the room is
quite expensive.
Verbal reports, videos and written reports are
outputs of this method. Especially think aloud
procedure produces a high amount of recorded data
which require further demanding processing.
Possibility to measure efficiency of users’ utilization
of the evaluated product is a very important benefit.
It is possible to measure how to which level
participating persons are able to fulfil the given tasks
and how quickly they are able to fulfil them.
Less number of usability problems is identified
by means of the method but more severe ones are
identified. It helps to focus on the severe problems
which obstruct users while using the evaluated map.
5 CONCLUSIONS
Usability engineering methods have been widely
used in many branches to improve quality of a
product. Usability engineering itself is deeply
connected to software engineering. It means its
principles have been successfully applied on Web-
based geographic information systems and
interactive maps on Internet. Analogue maps provide
spatial information as well but there was not so
strong focus on their usability. Authors have focused
on Web-based GIS usability testing and evaluation.
Lately, they started to focus on usability of analogue
maps too. Utilization of software engineering
methods in maps production is reasonable as far as
maps are today produced by means of specialized
software tools.
After defining aim of usability testing and
evaluation procedure, it is important to choose a
proper usability testing and evaluation method. A
chosen method can significantly influence obtained
UsabilityEvaluationMethodsforSpatialInformationVisualisation-CaseStudy:EvaluationofTouristMaps
423
results, e.g. if results are quantitative or qualitative,
number of identified usability problems and their
severity. Today, many methods exist. Different
methods can be used in different product
development stages and they require different tools,
equipment, spaces and participating persons. All
these facts can influence obtained results and,
consequently, costs connected to the procedure of
usability testing and evaluation.
Authors’ approach: a combination of Heuristic
Evaluation and User Testing allows to involve both
experts and representatives of users. These methods
require existence of a user interface to be evaluated,
so they are suitable for analogue maps. There are
several strengths and weaknesses connected to each
method which are described in the text.
For future authors plan to improve Heuristic
Evaluation by means of artificial intelligence
methods, namely fuzzy logic, to make evaluation
easier for evaluators letting them use their natural
language during evaluation.
ACKNOWLEDGEMENTS
The paper has been completed with the kind support
of SGS project of FEA, University of Pardubice.
REFERENCES
Bevan, N., Kirakowski, J., 1999. What is Usability? In:
Proceedings of the 4th International Conference on
Human Computer Interaction, pp 651-655.
Budinská, I., 2009. Klasifikace a porovnání metod
testování a hodnocení použitelnosti software.
Pardubice. Diploma thesis, University of Pardubice.
Available in Czech only.
Brychtová, A., Popelka, S., Dobešová, Z., 2012a. Eye-
tracking methods for investigation of cartographic
principles. In: SGEM 2012 Conference Proceedings
Volume II STEF92 Technology Ltd., Sofia, Bulgaria,
pp 1041-1048.
Brychtová, A., Popelka, S., Voženílek, V., 2012b. The
analysis of eye movement as a tool for evaluation of
maps and graphical outputs from GIS. In: Geography
and Geoinformatics: Challenges for practise and
education, Masarykova univerzita, Brno, pp 154-163.
Čapek, J., Komárková, J., 2009. Windstorms and flood
risk management. In: CERS 2009 - 3rd Central
European Conference in Regional Science:
International Conference Proceedings. Technická
univerzita v Košiciach, Košice, pp 151-159.
Flamík, M. et al., 2013. Využití heuristického hodnocení
pro zjednodušení systému hodnocení turistických
analogových map. In: Křupka J, Vítek M (Eds.)
Systémy složité a zjednodušené, 1. ed, Vydavatelství
Univerzity Pardubice, Pardubice, pp 156-166.
Hom, J., 2003. The Usability Methods Toolbox.
http://usability.jameshom.com/. Accessed 13 Dec
2013.
Hub, M., Sedlák, P., Kožuriková, M., 2012. Testing of
Quality of Cartographic Products. In: Latest trends in
information technology. Vienna, Austria, 10. - 12. 11.
2012, pp 209-214.
International Standards Organisation (ISO), 1991.
International Standard ISO 9126. Information
technology: Software product evaluation: Quality
characteristics and guidelines for their use.
Ivory, M. Y., 2001. An Empirical Foundation for
Automated Web Interface Evaluation. PhD
Dissertation, UC Berkeley Computer Science
Division.
Law, L., Hvannberg, E.T., 2002. Complementarity and
convergence of heuristic evaluation and usability test:
a case study of universal brokerage platform. In:
NordiCHI '02: Proceedings of the second Nordic
conference on Human-computer interaction. Aarhus,
Denmark: ACM, pp 71-80.
Nielsen, J., 1994. Usability inspection methods. John
Wiley & Sons, New York.
Komarkova, J. et al. 2007a. Usability of GeoWeb Sites:
Case Study of Czech Regional Authorities Web Sites.
In: Abramowicz W (ed.) BIS 2007, Lecture notes in
computer science, vol 4439. Springer, Heidelberg, pp.
411–423.
Komarkova, J., Visek, O., Novak, M., 2007b. Heuristic
Evaluation of Usability of GeoWeb Sites. In: J.M.
Ware and G.E. Taylor (Eds.): W2GIS 2007, Lecture
notes in computer science. vol 4857. Springer,
Heidelberg, pp. 264–278.
Komárková, J., Jedlička, M., Hub, M., 2010a. Usability
User Testing of Selected Web-based GIS
Applications. WSEAS Transactions on Computers
9(1):21-30.
Komárková, J. et al, 2010b. Problems in usability of web-
based GIS. In: International Conference on Applied
Computer Science - Proceedings, pp 549-554.
Nielsen, J., 1994. Usability Engineering. Morgan
Kaufmann, San Francisco.
Nielsen, J., 2007. How to Conduct a Heuristic Evaluation
http://www.nngroup.com/articles/how-to-conduct-a-
heuristic-evaluation/. Accessed 08 Dec 2013.
Nivala, A. M., Sarjakostki, T., Sarjakoski., T., 2007.
Usability methods’ familiarity among map
applications developers. Int. J. Human-Computer
Studies 65:784-795.
Popelka, S., Voženílek, V., 2012. Specifying of
Requirements for Spatio-Temporal Data in Map by
Eye-Tracking and Space-Time-Cube. In: Proceedings
of International Conference on Graphic and Image
Processing Singapore, 5 p.
Ramík, J., 1999. Vícekriteriální rozhodování: analytický
hierarchický proces. Vyd. 1. Karviná: Slezská
univerzita v Opavě. 216 p. Available in Czech only.
Sedlák, P. et al, 2010. Nový přístup k testování a
hodnocení kvality map. Geodetický a kartografický
obzor 56/98(9):182-188. Available in Czech only.
ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications
424
Scholtz, J., 2004. Usability evaluation. Gaithersburg,
USA: IAD National Institute of Standards and
Technology, Encyclopedia of Human-Computer
Interaction.
Struška, S., 2014. Testování a hodnocení použitelnosti
turistických analogových map vybrané příhraniční
oblasti. Pardubice: Univerzita Pardubice, bachelor
thesis. Available in Czech only.
Usability Evaluation, 2013. Usability Evaluation methods.
http://www.usabilityhome.com/. Accessed 12 Dec
2013.
Usability.gov, 2007. Learn about usability testing,
http://www.usability.gov/refine/learnusa.html.
Accessed 25 Mar 2010.
UsabilityEvaluationMethodsforSpatialInformationVisualisation-CaseStudy:EvaluationofTouristMaps
425
