Discrete Event Modeling and Simulation for IoT Efﬁcient Design

Combining WComp and DEVSimPy Framework

S. Sehili

, L. Capocchi

, J. F. Santucci

, S. Lavirotte

and J. Y. Tigli

SPE UMR CNRS 6134, University of Corsica, Corte, France

I3S (UNS - CNRS), 930 Route des Colles - BP 145, 06903 Sophia-Antipolis, France

Keywords:

Internet of Things, Discrete-Event System, Object Oriented Modeling, Modeling, Simulation, Ubiquitous

computing.

Abstract:

One of today’s challenges in the framework of ubiquitous computing concerns the design of ambient systems

including sensors, smart-phones, interconnected objects, computers, etc. The major difﬁculty is to propose a

compositional adaptation which aims to integrate new features that were not foreseen in the design, remove

or exchange entities that are no longer available in a given context. In order to provide help to overcome this

difﬁculty, a new approach based on the deﬁnition of strategies validated using discrete-event simulation is

proposed. Such strategies make it possible to take into account conﬂicts and compositional adaptation of com-

ponents in ambient systems. These are deﬁned and validate using a discrete-event formalism to be integrated

into a prototyping and dynamic execution environment for ambient intelligence applications. The proposed

solution allows the designers of ambient systems to deﬁne the optimum matching of all components to each

other. One pedagogical example is presented (switch-lamp system) as a proof of the proposed approach.

1 INTRODUCTION

The rapid progress of technology related to sensor

networks leads us to a merger between the physical

world and the virtual world where the interconnec-

tion of objects with a level of intelligence will lead

to a revolution in the creation and the availability of

service that will gradually change our way to act on

the environment. The deﬁnition of such complex sys-

tems involving sensors, smart-phone, interconnected

objects, computers, etc. results in what is called am-

bient systems. The software development of such sys-

tems belongs to ubiquitous computing domain. One

of todays challenges in the framework of ubiquitous

computing concerns the design of such ambient sys-

tems. One of the main problems is to propose a man-

agement adapted to the composition of applications in

ubiquitous computing. The difﬁculty is to propose a

compositional adaptation which aims to integrate new

features that were not foreseen in the design, remove

or exchange entities that are no longer available in a

given context. We have being focused on the WComp

environment (Hourdin et al., 2013) which is a proto-

typing and dynamic execution environment for Ambi-

ent Intelligence applications created by the Rainbow

research team of the I3S laboratory, hosted by Uni-

versity of Nice - Sophia Antipolis and CNRS. It uses

lightweight components to manage dynamic orches-

trations of Web service for device, like UPnP (Univer-

sal Plug and Play), discovered in the software infras-

tructure. In the framework of the WComp, it has been

deﬁned a management mechanism allowing extensi-

ble interference between devices. In order to deal with

the asynchronous nature of the real world, WComp

has deﬁned an execution machine for complex con-

nections. In (Sehili et al., 2014) we have presented

how the DEVS formalism can be used in order sim-

ulate the behavior of IoT components before any im-

plementation using the WComp environment. The in-

terest of this approach has been pointed out on a ped-

agogical example which allowed to show that using

the DEVS formalism conﬂicts can be detected using

simulation before any implementation.

In this paper we propose the deﬁnition a modeling

and simulation (M&S) scheme based on the DEVS

formalism in order to specify at the very early phase

of the design of an ambient system: (i) the behav-

ior of the components involved in the ambient sys-

tem to be implemented; (ii) the possibility to deﬁne

a set of strategies which can be implemented in the

execution machine; (iii) the automatic generation of

WComp code corresponding to a selected strategy.

Sehili S., Capocchi L., Santucci J., Lavirotte S. and Tigli J..

Discrete Event Modeling and Simulation for IoT Efﬁcient Design Combining WComp and DEVSimPy Framework.

DOI: 10.5220/0005538300440052

In Proceedings of the 5th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2015),

pages 44-52

ISBN: 978-989-758-120-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

The interest of such an approach is twofold: (i) the

behavior involved the DEVS models are used to write

the methods required in order to code the components

when using the WComp environment (automatic gen-

eration of WComp code); (ii) the DEVS implemen-

tation of the different strategies are used in order to

check them before implementation.

The rest of the paper is as follows: Section 2

gives the context of the study by presenting the inter-

est in combining DEVSimpy simulation and Wcomp

framework for IoT system design. Section 3 presents

the background of the work including the DEVS for-

malism, the DEVSimPy framework and the WComp.

Section 4 deals with the validation of the approach

through a complex case study involving different

kinds of sensors which have been used in order to

manage the lighting of a house. We points out how

different strategies can be compared using DEVS sim-

ulation and validated before their implementation us-

ing the WComp Framework. We also explain how the

WComp code can be automatically generated from

the DEVS model of the selected strategy. The con-

clusion and future work are given in section 5.

2 CONTEXT

A synchronous automaton of an IoT component is

dissociated form its asynchronous execution machine

that manages its I/O using strategies (see Figure 1).

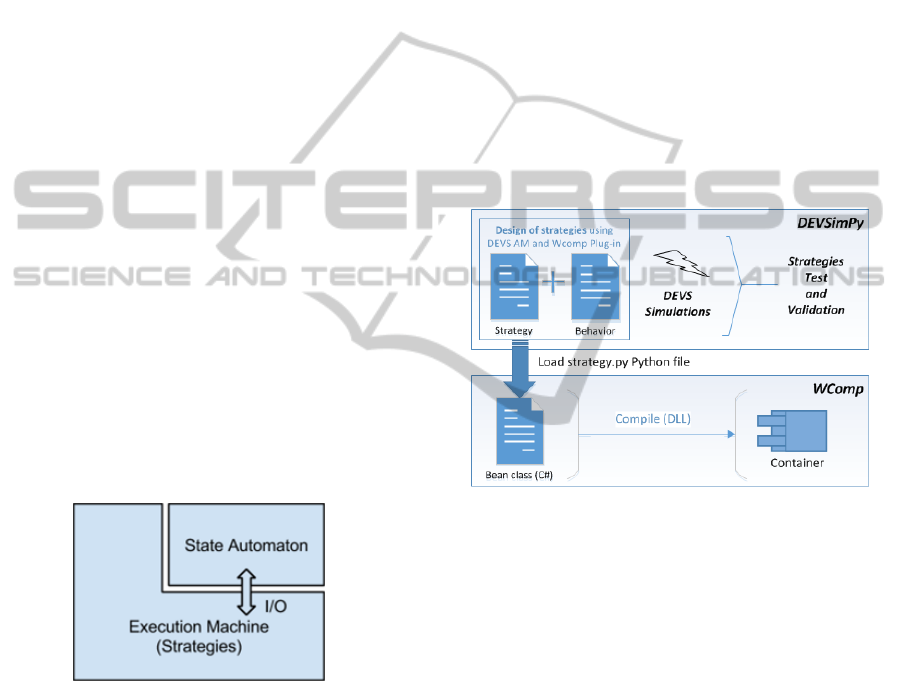

Figure 1: State automaton with its execution machine.

This main challenge is to deﬁne the appropriate

strategies employed by the execution machine. It is

the execution machine that encapsulates the automa-

ton and that will handle asynchronous I/O. Therefore,

the executing machine has asynchronous communica-

tions with its environment. This encapsulation leads

to a combinatorial explosion of the potential strategies

that results in complex systems. The issue is whether

the execution machine behavior will remain consis-

tent with the model of the automaton (with possible

additional constraints).

There is a lack of work in the literature concern-

ing the execution machine exhibited in a number of

different strategies. The problem of managing the

synchronous automaton is the management of the out-

break of the execution cycle (which should not be pre-

empted). There are many possible strategies which

could be adopted: (i) triggering a cycle when an event

happens in the automaton; (ii) triggering a cycle on a

certain type of event; etc. Ideally, the modeler should

have the choice of the execution machine he wants to

use.

This paper shows how the DEVS formalism is

suitable to model synchronous automatons and check

the strategies of the execution machine in a context

of IoT system design. It also presents the strong

ability of WComp to design IoT component based

on the strategies deﬁned with DEVSimPy which is

a framework dedicated to DEVS M&S. Furthermore,

the strategies deﬁned using DEVSimPy are fully inte-

grated in WComp.

Figure 2: Design and test of WComp execution machines

(strategies) using DEVSimPy framework.

Figure 2 depicts the use of DEVSimPy framework

to perform the design and test of strategies involved

in WCoimp execution machines. The behavior of a

DEVS model is expressed through speciﬁcations of

a ﬁnite state automaton. However, this DEVS speci-

ﬁcations represent both the state automation and the

execution machine. The interest of using DEVS is the

ability to deﬁne as many strategies as DEVS model

speciﬁcations. DEVS simulations are used to test

and validate the strategies deﬁned by the user in a

Strategy.py Python ﬁle. This ﬁle can be dynamically

loaded in the Bean class of WComp and then can be

used in order to change the properties of the C# com-

ponent obtained after compilation.

In the following section, background information

as the DEVS formalism, DEVSimPy framework and

WComp are outlined.

DiscreteEventModelingandSimulationforIoTEfficientDesignCombiningWCompandDEVSimPyFramework

3 BACKGROUND

3.1 DEVS and DEVSimPy Framework

Since the seventies some formal work have been

directed in order to develop the theoretical base-

ments for the M&S of dynamical discrete-event sys-

tems (Zeigler, 2003). DEVS (Discrete EVent system

Speciﬁcation) (Zeigler et al., 2000) has been intro-

duced as an abstract formalism for the modeling of

discrete-event systems, and allows a complete inde-

pendence from the simulator using the notion of ab-

stract simulator.

DEVS deﬁnes two kinds of models: atomic mod-

els and coupled models. An atomic model is a ba-

sic model with speciﬁcations for the dynamics of the

model. It describes the behavior of a component,

which is indivisible, in a timed state transition level.

Coupled models tell how to couple several compo-

nent models together to form a new model. This kind

of model can be employed as a component in a larger

coupled model, thus giving rise to the construction of

complex models in a hierarchical fashion. As in gen-

eral systems theory, a DEVS model contains a set of

states and transition functions that are triggered by the

simulator.

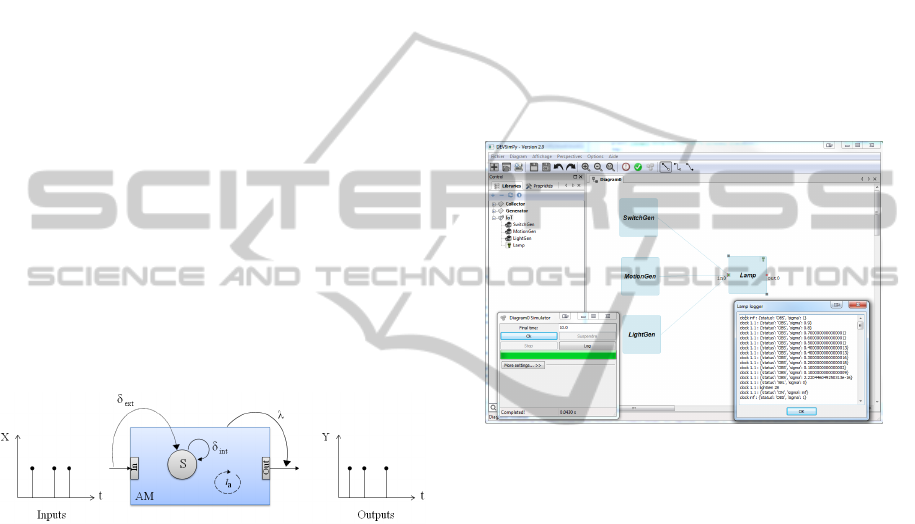

Figure 3: DEVS atomic model in action.

The Figure 3 describes the behaviour of a discrete-

event system as a sequence of deterministic transi-

tions between sequential states (S). The atomic model

(AM in Figure 3) reacts depending on two types of

events: external and internal events. When an input

event occurs (X), an external event (coming from an-

other model) trigger the external transition function

ext

(X, S) of the atomic model in order to update its

state. If no input event occurs, an internal event trig-

ger the internal transition δ

int

(S) of the atomic model

in order to update its state. Then, the output function

λ(S) of the atomic model is executed to generate the

outputs (Y ). t

(S) is the time advance function which

determine the life time of a state.

DEVSimPy (Capocchi et al., 2011) is an open

Source project (under GPL V.3 license) supported by

the SPE (Science pour l’Environnement) team of the

UMR CNRS 6134 Lab. of the university of Corsica

”Pasquale Paoli”. This aim is to provide a GUI for

the M&S of PyDEVS and PyPDEVS (Li et al., 2011)

models. PyDEVS is an Application Programming

Interface (API) allowing the implementation of the

DEVS formalism in Python language (Perez et al., ).

PyPDEVS is the parallel version of PyDEVS based on

Parallel DEVS formalism (Chow and Zeigler, 1994)

which is an extension of DEVS formalism. The DE-

VSimPy environment has been developed in Python

with the wxPython (Rappin and Dunn, 2006) graphi-

cal library without strong dependencies other than the

Scipy (Jones et al., 2001) and the Numpy (Oliphant,

2007) scientiﬁc python libraries. The basic idea be-

hind DEVSimPy is to wrap the PyDEVS API with

a GUI allowing signiﬁcant simpliﬁcation of handling

PyDEVS/PyPDEVS models (like the coupling be-

tween models or their storage into libraries).

Figure 4: DEVSimPy with simulation dialogue window.

Figure 4 shows the DEVSimPy interface with four

interconnected DEVS atomic models (Lamp, Motion-

Gen, LightGen and SwitchGen on the right of the

interface) instantiated from the ”IoT” library frame

(left of the interface) into a coupled model called

”Diagram0”. The simulation is performed by using

the ”Diagram0 Simulator” dialogue windows and the

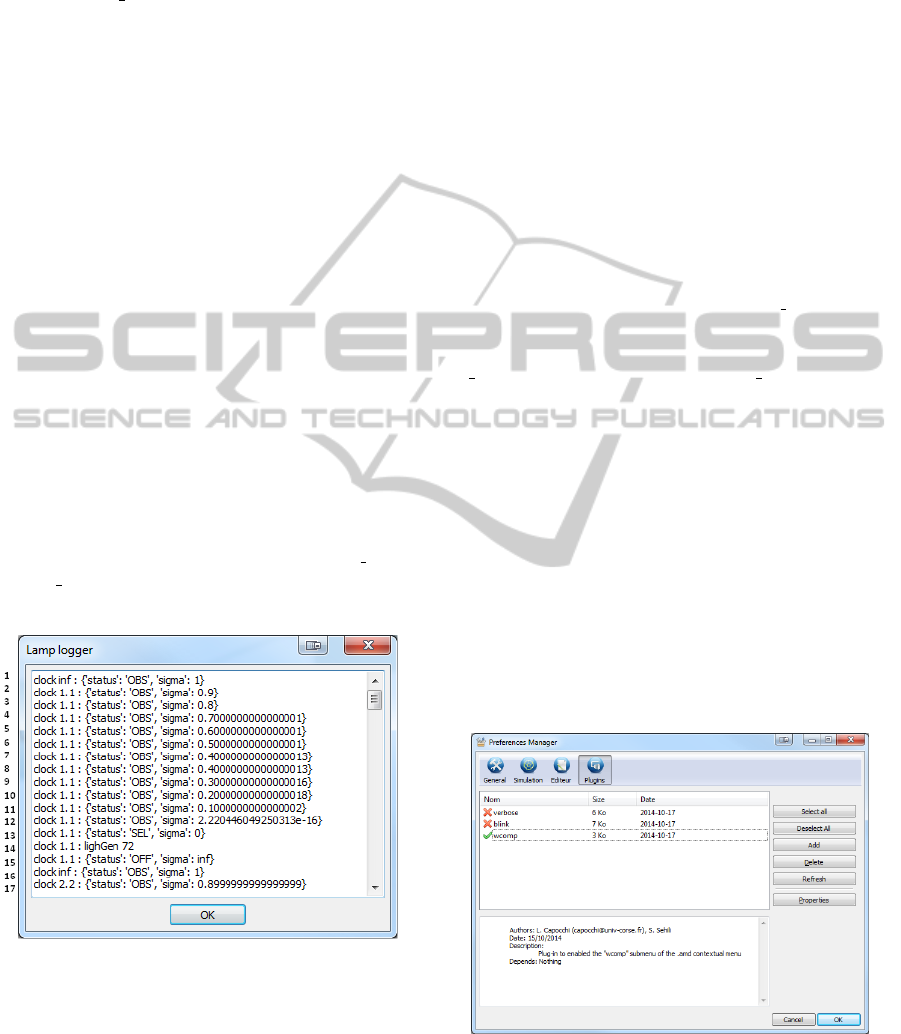

simulation trace is printed in the ”lamp logger” win-

dow. A plug-in manager is proposed in order to ex-

pand the functionalities of DEVSimPy allowing their

enabling/disabling through a dialog window. In this

paper, a plug-in is used to allow the transposition

of the execution machine strategies validated with

DEVS simulation to WComp environement.

3.2 WComp for IoT

Ubiquitous computing involves collaboration be-

tween all kinds of components to build dynamically

new applications that are adapted to the physical en-

vironment. The complexity of such a system to

sense and adapt to the environment involves solving

problems related to memory management, time con-

straints, etc., between all communicating objects.

SIMULTECH2015-5thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

Mechanism to address this concern must be pro-

posed by middleware for ubiquitous computing. Sev-

eral variety of middleware tools have been deﬁned in

the recent years in order to perform ubiquitous com-

puting : (a) HOMEROS (Seung et al., 2004) mid-

dleware architecture which allows high ﬂexibility in

the environment of heterogeneous devices and user ;

(b) EXEHDA (Lopes et al., 2014) middleware which

manages and implements the follow-me semantics in

which the applications code is installed on-demand

on the devices used and this installation is adaptive to

context of each device ; (c) WComp (Hourdin et al.,

2013) middleware based on a software infrastructure,

a service composition architecture and a composi-

tional adaptation mechanism. In this paper we are

interested in the WComp middleware.

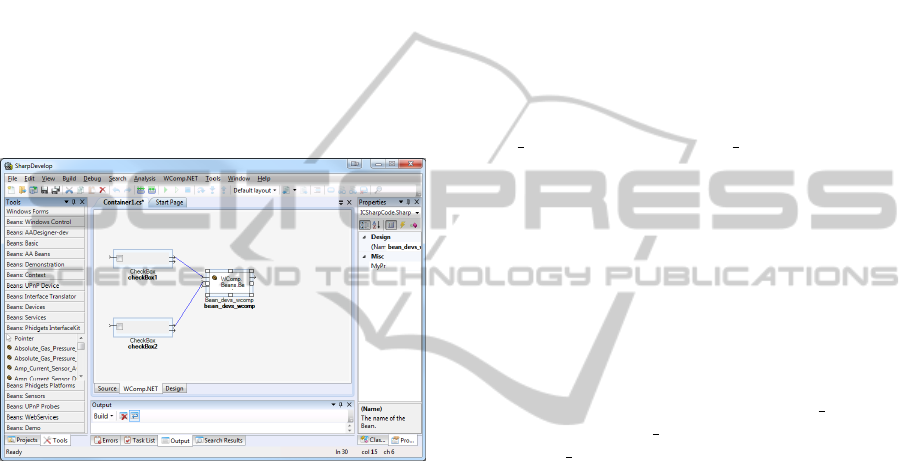

Figure 5: WComp framework.

The architecture of WComp framework is orga-

nized around containers and designers (Figure 5).

Containers manage the instantiation, designation and

destruction of components. A Designer runs contain-

ers for instantiation and destruction of components or

connections between components in the assembly us-

ing an adequate formalism. WComp uses the .NET

framework which has a container implemented in C#

language.

The components in WComp are implemented with

a object oriented approach in the Bean classes. The

component is a self-contained class that contains

properties and methods needed to communicate with

other components. Methods are executed when the

component receives an event from others compo-

nents. The manner of executing these methods (state

automaton) depending on some inputs is called the

execution machine. The application needs to be con-

text awareness. For this, the components need to have

an adaptive behavior and several ways to manage the

execution machine are deﬁned as strategies.

In WComp, the implementation of the execution

machine is done manually in the methods of the class

Bean. To illustrate this point, we reuse the pedagog-

ical example of a lamp connected with two switches

presented in (Sehili et al., 2014). The lamp can be en-

abled/disabled simultaneously from the two switches

and a strategy for the execution machine is needed

to prevent and deal with any possible conﬂicts. We

can observe two behaviors according to the assembly

that involves the deﬁnition of two execution machines

(strategies) of the behaviors. The two code blocks be-

low represent the two strategies corresponding to the

behaviors of the switches implemented in the Control

method of the Bean class. This method is written for

each class Bean. In WComp framework, we deﬁne

each execution machine in a separated class.

The lines [3-7] in the ﬁrst code block below al-

ter the received event as follow: if the lamp state is

”light ON”, it changes to ”light OFF”. This imple-

mentation represents the push button switch behavior.

1 public bool lightstate = false;

2 public void ControlMethod() {

3 lightstate =! lightstate;

4 string msg = "light_OFF";

5 if (lightstate) msg = "light_ON";

6 if (PropertyChanged != null)

7 PropertyChanged(msg);

8 }

The lines [2-5] in the second code block below

concern the modiﬁcation of the lamp status depending

on the old state. If the lamp status is ”light ON”, we

alter the state to ”light OFF” else we keep the initial

state (”light ON”). This implementation represents a

toggle switch behavior.

1 public void ControlMethod(bool on) {

2 if(on){

3 if (PropertyChanged != null)

4 PropertyChanged("light_ON");

5 }else{ PropertyChanged("light_OFF"); }

6 }

After the implementation of the methods in each

class, we have to compile the Bean classes to obtain

two executable ﬁles (DLL) which are inserted in the

resulting assembly to be instantiated and connected in

applications.

The question that arises is how to choose between

the two Bean classes before any instantiation and ex-

ecution of the assembly? With the help of DEVS sim-

ulation, we are able to deﬁned an approach to check

differente strategies to be instantiated in the Bean

class early in the desing process.

DiscreteEventModelingandSimulationforIoTEfficientDesignCombiningWCompandDEVSimPyFramework

4 CASE STUDY: SMART

LIGHTING

4.1 Description of the System

To validate our approach, we chose to deal with an

application dedicated to control home lighting using

sensors and actuators.

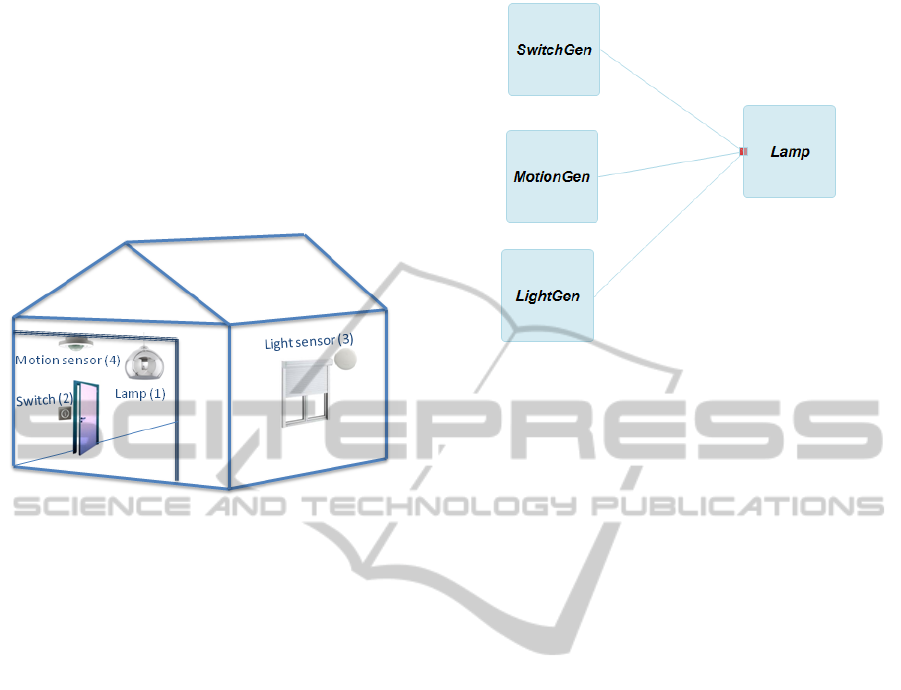

Figure 6: Description of the system.

The case study involves four components (Lamp,

Switch, Light sensor, Motion sensor in Figure 6) to

be assembled:

1. The Lamp component has two states ”On” and

”Off” with a level of intensity i (i ∈ [0 − 100])

2. The Switch component sends the activa-

tion/desactivation messages ”On”/”Off” to

the lamp. It is connected to a preemptive port and

it generates random events

3. The Light sensor component sends messages cor-

responding to a brightness levels in percent (%)

such as a value greater than 50 involves activation

for the connected object (”on” for the lamp) oth-

erwise deactivation (”off” for the lamp)

4. The Motion sensor component sends messages

corresponding to a proximity level compared to

the sensor such as a level between 1 and 5 involves

the detection of a person in the sensor’s range of

action this implies that the connected object re-

ceiving these values can be activated in this range

(”on” for the lamp) or disable if the level is zero

(off for the lamp)

We present in Figure 7 the interconnection be-

tween the various components (Lamp, Switch, Light

sensor, Motion sensor) which represents our model-

ing approach. Three event generators are connected

with the Lamp model which embeds strategies. Then

we deﬁne four strategies associated with the previ-

ously presented assembly. The strategies are coded in

Figure 7: Assembly of the system.

the ”Lamp” model with features allowing to perform

the proposed approach.

4.2 Description of the Strategies

The interconnection between all components is fea-

sible in several ways. In this part we have deﬁned

the possible cases for this interconnection to further

illustrate the applications of ambient computing. Two

scenarios are presented in the following sections: (i)

buffer management of ”Lamp model”, (ii) preemption

management.

4.2.1 First Scenario: Buffer Management

The component Lamp has a buffer of events and is

connected with the components LightGen and Mo-

tionGen (Figure 7). The behavior of MotionGen is to

generate a message every 0.1 units of time. The be-

havior of LightGen is to generate a message every 0.7

units of time. The buffer will have several messages

MotionGen and at least one message of LightGen. We

deﬁne two strategies according to the ﬁrst scenario.

Strategy I

The ﬁrst strategy is the basic one:

• If it is bright (LightGen > 50) whatever presence

is detected or not detected, if the Lamp is ’on’ it

passes ’off’ and if it is ’off’ it remains ’off’

• If it is dark (LightGen > 50) and presence is de-

tected, if the Lamp is ’on’ is remains ’on’ and if it

is ’off’ it passes ’on’

• If it is dark (LightGen > 50) and presence not de-

tected, if the lamp is ’on’ it passes ’off’ and if it is

’off’ it remains ’off’

SIMULTECH2015-5thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

Strategy II

The second strategy allows us to improve the energy

management.

• If MotionGen decreases (person going away) and

LightGen > 50 (it is bright) then : (i) if Lamp

is ’on’ it passes ’off’ ; (ii) if the Lamp is ’off’ it

remains ’off’

• If MotionGen decreases (person going away) and

LightGen < 50 (it is dark) then : (i) if Lamp is ’on’

its intensity decreases with distance; (ii) if Lamp

is ’off’ it remains ’off’

• If MotionGen increases (person approaching) and

LightGen > 50 (it is bright) then : (i) if Lamp is

’on’ it passes ’off’ ; (ii) if Lamp is ’off’ it remains

’off’

• If MotionGen increases (person approaching) and

LightGen < 50 (it is dark) then : (i) if Lamp is ’on’

its intensity increases with distance; (ii) if Lamp is

’off’ it passes ’on’ with a proportional level to the

proximity given by MotionGen

4.2.2 Second Scenario: Preemption

Management

The component Lamp is connected with the three

components LightGen, MotionGen and SwitchGen of

the Figure 7. The connection port of SwitchGen com-

ponent will be considered as preemptive in the ﬁrst

case and non-preemptive in the second case both for

the component Lamp. SwitchGen generates random

events. The Lamp component use its buffer only for

the non-preemptive case. We deﬁne two strategies ac-

cording to the second scenario.

Strategy III

”SwitchGen” is preemptive:

• If the component Lamp is ’on’ and receives ’on’ it

remains ’on’ and inversely

• If the component Lamp is ’on’ and receives ’ off

it passes to’ off’ and inversely

Strategy IV

”SwitchGen” is not preemptive:

• If no SwitchGen event in the buffer, then the strat-

egy I is applied.

• If at least one SwitchGen event is in the buffer,

then the events of MotionGen are not considered

and the events of LightGen override the Switch-

Gen events (energy management):

– If it is bright (LightGen > 50) and the lamp is

’on’ it passes to ’off’

– If it is bright (LightGen > 50) and the lamp is

’off’ it remains ’off’

– If it is dark (LightGen < 50) and the lamp is

’on’ it remains ’on’

– If it is dark (LightGen < 50) and the lamp is

’off’ it passes to ’on’

4.3 DEVS Modeling

The modeling of the previous system has been real-

ized using the DEVS formalism. In order to highlight

the different scenarios of the section 4.2 in the Lamp

model we have deﬁned the DEVS speciﬁcations us-

ing the state automaton of the Figure 8. In this au-

tomaton we deﬁne ﬁve states: the lamp states (”ON”,

”OFF”), the observation state ”OBS”, the selection

state ”SEL” and the preemption state ”PRE”.

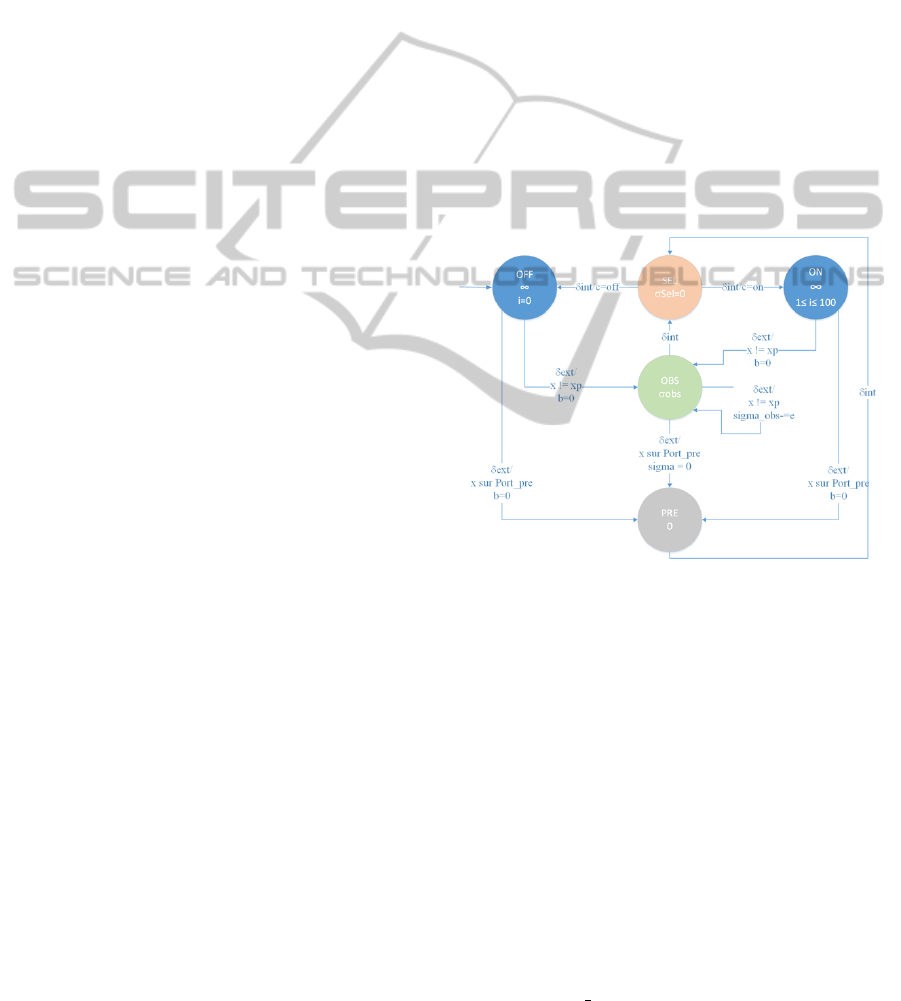

Figure 8: Lamp state automaton integrating strategies.

The behavior of the Lamp are described in a se-

quence of transitions (internal transition and external

transition) between sequential states (”ON”, ”OFF”,

”OBS”, ”SEL”, ”PRE”) as described below:

• In the external transition δ

ext

we deﬁne two cases:

– The ﬁrst case is when the received message is

preemptive, it will be inserted into the preemp-

tive message list; if the initial state of the mes-

sage is ”on” or ”off” then the system passes to

the preemption state ”PRE” and the time ad-

vance is set to 0.

– The second case is when the received message

is not preemptive, it will be inserted in the

buffer of messages ”b”; if the initial state in

”on” or ”off”, the system passes to the obser-

vation state ”OBS” and the time advance is set

to ”sigma

obs” else if the initial state is ”OBS”

the time advance is elapsed.

DiscreteEventModelingandSimulationforIoTEfficientDesignCombiningWCompandDEVSimPyFramework

• In the internal transition δ

int

: If the initial state is

in ”PRE” or ”OBS” then the system passes to the

selection state ”SEL” and the time advance t

set to ”sigma sel” else if the state is ”SEL” and the

preemptive list is not empty and the preemptive

value is ”on” then the lamp state is ”on” else ”off”;

if the preemptive list is empty we apply one of the

four strategies written before in section 4.2 and

the time advance is set to INFINITY.

We have used the DEVSimPy framework to im-

plement the IoT component library including the four

atomic models SwitchGen, MotionGen, LightGen and

Lamp. The Lamp model has been implemented us-

ing the preceding DEVS automaton (Figure 8). The

Figure 4 depicts the modeling of the case study with

DEVSimPy.

4.4 DEVS Simulation

The representation of the system using the notions of

hierarchy and modularity offered by the DEVS for-

malism allows us to manipulate and reuse the system

that can be quickly simulated. In our work we per-

formed the simulations of the described strategies in

section 4.2 using DEVSimPy framework.

Figure 9 depicts the simulation results obtained

using strategy II which improves the management of

energy. For that we deﬁned parameters sigma

obs =

1, sigma sel = 0 with an interval of simulation equal

to 10.

Figure 9: Simulation results obtained with strategy II.

The results shown in the logger (Figure 9) rep-

resent the transitions between the state of the model

Lamp when the strategy II is applied. The model

Lamp is in the observation state ”OBS” (line 1).

During 0.1 units of time, the models MotionGen

and LightGen generate messages every 0.7 units of

time (line 2-12). Once the time advance is achieved

(sigma=1) the system move to selection state ”SEL”

(line 13) and Lamp state change to ”OFF” depending

of its previous state (line 14). This results allows us

to validate the strategy II and then generate the strat-

egy Python ﬁle to be integrated in a Bean class into

WComp:

1 def Strategy2(lightGen, L_MotionGen, previous_state, power):

2 if (L_MotionGen[0].value[1] < L_MotionGen[-1].value[1]):

3 if (lightGen > 50): state = ’OFF’

4 else:

5 if (previous_state == ’ON’):

6 state = ’OFF’

7 power -=(L_MotionGen[-1].value[1]-L_MotionGen[0].value[1])*20

8 else: state = ’OFF’

9 else:

10 if (lightGen > 50): state = ’OFF’

11 else:

12 power += (L_MotionGen[-1].value[1]-L_MotionGen[0].value[1])*20

13 state = ’OFF’ if previous_state == ’ON’ else ’ON’

14 return (state, power)

In the previous code, the test of the motion is con-

sidered with a conditional statement (line 2,9) that

considers the last value of the array L MotionGen.

The test of the level of light is assumed by the light-

Gen variable (line 3,10). Depending on the values of

L MotionGen, lightGen and previous state variables,

the power and state variables are updated (line 14).

4.5 Integration of Strategies in WComp

The integration of strategies in WComp starts by

deﬁning the DEVS atomic model corresponding to

the component in which strategies are identiﬁed (us-

ing functions) in DEVSimPy environment (Lamp in

the case study). These strategies will be deﬁned in

a dedicated interface from a DEVSimPy local plug-

in. The access to the local plug-in will be through the

context menu of the atomic model only when the gen-

eral plug-in called ”WComp” of strategies is activated

(Figure 10).

Figure 10: General plug-in WComp in DEVSimpy.

Once simulations are performed and strategies are

validated in the DEVSimPy framework, we load the

strategies ﬁle that contains strategies in WComp (Fig-

ure 11). This is done due to through IronPython which

SIMULTECH2015-5thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

is an implementation of Python for .NET allowing us

to leverage the .NET framework using Python syntax

and coding styles.

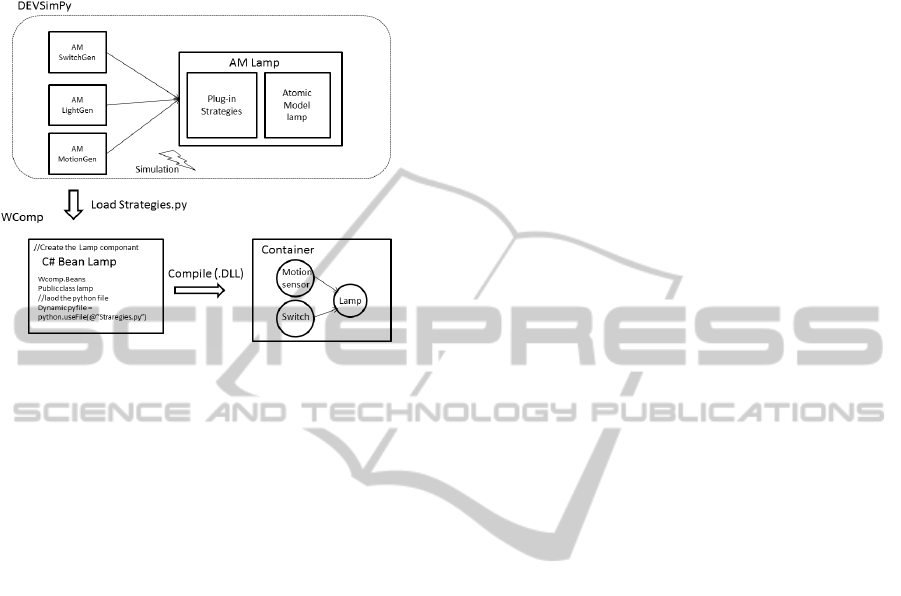

Figure 11: Integration of strategies validated with DE-

VSimPy into WComp.

For that, the class Bean of the component Lamp

has been created in WComp and the references (line

1-2) have been added as illustrated below in order to

insert Python statements into C# code.

1 using IronPython.Hosting;

2 using IronPython.Runtime;

3 using Microsoft.Scripting.Hosting;

4 using Microsoft.CSharp;

As illustrated by the code below, the IronPython

runtime (line 2), the Dynamic Type and the strategy

Python ﬁle (line 6) have been created. Depending on

the content of the Strategy.py ﬁle, a function can be

called (Strategy1 in line 8) in order to invoke the se-

lected strategy that return a new state.

1 public void Strategie1(string val) {

2 ScriptRuntime py = Python.CreateRuntime();

4 if (PropertyChaned != null) {

5 // Create a Dynamic Type for Python File

6 dynamic pyf = py.UseFile("Strategy.py");

8 PropertyChanged(pyf.Strategie1(val))

9 }

10 }

After the compilation of the Bean class, the cor-

responding binary ﬁle (dll) is inserted in the resulting

assembly to be interconnected with the other compo-

nents.

5 CONCLUSION

This paper deals with an approach for the design and

the implementation of IoT ambient systems based on

discrete-event M&S. A new approach based on DEVS

simulations is proposed: instead of waiting the imple-

mentation phase of an IoT ambient system to detect

eventual speciﬁcation problem, we describe an initial

phase consisting in DEVS M&S of the behavior of

components involved in an ambient system as well

as the behavior of different strategies corresponding

to different behaviors of execution machines. Once

the DEVS simulations have brought successful re-

sults, the Designer can implement the behavior of the

given ambient system using an IoT framework such

as WComp. The code corresponding to selected strat-

egy can be fully inserted in the WComp environment

in such a way that the Designer has no code to write

in the WComp environment when implementing the

selected strategy.

The presented approach has been validated on a

test-case example which is described in detail in the

paper: DEVS implementation of four different strate-

gies which can be used for a given ambient system,

deﬁnition of the corresponding DEVS speciﬁcation,

implementation of the DEVS behavior using the DE-

VSimPy framework, analysis of the simulation re-

sults.

Our future work will consist in two main direc-

tions: (1) we have to work on the Design of more

complex IoT systems using DEVS formalism and

DEVSimPy framework; (2) we also plan to use the

DEVSimPy framework in order to manage discrete-

event simulations obtained from DEVS models asso-

ciated with connected objects such as board comput-

ers, sensors, controllers or actuators (the interest is

to strongly associate simulations and connected ob-

jects). The result will be the ability to manage con-

nected objects (sensors, computer boards, actuators,

controller) from the DEVSimPy framework while

providing intelligent decisions based on simulations.

From a M&S aspects the following tasks are per-

formed (Sehili et al., 2015):

• Development of a DEVSimPy Phidget compo-

nents library for manipulating Phidget board com-

puters, sensors and actuators

• Implementation of a Web Server in order to run

the simulations involving components of the DE-

VSimPy Phidgets Library which allows to man-

age connected objects and provision of web ser-

vices allowing to dynamically interact from the

mobile application with the DEVSimPy frame-

work which is installed on the Web Server

DiscreteEventModelingandSimulationforIoTEfficientDesignCombiningWCompandDEVSimPyFramework

REFERENCES

Capocchi, L., Santucci, J. F., Poggi, B., and Nicolai, C.

(2011). DEVSimPy: A Collaborative Python Soft-

ware for Modeling and Simulation of DEVS Systems.

In WETICE, pages 170–175. IEEE Computer Soci-

ety. URL: http://code.google.com/p/devsimpy/ [Re-

trieved: Dec 2014].

Chow, A. C. H. and Zeigler, B. P. (1994). Parallel DEVS: A

parallel, hierarchical, modular, modeling formalism.

In Proceedings of the 26th Conference on Winter Sim-

ulation, WSC ’94, pages 716–722, San Diego, CA,

USA. Society for Computer Simulation International.

Hourdin, V., Ferry, N., Tigli, J.-Y., Lavirotte, S., and Rey, G.

(2013). Middleware in Ubiquitous Computing. pages

71–88.

Jones, E., Oliphant, T., and Peterson, P. (2001). Scipy:

Open source scientiﬁc tools for python. URL:

http://www.scipy.org/Citing SciPy [Retrieved: Febru-

ary, 2014].

Li, X., Vangheluwe, H., Lei, Y., Song, H., and Wang, W.

(2011). A testing framework for devs formalism im-

plementations. In Proceedings on the 2011 Sympo-

sium on Theory of Modeling & Simulation: DEVS

Integrative M&S Symposium, TMS-DEVS ’11, pages

183–188, San Diego, CA, USA. Society for Computer

Simulation International.

Lopes, J. a., Souza, R., and Geyer, C. (2014). A middle-

ware architecture for dynamic adaptation in ubiqui-

tous computing. Journal of Universal Computer Sci-

ence, 20:1357–1351.

Oliphant, T. E. (2007). Python for scientiﬁc computing.

Computing in Science and Engineering, 9:10–20.

Perez, F., Granger, B. E., and Hunter, J. D. Python: An

ecosystem for scientiﬁc computing. Computing in Sci-

ence and Engineering, (2):13–21.

Rappin, N. and Dunn, R. (2006). WxPython in action. Man-

ning.

Sehili, S., Capocchi, L., and Santucci, J.-F. (2014). Iot com-

ponent design and implementation using devs simu-

lations. The Sixth International Conference on Ad-

vances in System Simulation SIMUL 2014.

Sehili, S., Capocchi, L., and Santucci, J.-F. (2015). Manage-

ment of ubiquitous systems with a mobile application

using discrete event simulations (WIP). London, UK.

Accepted in ACM SIGSIM Conference on Principles

of Advanced Discrete Simulation (PADS).

Seung, W. H., Yeo, B. Y., and Hee, Y. Y. (2004). A new

middleware architecture for ubiquitous computing en-

vironment. IEEE Workshop on Software Technolo-

gies for Future Embedded and Ubiquitous Systems.

Zeigler, B. P. (2003). An introduction to set theory. Techni-

cal report, ACIMS Laboratory, University of Arizona.

URL: http://www.acims.arizona.edu/EDUCATION/

[Retrieved: April, 2014].

Zeigler, B. P., Praehofer, H., and Kim, T. G. (2000). Theory

of Modeling and Simulation, Second Edition. Aca-

demic Press.

SIMULTECH2015-5thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications
