Towards a Comprehensive XML Benchamrk
Fatima Maktoum Al-Sedairi, Mohammed Al-Badawi and Abdallah Al-Hamdani
Department of Computer Science, Sultan Qaboos University, Muscat, Oman
Keywords: XML, XML Benchmark, XQuery Performance, XML/RDBMS Mapping.
Abstract: XML benchmarks are tools used for measuring and evaluating the performance of new XML developments
such as XML/RDBMS/OO mapping techniques and XML storages. With XML benchmarks, the evaluation
process is done by executing predefined query-set over the benchmark's dataset members; where the
performance of the new development is compared against the performance of some existing techniques. Yet,
none of the existing XML benchmarks seems directly investigated the effect of sought data location on the
query performance. This research is an attempt to investigate the rationale of adding the Data Dimension (DD)
to the 3D~XBench features. To achieve this, a new set of queries was added to the query-set of the
3D~XBench to test the effect of changing the location of the sought records. The preliminarily experimental
results have shown that the query execution time is also driven by the location of the sought data in the
underlying XML database; and therefore, the Data Dimension can be added to the existing features of the 3D
XML Benchmark.
1 INTRODUCTION
XML databases these days offer more effective way
to represent the dramatic increase in the Web data
(Roy and Ramanujan, 2000). As a result, the need for
developing efficient XML technologies for
representing this data is crucial, and has recently
become the intension of many researchers. Thus,
founding efficient and comprehensive evaluation
tools for new developments has become increasingly
important requirement in the field of XML database
management.
Specifically, XML benchmarks are devised to
mimic and test capabilities of particular types of
XML database management systems based on a
certain real-world scenario to get the performance
result that is very useful and essential for improving
DBMS technologies. Each of these benchmarks has a
role in addressing a number of distinct issues related
to the performance testing and evaluation of the new
XML developments (i.e., to test either the
application’s overall performance or to evaluate
individual XML functionalities of a specific XML
implementation). Therefore, each benchmark must be
representative of just some applications of XML
technology. However, most of the benchmarks are
focusing on testing data management systems and
query engines (Nicola et al., 2007; Mlynkova, 2008).
In terms of functionalities, the XML benchmarks
offer a set of queries each of which is designed to test
a particular primitive of the query processor or
storage engine (Nicola et al., 2007; Mlynkova, 2008;
Sakr, 2010). To this end, the researchers have
intended to use a comprehensive set of queries, which
cover the major aspects of query processing to get
reliable results. Yet, none of the existing XML
benchmarks seem directly and explicitly concerned
about testing the effectiveness of the location of
sought data on the query performance. This research
is based on extending the 3D XML Benchmark
(3D~XBench (Al-Badawi et al., 2010)) to cover this
aspect.
The rest of this paper is organized as following.
Section 2 presents a brief literature about some of the
existing XML benchmarks, while Section 3 describes
the 3DXBench in more details. Section 4 formulates
the 3DXBench extension and Section 5 provides
some experimental results to test the effectiveness of
the new extension. The paper is concluded in Section
6.
2 RELATED WORK
The raise of XML importance and the dramatic
increase in the number of the XML new techniques
112
Al-Sedairi F., Al-Badawi M. and Al-Hamdani A..
Towards a Comprehensive XML Benchamrk.
DOI: 10.5220/0005474101120117
In Proceedings of the 11th International Conference on Web Information Systems and Technologies (WEBIST-2015), pages 112-117
ISBN: 978-989-758-106-9
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
have risen the need for tools to evaluate those new
developments. XML benchmarks are designed to
simulate and test capabilities of particular types of
XML data management systems based on a certain
real-word scenario in order to get the performance
result that is very useful and essential for improving
DBMS technologies.
Several XML benchmarks have been proposed in
the literature to help both researchers and users to
compare XML databases independently. Each of
these benchmarks is addressing a number of distinct
issues; to test either the application’s overall
performance or to evaluate individual XML
functionalities of a specific XML implementation. As
a result, each benchmark targets some applications of
XML technology. However, most of them focus on
testing data management systems and query engines.
To this end, the benchmarks offer a set of queries, and
each of which is intended to challenge a particular
primitive of the query processor or storage engine.
Thus, the researchers intended to use a
comprehensive set of queries, which covers the major
aspects of query processing. Moreover, the overall
workload consists of scalable XML databases with
specific aspects regarding the testing parameters of
each benchmark.
Generally, XML benchmarks should be simple,
portable, scaled to different workload sizes, and they
allow objective comparisons of competing systems
and tools (Gray, 1993). Although their applications
are diverse and complex, developing meaningful and
realistic benchmarks for XML is a truly a big
challenge for all XML researchers. In addition, XML
processing tools fall into many categories, from
simple storage services to sophisticated query
processors, and this adding to the complexity of
developing relevant and realistic XML benchmarks.
Considering the tradition research, researches in
XML benchmarks tend to compare the newly
proposed XML benchmarks with the existing ones, as
well as analysing the behaviour of a particular one
with various types of data. Also the literature
compares some of the existing XML benchmarks in
(Nicola et al., 2007; Mlynkova, 2008; Al-Badawi et
al., 2010; Sakr, 2010). Both dataset and query set are
the main criteria which were considered by all the
comparisons such as in (Al-Badawi et al., 2010;
Nicola et al., 2007). Furthermore, they investigated
the benchmarks from different aspects such as
benchmark type (micro, Application level), the
number of users, applications, schema and the key
parameters of testing data.
Finally, in terms of existing XML benchmarks,
the set includes XMark (Schmidt et al., 2002), XOO7
(Bressan et al., 2003), XBench (Yao et al., 2004),
XMach~1 (Böhme and Rahm, 2001), MBench
(Runapongsa et al., 2006), XPathMark (Franceschet,
2005), MemBeR (Afanasiev et al., 2005) and TPoX
(Nicola et al., 2007). Recently some new benchmarks
were added to the list including the 3D~XBench (Al-
Badawi et al., 2010), EXRT (Carey et al., 2011) and
Renda-RX (Zhang et al., 2011).
3 THE 3D XML BENCHMARK
The 3D~XBench was proposed to test the effect of
three XML document aspects on the XML query
performance. These are the depth, breadth and the
size of the underlying XML database and their
reflection on the XQuery syntax; hence is called the
3D~XBench. The depth defines the number of levels
in XML tree while the breadth represents the average
fanouts of XML nodes. The size is measured by the
number of nodes in the XML tree which is mainly
used in the scalability testing.
Like other benchmarks, the 3D~XBench
framework is based on executing a set of pre-defined
XML queries over a number of XML databases which
are selected carefully to reflect the three XML aspects
mentioned above. The following two subsections
explain more about the 3D~XBench’s dataset and
query-set respectively.
3.1 Dataset
Three different databases have been used in the
benchmark from different sources which are either
real or synthetic. The DBLP (DBLP, 2014) and the
TreeBank (PennProj, 2014) are real databases, while
the XMark (Schmidt et al., 2002) dataset is a synthetic
(code generated dataset). Dataset base members (the
original XML databases) are versioned two more
times at 50% and 25% of the base database to vary
the database size dimension. The other two
dimensions are varied naturally due the nature of the
used databases which were intentionally and carefully
selected to reflect the depth and breadth dimensions.
Figure 1 and Table1 depict the variation aspect of
the three dimensions over the benchmark’s dataset.
Table 1: Characterises of the 3D~XBench’s Dataset.
Size
(Base DB)
Max.
Depth
Avg.
Breadth
DBLP 2,439,294 6 11
XMark 2,437,669 11 6
TreeBank 2,437,667 36 3
TowardsaComprehensiveXMLBenchamrk
113

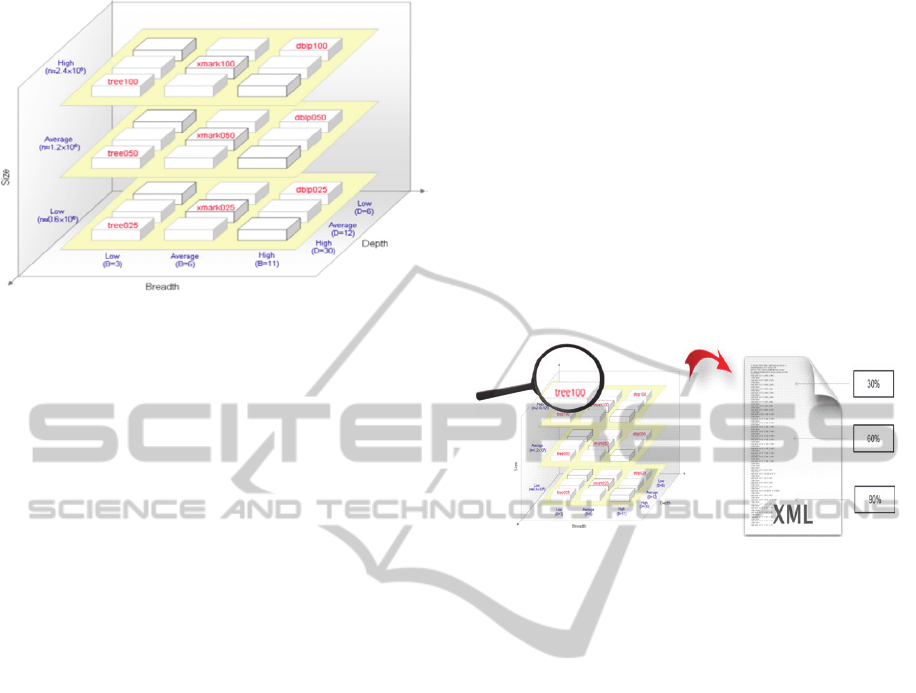

Figure 1: The 3D~XBench Architecture Design (Adopted
from al-Badawi M., et al. 2010).
3.2 Query Set Design
3D~XBench adopts the query-set used by the XMark
benchmark (Schmidt et al., 2002). The XMark’s 20
queries are grouped into 14 categories each of which
targets specific database querying functionality. Out
of XMark’s 20 queries, 3D~XBench adopts 10
queries only which descend from the following
categories:
Exact Matching
Order Access
Path Traversal
Sorting
Aggregation
Reg. path Exp.
Missing Element
4 THE EXTENSION
None of the listed benchmarks, including the
3D~XBench, has taken care of investigating the
effectiveness of the sought data location on the query
performance. This research is the first step in that
direction.
The 3D~XBench extension is done by adding a
new set of queries to the query set of the 3D~XBench
to test the effect of changing the location of the sought
records. The Data-Dimension, whenever is linked
with other features of the 3D-XBench, is expected to
strengthen the benchmark’s testing capabilities and
make it a comprehensive testing model than ever
found in the literature. Figure 2 illustrates the new
extension graphically.
The main idea behind the extension (Data
Dimension) is to divide the base dataset into three
pre-set zones to test the effect of query performance
among three different locations. These zones are
determined by specific range of nodes from the root
node. The first zone of each database is restricted to
be within the first 30% of the database, while the
second zone starts from 45% to 75% and the third
zone comes after the 90%. Each query category is
executed among the three different zones (ranges) to
test the effect of the Data Dimension.
Adding the Data Dimension leads to almost the
same testing requirements (framework) as for the
original dimensions. For example, the dataset
remained the same, while the query set was altered to
include the new dimension (i.e. the Data Dimension).
As a result, the query-set selection considered only
those queries of which the location of the sought data
matters. In addition, some queries were modified to
adopt the new specifications.
Figure 2: Visualization of the New Extension of the 3D
XML Benchmark.
5 EXPERIMENTAL RESULTS
In order to evaluate the effectiveness of the new
extension on benchmark’s testing environment, the
extended 3D~XBench has been used to compare two
representatives mapping techniques from the
literature and observe whether the benchmark’s new
extension is going to produce a consistence
performance over different versions of XML queries.
5.1 Mapping Techniques Selection
The research followed the same evaluation process
that was used by (Al-Badawi et al., 2010) to evaluate
the 3D~XBench when introduced earlier. In that, the
evaluation process is based on using the
XML/RDBMS mapping environment and selects a
set of mapping techniques, which represent the
existing once in the literature. The selected set
includes the Edge (Florescu and Kossmann, 1999)
and XParent (Jiang et al., 2002) mapping techniques
to represent the single-relation and multiple-relations
mapping techniques. These two techniques were used
by (Al-Badawi et al., 2010) too. The relational
schema of each mapping technique was implemented
in FoxPro database engine and all dataset members
WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies
114
(total 9 databases; 3 versions from each: DBLP,
XMark, and TreeBank) were mapped to both
schemas.
5.2 Query-set Selection
The previous evaluation process of the base
3D~XBecnch used 10 queries (expressed in XQuery
syntax as imported from (Schmidt et al., 2002)),
which were divided into 7 categories. The new
evaluation process adopted a subset of those
categories which, their workload can be affected by
the location of the sought data. So, the experiment
considered 2 categories with 2 different queries from
each. These are: the exact-matching category
(Shallow and Deep), and the Join-on-Value category
(join and join with filter).
The 4 queries in the query-set were translated over
the 9 dataset members using the 2 selected mapping
techniques. Three more versions, that each targets a
specific range in the underlying database, were
produced from each query in the query-set members.
The total number of queries in the query-set becomes
216.
5.3 Execution Conditions
The experiments was conducted in a stand-alone PC
(Intel®Xeon®CPU2.93GHz,6GBRAM), running
Windows7 (64 bit). Further, all XML databases and
XQuery queries were translated to the FoxPro
relational environment, and each query was executed
20 times against the concerned database; every time
the execution time is taken in mill-seconds. For the
validity, the experiment considered the average of the
middle 18 readings.
5.4 Preliminary Results
Due the space restrictions, this section presents only
a subset of the results obtained from the above
experiment. These results are illustrated by the
diagrams given at the end of this paper, along with a
short discussion as following.
Figure 3 shows that the Shallow Exact Matching
query was slower in the first range over the shallow
(DBLP) and average (XMark) databases in the single
mapping technique. It went slightly faster (about one
millisecond) in both databases over the other two
ranges. However, the Shallow Exact Matching query
was faster in the first range over the deep databases
than that of the other two ranges. In general, it seems
that the increasing Data-Dimension has an opposite
impact on the Shallow-exact matching query as far as
the single-relation mapping technique is considered.
Like in the single-relation mapping technique, DD
had the same effect over the deep and shallow
databases in the multiple-relations mapping
techniques (Figure 7). However, DD had an
inconsistent change over the average database.
Generally, in all cases the DD seems not much
affecting the Shallow Exact Matching query over all
the databases. More generally, it seems that DD has
less effect on the single-relation mapping technique
than the multiple-relation mapping technique as
illustrated in Figure 3 and 7.
When concerning the Deep Exact Matching
query, Figure 4 clearly shows that the deep exact
matching query gets slower when the search-range is
increased over the wide and deep XML databases, but
it gets faster over the average width/breadth database.
However, the difference in query performance was
much clear over the deep XML database (i.e. 39-
35=4, 45-39=6) while the difference was very narrow
over the wide and average-width database (i.e. the
difference was only one unit).
On the other hand, Figure 8 shows the DD effect
on the Deep Exact Matching query over the base
databases (DBLP, XMark, TreeBank) within multiple
mapping techniques (XPerent). The figure shows that
there is an inconsistent change over the average and
shallow databases. The elapsed time has a little
decrease over the deep databases. In brief, DD has a
minor effect on this query type over all database
categories for the both mapping techniques.
In terms of Join on Value queries, Figure 5
presents the effect of DD over the base databases
(DBLP, XMark, TreeBank) within single mapping
technique (Edge). It presents that DD caused a
consistent increasing elapsed time over the shallow
and average-width databases; while there was an
inconsistent change in the elapsed time over the deep
databases as shown in the Figure.
Similarly, Figure 9 shows the effect of DD on the
Join on Value query over the base databases (DBLP,
XMark, TreeBank) using multiple mapping technique
(XPerent). The effect of the DD within this query was
a minority over the deep databases, while it produced
an inconsistent elapsed time average-width over
database as illustrated in the Figure. The query time
was proportional few units when increasing search
range over the wide XML database.
Finally, Figures 6 and 10 show the elapsed time of
the “Join on Value with Range Filter” query. The
elapsed time of this query type was increasing over
the shallow databases in both mapping techniques.
This was also valid over the average-depth database
TowardsaComprehensiveXMLBenchamrk
115
but only for multiple-relations mapping technique.
However, it seems that the query performance was
not that much affected over the deep database for this
query type when executed over both mapping
techniques as seen Figures 6 and 10.

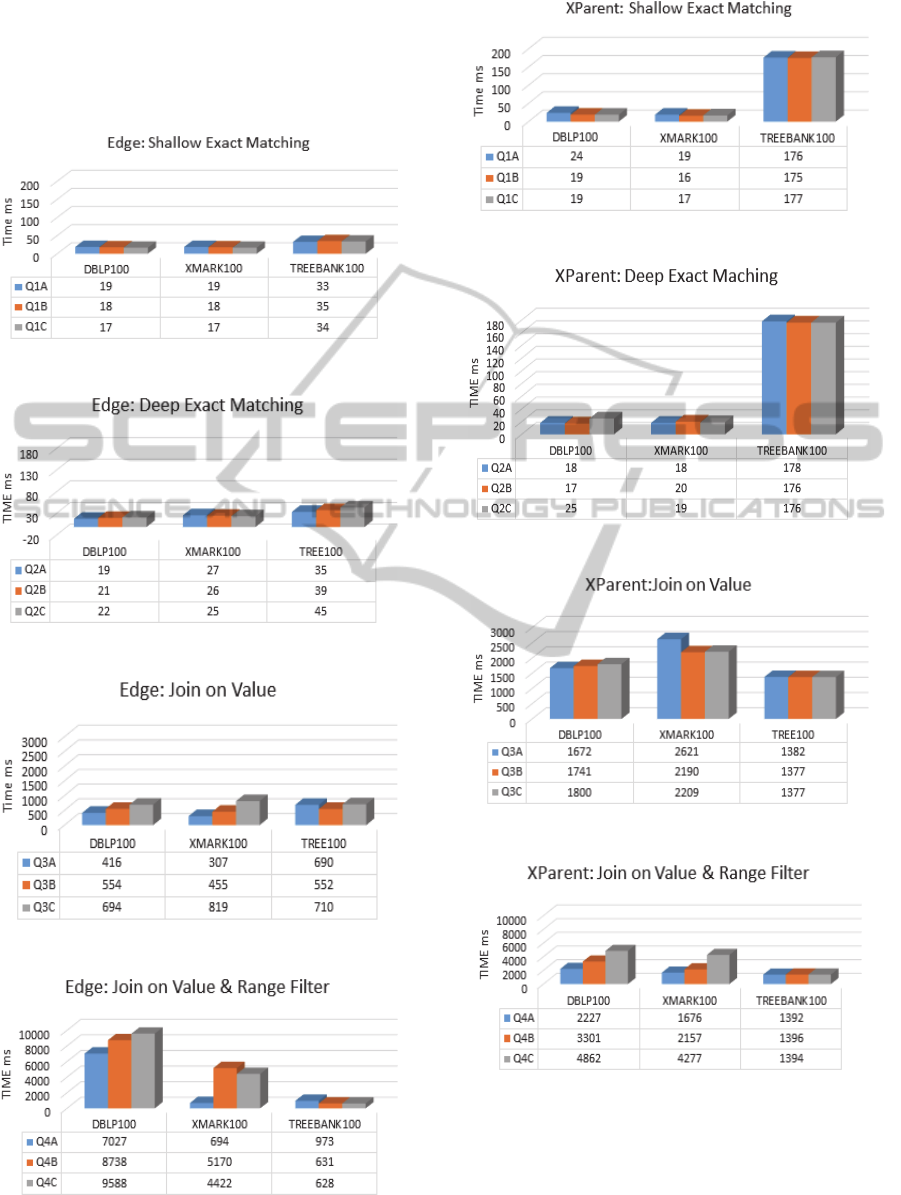

Figure 3: Edge, Base DB, Shallow Exact Matching.
Figure 4: Edge, Base DB, Deep Exact Matching.
Figure 5: Edge, Base DB, Join on Value.
Figure 6: Edge, Base DB, Join on Value with Filter.
Figure 7: XParent, Base DB, Shallow Exact Matching.
Figure 8: XParent, Base DB, Deep Exact Matching.
Figure 9: XParent, Base DB, Join on Value.
Figure 10: XParent, Base DB, Join on Value with Filter.
6 CONCLUSIONS
This paper discussed the rationale of extending the
functionalities of the 3D XML Benchmark (Al-
WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies
116
Badawi et al., 2010) by adding a new feature, which
concerns about testing the effectiveness of the sought
data location on the query performance.
To evaluate the extension, a new experiment was
conducted using the same datasets as in the original
3DXBench, but with an expanded query set that
includes queries to test the effect of the DD. The
experiment used two representative mapping
techniques (one single-relation and one multiple-
relation mapping techniques).
The experimental results show that the Data
Dimension (DD) has a significant influence on the
query elapsed time with respect of database structure
(depth, breadth, size) and query categories. The
performance of different mapping approaches (single
vs. multiple) is also affected by DD. Thus, DD can be
included as the 4th dimension in the 3DX~Bench
Benchmark.
A further research can be carried out into different
directions. First, one can expand the valuation process
to test the effect of the DD on other query types
introduced in (Schmidt et al., 2002) such as the path
traversal, order access, sorting, aggregation, missing
elements and others. Also, a further evaluation for the
new extension can consider measuring other
experimental variables such as CPU usage, memory
consumption and I/O operations. Moreover, the
experiment can be conducted over different mapping
technique like PACD and/or native XML databases.
ACKNOWLEDGEMENTS
This research is supported by The Research Council
(Oman) under the Grant RC/SCI/COMP/12/01.
REFERENCES
Afanasiev, L., Manolescu, I., and Michiels, P., 2005.
MemBeR: A Micro-Benchmark Repository for
XQuery. In Proceedings of 3rd International XML
Database Symposium, LNCS. Springer-Verlag.
Al-Badawi, M., North, S., and Eaglestone, B., 2010. The
3D XML Benchmark. In the proceedings of the
WebIST’10, pp. 13-20, Valencia, Spain.
Böhme, T. and Rahm, E., 2001. XMach-1: a Benchmark for
XML Data Management. In Datenbank systeme in
BuroTechnik und Wissenschaft, 9. GI-Fachtagung,
pp.264–273, Springer-Verlag, London, UK.
Bressan, S., Lee, M-L., Li, Y.G., Lacroix, Z. and Nambiar,
U., 2003. The XOO7 benchmark. In Proceedings of
VLDB 2002 Workshop EEXTT and CAiSE 2002
Workshop, pp.146–147, London, UK.
Carey, M. J., Ling, L., Nicola, M., and Shao, L., 2011. Exrt:
Towards a simple benchmark for xml readiness testing.
In Performance Evaluation, Measurement and
Characterization of Complex Systems, pp. 93-109.
Springer Berlin Heidelberg.
DBLP, 2014. The DBLP Website, Available at
http://dblp.uni-trier.de/, [Accessed on 13/116/2014].
Franceschet., M., 2005. XPathMark: an XPath benchmark
for XMark generated data. International XML
Database Symposium (XSYM).
Florescu, D., and Kossmann, D., 1999. A Performance
Evaluation of alternative Mapping Schemas for Storing
XML Data in a Relational Database. INRIA
Rocquencourt, France
Gray J., 1993. The Benchmark Handbook for Database and
Transaction Systems. Morgan Kaufmann, San
Francisco, CA, USA, ISBN 1-55860-292-5.
Jiang, H., Lu, H., Wang, W., and Yu, J., 2002. XParent: An
Efficient RDBMS-Based XML Database System.
International conference on Data Engineering, pages 1-
2, CA, USA.
Mlynkova, I,. 2008. XML Benchmarking. IADIS
International Conference Informatics, pages 59- 66.
Nicola, M., Kogan, I., and Schiefer, B., 2007. An XML
Transaction Processing Benchmark. In Proceedings of
ACM SIGMOD international conference on
Management of data (pp. 937-948).
PennProj, 2014. The Penn Treebank Project. Available
online at http://www.cis.upenn.edu/~treebank/,
[Accessed on: 13/11/2014].
Roy, J., and Ramanujan, A., 2000. XML: data's universal
language. IT Professional, 2(3), 32-36.
Runapongsa, K., Patel, M., Jagadish, H., Chen, Y., and Al-
Khalifa, S., 2006. The Michigan Benchmark: Towards
XML Query Performance Diagnostics. International
Journal of Information systems, 31(2), pages 73-97.
Sakr, S., 2010. Towards a comprehensive assessment for
selectivity estimation approaches of XML queries.
International Journal of Web Engineering and
Technology, 6(1), 58-82.
Schmidt, A., Waas, F., Kersten, M., Carey, D., Manolescu,
I., and Busse. R., 2002. XMark: A Benchmark for XML
Data Management. International conference on VLDB,
Hong Kong, pages 1-12.
Yao, B. B., Ozsu, M. T., and Khandelwal, N., 2004.
XBench benchmark and performance testing of XML
DBMSs. In IEEE Proceedings, 20
th
International
Conference on Data Engineering (pp. 621-632).
Zhang, X., Liu, K., Zou, L., Du, X., and Wang, S., 2011.
Renda-RX: A Benchmark for Evaluating XML-
Relational Database System. LNCS, Volume 6897,
2011, pp 578-589.
TowardsaComprehensiveXMLBenchamrk
117
