Integrating User Stories and i* Models

A Systematic Approach

Aline Jaqueira

, Márcia Lucena

, Fernanda Alencar

2,3

, Celso Agra

and Eduardo Aranha

Departamento de Informática e Matemática Aplicada, UFRN, Natal, Brazil

Departamento de Eletrônica e Sistemas, UFPE, Recife, Brazil

Programa de Pós-Graduação em Engenharia da Computação, UPE, Recife, Brazil

Keywords: Agile Requirements, User Stories, i* Models.

Abstract: User stories are a common way to describe requirements in Agile methods. However, the use of user stories

is restricted, since they offer only a limited view of the whole system. In contrast, one of the features of the

i* framework is provides a visual representation of the actors involved in a system and the goals that are to

be met. This allows for a better understanding of the problem as well as for a better overview and evaluation

of alternative solutions. In addition, i* models consider the early phases of requirements engineering, while

user stories cover the later phases. In this context, this paper presents an approach to map user stories to i*

models and vice versa, aiming at providing a bigger picture of the system as a whole. A case study to

evaluate this work is also presented, suggesting the viability of the approach.

1 INTRODUCTION

In Agile methodology, the development of a

software project starts by creating requirements

statements to express what the system should do.

But in some projects only with the user stories there

is little understanding of why the system is needed

(Sharp, 2006). Thus, these requirements statements

are limited in providing a general understanding of

the system, and the goals of a software project are

not clearly defined.

Within the context of requirements engineering,

the goal-oriented approach GORE (Lamsweerde,

2001) uses the organizational goals of stakeholders

to elicit the requirements of the software. The i*

framework (Yu, 1995) is a GORE approach that

provides a graphical view of the actors involved in

the system with their dependency relations. Also,

this framework can easily be related to other

requirements engineering artifacts, such as Goal

Decomposition Analysis (Liaskos et al., 2012),

deriving i* models into UML diagrams (Santander

and Castro, 2002) (Martinez et al., 2002),

tranformating of i* models into matrices (Laue,

2011), and also using of Agent-Oriented Conceptual

Modeling with Tropos methodology (Bhuiyan et al.,

2007). The choice of a well-suited framework to

represent organizational requirements and to capture

initial requirements lead us to focus on the i* model.

The i* framework supports the understanding of

stakeholders’ intentions and captures why the

software is developed (Bresciani et al., 2004). On

the other hand, user stories represent what and how a

functional requirement is developed (Cohn, 2004),

but there is a lack of identification of non-functional

requirements and the rationale in the i* model.

According to Yu (1995), the process of

conceptualizing an initial idea, called early phase,

assists in understanding and developing clear,

concise, and well-defined requirements during the

elicitation phase, called late phase. This paper

presents an approach to map user stories and i*

models to each other, as a way to connect the two

phases of requirements engineering. This provides a

visual representation of the user stories and the

system’s context as a whole in an Agile

development environment. The i* models cover the

early phase while the user stories cover the late

phase. The goal is to integrate i* models with user

stories to reap the benefits that the requirements

technique brings to the development environment.

For instance, i* models are suitable for analysis of

conflicting requirements. Mapping from i* models

to user stories is important because some details

captured by the i* framework can be added as non-

functional requirements (softgoals). Additionally,

428

Lucena M., Agra C., Alencar F., Aranha E. and Jaqueira A..

Integrating User Stories and i* Models - A Systematic Approach.

DOI: 10.5220/0005400904280438

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 428-438

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

user stories are best understood in a language that

users and stakeholders are familiar with. They work

to facilitate communication and understanding as

well as the exploration of other possible scenarios

and potential solutions. Moreover, GORE´s

semantic, allows the modelling of intentions and

their dependencies, however, these approaches are

not commonly accepted by industry. On the other

hand, user stories are widely accepted in industry

due the their simplicity. Thus, the main objective of

this paper is to integrate these two approaches to

introduce GORE approaches to industry and enrich

user stories with GORE elements, such as non

functional requirements. At the end, we performed a

simple case study of our approach, which is

presented in this paper along with its assessment.

The remainder of this paper is organized as

follows. Section 2 presents the requirement activity

in Agile methods. In Section 3, the i* framework is

presented. Section 4 presents the approach of this

paper and an example of using the approach. Section

5 presents the case study to analyze the approach as

well as the results of the assessment. Section 6

presents the related work and finally Section 7

shows conclusions and future work.

2 REQUIREMENTS IN AGILE

METHODS

To elicit software requirements in Agile methods,

teams use abstractions in the form of user stories.

The user stories are used to meet the requirements

using a user-focused approach. They are written in

an incremental process, according to the priorities of

the client. Although user stories are not universally

accepted as the best way to capture software

requirements (Cockburn, 2007), they are widely

used by agile development and are therefore

considered this paper as an agile technique.

According to Cohn (Cohn, 2004), a user story

describes the functionality that has value for the

client. There are three parts to consider when writing

a good user story. The first one is to identify who

will perform an action. The second one is related to

a functionality that will be executed. The last one is

related to the reason (why the user needs this

functionality). Cohn (Cohn, 2006) suggests a format

for the writing of user stories that has been used in

practice: “As <role>, I want <action> for <goal>”.

Therefore, in this work, we use user stories in this

format and we consider as artefact produced in the

environment agile development.

By thoroughly analyzing the activities of an

Agile team, Sharp et al., (2006) concluded that user

stories are very limited artifacts in showing detailed

information about the software under development.

For instance, dependencies among the stories are

omitted or not fully understood, making it difficult

to obtain a global understanding of the system.

3 i* FRAMEWORK

In Goal-Oriented Requirements Engineering

(GORE) (Lamsweerde, 2001), the goals of the

stakeholders are used to elicit, elaborate, structure,

specify, analyze, negotiate, document, and modify

requirements

The i* model (Yu, 1995) is one framework used

in the GORE approach. Its focus is on the intentional

properties of the actors and their relationships. This

framework provides a visual representation of the

actors involved with the system and their

dependencies.

The i* framework requires knowledge of what

the actor wants; how they achieve it; and who they

depend on to achieve it. In i*, there are two types of

models: the Strategic Dependency model (SD) and

the Strategic Rationale model (SR). SD model

describes the dependencies among actors and

express the network of intentional and strategic

relations between the actors. It is represented by a

set of nodes and links, where each node is an actor

and each connection between two actors indicates

that an actor depends on the other to achieve a goal.

While, SR model demonstrates how actors achieve

their goals, express and represent the reasons behind

the dependency, having several types of nodes and

links. In this model, the relationships are analyzed in

the context of a single actor. Each actor has its own

intentional boundary having internal elements.

Extracting information and understanding the

system as a whole are challenges when analyzing

user stories (Sharp et al., 2006); (Beatty et al., 2012).

The i* framework fills this gap by providing a

graphical view of the actors involved in the system

and providing a better understanding of the system

and its dependencies (Alencar, 1999). This is our

main reason for proposing the integration of user

stories and i* models. According to Beatty et al.

(Beatty et al., 2012), also in an Agile environment it

is necessary to develop some models before starting

implementation in order to guarantee a shared

understanding by the development team. This way

the team can be synchronized with the business

goals and with the value and context of the project.

For Beatty et al. (Beatty et al., 2012), visual models

IntegratingUserStoriesandi*Models-ASystematicApproach

429

facilitate the understanding of what users need in the

system. They are also very useful for the

stakeholders to understand the proposed solution and

to maintain commitment. In other words, an agile

method should not oversimplify the development

process to the point of risking to lose relevance with

business goals.

Models help organize and present a vast quantity

of information and give context to details. They

provide visual groups that allow for analysis of great

quantities of information quickly in a short time

period (Beatty et al., 2012).

Therefore, in this work, user stories are mapped

to i* models (and vice versa), generating a diagram

with i* concepts and facilitating the visualization

and understanding of the software requirements and

their relationships.

The i* framework concepts and notations used in

this work are in accordance with the i* proposed at

i* Wiki (2012), which represents a simplified

version. In addition, it is important to note that only

some elements of the i* framework are used,

according to the need of the proposed approach.

4 MAPPING BETWEEN USER

STORIES AND i* MODELS

Software requirements must give priority to

communication between all stakeholders (Cohn,

2004). Therefore, the requirement elicitation and

specification process can use a set of techniques that

might be applied together: interviews,

questionnaires, ethnographies and workshops, are

example of those techniques. However, this process

can present some problems due conflicts

communication and comprehension within all

stakeholders (Liaskos et al., 2012).

I* Framework can be useful to improve the

understanding of system since their models are

related to why those requirements are needed

(Bresciani et al., 2004). In this way, i* model

presents a high-abstraction requirements modeling

which explores a business macro vision. On other

hand, User Stories can represent a lower abstraction,

such as functional requirements.

Although both approaches deal with requirement

problems using a diversity of artifacts, they only

cover a particular scope from whole system. Thus, it

is possible relate them by a mapping and

transformation process, using a set of heuristics.

This paper proposes mapping from user stories to

i* models and vice versa. This approach provides a

understanding of the system as a whole to

stakeholders, providing a wide vision of the

requirements described in the user stories. Projects

based only on the user stories can bear risks,

especially in complex systems, because a global

understanding of the system-to-be is needed.

Therefore, this work presents an approach which

provides a graphical view of the system as a whole,

showing the involved actors and their dependencies

with the system. Figure 1 and Figure 2 present the

activities to accomplish the mapping processes,

respectively, from user stories to i* models and from

i* models to user stories. Both take two kinds of

heuristics into account: (i) the i* SD model; and (ii)

the i* SR model.

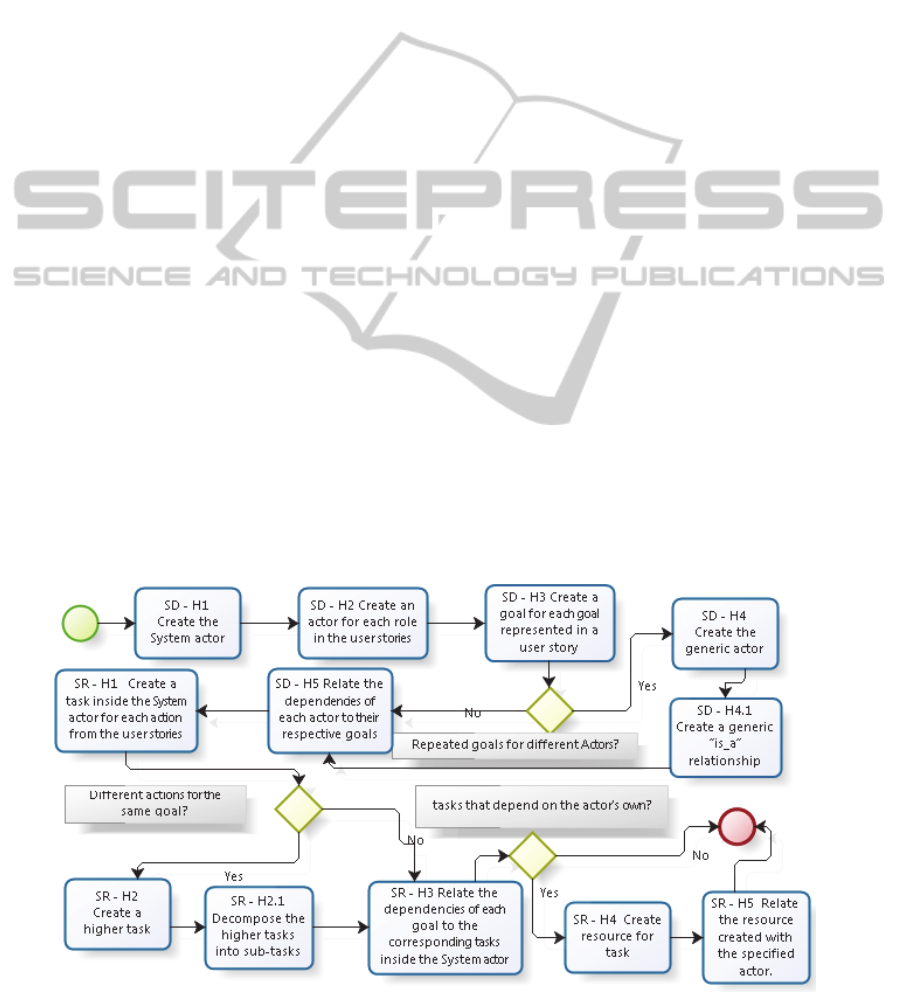

Figure 1: Mapping from user stories to i* models.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

430

Figure 2: Mapping i* models into user stories.

4.1 From User Story to i* Models

To demonstrate an application of the approach, a

perspective of a user and an administrator. Table 1

presents the user stories of the login system (Data

sets, 2012).

Table 1: User Stories of the login System.

Role Action Goal

01 User Have username Access secure conten

02 User Have password Access secure conten

03 User Choose username Customize account

04 User Change default password Customize account

05 Administrator Assign user password

Confirm the account

activation email

06 Administrator Send registration email Confirm the account

07 Administrator Request user to login

Ensure security of

content

08 User Register password remin

Remember the

password

09 Administrator Request password remin

Confirm user

To simplify the understanding and to make the

mapping more systematic, the following heuristics

were established for the SD and SR models. The

heuristics used to create the SD models are:

• SD-H1: Create the System actor. If the system

is the main actor, it will meet the goals by each actor

involved in the context. The System actor is created

at the beginning since the users stories require the

existence of a system to be developed.

• SD-H2: Create an actor in the i* model for

each different role represented in the user stories.

This occurs because an actor in the i* model has the

same meaning as a role in a user story.

• SD-H3: Create a goal in the i* model for each

goal represented in a user story. In case of repeated

goals, it will be considered only once in the model.

The goal has the same meaning as in the user stories

domain.

• SD-H4: If there are repeated goals for different

actors, a generic actor needs be created since this

generic actor will relate to shared goals to facilitate

the understanding of model.

• SD-H4.1: Create a generic “is_a” relationship

of the actor to other specific actors that share the

same goal. This heuristic is a consequence of SD-

H4.

• SD-H5: Relate the dependencies of each actor

to their respective goals, i.e., the actors will be

connected with their goals. The System actor will be

the dependee since the other actors depend on it.

The following heuristics are used to accomplish

the mapping from user stories to the i* SR model:

• SR-H1: Create a task inside the System actor

for each action from the user stories since the

System actor will fulfill the goals that other actors

depend on.

SR-H2: If there are different actions for the same

goal, a higher-level task is created to concentrate the

different actions. This is done to better visualize the

model.

• SR-H2.1: Decompose a higher-level task into

sub-tasks that represent the actions related to the

same goal. This heuristic is a consequence of SR-

H2.

• SR-H3: Relate the dependencies of each goal to

the corresponding tasks inside the System actor

according to the user stories. This is necessary to

complete the corresponding i* model.

• SR-H4: If there are tasks that depend on the

same actor, a resource dependency between the

System actor and this actor is created, showing that

the System actor depends on this actor to have this

resource.

IntegratingUserStoriesandi*Models-ASystematicApproach

431

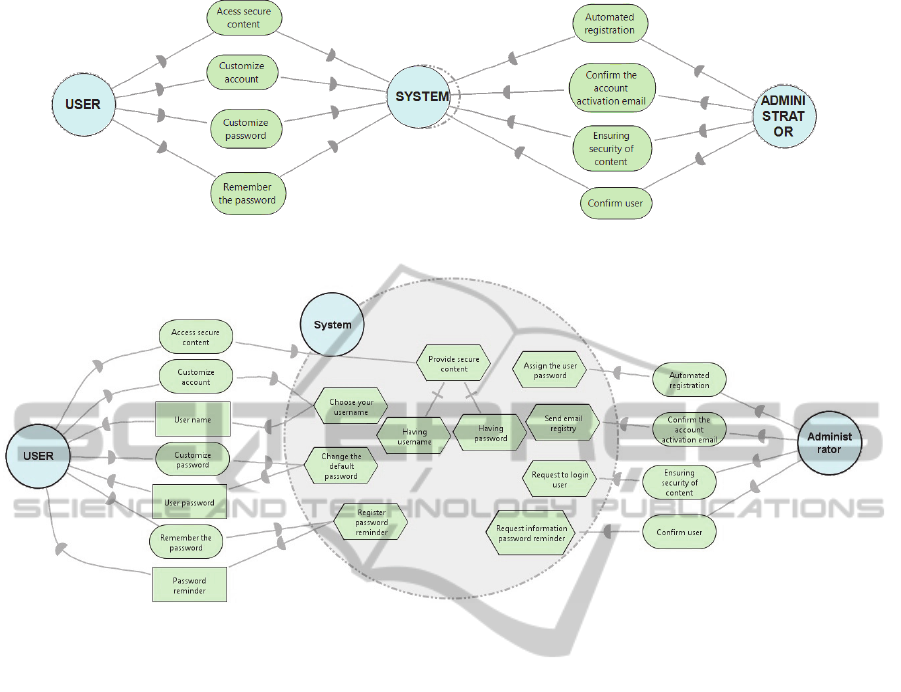

Figure 3: The resulting SD model from mapping user stories to the i* SD model.

Figure 4: The resulting SR model from mapping user stories to the i* SR model.

• SR-H5: Relate the resource created with the

specified actor.

According to the proposed heuristics, Figure 3

presents the SD model and Figure 4 presents the SR

model. Both are the result of the mapping of user

story to i* models.

4.2 From i* Models to User Stories

As an alternative, we use i* models to create and

enrich a set of user stories. This will be useful in

linking the early phase and the late phase. To

perform the mapping of i* models into user stories,

another set of heuristics is proposed. The following

heuristics are used to Map the SD models to user

stories:

• SD-H1: For all “dependee” it must be created a

User Story. Each one is represented by a set of role,

action and goal (Cohn, 2006). Moreover the softgoal

was added as a NFR.

• SD-H2: For all “depender”, it must create a role

into User Story which belongs to dependee.

• SD-H3: All Goal dependencies relationship

must include its dependum as a goal into User Story

which is associated with dependee, in the same role

associated to its depender; The related roles is set

using the above Heuristic (SD-H2).

• SD-H3.1: If an actor is a “depender” in SD

model, and also represents a generalization of IS_A

relationship. So, the role associated to this actor will

be changed for role which is related to actor that

represent a specialization in IS_A relationship. If

this actor is a “dependee”, so nothing happen.

• SD-H3.2: For all “depender” which is related to

a “dependee”, from a Task dependency relationship,

and also is associated to a User Story. The

correspondent role associated to depender, is gonna

link a task as an action which is perform by this role.

• SD-H4: All Softgoal dependency relationship,

will be added a NFR (Non-Functional Requirement)

into correspondent actor (depender) which is a role

in a User Story, represented by dependee on this

dependency.

The heuristics to accomplish the mapping of the

SR i* model to user stories are:

• SR-H1: For each task that represents a

“dependee” in i* model, will be created an action

into User Stories related to this dependee. In case of

this internal task is associated to a goal dependency

relationship,so, the goal will be linked to this

internal task, as an objective.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

432

• SR-H1.1: If there’s internal task from dependee

in a goal dependency, and that is decomposed into

different subtasks. So, these subtasks will be

transformed as actions, and will be related to a goal

in the User Story represented by “dependee”.

• SR-H2: Is needed to establish a relation

dependencies for each goal related to a “depender”,

and that has correspondent actions into “dependee”

according to User Story.

• SR-H3: For each internal task from dependee,

related in a goal dependency, that is decomposed

into a softgoal. It will be added into User Story as a

non-functional requirement (NFR), for its related

role, or actor.

Figure 5 presents the SD model and Figure 6

presents the SR model that leads to Table 2, the

result of mapping i* models to user stories according

to the proposed heuristics.

Table 2: User stories of the login system with softgoals.

Role Action Goal Softgoal

User

Have

username

Access

secure

content

User

Have

password

Access

secure

content

Security

User

Choose

username

Customize

account

Flexibility

User

Change

default

password

Customize

account

Administrator

Assign user

password

Confirm the

account

activation

Reliability

Administrator

Send

registration

Confirm the

account

Performance,

Usability

Administrator

Request user

to login

Ensuring

security of

content

User

password

reminder

Remember

password

Administrator

Request

password

reminder

Confirm

user

Figure 5: The resulting SD model of mapping from i* SD model to user stories.

Figure 6: The resulting SR model of mapping from i* SR model to user stories.

IntegratingUserStoriesandi*Models-ASystematicApproach

433

5 CASE STUDY

In order to evaluate the mapping of user stories to i*

models, a case study was conducted. The goal of the

case study was to verify, through the impressions of

user participants, if the mapping of user stories to i*

models brings benefits for the Agile development.

After using the approach, the participants reported

their impressions, which are analyzed and discussed

next.

5.1 Research Questions

In order to assess the results reported by the

participants while using the approach, 5 research

questions were developed and answered through the

execution of a case study:

• Question 1: How difficult is the learning and

understanding of the approach?

• Question 2: How was the performance of the

requirements engineers for mapping user stories to

i* models?

• Question 3: What were the perceived benefits of

using the approach?

• Question 4: What was the perceived usefulness of

the approach?

• Question 5: Would the participants use the

approach in their work environments?

5.2 Input Artifacts and Participants

This case study considered a project management

system developed by a small software company. The

artifacts used from this system were short

explanatory texts of the software scope and system

user stories. 13 volunteers with experience in Agile

development participated in this case study.

5.3 Case Study Execution

The participants were organized into two groups,

according to their current occupations and abilities:

requirements engineers (6) and software developers

(7). Both groups evaluated the usefulness of the i*

models, but only the requirements engineers mapped

user stories to i* models.

During the study, the participants used their own

computers (after the installation of the OME tool),

the heuristics for mapping user stories into i*

models, the text with the system scope, and the user

stories. They were requested to create the SD and

SR models based on the provided user stories.

After these activities, data was collected through

a questionnaire to collect the impressions of each

participant about using the approach. The

questionnaire and the responses are available at

http://goo.gl/8hZcs7.

5.4 Data Analysis

Next, we present and analyze the answers collected

for each research question in this case study.

• Question 1: How difficult is the learning and

understanding of the approach?

The participants assessed themselves and rated

their level of learning and understanding of the

approach after using it. According to the

participants’ answers, it was possible to conclude

that the approach was well understood by them. This

result is highlighted in Table 3 and suggests a low

learning curve for the approach.

Table 3: Learning and understanding of the approach.

Requirements Engineers Developers

Bad - -

Reasonable - 1

Good 2 4

Great 4 2

• Question 2: How was the performance of the

requirements engineers for mapping user stories to

i* models?

Assessing the performance is an opportunity to

point out the improvement needed for the approach.

Five of the requirements engineers agreed that the

use of the approach was good and only one

considered it bad. As this was the first contact of the

participants with the approach, this result suggests

that the heuristics for mapping user stories to i*

models are clear and objective.

• Question 3: What were the perceived benefits

of using the approach?

To assess the enhancements achieved by the

approach, the participants were asked about possible

enhancements in the visualization of the system

under development, the facilitation of the

requirements access and the support for decision-

making. The results are summarized in Table 4.

Table 4: Benefits obtained from approach.

Visualization of

the context

Access of the

requirement

Decision

making

Yes No Yes No Yes No

Requirements

Engineers

6 - 5 1 5 1

Developers

7 - 7 - 6 1

According to the assessments, most of the

participants believe that the approach enhances the

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

434

understanding of the system to be developed, what is

considered important for better knowledge the

requirements. By contributing to the understanding

of the general system context, the i* models are

enriching the development environment. According

to Sharp, Robinson and Peter (2009), the user stories

by themselves are not enough to fulfill this role.

Taking into account the assessment of the

participants, the mapping of the user stories for i*

models makes it easier to use and to access

requirement information. Therefore, there is

evidence that the visual model generated by the

approach provides more familiarize and expertise in

understanding of the software requirements..

Most of the participants also agreed that the use

of i* models contributes to the requirements in

decision-making. Therefore, the approach enhances

the Agile requirements by providing ease. It also

provides a platform for decision-making in the

development environment through more ample

visualization of the system requirements.

• Question 4: What was the perceived usefulness

of the approach?

The participants were asked if they considered

the application of the i* models in visualizing the

user stories useful. Most of the participants judged

the usefulness of the approach as positive.

Therefore, there is evidence that the approach is

interesting because it was considered useful for the

Agile development environment.

• Question 5: Would the participants use the

approach in their work environment?

After using the approach, the participants were

asked if they would use it in their work environment.

Their answers are presented in Table 5.

Table 5: Use of the approach.

Requirements

Engineers

Developers

Yes 4 6

No 2 1

Most of the software developers showed

acceptance for the approach, which corroborates the

complaints about the restriction of the user stories in

the Agile environment (Sharp et al., 2006), (Beatty

et al., 2012). Considering both groups, most of them

asserted they would use it (10 out of 13). Therefore,

there is interest in this approach in enhancing user

stories in the Agile development environment since

it has generated interest among the participants.

5.5 Threats to Validity

Taking into account the concepts defined by

Travassos et al., (2002), this section points out the

main threats to the validity of the results achieved by

the presented case study. The threats to internal and

external validity are presented.

5.5.1 Internal Validity

The internal validity defines if the relationship

observed between the treatment of the study and its

result is causal and not influenced by another factor

that is not controlled or even not measured.

The first threat to the internal validity in this

study is related to the level of knowledge of Agile

requirements, user stories and the i* technique by

the participants, because the level of knowledge of

each one could be different. To diminish this threat,

training was performed to present the main concepts

applied in the study to all participants before the

beginning of the case study. This reduced the

differences among the levels of knowledge of the

participants. The groups were also defined according

to the professional profile of each participant in

order to diminish this threat.

The second threat to the internal validity of the

case study is related to the availability and

enthusiasm of the participants. To diminish this

threat, the case study was scheduled on a convenient

day and at a convenient hour, according to the

availability of the participants, and the importance of

their contribution to the research was highlighted.

5.5.2 External Validity

The external validity is related to the conditions that

limit the generalization of the results achieved by the

case study. In this way, two threats to the external

validity of this study were identified.

The first threat is related to the number of

considered scenarios. Only one scenario was used to

assess the approach. It is important for new studies

involving new scenarios to be conducted in the

future.

The second threat to the external validity is

related to the scenario chosen. A relatively small

scenario was used. Thus, it is important to conduct

new studies involving large and medium-sized

scenarios in order to verify the results achieved by

using the approach in those contexts.

5.6 Discussion

The approach presented in this work may seem

incompatible with the culture of Agile software

development, since one of the main characteristics

of Agile methods is simplicity. Agile methods focus

IntegratingUserStoriesandi*Models-ASystematicApproach

435

on face-to-face collaboration among stakeholders to

address the requirements of the software being less

document-centric and more code-oriented. But there

are some challenges with using these methods

(Jaqueira, 2012): having information and

understanding of the system as a whole from a user

story, especially for complex systems, can be very

difficult; the client may not be available in the

development environment; or the client may be

limited in explaining a requirement or replying to

questions about the system. Therefore, it is

important to evaluate the trade-off with the use of

the proposed approach. According to the case study,

the performance of the participants using the

approach in the Agile development environment was

good. For most of them, its use enhances the

visualization of the system context to be developed,

making the access to the requirements easier and

contributing to the decision making. Regarding its

use in the Agile environment, most of the

participants confirmed its usefulness and showed

interest in using it in their work environment. In this

way, the solutions brought about by the visual

models of the i* technique represent the dependency

relationships and make the social comprehension an

integral part of the development process, and they

allow for a better understanding and analysis of the

problem in an Agile development environment.

By mapping the user stories to the SD and SR

models of the i* technique, it was possible to

organize and represent all stories in a model that

provides a general visualization of them and their

relationships with the system. All stories of the same

actor were presented in the same model, allowing for

them to be identified more easily. In this way, it is

possible to understand the context of the system with

its main actors and their goals.

The visualization through the models made it

easier to identify dependencies between the actors

and the system as well as to identify the system tasks

that serve each specific actor involved with the

software.

According to Horkoff (Horkoff, 2009), it is

thought that by visualizing the models, possible

mistakes and negligence can be recognized more

easily. All of this can facilitate the analysis and

discussion about the system to be developed.

The use of i* models provides a better

visualization of user stories. By allowing the

visualization of the dependencies between the actors

and the system, they contribute to a better

understanding of the context of the software to be

developed; by providing a visualization of the tasks

of the system related to the goals of each actor; and

by allowing possible mistakes or negligence in the

requirements to be recognized through the

visualization provided. Hence, the approach

presented in this work can significantly contribute to

Agile development environments because the

models generated allow, through their visualization,

for better analysis, communication, discussion and a

better understanding of the system.

6 RELATED WORK

Patton (Patton, 2008) proposes a way to organize

and prioritize user stories in order to provide a more

comprehensive visualization by creating a map of

stories without using the GORE approach. The user

story cards are organized horizontally one next to

the other on the wall according to the order that their

functionalities are executed in by the users. The goal

is to facilitate the exploration of new solutions and

the understanding of the more ample context of

interaction with stories, allowing the visualization of

the software as a whole instead of focusing on one

single story. This proposal uses card threads and a

wall, limiting its use when the stories are not written

on cards.

There are some works that associate the i *

framework with agile methodologies. Scheidegger

(Scheidegger, 2010) suggests the Scrum i* modeling

language, that integrates Scrum with the i*

framework. This language focuses on supporting the

context understanding of the software to be

developed, considering its relationships and aiming

to solve the lack of understanding about the

dependency between actors observed by the authors

in Scrum. The i* modeling technique was simplified

to be integrated into Scrum in order to keep the

characteristics of agility (Scheidegger, 2010). Only

part of the SD model was used.

The differentiating characteristic of the approach

is that it is directly related to the requirements of the

software, and that the actors of the models are the

same as the owners of the user stories, in other

words, the requirements. In Scheidegger

(Scheidegger, 2010), organizational actors are used

in the models, people interact with the organization

and with the system, but they are not necessarily

related to the requirements. The approach of our

work can be used by any Agile development team

that uses user stories in the format proposed by Mike

Cohn (Cohn, 2006). In our approach, other elements

of the i* technique, such as the SR models, the

decomposition, and is_a association links, are also

used.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

436

According to Esfahani et al., (2010), Scrum is

used to illustrate the use of the GORE approach in

the descriptions of social aspects of the Agile

methodology aimed at identifying the factors that

contribute to the success or failure of adopting a

Agile methodology, providing orientation during the

introduction of the methodology in a company. The

i* framework is used to model a social perspective,

addressing the actors involved in the Scrum process.

The actors are the Scrum Master, the owner of the

product and the members of the development team.

Through the representation of the social

relationships provided by the i* technique, the

Scrum adoption can be assessed according to the

probabilities of success shown by the social aspects

of the process, allowing for adjustments for the

members of the current team and for identifying the

vulnerability that are specific to the company.

The work of Santander and Castro (Santander

and Castro, 2002) proposes an approach to assist

requirements engineers in transforming i* models

into use cases through guidelines. A set of guidelines

was established, and applied to an i* model to

generate a use case. This research is related to the

traditional approach of software engineering.

Moreover, it is possible to represent functional and

non-functional requirements, covering all phases of

requirements engineering, such as the early and late

phases. The difference of our approach compared to

this work is that our focus is on the social

relationships based on the software requirements.

The actors are the “owners of the requirements”.

Therefore, the contribution of the models is relative

to the understanding and decision making regarding

to the requirements.

7 CONCLUSION AND FUTURE

WORK

The contribution of this work is the integration of

user stories with i* models in order to deliver the

benefits provided by the i* model with respect to

visualization and analysis of the system through

their models. This is an important contribution, since

Agile methods do not include such an artifact to

support the analysis and understanding of the system

as a whole. The following contributions have also

been made: (i) the enhancement of the context

understanding as a way to consider both phases of

requirements engineering: the early phase and the

late phase, (ii) an easier access to the requirement

information through the visual model, (iii) an

enhancement of the decision making process

according to the analysis of the requirements

described in i* models, and (iv) a study case

conducted to assess the mapping of user stories to i*

models, showing how the use of i* models

contributes to the visualization of user stories and to

the understanding of those approaches.

Regarding the heuristics created to map the i*

models and user stories, an experiment is under

development to gather more evidence about those

proposals. This solution aims to facilitate and

optimize their use and the understanding of the

requirements environment. As part of the

development of the tool, two domain-specific

languages (DSL) (Fowler, 2010) must be generated

from the set of heuristics presented in Section 4, in

order to: (i) map a user story to an i* model through

a specific generator of this DSL; (ii) perform the

opposite mapping to the first DSL through mapping

and conversion of i* models to user stories with

another specific language generator. The tool is

divided into a set of steps to accomplish the mapping

of approaches (user stories to i* or vice versa): (i)

provide as input the code based on a DSL specific to

a chosen approach, (ii) validate the domain language

according to the choice made in the first stage, and

(iii) present the visual model for the case of mapping

a user story to an i* model or present the artifact of

the user story for the case of mapping the i* model

to a user story, showing all the features, including

the nonfunctional requirements (NFR). A graphical

interface will also be created for end user who are

not used to working with textual DSLs. Thus, the

tool will facilitate the definition and specification of

requirements both in a GORE solution as well as in

an Agile solution within the scope of requirements

engineering.

As future work, we suggest: (i) developing a tool

to convert the user stories into the format suggested

by Mike Cohn (2006) which was used in this work,

and an extension that considers the inclusion of

NFRs (softgoals) in order to use this resource for all

user stories, (ii) improving the mapping of the i*

models back to user stories, considering more

elements from i* model, such as resources, (iii)

treating the scalability of the actor system, (iv)

represent tasks in other actors of the model, (v)

representing the relationship among the other actors

in the model, and (vi) conducting other case studies

that compare this work to other related work in order

to verify the differences and similarities with more

accuracy as well as to identify possible

improvements needed.

IntegratingUserStoriesandi*Models-ASystematicApproach

437

REFERENCES

Alencar, F.M.R. de., 1999. Mapeando a Modelagem

Organizacional em Especificações Precisas. 1999.

302 fls. Tese de Doutorado. UFPE.

Beatty, J. e Chen, A., 2012. A. Visual Models for

Software Requirements. Washington, Microsoft Press.

Bhuiyan, M.; Islam, M. M.; Krishna, A.; Ghose, A.K.,

2007. Integration of Agent-Oriented Conceptual

Models and UML Activity Diagrams Using Effect

Annotations. Computer Software and Applications

Conference, v. 1, p. 171-178.

Bresciani, P.; Perini, A.; Giorgini, P.; Giunchiglia, F.;

Mylopoulos, J., 2004. Tropos: An Agent-Oriented

Software Development Methodology. Autonomous

Agents and Multi-Agent Systems, v. 8, n. 3, p. 203-

236.

Cockburn, A., 2007. Agile Software Development: The

Cooperative Game. Boston, Pearson.

Cohn, M., 2004. User Stories Applied: For Agile Software

Development, March. Addison-Wesley Professional,

Reading.

Cohn, M., 2006. Agile Estimating and Planning. Prentice

Hall.

Data sets: Example of User Stories Available in

<http://www58.ibm.com/software/analytics/manyeyes/

datasets/example-of-user-stories/versions/1> Access in

05/12/2012.

Esfahani, H. C., Cabot, J. and Yu, E., 2010. Adopting

agile methods: can goal-oriented social modelling

help?. Conf. on Research Challenges in Information

Science (RCIS'10).

Fowler, M. and Parsons, Rebecca., 2010. Domain Specifc

Language. Addison-Wesley.

Horkoff, J. and Yu, E., 2009. A qualitative, interactive

evaluation procedure for goal- and agent-oriented

models. In: CAiSE Forum. CEUR Workshop

Proceedings.

i* Wiki Home., 2012. Available in<http://istar.rwth-

aachen.de/tiki-index.php> in 08/10/2012.

Jaqueira A., Andreotti, E., Lucena, M., Aranha, E., 2012.

Desafios de Requisitos em Métodos Ágeis: Uma

Revisão Sistemática 3rd Brazilian Workshop on Agile

Methods, São Paulo.

Lamsweerde, A.van., 2001. Goal-oriented requirements

engineering: a guided tour, in RE'01: Proceedings of

the 5th IEEE International Symposium on

Requirements Engineering. Washington, DC, USA:

IEEE Computer Society.

Laue, R., 2011. Expressing and analysing goal models in

design structure matrices. In Proceedings of the 13th

International DSM Conference, p. 229-244.

Liaskos, S.; Jungblut, M. Daoud; Mylopoulos, J., 2012.

From intentions to code: exploring the life of user

goals in two web-based systems. IET Software, v. 6. n.

2, p. 103-113.

Martínez, A.; Estrada, H.; Sánchez, J.; Pastor, O., 2002.

From Early Requirements to User Interface

Prototyping: A methodological approach. In

Proceedings of ASE, p. 257-260.

Patton, J., 2008. The new user story backlog is a map.

Available in agileproductdesign.com.

Santander, V. F. And Castro, J.F., 2002. Deriving Use

Cases from Organizational Modeling. IEEE Joint

International Requirements Enginnering Conference.

RE´2002, University of Essen, Germany, September

9-13, 2002, pp. 32-39

Scheidegger, M.E.S., 2010. Integrando Scrum e a

Modelagem de Requisitos Orientada a Objetivos por

meio do SCRUM i*. Dissertação de Mestrado. Centro

de Informática, Universidade Federal de Pernambuco.

Sharp, H., Robinson, H. Segal, J. and Furniss, D., 2006.

The role of story cards and the wall in XP teams: a

distributed cognition perspective, Proceedings of

Agile. IEEE Computer Society Press, pp. 65-75

Sharp, H., Robinson, H., Petre, M., 2009. The role of

physical artefacts in agile software development: two

complementary perspectives, Interacting with

Computers 21. pp. 108–116.

Travassos, G. H.; Gurov, D. e Amaral, E. A. G., 2002.

Introdução à Engenharia de Software Experimental.

Relatório Técnico. ES-590/02-Abril. Programa de

Engenharia de Sistemas e Computação, COPPE/UFRJ.

Yu, E., 1995. Modelling Strategic Relationships for

Process Reengineering. PhD thesis. University of

Toronto, Department of Computer Science.

Yu, E., 1997. Towards Modeling and Reasoning Support

for Early-Phase requirements engineering. 3rd IEEE

International Symposium on Requirements

Engineering. IEEE Computer Society. p. 226.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

438
