A SOA Repository with Advanced Analysis Capabilities

Improving the Maintenance and Flexibility of Service-Oriented Applications

Thomas Bauer

, Stephan Buchwald

, Julian Tiedeken

and Manfred Reichert

Neu-Ulm University of Applied Sciences, Dep. Information Mgmt, Neu-Ulm, Germany

T-systems International Gmbh, Systems Integration - Car2x Solutions, Ulm, Germany

University of Ulm, Dep. Database & Information Systems, Ulm, Germany

Keywords: Service-Oriented Architecture (SOA), SOA Repository, as-Is Analyses, What-if Analyses.

Abstract: In a service-oriented architecture (SOA), a change or shutdown of a particular service might have a

significant impact on its consumers (e.g., IT systems). To effectively cope with such situations, the IT

systems affected by a service change should be identified before actually applying the latter. For this

purpose, a SOA repository with advanced analysis capabilities is needed. However, due to the numerous

complex inter-dependencies between service providers and consumers, it is a challenging task to figure out

which IT systems might be directly or indirectly affected by a service change and for which period of time

this applies. The paper tackles this challenge and presents the design of an advanced SOA repository

enriched with analysis capabilities. In particular, this repository enables automatic analyses to detect already

existing problems (as-is analyses) as well as problems that might occur due to future service changes (what-

if analyses). Respective analyses will foster the development of robust service-oriented applications.

1 INTRODUCTION

Major goals of a service-oriented architecture (SOA)

are to increase the reuse of services as well as the

flexibility to adapt services to changing business

needs (Josuttis, 2007). The principle of loosely

coupled services (Erl, 2005), for example, enables a

rapid migration of a service implementation to a new

version or the replacement of a service by another

one, without need for any adaptions on the side of

the service consumer. Usually, in a SOA a proxy

(i.e., Enterprise Service Bus, ESB) is introduced

between the application that calls (i.e. consumes) the

service and the service itself. Consequently, the

service can be simply exchanged by adapting the

proxy accordingly, but no additional adaptations of

the consuming application become necessary.

In a case study we conducted in the automotive

industry ENPROSO

, we analyzed a multitude of

techniques to increase the flexibility of a SOA

(Buchwald et al., 2011; Buchwald, 2012). In this

____________________________________

Enhanced Process Management by Service Orientation,

performed at and funded by Daimler AG

context we learned that other kinds of changes of

operable services might be more complex than the

aforementioned ones. Especially, this applies to the

shutdown of a service (i.e., the service shall no

longer be operable), which might affect the

operability of the service consumers’ applications

(i.e., IT systems). Note that it is crucial to detect

such outdated services in order to avoid

malfunctions regarding the IT systems of previous

service consumers (i.e., to avoid the invocation of

these services). Besides this, managing outdated

services over a longer period of time also causes

unnecessary costs on the side of the service provider.

For these reasons, techniques are required that allow

identifying unused services in a SOA environment

(e.g., to switch them off). In literature (Erl, 2005;

Josuttis, 2007), the method usually applied for this is

to utilize information from a SOA repository (i.e., a

service registry or directory). In the ENPROSO

project, we developed a comprehensive meta-model

for such a SOA repository (Buchwald, 2012). It

offers, for example, detailed information on service

versions, service installations, and service contracts.

Based on this information, in turn, it becomes

possible to detect the actually used service versions

and installations, the period during which they shall

238

Bauer T., Buchwald S., Tiedeken J. and Reichert M..

A SOA Repository with Advanced Analysis Capabilities - Improving the Maintenance and Flexibility of Service-Oriented Applications.

DOI: 10.5220/0005368302380248

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 238-248

ISBN: 978-989-758-098-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

be used, and the service installations that are

expendable or may be switched off in future. In turn,

this allows estimating the efforts required to adapt

the applications consuming that service.

The SOA repository we developed contains

various kinds of object types as well as their

relationships. Usually, users might be lost when

being confronted with the large data volume of a

SOA repository. Hence, advanced data analyses

capabilities are needed in order to be able to detect

potential problems that might occur in future (e.g.,

when a service will be finally shut down). Based on

the data from a SOA repository, it should be

possible to automatically detect problems that will

occur in future. Such automatic analysis capabilities

have not been sufficiently addressed in current SOA

literature so far. Amongst others, this paper presents

advanced techniques to identify services whose

shutdown date will be earlier than the expiration

date indicated in their usage contracts. In particular,

such as-is-analyses allow identifying problems

based on the current repository data.

As an extension, a SOA repository should also

enable what-if-analyses. A relevant use case for

them is the selection of an appropriate date for a

future service shutdown. In particular, in order to

decide on this date, we need detailed information

about the consequences of the service shutdown

depending on the point in time it will be performed;

i.e., for different points in time, the service

consumers affected by this change as well as the

related problems need to be automatically

determined (impact-analyses). This way, possible

solutions of future problems (i.e., missing service

installations) can be identified as well. Note that

without proper tool support, such what-if-analyses

would require high manual efforts by users. Hence,

as a second contribution, this paper presents

techniques for automated what-if-analyses in a SOA.

Section 2 gives insights into our meta-model for

SOA repositories, which provides the foundation of

our approach. Section 3 then describes examples of

analyses that can be based on current repository data

(as-is-analyses). What-if-analyses and the related

impact-analyses are presented in Section 4. Section

5 discusses related work, whereas Section 6

summarizes the paper and gives an outlook on future

work.

2 A META-MODEL FOR SOA

REPOSITORIES

To elaborate the demands of a SOA repository in a

practical environment, we conducted respective

requirement analyses in multiple business units of a

large automotive company (Buchwald, 2012). First

of all, this revealed the need of the aforementioned

repository analysis techniques. In addition, it

became evident that a SOA repository needs to be

able to manage a multitude of object and

relationship types. Fig. 1 depicts the meta-model we

developed as foundation for enabling advanced

analyses in a SOA repository.

The meta-model comprises object types covering

the business level (left part) as well as the technical

level (right part). Thereby, a multitude of object

types are considered at the two levels

, e.g., Business

and Technical DataObjectVersions. Respective

information may help users in searching for required

services and browsing in the repository (cf. Bauer et.

al., 2013). Overall, the provided meta-model covers

a large part of the information typically required in

the context of a SOA. Depending on the respective

company and its SOA philosophy, however,

additional object and relationship types may be

added or non-relevant types be dropped. In the

following, we focus on explaining those object and

relationship types, which are required to understand

the advanced analyses presented in Sections 3 and 4.

For a detailed presentation of all meta-model entities

we refer to a technical documentation (Buchwald,

2012, (Tiedeken, 2010).

The central object of any SOA is the Service. In

order to be able to reflect its evolution over time, a

service may bundle different service versions. In

turn, the latter may have different input and output

parameters or comprise different operations. In

particular, the different versions of a service might

not be compatible regarding their usage by service

consumers. In general, one can distinguish business

service versions (cf. BusinessServiceVersion,

together with its relationship type

isBusinessServiceVersion in our meta-model) and

technical service versions (cf.

TechnicalServiceVersion, together with its

relationship isTechnicalServiceVersion).

The implementation and rollout (i.e. deployment)

of a technical service version results in a service

installation (ServiceInstall) – this link is established

____________________________________

Note that it is not necessary to acquire all data stored in the SOA

repository manually; i.e., numerous objects may be imported

automatically from already existing IT systems, e.g., business

process modeling tools, software development environments, or

tools supporting government processes. Taking this into

account, the maintenance of a SOA repository can be

accomplished with acceptable efforts from the user side.

ASOARepositorywithAdvancedAnalysisCapabilities-ImprovingtheMaintenanceandFlexibilityofService-Oriented

Applications

239

based on relationship hasInstallation. Since a service

installation is offered by a concrete IT system, it will

be connected to this System using the relationship

providesServiceInstall. In turn, relationship

hasProvider informally describes that the IT system

offers this service. In general, a service may be

offered by different IT systems and may possess

multiple installations that belonging to the same or

different technical service versions.

Before a service may be actually used, a

Contract must be made between the provider and the

consumer of the service. In turn, this contract is

assigned to the consumer using relationship

hasContract. Furthermore, the information related to

this contract is usually created step-by-step. First, it

is determined which business service version shall

be used (cf. relationship

hasBusinServiceVersConsumer). At this point, no

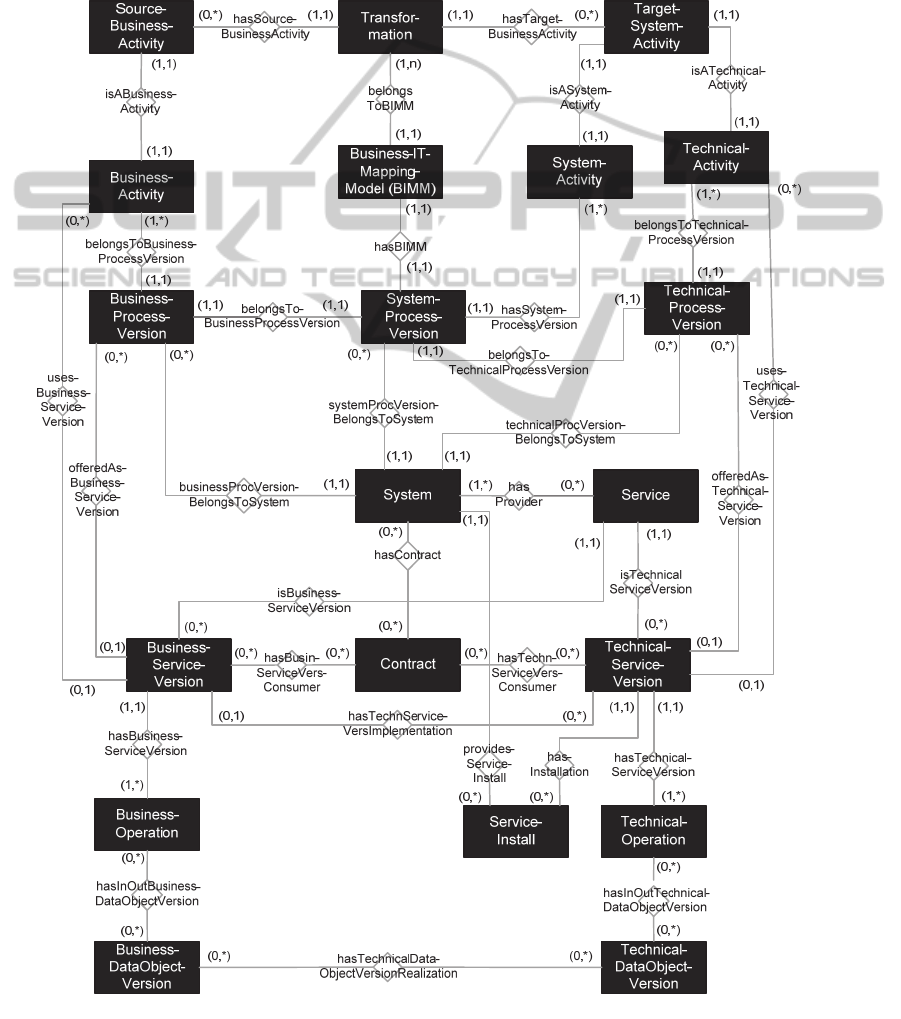

Figure 1: Meta-model of the SOA Repository expressed as Entity-Relationship Diagram (Abrial, 1974).



ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

240

corresponding technical service version needs to be

provided. Later on, a technical service version may

be added and assigned to the business service

version using relationship

hasTechnServiceVersConsumer. Additionally,

contract data may be enriched with technical service

level agreements (Erl, 2005; Josuttis, 2007).

The entity and relationship types used in this

paper have the following notation: e  E holds if

entity e is stored in entity set E in the SOA

repository. For relationship type b, which links

entity types E and E', with e  E and e'  E'

function b(e, e') returns true if a relationship

between e and e' is stored in the SOA repository.

3 AS-IS-ANALYSES

We have already motivated the practical need of as-

is-analyses. In particular, the latter can be based on

the data captured in the SOA repository. Since the

begin and end dates of service usage contracts may

be in the future, however, it is not only possible to

identify already existing problems, but also to

predict future ones. Hence, as-is-analyses allow

identifying and solving potential problems in

advance. This section presents representative use

cases for as-is-analyses based on a SOA repository.

3.1 Incomplete Technical Services

To identify a technical service version for which no

installation exists constitutes our first scenario for

applying an as-is-analysis. Note that this scenario is

practically relevant since the version of the technical

service cannot be used yet and hence it has to be

handled by the SOA governance board (Erl, 2005).

The latter may then decide that the technical service

version must be implemented and installed (i.e.,

rolled out). Alternatively, it may decide that the

technical service version is no longer required and

hence shall be deleted from the SOA repository. In

general, the data required for this as-is-analysis can

be retrieved from any SOA repository that is based

on the meta-model presented in Sect. 2. More

precisely, corresponding technical service versions

TSV can be determined as follows:

TSV = {tsv  TechnicalServiceVersion |

∄ si  ServiceInstall with hasInstallation(tsv, si)}

Another undesired scenario occurs if the SOA

repository contains technical service versions

without associated business service versions. This

scenario might occur, for example, if a third-party

system contains pre-build services (or service

interfaces) or if a migration of legacy systems to a

SOA was not performed properly. In such cases, the

missing business service versions should be added to

the SOA repository afterwards. As a potential

benefit of this additional information, the available

technical service versions can be easier retrieved by

domain experts (cf. Bauer et. al. 2013), which, in

turn, increases service reusability. Based on the

defined meta-model, the technical service versions

without associated business service version can be

determined as follows:

TSV = {tsv  TechnicalServiceVersion |

∄ bsv  BusinessServiceVersion with

hasTechnServiceVersImplementation(bsv, tsv)}

3.2 Unusable Service Versions

Similar to the scenarios we considered in Section

3.1, the presented meta-model can be used to

determine both business and technical service

versions in a SOA repository that must currently not

be used. Reasons for the latter may be, for example,

the absence of a certain service contract or the

expiry of a service contract’s validity duration.

Based on the described meta-model, for each

Service we can identify the related

BusinessServiceVersion by using relationship

isBusinessServiceVersion (cf. Fig. 1). Regarding the

scenario from Fig. 2, for instance, for ServiceX the

business service versions BSV1, BSV2, and BSV3

can be identified. While for BSV1 and BSV2 a

corresponding technical service version exists, this

does not apply to BSV3 (cf. Scenario 3c described

below). More precisely, BSV1 is related with the

technical service versions TSV1a and TSV1b, and

BSV2 with the technical service versions TSV2a and

TSV2b. Similarly, one can detect that TSV1b has no

related service installation. Therefore, this technical

service version must not be used at the present

moment (cf. Scenarios 3a + 3b).

Which problems might be caused by unusable

versions of a business service or technical service?

And which actions shall be performed to cope with

these problems? Based on the presented meta-model,

these and related issues can be resolved through

automated repository analyses. However, user

interactions will still be required to deal with the

problems discovered. For example, selecting a

proper action for problem resolution might

constitute a task to be accomplished by a SOA

governance board.

We consider the following scenarios:

Scenario 1 (No valid contract exists for an

ASOARepositorywithAdvancedAnalysisCapabilities-ImprovingtheMaintenanceandFlexibilityofService-Oriented

Applications

241

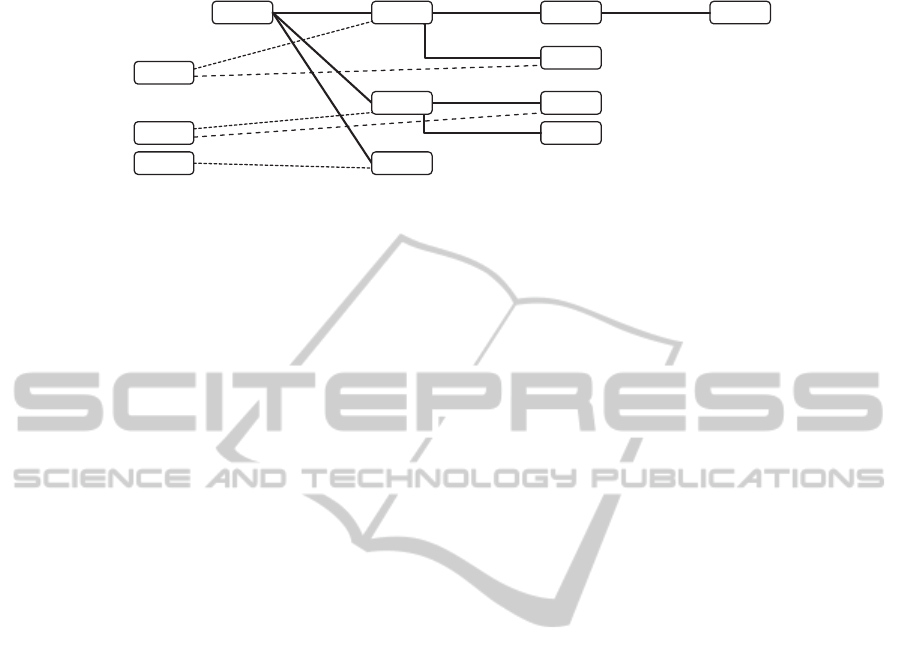

Figure 2: Sample data of the SOA repository belonging to contracts, services, etc.

unusable business service version): Consider Fig.

2: Obviously, business service version BSV2 must

not be used by any service consumer since it has no

related service installation (indirectly assigned via

TSV2a or TSV2b) at the moment. If there exists no

valid contract for BSV2 (e.g., in case the expiry date

of Con2 was already passed), this scenario does not

result in problems on the side of the service

consumers. In any case, if BSV2 cannot be used, this

needs to be properly handled on the side of the

service provider. On one hand, it may decide that a

service implementation shall be provided for either

TSV2a or TSV2b. On the other, BSV2 may be

declared as unsuitable; i.e., it shall be shut down and

deleted from the repository, including the

corresponding technical service versions TSV2a and

TSV2b.

Scenario 2 (No valid contract exists for an un-

usable technical service version): In Fig. 2, the

technical service version TSV1b must not be used

since it has no related service installation. If there is

no (currently) valid contract for TSV1b this will not

constitute any problem for the service consumer.

Regarding the service provider, the governance

board may decide whether a service installation shall

be created for TSV1b or this technical service

version shall become obsolete (e.g., if it offers no or

only negligible advantages compared to the

technical service version TSV1a for which a

corresponding service installation exists.

Scenario 3 (There is a valid contract for an

unusable business / technical service version):

The more interesting case occurs if the usage periods

of the contracts (cf. Fig. 2) have not expired yet.

Then valid contracts exist for service versions that

must not be used or whose use might cause severe

problems on the side of the service consumer.

Regarding this scenario, we distinguish between

cases for which an alternative service version exists

and cases for which this does not apply:

Scenario 3a (Unusable technical service

version with alternative usable technical service

version): In Fig. 2, contract Con1 references TSV1b.

In turn, this implies that there exists a consumer for

TSV1b (or will exist in future). Since TSV1b does

not have a related service installation, the contract

cannot be fulfilled. However, there exists another

usable technical service version TSV1a (with related

service installation SI1a) assigned to the same

business service version BSV1. In general, such

technical service versions TSV may be detected

automatically based on repository data with the

following criteria:

TSV = {tsv  TechnicalServiceVersion |

 con 

Contract with

hasTechnServiceVersConsumer(con, tsv) 

∄ si  ServiceInstall with hasInstallation(tsv, si) 

 bsv  BusinessServiceVersion with

hasTechnServiceVersImplementation(bsv, tsv) 

 tsv'  TechnicalServiceVersion with

hasTechnServiceVersImplementation(bsv, tsv' ) 

 si'  ServiceInstall with hasInstallation(tsv', si' )

To still fulfill the contract, it is possible to switch

from the unusable service version TSV1b to the

usable service version TSV1a; e.g., in case TSV1b

has no real advantages compared to TSV1a. In this

case, contract Con1 must be modified as well as the

application on the consumer’s side (if already

existing). Alternatively, it may be decided that a

service installation must be provided for TSV1b.

Furthermore, TSV1a and TSV1b might only show

small differences (e.g., different but similar data

structures as input or output parameters). In this

case, a service installation for TSV1b can be realized

by calling TSB1a via a proxy (ESB), which

eliminates the differences between the consumer and

the service with an appropriate transformation of the

data structures. Note that such a solution uses the

flexibility offered by a SOA (Buchwald et al., 2011).

Scenario 3b (Unusable technical service

version without alternative usable technical

service version): In Fig. 2, Con2 references the

unusable technical service version TSV2a. The sole

technical service version TSV2b, which is also

BusinessServiceVersion

TSV2b

ServiceX SI1a

Contract

isBusiness‐

ServiceVersion

TechnicalServiceVersion ServiceInstallService

hasTechnService‐

VersImplementation

hasInstallation

Con1

hasBusinService‐

VersConsumer

hasTechnService‐

VersConsumer

Con3

Con2

BSV1 TSV1a

BSV2 TSV2a

BSV3

TSV1b

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

242

related with BSV2, cannot serve as alternative since

it does not have a service installation.

In general, such technical service versions TSV

can be detected as follows:

TSV = {tsv  TechnicalServiceVersion |

 con  Contract with

hasTechnServiceVersConsumer(con, tsv) 

∄ si  ServiceInstall with hasInstallation(tsv, si) 

 bsv  BusinessServiceVersion with

hasTechnServiceVersImplementation(bsv, tsv) 

∄ tsv'  TechnicalServiceVersion with (

hasTechnServiceVersImplementation(bsv, tsv' )

  si'  ServiceInstall with

hasInstallation(tsv', si' ) )

Again, for this scenario a service installation could

be added for TSV2a. The choices to avoid this,

however, are limited compared to Scenario 3a, since

there exists no alternatively usable technical service

version belonging to the same business service

version. Hence, switching to another business

service version remains the only solution in this

context (i.e., BSV1

in Fig. 2 since BSV3 has no

related service installation). Switching to BSV1

could be realized, for example, by modifying Con2

as well as the application of the service consumer (if

required). Typically, for modifying the latter, much

more efforts will be required compared to

Scenario 3a. In this context, note that business

service versions usually show greater differences

among each other compared to differences of the

versions of a technical service.

Scenario 3c (Business service version without

technical service version): Consider Fig. 2. For

contract Con3, there only exists a business service

version, but no corresponding technical service

version. Such a scenario may occur, for example, if

the realization of the technical service version is not

finally decided or its specification is not completed

yet. In general, the respective business service

version cannot be used before realizing a

corresponding technical service version.

Alternatively, as discussed in the context of Scenario

3b, one may switch to another already usable

business service version (i.e., BSV1). Due to lack of

space, we omit the formal criterion for detecting

Scenario 3c.

4 WHAT-IF-ANALYSES

The analyses described in Sect. 3 have been solely

based on data currently stored in the SOA

repository. This section complements these as-is-

analyses with selected examples of what-if-analyses

(also denoted as impact-analyses). In particular, the

latter analyze the impact of changes that may happen

in future. For example, it can be determined which

service consumers will be affected by a service

shutdown that takes place at a future point in time.

Based on respective information, in turn, the most

appropriate time for a service shutdown can be

determined. In general, what-if-analyses allow

simulating and evaluating a variety of scenarios. The

resulting information then serves as basis for

decision making (e.g., by a governance board).

4.1 Indirect Dependencies

The importance of impact-analyses results from the

fact that, for example, the shutdown of a service

installation not only affects its direct consumers. In

fact, these consumers may be IT systems (cf. System

in Fig. 1) that themselves offer services to other

consumers. Consequently, if such an IT system

needs to be adapted (e.g., due to a migration to an

alternative usable service), the services it offers may

have to be changed as well. Even worse, in case

there is no alternatively usable service, the

concerned services must no longer be provided. In

both cases, the consumers of the IT system are

affected as well; i.e., the change (service shutdown)

may have to be propagated over multiple levels to

directly or indirectly dependent IT systems (ripple-

effect).

Based on the presented meta-model (cf. Sect. 2),

such indirect dependencies can be detected

automatically. Consider the example from Fig. 3 and

assume that a shutdown of service installation SI1 is

planned for the near future. Assume further that SI1

is the only installation of the technical service

version TSV1. Then, the shutdown will affect

contracts Con1a, Con1b and Con1c. As a result, IT

systems Sys1a, Sys1b and Sys1c will no longer work

properly and must therefore be adapted. In turn, this

might lead to changes of services Serv2 and Serv3

that are offered by Sys1b and the corresponding

technical service versions TSV2 und TSV3. In

summary, the original change needs to be

propagated along multiple artifacts; i.e., the

dependent contracts Con2, Con3a and Con3b must

be adapted as well as the IT systems filling the role

of a consumer with respect to these contracts. In

turn, these IT systems themselves offer services and

hence must be adapted as well (and so forth).

In general, when turning off or modifying a

service installation si, the affected IT systems can be

ASOARepositorywithAdvancedAnalysisCapabilities-ImprovingtheMaintenanceandFlexibilityofService-Oriented

Applications

243

automatically calculated as follows:

AffectedSys(si) = {sys  System |

 tsv  TechnicalServiceVersion with

hasInstallation (tsv, si) for which applies:

 con  Contract with

hasTechnServiceVersConsumer(con, tsv) and

hasContract (sys, con) }

All other IT systems indirectly (i.e., transitively)

affected by the change can then be identified as

follows: For each system sys  AffectedSys(si), the

offered service installations AffectedServiceInstall

are determined based on relationship

providesServiceInstall. In turn, for each service

installation si'  AffectedServiceInstall,

AffectedSys(si') is calculated on the next level based

on the above criteria. This procedure is continued

until all affected IT systems are determined.

Note that when solely considering the

relationships between IT systems (i.e. System) and

service installations (i.e. ServiceInstall), we might

identify dependencies that actually do not exist; i.e.,

from the fact that the program code of an IT system

calls a particular service, we must not conclude that

all offered services are actually available. In the

above example (cf. Fig. 3), system Sys1b and,

therefore, the offered services Serv2 und Serv3 are

connected with service installation SI1 that shall be

shut down. In this context, we need to distinguish

two cases:

 Case 1: Assume that the implementation of TSV2

and Serv2, respectively, is based on TSV1 and

hence on SI1. If the adaptation of Sys1b

results in

a changed interface service Serv2 it offers, this

affects contract Con2 as well as the IT system

playing the role as its consumer.

 Case 2: Assume that the implementation of TSV3

and Serv3, respectively, does not use any foreign

services, or at least not the service installation

SI1 (to be shut down). Then, technical service

version TSV3 may remain unchanged and no

modifications of contracts Con3a and Con3b are

needed. Since the consuming IT systems are not

affected by the described service shutdown, the

change needs not be propagated on this path.

Usually, the information stored in contemporary

SOA repositories is not detailed enough to be able to

____________________________________

Without loss of generality, we assume that for a technical

service version there exists only one service installation. Using

the SOA repository data (i.e., relationship hasInstallation), it

can be easily analyzed whether a service installation is actually

available or a switch to an alternative service installation is

possible; i.e. the ripple-effect ends at this point.

distinguish Cases 1 and 2. Hence, corresponding

analyses might reveal more problems than actually

exist. Opposed to this, the presented meta-model (cf.

Fig. 1) allows distinguishing the two cases: Using

relationship usesTechnicalServiceVersion, for

example, it becomes possible to (exactly) detect the

steps (TechnicalActivity) of a business process that

invoke the technical service version to be changed or

removed. With relation

belongsToTechnicalProcessVersion the

corresponding TechnicalProcessVersion (i.e., the

executable business process) can be identified. If the

latter is offered as a service, relationship

offeredAsTechnicalServiceVersion refers to the

corresponding TechnicalServiceVersion. Finally, if

an IT system has a contract referring to the latter, it

will actually be affected by the change; i.e. Case 1

applies and the analysis delivers the correct result.

Compared to a SOA repository that solely contains

information about the services consumed and

offered by an IT system, higher quality in planning

as well as decision support becomes possible.

Note that the information required by the SOA

repository can be automatically gathered during the

modeling of the business processes and services as

well as the specification and implementation of the

technical workflows and services (Buchwald et. al.,

2012; Buchwald, 2012). Hence, only little additional

effort becomes necessary for capturing repository

data. For function-oriented SOA applications

requiring no explicit process support, in particular,

the described approach may be transferred to the

modeling of services (e.g., based on UML), service

implementations, and service consumers.

4.2 Impact of Future Changes

In general, the impact of a future change may

depend on the exact time it will be applied. Hence,

the time perspective needs to be considered in what-

if-analyses. In particular, when simulating the

impact of a change for multiple future points in time,

different scenarios can be analyzed. In the following,

we illustrate such time-aware what-if-analyses.

Assume that the sole service installation SI0 of

the technical service version TSV0 shall be shut

down (e.g., to reduce maintenance and operating

costs). Assume further that the operator of SI0 plans

for a shutdown date in about 6 months from now.

Hence, it shall be analyzed whether this date is

advantageous from the perspective of the operator.

As a first step, a graphical overview of all related

contracts as well as their validity periods is created

(cf. Fig. 4). Such a chart can be generated

automatically based on the data stored in the SOA

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

244

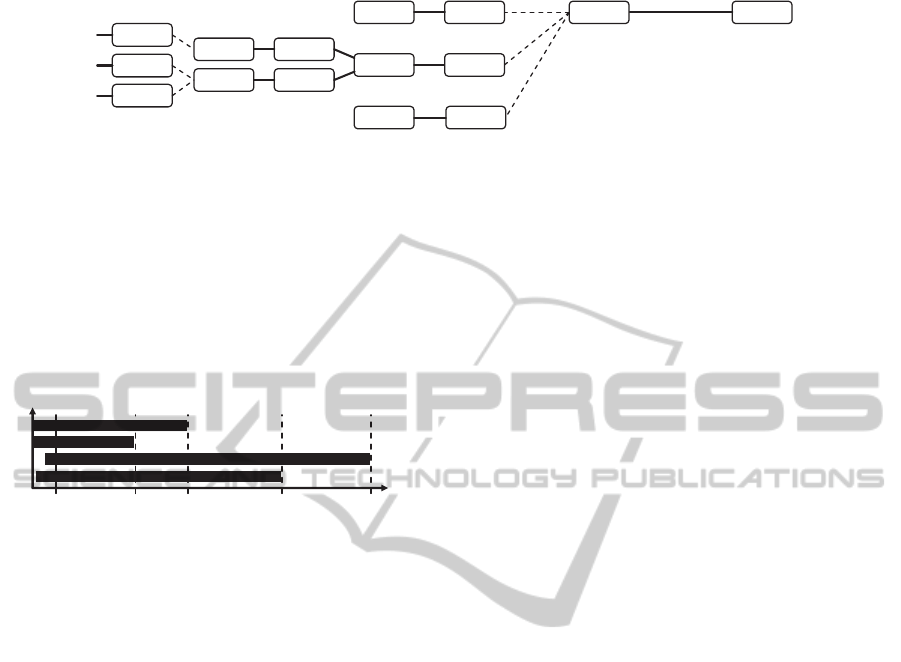

Figure 3: Sample data of the SOA Repository with Ripple-effect.

repository. The chart indicates that there are

currently 4 contracts for TSV0 and 4 IT systems

depend on SI0. In 6, 10, 17, and 24 months (from

now on), respectively, these contracts will reach

their end date. Accordingly, these are candidate

dates for a potential shutdown of TSV0; i.e., when

reaching any of them, less IT systems will

beaffected by the shutdown than before.

Figure 4: Graphical overview of the contracts for TSV0

and SI0 over time.

However, such an analysis does not take indirect

dependencies (ripple-effect) into account, and hence

may not return the complete set of IT systems

actually affected by the service shutdown.

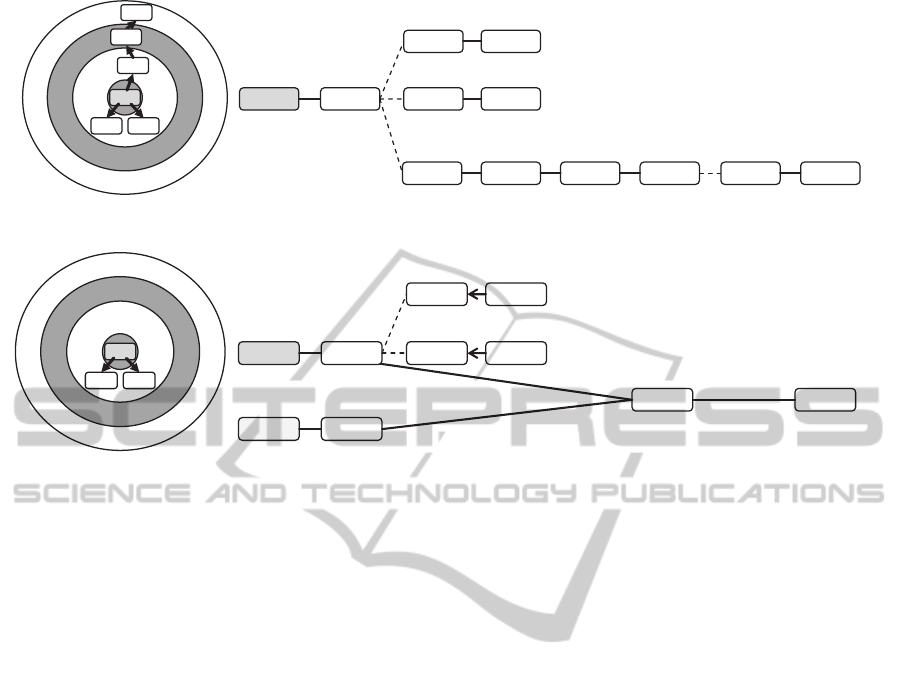

The impact graph depicted in Fig. 5a, in turn,

shows these indirect dependencies. In particular, it

visualizes each indirection level as a separate circle.

Furthermore, all contracts valid at a future point in

time are taken into account as well. Regarding the

scenario from Fig. 5a, for example, all contracts that

will still be valid in 6 months (from now on) are

considered. Note that the depicted charts can be

automatically generated based on the available SOA

repository data.

When creating the chart from Fig. 5a, the

dependencies depicted in Fig. 5b have been retrieved

from the SOA repository: In addition to systems

Sys1, Sys2 and Sys4, whose dependency on SI0 can

be directly derived from contracts Con1, Con2 and

Con4, there exists an indirect dependency of Sys5 on

SI0. More precisely, IT system Sys4 offers service

installation SI4 (cf. Fig. 5b), which is the sole

implementation of the technical service version

TSV4. Furthermore, the latter is consumed by Sys5

(according to contract Con5). Consequently, the

shutdown of SI0 in 6 months might affect the four IT

systems Sys1, Sys2, Sys2 and Sys4. Note that this

information can be used as a basis for discussing the

intended shutdown with all persons responsible for

the respective IT systems. Thus, the consequences of

the service shutdown can be predicted and the

required adaptations of the concerned IT systems be

performed in advance. For example, the effort

caused by these adaptations might be higher than the

actual operating costs of SI0. Then, extending the

operation period of SI0 should be taken into account

by decision makers.

The next candidate date for the shutdown of SI0

will be in 10 months from today. Note that at this

date, contract Con4 will end and Sys4 will no longer

be affected by the service shutdown (cf. Fig. 4). The

same applies to IT system Sys5 since its dependency

on SI0 only indirectly exists via Sys4. This 10-month

scenario is reflected by the impact graph depicted in

Fig. 6, i.e., only two instead of four IT systems are

affected by the shutdown of SI0.

Fig. 6b further shows that in 10 months there will

be another service installation SI0' corresponding to

the new technical service version TSV0'. In

particular, the latter belongs to the same business

service version BSV0 as TSV0. Probably, there will

be a high similarity between the two technical

service versions. Hence, it might be an option to

migrate the remaining contracts Con1 and Con2 to

TSV0' and SI0' respectively. Due to the similarity of

the two service installations SI0 and SI0', the

technical realization of this change might require

only little effort. Maybe it can even be realized

without need to change the IT systems itself (e.g., by

adapting the proxy (ESB) used for the service call

(cf. (Buchwald et. al., 2011); (Buchwald, 2012)).

The date ‘10 months from today’ might already

be the optimal date for the shutdown of SI0. In order

to verify this, further shutdown candidate dates (i.e.,

in 17 months and 24 months, respectively; cf. Fig. 4)

should be analyzed in the same way.

In general, the presented what-if-analyses allow

assisting SOA governance boards in making the

right decisions, e.g., on whether a service shutdown

shall be realized rather soon (resulting in lower

operating costs) or, whether it makes sense from a

business perspective to wait until a certain date

hasInstallation

Contract

Sys1b

SI1

Service TechnicalServiceVersion ServiceInstallSystem

has‐

Techn‐

ServiceVers‐

Consumer

Con1a TSV1

Con1b

Con1c

Technical‐

Service‐

Version

Sys1c

Sys1a

has‐

Contract

Serv3

Serv2

TSV3

TSV2

has‐

Provider

isTechnical‐

ServiceVersion

Contract

Con3a

Con3b

Con2

hasTechn‐

ServiceVersConsumer

…

Con1

SystemContract

Sys1

Con2

Sys2

Con3

Sys3

Con4

Sys4

Time

today 6months 10months 17months 24months

ASOARepositorywithAdvancedAnalysisCapabilities-ImprovingtheMaintenanceandFlexibilityofService-Oriented

Applications

245

Figure 5: a) Impact graph and b) Dependencies from SI0 in 6 months.

Figure 6: a) Impact graph and b) Dependencies from SI0 in 10 months.

(resulting in lower migration costs). For further

scenarios utilizing what-if-analyses we refer

interested readers to (Tiedeken, 2010).

5 DISCUSSION

Except our previous work (Buchwald et. al., 2010;

Buchwald, 2012; Tiedeken, 2010), we are not aware

of more advanced approaches dealing with the

design of a SOA repository as described in this

paper. The same applies to the presented as-is-

analyses and what-if-analyses based on SOA

repository data. When taking a broader view on the

general topic, however, few related approaches can

be identified.

(Xiao et. al., 2007) address changes of business

processes in the context of a SOA. In addition, the

propagation of changes to dependent artifacts (i.e.,

ripple-effect) is considered. When a change of a

business process must be performed, for example, it

is first determined which concomitant changes of

dependent business processes become necessary. In

turn, this analysis is based on a classification of

process change types (e.g., inserting an activity) as

well as their effects. Furthermore, cascading service

invocations are analyzed in order to be able to

identify the services indirectly affected by the

original change as well. The approach suggested by

(Xiao et. al., 2007), however, does not include the

calculation of such dependent objects (e.g., based on

SOA repository data as in our approach). Instead, it

focuses on the estimation of the costs created by the

necessary adaptations of program source code.

(Wang et. al., 2010) presents a classification of

both process and service changes. The ripple-effect

is considered as well. When a specific process

change shall be applied, for dependent services, it is

determined which kind of service changes are

concomitantly required. In turn, the latter might

necessitate changes of the business processes

consuming these services. Altogether, the focus of

this approach is on evolving business processes in a

SOA and the analysis of respective process and

service structures. Data offered by a SOA repository

is not taken into account for these analyses.

There exist several standards as well as

commercial products for realizing SOA repositories.

In the following, we presented selected ones. In

addition to the functions they offer, we discuss to

what extend they may serve as basis for realizing the

presented meta-model as well as the described

analyses.

UDDI (OASIS, 2002) is a directory service

standardized by OASIS, which especially allows for

look-ups of service endpoints. However, its

underlying meta-model is very limited and does not

allow for any extensions (i.e., new object or

relationship types cannot be defined). However,

user-defined categories can be created (tModel) and

may then be used to assign services to categories.

Except few predefined queries, no analyses are

provided.

a) Contract

Sys2SI0

Service‐

Install

Technical‐

Service‐

Version

Service‐

Install

System

hasTechn‐

ServiceVers‐

Consumer

has

Installation

Con1

TSV0 Con2

Con4

Techn ical‐

Service‐

Version

Sys4

Sys1

hasContract

SI4 TSV4

provides‐

ServiceInstall

Contract

Con5

hasTechn‐

ServiceVers‐‐

Consumer

Sys5

has‐

Contract

hasInstallation

System

SI0

Sys2 Sys1

Sys4

Sys5



SI4

b) Contract

Sys2SI0

Service

Tech nica l‐

Service‐

Version

Service‐

Install

System

hasTechnService‐

VersConsumer

Con1

TSV0 Con2

Business‐

Service‐

Version

Sys1

hasContract

hasInstallation



SI0' TSV0'

Serv0

isTechnical‐

ServiceVersion

hasTechnService‐

VersImplementation

BSV0

SI0

Sys2 Sys1

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

246

ebXML defines standards for exchanging

business data. It includes the ebRIM (Registry

Information Model) as defined in (OASIS, 2005).

The corresponding meta-model, however, only

allows for the storage of the technical perspective.

The business perspective of service objects and

contracts, in turn, is not covered by this standard.

The same limitations exist in respect to analyses

capabilities.

USDL (Oberle et. al., 2012) is an emerging

standard published by W3C. Its goal is to

comprehensively describe services including the

business perspective; i.e., in addition to technical

meta-data of the services, operative as well as

economic data are covered (e.g. availability and

pricing). As-is- and what-if-analyses are not

considered.

IBM offers the commercial SOA repository

WSRR, which includes a “Basic Governance

Profile” (Sachdeva, 2007). In particular, the latter

allows storing both technical and business objects.

The business perspective, however, is very limited

compared to our SOA repository approach. More

precisely, a (business) description may be defined

for services, but not a business specification of their

operations (including parameters). However, WSRR

is extendible regarding its object and relationship

types. Consequently, WSRR could be used as a basis

for realizing our meta-model. Regarding the

presented analyses, however, WSRR offers only

limited support (e.g., visualizing dependencies).

However, user-defined analyses may be added as

extensions.

CentraSite Active SOA (Rogers, 2006), a

product offered by Software AG, looks similar in

respect to the object types, extensions and analyses it

offers. However, the latter only allow for

interactively visualizing repository objects and their

dependencies.

Oracle Enterprise Repository (Oracle, 2008) as

well as HP SOA Systinet (Hewlett-Packard, 2010)

are based on UDDI. Both allow storing additional

object types compared to the ones defined by the

UDDI standard. This allows managing business

objects as well as contracts. In addition, the

visualization of dependency charts as well as some

limited analyses are supported.

The ARIS repository (IDS, 2008) enables the

storage of SOA artifacts as well. Since it maintains

the database of a business process modeling tool,

there exist significant differences compared to the

products mentioned above. In particular, ARIS

repository focuses on the business instead of the

technical perspective. For example, it is not possible

to use the ARIS repository during a service call (i.e.,

at run-time) for a service endpoint look-up. As an

advantage, large numbers of object and relationship

types (cf. ARIS models), which belong to the

business perspective, may be stored. Furthermore,

ARIS supports repository analyses with restricted

functionality. Similar to other products, they may be

extended by additionally implemented analyses (see

Buchwald (2012) for some examples of extensions).

Altogether, no standard or product is equipped

with a meta-model that completely covers the object

and relationship types presented in this paper.

Instead existing approaches focus either on the

technical or the business perspective solely.

Regarding as-is-analyses, existing products only

provide a very limited functionality, whereas what-

if-analyses are not covered by them at all. Since the

meta-model and the analyses algorithms of existing

commercial products may be extended, however, it

is possible to use these products as basis for

implementing of concepts and techniques presented

in this paper.

6 SUMMARY AND OUTLOOK

We presented a comprehensive meta-model for a

SOA repository enabling various analyses. As-is-

analyses check whether any problem occurs when

considering the current repository data (e.g., contract

of a service with missing service installation). In

turn, what-if-analyses allow simulating the

consequences of future changes. In this context, the

propagation of problems (ripple-effect) is considered

as well. Overall, our approach significantly enhances

existing SOA repository standards and products.

In principle, the extensibility features provided

by certain SOA tools, allow realizing the presented

concepts. Ourselves, we have validated our meta-

model as well as the related analyses by

implementing a powerful proof-of-concept prototype

based on a relational database system (Tiedeken,

2010).

So far, we have neither implemented the entire

meta-model nor the analysis algorithms based on

any commercial SOA repository. If such an

implementation was available, our approach would

be validated in a real-world case study. Finally, SOA

repository data as well as related analyses should be

integrated into SOA governance processes.

ASOARepositorywithAdvancedAnalysisCapabilities-ImprovingtheMaintenanceandFlexibilityofService-Oriented

Applications

247

REFERENCES

Abrial, J.R., 1974. Data Semantics. In Proc. IFIP Working

Conf. Data Base Management, pp. 1-60.

Bauer, T., Buchwald, S., Reichert, M., 2013. Improving

the Quality and Cost-Effectiveness of Process-

Oriented, Service-Driven Applications: Techniques for

Enriching Business Process Models. In Ramanathan,

R., Raja, K., (eds). Service-Driven Approaches to

Architecture and Enterprise Integration. Information

Science Reference, Hershey, 104-134.

Buchwald, S., 2012. Increasing Consistency and Flexibili-

ty of Process-oriented Applications by Service-orien-

tation. PhD thesis. University of Ulm (in German).

Buchwald, S., Bauer, T., Reichert, M., 2011. Flexible

Process Applications in Service-oriented Architectures

- An Overview. EMISA Forum, 31(3) (in German).

Buchwald, S., Bauer, T., Reichert, M., 2012. Bridging the

Gap Between Business Process Models and Service

Composition Specifications. In Lee, J., Ma, S.-P., Liu,

A., (eds). Service Life Cycle Tools and Technologies:

Methods, Trends, and Advances. IGI Global, Hershey.

Buchwald, S., Tiedeken, J., Bauer, T., Reichert, M., 2010.

Requirements of a Meta-model for SOA Repositories.

In Proc. 2nd Central-European Workshop on Services

and their Composition, 17-24 (in German).

Erl, T., 2005. Service-Oriented Architecture – Concepts,

Technology, and Design. Prentice Hall.

Hewlett-Packard Development Company, 2010. HP SOA

Systinet Software Data Sheet.

IDS Scheer, 2008. ARIS SOA Architect: Business Pro-

cesses as the Basis for Service-Oriented Architectures.

Josuttis, N., 2007. SOA in Practice - The Art of

Distributed System Design. O’Reilly.

OASIS, 2002. Universal Description, Discovery, and

Integration (UDDI). Version 3.0.

OASIS, 2005. ebXML Registry Information Model.

Version 3.0.

Oberle, D., Barros, A., Kylau, U., Heinzl, S., 2013. A

unified description language for human to automated

services. Information Systems, 38 (1), 155–181.

Oracle, 2008. Oracle Enterprise Repository and Oracle

Service Registry for the SOA-Lifecycle. Oracle Data

Sheet.

Rogers, S., 2006. CentraSite: An Integrated SOA Registry

and Repository. White Paper, Software AG.

Sachdeva, N., 2007. Customize the WebSphere Service

Registry and Repository Governance Profile. IBM

developerWorks.

Tiedeken, J., 2010: Concept and Realization of a Logically

Central SOA Repository. Master’s thesis. University

of Ulm (in German).

Wang, Y., Yang, J., Zhao, W., 2010. Change Impact

Analysis for Service based Business Processes. In

Proc. Int. Conf. on Service-Oriented Computing and

Applications, IEEE.

Xiao, H., Quo, J., Zou, Y, 2007. Supporting Change

Impact Analysis for Service Oriented Business

Applications. In Proc. Int. ICSE Workshop on Systems

Development in SOA Environments, IEEE.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

248
