Robust Human Detection using Bag-of-Words and Segmentation
Yuta Tani and Kazuhiro Hotta
Meijo University, 1-501 Shiogamaguchi, Tenpaku, Nagoya, 468-0051, Japan
Keywords: Human Detection, Bag-of-Words, Pose Variation, Occlusion, GrabCut and Color Names.
Abstract: It is reported that Bag-of-Words (BoW) is effective to detect humans with large pose changes and
occlusions in still images. BoW can make consistent representation even if a human has pose changes and
occlusions. However, the conventional method represents all information within a bounding box as positive
data. Since the bounding box is the rectangle including a human, background region is also included in
BoW representation. The background region affects BoW representation and the detection accuracy
decreases. Thus, in this paper, we propose to segment the region by GrabCut or Color Names, and the
influence of background is reduced and we can obtain BoW histogram from only human region. By the
comparison with the deformable part model (DPM) and conventional method using BoW, the effectiveness
of our method is demonstrated.
1 INTRODUCTION
In recent years, people deal with a large number of
images as spread of digital cameras and cell phones
with a camera. Therefore, it is desired that
computers recognize the semantic contents of
images automatically. In general, there are many
pictures in which humans are doing actions. Thus,
for image understanding, recognition of action in
still images is important. It is reported that the usage
of both the foreground and background regions is
effective for object recognition in still images
(Russakovsky et al., 2012). For action recognition in
still images, the detection of human with actions is
required to represent foreground and background
independently.
Human with actions in real images often has
large pose changes and occlusions. In the case, the
detection is difficult even if we use Deformable
Parts Model (DPM) (Felzenszwalb et al., 2010). In
the conventional method (Tani and Hotta, 2014),
BoW representation is used to cope with large pose
changes and occlusions, and it gave superior
accuracy to DPM. However, the conventional
method represents all information within a bounding
box as positive data. Some bounding boxes are
shown with red rectangle in Figure 1, which also
include background region. In addition, the
background area is large when human raises his
hand or opens his leg. Thus, the conventional
method is influenced by background region.
Figure 1: Top row shows positive training images. The red
rectangle is the bounding box. It also includes background
region. Bottom row is the segmentation results using the
GrabCut. If we represent only the segmented human by
BoW, the bad influence by background is reduced and the
accuracy will be improved further.
Furthermore, in the test step of the method, the test
image is divided into grid, and the combination of
the divided regions is represented by BoW. The
background region also affects the detection result.
In this paper, we use only human region
segmented by GrabCut (Rother et al., 2004) as
positive training data in order to reduce influence of
background. GrabCut does not segment a human
region perfectly but it gives good segmentation
result as shown in Figure 1. We see that background
is removed well. For negative training data, we crop
the regions randomly from the outside of the
bounding box and represent the region by BoW. We
train the SVM using those positive and negative data.
504
Tani Y. and Hotta K..
Robust Human Detection using Bag-of-Words and Segmentation.
DOI: 10.5220/0005354705040509
In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 504-509
ISBN: 978-989-758-090-1
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
However, GrabCut requires the bounding box
including a human. In the training phase, we have a
bounding box but we cannot use the bounding box in
test phase. Thus, we use the Color Names (Weijer
and Schmid, 2007) instead of GrabCut. First, we
convert RGB image into Color Names image. If the
adjacent pixels are classified as the same color, we
put the same label on the region. We can represent
various combination of the labeled regions by BoW
histogram, and we feed them into SVM. We detect a
human as the combination of labeled regions with
the maximum score. The details are described in
Section 2.
In experiments, we use the Stanford 40 dataset
(Yao et al., 2011). The dataset contains images in
which people appear with large pose changes and
occlusions. In evaluation, the accuracy is measured
by the average overlapping rate of the area between
the detected region and the ground truth attached to
test images. As the baseline, we evaluate DPM. It
achieves 28.42% while our method achieves 52.07%.
The method without segmentation by GrabCut or
Color Names achieves 48.45%. These results
demonstrate that our method is effective for human
detection with partial occlusion and pose changes.
This paper is constructed as follows. Our human
detection method is explained in Section 2. The
experimental results using the Stanford 40 dataset
are shown in Section 3. Comparison with DPM and
the conventional method is also shown. Finally,
conclusion and future work are described in Section
4.
2 DETECTION USING BAG-OF-
WORDS OF SEGMENTED
REGIONS
In the conventional method (Tani and Hotta, 2014),
BoW representation is used to cope with large pose
changes and occlusions. A codebook is made by k-
means of RootSIFT (Arandjelovi'c and Zisserman,
2012). The method was superior to the DPM.
However, the conventional method represented all
information within the bounding box by BoW. Thus,
the conventional method was influenced by
background region. Furthermore, in the test step, the
image is divided into grid and the combination of
grid is represented by BoW. Thus, the background
region also affects the detection result.
In this paper, GrabCut is used to segment a
human in training. In test phase, we segment the
region using the Color Names, and the combination

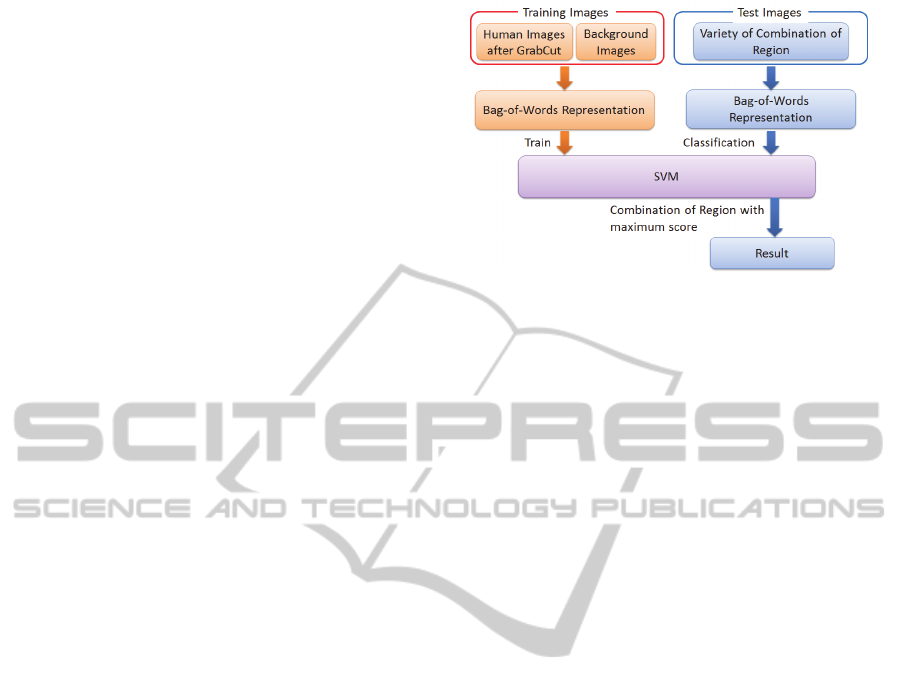

Figure 2: Overview of the proposed method.
of segmented regions is fed into SVM. By using
only the segmented region without background, the
accuracy is improved.
An overview of our detection method using BoW
of segmented regions is shown in Figure 2. As
described previously, we use the GrabCut result for
the bounding box as the positive training data. The
negative samples are generated by cropping the
region randomly except for human regions. We train
the SVM using BoW of those positive and negative
samples.
In the test phase, the bounding box is unavailable.
Thus, we use Color Names instead of GrabCut. We
segment the region based on Color Names, and BoW
histograms of various combination of the segmented
regions are computed. We feed them into the SVM,
and the combination of region with the maximum
output is used as the detection result.
2.1 Bag-of-Words Representation
We use a standard BoW representation. A codebook
is made by k-means of RootSIFT similar to the
conventional method. In general, the location
information of local features is helpful in object
categorization (Lazebnik et al., 2006). However,
when a human has occlusions or pose changes, it
makes the feature vector inconsistent. Thus, we use
the standard BoW representation to cope with such
cases.
In the experiments, in order to be independent of
the image size, we extract RootSIFT features with
grid spacing of 2% and patch size of 1%, 3% and
5% for the smaller width or height of each image.
The number of visual words is set as 1000. These
parameters are the same as the conventional method
(Tani and Hotta, 2014). For fair comparison, we use
the same parameters. We train a SVM with a
Hellinger kernel (Vedaldi and Zisserman, 2010). By
using linear SVM after taking root of elements in a
RobustHumanDetectionusingBag-of-WordsandSegmentation
505
BoW histogram, the nonlinearity can be used
without increasing the computation time.

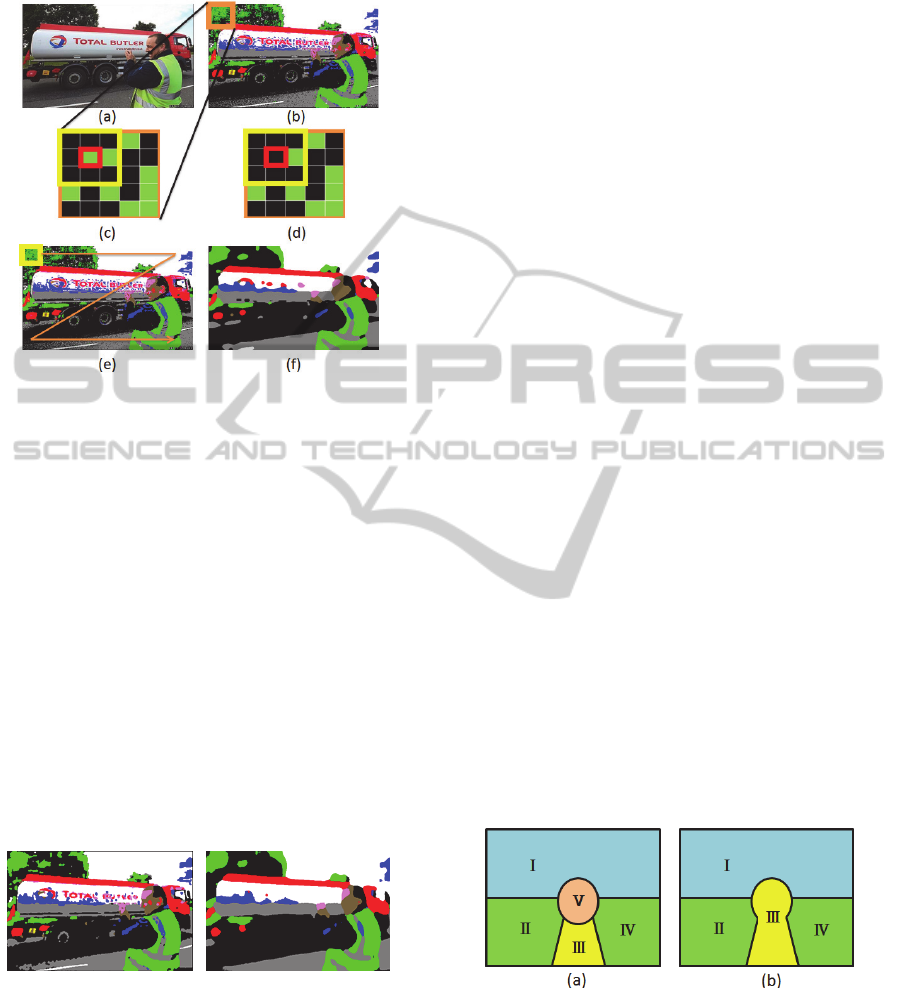

Figure 3: The details of filtering. We convert input image
(a) into Color Names (b). (c) is the enlarged region of
orange rectangle region in (b). We pay attention to local
3×3 region shown as yellow, and the center pixel shown as
red is replaced by the most frequent Color Name in the
3×3 region as (d). We carry out this process to all pixels in
the image shown in (e). The result after applying some
filters is shown in (f).
2.2 Segmentation using GrabCut
It is reported that GrabCut gave good segmentation
result (Gavves et al., 2013). Furthermore, it can
segment the region from the bounding box without
human interaction. Since the Stanford 40 dataset
used in experiments contains the bounding box
including a human, we segment human region by
GrabCut from the bounding box. Some segmentation
results are shown in Figure 1. Segmentation result is
not perfect but GrabCut segments human region
roughly.
Figure 4: Left image is the result by applying a 3×3 filter
ten times. Applying the small filter many times does not
decrease the number of regions much. Right image is the
result by applying a 21×21 filter once. The large filter
loses the fine edge. For example, sky and the window of
the truck become together.
2.3 Segmentation using Color Names
Since the bounding box is unavailable in test phase,
we cannot use GrabCut. Thus we use the Color
Names instead of using GrabCut in order to segment
regions. Since the 11 basic colors are fixed in Color
Names, it is suited to rough segmentation. First, we
convert RGB (Figure 3 (a)) image into Color Names
(Figure 3 (b)) and divide the image into regions
based on the label assigned by Color Names. If the
adjacent pixels has the same color, the same label is
attached to the region. However, when the number
of regions is large, the number of combination
becomes huge and the computational cost is also
high. Thus, we apply a filter to reduce the number of
regions and the computation time. Here we pay
attention to 3×3 region as shown in Figure 3 (c), and
the center pixel is replaced by the most frequent
Color Name in the 3×3 region as shown in Figure 3
(b). This process is carried out for all pixels in the
image as shown in Figure 3 (e).
If a small filter is applied to the image many
times, the number of region does not decrease as
shown in Figure 4. If a large filter is used, the fine
edges are lost. To avoid those cases, we apply the
filters while changing the filter size as 3×3, 5×5, 7×7,
9×9, 11×11 pixels. The result after applying these
filters is shown in Figure 3 (f). By applying the filter
with different sizes, we can decrease the number of
region while maintaining fine edges.
Next, we reduce the number of regions further.
In order to simplify the description, we treat the
image of Figure 5 (a) as the result after applying
filters. We search the smallest region (the V region
shown in (a)) and the region is merged to the
smallest adjacent region of V in the image. In the
example, the region is III, and III and V are merged.
We search the smallest region again and the same
process is repeated till the number of regions
becomes threshold or less. In the experiment, we set
the threshold value as 20.
Figure 5: We search the smallest region in (a). In this
example, it is V. The region is merged to the smallest
adjacent region III as shown in (b).
2.4 Detection Method
As described previously, in the test step, we segment
the region using Color Names. After that, we
compute the score of all combinations of the labeled
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
506
regions. In the case of Figure 5, all combinations are
shown in Figure 6 (a). The non-adjacent
combinations such as [II, IV] are not used. We
represent all combinations by BoW. For example, in
the case of combination [I, IV], the shaded region
shown in Figure 6 (b) is represented by BoW. We
feed those representations into SVM. Finally, we
detect the combined region with the maximum score
as a human.
3 EXPERIMENTAL RESULTS
In the experiments, we use the Stanford 40 dataset
(Yao et al., 2011). The dataset is originally made for
action recognition in still images and contains 40
daily human actions. The bounding boxes including
a human are already given, and we use them for
training and evaluating the detection results.
For training, we made positive images by using
GrabCut from training images and made negative
images by randomly cropping the regions except for
the bounding box. Consequently, the training set
consists of 3,136 positive and 15,703 negative
images. We represent them by BoW and train SVM
by LIBLINEAR (Fan et al, 2008).

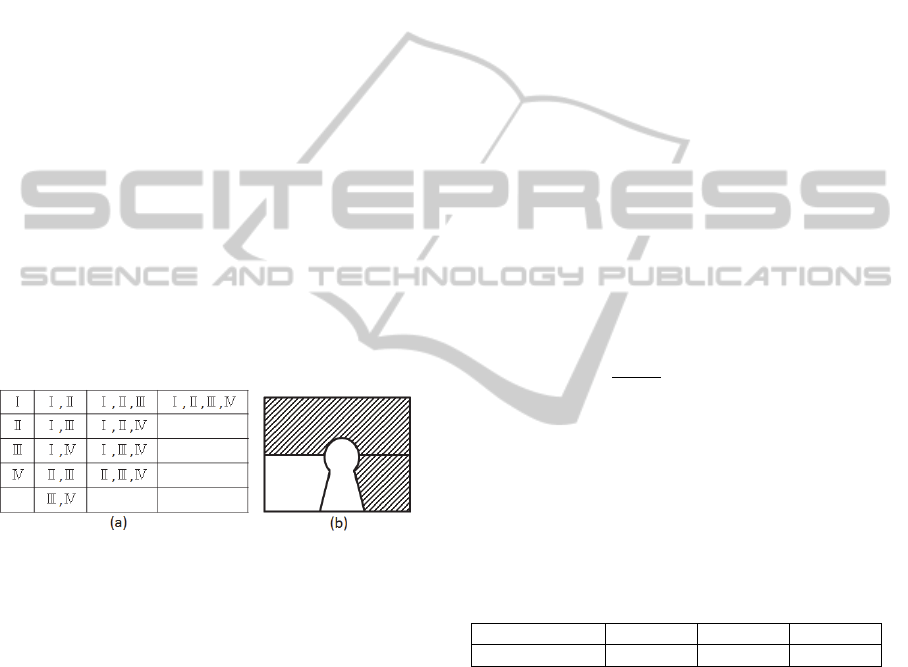

Figure 6: We compute the score of all combinations of the
labeled regions. In the case of Figure 5, all combinations
are shown in (a). We do not use the non-adjacent
combination such as [II, IV]. We represent all
combinations by BoW. For example, in the case of
combination [I, IV], the shaded region shown in (b) is
represented by BoW, and we compute the SVM score. The
combination of region with the maximum score is detected
as a human.
We use 4,345 test images from the Stanford 40
dataset. Test images also include humans with
various poses and occlusions.
The proposed method is compared with DPM
and the conventional method using BoW (Tani and
Hotta, 2014). We explain each method.
(A) Deformable Part Model:
As the baseline method, we detect humans by
DPM. The available annotation on the Stanford 40
dataset is only the bounding boxes indicating a
human. Thus it is difficult to train the DPM using
only those annotations, and we use the available
source code with pre-trained model obtained from
(http://cs.brown.edu/~pff/latent-release4/). The
model is trained with the INRIA Person Dataset. Of
course, since the training samples are different from
our method, the direct comparison with DPM is
difficult but we show the result as a reference.
(B) Conventional method using BoW:
This method represents all information within
the bounding box by BoW. Thus the method is
influenced by background region contained in the
bounding box. Furthermore, in test step, the image is
divided into grid and the combination of divided
region is represented by BoW. The background
region also affects the detection result.
(C) Our proposed method:
Our method segments the region by GrabCut or
Color Names to reduce the influence of background.
We compute BoW histograms of the combination of
the segmented regions, and the BoW histograms are
fed into SVM. We detect the combination of the
segmented region with the maximum SVM score.
We evaluate the detection results by overlapping
rate R defined as
R=
∩
∪
× 100[%]
(1)
where T is the area of the ground truth and D is the
area of the detection result. The value of R increases
as the overlapping area of the T and D becomes
large. If they match perfectly, the overlapping rate
becomes 100%. Since we want to evaluate how
much detection result matches to the ground truth,
we use this evaluation measure.
Table 1: Average overlapping rate for each method.
(A) (B) (C)
Overlapping rate 28.42% 48.45% 52.07%
Table 1 shows the average overlapping rate for
test images in each method. The DPM (A) is inferior
to other two methods. By using BoW instead of
DPM, it becomes robust to partial occlusion and
pose changes. This result shows that BoW is
effective for detection tasks when the appearance of
a human is much different.
By the comparison with the methods (B), we see
that the proposed method (C) is better than the
conventional method (B). The accuracy
improvement is 3.62%. This result shows that the
background region influences BoW histograms and
the combination of segmented regions is effective
for improving the accuracy.
RobustHumanDetectionusingBag-of-WordsandSegmentation
507

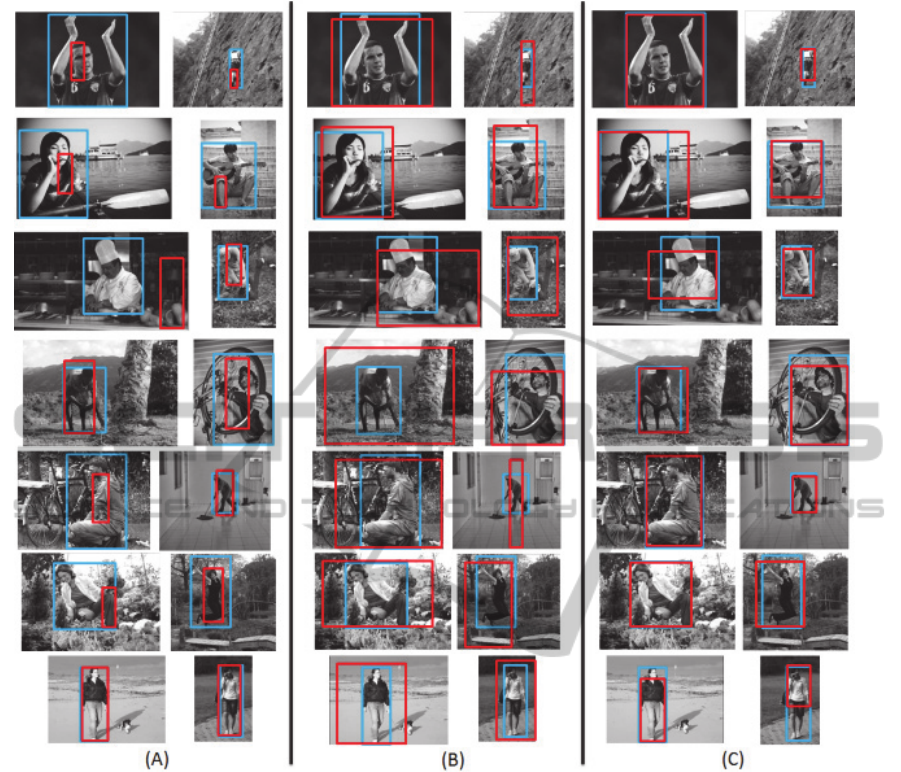

Figure 7: Comparison results. The blue rectangle is the ground truth and the red rectangle is the detection result.
Some detection results by each method are shown in
Figure 7. The blue rectangle shows the ground truth
and the red rectangle shows the detection result. We
see that the proposed method (C) can detect a human
correctly. In contrast, the DPM (A) gives poor result
for this dataset. One reason is that another dataset is
used for training. Since the INRIA Person Dataset is
made for the pedestrian detection, the resolution of
human image is low. Another reason is that DPM
cannot treat the large pose changes even if whole
body appears. This decreases the accuracy. However,
when human appears neither large pose changes nor
occlusions, DPM (A) can detect humans well.
The conventional method (B) represents all
information within the bounding box. Since the
background region within the bounding box is also
trained as positive data, the method (B) tends to
detect a human with large background. By using
segmentation, the background is reduced and the
proposed method (C) can detect human with higher
accuracy
4 CONCLUSION AND FUTURE
WORK
In this paper, we proposed the method for
detecting a human using Bag-of-Words of the
combination of regions segmented by Color Names.
BoW is robust to partial occlusions and pose
changes. Furthermore, we can reduce the influence
of background region by combining the segmented
regions. This improves the detection accuracy.
In the proposed method, merging the smallest
region with adjacent region in test phase is forcible
way. If we use another segmentation method, the
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
508
detection accuracy may be improved. It is worth
trying to use the SLIC which gives a good
segmentation quality (Achanta et al., 2010). This is a
subject for future work.
ACKNOWLEDGEMENTS
This work was partially supported by KAKENHI
Grant Number 24700178.
REFERENCES
Russakovsky, O., Lin, Y., Yu, K. and Fei-Fei, L., 2012.
Object-centric spatial pooling for image classification,
European Conference on Computer Vision.
Felzenszwalb, P., Girshick, R., McAllester, D., Ramanan,
D., 2010. Object Detection with Discriminatively
Trained Part Based Models, IEEE Transactions on
Pattern Analysis and Machine Intelligence, Vol. 32,
No. 9, Sep.
Csurka, G., Dance, C., Fan, L., Willamowski, J. and Bray,
C., 2004. Visual Categorization with Bags of
Keypoints, Proc. of ECCV Workshop on Statistical
Learning in Computer Vision, pp. 59–74.
Arandjelovi’c, R. and Zisserman, A., 2012. Three things
everyone should know to improve object retrieval, In
IEEE Conference on Computer Vision and Pattern
Recognition, pp. 2911-2918.
Discriminatively trained deformable part models.
http://cs.brown.edu/~pff/latent-release4/
Lazebnik, S., Schmid, C. and Ponce, J., 2006. Beyond
Bags of Features: Spatial Pyramid Matching for
Recognizing Natural Scene Categories, In IEEE
Conference on Computer Vision and Pattern
Recognition, pp. 2169-2178.
Fan, R., Chang, K., Hsieh, C., Wang, X. and Lin, C. 2008.
LIBLINEAR: A library for large linear classification,
Journal of Machine Learning Research 9, pp. 1871-
1874.
Yao, B., Jiang, X., Khosla, A., Lin, A.L., Guibas, L.J. and
Fei-Fei, L., 2011. Human Action Recognition by
Learning Bases of Action Attributes and Parts,
Internation Conference on Computer Vision.
INRIA Person Dataset http://pascal.inrialpes.fr/
data/human/
Vedaldi, A. and Zisserman, A., 2010. Efficient Additive
Kernels via Explicit Feature Maps, In IEEE
Conference on Computer Vision and Pattern
Recognition, Vol. 34, No. 3, pp. 480-492.
Tani, Y. and Hotta, K., 2014. Robust Human Detection to
Pose and Occlusion Using Bag-of-Words,
International Conference on Pattern Recognition, pp.
4376-4381.
Rother, C., Kolmogorov, V., and Blake, A., 2004.
GrabCut: Interactive foreground extraction using
iterated graph cuts, The ACM Special Interest Group
on Computer Graphics, Vol. 23, pp. 309-314.
Achanta, R., Shaji, A., Smith, K., Lucchi, A., Fua, P., and.
Susstrunk, S. 2010. SLIC superpixels, Technical
report, EPFL.
Weijer J., Schmid C., 2007, Applying Color Names to
Image Description, In IEEE Conference on Computer
Vision and Pattern Recognition, Vol. 3, pp. 493-496.
Gavves E., Fernando B., Snoek C.G.M., Smeulders
A.W.M., and Tuytelaars T, 2013, Fine-Grained
Categorization by Alignments, In IEEE International
Conference on Computer Vision.
RobustHumanDetectionusingBag-of-WordsandSegmentation
509
