System of Localisation of the Network Activity Source in APCS Data
Lines
D. M. Mikhaylov, S. D. Fesenko, Y. Y. Shumilov, A. V. Zuykov,
A. S. Filimontsev and A. M. Tolstaya
National Research Nuclear University “MEPhI” (Moscow Engineering Physics Institute),
Kashirskoe shosse 31, Moscow, Russian Federation
Keywords: Communication Technologies, Wired Data Transmission, Management Information Systems, Information
Security of Lines.
Abstract: Automated control system (ACS) is a complex engineering system covering virtually all spheres of
industrial production support. The rapid advent of ACS leads to a fast growth of threats aimed at obtaining
control over such systems. ACS intrusion may lead to privacy violation, equipment malfunction, loss of
time in business processes and even endanger people`s life. This paper proposes a hardware-software
complex ‘Shield’ ensuring comprehensive information security of automated control systems, mainly
focusing on its hardware part. The system providing localisation of the network activity source in ACS data
lines is described as well as its operational principle and main specifications. As the paper deals with the
hardware-software complex, efficiency comparison of ‘Shield’ software part with the nearest analogues is
presented. The hardware design of ‘Shield’ is now on the final stage, so the testing results of its
performance effectiveness are not provided in this paper.
1 INTRODUCTION
Today automated control systems (ACS) are widely
present in all fields of technology. An automated
control system is a complex of hardware and
software for controlling various processes within the
technological process and manufacturing of
enterprises. ACS is used in various branches of
industry, energy, transport, etc. Such systems are
generally used to control dispersed assets using
centralised data acquisition and supervisory control.
Modern automation technologies save time and
labour costs and reduce risks and costs of
production. These control systems are vital for
critical infrastructures operation. (Stouffer 2013,
Ibrahimkadic 2011)
The increasing relevance of such systems brings
along the problem of an increasing number of
malicious agents whose main task is to obtain
unauthorised access to information or management
control of the infrastructure. The result of such
exposure to harmful agents is generally the violation
of privacy, equipment troubles and malfunction or
time loss in business processes. Many scientific
papers, for example (Stouffer 2013, Peng Jie 2011,
Cotroneo 2013, Mikhaylov 2013a, Zhukov 2014),
were devoted to the problems of ACS
vulnerabilities.
ACS vulnerabilities are largely because their
software part is often installed on standard personal
computers based on Windows and UNIX operating
systems, which can be attacked by malicious
software. Moreover, open cabling that is used to
control automation systems allows connection to
management systems by ‘tapping’ into the data
transmission line. At the same time the interest of
attackers in such systems is growing because of the
possibility of obtaining valuable, often sensitive,
data and control of vital systems (video surveillance,
access control systems, etc.). This condition gives
rise to various kinds of cyber-terrorism and
information sabotage from DDoS-attacks (Denial of
Service) to complex viruses such as Stuxnet, which
can incapacitate the entire infrastructure (Zhukov
2014, Mikhaylov 2013a).
By getting an unauthorised access to the ACS, an
attacker can easily derail a train, crash a plane
explode a nuclear plant, leave a town without
245
M. Mikhaylov D., D. Fesenko S., Y. Shumilov Y., V. Zuykov A., S. Filimontsev A. and M. Tolstaya A..
System of Localisation of the Network Activity Source in APCS Data Lines.
DOI: 10.5220/0005332202450251
In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 245-251
ISBN: 978-989-758-097-0
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
electricity etc. (Mikhaylov 2014)
Given the attention paid to counter-terrorism
issues by leading countries, careful monitoring of
critical facilities (plants, nuclear power plants), as
well as public places (shopping malls, airports, etc.)
should be maintained in view of possible
cybercrimes: cessation of vital critical systems,
disabling alarm systems, power outages, etc. It is
also important to note that we are talking about life-
support systems, and about people’s lives. Thus,
perhaps for the first time in human history, there is a
situation when a computer attack could, in fact, pose
a direct threat to human life.
Based on the description above, it can be
concluded that today automated control systems
need special protection from illegal actions by
attackers. There is a need for tools to prevent
intrusions into the system. In case the intrusion has
already happened there is a need for rapid detection
tools to identify the ‘weak spots’ and respond to the
threat. Therefore, this paper describes the system
‘Shield’ which localise the source of network
activity data in ACS lines.
2 RELATED RESEARCH
Recently there was a high activity among developers
of ACS protection tools (Melin 2013, Mantere
2012). For example, Stoian et al. propose protection
techniques that can reduce the number of attacks on
critical SCADA systems for water management
(Stoian 2014). Spyridopoulos and his team describe
the implementation of viable system model
principles and game theory for a novel systemic
approach towards cyber security management in
Industrial Control Systems, taking into account
complex inter-dependencies and providing cost-
efficient defence solutions (Spyridopoulos 2014).
Oates (2013) describes practical extensions of safety
critical engineering processes for securing ICS.
One of the leading software companies in the
field of ACS protection is Positive Technologies.
Their main products are: MaxPatrol and XSpider.
MaxPatrol is a software product for security and
compliance control for SCADA-systems. The
program allows performing behavioural security
analysis and forecast based on the analysis of the
system’s vulnerabilities. (MAXPATROL 2014)
XSpider is a similar product designed to audit
information systems’ security. It also works with the
upper level of ACS (SCADA). The main difference
is the mechanism of automatic generation of
recommendations to strengthen control at the facility
and, in particular, to optimise the policy of building
information systems. (XSpider 2014)
In fact, Positive Technologies products are
designed for network security audit of the facility at
the top level of ACS.
Another major player in the market of
information system security is JSC ‘NTC
Stankoinformzaschita’. This company has developed
a program called Scanner ‘SCADA-auditor’ (2014).
This product is also only suitable for the analysis of
the overall structure of SCADA-systems and
obtaining interim conclusions about the need for
protective measures.
The above solutions are software solutions and
they are not always able to provide comprehensive
ACS protection from attacks. Software anti-virus
systems cannot solve the problem of the full
protection of automated building systems due to lack
of the hardware component of the complex. Thus, it
can be argued that the existing anti-virus software
does not completely protect the system and is not
intended for ACS. It is confirmed by the results of
tests conducted in the course of theoretical work on
the project (see ‘Testing and applications’). At the
same time, the transfer of the functions implemented
to hardware significantly improves the reliability of
tools for ensuring security of automation systems.
Therefore, a solution that would implement a
comprehensive hardware and software protection of
ACS is required. In this regard, we will now
consider some of the patented device.
There is a device for detecting electromagnetic
radiation by means of a resistive bolometer, and
further forming an image using a matrix of such
devices. This device comprises a resistive imaging
bolometer sensitive to electromagnetic radiation, and
is designed to be electrically connected to the signal
conditioning circuit (Vilain 2008).
The disadvantage of this device is the low
accuracy of the radiation source detection and the
point of connection, respectively, as well as the low
flexibility of systems on their basis. It does not allow
the diagnosis of the range of possible electrical
faults in data transmission lines.
The Induction-type linear position detector
device has the closest technical nature to the
proposed useful model. This device contains a set of
inductance sensors sensitive to electromagnetic
radiation to be detected, and is designed to be
electrically connected to the signal conditioning
circuit. (Goto 2000)
The disadvantage of this device is the low
accuracy of determining the location of the radiation
source and, correspondingly, the point of
ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems
246
connection. Another disadvantage is that it is
impossible to use for the control of the structure of
data transmitted in transmission lines.
Given these shortcomings of existing solutions,
this paper presents a system for determining the
location of the signal source with a given accuracy
without the suspension of activities of investigated
sites of the wired communication networks. This
solution will take into account the shortcomings of
the above-described devices for the protection of
ACS and significantly improve the overall security
of the system against the intrusion of third parties.
This paper consciously does not consider the
software component of the ‘Shield’ system, as this
issue was the subject of many articles, for example,
Mikhaylov (2013a), Mikhaylov (2013b),
Starikovskiy (2012) and Beltov (2012).
We will consider development of the ‘Shield’
hardware component for the protection of ACS
system from external and internal attacks.
3 SYSTEM TO LOCALISE THE
SOURCE OF NETWORK
ACTIVITY
The technical result of the developed system aims to
provide a device for determining the location where
foreign devices are introduced into the protected
automatic process control system (APCS) data
networks of the controlled facility or building (ACS
comprises APCS). The high-precision determination
of the place where malicious data is received into the
network is achieved without exposing the existing
system of data transmission to changes and thereby
without stopping the processes in the protected
object even at the time of installation and adjustment
of the protection system.

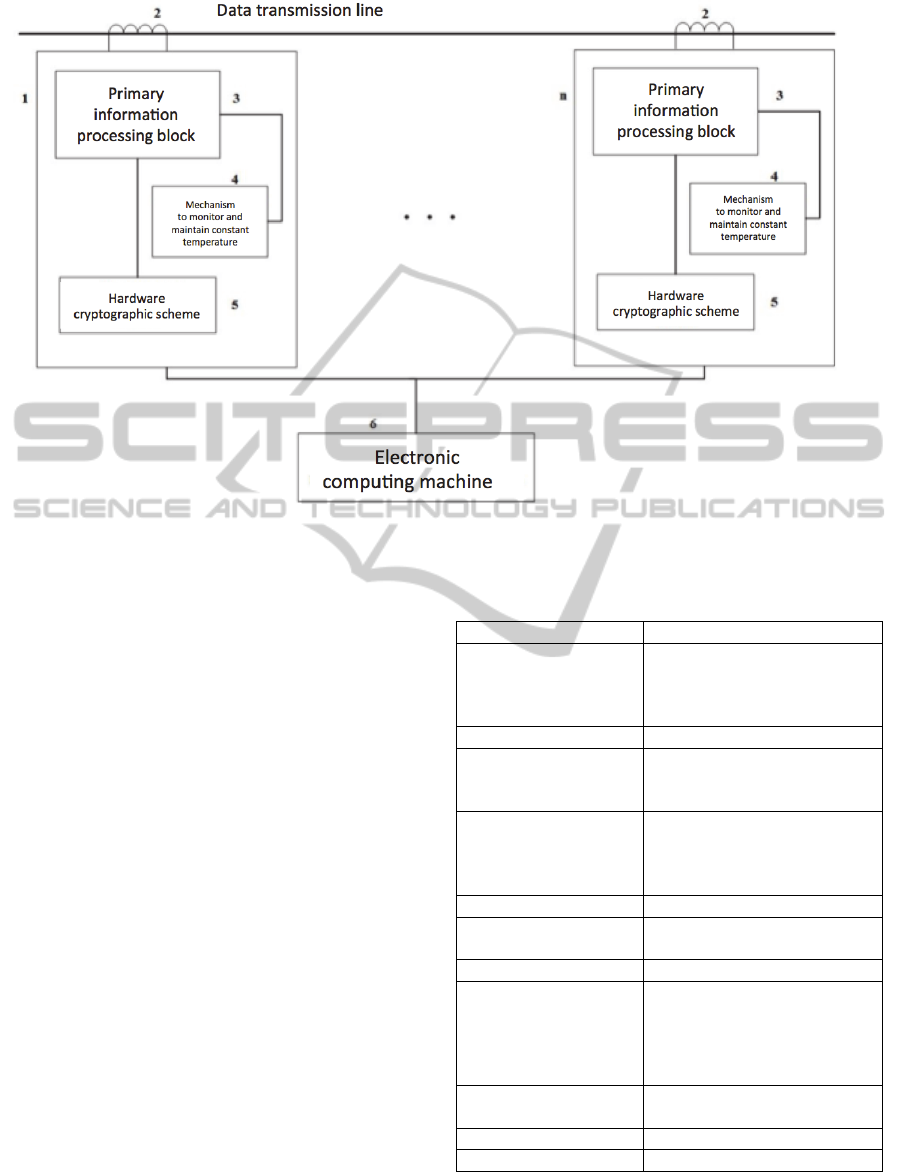

A mechanism to monitor and maintain constant
temperature, as well as a hardware cryptographic
scheme is introduced into the system of localising
the source of network activity in APCS data lines.
The APCS also contains a signal distortion sensor,
which is coupled to the primary unit of information
processing, and an electronic computer. Each of the
elements is connected to the primary information
processing unit, together with the signal distortion
sensor from a combined unit for network activity
monitoring. The number of units in the system can
be from 1 to n, and each of them is connected to an
electronic computer.
The new qualitative result is that the effects of
the temperature factor in the system for localisation
of the network activity source in the ACS data lines
are reduced due to the mechanism of control and
maintenance of constant temperature. The
mechanism is introduced into the unit of primary
information processing to ensure the continued
accuracy of inductance, since the signal distortion
sensors can affect temperature instability. Also the
cryptographic scheme, introduced in the hardware,
can increase the security of data transmitted through
the creation of a secure data transmission channel
aimed to prevent access to this data by unauthorised
people.
An example of specific implementation of the
proposed device in a general form is shown in
Figure 1. The system consists of a unit of network
activity monitoring (1) consisting of a signal
distortion sensor (2), which is connected to the unit
for primary data processing (3), which in turn is
connected to a mechanism to monitor and maintain
constant temperature (4). There is also the hardware
cryptographic scheme (5) and an electronic
computer (PC) (6). The number of units of network
activity monitoring the system to localise the source
of network activity in APCS data lines varies from 1
to n.
The proposed device operates as follows. The
system to localise the source of network activity in
APCS data lines contains a set of blocks for network
activity monitoring. These blocks are installed
directly on the data lines, which are connected to a
central analysing device. That device is an electronic
computing machine of general or specialised
performance. The central analysing device is
connected to the blocks that are monitoring network
activity in communication lines, via a wired
connection. Controlled data network of the facility is
completely covered by a system of blocks, which are
installed on the transmission line without disturbing
its work.
The signal from the data line is read by the signal
distortion sensor and is passed to the block of
primary information processing, which is equipped
with a mechanism to monitor and maintain constant
temperature. The mechanism is introduced in order
to reduce the effect of temperature on the results of
measurements of noise distortion. Then, passing
through the primary information processing unit, the
data is converted into analogue form which is
encrypted by means of the hardware cryptographic
scheme. Next, the data is transmitted to the
computer for comparison with data from other
blocks of network activity monitoring.
The operational principle of the system is as
follows. The contemplated configurations are
SystemofLocalisationoftheNetworkActivitySourceinAPCSDataLines
247
Figure 1: The system to localise the source of network activity ‘Shield’.
detectors of electromagnetic radiation, which is
spread as a result of change of the electric current
flowing along the cable for data transmission. The
central analysing device compares data from
sensors, located on the respective parts of the
protected network in wired channels, and based on
that comparison it decides the source of the signals.
Thus, the device enables detection of the malicious
signal’s source.
Specification of the hardware device is shown in
Table 1.
The device described in the paper performs the
following functions to provide protection against
unauthorised access:
check of the electrical characteristics of the
data transmission channel, protection against
hidden data leakage;
protection against destructive packages and
malformed data, which can lead to faulty
operation of the device;
overload protection and protection against
DDoS-attacks;
verification of addresses of sending devices
and performing devices, protection against
undocumented devices, protection against
unauthorised commands to devices;
control of the transmitted data, detection of
tampering, unauthorised data addition and
blocking data along all its way;
Table 1: Specifications of the system to localise the source
of network activity in APCS data lines.
Hardware platform x86/64
Form factor 19” cross-panel,
3U / 4U,
6 / 8 4HP slots,
6U motherboard
Operating system ОС Linux / Windows
Data exchange with
external devices
2 x USB 3.0,
VGA / DVI,
2 х 1-Gbit Ethernet
Data exchange with
automation systems
Changes due to expansion
cards with Ethernet / RS-485
/ RS-232 / CAN / analogue
inputs
Internal data exchange CompactPCI
RW memory 4 - 32 Gb
DDR3 DRAM
Onboard memory SATA SSD 2,5” 120 ГБ
Security elements HSTLM, hardware watchdog
timer, tamper switch,
hardware peripherals control
module, hardware monitoring
module Trusted Platform
Power 400 - 750 W,
3.3V, 5V, 12V DC
Operating temperature -20..+80 С
Cooling system Built-in air cooling
protection against prohibited commands,
protection against packages that are initially
banned (for example, to turn off important
ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems
248
nodes);
monitoring the integrity of the system, the
presence of all the documented system control
devices, accuracy of their work and the validity
of data sending and receiving.
It is notable that this solution supports rapid
adaptation to a variety of industrial protocols and
allows the provision of comprehensive protection for
the distributed network of automated facilities.
4 TESTING AND APPLICATIONS
The ‘Shield’ system was tested in a small factory on
the territory of the National Research Nuclear
University at the Moscow Engineering Physics
Institute. The efficiency of the software part of
‘Shield’ was compared with respective parameters
of MaxPatrol and SCADA-auditor. The results of
testing the software component are shown in Table 2
(UA stands for unauthorised access; UF stands for
undocumented features).
Table 2 shows that the ‘Shield’ device has a
broader scope of program features, as compared
with its closest peers. It is notable that the hardware
design of ‘Shield’ is now on the final stage, so the
results of its tests are not provided in this paper.
However, the authors suggest that the system will
show high efficiency and stability in the definition
of undue interference in ACS’s critical
infrastructure.
The localisation system for the network activity
source in APCS data lines, described in the paper,
can be used in various industries:
The transport sector: protection of automation
and engineering systems of public and freight
transport (airports, railway and bus stations,
subways, ports, warehouses, storage and
sorting facilities, etc.).
Oil and gas industry: protection of automated
transport nodes such as oil and gas pipelines, as
well as their associated communication
channels, the main gas compressor stations,
meter stations of raw materials, etc. Protection
of systems accounting final consumption at
filling stations.
Power systems: protection of automation and
metering systems for power generation plants –
telemetry complexes, automation of
technological processes on hydropower,
thermal power, nuclear power plants, wind
farms, etc., based on the use of industrial data
communication protocols.
Production: protection of automated production
systems.
Table 2: Comparison table for ACS software protection.
Parameter ‘Shield’ MaxPatrol SCADA-auditor
Hardware and software implementation Hardware and
software
Software (scaner) Software (scaner)
Prominent features for protection of industrial
controllers and actuators
+ - -
Prominent features of specialised protocols + - +
UA detection in proprietary protocols + - -
UF detection at the signal level + - -
Integrated safety and security (the ability to integrate
with the system of access control; locations
monitoring)
+ - -
Protection against malicious software + + +
Audition of security and integrity of ACS
infrastructure
+ + +
The ability to protect each individual device or
group of devices
+ - -
Detection of underground intrusions Upon request - -
Number of UA/UF detection algorithms 83 N/A N/A
Backup secure wireless data transmission channel to
the server
+ - -
Security analysis of architecture in accordance with
the model of facility threats
+ - -
Inspection of data exchange protocols + - -
Validation of hardware and software versions in
order to detect vulnerabilities in the database
+ + +
SystemofLocalisationoftheNetworkActivitySourceinAPCSDataLines
249
5 CONCLUSIONS
The detection system for signal sources with a given
accuracy without the suspension of activities studied
areas of wired communication networks, as
presented in this paper, will reliably protect the
automated control systems from illegal intrusion by
third parties. It will improve the reliability of such
systems in terms of protection against unauthorised
actions by a third party and internal intruder or
malicious software and hardware.
The system is in its final stage of development.
Soon, the authors are planning to go for testing and
further improvement of the existing functionality.
All tests of the hardware-software complex ‘Shield’
are performed in the enterprises of the National
Research Nuclear University MEPhI (Moscow
Engineering Physics Institute).
In the future the functionality of the system will
be expanded: the unit housing the primary
information processing of the localisation system is
to be covered with a layer of radiation-resistant
material as an additional option. This will reduce the
influence of the exposure to ionising radiation on the
results of monitoring. The layer of radiation-resistant
material applied to the surface of the housing unit
for primary data processing will ensure that the unit
is functional in high background radiation
conditions.
Also, the authors plan to develop four solutions
from existing design, which will focus on a specific
type of facility and protected systems:
to protect the automation systems of ‘smart
homes’ and some engineering systems
(heating, air conditioning, multimedia control,
fire alarm);
to protect major smart facilities with automated
control systems and a variety of engineering
systems: underground, business centers,
stadiums, filling stations, etc.;
to protect industrial sites with complex
automated control systems of technological
processes: oil and gas, railways, electric and
nuclear facilities, etc. .;
hardware and software security scanners that
can be used to monitor major smart objects and
industrial facilities.
The provided in a paper study can be used to
improve existing ACS security means, eliminating
the vulnerabilities and ensuring more detailed
protection from attackers.
Moreover, this study can be taken in account
during creation and update of the regulations
governing in the field of automated systems`
security.
REFERENCES
Stouffer, K., Falco, J., and Scarfone, K., 2013. ‘Guide to
Industrial Control Systems (ICS) Security’. NIST
Special Publication 800-82. Revision 1. National
Institute of Standards and Technology, May 2013.
Ibrahimkadic, S., Kreso, S., 2011. ‘Characteristics of
modern industrial control systems’. Proceedings of the
34th International Convention MIPRO. Pages: 845-
849.
Peng Jie, Liu Li., 2011. ‘Industrial Control System
Security’. International Conference on Intelligent
Human-Machine Systems and Cybernetics (IHMSC),
Vol. 2, 2011. Pages: 156-158.
Cotroneo, D., Pecchia, A., Russo, S., 2013. ‘Towards
secure monitoring and control systems: Diversify!’
43rd Annual IEEE/IFIP International Conference on
Dependable Systems and Networks (DSN). Pages: 1-2.
Mikhaylov, D., Zhukov, I., Starikovskiy, A., Zuykov, A.,
Tolstaya, A., Fomin, M., 2013a. ‘Method and System
for Protection of Automated Control Systems for
“Smart Buildings”’. International Journal of
Computer Network and Information Security Vol. 5,
No. 9, July 2013. Рages: 1-8.
Zhukov, I., Mikhailov, D., and Sheremet, I., 2014.
Protection of automated systems against information
technology exposure. Moscow, NRNU MEPhI. 184
pages: illustrated ISBN 978-5-7262-1980-6.
Mikhaylov, D., Zhukov, I., Starikovskiy, A., Zuykov, A.,
Tolstaya, A., Fesenko, S., Sivkov, S., 2013b.
‘Hardware-software complex ensuing information
security of automated building management systems’.
International Journal of Application or Innovation in
Engineering & Management, Vol. 2, Issue 3, March
2013. Рages: 408-412.
Mikhaylov, D., Zhukov, I., Sheremet I.Protecting
information systems from information and technical
influence. Moscow, NRNU MEPhI, 2014. 184 pages.
Melin, A. M., Ferragut, E. M., Laska, J. A., Fugate, D. L.,
Kisner, R., 2013. ‘A mathematical framework for the
analysis of cyber-resilient control systems’. 6th
International Symposium on Resilient Control Systems
(ISRCS). Pages: 13-18.
Mantere, M., Sailio, M., Noponen, S., 2012. ‘Feature
Selection for Machine Learning Based Anomaly
Detection in Industrial Control System Networks’.
IEEE International Conference on Green Computing
and Communications (GreenCom). Pages: 771-774.
Stoian, I., Ignat, S., Capatina, D., Ghiran, O., 2014.
‘Security and intrusion detection on critical SCADA
systems for water management’. IEEE International
Conference on Automation, Quality and Testing,
Robotics. Pages: 1-6.
Spyridopoulos, T., Maraslis, K., Tryfonas, T., Oikonomou,
G., Shancang Li., 2014. ‘Managing cyber security
ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems
250
risks in industrial control systems with game theory
and viable system modelling’. 9th International
Conference on System of Systems Engineering (SOSE).
Pages: 266-271.
Oates, R., Foulkes, D., Herries, G., Banham, D., 2013.
‘Practical extensions of safety critical engineering
processes for securing industrial control systems’. 8th
IET International System Safety Conference
incorporating the Cyber Security Conference. Pages:
1-6.
MAXPATROL, 2014. Compliance and vulnerability
management system. Positive Technologies, London.
URL: http://www.ptsecurity.com/maxpatrol/kf/
MaxPatrol %20product%20leaflet_eng.pdf.
XSpider, 2014. Positive Technologies, Moscow. URL:
http://www.ptsecurity.ru/files/ XSpider_7.8.pdf.
Vulnerability Scanner ‘SCADA-auditor’ JSC ‘NTC
Stankoinformzaschita’, 2014. Moscow. URL:
http://cis-
forum.ru/assets/images/Prez/Polyansky_AV_Stankoin
formzachita.pdf.
Vilain, M., Dupont, B., 2008. ‘Device for detecting
electromagnetic radiation, comprising a resistive
imaging bolometer, system comprising an array of
such devices and a method for reading imaging
bolometer of such a system’. Patent RU No. 2486689,
10 Oct 2008.
Goto, A., Yuasa, Y., Tanaka, S., Akatsu, N., Sakamoto,
K., Sakamoto, H., Yamamoto, A., 2000. ‘Induction-
type linear position detector device’. Patent US
6034624 A, 7 Mar 2000.
Starikovskiy, A., Zhukov, I., Mikhaylov, D., Sheptunov,
A., Savchuk, A., Krimov, A., 2012. ‘Improving the
security of automation systems for buildings
management from cyber attacks’. Construction
equipment and communication, No. 4, July-August
2012, Moscow. Pages: 2-5.
Beltov, A., Novitsky, A., Konev, V., Fomin, M., Evseev,
V., Fesenko, S., 2012. ‘Analysis of vulnerabilities of
smart home automation technology’. Construction
equipment and communication No. 4, July-August
2012, Moscow. Pages: 15-19.
SystemofLocalisationoftheNetworkActivitySourceinAPCSDataLines
251
