An Efficient Image Registration Method based on Modified

NonLocal-Means

Application to Color Business Document Images

Louisa Kessi

1,2

, Frank Lebourgeois

1,2

and Christophe Garcia

1,2

Université de Lyon, CNRS, Lyon, France

INSA-Lyon, LIRIS, UMR5205, F-69621, Villeurbanne, France

Keywords: The Paper Business Documents, Document Image Analysis, NonLocal-Means, Image Registration.

Abstract: Most of business documents, in particular invoices, are composed of an existing color template and an

added filled-in text by the users. The direct layout analysis without separating the preprinted form from the

added text is difficult and not efficient. Previous works use both local features and global layout knowledge

to separate the pre-printed forms and the added text. Although for real applications, they are even exposed

to a great improvement. This paper presents the first pixel-based image registration of color business

documents based on the NonLocal-Means (NLM) method. We prove that the NLM, commonly used for

image denoising, can be also adapted to images registration at the pixel level. Our intuition tends to look for

a similar neighbourhood from the first image I1 into the second image I2 and provide both an exact image

registration with a precision at pixel level and noise removal. We show the feasibility of this approach on

several color images of various invoices and forms in real situation and its application to the layout analysis.

Applied on color documents, the proposed algorithm shows the benefits of the NLM in this context.

1 INTRODUCTION

Document image processing has received much

consideration in the last decade. Among various

applications, business document recognition (

Y. Tang

et al., 1995

) and forms processing (Casey et al.,

1992

),(Taylor et al., 1992), are becoming a process of

relevant interest, since forms processing systems

with high quality are greatly required in many

business organizations. Generally, a full automatic

reading system of incoming invoices recognizes first

the model of the document by detecting marks in the

pre-printed layout. Then it removes the pre-printed

form to send only added text to the OCR. Finally it

applies the document template to localise the zones

and to index textual information correctly. One

major problem that arises when acquiring business

documents like invoices is that the pre-printed form

is mixed with the added text. It is essential that the

pre-printed background must be removed before to

recognize the added text by an OCR. The separation

between the pre-printed form and added text is also

important to improve the efficiency of the layout

analysis. At the pixel level, the solution of this

problem is referred in the literature (

T.M. Haet al.,

1994

), as form registration (or alignment). Image

registration is the process of finding coordinate

transformations that spatially align two or more

digital images of the same scene taken at different

times, from different sensors, or from different

viewpoints. These transformations come from the

rotation, translation, scaling, even deformation

during images acquisition. In document image

registration, related points are those pixels from

duplicate content and the target is to find the

transformation which can map the duplicate content

to same position, making document recognition

(

H. Peng et al.,2003) and layout extraction more

reliable.

Over the years, a broad range of techniques have

been developed for the various types of data and

problems for many applications in computer vision

such as segmentation, object recognition, and shape

reconstruction (

Z.Yang et al., 1999),(Ballard et al.,

1981) and for medical applications (Aitken CL et al.,

2002

) such as tumor detection and disease

localization. Nevertheless, most of works concern

inexact registration which is not accurate at the pixel

level. Thus, rigid image registration at the pixel level

is an ill-posed yet challenging problem due to its

166

Kessi L., Lebourgeois F. and Garcia C..

An Efﬁcient Image Registration Method based on Modiﬁed NonLocal-Means - Application to Color Business Document Images.

DOI: 10.5220/0005315301660173

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 166-173

ISBN: 978-989-758-089-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

formulation as a continuous labelling problem.

Numerous applications in documents imaging

require exact image registration at the pixel level.

Thre are two main common examples. The

separation of the preprint forms from the added text

for business documents and the ink bleed through

removal with the registration of recto to the verso.In

the currently available document registration

algorithms, only global feature extraction (e.g., line

segments and layout knowledge) is sufficiently

accurate to lead to a successful alignment of

document image, although they are still subject to

great improvement for real applications,particularly

with the presence of the noise and the irregular

filled-in information on document page images. For

this reason, we propose the first image registration

approach suited for color document images .It is

based on the NonLocal-Means (NLM) algorithm

modified to separate the pre-printed forms from the

added text. The NLM method averages neighbouring

parts of the central pixel but the averaging weights

depend on the similarities between a small patch

around the pixel and the neighbouring patches

within a search window (Buades et al., 2005).Our

intuition leads to look for similar neighbourhood

from the first image I1into the second image I2and

provide both an exact image registration and noises

removal with a precision at pixel level. In addition,

our method is also applicable to align non rigid

images and tolerate spatial distortions. The impact of

the given contributions is evaluated visually and

quantitatively on digitized business document

database .Interesting results have been thus

achieved.

The rest of this paper is structured as follows:

Section 2 presents a brief review of related work.

Section 3 proposes a generalization of the NLM

function to cope with exact document registration at

pixel level precision. Results are discussed in

Section4.Finally, conclusions and some perspectives

are given in Section 5.

2 RELATED WORK

Form registration has become a hot research topic

for which several papers have bloomed into

publications. The majority of previous work related

to document image registration has been divided into

three categories.

Deskew-based Image Alignment:

Intensive

research work in the field of skew detection has

given birth to many methods. The majority of them

are designed to detect skew (rotation) angle for

improve the text recognition process. For instance,

(Garris et al., 1996) introduce a method for form

registration, based on the detection of linear features.

(Hinds et al.,

1990) proposed an algorithm that

permits to reduce the complexity of the Hough

transform by the selection of the run- lengths of

connected components rather than selecting the

Hough processing points. The method in (

Manjunath

et al., 2006

) considers some selected characters of the

text which are subjected to thinning and Hough

transform to estimate skew angle accurately.

The method in (Shivakumara et al., 2002) is based

on LRA. In this method, the boundary for each

character in the text line is fixed using boundary

growing approach. The method considers all black

pixels present in the document without segmenting

individual text lines. Linear regression analysis is

used to find the slope of a skewed document using

all pixel coordinate values. Despite its robustness,

this method fails when non-textual region is

encountered in the document. In (L.Najman,2004),

a method based on morphology is proposed, in

which the image is dilated using a line structuring

element of length 64 and later eroded by the same

structuring element of length 512. This method has

mean absolute error of 0.2 and mean square error of

0.25. Although robust, most of skew algorithms are

computationally very expensive and are not

appropriate to an exact image registration at pixel

level.

Feature based Image Alignment: The second

category of methods require matching local features.

In some practical applications, form processing is

simply based on the assumption that the information

contents are in fixed positions. For example,

(Cesarini et al., 1998) presented a form reader

system, INFORMys, which models the document’s

layout by used attributed relational graphs. The

method proposed in (Lopresti, 2000) recognized

characters by using an approximate string matching.

The authors in(Tseng and Chen, 1997) proposed a

form registration method based on three types of line

segments. Registered forms using a line crossing

relationship matrix is proposed in (Fan and Chang,

1998). In (Safari et al., 1997) the authors proposed a

method using a projective geometry method in order

to find coordinate transformation that map an input

document to the principal document. The method in

(Watanabe and Huang, 1997) introduced logical

structure to extract the layout of business cards.

Nevertheless, registration approaches based on

matching local features are sensitive to noise and

misdetection of local features.

AnEfficientImageRegistrationMethodbasedonModifiedNonLocal-Means-ApplicationtoColorBusinessDocument

Images

167

Mixed Feature and Layout based Image

Alignment: The third category combines both local

features and global layout information. For instance,

(Peng et al., 2000) proposed to integrate the local

and global document images features for image

matching based on the component block list (CBL).

The work in (Hu et al., 1999) suggested interval

code to describe the spatial layout of document

images. Compared to local feature matching,

methods of the third category often offer

comparatively better matching accuracy, although

for real applications, they are even exposed to a

great improvement. Our study consists of evaluating

the NLM algorithm as the first pixel-based image

registration method suited for color business

documents. The following section details this

proposition.

3 PROPOSED APPROACH:

NLM INTER-IMAGES FOR A

PIXEL-BASED IMAGE

REGISTRATION

In the following, we briefly present a description of

the NLM filter and then we detail the proposed

pixel-based image registration.

The NLM takes advantage on the redundancy

present in most images (Buades et al., 2005).

Document images may contain even more

redundancy than other forms of images. The NLM

filter treats the similarity of a block of neighbouring

pixels to the block centred on the pixel under

assessment s within a prescribed search region. For

the sake of clarity we assume it is a squared patch

whose size is provided in the following section.

A formula describing these filters looks like (1)











)()(

),(

),()(

)(

ixNjy

jiw

jiwjy

(1)

 

















)()(

exp),(



jyNixN

jiw

N(x(i)) is the centred neighbourhood of the pixel x(i)

and w(i,j) is the weight which measures the

similarity between the neighbourhood N(x(i)) and

N(y(j)). The input pixels are y(j), and the output

result is x(i).N is a window of a fixed size h×h

pixels. The parameter σ controls the effect of the

grey-level difference between the two

neighbourhoods. Thus, when the two

neighbourhoods are significantly different, the

weight is very small, implying that this neighbour do

not contribute in the averaging. Several works have

used the NLM approach for medical applications

(Coupé et al., 2007). Recent work has shown how

this method can be used for video denoising by

extending the very same technique to 3D

neighbourhoods (Buades et al., 2005). It is worth

noting, moreover that there is no previous work in

the literature for the application of the NLM to

at pixel level. The NLM was proposed intuitively in

(Buades et al., 2005), (Tomasi and Manduchi, 1998)

and thus it is natural to try to extend it to perform

document image alignment using a similar intuition.

Our intuition tends to look for a similar

neighbourhood from the first image I1into the

second image I2and provide both an exact image

registration with a precision at pixel level and noise

removal. Our expectations are reflected in the

following: (i) We desire a proximity between the

resulted images and the input images - this is the

classic likelihood term; and (ii) we would like each

patch in the image I2 to resemble other patches in

the image I1. However, we do not expect such a fit

for every pair, and thus we introduce weights to

designate which of these pairs are to behave alike.

In this paper the choice of weights depends on the

difference between the neighbourhood among image

I1 and image I2, which means that the proposed

NLM inter-images approach is a smoothing of the

image I2 by using weights calculated from the image

I1. Thus, our method provides both a pixel-based

alignment and a smoothing of the resulting

image I *.

















)(1)(2

),(

),(2

iINjI

jiw

jiwjI

(2)

























exp),(



jINiIN

jiw

N(I1(i)) and N(I2(j)) are respectively the neighbour-

hood of pixel i in the image I1 and pixel j in the

Image I2.  is used to control the amount of

filtering. Figure 1 shows the application of the NLM

inter-images between two images I1 and I2 and the

resulting image I*.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

168

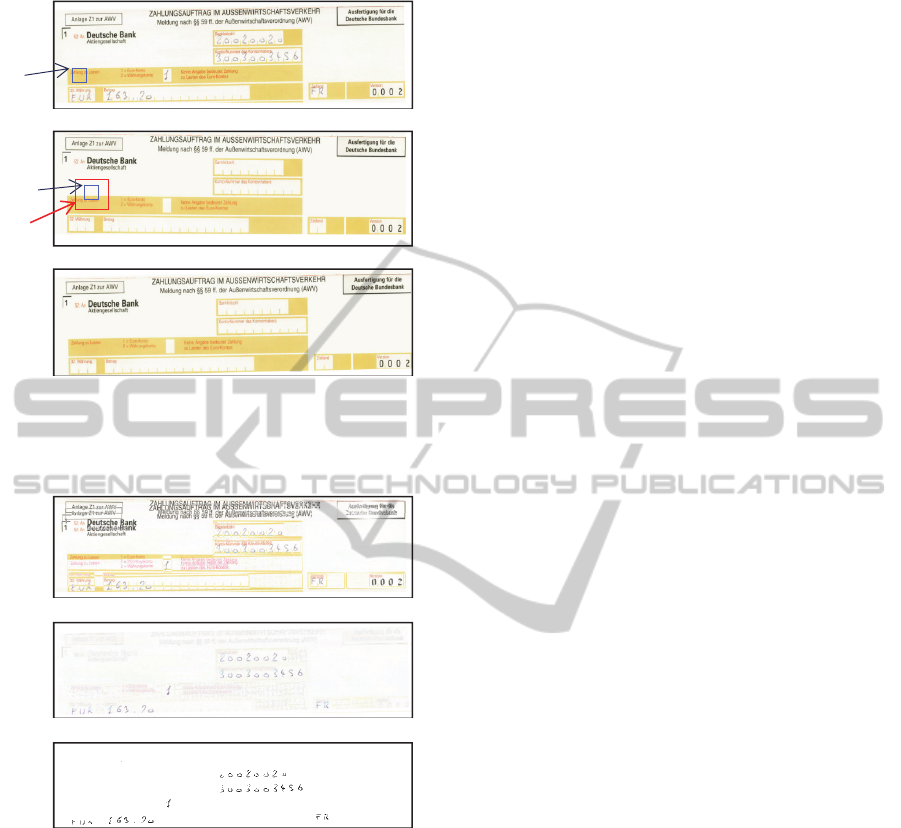

Figure 1: Main principle of the NLM inter-image which

both achieves a registration of I2 on I1 and smooth the

noise of the aligned model. The resulting image I* is the

template I2 aligned to the original I1(I*=I2 aligned on I1).

Figure 2: Difference between the subtraction of the

original image I1 and the template I2 and the original

image I1 and the aligned template I*.

The resulting image I

is a regularized model aligned

to the original image I1

which means that we can

apply a direct pixel by pixel subtraction between the

original I1 and the aligned model I*

Figure 2

compares the direct subtraction between I1and

I2withoutalignment and with the aligned image I

The binarized image I1-I

shows the perfect

registration between the aligned model I

and the

original input image I1.

4 APPLICATION TO COLOR

DOCUMENT IMAGES

REGISTRATION

The main advantage of the NLM inter-images

approach is its flexibility, allowing it to register

complex color document images. In this section, we

present the description of the proposed NLM inter-

images algorithm for aligning business document

images. For instance, we place the original image

Org into the image I1and the blank pre-printed form

corresponding to the model Mod of this invoice into

the image I2. The resulting image I

also named

Amod is the aligned model to the original input

image. Because of the nature of the shape of

characters, the skew angle between the original

image and the template must be reasonably small. If

the skew angle between the two images is large, the

characters of the pre-printed text may become

deformed. The pixel subtraction Org-Amod

generates a noisy colour image with some speckles

around character contours and along dithered parts

frequently used for invoices. Dithered zones appear

as small dots into the resulting image which must be

removed. The noise around contours of characters is

due to the digitization process or to the Jpeg

compression artefacts. A despeckle with a radius of

2 pixels is necessary to clean the resulting images

(L.Kessi et al., 2015). The result image Org-

Amod=TextAddedcolor is a color image which

must be binarized for a layout segmentation. We

take the infinite norm of each pixel which means the

maximum value of the red, green, blue channel to

create a new greyscale image TextAddedgray.

A global OTSU thresholding is applied to the image

TextAddedgray in order to extract the binary

characters of the added texts in the image

TextAddedbinary. The TextPreprintedbinary is

obtained by the binarization of the aligned model

image Amod. The Layout analysis is applied

separately on the binary images of the added text

and the pre-printed text. Algorithm 1 describes the

processing of the invoices.

Algorithm 1: Business document analysis with a model.

Org=input original image to split

Mod = input model image without skew

Org = deskew (Org)

Amod= Aligned Model Mod on the original image Org by

using Non Local Means inter images (2)

TextAddedcolor=abs(Amod-Org)

TextAddedgray=l



(TextAddedcolor)

TextAddedbinary= OTSUTresholding (TextAddedgray)

TextAddedbinary=Despeckle(TextAddedbinary)

TextPreprintedbinary=Binarization (Amod)

N(I1(i))

I1-I2

I1-I

binarized

I1-I

N(I2(j))

area

AnEfficientImageRegistrationMethodbasedonModifiedNonLocal-Means-ApplicationtoColorBusinessDocument

Images

169

TextPreprintedbinary=Despeckle (TextPreprintedbinary)

TextAddedLayout=LayoutAnalysis(TextAddedbinary)

TextPreprintedLayout=LayoutAnalysis(TextPreprintedbinary)

5 EXPERIMENTS AND

DISCUSSION

5.1 Global Performances

In this section, document image alignment using the

proposed the proposed NLM inter images approach

is carried out on a variety of forms and invoices

images. Results are evaluated visually. The NLM

inter-image has two parameters:  the standard

deviation of the Gaussian law and h the radius of

search windows to find the similar neighbourhood in

the second image. Parameter  is not critical and

depends on the resolution and the noise of the

images.

For 400 ppi images of invoices, with average

colour noise, we choose  =20. Corresponding to

this standard deviation, the size of the patches is

55. The search windows radius depends on the

maximum offsets among pairs of pixels between the

two images. Generally with h = 13, most of the

images are correctly registered if the two images

have been coarsely aligned in term of skew and

translation. This means that the maximum offset

between two pixels to register must be inferior to h.

The radius of the search windows must be increased

for larger translation or for larger spatial

deformation. Figure 3 shows the original image (a)

and its model (b). The split process results into two

binary images: the text added (c) and the preprint

text (d). The Layout of the pre-printed text in blue is

displayed in the same image (e) with the layout of

the added text in red.

Figure 4 shows some problems when added text

crosses the line of a pre-printed table. It is the main

drawback of the method. This error appears during

the alignment operation by the NLM inter-images.

Our approach can find frequently similar patches

along table lines into added text, especially if the

colours are similar.

All characters with a distance inferior to the

radius h to the lines of tables of frames, having

similar colours are detected in the aligned model.

The only solution consists to increase the radius of

the patch so that the border of tables cannot be

confused with a piece of the character. With patch

sizes of 77 or 99 the confusion between frames

and table lines with characters is reduced.

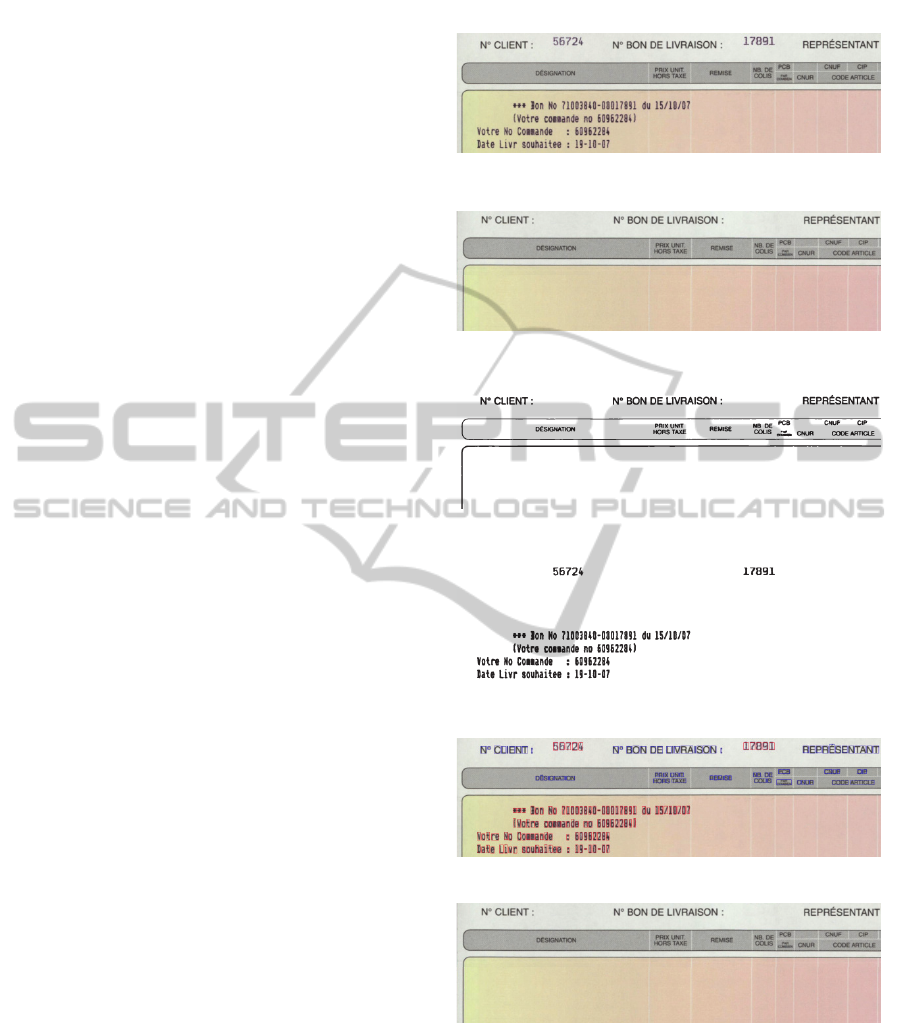

Figure 3: (a) The original image Org, (b) Model Image

Mod, (c) Text Added segmented TextAddedbinary, (d)

Segmentation of the Model Image TextPreprintedbinary,

(e) layout segmentation (in blue the Text in the printed

form, in red the added text), (f) the aligned model Am.

Figure 5 shows that our proposition can process

distorted documents as well if the spatial

deformation is under the radius h of the search

window.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

170

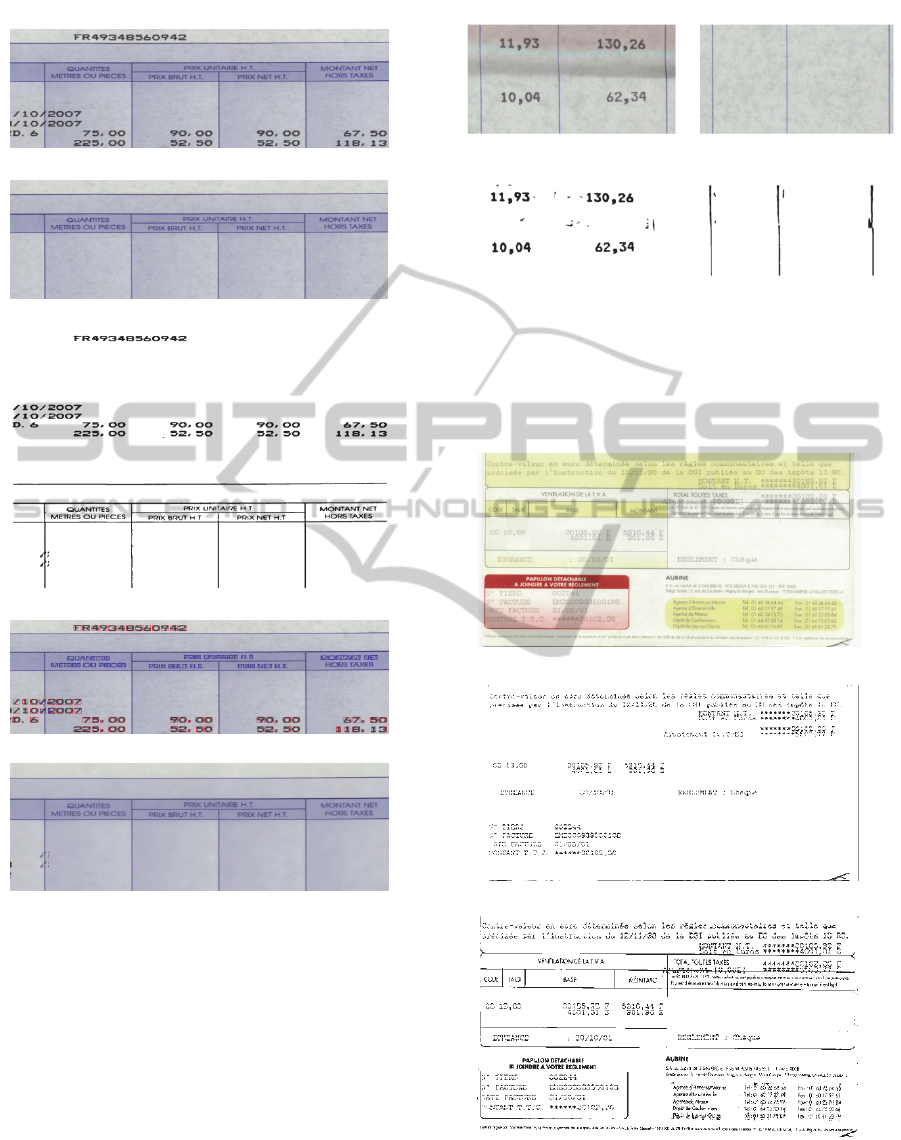

Figure 4: (a) The original image Org, (b) Model Image

Mod, (c) Text Added segmented TextAddedbinary, (d)

Segmentation of the Model Image TextPreprintedbinary,

(e) layout segmentation (in blue the Text in the printed

form, in red the added text), (f) the aligned model Amod.

Finally, the separation between the pre-printed forms

and added text simplifies the analysis of the layout,

especially when the added text is not aligned into the

pre-printed form. Without the separation between

the added text and the pre-printed form, the layout

analysis will be too complex (figure 6b). After the

separation between the pre-printed forms, the layout

of the added text can be more easily segmented

(figure 6c).

a) b)

c) d)

Figure 5: (a) Original image Org, (b) Model Image of the

Form Mod, (c) Text Added segmented

TextAddedbinary, (d) Segmentation of the Model Image

TextPreprintedbinary.

Figure 6: (a) The original image, (b) Binarization of the

original (c) the text Added after the separation from the

pre-printed form.

AnEfficientImageRegistrationMethodbasedonModifiedNonLocal-Means-ApplicationtoColorBusinessDocument

Images

171

5.2 Evaluation on the Database

We have tested the proposed system on 52 color

images of various invoices and forms in real

situation. Among 52 images we manually found 7

images with some problems when added text crosses

the line of a pre-printed table. Some parts of

characters can be confused with text line at the patch

level. In this case these parts may remain in the

template image. This is the main drawback of the

method. Most errors are justified by the quality of

the document itself where sometimes it can be bad.

We have achieved 86.7 % of correctly aligned

document images.

6 CONCLUSION AND

PERSPECTIVES

We have proposed the first pixel-based image

registration suited for color document images

approach. It is based on the NLM inter-images.

Our proposed approach can align non rigid images

with high accuracy and tolerate spatial distortions.

We have applied the proposed algorithm to the

registration of digitized business documents to their

template. We use this image alignment to separate

the pre-printed forms from the added text. The input

images must have a reduced skew and a small offset

in order to be perfectly aligned at pixel level,

otherwise, we have to increase the radius of the

search windows.

ACKNOWLEDGEMENT

This work is granted by ITESOFT for the project DOD.

REFERENCES

Y.Y. Tang, C.Y. Suen, C.D. Yan, and M. Cheriet,

“Financial Document Processing Based on Staff Line

and Description Language,” IEEE Trans. Systems,

Man, and Cybernetics, vol. 25, no. 5, pp. 738-753,

1995.

R. Casey, D. Ferguson, K. Mohiuddin, and E. Walach,

“Intelligent Forms Processing System,” Machine

Vision and Applications, vol. 5, no. 5, pp. 143-155,

1992.

S.L. Taylor, R. Fritzson, and J.A. Pastor, “Extraction of

Data From Preprinted Forms,” Machine Vision and

Applications, vol. 5, no. 5, pp. 211-222, 1992.

T.M. Ha and H. Bunke, “Model-Based Analysis and

Understanding of Check Forms,” Int’l J. Pattern

Recognition and Artificial Intelligence, vol. 8, no. 5,

pp. 1,053-1,081, 1994.

H. Peng, F. Long etc. "Document Image Recognition

Based on Template Matching of Component Block

Projections", IEEE Trans. on Pattern Analysis and

Machine Intelligence, 2003, 25(9):1188-1192.

Z. Yang, S. Cohen. ''Image registration and object

recognition using affine invariants and convex hulls'',

IEEE Trans Image Process. 1999;8(7):934-46. doi:

10.1109/83.772236.

D. H. Ballard, "Generalizing the Hough Transform to

Detect Arbitrary Shapes," Pattern Recognition, 13, No.

2, 1981, pp111-122.

Aitken CL, et al. "Tumor localization and image

registration of F-18 FDG coincidence detection scans

with computed tomographic scans". Clin Nucl Med.

2002 Apr; 27(4):275-82.

A. Rastogi and S. N. Srihari, "Recognizing textual blocks

in document images using the Hough transform," TR

86-01, Dept. of Computer Science, SUNY Buffalo,

NY, Jan 1986.

Garris, M.D., Grother, P.J, ''Generalized form registration

using structure-based techniques'', Proceedings of the

Fifth Annual Symposium on Document Analysis and

Information Retrieval, pp.321–334 (1996).

S. C. Hinds, J. L. Fisher and D. P. D'Amato, "A Document

Skew Detection Method Using Run-Length Encoding

and the Hough Transform," 10th International

Conference on Pattern Recognition, vol. 1, pp.464-

468, 1990.

F. Cesarini, M. Gori, S. Marinai, and G. Soda,

“INFORMys: A Flexible Invoice-Like Form-Reader

System,” IEEE Trans. Pattern Analysis and Machine

Intelligence, vol. 20, no. 7, pp. 710-745, July 1998.

D.P. Lopresti, “String Techniques for Detecting

Duplicates in Document Databases,” Int’l J. Document

Analysis and Recognition, vol. 2, no. 4, pp. 186-199,

2000.

L., Tseng, and R., Chen, "The recognition of form

documents based on three types of line segments,"

Proc of 4th Int Conf on Document Analysis and

Recognition, 1, pp.71-75, 1997.

K., Fan, and M., Chang, "Form document identification

using line structure based features," Proc of 14th Int

Conf on Pattern Recognition, 2, pp.1098-1100, 1998.

T., Watanabe, and X., Huang, "Automatic acquisition of

layout knowledge for understanding business cards,"

Proc of 4th Int Conf on Document Analysis and

Recognition, 1, pp.216-220, 1997.

R. Safari, N.N.et al, "Document registration using

projective geometry," IEEE Trans on Image

Processing, 6(9), pp.1337-1341, 1997.

H. Peng, F. Long, Z. Chi, D. Feng, and W. Siu,

“Document Image Matching Based on Component

Blocks,” Proc. Int’l Conf. Image Processing, pp. 601-

604, Sept. 2000.

J. Hu, R. Kashi, and G.Wilfong, “Document Image

Layout Comparison and Classification,” Proc. Sixth

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

172

Int’l Conf. Document Analysis and Recognition, pp.

285-288, 1999.

A. Buades, B. Coll, and J. M. Morel, “A review of image

denoising algorithms with a new one,” Multiscale

Model. Simul., vol. 4, pp. 490–530, 2005.

C. Tomasi and R. Manduchi, “Bilateral filtering for gray

and color images,” in Proc. IEEE Int.Conf. Computer

Vision’’, Jan. 1998, pp. 836–846.

P. Coupé , P. Yger, S. Prima , P. Hellier, C. Kervrann,

and C. Barillot ''An Optimized Block wise Non Local

Means Denoising Filter for 3D Magnetic Resonance

Images'', Transactions on Medical Imaging, (2007)

18.

A. Buades, B. Coll, and J. M. Morel, “Denoising image

sequences does not require motion estimation,” in

Proc. IEEE Conf. Advanced Video and Signal Based

Surveillance, Sep. 2005, pp. 70–74.

Manjunath Aradhya V N, et al.“Skew detection technique

for binary document images based on Hough

transform”, International Journal of Information

Technology, Vol. 3,

2006.

Shivakumara P. et al., “Skew detection in Binary

document image using Linear Regression Analysis”,

proc. Of National Conf. on Advanced Computer

Application NCAC-2002, Pollachi, India 2002, pp 41-

46.

Najman L., “Using mathematical morphology for

document skew estimation”, SPIE Document

Recognition and retrievals XI vol. 5296, 2004, pp 182-

191.

Kessi L., Le Bourgeois F.,Garcia C., Duong J. “AColDPS

: Robust and Unsupervised Automatic Color

Document Processing System”, VISAPP’15.

AnEfficientImageRegistrationMethodbasedonModifiedNonLocal-Means-ApplicationtoColorBusinessDocument

Images

173
