A Scratch-based Graphical Policy Editor for XACML

Henrik Nergaard, Nils Ulltveit-Moe and Terje Gjøsæter

Institute of Information and Communication Technology, University of Agder, Jon Lilletuns vei 9, 4879 Grimstad, Norway

Keywords:

Authorisation, XACML, Privacy, Editor, Smalltalk.

Abstract:

This paper proposes a policy-maker-friendly editor for the eXtensible Access Control Markup Language

(XACML) based on the programming language Scratch. Scratch is a blocks-based programming language

designed for teaching children programming, which allows users to build programs like a puzzle. We take

this concept one step further with an XACML policy editor based on the graphic programming elements of

Scratch implemented in Smalltalk. This allows for aiding the user on how to build policies by grouping blocks

and operators that ﬁt together and also indicating which blocks that will stick together. It simpliﬁes building

the XACML policies while still having an XACML "feel" of the graphic policies.

1 INTRODUCTION

The eXtensible Access Control Markup Language

(XACML) is a declarative access control policy lan-

guage, standardised by OASIS, that is implemented in

XML (Moses, 2005). The Standard deﬁnes a large set

of XML elements, is very verbose and has high ex-

pressive power, which creates a high usage threshold

for users that are not familiar with it or other XML

based languages. Writing these polices can be difﬁ-

cult, especially for larger policies when the complex-

ity increases, and user errors and typos can easily hap-

pen. XML lacks a user friendly representation, espe-

cially when the number of elements increases. Man-

ual reading and error correction of bigger XML ﬁles

can be a tedious and complicated task. The complex-

ity in writing and correcting XACML policies may be

some of the reason why simpler and less expressive

authorisation standards (e.g. OAuth, RBAC or simple

access control lists) may be preferred in practical im-

plementations, or even that users decide to roll their

own authorisation solution, with the possible security

risks this may cause.

When creating a policy based on XACML, the

creator has to have knowledge from both the stan-

dardisation of XACML as well as general XML be-

haviour. Problematic areas in XACML include the

length of XACML attributes, correct handling of long

URLs, and a vast amount of functions that must be

used correctly, which is not always trivial for users.

Without help from proper tools, creating large poli-

cies can involve tremendous work. Our solution is to

use a user-friendly editor that helps in creating these

XACML polices.

The rest of the article is organised as follows:

Section 2 covers general background and motivation.

Section 3 covers the design criteria and goals. In sec-

tion 4, we describe the implementation of the graph-

ical editor aimed at designing XACML policies. In

section 5, the beneﬁts and limitations of the proposed

editor is discussed. Section 6 contains a summary of

the article. Finally section 7 contains plans for future

work on the editor.

2 BACKGROUND AND

MOTIVATION

The policy editor for XACML policies is imple-

mented based on the Scratch programming environ-

ment (Malan and Leitner, 2007; Resnick et al., 2009),

on the Pharo Smalltalk engine(Bera and Denker,

2013). It aims at providing a policy-maker-friendly

policy description language for designing XACML

authorisation policies.It is also a design objective that

it in the future shall be able to design XACML-

based anonymisation policies for XML documents

(Ulltveit-Moe and Oleshchuk, 2015; Ulltveit-Moe

and Oleshchuk, 2012). Scratch is a programming lan-

guage for children created by the Lifelong Kinder-

garten research group at Massachusetts Institute of

Technology’s Media LAB (Resnick et al., 2009),

182

Nergaard H., Ulltveit-Moe N. and Gjøsæter T..

A Scratch-based Graphical Policy Editor for XACML.

DOI: 10.5220/0005240101820190

In Proceedings of the 1st International Conference on Information Systems Security and Privacy (ICISSP-2015), pages 182-190

ISBN: 978-989-758-081-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

<PolicySet xmlns="&xacml;policy"

xmlns:xsi="http://www.w3.org/2001/ XMLSchema -instance"

xmlns:xs="http://www.w3.org/2001/XMLSchema"

xmlns:gml="http://www.opengis.net/gml"

xsi:schemaLocation="&xacml;policy cs-xacml-schema-policy -01.xsd"

PolicySetId="MyPolicySet"

PolicyCombiningAlgId="&xacml;policy-combining -algorithm:deny -overrides">

<Policy PolicyId="SamplePolicy"

RuleCombiningAlgId="&xacml;rule -combining -algorithm:permit-overrides">

<AttributeValue DataType="&xs;#string">SampleServer </AttributeValue>

<ResourceAttributeDesignator DataType="&xs;#string"

AttributeId="&xacml;resource:resource -id" />

</ResourceMatch>

</Resource >

</Resources >

</Target>

<AttributeValue DataType="&xs;#string">login</AttributeValue>

<ActionAttributeDesignator DataType="&xs;#string"

AttributeId="&xacml;action:action-id" />

</ActionMatch >

</Action>

</Actions >

</Target>

<EnvironmentAttributeDesignator DataType="&xs;#time"

AttributeId="&xacml;environment:current-time" />

</Apply>

</Apply>

<EnvironmentAttributeDesignator DataType="&xs;#time"

AttributeId="&xacml;environment:current-time" />

</Apply>

</Apply>

</Condition >

</Rule>

</Policy>

</Rule>

</PolicySet >

Figure 1: Simple XACML policy generated by the policy editor.

AScratch-basedGraphicalPolicyEditorforXACML

183

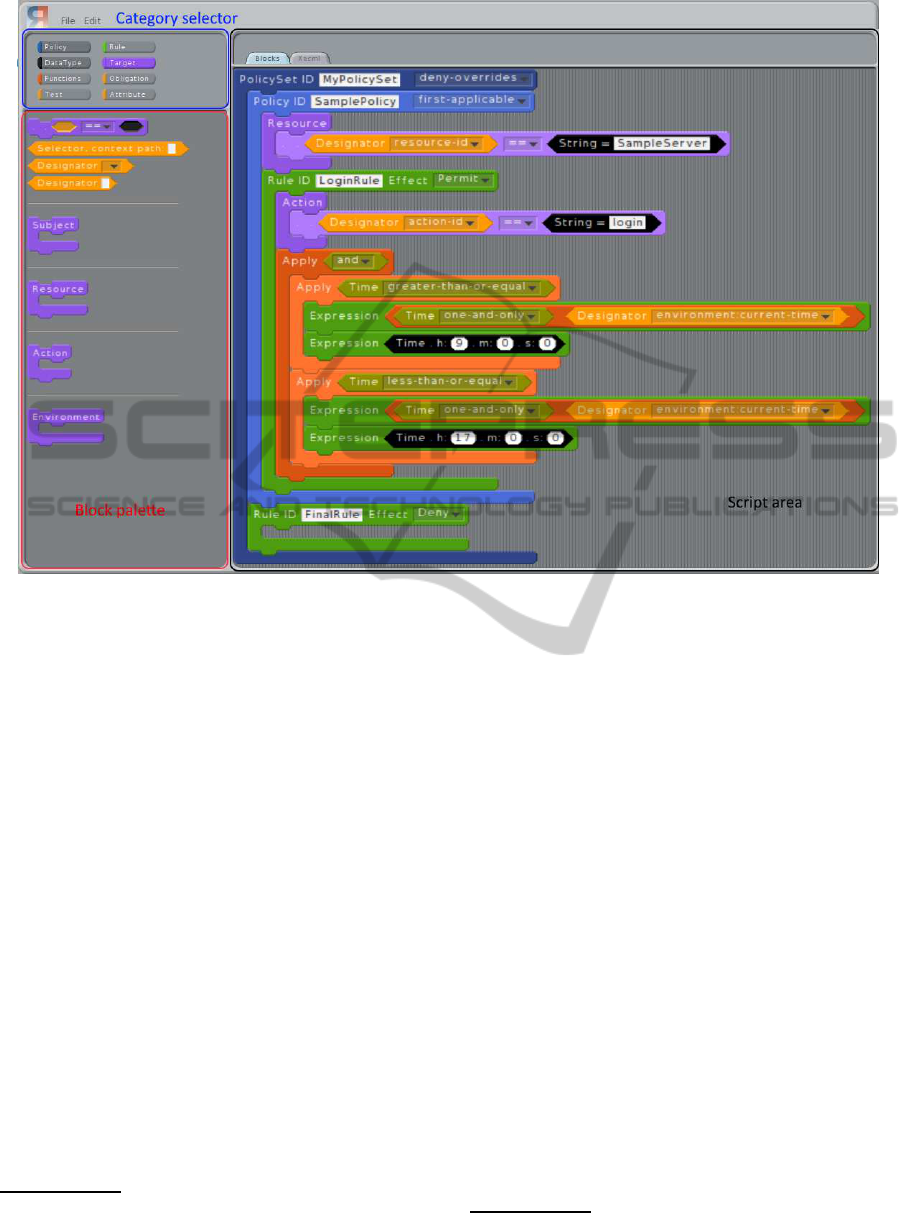

Figure 2: Simple policy using the XACML policy editor based on Scratch.

(Malan and Leitner, 2007). It is a graphical language

which deﬁnes a set of programming constructs which

can be put together as puzzle pieces in order to deﬁne

a computer program (Malan and Leitner, 2007). The

language enforces that only blocks that ﬁt logically

together according to the language syntax will stick

together.

We believe that a high-level policy language ed-

itor for policy makers is needed, to avoid much of

the underlying distraction and syntactic complexity

of XACML. The two examples below illustrate this.

Figure 1 shows all the complexity and intricacies of

an XACML policy written in XML. The XACML has

been simpliﬁed somewhat by denoting the XACML

namespace as &xacml; and the XML Schema names-

pace as &xs;. This is a simple XACML policy ex-

ample

that applies for requests to a server called

SampleServer, with a rule that matches a login action

and contains an XACML Condition stating that the

Subject only is allowed to log in between 09:00 and

17:00.

Figure 2 shows the same policy implemented us-

ing our XACML policy editor. The syntactic blocks

in the Scratch based XACML editor is able to hide

The policy example was inspired by http:// www.oasis-

open.org/committees/download.php/2713/Brief _Introduc-

tion_to_XACML.html

much of the complexity involved in writing XACML

statements by providing features such as:

• managing XACML identities and XML schema

data types;

• automatically matching attribute designators to

the context they are in and the data type they be-

long to;

• automatically inferring some XML elements, for

example the <Condition> clause;

• performing run-time type checking operations,

ensuring that only sensible XML elements can be

put together.

Still the question remains - why write another

XACML policy editor, and not reuse and extend one

of the existing XACML policy editors? A basic re-

quirement for us is that the policy editor would need

to be Open Source, since we want it to be freely avail-

able and possible to adapt to a user’s speciﬁc needs.

One example of an open source policy editor for

XACML is the UMU-XACML editor

. This editor is

made by the University of Murica in Spain. The edi-

tor is written in Java and essentially manages a DOM

tree with XACML nodes, and provides a user inter-

face with sensible default values or choices for each

UMU-XACML-Editor: http://umu-xacmleditor.

sourceforge.net

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

184

type of DOM nodes in the XACML document. The

editor supports folding down elements within a given

policy in order to view parts of the DOM tree. The ed-

itor does not yet support unfolding everything, which

makes it cumbersome to get an overview over any-

thing but very small policies. The folding mechanism

is problematic from a usability perspective, since the

policy-maker does not get an overview over the entire

policy.

Another problem with this approach, is that the

details of each XACML element is shown in a sepa-

rate window, which means that it is not possible for

a policy-maker to get an overview over how a given

policy works without reading the generated XACML.

Furthermore, some choices are missing, for example

for choosing functions. In total, UMU-XACML does

not reduce the overall complexity in writing XACML

policies much. UMU-XACML will in other words

aid the user in creating an XACML policy, but it has

some severe usability issues that makes it undesirable

as a design base for our policy editor.

The WSO2 Identity Server

is a complete iden-

tity management solution that has a web based user

interface for designing XACML policies. This in-

terface is from a structural perspective quite similar

to UMU XACML, but provides web based forms for

generating different policy templates (simple, basic

or standard), as well as having a separate policy set

editor. This approach has similar deﬁciencies as the

UMU XACML editor since it is difﬁcult to get an

overview over the policies without reading the gener-

ated XACML. Our approach aims on the other hand

at giving the policy maker all necessary information

in order to understand the policy in an easily read-

able high-level graphic language, instead of using a

program that creates a forms-based user interface for

generating XACML.

Axiomatics has created a freeware policy editor

that uses a simpliﬁed policy editor language called

Axiomatics Language for Authorization (ALFA),

which can be used to generate XACML policies

(Stepien et al., 2009). This approach aims at achiev-

ing similar objectives as our project, by simplifying

the policy language used to generate XACML poli-

cies. The policy editor is an Eclipse plugin that pro-

vides a language that is syntactically similar to Java

or C#

Others have also taken a similar approach, by

deﬁning user-friendly domain-speciﬁc languages for

WSO2 Identity Server: https://docs.wso2.com/ dis-

play/IS450/Creating+an+XACML+ Policy.

Axiomatics Language for Authorization (ALFA)

http://www.axiomatics.com/axiomatics-alfa-plugin-for-

eclipse.html

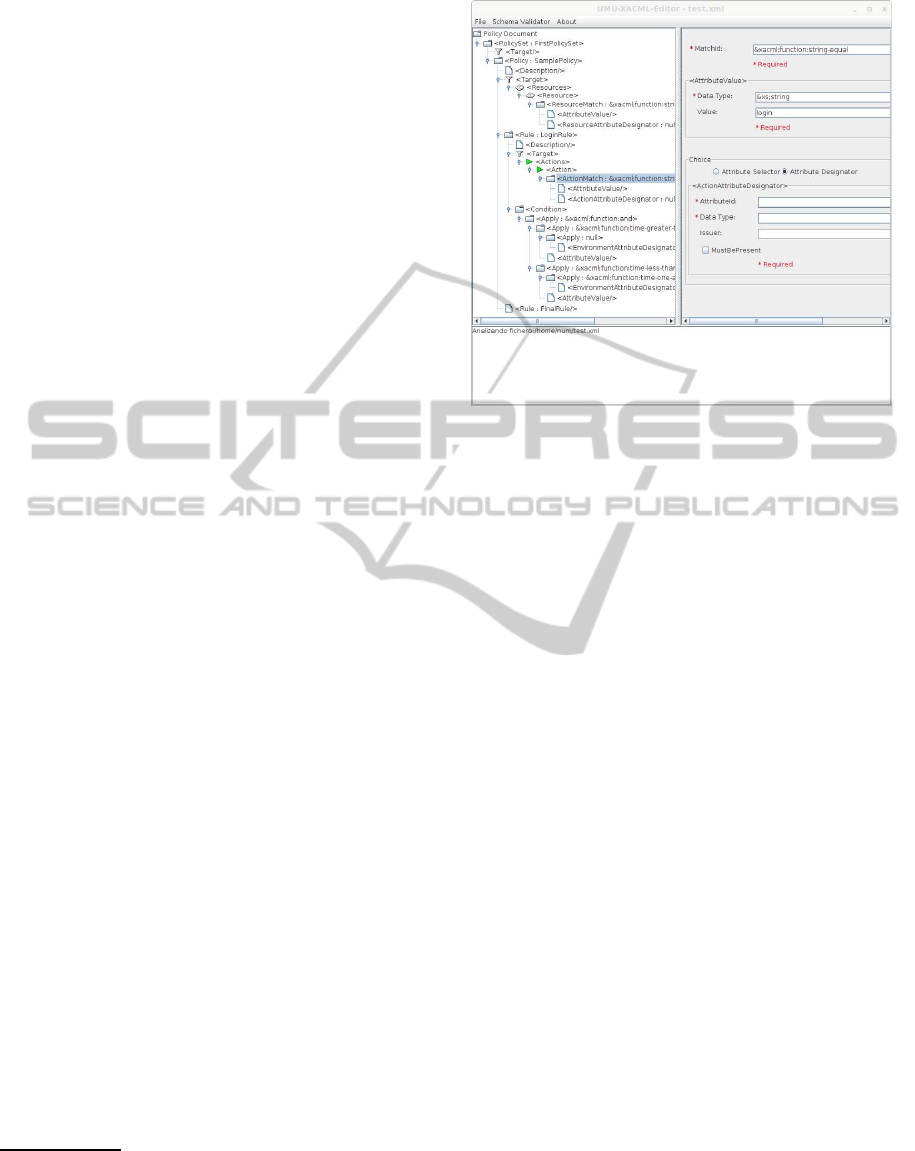

Figure 3: Simple policy using UMU XACML Editor.

implementing parts of the XACML syntax. One such

example is easyXACML, which has implemented an

XACML editor for the target section of XACML and

a constraints editor for non-technical users (Stepien

et al., 2009; Stepien et al., 2011). This approach is in

some ways similar to ALFA and Ponder2 XACML

policy integration (Zhao et al., 2008), by deﬁning

domain-speciﬁc high-level authorisation policy lan-

guages. We believe our solution achieves much of

the same objective by providing a rich and sim-

ple graphical programming environment based on

Scratch, which is well known for being easy to use.

Another simpliﬁed authorisation language is Pon-

der2, developed at Imperial College, London which is

a general purpose authorisation environment for em-

bedded devices (Twidle et al., 2009). The policies are

written in a high-level language called PonderTalk,

which is based on Smalltalk. Ponder2 is a power-

ful environment, but it lacks a high-level graphical

language that can aid policy-makers on how to put

together policies. PonderTalk therefore has a higher

starting threshold for writing policies than our solu-

tion, since it requires the policy-makers to learn a sub-

set of Smalltalk as well as how to write the policies

in PonderTalk. Another disadvantage is that Ponder2

cannot generate XACML policies, which is required

by our use cases (Ulltveit-Moe and Oleshchuk, 2015).

Our solution could in principle be extended to

achieve the same beneﬁts as PonderTalk, by support-

ing a message passing interface (Twidle et al., 2009),

since our solution also is based on Smalltalk. This

is another observation that went in favour of using

Scratch as design base. However adding a message

passing interface like this would mean evolving away

from the core XACML standard.

AScratch-basedGraphicalPolicyEditorforXACML

185

A major requirement of the policy editor, in addi-

tion to writing general XACML policies, is being able

to support writing anonymisation policies for XML

documents (Ulltveit-Moe and Oleshchuk, 2015). This

means that Ponder2 is not a suitable design base for

us.

This overview over different XACML editors

shows that there is a need for a good XACML edi-

tor that is able to provide a simpliﬁed policy develop-

ment language for policy-makers. All existing envi-

ronments have their disadvantages with respect to us-

ability and other issues; many DOM-tree-based XML

editors require you to edit sub-tree-objects by “zoom-

ing in”; clicking on them to open them up and show

the details, without allowing the user to see the big

picture with all details at the same time. Our solu-

tion avoids this problem by providing all information

available for the user in the simpliﬁed graphical lan-

guage, so that there is no need to zoom in or out of the

policy.

There are many language workbenches and tools

for creating editors - both textual and graphical, but

from a usability perspective even text editors with

language assistance, are too unstructured for XML

in general and in particular for such a highly struc-

tured language as XACML. On the other hand, creat-

ing a diagram-like graphical syntax for XACML us-

ing graphical editor tool-kits like GMF

would be an

option, but diagrams tend to take a lot of space and it

is easy to lose the overview in a similar way as with

DOM-tree-based editors.

But why choose Scratch of all things - a program-

ming language designed for children? We wanted a

highly structured design that was radically different

from existing Java/Eclipse based editors.

Other possible design bases exist, for example

MIT App Inventorfor Android. Thisis a similar block

programming language based on Scratch which can

be used for designing mobile apps (Roy, 2012). App

Inventor was considered being too tied to the under-

lying Android operating system and was therefore re-

jected.

There are also other blocks based programming

languages, for example UML (Fowler, 2004), Lad-

der (Hammond and Davis, 2005) or Lego Mindstorm

(Ferrari et al., 2003). However Scratch is consid-

ered one of the early models of such languages with

the necessary functionality which is open source and

was therefore chosen. We did not base the editor

on Scratch 2.0, to avoid dependencies to Flash, and

ended up using a version of Scratch 1.3 ported to the

Graphical Modelling Framework, http://www.

eclipse.org/modeling/gmp/

Pharo Smalltalk engine called Phratch

. The Pharo

Smalltalk environment

was chosen instead of Squeak

to get a more modern look and feel on the devel-

opment environment than the venerable Smalltalk-80

user interface.

3 EDITOR DESIGN

The underlying idea is to use the same approach

as Scratch has done with its environment, but using

the blocks to express XACML elements. The pure

XACML can then be hidden behind the scenes and

a simpliﬁed representation can be used to create and

express policies. Simpliﬁcations are done by using

blocks for elements and their arguments for the at-

tributes, the policies are then built up by placing and

stacking blocks onto each other forming a functional

policy. Using this representation of graphical blocks

and arguments enables a type-what-you-need based

design, letting the user focus on the important policy

logic and not the XACML XML syntax. Another use-

ful feature with using graphical elements is that the

possibility for user error due to misspellings and syn-

tax errors is reduced. The arguments and blocks can

have constraints in them enabling only blocks that are

applicable can ﬁt.

The main goal for the editor is to generate cor-

rect XACML according to the XACML 2.0 Standard

(Moses, 2005). Support for generating XACML 3.0

is left as future work. This implies also that the edi-

tor should be able to express the whole or at least the

most frequently used parts of the standard.

4 AN EDITOR FOR

XACML - IMPLEMENTATION

The editor implementation is based on Phratch, an

editor for graphical programming based on Scratch

(Malan and Leitner, 2007; Resnick et al., 2009).

Phratch uses the Pharo 3.0 environment (Bera and

Denker, 2013), which is portable across most com-

mon operating systems. An advantage by using

Smalltalk, is that this is an agile development environ-

ment suitable for rapid prototyping. This means that

we quickly can test out ideas and modify the func-

tionality if it does not work out as well as expected.

Implementing the editor was done by building upon

a subset of Phratch. The visualisation for the blocks

and the arguments is the same for the editor as it is

Phratch: http://www.phratch.com/

Pharo: http://pharo.org

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

186

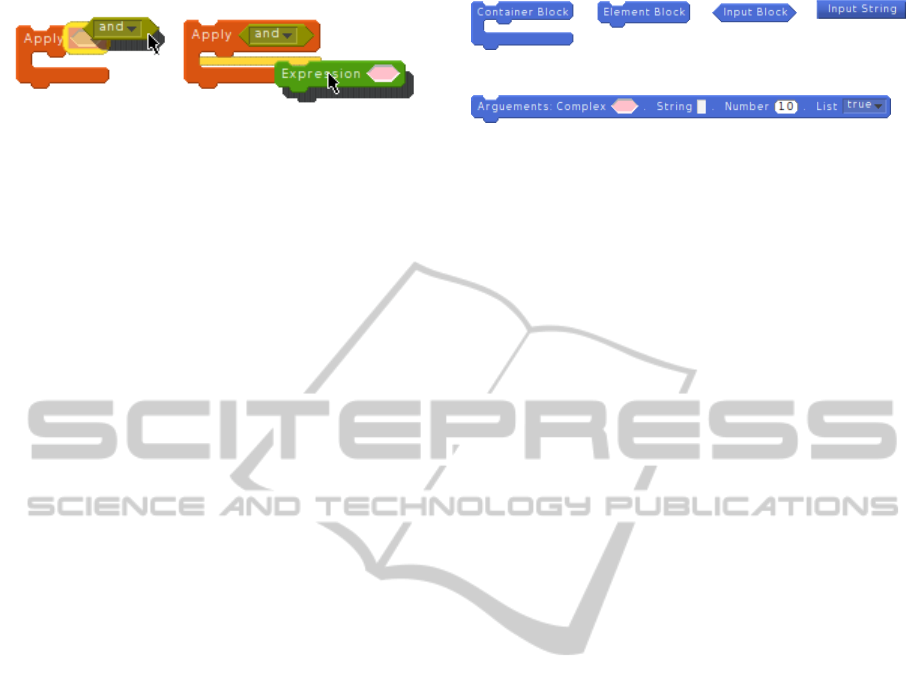

Figure 4: Block placement indicator.

from Phratch since they represent a similar top down

structure as the original XACML would have with its

nested elements.

4.1 User Interface

The user interface consist of three parts; a category se-

lector, a block palette, and a script area, as illustrated

in Figure 2. The category selector enables the dif-

ferentiation of blocks into categories to group related

blocks. Under the category selector is the blueprint

for the different blocks. It contains a block palette that

shows the available blocks for the selected category.

Each category has a base colour that their respective

blocks uses, if not speciﬁed otherwise. Blocks shown

in the palette can be dragged onto the script area and

used in the policy.

When placing a new block onto an existing pol-

icy in the script area, the editor will indicate if that

block can ﬁt where the user wants it to be. Figure 4

shows what the indication looks like in the editor. If

the block could not be placed in the slot due to the

rules and constraints given, then no indication for it

would be given, and it would be rejected from being

placed there.

4.2 Blocks

There are four different base type of blocks im-

plemented into the editor, Figure 5 illustrates their

shapes. The ﬁrst two blocks Container, and Element

are the ones placed directly onto the script area, puz-

zling them together into a policy. These blocks repre-

sent the XACML elements.

The Input types are used to represent XACML

attributes and are placed into other blocks colour-

marked for that attribute type. The Input string block

is used for long strings that cannot simply be hidden

away in the background, for example XPath expres-

sions.

Each block contains a text describing the speciﬁc

element and can also contain an arbitrary number of

arguments, giving the possibility to present both sim-

ple and advanced elements with their attributes from

the XACML speciﬁcation.

Figure 5: Blocks.

Figure 6: Arguments.

4.3 Arguments

The Arguments used in the editor are illustrated in

Figure 6, placed inside an element block, these spec-

ify the attributes for the block.

The complex argument with a hexagonal shape,

is a place holder for an input block. It is used when

more than just one piece of information is needed to

be passed along to the main block. Going back to the

example from Figure 2, the black input block with the

text “String =[ ]” not only returns the string written

by the user, but also the data type and its XACML

URI representation back to the owner block. The ar-

guments that take a written string can also have the

input string block placed into them.

Number arguments are used when the user input is

constrained to only integer or ﬂoating point numbers.

List arguments act as drop-down boxes for select-

ing deﬁned items, and can either be a single list or

have a multi tiered selection of items.

Arguments can constrain the input blocks or text

allowed to be placed into them, for example string and

numerical arguments can have constraints in the form

of regular expression or a speciﬁc interval for numer-

ical values.

To better indicate the allowed Input blocks in

complex types and where input string blocks should

be placed, they are given the same kind of colour as a

visual indication. The constraint rules for complex ar-

guments makes it impossible to place the wrong input

block into them, reducing user error signiﬁcantly.

4.4 XACML Text Generation

The XML presentation of XACML is generated on

demand when the user wants to export the graphical

policy into XACML or preview it using the XACML

pane in the editor. Generating the XML starts at the

outer topmost block, and recursively calls the contin-

uing blocks in the stack. When all the XML is gener-

ated, it runs through a formatting method to enhance

the visual appearance.

Each block from the palette has its own unique

method for generating its corresponding XML, to-

gether with extra behaviour dictated by the shape of

the block. An example of this extra behaviour is in

AScratch-basedGraphicalPolicyEditorforXACML

187

the container block which appends the inner blocks,

and adds any additional needed elements. This en-

ables the editor to hide elements that do not have any

unique attributes, for example the target or condition

elements. Figure 7 shows an example rule with an ac-

tion inside it. The generated output is shown in Figure

8, and here the target and actions elements encapsu-

lates the action element. Since these do not contribute

to anything but verbosity, the editor adds them auto-

matically when needed. These improvements allow

for simplifying the graphic representation of XACML

compared to the very verbose XML representation.

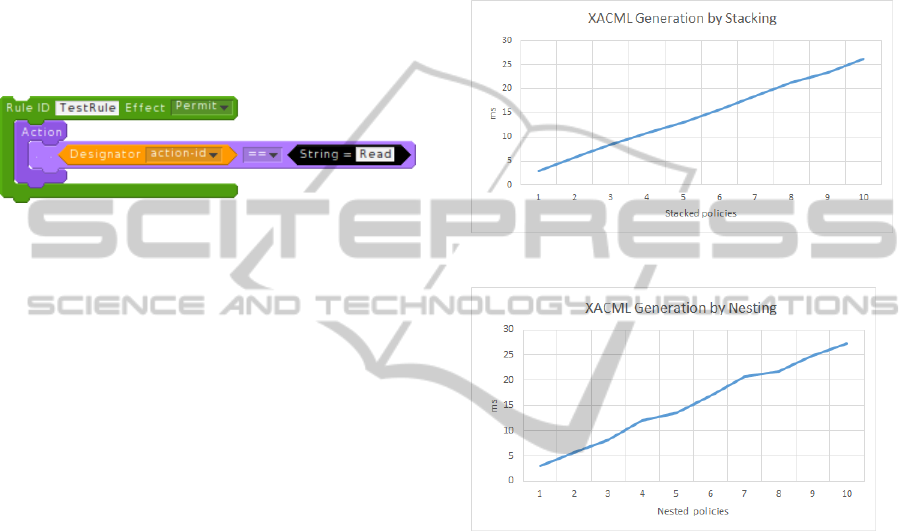

Figure 7: Graphical representation.

<ActionMatch

MatchID="&xacml;function:string-equal">

Read

</AttributeValue>

<ActionAttributeDesignator

DataType="&xs;#string"

AttributeId="&xacml;action:action-id" />

</ActionMatch>

</Action>

</Actions>

</Target>

</Rule>

Figure 8: Generated XACML from Figure 7.

5 DISCUSSION

Our approach has the advantage over existing

XACML tools by focusing on the meaning and at-

tributes of the policy, and not the XML syntax of

XACML.

Generating XACML from a created policy by the

editor is quite fast. Using the policy from Figure 2,

tests are done by duplicating this policy and stack-

ing these together simulating a larger policy. The ﬁrst

test illustrates the blocks stacked onto the bottom of

the policy under the last rule block. The generation

speed for this stacking by up to 10 consecutive times

is shown in Figure 9. The time it takes to generate

the policy from the “hello world” example is on av-

erage 3ms, while stacking 10 of these the generation

takes approximately 26ms, still a relative fast gener-

ation time. The second test performed with the hello

world example is by nesting the next “hello world”

into the “FinaleRule” container block from the previ-

ous one. This shows how the generation is over larger

inner nesting of blocks, and from Figure 10 it can be

seen that the generation has similar generation speed

as when blocks are stacked.

Figure 9: N stacked “Hello-World” policies.

Figure 10: N Nested “Hello-World” policies.

The editor now has 80% of elements from

XACML 2.0 implemented as blocks. The last 20%

are elements used for referring to other policies, ver-

sion deﬁnition and elements used when using self-

made policy-combining algorithms. The objective is

to implement full support for XACML in the future,

however the policy editor is already usable for several

simple policies, since the unimplemented elements

are less frequently used.

The complex arguments and list arguments en-

sures that a wrong input cannot be added to them,

speciﬁc types of number and string literals have con-

straints that ensures that only a valid input can be

typed. The stacking and nesting of blocks does how-

ever not yet have all the constraints needed to coverall

possibilities. This means that it still may be possible

for users not knowing the rules for XACML elements

to put together non-functional policies. It is prob-

ably not possible to avoid all fault scenarios, how-

ever improving the constraints handling is ongoing

work where improvements can be added when com-

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

188

mon fault scenarios are being detected and mitigated.

Our approach simpliﬁes several XACML con-

cepts signiﬁcantly, as we have described earlier,

which means that overall it should be much easier for

policy-makers to write XACML policies than writing

such policies using existing tools. User-testing exper-

iments proving that the usability is signiﬁcantly im-

proved is however left as future work.

In this paper, we let the qualitative arguments

for increased usability, based on the heritage from

Scratch, speak for themselves.

6 SUMMARY

We have implemented and tested an editor capable

of generating XACML 2.0 from a graphical blocks-

based representation. this enables the user to focus

on the important details and logic of the policy and

not on the complex syntax of XACML and XML. It

allows policy makers to focus on creating the correct

policies, and does not require a signiﬁcant amount of

programming experience to be used. Policies created

by the editor are represented in a simpliﬁed policy

language that is quite close to XACML, and that can

be exported to XACML code. The editor uses colour

identiﬁcation and feedback to show the user correct

placement of elements into the policy. This reduces

the learning curve for implementing XACML poli-

cies signiﬁcantly compared to existing XACML ed-

itors, while still keeping core parts of the XACML

structure and syntactic elements. Providing a simpli-

ﬁed syntax based on Scratch both improves the main-

tainability and makes it easier to support an agile pol-

icy developmentstrategy under dynamically changing

environments.

7 FUTURE WORK

Investigating the usability with regards to familiar and

non familiar users of XACML is something we would

like to do in the future. Users who can write XACML

could test the editor by creating large complex poli-

cies, and non-technicalusers creating smaller, simpler

policies. The criteria for such a study should include

evaluating the time used versus size and complexity

of the policy, syntax errors, and logical errors.

Implementing modularisation, and support for

multiple active policies in the editor is left for fu-

ture work.This modularisation will allow the user to

break the policies into smaller parts, with clearer in-

tent. these parts can then be reused for the same or

other policies as well. Another step beyond mod-

ules is to provide the possibility to deﬁne and create

custom elements and attributes graphical in the editor

that then can be used for policies, using the extendible

parts supported by XACML.

XACML3.0 support is also left as future work,

however we have considered the XACML 3.0 syntax

when doing some of the simpliﬁcations in the graphic

language. Some more work is left on covering the last

portion of elements and attributes from the XACML

2.0 standard.

Another advantage by using Phratch as design

base, is that this may allow for mixing existing

Phratch functionality into the XACML policy gen-

eration language in order to deﬁne policy templates

that can instantiate variations of similar policies eas-

ily. This will allow for programmatic generation of

authorisation policies, which makes it easier to gener-

ate and maintain large and complex authorisation or

anonymisation policies. This feature is planned im-

plemented in a future version.

Another possible future improvement, is imple-

menting support for location-based XACML poli-

cies based on GeoXACML (Matheus and Herrmann,

2008). This could make it possible to integrate map

data, for example from Google maps, into the policy

editor, which would allow for deﬁning geographical

authorisation constraints on the policies. Further elab-

oration of such a scenario may be supporting location-

based dynamic access control policies for moving ob-

jects. This may be useful for designing access control

policies for vehicles, boats or other objects moving

in a 2D plane, which could be simulated using ex-

isting functionality in Scratch. Support for express-

ing the RBAC proﬁle of XACML (Anderson, 2005),

is another possibility for extending the policy edi-

tor, for example based on the work in (Ulltveit-Moe

and Oleshchuk, 2013; Ulltveit-Moe and Oleshchuk, ;

Bonatti et al., 2013).

ACKNOWLEDGEMENTS

This project was sponsored as a summer internship at

the University of Agder. The project has also been
