A Declarative Model for Reasoning about Form Security

Aaron Hunter

British Columbia Institute of Technology, Burnaby, Canada

Keywords:

Reasoning about Action, Information Security, Knowledge Representation.

Abstract:

We introduce a formal methodology for analysing the security of digital forms, by representing form signing

procedures in a declarative action formalism. In practice, digital forms are represented as XML documents

and the security of information is guaranteed through the use of digital signatures. However, the security of

a form can be compromised in many different ways. For example, an honest agent might be convinced to

make a commitment that they do not wish to make or they may be fooled into believing that another agent

has committed to something when they have not. In many cases, these attacks do not require an intruder

to break any form of encryption or digital signature; instead, the intruder simply needs to manipulate the

way signatures are applied and forms are passed between agents. In this paper, we demonstrate that form

signing procedures can actually be seen as a variation of the message passing systems used in connection

with cryptographic protocols. We start with an existing declarative model for reasoning about cryptographic

protocols in the Situation Calculus, and we show how it can be extended to identify security issues related to

digital signatures, and form signing procedures. We suggest that our results could be used to help users create

secure digital forms, using tools such as IBM’s Lotus Forms software.

1 INTRODUCTION

Information is often exchanged over a network

through the use of digital forms. A form is essentially

a structured collection of data that allows an agent

to enter information, and also to commit to particu-

lar claims through the use of a signature. In the past,

the security of a signature was guaranteed through the

physical properties of paper. In the case of digital

forms, security must be demonstrated through some

form of mathematical proof. It is well known that

multi-agent systems with formal models of knowl-

edge can be used to prove the security of crypto-

graphic protocols, but such methods have not been

widely employed in the context of form validation. In

this paper, not only do we demonstrate that the same

methods can be used to prove the security of digital

forms, but we also show that it is possible to simply

modify some existing, declarative protocol veriﬁca-

tion formalisms for use with digital forms. The result

is a declarative model of form structure that can be

used to authomatically ﬁnd attacks on forms.

Our framework is based on a Situation Calcu-

lus (SitCalc) model of a message passing system, in

which honest agents pass simple messages on an in-

secure channel. In the original framework, messages

are essentially text and all attacks are based on inter-

cepting or mirroring messages. This paper makes two

contributions to existing work on logic-based mod-

els for reasoning about security. First, we provide the

foundation for an executable model of digital forms

that allows attacks on forms to be automatically dis-

covered. This is a problem of signiﬁcant practical in-

terest that has not been addressed substantially in ex-

isting work. Second, our work further demonstrates

the utility of declarative models for reasoning about

security. Since the original model for protocol veri-

ﬁcation is declarative, it is actually quite straightfor-

ward to modify the solver to deal with a different se-

curity domain.

2 PRELIMINARIES

2.1 Motivation

It is well known that businesses stand to save a great

deal of money by transitioning from paper forms to

digital forms (Bertrand et al., 1995). However, while

HTML forms on the Internet are very common, they

are known to suffer from many limitations both in ex-

pressiveness and security. For example, paper forms

420

Hunter A..

A Declarative Model for Reasoning about Form Security.

DOI: 10.5220/0005213604200425

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence (ICAART-2015), pages 420-425

ISBN: 978-989-758-074-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: A Simple Form.

typically allow an agent to sign just a part of the form

in sequence with other agents. Moreover, as indicated

previously, the data on a paper form is protected by

the physical properties of paper that allow tampering

to be predicted. As a result, while businesses would

prefer to use digital forms, they would like forms that

preserve the standard conventions and capabilities of

paper forms. This has lead to the development of spe-

cialized form processing software.

The standard approach is to use XML standards

to represent the structure of a form. For example,

the XFDL standard is used by some form processing

software (Boyer, 2005). XML trees in this standard

use nodes to represent form ﬁelds, and the children

of each node represent properties of the correspond-

ing ﬁeld. Field properties might include location, text,

font size, or any number of other features. As an il-

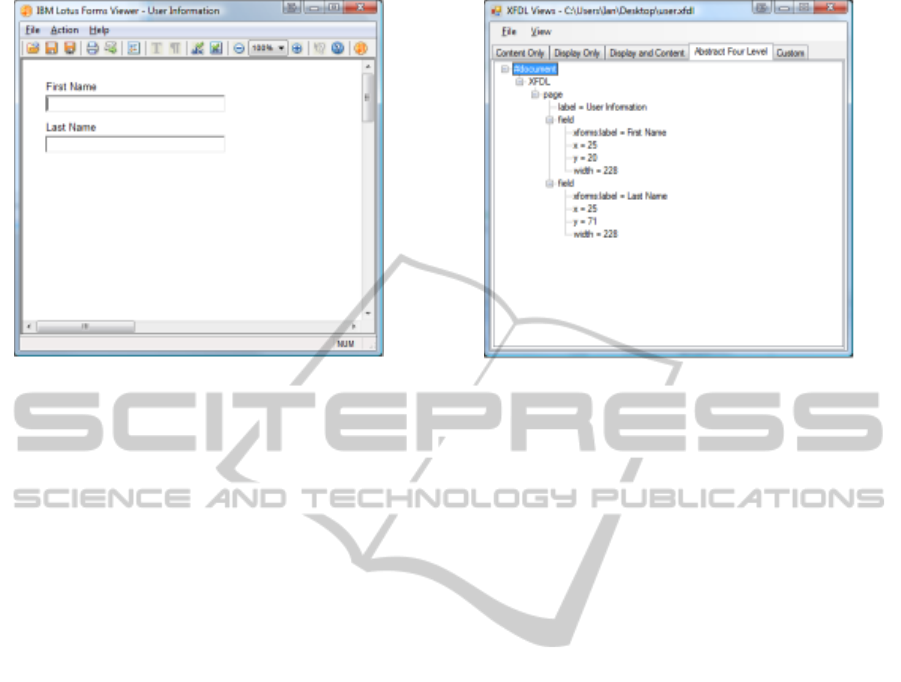

lustration, Figure 1 provides the standard view of a

simple form. Figure 2 provides a view of the XML

tree for the XFDL representation of this form.

2.2 Logical Representations of Forms

There has been some past work on formal represen-

tations of XML forms. In particular, a precise def-

inition of a document tree is introduced in (Hunter,

2012). The idea is to identify a form with a tree that

is roughly the same shape as the corresponding XFDL

representation. A vocabulary is introduced consisting

of labels and values, and then a specialized property is

introduced to indicate if a form ﬁeld is visible or not.

For example, the set of labels might include the word

name and the set of values might include all names

of relevant agents. In practice, both sets would actu-

ally be generated from a ﬁnite alphabet of symbols.

Given the set of labels and values, one can deﬁne

Figure 2: The Corresponding XML Tree.

a propositional vocubulary consisting of label-value

pairs. Hence, when a form is ﬁlled out, the author

is actually asserting that certain labels have certain

values. Using this basic framework, the content of a

form is then deﬁned to be a formula over the deﬁned

propositional vocabulary. Modal operators for belief

can then be introduced for each agent, which are then

used to deﬁne the notion of commitment. This notion

can then be used to deﬁne attacks in terms of forcing

false commitments or other forms of deception.

The preceding formal model of digital forms helps

to make some attacks explicit, but it suffers from two

main deﬁciencies. First of all, the approach is not

declarative. In order to represent a form or an attack

on a form, one needs to delve into the internal repre-

sentation in terms of trees. This makes it somewhat

difﬁcult to extend and modify the approach for differ-

ent kinds of documents. The second problem is that

this is not a model that lends itself to efﬁcient auto-

mated reasoning. After creating the logical represen-

tation of a form, the only way to ﬁnd attacks on the

form is through exploration by hand.

2.3 Cryptographic Protocol Veriﬁcation

Logical approaches to the veriﬁcation of crypto-

graphic protocols originated with the pioneering work

on BAN logic (Burrows et al., 1990). The basic

idea of BAN logic was to use a logic to model and

reason about the beliefs of agents participating in

the cryptographic protocol. The logic itself was not

particularly sophisticated, so it is not longer consid-

ered a viable approach to protocol veriﬁcation. How-

ever, the notion of using a logical model that includes

the beliefs of agents was very inﬂuential. Many re-

lated approaches have followed, including represen-

ADeclarativeModelforReasoningaboutFormSecurity

421

tations based on epistemic logics (van der Hoek and

Wooldridge, 2002), multi-agent systems (Fagin et al.,

1995), strand spaces (Halpern and Pucella, 2003), and

logic programs (Carlucci Aiello and Massacci, 2001).

In each case, the intruder model used is called the

Dolev-Yao intruder (Dolev and Yao, 1983). In this

model, the intruder is able to intercept messages, redi-

rect messages, and spoof messages. The main limita-

tion of this intruder is that they are not able to de-

cipher encrypted messages; this is a reasonable limi-

tation if we assume strong encryption with large key

sizes.

2.4 The Situation Calculus

For the present paper, we are interested in declarative

models for reasoning about cryptographic protocols,

with particular emphasis on the SitCalc. In the inter-

est of space, we do not introduce the SitCalc here; we

refer the reader to (Levesque et al., 1998) for a basic

introduction. For now we simply introduce the basic

terminology. In the SitCalc, there are several impor-

tant categories of entities. First, there are situations

(denoted by the variable s). A situation represents a

conﬁguration of the world, along with the history of

all actions that have been executed. There are also ac-

tions (denoted by the variable A), that represent things

that an agent can do to change the state of the world.

There is also a function symbol do, where do(s, A) is

understood to represent the situation that results when

the action A is executed in the situation s. There is a

distinguished constant s

representing the initial sit-

uation, so that every situation can be represented as

do(

A, s

)

) for some sequence of actions

A. A single

second-order induction axiom allows us to prove that

certain properties hold for all situations.

In the SitCalc, a predicate that takes a situation

as an argument is called a ﬂuent. Informally, ﬂuents

are used to represent properties of the world that may

change due to the effects of actions. For example,

in a message passing system, there could be a ﬂu-

ent holds that indicates if a certain agent is holding

a particular message in a particular situation. Ac-

tion domains are fomalised in the SitCalc by explicitly

specifying the way that ﬂuent values change when ac-

tions are executred. The effects of actions are given

by specifying precondition and effect axioms that in-

dicate which predicate values change in a situation

when an action is executed. One of the advantages

of the SitCalc for reasoning about actions is that Sit-

Calc formilizations can be translated into GoLog, an

executable logic-based language for planning.

The SitCalc formalization of message passing in

(Hunter et al., 2013) includes four different kinds of

entities: Agents, Nonces, Keys and Data. A nonce

is a random number used in a cryptographic protocol.

The main actions in the formalization are makeNonce,

encrypt, decrypt, compose, send and receive. Using

these basic entities and actions, a set of axioms is in-

troduced that speciﬁes the effects of actions and the

capabilities of the intruder. This SitCalc formulation

is then translated into a GoLog program that can be

executed to automatically ﬁnd attacks on the proto-

col in a reasonable time frame. Our approach in this

paper is to extend this model for validating security

properties on digitally signed forms.

3 FORMS AS PROTOCOLS

3.1 Intuition

In this section, we demonstrate how to develop a

declarative treatment of forms by treating forms as a

protocols. The ﬁrst observation to make is that sign-

ing a form is actually a multi-step procedure that in-

volves the exchange of information. The basic steps

are as follows:

1. An agent A creates a form, requiring n of signa-

tures (possibly on different parts of the form).

2. Repeat until all unsigned parts have been signed:

(a) The agent holding the form signs any number

of empty parts.

(b) The agent passes the form to some other agent

to hold.

3. The completed form is passed to some authority.

We will refer to this process as a form signing proce-

dure.

Our basic approach is to express form signing pro-

cedures as a kind of message passing protocol. There

are several steps required:

• Replace messages with forms.

• Introduce actions for ﬁlling and signing forms.

• Specify the exact steps to a signing procedure, as

a protocol.

By formalizing all of these steps, we can automati-

cally ﬁnd some forms of attack on a form signing pro-

cedure.

3.2 Formalization

Note that there are already pre-existing SitCalc for-

malizations of message passing, so we do not want to

replicate the work involved in developing such sys-

tems. Two representative SitCalc formalizations are

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

422

•



•



•

label

Shoes

•

value

checked

•

visible

•



•

label

Socks

•

value

unchecked

•

visible

Figure 3: A Simple Form Tree.

given in (Hern

andez-Orallo and Pinto, 2000)) and

(Hunter et al., 2013), respectively. We use the latter as

a starting point for this work, as it includes a transla-

tion to GoLog for authomatically ﬁnding attacks. Our

approach is to extend this SitCalc theory by introduc-

ing forms that can be sent and received. Since we are

assuming an underlying SitCalc theory for message

passing, we are also assuming some of the utility ac-

tions required for constructing and sending messages.

In particular, it is useful to assume an underlying ac-

tion list that takes a sequence of n objects and pro-

duces a single object representing the list. In the re-

mainder of this section, we describe the main cate-

gories of object required for our formalization.

Items. The variable i, possibly with subscripts, will

range over form items. The intention is that an item

represents some relevant component of a form, such

as an input mechanism or a text label. For the sake of

simplicity, we think of all inputs as simple text blocks

or as text blocks with an associated checkbox for in-

put.

We introduce a functional ﬂuent newinput(p, s)

that is used to generate a new input to place on a form,

labelled with the proposition p. The following ﬂuents

apply to inputs:

• Label(i, p, s) – True just in case the item is la-

belled with the proposition p.

• Checked(i, s) – True just in case the associated

checkbox has been checked.

• Invisible(i, s) – True just in case the item is invis-

ible.

In practice, there are many additional options that can

be associated with a given item. For example, every

item typically has some associated coordinates indi-

cating a position on the page. The simple set provided

here is sufﬁcient for an initial formal analysis.

Example. Suppose we would like a form to col-

lect data about the clothes people are wearing. We

might decide one item needes would be a checkbox

labelled “Shoes”. The process here would be to cre-

ate an empty form, then create an item with the label

shoes and add it to the form. We could then create

another item labelled “Socks” and add it to the form.

The XFDL tree representing this form is in Figure 3.

For now, every form that we consider has this simple

structure; but it would be straightforward to produce

more complex forms by adding new kinds of items

and new kinds of properties.

Forms. The primary activity in our framework is

the manipulation and exchange of forms. The variable

f , possibly with subscripts, will range over forms. A

form is primarily a collection of inputs that can be

signed. In addition to the unary predicate Form, we

introduce a ﬂuent symbol Contains( f , x, s) that is true

just in case the form f contains in the input x in sit-

uation s. One important feature that must be cap-

tured is the fact that signatures do not always apply

to an entire form. For this, we need to introduce some

formal mechanism for identifying a sub-form to be

signed. In order to reduce the number of object types

required, we handle this problem by introducing the

ﬂuent SubForm( f

, f

, s) which is true just in case ev-

ery item in f

is also in f

, in the situation s.

Sendables. The introduction of forms into the vo-

cabulary results in some potential redundancy when it

comes to sending and receiving information. In par-

ticular, both messages and forms can now be transmit-

ted between agents in (essentially) the same manner.

As such, we introduce a new type called sendable,

which is basically an abstract class that includes both

messages and forms.

3.3 Action Effect Axioms

We require actions for modifying and signing forms.

In the SitCalc, each action requires a precondition and

an effect. We remark that these conditions use a dis-

tinguished predicate called designer to indicate if a

given agent is able to design forms. The following

actions are required:

1. sign(a, f

, f , k) – Agent a signs the subform f

f using key k.

ADeclarativeModelforReasoningaboutFormSecurity

423

Precondition:

Poss(sign(a, f

, f , k), s) ≡ (Has(a, f , s) ∧

(Has(a, k, s) ∨ ∃a

PublicKey(a

, k)))

Effect:

Has(a, signed( f , k), do(sign(a, m, k), s))

2. check(a, i) – Agent a checks the item i.

Precondition:

Poss(check(a, i, s)) ≡ Has(a, i, s)∧¬checked(i, s)

Effect:

checked(i, do(check(a, i, s)))

3. uncheck(a, i) – Agent a checks the item i.

Precondition:

Poss(uncheck(a, i, s)) ≡

Has(a, i, s) ∧ checked(i, s)

Effect:

¬checked(i, do(check(a, i, s)))

4. send(a

, a

, f ) – Agent a

sends the form to a

An intruder can masquerade as a

Precondition:

Poss(send(a

, a

, f ), s) ≡

((Has(a

, f , s) ∧ a

6= a

) ∨ Has(intr, f , s))

Effect:

Sent( f , a

, a

, do(send(a

, a

, f ), s))

5. receive(a

, a

, f ) – Agent a

receives the form f

from a

. An intruder can intercept messages.

Precondition:

Poss(receive(a

, a

, f ), s) ≡ (Sent( f , a

, a

, s) ∨

= intr ∧ ∃a

Sent( f , a

, a

, s)))

Effect:

Has(a, f , do(receive(a

, a

, f ), s)) ∧

¬Sent(a

, a

, f , do(receive(a

, a

, f ), s))

6. compose f orm(a, f ,

i) – Agent a composes form

f consisting of items

i = i

, . . . , i

. Consequently,

compose f orm is in fact a set of actions, one for

each possible number of arguments.

Precondition:

Poss(compose f orm(a, f , list(

i), s) ≡

designer(a)

Effect:

Has(a, f , do(compose f orm(a, f , list(

i), s))

7. sub f ormlist(a, f

, f ,

i) – Agent a composes a sub-

form of f consisting of items

Precondition:

Poss(sub f ormlist(a, , f

, f , list(

i), s) ≡

(designer(a)

j=1

contains( f , i

, s)

Effect:

Has(a, f

, do(sub f list(a, f

, f , list(

i), s))

∧sub f orm( f

, f , do(sub f list(a, f

, f , list(

i), s))

j=1

contains( f

, i

, do(sub f list(a, f

, f , list(

i), s))

8. sub f ormsubtract(a, f

, f ,

i) – Agent a composes

a subform of f by removing items

Precondition:

Poss(sub f ormlsubtract(a, , f

, f , list(

i), s) ≡

(designer(a)

contains( f , i

, s)

Effect:

Has(a, f

, do(sub f ormsubtract(a, f

, f , list(

i), s))

∧sub f orm( f

, f , s)

This vocabulary is sufﬁcient for speciﬁcying a

number of attacks on form signing procedures.

3.4 Finding Attacks on Forms

We consider a simple toy example. Suppose that we

have produced a form that is intended to collect data

about the electronics someone has purchased. There

is an item representing a title “Items Purchased.”

There are then ﬁve items such as “Computer” or

“Television” with check boxes. The intention is that

the form should be ﬁlled out, signed, then returned to

the relevant authority.

Here is a high level description of an attack se-

quence on this form.

1. Form designer makes a form and sends it to A.

2. An intruder intercepts the form.

3. The intruder changes the signing area to not in-

clude the title, then forwards the form to A.

4. A checks the appropriate ﬁelds and sends the form

to the authority.

5. The intruder intercepts the form again, and

changes the title to “Items Stolen” and forwards

the signed form.

This sequence of actions can be formalized using Sit-

Calc actions from our theory as follows.

1. Use composeform and send.

2. Intercept using message passing actions.

3. Use subformsubtract to remove title. Use com-

poseform to re-add outside the signing area.

4. A ﬁlls out the form using check action.

5. Intercept again, use subformsubtract and com-

poseform again to produce ﬁnal form.

In practice, a form designer might not even think

it is necessary to put the form title under the signature

of the signer. But failing to do so opens up the possi-

bility of this kind of attack, where the entire meaning

of a form is change by a malicious intruder. Worse

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

424

yet, the meaning is changed after an honest agent has

signed the form. While this particular attack might

not be a problem, it does suggest that some form de-

signs might be vulnerable to such attacks. Unfortu-

nately, this kind of attack is very hard to ﬁnd by hand;

it would be much better if it could be found automat-

ically through a translation to GoLog.

4 DISCUSSION

4.1 Future Work

There are two natural directions for future work. First,

as mentioned in the previous section, it would be valu-

able to turn our theory into an executable program

for ﬁnding attacks. The Golog implementation from

(Hunter et al., 2013) can immediately be applied to

ﬁnd attacks due to form interception or mirroring. In

order to develop a more complete approach to form

validation, we would also like to have the intruder

use form modiﬁcation actions. The challenge is to

avoid any inﬁnite loops in which a sub-form is cre-

ated, then extended, then contracted forever. But this

is a standard problem already addressed in the Sit-

Calc tool for protocol veriﬁcation, so it would be easy

enough to use the same methods for the form vali-

dation tool. The second obvious direction for future

research would be to allow more complex forms with

more structure and a wider range of options.

In the long run, it would be ideal to embed

our form validation tool in something like the Lotus

Forms designer tool. At present, Lotus Forms allows

a designer to create a form, but it does not look for any

particular attacks. It would be a signiﬁcant improve-

ment if the designer would look for possible attacks

on a form, based on the number of signature ﬁelds

and the network over which it must be shared.

4.2 Conclusion

We have presented a SitCalc formalization of form

signing procedures. We have demonstrated that form

signing procedures can be formalized by extending

existing SitCalc tools for representing and reasoning

about cryptographic protocols. We have noted that

this is a problem of important practical signiﬁcance,

which has not been extensively explored using for-

mal methods. It has however been demonstrated else-

where that key concepts such as commitment and de-

ception can be formalized in a logical framework in

which forms are represented as trees, and agents have

explicit beliefs. By using epistemic extensions of the

SitCalc, the framework presented here could there-

fore be used to formalize and reason about these more

complex notions as well. Logical methods have a

great deal to offer in the context of this problem; this

paper is just scratching the surface in terms of techni-

cal content and practical applications.

REFERENCES

Bertrand, R., Hearn, J., and Lett, B. (1995). The north amer-

ican pre- and post-processing equipment market: Cap-

turing the beneﬁts and avoiding the pitfalls. Technical

report, Strategic Analysis Report, Gartner Group.

Boyer, J. (2005). Enterprise-level web form applications

with xfdl and xforms. In Proceedings of XML 2005

Conference and Exposition.

Burrows, M., Abadi, M., and Needham, R. (1990). A logic

of authentication. ACM Transactions on Computer

Systems, 8(1):18–36.

Carlucci Aiello, L. and Massacci, F. (2001). Verifying secu-

rity protocols as planning in logic programming. ACM

Transactions on Computational Logic, 2(4):542–580.

Dolev, D. and Yao, A. (1983). On the security of public key

protocols. IEEE Transactions on Information Theory,

2(29):198–208.

Fagin, R., Halpern, J., Moses, Y., and Vardi, M. (1995).

Reasoning About Knowledge. MIT Press.

Halpern, J. and Pucella, R. (2003). On the relation-

ship between strand spaces and multi-agent systems.

ACM Transactions on Information and System Secu-

rity (TISSEC), 6(1).

Hern

andez-Orallo, J. and Pinto, J. (2000). Especiﬁcaci

formal de protocolos criptogr

aﬁcos en c

alculo de

situaciones. Novatica, 143:57–63.

Hunter, A. (2012). Structured documents: Signatures and

deception. In Proceedings of the European Intel-

ligence and Security Informatics Conference (EISIC

2012), pages 274–277.

Hunter, A., Delgrande, J., and McBride, R. (2013). Protocol

veriﬁcation in a theory of action. In Proceedings of the

Canadian Conference on AI, pages 52–63.

Levesque, H., Pirri, F., and Reiter, R. (1998). Foundations

for the situation calculus. Link

oping Electronic Arti-

cles in Computer and Inf. Science, 3(18):1–18.

van der Hoek, W. and Wooldridge, M. (2002). Tractable

multiagent planning for epistemic goals. In Proceed-

ings of AAMAS-02,.

ADeclarativeModelforReasoningaboutFormSecurity

425
