Working More Effectively with Legacy Code Using

Domain Knowledge and Abstractions: A Case Study

Igor Osetinsky and Reuven Yagel

Software Engineering Department, Azrieli - The Jerusalem College of Engineering,

POB 3566, Jerusalem, 91035, Israel

Abstract. We describe how using abstractions based on domain knowledge can

improve the process of changing legacy code. The central claim of this paper is

that ontologies are a desirable starting point, not only for development of new

code, but also for effective refactoring of legacy code. We start from a standard

refactoring method from the literature of working with legacy code, and show

how it has been improved into knowledge-based refactoring. A use case

illustrates the practical application in an industrial project setting.

1 Introduction

Maintenance is a major phase in the lifecycle of software products. The maintenance

part consumes typically about 60% of time and budget of software projects [10]. One

reason for such high cost is the state of the code, which is frequently maintained

badly, thus leading to a code-base that collapses under its heavy complexity followed

by ever increasing costs of repairing bugs and adding new features.

Agile development practices put emphasis on testing and test coverage techniques

as a way to maintain high code quality over time. Thus one might try to use test

coverage as a way of working with code that is already in production phase,

commonly referred to as legacy code.

This paper goes a step further beyond agility, by introducing domain knowledge,

in the form of ontologies, in an early stage of legacy code refactoring, leading to

knowledge-based refactoring. This guides the refactoring programmer at a much

higher and effective abstraction level than customary.

1.1 Working with Legacy Code

Legacy code, is a title sometimes attributed to old and brittle code which is hard to

work with, but is still in production. For the purpose of this work, and in agreement

with the agile viewpoint on testing which we mentioned above, we follow here

Michael Feathers's book "Working effectively with Legacy code" [6], which defines:

"legacy code is simply code without tests". The book goes on to suggest a process or

general algorithm for working with legacy code and brings many methods and

examples of how to do that in various scenarios.

Osetinsky I. and Yagel R..

Working More Effectively with Legacy Code Using Domain Knowledge and Abstractions: A Case Study.

DOI: 10.5220/0005168400630070

In Proceedings of the 5th International Workshop on Software Knowledge (SKY-2014), pages 63-70

ISBN: 978-989-758-051-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

1.2 The Problem – Too Low Level Refactoring Applied to Legacy Code

The problem is that the programmer which is equipped with those excellent methods

and techniques still needs more guidance on how to apply them to the actual mission

at hand. In particular, Code refactoring [7] methods are being collected and described

as patterns for improving code in incremental ways. Most of these patterns are rather

at a quite low level of coding and in fact today are being automated by IDEs.

1.3 Related Work

Agility, among others terms and practices relevant to our work, includes unit testing

[8], and test-driven-development [1].

There is a wide literature concerning generic higher abstraction level ideas that can

enhance the process of working with legacy code. We mention Ontologies [2],

Knowledge Management [3], Software Knowledge [5], Domain Driven Design [4],

and more broadly, Patterns and Principles, e.g. [9, 12] and their use in object oriented

programming and software engineering. It is out of scope for this paper to describe in

detail the various ideas, and the interested reader is invited to check the above

references and other resources.

In [14] it is shown how ontology can guide the development of a new system, in

contrast to the current work in which the emphasis is on existing software. Yang et al.

[15] proposes extracting ontologies from legacy code, to improve the understanding

and eventually the re-engineering of the respective code. Their emphasis is on the

ontology extraction, while ours is on the ontology utilization in the refactoring

process.

Specific ontologies relevant to the use case in this work include, e.g. ITSMO [11] a

service management ontology, referring to software utilities, and OWL-S: Semantic

Markup for Web Services [13].

The remaining of this paper is organized as follows: In Section 2 we detail the

original proposed process and how we elaborate on it, in Section 3, we bring one use

case for demonstrating this improved method and then in section 4 we conclude with

some remarks and future work.

2 The Solution – Refactoring with Domain Knowledge

2.1 Standard Refactoring Process

The main process suggested by Feathers for adding new features is as follows:

1. Identify Change Points: that is, finding the actual place(s) in the code where

the change is going to be applied. This can be achieved in many ways, e.g.,

identifying the related and relevant areas in the code, consulting (original)

developers, reading documentation and error reports, etc.

2. Find Test Point: sometimes and especially with legacy code, it is not so easy

to determine what, where and how to test the code. Legacy code, as described,

can become over time less and less modular with high coupling which makes it

hard for isolation, thus sometimes there's a need to:

3. Break Dependencies: the code we would like to change might depend on

another code which makes it hard for testing. Breaking dependencies is a way

to isolate the targeted code.

4. Write Tests: after isolating the code, it is presumably more testable and thus

we sometimes try to cover it with tests to demonstrate the current behavior,

followed by writing tests for the new behavior. These new tests specify the

required change and should be kept for future verification and validation /

regression testing.

5. Make Changes and Refactor: we can now go ahead and make the changes

and can even improve or refactor it, counting on the tests to insure code

correctness. Overtime the system is being covered with many tests that bring

with them also the confidence to continue improving the code on a regular

basis – thus keeping its quality and ability to develop and adapt to changes.

2.2 Knowledge-based Refactoring

Our proposed way to improve the standard refactoring process above, is to add steps

to be carried out at a higher abstraction level. Steps a) and b) below can be carried out

in parallel with above steps 1 and 2. The other steps are augmented as follows:

a. Specify the Relevant Domain: either manually or by usage of a relevant

software tool, one should define the knowledge domain relevant to the legacy

code.

b. Obtain the Relevant Ontology: once the domain has been specified, one

should either obtain a relevant ontology from the literature (as e.g. [11]) or

explicitly formulate such an ontology.

3. Break Dependencies: use the ontology to detect the main abstractions and

concepts, preferring dependency on interfaces rather than concrete

implementations, e.g. by applying the Dependency Inversion Principle [12]

(see the case study below).

4. Write Tests: tests should refer to the more abstract concepts, thus more

concise.

5. Refactor: explicitly introduce the higher level abstractions first in UML and

then in the code, e.g. the new interfaces, with the respective needed

inheritances.

3 A Case Study

We demonstrate here the improved process with an actual code of a real project. This

is part of a stress/load testing suite for an online library service in the industry. Here

we show two Java classes which are tightly coupled. The code in Figure 1 is pulling

running statistics from a server and the code in Figure 2 is analyzing this data.

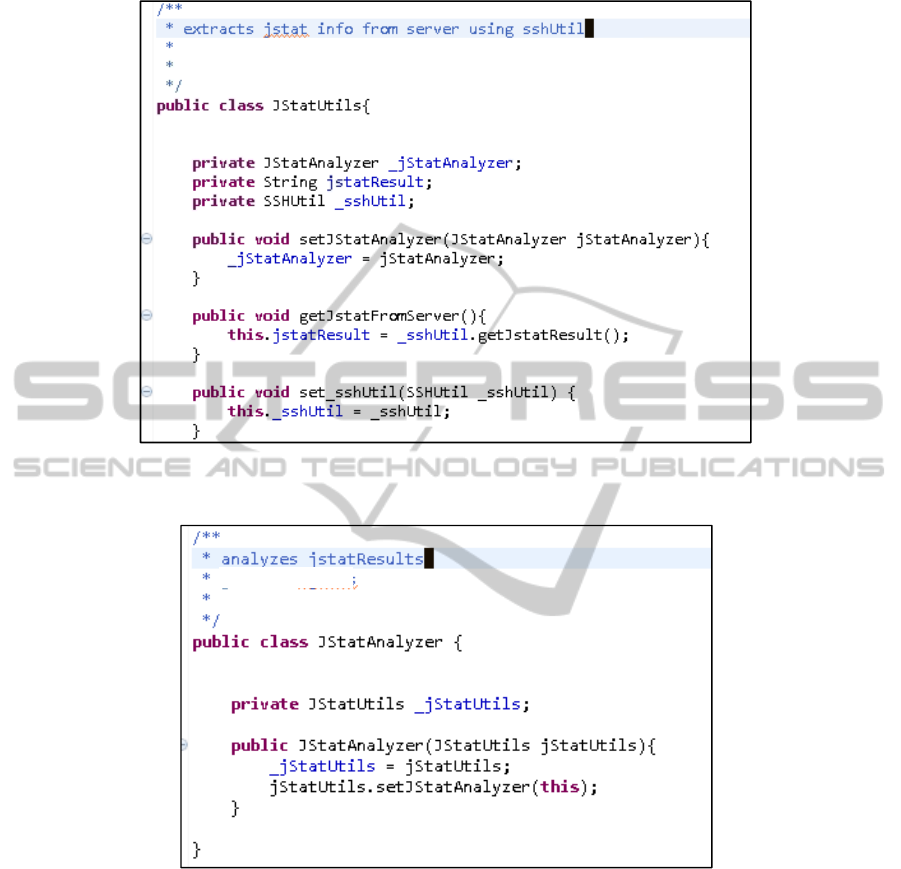

Fig. 1. JStatUtils.java – Holder class for needed utilities, e.g. secure connection for getting

statistical results.

Fig. 2. JStatAnalyzer.java – The main logic of the presented code.

The code in the class JStatAnalyzer.java of Figure 2 depends on services, which

are encapsulated in the class JStatUtils.java of Figure 1 (the class logic itself is

omitted and not relevant here, only the dependencies are presented). In this code

arrangement JStatAnalyzer is hard to test in isolation, especially since JStatUtils relies

on an actual server for obtaining the results.

3.1 Refactoring with Domain Knowledge

To fix this dependency we could use standard low level techniques for breaking

dependencies, namely Extract Interface and Parameterized Constructor [6]. But still

we need domain knowledge to find the right abstractions.

As a first step we look for the relevant domain, namely the domain of services, and

monitoring. Then we formulate the dependency on several services or "utils"

(utilities) and thus extract a utils interface. This can be a standalone abstraction or

taken from a relevant Ontology such as [11] mentioned above.

We can now move forward and break the dependency using the found abstraction.

Figure 3 demonstrates this change with a UML class diagram. On the left is the

original design, while on the right is the improved design. Especially note the

direction of the arrow which is inverted between the two designs. This encodes the

inversion of dependencies which on the one hand, adds another entity to the design

(the new JStatUtils interface) but makes the dependency rely on a more abstract

concept and thereafter better testability.

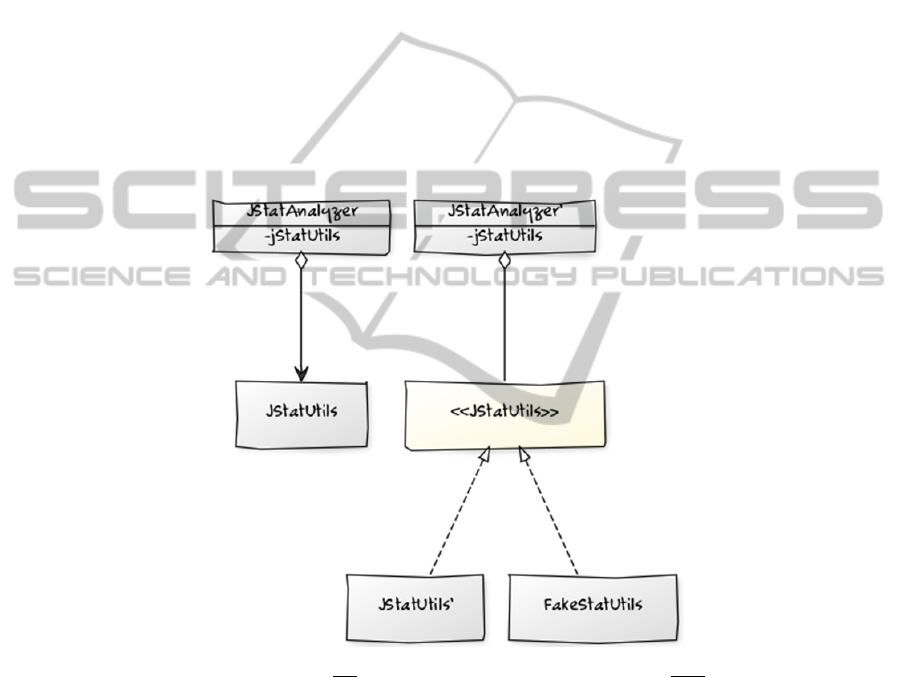

Fig. 3. UML Class Diagram, left: two legacy classes before refactoring; right: the new

JStatUtils interface in between the two original classes. The inherited FakeStatUtils class can

have dummy values for testing the Analyzer class logic.

Finally, we can refactor out the interface (Figure 4), and now the Analyzer class

depends on this interface only. Even more importantly it depends now on the higher

level concept of utilities.

As a result of this process, the Analyzer class is also more testable. Figure 5 shows

how it can now be initiated with an anonymous simple class (omitting the

implementation for simplicity), e.g., for testing purposes. This is also depicted in the

UML diagram of Figure 3 by the inherited class FakeStatUtils which can be a class

with dummy values used for testing the logic of the analyzer class, supplying fixed

values that allow fast and repeatable tests.

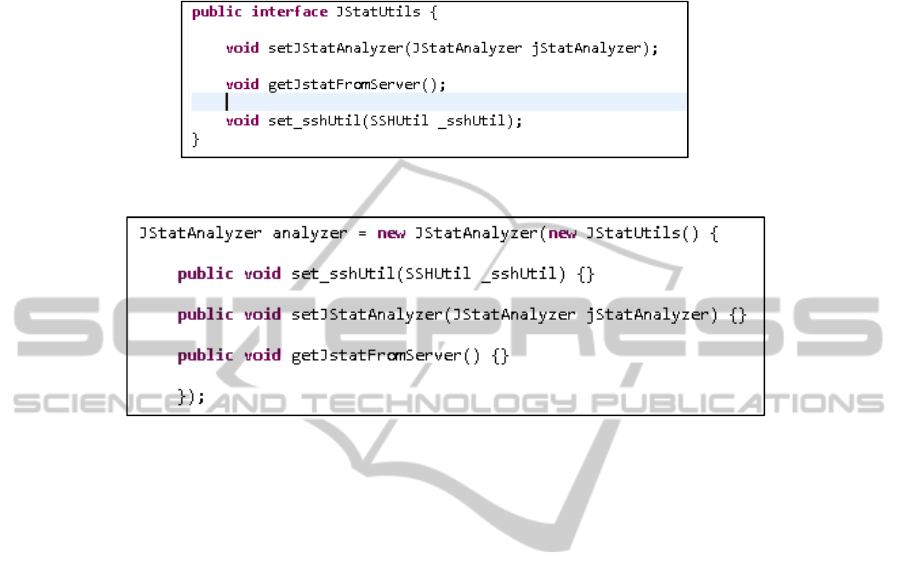

Fig. 4. Extracted Interface JStatUtils – according to domain knowledge.

Fig. 5

. Easier Testing of the Refactored Class – is much easier, even with an anonymous

class.

3.2 Refactoring: An Iterative Process

Once we have the refactored code, we can further use ideas from, e.g. Domain Driven

Design (DDD) [4] to make sure that a service is defined appropriately, e.g., in case

the service is not a natural part of the domain (entity in terminology of [4]), that the

interface is defined in terms of other elements of the domain.

On the negative side, we note that the operations are not stateless, which goes

against those DDD guidelines. This direction can be combined with using a selected

ontology in order to find adequate names for, .e.g., subjects and entity names.

The refactored code can now also be augmented more easily with new features, for

example replacing one of the utilities with yet another different implementation. This

process is iterative and we can continue to refactor and enhance it. As yet another

example if we need to use another service in order to fetch the data for the analyzer,

we can apply the Interface Segregation Principle [12] and further separate the

extracted interface into more specific domain abstractions, e.g., a security service.

4 Discussion

We have shown how that the currently standard low-level techniques for working

with legacy code are much improved when aided by higher abstractions based on

concepts from domain knowledge ontologies.

The higher abstractions still leave to the software developer decisions concerning

the application of the suitable techniques at various abstraction levels, and choice of

the appropriate principles, techniques and patterns.

The common wisdom and pragmatic way for improving code quality, is doing so

only when changes are requested and implementing it in an incremental and iterative

way.

The enhanced process described here was applied to an industrial large code base

in a leading company of its domain. Actually, by the time of writing this paper, the

example code has already been transformed and changed completely and the two

originally described classes do not exist anymore.

4.1 Future Directions

In order to get a wider perspective and more value from knowledge-based refactoring,

more extensive work on case studies should be done and shared knowledge should be

gathered.

Another more advanced research direction is to try automating some of the steps in

the process described in sub-section 2.2.

In future work we intend to focus and demonstrate the applicability of the

improved refactoring process to writing maintainable tests.

4.2 Main Contribution

The main contribution of this paper is knowledge-based refactoring, viz. the idea that

a domain knowledge ontology is a desirable starting point for effective refactoring of

legacy code in a higher level of abstraction.

Acknowledgement

Finally, we thank the SKY anonymous reviewers and chairs for their helpful

comments and most valuable aid.

References

1. Beck, K.: Test Driven Development: By Example, Addison-Wesley (2002).

2. Calero, C., Ruiz, F. and Piattini, M. (eds.): Ontologies in Software Engineering and

Software Technology, Springer, Heidelberg, Germany, (2006).

3. Dalkir, K. and Liebowitz , J.: Knowledge Management in Theory and Practice. The MIT

Press, 2

Ed. (2011).

4. Evans E.: Domain-Driven Design: Tackling Complexity in the Heart of Software. Prentice

Hall (2003).

5. Exman, I., Llorens, J. and Fraga, A.: "Software Knowledge", pp. 9-12, in Exman, I.,

Llorens, J. and Fraga, A. (eds.): Proc. SKY Int. Workshop on Software Knowledge (2010).

6. Feathers M.: Working Effectively with Legacy Code. Prentice Hall (2004)

7. Fowler M., Refactoring: Improving the Design of Existing Code, Addison-Wesley

Professional (2001).

8. Freeman, S., and Pryce N.: Growing Object-Oriented Software, Guided by Tests, Addison-

Wesley (2009).

9. Gamma, E., Helm R., Johnson R. and Vlissides J.: Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley (1995).

10. Glass, R. Software Conflict. Yourdon Press (1991).

11. ITSMO – IT Service Management Ontology (2012). See web site (last accessed August

2012).

12. Martin, R.: Agile Software Development, Principles, Patterns, and Practices, Pearson

(2012).

13. W3C, OWL-S: Semantic Markup for Web Services, http://www.w3.org/Submission/OWL-

S/ (2004).

14. Yagel, R., Litovka, A. and Exman I.: KoDEgen: A Knowledge Driven Engineering Code

Generating Tool, The 4th International Conference on Knowledge Discovery, Knowledge

Engineering and Knowledge Management (IC3K) - SKY Workshop, Vilamoura, Portugal,

2013.

15. Yang, H., Cui, Z. and O’Brien, P., “Extracting ontologies from legacy systems for

understanding and re-engineering”, in Compsac’99 23

Annual International Computer

Software and Applications Conference, pp. 21-26, (1999). DOI = 10.1109/

CMPSAC.1999.812512.
