Quick Response (QR) codes, used to store machine readable information, have become very common nowa-

days and have found many applications in different scenarios. One of such applications is electronic voting

systems. Indeed, some electronic voting systems are starting to take advantage of these codes, e.g. to hold

the ballots used to vote, or even as a proof of the voting process. Nevertheless, QR codes are susceptible to

steganographic techniques to hide information. This steganographic capability enables a covert channel that in

electronic voting systems can suppose an important threat. A misbehaving equipment (e.g. infected with mal-

ware) can introduce hidden information in the QR code with the aim of breaking voters’ privacy or enabling

coercion and vote-selling. This paper shows a method for hiding data inside QR codes and an implementa-

tion of a QR writer/reader application with steganographic capabilities. The paper analyses different possible

attacks to electronic voting systems that leverage the steganographic properties of the QR codes. Finally, it

proposes some solutions to detect the mentioned attacks.

1 INTRODUCTION

Quick Response (QR) codes (ISO/IEC, 2006) have

become very common nowadays. Its characteristics

make them very suitable to store machine readable in-

formation which can be easily captured by any device

equipped with a simple camera such as a smartphone.

Their use has become quite pervasive and electronic

voting systems are not an exception. Several recent

electronic voting systems are using QR codes, e.g. to

hold the encrypted vote so it can be used to vote, or

even as a proof of the voting process. In any case we

argue that the use of QR codes can expose a vulnera-

bility in voting systems.

This vulnerability is related to the error correcting

capacity of QR codes, which use an error correcting

codiﬁcation to be able to stand errors in their read-

ing. Such errors might be produced when printing

QR codes if a low quality printer is used, once the

paper has already been printed due to, for example,

crumpled paper, or when reading the QR code if a

low quality camera is used or the environmental light

is not sufﬁcient. While this error correcting ability

is desirable in most applications, in some scenarios

it can be exploited as a covert channel to hide unde-

tectable information.

QR steganography provides the ability to hide in-

formation in the QR code, in a way such that the code

still provides the initial intended information. The le-

gitimate reader reads the original information with-

out noticing the hidden message, but a specially tuned

reader can read this hidden message. The hidden mes-

sage can be encoded as errors or concealed within the

redundant data used to correct the errors.

This steganographic capability of the QR codes

enables a covert channel in electronic voting sys-

tems that suppose an important threat. A misbehav-

ing equipment (e.g. infected with malware) can intro-

duce hidden information in the QR code with the aim

of breaking voters’ privacy or enabling coercion and

vote-selling.

QR codes have been recently used in steganogra-

phy. More precisely the main use is to encode the

steganogram in the QR code, and then the QR code

into an image (Chung et al., 2009; Dey et al., 2012;

Huang et al., 2011; Chen and Wang, 2009). The QR

code is used as the container of the steganogram, and

its error correcting capabilities ensure that the errors

introduced by encoding the QR into an image does

not alter the message. That is, the hidden informa-

tion is the information encoded in the QR. Contrary to

these works, the hiding of the information in the QR

484

Cucurull J., Guasch S., Escala A., Navarro-Arribas G. and Acín V..

QR Steganography - A Threat to New Generation Electronic Voting Systems.

DOI: 10.5220/0005120404840491

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 484-491

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

has been scarcely explored in the literature (Lin et al.,

2013). Furthermore we are not aware of any previ-

ous publication exposing the threat that QR codes can

involve in electronic voting systems.

Although several types of two dimensional codes

exist, QRs are the most popular and widely used. For

example, all standard barcode reader applications for

mobile phones can read QRs, while they may not be

able to read other formats, such as PDF417 or Data

Matrix. Thus, our analysis is centered on QR codes.

In this paper we argue that QR codes can introduce

vulnerabilities in voting systems and can suppose an

important threat if this implications are not carefully

considered. The paper is organised in six sections:

Section 2 gives an overview of the QR codes’ design;

Section 3 presents a steganography method and its

implementation to include hidden data into the code;

Section 4 analyses the use of QR codes in voting sys-

tems and associated attacks; Section 5 proposes solu-

tions to detect and mitigate the presented attacks; and

Section 6 presents the conclusions of the paper.

2 QR CODES

A QR code (ISO/IEC, 2006) is a two dimensional

code intended for storing information, which is com-

posed of an array of squared modules arranged in a

squared area. The code version determines the stor-

age and error correction capacity. Maximum storage

is 23.648 bits, while four error correction levels are

available, up to 30% error correction capacity.

2.1 Overview

A QR code, also referred as symbol, is composed of

several rows and columns, with sizes ranging from

21 x 21 modules (Version 1) to 177 x 177 modules

(Version 40). A QR code is composed of different

elements (see Figure 1):

• Position Detection and Alignment Patterns.

Each QR code contains three position detection

patterns on the upper left, upper right and lower

left corners. A number of alignment patterns, de-

pendant on the symbol version, are included.

• Format Information. Located around the posi-

tion detection paterns, this includes information

about the error correction codes and mask pattern

used (see Section 2.3).

• Version Information. This determines the capac-

ity of the QR code. It is also located around the

position detection patterns.

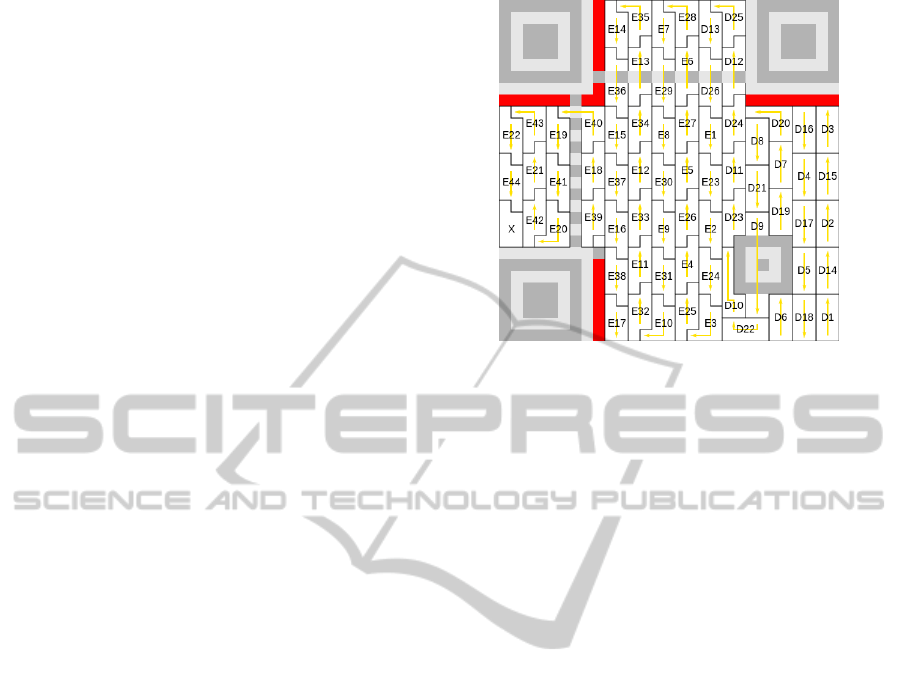

Figure 1: QR elements and data distribution.

(src. Wikimedia Commons, CC0 1.0 Universal lic.)

• Timing Patterns. Used to determine the symbol

density and version of the QR. They are marked in

Figure 1 as the dotted lines crossing the QR both

horizontally and vertically.

• Data and Error Correction Codes. Areas that

contain the actual data content stored in the QR,

as well as error correction codes of the data. These

areas are organised in blocks, which are composed

of a number of codewords, each of them of 8 bits.

The number and size of blocks assigned to data

and error correction codes is determined by the

QR version. The data and error correction codes

are placed in different areas of the QR (see blocks

numbered as Dx for data, and Ex for errors, in Fig-

ure 1).

Depending on the type of data contained in the

QR, different encodings can be used, e.g. numeric, al-

phanumeric, 8-bit Byte, etc. The encoding is selected

with an optional header called Extended Channel In-

terpretation (ECI) included as part of the data blocks.

2.2 Blocks and Mask

Codewords from different blocks are interleaved in

the QR. In Figure 1 there is an example of a QR code

where there are two blocks of data, B1 and B2: the

ﬁrst block contains the data codewords D1-D13 and

the second one the data codewords D14-D26. Nev-

ertheless, the codewords are interleaved, i.e. they are

written as D1, D14, D2, D15, and written from the

right-bottom to the top-left parts of the code. In-

terleaving is used to increase the symbol robustness

against error bursts.

At low level, a QR code is composed of a num-

ber of white and black squared modules. Depending

QRSteganography-AThreattoNewGenerationElectronicVotingSystems

485

on the encoded data, there could be areas with many

modules of the same colour, producing reading prob-

lems. In order to avoid these issues, a known mask

pattern with a uniform distribution of white and black

modules is XORed over the encoded data. This results

in a well-balanced distribution of modules. Eight dif-

ferent mask patterns, identiﬁed with a three bit code

called Mask Pattern Reference, are available.

2.3 Error Correction

QR codes provides error correction based on Reed-

Solomon codes (Reed and Solomon, 1960). The QR

code has a given error correction capacity, determined

by the QR version, divided in four possible levels: L

(7%), M (15%), Q (25%) and H (30%). The higher

the correction capacity is, the higher is the number of

codewords dedicated to error correction.

There are two types of erroneous codewords that

can be corrected: erasures and errors. An erasure is

produced due to a symbol character or module, the

position of which is known, that cannot be scanned or

decoded. An error is produced due to a misdecoded

symbol character, the position of which is unknown.

The error correction capacity can be calculated us-

ing Equation 1, that shows the maximum number of

erasures (e) and errors (t) that can be corrected given

the number of error correction codewords (d) and the

number of misdecode protection codewords (p)

, both

deﬁned by the QR speciﬁcation.

e+ 2t ≤ d − p (1)

This capacity is calculated assuming an homoge-

neous distribution of the erasures and errors through

the available data blocks. The reason is that each

block of error correction codewords corrects the er-

rors of a given block of data codewords.

2.4 Code Generation

The QR code generation involves the following steps:

1. Data Analysis. Selects the most appropriate data

encoding, error detection and correction level, and

symbol version to use, given the information to

store.

2. Data Encoding. Encodes the data into a data

stream according to the rules selected in the previ-

ous step, splits the stream in codewords and adds

the needed padding.

p = 3 in version 1-L symbols, p = 2 in version 1-M and

2-L symbols, p = 1 in version 1-Q, 1-H and 3-L symbols,

p = 0 in all other cases.

3. Error Correction Coding. Generates the error

correction codes for the blocks of codewords gen-

erated in the previous step.

4. Structure Final Message. Interleaves the data

blocks and the error correction blocks and adds

ﬁlling bits if necessary.

5. Module Placement in Matrix. Places the code-

words into a matrix together with the additional

information required.

6. Masking. Applies different mask patterns to the

matrix generated in the previous step and selects

the one that provides a better result for further

symbol processing.

7. Format and Version Information. Generates

format and, if required, version information of the

symbol.

3 QR STEGANOGRAPHY

METHOD

This section explains the method designed to insert

hidden information in the QR code.

3.1 Overview

The method proposed to insert hidden information in

a QR code exploits the error correction capability so

that it is not detected by a regular QR reader.

The method is simple, it consists on replacing a

certain number of codewords of data in the QR code

with the information to hide. When the QR is read,

the replaced codewords are considered as errors and

are corrected by the error correction mechanism when

read. Therefore, the added information remains hid-

den to the regular QR reader. In order to take full

advantage from the error correction mechanism and

maximise the capacity for hidden information, the

modiﬁcation has to be performed without altering the

error correction codewords.

3.2 Designed Method Implementation

The information to hide into the QR code overwrites

a subset of its data codewords. In order for the

stegranography method to work, it is important that

both the modiﬁed QR generator and the modiﬁed QR

reader agree on where to locate the hidden data, which

means, where to overwrite the data codewords. In our

implementation, the new data is sequentially placed,

from the beginning of the QR matrix (bottom-right

position), overwritting the interleaved data codewords

SECRYPT2014-InternationalConferenceonSecurityandCryptography

486

of the different data blocks. This guarantees the max-

imum error correction capacity usage, since the same

number of data codewords ±1 are overwritten for

each block.

For simplicity, in this implementation both the

hidden and the original data are encoded with the 8-

bit Byte encoding.

As in case of the location of added data, both the

modiﬁed QR generator and the modiﬁed QR reader

have to agree on how to indicate the termination of

the hidden data. In our implementation, the end of

the added data is indicated with two contiguous semi-

colon symbols (“::”).

Considering the steps to create a QR code (see

Section 2.4), the new data is injected into the QR code

just before the masking step. The reason is that at this

step the error codes have already been created, hence

the original data is recoverable, and it is still possible

to add the masking to create a balanced distribution of

white and black symbols.

In order to read a QR code generated according to

this method, the opposite steps are followed. Just af-

ter applying the mask, the hidden data is read, and af-

ter that the overwritten original data is automatically

recovered thanks to the error correction codes.

3.3 Capacity

The amount of information that can be hidden in the

QR, while still being able to recover the original mes-

sage, is limited by the error correction capacity of the

QR (see Section 2.3) and the actual errors.

Since the introduced hidden text will overwrite the

original data with legitime symbols, each codeword

of hidden data will count as one error in the Equa-

tion 1. Therefore, the error correction capabilities of

the QR are reduced proportionally to the amount of

hidden data. In case the combination of hidden data

and legitimate errors overcomes the error correction

capacity, the hidden data may be partially exposed to

the regular QR reader.

Finally, we want to remark that that the hidden

data is not protected against errors by the error cor-

recting codes, and therefore any error when reading

this data would not be solved. The hidden data can

be additionally protected by incorporing its own error

correcting codes. However, because they introduce

redundancy, this would dramatically reduce the space

available in the QR to hide information.

3.4 Implementation of an Android App

In order to test and prove the method described, an

Android application to generate and read codes with

additional hidden information has been created. As

it can be seen in Figure 2, the application allows the

user to enter two texts. Once the QR code is gener-

ated, one of the texts is readable using any standard

QR reader, while the other is hidden and only read-

able using a modiﬁed reader, e.g. the application im-

plemented (see Figure 3).

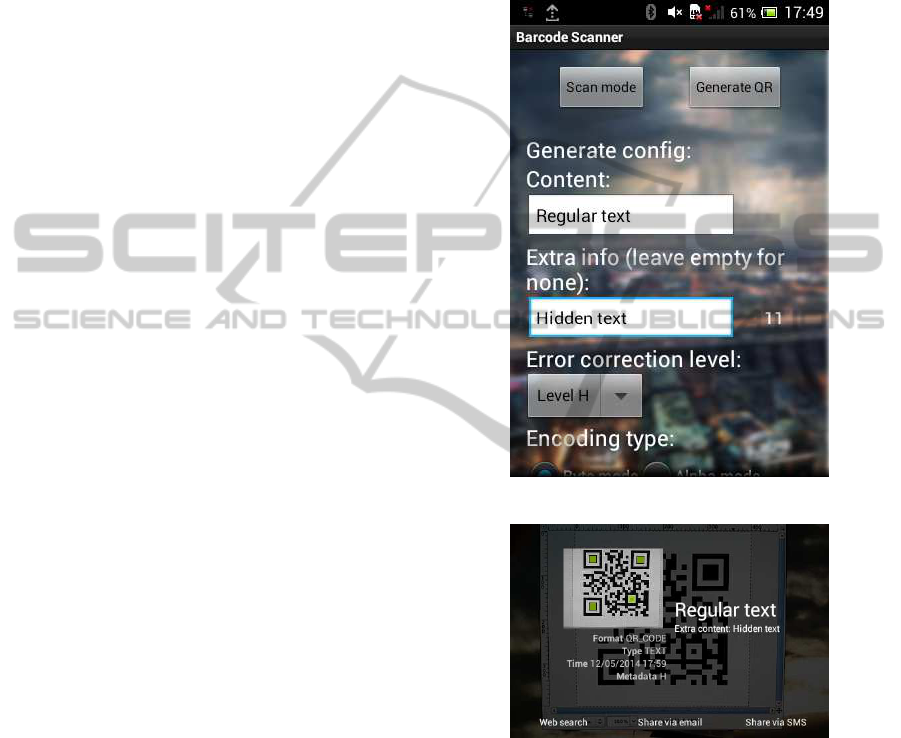

Figure 2: Application: generating code.

Figure 3: Application: reading code.

The application is based on the ZXing library

(Zebra Crossing Barcode Scanner Library) (ZX-

ing, 2014), which was modiﬁed to write and read

QR codes with hidden information according to the

method described using the 8 bit encoding. The ap-

plication has been tested with the QR Versions 1-20

and the four levels of error correction. The rest of the

QR Versions should also work.

QRSteganography-AThreattoNewGenerationElectronicVotingSystems

487

4 QR CODES IN ELECTRONIC

VOTING SYSTEMS

In the previous section we have seen a very simple

method to apply steganography to the QR codes. This

provides opportunities for attackers to exploit systems

that make use of these codes, by implementing a hid-

den channel on them.

An interesting case of use is electronic voting.

Some electronic voting systems integrate QR codes

for representing some pieces of data to be used by the

system and/or by the voters. In these systems a QR

code can be used as a:

• Voter Credential: it is an authorization that is is-

sued to the voter after being identiﬁed by the poll

workers as an eligible voter, usually in poll-site

electronic voting systems. The voter is required

to present a valid voter credential to the voting de-

vice, in order to be able to cast a vote.

• Candidate: it is a representation of the candidate,

information related to him, or the data required to

cast the vote for him by scanning the code.

• Filled Ballot: it contains the voting options se-

lected by the voter. The voting options can be in

plaintext or encrypted, depending on the particu-

lar voting system.

• Proof: some electronic voting systems provide

mechanisms for the voter to verify some parts

of the voting process. Proofs for the voter are

used to prove that the content of the vote to

be cast matches the voter selections (cast-as-

intended veriﬁcation) or that the vote has been

correctly stored in the ballot box (recorded-as-

cast veriﬁcation).

The following sections describe potential attacks

to electronic voting systems using QR steganogra-

phy. These attacks may affect security properties of

the schemes, such as voter privacy or veriﬁability, de-

pending on the use of the QR code.

4.1 QR as a Voter Credential

Some electronic voting systems, and in general those

which are poll-site based, separate the identiﬁcation

of the voter from the vote casting process, in what

is known as the two agencies model (Chaum, 1981;

Fujioka et al., 1993), in order to provide voter privacy.

In such schemes, a poll-worker identiﬁes the voter

and checks her eligibility. After that, a temporal cre-

dential is issued to the voter. This credential will later

be used by the voter to cast a vote in the voting booth

in an anonymous way. Therefore the credential must

not contain any personal voter’s information, or any

data which allows to trace a cast vote to a speciﬁc

voter. QR codes can be used to represent such voter

credential.

The proposed method for using steganography in

QR codes can be used by a malicious voter creden-

tial issuer colluding with a malicious voting booth,

in order to perform an attack against the privacy of

the voter: the malicious voter credential issuer adds

voter’s personal information, or data which can be re-

lated to her (such as a timestamp or a sequential voter

number), as hidden information in the QR containing

the voter credential. The audit of the QR content us-

ing a regular QR reader does not reveal the hidden

voter data. However, when the QR code is read by

the malicious voting booth, it reads the hidden data

and relates it to the preferences selected by the voter.

Therefore, votes can be traced back to speciﬁc voters,

breaking their privacy.

4.2 QR for Candidate Selection

A QR code printed in an electoral advertisement could

be used to select the candidate or set of candidates in

the voting booth (by scanning it). Despite QR codes

have been used in political electoral publicity, those

only included links to the candidates’ websites. Cur-

rently, no relevant poll-site or remote electronic vot-

ing systems allow the usage of QR codes for casting

a vote for a candidate. Only proof of concepts limited

to academic environments (von Bergen, 2012) exist.

When using QR codes to encode the candidates

to be selected, two cases have to be distinguished:

generic codes and personalised codes. If the codes

provided are generic, i.e. single copy of the code mas-

sively printed or present in printed public advertise-

ments, no attacks against the election consisting of

exploiting a hidden channel in the QR codes seems

to be feasible. The reason is that in this case the

QR codes cannot be personalised to include personal

voter information with the vote cast. Nevertheless, if

these QR codes are electronically distributed, e.g. us-

ing an smartphone application or via e-mail, there is

a chance to personalise the code to include informa-

tion about the voter to whom the code is delivered for

breaking her privacy, e.g. the name or e-mail of the

voter.

4.3 QR Containing a Filled Ballot

Several electronic voting systems use ballots that in-

clude QR codes to represent the voting preferences.

Depending on the system, voting preferences are rep-

resented (encrypted or unencrypted) in the QR code

SECRYPT2014-InternationalConferenceonSecurityandCryptography

488

and/or in human readable form outside the QR code.

Different attacks can be performed by taking advan-

tage of the steganographytechnique described in Sec-

tion 3.

4.3.1 Ballots with Plaintext Voter Selections

Some poll-site voting systems use paper ballots with

QR codes encoding the voter preferences, in order to

be able to speed up the counting phase: the QR code

in the paper ballot may be scanned while the ballot

is put in the ballot box, so that votes are electron-

ically accumulated during the voting phase (Vegas,

2012). Another alternative is to scan the QR codes

in the paper ballots stored in the ballot box after the

voting phase has ended, in order to accumulate the

votes electronically and obtain the results faster than

by manual count (Volkamer et al., 2011).

Some voting systems use QR codes to encode the

voter preferences in plaintext or, if the preferences

are encrypted, they also include them printed as hu-

man readable text. These kind of ballots cannot in-

clude any information about the identity of the voter,

since they would violate her privacy. An example of

a voting system that includes a QR and the prefer-

ences printed in cleartext is the Belgian e-voting sys-

tem (Vegas, 2012). In this case, to ensure the privacy

of the voter, the voter authenticates and generates the

ballot in a separate system than the one that reads and

processes the ballot to store it in the ballot box.

In these type of systems, QR steganography pro-

vides a covert channel which may include the identity

of the voter or other information that can be related

to her (such as the time of ballot generation). Thus,

this information can be used to trace voter preferences

back to a voter.

This hidden information would be included by a

malicious component in charge of generating the bal-

lot. Then, a malicious electronic ballot box scanning

the QR codes in the ballots would be able to generate

a relation of ballots and voters, or a sorted list of bal-

lots. In case the QR codes are not scanned by the bal-

lot box, but manually, a malicious poll worker could

obtain this same information. In both cases, the pri-

vacy of the voters would be seriously compromised.

4.3.2 Ballots with Encrypted Voter Selections

Other electronic voting systems use QR codes in the

ballot to represent the encrypted vote. An exam-

ple of this type of system is Wombat Voting (Farhi,

2013; wom, 2014). In Wombat, the voter uses a vot-

ing booth to select the vote preferences and then the

vote is encrypted and printed into a QR code together

with the vote preferences in plaintext (outside the QR

code). The voter folds the ballot (to cover the plain-

text printed preferences) and hands the ballot to the

voting committee. The voting committee scans the

QR code and, after it, the voter tears the ballot in half

and inserts the printed preferences into a physical bal-

lot box. The printed preferences stored in the physi-

cal ballot box are used for further auditing the result

of the count of the votes scanned from the QR codes.

The voter keeps the QR code as a vote receipt.

In these type of systems, the voter identity or any

information that can be related to her can be included

in the QR code or in the ballot, since the voter pref-

erences are encrypted, as far as this information is re-

moved before the decryption (for example by means

of a mixnet (Chaum, 1981; Sako and Kilian, 1995)).

However, QR steganography may give the chance to

include the vote preferences in plaintext as hidden in-

formation in the QR code. In this case, it would still

be possible to connect a voter with her vote in clear,

so her privacy would be broken. Also, it can be used

to obtain partial election results before it is allowed

(when the votes are still supposed to be encrypted).

These attacks require the manipulation of both the

voting booth and the electronic ballot box. In de-

tail, when the ballot is generated by the voting booth

the vote preferences in cleartext are hidden in the QR

code. When the QR code is read and stored in the

electronic ballot box, the machine can obtain partial

counts that are not supposed to be performed and it

can also link the vote preferences to the voter if the

voter identiﬁcation is also included among the legit-

ime information.

4.4 QR Containing a Proof

Some electronic voting systems provide mechanisms

for the voter to verify some parts of the voting

process. Proofs for the voter are used to prove

that the content of the vote to be cast matches

the voter selections (cast-as-intended veriﬁcation) or

that the vote has been correctly stored in the ballot

box (recorded-as-cast veriﬁcation) (Gharadaghy and

Volkamer, 2010).

QR codes can also be used for providing veriﬁ-

ability by holding such proof. An example of an

electronic voting system that uses these codes for

providing veriﬁability is the Estonian i-Voting sys-

tem (Maaten and Hall, 2008). In this case the QR

codes provide cast-as-intended veriﬁability (Elek-

troonilise hletamine komisjon, 2014): When a voter

casts a vote, the vote preferences are encrypted with

the Election Key using some randomness, and sent

to a remote voting server. Then, the server returns a

short receipt code that can be used to laterly retrieve

QRSteganography-AThreattoNewGenerationElectronicVotingSystems

489

the encrypted vote. The randomness used for the en-

cryption and the receipt code are encoded within a QR

code that is provided to the voter, to be able to ver-

ify that her vote has been cast as intended. In order

to perform the veriﬁcation, the voter captures the QR

code with a smartphone. The smartphone retrieves

the encrypted vote from the server using the receipt

present in the QR code as a reference. Later, it gen-

erates one encryption for each possible combination

of voter preferences, using the Election Key and the

randomness also included in the QR code. The en-

cryptions generated are compared to the one received

from the server, and the one that matches will deter-

mine the content of the vote cast by the voter. Then,

the voter preferences are shown to the voter on the

mobile screen. The voter makes sure the preferences

shown match the intended ones (those she selected at

the vote casting time).

In this case, QR steganography provides the

chance to invalidate the veriﬁcation mechanism. A

compromised voting client and mobile application for

veriﬁcation can collude to pretend a vote is cast as in-

tended when it is not, in the following way: the voting

client stores the voting preferences in clear as hidden

data in the QR code that will be read by the veriﬁ-

cation application. This application is able to present

to the voter the selected voter preferences, even if the

ones encrypted, received from the server, are differ-

ent. Since this data is hidden in the QR, this cannot

be detected by a regular QR reader.

Another possible attack is not based on deceiving

the veriﬁcation mechanism, but in taking advantage of

the proofs given to the voter, in order to include some

extra information which can allow her to sell her vote.

As we explained before, in some voting systems such

as in Wombat Voting (Farhi, 2013; wom, 2014), vot-

ers get a QR code as a vote receipt, which they can

take back home after voting. This receipt can be later

used by the voter to check that her vote has been cor-

rectly stored in the ballot box, by checking it against

the ballot box contents which are published in a pub-

lic bulletin board (Gharadaghy and Volkamer, 2010).

A malicious voting booth can use QR steganography

to hide the voter preferencesof the vote cast in clear in

the QR code the voter gets, so that a vote buyer with

a modiﬁed QR reader can check them. Some proof

of authenticity may be added in order to ensure that

the QR code has been generated from a voting booth,

such as a digital signature or a MAC. In this case, the

hidden information could also be included in the sig-

nature or MAC, in order to ensure its authenticity in

front of the vote buyer.

5 ATTACK DETECTION AND

MITIGATION

In Section 4, we have shown some attacks that can be

performed in electronic voting schemes, by using QR

steganography. These attacks can be detected and, up

to certain extent, mitigated. Despite the attacks can-

not be totally avoided, some additional security mea-

sures can be applied.

A method to detect hidden information (or errors)

in the QR is the following: the QR code is scanned

by a regular QR reader, which returns the informa-

tion without errors or hidden data since, if present,

they are removed by the error correction mechanism.

After that, a new QR code is generated using the in-

formation read from the ﬁrst one. The two QR codes

are compared, and any differences between them can

be attributed to the presence of errors or hidden data.

Thus auditors with trusted devices can analyze a sam-

ple of the QR codes generated, and detect if an un-

usual number of errors are found. This may alert that

some kind of attack is happening, and allow trigger-

ing the activation of security measures accordingly.

Identiﬁcation of hidden data is not trivial. In the

design presented here, the hidden data follows a reg-

ular distribution and the hidden message ending is

marked with a speciﬁc character. However, if other

methods are used to distribute it, e.g. by pseudo-

randomly locating it, the hidden data may be indis-

tinguishable from errors.

The attacks can be mitigated by breaking the se-

cret channel created between the malicious QR code

writer and the reader. This can be performed by

putting a trusted device in the middle of these two ele-

ments that removesfrom the issued QR codes any dis-

crepancy with the original message, with the method

described above.

The attacks described cannot be totally avoided,

but some general security measures can be applied:

1. Trusted Build: The different software compo-

nents used in the servers are reviewed by auditors

and compiled and signed under their supervision.

The application surface corresponding to QR code

generation and reading is limited, so that it can

be easily audited. Then, any manipulation of the

software components would be detected.

2. Logical sealing of the systems: The different soft-

ware components used in the servers can be pro-

tected with logical sealing, i.e. measures to detect

manipulation of the software. This is only valid

for the applications running in controlled environ-

ments, without including software running in the

voters’ computers.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

490

Finally, another option is to modify the design of

electronic voting systems using approaches not vul-

nerable to the secret channel attacks. In this cases it

is worth to change the design for better security.

6 CONCLUSION

The use of QR Codes has increased during the last

years, specially thanks to the possibility to scan them

using smartphones. In addition, the usage of these

codes has been integrated in applications, such as

ticketing systems, tracking systems, and so on. As ex-

plained in this paper the ﬁeld of electronic voting sys-

tems has not been an exception. QR codes have been

integrated in different electronic voting solutions.

QR codes can be easily manipulated to include

hidden information. In this paper we have demon-

strated this by modifying a QR reader/writer appli-

cation for smartphones that inserts and reads hidden

messages to the QR codes. Thus, as we explained the

usage of QR codes can be exploited to attack the pri-

vacy of voters and veriﬁability properties of electronic

voting systems.

The threat and explotation technique of the elec-

tronic voting system using QR codes depends on the

place and purpose of the code usage. Most of the at-

tacks can be detected, and in some cases prevented,

at QR level. Some additional security controls can

be applied to increase the security of the system. As

a conclusion we claim that QR codes can be used in

electronic voting systems, but always considering the

possibility these codes have to include hidden infor-

mation. So the systems have to be designed accord-

ingly and the corresponding additional measures put

in place.

REFERENCES

(2014). Wombat Voting System. http://www.wombat-

voting.com.

Chaum, D. L. (1981). Untraceable electronic mail, return

addresses, and digital pseudonyms. Commun. ACM,

24(2):84–90.

Chen, W.-Y. and Wang, J.-W. (2009). Nested image

steganography scheme using QR-barcode technique.

Optical Engineering, 48(5).

Chung, C.-H., Chen, W.-Y., and Tu, C.-M. (2009). Image

hidden technique using QR-Barcode. In Fifth Interna-

tional Conference on Intelligent Information Hiding

and Multimedia Signal Processing, 2009. IIH-MSP

’09, pages 522–525.

Dey, S., Mondal, K., Nath, J., and Nath, A. (2012). Ad-

vanced steganography algorithm using randomized in-

termediate QR host embedded with any encrypted

secret message: ASA

QR algorithm. International

Journal of Modern Education and Computer Sci-

ence(IJMECS), 4(6).

Elektroonilise hletamine komisjon (2014).

Veriﬁcation of Internet votes.

https://www.valimised.ee/eng/nutitelefon.

Farhi, N. (2013). An implementation of dual (paper and

cryptograhic) voting system. Master thesis, Tel Aviv

University.

Fujioka, A., Okamoto, T., and Ohta, K. (1993). A practi-

cal secret voting scheme for large scale elections. In

Seberry, J. and Zheng, Y., editors, Advances in Cryp-

tology AUSCRYPT ’92, volume 718 of Lecture Notes

in Computer Science, pages 244–251. Springer Berlin

Heidelberg.

Gharadaghy, R. and Volkamer, M. (2010). Veriﬁability in

electronic voting - explanations for non security ex-

perts. In Krimmer, R. and Grimm, R., editors, Elec-

tronic Voting, volume 167 of LNI, pages 151–162. GI.

Huang, H.-C., Chang, F.-C., and Fang, W.-C. (2011). Re-

versible data hiding with histogram-based difference

expansion for QR code applications. IEEE Transac-

tions on Consumer Electronics, 57(2):779–787.

ISO/IEC (2006). ISO/IEC 18004:2006. information tech-

nology – automatic identiﬁcation and data capture

techniques – qr code 2005 bar code symbology speci-

ﬁcation.

Lin, P.-Y., Chen, Y.-H., Lu, E., and Chen, P.-J. (2013). Se-

cret hiding mechanism using QR barcode. In 2013 In-

ternational Conference on Signal-Image Technology

Internet-Based Systems (SITIS), pages 22–25.

Maaten, E. and Hall, T. (2008). Improving the transparency

of remote e-voting: The estonian experience. In Krim-

mer, R. and Grimm, R., editors, 3rd international

Conference on Electronic Voting 2008, volume 131 of

LNI GI, pages 31–43. Gesellschaft fr Informatik (GI).

Reed, I. S. and Solomon, G. (1960). Polynomial codes over

certain ﬁnite ﬁelds. Journal of the Society for Indus-

trial & Applied Mathematics, 8(2):300–304.

Sako, K. and Kilian, J. (1995). Receipt-free mix-type vot-

ing scheme. In Guillou, L. and Quisquater, J.-J., edi-

tors, Advances in Cryptology EUROCRYPT 95, vol-

ume 921 of Lecture Notes in Computer Science, pages

393–403. Springer Berlin Heidelberg.

Vegas, C. (2012). The new belgian e-voting system. In

Kripp, M., Volkamer, M., and Grimm, R., editors, 5th

International Conference on Electronic Voting 2012

(EVOTE2012), volume P-205 of LNI GI, pages 200–

213. Gesellschaft fr Informatik (GI).

Volkamer, M., Budurushi, J., and Demirel, D. (2011). Vote

casting device with VV-SV-PAT for elections with

complicated ballot papers. In Requirements Engineer-

ing for Electronic Voting Systems (REVOTE), 2011 In-

ternational Workshop on, pages 1–8.

von Bergen, P. (2012). Swissivi: Proof-of-concept for a

novel e-voting platform.

ZXing (2014). Zxing (Zebra Crossing Barcode Scanner Li-

brary). https://github.com/zxing/zxing.

QRSteganography-AThreattoNewGenerationElectronicVotingSystems

491
