Software and Hardware Certiﬁcation Techniques in a Combined

Certiﬁcation Model

Antonio Mu˜noz and Antonio Ma˜na

GISUM, University of Malaga, ETSII Informatica, Malaga, Spain

Keywords:

Certiﬁcation, Trusted Computing, Cloud Computing.

Abstract:

Certiﬁcation has been proved as an essential mechanism for achieving different security properties in new

systems. However, it has important advantages; among which we highlighted the increasing in users trust

by means of attesting security properties, but it is important to consider that in most of cases the system that

is subject of certiﬁcation is considered to be monolithic, and this feature implies that existing certiﬁcation

schemes do not provide support for dynamic changes of components as required in Cloud Computing running

systems. One issue that has special importance of current certiﬁcation schemes is that these refer to a particular

version of the product or system, which derives that changes in the system structure require a process of recer-

tiﬁcation. This paper presents a solution based on a combination of software certiﬁcation and hardware-based

certiﬁcation techniques. As a key element in our model we make use of the Trusted Computing functionali-

ties as secure element to provide mechanisms for the hardware certiﬁcation part. Likewise, our main goal is

bringing the gap existing between the software certiﬁcation and the means for hardware certiﬁcation, in order

to provide a solution for the whole system certiﬁcation using Trusted Computing technology.

1 INTRODUCTION

New computing paradigms, such as autonomic com-

puting, grid computing, service oriented computing,

and cloud computing are transforming the Internet,

from an information space to a dynamic computing

space, where distribution of data and remotely ac-

cessible software services, dynamism, and autonomy

are prime attributes. In particular, cloud technology

offers a powerful and fast growing approach to the

provision of infrastructure, platform and software ser-

vices, known as IaaS, PaaS and SaaS services respec-

tively, without the high costs of owning, operating

and maintaining the computational infrastructures re-

quired for this purpose. However, despite its appeal

from the economic, operational and even energy con-

sumption perspectives, cloud technology still raises

concerns regarding the security, privacy, governance

and compliance of the data and software services of-

fered through it. Such concerns arise from the dif-

ﬁculty to verify security properties of the different

types of applications and services available through

cloud technology and the uncertainty of the owners

and users of such services about the security of their

services, and of the applications based on them, once

they are deployed and offered through a cloud. Our

work uses the Trusted Computing technology(TCG,

2014) to provide trustworthiness at the lower levels of

the stack, as underlying infrastructure. Trusted Com-

puting uses cryptography to help enforce a selected

behaviour. The main functionality of TC is to allow

someone else to verify that only authorized code runs

on a system. This authorization covers initial boot-

ing and kernel and may also cover applications and

various scripts. Just by itself TC does not protect

against attacks that exploit security vulnerabilities in-

troduced by programming bugs. However, since this

kind of technology is considerably restricted, we have

adopted an approach based on different levels of de-

pendence on the TPM chipset. According to the ﬂex-

ibility requirements of our system, by means of this

mechanism we provide a tailored solution for differ-

ent contexts. The provision of a complete study of the

spectrum of possible cases is out of the scope of this

paper. Our motivationis presenting the problem of the

existing gap and gives a solution for the highest level

of certiﬁed system stack, that is the more TPM depen-

dent one. The remainder of this paper is structured

as follows section 2 gives an overview of the state of

the art. Section 3 gives an overview of our hardware

based certiﬁcation mechanism. Section 4 presents the

binding scheme and gives some implementation de-

405

Muñoz A. and Maña A..

Software and Hardware Certiﬁcation Techniques in a Combined Certiﬁcation Model.

DOI: 10.5220/0005098204050410

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 405-410

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

tails of our basic scheme approach. Section 5 gives

some conclusion and ongoing work.

2 STATE OF THE ART

Certiﬁcation is a well-established approach for the

provision of assertions on properties of entities such

as systems and services. In these terms, those parts

using certiﬁed entities can rely on the asserted prop-

erties, provided that the process of certiﬁcation is

known to produce sufﬁcient evidence for the valid-

ity of the property of the certiﬁed entity. Some recent

works put in evidence that the certiﬁcation has started

playing an important role in the Service-Oriented Ar-

chitecture (SOA) environment with the aim certifying

service functional and non-functional propertiescite-

dos,tres. However the deﬁnition of tailored solutions

for cloud environment need a natural evolution of ex-

isting certiﬁcation schemes, as the natural way to pro-

vide trustworthiness in cloud-based services and ap-

plications. Certiﬁcation of cloud-based services and

applications share a similar ground with SOA certiﬁ-

cation, due to the highly dynamic nature of both in-

frastructures, but introduce new requirements. Some

approaches(Grobauer et al., 2011; Khan and Malluhi,

2010) address the future role of certiﬁcation in the

cloud but not describing how to solve the issues re-

lated with the extremely dynamic cloud environment.

Software security certiﬁcation demonstrates the re-

liability and security of software systems in such a

way that an independent authority can check it with-

out having to use the techniques and tools used in

the certiﬁcation process itself. It builds on existing

software assurance, validation, and veriﬁcation tech-

niques but introduces the notion of explicit software

certiﬁcates, which contain all the information nec-

essary for an independent assessment of the certi-

ﬁed properties. However, there is no existing mech-

anism to express and confront claimed security prop-

erties. Existing works, especially in the context of se-

curity certiﬁcation schemes, have mainly focused on

monolithic software components, and usually provide

human-readable certiﬁcates used at deployment and

installation time. Therefore, the approaches proposed

so far for software security certiﬁcation do not support

a service-based scenario, since this scenario requires

the availability of machine-readable certiﬁcates, and

their integration within service selection and compo-

sition frameworks(Damiani and na, 2009). Damiani

et al.(Damiani et al., 2008) ﬁrst study the problem

of assessing and certifying the correct functioning of

SOA using security certiﬁcates based on signed test

cases. A ﬁrst step in the certiﬁcation of SOA and

Web Service has been done in 2008 by the USbased

Software Engineering Institute (SEI) that has deﬁned

a Web service certiﬁcation and accreditation process

for the US Army CIO/G6. Anisetti et al. (Anisetti

et al., 2011) then provide a test-based security certi-

ﬁcation solution for services and a ﬁrst approach to

its integration within the SOA environment. Impor-

tant work has been also done in the context of certify-

ing the Quality of Service (QoS) of web services(Al-

Moayed and Hollunder, 2010). The proposed ap-

proaches (e.g., (Rajendran et al., 2010; Ran, 2003;

Serhani et al., 2005)) mainly deal with the deﬁnition

of extended UDDI services supporting QoS metadata

in the discovery process. The research on certiﬁca-

tion of cloud-based services and applications is still

in its infancy; only few pioneering works foresee the

potential beneﬁts of integrating certiﬁcation schemes

within the cloud infrastructure, but none of them pro-

vides a concrete solution to this open research is-

sue. The Trusted Platform Module (TPM) is a hard-

ware chip designed to enable commodity computers

to achieve greater levels of security than was previ-

ously possible. The TPM offers three kinds of func-

tionality. The secure storage allows user processes

can store content that is encrypted by keys only avail-

able to the TPM. Platform measurement and reporting

functionality allows a platform the creation of reports

of its integrity and conﬁguration state that can be re-

lied on by a remote veriﬁer. And platform authentica-

tion functionality allows a platform to obtain keys by

which it can authenticate itself reliably. TC is tech-

nically provided not just to secure the hardware for

its owner, but also to secure against its owner. Addi-

tionally, TC is provided by remote attestation(Coker

et al., 2008) mechanism, which allows changes to the

user’s computer to be detected by authorized parties.

We make use of a certiﬁcation mechanism based on

the underlying remote attestation to achieve a seman-

tic attestation model appropriate for cloud computing

to achieve a semantic remote attestation (Haldar et al.,

2004). Consequently we will provide support for re-

lating certiﬁcations with trusted computing proofs in

order to provide a comprehensivetrust chain covering

the full cloud stack. Certiﬁcation on TC platforms,

where certiﬁcates of the higher levels (e.g., services)

include conditions on the low levels based on TC, will

provide scope for exploiting TC in complex execu-

tion tasks and provide a basis for completing the trust

chain.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

406

3 HARDWARE BASED

CERTIFICATION MECHANISM

As we have mentioned in this paper, we have chosen

Trusted Computing Technology as the hardware ele-

ment to build our certiﬁcation mechanism. TC Proofs

are used to certify the lower layers (hardware, native

OS and software infrastructure) and the software cer-

tiﬁcate is used for the higher levels (applications, ser-

vices, software infrastructure). Current certiﬁcation

schemes do not provide a reliable way to assess the

trustworthiness of a composite application at the point

of use due to certiﬁcates are intended for human use,

lack machine readable format, lack explicit and pre-

cise formulation of security properties, cannot be used

for runtime security assessment. Additionally these

are not suitable for dynamic environments, highly dis-

tributed environments, systems without a central con-

trol or controlled ownership, systems modiﬁed (e.g.

by policy decisions), and these do not support dy-

namic replacement of components and the most rel-

evant any kind of runtime binding mechanism. For

this reason we introduce a new element named AS-

SERT, which is a new type of digital certiﬁcate. AS-

SERTS are implemented as a digitally signed SAML-

contained XML document. Our approach is a mecha-

nism based on a combination of certiﬁcation of higher

levels of abstraction (applications, services and parts

of cloud software infrastructure) with the lower lev-

els (hardware, Native OS, rest of cloud security in-

frastructure) with the TC Proofs, in such a way that

software certiﬁcate and TC Proofs keeps. In practical

application, we propose a model based on three lev-

els of certiﬁcation, to know the Service/Application,

Platform and TC Proof. Our deﬁnition of binding cor-

responds to any means used to guarantee that an AS-

SERT corresponds to a service in the cloud.

4 A COMBINED APPROACH:

BINDING SCHEME

The main aim of our approach is to ensure that the ser-

vice (code and data) remains unchanged since evalua-

tion, which is the hardest target to achieve. Therefore,

we should not bind asserts to services but to complete

conﬁgurations. Likewise, if the service asserted uses

other services, these are also unchanged. Also, any

dynamic check can be conveniently performed (this

means quickly, transparently), and all relevant infor-

mation contained in the ASSERT is bound to the ser-

vice. We aimed that our approach is based on a pre-

vious study of the spectrum of possible cases of cer-

Figure 1: Certiﬁcation Approach.

tiﬁed services in the cloud according to the level of

ﬂexibility and therefore its dependence on the TPM

chipset.

According to the ﬂexibility requirements of our

system, by means of this mechanism we provide a tai-

lored solution for different contexts. However, since

a description every solution for each context is out of

the scope of this paper. Figure 2 shows our certiﬁca-

tion approach together with the existing certiﬁcation

mechanisms structure. Opposite to current certiﬁca-

tion mechanisms based on previous software analysis

then the certiﬁcate is generated. In our semantic based

approach, we perform two intermediate steps to de-

termine the proofs and to specify them to generate the

certiﬁcate.

Figure 2 shows an overview of our approach, with

both use cases. The certiﬁcate authorization (assert

creation) and client use case. The assert creation en-

tails three steps to know; the evaluation of the service

where the CA inspect the service and search in the

properties. The second step is the assert creation, ac-

cording to the properties the CA ﬁlls assert. The last

step is securing the assert, a key pair is generated us-

ing the TPM functionalities sealed with the state of

the system, then both the public key and the migrat-

able key are included in the assert. The second use

case corresponds to the client consists on three steps.

By means of the set up the client verify the assert us-

ing the key related with the service.

The second step is the usage, client requests a ser-

vice this replies encrypted/signature with private keys

and the public key is used for the veriﬁcation. In

the last step the data within assert are used to install

the migratable key in the destination TPM. Service

providers can be made legally responsible for using

the key pair only with the asserted service. The key

pair resides in a TPM and it is bound to the asserted

conﬁguration of the service, since the TPM chipset

provides means needed to both key generation and se-

SoftwareandHardwareCertificationTechniquesinaCombinedCertificationModel

407

curely storage. The workﬂow is when the service is

called, the TPM functionalities are used to attests the

(complete) service conﬁguration and the key is made

available to the service. If the service has changed

the TPM functionalities are used to check (attesta-

tion) will fail and the key will not be available. We

highlight the fact that each response to a call to the

service is signed with the service private key. In or-

der to allow for different conﬁgurations each group of

services sharing an infrastructure is executed in a vir-

tual machine. Obviously, this solution implies some

restrictions, such as services always run on TPM-

equipped hardware. In those cases in which services

run on virtual machines, then hardware must be pro-

vided on this. Clients has there requirement of be-

ing TPM-equipped hardware, at least in the more re-

stricted cases. However, these restrictions are not hard

to meet. Moreover, some restrictions can be relaxed

since our model can be implemented without virtu-

alization, and we can use sessions to avoid signature

of all messages. One important appeal of our model

is the inherent ﬂexibility of this model since it allows

that several binding mechanisms can co-exist. As we

previously mentioned, our approach is based on the

usage of trusted computing technology, which is es-

sential to perform the attestation of both the hardware

and the native OS. Our basic scheme makes use of the

sealed bind key functionality provided by the trusted

computing technology, in such a way that the sealed

bind key is used to encrypt part of the service code

in such a way that it can be only used when the plat-

form is in that trusted state. This model is very re-

strictive, but it provides a high level of security since

it establishes a very limited execution environment.

Nevertheless, the limitations of this model make dif-

ﬁcult its integration in real world scenarios, but a tai-

lored solution based on this scheme can be suitable

for particular cases.We differentiate between two use

cases, the assert creation use case, where the Certiﬁ-

cate Authorization is involvedand the Assert User use

case. The ﬁrst step in the Assert Creation use case

is the service evaluation, which involves that the CA

checks a list of properties that must be fulﬁlled and

makes an inspection of the service. Thus, CA ﬁlls

in the assert form with extracted data. For this pur-

pose, a key pair is created from a sealed key related to

the state of the platform. A possible binding scheme

must to consider that each service is asserted to op-

erate with a key pair. Additionally, service providers

can be made legally responsible for using the key pair

only with the asserted service. The key pair resides

in a TPM and it is bound to the asserted conﬁgura-

tion of the service. When the service is called, the

TPM attests the (complete) service conﬁguration and

the key sets as available to the service. If the service

has been changed the TPM functionality is used to at-

test the state the checking will fail and the key will not

be available. Each response to a call to the service is

signed with the service private key. In order to allow

different conﬁgurations, each group of services shar-

ing the same infrastructure is executed in a virtual ma-

chine. This solution implies several restrictions, such

as the services must be run on TPM-equipped hard-

ware (or even virtualized). Additionally, the service

clients must use cryptography. Nevertheless, these

restrictions are not hard to meet and even some re-

strictions can be relaxed. In some cases we can do

without virtualization. The most relevant appeal of

our approach is the scalability, since this approach al-

lows the use of asserts for the orchestration of dif-

ferent services (i.e dynamic coalitions for emergency

targets), by means of the composition of services can

be asserted by a composed assert. TC Proofs are lim-

ited (for this scenario), in the case that a high-level

certiﬁcate (for in stance for a service) refers to a stan-

dard TC proof to deﬁne the platform state, it should

be needed issue a different certiﬁcate for each valid

platform conﬁguration. This addresses to the need of

improvements in ﬂexibility, and interoperability. Fol-

lowing this target, we propose semantic approaches

that can be the basis for the necessary improvements.

Certiﬁcate Service A provides the property ”conﬁden-

tiality of user data” if the platform provides encrypted

isolated storage. The semantic proof speciﬁcation is

encrypted isolated storage. And destination platform

provides encrypted isolated storage if measured con-

ﬁguration is ”mc”. Figure 4 shows different steps in

the workﬂow of the certiﬁcation process. In the tra-

ditional scheme validity and properties are analysed

and then the certiﬁcate is accepted or rejected. In

our scheme we introduced the extraction of runtime

proofs that making use of a semantic proof speciﬁca-

tion TC software measurement are generated. Then

workﬂow is split to generate measured TC Proof and

we get the platform semantic certiﬁcate. Then the

semantic proof certiﬁcate is generated and validated.

Finally, measure TC proofs and required TC proofs

from the semantic proof certiﬁcate are compared to

accept or reject the certiﬁcate.

4.1 The Basic Binding Scheme

Implementation

For the implementation of our basic binding scheme

we make use of the Certiﬁed Migratable Key (CMK)

functionality provided by the TPM. It is a kind of key

that is halfway between a non-migratable key and a

migratable key. These are inside of a TPM chip, but it

SECRYPT2014-InternationalConferenceonSecurityandCryptography

408

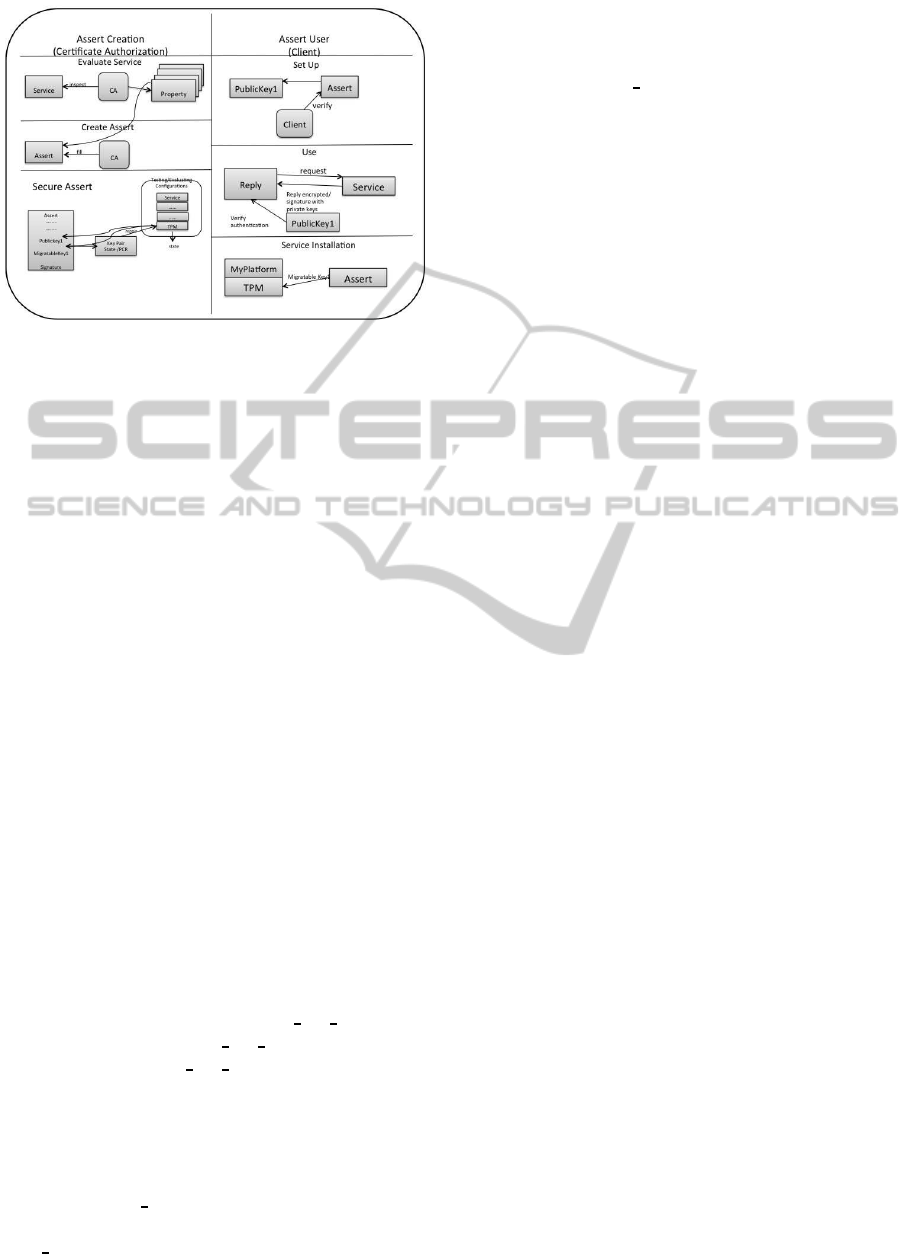

Figure 2: Our Certiﬁcate Authorization.

can be migrated to another TPM. Due to its features it

ﬁts in our requirements. At the time they are created,

the creator has to pick up a Migration Authority (MA)

or a Migration Selection Authority (MSA), which will

have the authority to migrate the key. CMKs can both

be migrated and also be considered secure, in the case

you trust the MSA and MAs to migrate the key.

The complete trust and security functionality of a

Trusted Computing Platform is based on the capabili-

ties of the TPM to protect these keys and certiﬁcates.

A TPM contains a Root of Trust Storage (RTS), which

protects data and keys entrusted to the TPM. The RTS

manages a small amount of volatile storage inside the

TPM device that is used to hold currently used keys.

Unused keys may be encrypted with a storage key and

moved off the TPM chip, e.g., to a hard disk drive.

The migratable key chain is designed so that only one

key, the Legacy key (or Platform Migratable Storage

Key) needs to be migrated in order to take all the keys

below in the hierarchy in to a new TPM. For the mi-

gration it could be necessary that keys are required

on different platforms, which are handled by a user

alternatively. Sharing the same key across multiple

platforms may be achieved by using key migration

mechanisms. Key migration mechanisms allow the

private keys from TPM-protected key hierarchy to be

attached to other TPM-protected storage trees.

Migratable Keys (MK) can be moved to another

TPM by using either rewrap (TPM

MS REWRAP)

or migration scheme (TPM MS MIGRATE). To mi-

grate a key with TPM

MS REWRAP, a destination

TPM selects a storage key. This will be used as a par-

ent for the migratable key and sends its public part

to a source TPM. The source TPM rewraps the mi-

gratable key under the destination public key. The us-

ing of destination public key should be authorized by

owner with TPM

AuthorizeMigrationKey command

and rewrap procedure can be done with command

TPM

CreateMigrationBlob. Resulting blob is then

forwarded to the destination TPM in conjunction with

a plaintext object describing the public key from the

key pair to be migrated. The destination TPM can

load blob with TPM

LoadKey command.

5 CONCLUSIONS & ONGOING

WORK

Software certiﬁcation is considered as an appropriate

and robust mechanism for supporting assurance and

compliance, but there are two important problems.

The ﬁrst of them is that it has been traditionally tar-

geting humans and has not been able to support au-

tomated processing of certiﬁcations (i.e. veriﬁcation,

selection based on certiﬁcations, etc.). The second

drawback is that certiﬁcation cannot provide dynamic

proofs of the status of a system at runtime, which are

extremely important in a dynamic, heterogeneous and

unpredictable scenario such as cloud computing.

Cloud computing architectures are based on a

hardware, software and ﬁrmware underlying basis

that is stable, in the sense that few changes are done

in this basis. However, in the most abstract layers of

the software (i.e., applications) changes are produced

frequently, different applications are launched in sys-

tems sharing resources, resulting in many changes in

the system execution stack. Trusted Computing (TC)

technologies are well suited to provide proofs of the

trustworthiness on the lower level of the cloud stack

starting with the hardware layer, but are not efﬁcient

and practical when it comes to dealing with the very

dynamic and heterogeneous higher layers (service /

application).

The proposed scheme can successfully bridge the

gap between Trusted Computing and Software Cer-

tiﬁcation by combining the best of both worlds and

overcoming their respective limitations. The concept

of ASSERT as a computer-oriented form of certiﬁca-

tion is an essential key for improving the ﬂexibility

and practical applicability of TC mechanisms. This

approach can open new application ﬁelds for TC. The

approach is based on the results of the ASSERT4SOA

project, and the current model has been developed in

the CUMULUS project.

Among the ongoing work we are working in the

study of different schemes for every particular case

building a tailored solution for every one. Another al-

ternative consists on the use of sessions, we can use

sessions to avoid signature of all messages. In this

way, the handshake is done at the starting of the ses-

sion; while the session is open it is assumed that the

services is unchanged. This solution allows that ev-

ery time that we want to check that the service is un-

SoftwareandHardwareCertificationTechniquesinaCombinedCertificationModel

409

changed it is possible to restart the session. Addition-

ally, we can implement different binding mechanisms

for speciﬁc purposes (i.e. for legal aspects) that can

co-exist.

ACKNOWLEDGEMENTS

This research was undertaken as part of the EC

Framework Programme as part of the CUMULUS,

Certiﬁcation infrastructure for multi-layer cloud ser-

vices and PARIS Privacy preserving infrastructure for

surveillance, and the Andalusian Government funded

project ICES, Identiﬁcation and Certiﬁcation of Soft-

ware Elements.

REFERENCES

Al-Moayed, A. and Hollunder, B. (2010). Quality of service

attributes in web services. In 5th International Con-

ference on Software Engineering Advances. IEEE.

Anisetti, M., Ardagna, C., and Damiani, E. (2011). Fine-

grained modeling of web services for testbased secu-

rity certiﬁcation. In 8th International Conference on

Service Computing. IEEE.

Coker, G., Guttman, J., Loscocco, P., Herzog, A., Millen, J.,

OHanlon, B., Ramsdell, J., Segall, A., Sheehy, J., and

Sniffen, B. (2008). Principles of remote attestation. In

special issue of the 10th International Conference on

Information and Communications Security. Springer-

Verlag.

Damiani, E., Ardagna, C., and Ioini, N. E. (2008). Open

source security certiﬁcation. Springer-Verlag.

Damiani, E. and na, A. M. (2009). Toward ws-certiﬁcate.

In ACM Workshop on Secure Web Services. ACM.

Grobauer, B., Walloschek, T., and Stocker, E. (2011). Un-

derstanding cloud computing vulnerabilities. In Secu-

rity & Privacy. IEEE.

Haldar, V., Chandra, D., and Franz, M. (2004). Seman-

tic remote attestation: a virtual machine directed ap-

proach to trusted computing. In 3rd conference on Vir-

tual Machine Research And Technology Symposium.

ACM.

Khan, K. and Malluhi, Q. (2010). Establishing trust in cloud

computing. In IT Professional. IT Professional.

Rajendran, T., Balasubramanie, P., and Cherian, E. (2010).

An efﬁcient ws-qos broker based architecturefor web

services selection. In International Journal of Com-

puter Applications. International Journal of Computer

Applications.

Ran, S. (2003). A model for web services discovery with

qos. In ACM SIGecom Exchanges. ACM.

Serhani, M., Dssouli, R., Haﬁd, A., and Sahraoui, H.

(2005). A qos broker based architecture for efﬁcient

web services selection. In IEEE International Confer-

ence on Web Services. IEEE.

TCG (2014). Trusted Computing Group: TCG Speciﬁca-

tions. Trusted Computing Group.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

410
