Refining Use Cases through Temporal Relations

António Miguel Rosado da Cruz

Escola Superior de Tecnologia e Gestão, Instituto Politécnico de Viana do Castelo,

Av. do Atlântico, s/n, Viana do Castelo, Portugal

Keywords: Use Case Model, Use Case Temporal Relations, Interaction Modeling, Model-Driven Development.

Abstract: In UML, use cases can be used both for modeling the external requirements of a subject (system) and the

functionality offered by a subject. Moreover, use cases can also be used to specify the requirements the

subject poses on its environment, by defining how the actors should interact with the subject. Task models

are used in the HCI community to model tasks the user and the system must carry out when interacting. In

contrast with task-models, temporal relations are not allowed within use case models. This paper proposes

three temporal relations between use cases, making possible the inclusion of more detail in the use case

model, thus enhancing the expressiveness of use cases for modeling requirements and contributing to better

user interface (UI) models generation, within the context of an automatic model-to-model transformation

process between a use case model and a UI model.

1 INTRODUCTION

Important concerns to be modeled, when developing

an interactive software system, are the system’s

informational (or structural) requirements, typically

modeled through a domain (class) model, and the

system required functionality and the way it should

be offered to the users, typically modeled through a

use case model (Frankel, 2003). Use cases are,

probably, the most discussed software engineering

concept and modeling construct. According to the

UML specification, use cases can be used both for

modeling the external requirements of a subject and

the functionality offered by a subject. In both cases

the subject can be the system or a subset of it.

Moreover, use cases can also be used to specify the

requirements the subject (the system) poses on its

environment, by defining how the actors should

interact with the subject (OMG, 2013).

A system use case model may, then, start to be

used as a model of the required system functionality

and the required constraints on the interaction

between the user, playing the role of an actor, and

the system. At this point, each use case specification

is typically made through a textual description. With

requirements being further refined, in each process

iteration, use cases tend to need a less ambiguous

specification than the one provided by human

language. At this point, UML offers semi-formal

ways of specifying use cases, such as

StateMachines, Activities, Interactions, pre-

conditions and post-conditions, or using an Action

Semantics-based language, like Alf (OMG, 2013;

OMG, 2013a). This is the point where use case

information starts to be dispersed among several

sub-models, making the use case model difficult to

read and understand by all the stakeholders.

Besides domain and use case models, an

interactive system’s development typically entails

the construction of a formal user interface model

(UIM) or a set of informal user interface mock-ups.

The user interface (UI) tends to be viewed

differently, depending on what community the UI

modeler/designer is more identified with. The

software engineering (SE) community has a

tendency for leveraging the system functionality

issues and the way the system behavior is

encapsulated for being provided to the users, whilst

the human computer interaction (HCI) community is

more predisposed to develop user task analysis and

address the way the user shall work on the UI.

After analyzing model-based UI development,

especially the task models’ elements and relations,

this paper proposes a new set of temporal relations,

based on the ones found in task models, to enhance

use case decomposition when refining (concretizing)

use case models.

Rosado da Cruz A..

Reﬁning Use Cases through Temporal Relations.

DOI: 10.5220/0005091900950102

In Proceedings of the 9th International Conference on Software Paradigm Trends (ICSOFT-PT-2014), pages 95-102

ISBN: 978-989-758-037-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

The next section elaborates on the ways use case

behaviors, including interaction between the actor

and the system, can be constrained within UML use

case models. Section 3 digresses about model-based

UI development, in particular task models, and

overviews related work. In section 4, an extension to

the UML metamodel is proposed, comprising a set

of new use case relations for helping better

structuring use case models, and better supporting

UI generation from the other available system

models, namely domain and use case models. An

example of the new use case relations usage is also

presented in section 4. Finally, section 5 concludes

the paper and presents some ideas for future work.

2 CONSTRAINING

INTERACTION IN USE CASES

2.1 Introduction

As mentioned earlier, use cases can be used both for

modeling the external requirements of a subject and

the functionality offered by a subject. The subject is

the system state, that instantiates the system domain

model, or a subset of it. Use cases also specify the

requirements the system poses on its environment,

by constraining the way actors should interact with

the system (OMG, 2013). Use cases describe how an

instance of the use case and a user playing the role

of an actor interact. This interaction specification,

through use cases, is not, however, detailed to the

task level, rather being made at a system function

level. Use cases represent system functions put

available to the users, and these interact with those

system functions through interaction spaces. An

interaction space, itself, is modeled through a UIM.

Use case behavior is instantiated in the context of an

interaction space.

When further decomposing use cases with other

use cases, by using use case relations, such as

Include and Extend (refer to subsection 2.2), also the

initial use case behavior is being decomposed

through the new, related, use cases. The initial use

case behavior involves, now, orchestrating the

behaviors of the subordinate use cases, which are

included in, or extend, the former. In UML, it is not

possible to model this orchestration directly in the

use case model.

If use case decomposition can be made to a point

where the most detailed use cases only involve

CRUD operations on their subject entities, then the

use cases need not be further specified through other

models, as their behavior may be inferred from their

name, or a brief textual description.

Next subsection overviews UML use case

relations.

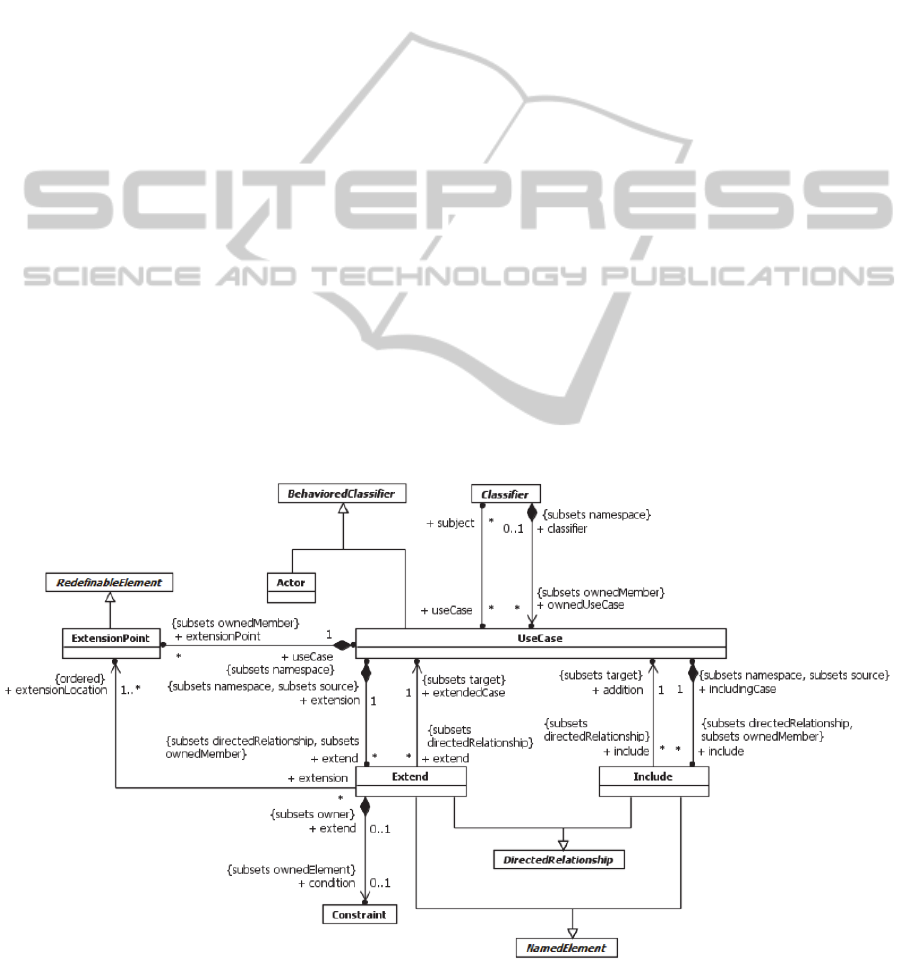

Figure 1: Use Cases portion of the UML metamodel (taken from (OMG, 2013)).

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

2.2 Use Case Relations in the UML

Metamodel

The UML metamodel for use cases (see Figure 1)

supplies two use case relations, namely Extend and

Include, which allow the modeler to organize a use

case behavior into further refined behaviors that are

imported (included) in a bigger, more complex, use

case, and optional or conditional behaviors that may

extend the bigger use case by the actors’ option or

when certain (pre-) conditions hold.

Besides those two relations, as a (Behaviored)

Classifier, a use case may also specialize another use

case through an Inheritance relation. A use case that

inherits from another use case, specializes its

behavior and inherits all its features (included use

cases, associated domain model classifiers and

features, etc.) (OMG, 2013).

3 UI MODELING AND OTHER

RELATED WORK

3.1 Introduction

Interaction between the user and the system takes

place on the UI. The user interface style affects the

nature of this dialogue. Common user interface

styles include (Dix et al, 1998) command line

interfaces, menu-driven interfaces, form-fills and

spreadsheets, point-and-click, WIMP (Windows,

Icons, Menus and Pointers), among others. A given

UI can combine one or more of these interface

styles. What is commonly called a Graphical User

Interface (GUI) is an UI that mixes the WIMP

interface style with any other.

UI is also affected by dialog design and layout.

The way information is presented to the user, and

the screen layout for entering information, have

important effects on the system usability.

User Interface Models (UIM) can be used to

model a user interface of a given system. Dix et al.

(1998) identify the following set of UI model

concerns:

 The definition of allowed system UI states and

transitions;

 The specification of allowed sequences of user

events and system events on the UI;

 The establishment of a link between the events

on the UI and the core system's functionality;

 How is the information (abstractly) presented

to the user;

 What is the concrete aspect of that

presentation?

The concerns identified above are addressed by

disparate UIM sub-models or model views.

Martikainen (2002) defines a user interface

model as “a declarative specification of a user

interface, including its appearance, the connections

between its elements or how it interacts with the

underlying application functionality”.

A UI model represents all the relevant aspects of

a user interface in some type of interface modeling

language or notation. UI models are generally task-

oriented and use high abstraction levels to achieve

device independence and UI description reuse

(Puerta & Eisenstein, 1999; Martikainen, 2002).

User Interface model-based development

techniques build a more or less declarative User

Interface Model (UIM), which is typically composed

of various sub-models, or model views. This UIM

captures the relevant aspects of the UI and is

typically developed using a model-based user

interface development environment (MB-UIDE).

Different MB-UIDEs use different kinds of models

specified with different kinds of modeling

languages.

Typically, a model-based UI development

process begins with the construction of a task model.

Afterwards, an abstract user interface model

(AUIM) is built and at the end of the process a

concrete user interface model is constructed.

The next subsection analyses task analysis

techniques, focusing its attention on CTT, a task

modeling notation.

3.2 Task Analysis and Modeling

Task analysis is a technique that may be used to

analyze the way people act when performing their

jobs. Task analysis can be approached by the

following ways (Dix et al, 1998):

 Task decomposition: Decomposes tasks into

subtasks, minding the order in which these are

performed (e.g.: HTA - Hierarchical Task

Analysis);

 Knowledge-based techniques: Focus on what

the users need to know about the objects and

actions involved in a task, and how that

knowledge is organized (e.g.: TAKD - Task

Analysis for Knowledge Description);

 Entity-relation-based analysis: Puts an

emphasis on identifying actors and objects, the

relationships between them and the actions

they perform (e.g.: ATOM - Analysis for Task

Object Modeling Method).

RefiningUseCasesthroughTemporalRelations

CTT (ConcurTaskTrees) is a widely adopted

graphic notation for specifying task models. It has a

hierarchical structure, just like hierarchical task

analysis, which enables reusable task structures to be

defined at both a low and a high semantic level.

ConcurTaskTrees enables the use of operators

that link subtasks at the same abstraction level,

which describe a temporal relationship between

tasks. This type of information was not usually

formally present in task models. By allowing the

modeler to use these operators it is possible to

express clearly the logical temporal relationships,

which shall be taken into account in the user

interface implementation to allow the user to

perform at any time the tasks that should be active

from a semantic point of view.

The operators used by CTT to describe the

temporal relationships are (Paternó et al, 1997;

Paternó, 2003; W3C, 2014):

 T1 ||| T2, interleaving: the actions of tasks T1

and T2 can be performed concurrently,

without specific constraints;

 T1 |=| T2, order independence: the actions of

tasks T1 and T2 can be performed in any

order;

 T1 || T2, parallelism: the actions of tasks T1

and T2 can be performed in true parallelism;

 T1 |[ ]| T2, synchronization: tasks T1 and T2

must synchronize on some actions and may

exchange information;

 T1 >> T2, enabling: when task T1 is

terminated, task T2 is activated;

 T1 []>> T2, enabling with information

passing: when task T1 is terminated, task T2 is

activated, and T1 passes information to T2;

 T1 [> T2, deactivation/disabling: when one

action from task T2 occurs, T1 is deactivated;

 T1 [] T2, choice: it is possible to choose one

task from the ones presented;

 T1*, iteration: the task is iterative;

 T1(n), finite iteration: the number of times the

task is performed is specified;

 [T1], optional task: task execution is not

mandatory;

 T1 |> T2, suspend-resume: T2 interrupts the

execution of T1. When T2 finishes executing,

T1 may resume its execution.

An example of a task model using the CTT

notation is shown in Figure 2. In CTT tasks can be

allocated to the user or the system. There can also be

abstract tasks, which may have subtasks allocated to

different categories, and interaction tasks, which are

in fact user tasks but have an immediate effect on

the system and yield immediate feedback from it.

3.3 Other Related Work

Approaches for systematizing the gap bridging

between user tasks, or usage scenarios, and the

application object model have been proposed.

Martinez et al. (2002) and Elkoutbi et al. (2006)

detail use case scenarios through sequence or

collaboration diagrams and label them with UI

constraints. Constantine et al. (2003)(Constantine,

2006) propose the use of essential use cases and task

flows. Other proposals were made by Kantorowitz

(2003) and Mahfoudhi et al. (2001).

With respect to proposing the use of temporal or

precedence relations in use case modeling, there are

also some references in the literature, such as (Somé,

2007), which introduces two constructs to be used

when describing a use case: Follows, which

identifies the use cases that the one being specified

must follow; and Enable/Enable in Parallel, which

identifies the use cases enabled by the one being

described.

Pow-Sang et al. (2008) propose the use of a

<<precede>> relation between use cases, but the

goal is to denote precedence of construction in use

case-driven development processes.

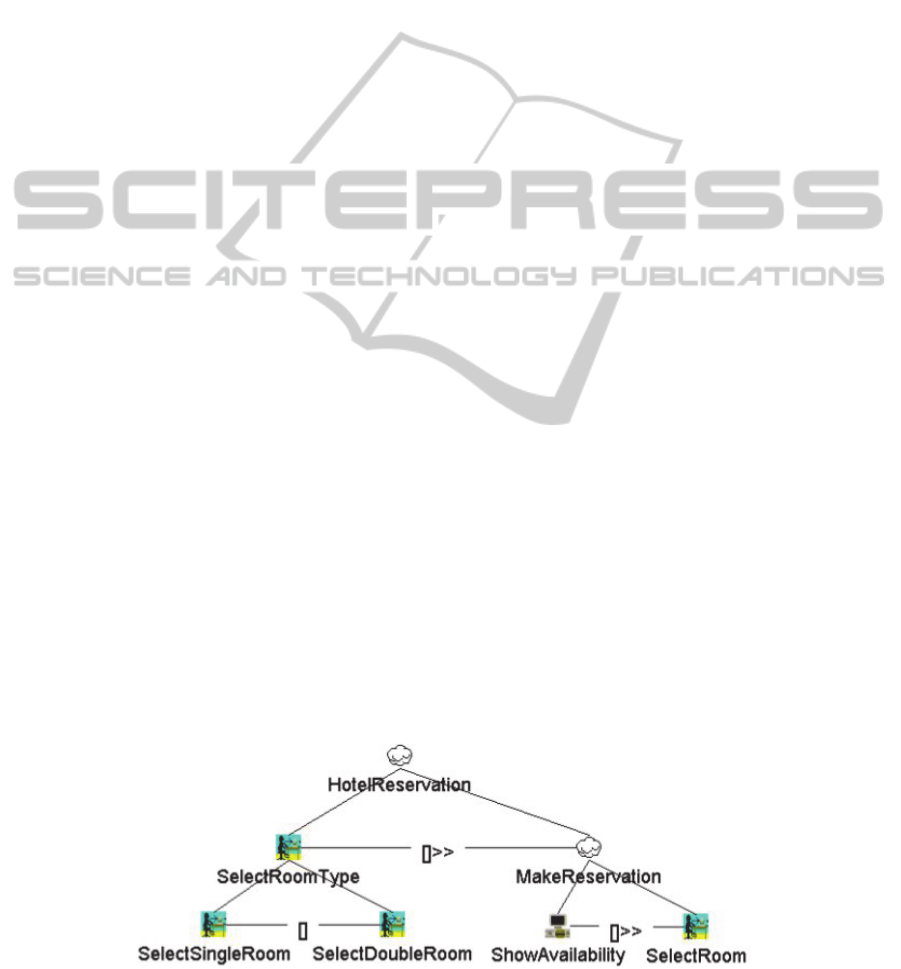

Figure 2. Example of a CTT task model (taken from (W3C, 2014)).

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

4 EXTENDING THE UML

METAMODEL FOR USE CASES

4.1 Introduction

After discussing temporal relations in the context of

use case models, this section proposes an extension

to the UML metamodel for use cases, in order to

empower it with temporal use case relations, and for

enabling modeling use cases at a very detailed level,

by associating use cases to specific features in their

subject classifiers.

4.2 Discussing Temporal Relations in

the Context of Use Case Models

In the following discussion, we will use the term top

level use case to refer to an independent use case

directly linked to an actor (Cruz & Faria, 2010;

Cruz, 2014). Top level use cases are not included

and do not extend any other use case. Conversely,

they may include and be extended by other use

cases, just as any other use case can.

Task models and use case models have different

goals, namely to model user and system tasks within

an interaction, for the former, and to model the

functions made available by the system to its users,

for the latter. Use case models aim, also, to constrain

the interactions’ context, namely the way the system

and the user interact. Nevertheless, UML does not

address task modeling, being the use case model the

most appropriate way of approximating it. Despite

that, use case models do not comprise temporal

relations as the ones seen in task models.

The top level node (root) of a task model,

however, may roughly correspond to a top level use

case. Subsequently, a task model (tree) decomposes

its root into detailed sub-tasks, specifying how these

are temporally related to perform the root task. Each

sub-task can be further decomposed into more sub-

tasks. A task can be the user’s or the system’s

responsibility.

A top level use case, or any other use case, may

be decomposed into other use cases that may be

included in, or may extend, the first one. Included

and extending use cases decompose the including

use case functionality into sub-functions. UML

offers no way of orchestrating those use cases, either

by having a use case enable or disable another, or by

providing a set of alternative use cases.

While use case inclusions are mandatory

behaviors (sub-functions) that must be instantiated

when performing the corresponding top use case,

extension use cases are commonly understood as

being optional use cases, if they don’t have a

condition, or conditional use cases, when a

triggering condition is set.

In a use case model, all use cases directly

available to an actor, are available in parallel to any

user playing the role of the actor. So the user may

always choose the use case within which he/she

wants to interact with the system. So directly

accessible use cases are inherently concurrent, and

may happen in parallel or in any order (although

through pre- and post-conditions the modeler is able

to constrain order or parallelism/concurrency).

Although, while specifying a use case through an

activity model, it is possible to specify the forking of

parallel activities and the synchronization of

activities, synchronization between use cases is not

possible to model in a use case model.

Use case iteration or finite iteration do not make

sense, as a use case can be performed any number of

times. Despite that, UML allows to define

multiplicity in an Actor-UseCase association,

enabling a one-to-many association between an

Actor and a UseCase, meaning that the actor may

initiate the use case behavior iteratively.

Optional and conditional use cases may already

be modeled with use case Extend relation.

From this discussion, follows that the use case

model expressiveness could extremely benefit from

the following temporal relations:

 Use case enabling, with or without

information passing: this would allow

imposing an order on included or extending

use cases;

 Use case deactivation, and

 Use case choice: this would allow some types

of alternative scenarios being modeled directly

in the use case model.

The following subsection proposes a UML

metamodel extension for enabling the new temporal

use case relations referred to above.

4.3 New Use Case Relations

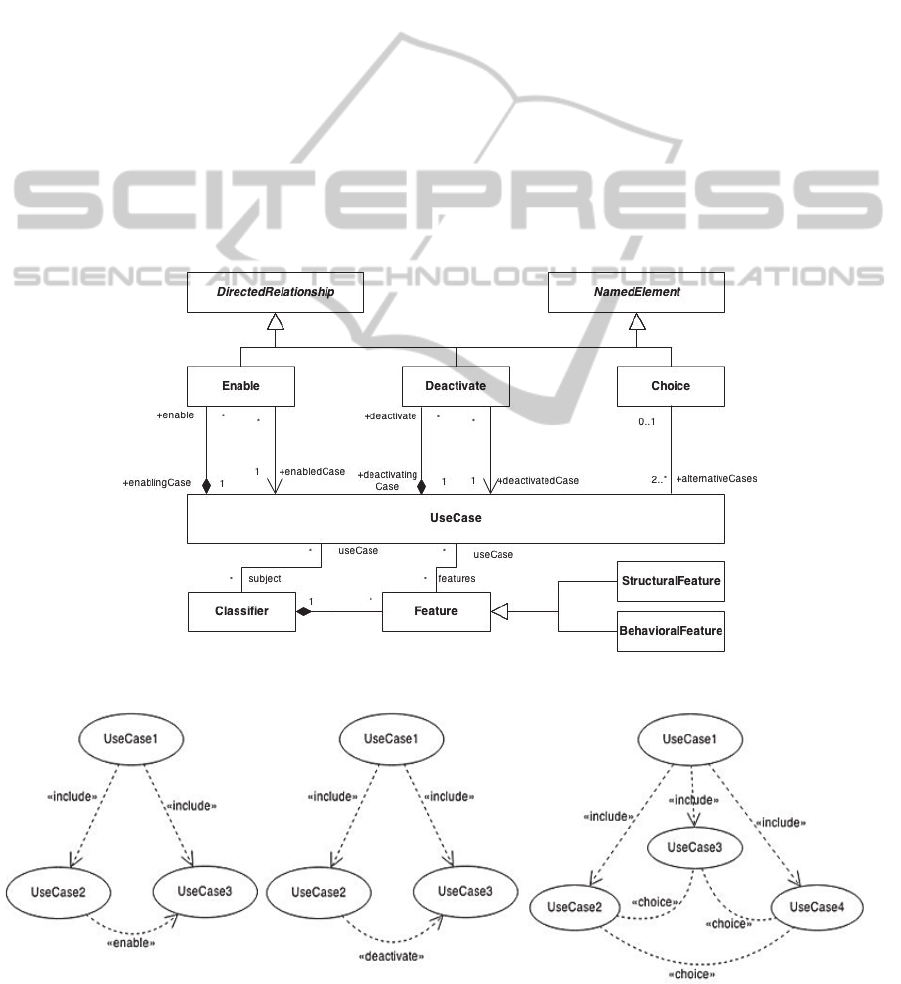

Figure 3 illustrates the proposed additions to the

UML metamodel for use cases. The defined

metamodel extension adds three new use case

relations.

The Enabling relation may be defined between

two use cases included within another use case that

sets a common context. Only when the enabling use

case is performed, the enabled use case may be

performed by the actor accessing them. This is

equivalent to the following OCL precondition in the

enabled use case, assuming that a

BehavioredClassifier method isperformed() exists,

RefiningUseCasesthroughTemporalRelations

yielding whether a use case behavior has already

been performed in the current execution trace:

Context enableduc pre: enablinguc.isperformed()

(1)

The Deactivation relation may be defined

between two use cases included in/extending another

use case that sets a common context. The execution

of the deactivating case disables the deactivated one.

This is equivalent to the following OCL

precondition in the deactivated use case:

Context deactivateduc pre:

not deactivatinguc.isperformed()

(2)

The Choice relation enables the definition of

alternative use cases included in/extending another

use case that sets a common context. By performing

one of the choice related use cases, the actor disables

all the others. This is equivalent to the following

OCL precondition in all the alternative use cases uc

(i=1… n):

Context uc

pre:

not uc

.isperformed() and

not uc

.isperformed() and … and

not uc

i-1

.isperformed() and

not uc

i+1

.isperformed() and … and

not uc

.isperformed()

(3)

Temporal, task-model-like, relations between

use cases allow to further increase the expressive

power of use case models, namely by incorporating

interaction relevant constraints, that also apply to

use case behaviors, and thus enable using use case

models as a basis for UIM derivation within a

model-driven development setting (Cruz & Faria,

2010).

Just like with Include and Extend relations, the

concrete notation for task model-like relations

makes use of proper stereotyping of use case

relations with “enable”, “deactivate” or “choice”.

Figure 3: Extending the UML metamodel with three new use case relations.

Figure 4: Proposed concrete notation for the three new temporal relations.

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

100

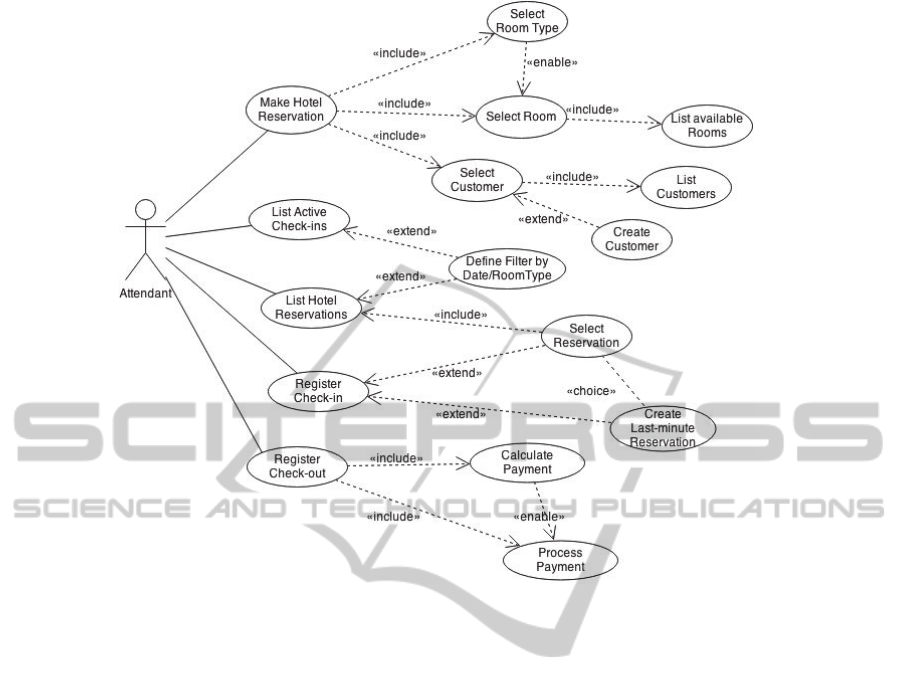

Figure 5: Example use case model (UCM) for a Hotel Management System.

Figure 4 shows the concrete notations for the

new proposed use case relations. When only two use

cases are related through the choice relation, the

concrete notation for choice may also be the one in

Figure 5.

Besides the three new use case temporal

relations, the proposed metamodel also allows the

modeler to define use cases that are at decreasing

abstraction levels, for instance by including a use

case whose subject is not a complete Classifier, but a

structural or behavioral feature of one. For this, the

Use Case Metamodel is extended with an association

to Feature (e.g.: Property, Operation). In Figure 3,

one can see that, besides the Classifier subject, a use

case may have associated features, from its subject

Classifiers, which are affected by its behaviors.

For example, one can define an enable relation

between use cases associated to an entity and to

allowable CRUD operations, but it is also possible to

have an enable relation between use cases associated

to entity features stating, for instance, that some

operation can only be performed after setting the

value of a given entity property or use case

parameter.

In fact, a use case can be inner defined by

including use cases, whether it is associated to a

domain Entity or not. We call the use case that is

defined at the expenses of included cases associated

to entity properties or use case variables an

aggregator use case. At its lowest abstraction level,

this kind of use cases, together with the properly

stereotyped use case relations, allow the modeler to

define which set of attributes must be set first, and

which depend on others, or are deactivated by

setting other attributes. At this modeling level, it is

possible to associate an included use case to a class'

attribute, user-defined operation, or CRUD

operation. It is allowed to have a use case, associated

or not to any class, which has several included use

cases associated to different entity classes or

features.

4.4 Example

Figure 5 shows an example of using use case

relations, with some of the new temporal relations

for relating use cases detailing another use case. A

domain model, integrated to this use case model, is

expected to exist (Frankel, 2003; Cruz&Faria, 2010).

Note that the first use case, “Make Hotel

Reservation”, roughly corresponds to the task model

in Figure 2, but is oriented not to the user tasks in

the system and corresponding system feedback, but

to the system offered functionality, as expected from

a use case model. “Make Hotel Reservation”

includes three use cases. The enable relation ensures

RefiningUseCasesthroughTemporalRelations

101

that the user/actor can only interact with the system

within “Select Room”, after completing the

interaction within “Select Room Type”. “Select

Room” includes “List available Rooms”, from which

list a room must be selected by the user/actor.

“Select Customer” use case may be initiated

before or after selecting a room type and a room.

Selecting a customer includes listing customers, but

the user/actor may extend it with “Create

Customer”.

In “Register Check-in” the user must choose

from selecting a reservation, from the list of existing

hotel reservations, or create a new last-minute

reservation. Thus, only one of the two extensions is

executed in each “Register Check-in” execution.

5 CONCLUSIONS

Based on existing task-models’ temporal relations,

this paper proposes, for using in the use case

modeling framework, three new temporal relations.

For that purpose, an extension to the UML

metamodel for use cases is proposed, together with

concrete notations for the new use case relations.

The proposed relations make possible the

inclusion of more detail in the use case model, and

thus contribute to better UI models, within the

context of an automatic model-to-model

transformation process between a use case model

and a UIM.

Ongoing work, within project Amalia (Agile

Model-driven Application Development Method and

Tools), is developing a modeling tool for the

integrated development of a system domain, use

case and UI models.

REFERENCES

Constantine, L., Windl, H., Noble, J., Lockwood, L., 2003.

From abstraction to realization: Canonical abstract

prototypes for user interface design. Revised Working

Paper: http://www.foruse.com/articles/canonical.pdf.

Constantine, L., 2006. Activity modeling: Toward a

pragmatic integration of activity theory with usage-

centered design. Technical Paper. Revision 2.0.

Cruz, A.M.R., 2014. A Pattern Language for Use Case

Modeling. In Proceedings of the 2nd Int’l Conf. on

Model-Driven Engineering and Software Development

(Modelsward 2014), Lisboa, Portugal, INSTICC Press.

Cruz, A.M.R., Faria, J.P., 2010. A Metamodel-based

Approach For Automatic User Interface Generation. In

13th ACM/IEEE Int’l Conf. on Model Driven Eng.

Languages and Systems (Models 2010), Part 1, LNCS

6394, pp.256-270, Oslo, Norway, Springer.

Dix, A., Finlay, J., Abowd, G., Beale, R., 1998. Human-

Computer Interaction. Prentice Hall, 2nd edition.

Elkoutbi, M., Khriss, I., Keller, R.K., 2006. Automated

prototyping of user interfaces based on UML

scenarios. Journal of Automated Software

Engineering, 13(1):5-40, January.

Frankel, D.S., 2003. Model Driven Architecture - Applying

MDA to Enterprise Computing. Wiley Publishing,

Inc., Indianapolis.

Kantorowitz, E., Lyakas, A., Myasqobsky, A., 2003. A use

case oriented user interface framework. Proceedings

IEEE International Conference on Software - Science,

Technology and Engineering (SwSTE'03), pp 93-100.

Mahfoudhi, A., Abed, M., Tabary, D., 2001. From the

formal specications of users tasks to the automatic

generation of the HCI specications. People and

Computers XV - Interaction without Frontiers. Joint

Proceedings of HCI 2001 and IHM 2001, pp 331-347.

Martikainen, M., 2002. An XML-based framework for

developing usable and reusable user interfaces for

multi-channel applications. Pro gradu thesis, report,

Dept of Computer Science, University of Helsinki.

Martinez, A., Estrada, H., Sánchez, J., Pastor, O., 2002.

From early requirements to user interface prototyping:

A methodological approach. In Int’l Conf. ASE 2002,

pp 257-260.

OMG, 2013. OMG Unified Modeling Language (OMG

UML). Version 2.5, 2013. Available in

http://www.omg.org/spec/UML/2.5/Beta2/.

OMG, 2013a. Action Language for Foundational UML

(Alf) - Concrete Syntax for a UML Action Language,

Version 1.0.1, 2013.

Paternó, F., Mancini, C., Meniconi, S.. ConcurTaskTrees:

A diagrammatic notation for specifying task models.

In INTERACT '97: Proc. of the IFIP TC13 Int’l Conf.

on HCI, pp 362-369, London, UK, Chapman & Hall.

Paternó, F., 2003. The handbook of Task Analysis for

Human-Computer Interaction, chapter

ConcurTaskTrees: An engineered notation for task

models, pp 483-503. D. Diaper and N. Stanton.

Pow-Sang, J.A., Nakasone, A., Imbert, R., Moreno, A.M.,

2008. An Approach to Determine Software

Requirement Construction Sequences based on Use

Cases. In Proc. of Advanced Software Engineering

and its Applications, ASEA 2008, pp. 17-22.

Puerta, A., Eisenstein, J., 1999. Towards a general

computational framework for model-based interface

development systems. In Proc. of the 4th Int’l Conf.

on Intelligent UIs, pp 171-178, NY, USA, ACM Press.

Somé, S. S., 2007. Specifying Use Case Sequencing

Constraints using Description Elements. In Sixth Int’l

Workshop on Scenarios and State Machines

(SCESM’07). IEEE CS.

W3C, 2014. MBUI – Task Models. W3C Working Group

Note 08 April 2014. Available at

http://www.w3.org/TR/task-models/

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

102
